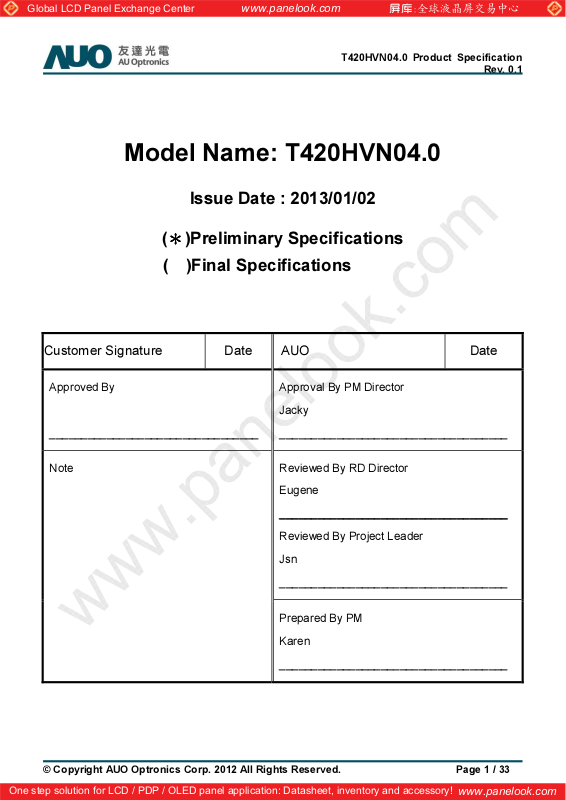

AUO T420HVN04.0 Specification

Global LCD Panel Exchange Center

Model Name: T420HVN04.0

(ϠϠϠϠ)Preliminary Specifications

( )Final Specifications

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Issue Date : 2013/01/02

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Jacky

____________________________________

Reviewed By RD Director

Eugene

____________________________________

Reviewed By Project Leader

Jsn

____________________________________

Prepared By PM

Karen

____________________________________

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DEFINITION OF LABEL

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Record of Revision

Version Date Page Description

0.0 2012/12/26 First release

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

0.1 2013/01/02

2013/01/03

4

23

18

19

25

Update Note of Outline Dimension

Update driver board pin assignment

Update Power Sequence for Backlight

Update Front drawing

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

1. General Description

This specification applies to the 42.02 inch Color TFT-LCD Module T420HVN04.0. This LCD module has a TFT

active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 42.02 inch. This module supports

1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T420HVN04.0 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important.

* General Information

Items Specification Unit Note

Active Screen Size 42.02 inch

Display Area 930.24(H) x 523.26(V) mm

Outline Dimension 952.2(H) x 547.0(V) x 25.9(D) mm D: front bezel to driver board cover

Driver Element a-Si TFT active matrix

Bezel Opening 937.2 (H) x 530.2 (V) mm

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.4845 (H) x 0.4845(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Rotate Function Unachievable

Display Orientation Signal input with “ABC” Note 1

Note 1: LCD display as below illustrated when signal input with “ABC”.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb shoul

  

The relative humidity must not exceed 90% non-



 

    



 









  

 



               

 



 

      

      

  





 

Note 3: Surface temperature is measured at 50к Dry condition



 

         





  



   



 



        

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

3. Electrical Specification

The T420HVN04.0 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The other powers the Back Light Unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Rev. 0.1

Parameter Symbol

Unit Note

Min. Typ . Max

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 1.1 1.21 A 1

Power Consumption PC -- 13.2 14.6 Watt 1

Value

Inrush Current I

Permissible Ripple of Power Supply Input Voltage

Input Differential Voltage

-- -- 4 A 2

RUSH

V

-- -- VDD * 5% mV

ЮV

RP

Ю

ID

200 400 600 mV

pk-pk

4

DC

3

Differential Input High Threshold

+100 -- +300 mVDC 4

V

LVDS

Interface

CMOS

Interface

Voltage

Differential Input Low Threshold

Voltage

Input Common Mode Voltage V

Input High Threshold Voltage

Input Low Threshold Voltage

TH

V

-300 -- -100 mVDC 4

TL

1.1 1.25 1.4 VDC 4

ICM

V

IH

(High)

V

IL

(Low)

2.7 -- 3.3 V

0 -- 0.6 V

5

DC

5

DC

Backlight Power Consumption PBL -- TBD TBD Watt

Life time (MTTF) 30000 Hour 8,9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.1.2: AC Characteristics

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Parameter Symbol

Receiver Clock : Spread Spectrum Modulation range ʳ

LVDS Interface

Receiver Clock : Spread Spectrum Modulation frequencyʳ

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHzʳ

Note :

1. V

2. Measurement condition : Rising time = 400us

= 12.0V, Fv = 60Hz, Fclk= Max freq. , 25

DD

>> refer to “Section:3.3 Signal Timing Specification, Typical timing”

GND

10%

Value

Unit Note

Min. Typ . Max

Fclk_ssʳ

Fclk

-3%ʳ

--ʳ

Fclk

+3%ʳ

MHzʳ 6

Fssʳ 30ʳ --ʳ 200ʳ KHzʳ 6

0.4

0.5ʳ

nsʳ 7



tRMGʳ



!



#

"

90%

-0.4

-0.5ʳ

( ) *

" "

$

% & '

V

DD

"

#$

--ʳ

" "

% &

3. Test Condition: (1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

LVDS -

V

IC M

LVDS +

GND

0V

400

|VID|

sμ

V

TH

|VID|

V

TL

|VID|

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. The measure points of V

IH

6. LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

Fclk_ss(max)

Fclk

Fclk_ss(min)

and V

www.panelook.com

T420HVN04.0 Product Specification

are in LCM side after connecting the System Board and LCM.

IL

1/F

SS

Rev. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. Receiver Data Input Margin

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG| 2T/7 2T/7+|tRMG| ns

Input Data Position3 tRIP5 3T/7-|tRMG| 3T/7 3T/7+|tRMG| ns

Input Data Position4 tRIP4 4T/7-|tRMG| 4T/7 4T/7+|tRMG| ns

Input Data Position5 tRIP3 5T/7-|tRMG| 5T/7 5T/7+|tRMG| ns

Input Data Position6 tRIP2 6T/7-|tRMG| 6T/7 6T/7+|tRMG| ns

Rating

Unit Note

tRIP2

tRIP3

tRIP4

tRIP5

T=1/Fclk

tRIP6

tRIP0

tRIP1 LVDS- Rx Input Data

Rx 1 Rx0 Rx6 Rx5 Rx 4 Rx3 Rx 2 Rx 1 Rx 0 Rx 6Rx 2Rx 3

LVDS- Rx

V

= 0V

Input Clock

dif f

1/Fcl k=T

8. The relative humidity must not exceed 80% non-condensing at temperatures of 40к or less. At

temperatures greater than 40к, the wet bulb temperature must not exceed 39к. When operate at low

temperatures, the brightness of LED will drop and the life time of LED will be reduced.

9. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2к]

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

3.2 Interface Connections



LCD connector: FI-RE51S-HF (JAE,LVDS connector)

Mating connector



PIN Symbol Description PIN Symbol Description

Rev. 0.1

1 N.C.

2 SCL EEPROM Serial Clock 27 N.C.

3WP

4 SDA EEPROM Serial Data 29 CH2_0+ LVDS Channel 2, Signal 0+

5N.C.

6N.C.

7 LVDS_SEL

8 N.C.

9 N.C.

10 N.C.

11 GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +

12 CH1_0- LVDS Channel 1, Signal 0- 37 GND Ground

13 CH1_0+ LVDS Channel 1, Signal 0+ 38 CH2_3- LVDS Channel 2, Signal 3-

14 CH1_1- LVDS Channel 1, Signal 1- 39 CH2_3+ LVDS Channel 2, Signal 3+

15 CH1_1+ LVDS Channel 1, Signal 1+ 40 N.C.

16 CH1_2- LVDS Channel 1, Signal 2- 41 N.C.

17 CH1_2+ LVDS Channel 1, Signal 2+ 42 N.C.

18 GND Ground 43 N.C.

19 CH1_CLK- LVDS Channel 1, Clock - 44 GND Ground

20 CH1_CLK+ LVDS Channel 1, Clock + 45 GND Ground

21 GND Ground 46 GND Ground

22 CH1_3- LVDS Channel 1, Signal 3- 47 N.C.

23 CH1_3+ LVDS Channel 1, Signal 3+ 48 V

24 N.C. No connection (for AUO test 49 V

No connection (for AUO test

only. Do not connect)

EEPROM Write Protection

High(3.3V) for Writable,

Low(GND) for Protection

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

Open/High(3.3V) for NS,

Low(GND) for JEIDA

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

No connection (for AUO test

only. Do not connect)

26 N.C.

28 CH2_0- LVDS Channel 2, Signal 0-

30 CH2_1- LVDS Channel 2, Signal 1-

31 CH2_1+ LVDS Channel 2, Signal 1+

32 CH2_2- LVDS Channel 2, Signal 2-

33 CH2_2+ LVDS Channel 2, Signal 2+

34 GND Ground

35 CH2_CLK- LVDS Channel 2, Clock -

DD

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

No connection (for AUO test only. Do

not connect)

Power Supply, +12V DC Regulated

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

only. Do not connect)

25 N.C.

No connection (for AUO test

only. Do not connect)

51 V

www.panelook.com

50 V

T420HVN04.0 Product Specification

Rev. 0.1

DD

Power Supply, +12V DC Regulated

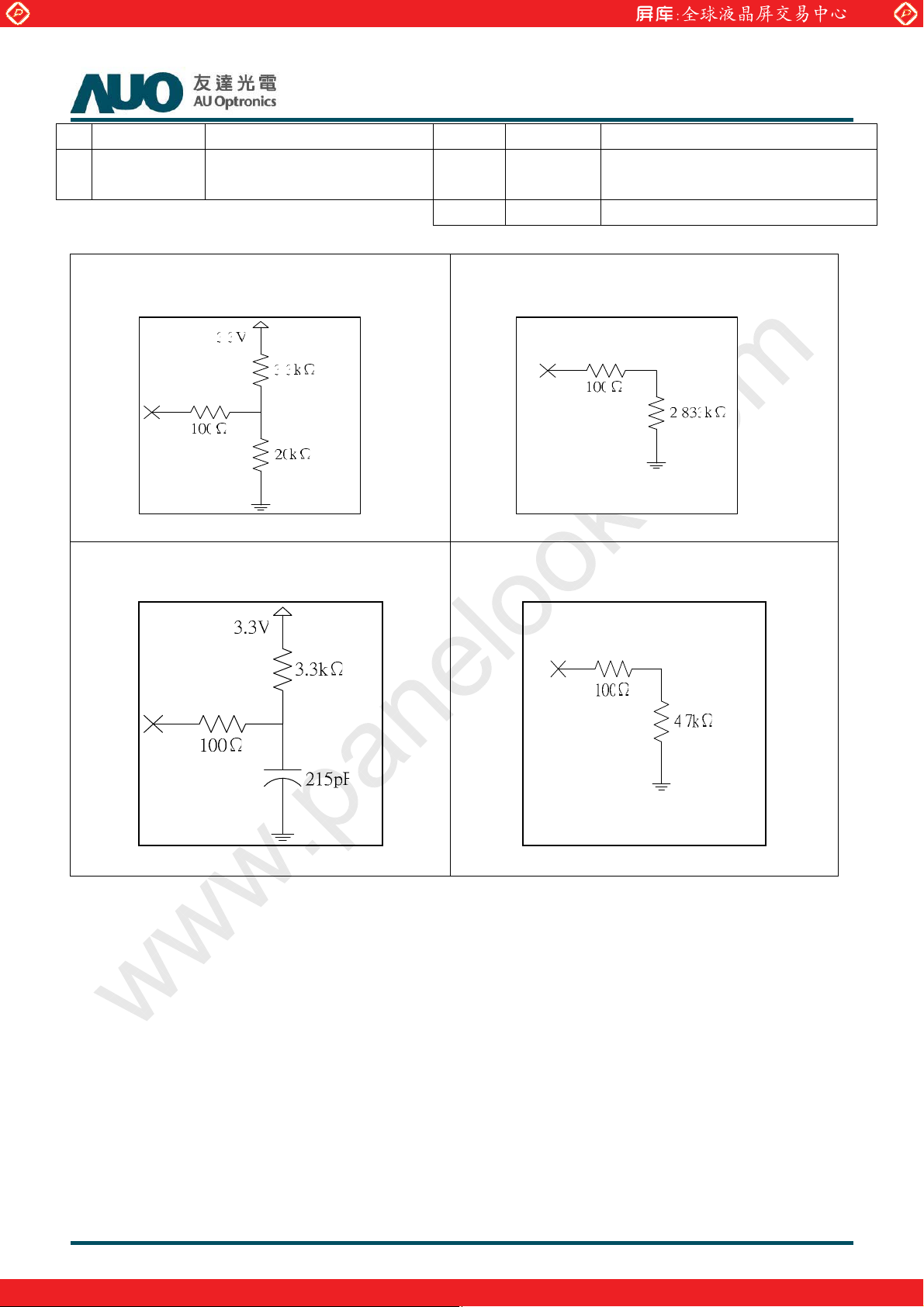

Note * : Open/High(3.3V)

Note *** : SCL/SDA

Note ** : Open/Low(GND)

Note **** : WP

LVDS Option = High/OpenNS

 LVDS Option = High/OpenNS

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Previous Cycle Current Cycle Next Cycle

Clock

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

Note: x = 1, 2, 3, 4…

 LVDS Option = LowJEIDA

Previous Cycle Current Cycle Next Cycle

Clock

R0R5 G0G0R0R1 R2R3R4 R1

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B3

R6B7 NANAR6R7 G6G7B6 R7

CHx_0+ CHx_0-

CHx_1+ CHx_1-

CHx_2+ CHx_2-

CHx_3+ CHx_3-

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6G7 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

Note: x = 1, 2, 3, 4…

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1100 1125 1480 Th

Rev. 0.1

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 53 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency Frequency Fh 60 67.5 73 KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1

left edge of the screen.

(2) Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1

line of screen.

st

Active Tdisp (v) 1080 Th

Blanking Tblk (v) 20 45 400 Th

Period Th 1030 1100 1325 Tclk

Active Tdisp (h) 960 Tclk

Blanking Tblk (h) 70 140 365 Tclk

st

DCLK after the rise of 1st DE, is displayed on the

data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

(3) If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4) The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

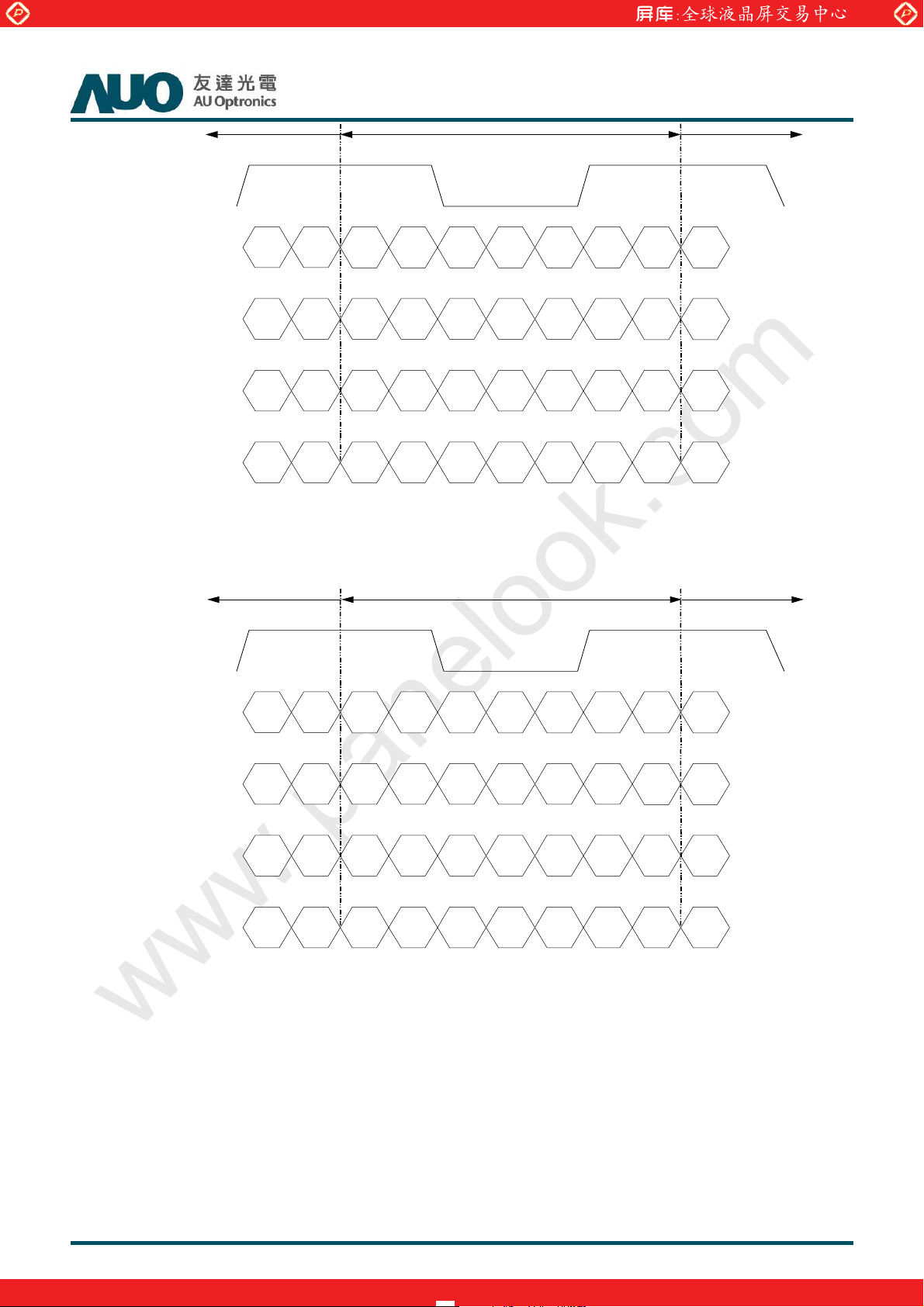

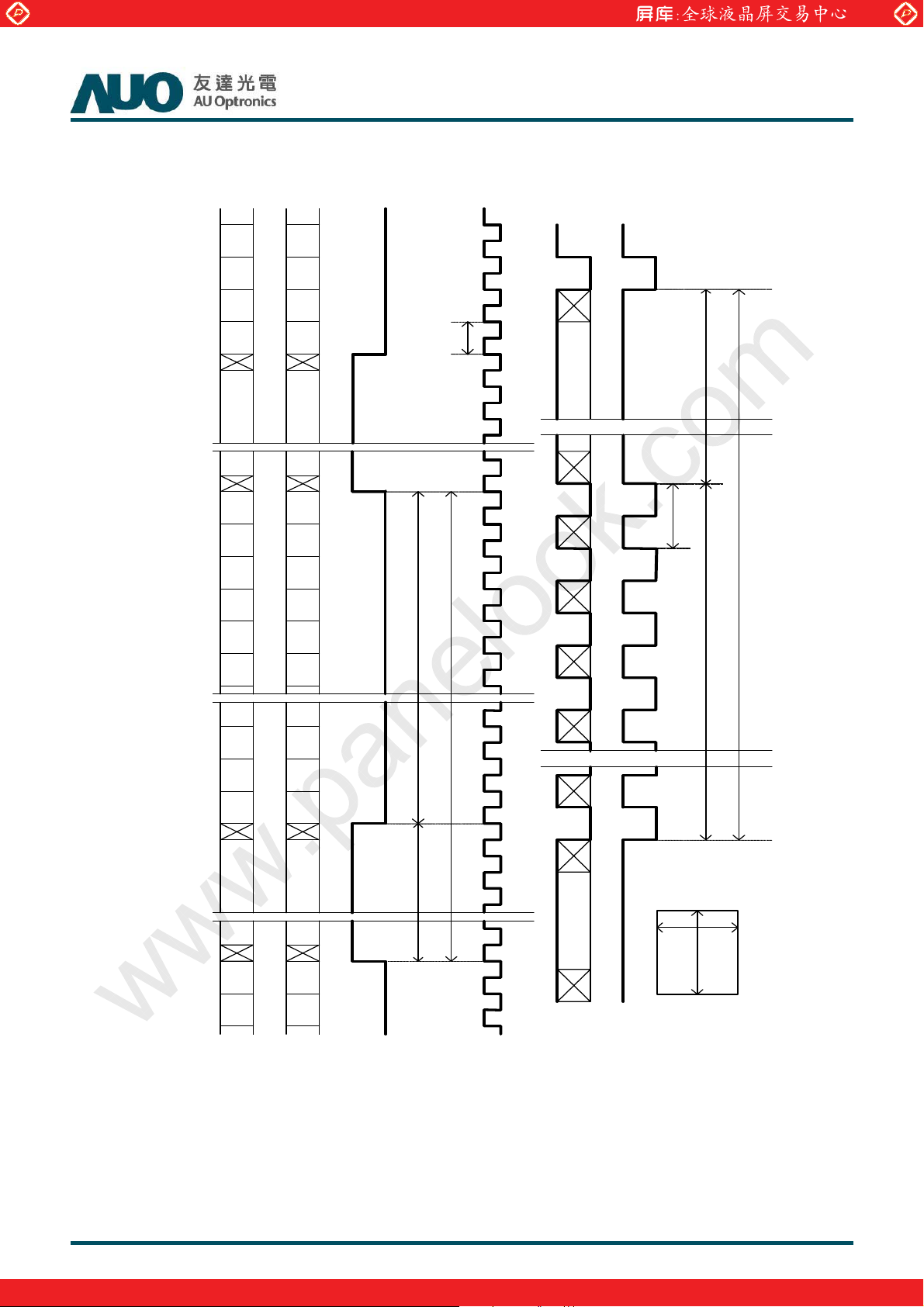

3.4 Signal Timing Waveforms

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

M-6

M-4

M-2

M

2

4

6

8

10

12

M-7

M-5

M-3

M-1

1

3

5

7

9

11

CH1

Pixel

Invalid Data

Pixel

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

CH2

Pixel

Invalid Data

Pixel

M-4

M-2

M

Pixel

Invalid Data

M-5

M-3

M-1

Pixel

Invalid Data

Line

N

N Line

M pixel

Pixel

2

Pixel

4

Pixel

1

Pixel

3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Rev. 0.1

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 000000000000000000000000

Red(255) 111111110000000000000000

Green(255) 000000001111111100000000

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 000000001111111111111111

Magenta 111111110000000011111111

Yellow 111111111111111100000000

White 111111111111111111111111

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.6 Power Sequence for LCD

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Values

Parameter

Unit

Min. Type. Max.

t1 0.4ʳ ---ʳ 30ʳ ms

t2 0.1ʳ ---ʳ 50ʳ ms

t3 450ʳ ---ʳ ---ʳ ms

t4 0*1ʳ ---ʳ ---ʳ ms

t5 0ʳ ---ʳ ---ʳ ms

t6 ---ʳ ---ʳ ---*2ʳ ms

t7 500ʳ ---ʳ ---ʳ ms

t8ʳ

10

*3

ʳ

---ʳ 50ʳ msʳ

t9ʳ 0ʳ ---ʳ ---ʳ msʳ

t10 450ʳ ---ʳ ---ʳ ms

t11 150ʳ ---ʳ ---ʳ ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Backlight Specification (independent driver board)

The backlight unit contains 2pcs light bar.

3.7.1 Electrical specification

T420HVN04.0 Product Specification

Rev. 0.1

Item Symbol Condition

Unit Note

Min Typ Max

1 Input Voltage VDDB - 22.8 24 25.2 VDC -

Spec

2 Input Current I

3 Input Power P

4 Inrush Current I

VDDB=24V -- TBD TBD ADC 1

DDB

VDDB=24V -- TBD TBD W 1

DDB

VDDB=24V 4 ADC 2

RUSH

ON 2 - 5.5 -

5 On/Off control voltage V

On/Off control current I

6

7

8

External PWM

Control Voltage

External PWM

Control Current

V_EPWM

BLON

OFF

VDDB=24V - - 1.5 mA -

BLON

VDDB=24V

VDC

0 - 0.8

MAX VDDB=24V 2 - 5.5 -

VDC

MIN VDDB=24V 0 - 0.8

I_EPWM VDDB=24V - - 2 mADC -

9 External PWM Duty ratio D_EPWM VDDB=24V 5 - 100 % 3

-

10

External PWM

Frequency

F_EPWM VDDB=24V 140 180 240 Hz -

HI Open Collector VDC 4

11 DET status signal DET

Lo

VDDB=24V

0 - 0.8 VDC 4

12 Input Impedance Rin VDDB=24V 300 Kohm -

Note 1 : Dimming ratio= 100% (MAX)ΰ

. /0/

,

+

1

-

3 4 5 6 576 4

2

+

8 /9:

5 3;< =

α

Note 2: Measurement condition Rising time = 20ms (VDDB : 10%~90%);

Note 3: Less than 5% dimming control is functional well and no backlight shutdown happened

Note 4: Normal : 0~0.8V ; Abnormal : Open collector

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.7.2 Input Pin Assignment

LED driver board connector : Cvilux CI0114M1HR0-NH

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6 BLGND Ground and Current Return

7 BLGND Ground and Current Return

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

8 BLGND Ground and Current Return

9 BLGND Ground and Current Return

10 BLGND Ground and Current Return

11 DET

12 VBLON

13 NC NC

14 PDIM(*) External PWM (0%~100% Duty, open for 100%)

(Note*) PWM Dimming range:

BLU status detection:

Normal : 0~0.8V ; Abnormal : Open collector

(Recommend Pull high R > 10K, VDD = 3.3V)

BLU On-Off control:

High/Open (2~5.5V) : BL On ;

Low (0~0.8V/GND) : BL Off

IF External PWM function less than 5% dimming ratio, Judge condition as below: (1)Backlight module must be lighted ON normally. (2)All protection function must work normally. (3)Uniformity and flicker could not be guaranteed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

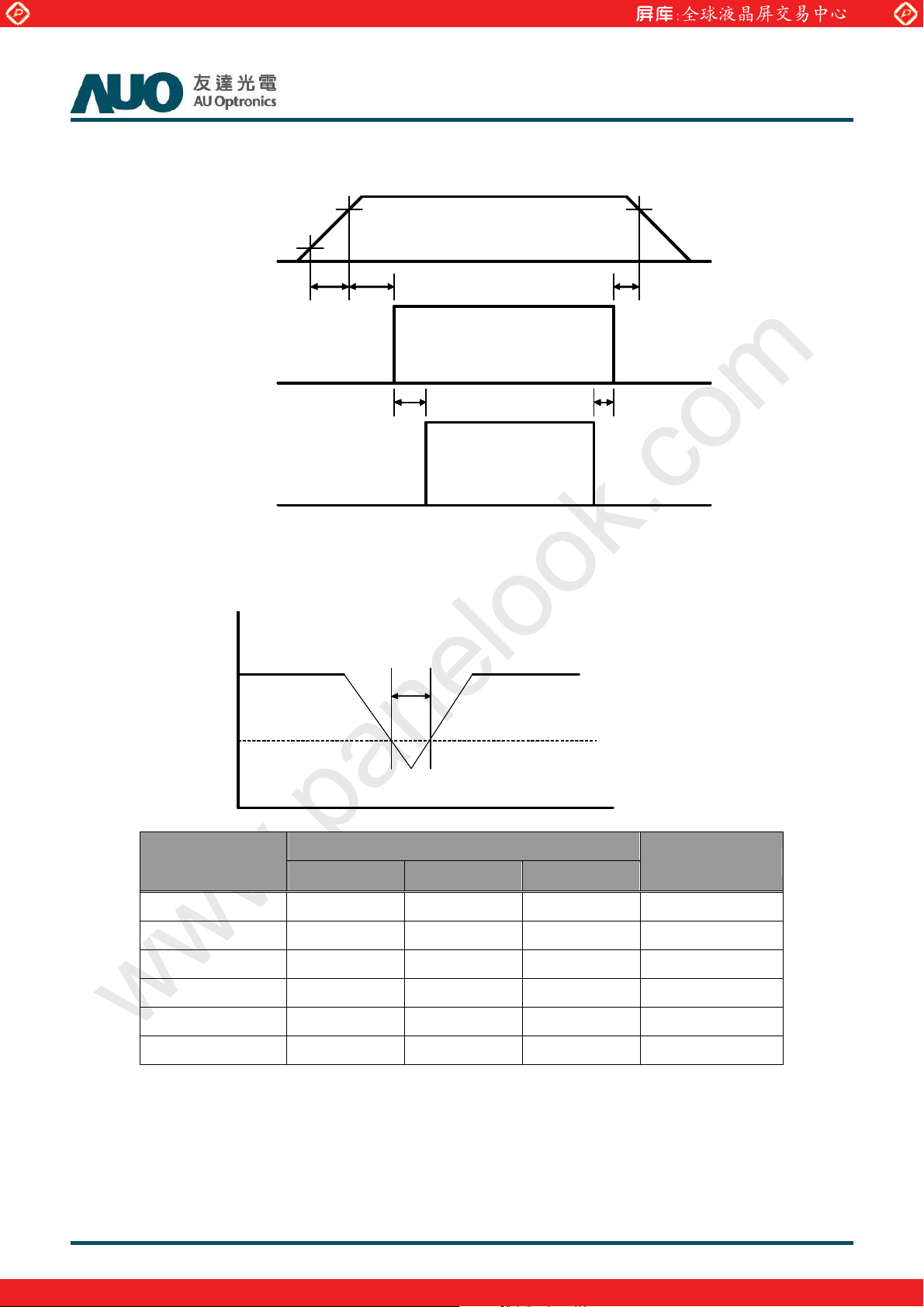

3.7.3 Power Sequence for Backlight

90% 90%

10%

Power Input for BLU

(VDDB)

Dimming Control Signal

(V_IPWM,V_EPWM)

10%

T1 T2

www.panelook.com

24V(typ.)

T3

T420HVN04.0 Product Specification

Rev. 0.1

T5

T4

BLU On/Off Enable

(VBLON)

Dip condition for Inverter

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

Parameter

T1

T2

T3

T4

T5

T6 - - 1000 ms

T6

Value

Min Typ Max

20

250

200

0

- - ms

Units

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

4. Optical Specification

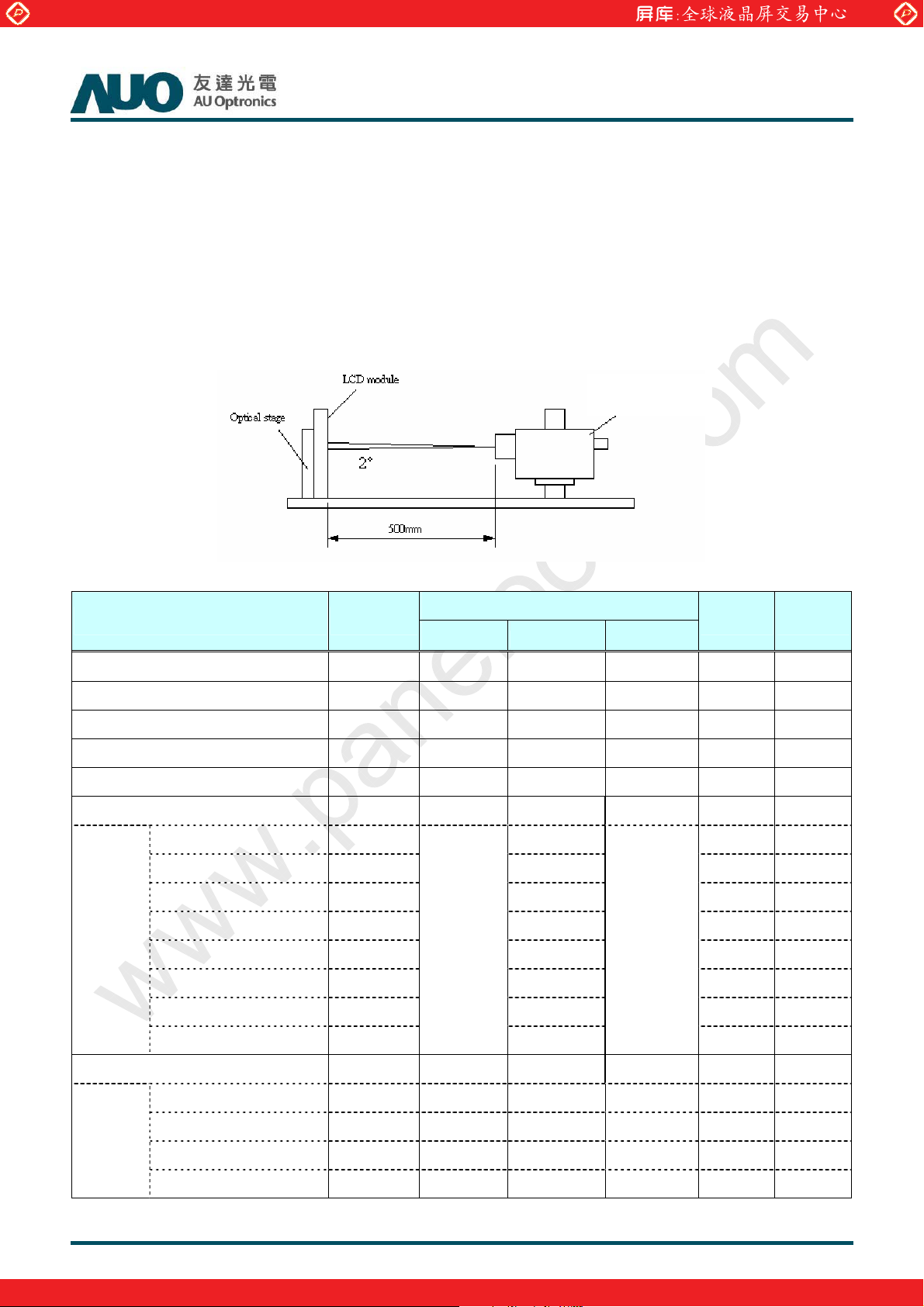

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Rev. 0.1

Parameter Symbol

Min. Typ. Max

Contrast Ratio CR 2400 3000 -- 1

Surface Luminance (White) LWH 280 350 -- cd/m2 2

Luminance Variation δ

WHITE(9P)

-- -- 1.33 3

Response Time (G to G) Tγ -- 6.5 -- ms 4

Color Gamut NTSC 72 %

Color Coordinates

Red RX TBD

R

TBD

Y

Green GX TBD

G

TBD

Y

Typ .-0. 03

Blue BX TBD

B

TBD

Y

White WX 0.280

Value s

Unit Notes

Typ .+0. 03

W

Y

0.290

Viewing Angle 5

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θ

-- 89 -- degree

d

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

L

on5

L

off5

Rev. 0.1

displaying white. From more information see FIG 2. LED current I

input VDDB =24V, I

. = Typical value (with driver board), LWH=Lon5 where Lon5 is the luminance with all

DDB

= typical value (without driver board), LED

F

pixels displaying white at center 5 location.

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

4. Response time T

= Maximum(L

ӫʳ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on F

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

=60Hz to optimize.

v

Measured

Response Time

0% 25% 50% 75% 100%

Target

0% 0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% 25% to 0% 25% to 50% 25% to 75% 25% to 100%

Start

50% 50% to 0% 50% to 25% 50% to 75% 50% to 100%

75% 75% to 0% 75% to 25% 75% to 50% 75% to 100%

100%

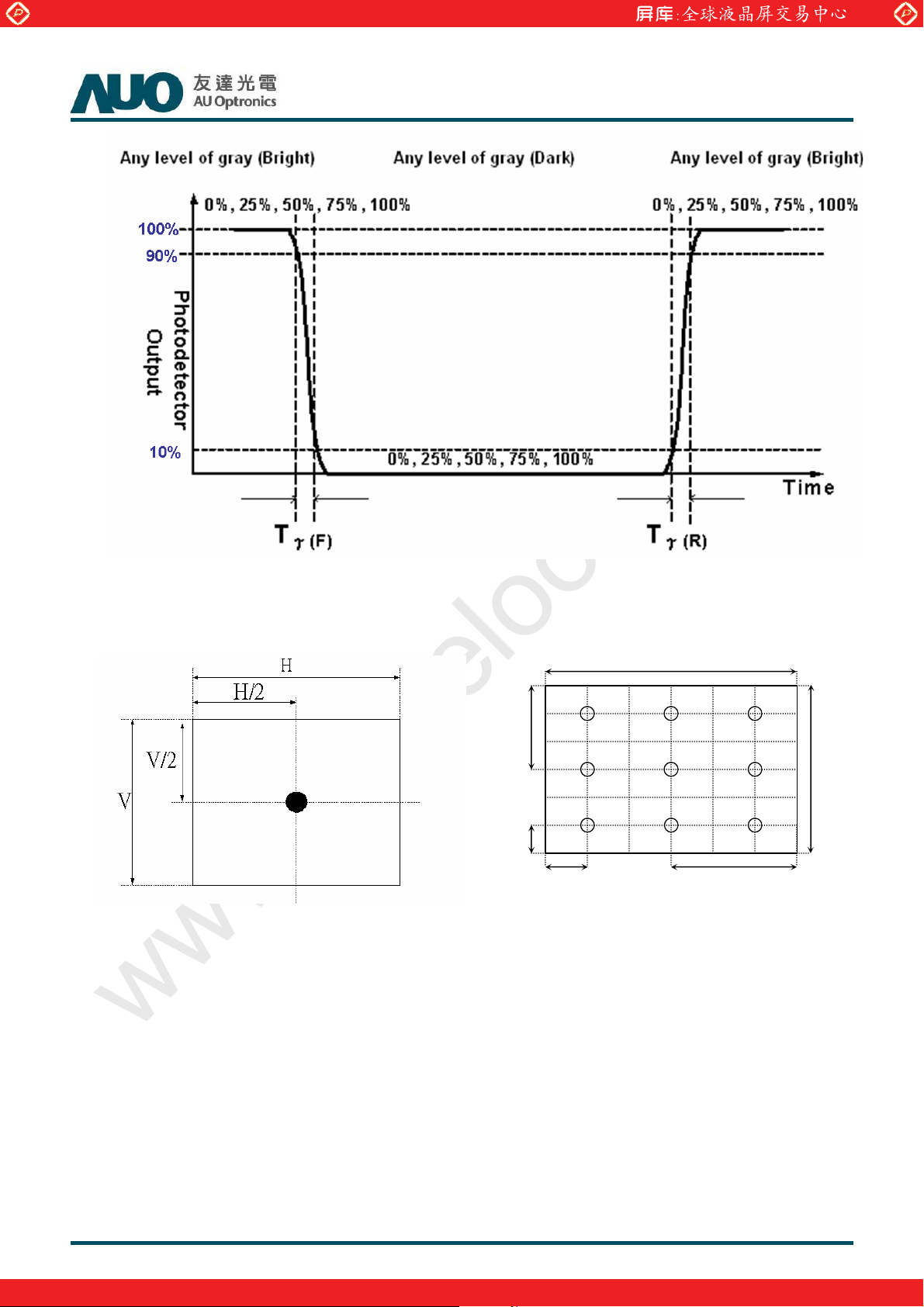

Tӫ is determined by 10% to 90% brightness difference of rising or falling period. (As illustrated)

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of gray(bright) “ and “any level of gray(dark)”.

100% to 0% 100% to 25% 100% to 50% 100% to 75%

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

FIG. 2 Luminance

V

H/2

H/6

1

H

V/2 V/6

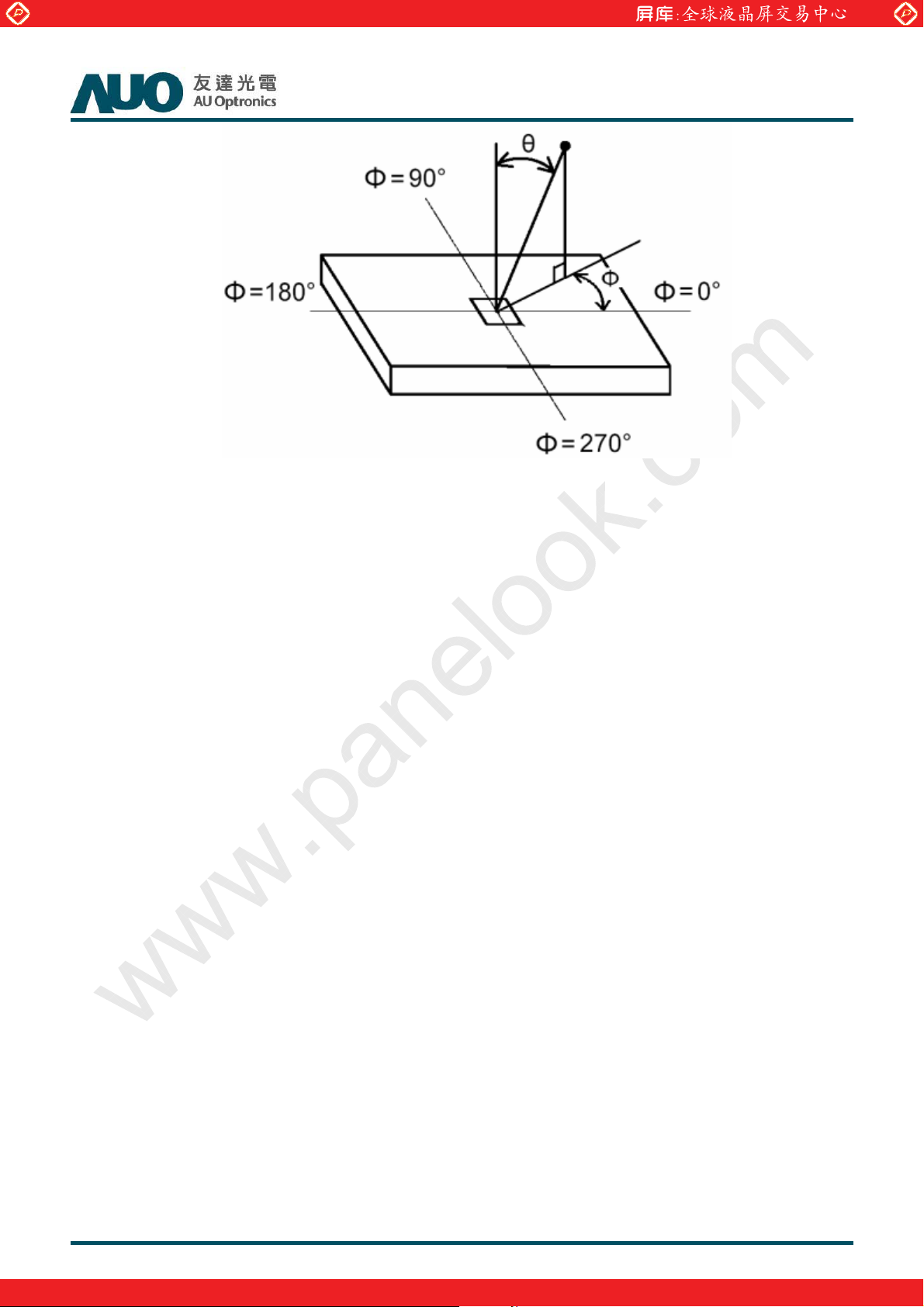

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG3.

FIG.3 Viewing Angle

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

T420HVN04.0 Product Specification

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T420HVN04.0. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Item Dimension Unit Note

Horizontal 952.2 mm

Vertical 547.0 mm

Outline Dimension

Depth (Dmin) 10.8 mm to rear

Rev. 0.1

Depth (Dmax) 25.9 mm to driver board cover

Weight 7300 g

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Rev. 0.1

T420HVN04.0 Product Specification

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

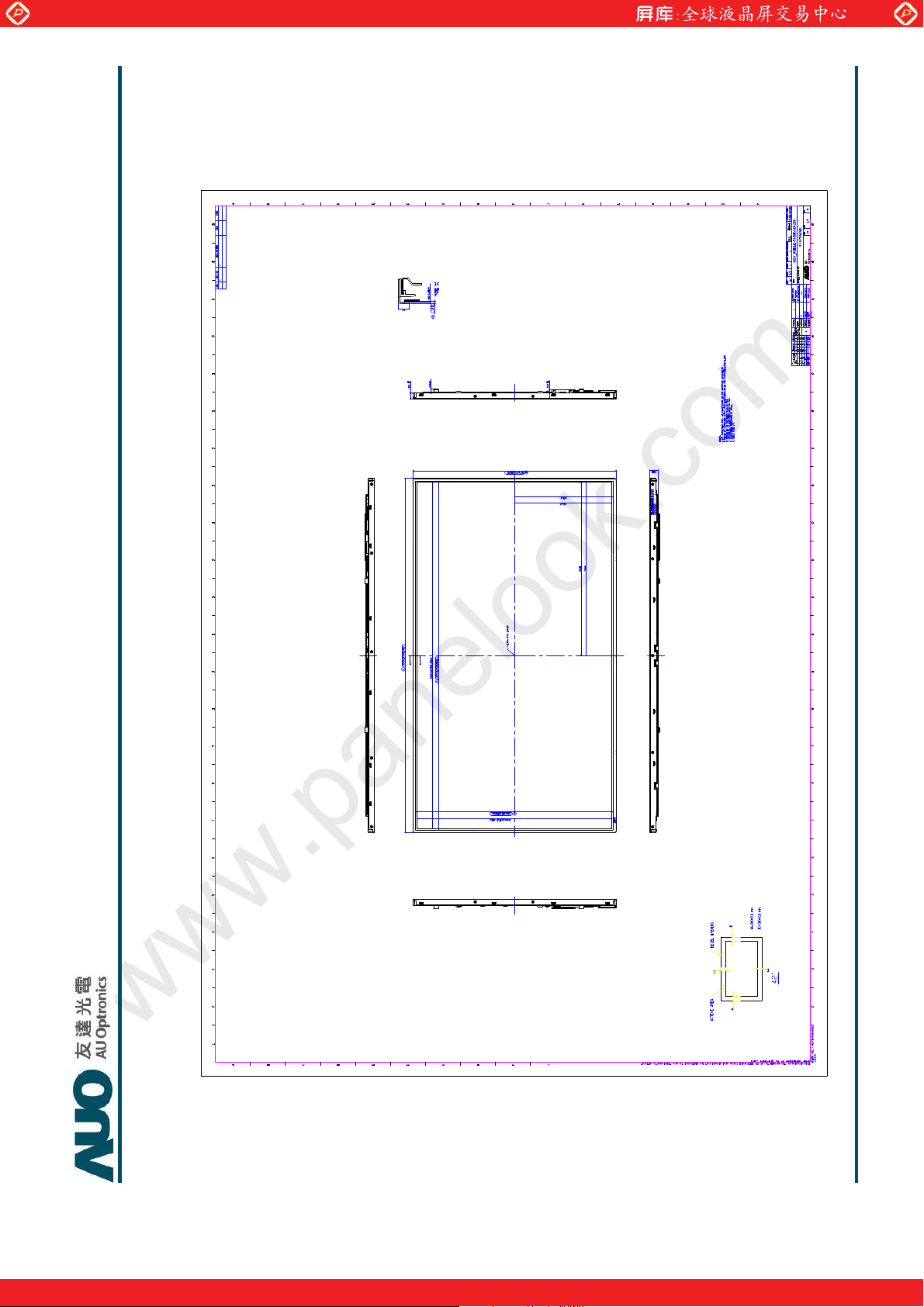

Front View

www.panelook.com

Global LCD Panel Exchange Center

Rev. 0.1

T420HVN04.0 Product Specification

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

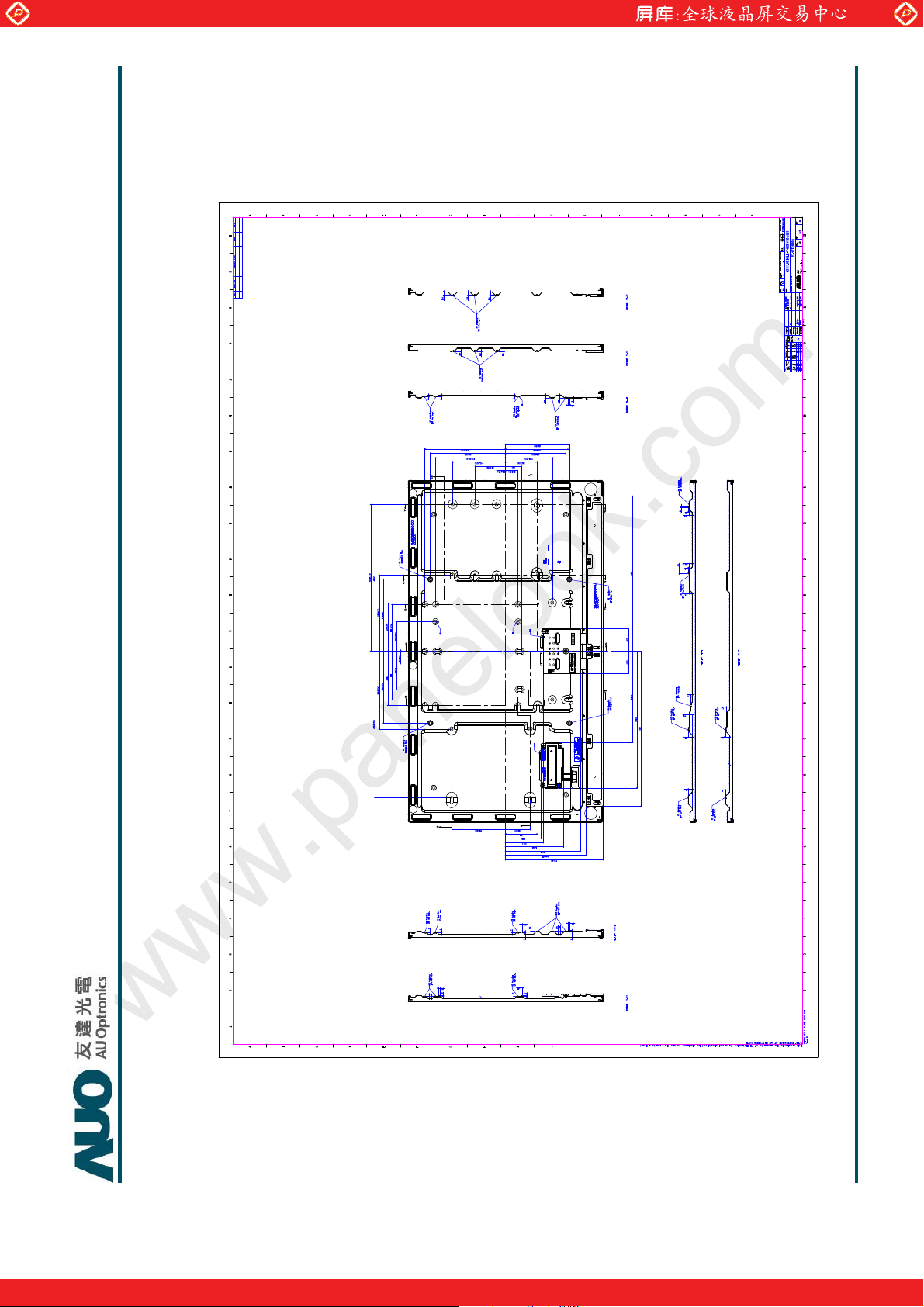

Back View

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability Test Items

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

1 High temperature storage test 3

2 Low temperature storage test 3

3 High temperature operation test 3

4 Low temperature operation test 3

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 22

Test Item Q’ty Condition

60к, 300hrs

-20к, 300hrs

50к, 300hrs

-5к, 300hrs

Wave form: random

Vibration level : 1.0G RMS

Bandwidth : 10-300Hz

Duration : X,Y,Z 10min per axes

X,Y,Z: Vertical

Shock level

50G,11ms in ±X,Y,Z axis

Waveform: half sine wave

Direction: One time each direction

Random wave (1.05Grms 10~200Hz)

Duration : X,Y,Z 10min per axes

8 Drop test (With carton) 22

Height: 20cm (ASTMD4169-I)

Bottom flat for two times

(refer ASTM D 5276)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology

Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Q

/

8. Packing

8-1 DEFINITION OF LABEL:

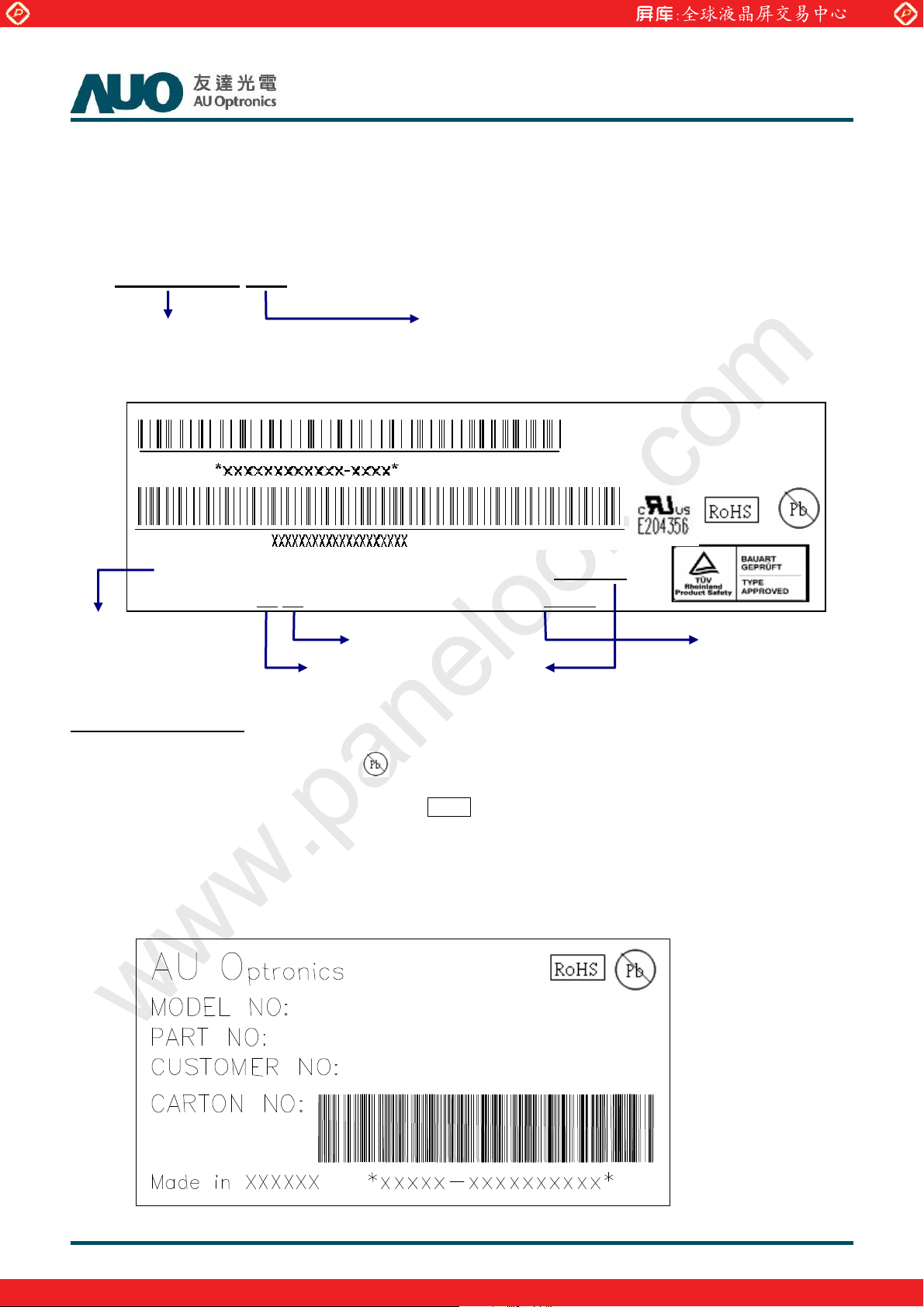

A. Panel Label:

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

*xxxxxxxxxxxx

Panel Unique ID

XXXXX Model NO: T420HVN04.0 XXXXXXX

Manufactured XX

Green mark description

-xxxx*

AUO Internal Use

XX MADE IN XXXXX

Week

Year

AUO Internal Use

AU Optronics

Factory Location AUO Internal Use

(1) For Pb Free Product, AUO will add

(2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green

team. (definition of green design follows the AUO green design checklist.)

for identification.

B. Carton Label:

TY : 22

T420HVN04.0

97.42T28.0XX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

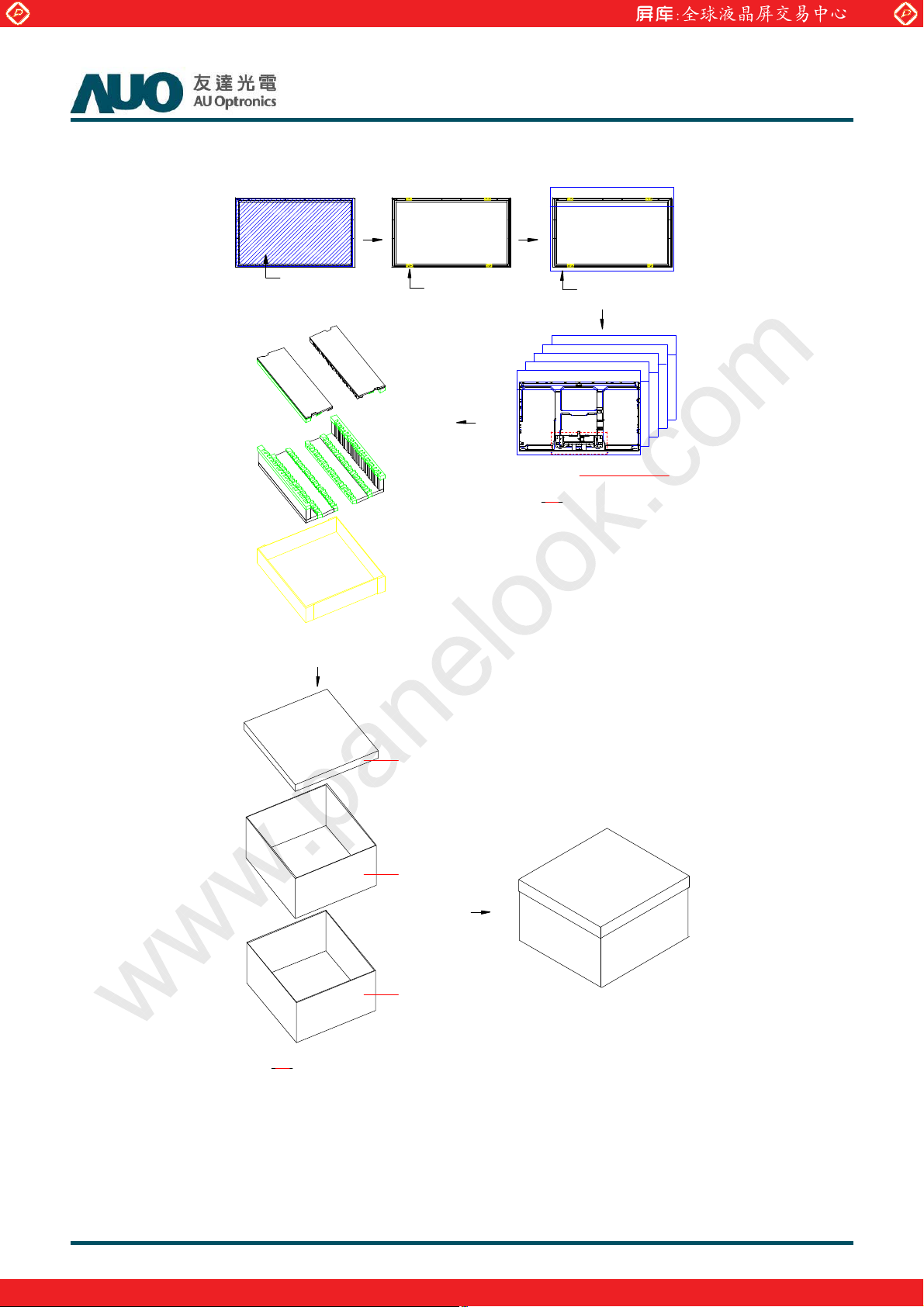

8-2 PACKING METHODS:

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

P ro t ec t Film

Cushion Set

Creped Paper Tape

Pac king Way ΚP ane l Top Sid e Down

HDPE Bag (Blue)

( 22 ) P cs Modules

(

22 ) Pcs / 1 Carton

Ղ።

؆໮୚

փ໮୚

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

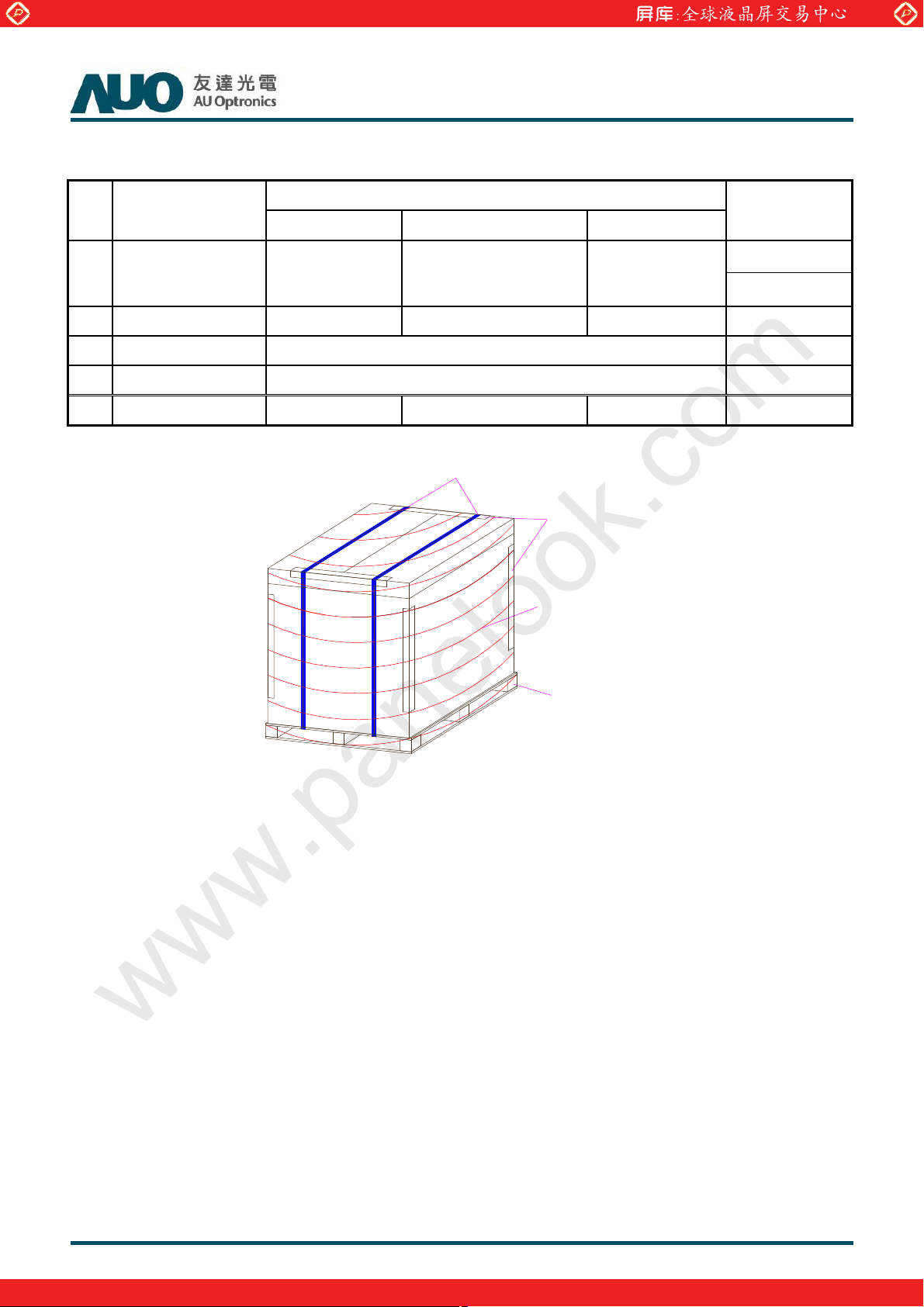

8-3 Pallet and Shipment Information

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

Item

Qty. Dimension Weight (kg)

1 Packing BOX 22pcs/box 1130(L)*1055(W)*655(H) 211

2 Pallet 1 1150(L)*1070(W)*132(H) 14.5

3 Boxes per Pallet 1 boxes/pallet

4 Panels per Pallet 22pcs/pallet

Pallet after packing 22 1150(L)*1055(W)*787(H) 225.5

Specification

Packing Remark

Box = 7.85kg

Cushion = 6.06kg

PET Strap

Angle Protector

Stretch Film

Wooden Pallet

໢໢໢໢ཥཥཥཥ pallet ؚཥقრቹ

ؚཥقრቹ

ؚཥقრቹؚཥقრቹ

Single pallet packaging illustration

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that

external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

www.panelook.com

T420HVN04.0 Product Specification

Rev. 0.1

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

>

? @ A ? B C>D B ?E?>F ? ? G

J K H

I

C G

I

C>G L B @ C

M N

O J O

>

D @

P

Q

H

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
