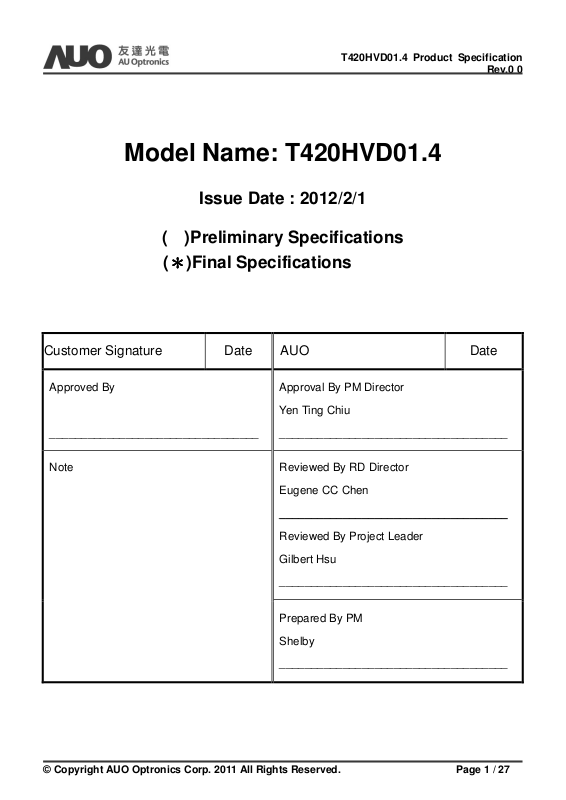

AUO T420HVD01.4 Specification

T420HVD01.4 Product Specification

Rev.0 0

Model Name: T420HVD01.4

Issue Date : 2012/2/1

( )Preliminary Specifications

(＊＊＊＊)Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Yen Ting Chiu

____________________________________

Reviewed By RD Director

Eugene CC Chen

____________________________________

Reviewed By Project Leader

Gilbert Hsu

____________________________________

Prepared By PM

Shelby

____________________________________

T420HVD01.4 Product Specification

Rev.0 0

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 PACKING

7-1 DEFINITION OF LABELS

7-2 PACKING METHODS

7-3 PALLET AND SHIPMENT INFORMATION

8 PRECAUTION

8-1 MOUNTING PRECAUTIONS

8-2 OPERATING PRECAUTIONS

8-3 ELECTROSTATIC DISCHARGE CONTROL

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

8-5 STORAGE

8-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T420HVD01.4 Product Specification

Rev.0 0

Version

0.0 2012/2/1 First release

Date Page Description

T420HVD01.4 Product Specification

Rev.0 0

1. General Description

This specification applies to the 42.0 inch Color TFT-LCD SKD model T420HVD01.4. This LCD Open Cell Unit

has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 42.0 inch. This Open Cell

Unit supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are

arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale

signal for each dot.

* General Information

Items Specification Unit Note

Active Screen Size 42.0 inch

Display Area 930.24(H) x 523.26(V) mm

Outline Dimension 954.246 x 545.77 x 1.536 mm

Driver Element a-Si TFT active matrix

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.4845 mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=2%

Rotate Function Unachievable Note 1

Note 1: Rotate Function refers to LCD display could be able to rotate.

T420HVD01.4 Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

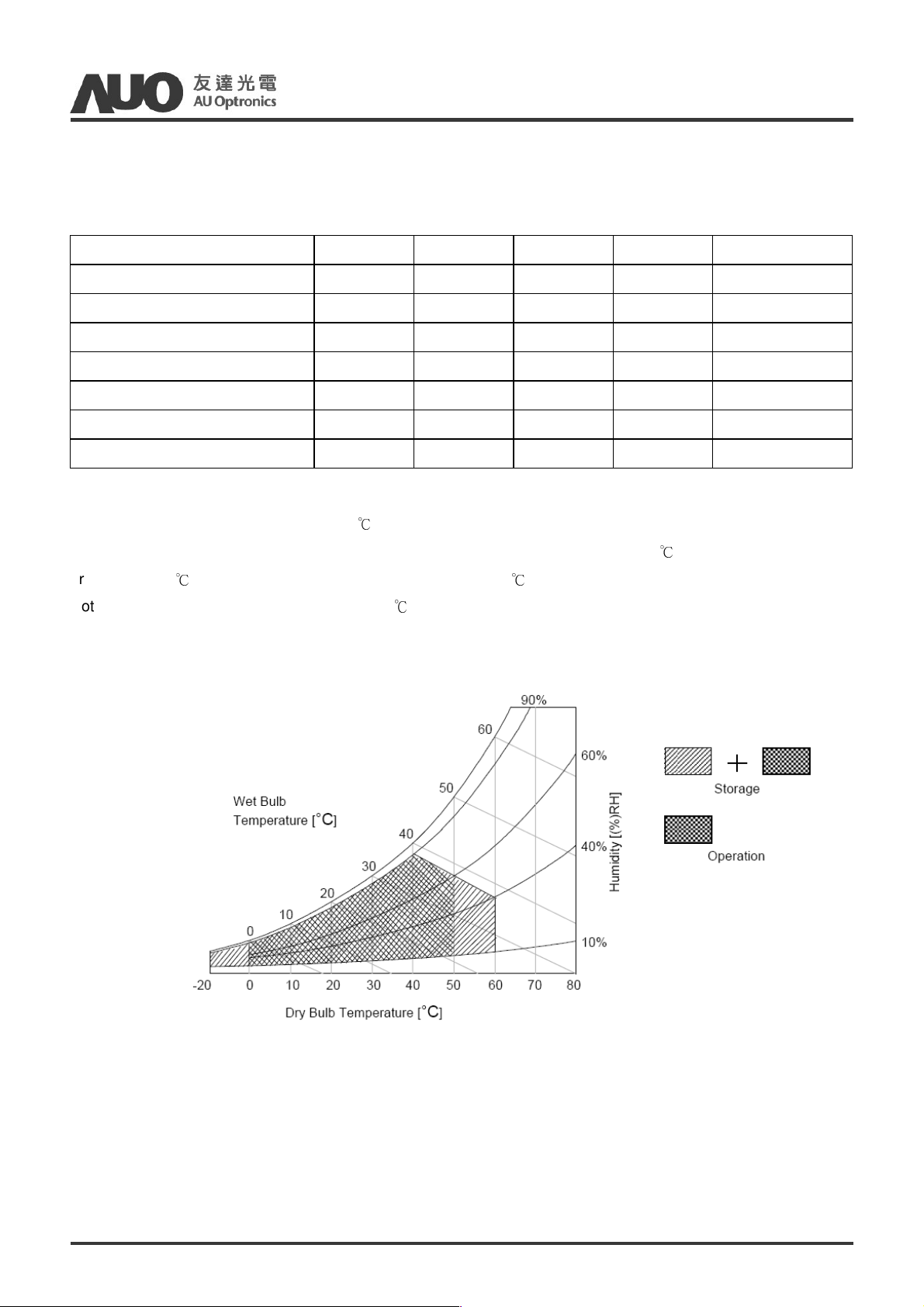

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev.0 0

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures

greater than 40 , the wet bulb temperature must not exceed 39 .

Note 3: Surface temperature is measured at 50℃ Dry condition

℃ ℃

℃

T420HVD01.4 Product Specification

Rev.0 0

3. Electrical Specification

The T420HVD01.4 Open Cell Unit requires power input which is employed to power the LCD electronics and to

drive the TFT array and liquid crystal.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 1 1.5 A 1

Power Consumption PC -- -- 18 Watt 1

Value

Inrush Current I

Permissible Ripple of Power Supply Input Voltage

Input Differential Voltage

LVDS

Interface

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage

Input Common Mode Voltage V

CMOS

Interface

Input High Threshold Voltage

Input Low Threshold Voltage

-- -- 4 A 2

RUSH

VRP -- -- VDD * 5% mV

∣

V

∣

ID

200 400 600 mVDC 4

pk-pk

VTH +100 -- +300 mVDC 4

VTL -300 -- -100 mVDC 4

1.1 1.25 1.4 VDC 4

ICM

VIH

(High)

VIL

(Low)

2.7 -- 3.3 VDC 6

0 -- 0.6 VDC 6

3

s

µ

3.1.2: AC Characteristics

T420HVD01.4 Product Specification

Rev.0 0

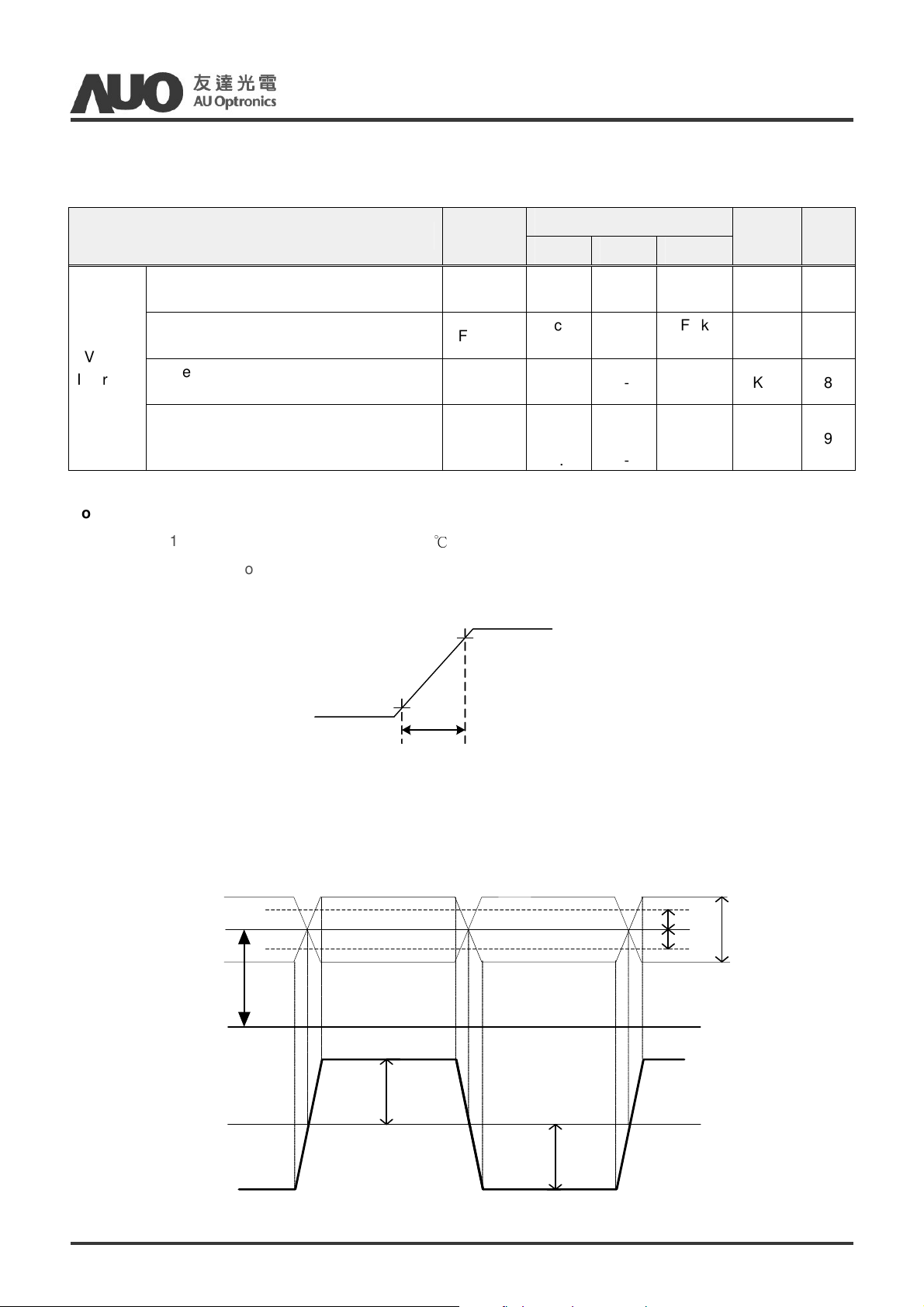

Parameter Symbol

Input Channel Pair Skew Margin

(only for TCON: 12403U1, 12405K01)

Receiver Clock : Spread Spectrum

LVDS Interface

Modulation range

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

Note :

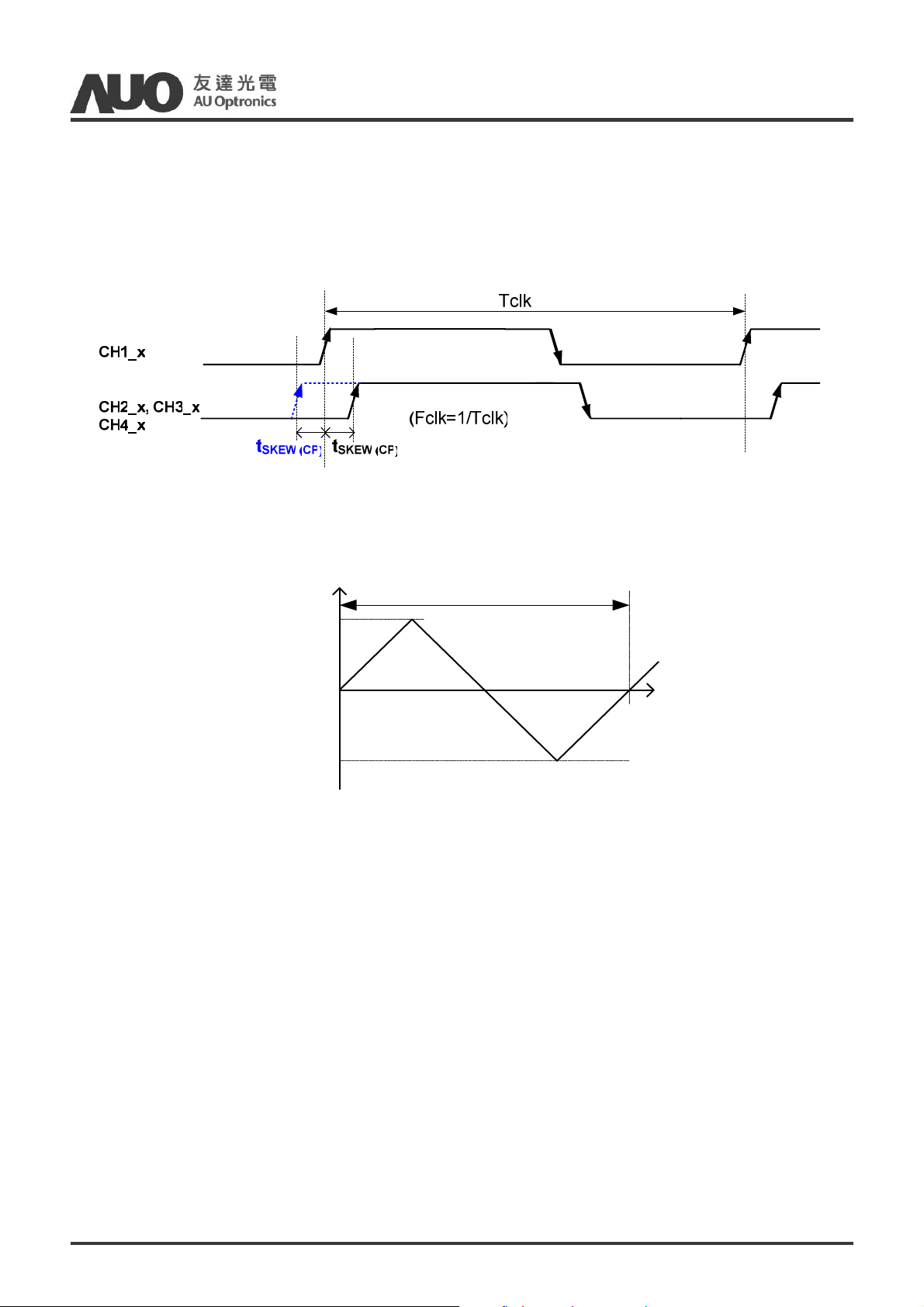

1. V

2. Measurement condition : Rising time = 400us

= 12.0V, Fv = 60Hz, Fclk= Max freq., 25 , Test Pattern : White Pattern℃

DD

>> refer to “Section:3.3 Signal Timing Specification, Typical timing”

t

SKEW (CP)

Fclk_ss

Fss

tRMG

90%

Value

Min. Typ. Max

-500 -- +500 ps 7

Fclk

-3%

30

-0.4

-0.5

VVVV

DD

DDDD

--

Fclk

+3%

200

0.4

0.5

Unit Note

MHz

8

KHz

8

ns

9

GND

GNDGND

10%

3. Test Condition:

(1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

L V D S -

V

IC M

L V D S +

G N D

0 V

400

400400

|VID|

V

T H

|VID|

V

T L

|VID|

T420HVD01.4 Product Specification

Rev.0 0

6.The measure points of V

7.Input Channel Pair Skew Margin

Note: x = 0, 1, 2, 3, 4

and V

IH

are in LCM side after connecting the System Board and LCM.

IL

8.LVDS Receiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

1111////FFFF

SS

SSSS

Fclk

Fclk____ss

FclkFclk

ss((((max

max))))

ssss

maxmax

Fclk

FclkFclk

Fclk

Fclk____ss

FclkFclk

ss((((min

ssss

min))))

minmin

5. Receiver Data Input Margin

T420HVD01.4 Product Specification

Rev.0 0

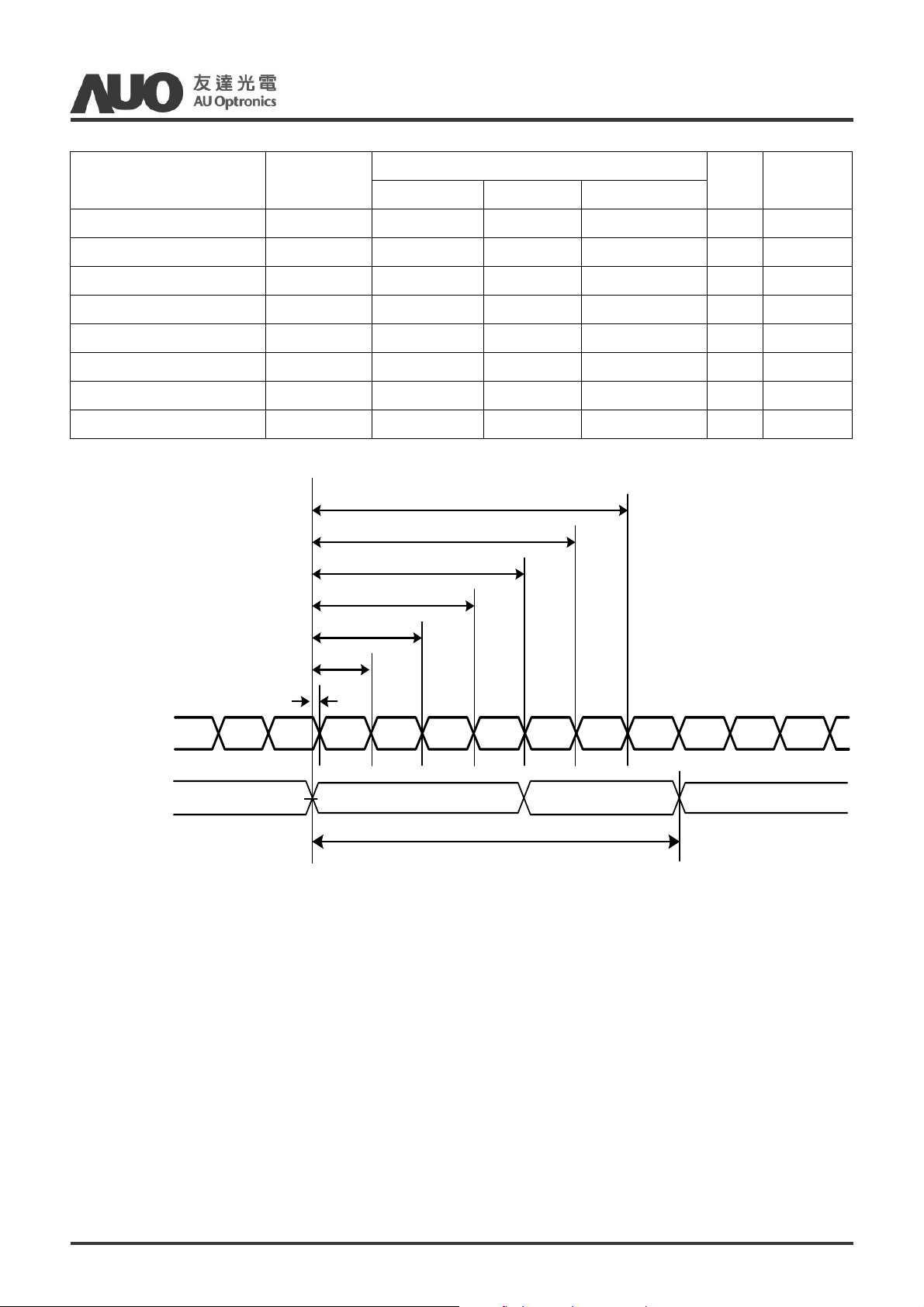

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG|

Input Data Position3 tRIP5 3T/7-|tRMG|

Input Data Position4 tRIP4 4T/7-|tRMG|

Input Data Position5 tRIP3 5T/7-|tRMG|

Input Data Position6 tRIP2 6T/7-|tRMG|

Rating

Unit

2T/7 2T/7+|tRMG| ns

3T/7 3T/7+|tRMG| ns

4T/7 4T/7+|tRMG| ns

5T/7 5T/7+|tRMG| ns

6T/7 6T/7+|tRMG| ns

tRIP2

tRIP3

tRIP4

tRIP5

Note

T=1/Fclk

LVDS-Rx Input Data

LVDS-Rx Input Clock

tRIP6

tRIP0

tRIP1

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

VVVV

=

= 0000VVVV

= =

diff

diff diff

1/Fclk=T

Interface Connections



LCD connector: 187059-51221 (P-TWO, LVDS connector)



Mating connector:

T420HVD01.4 Product Specification

Rev.0 0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19 CH1_CLK- LVDS Channel 1, Clock - 44

20 CH1_CLK+ LVDS Channel 1, Clock + 45

21

22

23

24

25

Symbol Description PIN

N.C. AUO Internal Use Only 26

N.C.

N.C. AUO Internal Use Only 28

N.C.

LVDS_SEL

N.C. No connection 33

N.C.

3D_EN

GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +

CH1_0- LVDS Channel 1, Signal 0- 37

CH1_0+ LVDS Channel 1, Signal 0+ 38

CH1_1- LVDS Channel 1, Signal 1- 39

CH1_1+ LVDS Channel 1, Signal 1+ 40

CH1_2- LVDS Channel 1, Signal 2- 41

CH1_2+ LVDS Channel 1, Signal 2+ 42

GND Ground 43

GND Ground 46

CH1_3- LVDS Channel 1, Signal 3- 47

CH1_3+ LVDS Channel 1, Signal 3+ 48

CH1_4- LVDS Channel 1, Signal 4- 49

CH1_4+ LVDS Channel 1, Signal 4+ 50

AUO Internal Use Only 27

AUO Internal Use Only 29

AUO Internal Use Only 30

AUO Internal Use Only 31

Open/High(3.3V) for NS,

Low(GND) for JEIDA

AUO Internal Use Only 34

3D Function Enable

High(3.3V) : 3D

Open/Low(GND) : 2D

51

32

35 CH2_CLK- LVDS Channel 2, Clock -

Symbol Description

N.C. AUO Internal Use Only

N.C.

CH2_0- LVDS Channel 2, Signal 0-

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

CH2_4- LVDS Channel 2, Signal 4-

CH2_4+ LVDS Channel 2, Signal 4+

N.C. AUO Internal Use Only

GND Ground

N.C. No connection

V

DD

V

DD

V

DD

V

DD

AUO Internal Use Only

Power Supply, +12V DC Regulated

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal

(Low/GND/High).

LVDS Option = High/OpenNS

P re v io u s C yc le C urren t C yc le N ex t C y c le

P re v io u s C yc le C urren t C yc le N ex t C y c le P re v io u s C yc le C urren t C yc le N ex t C y c le

C lo c k

C lo c kCloc k

C H x

C H x____ 0000 ++++

C H xC H x

C H x

C H x____ 0000 ----

C H xC H x

C H x

C H x____ 1111 ++++

C H xC H x

C H x

C H x____ 1111 ----

C H xC H x

C H x

C H x____ 2222 ++++

C H xC H x

C H x

C H x____ 2222 ----

C H xC H x

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A

D ED E

T420HVD01.4 Product Specification

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

N A D E

N AN A

N A BBBB 3333

N AN A

BBBB 2222N A

D ED E

Rev.0 0

C H x

C H x____ 3333 ++++

C H xC H x

C H x

C H x____ 3333 ----

C H xC H x

Note: x = 1, 2, 3, 4…

LVDS Option = LowJEIDA

P re v io u s C yc le C u rr e n t C ycle N e x t C ycle

P re v io u s C yc le C u rr e n t C ycle N e x t C ycle P re v io u s C yc le C u rr e n t C ycle N e x t C ycle

C lo c k

C lo c kC loc k

C H x

C H x ____ 0000 ++++

C H xCH x C H x

C H x ____ 0000 ----

C H xCH x

C H x

C H x ____ 1111 ++++

C H xCH x C H x

C H x ____ 1111 ----

C H xCH x

C H x

C H x ____ 2222 ++++

C H xCH x C H x

C H x ____ 2222 ----

C H xCH x

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777N A

D ED E

N A D E

N AN A

N A BBBB 5555

N AN A

RRRR 6666BBBB 7777 N A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

BBBB 4444N A

N AN A

D ED E

C H x

C H x ____ 3333 ++++

C H xCH x C H x

C H x ____ 3333 ----

C H xCH x

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

RRRR 0000BBBB 1111 N A

N AN A

Note: x = 1, 2, 3, 4…

T420HVD01.4 Product Specification

Rev.0 0

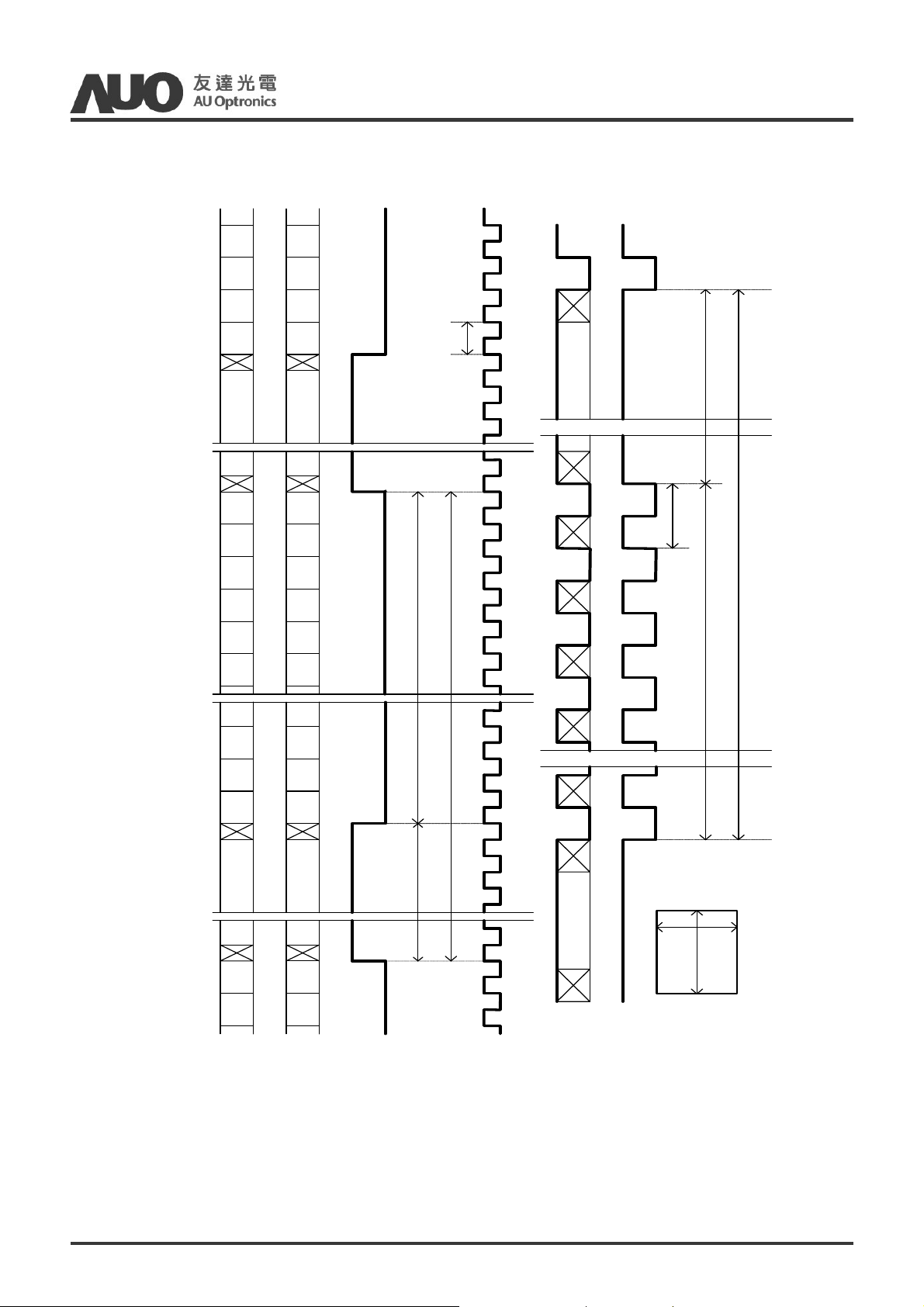

3.2 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1096 1125 1480 Th

Vertical Section

Active Tdisp (v) 1080

Blanking Tblk (v) 16 45 400 Th

Period Th 1040 1100 1328 Tclk

Horizontal Section

Active Tdisp (h) 960

Blanking Tblk (h) 80 140 368 Tclk

Clock Frequency Fclk=1/Tclk 50 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency

Frequency Fh 60 67.5 73 KHz

Note: (1) Horizontal Blanking must be even number

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

3.3 Signal Timing Waveforms

T420HVD01.4 Product Specification

Rev.0 0

CH2

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

Pixel

8

Pixel

10

Pixel

12

CH1

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

Pixel

7

Pixel

9

Pixel

11

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

T420HVD01.4 Product Specification

Rev.0 0

3.4 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

3.5 Power Sequence for LCD

T420HVD01.4 Product Specification

Rev.0 0

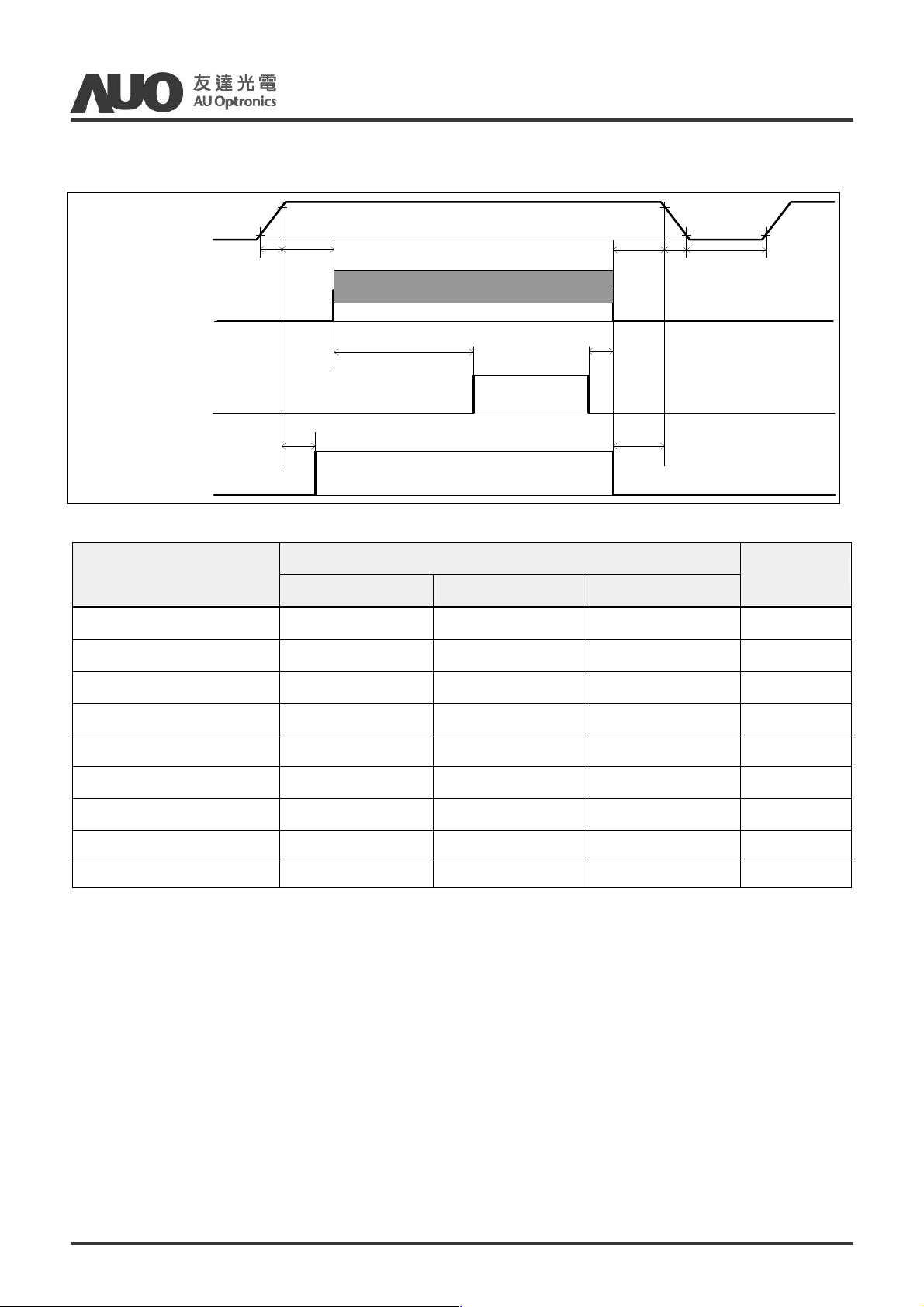

Pow er S u p p ly F or LC D

Pow er S u p p ly F or LC D Pow er S u p p ly F or LC D

VD D

VD D (+

(+ 12

(+(+

12 VVVV ))))

121 2

G ND

VD D VDD

In ter face Sig n a l

In ter face Sig n a lIn ter face Sig n a l

((((LV DS Data

LV DS Data &

LV DS Data LV DS Data

& C LK

CLK ))))

& &

CLKCLK

G ND

Back lig h t o n

Back lig h t o n ////o ff

Back lig h t o nB a c klight on

co n tro l s ig na l

co n tro l s ig na lco n tro l s ig na l

((((VBLO N

VBLO N ))))

VBLO NV B L O N

CM O S Inte rfa ce Sig n a l

CM O S Inte rfa ce Sig n a lCM O S Inte rfa ce Sig n a l ((((L V DS

LVD S ____SE L

LVD SL V DS

off

offoff

SE L ,,,,....... )

....... )

SE LS E L

....... )....... )

GN D

G ND

Parameter

t1 0.4 --- 30 ms

10 %

90 %

t1

t2

Valid D ata

Valid D ataValid D ata

t3 t4

t8 t9

Values

Min. Type. Max.

90 %

10 %

t6

t5

10 %

t7

Unit

t2 0.1 --- 50 ms

t3 450 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t7 500 --- --- ms t8

10*3

--- 50 ms

t9 0 --- --- ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

T420HVD01.4 Product Specification

Rev.0 0

4. Optical Specification

Optical characteristics are determined after the open cell unit and light source has been ‘ON’ and stable for

approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance

50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

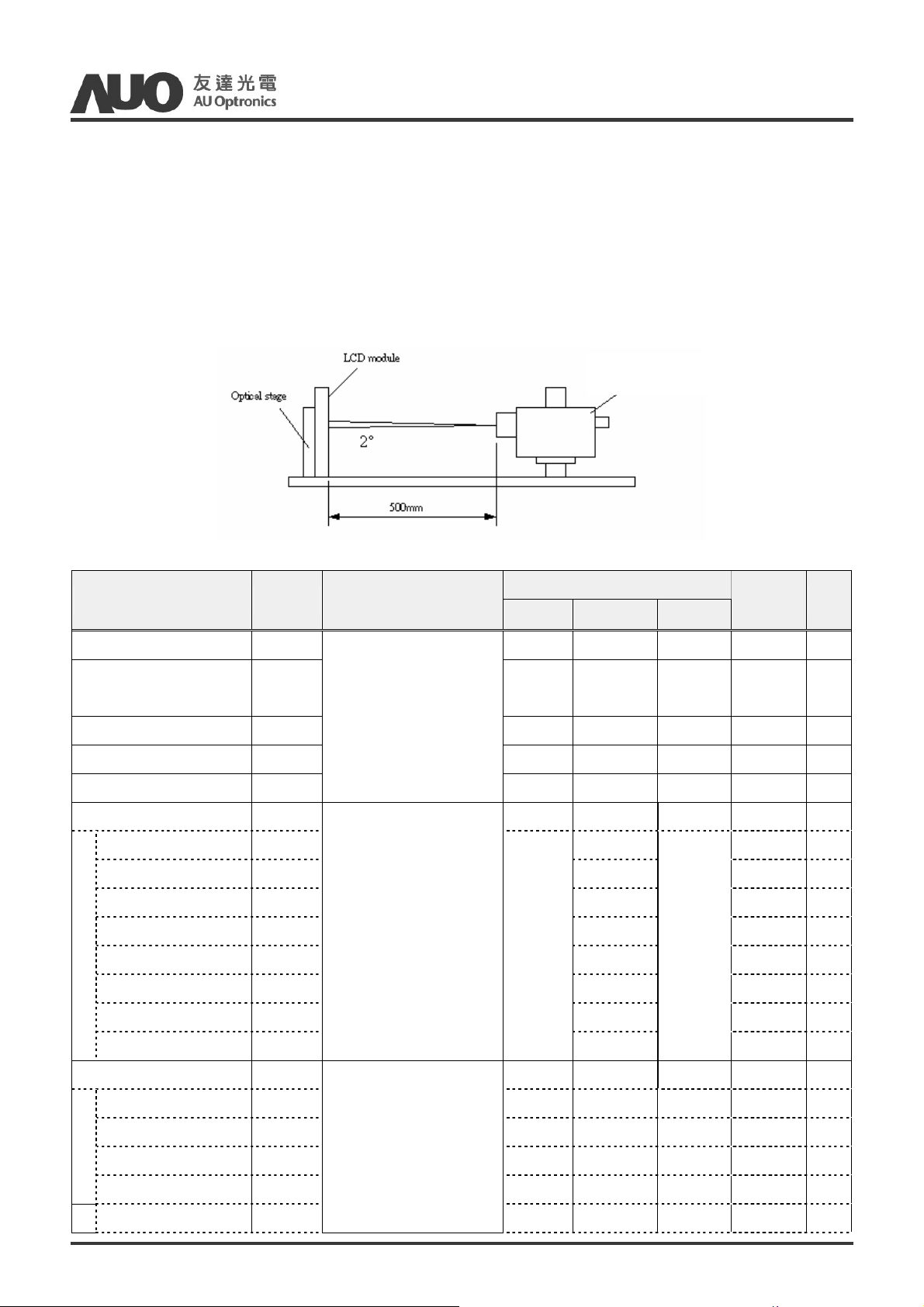

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Contrast Ratio CR 2400 3000 -- 1,2

Surface Luminance

(White)

Luminance Variation δ

Response Time (G to G)

Center Transmittance T%

Color Chromaticity 6

Red RX 0.660

RY 0.325

Green GX 0.304

GY 0.596

Blue BX 0.137

LWH 280 350 -- cd/m2 1,3

WHITE(9P)

Tγ -- 6.5 -- Ms 5

Standard light source “C”

Condition

Min. Typ. Max

With AUO Module

-- -- 1.33 1,4

5.75 % 1,8

With CS-1000T

Typ.-0.03

Values

Unit Notes

Typ.+0.03

BY 0.093

White WX 0.312

WY

Viewing Angle 7

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

2D

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd -- 89 -- degree

3D y axis, up θu

With AUO Module

10 degree

0.358

9

2 3

7

T420HVD01.4 Product Specification

Rev.0 0

y axis, down θd 10

3D cross talk (middle) -- 1 3 %

1. Light source here is the BLU of AUO T420HVD01.2 module.

2. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

3. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. For more information see FIG 2. LWH=Lon5 where Lon5 is the luminance with all pixels

displaying white at center 5 location.

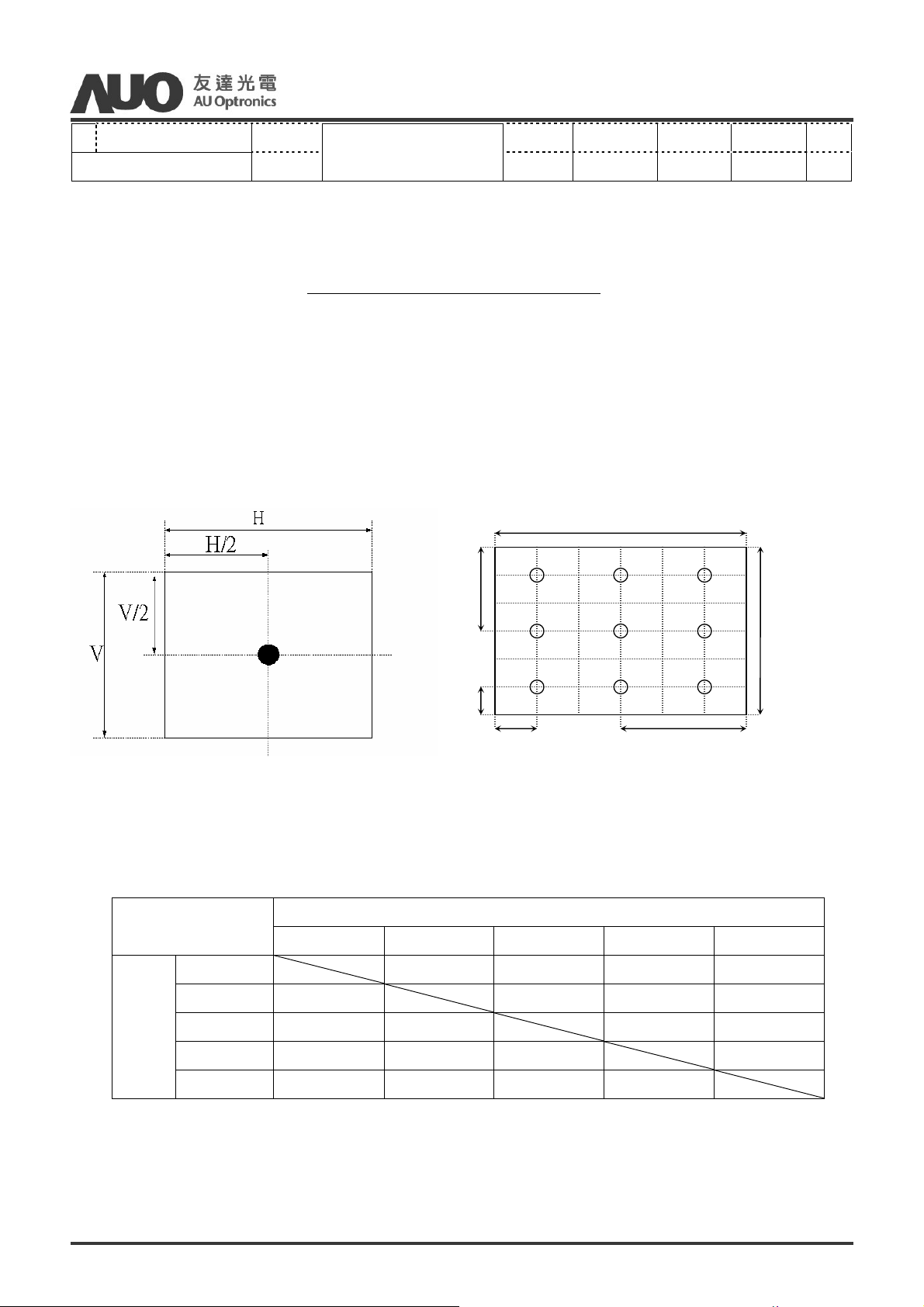

FIG. 2 Luminance

L

on5

off5

V

H/2

H/9

1

H

V/2 V/9

4. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

5. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

Target Measured

Response Time

0%

25%

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

Start

50%

75%

100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

50% to 75% 50% to 100%

75% to 100%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

T420HVD01.4 Product Specification

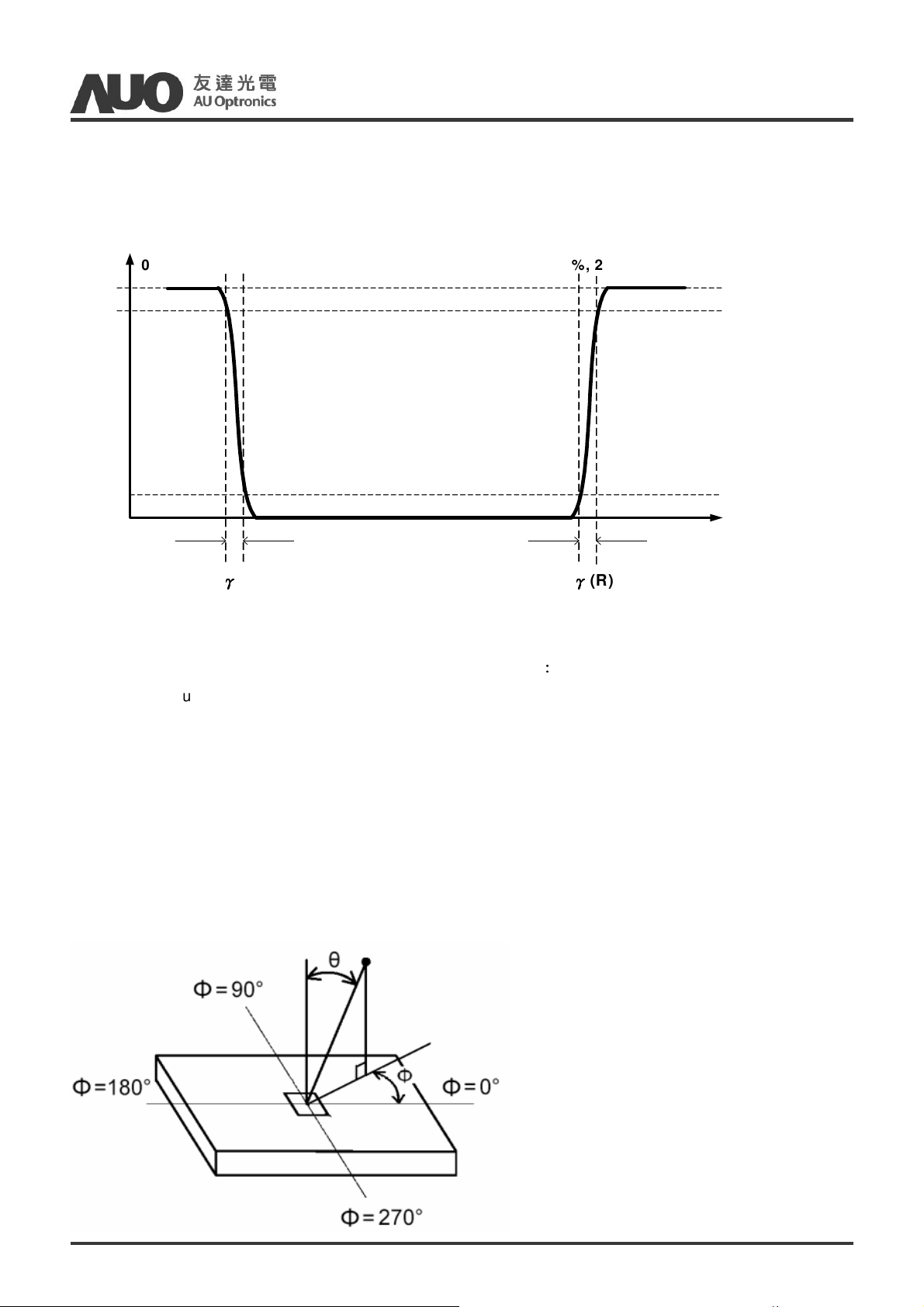

FIG.3 Response Time

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

Rev.0 0

0% , 25%, 50% , 75%, 100%

0% , 25%, 50% , 75%, 10 0%

Photodetector

Output

0% , 25%, 50% , 75%, 100%

Tim e

T

(F)

γγγγ

6. Light source here is the standard light source “C” which is defined by CIE and driving voltages are based on

suitable gamma voltages. The calculating method is as following：

A. Measure the “Module” and “BLU” optical spectrums (W, R, G, B) of AUO T420HVD01.4

T

γγγγ

(R)

B. Calculate cell spectrum from “Module” and “BLU” spectrums.

C. Calculate color chromaticity by using cell spectrum and the spectrum of standard light source “C”.

7. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG4.

FIG.4 Viewing Angle

8. Definition of Transmittance (T%):

T420HVD01.4 Product Specification

Rev.0 0

module LCD of Luminance

nceTransmitta ∗=

%001

backlight of Luminance

During transmittance measurement, the backlight of LCD module contains no brightness enhancement film.

Two diffuser sheets which diffuse the light source uniformly are suggested to use for transmittance

measurement.

9. 3D performance specification is expressed by 3D luminance, 3D Crosstalk and 3D viewing angle. 3D

luminance which is defined by left or right eye brightness under wearing glasses condition is measured at

panel center point. Also, 3D crosstalk is measured at panel center point.

a. Cross talk (middle) is defined by observation position which is 1.7m distance from panel center point and

human head in 0 degree steady vertical angle from panel mid axis level.

b. Cross talk (in vertical viewing angle) is defined by observation position which is 1.7m distance from panel

center point and observation range within specified degrees of vertical angle from panel mid axis level, and the

value is limited by 10%.

For more information, refer to 9-5 3D Measurement of 3D view angle.

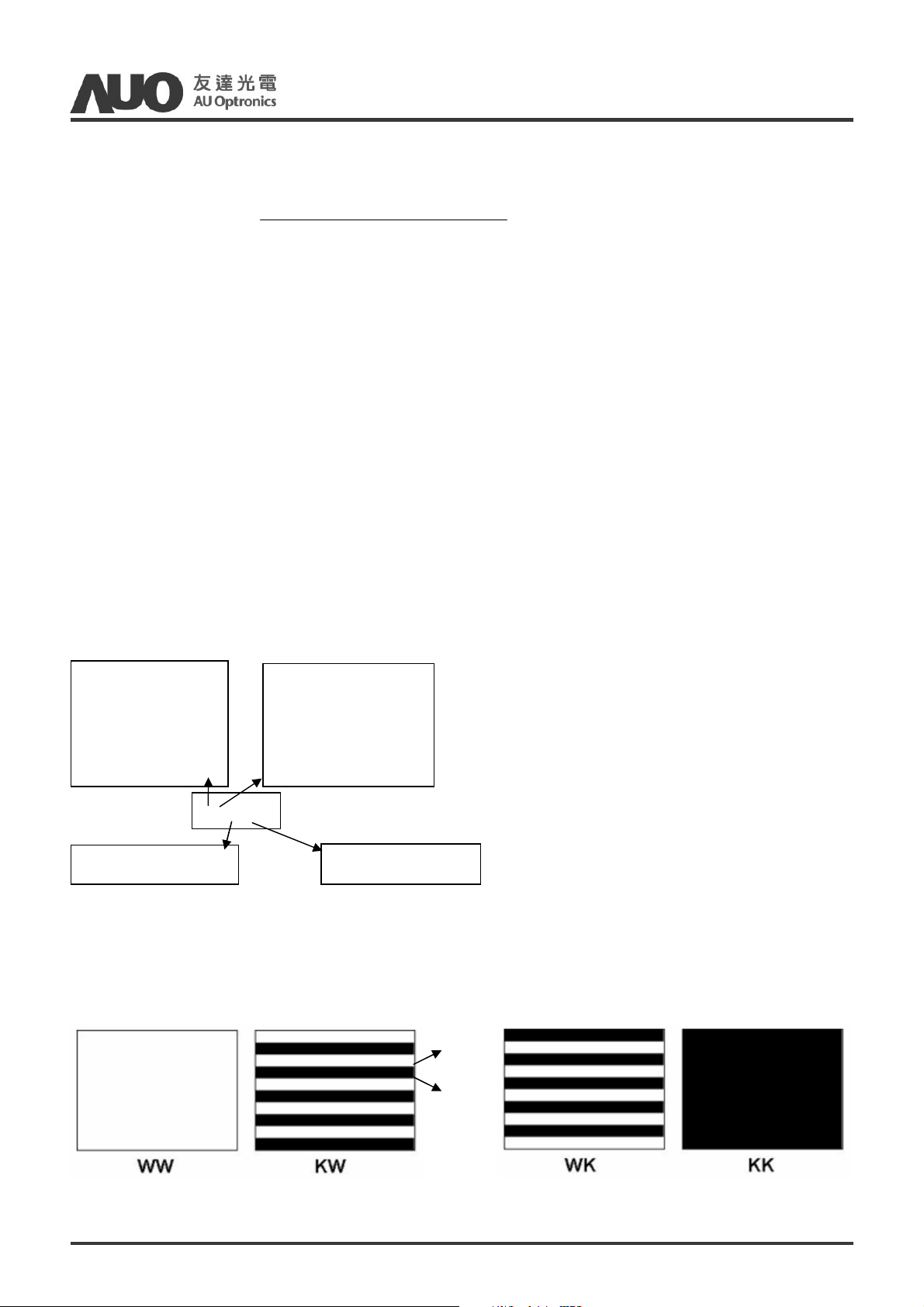

9-1 Notation of measurement.

Glasses type:

R: right eyeglass

L: left eyeglass

C: without

RL (W,K)

Left eye gray level

9-2 Measurement Configuration

4-test patterns (first character refers to Left eye gray level; second one refers to Right eye gray level).

W is defined as brightness gray level; K is defined as dark state where black and white lines are displayed

on even or odd lines.

Measurement Code:

L: Luminance

Right eye gray level

Odd line

Even line

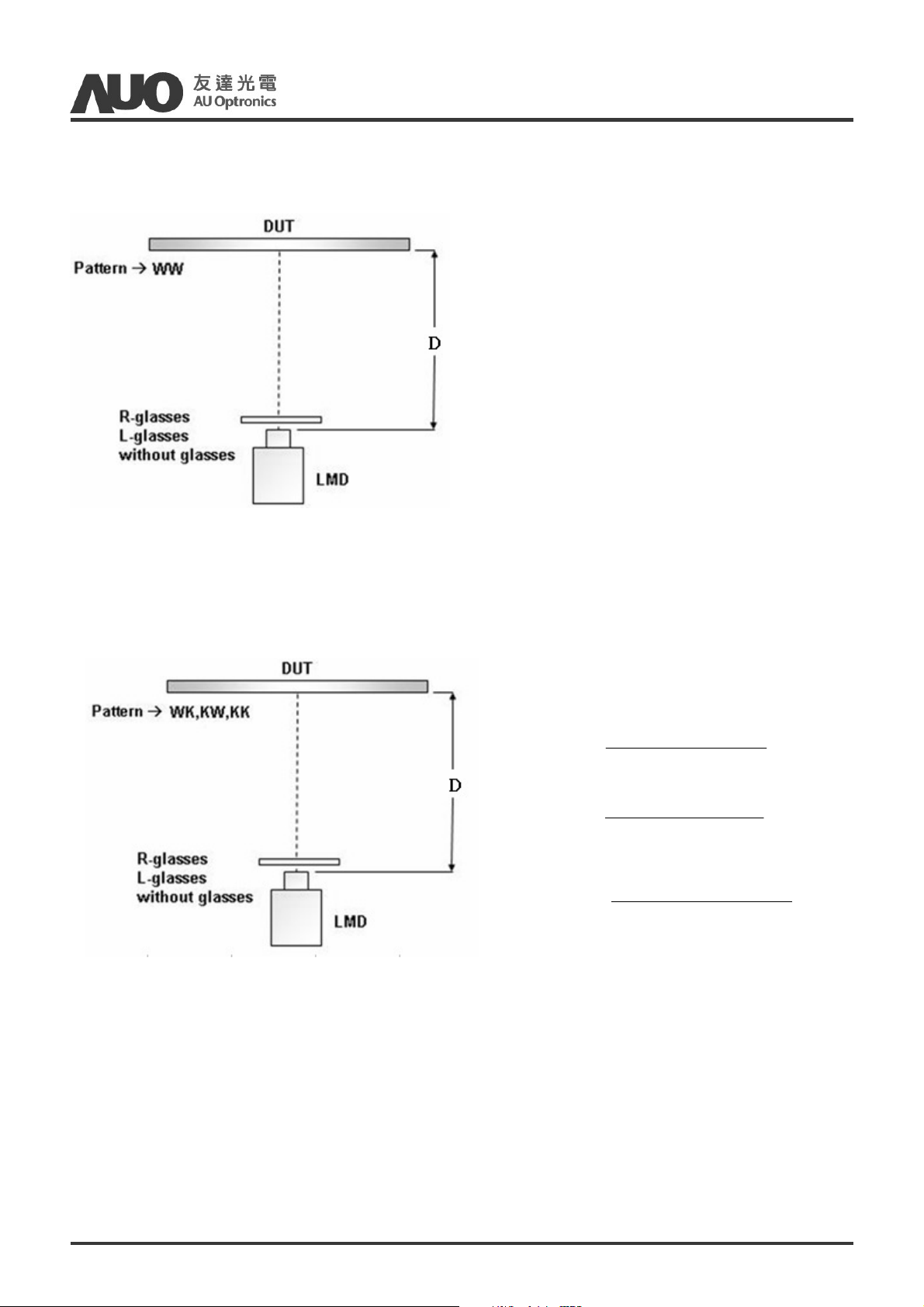

9-3 Measurement of 3D luminance

a. Test pattern WW is displayed, measuring distance is 50cm.

2

−

T420HVD01.4 Product Specification

b. Left or right eyeglass are placed in front of SR3 or equivalent equipment (as FIG1 showed)

successively and luminance is measured at panel center point where the notation for luminance

measurement is RL(W,W) and LL(W,W).

Rev.0 0

=

9-4 Measurement of 3D Crosstalk

a. Test patterns KW, WK and KK are displayed, measuring distance is 1.7m.

b. Right or left eyeglass is placed in front of SR3 or equivalent equipment (as FIG1 showed) successively

and luminance is measured at panel center point where the notation for luminance measurement is

RL(W,W) and LL(W,W).

Crosstalk

=

R

LL

−

),(or ),(3 WWLWWRLumD

),(),(

KKRKWR

LL

×

),(),(

KKRWKR

%100

9-5 Measurement of 3D view angle

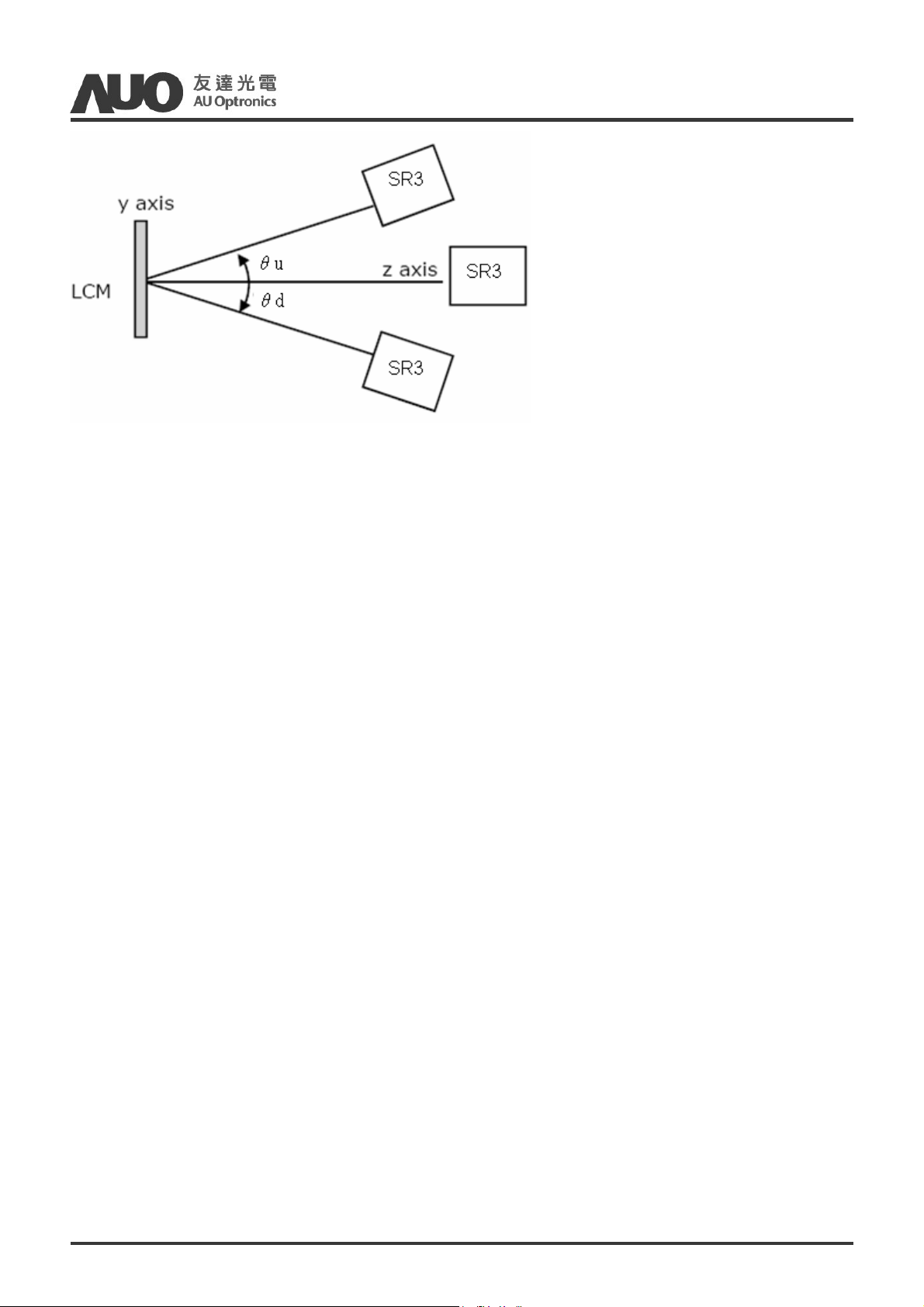

The angles are determined for the vertical or y axis with respect to the z axis which is normal to the LCD

module surface and measured at panel center position.

Crosstalk

=

L

Crosstalk+=

LL

−

LL

),(),(

KKLKWL

CrosstalkCrosstalk

%100

×

LR

),(),(

KKLWKL

T420HVD01.4 Product Specification

Rev.0 0

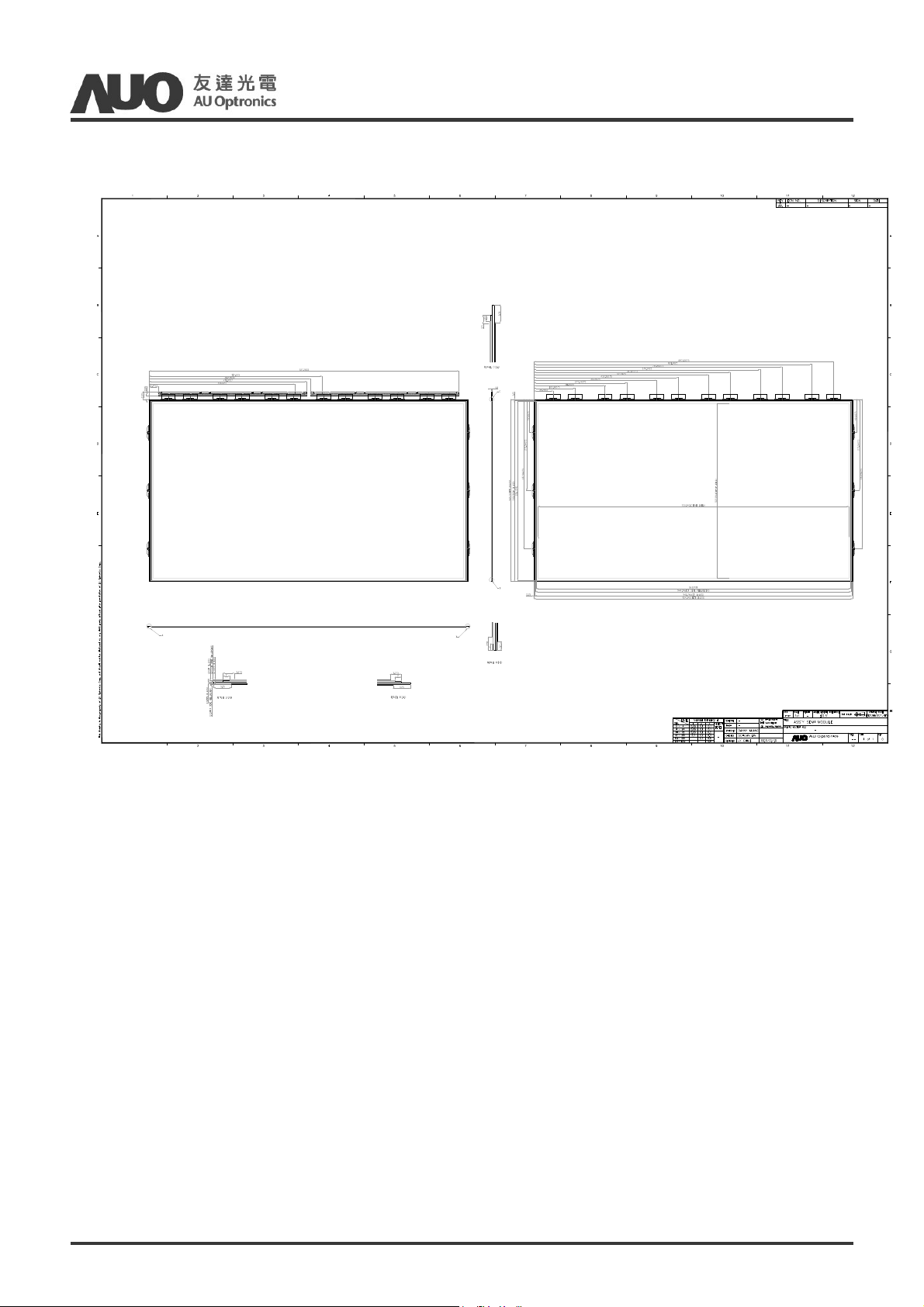

5. Open Cell Drawing

T420HVD01.4 Product Specification

Rev.0 0

6. Reliability Test Items

T420HVD01.4 Product Specification

Rev.0 0

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 11

Test Item Q’ty Condition

Wave form: random

Vibration level : 1.0G RMS

Bandwidth : 10-300Hz

Duration : X,Y,Z 10min per axes

X,Y,Z: Horizontal, face up

Shock level

42" : 50G,11ms in ±X,Y,Z axis

Waveform: half sine wave

Direction: One time each direction

Random wave (1.5Grms 10~200Hz)

Duration : X,Y,Z 30min per axes

Height:15.2cm (ASTMD4169-I)

8 Drop test (With carton) 11

Note: Test item 1~6 RA tests are done on AUO T420HVD01.4 panels.

Surrond 6 flats (Front,Rear,Left,Right,Top,Bottom)

(refer to ASTM D 5276)

3. Packing

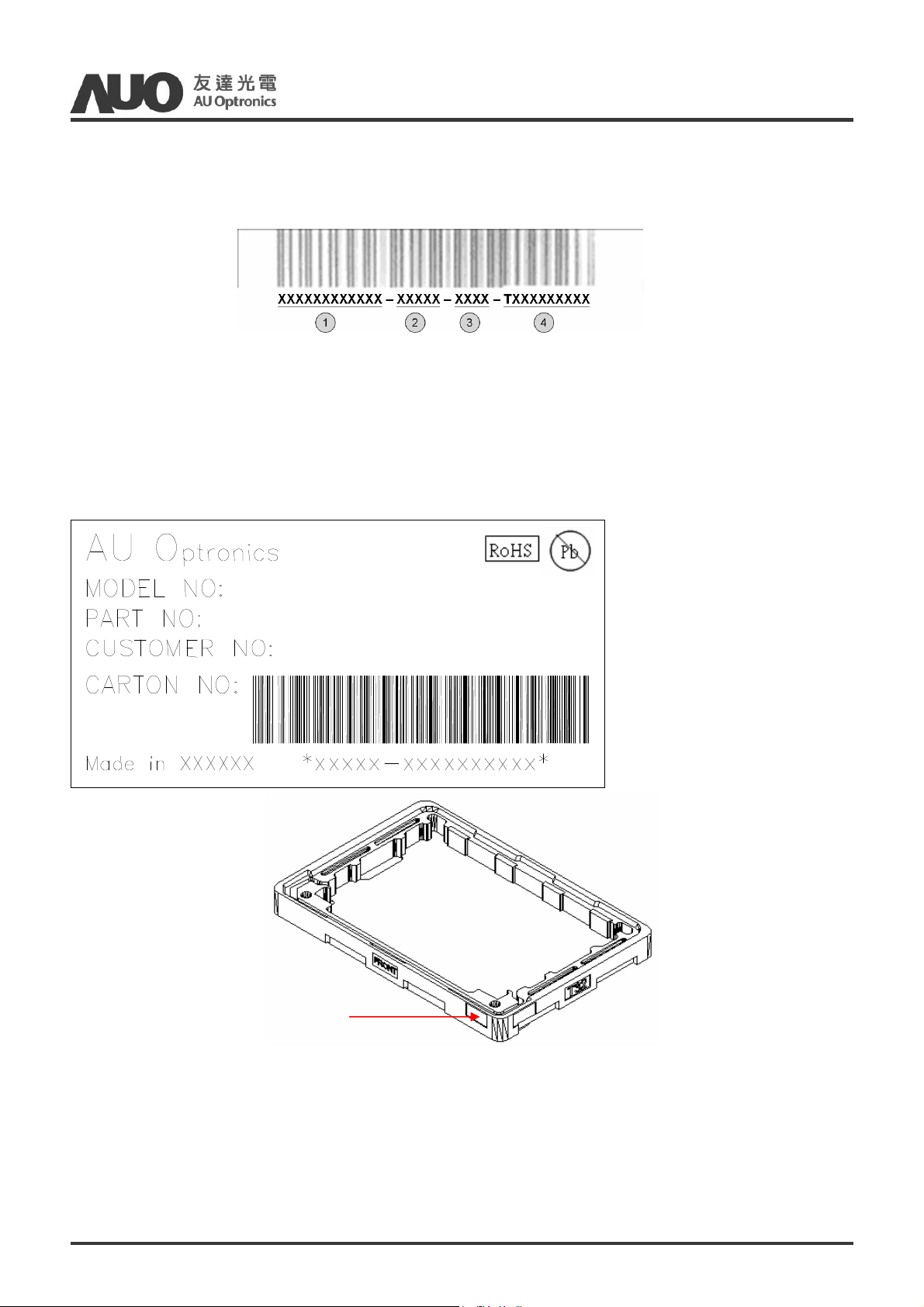

Open cell shipping label (35*7mm)

1. S/N Number

2. AUO Internal Use

3. Manufactured date

4. Model name

Carton Label:

T420HVD01.4 Product Specification

Rev.0 0

T420HVD01.4

91.42T24.4XX

Carton label alignment mark

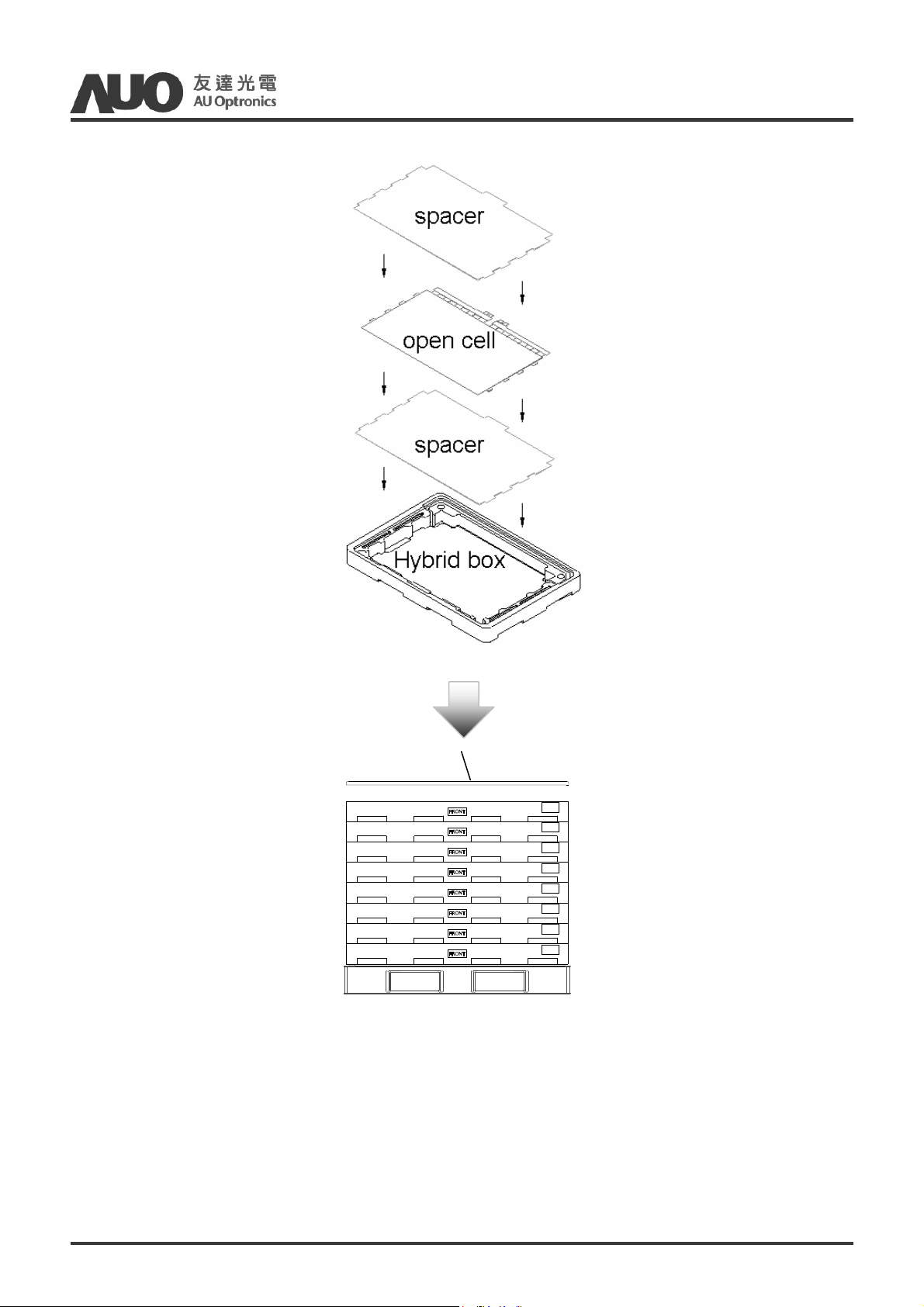

Packing Process:

T420HVD01.4 Product Specification

Rev.0 0

1Box for 11 pcs open cells & 12 pcs spacers

EPP Top Cover

Pallet Dimension:1100*800*140 mm

8 Boxes/Pallet, after stack 8 boxes, then put EPP top cover on it.

T420HVD01.4 Product Specification

8. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD Open Cell unit.

8-1 MOUNTING PRECAUTIONS

(1) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the cell. And the frame on which a cell is mounted should have sufficient strength so that external force is not transmitted directly to the cell.

(2) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force.

(3) You should adopt radiation structure to satisfy the temperature specification.

(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (7) Do not open the case because inside circuits do not have sufficient strength.

Rev.0 0

8-2 OPERATING PRECAUTIONS

(1) The open cell unit listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer.)

(4) Brightness/transmittance depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer

or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimize the

interface.

8-3 ELECTROSTATIC DISCHARGE CONTROL

Since a open cell unit is composed of electronic circuits, it is not strong to electrostatic discharge. Make

certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin

directly.

8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

T420HVD01.4 Product Specification

8-5 STORAGE

When storing open cell units as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the open cell unit to sunlight or fluorescent light. Keep the

Rev.0 0

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they be

stored in the container in which they were shipped.

℃ ℃

8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER

The protection film of polarizer is still attached on the surface as you receive open cell units. When the

protection film is peeled off, static electricity is easily generated on the polarizer surface. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a

condition, etc.
