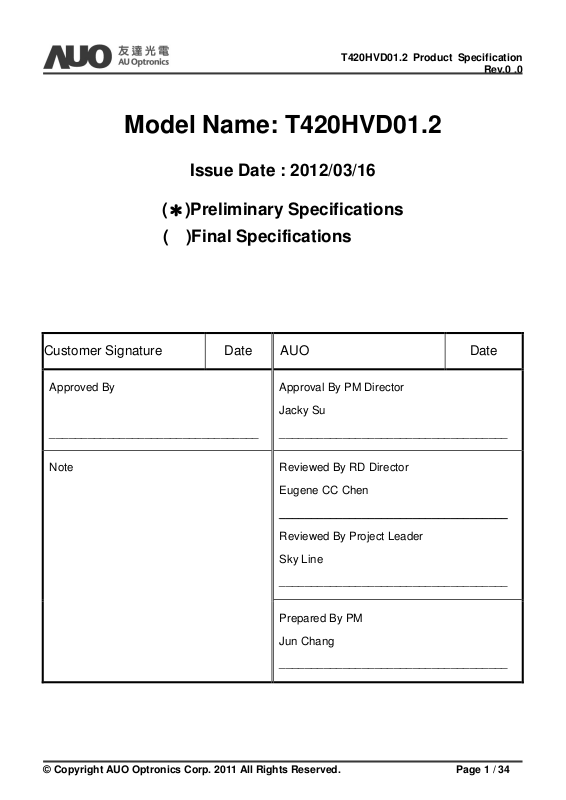

AUO T420HVD01.2 Specification

T420HVD01.2 Product Specification

Rev.0 .0

Model Name: T420HVD01.2

Issue Date : 2012/03/16

(＊＊＊＊)Preliminary Specifications

( )Final Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Jacky Su

____________________________________

Reviewed By RD Director

Eugene CC Chen

____________________________________

Reviewed By Project Leader

Sky Line

____________________________________

Prepared By PM

Jun Chang

____________________________________

T420HVD01.2 Product Specification

Rev.0 .0

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DEFINITION OF LABEL

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T420HVD01.2 Product Specification

Rev.0 .0

Version

0.0 2012/3/16 First release

Date Page Description

T420HVD01.2 Product Specification

Rev.0 .0

1. General Description

This specification applies to the 42.0 inch Color TFT-LCD Module T420HVD01.2. This LCD module has a TFT

active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 42.0 inch. This module supports

1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T420HVD01.2 has been designed to apply the 8-bit 4 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important.

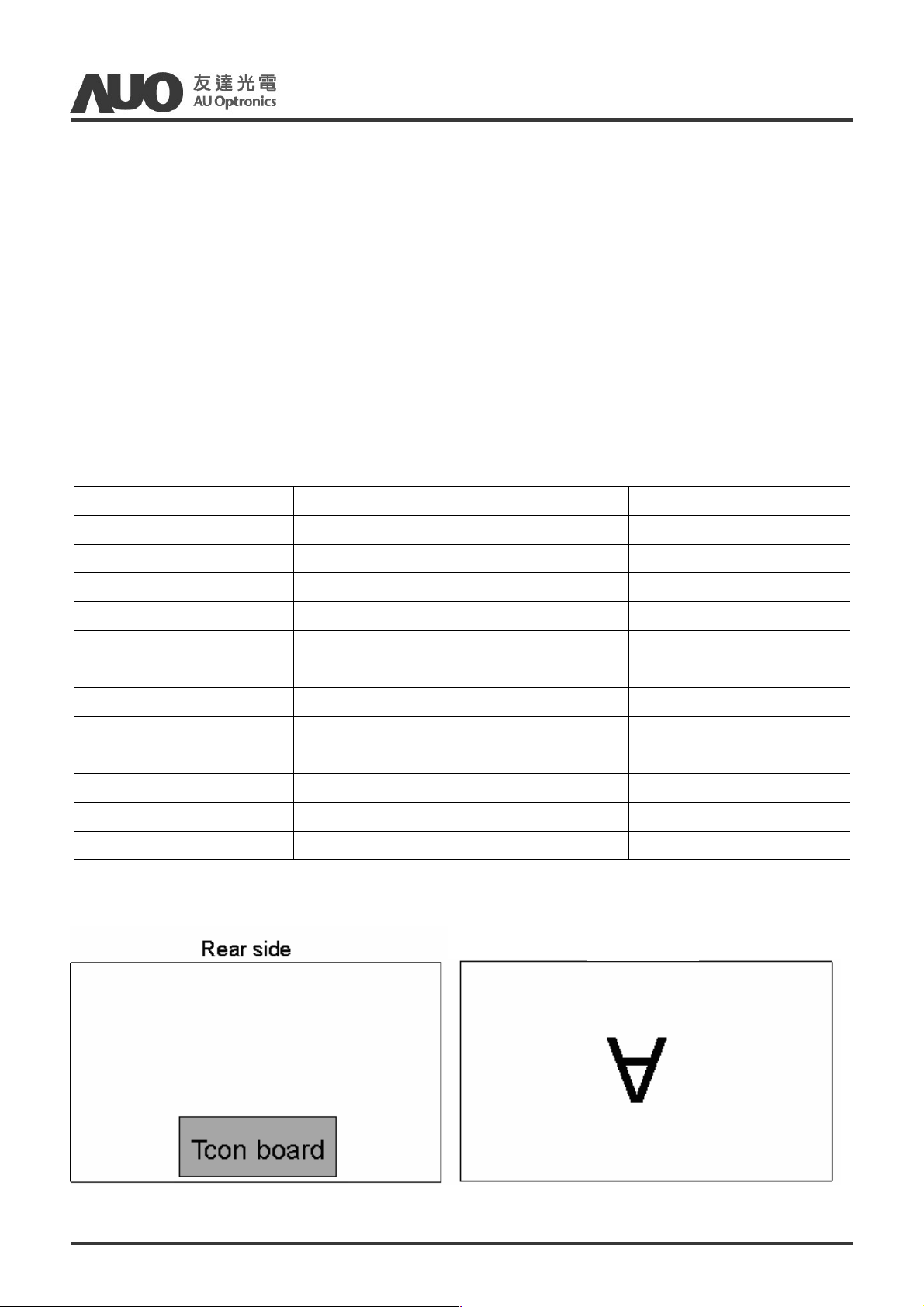

* General Information

Items Specification Unit Note

Active Screen Size 42.00 inch

Display Area 930.24(H) x 523.26(V) mm

Outline Dimension 960.4 (H) x 560.4 (V) mm

Driver Element a-Si TFT active matrix

Bezel Opening 938.6 (H) x 531.5 (V) mm

Display Colors 8 bit Colors

Number of Pixels 1,920x1,080 Pixel

Pixel Pitch 0.4845 mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Rotate Function Unachievable Note 1

Display Orientation Signal input with “A” Note 2

Note 1: Rotate Function refers to LCD display could be able to rotate.

Note 2: LCD display as below illustrated when signal input with “A”.

Front side

T420HVD01.2 Product Specification

Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

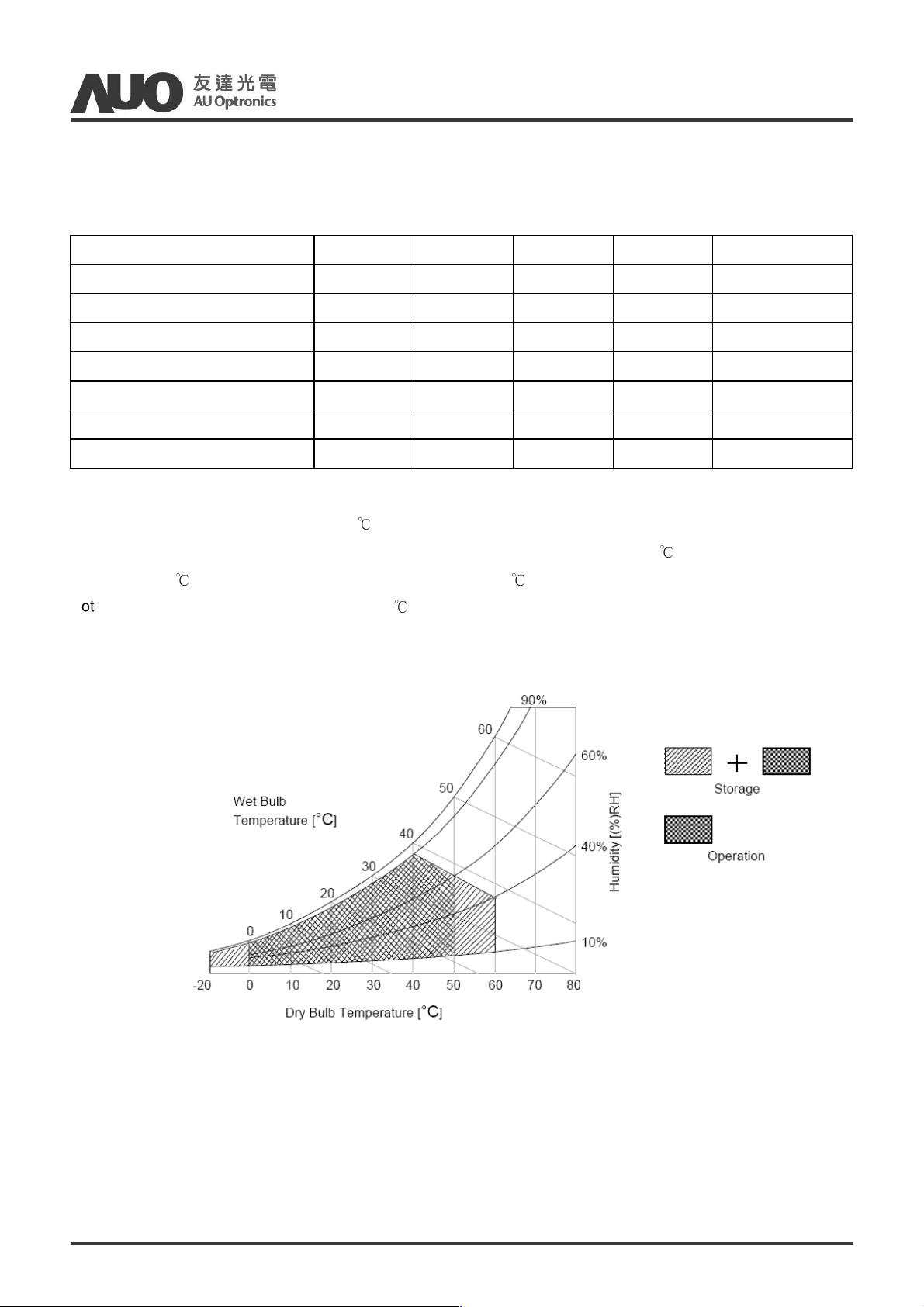

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev.0 .0

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. A℃t temperatures

greater than 40 , the wet bulb temperature must not exceed 39 .

Note 3: Surface temperature is measured at 50℃ Dry condition

℃ ℃

T420HVD01.2 Product Specification

Rev.0 .0

3. Electrical Specification

The T420HVD01.2 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The other is to power Back Light Unit.

3.1 Electrical Characteristics

3.1.1: DC Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

LCD

Power Supply Input Voltage VDD 10.8 12 13.2 VDC

Power Supply Input Current IDD -- 1.4 1.7 A 1

Power Consumption PC -- 20.4 Watt 1

Value

Inrush Current I

Permissible Ripple of Power Supply Input Voltage

Input Differential Voltage

LVDS

Interface

Differential Input High Threshold Voltage

Differential Input Low Threshold Voltage

Input Common Mode Voltage V

CMOS

Interface

Input High Threshold Voltage

Input Low Threshold Voltage

-- -- 4 A 2

RUSH

VRP -- -- VDD * 5% mV

∣

V

∣

ID

200 400 600 mVDC 4

pk-pk

VTH +100 -- +300 mVDC 4

VTL -300 -- -100 mVDC 4

1.1 1.25 1.4 VDC 4

ICM

VIH

(High)

VIL

(Low)

2.7 -- 3.3 VDC 6

0 -- 0.6 VDC 6

3

Backlight Power Consumption PBL -- 44.2 48.4 Watt

Life time (MTTF) 30000

Hour 10,11

s

µ

3.1.2: AC Characteristics

T420HVD01.2 Product Specification

Rev.0 .0

Parameter Symbol

Input Channel Pair Skew Margin t

Receiver Clock : Spread Spectrum

LVDS Interface

Modulation range

Receiver Clock : Spread Spectrum Modulation frequency

Receiver Data Input Margin Fclk = 85 MHz Fclk = 65 MHz

Note :

1. V

2. Measurement condition : Rising time = 400us

= 12.0V, Fv = 120Hz, Fclk= Max freq., 25 , Test Pattern : White Pattern℃

DD

SKEW (CP)

Fclk_ss

Fss

tRMG

90%

Value

Min. Typ. Max

-500 -- +500 ps 7

Fclk

-3%

30

-0.4

-0.5

VVVV

DD

DDDD

--

Fclk

+3%

200

0.4

0.5

Unit Note

MHz

8

KHz

8

ns

9

GND

GNDGND

10%

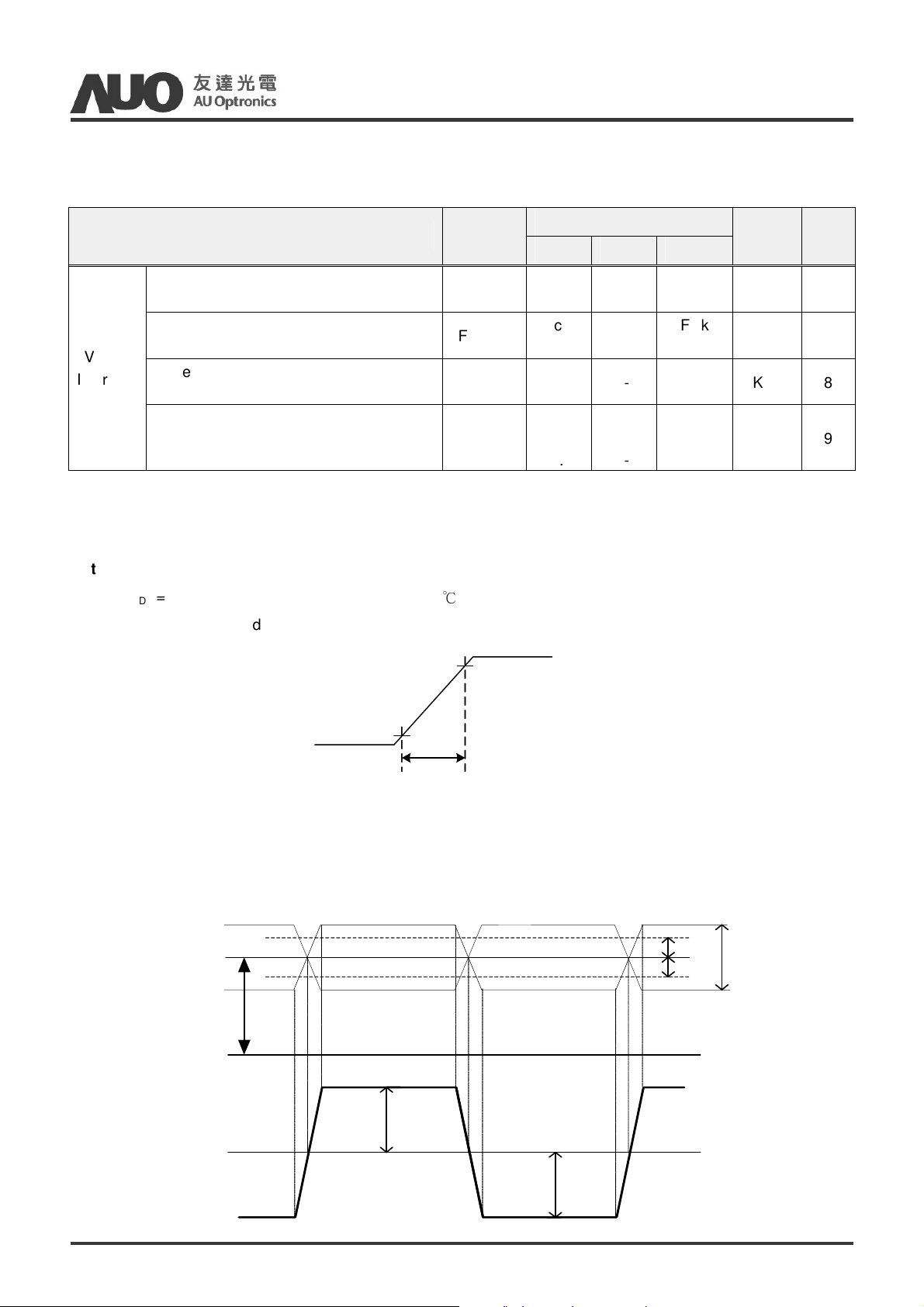

3. Test Condition:

(1) The measure point of V

is in LCM side after connecting the System Board and LCM.

RP

(2) Under Max. Input current spec. condition.

4. V

= 1.25V

ICM

L V D S -

V

IC M

L V D S +

G N D

0 V

400

400400

|VID|

V

T H

|VID|

V

T L

|VID|

T420HVD01.2 Product Specification

Rev.0 .0

5. NA.

6. The measure points of V

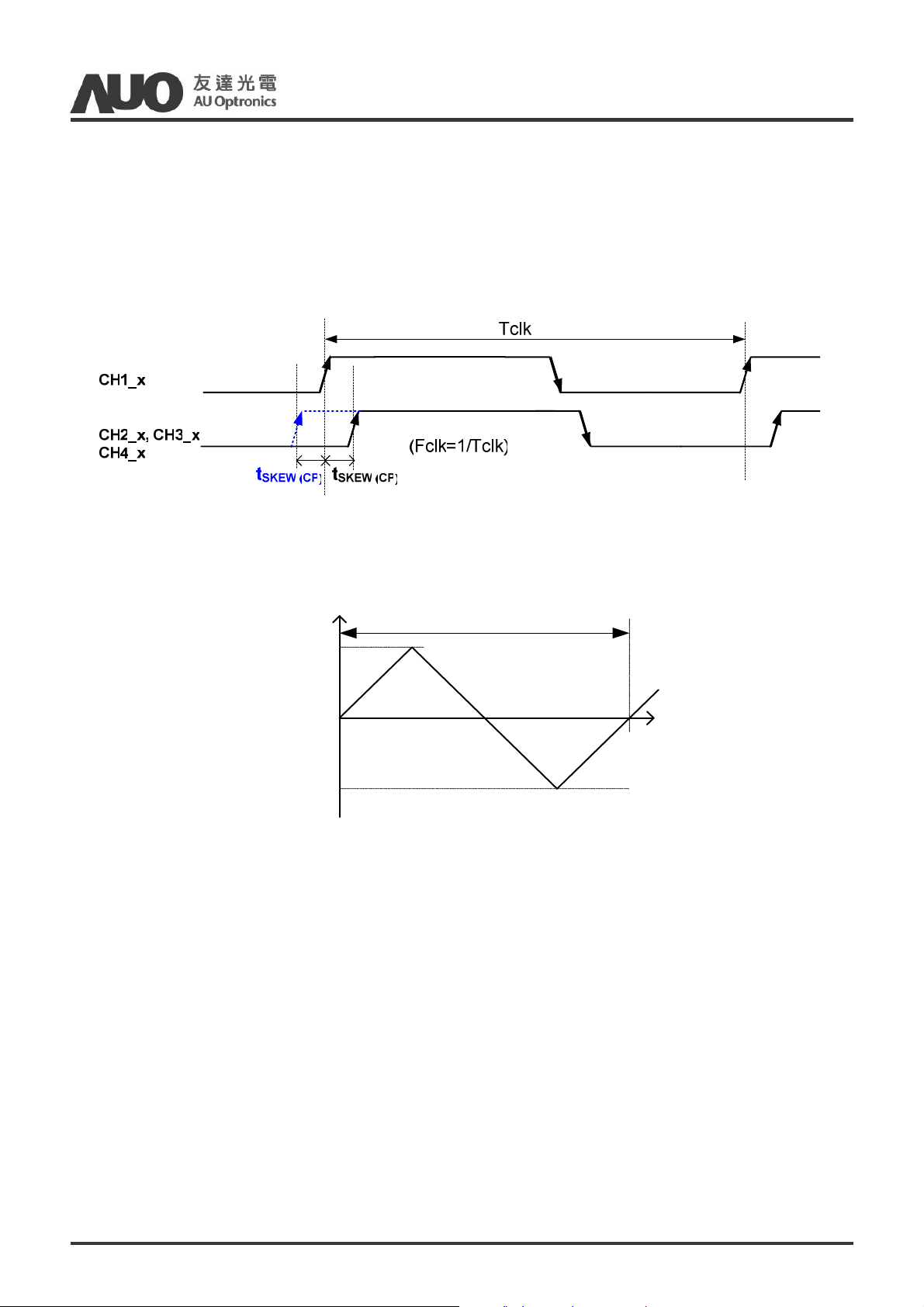

7. Input Channel Pair Skew Margin

Note: x = 0, 1, 2, 3, 4

8. LVDS eceiver Clock SSCG (Spread spectrum clock generator) is defined as below figures

Fclk

Fclk____ss

FclkFclk

ss((((max

ssss

and V

IH

max))))

maxmax

are in LCM side after connecting the System Board and LCM.

IL

1111////FFFF

SS

SSSS

Fclk

FclkFclk

Fclk

Fclk____ss

FclkFclk

ss((((min

ssss

min))))

minmin

9. Receiver Data Input Margin

T420HVD01.2 Product Specification

Rev.0 .0

Parameter Symbol

Min Type Max

Input Clock Frequency Fclk Fclk (min) -- Fclk (max) MHz

Input Data Position0 tRIP1 -|tRMG| 0 |tRMG| ns

Input Data Position1 tRIP0 T/7-|tRMG| T/7 T/7+|tRMG| ns

Input Data Position2 tRIP6 2T/7-|tRMG|

Input Data Position3 tRIP5 3T/7-|tRMG|

Input Data Position4 tRIP4 4T/7-|tRMG|

Input Data Position5 tRIP3 5T/7-|tRMG|

Input Data Position6 tRIP2 6T/7-|tRMG|

Rating

Unit

2T/7 2T/7+|tRMG| ns

3T/7 3T/7+|tRMG| ns

4T/7 4T/7+|tRMG| ns

5T/7 5T/7+|tRMG| ns

6T/7 6T/7+|tRMG| ns

tRIP2

tRIP3

tRIP4

tRIP5

Note

T=1/Fclk

tRIP6

tRIP0

tRIP1 LVDS-Rx Input Data

Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx6Rx2Rx3

LVDS-Rx

VVVV

=

= 0000VVVV

= =

diff

Input Clock

diff diff

1/Fclk=T

10. The relative humidity must not exceed 80% non-condensing at temperatures of 40℃ or less. At

temperatures greater than 40℃, the wet bulb temperature must not exceed 39℃. When operate at low

temperatures, the brightness of LED will drop and the life time of LED will be reduced.

11. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2℃]

Interface Connections

T420HVD01.2 Product Specification

Rev.0 .0

PIN Symbol Description PIN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

N.C. No connection 21

N.C. No connection 22

N.C. No connection 23

N.C. No connection 24

N.C. No connection 25

N.C. No connection 26

N.C. AUO Internal Use Only 27

N.C. No connection 28

GND Ground 29

CH3_0-

CH3_0+

CH3_1-

CH3_1+

CH3_2-

CH3_2+

LVDS Channel 3, Signal 0- 30

LVDS Channel 3, Signal 0+ 31

LVDS Channel 3, Signal 1- 32

LVDS Channel 3, Signal 1+ 33

LVDS Channel 3, Signal 2- 34

LVDS Channel 3, Signal 2+ 35

Symbol Description

CH3_3+

LVDS Channel 3, Signal 3+

N.C. No connection

GND

CH4_0-

CH4_0+

CH4_1-

CH4_1+

CH4_2-

CH4_2+

GND

CH4_CLK-

CH4_CLK+

GND

LVDS Channel 4, Signal 0-

LVDS Channel 4, Signal 0+

LVDS Channel 4, Signal 1-

LVDS Channel 4, Signal 1+

LVDS Channel 4, Signal 2-

LVDS Channel 4, Signal 2+

LVDS Channel 4, Clock -

LVDS Channel 4, Clock +

Ground

16

CH3_CLK-

17

CH3_CLK+

18

19

20

GND

CH3_3-

Ground 36

LVDS Channel 3, Clock - 37

LVDS Channel 3, Clock + 38

Ground 39

LVDS Channel 3, Signal 3- 40

41

CH4_3-

CH4_3+

LVDS Channel 4, Signal 3-

LVDS Channel 4, Signal 3+

N.C. No connection

GND Ground

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal

(Low/GND/High).

1 2 3 4 5 6

Symbol Description PIN

N.C. N.C. N.C. N.C. N.C. N.C.

7 LVDS_SEL

8 9

N.C. N.C.

T420HVD01.2 Product Specification

Rev.0 .0

Symbol Description

AUO Internal Use Only 26 AUO Internal Use Only 27 AUO Internal Use Only 28 AUO Internal Use Only 29 AUO Internal Use Only 30 AUO Internal Use Only 31

Open/High(3.3V),

Low(GND) for JEIDA

32

AUO Internal Use Only 33 AUO Internal Use Only 34

3D Function Enable

N.C. N.C.

AUO Internal Use Only AUO Internal Use Only

CH2_0- LVDS Channel 2, Signal 0-

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

GND Ground

10

3D_EN

High(3.3V) : 3D

35 CH2_CLK- LVDS Channel 2, Clock -

Open/Low(GND) : 2D

11 12 13 14 15 16 17 18

GND Ground 36 CH2_CLK+ LVDS Channel 2, Clock +

CH1_0- LVDS Channel 1, Signal 0- 37

CH1_0+ LVDS Channel 1, Signal 0+ 38

CH1_1- LVDS Channel 1, Signal 1- 39

CH1_1+ LVDS Channel 1, Signal 1+ 40

CH1_2- LVDS Channel 1, Signal 2- 41

CH1_2+ LVDS Channel 1, Signal 2+ 42

GND Ground 43 19 CH1_CLK- LVDS Channel 1, Clock - 44 20 CH1_CLK+ LVDS Channel 1, Clock + 45 21 22 23 24 25

GND Ground 46

CH1_3- LVDS Channel 1, Signal 3- 47

CH1_3+ LVDS Channel 1, Signal 3+ 48

N.C. No connection 49 N.C. No connection 50

51

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

N.C. No connection N.C. No connection N.C. N.C.

AUO Internal Use Only

AUO Internal Use Only GND Ground GND Ground GND Ground

N.C. No connection

V

DD

V

DD

V

DD

V

DD

Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated Power Supply, +12V DC Regulated

Note: N.C. : please leave this pin unoccupied. It can not be connected by any signal

(Low/GND/High).

]

 LVDS Option = High/Open

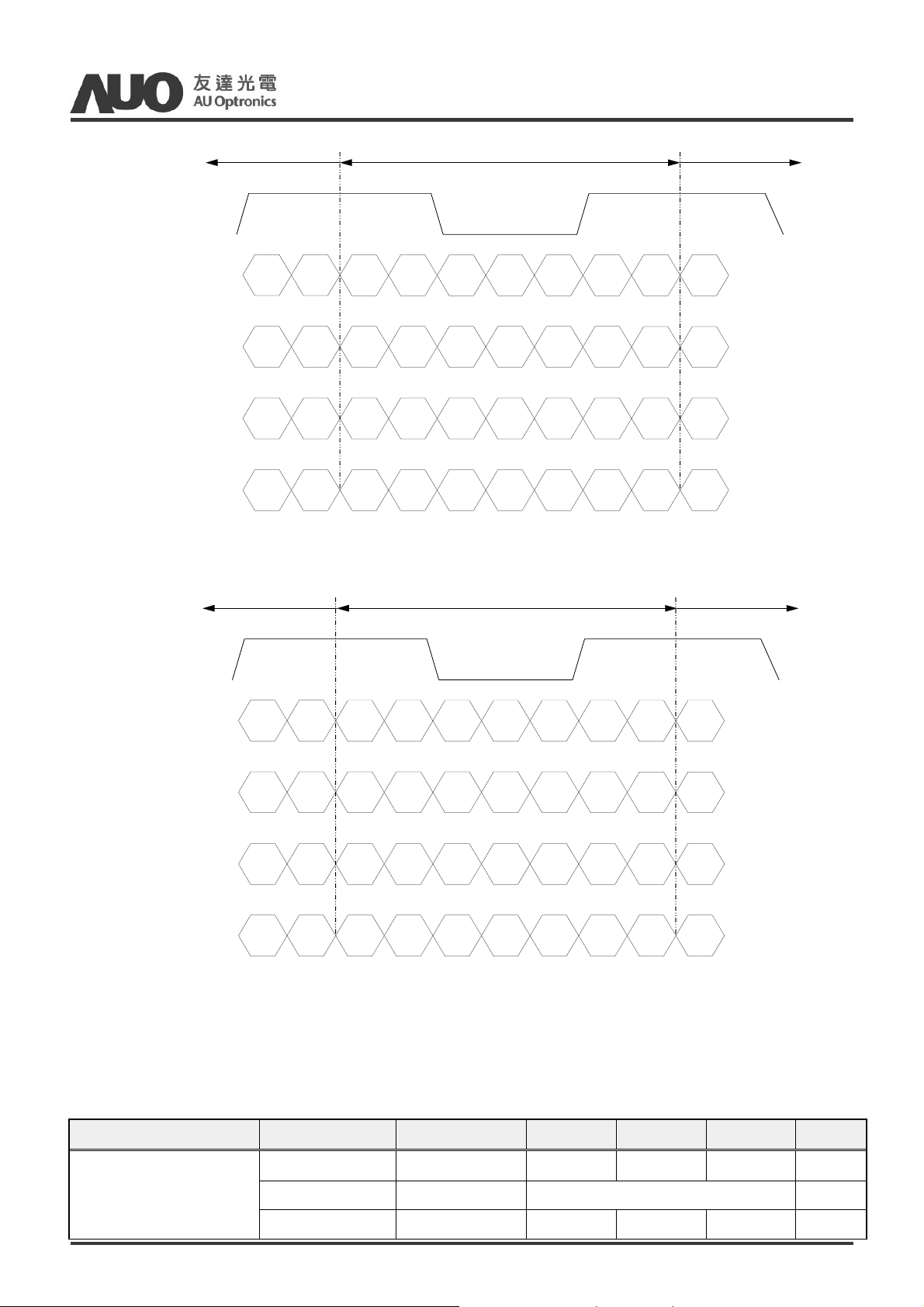

P re v io u s C ycle C u rr e n t C y c le N e xt C y c le

P re v io u s C ycle C u rr e n t C y c le N e xt C y c le P re v io u s C ycle C u rr e n t C y c le N e xt C y c le

C lo c k

C lo c kCloc k

C H x

C H x____ 0000 ++++

C H xC H x C H x

C H x____ 0000 ----

C H xC H x

C H x

C H x____ 1111 ++++

C H xC H x C H x

C H x____ 1111 ----

C H xC H x

C H x

C H x____ 2222 ++++

C H xC H x C H x

C H x____ 2222 ----

C H xC H x

C H x

C H x____ 3333 ++++

C H xC H x C H x

C H x____ 3333 ----

C H xC H x

Note: x = 0, 1, 2, 3

T420HVD01.2 Product Specification

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A

D ED E

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

N A D E

N AN A

N A BBBB 3333

N AN A

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

BBBB 2222N A

RRRR 6666BBBB 7777 N A

D ED E

N AN A

Rev.0 .0

 LVDS Option = LowJEIDA

P re v io u s C ycle C urr e n t C y cle N e xt C yc le

P re v io u s C ycle C urr e n t C y cle N e xt C yc le P re v io u s C ycle C urr e n t C y cle N e xt C y cle

C lo c k

C lo c kC loc k

C H x

C H x ____ 0000 ++++

C H xCH x C H x

C H x ____ 0000 ----

C H xCH x

C H x

C H x ____ 1111 ++++

C H xCH x C H x

C H x ____ 1111 ----

C H xCH x

C H x

C H x ____ 2222 ++++

C H xCH x C H x

C H x ____ 2222 ----

C H xCH x

C H x

C H x ____ 3333 ++++

C H xCH x C H x

C H x ____ 3333 ----

C H xCH x

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777N A

D ED E

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

N A D E

N AN A

N A BBBB 5555

N AN A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

BBBB 4444N A

RRRR 0000BBBB 1111 N A

D ED E

N AN A

3.2 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table (DE only Mode)

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1096 1130 1392 Th

Vertical Section

Active Tdisp (v) 1080

Blanking Tblk (v) 16 50 312 Th

T420HVD01.2 Product Specification

Rev.0 .0

Period Th 520 570 580 Tclk

Horizontal Section

Active Tdisp (h) 480

Blanking Tblk (h) 40 90 100 Tclk

Clock Frequency Fclk=1/Tclk 64.8 77.29 80.74 MHz

Vertical Frequency Frequency Fv 94 120 122 Hz

Horizontal Frequency

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

Frequency Fh 120 135.6 139.2 KHz

(5) Under 3D mode, signal should be input as following sequence: 1st line: right eye, 2nd line: left eye (when rotate

function is not implemented and Tcon position is at panel upper side).

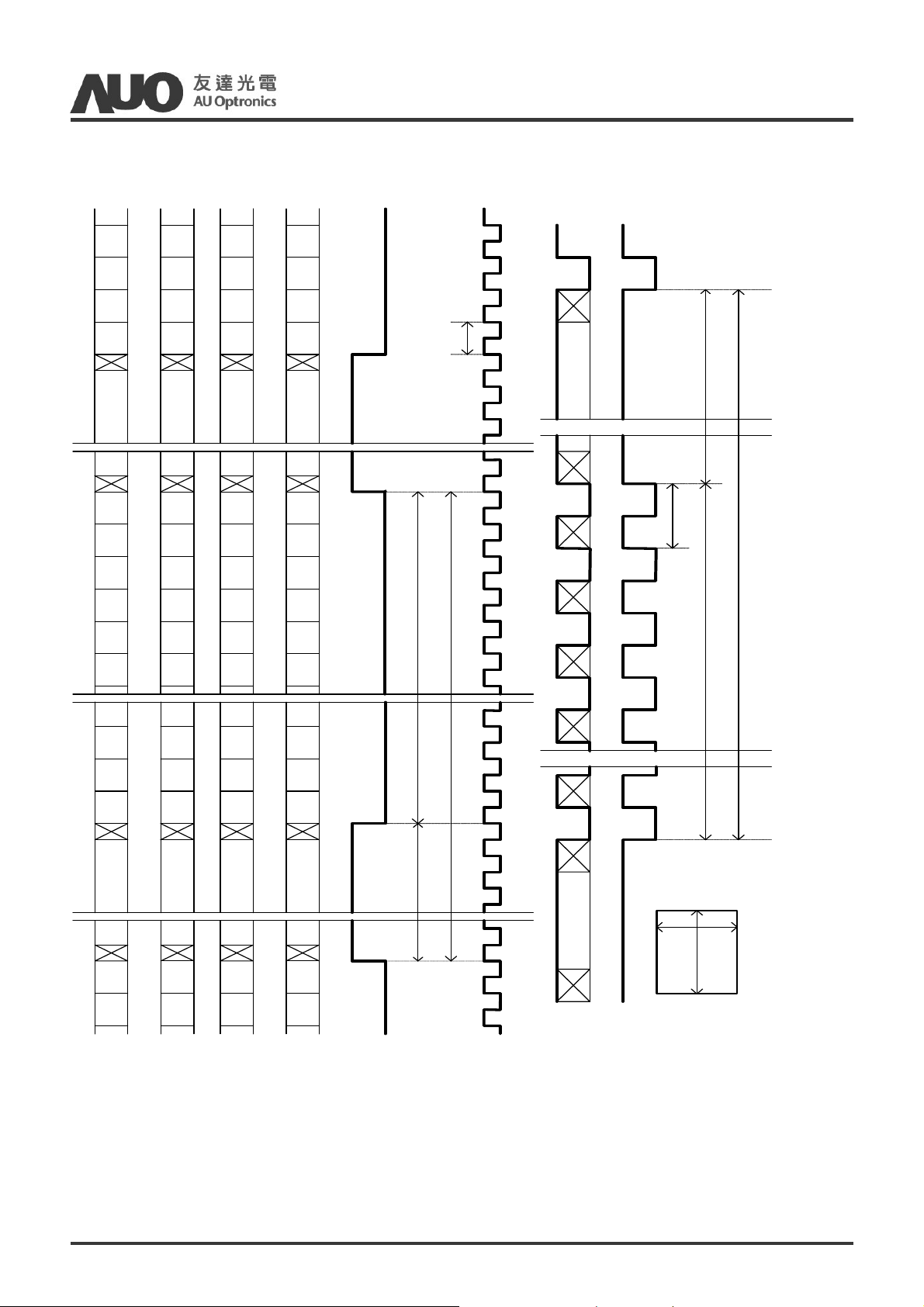

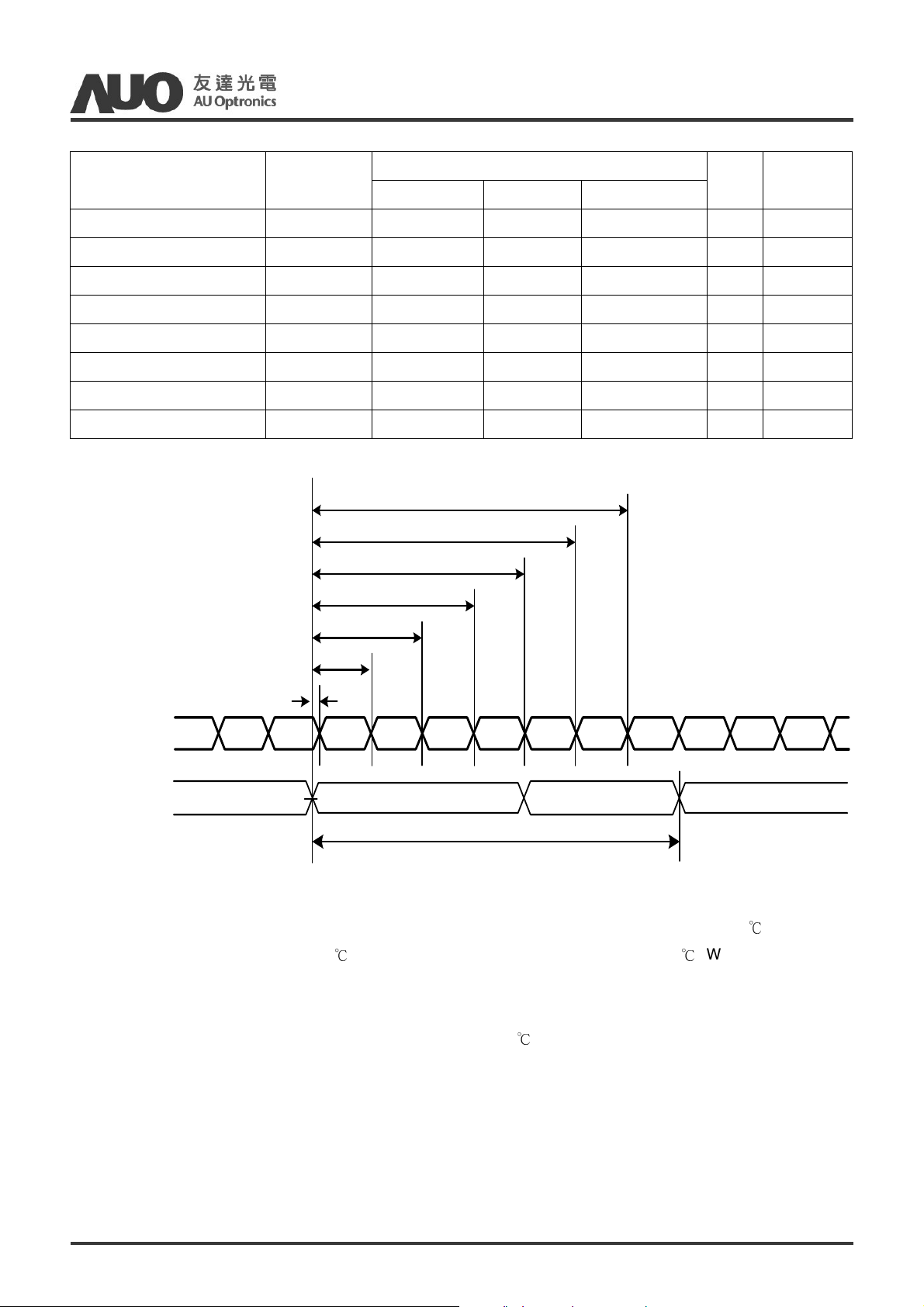

3.3 Signal Timing Waveforms

T420HVD01.2 Product Specification

Rev.0 .0

CH4

M-12

Pixel

M-8

Pixel

M-4

Pixel

M

Invalid Data

Pixel

4

Pixel

8

Pixel

12

Pixel

16

Pixel

20

Pixel

24

CH3

M-13

Pixel

M-9

Pixel

M-5

Pixel

M-1

Invalid Data

Pixel

3

Pixel

7

Pixel

11

Pixel

15

Pixel

19

Pixel

23

CH2

M-14

Pixel

M-10

Pixel

M-6

Pixel

M-2

Invalid Data

Pixel

2

Pixel

6

Pixel

10

Pixel

14

Pixel

18

Pixel

22

CH1

M-15

Pixel

M-11

Pixel

M-7

Pixel

M-3

Invalid Data

Pixel

1

Pixel

5

Pixel

9

Pixel

13

Pixel

17

Pixel

21

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

M-10

Pixel

M-8

Pixel

M-4

Pixel

M

Invalid Data

Pixel

4

Pixel

8

Pixel

M-9

Pixel

M-5

Pixel

M-1

Invalid Data

Pixel

3

Pixel

7

Pixel

M-6

Pixel

M-2

Invalid Data

Pixel

2

Pixel

6

M-11

Pixel

M-7

Pixel

M-3

Invalid Data

Pixel

1

Pixel

5

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

T420HVD01.2 Product Specification

Rev.0 .0

3.4 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

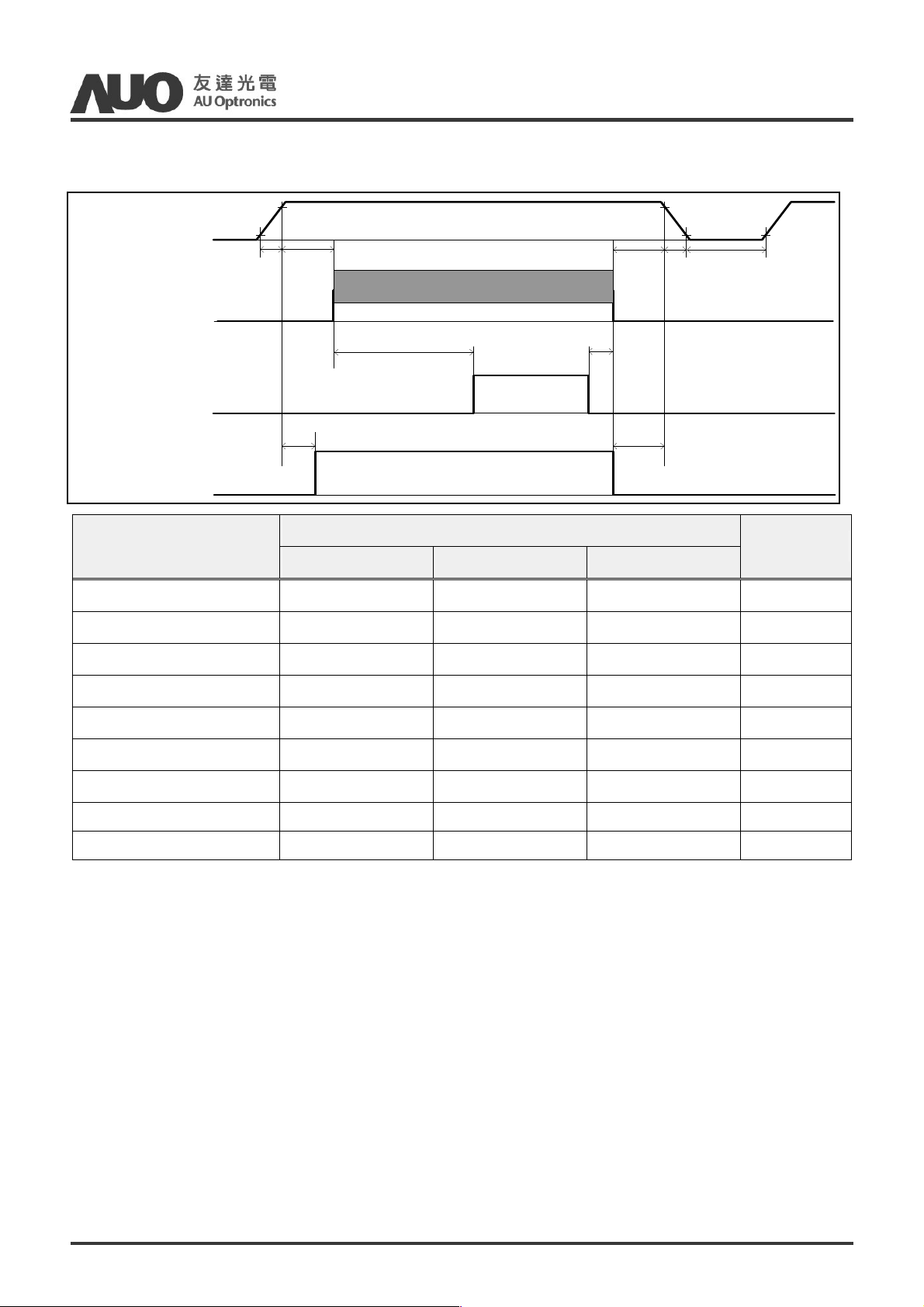

Power Sequence for LCD

T420HVD01.2 Product Specification

Rev.0 .0

Pow er S u p p ly F or LC D

Pow er S u p p ly F or LC D Pow er S u p p ly F or LC D

VD D

VD D (+

(+ 12

(+(+

12 VVVV ))))

121 2

G ND

VD D VDD

In ter face Sig n a l

In ter face Sig n a lIn ter face Sig n a l

((((LV DS D a ta

LV DS D a ta &

LV DS D a ta LV DS D a ta

& C LK

CLK ))))

& &

CLKCLK

G ND

Back lig h t o n

Back lig h t o n ////o ff

Back lig h t o nB a c klight on

co n tro l s ig na l

co n tro l s ig na lco n tro l s ig na l

((((VBLO N

VBLO N ))))

VBLO NVBLO N

CM O S In terf ace S ignal

CM O S In terf ace S ignalCM O S In terf ace S ignal ((((L V DS

LVD S ____SE L

LVD SL V DS

off

offoff

SE L ,,,,....... )

....... )

SE LS E L

....... )....... )

GN D

G ND

Parameter

t1 0.4 --- 30 ms

t2 0.1 --- 50 ms

10 %

90 %

t1

t2

Valid D ata

Valid D ataV alid Da ta

t3 t4

t8 t9

Values

Min. Type. Max.

90 %

10 %

t6

t5

10 %

t7

Unit

t3 450 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t7 500 --- --- ms t8

10*3

--- 50 ms

t9 0 --- --- ms

Note: (1) t4=0 : concern for residual pattern before BLU turn off. (2) t6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value) (3) When CMOS Interface signal is N.C. (no connection), opened in Transmitted end, t8 timing spec can be

negligible.

3.7 Backlight Specification

The backlight unit contains 1pcs light bar.

3.7.1 Electrical specification

Item Symbol Condition

T420HVD01.2 Product Specification

Rev.0 .0

Spec

Unit Note

Min Typ Max

1

2

3

4

5 Control signal voltage

6 Control signal current

7

8

9

10

Note 1: Dimming ratio= 100%,（Ta=25±5℃, Turn on for 45minutes）

Input Voltage VDDB - 22.8

Input Current I

Input Power P

Inrush Current I

V

Sinal

External PWM Duty ratio

(input duty ratio)

External PWM

Frequency

DET status signal DET

Input Impedance Rin VDDB=24V 300 Kohm -

D_EPWM VDDB=24V

VDDB=24V

DDB

VDDB=24V

DDB

VDDB=24V

RUSH

Hi 2 -

Low

I

VDDB=24V

Signal

F_EPWM VDDB=24V 120 180 240 Hz 5,6

HI Open Collector VDC 7

Lo

VDDB=24V

24 25.2

1.84

0 - 0.8

- - 1.5 mA -

0 - 100 % 5,6

0 - 0.8 VDC 7

48.4

5

2

3.3

VDC -

ADC 1

W 1

ADC 3

-

VDC

4

Note 3: MAX input current at all operating mode, measurement condition Rising time = 20ms (VDDB: 10%~90%)

Note 4: When BLU off ( VDDB = 24V , VBLON = 0V) , IDDB (max) = 0.1A

Note 5: Less than 5% dimming control is functional well and no backlight shutdown happened

Note 6: D_EPWM and F_EPWM are available only at 2D mode

Note 7: Normal: 0~0.8V ; Abnormal : Open collector

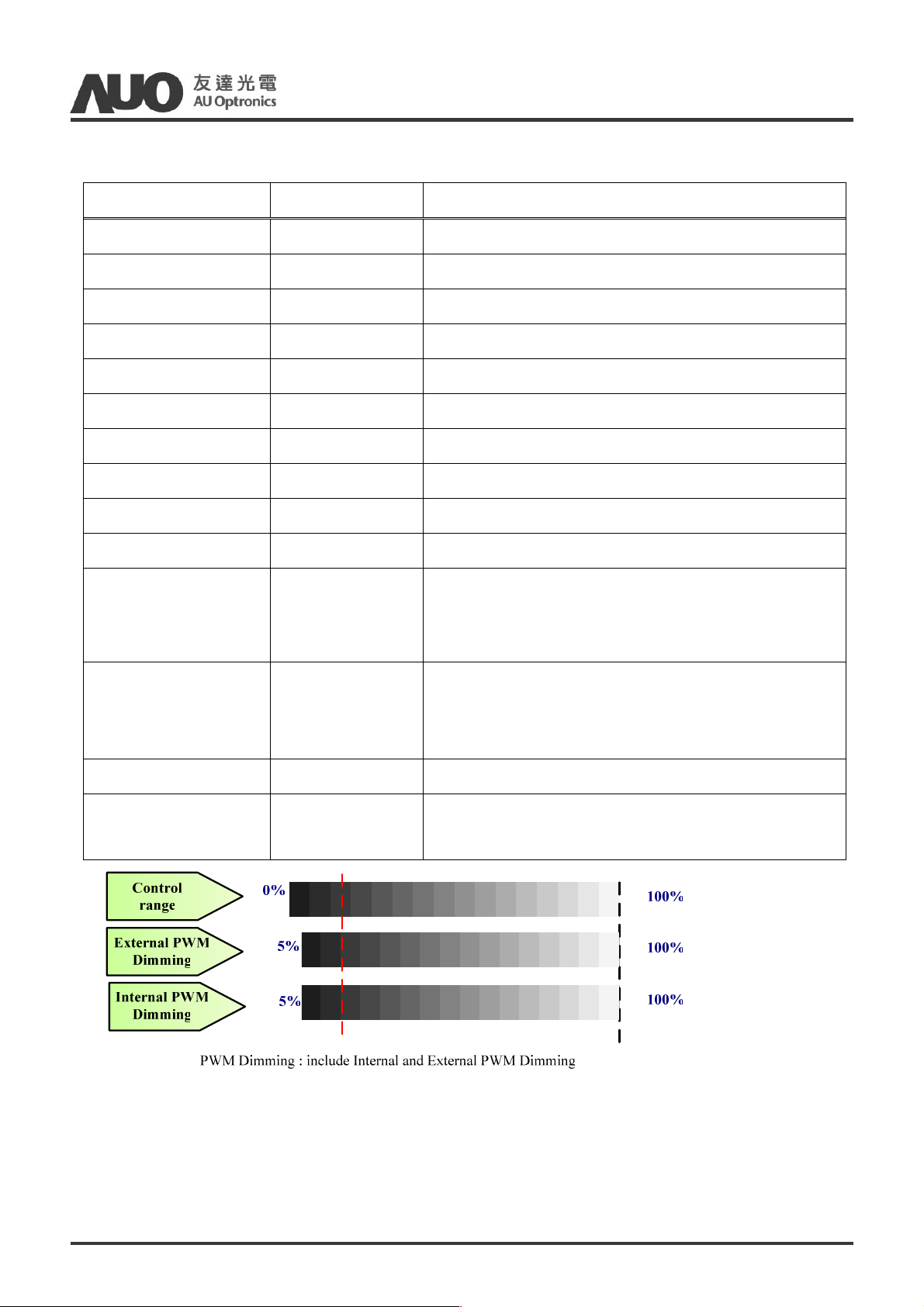

3.7.2 Input Pin Assignment

LED driver board connector : Cvilux CI0114M1HR0-NH

Pin Symbol Description

1 VDDB Operating Voltage Supply, +24V DC regulated

2 VDDB Operating Voltage Supply, +24V DC regulated

3 VDDB Operating Voltage Supply, +24V DC regulated

4 VDDB Operating Voltage Supply, +24V DC regulated

5 VDDB Operating Voltage Supply, +24V DC regulated

6 BLGND Ground and Current Return

7 BLGND Ground and Current Return

8 BLGND Ground and Current Return

9 BLGND Ground and Current Return

T420HVD01.2 Product Specification

Rev.0 .0

10 BLGND Ground and Current Return

BLU status detection:

11 DET

12 VBLON

13 NC NC

14 PDIM(*)

Normal : 0~0.8V ; Abnormal : Open collector

(Recommend Pull high R > 10K, VDD = 3.3V)

BLU On-Off control:

High/Open (2~5.5V) : BL On ;

Low (0~0.8V/GND) : BL Off

External PWM (5%~100% Duty, open for 100%)

(Note*) IF External PWM function includes 5% dimming ratio. Judge condition as below: (1) Backlight module must be lighted ON normally. (2) All protection function must work normally. (3) Uniformity and flicker could NOT be guaranteed

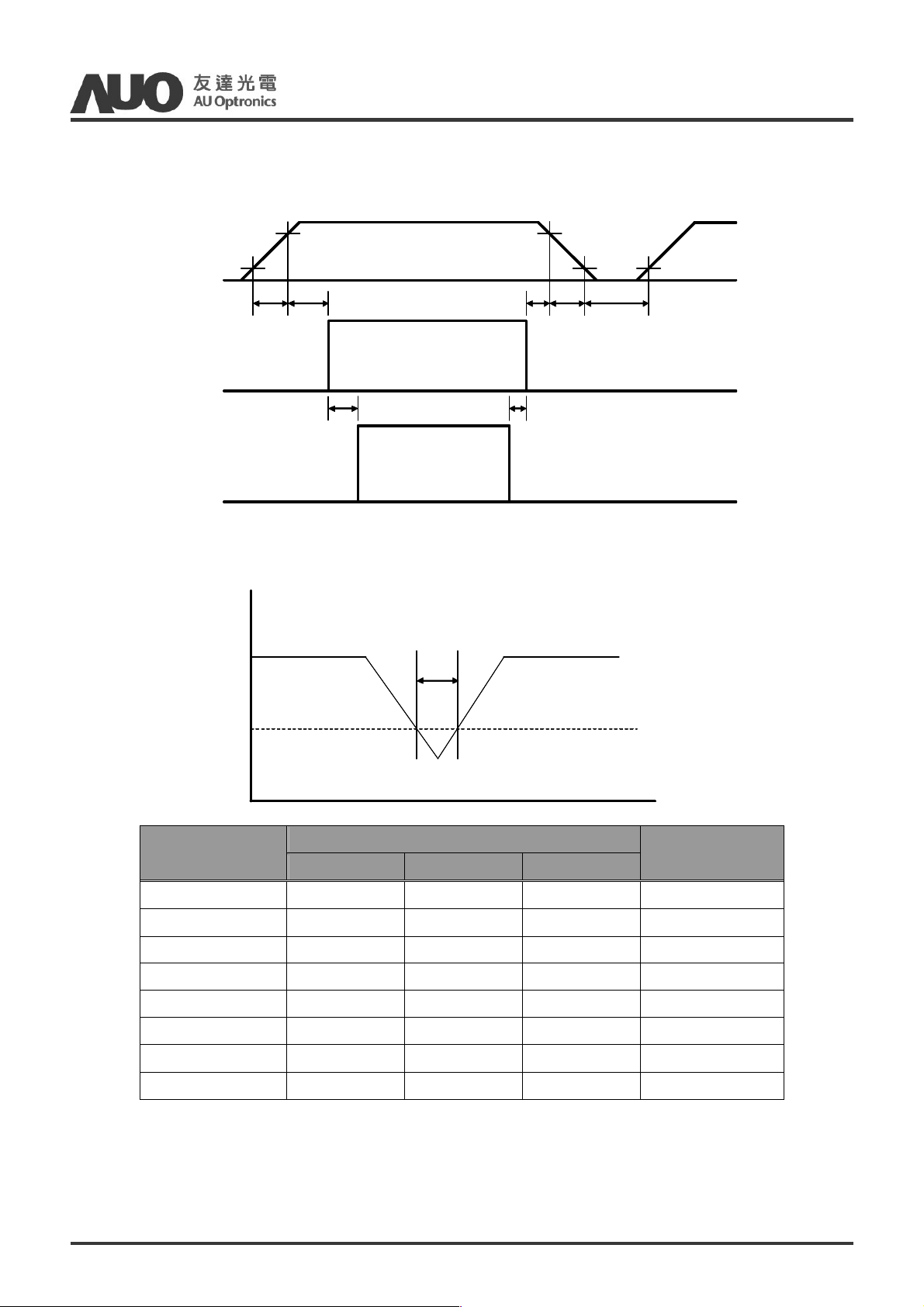

Power Sequence for Backlight

24V(typ.)

T3

Power Input for BLU

(VDDB)

Valid Dimming

Control Signal

(V_IPWM,V_EPWM)

BLU On/Off Enable

(VBLON)

90% 90%

10%

T1 T2

Dip condition

T420HVD01.2 Product Specification

Rev.0 .0

10%

T7

T6

T5

T4

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

Parameter

T1 20 - - ms

T2 500 - -

T3 250 - -

T4 0 - -

T5 1 - -

T6 - -

T7 500 - -

T8 - - 10

T8

Value

Min Typ Max

Units

ms

T420HVD01.2 Product Specification

Rev.0 .0

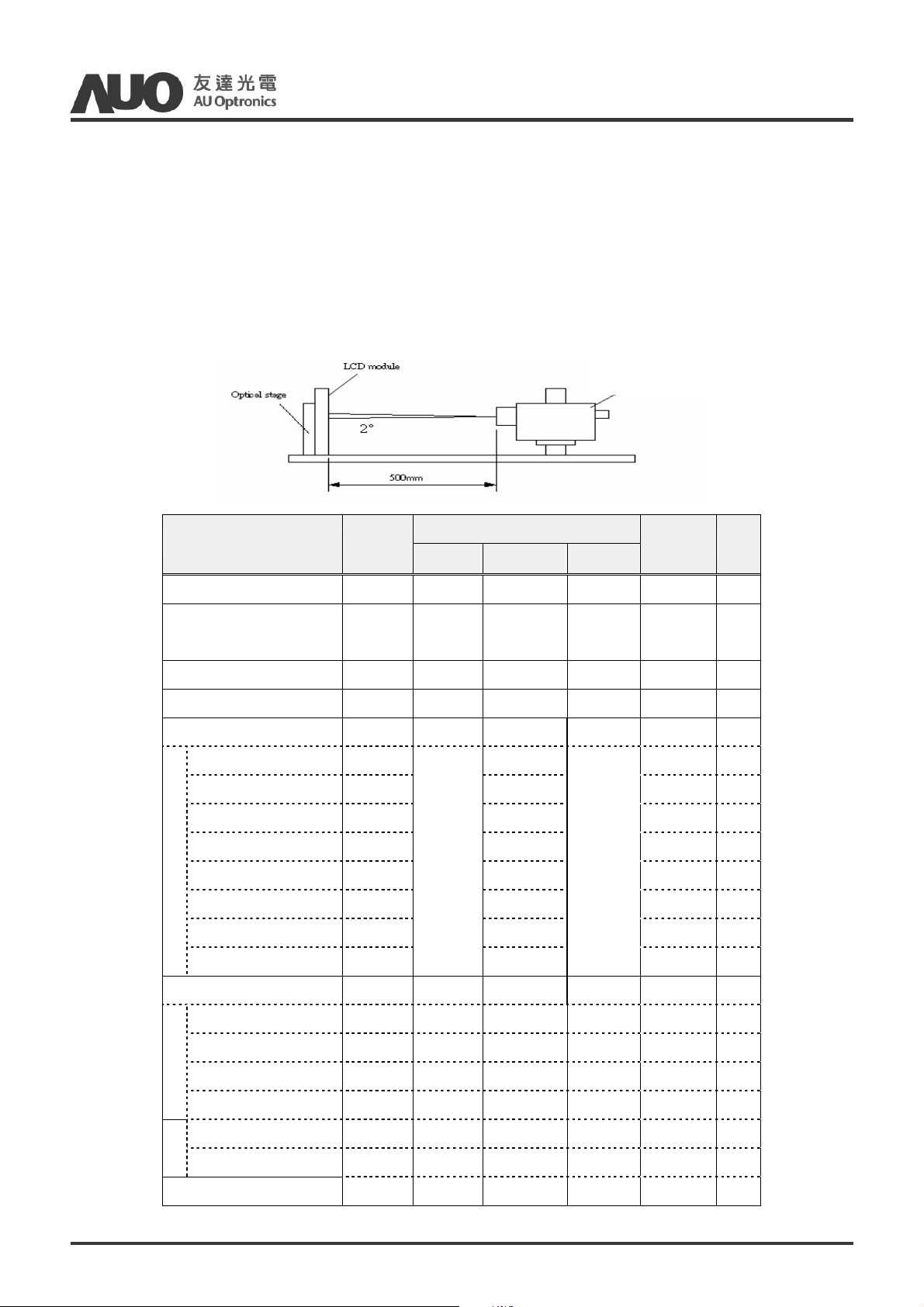

4. Optical Specification

Optical characteristics are determined after the open cell unit and light source has been ‘ON’ and stable for

approximately 45 minutes in a dark environment at 25°C. The values specified are at an approximate distance

50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

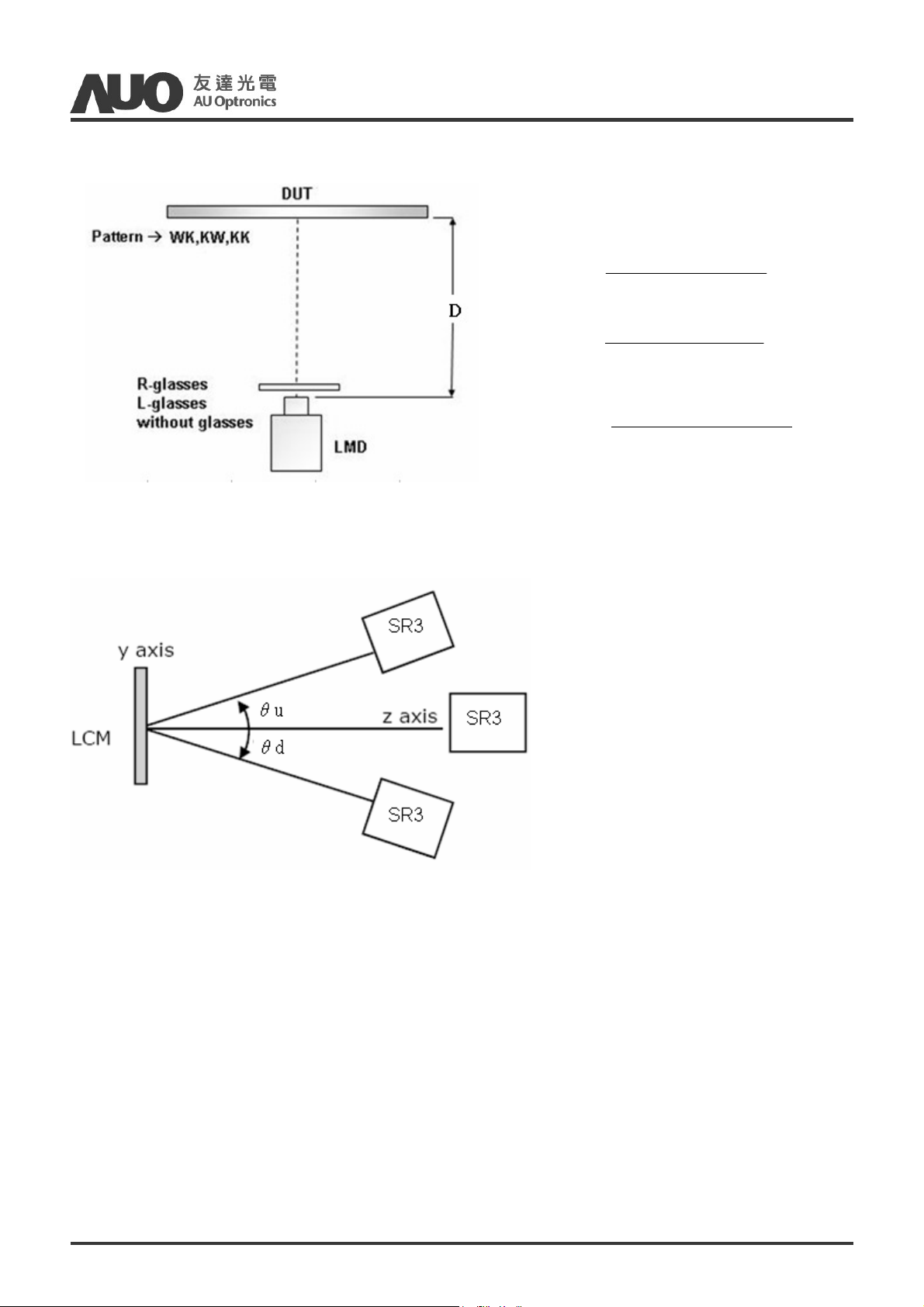

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Contrast Ratio CR 2400 3000 -- 1,2

Surface Luminance

(White)

Luminance Variation δ

Response Time (G to G)

Color Chromaticity 6

Red RX 0.630

RY 0.330

Green GX 0.320

GY 0.620

Blue BX 0.150

BY 0.040

White WX 0.285

WY

LWH 280 350 -- cd/m2 1,3

WHITE(9P)

Tγ -- 6.5 -- Ms 5

-- -- 1.33 1,4

Typ.-0.03

Values

0.293

Unit Notes

Typ.+0.03

Viewing Angle 7

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

2D

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θd -- 89 -- degree

y axis, up θu 10 degree

3D

y axis, down θd 10

3D cross talk (middle) -- 1 3 %

9

2 3

7

T420HVD01.2 Product Specification

Rev.0 .0

Note:

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

Surface Luminance of

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. From more information see FIG 2. When LED current IF = typical value (without driver board),

L

on5

off5

LED input VDDB =24V, I

. = Typical value (with driver board), LWH=Lon5 where Lon5 is the luminance with all

DDB

pixels displaying white at center 5 location.

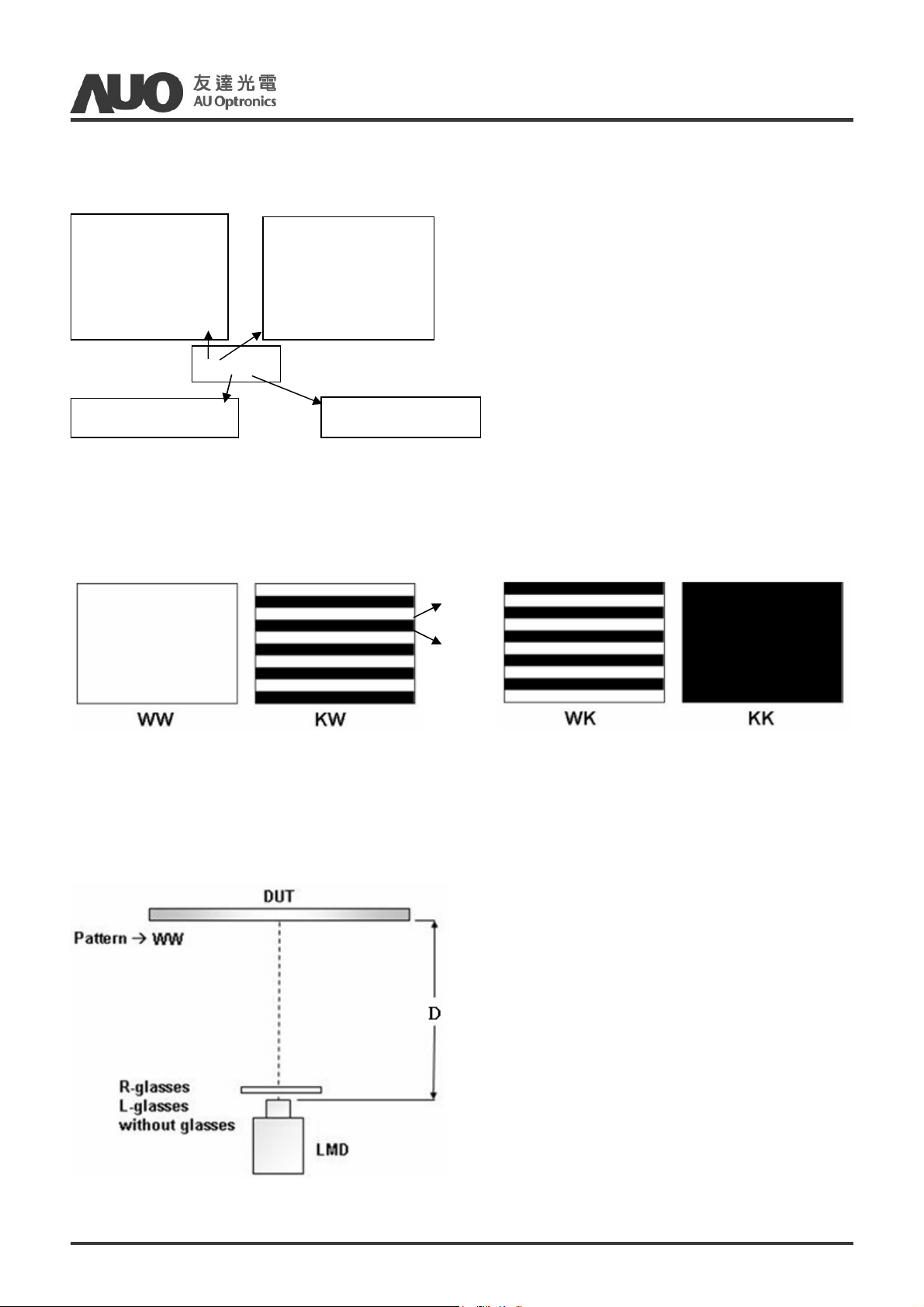

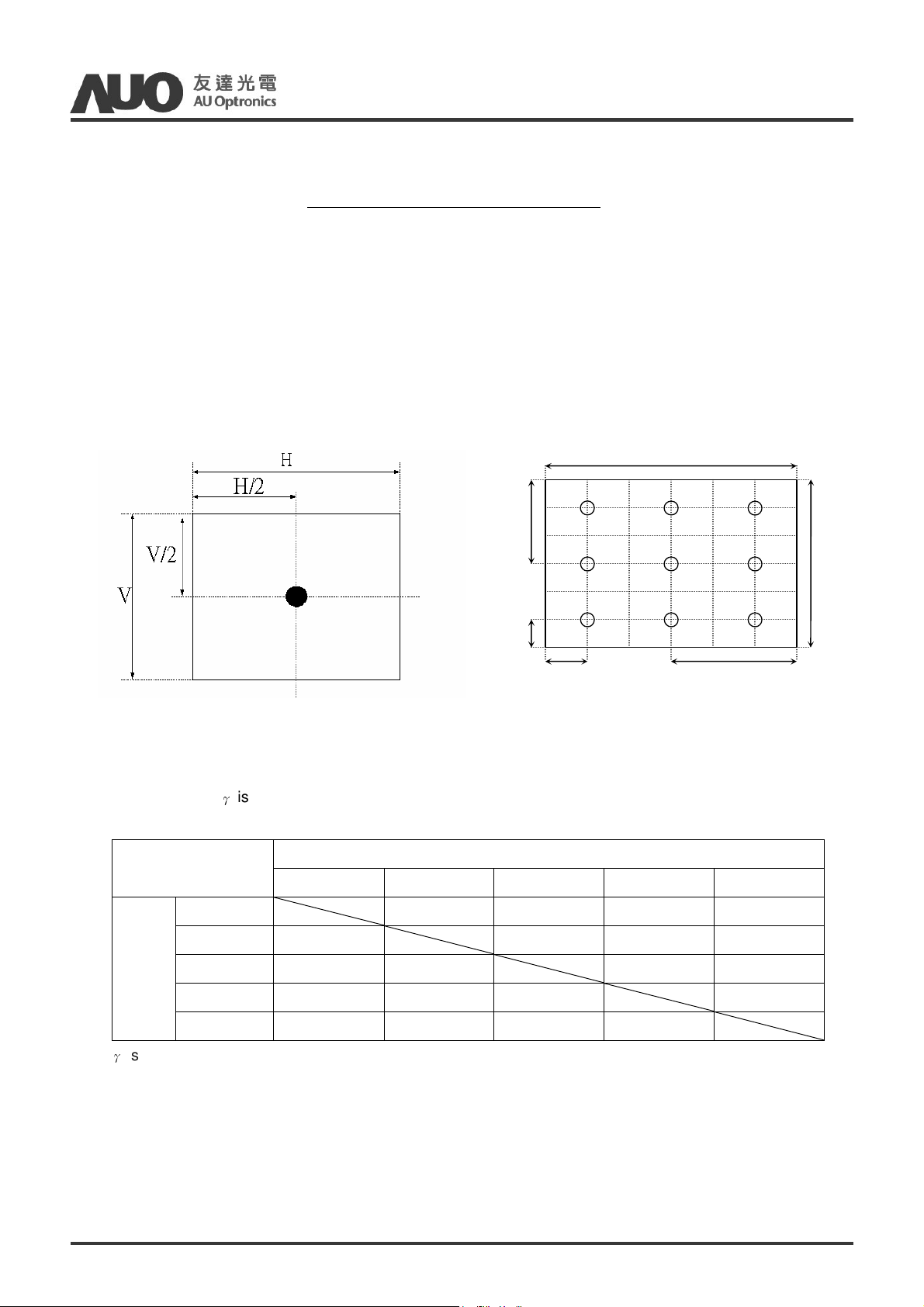

FIG. 2 Luminance

V

H/2

H/9

1

H

V/2 V/9

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

δ

WHITE(9P)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

Target Measured

Response Time

0%

25%

Start

50%

75%

100%

Tγ is determined by 10% to 90% brightness difference of rising or falling period. (As illustrated)

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 100%

T420HVD01.2 Product Specification

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

Rev.0 .0

0% , 25%, 50% , 75%, 100%

100%

90%

0% , 25%, 50% , 75%, 10 0%

Photodetector

Output

10%

0% , 25%, 50% , 75%, 100%

Tim e

T

(F)

γγγγ

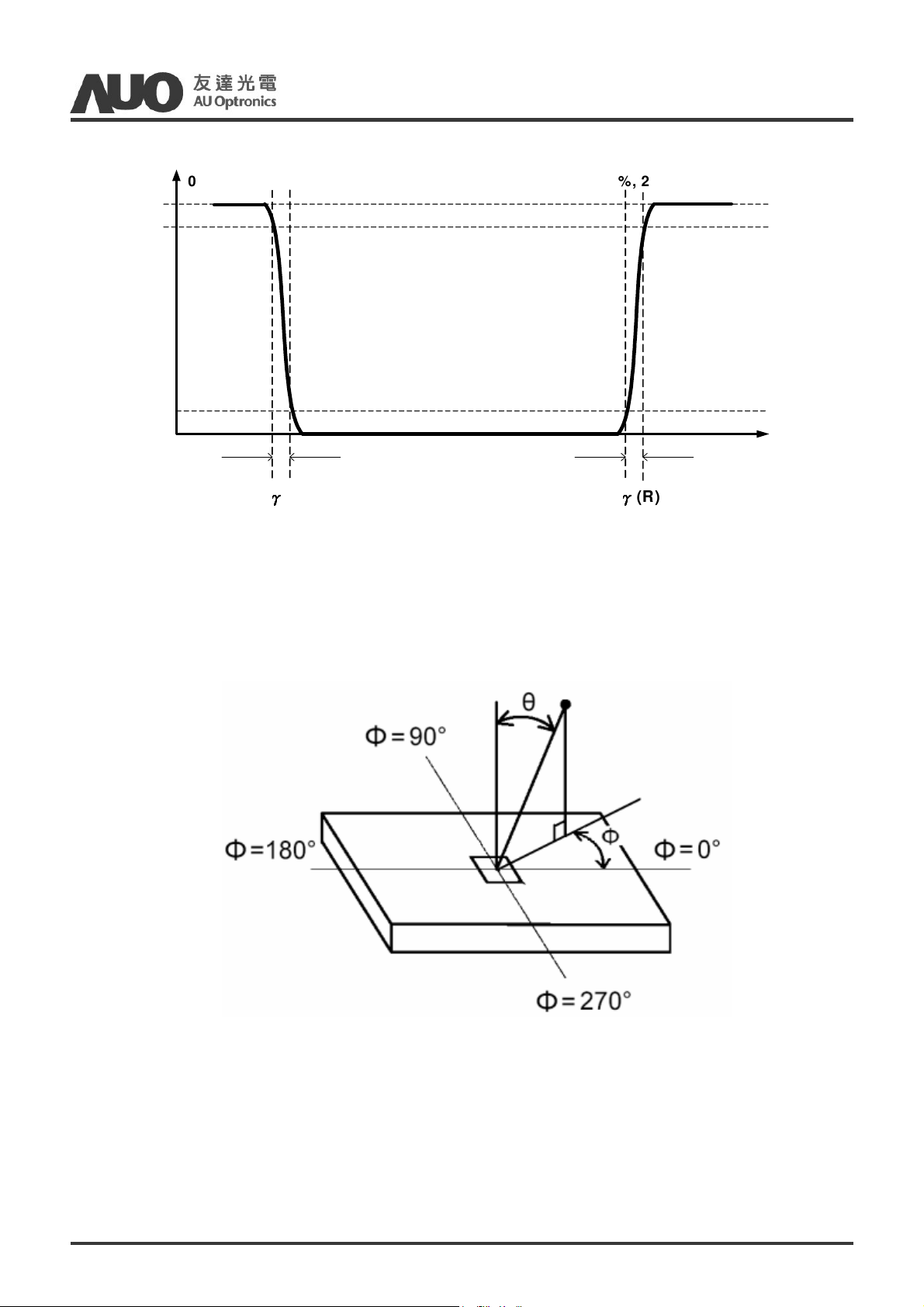

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG3.

T

γγγγ

(R)

FIG.3 Viewing Angle

6. 3D performance specification is expressed by 3D luminance, 3D Crosstalk and 3D viewing angle. 3D

luminance which is defined by left or right eye brightness under wearing glasses condition is measured at

panel center point. Also, 3D crosstalk is measured at panel center point.

a. Cross talk (middle) is defined by observation position which is 1.5m distance from panel center point and

human head in 0 degree steady vertical angle from panel mid axis level.

b. Cross talk (in vertical viewing angle) is defined by observation position which is

center point and observation range within specified degrees of vertical angle from panel mid axis level, and the

value is limited by 10%.

1.5m distance from panel

For more information, refer to 6-5 3D Measurement of 3D view angle.

6-1 Notation of measurement.

T420HVD01.2 Product Specification

Rev.0 .0

Glasses type:

R: right eyeglass

L: left eyeglass

C: without

RL (W,K)

Left eye gray level

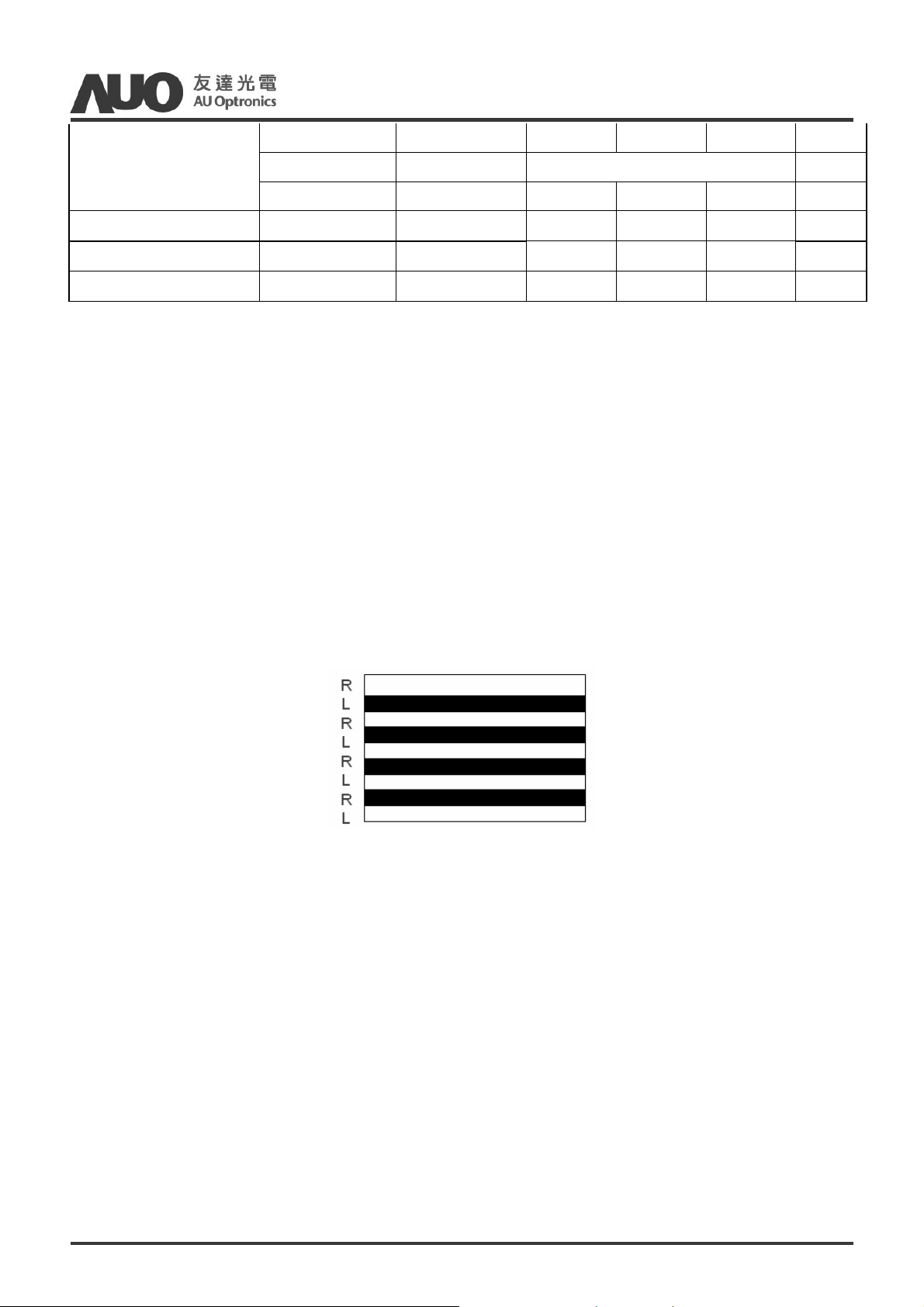

6-2 Measurement Configuration

4-test patterns (first character refers to Left eye gray level; second one refers to Right eye gray level).

W is defined as brightness gray level; K is defined as dark state where black and white lines are displayed

on even or odd lines.

Measurement Code:

L: Luminance

Right eye gray level

Odd line

Even line

6-3 Measurement of 3D luminance

a. Test pattern WW is displayed, measuring distance is 50cm.

b. Left or right eyeglass are placed in front of SR3 or equivalent equipment (as FIG1 showed)

successively and luminance is measured at panel center point where the notation for luminance

measurement is RL(W,W) and LL(W,W).

=

6-4 Measurement of 3D Crosstalk

LL

),( ),(3 WWLorWWRLumD

a. Test patterns KW, WK and KK are displayed, measuring distance is 1.5m.

2

−

T420HVD01.2 Product Specification

Rev.0 .0

b. Right or left eyeglass is placed in front of SR3 or equivalent equipment (as FIG1 showed) successively

and luminance is measured at panel center point

),(),(

KKRKWR

Crosstalk

=

R

=

L

LL

−

LL

−

LL

),(),(

KKRWKR

),(),(

KKLWKL

),(),(

KKLKWL

%100

×

%100

×

6-5 Measurement of 3D view angle

The angles are determined for the vertical or y axis with respect to the z axis which is normal to the LCD

module surface and measured at panel center position.

Crosstalk+=

CrosstalkCrosstalk

LR

T420HVD01.2 Product Specification

Rev.0 .0

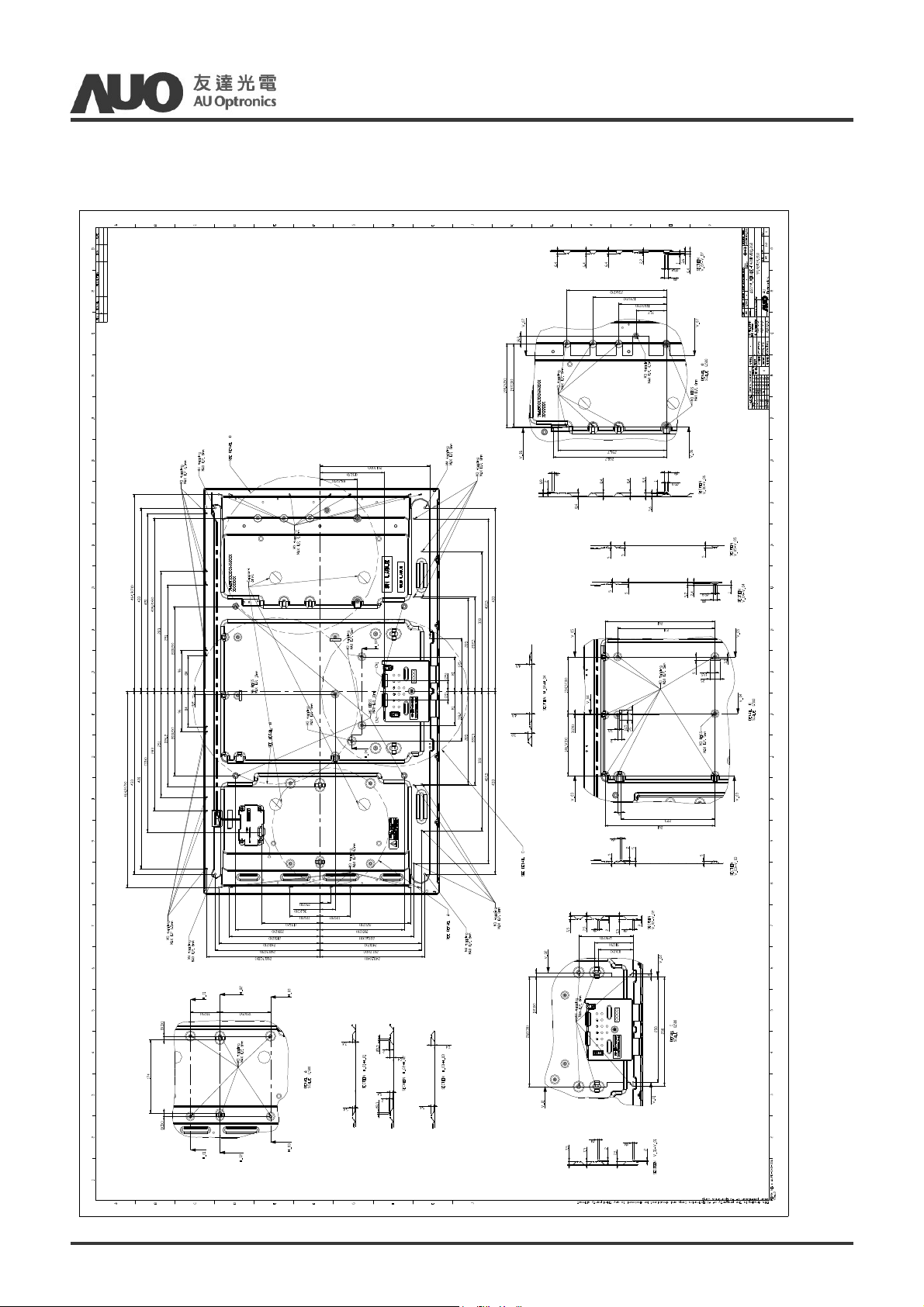

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T420HVD01.2. In addition the figures in the

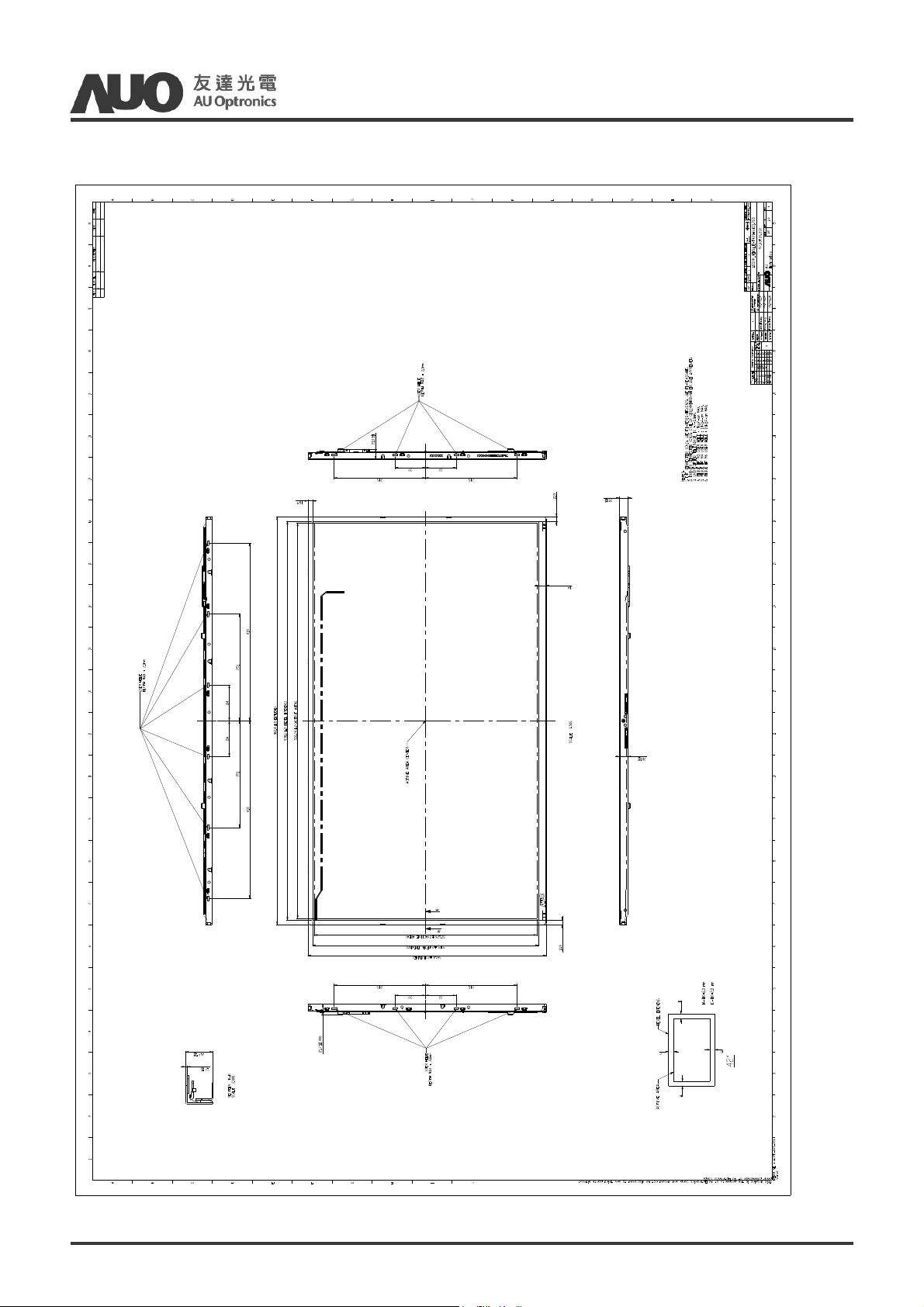

next page are detailed mechanical drawing of the LCD.

Item Dimension Unit Note

Horizontal 960.4 mm

Vertical 560.4 mm

Outline Dimension

Depth (Dmin) 9.9 mm

Depth (Dmax) 25.7 mm

Weight (10000) g

Front View

T420HVD01.2 Product Specification

Rev.0 .0

Back View

T420HVD01.2 Product Specification

Rev.0 .0

6. Reliability Test Items

T420HVD01.2 Product Specification

Rev.0 .0

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 10

Test Item Q’ty Condition

Wave form: random

Vibration level : 1.0G RMS

Bandwidth : 10-300Hz

Duration : X,Y,Z 10min per axes

X,Y,Z: Horizontal, face up

Shock level

30G,11ms in ±X,Y,Z axis

Waveform: half sine wave

Direction: One time each direction

Random wave (1.05Grms 10~200Hz)

Duration : X,Y,Z 10min per axes

8 Drop test (With carton) 10

Height: 25.4cm (ASTMD4169)

Surround four flats (Front,Rear,Left,Right flat)

one time, Bottom flat two times.

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology

Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

T420HVD01.2 Product Specification

Rev.0 .0

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

QTY :

10

Manufactured

XX/XX

MADE IN

XXXXX

8. Packing

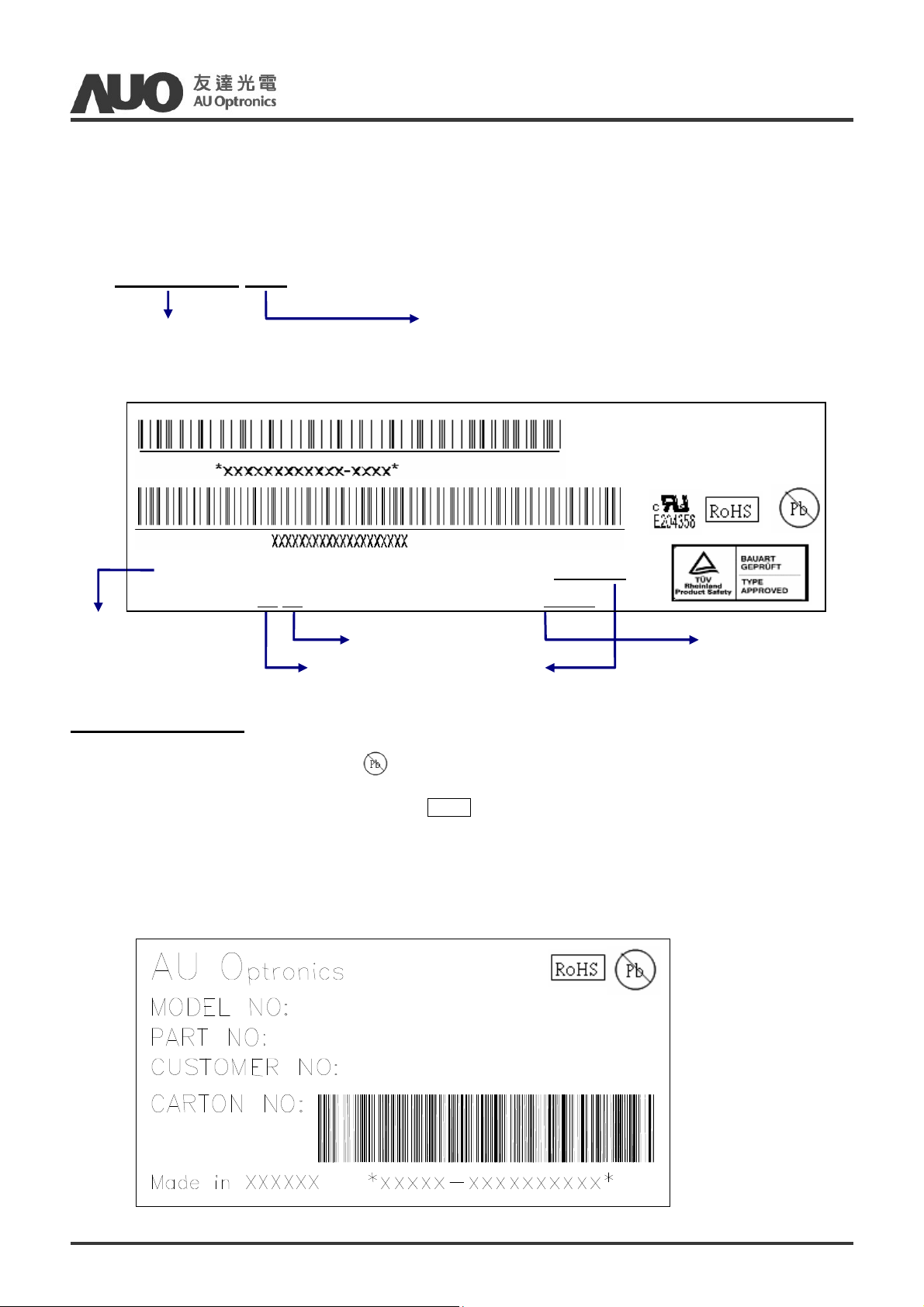

8-1 DEFINITION OF LABEL:

A. Panel Label:

*xxxxxxxxxxxx-xxxx*

T420HVD01.2 Product Specification

Rev.0 .0

Panel Unique ID

XXXXX Model NO: T420HVD01.2 XXXXXXX

Green mark description

Year

AUO Internal Use

AU Optronics

Week Factory Location AUO Internal Use

AUO Internal Use

(1) For Pb Free Product, AUO will add for identification.

(2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green

team. (definition of green design follows the AUO green design checklist.)

B. Carton Label:

T420HVD01.2

97.42T24.2XX

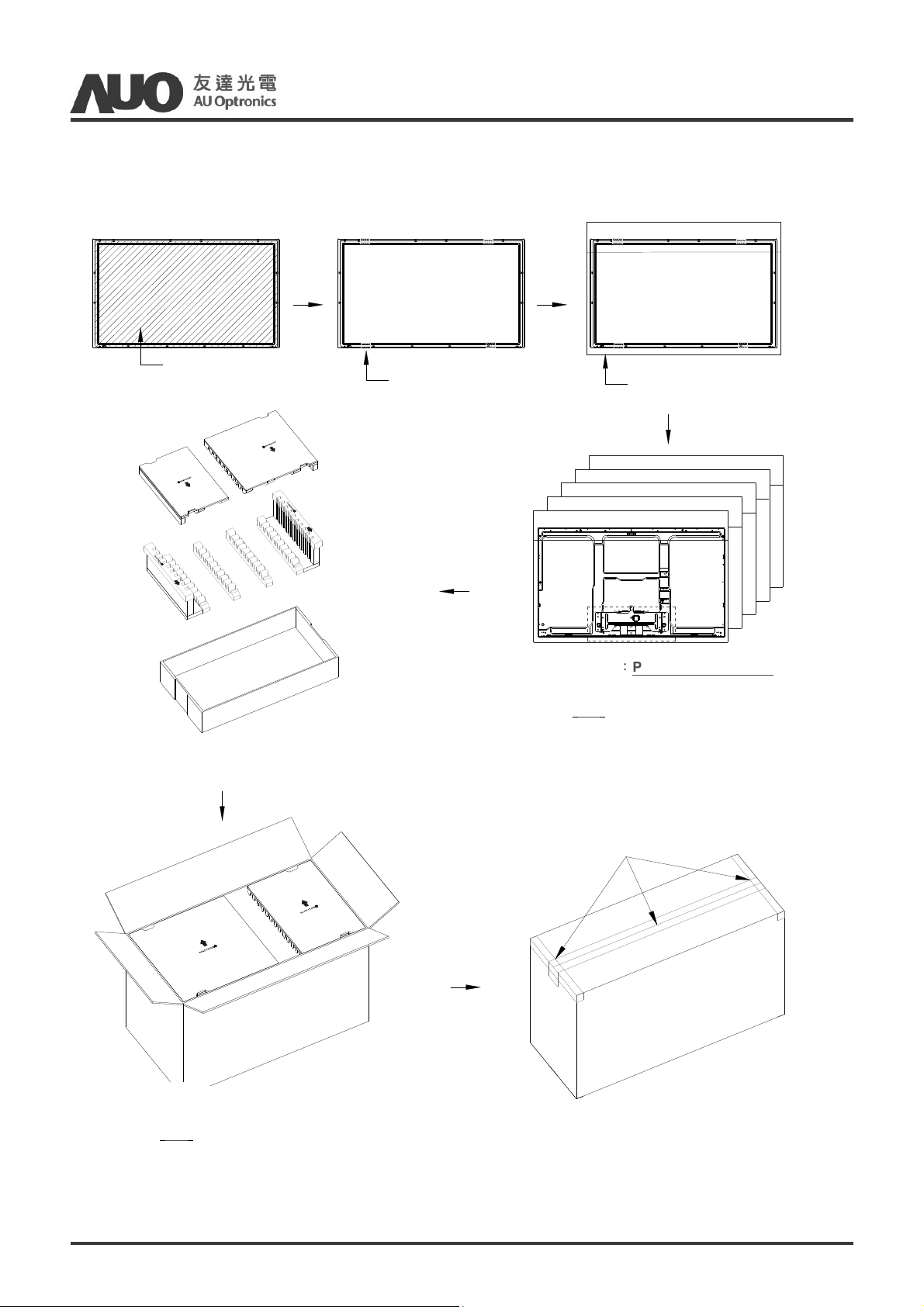

8-2 PACKING METHODS:

Protect Film

T420HVD01.2 Product Specification

Creped Paper Tape

Rev.0 .0

HDPE Bag (Blue)

Cushion Set

Packing Way：Panel Top Side Down

( 10 ) Pcs Modules

"H" Tape

( 10 ) Pcs / 1 Carton

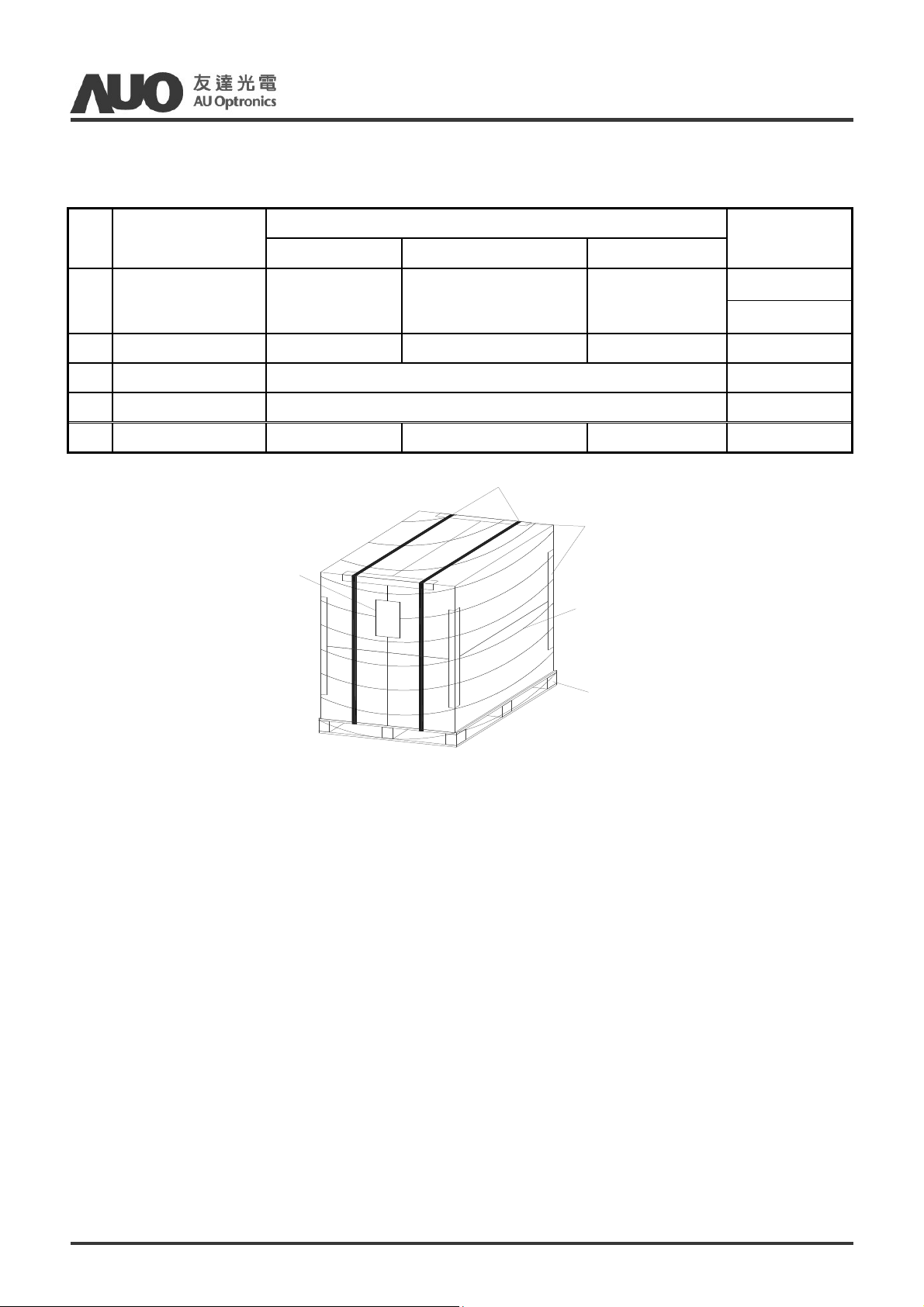

8-3 Pallet and Shipment Information

T420HVD01.2 Product Specification

Rev.0 .0

Item

Qty. Dimension Weight (kg)

1 Packing BOX 10 1050(L)*560(W)*640(H)

2 Pallet 1 1150(L)*1070(W)*132(H)

3 Boxes per Pallet 2 boxes/pallet

4 Panels per Pallet 20pcs/pallet

Pallet after packing

Label

20 1150(L)*1070(W)*772(H)

Specification

95

14.5

204.5

PET Strap

Angle Protector

Stretch Film

Packing Remark

Carton=2.53kg

Cushion=2.13kg

Wooden Pallet

Single pallet packaging illustration

12. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that

external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

T420HVD01.2 Product Specification

Rev.0 .0

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T420HVD01.2 Product Specification

Rev.0 .0

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

℃ ℃

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.
