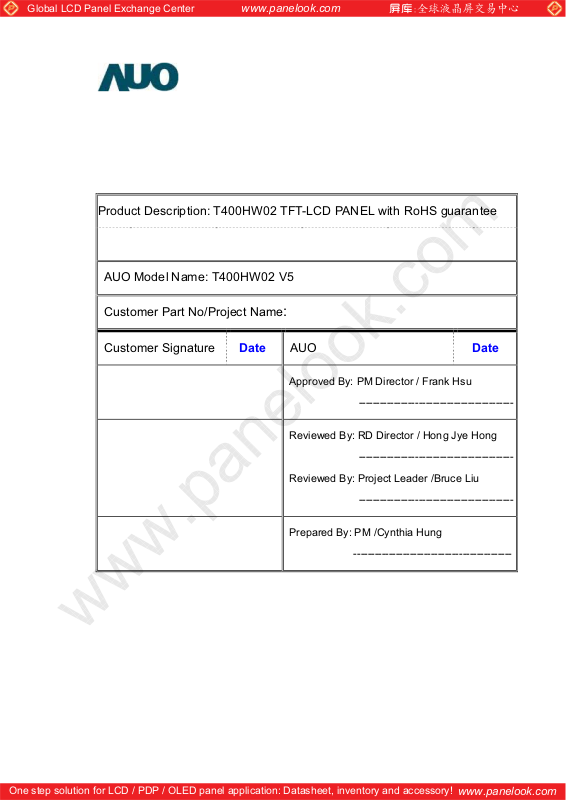

Product Description: T400HW02 TFT-LCD PANEL with RoHS guarantee
AUO Model Name: T400HW02 V5
www.panelook.com
Customer Part No/Project Name:
Customer Signature Date AUO Date
Approved By: PM Director / Frank Hsu
--------------------------------------------
Reviewed By: RD Director / Hong Jye Hong
--------------------------------------------
Reviewed By: Project Leader /Bruce Liu
--------------------------------------------
Prepared By: PM /Cynthia Hung
---------------------------------------------
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Document Version: 0.0
Date:2008/09/30
Product Specifications
40” Full HD Color TFT-LCD Module
Model Name: T400HW02 V5
(*) Preliminary Specifications
() Final Specifications
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
www.panelook.com
Contents
3 ELECTRICAL SPECIFICATION
3-1 ELECTRIACL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATION
3-4 SIGNAL TIMING WAVEFORM
3-5 COLOR INPUT DATA REFERENCE
3-6 POWER SEQUENCE
3-7 BACKLIGHT CONNECTOR PIN CONFIGURATION
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 INTERNATIONAL STANDARD
7-1 Safety
7-2 EMC
8 PACKING
9 PRECAUTION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
Record of Revision
Version Data No Old Description New Decription Remark
0.0 2008/09/30 First release N/A
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
1. General Description
This specification applies to the 40.0 inch Color TFT-LCD Module T400HW02 V5. This LCD
module has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 40.0
inch. This module supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue
sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 10-bit gray scale signal for each dot.
The T400HW02 V5 has been designed to apply the 10-bit 2 channel LVDS interface method. It is
intended to support displays where high brightness, wide viewing angle, high color saturation, and
high color depth are very important.
www.panelook.com
* General Information
Items Specification Unit Note
Active Screen Size 40.00 inch
Display Area 885.6(H) x 498.15(V) mm
Outline Dimension 952.0(H) x 551.0 (V) x 49.6(D) mm With T-con cover
Driver Element a-Si TFT active matrix
Display Colors 10 bit, 1073.7M Colors
Number of Pixels 1,920x1,080 Pixel
Pixel Pitch 0.46125 (H) x 0.46125(W) mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment
Super Clear
(Anti-reflection coating)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the
unit
Item Symbol Min Max Unit Condition
Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1
Operating Temperature TOP 0 +50 [oC] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
www.panelook.com
s
Storage Temperature TST -20 +60 [oC] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
Panel Surface Temperature PST 65 [oC] Note 3
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At
temperatures greater than 40, the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50 Dry condition
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
3. Electrical Specification
The T400HW02 V5 requires two power inputs. One is employed to power the LCD electronics and to
drive the TFT array and liquid crystal. The second input, which powers the CCFL, is typically
generated by an integrate power (I/P) system.
3.1 Electrical Characteristics
Parameter Symbol
LCD
www.panelook.com
Value
Unit Note
Min. Typ . Max
Power Supply Input Voltage V
Power Supply Input Current I
Power Consumption P
Inrush Current I
DD
DD
C
RUSH
10.8 12 13.2 V
DC
-- 1.14 1.25 A 2
-- 13.68 15.0 Watt 2
-- -- 4.5 A 3
Differential Input High Threshold
-- -- +100 mV
-100 -- -- mV
0.6 1.2 1.8 V
2.4 -- 3.3 V
0 -- 0.7 V
DC
DC
DC
DC
DC
LVDS
Interface
CMOS
Interface
Voltage
Differential Input Low Threshold
Voltage
Input Common Mode Voltage V
Input High Threshold Voltage
Input Low Threshold Voltage
V
TH
V
TL
ICM
V
IH
(High)
V
IL
(Low)
Life Time 50000 -- Hours
1
4
4
4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
s
μ
Note :
www.panelook.com
1. The ripple voltage should be controlled under 10% of V
2. Vcc=12.0V, =
3. Measurement condition :
4. VCIM = 1.2V
5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely
f 60Hz, fCLK=81.5Mhz , 25, Test Pattern : White Pattern
v
0.9 Vdd
GND
VTH
VCIM
VTL
0.1 Vdd
400
0V
CC
Vdd
influenced by the characteristics of balanced board and I/P board. All the parameters should
be carefully designed as not to produce too much leakage current from high-voltage output.
While you design or order the balance board, please make sure unwanted lighting caused by
the mismatch of the lamp and the balanced board (no lighting, flicker, etc) never occurs. After
confirmation, the LCD panel should be operated in the same condition as installed in your
instrument
6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting
tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because
leakage current occurs between lamp wire and conducting tape.
7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less.
At temperatures greater than 40, the wet bulb temperature must not exceed 39 .When
operate at low temperatures, the brightness of CCFL will drop and the life time of CCFL will be
reduced.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
3.2 Interface Connections
LCD connector: FI-RE51S-HF (JAE)
Mating connector: FI-RE51S-HL (JAE)
PIN # Signal Name Description
www.panelook.com
1 V
2 V
3 V
4 V
5 V
DD
DD
DD
DD
DD
Operating Voltage Supply, +12V DC Regulated
Operating Voltage Supply, +12V DC Regulated
Operating Voltage Supply, +12V DC Regulated
Operating Voltage Supply, +12V DC Regulated
Operating Voltage Supply, +12V DC Regulated
6 GND Ground
7 GND Ground
8 GND Ground
9 GND Ground
10 RO_0- LVDS Channel Odd, Signal 0-
11 RO_0+ LVDS Channel Odd, Signal 0+
12 RO_1- LVDS Channel Odd, Signal 1-
13 RO_1+ LVDS Channel Odd, Signal 1+
14 RO_2- LVDS Channel Odd, Signal 2-
15 RO_2+ LVDS Channel Odd, Signal 2+
16 GND Ground
17 RO_CLK- LVDS Channel Odd, Clock -
18 RO_CLK+ LVDS Channel Odd, Clock +
19 GND Ground
20 RO_3- LVDS Channel Odd, Signal 3-
21 RO_3+ LVDS Channel Odd, Signal 3+
22 NC No Connect (Reserved for 10-bit)
23 NC No Connect (Reserved for 10-bit)
24 GND Ground
25 RE_0- LVDS Channel Even, Signal 0-
26 RE_0+ LVDS Channel Even, Signal 0+
27 RE_1- LVDS Channel Even, Signal 1-
28 RE_1+ LVDS Channel Even, Signal 1+
29 RE_2- LVDS Channel Even, Signal 2-
30 RE_2+ LVDS Channel Even, Signal 2+
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
31 GND Ground
32 RE_CLK- LVDS Channel Even, Clock -
33 RE_CLK+ LVDS Channel Even, Clock +
34 GND Ground
35 RE_3- LVDS Channel Even, Signal 3-
36 RE_3+ LVDS Channel Even, Signal 3+
37 NC No Connect (Reserved for 10-bit)
38 NC No Connect (Reserved for 10-bit)
39 GND Ground
40 SCL_TCON Please leave it open
www.panelook.com
41 SDA_TCON Please leave it open
42 NC Please leave it open
43 B_INT
44 Hsync_OUT H-Sync Output for Inverter/IPB
45 LVDS_SEL Open/High(3.3V) for NS, Low(GND) for JEIDA
46 SCL_FRC EEPROM Serial Clock for FRC
47 Reset_FRC Reset for FRC Chip
48 SDA_FRC EEPROM Serial Data for FRC
49 PVCC_SW Panel VCC Sequence Control
50 SYS_DET
51 NC Please leave it open
B_INT(same as WP);EEPROM Write Protection
High(3.3V) for Writable, Low(GND) for Protection
Detection Pin to Check if System Board Connected
(GND if connected)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center

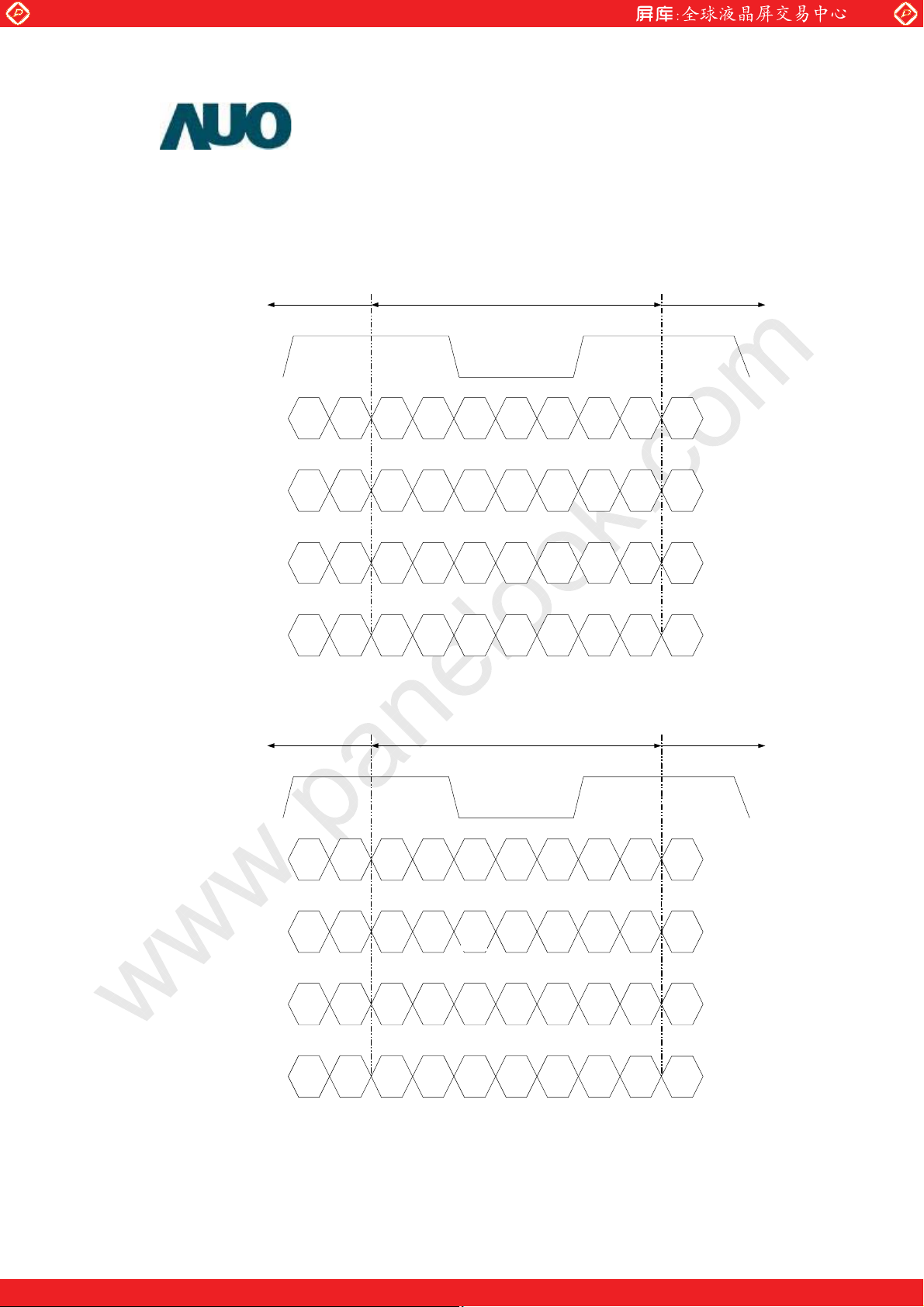

LVDS Option = High/OpenNS
Previous Cycle Current Cycle Next Cycle
Clock
www.panelook.com
RIN0+
RIN0-
RIN1+
RIN1-
RIN2+
RIN2-
RIN3+
RIN3-
LVDS Option = LowJEIDA
Previous Cycle Current Cycle Next Cycle
Clock
RIN0+
RIN0-
R0R5 G0G0R0R1 R2R3R4 R1
G1B0 B1B1G1G2 G3G4G5 G2
B2NA DEDEB2B3 B4B5NA B4
R6B7 NANAR6R7 G6G7B6 R7
R2R7 G2G2R2R3 R4R5R6 R3
RIN1+
RIN1-
RIN2+
RIN2-
RIN3+
RIN3-
G7
G3B2 B3B3G3G4 G5G6G6 G4
B4NA DEDEB4B5 B6B7NA B5
R0B1 NANAR0R1 G0G1B0 R1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
3.3 Signal Timing Specification
This is the signal timing required at the input of the user connector. All of the interface signal timing
should be satisfied with the following specifications for its proper operation.
Timing Table (DE only Mode)
For 60Hz
Signal Item Symbol Min. Typ. Max Unit
www.panelook.com
Period T
Vertical Section
Active T
Blanking T
DISP
BLK
Period T
Horizontal Section
Active T
Blanking T
DISP
BLK
Clock Frequency 1/T
Vertical Frequency Frequency F
Horizontal Frequency Frequency F
V
(V) 1080 T
(V) 45 T
H
(H) 960 T
(H) 140 T
CLK
V
H
1125 T
1100 T
H
H
H
CLK
CLK
CLK
74.25 MHz
60 Hz
67.5 KHz
Notes:
1.) Display position is specific by the rise of DE signal only.
Horizontal display position is specified by the rising edge of 1
st
DCLK after the rise of 1stDE, i s
displayed on the left edge of the screen.
Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight
times of horizontal period. The 1
st
data corresponding to one horizontal line after the rise the of 1stDE
is displayed at the top line of screen.
3.) If a period of DE “High” is less than 1366 DCLK or less than 768 lines, the rest of the screen
displays black.
4.) The display position does not fit to the screen if a period of DE “High” and the effective data period
do not synchronize with each other.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
3.4 Signal Timing Waveforms
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
3.5 Color Input Data Reference
The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for
the color; the higher the binary input, the brighter the color. The table below provides a reference for color
versus data input.
www.panelook.com
COLOR DATA REFERENCE
Input Color Dat a
Basic
Color
RED
RED
Color
Black 0 0000000000000000000 000000 0000
Red(1023) 111111111100000000000000000000
Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
Blue(1023) 000000000000000000001111111111
Cyan 000000000011111111111111111111
Magenta 111111111100000000001111111111
Yellow 111111111111111111110000000000
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
----
RED(1022) 111111111000000000000000000000
RED(1023) 111111111100000000000000000000
MSB LSB
R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
MSB
LSB
GREEN
BLUE
MSB LSB
GREEN
BLUE
GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
----
GREEN(1022) 000000000011111111100000000000
GREEN(1023) 000000000011111111110000000000
BLUE(000) 000000000000000000000000000000
BLUE(001) 000000000000000000000000000001
-------
BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0
BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center

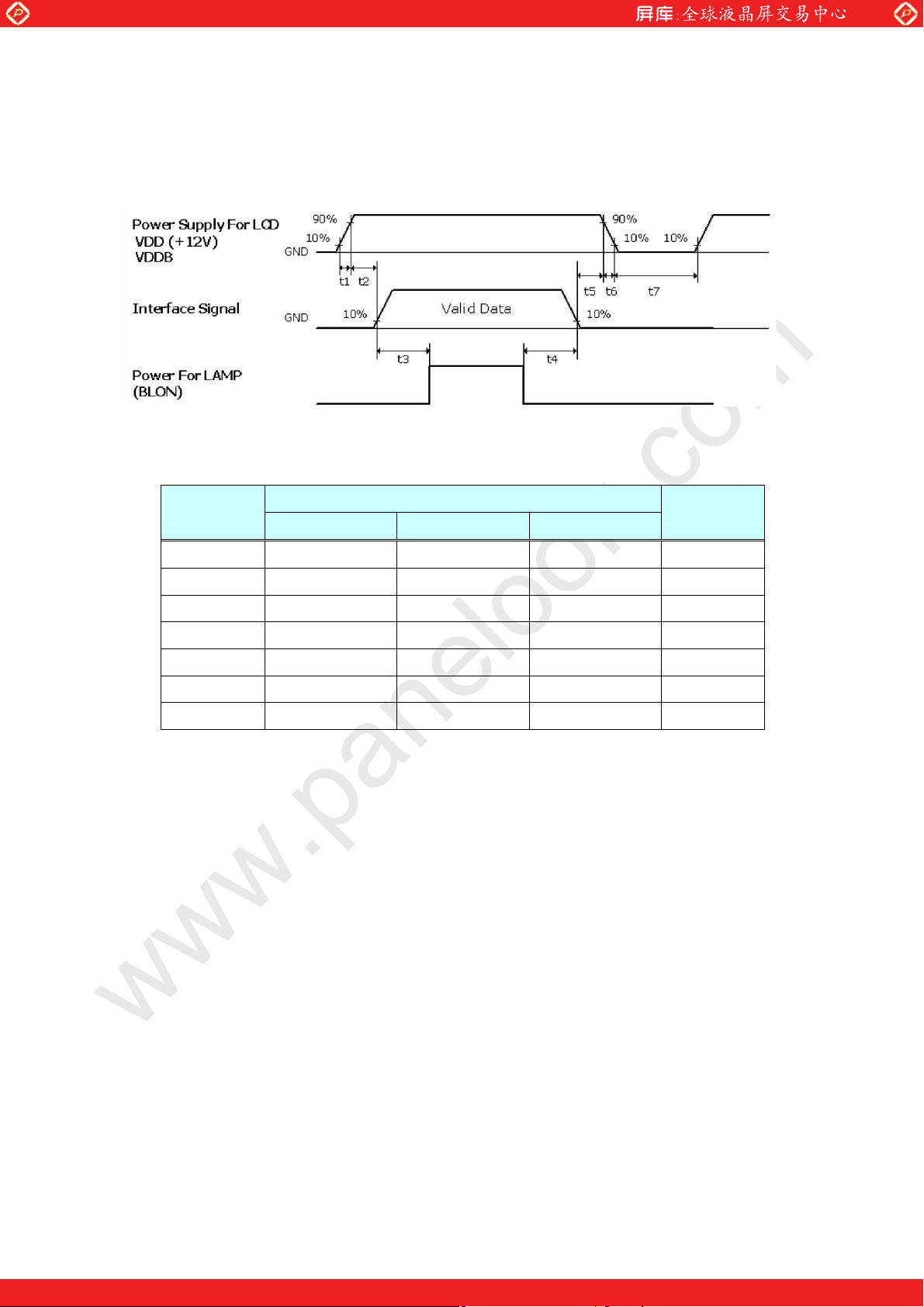

3.6 Power Sequence
www.panelook.com
Parameter
Min. Typ. Max.
t1 0.4 -- 30 ms
t2 0.1 -- 50 ms
t3 2300 -- -- ms
t4 10 -- -- ms
t5 0.1 -- 50 ms
t6 -- -- 300 ms
t7 500 -- -- ms
Note:
The timing controller will not be damaged in case of TV set AC input power suddenly shut down.
Once power reset, it should follow power sequence as spec. definition.
(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD
operation or the LCD turns off before the back-light turns off, the display may momentarily become
abnormal screen.
Values
Unit
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center

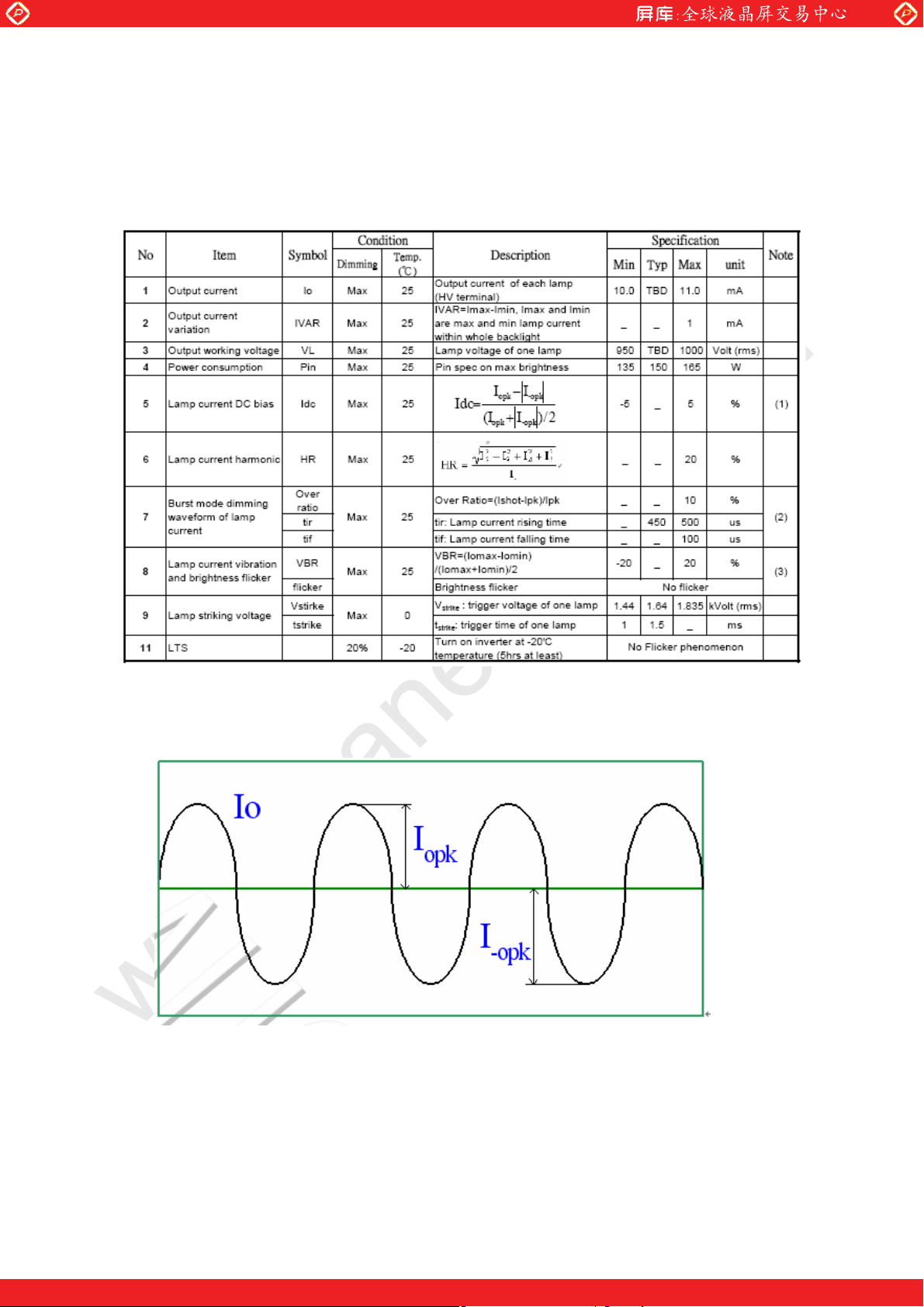

3.7 Backlight Connector Pin Configuration
www.panelook.com
Note 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center

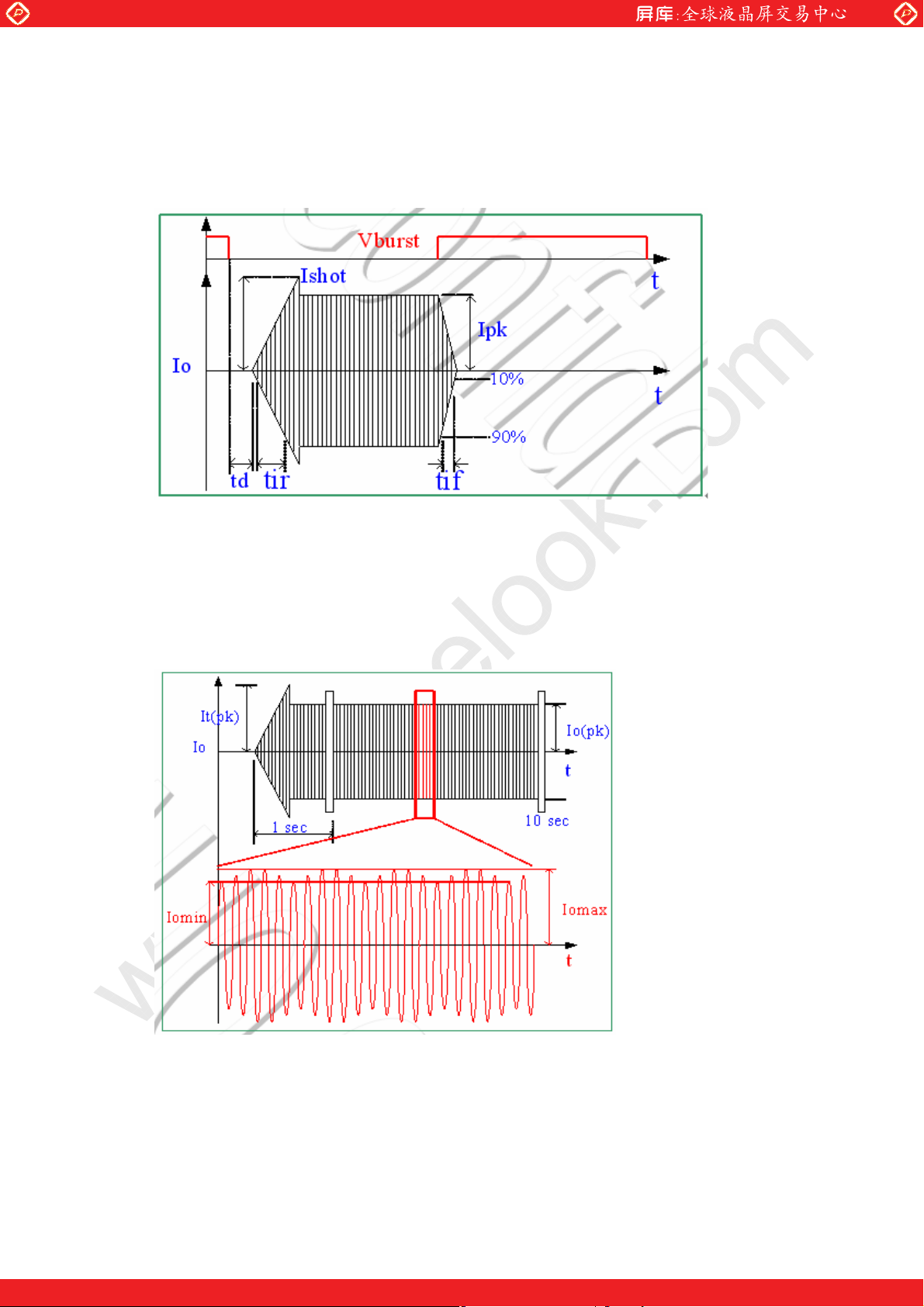

Note 2
www.panelook.com
Note 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
Input Interface for LIPS board
CN1 :EL7H001ZZ2 (JAE)
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes
in a dark environment at 25 °C. The values specified are at an approximate distance 50cm from the LCD
surface at a viewing angle of φ and θ equal to 0°.

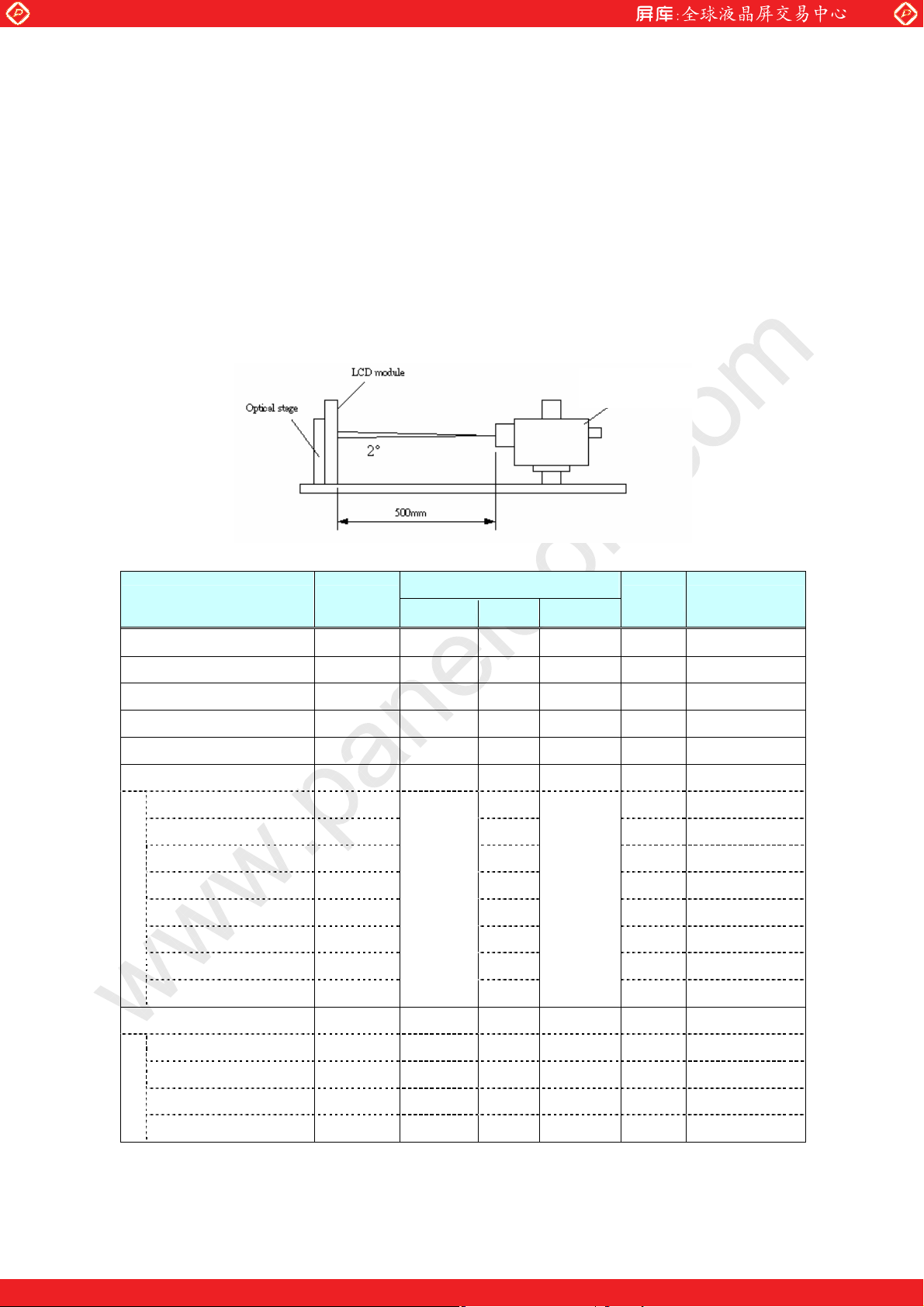

Fig.1 presents additional information concerning the measurement equipment and method.
www.panelook.com
SR3 or equivalent
Parameter Symbol
Unit Notes
Min. Typ. Max
Contrast Ratio CR 4000 5000 -- 1
Values
Surface Luminance (White) L
Luminance Variation δ
WHITE(9P)
WH
400 500 -- cd/m
-- -- 1.3 3
2
Response Time (G to G) Tγ -- 8 -- Ms 4
Color Gamut NTSC 72 %
Color Coordinates
Red R
R
Green G
G
Blue B
B
White W
W
X
Y
X
Y
X
Y
X
Y
Typ.-0.03
0.637
0.336
0.277
0.590
Typ.+0.03
0.145
0.057
0.280
0.290
Viewing Angle 5
2
x axis, right(φ=0°) θ
x axis, l eft(φ=180°) θ
y axis, up(φ=90°) θ
y axis, down (φ=270°) θ
r
l
u
d
-- 89 -- degree
-- 89 -- degree
-- 89 -- degree
-- 89 -- degree
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
3
Note:
1. Contrast Ratio (CR) is defined mathematically as:
www.panelook.com
Contrast Ratio=
Surface Luminance of
Surface Luminance of
L
on5
L
off5
2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all
pixels displaying white. From more information see FIG 2. When lamp current I
= 11mA. LWH=Lon5
H
where Lon5 is the luminance with all pixels displaying white at center 5 location.
3. The variation in surface luminance, δWHITE is defined (center of Screen) as:
δ
WHITE(9P)
= Maximum(L
on1
, L
on2
,…,L
)/ Minimum(L
on9
on1
, L
on2
,…L
on9
)
4. Response time Tγ is the average time required for display transition by switching the input signal for
five luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on f
=60Hz to optimize.
v
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for
the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD
surface. For more information see FIG4.

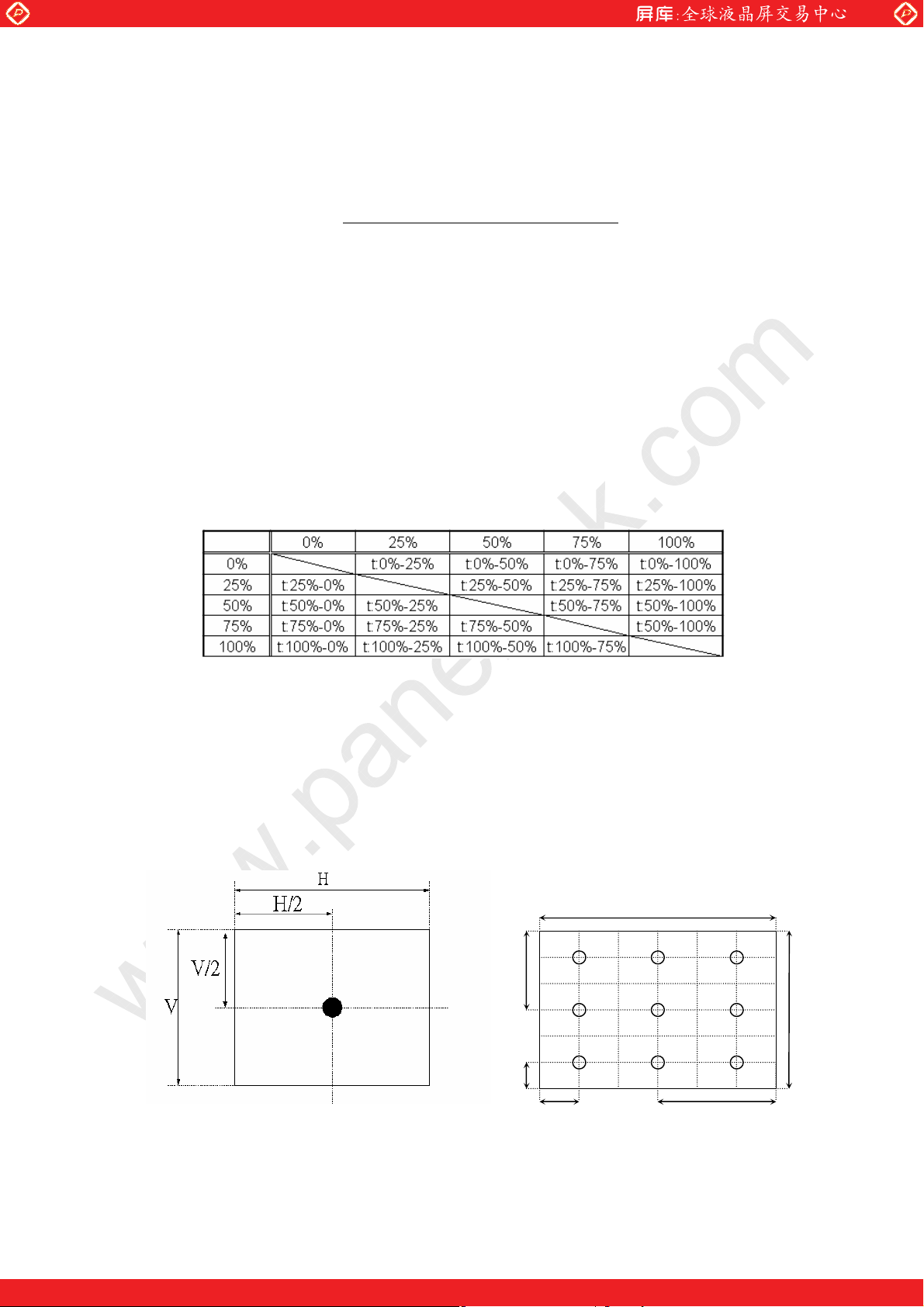

FIG. 2 Luminance
V
H/2
H/6
1
7
2
V/2V/6
H
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center

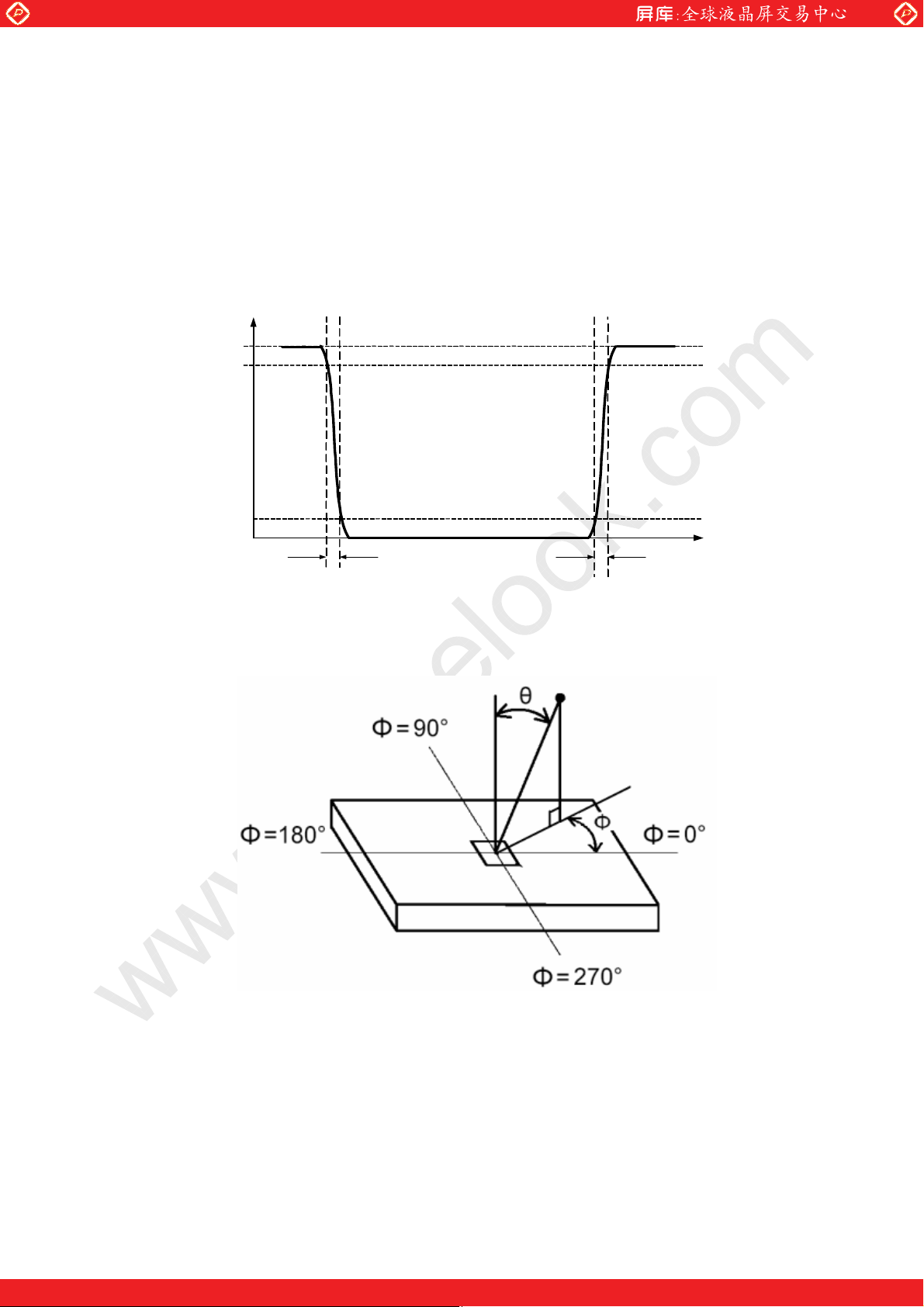

FIG.3 Response Time
The response time is def ined as the following figure and shall be measured by switching the input signal for
“any level of gray(bright) “ and “any level of gray(dark)”.
Any level of gray(Bright) Any level of gray(Dark) Any level of gray(Bright)
www.panelook.com
Photodetector
Output
FIG.4 Viewing angle
L0,15,L31,.L255
L0,15,L31,.L255
Tr
R
L0,15,L31,
.L255
Time
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model T400HW02 V5. In addition the
figures in the next page are detailed mechanical drawing of the LCD.
www.panelook.com
Horizontal 952.0 mm
Outline Dimension
Vertical 551.0 mm
Depth 49.6mm (to T-con cover)
Horizontal 891.7 mm
Bezel Opening
Vertical 504.2 mm
Horizontal 885.6mm
Active Display Area
Vertical 498.15 mm
Weight 10500g (Typ.)
Surface Treatment
(Anti-reflection coating)
Super Clear
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center

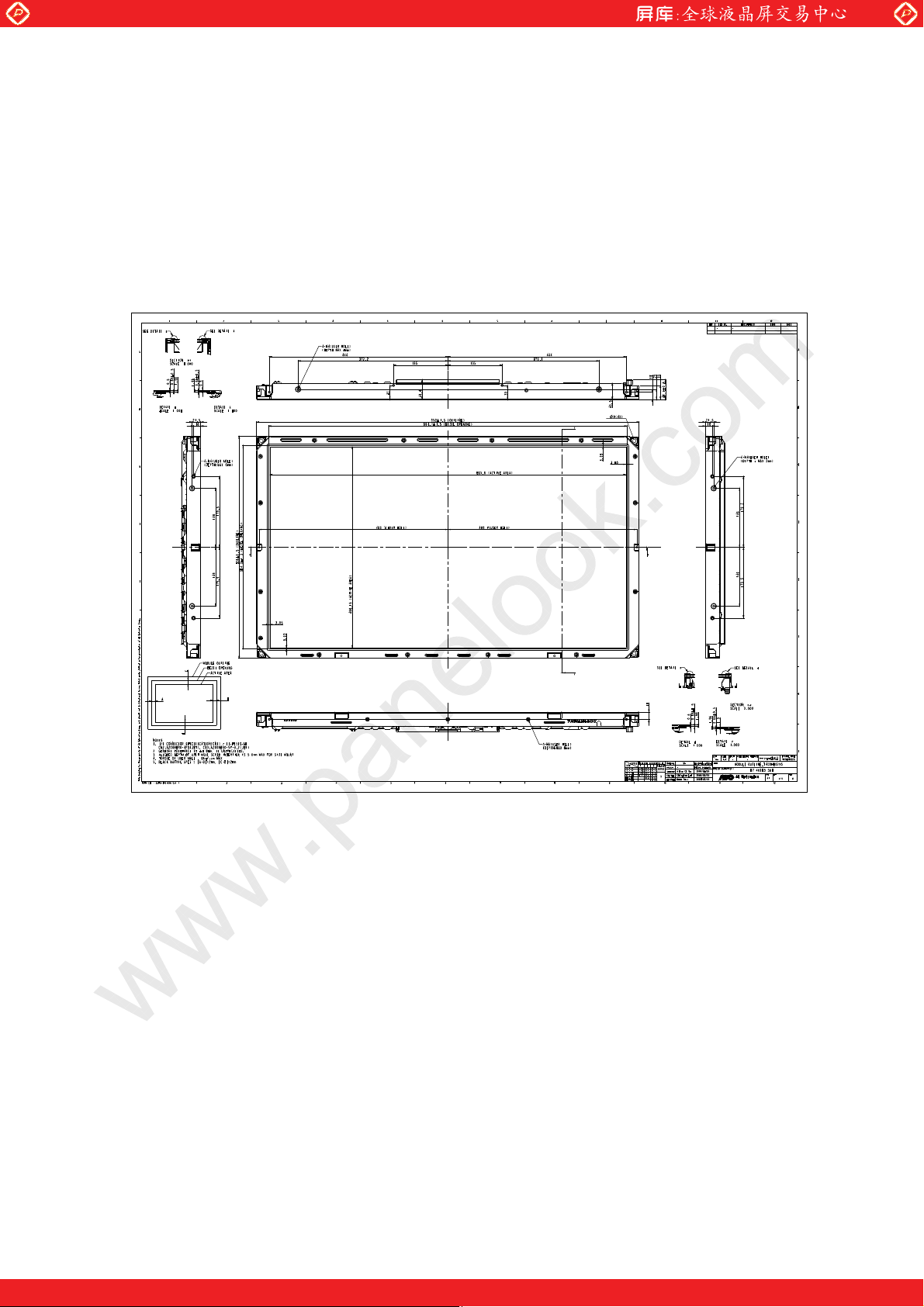

Front view
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center

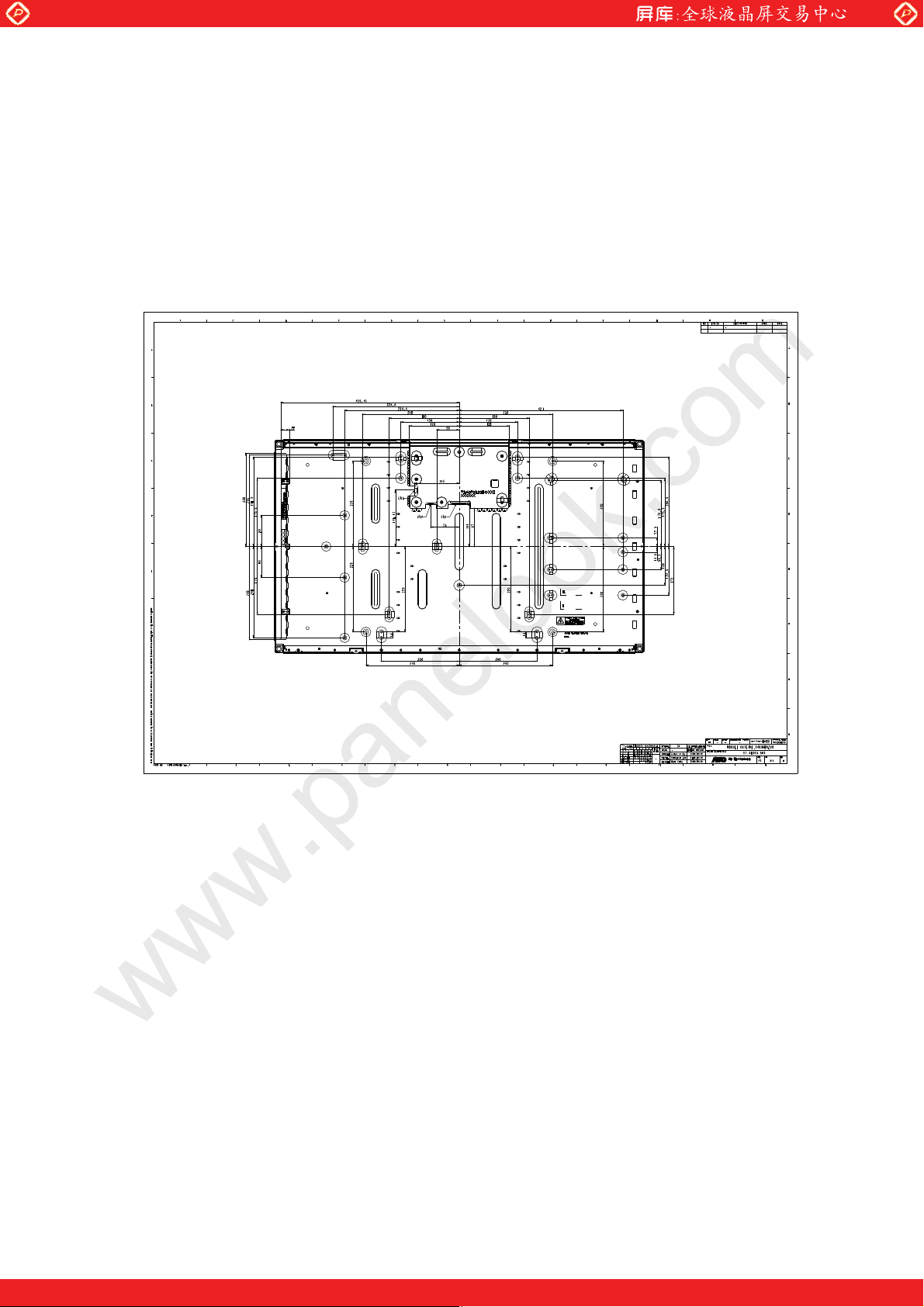

Rear view
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
6. Reliability Test Items
Test Item Q’ty Condition
1 High temperature storage test 3 60, 300hrs
2 Low temperature storage test 3 -20, 300hrs
3 High temperature operation test 3 50 , 300hrs
4 Low temperature operation test 3 -5 , 300hrs
5 Vibration test (non-operation) 3
www.panelook.com
(10~300Hz/1.5G/11min SR, XYZ 30,im/axis)
Vibration level : 1.5G RMS, Bandwidth:
10-300Hz,
Duration: X, Y, Z 30min
6 Shock test (non-operation) 3
7 Vibration test (With carton) 3
8 Drop test (With carton) 3
Shock level: 50G
Waveform: half since wave, 11ms
Direction: ±X, ±Y, ±Z, One time each direction
Random wave (1.5G RMS, 10-200Hz)
30mins/ Per each X,Y,Z axes
Height: 38.1cm
1 corner, 3 edges, 6 surfaces
(ASTMD4169-I)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
7. International Standard
7.1 Safety
(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995
Standard for Safety of Information Technology Equipment Including electrical
Business Equipment.
(2) CAN/CSA C22.2 No. 950-95/60950 Third Edition, Canadian Standards Association,
Standard for Safety of Information Technology Equipment Including Electrical
Business Equipment.
(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997
IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996
European Committee for Electrotechnical Standardization (CENELEC)
www.panelook.com
7.2 EMC
EUROPEAN STANDARD for Safety of Information Technology Equipment Including
Electrical Business Equipment.
a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage
Electrical and Electrical Equipment in the Range of 9kHz to 40GHz. “American
National standards Institute(ANSI), 1992
b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of
Information Technology Equipment.” International Special committee on Radio
Interference.
c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of
Information Technology Equipment. ” European Committee for Electrotechnical
Standardization. (CENELEC), 1998
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
8. Packing

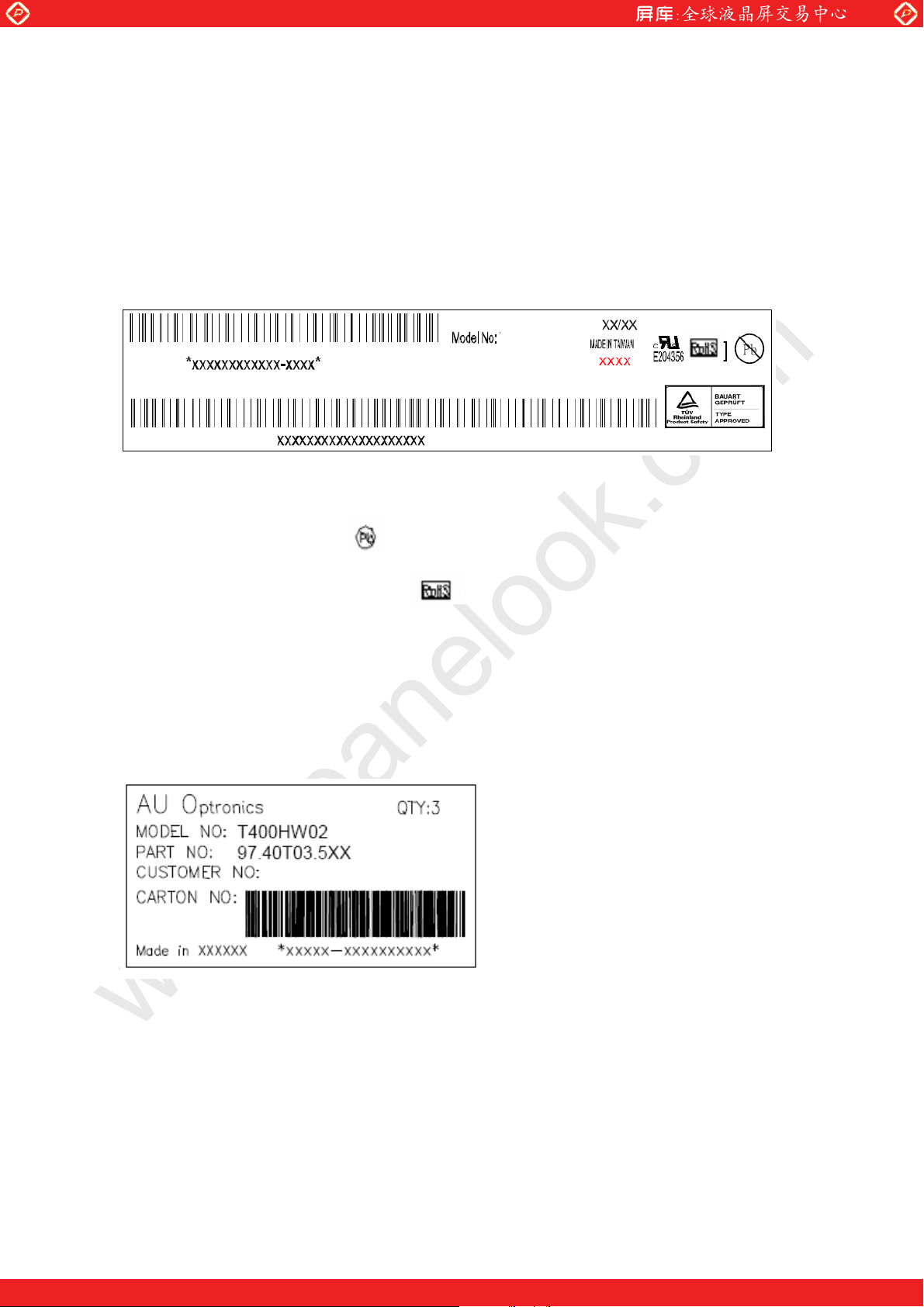

8-1 DEFINITION OF LABEL:
A. Panel Label:
www.panelook.com
T400HW02 V5
Green mark description
For Pb Free Product, AUO wil add for identification.
For RoHs compatible products, AUO will add
Note: The green Mark will be present only when the green documents have been ready by AUO internal
green team. (The definition of green design follows the AUO green design checklist.)
for identification.
B. Carton Label:
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center

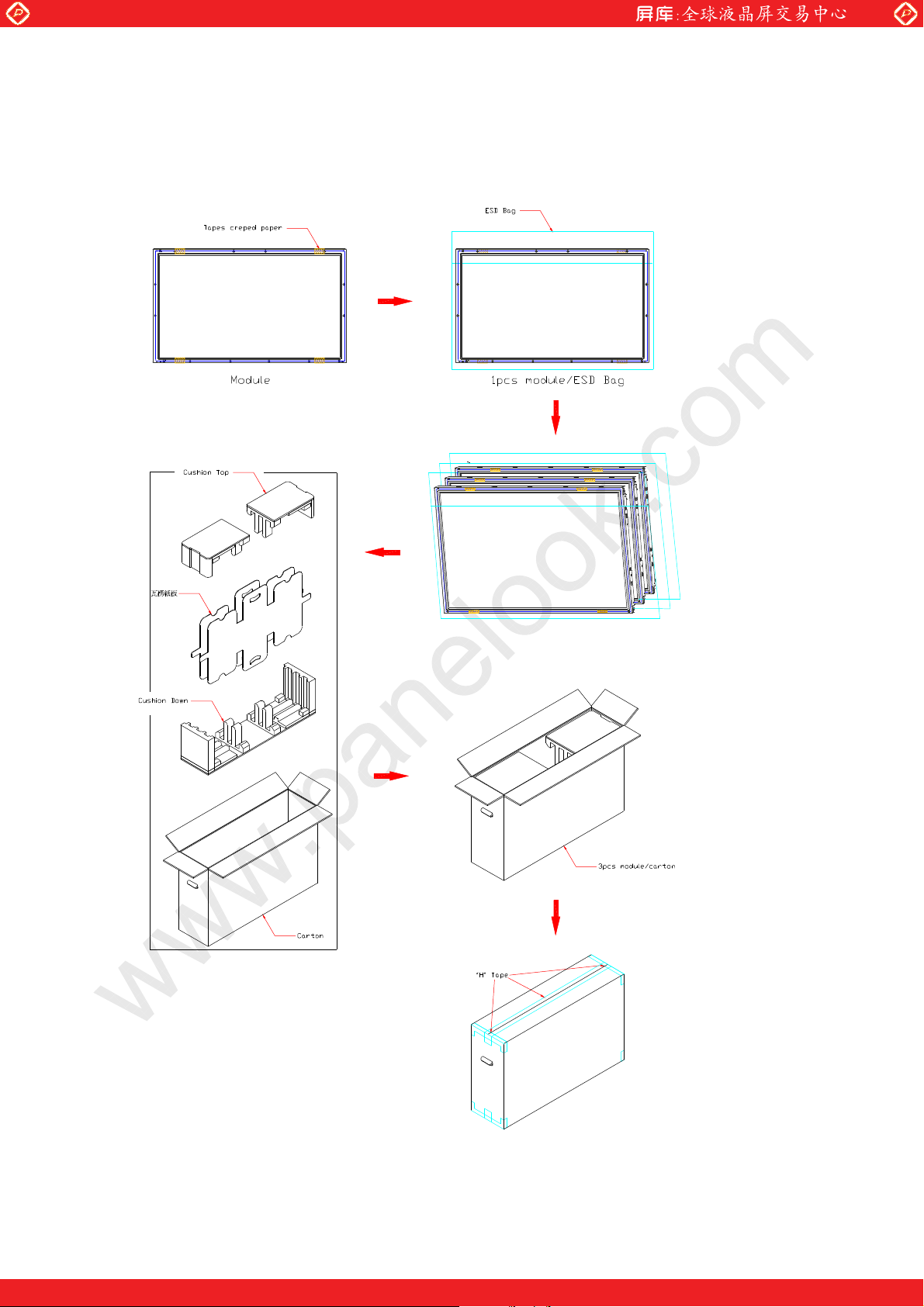

8-2 PACKING METHODS:
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center

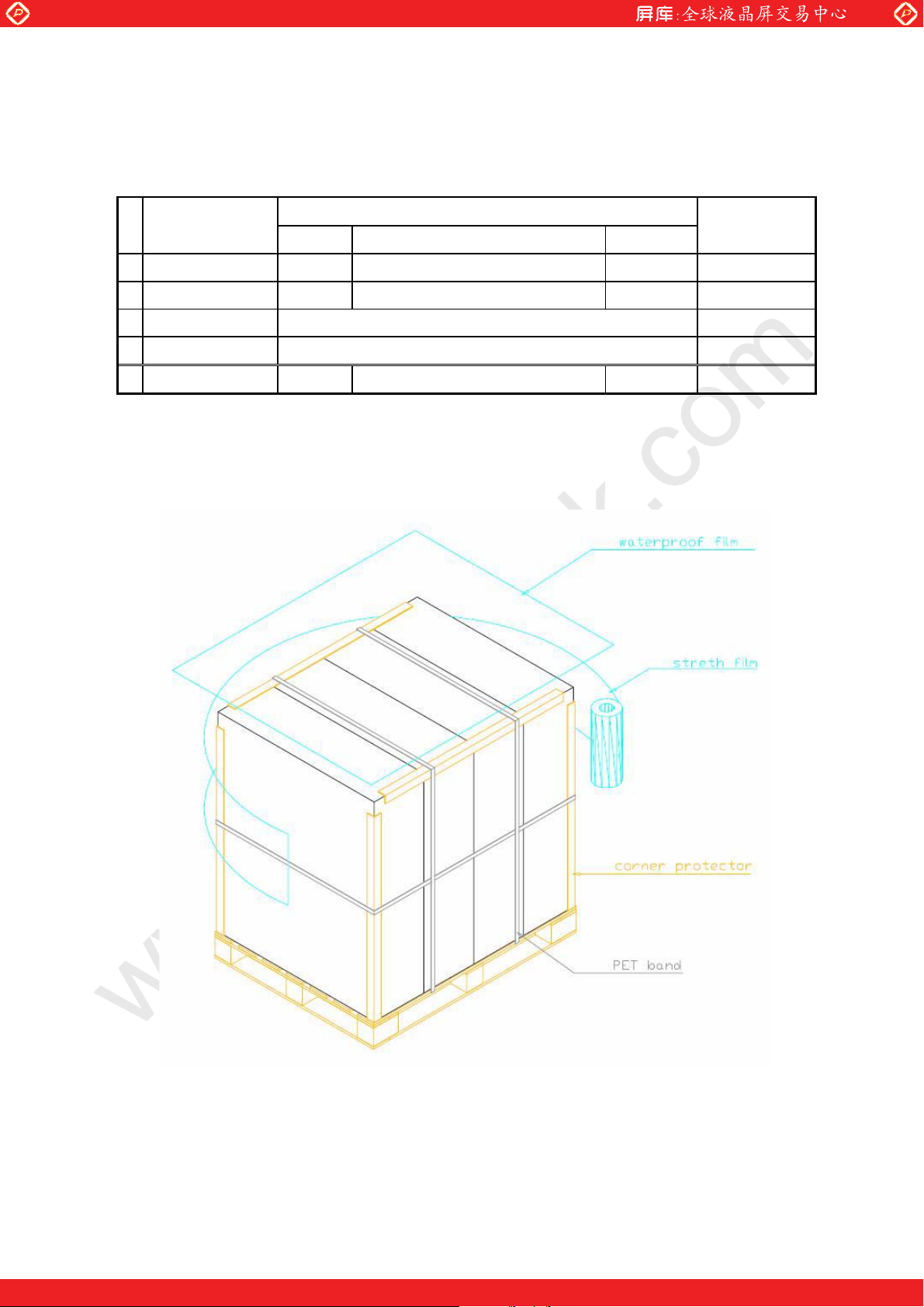

8-3 Pallet and Shipment Information
www.panelook.com
Item
Specification
Qty. Dimension Weight (kg)
1 Packing BOX 3pcs/box 1050(L)*280(W)*650(H) 38
2 Pallet 1 1140(L)*1060(W)*138(H) 16
3 Boxes per Pallet 8 boxes/pallet
4 Panels per Pallet 24pcs/pallet
Pallet after packing 24 1140(L)*1060(W)*1438(H) 320
Packing Remark
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
9. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
9-1 MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not
applied to module. And the case on which a module is mounted should have sufficient
strength so that external force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the
polarizer. Transparent protective plate should have sufficient strength in order to the resist
external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the
former generates corrosive gas of attacking the polarizer at high temperature and the latter
causes circuit break by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than
HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not
touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft
materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for
cleaning the adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and
alcohol because they cause chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer
causes deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
www.panelook.com
9-2 OPERATING PRECAUTIONS
(1) The device listed in the product specification sheets was designed and manufactured for TV
application
(2) The spike noise causes the mis-operation of circuits. It should be lower than following
voltage: V=±200mV(Over and under shoot voltage)
(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)
(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time (required time that brightness is stable after turned
on) becomes longer.
(5) Be careful for condensation at sudden temperature change. Condensation makes damage to
polarizer or electrical contacted parts. And after fading condensation, smear or spot will
occur.
(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference shall be done by system manufacturers. Grounding and shielding methods may
be important to minimize the interface.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
9-3 ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make
certain that treatment persons are connected to ground through wristband etc. And don ’ttouch
interface pin directly.
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
9-5 STORAGE
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
www.panelook.com
the temperature between 5 and 35 at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is recommended
that they be stored in the container in which they were shipped.
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) The protection film is attached to the bezel with a small masking tape. When the protection
film is peeled off, static electricity is generated between the film and polarizer. This should
be peeled off slowly and carefully by people who are electrically grounded and with well
ion-blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there
remains a very small amount of flue still on the Bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is
recognized, please wipe them off with absorbent cotton waste or other soft material like
chamois soaked with normal-hexane.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
