Document Version: 1.2

Date:2007/07/24

Product Functional Specification

37” WXGA Color TFT-LCD Module

Model Name: T370XW02 V9

() Preliminary Specification

(*) Final Specification

Note: This specification is subject to change without notice.

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 1/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

COVER

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION1

ABSOLUTE MAXIMUM RATINGS2

www.panelook.com

Contents

ITEMNo

ELECTRICAL SPECIFICATIONS3

ELECTRICAL CHARACTREISTICS3-1

INTERFACE CONNECTIONS3-2

SIGNAL TIMING SPECIFICATIONS3- 3

SIGNAL TIMING WAVEFORMS3-4

COLOR INPUT DATA REFERNECE3-5

POWER SEQUENCE3-6

OPTICAL SFECIFICATIONS4

MECHANICAL CHARACTERISTICS5

6

7

RELIABILITY

INTERNATIONAL STANDARDS

7-1

SAFETY

7-2

EMC

7-3

GREEN

8 PACKING

9

PRECAUTIONS

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 2/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Version Date No Old Description New Description Remark

0.0 2007/03/27 First release

1.0 2007/05/28 Format modify

1.1 2007/07/20 Update Backlight Specification

1.2 2007/07/24 Update BL Operating Voltage

www.panelook.com

Record of Revision

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 3/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. General Description

This specification applies to the 37 inch Color TFT-LCD Module T370XW02 V9. This LCD module

has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 37 inch.

This module supports 1366x768 WXGA mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with an 8-bit gray scale

signal for each dot.

The T370XW02 V9 has been designed to apply the 8-bit 1 channel LVDS interface method. It is

intended to support displays where high brightness, wide viewing angle, high color saturation, and

high color depth are very important.

T370XW02 V9 backlight unit used C-balance board (inverter-less) solution. This backlight unit

should bundle integral TV power system to use.

www.panelook.com

* General Information

Items Specification Unit Note

Active Screen Size 37.02 inches

Display Area 819.6(H) x 460.8(V) mm

Outline Dimension 877.0(H) x 516.8(V) x 45.8(D) mm Without inverter

Driver Element a-Si TFT active matrix

Display Colors 16.7M Colors

Number of Pixels 1366 x 768 Pixel

Pixel Pitch 0.6 mm

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

Lamp quantity, type 16pcs, Straight type pcs

Surface Treatment AG, 3H, Haze 40%

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 4/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to

the unit.

Item Symbol Min Max Unit Note

Logic/LCD Drive Voltage VDD -0.3 14.0 [Volt] 1

Input Voltage of Signal Vin -0.3 4 [Volt] 1

Operating Temperature TOP 0 +50 [oC] 2

Operating Humidity HOP 10 90 [%RH] 2

Storage Temperature TST -20 +60 [oC] 2

Storage Humidity HST 10 90 [%RH] 2

www.panelook.com

Shock (non-operation) - 50 G 3

Vibration (non-operation) - 1.5 G 4

Thermal shock -20 60 C 5

Panel surface temp 60 C 6

Note 1: Duration = 50msec

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.

Note 3: Half sine wave, shock level: 50G (11ms), direction: ±x, ±y, ±z (one times each direction)

Note 4: Wave form: random, vibration level: 1.5G RMS, Bandwidth: 10--300Hz

Duration: X, Y, Z 30min (one times each direction)

Note 5: -20C/0.5hr ~ 60C/0.5hr, 10 cycles

Note 6: Panel only (without TV set), ambient temp 25C

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 5/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

V

3. Electrical Specification

The T370XW02 requires two power inputs. One is employed to power the LCD electronics and to

drive the TFT array and liquid crystal. The second input, which powers the CCFL, is typically

generated by an inverter.

3-1 Electrical Characteristics

www.panelook.com

ValuesParameter Symbol

Min Typ Max

LCD:

Power Supply Input Voltage Vdd 10.8 12 13.2 Vdc

Power Supply Input Current Idd

Power Consumption Pc - 6.6 7.92 Watt 1

Inrush Current I

LV DS

Interface

CMOS

Interface

Differential Input

High Threshold

oltage

Differential Input

Low Threshold

Voltage

Common Input

Voltage

Input High

Threshold Voltage

RUSH

TH - - +100 mV

V

VTL -100 - - mV

V

CIM 1.10 1.25 1.40 V

VIH

(High)

--4A6

2.4 - 3.3 Vdc

0.55 0.66 A 1

0.5 0.6 A 2

Unit Notes

5

5

Input Low

Threshold Voltage

Backlight Power Consumption - 133 - Watt 3

Life Time 50000 - - Hours 4

The performance of the Lamp in LCM, for example life time or brightness, is extremely

influenced by the characteristics of the DC-AC Inverter. So all the parameters of an inverter

should be carefully designed so as not to produce too much leakage current from high-voltage

output of the inverter. When you design or order the inverter, please make sure unwanted

lighting caused by the mismatch of the lamp and the inverter (no lighting, flicker, etc) never

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 6/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

IL

V

(Low)

0 - 0.7 Vdc

www.panelook.com

Global LCD Panel Exchange Center

s

μ

s

μ

s

μ

occurs. When you confirm it, the LCD Assembly should be operated in the same condition as

installed in your instrument.

Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting

tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because

leakage current occurs between lamp wire and conducting tape.

The relative humidity must not exceed 80% non-condensing at temperatures of 40  or less.

At temperatures greater than 40, the wet bulb temperature must not exceed 39 .When

operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be

reduced.

Note :

1. Vdd=12.0V, fv=60Hz, f

www.panelook.com

CLK=81.5 Mhz , 25, Vdd Duration time= 400

, Test pattern : Full

white pattern

2. Vdd=12.0V, fv=60Hz, f

CLK=81.5 Mhz , 25, Vdd Duration time= 400

, Test pattern : 8x6

mosaic pattern

3. The Backlight power consumption shown above does include loss of external inverter at

25. The used lamp current is the lamp typical current I

L=6.5mA

4. The life is determined as the time at which luminance of the lamp is 50% compared to that

of initial value at the typical lamp current on condition of continuous operating at 25 2.

5. VCIM = 1.25V

VTH

VCIM

VTL

0V

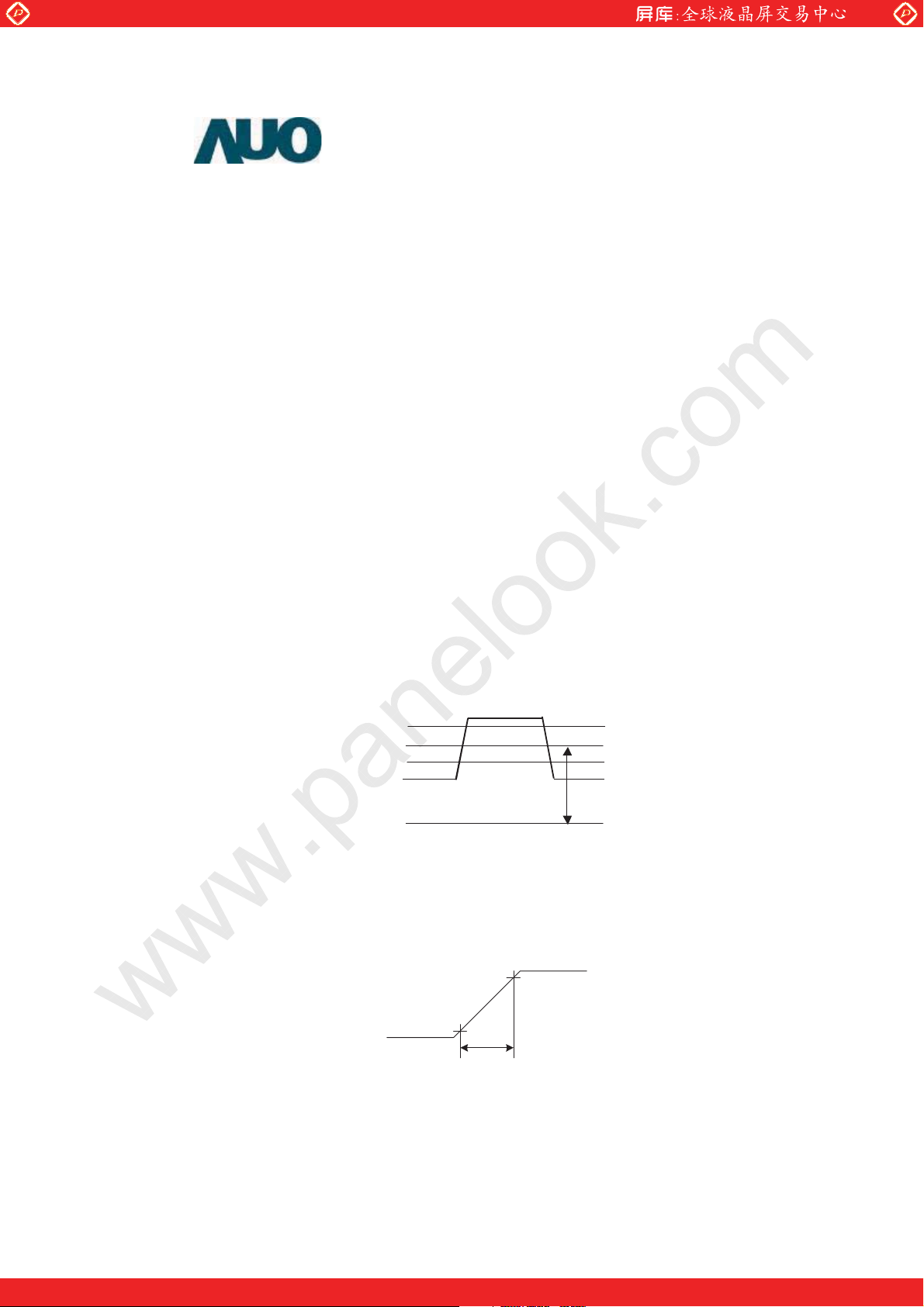

Figure: LVDS Differential Voltage

6. Measurement Condition: Rising time = 400s

Vdd

GND

0.9 Vdd

0.1 Vdd

400

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 7/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-2 Interface Connections

- LCD connector: FI-X30SSL-HF (JAE) or equivalent

- Mating connector: FI-30C2L (JAE) or equivalent

Pin No Symbol Description Default

1

2

3

4

5GND

6GND

7GND

8GND

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal

frame. All Vcc (power input) pins should be connected together.

For Pin 10, 27 and 28, panel will not damage if negligently connect these pins to high or low

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 8/29
No Reproduction and Redistribution Allowed

V

LCD

V

LCD

V

LCD

V

LCD

SEL LVDS LVDS Data Format Selection/NS Mode

NC NC

GND Ground

RIN0- Negative LVDS Data Input

RIN0+ Positive LVDS Data Input

GND Ground

RIN1- Negative LVDS Data Input

RIN1+ Positive LVDS Data Input

GND Ground

RIN2- Negative LVDS Data Input

RIN2+ Positive LVDS Data Input

GND Ground

CLKIN- Negative LVDS Data Input

CLKIN+ Positive LVDS Data Input

GND Ground

RIN3- Negative LVDS Data Input

RIN3+ Positive LVDS Data Input

GND Ground

Reserved Leave it Open

Reserved Leave it Open

Reserved Leave it Open

Reserved Leave it Open

www.panelook.com

Power Supply +12.0V

Power Supply +12.0V

Power Supply +12.0V

Power Supply +12.0V

Ground

Ground

Ground

Ground

NS mode

AUO internal test

AUO internal test

AUO internal test

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

LVDS Option = HighJEIDA

Previous Cycle Current Cycle Next Cycle

Clock

www.panelook.com

RIN0+

RIN0-

RIN1+

RIN1-

RIN2+

RIN2-

RIN3+

RIN3-

LVDS Option = Low/OPENNS

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+

RIN0-

R2R7 G2G2R2R3 R4R5R6 R3

G7

G3B2 B3B3G3G4 G5G6G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

R0R5 G0G0R0R1 R2R3R4 R1

RIN1+

RIN1-

RIN2+

RIN2-

RIN3+

RIN3-

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA B4

R6B7 NANAR6R7 G6G7B6 R7

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 9/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Backlight Specification

1. Electrical specification

Description Min Typ Max Unit Condition

1 BL Lamp Voltage VBL 1050 1300 1450 Vrms

2 Lamp Current IL 5.6 6.1 6.6 Irms Measurement data depend on Delta IPB

3 BL Operating Current IBLtyp 105 113 121 mArms

4 BL total Power PO 127 133 140 W

www.panelook.com

1). BL one side operating voltage at boost
dimming ration 100%

2). Measurement data depend on Delta IPB.

3). Calc ulati on m ethod : ( note s 1)

1. BL one side operating current at boost

dimming ratio 100%

5 Starting Voltage Vs 2280 2480 2680 Vrms

6 Lamp frequency fBL 60 62 64 KHz

7 Striking time St 1000 - 1400 msec

8 Lamp type Straight type

9 Number of lamps 16 pcs

10 Type of current balance C

11 C ballaster Cb 14.25 15 15.75 pF

12 PW M Dimming Ratio Dim 20 100 % At 1.3 of uniformity

Boost Dimming Ratio

13

(recommend)

PWM Dimming Frequency

14

(recommend)

Notes 1:

VV

BL C

⎛⎞

=+

⎜⎟
⎝⎠

V

L

2

A dim 80 100 120 % At 1.3 of uniformity, PWM=100%

f 140 -- 240 Hz

Ta =2 5 5, Turn on for 45minutes

2

2

()

BL one side st rikin g v olt age.

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 10/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2. Lamp specification (Recommendation)

Description Min Typ Max Unit

1 Lamp Voltage Vlamp 1275 1298 1430 Vrms

2 Lamp Current Ilamp 4.0 6.5 7 mArms

3 Lamp frequency fL 40 80 KHz

4 Starting Voltage

5 Lamp frequency fBL 60 62 64 KHz

6 Striking time St - - 1000 msec

7 Life time 50,000

3. Pin assignment, connector drawing and connection configuration

CN1: S03B PASK-2 (JST) or equivalent

PIN # Symbol Description

www.panelook.com

At 25C 1950 Vrms

At 0C 2540 Vrms

1 High I/P board high voltage supply

2 N.C. No connection

3 High I/P board high voltage supply

CN2: S03B PASK-2 (JST) or equivalent

PIN # Symbol Description

1 High I/P board high voltage supply

2 N.C. No connection

3 High I/P board high voltage supply

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 11/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4. Measurement method

www.panelook.com

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 12/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-3 Signal Timing Specifications

This is the signal timing required at the input of the User connector. All of the interface signal timing

should be satisfied with the following specifications for it ’s proper operation.

Timing Table (DE only Mode)

Vertical Frequency Range

Signal Item Symbol Min Type Max Unit

Vertical Section

www.panelook.com

Period Tv 789 806 1015 Th

Active Tdisp (v) — 768 — Th

Blanking Tblk (v) 16 38 247 Th

Period Th 1414 1560 1900 Tclk

Active Tdisp (h) — 1366 — Tc l k

Horizontal Section

LVDS Clock

Vertical Frequency Frequency Vs 47 60 63 Hz

Horizontal Frequency Frequency Hs 39 48 53 KHz

1.) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1

displayed on the left edge of the screen.

Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight

times of horizontal period. The 1

is displayed at the top line of screen.

2.) If a period of DE “High” is less than 1366 DCLK or less than 768 lines, the rest of the screen

displays black.

3.) The display position does not fit to the screen if a period of DE “High” and the effective data period

do not synchronize with each other.

Blanking Tblk (h) 48 194 534 Tclk

Frequency Fclk(1/Tclk) 60 80 85 MHz

st

DCLK after the rise of 1stDE, is

st

data corresponding to one horizontal line after the rise the of 1stDE

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 13/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-4 Signal Timing Waveforms

www.panelook.com

RGB Dat a

DE

Pixel

136 6

InvalidData

Pi xel

1

Pix el

2

Pixel

3

Pix el

4

Pixel

5

Pi xel

6

Tdis p(h)

CLK

Tcl k

Th

RGB

Data

Line

768

InvalidData Invalid Data

Line

1

Line

2

Line

3

Line

4

DE

Th

Tv

Tdisp(v)

1366

Pi xel

Line

768

Invalid Data

Pix el

1

Pixel

2

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 14/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input

for the color; the higher the binary input, the brighter the color. The table below provides a reference for

color versus data input.

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 000000000000000000000000

www.panelook.com

COLOR DATA REFERENCE

Input Color Data

RED

MSB LSB

GREEN

BLUE

MSB LSB

Basic

Color

RED

GREEN

BLUE

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0000000000000

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1111100000000

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0000011111111

Cyan 000000001111111111111111

Magenta 111111110000000011111111

Yellow 111111111111111100000000

White 111111111111111111111111

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0000000000000

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0000000000000

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0000000000000

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0000000000000

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0000000000000

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0000100000000

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1111000000000

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1111100000000

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0000000000000

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0000000000001

-------

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0000011111110

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0000011111111

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 15/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-6 Power Sequence

1. Power sequence of panel

www.panelook.com

Values

Parameter

t1 0.47 - 20 ms

t2 0.5 - 50 ms

t3 200 - - ms

t4 10 - - ms

t5 0.5 - 50 ms

t6 - - 300 ms

t7 1 - - s

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become

abnormal.

Caution: The above on/off sequence should be applied to avoid abnormal function in the display. In

case of handling, make sure to turn off the power when you plug the cable into the input connector or

pull the cable out of the connector.

Min. Typ. Max.

Units

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 16/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45

minutes in a dark environment at 25 . The values specified are at an approximate distance 50cm

from the LCD surface at a viewing angle of  and equal to 0.

www.panelook.com

SR3 or equivalent

Fig.4-1 Optical measurement equipment and method

Parameter

Symbol

Values

Units Notes

Min. Typ. Max.

Contrast Ratio CR 1200 1500 1

Surface Luminance, white LWH 400 500

Luminance Variation





BLACK

5 p 1.3 3

WHITE

5 p 1.5 3

cd/

2

Response Time (Ton / Toff) Ton / Toff (15/5) (18/7)

Response Time (Average)

T

6.5 8 ms 4,5 (Gray to Gray)

Color Coordinates

RED R

X

0.640

RY0.330

GREEN G

X

0.290

GY0.600

BLUE B

Typ.-0.03

X

0.150

Typ.+0.03

BY0.060

WHITE W

W

X

Y

0.280

0.290

Viewing Angle Contrast Ratio>10

x axis, right(=0) 

x axis, l eft(=180) 

y axis, up(=90) 

y axis, down (=0) 

r

l

u

d

89 Degree 6

89

89

89

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 17/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note:

1. Contrast Ratio (CR) is defined mathematically as:

www.panelook.com

Contrast ratio(CR)=

Brightness on the "white" state
Brightness on the "black" state

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with

all pixels displaying white. From more information see Fig. 4-2. When V

Lamp frequency (typ.) = 62 KHz. L

WH=Lon1

, Where L

is the luminance with all pixels displaying white

on1

at center 1 location.

3V/4

V/2

V/4

BL = (1747V), IBL = (104mA).

H

1

H/2H/4

3H/4

Fig.4-2 Optical measurement point

3. The variation in surface luminance, 

is defined under 100% brightness as, 

W HITE

BLACK

is defined

under 0% brightness:



WHITE(5P)



BLACK(5P)

=Maximum(L

=Maximum(L

on1

on1

, L

, L

on2

on2

,…,L

,…,L

)/Minimum(L

on5

)/Minimum(L

on5

on1

on1

, L

, L

on2

on2

,…L

,…L

on5

on5

)

)

V

4. Response time is the time required for the display to transition from white(L255) to black(L0) (Decay

Tim e, Tr

=Tf) and from black(L0) to white(L255) (Rise Time, TrR=Tr). For additional information see Fig.

D

4-3.

TrD

TrR

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 18/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



5. The response time is defined as the following figure and shall be measured by switching the input

signal among 0%, 25%, 50%, 75%, 100% luminance. For additional information see Fig. 4-4.

www.panelook.com

Fig.4-3 Response time

100%

90%

L0,15,L31,.L255

L0,15,L31,

.L255

Luminance

10%

0%

Tr

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for

the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD

surface. For more information see Fig. 4-5.

L0,15,L31,.L255

D

Fig.4-4 Response time

Tr

Time

R

Fig.4-5 Viewing Angle Definition

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 19/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T370XW02. In addition the

figures in the next page are detailed mechanical drawing of the LCD.

Outline Dimension

www.panelook.com

Horizontal (typ.) 877.0 ±1.0 mm

Vertical (typ.) 516.8 ±1.0 mm

Depth (typ.) 45.8 ±1.0 mm

Horizontal (typ.) 828.0 ±1.0 mmBezel Area

Vertical (typ.) 469.8 ±1.0 mm

Active Display Area

Weight 8,800 g (typ.)

Surface Treatment AG, 3H, Haze 40

Horizontal 819.6 mm

Vertical 460.8 mm

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 20/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2D drawing

www.panelook.com

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 21/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 22/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability

Environment test condition

No Test Item Condition

1 High temperature storage test Ta=60 , 300hr

2 Low temperature storage test Ta=-20, 300hr

3 High temperature/High humidity

operation test

4 Low temperature operation test Ta=-5 , 55%RH, 300hr

www.panelook.com

Ta=50 , 80%RH, 300hr

5 Vibration test

(non-operating)

6 Shock test

(non-operating)

7 Vibration test

(with carton)

8ESD

9 EMI Use CISPR20.

10 Drop test

(with carton)

Wave form: Random

Vibration level : 1.5G RMS

Bandwidth : 10-300Hz

Duration: X, Y, Z 30min (One time each direction)

Shock level: 50G

Waveform: half since wave, 11ms

Direction: ±X, ±Y, ±Z (One time each direction)

Wave form: Random

Vibration level : 1.5G RMS

Vibration:10~200Hz,

Duration: 30minutes in each X,Y,Z direction

Level: Class C, Contact: 20KV, Air: 20KV

150pF, 330ohm, 1sec, 8 points/panel, 25 times/point

Use FCC class B part15

Height: 31cm

1 corner, 3 edges, 6 surfaces

(ASTMD4169-I)

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 23/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. International Standard

7-1. Safety

(1) UL6500, UL 60065 Underwriters Laboratories, Inc. (AUO file number : E204356)

Standard for Safety of Information Technology Equipment Including electrical Business

Equipment.

(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996

IEC 60065: version 7th

European Committee for Electro technical Standardization (CENELEC)

EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical

Business Equipment.

www.panelook.com

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment. ” International Special committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

7-3. Green

Green Mark Description:

a) For Pb Free products, AUO will add

b) For RoHS compatible products, AUO will add

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal

Green Team. (The definition of green design follows the AUO green design checklist.)

for identification.

for identification.

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 24/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3pcs Modules

1pcs Module/ESD Bag

3pcs / 1 carton

H  Tape

Cushion down

Cushion set

1pcs Module

8. Packing

www.panelook.com



©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 25/28
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

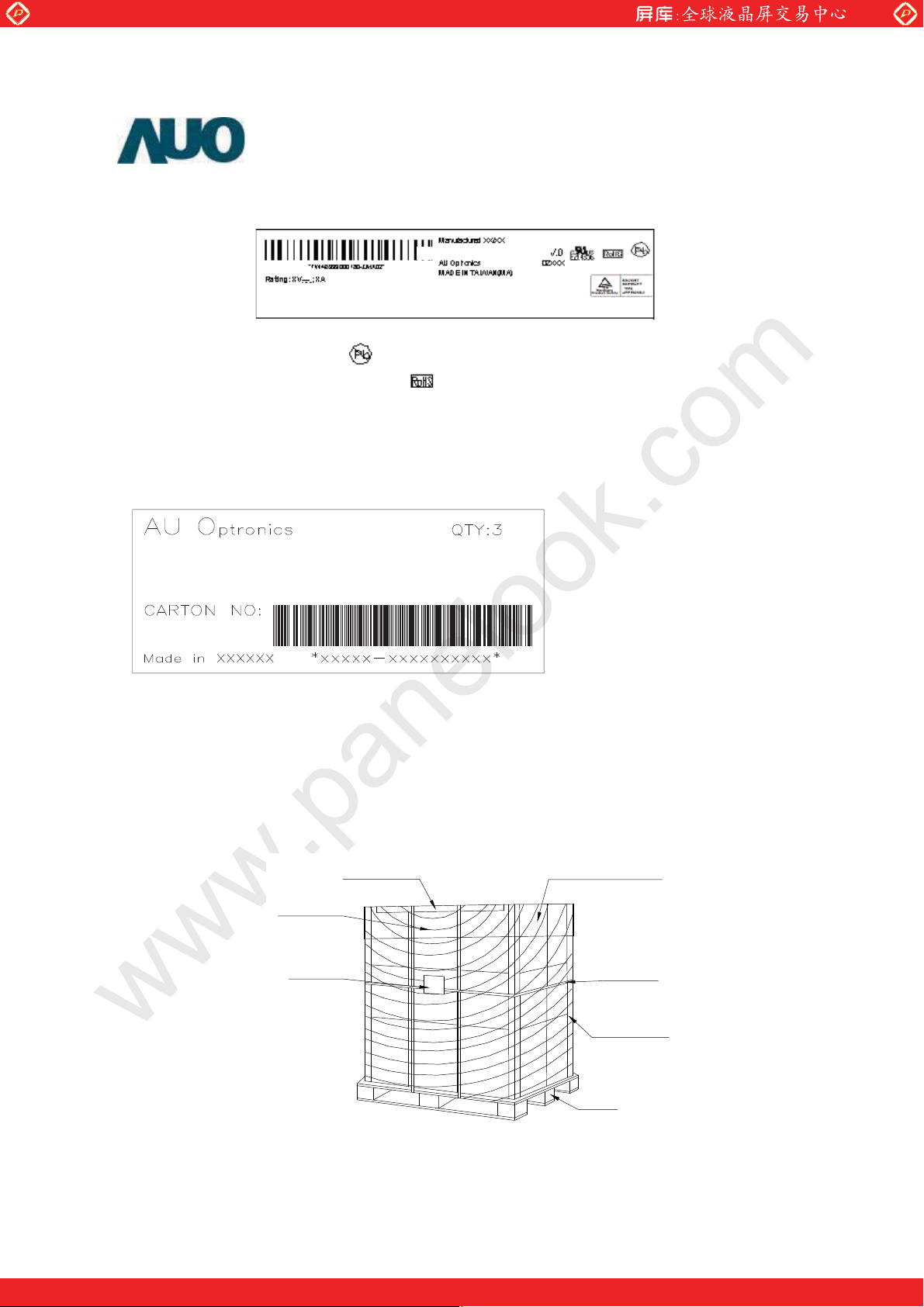

Shipping label

Green Mark Description:

www.panelook.com

Model No: T370XW02 V9

For Pb Free products, AUO will add

For RoHS compatible products, AUO will add

Note. The Green Mark will be present only when the green documents have been ready by AUO Internal

Green Team. (The definition of green design follows the AUO green design checklist.)

for identification.

for identification.

Carton label

Model No: T370XW02 V9
Part No: 97.37T03. XXX
Customer No:

Pallet information

By Air: 1 pallet + 4 box 2 layers (8*3=24 pcs module)

By Sea: 1 pallet + 4 box 3 layers (12*3=36 pcs module)

Moisture-proof filmCorner angle

Stretch film

Label

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 26/29
No Reproduction and Redistribution Allowed

PET band

Corner angle

Pallet

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged on back side of panel

(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to

module. And the case on which a module is mounted should have sufficient strength so that external

force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit

break by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or an ythi ng harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformati ons and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

9-2 OPERATING PRECAUTIONS

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage: V= 

200mV(Over and under shoot voltage)

(2) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower

temperature, response time (required time that brightness is stable after turned on) becomes longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 27/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wrist band etc. And don ’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

www.panelook.com

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in

such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 28/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Appendix:

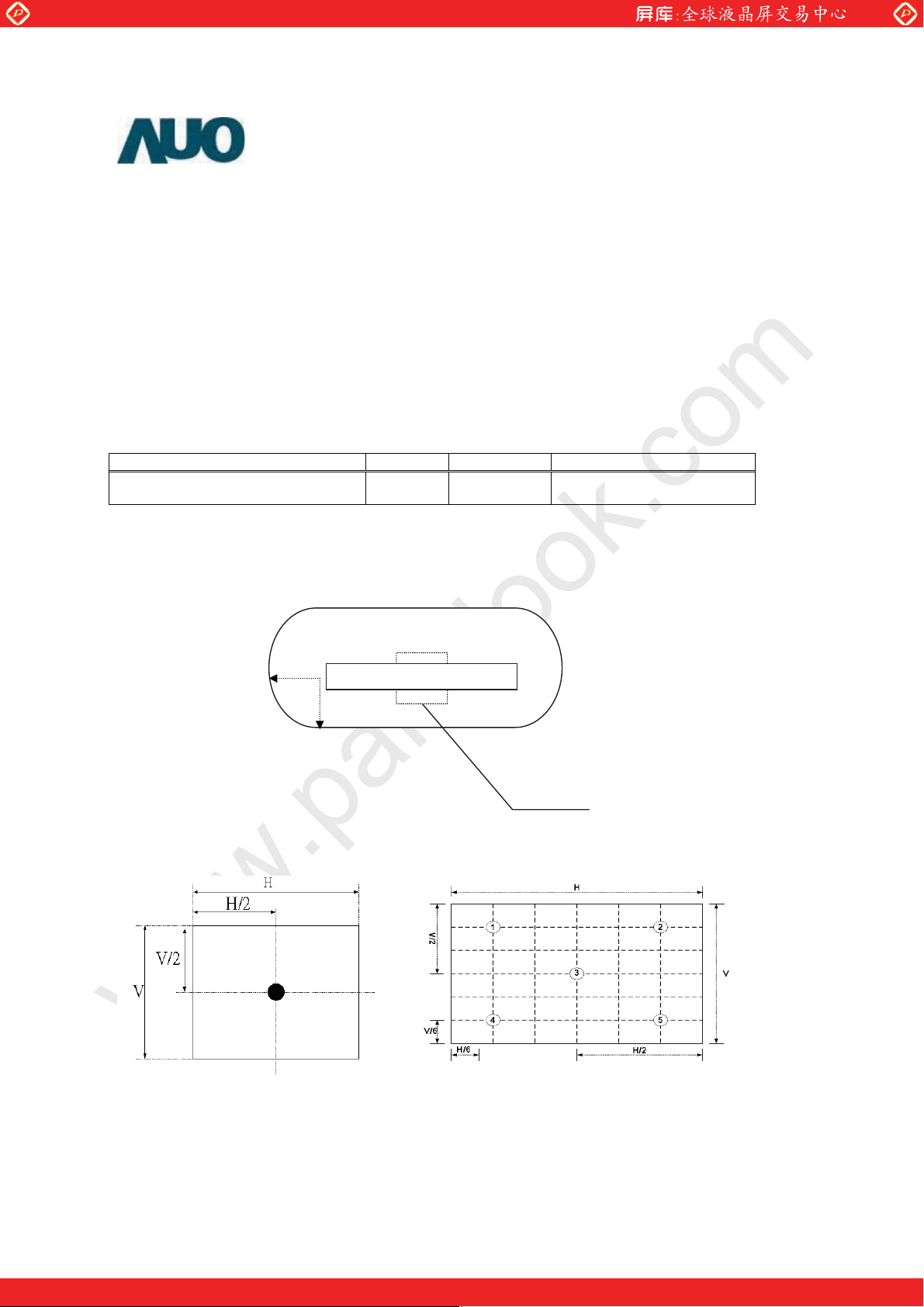

1. Acoustical Noise Requirement

Measurement of all residual noises (e.g. back light, inverter, fans …) will be done in a silent reverberant room.

If available, the electronic box is placed under the LCD. Measure the sound level frequency dependant on 8

points around the LCD. The position in height of the sound audiometer is the middle of the LCD. Measures

this on frequency span 25 Hz -20 kHz (gives an overview of the total spectrum) and measure this on

frequency span 25 Hz - 1500 Hz.

Performance parameter Class LCD size Requirement

General audible noise.

Sound level.

www.panelook.com

ALL ALL < 20 (dBA)

Σ sound level from A to H

Sound level = --------------------------------------- (dBA)

8

H

front

G

1m

1m

LCD

Electronic

Box

2. Luminance variation at 30% dimming (δ,5P): 1.5(Max.)

C

3. Impedance of Pin9 of LVDS : 4.7K (Ω)

©Copyright AU Optronics, Inc.
January, 2007 All Rights Reserved. T370XW02 V9 29/29
No Reproduction and Redistribution Allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
