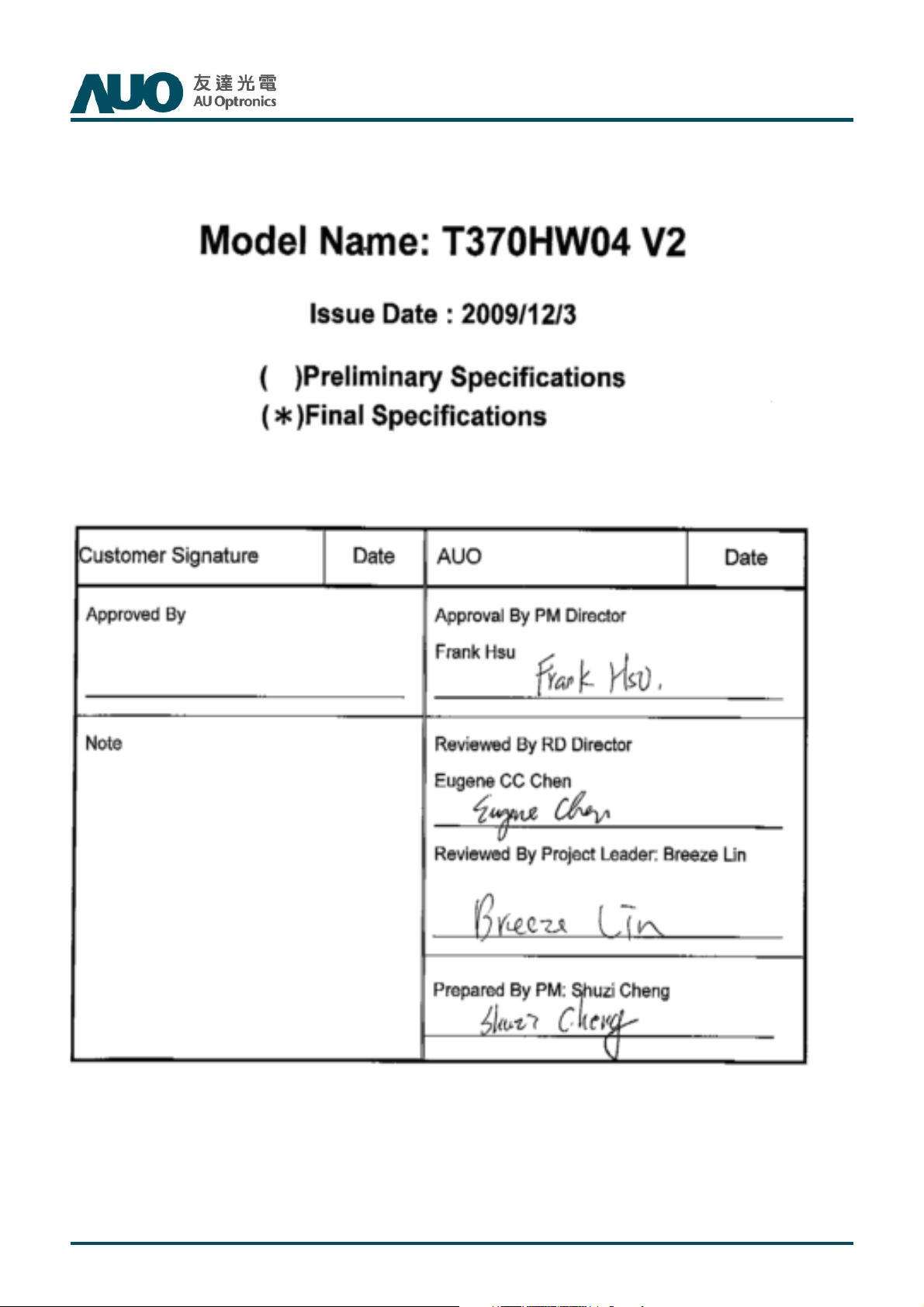

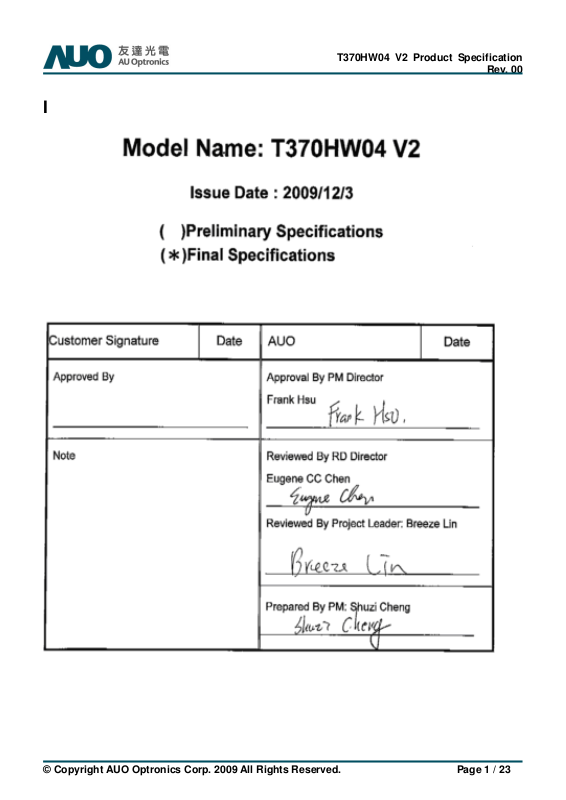

AUO T370HW04 V2 Specification

T370HW04 V2 Product Specification

Rev. 00

I

T370HW04 V2 Product Specification

Rev. 00

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE FOR LCD

4 OPTICAL SPECIFICATION

5 OPEN CELL DRAWING

6 AUO’S BASIC BLU OPTICAL PERFORMANCE

7 RELIABILITY TEST ITEMS

8 PACKING

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T370HW04 V2 Product Specification

Rev. 00

Version

0.0 2009/11/10 First release

Date Page Description

T370HW04 V2 Product Specification

Rev. 00

1. General Description

This specification applies to the 37.0 inch Color TFT-LCD SKD model, T370HW04 V2. This

LCD Open Cell Unit has a TFT active matrix type liquid crystal panel 1920*1080 pixels, and

diagonal size of 37.0 inch. This module supports 1920*1080 HDTV mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale

signal for each dot.

* General Information

Items Specification Unit Note

Active Screen Size 37.01 inch

Display Area 819.36 (H) x 460.89(V) mm

Outline Dimension 842.6(H) x 485.8(V) x 1.78(D) mm

Driver Element a-Si TFT active matrix

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1920 x 1080 Pixel

Pixel Pitch 0.42675(H) x 0.42675(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Super Clear

T370HW04 V2 Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev. 00

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures

greater than 40 , the ℃wet bulb temperature must not exceed 39 .℃

Note 3: Surface temperature is measured at 50℃ Dry condition

℃

s

µ

T370HW04 V2 Product Specification

Rev. 00

3. Electrical Specification

The T370HW04 V2 requires LVDS power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal.

3.1 Electrical Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

LCD

Power Supply Input Voltage VDD 12 VDC 1

Value

Power Supply Input Current IDD - 0.73

Power Consumption PC -

Inrush Current I

- - 4 A 3

RUSH

0.8 A 2

8.76 9.60

Watt 2

Differential Input High Threshold

VTH -- -- +100 4 4

Voltage

LVDS

Interface

CMOS

Interface

Differential Input Low Threshold

Voltage

Input Common Mode Voltage V

Input High Threshold Voltage

(High)

Input Low Threshold Voltage

VTL -100 -- -- 4 4

ICM

VIH

2.7 3.3

VDC 4

1.10 1.25 1.40

VDC

VIL

0 0.6

VDC

(Low)

Note :

1. The ripple voltage should be controlled under 10% of VDD

2. Test Condition:

(1) V

= 12.0V

DD

(2) Fv = Type Timing, 60Hz

(3) F

= Max freq.

CLK

(4) Temperature = 25 ℃

(5) Test Pattern : White Pattern

3. Measurement condition : Rising time = 400us

90%

GND

GNDGND

10%

400

400400

VVVV

DD

DDDD

T370HW04 V2 Product Specification

Rev. 00

4. V

= 1.25V

ICM

VVVV

TH

VVVV

ICM

ICMICM

0000VVVV

THTH

VVVV

TL

TLTL

26

27

28

29

30

T370HW04 V2 Product Specification

3.2 Interface Connections



LCD connector: JAE Fl-RE51S-HF



Mating connector:

PIN Symbol Description PIN Symbol Description

Rev. 00

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

VDD Power Supply, +12V DC Regulated

NC No connection

GND Ground

CH1_0- LVDS Channel 1, Signal 0-

CH1_0+ LVDS Channel 1, Signal 0+

CH1_1- LVDS Channel 1, Signal 1-

CH1_1+ LVDS Channel 1, Signal 1+

CH1_2- LVDS Channel 1, Signal 2-

CH1_2+ LVDS Channel 1, Signal 2+

GND Ground

CH2_0+ LVDS Channel 2, Signal 0+

CH2_1- LVDS Channel 2, Signal 1-

CH2_1+ LVDS Channel 2, Signal 1+

CH2_2- LVDS Channel 2, Signal 2-

CH2_2+ LVDS Channel 2, Signal 2+

31

32

33

34

35

36

37

38

39

40

41

GND Ground

CH2_CLK-

CH2_CLK+

GND Ground

CH2_3- LVDS Channel 2, Signal 3-

CH2_3+ LVDS Channel 2, Signal 3+

Reserved AUO Internal Use Only

GND Ground

SCL EEPROM Serial Clock

NC No connection

LVDS Channel 2, Clock -

LVDS Channel 2, Clock +

17

18

19

20

21

22

23

24

25

CH1_CLK-

CH1_CLK+

GND Ground

CH1_3- LVDS Channel 1, Signal 3-

CH1_3+ LVDS Channel 1, Signal 3+

Reserved

GND Ground

CH2_0- LVDS Channel 2, Signal 0-

LVDS Channel 1, Clock -

LVDS Channel 1, Clock +

AUO Internal Use Only

51

42

43

44

45

46

47

48

49

50

NC No connection

EEPROM Write Protection

WP

SDA EEPROM Serial Data

LVDS_SEL

NC No connection

Reserved AUO Internal Use Only

High(3.3V) for Writable,

Low(GND) for Protection

Open/High(3.3V) for NS,

Low(GND) for JEIDA

\

 LVDS Option = High/OpenNS

P re v io u s C ycle C urren t C ycle N e x t C y c le

P re v io u s C ycle C urren t C ycle N e x t C y c le P re v io u s C ycle C urren t C ycle N e x t C y c le

C lo c k

C lo c kC lo c k

C H x

C H x____ 0000 ++++

C H xC H x

C H x

C H x____ 0000 ----

C H xC H x

C H x

C H x____ 1111 ++++

C H xC H x

C H x

C H x____ 1111 ----

C H xC H x

C H x

C H x____ 2222 ++++

C H xC H x

C H x

C H x____ 2222 ----

C H xC H x

C H x

C H x____ 3333 ++++

C H xC H x

C H x

C H x____ 3333 ----

C H xC H x

Note: x = 1, 2, 3, 4…

T370HW04 V2 Product Specification

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A

D ED E

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

N A D E

N AN A

N A BBBB 3333

N AN A

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

BBBB 2222N A

RRRR 6666BBBB 7777 N A

D ED E

N AN A

Rev. 00

 LVDS Option = LowJEIDA

P re v io u s C ycle C urren t C ycle N ex t C ycle

P re v io u s C ycle C urren t C ycle N ex t C ycle P r e v io u s C ycle C urren t C ycle N ex t C ycle

C lo c k

C lo c kC lo c k

C H x

C H x ____ 0000 ++++

C H xC H x C H x

C H x ____ 0000 ----

C H xC H x

C H x

C H x ____ 1111 ++++

C H xC H x C H x

C H x ____ 1111 ----

C H xC H x

C H x

C H x ____ 2222 ++++

C H xC H x C H x

C H x ____ 2222 ----

C H xC H x

C H x

C H x ____ 3333 ++++

C H xC H x C H x

C H x ____ 3333 ----

C H xC H x

Note: x = 1, 2, 3, 4…

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777N A

D ED E

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

N A D E

N AN A

N A BBBB 5555

N AN A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

BBBB 4444N A

RRRR 0000BBBB 1111 N A

D ED E

N AN A

T370HW04 V2 Product Specification

Rev. 00

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Signal Item Symbol Min. Typ. Max Unit

Period Tv 1090 1125 1480 Th

Vertical Section

Active Tdisp (v) 1080 Th

Blanking Tblk (v) 10 45 400 Th

Period Th 1030 1100 1325 Tclk

Horizontal Section

Active Tdisp (h) 960 Tclk

Blanking Tblk (h) 70 140 365 Tclk

Clock Frequency Fclk=1/Tclk 50 74.25 82 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

Frequency Fh 60 67.5 73 KHz

(3)If a period of DE “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

3.4 Signal Timing Waveforms

T370HW04 V2 Product Specification

Rev. 00

CH2

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

CH1

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

DE

Tclk

CLK

RGB

Data

Line

N

Invalid Data Invalid Data

Line

1

Line

2

DE

Th

Tv

Pixel

8

Pixel

10

Pixel

12

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

7

Tdisp(h) Tblk(h)

Pixel

9

Pixel

11

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Th

Line

3

Line

4

Line

N

N L in e

N L in eN L in e

Tdisp(v)Tblk(v)

M

M p

p

p i

i

x

x e

e

e l

l

T370HW04 V2 Product Specification

Rev. 00

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

3.6 Power Sequence for LCD

T370HW04 V2 Product Specification

Rev. 00

Parameter

Units

Min. Typ. Max.

Value

T1 0.4 ---

T2 0.1 ---

T3 300 ---

T4

T5

0*1

0

---

T6 --- ---

T7 500 ---

Note:

(1) T4=0 : concern for residual pattern before BLU turn off. (2) T6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)

30

---

---*2

---

ms

T370HW04 V2 Product Specification

Rev. 00

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Values

Unit Notes

Contrast Ratio CR

Surface Luminance (White) LWH 425 500 cd/m2 1,3

Luminance Variation δ

Cell Transparency Tr 4.2 % 1,7

Response Time (G to G) Tγ -- 6.5 -- Ms 1,5

Color Gamut NTSC 72 % 1

Color Coordinates

Viewing Angle

Red RX 0.640 1

RY 0.330 1

Green GX 0.29 1

GY 0.6 1

Blue BX 0.144 1

BY 0.060 1

White WX 0.280 1

WY

WHITE(9P)

5000 6000

-- -- 1.3 1,4

Typ.-0.03

0.290

Typ.+0.03

1,2

1

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θ

-- 89 -- degree

d

1,6

T370HW04 V2 Product Specification

Rev. 00

Note:

1. Above measured optical data are based on AUO BLU unit.

(T370HW03 VG backlight)

2. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

3. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. From more information see FIG 2. When lamp current IH = 11mA. LWH=Lon5 where Lon5 is

the luminance with all pixels displaying white at center 5 location.

4. The variation in surface luminance, δWHITE is defined (center of Screen) as:

Surface Luminance of

L

on5

L

off5

δ

WHITE(9P)

5. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

Target Measured

Response Time

0%

25%

Start

50%

75%

100%

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG3.

7. Cell Transparency ( Tr ) is the ratio of module luminance at center point of active area to backlight luminance at

center point. Tr is defined as, Tr (%) = ( Module luminance / Backlight luminance ) x 100. Where the film

structure of backlight should not include any reflective type of prism such as DBEFD, and Measurement of

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 100%

module or backlight luminance should be under the same condition of BLU power and no any lamp mura is

found.

2 3

7

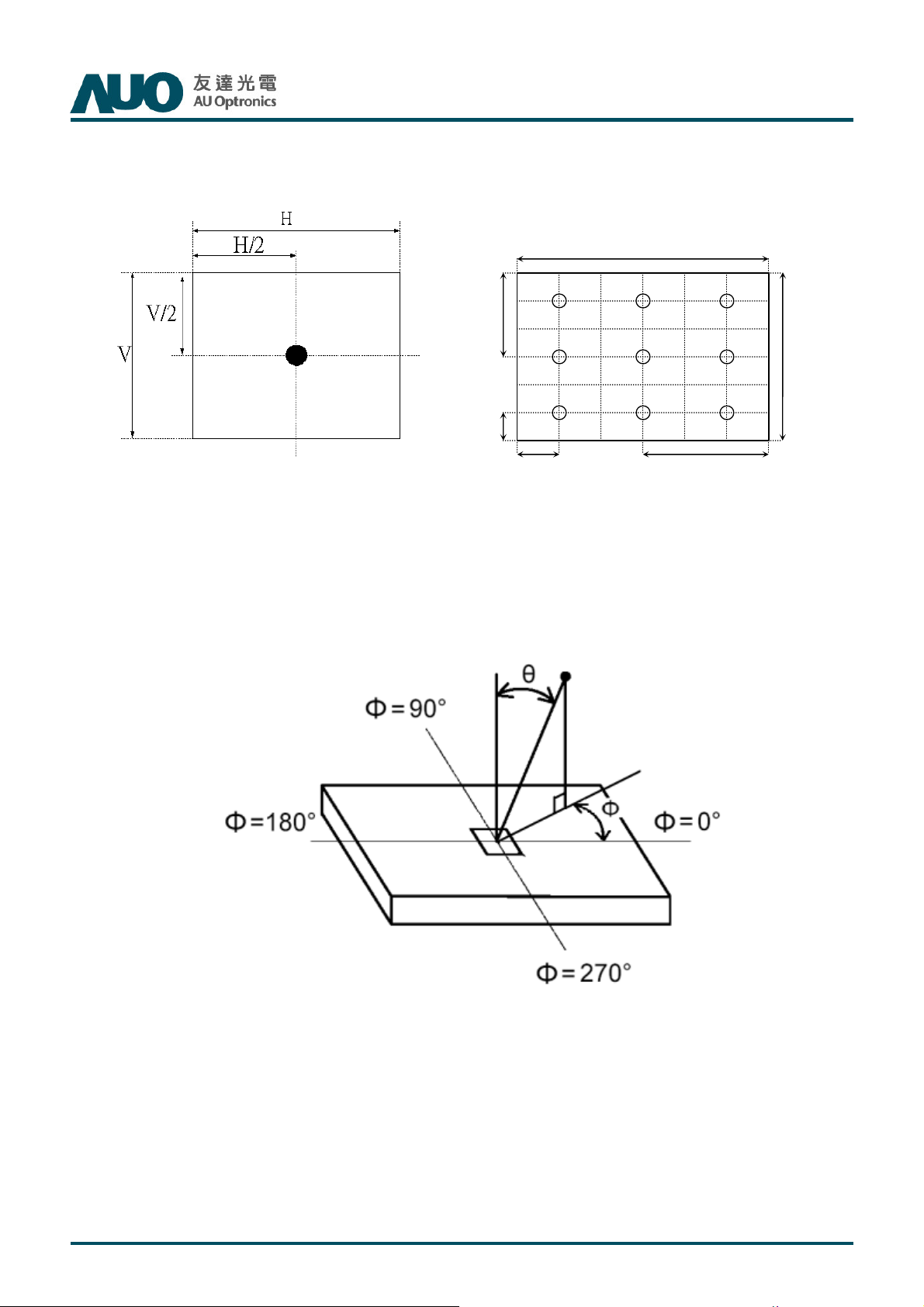

FIG. 2 Luminance

T370HW04 V2 Product Specification

Rev. 00

V

H/2

H/6

FIG.3 Viewing Angle

1

H

V/2 V/6

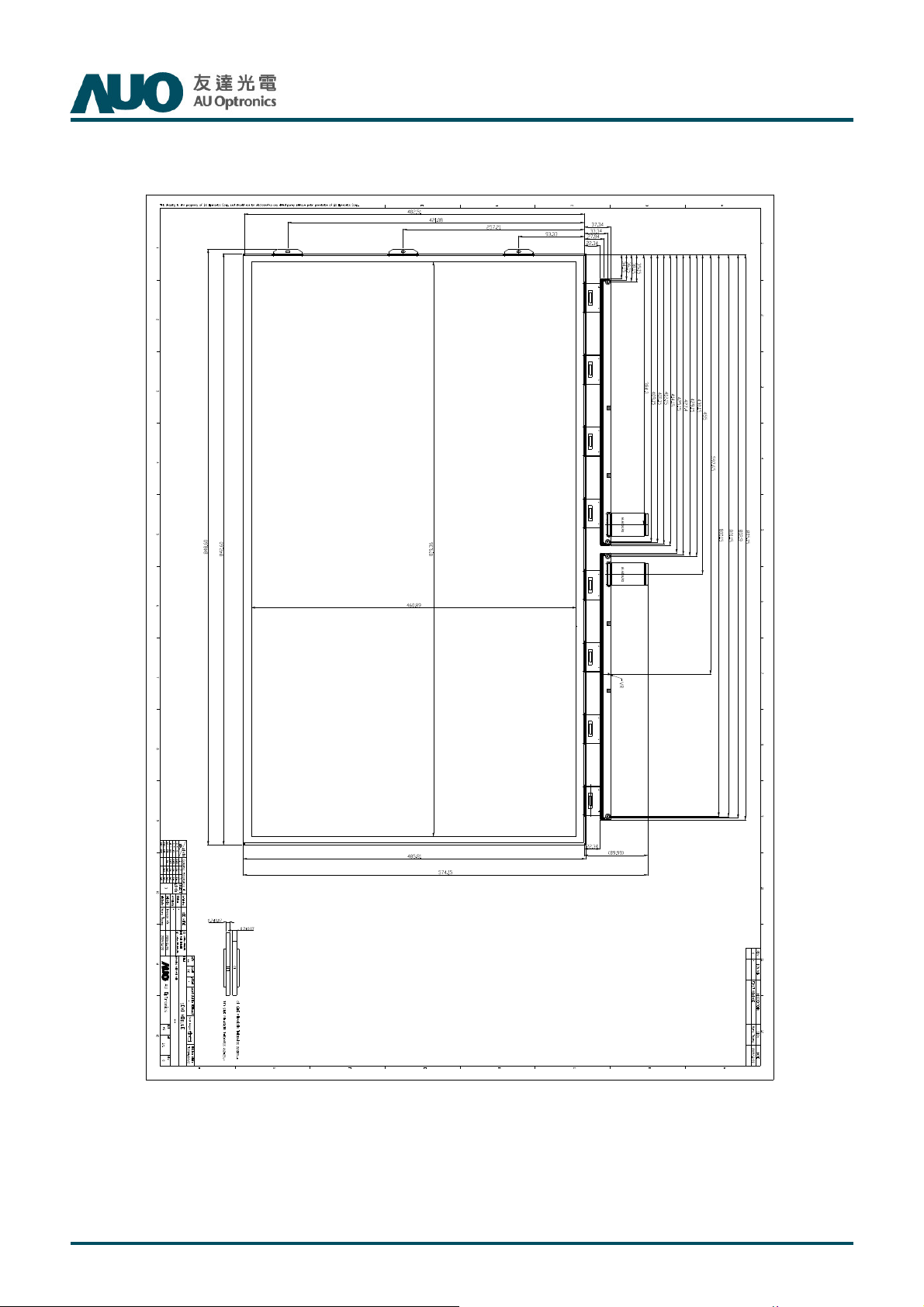

5. Open Cell Drawing

T370HW04 V2 Product Specification

Rev. 00

T370HW04 V2 Product Specification

6. AUO’s Basic BLU Optical Performance

The center Luminance & Chromaticity of AUO’s BLU

Item Typ. Unit Note

Luminance 11900 nit 100% Dimming

x 0.253 - CIE 1931 Central Chromaticity

y 0.242 -

7. Reliability Test Items

Rev. 00

1 High temperature storage test 3pcs 60℃, 300hrs

2 Low temperature storage test 3pcs -20℃, 300hrs

3 High temperature operation test 3pcs 50℃, 300hrs

4 Low temperature operation test 3pcs -5℃, 300hrs

5 Vibration test (With carton)

6 Drop test (With carton)

Note: Test item 1~4 RA tests are done on AUO 97.37T05.800 panels.

Test Item Q’ty Condition

18pcs

(1Box)

18pcs

(1Box)

Random wave (1.5G RMS, 10-200Hz)

30mins/ Per each X,Y,Z axes

Height: 30.5cm

1 corner, 3 edges, 6 surfaces

(ASTMD4169-I)

8. Packing

Carton Label:

T370HW04 V2 Product Specification

Rev. 00

T370HW04 V2

91.37T06.2XX

Carton label location

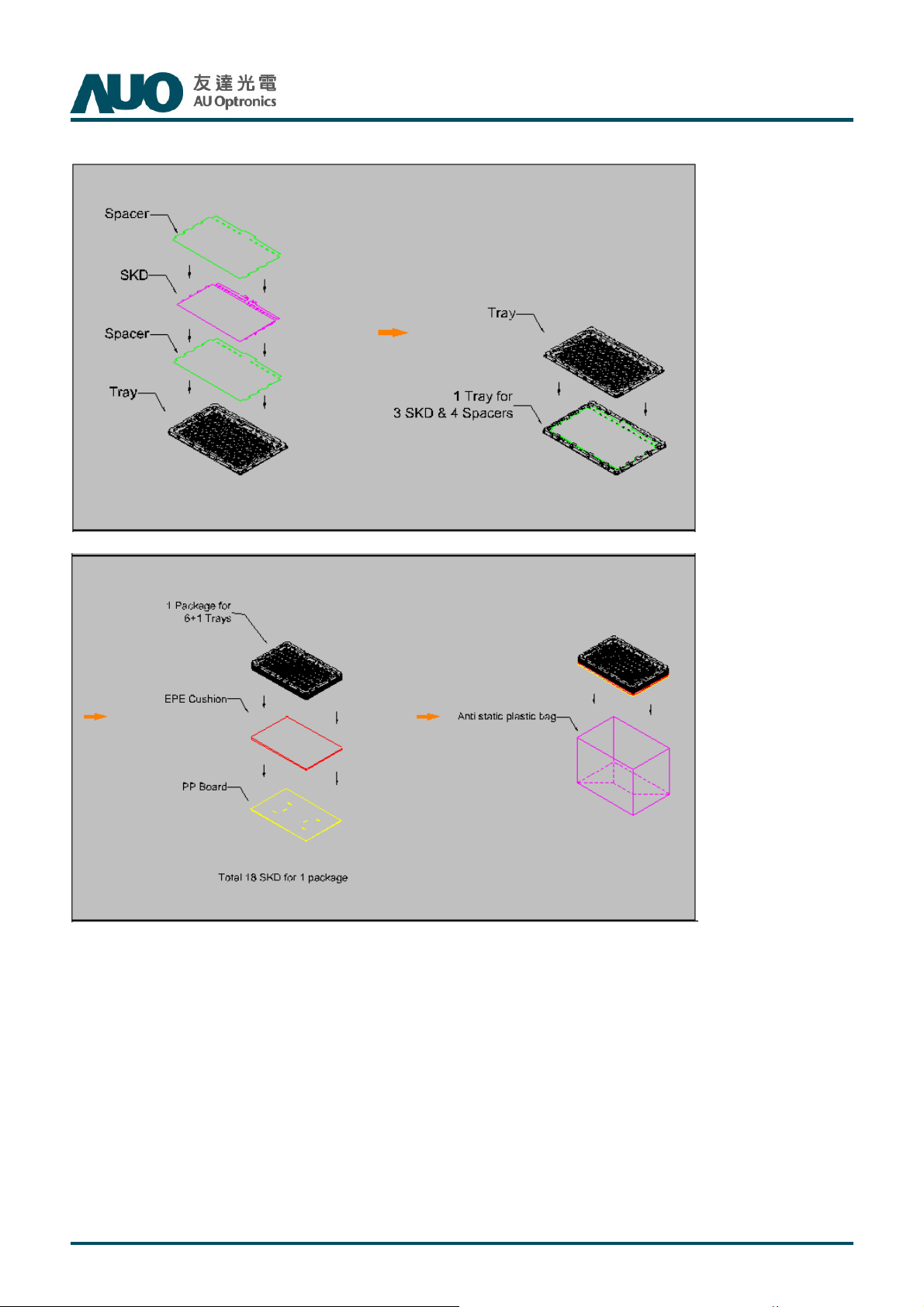

Packing Process:

T370HW04 V2 Product Specification

Rev. 00

T370HW04 V2 Product Specification

Rev. 00

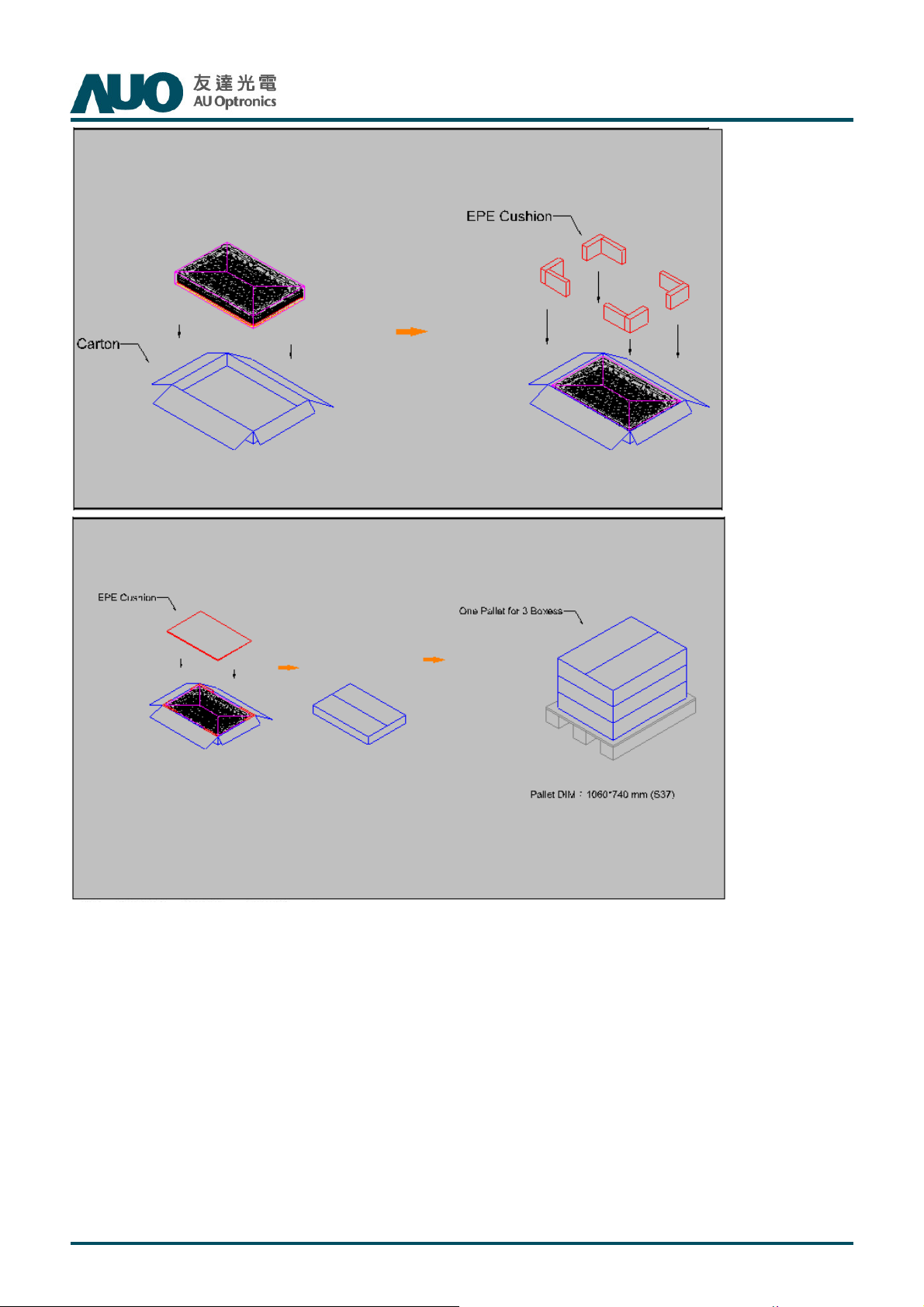

Carton 1050(L)mm*720(W)mm*290(H)mm

Pallet : 1060mm*740mm*138mm

(1) By Air : (1 *1) *3 layers,3package per pallet, total 54 pcs open cell

(2) By Sea : (1 *1) *3layers, 3package per pallet, Double Pallet, total 108 pcs open cell

T370HW04 V2 Product Specification

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD Open Cell unit.

9-1 MOUNTING PRECAUTIONS

(1) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the cell. And the frame on which a cell is mounted should have sufficient strength so that external force is not transmitted directly to the cell.

(2) Please attach the surface transparent protective plate to the surface in order to protect the polarizer. Transparent protective plate should have sufficient strength in order to the resist external force.

(3) You should adopt radiation structure to satisfy the temperature specification.

(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction. (4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.) (5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer. (6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes deformations and color fading. (7) Do not open the case because inside circuits do not have sufficient strength.

Rev. 00

9-2 OPERATING PRECAUTIONS

(1)

The open cell unit listed in the product specification sheets was designed and

manufactured for TV application

(2)

The spike noise causes the mis-operation of circuits. It should be lower than following

voltage: V=±200mV(Over and under shoot voltage)

(3)

Response time depends on the temperature. (In lower temperature, it becomes

longer.)

(4)

Brightness depends on the temperature. (In lower temperature, it becomes lower.) And

in lower temperature, response time (required time that brightness is stable after turned

on) becomes longer.

(5)

Be careful for condensation at sudden temperature change. Condensation makes

damage to polarizer or electrical contacted parts. And after fading condensation, smear or

spot will occur.

(6)

When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7)

Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference shall be done by system manufacturers. Grounding and shielding methods

may be important to minimize the interface.

T370HW04 V2 Product Specification

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a open cell unit is composed of electronic circuits, it is not strong to electrostatic

discharge. Make certain that treatment persons are connected to ground through wrist

band etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing open cell units as spares for a long time, the following precautions are

necessary.

(1) Store them in a dark place. Do not expose the open cell unit to sunlight

or fluorescent light. Keep the temperature between 5 and 35 at normal ℃ ℃

Rev. 00

humidity.

(2) The polarizer surface should not come in contact with any other object. It is

recommended that they be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM OF POLARIZER

The protection film of polarizer is still attached on the surface as you

receive open cell units. When the protection film is peeled off, static

electricity is easily generated on the polarizer surface. This should be peeled off slowly and

carefully by people who are electrically grounded and with well ion-blown equipment or in

such a condition, etc.

AUO T370HW04 V2 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
