Document Version : 3
Date : 2008/12/19
Product Specifications
37” HDTV Color TFT-LCD Module
Model Name: T370HW02. VE
() Preliminary Specifications
(*) Final Specifications
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
No

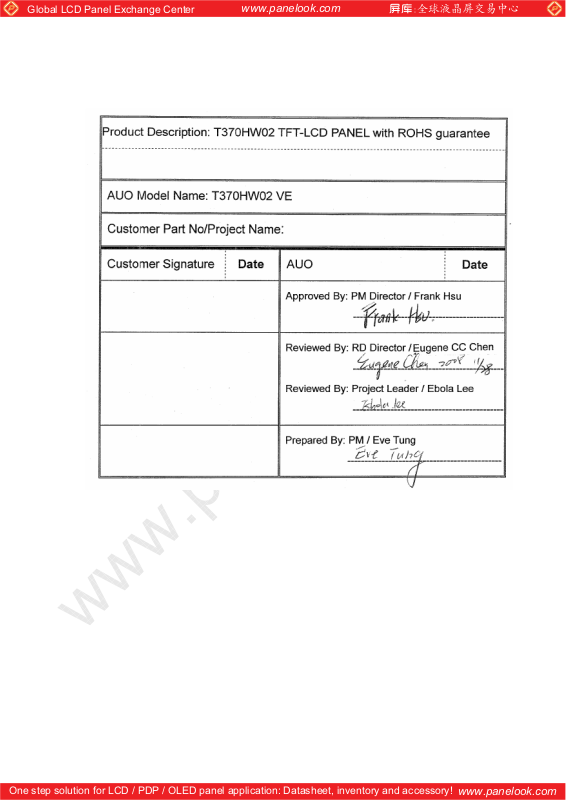

COVER
www.panelook.com
Contents
ELECTRICAL SPECIFICATIONS 3
ELECTRICAL CHARACTREISTICS 3-1
COLOR INPUT DATA REFERNECE 3-5

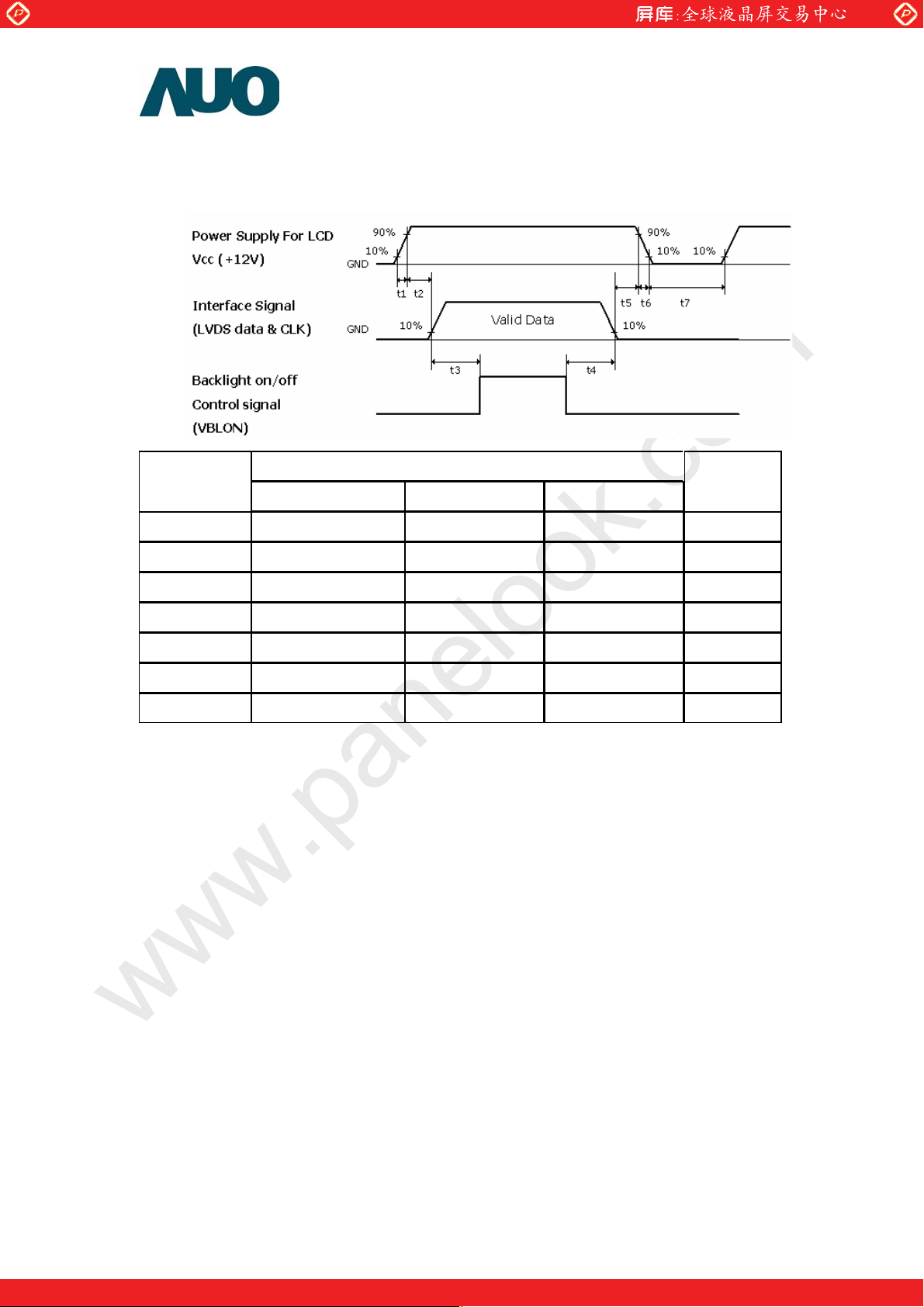

POWER SEQUENCE 3-6
Backlight Unit Specification
3-7
CONTENTS
RECORD OF REVISIONS
GENERAL DESCRIPTION 1
ABSOLUTE MAXIMUM RATINGS 2
INTERFACE CONNECTIONS 3-2

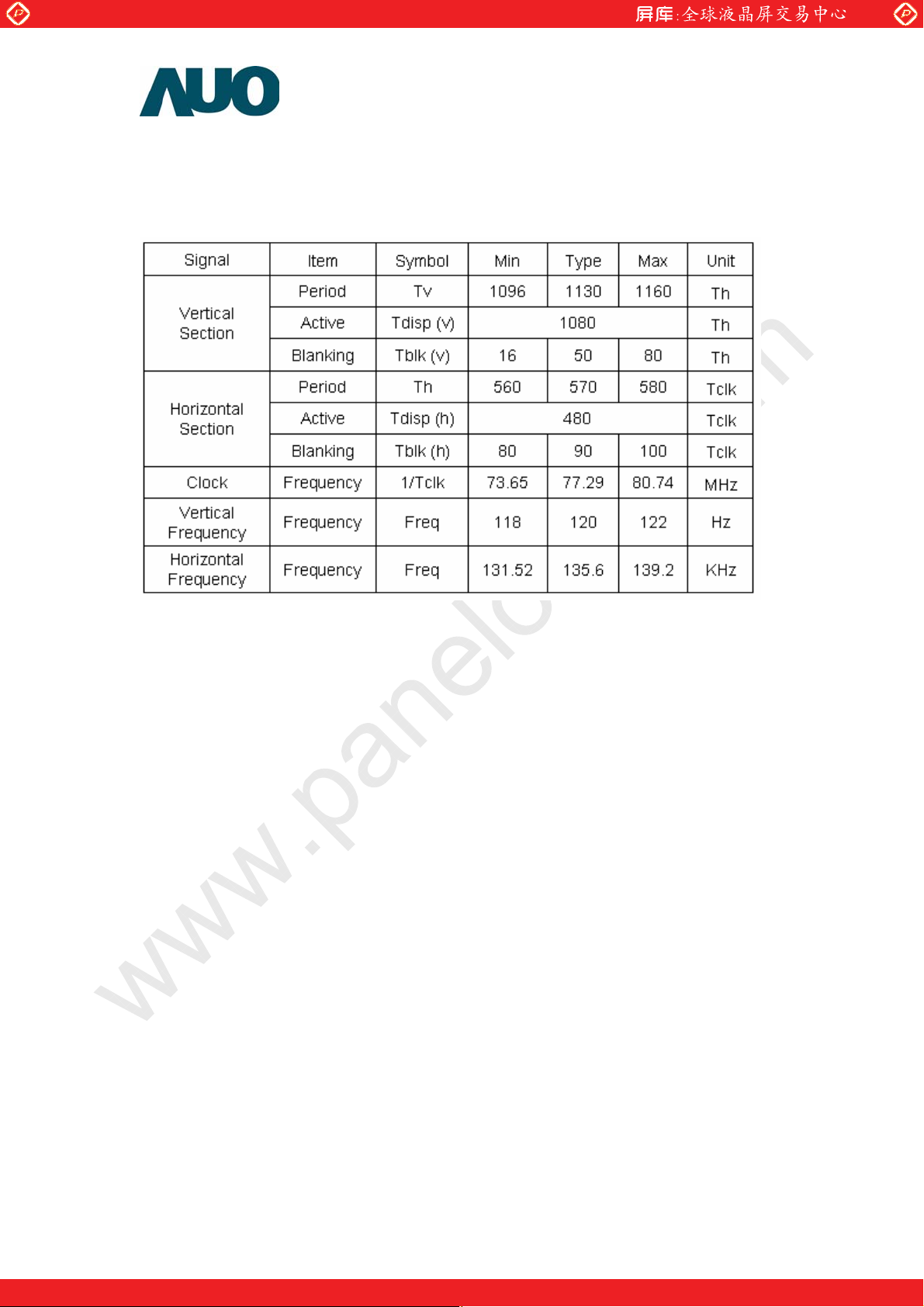

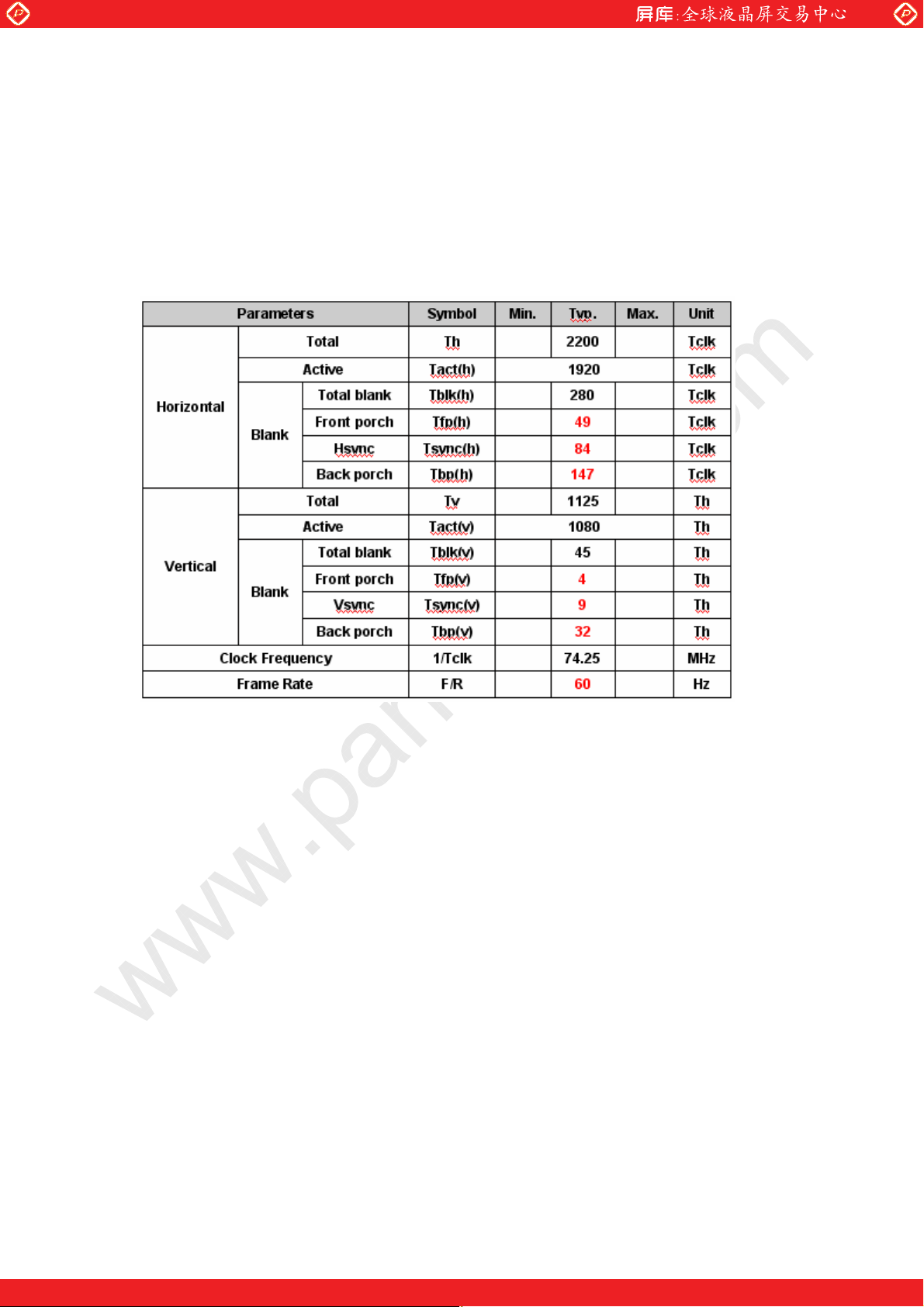

SIGNAL TIMING SPECIFICATIONS 3-3

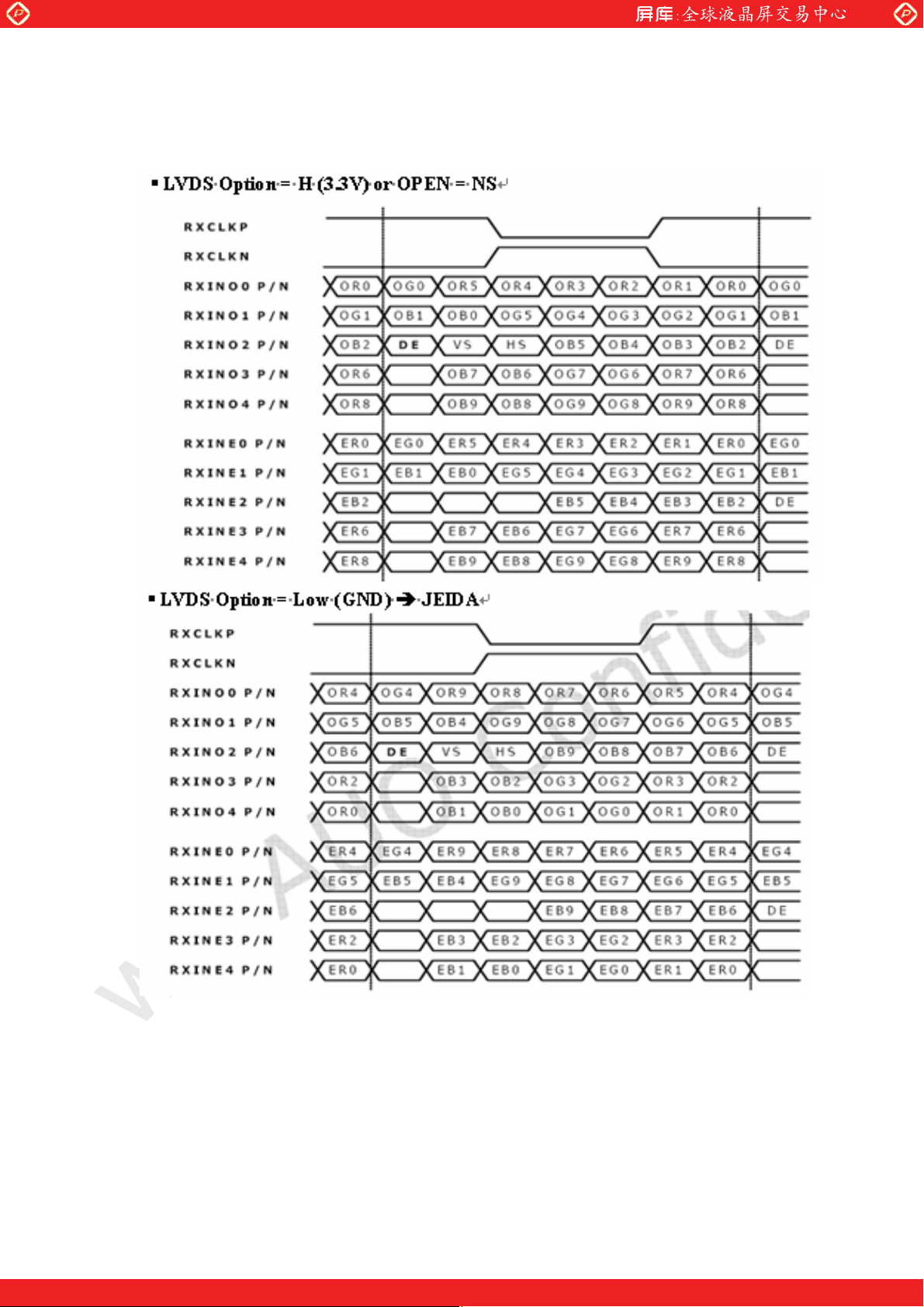

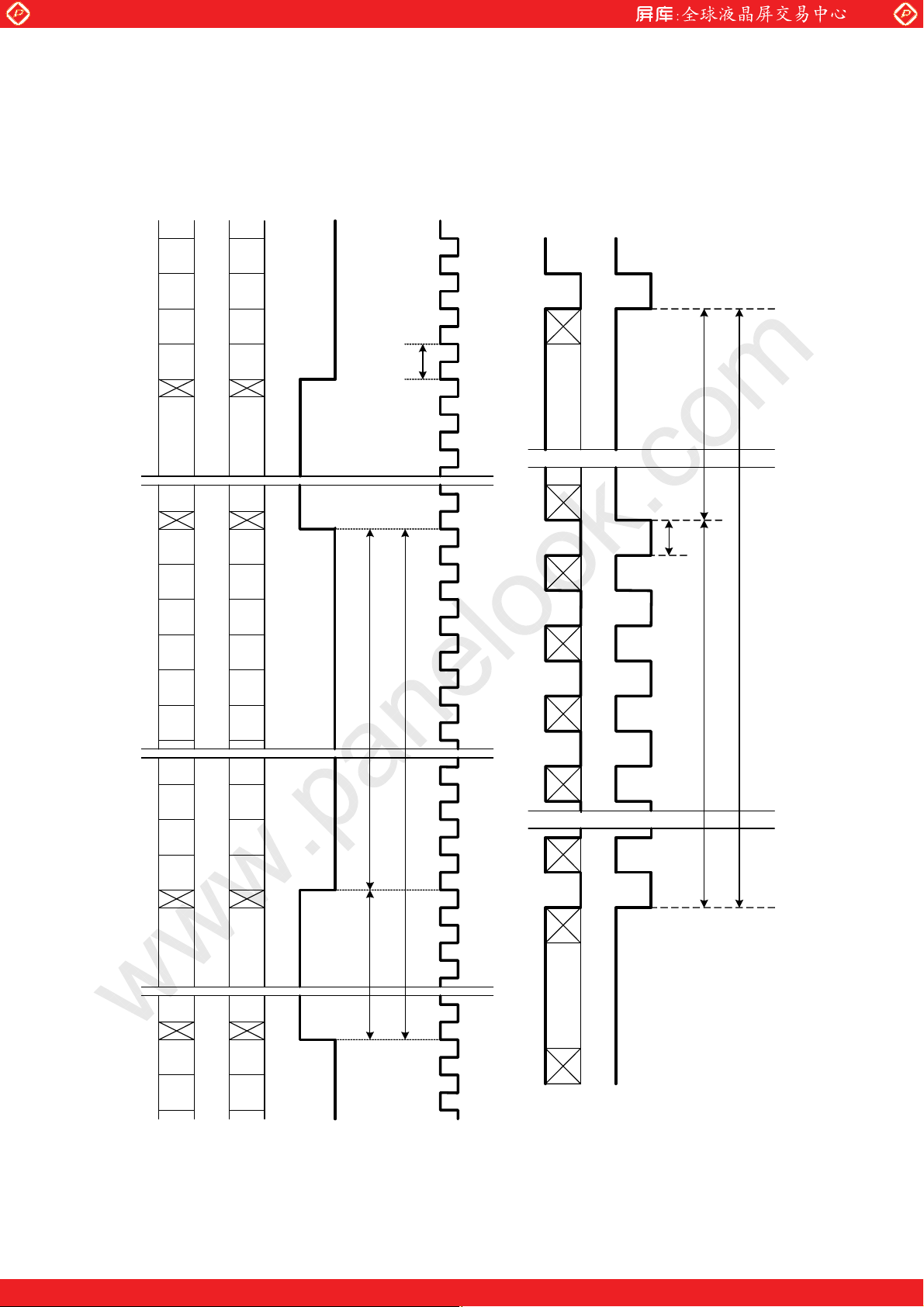

SIGNAL TIMING WAVEFORMS 3-4
4
5
6
7

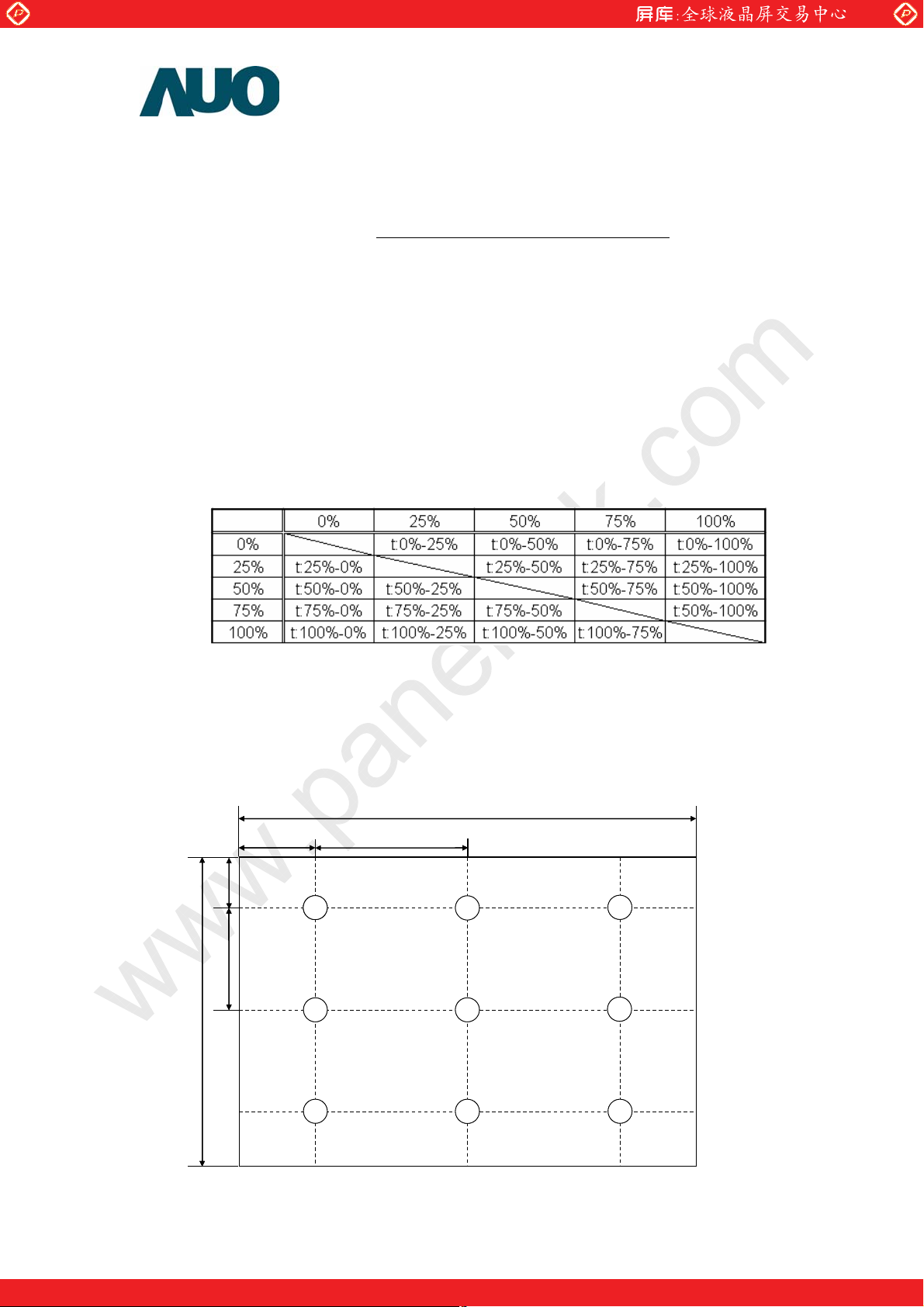

OPTICAL SPECIFICATIONS

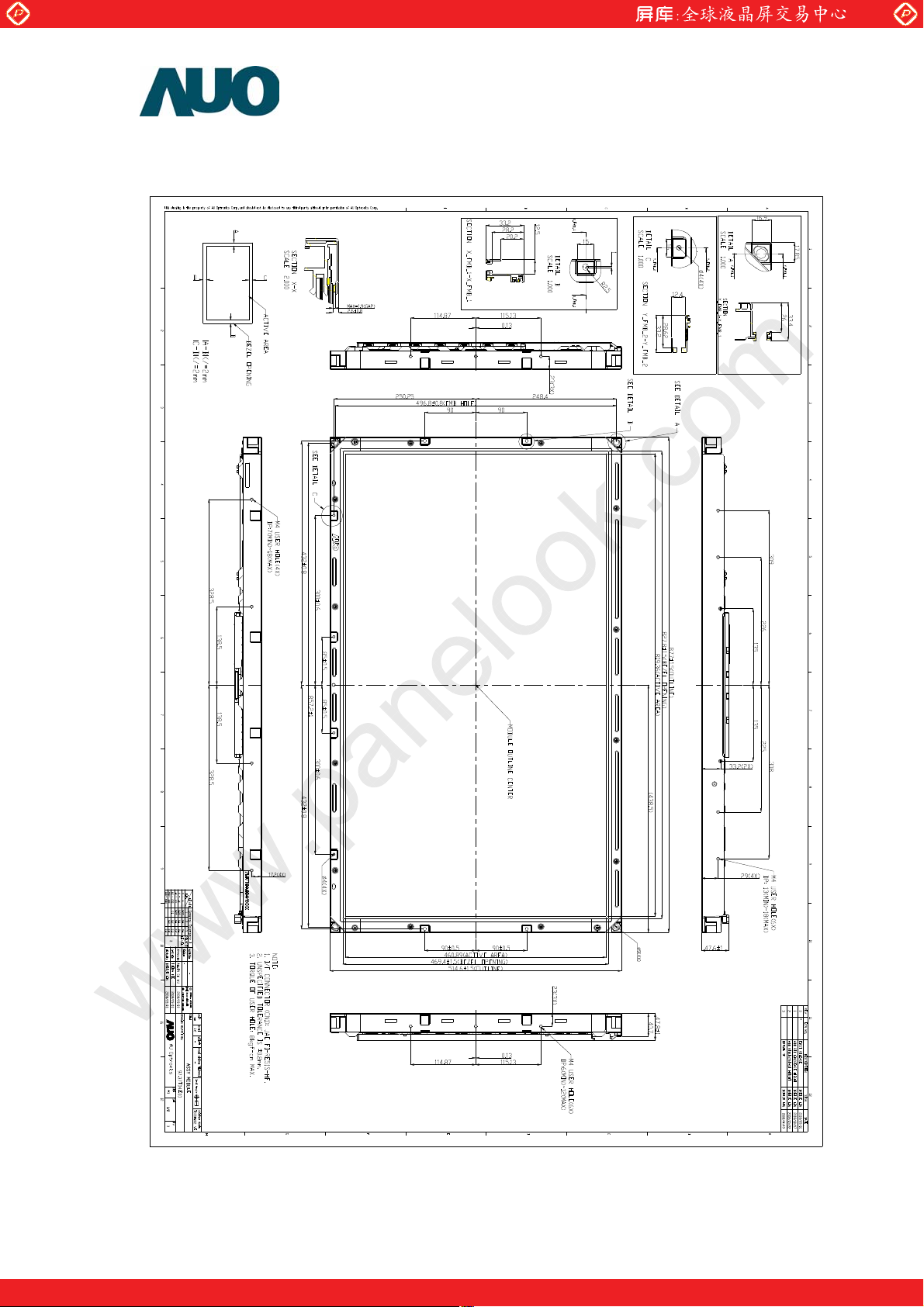

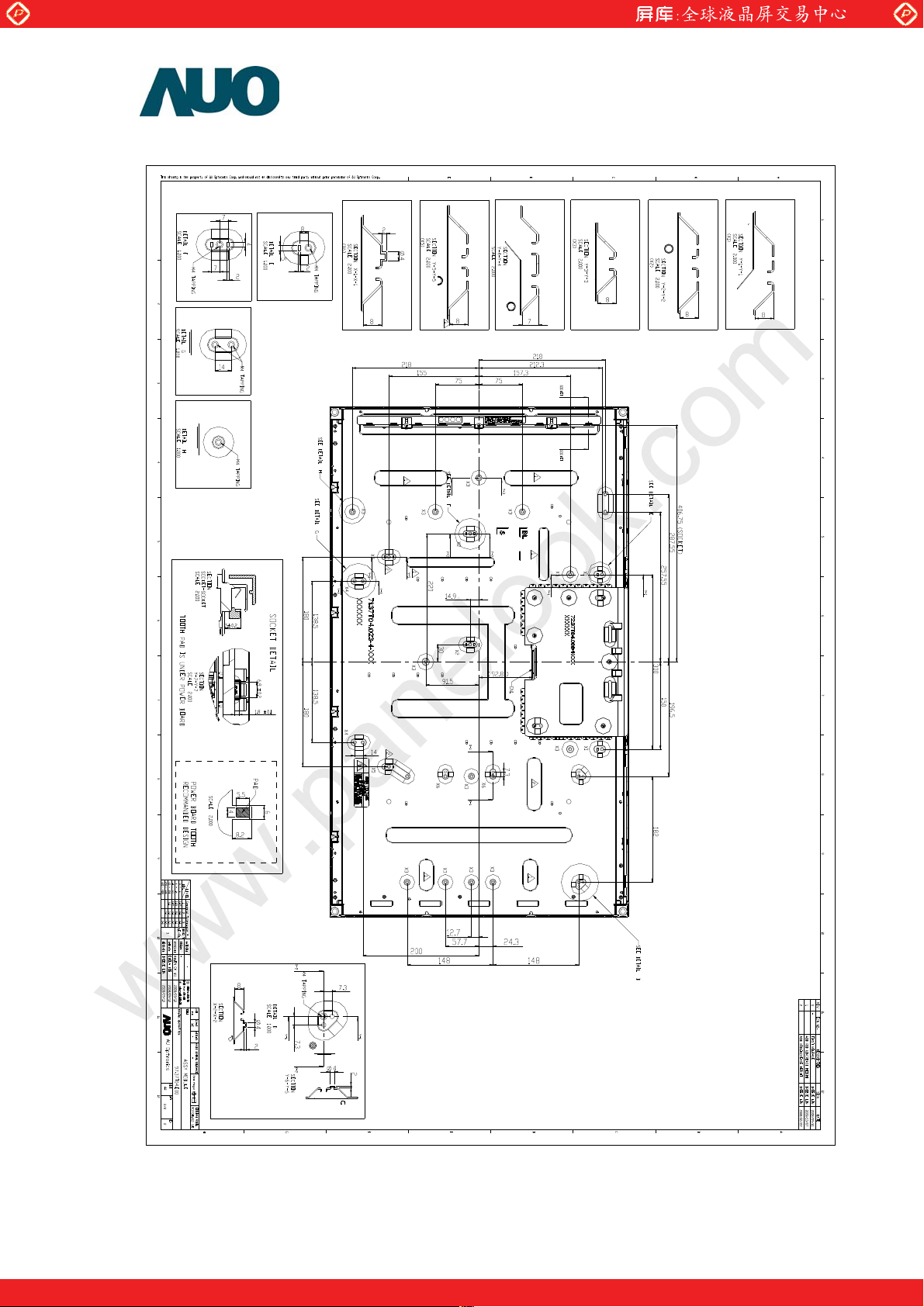

MECHANICAL CHARACTERISTICS
RELIABLITY
INTERNATIONAL STANDARDS

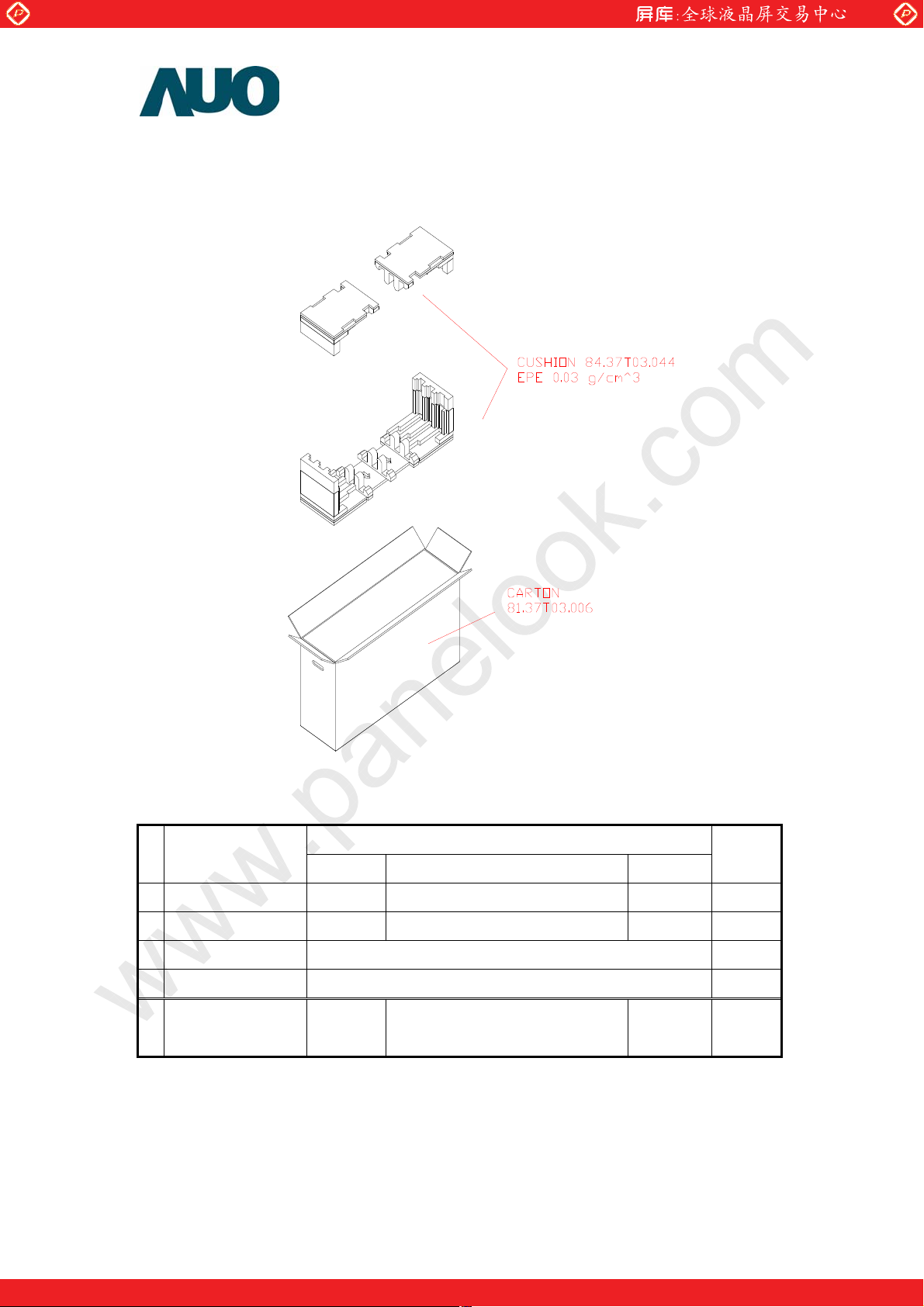

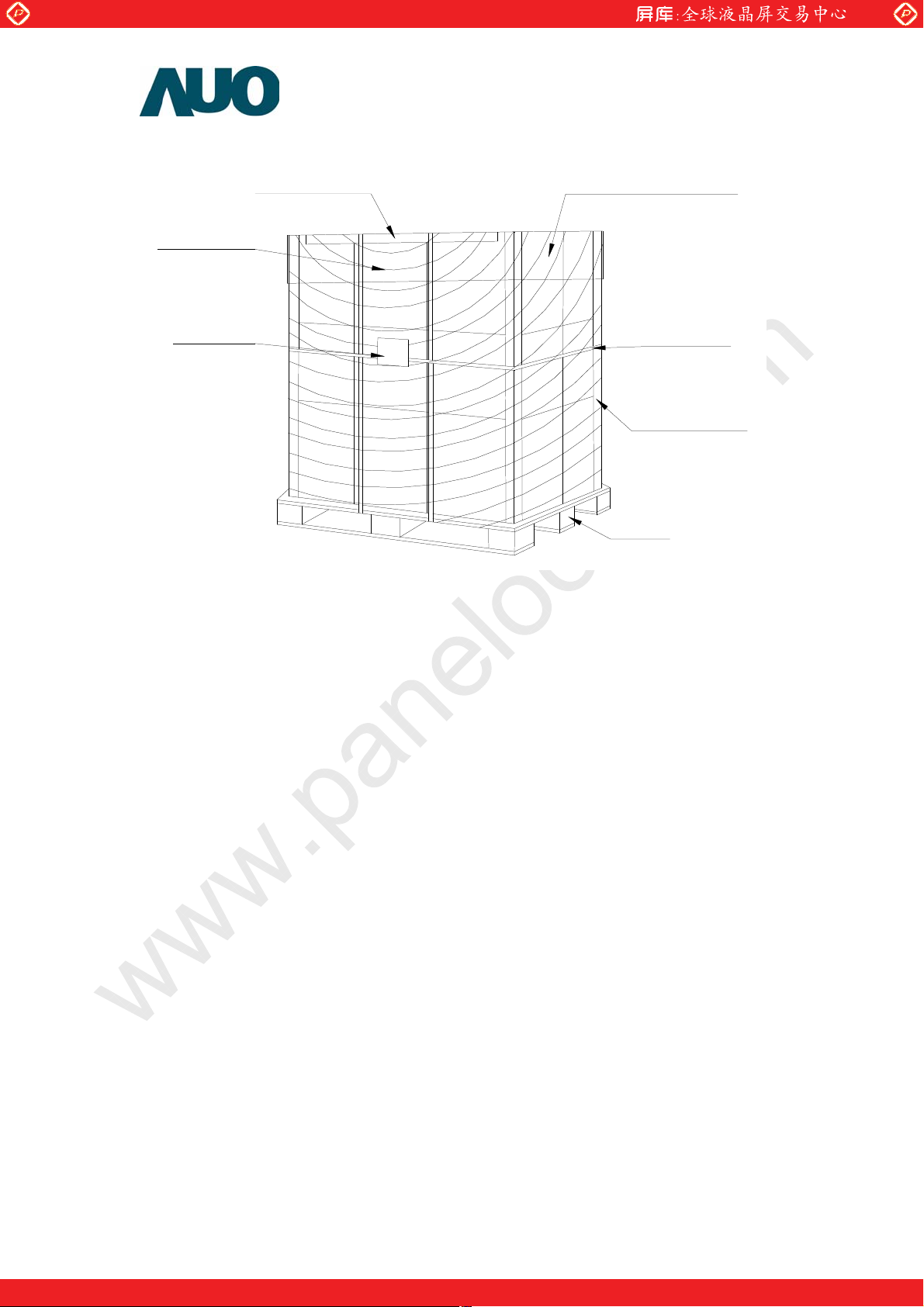

PACKING
PRECAUTIONS
APPENDIX
8
9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Version Date No Old Description New Description Remark
0 2008/10 First issue
1 2008/11 Change module back view Change module back view
www.panelook.com
Record of Revision
2 2008/11
3 2008/12 Surface Luminance white (400 nits) Surface Luminance white (425 nits)
Add T-CON LVDS timing (appendix) Add T-CON LVDS timing (appendix)
1. General Description
This specification applies to the 37.0 inch Color TFT-LCD Module T370HW02 VE. This
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
LCD module has a TFT active matrix type liquid crystal panel 1920*1080 pixels, and
diagonal size of 37.0 inch. This module supports 1920*1080 HDTV mode (Non-interlace).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in
vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit
gray scale signal for each dot.
The T370HW02 VE has been designed to apply the 10-bit 2 channel LVDS interface method.
It is intended to support displays where high brightness, wide viewing angle, high color
saturation, and high color depth are very important.
The T370HW02 VE model is RoHS verified which can be distinguished on panel label.
www.panelook.com
*
General Information
Items Specification Unit Note
Active Screen Size 37.01 inch
Display Area 819.36 (H) x 460.89(V) mm
Outline Dimension 877(H) x 514.6(V) x 47.6(D) mm LIPS type
Driver Element a-Si TFT active matrix
Display Colors 8 bit, 16.7M Colors
Number of Pixels 1920 x 1080 Pixel
Pixel Pitch 0.42675(H) x 0.42675(W) mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment Super clear
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause permanent damage to the
unit.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1
BLU Input Voltage VDDB -0.3 28 [Volt] Note 1
BLU Brightness Control Voltage Vdim -0.3 7.0 [Volt] Note 1
Operating Temperature TOP 0 +50 [oC] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
Storage Temperature TST -20 +60 [oC] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
Panel Surface Temperature PST 65 [oC] Note 3
www.panelook.com
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50
кк
к
к
Dry condition
к
3. Electrical Specification
The T370HW02 VE requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input power for the BLU, is to power inverter. (INV)
3-1 Electrical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
D
www.panelook.com
Values Parameter
Unit Notes
Min Typ Max
LCD:
Power Supply Input Voltage Vcc 10.8 12 13.2 Vdc 1
Power Supply Input Current Icc - 1
Power Consumption Pc - 12
Inrush Current I
LV DS
Interface
ifferential Input High Threshold
Vo l t a g e
Differential Input Low Threshold
Vo l t a g e
Common Input Voltage
- - 2.5 Apeak 3
RUSH
VTH 100 mV 4
VTL -100 mV 4
VCIM 1.1 1.25 1.4 V 4
1.5 A 2
18 Watt 2
CMOS
Interface
Input High Threshold Voltage
Input Low Threshold Voltage
VIH
2.4 3.3 Vdc
(High)
VIL
0 0.9 Vdc
(Low)
Life Time 50,000 Hours
Note :
1. The ripple voltage should be controlled under 10% of V
=vf
2. Vcc=12.0V,
60Hz, fCLK=74.25Mhz , 25 , Test Pattern : White Patternк
CC
3. Measurement condition :
4. VCIM = 1.2V
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
VCIM
0V

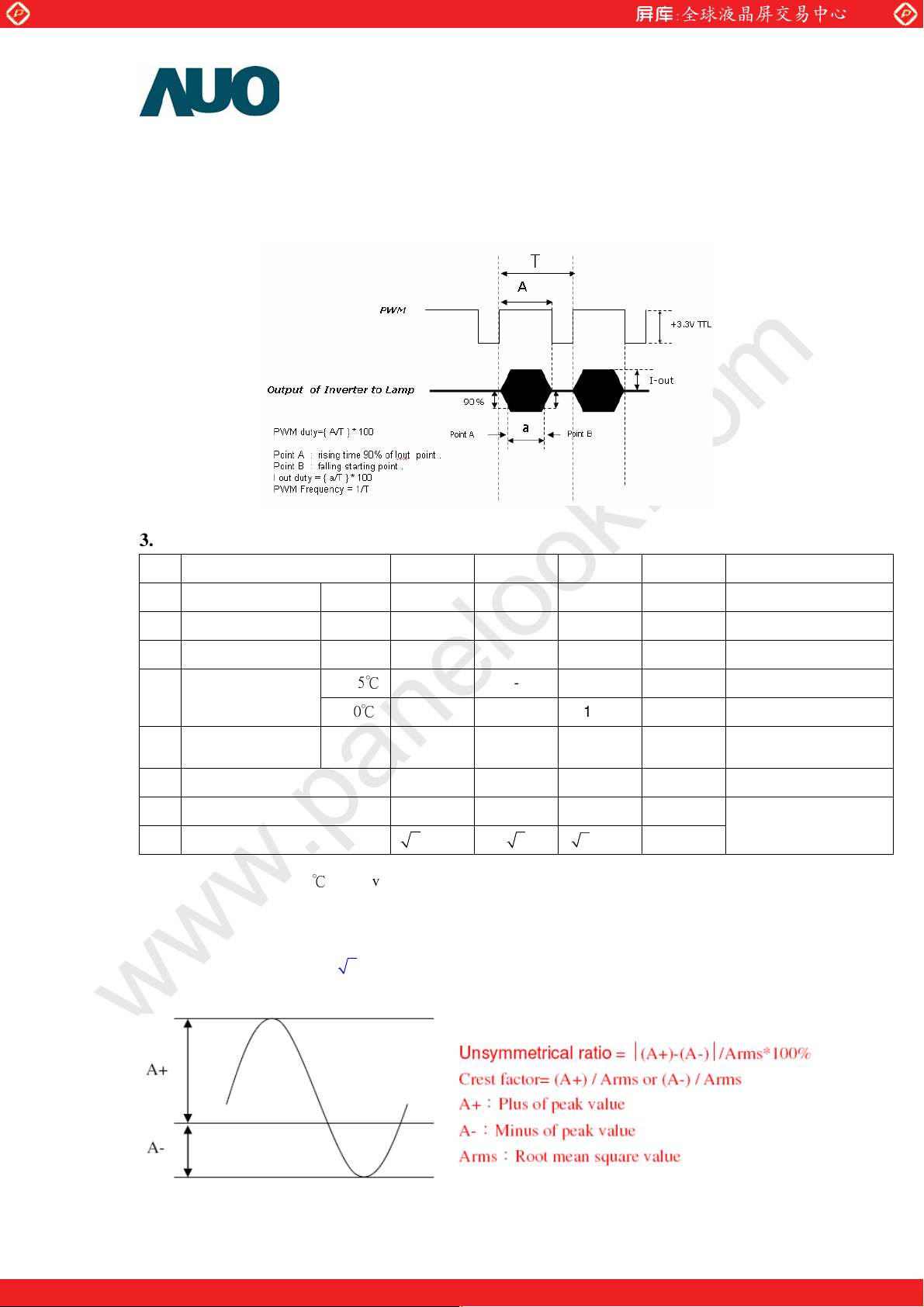

5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely
influenced by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be
carefully designed as not to produce too much leakage current from high-voltage output of the inverter.
When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of
the lamp and the inverter (no lighting, flicker, etc) never occurs. After confirmation, the LCD panel
should be operated in the same condition as installed in your instrument.
6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,
TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current
occurs between lamp wire and conducting tape.
7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At
temperatures greater than 40 , the wet bulb temperature must not exceed 39 . When operate at low
кк
VTH
VIL
к
temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

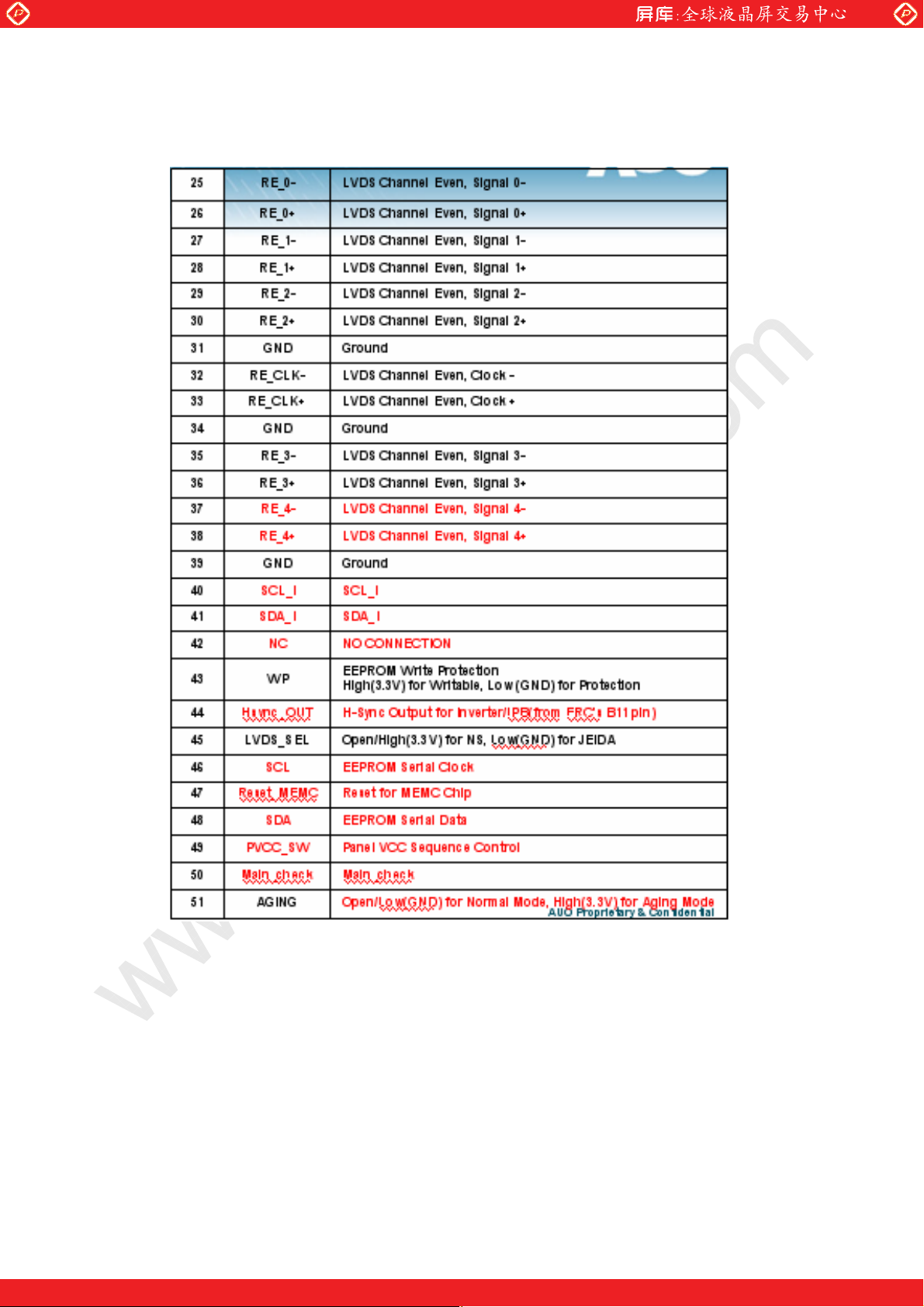

3-2 Interface Connections
LCD connector (CN3): JAE FI-RE51S-HF
