AUO T370HW02 V3 Specification

Download

Page 1

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Update date: 2007/1/8

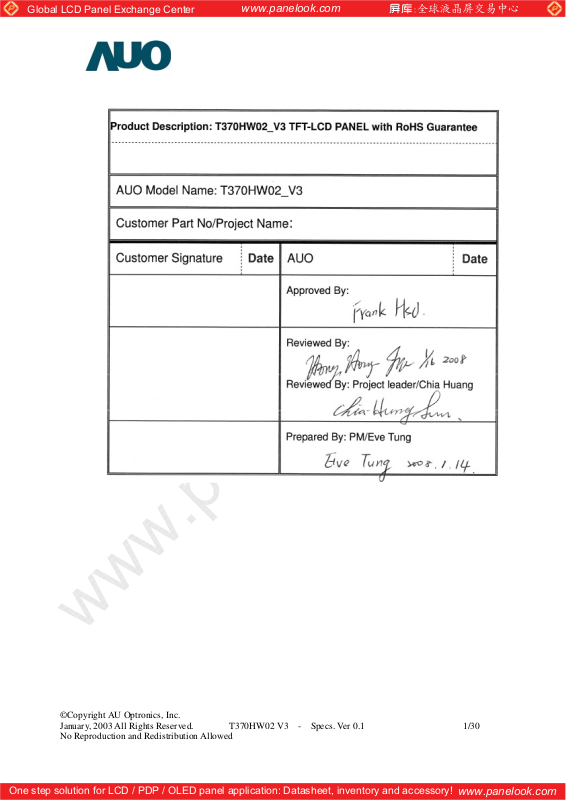

Product Specifications

37” HDTV Color TFT-LCD Module

Model Name: T370HW02. V3

() Preliminary Specifications

(*) Final Specifications

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTREISTICS

www.panelook.com

Contents

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR INPUT DATA REFERENCE

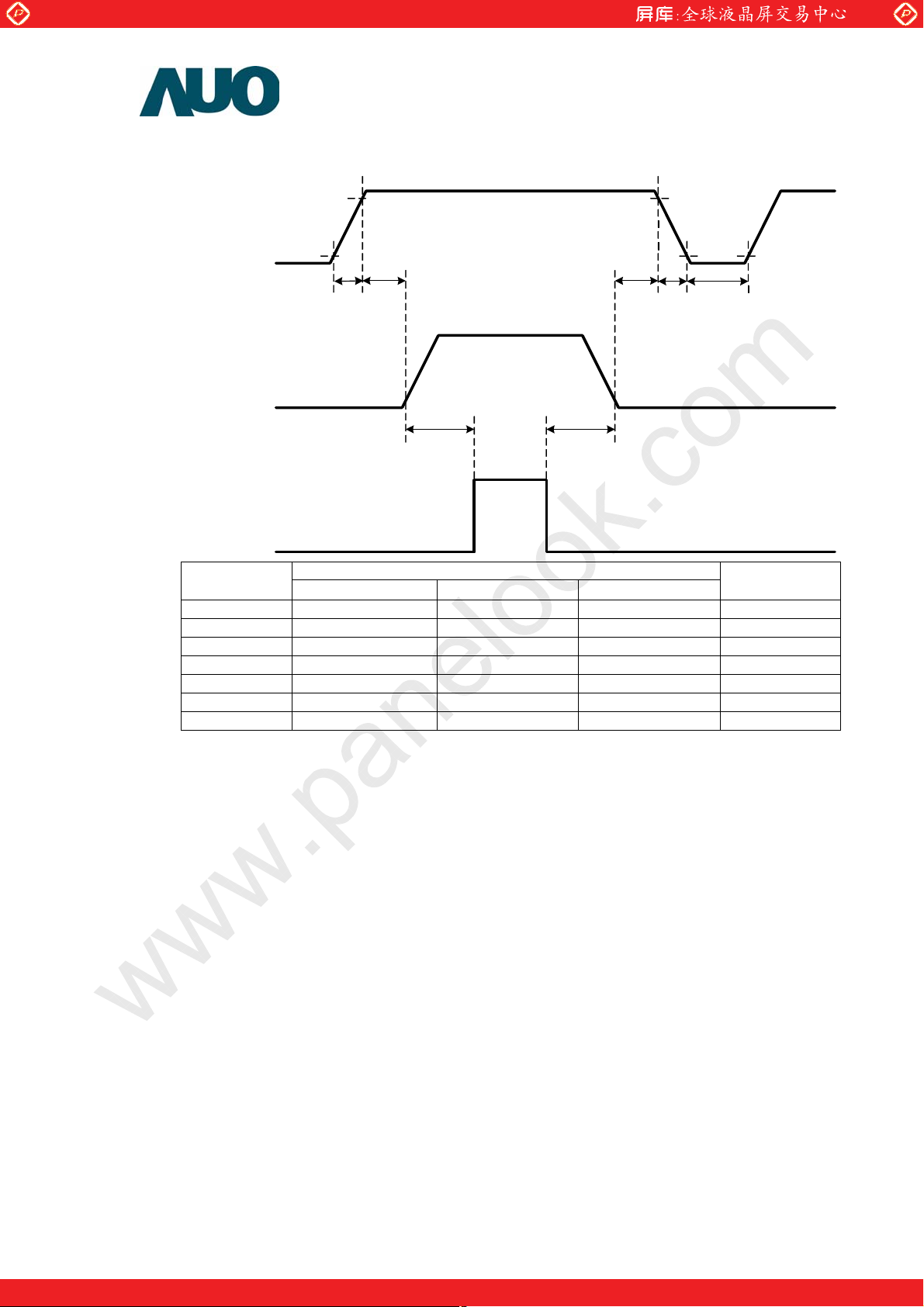

3-6 POWER SEQUENCE

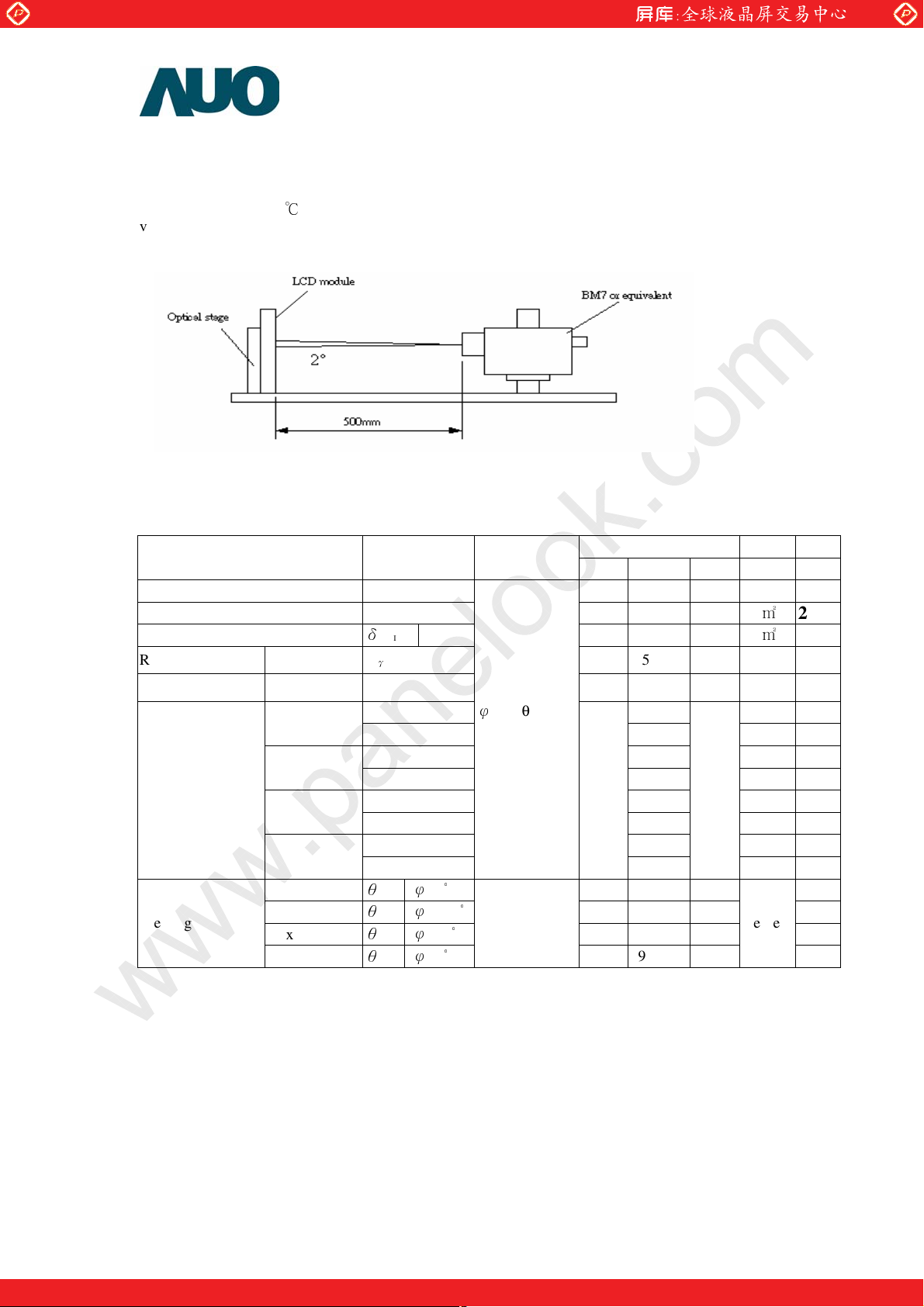

4 OPTICAL CHARACTERISTICS

5 MECHANICAL CHARACTERISTICS

6 RELIABLITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

8 PACKING

9 PRECAUTIONS

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

Record of Revision

Version Date No Old Description New Description Remark

0.1 2007.07.13 1 First release

0.2 2007.09.24 2 Update lamp spec

0.3 2007.1.8 3 Final spec

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

1. General Description

This specification applies to the 37.0 inch Color TFT-LCD Module T370HW02 V3. This

LCD module has a TFT active matrix type liquid crystal panel 1920x1080 pixels, and

diagonal size of 37.0 inch. This module supports 1920x1080 HDTV mode (Non-interlace).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in

vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit

gray scale signal for each dot.

The T370HW02 V3 has been designed to apply the 8-bit 2 channel LVDS interface method.

It is intended to support displays where high brightness, wide viewing angle, high color

saturation, and high color depth are very important.

www.panelook.com

General Information

Items Specification Unit Note

Active Screen Size 37.01 inch

Display Area 819.36 (H) x 460.89(V) mm

Outline Dimension 877(H) x 516.8(V) x 46.005(D) mm

Driver Element a-Si TFT active matrix

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1920 x 1080 Pixel

Pixel Pitch 0.42675(H) x 0.42675(W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Transmissive, Normally Black

Surface Treatment AG, 3H, Haze = 11%

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

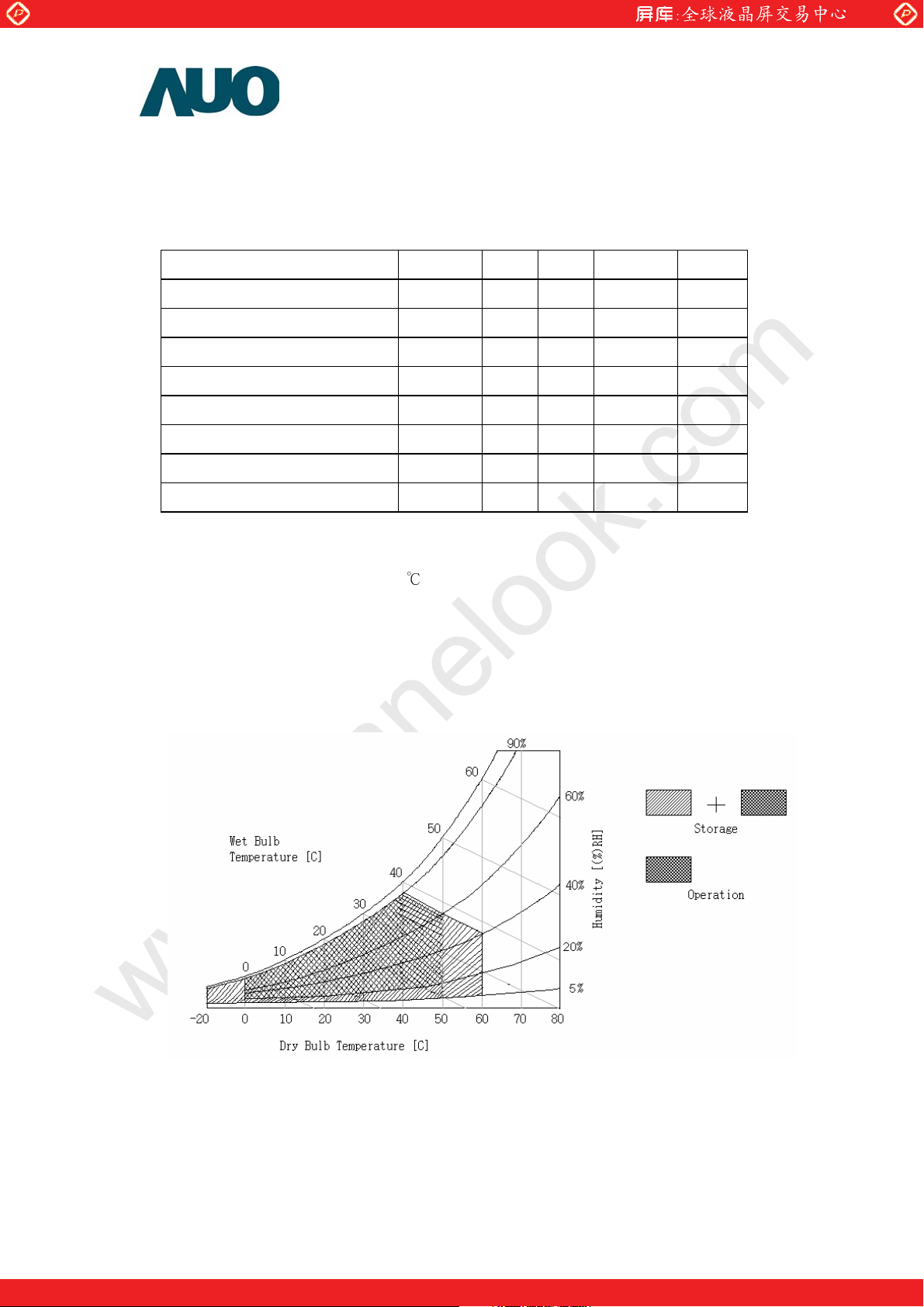

2. Absolute Maximum Ratings

www.panelook.com

The following are maximum values that, if exceeded, may cause permanent damage to the device.

Item Symbol Min Max Unit Note

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] [1]

Input Voltage of Signal Vin -0.3 4 [Volt] [1]

BLU Input Voltage VDDB -0.3 27 [Volt] [1]

BLU Brightness Control Voltage VBLON -0.3 7.0 [Volt] [1]

Operating Temperature TOP 0 50 [oC] [2]

Operating Humidity HOP 10 90 [%RH] [2]

Storage Temperature TST -20 65 [oC] [2]

Storage Humidity HST 10 90 [%RH] [2]

Note 1: Duration = 50msec

Note 2 : Maximum Wet-Bulb should be 39

The relative humidity must not exceed 90% non-condensing at temperature of 40

greater than 40

C, the wet bulb temperature must not exceed 390C.

and No condensation.

C or less. At temperatures

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

3. Electrical Characteristics

The T370HW02 V3 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU, is to power inverter.

3-1 Electrical Characteristics (Ta=25±±±±2oC)

www.panelook.com

Power Supply Input Voltage Vcc 10.8 12.0 13.2 Vdc

Power Supply Input Current Icc 1

Power Consumption Pc - 12 14.4 Watt [1]

LV DS

Interface

Inrush Current I

ifferential Input High

Threshold Voltage

Differential Input Low

Threshold Voltage

Common Input Voltage

Input High Threshold Voltage

Input Low Threshold Voltage

VIL (Low) 0 0.9 Vdc

- 4 Apeak [2]

RUSH

VTH 100 mV [3]

-100 mV [3]

1.1 1.25 1.4 V

ICM

(High) 2.4 3.3 Vdc CMOS

Note:

1. The ripple voltage should be controlled under 10% of Vcc

2. Vcc =12.0V, fv = 60Hz, fCLK = 65MHz,25

C, test pattern : White pattern

Values Parameter Symbol

Min Typ Max

1.2 A [1]

Unit Notes

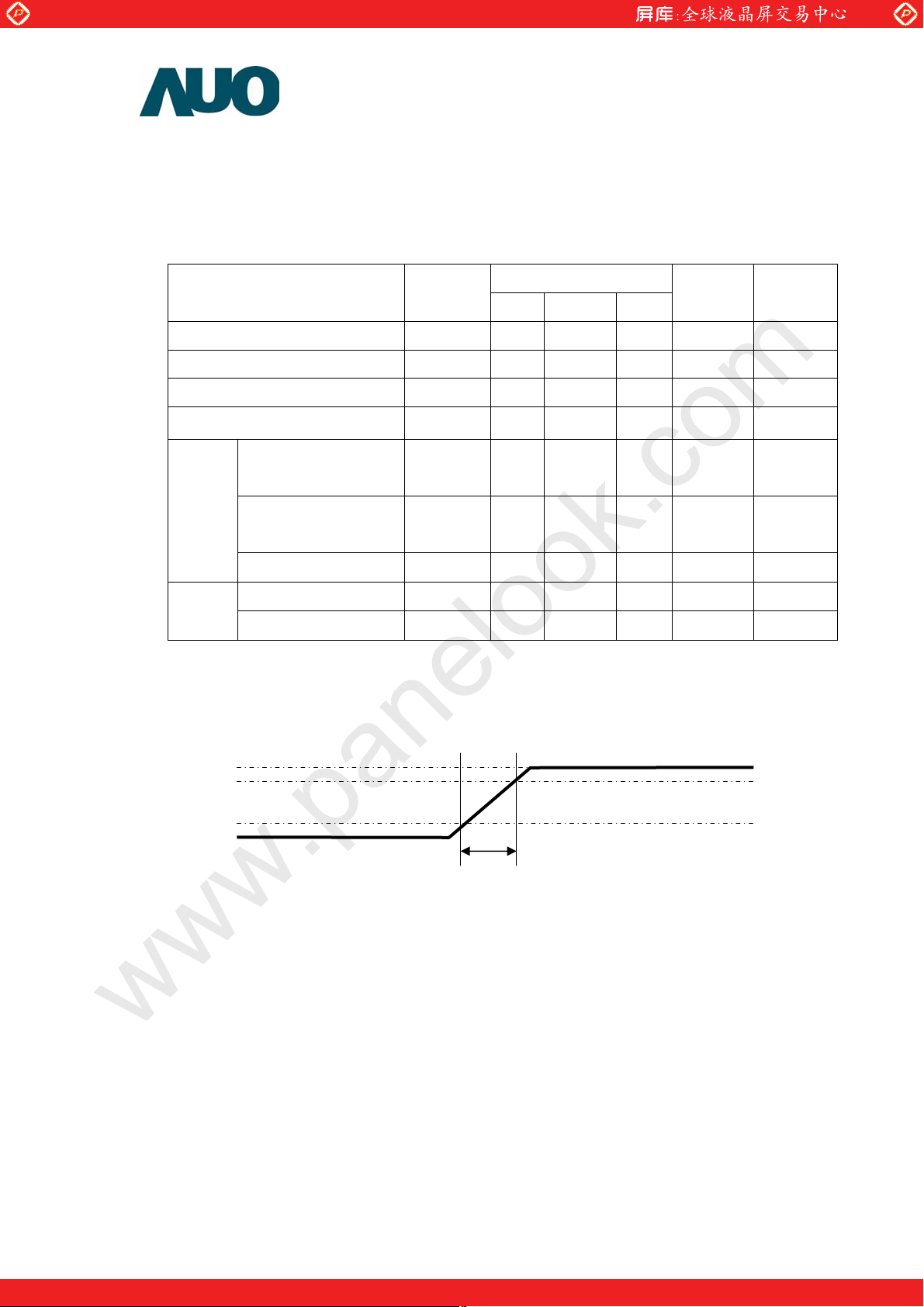

3. Measurement condition:

100%

90%

10%

GND

= 470ȝs

rush

Figure 1: Measurement of I

rush

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center

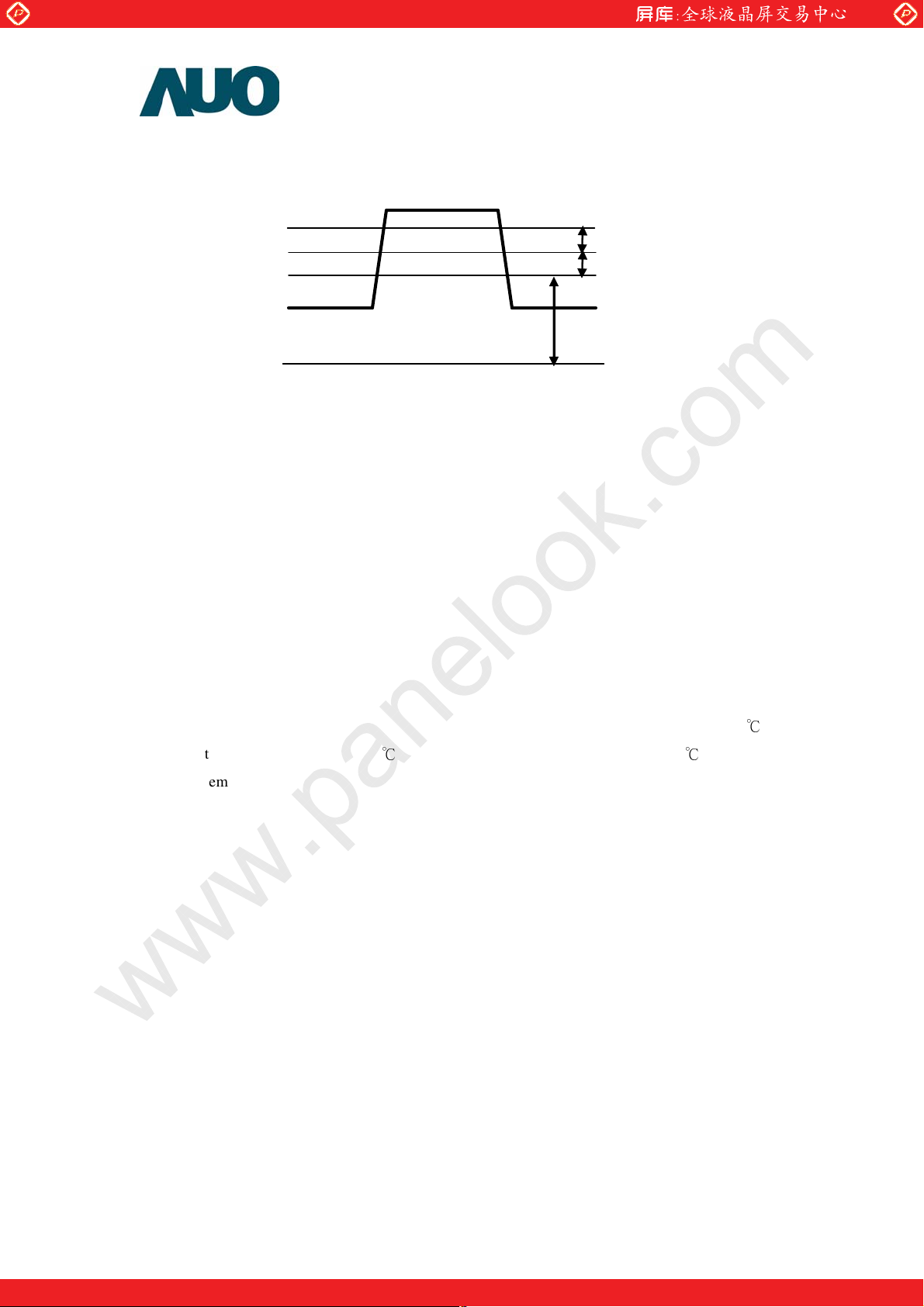

4. Measurement of LVDS differential voltage is shown in Figure 2.

www.panelook.com

VTH

VCIM

VIL

5. The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced

6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,

Figure 2 : LVDS Differential Voltage

by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully

designed so as not to produce too much leakage current from high-voltage output of the inverter.

When you design or order the inverter, please make sure unwanted lighting caused by the mismatch

of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD

Assembly should be operated in the same condition as installed in your instrument.

TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage

current occurs between lamp wire and conducting tape

7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At

temperatures greater than 40 , the wet bulb temperature must not exceed 39 . When operate at low

temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

8. The measured data is without boost function

9. W/O boost function Lifetime is defined and judged for lamp when analog and PWM dimming are

maximum values. With boost function Lifetime is defined and judged for lamp when boost function

is high (3.3V)

кк

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

3-2 Interface Connections

LCD connector : JAE FI-RE51S-HF

No Signal No Signal

1 GND 27 GND

2 Reserved. 28 RE0-

3 Reserved. 29 RE0+

4 Reserved. 30 RE1-

5 Reserved. 31 RE1+

6 Reserved. 32 RE2-

7 LVDS SEL 33 RE2+

8 Reserved. 34 GND

www.panelook.com

9 Reserved. 35 RECLKIN-

10 Reserved. 36 RECLKIN+

11 GND 37 GND

12 RO0- 38 RE3-

13 RO0+ 39 RE3+

14 RO1- 40 N.C.

15 RO1+ 41 N.C.

16 RO2- 42 GND

17 RO2+ 43 GND

18 GND 44 GND

19 ROCLKIN- 45 GND

20 ROCLKIN+ 46 GND

21 GND 47 N.C.

22 RO3- 48 VLCD(12V)

23 RO3+ 49 VLCD(12V)

24 N.C. 50 VLCD(12V)

25 N.C. 51 VLCD(12V)

26 GND

Note:

1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal frame.

All Vcc (power input) pins should be connected together.

2. NC Only – Pull High or Low is not allowed

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

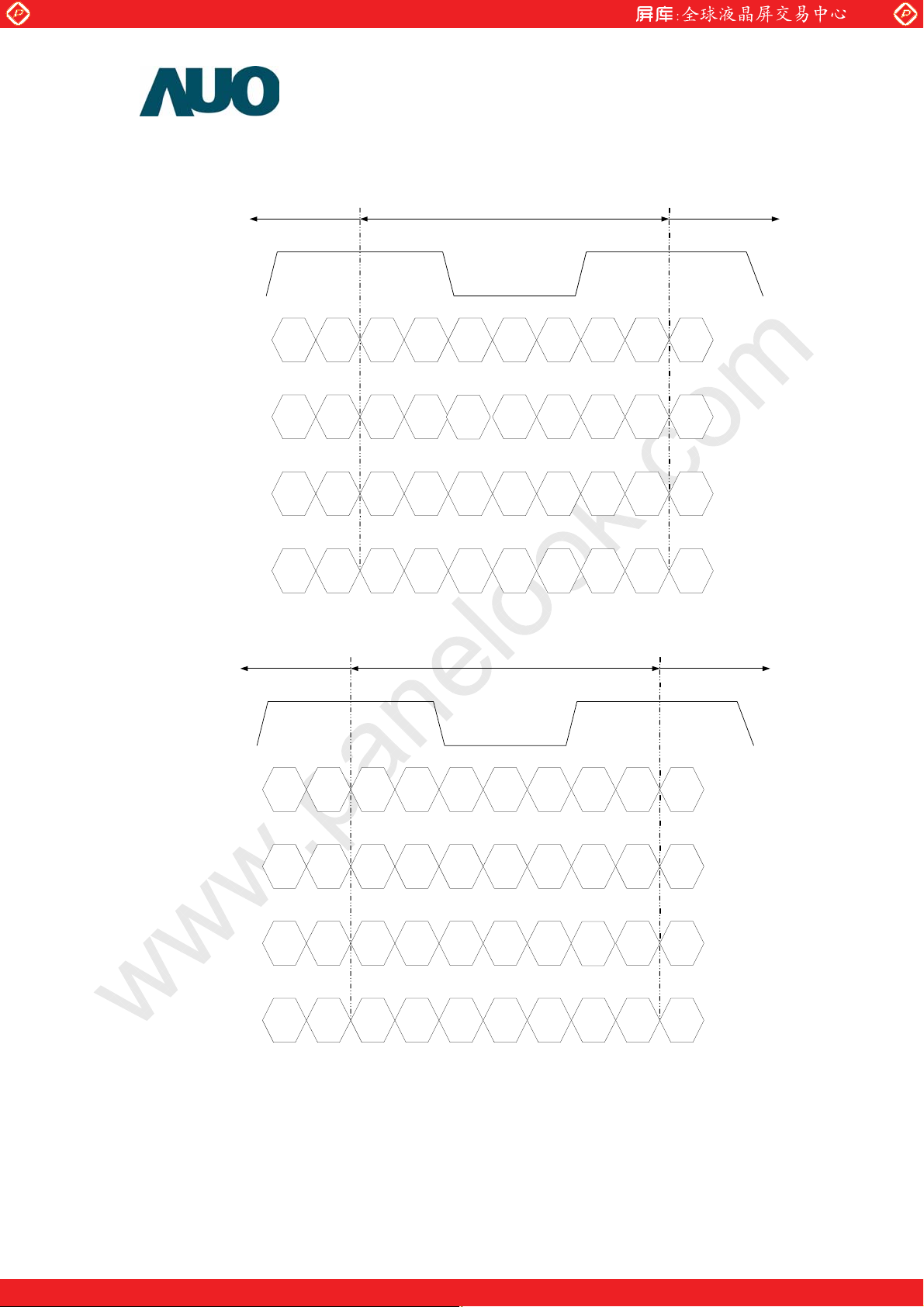

LVDS Option = L (GND) or OPEN = NS

Previous Cycle Current Cycle Next Cycle

Clock

www.panelook.com

RIN0+ RIN0-

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

LVDS Option = H (3.3V) ÎÎÎÎ JETDA

Previous Cycle Current Cycle Next Cycle

Clock

RIN0+ RIN0-

R2R7 G2G2R2R3 R4R5R6 R3

G3B2 B3B3G3G4 G5G6 G4

B4NA DEDEB4B5 B6B7NA B5

R0B1 NANAR0R1 G0G1B0 R1

R0R5 G0G0R0R1 R2R3R4 R1

RIN1+ RIN1-

RIN2+ RIN2-

RIN3+

RIN3-

G1B0 B1B1G1G2 G3G4G5 G2

B2NA DEDEB2B3 B4B5NA

R6B7 NANAR6R7 G6G7B6 R7

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

Backlight Specification

1. Electrical specification

1 BL Operating Voltage VBL 1140 1260 1390 Vrms

2 BL Operating Current IBL 118 125 132 mArms

3 BL Total Power Dissipation PBL 128 135 142 Watt

4 Starting Voltage

5 Operating frequency fo 60 62 64 kHz

6 Striking time Ts 1000 - 1400 msec

7 PWM Operating Frequency F_PWM 95 - 240 Hz

External PWM Dimming

Duty ratio

9 Lamp type Straight type

10 Number of lamps 16 pcs

11 Type of current balance Capacitor

12 C ballast Cb 14.25 15 15.75 pF

Description Min Typ Max Unit

At 0к

˅ˈк

www.panelook.com

2200 2400 -

D_PWM 20 - 100 %

2000 2200 -

Ta=255к, Turn on for 45 minutesα

Vrms

Condition

1. BL one side operating voltage at boost dimming ration 100%

2. Calculation value base on lamp specification(note 1.)

1. Each lamp current=6.8mA

2. Estimated leakage current~1mA.

3. Calculation value base on lamp specification

4. BL one side operating current at boost dimming ration 100%

1. Dimming at 100%

2. Calculation value base on lamp specification

3. IPI board input power=145W(typ)

1.BL one side striking voltage when open connector

2.Calculation value base on lamp specification

For avoid water flow issue, operating frequency is suggested.

1. If IPB detect abnormal status, IPB must be shutdown within 1.4sec

95~140 might cause waterfall noise but not influence panel function

Note 2. Please note relationship between A & a 20% PWM duty should give 20% lum.

15pf/6kV

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

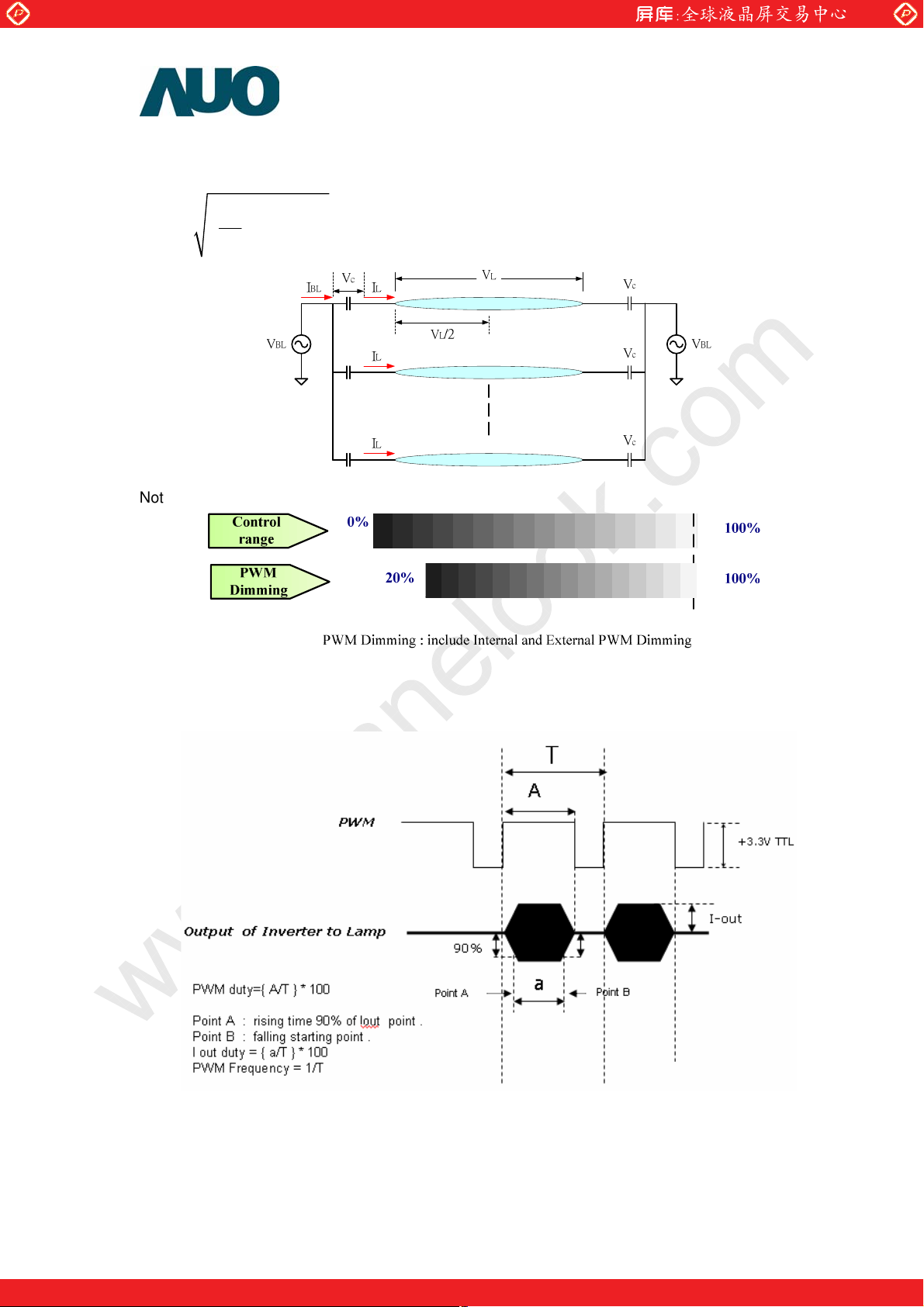

Note 1:

§·

BL C



Note 2:

¨¸

©¹

()

www.panelook.com



   



One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

www.panelook.com

2. Lamp specification

Description Min Typ Max Unit

1 Lamp Voltage Vlamp 1120 1240 1360 Vrms

2 Lamp Current Ilamp - 6.8 - mArms 3 Lamp frequency flamp 40 - 80 KHz

4 Starting Voltage

Discharge

Stabilization Time

6 Striking time Ts - - 1000 msec

7 Life time 50K - - hr



At 2ˈк

˃к

Ts - - 3 min

- 1510 1810 Vrms

- 1810 2170 Vrms

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

www.panelook.com

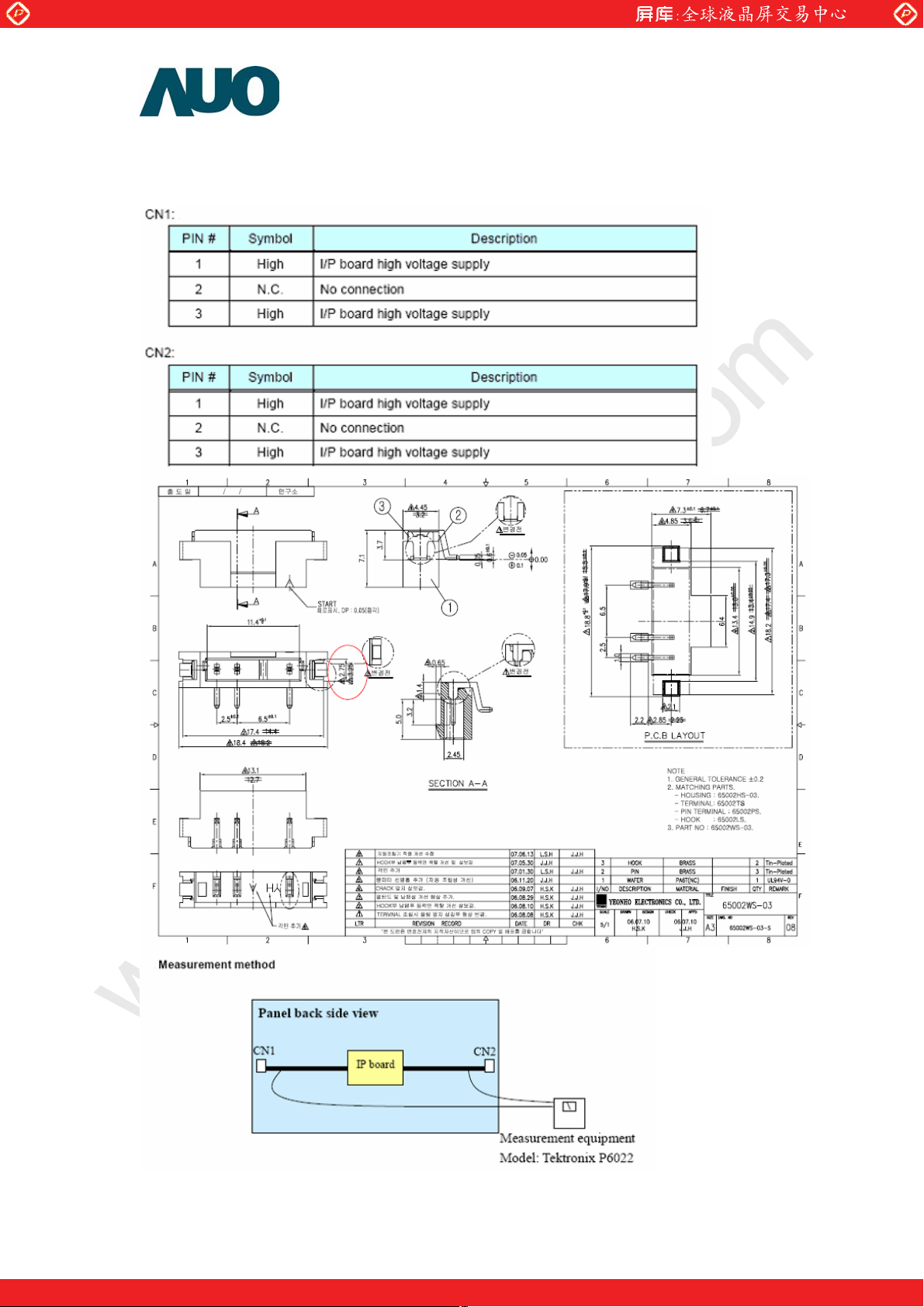

Inverter units

Connector is shown below:

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

www.panelook.com

3-3 Input Signal Timing Specifications:

This is the signal timing required at the input of the User connector. All of the interface signal timing should be satisfied with the following specifications for it’s proper operation.

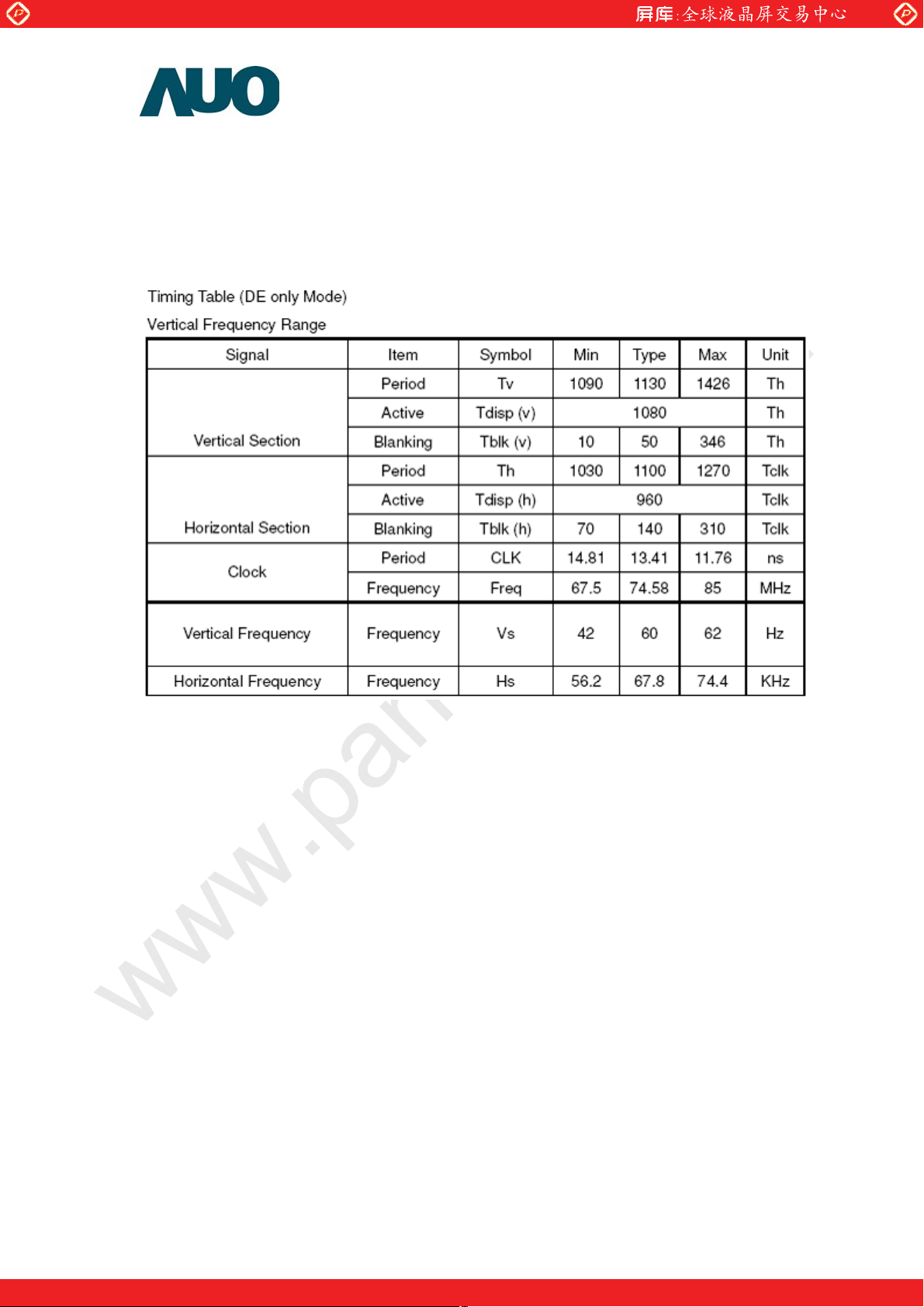

Timing Table (DE only Mode)

1.) Di splay position is specific by the rise of DE signal only. Horizontal display position is specified by the falling edge of 1 displayed on the left edge of the screen. Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of horizontal period. The 1 top line of screen.

3.) If a period of DEB “High” is less than 1920 DCLK or less than 1080 lines, the rest of the screen displays black.

4.) The display position does not fit to the screen if a period of DE “High” and the effective data period do not synchronize with each other.

data corresponding to one horizontal line after the rise the of ENAB is displayed at the

DCLK right after the rise of ENAB, is

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

www.panelook.com

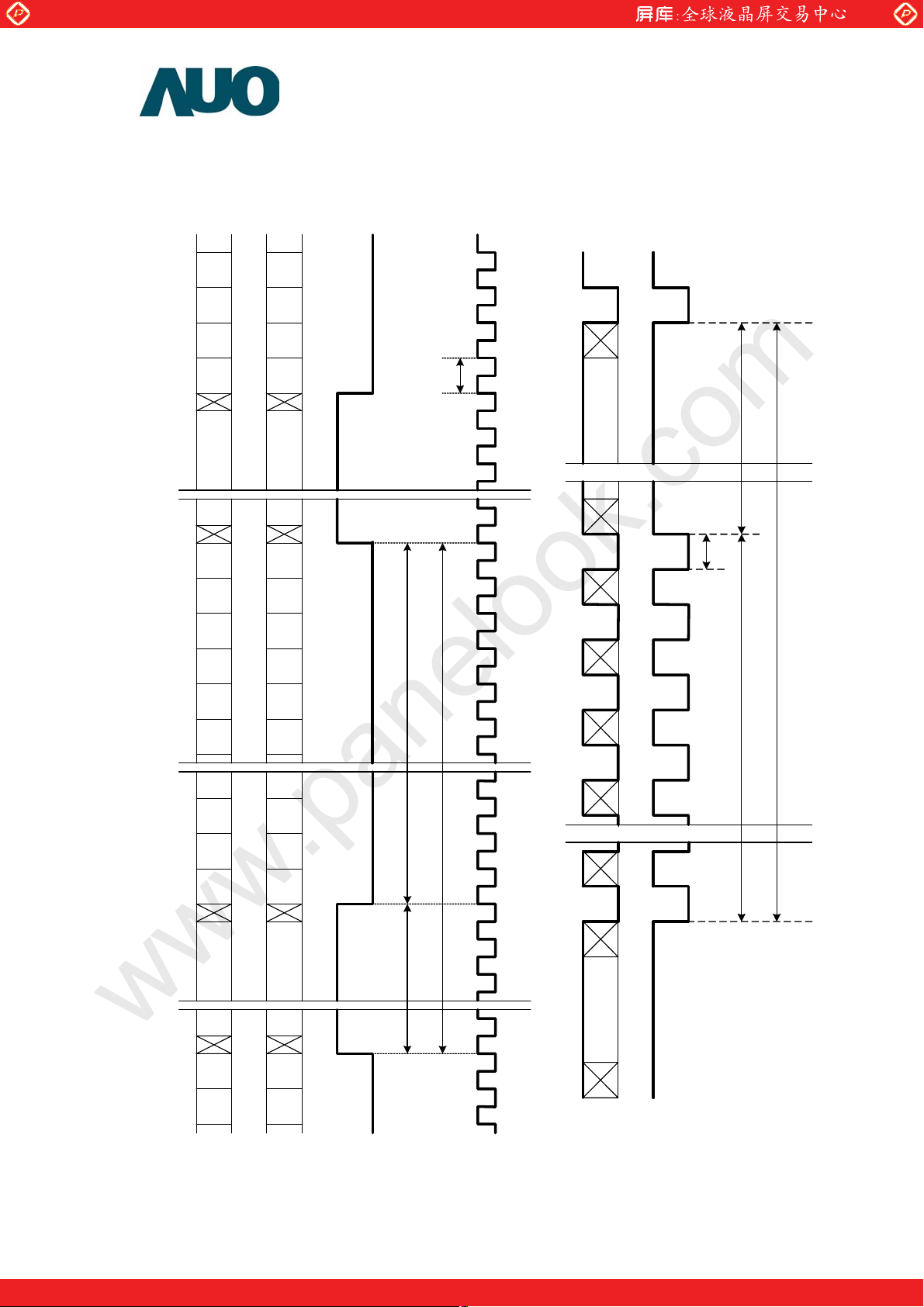

3-4 Signal Timing Waveforms

RGB Data

(even)

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

Invalid Data

Pixel

(odd)

M-7

M-5

M-3

M-1

RGB Data

Pixel

Invalid Data

Pixel

CLK

Tclk

Data

Line

Invalid Data Invalid Data

RGB

Pixel

M-4

Pixel

M-2

Pixel

Invalid Data

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

Tdisp(h) Tblk(h)

Line

Tdisp(v)Tblk(v)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

3-5 Color Input Data Assignment

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

www.panelook.com

input for the

COLOR DATA REFERENCE

Color

Basic Color

RED

GREEN

BLUE

Input Color Data

RED MSB LSB R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

---- RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

---- GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

------- BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

MSB LSB

GREEN

BLUE

MSB LSB

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

3-6 Power Sequence of LCD Module (ON/OFF)

www.panelook.com

90%

10%

t5 t6 t7



Units

Min.

us ms ms ms ms ms

Power Supply for LCD

Signal

Backlight

T1 T2 T3 T4 T5 T6 - T7

90%

10%

t1 t2

Valid Data

t3 t4

Lamp ON

Va lu es Parameter

Min. Typ.

470 - 5000

20 - 50 500 - 200 - -

5 - -

- 30

1 - -

Note: The timing controller will not be damaged in case of TV set AC input power suddenly shut down. Once power reset, it should follow power sequence as spec. definition.

(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD

operation or the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25 . The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of ĭ and șequal to 0°.

Parameter Symbol Condition

Contrast Ratio

Surface Luminance, white

Luminance Variation

Response Time Gray to Gray

Color gamma NTSC 72 %

Color Coordinates (CIE 1931)

Viewing Angle

RED

GREEN

BLUE

WHITE

x axis, right

x axis, left

y axis, up

y axis, down

www.panelook.com

FIG.1 Measurement equipment

Val ue

Units Notes

Min. Typ. Max.

CR 2000

LWH

9 pts

WHITE

Tӫ

Ӱ Ӱ Ӱ Ӱ

(ӽ=0)

(ӽ=180)

(ӽ=90)

(ӽ=0)

=0o, θ=0

Vie wing Normal angle

CR≥10

400 500

Typ

-0.03

6.5

0.64

0.33

0.29

0.6

0.15

0.06

0.280

0.290

cd/

2 3

1.3

Typ +0.03

Degree

(Ta=25±±±±2oC)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

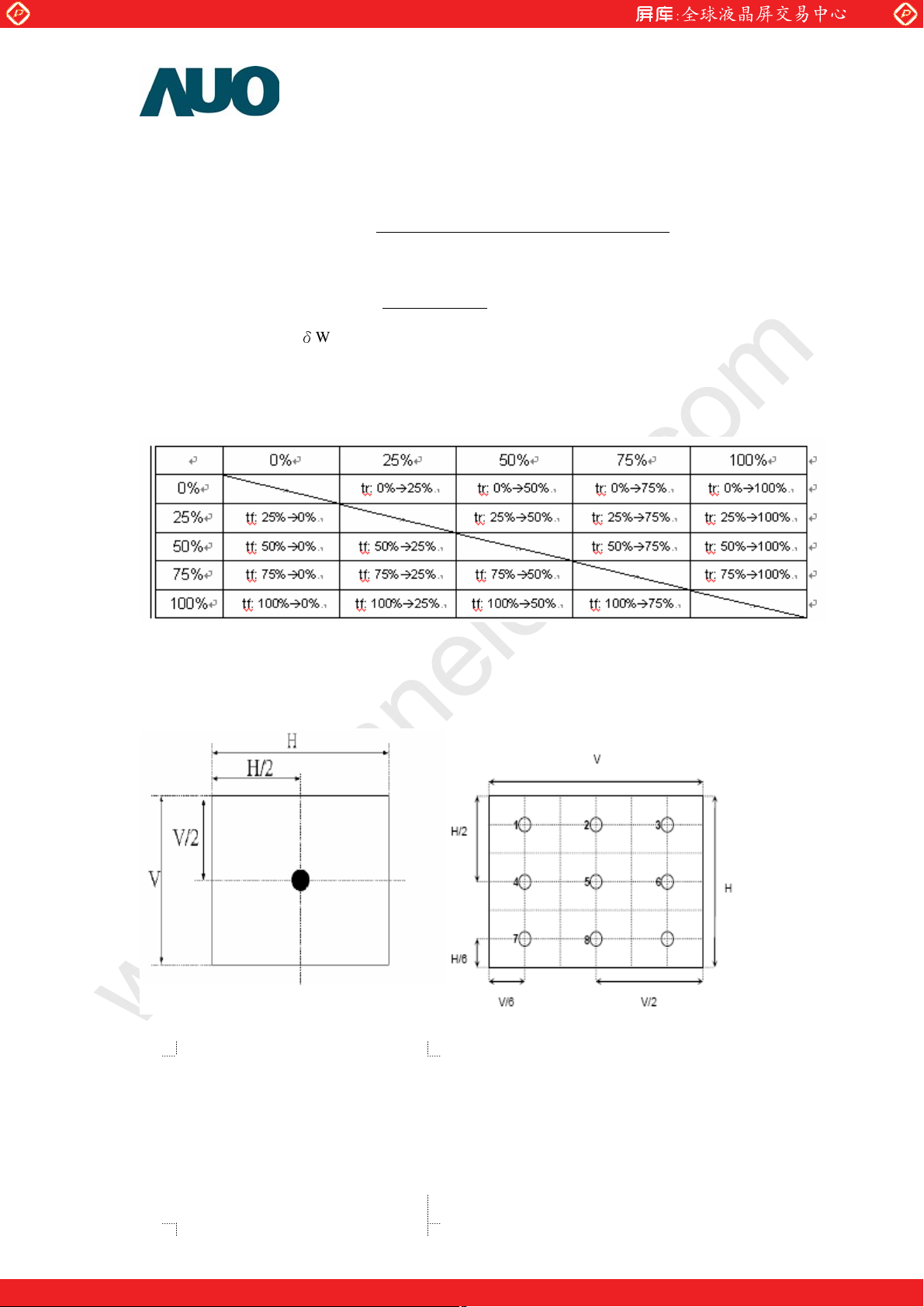

Note

1. Contrast Ratio (CR) is defined mathematically as:

Contrast Ratio=

2. Surface luminance is defined as luminance value

methods and measurement condition.

3. Luminance variation,

WHITE (9P)

Position of each 9 pts for measuring is shown in FIG 2.

4. Response time TȖ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on f

= Maximum(L

www.panelook.com

Surface Luminance of

WHITE, is defined as:

, L

on2

,…,L

on1

off1

measured at point 5 with pre-described measurement

)/ Minimum(L

on9

on1

, L

on2

,…L

)

on9

=60Hz to optimize.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG4.

Fig.2 Optical measurement point

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

ˣ ˻

˻ 



















˶ 





 



Note:

The response time is defined as the following figure and shall be measured by switching the input signal

for “any level of gray (bright) “ and “any level of gray(dark)”

www.panelook.com

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

Any level of gray(Dark)

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ˟˃ʿ˄ˈʿ˟ˆ˄ʿΞˁ˟˅ˈˈ

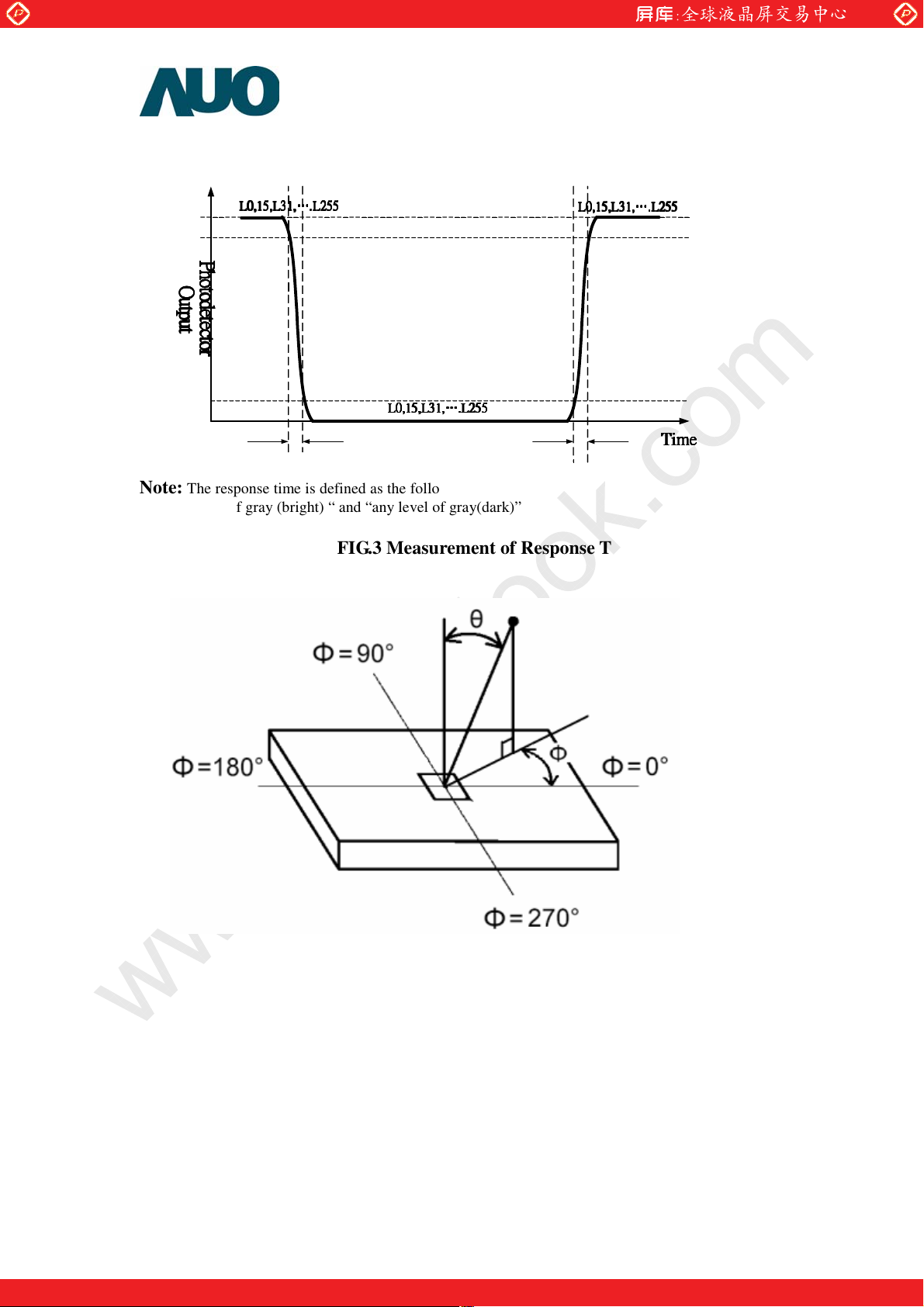

FIG.3 Measurement of Response Time

˧˼˸

˧˼˸˧˼˸

FIG.4 Measurement of viewing angle

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T370HW02 V3. Detailed mechanical drawings are shown in the following pages.

Outline Dimension

Bezel Opening

Active Display Area

Weight 10000g (Typ.)

www.panelook.com

Horizontal 877.0 mm

Vertical 516.8mm Depth 47 mm(non inverter) Horizontal 827.8 mm

Vertical 469.4 mm Horizontal 819.36 mm

Vertical 460.89 mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

www.panelook.com

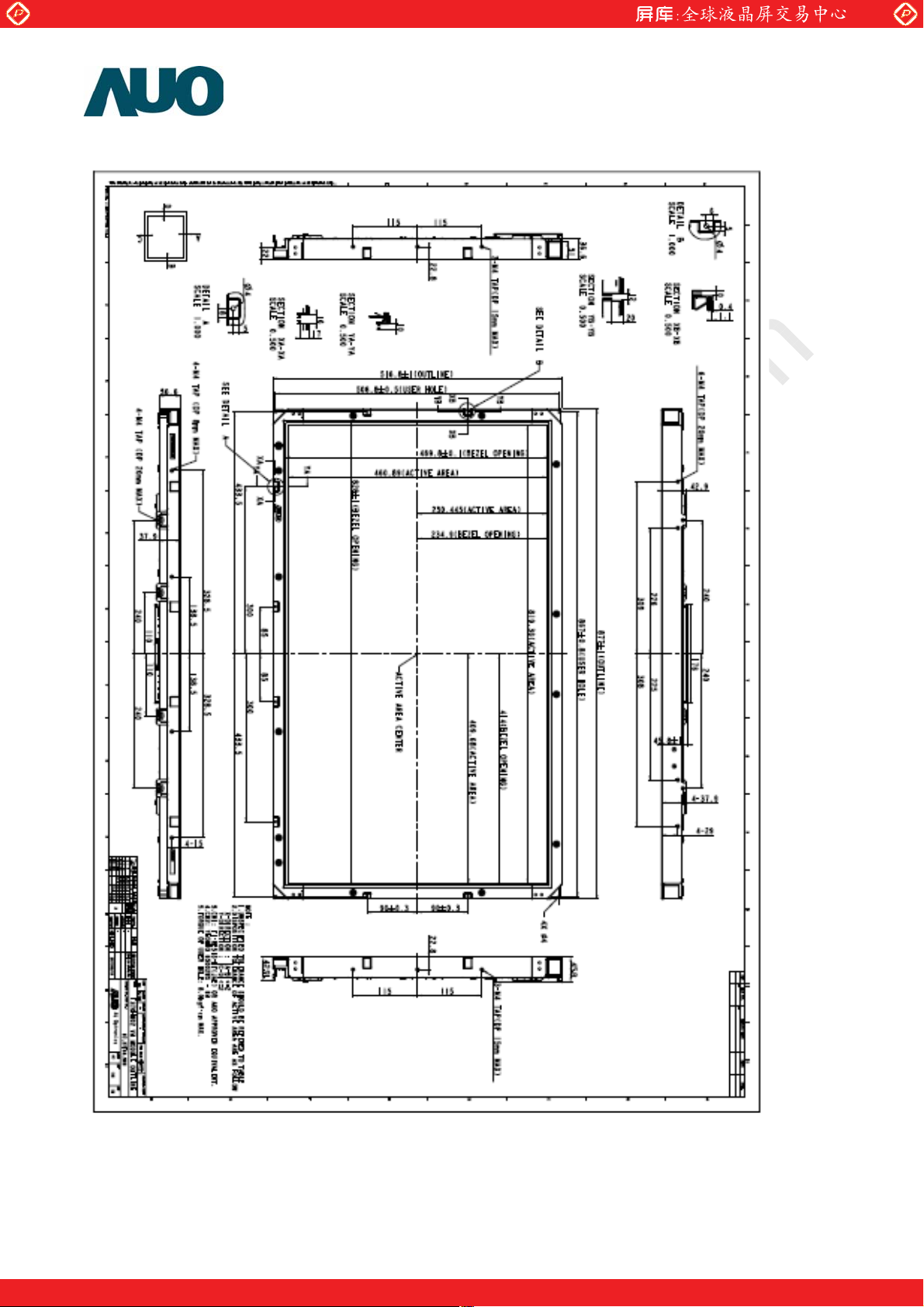

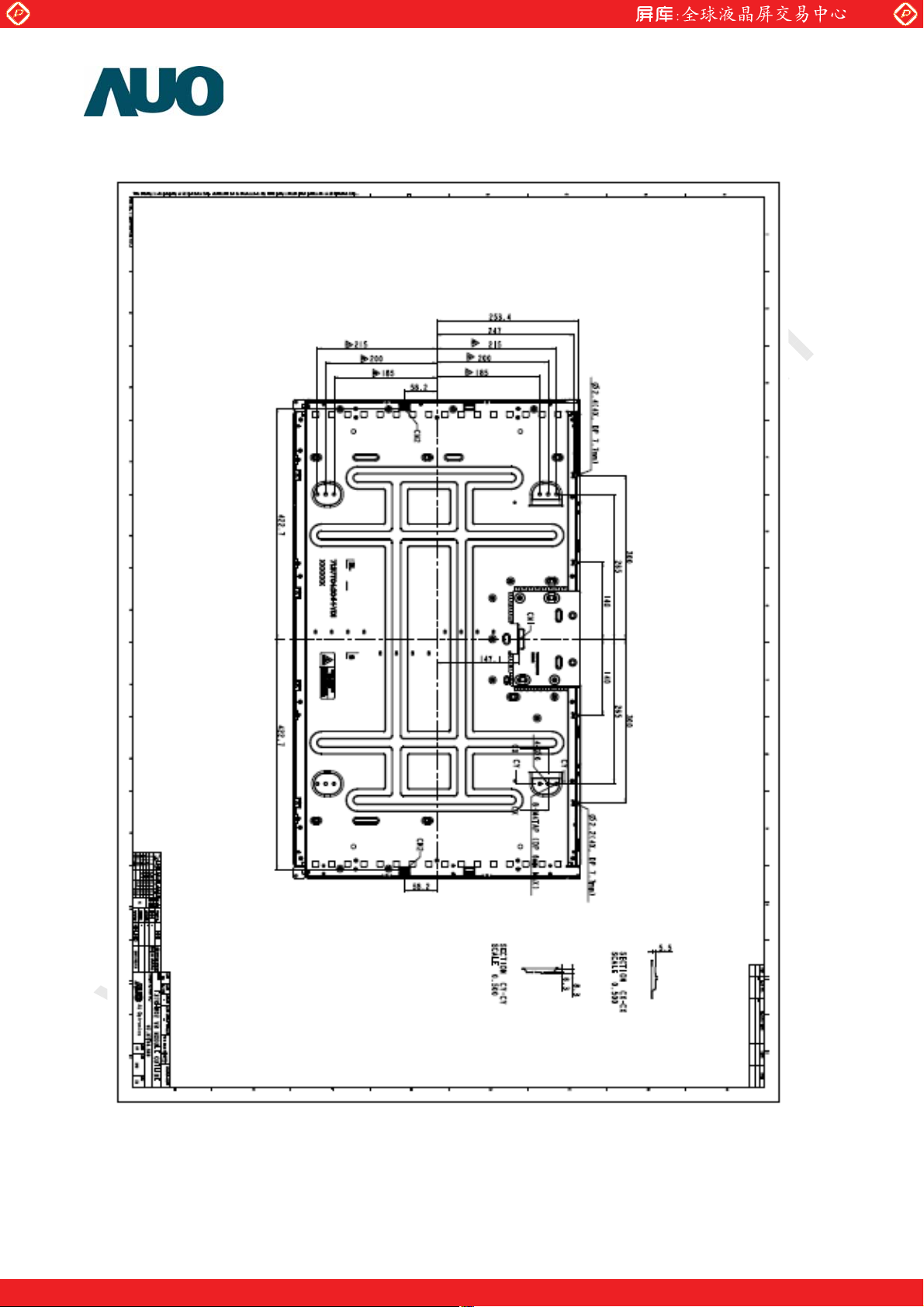

Mechanical Figure:

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

6. Reliability

Environment test condition:

1 High Temperature Stroage 3 2 Low Temperature Stroage 3 3 High Temperature Operation 3 4 Low Temperature Operation 3

5 Vibration (non-operation) 3

6 Shock (non-operation) 3

Test Items Q'ty Conditions

www.panelook.com

кккк

300 hrs

-20

кккк

, 300 hrs

кккк

, 300 hrs

кккк

, 300 hrs

-5

(10 ~ 300Hz/1.5G/11min SR, XYZ 30min/axis) Vibration level : 1.5G RMS, Bandwidth : 10-300Hz Duration: X, Y, Z 30min,

Shock level: 50G Waveform: have sine wave, 11ms Direction: ±X,±Y, ±Z One time each direction

7 Vibration (With carton) 3

8 Drop (With carton) 3

Random wave (1.5 Grms 10~200Hz) 30mins / Per each X.Y.Z axes

Height: 38cm 1 corner, 3 edges, 6 surfaces (ASTMD4169-I)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 26

Global LCD Panel Exchange Center

7. International Standard

7-1 Safety

(1) UL1950 Third Edition, Underwriters Laboratories, Inc. Jan. 28, 1995

Standard for Safety of Information Technology Equipment Including electrical Business Equipment.

(2) CAN/CSA C22.2 No. 950-95/60950 Third Edition, Canadian Standards Association,

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment.

(3) EN60950: 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997

IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996 European Committee for Electrotechnical Standardization (CENELEC) EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical Business Equipment.

7-2 EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage

Electrical and Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of

Information Technology Equipment.” International Special committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of

Information Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC), 1998

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

8. Packing

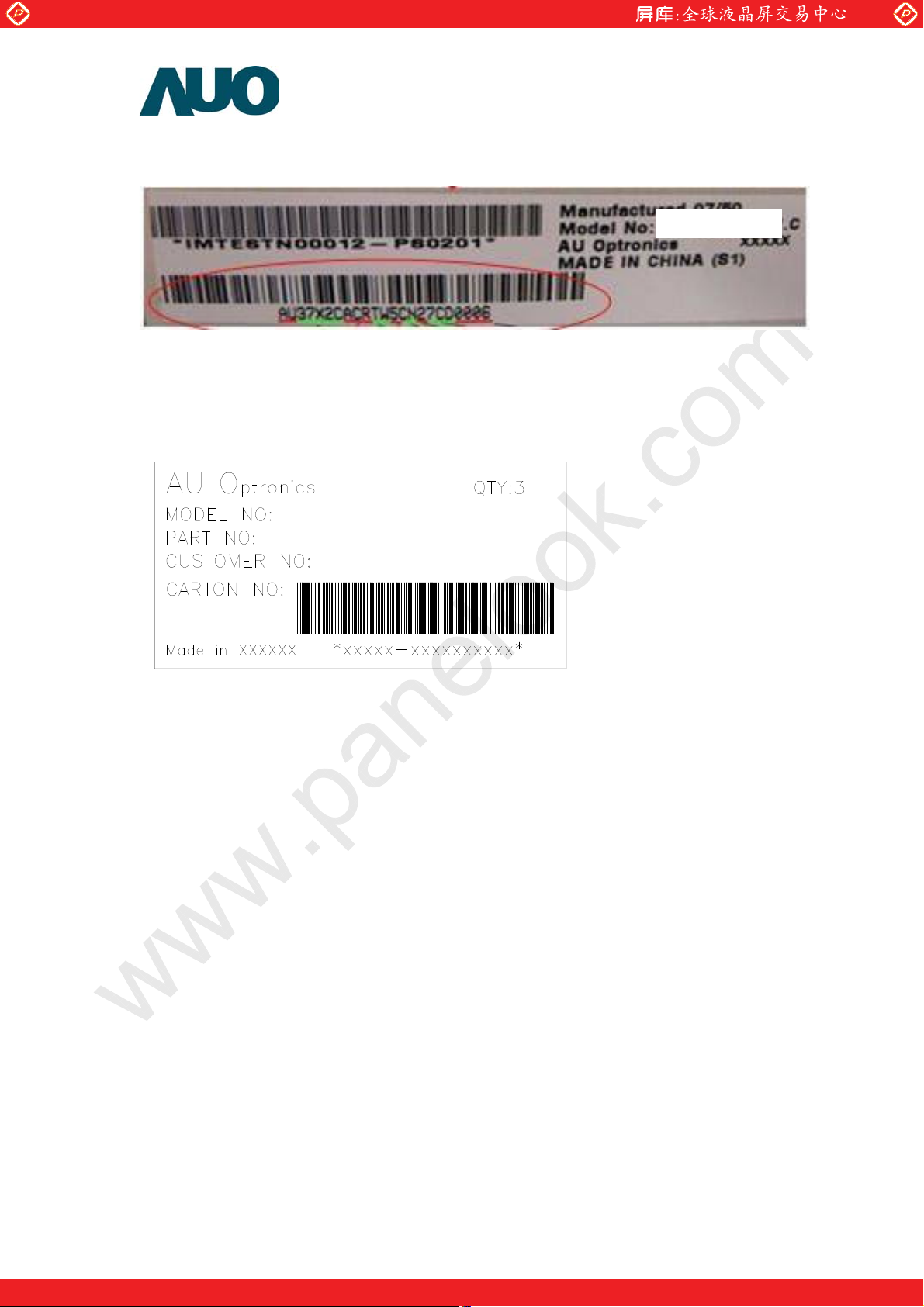

DEFINITION OF LABEL:

A. Panel Label:

TW6562700014-ZMAO0

TW: T: Taiwan, A/B: China 00014: Panel Serial Number ZMA: AUO internal code

B. Carton Label:

www.panelook.com

 

   

97.37T04.3XX

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

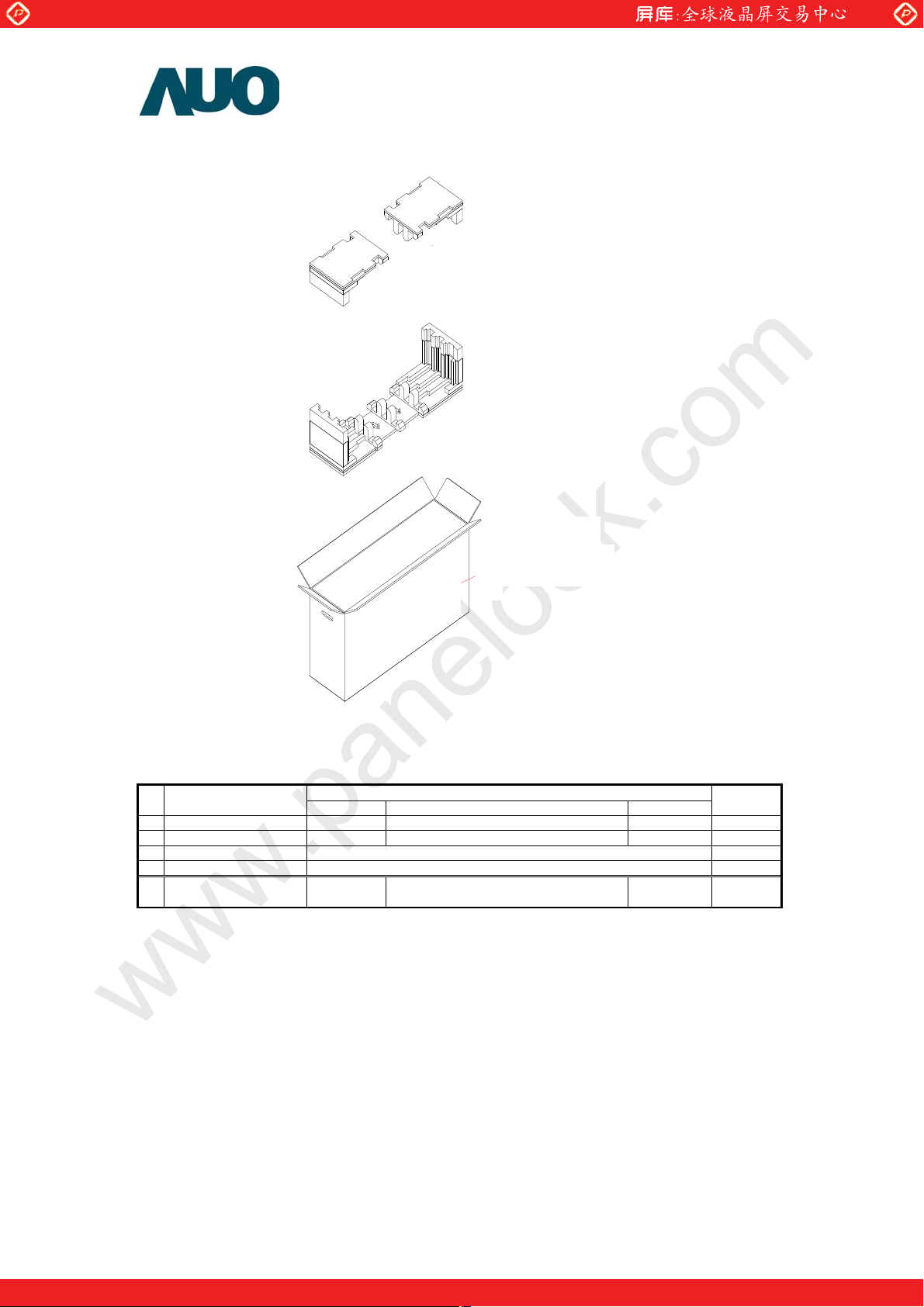

PACKING METHODS:

www.panelook.com

Packing Specification:

Item

1 Packing BOX 3 pcs/box 965(L)mm*280(W)mm*610(H)mm 30 2 Pallet 1 1140(L)mm*980(W)mm*140(H)mm 15 3 Boxes per Pallet 8 boxes/Pallet (By Air) ; 12 Boxes/Pallet (By Sea) 4 Panels per Pallet 24pcs/pallet(By Air) ; 36 Boxes/Pallet (By Sea) Pallet after packing 24 (by Air)

Qty. Dimension Weight (kg)

36(by Sea)

1140(L)mm*980(W)mm*1360(H)mm (by Air) 1140(L)mm*980(W)mm*2110(H)mm (by Sea)

Specification

257 (by Air) 393 (by Sea)

Packing Remark

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

9. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not

applied to module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the

polarizer. Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the

former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than

HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft

materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer

causes deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:



200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..) (4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And

in lower temperature, response time (required time that brightness is stable after turned on) becomes longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference

shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interface.

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wristband etc. And don’t touch interface pin directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

temperature between 5

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of flue still on the Bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane.

www.panelook.com

and 35к at normal humidity.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
