AUO T260XW06 V2 Specification

T260XW06 V2 Product Specification

Rev.0.0

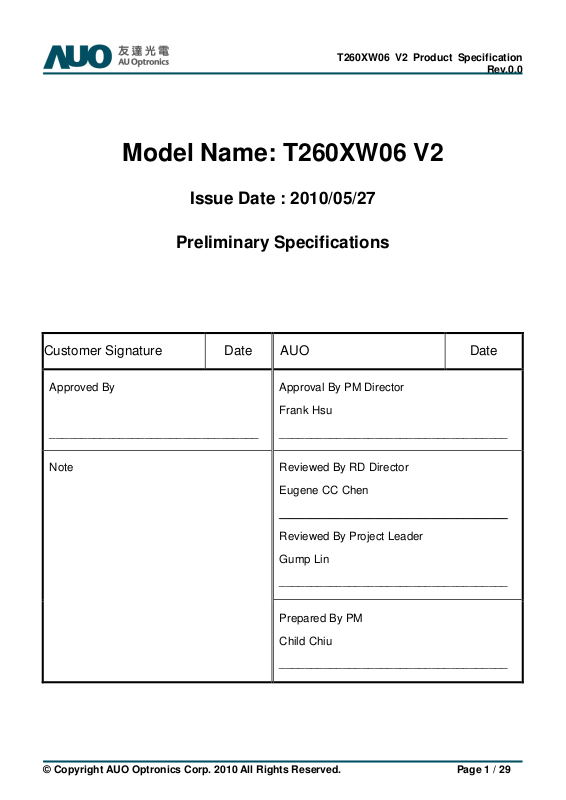

Model Name: T260XW06 V2

Issue Date : 2010/05/27

Preliminary Specifications

Customer Signature Date AUO Date

Approved By

_________________________________

Note

Approval By PM Director

Frank Hsu

____________________________________

Reviewed By RD Director

Eugene CC Chen

____________________________________

Reviewed By Project Leader

Gump Lin

____________________________________

Prepared By PM

Child Chiu

____________________________________

T260XW06 V2 Product Specification

Rev.0.0

Contents

No

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATION

3-1 ELECTRIACL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATION

3-4 SIGNAL TIMING WAVEFORM

3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE

3-7 BACKLIGHT SPECIFICATION

4 OPTICAL SPECIFICATION

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY TEST ITEMS

7 INTERNATIONAL STANDARD

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DEFINITION OF LABEL

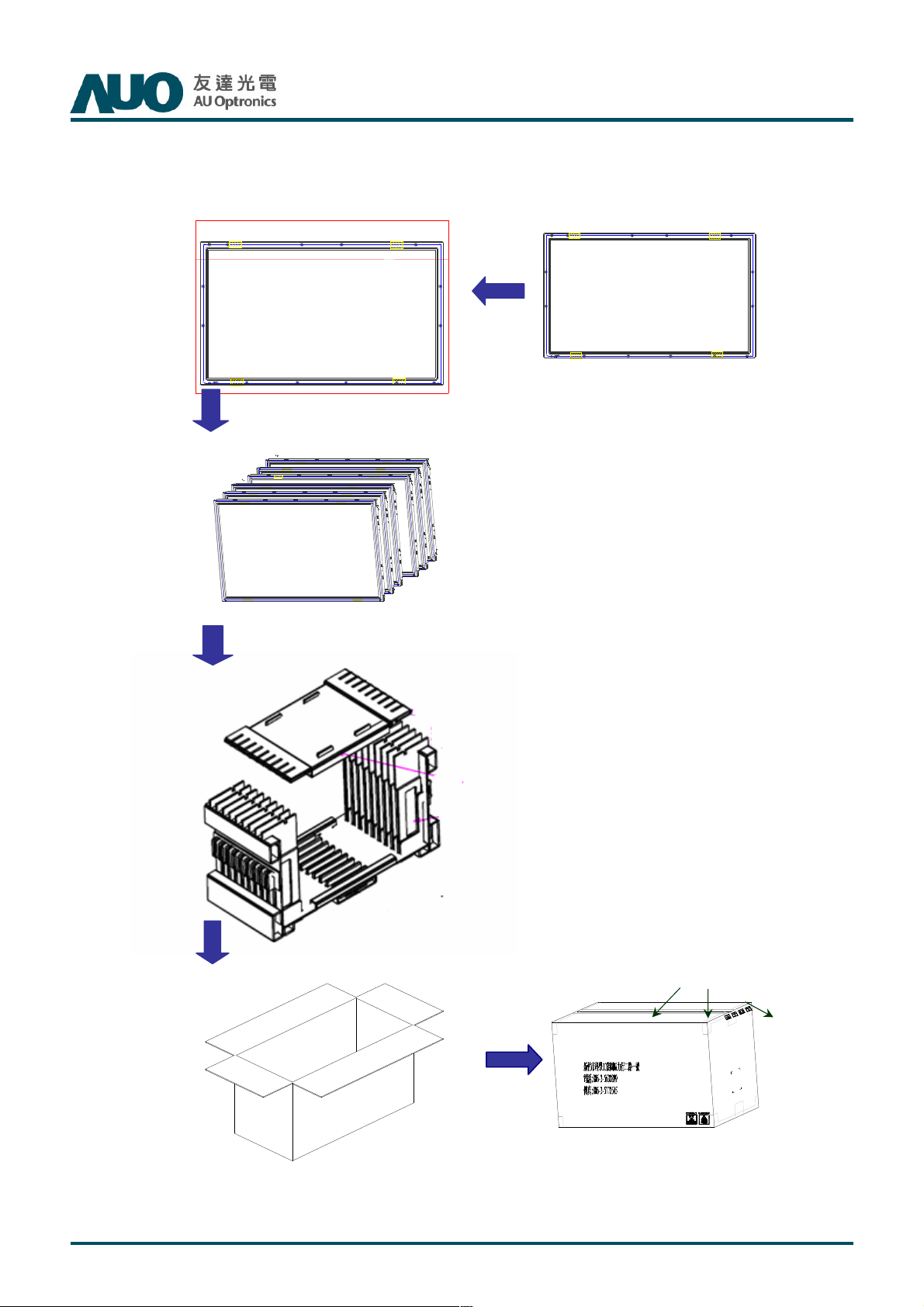

8-2 PACKING METHODS

8-3 PALLET AND SHIPMENT INFORMATION

9 PRECAUTION

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECT FILM

Record of Revision

T260XW06 V2 Product Specification

Rev.0.0

Version

Date Page Description

T260XW06 V2 Product Specification

Rev.0.0

1. General Description

This specification applies to the 26.0 inch Color TFT-LCD Module T260XW06 V2. This LCD module has a TFT

active matrix type liquid crystal panel 1,366x768 pixels, and diagonal size of 26.0 inch. This module supports

1,366x768 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical

stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.

The T260XW06 V2 has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to

support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very

important. The LED Driver is combined into whole module.

* General Information

Items Specification Unit Note

Active Screen Size 26.00 inch

Display Area 575.769(H) x 323.712(V) mm

Outline Dimension 613.0(H) x 361.0 (V) x 14.9(D) mm D: Front Bezel to T-Con Cover

Driver Element a-Si TFT active matrix

Display Colors 8 bit, 16.7M Colors

Number of Pixels 1,366x768 Pixel

Pixel Pitch 0.4215 (H) x 0.4215 (W) mm

Pixel Arrangement RGB vertical stripe

Display Operation Mode Normally Black

Surface Treatment Anti-Glare, 3H Haze=11%

T260XW06 V2 Product Specification

2. Absolute Maximum Ratings

The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1

Input Voltage of Signal Vin -0.3 4 [Volt] Note 1

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 10 90 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

Storage Humidity HST 10 90 [%RH] Note 2

Panel Surface Temperature PST 65 [oC] Note 3

Note 1: Duration:50 msec.

Note 2 : Maximum Wet-Bulb should be 39 and No condensation.℃

Rev.0.0

The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures

greater than 40 , the wet bulb temperature must not exceed 39 .

Note 3: Surface temperature is measured at 50℃ Dry condition

℃ ℃

℃

T260XW06 V2 Product Specification

Rev.0.0

3. Electrical Specification

The 260XW06 V2 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT

array and liquid crystal. The second input for BLU is to power inverter.

3.1 Electrical Characteristics

Parameter Symbol

Unit Note

Min. Typ. Max

LCD

Power Supply Input Voltage (12V model) VDD 10.8 12 13.2 VDC 1

Power Supply Input Current (by Product define) IDD -- 0.3 0.33 A 2

Power Consumption (by Product define) PC -- 3.6 3.96 Watt 2

Value

Inrush Current (by Product define) I

-- -- 3.0 A 3

RUSH

Differential Input High Threshold

VTH -- -- +100 4 4

Voltage

LVDS

Interface

Differential Input Low Threshold

Voltage

Input Common Mode Voltage V

VTL -100 -- -- 4 4

1.1 1.25 1.4 VDC 4

ICM

VIH

CMOS

Interface

Input High Threshold Voltage

(High)

VIL

Input Low Threshold Voltage

2.7 -- 3.3 VDC

0 -- 0.6 VDC

(Low)

Backlight Power Consumption

PBL -- 26.1 28.5 Watt

(Refer to Section: 3.7)

Life Time (MTTF) 30000

Note :

1. The ripple voltage should be controlled under 10% of VCC

2. Test Condition:

(1) V

= 12V

DD

(2) Fv = 60Hz

(3) F

= Max. Freq.

CLK

(4) Temperature = 25 ℃

(5) Test Pattern : White Pattern

3. Measurement condition : Rising time = 400us

-- Hours

8

s

µ

T260XW06 V2 Product Specification

Rev.0.0

VVVV

DD

90%

DDDD

10%

4. V

= 1.25V

ICM

GND

GNDGND

VVVV

0000VVVV

ICM

ICMICM

5. Input Channel Pair Skew Margin

400

400400

VVVV

TH

THTH

VVVV

TL

TLTL

6. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At

temperatures greater than 40 , the wet bulb temperature must not exceed 39 . When operate at low

℃ ℃

℃

temperatures, the brightness of LED will drop and the life time of LED will be reduced.

7. The lifetime (MTTF) is defined as the time which luminance of LED is 50% compared to its original value.

[Operating condition: Continuous operating at Ta = 25±2℃]

3.2 Interface Connections



LCD connector: 093G30-B0001A-1 (Starconn, LVDS connector)

T260XW06 V2 Product Specification

Rev.0.0

Symbol Description

1 VDD Power Supply, +12V DC Regulated

2 VDD Power Supply, +12V DC Regulated

3 VDD Power Supply, +12V DC Regulated

4 VDD Power Supply, +12V DC Regulated

5 GND Ground

6 GND Ground

7 GND Ground

8 GND Ground

9 LVDS_SEL Open/High(3.3V) for NS, Low(GND) for JEIDA

10

11

12

13

14

15

Reserved AUO Internal Use Only

GND Ground

CH1_0- LVDS Channel 1, Signal 0-

CH1_0+ LVDS Channel 1, Signal 0+

GND Ground

CH1_1- LVDS Channel 1, Signal 1-

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

CH1_1+ LVDS Channel 1, Signal 1+

GND Ground

CH1_2- LVDS Channel 1, Signal 2-

CH1_2+ LVDS Channel 1, Signal 2+

GND Ground

CH1_CLK- LVDS Channel 1, Clock -

CH1_CLK+ LVDS Channel 1, Clock +

GND Ground

CH1_3- LVDS Channel 1, Signal 3-

CH1_3+ LVDS Channel 1, Signal 3+

GND Ground

Reserved AUO Internal Use Only

GND Ground

LVDS Option = High/OpenNS

P re v io u s C ycle C urren t C yc le N ext C yc le

P re v io u s C ycle C urren t C yc le N ext C yc le P re v io u s C ycle C urren t C yc le N ext C yc le

C lo c k

C lo c kC lo c k

C H x

C H x____ 0000 ++++

C H xC H x

C H x

C H x____ 0000 ----

C H xC H x

C H x

C H x____ 1111 ++++

C H xC H x

C H x

C H x____ 1111 ----

C H xC H x

C H x

C H x____ 2222 ++++

C H xC H x

C H x

C H x____ 2222 ----

C H xC H x

D EBBBB 2222BBBB 3333 BBBB 4444BBBB 5555N A

D ED E

T260XW06 V2 Product Specification

RRRR 0000RRRR 5555 GGGG 0000GGGG 0000RRRR 0000RRRR 1111 RRRR 2222RRRR 3333RRRR 4444 RRRR 1111

GGGG 1111BBBB 0000 BBBB 1111BBBB 1111GGGG 1111GGGG 2222 GGGG 3333GGGG 4444GGGG 5555 GGGG 2222

N A D E

N AN A

N A BBBB 3333

N AN A

BBBB 2222N A

D ED E

Rev.0.0

C H x

C H x____ 3333 ++++

C H xC H x

C H x

C H x____ 3333 ----

C H xC H x

Note: x = 1, 2, 3, 4…

LVDS Option = LowJEIDA

P re v io u s C ycle C urr e n t C ycle N ex t C y c le

P re v io u s C ycle C urr e n t C ycle N ex t C y c le P re vi o u s C yc le C urre nt C ycle N e xt C ycle

C lo c k

C lo c kC lo c k

C H x

C H x ____ 0000 ++++

C H xC H x C H x

C H x ____ 0000 ----

C H xC H x

C H x

C H x ____ 1111 ++++

C H xC H x C H x

C H x ____ 1111 ----

C H xC H x

C H x

C H x ____ 2222 ++++

C H xC H x C H x

C H x ____ 2222 ----

C H xC H x

N ARRRR 6666RRRR 7777 GGGG 6666GGGG 7777BBBB 6666 RRRR 7777

N AN A

D EBBBB 4444BBBB 5555 BBBB 6666BBBB 7777N A

D ED E

N A D E

N AN A

N A BBBB 5555

N AN A

RRRR 6666BBBB 7777 N A

RRRR 2222RRRR 7777 GGGG 2222GGGG 2222RRRR 2222RRRR 3333 RRRR 4444RRRR 5555RRRR 6666 RRRR 3333

GGGG 3333BBBB 2222 BBBB 3333BBBB 3333GGGG 3333GGGG 4444 GGGG 5555GGGG 6666GGGG 7777 GGGG 4444

BBBB 4444N A

N AN A

D ED E

C H x

C H x ____ 3333 ++++

C H xC H x C H x

C H x ____ 3333 ----

C H xC H x

N ARRRR 0000RRRR 1111 GGGG 0000GGGG 1111BBBB 0000 RRRR 1111

N AN A

RRRR 0000BBBB 1111 N A

N AN A

Note: x = 1, 2, 3, 4…

T260XW06 V2 Product Specification

Rev.0.0

3.3 Signal Timing Specification

This is the signal timing required at the input of the user connector. All of the interface signal timing should be

satisfied with the following specifications for its proper operation.

Timing Table

Vertical Section

Horizontal Section

Clock Frequency Fclk=1/Tclk 50 80 86 MHz

Vertical Frequency Frequency Fv 47 60 63 Hz

Horizontal Frequency Frequency Fh 43 48 53 KHz

Notes:

(1) Display position is specific by the rise of DE signal only.

Horizontal display position is specified by the rising edge of 1st DCLK after the rise of 1st DE, is displayed on the

left edge of the screen.

Signal Item Symbol Min. Typ. Max Unit

Period Tv 784 810 1015 Th

Active Tdisp (v) 768

Blanking Tblk (v) 16 42 247 Th

Period Th 1460 1648 2000 Tclk

Active Tdisp (h) 1366

Blanking Tblk (h) 94 282 634 Tclk

(2)Vertical display position is specified by the rise of DE after a “Low” level period equivalent to eight times of

horizontal period. The 1st data corresponding to one horizontal line after the rise of 1st DE is displayed at the top

line of screen.

(3)If a period of DE “High” is less than 1366 DCLK or less than 768 lines, the rest of the screen displays black.

(4)The display position does not fit to the screen if a period of DE “High” and the effective data period do not

synchronize with each other.

3.4 Signal Timing Waveforms

T260XW06 V2 Product Specification

Rev.0.0

CH2

Pixel

M-6

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

6

Pixel

8

Pixel

10

Pixel

12

CH1

Pixel

M-7

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Pixel

5

Pixel

7

Pixel

9

Pixel

11

DE

Tdisp(h) Tblk(h)

CLK

RGB

Data

Line

N

Tclk

Invalid Data Invalid Data

Line

1

Line

2

Th

Line

3

Line

4

DE

Th

Tv

Tdisp(v)Tblk(v)

Pixel

M-4

Pixel

M-2

Pixel

M

Invalid Data

Pixel

2

Pixel

4

Pixel

M-5

Pixel

M-3

Pixel

M-1

Invalid Data

Pixel

1

Pixel

3

Line

N

N L in e

N L in eN L in e

M

M p

p

p i

i

x

x e

e

e l

l

T260XW06 V2 Product Specification

Rev.0.0

3.5 Color Input Data Reference

The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

COLOR DATA REFERENCE

Input Color Data

Basic

Color

R

Color

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

----

RED(254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED(255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

G

----

GREEN(254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN(255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

B

----

BLUE(254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE(255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

3.6 Power Sequence for LCD

T260XW06 V2 Product Specification

Rev.0.0

Pow er S u p p ly For LC D

Pow er S u p p ly For LC D Pow er S u p p ly For LC D

VD D

VD D (+

(+ 12

VD D VD D

In ter fa ce Sig n a l

In ter fa ce Sig n a lIn ter fa ce Sig n a l

((((LV DS D ata

12 VVVV ))))

(+(+

121 2

LV DS D ata &

LV DS D ata LV DS D ata

& C LK

& &

G ND

CLK ))))

CLKCLK

G ND

Back lig h t o n

Back lig h t o n ////o ff

Back lig h t o nBack lig h t o n

co n tro l s ig n a l

co n tro l s ig n a lco n tro l s ig n a l

((((VBLO N

VBLO N ))))

VBLO NV BLON

off

offoff

GN D

CM O S In terface S ignal

CM O S In terface S ignalCM O S In terface S ignal

G ND

Parameter

t1 0.4 --- 30 ms

t2 0.1 --- 50 ms

10 %

90 %

t1

t2

Valid D ata

Valid D ataV a lid Da ta

t3 t4

t8 t9

Values

Min. Type. Max.

90 %

10 %

t6

t5

10 %

t7

Unit

t3 450 --- --- ms

t4 0*1 --- --- ms

t5 0 --- --- ms

t6 --- --- ---*2 ms

t7 500 --- --- ms t8 10 --- 50 ms

t9 0 --- --- ms

Note:

(1) T4=0 : concern for residual pattern before BLU turn off. (2) T6 : voltage of VDD must decay smoothly after power-off. (customer system decide this value)

3.7 Backlight Specification

The backlight unit contains 1pcs light bar.

3.7.1 Electrical specification

Item Symbol Condition

T260XW06 V2 Product Specification

Rev.0.0

Spec

Unit Note

Min Typ Max

1

2

3

4

5 On/Off control voltage

6

7

8

9 External PWM Duty ratio

10

11

Input Voltage VDDB - 22.8

Input Current I

Input Power P

Inrush Current I

On/Off control current

External PWM

Control Voltage

External PWM

Control Current

External PWM

Frequency

DET status signal DET

V_EPWM

24 25.2

VDDB=24V

DDB

VDDB=24V

DDB

VDDB=24V

RUSH

ON 2 - 5.5 -

V

BLON

OFF

I

VDDB=24V

BLON

MAX VDDB=24V

MIN VDDB=24V

I_EPWM VDDB=24V

D_EPWM VDDB=24V

F_EPWM VDDB=24V 140 180 240 Hz -

HI Open Collector VDC 4

Lo

VDDB=24V

-- 1.16 1.26

-- 27.8 30.24

- - 4 ADC 2

0 - 0.8

- - 1.5 mA -

2 - 5.5 -

0 - 0.8

- - 2 mADC -

5 - 100 % 3

0 - 0.8 VDC 4

VDC -

ADC 1

W 1

VDC

-

12

Note 1 : Dimming ratio= 100% (MAX)（Ta=25±5 , Turn on for 45minutes Note 2: Measurement condition Rising time = 20ms (VDDB : 10%~90%);

Note 3: Less than5% dimming control is functional well and no backlight shutdown happened Note 4: Normal : 0~0.8V ; Abnormal : Open collector

Input Impedance Rin VDDB=24V 300 Kohm -

℃

）

3.7.2 Input Pin Assignment

LED Driver Connector: CI1114M1HR0-NH (Cvilux)

T260XW06 V2 Product Specification

Rev.0.0

Pin No

1

2

3

4

5

6

7

8

9

10

Symbol Description

VDDB Operating Voltage Supply, +24V DC regulated

BLGND Ground and Current Return

BLU status detection:

11 DET

12 VBLON

13 NC

14 PDIM

(Note*) IF External PWM function includes 10% dimming ratio. Judge condition as below: (1) Backlight module must be lighted ON normally. (2) All protection function must work normally. (3) Uniformity and flicker could NOT be guaranteed

Normal : 0~0.8V ; Abnormal : Open collector

(Recommend Pull high R > 10K, VDD = 3.3V)

BLU On-Off control:

High/Open (2~5.5V) : BL On ;

Low (0~0.8V/GND) : BL Off

External PWM (5%~100% Duty, open for 100%)

< NC ; at Internal PWM mode>

3.7.3 Power Sequence for LED Driver

90% 90%

10%

Power Input for BLU

(VDDB)

Dimming Control Signal

(VDIM)

BLU On/Off Enable

(VBLON)

10%

T1 T2

T260XW06 V2 Product Specification

24V(typ.)

T3 T4

T3 T4T4

T5

Rev.0.0

Dip condition for LED Driver

Power Input for BLU

(VDDB)

VDDB(typ.)*0.8

Parameter

T1 20 - - ms

T2 500 - - ms

T3 250 - - ms

T6

Value

Min Typ Max

Units

T4 0 - - ms

T5 1 - - ms

T6 - - 10 ms

Note 1: There is no problem for LED Driver operation if I2T spec of fuse is satisfied even though

T1 is out of spec

T260XW06 V2 Product Specification

Rev.0.0

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a

dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a

viewing angle of φ and θ equal to 0°.

Fig.1 presents additional information concerning the measurement equipment and method.

SR3 or equivalent

Parameter Symbol

Min. Typ. Max

Contrast Ratio CR 2400 3000 -- 1

Surface Luminance (White) LWH 280 350 -- cd/m2 2

Luminance Variation δ

Response Time (G to G) Tγ -- 6.5 -- Ms 4

Color Gamut NTSC 68 %

Color Coordinates

Red RX 0.627

RY 0.336

Green GX 0.338

GY 0.617

Blue BX 0.155

BY 0.040

WHITE(9P)

-- -- 1.3 3

Typ.-0.03

Values

Unit Notes

Typ.+0.03

White WX 0.280

WY

Viewing Angle 5

Note:

x axis, right(φ=0°) θr -- 89 -- degree

x axis, left(φ=180°) θl -- 89 -- degree

y axis, up(φ=90°) θu -- 89 -- degree

y axis, down (φ=270°) θ

-- 89 -- degree

d

0.290

2 3

7

T260XW06 V2 Product Specification

Rev.0.0

1. Contrast Ratio (CR) is defined mathematically as:

Surface Luminance of

Contrast Ratio=

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels

displaying white. From more information see FIG 2. When lamp current IH = 11mA. LWH=Lon5 where Lon5 is

the luminance with all pixels displaying white at center 5 location.

3. The variation in surface luminance, δWHITE is defined (center of Screen) as:

Surface Luminance of

L

on5

L

off5

δ

WHITE(9P)

4. Response time Tγ is the average time required for display transition by switching the input signal for five

luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.

= Maximum(L

on1

, L

on2

,…,L

)/ Minimum(L

on9

on1

, L

on2

,…L

on9

)

Target Measured

Response Time

0%

25%

Start

50%

75%

100%

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the

horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For

more information see FIG4.

FIG. 2 Luminance

0% 25% 50% 75% 100%

0% to 25% 0% to 50% 0% to 75% 0% to 100%

25% to 0% 25% to 50% 25% to 75% 25% to 100%

50% to 0% 50% to 25%

75% to 0% 75% to 25% 75% to 50%

100% to 0% 100% to 25% 100% to 50% 100% to 75%

50% to 75% 50% to 100%

75% to 100%

V

H/2

H/6

1

H

V/2 V/6

T260XW06 V2 Product Specification

Rev.0.0

FIG.3 Response Time

The response time is defined as the following figure and shall be measured by switching the input signal for “any level of grey(bright) “ and “any level of gray(dark)”.

Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)

0% , 25%, 50% , 75%, 100%

Photodetector

Output

FIG.4 Viewing Angle

T

γγγγ

(F)

0% , 25%, 50 % , 75%, 100%

Tim e

T

(R)

γγγγ

90%

10%

T260XW06 V2 Product Specification

Rev.0.0

5. Mechanical Characteristics

The contents provide general mechanical characteristics for the model T260XW06 V0. In addition the figures in the

next page are detailed mechanical drawing of the LCD.

Horizontal 613.0 mm

Outline Dimension

Bezel Opening

Active Display Area

Weight 3400 g (Typ.) (TBD)

Surface Treatment Anti-Glare, 3H

Vertical 361.0 mm

Depth 14.9 mm (Bezel to T-con cover)

Horizontal 580.2 mm

Vertical 328.2 mm

Horizontal 575.769mm

Vertical 323.712 mm

Front View

T260XW06 V2 Product Specification

Rev.0.0

Back View

T260XW06 V2 Product Specification

Rev.0.0

6. Reliability Test Items

T260XW06 V2 Product Specification

Rev.0.0

1 High temperature storage test 3 60℃, 300hrs

2 Low temperature storage test 3 -20℃, 300hrs

3 High temperature operation test 3 50℃, 300hrs

4 Low temperature operation test 3 -5℃, 300hrs

5 Vibration test (non-operation) 3

6 Shock test (non-operation) 3

7 Vibration test (With carton) 3

Test Item Q’ty Condition

Wave form: random

Vibration level: 1.5G RMS

Bandwidth: 10-300Hz,

Duration: X, Y, Z 30min

One time each direction

Shock level: 50G

Waveform: half since wave, 11ms

Direction: ±X, ±Y, ±Z, One time each direction

Random wave (1.5G RMS, 10-200Hz)

30mins/ Per each X,Y,Z axes

8 Drop test (With carton) 3

Height: 457mm

1 corner, 3 edges, 6 surfaces

(ASTMD5276)

7. International Standard

7.1 Safety

(1) UL 60950-1, UL 60065; Standard for Safety of Information Technology Equipment Including

electrical Business Equipment.

(2) IEC 60950-1 : 2001, IEC 60065:2001 ; Standard for Safety of International Electrotechnical

Commission

(3) EN 60950 : 2001+A11, EN 60065:2002+A1:2006; European Committee for Electrotechnical

Standardization (CENELEC), EUROPEAN STANDARD for Safety of Information Technology

Equipment Including Electrical Business Equipment.

7.2 EMC

(1) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards Institute(ANSI),

T260XW06 V2 Product Specification

Rev.0.0

1992

(2) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” International Special committee on Radio Interference.

(3) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),

1998

QTY :

8

Manufactured

XX/XX

MADE IN

XXXXX

8. Packing

8-1 DEFINITION OF LABEL:

A. Panel Label:

*xxxxxxxxxxxx-xxxx*

T260XW06 V2 Product Specification

Rev.0.0

Panel Unique ID

XXXXX Model NO: T260XW06 V.2 XXXXXXX

AUO Internal Use Week

Year

AUO Internal Use

Green mark description

AUO Internal Use

AU Optronics

Factory Location

(1) For Pb Free Product, AUO will add for identification.

(2) For RoHs compatible products, AUO will add RoHS for identification.

Note: The green Mark will be present only when the green documents have been ready by AUO internal green

team. (definition of green design follows the AUO green design checklist.)

B. Carton Label:

T260XW06 V2

97.26T08.200

1pcs Module/ESD Bag

1pcs Module/ESD Bag1pcs Module/ESD Bag

1pcs Module/ESD Bag

Module

8888

pcs / 1 carton

pcs / 1 cartonpcs / 1 carton

pcs / 1 carton

”

H ” Tape

Cushion set

Cushion setCushion set

Cushion set

8-2 PACKING METHODS:

T260XW06 V2 Product Specification

Rev.0.0

8-3 Pallet and Shipment Information

T260XW06 V2 Product Specification

Rev.0.0

Item

Qty. Dimension Weight (kg)

1 Packing BOX 8pcs/box 722(L)*325(W)*438(H) 29

2 Pallet 1 980(L)*740(W)*135(H) 16

3 Boxes per Pallet 6 boxes/pallet

4 Panels per Pallet 48pcs/pallet

Pallet after packing 72 980(L)*740(W)*1011(H) 190

Specification

Corner angle

Moisture-proof film

Stretch film

Label

PET band

Packing Remark

Corner angle

Pallet

T260XW06 V2 Product Specification

8. PRECAUTIONS

Please pay attention to the followings when you use this TFT LCD module.

9-1 MOUNTING PRECAUTIONS

(1) You must mount a module using holes arranged in four corners or four sides.

(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied

to module. And the case on which a module is mounted should have sufficient strength so that

external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.

(4) You should adopt radiation structure to satisfy the temperature specification.

(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

Rev.0.0

generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit

broken by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the

surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)

(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials

like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the

adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because

they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2 OPERATING PRECAUTIONS

(1) The device listed in the product specification sheets was designed and manufactured for TV

application

(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:

V=±200mV(Over and under shoot voltage)

(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)

(4) Brightness of CCFL depends on the temperature. (In lower temperature, it becomes lower.) And in

lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(5) Be careful for condensation at sudden temperature change. Condensation makes damage to

polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.

(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.

(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall

be done by system manufacturers. Grounding and shielding methods may be important to minimize

the interface.

9-3 ELECTROSTATIC DISCHARGE CONTROL

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain

that treatment persons are connected to ground through wristband etc. And don’t touch interface pin

directly.

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

Strong light exposure causes degradation of polarizer and color filter.

9-5 STORAGE

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the

T260XW06 V2 Product Specification

Rev.0.0

temperature between 5 and 35 at normal humidity.

(2) The polarizer surface should not come in contact with any other object. It is recommended that they

be stored in the container in which they were shipped.

℃ ℃

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

(1) The protection film is attached to the bezel with a small masking tape. When the protection film is

peeled off, static electricity is generated between the film and polarizer. This should be peeled off

slowly and carefully by people who are electrically grounded and with well ion-blown equipment or

in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a

very small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with

normal-hexane.

AUO T260XW06 V2 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
