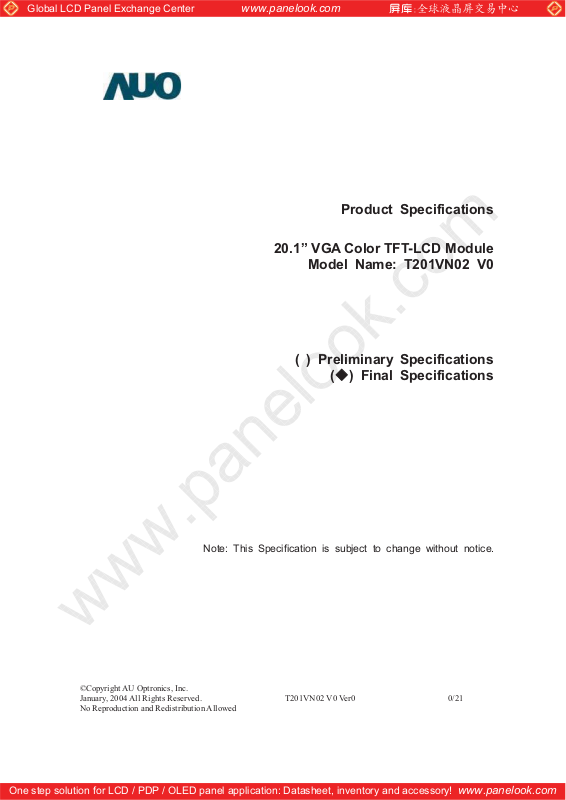

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specifications
20.1” VGA Color TFT-LCD Module
Model Name: T201VN02 V0
( ) Preliminary Specifications
(
Note: This Specification is subject to change without notice.
) Final Specifications
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 0/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
A
COVER
CONTENTS
RECORD OF REVISIONS
GENERAL DESCRIPTION 1
BSOLUTE MAXIMUM RATINGS2
www.panelook.com
Contents
ITEMNo
ELECTRICAL SPECIFICATIONS3
ELECTRICAL CHARACTREISTICS 3-1
INTERFACE CONNECTIONS3-2
SIGNAL TIMING SPECIFICATIONS3-3
SIGNAL TIMING WAVEFORMS3-4
COLOR INPUT DATA REFERNECE3-5

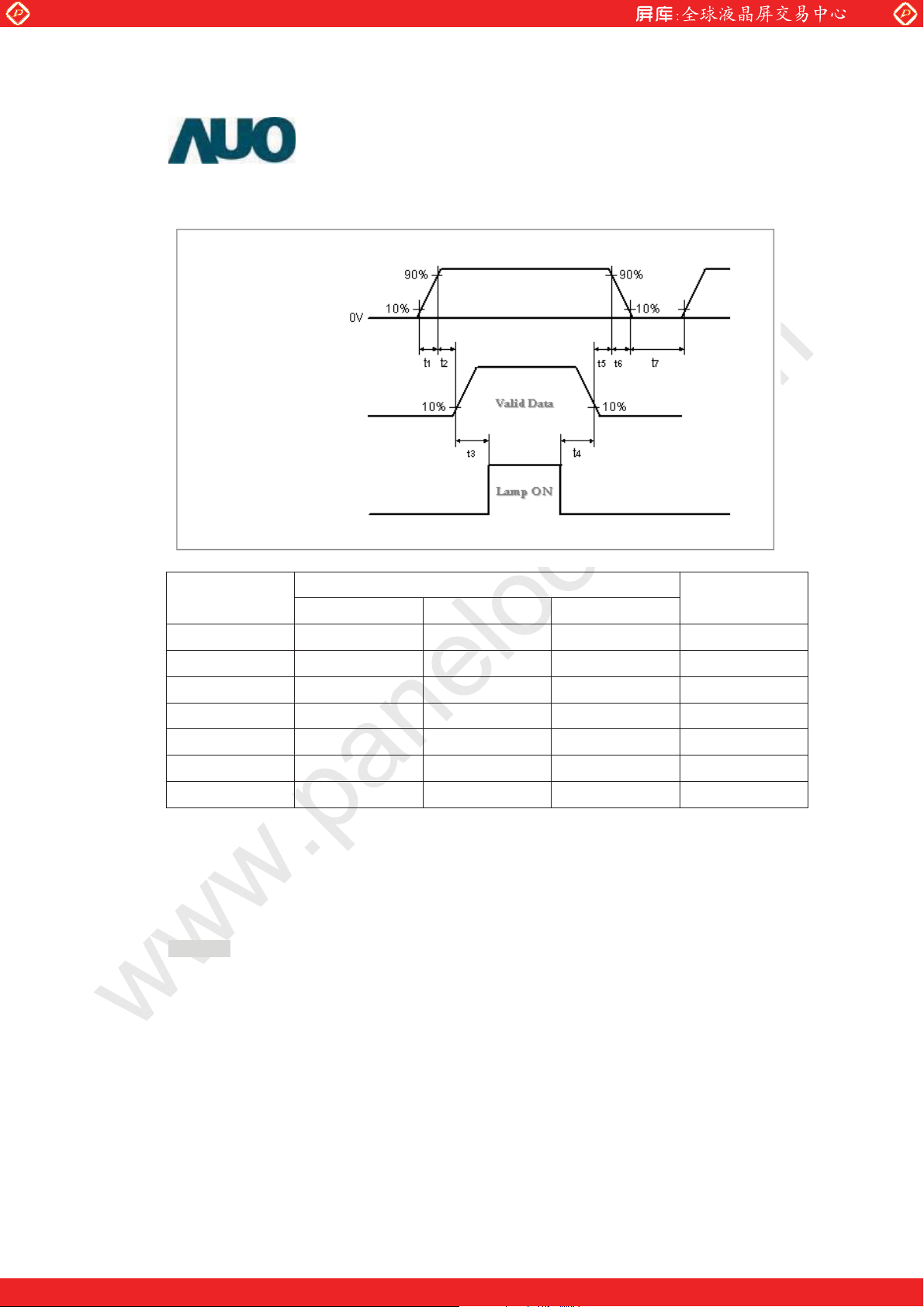

POWER SEQUENCE 3-6

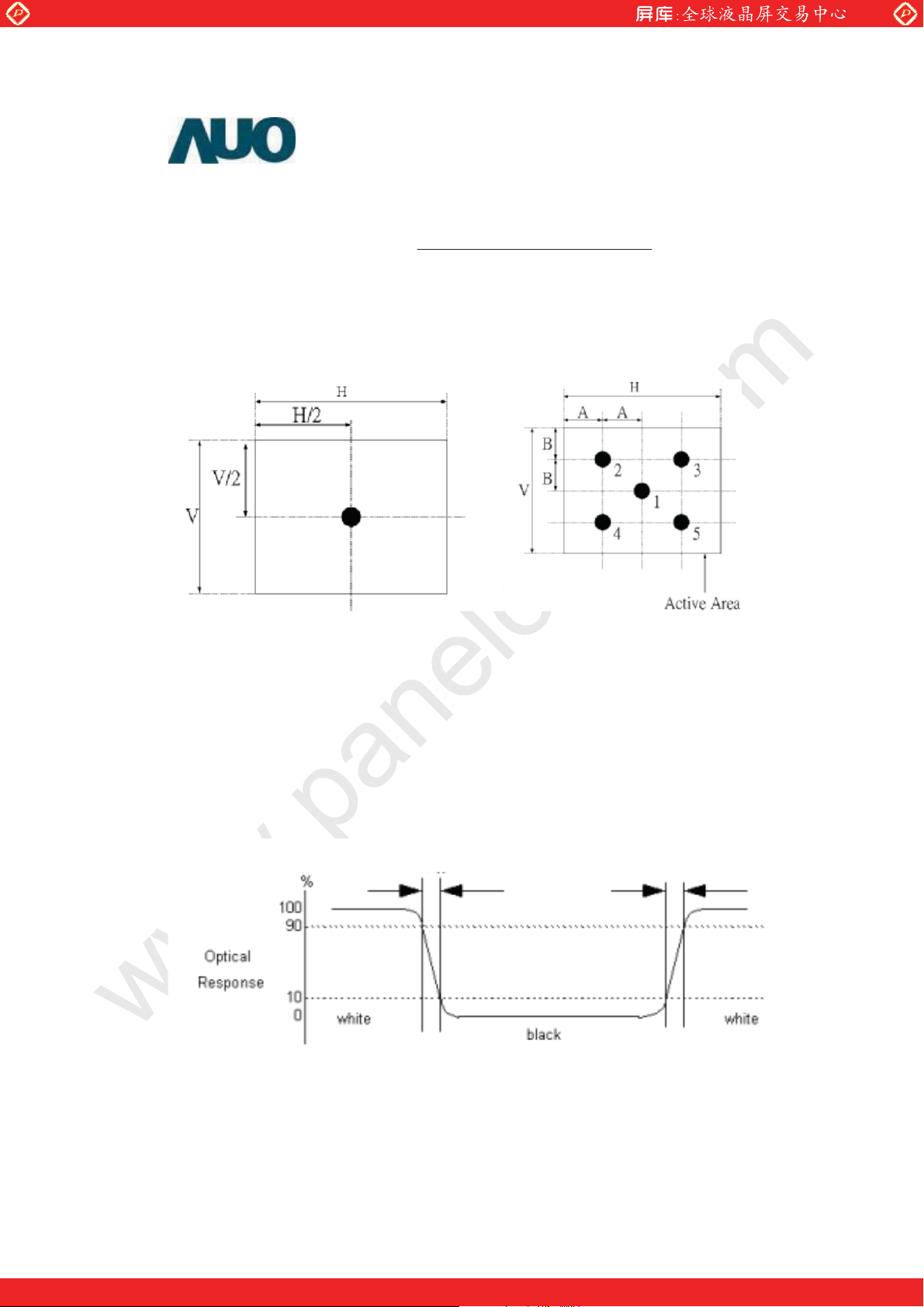

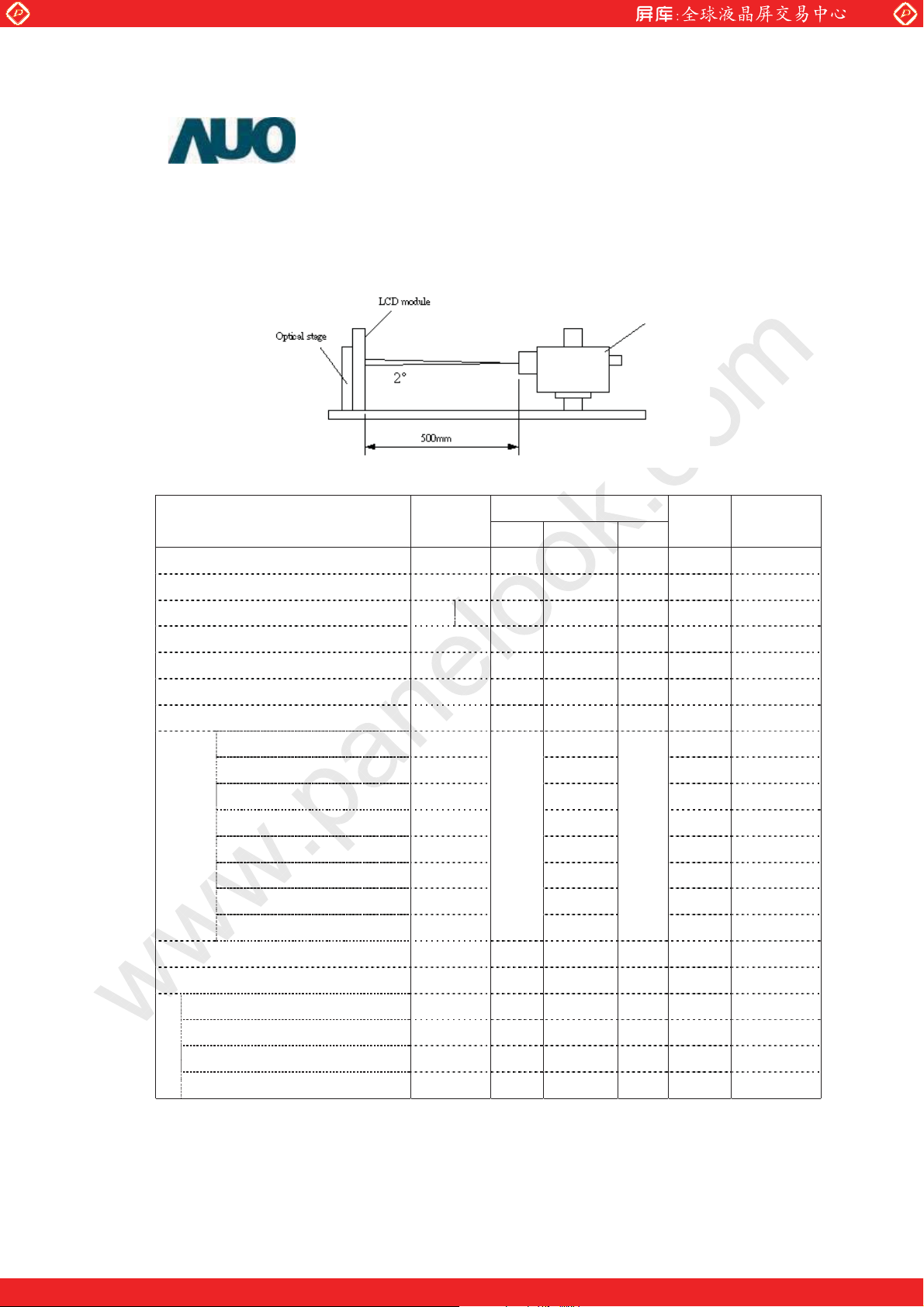

OPTICAL SFECIFICATIONS4

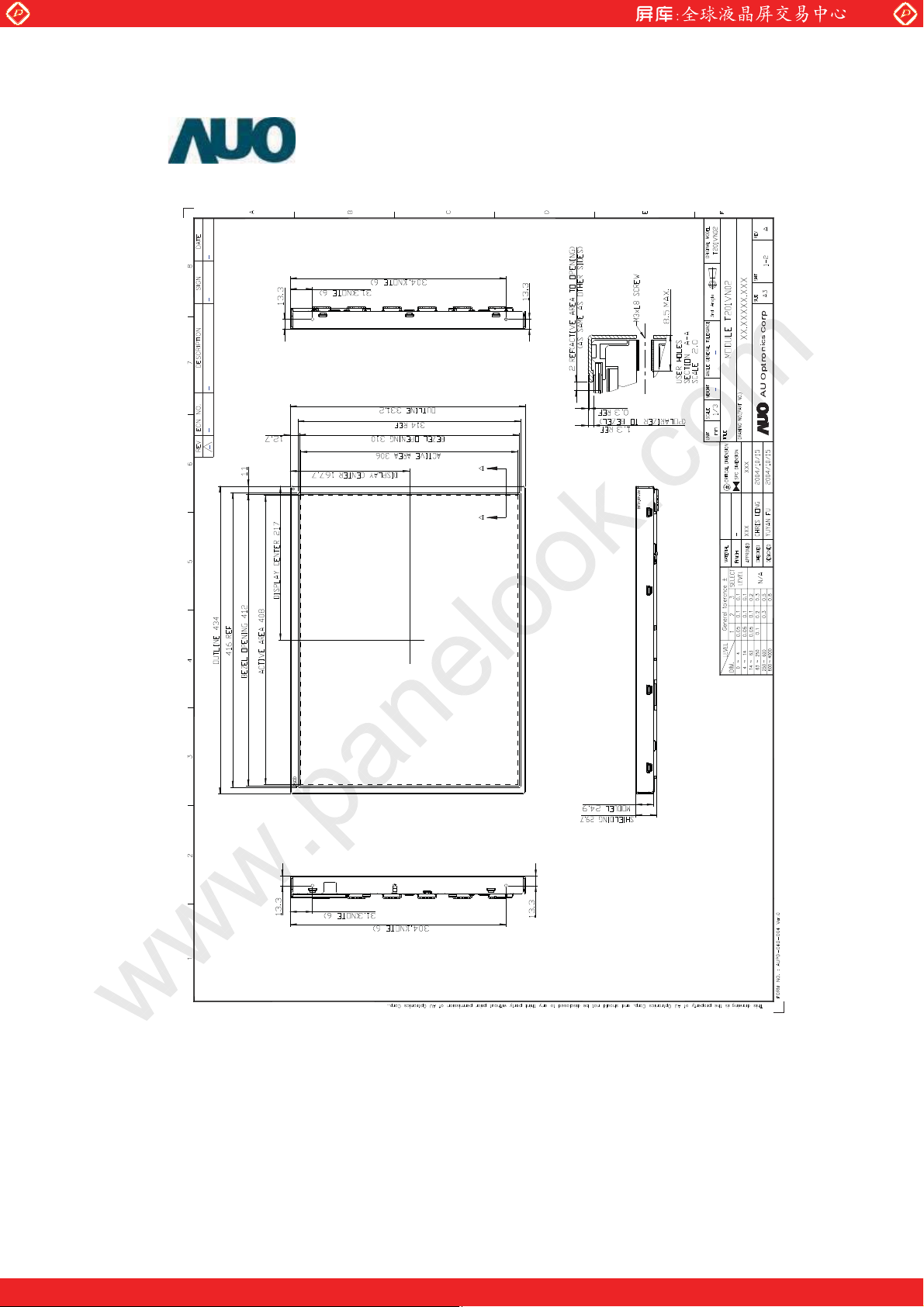

MECHANICAL CHARACTERISTICS 5
INTERNATIONAL STANDARDS6
SAFETY6-1
EMC6-2

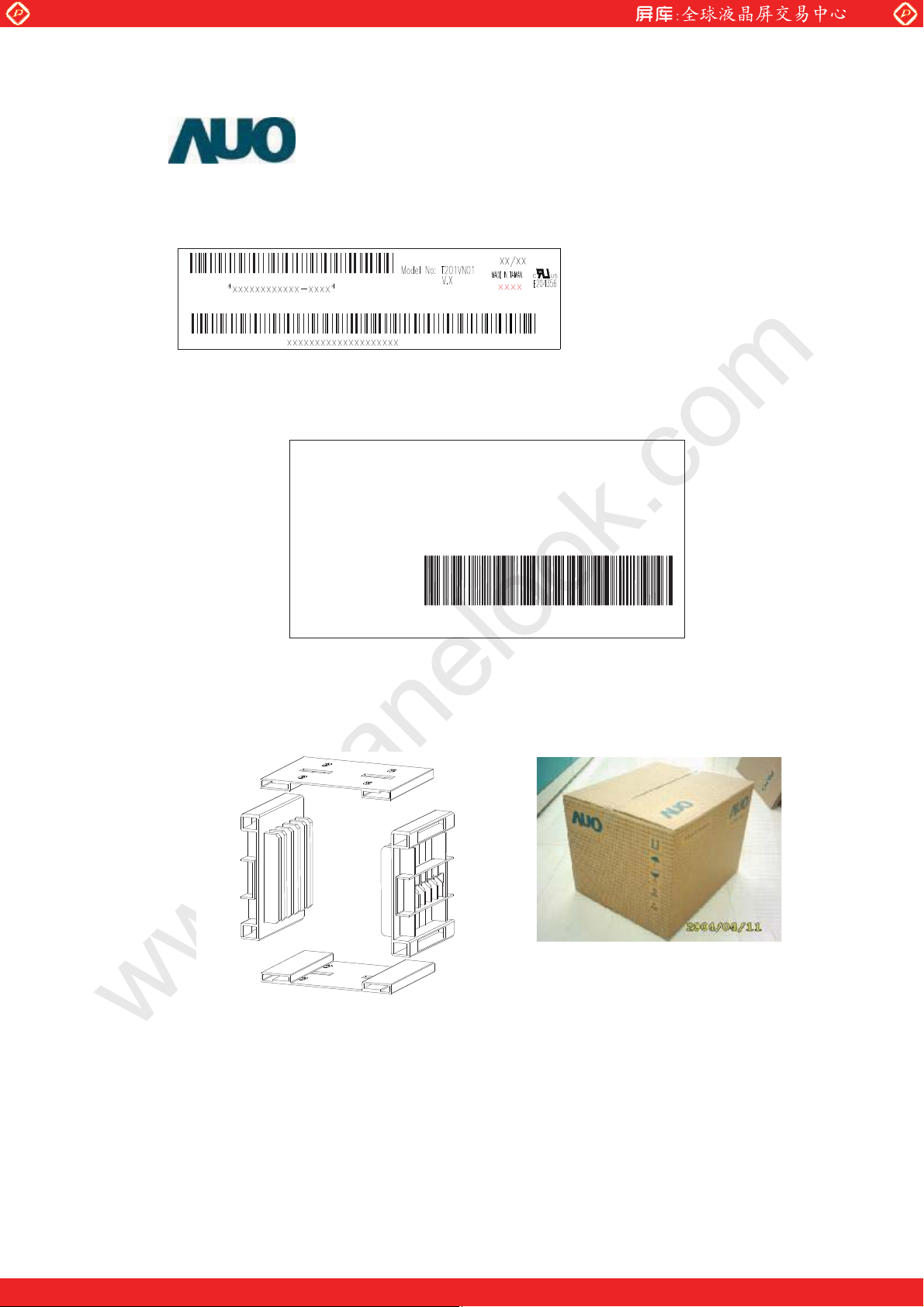

PACKING7
PRECAUTIONS8
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 1/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Version Date Chapter Description Remark
0 Nov. 15,’04 First release
0.1 Dec. 13,‘04 Update spec
0.2 Jan. 14,‘05 Update spec
0.3 Feb. 16,05 3 Add Electronic Block Diagram
3-1 Lamp life time update : Min.50000hr, Typ.60000hr
3-1
3-6 Power sequence update : t3 must be put comment.(450ms>t3
4 Viewing Angle update : Add Min. 80
6-1 Add UL6500 and IEC60065 Certificate number
www.panelook.com
Record of Revision
Inrush Current update : Max 5.7Typ.4.3, Max 4.8
200ms, keep black picture.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 2/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. General Description
This specification applies to the 20.1 inch Color TFT-LCD Module T201VN02 V0. This LCD module
has a TFT active matrix type liquid crystal panel 640x480 pixels, and diagonal size of 20.1 inch. This
module supports 640x480 VGA mode (Non-interlace). This module is without inverter.
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each
dot.
The T201VN02 V0 has been designed to apply the 8-bit TTL interface method. It is intended to support
displays where high brightness, wide viewing angle, high color saturation, and high color depth are
very important.
www.panelook.com
General Information
*
Items Specification Unit Note
Active Screen Size 20.1 inches
Display Area 408 (H) x 306(V) mm
Outline Dimension(typ.) 434.0(H) x 331.2(V) x 29.7(D) mm Without inverter
Driver Element a-Si TFT active matrix
Display Colors 16.7M Colors
Number of Pixels 640 x 480 Pixel
Pixel Arrangement RGB vertical stripe
Display Mode 0.6375(H) x 0.6375(W)
Surface Treatment AG+LR
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 3/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the
unit.
Parameter Symbol Min. Max. Unit Note
Power Input Voltage Vcc
Operating Temperature T
Storage Temperature H
Operating Ambient Humidity H
Storage Humidity H
www.panelook.com
-0.3 5.5 V
OP
ST
OP
ST
050 1
-20 60 1
10 90 %RH 1
10 90 %RH 1
dc
At 255
Note: 1. Temperature and relative humidity range are shown in the figure below. Wet bulb
temperature should be 39
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 4/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
3. Electrical Specification
3-1 Electrical Characteristics
The T201VN02 V0 requires two power inputs. One is employed to power the LCD electronics and
to drive the TFT array and liquid crystal. The second input which powers the CCFL, is typically
generated by an inverter.
www.panelook.com
Parameter Symbol
Min Typ Max
LCD:
Power Supply Input Voltage Vcc 4.5 5.0 5.5 Vdc
Power Supply Input Current Icc - 600 700 mA 1
Power Consumption Pc - 3.0. - Watt 1
Inrush Current I
TTL High threshold volt V
TTL Low threshold volt V
Lamp Power Consumption 41.04 W 2
Life Time 50000 60000 hr 3
The design of the inverter must have specifications for the lamp in LCD Assembly. The performance of
the Lamp in LCM, for example life time or brightness, is extremely influenced by the characteristics of
the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so as not to
produce too much leakage current from high-voltage output of the inverter. When you design or order
the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter
(no lighting, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in
the same condition as installed in your instrument.
RUSH
IH
IL
- 4.3 4.8 Apeak 1
2.7 - 3.6 V
0 - 0.7 V
Values
Unit Notes
Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape,
TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current
occurs between lamp wire and conducting tape.
The relative humidity must not exceed 80% non-condensing at temperatures of 40or less. At
temperatures greater than 40, the wet bulb temperature must not exceed 39. When operate at low
temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 5/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
Note1 : The specified current and power consumption are under the Vcc=5.0V, 25, fv= 60Hz,
fCLK=25.2Mhz condition whereas mosaic pattern (8x6) is displayed and fv is the frame
frequency.
Note2 : The lamp power consumption shown above does include loss of external inverter at 25
. The used lamp current is the lamp typical current
Note3 : The life is determined as the time at which luminance of the lamp is 50% compared to
that of initial value at the typical lamp current on condition of continuous operating at 25
2. The lamp current should fix in 4.2mA(typ.) and then keep the 60000hr(typ.) lamp
life
The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform (Asymmetry ratio is less than 10%). Please do not use the inverter
which has asymmetrical voltage and asymmetrical current and spike wave.
Requirements for a system inverter design which is intended to have a better display
performance, a better power efficiency and a more reliable lamp.
It shall help increase the lamp lifetime and reduce its leakage current.
a. The asymmetry rate of the inverter current and voltage waveform should be 10%
below;
b. The distortion rate of the current and voltage waveform should be within 210%;
c. The ideal sine current and voltage waveform shall be symmetric in positive and
negative polarities.
www.panelook.com
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 6/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
3-2 Interface Connections
LCD connector (CN1) : FH12-50S-0.5SH (Hirose) or equivalent
-
P/N Symbol Function P/N Symbol Function
1 NC 26 R0 Red Data
2 NC 27 GND Ground
3NC 28G7
4 GND Ground 29 G6
5 GND Ground 30 G5
6 V
CC
7 V
CC
8 V
CC
9 V
CC
10 GND 35 G1
11 NC 36 G0
12 NC 37 GND Ground
www.panelook.com
Green Data
31 G4
32 GND Ground
Power Input (+5.0V)
33 G3
34 G2
Green Data
13 GND 38 B7
14 DE Data Enable 39 B6
15 GND 40 B5
16 DCLK Dot Clock 41 B4
17 GND Ground 42 GND Ground
18 R7 43 B3
19 R6 44 B2
20 R5 45 B1
21 R4
22 GND Ground 47 GND Ground
23 R3 48 GND Ground
24 R2 49 NC
25 R1
Note: All GND (ground) pins should be connected together and to Vss which should also be
connected to the LCD’s metal frame. All Vcc (power input) pins should be connected
together.
Red Data (R7 :MSB)
46 B0
Red Data
50 NC
Blue Data
Blue Data
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 7/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center

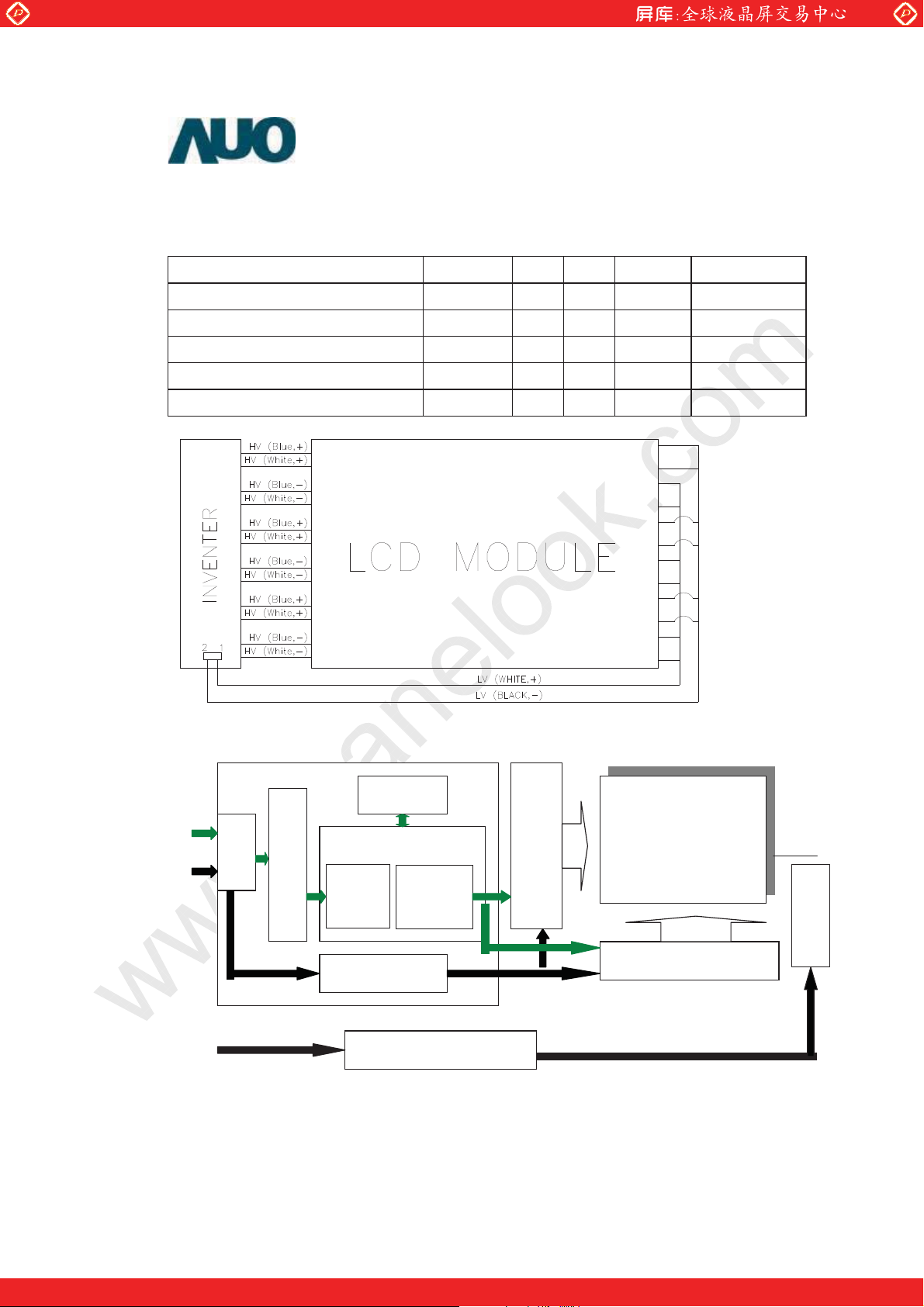

Transmitter (TTL to LVDS)
12
CCFL BL Unit
Backlight Connector Pin Configuration
Electrical specification (Lamp spec.)
Parameter Min Typ Max Units Condition
CCFL current(ICFL) 4.0(Ref) 4.2 7.0 [mA] rms
CCFL Frequency(FCFL) 40 55 60 [KHz]
CCFL Ignition Voltage(Vs) 1510 - - [Volt] rms
CCFL Voltage (Reference) (VCFL) - 760 - [Volt] rms
CCFL Power consumption (PCFL) - 41.04 - [Watt]
www.panelook.com
(Ta=25)
(Ta=25)
(Ta= 0)
(Ta=25)
(Ta=25)
Module Block Diagram
Gate Driver IC (G1~G48)
TTL
Signal
Vcc
Connector
Rohm AUO012-BU7829KV2
DC Power
SDRAM
LVDS
Receiver
DC/DC Converter
TFT-LCD
(640*3)*480 pixels
Timing
Controller
Source Driver IC (D1~D1920)
Inverter
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 8/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center

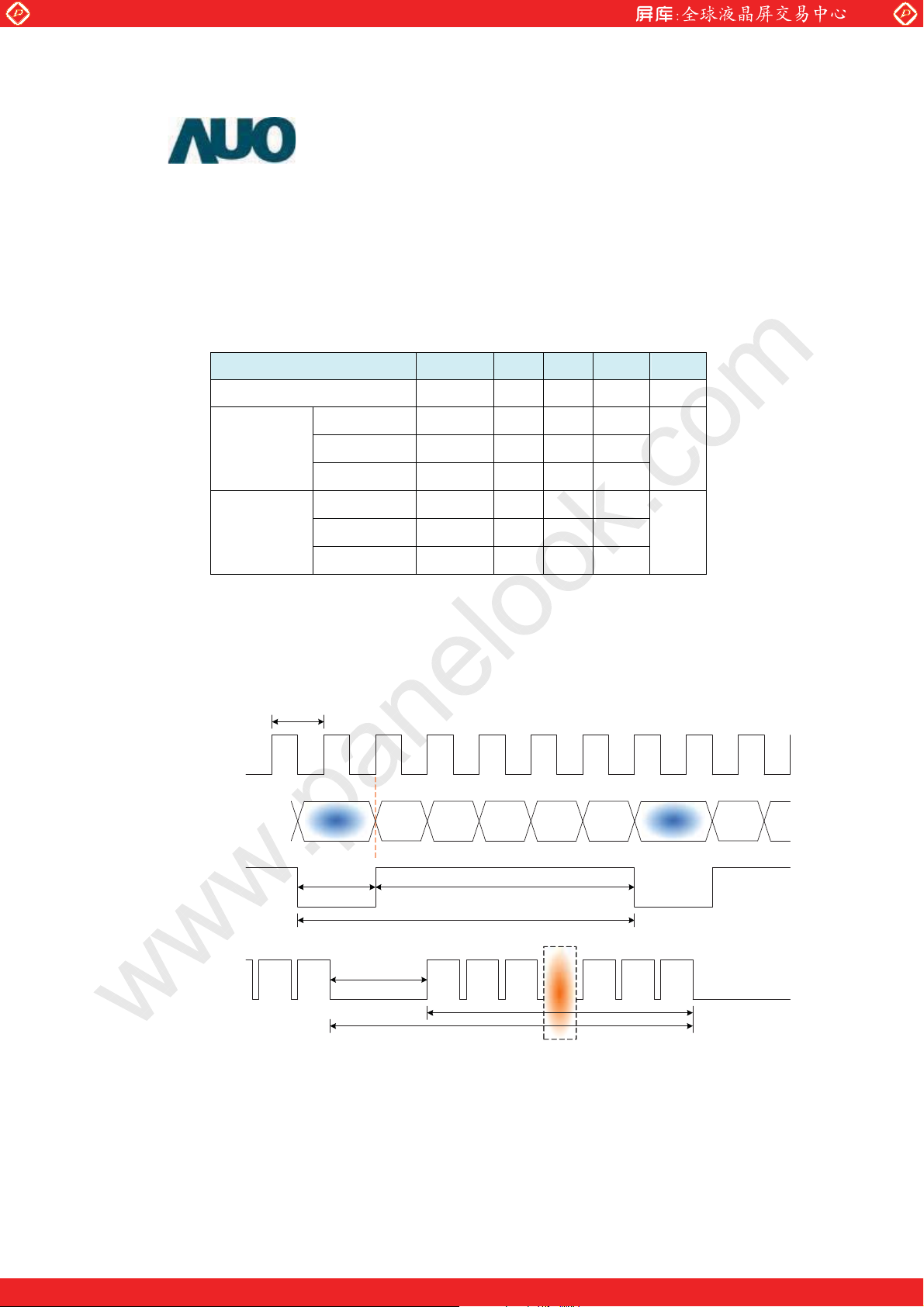

3-3 Signal Timing Specifications
This is the signal timing required at the input of the User connector. All of the interface signal timing
should be satisfied with the following specifications for it’s proper operation.
Timing Table (DE mode only)
Parameter Symbol Min. Typ. Max. Unit
www.panelook.com
Clock frequency 1/ T
Period T
Vertical
Section
Active T
Blanking T
Period T
Horizontal
Section
Active T
Blanking T
3-4 Signal Timing Waveforms
DOTCLK
Input
Data
T
CLOCK
Invaild
Data
Input Timing Definition ( DE Mode)
Pixel1Pixel2Pixel3Pixel
Clock
V
VD
VB
H
HD
HB
20 25.18 30 MHz
520 525 622
480 480 480
T
Line
40 45 142
770 800 1070
640 640 640
T
Clock
130 160 430
N-1
Pixel
N
Invaild
Data
Pixel
1
DE
DE
T
HB
T
VB
T
HD
T
H
T
VD
T
V
Note : Since this is DE only mode, please set the HS and VS to logic 1.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 9/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
3-5 Color Input Data Reference
The brightness of each primary color (red, green and blue) is based on the 8 bit gray scale data input
for the color; the higher the binary input, the brighter the color. The table below provides a reference for
color versus data input.
Color
MSB
LSB
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Black 0 0 0000000000000000000000
Red(255) 1 1 1111110000000000000000
Green(255) 0 0 0000001111111100000000
Basic
Color
Blue(255) 0 0 0000000000000011111111
Cyan 000000001111111111111111
Magenta 1 1 1111110000000011111111
Yellow 1 1 1111111111111100000000
www.panelook.com
COLOR DATA REFERENCE
Input Color Data
RED
MSB
LSB
GREEN
BLUE
MSB
LSB
RED
GREEN
BLUE
White 1 1 1111111111111111111111
RED(000) 0 0 0000000000000000000000
RED(001) 0 0 0000010000000000000000
----
RED(254) 1 1 1111100000000000000000
RED(255) 1 1 1111110000000000000000
GREEN(000) 0 0 0000000000000000000000
GREEN(001) 0 0 0000000000000100000000
----
GREEN(254) 0 0 0000001111111000000000
GREEN(255) 0 0 0000001111111100000000
BLUE(000) 0 0 0000000000000000000000
BLUE(001) 0 0 0000000000000000000001
-------
BLUE(254) 0 0 0000000000000011111110
BLUE(255) 0 0 0000000000000011111111
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 10/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
3-6 Power Sequence
Panel Vcc
Signals
www.panelook.com
BLU
Values
Units
Parameter
Min. Typ. Max.
t1 0.47 - 10 ms
t2 0 - 50 ms
t3 450 (Note1) --ms
t4 100 - - ms
t5 0 - 50 ms
t6 - - 500 ms
t7 1000 - - ms
Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD
operation or the LCD turns off before the backlight turns off, the display may momentarily become
abnormal.
Caution : The above on/off sequence should be applied to avoid abnormal function in the display. In
case of handling, make sure to turn off the power when you plug the cable into the input connector or
pull the cable out of the connector.
Note1 : The 450ms timing is separated into 2 parts and each one has following characteristic:
0~200ms : If t3 setting is in this timing period, it will have the risk of abnormal display
200~450ms : Black pattern display
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 11/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30
minutes in a dark environment at 25. The values specified are at an approximate distance 50cm
from the LCD surface at a viewing angle of and equal to 0.
www.panelook.com
PR880 or equivalent
Fig.4-1 Optical measurement equipment and method
Parameter
Symbol
Values
Units Notes
Min. Typ. Max.
Contrast Ratio CR 450 600 - 1
Surface Luminance, white LWH 400 500 -
Luminance Variation
5 p - - 1.25 3
WHITE
cd/
Response Time Tr - 15 25 4
Response Time Tf - 10 20 4
Response Time (Gray to Gray, Average)
T
-1625ms 5
Color Coordinates - - -
RED R
R
GREEN G
G
BLUE B
B
WHITE W
W
X
Y
X
Y
X
Y
X
Y
TYP.
-0.03
0.644
0.333
0.273
0.604
0.145
0.064
0.282
0.284
TYP.
+0.03
Color Saturation 72 75 - %
2
Viewing Angle (Contrast Ration>10)
x axis, right(=0)
x axis, left(=180)
y axis, up(=90)
y axis, down (=0)
r
l
u
d
80 85 - Degree 5
80 85 -
80 85 -
80 85 -
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 12/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
Note:
1. Contrast Ratio (CR) is defined mathematically as:
www.panelook.com
Contrast ratio (CR)=
2. Surface luminance is luminance value at point 1 across the LCD surface 50cm from the surface with
all pixels displaying white. From more information see FIG 4-2. When I
(typ.) L
3. The variation in surface luminance, WHITE is defined (center of Screen) as:
=Lon1, Where Lon1 is the luminance with all pixels displaying white at center 1 location.
WH
Fig.4-2 Optical measurement point
WHITE(5P)
=Maximum(L
Brightness on the "white" state
Brightness on the "black" state
, L
on1
on2
,…,L
)/Minimum(L
on5
= 4.2mA, LWH=500cd/
BL
, L
on1
on2
,…L
on5
)
4. Response time is the time required for the display to transition from white(L255) to black(L0) (Decay
Time, Tr
FIG4-3.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 13/21
No Reproduction and Redistribution Allowed
=Tf) and from black(L0) to white(L255) (Rise Time, TrR=Tr). For additional information see
D
TrD
Fig.4-3 Response time
TrR
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center

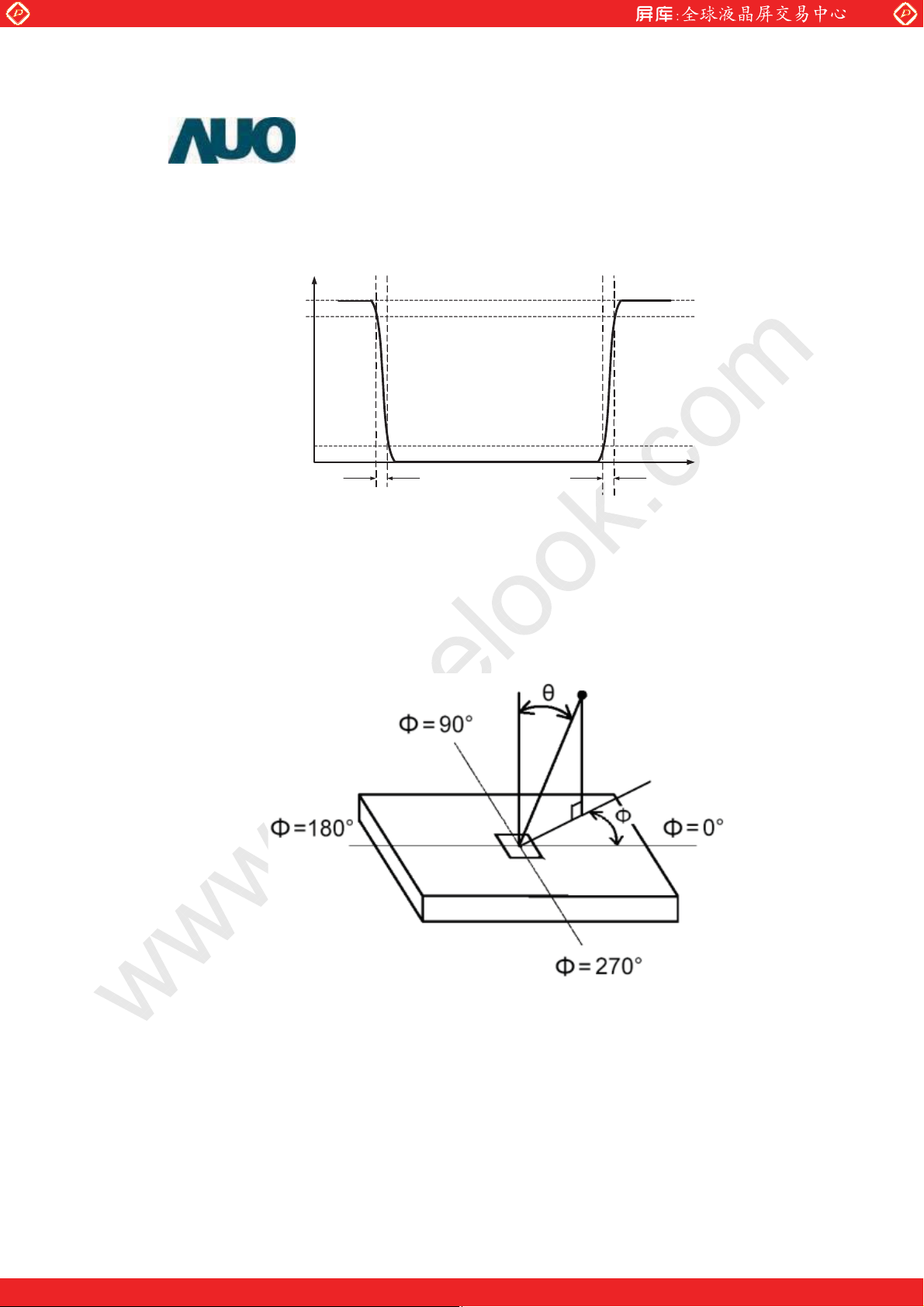

5. The response time is defined as the following figure and shall be measured by switching the input
signal for different gray level. For additional information see FIG4-4
www.panelook.com
100%
90%
L0,15,L31,.L255
L0,15,L31,
.L255
Luminance
10%
0%
Tr
6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined
for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the
LCD surface. For more information see FIG4-5.
L0,15,L31,.L255
D
Fig.4-4 Response time
Tr
Time
R
Fig.4-5 Viewing Angle Definition
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 14/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model T201VN02 V0. In addition the
figures in the next page are detailed mechanical drawing of the LCD.
Outline Dimension
Weight 2100g (Typ.)
Surface Treatment AG,3H
www.panelook.com
Horizontal 434.0mm
Vertical 331.2mm
Depth 29.7mm(w/o inverter)
Horizontal 412.0mmBezel Area
Vertical 310.0mm
Horizontal 408.0mmActive Display Area
Vertical 306.0mm
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 15/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center

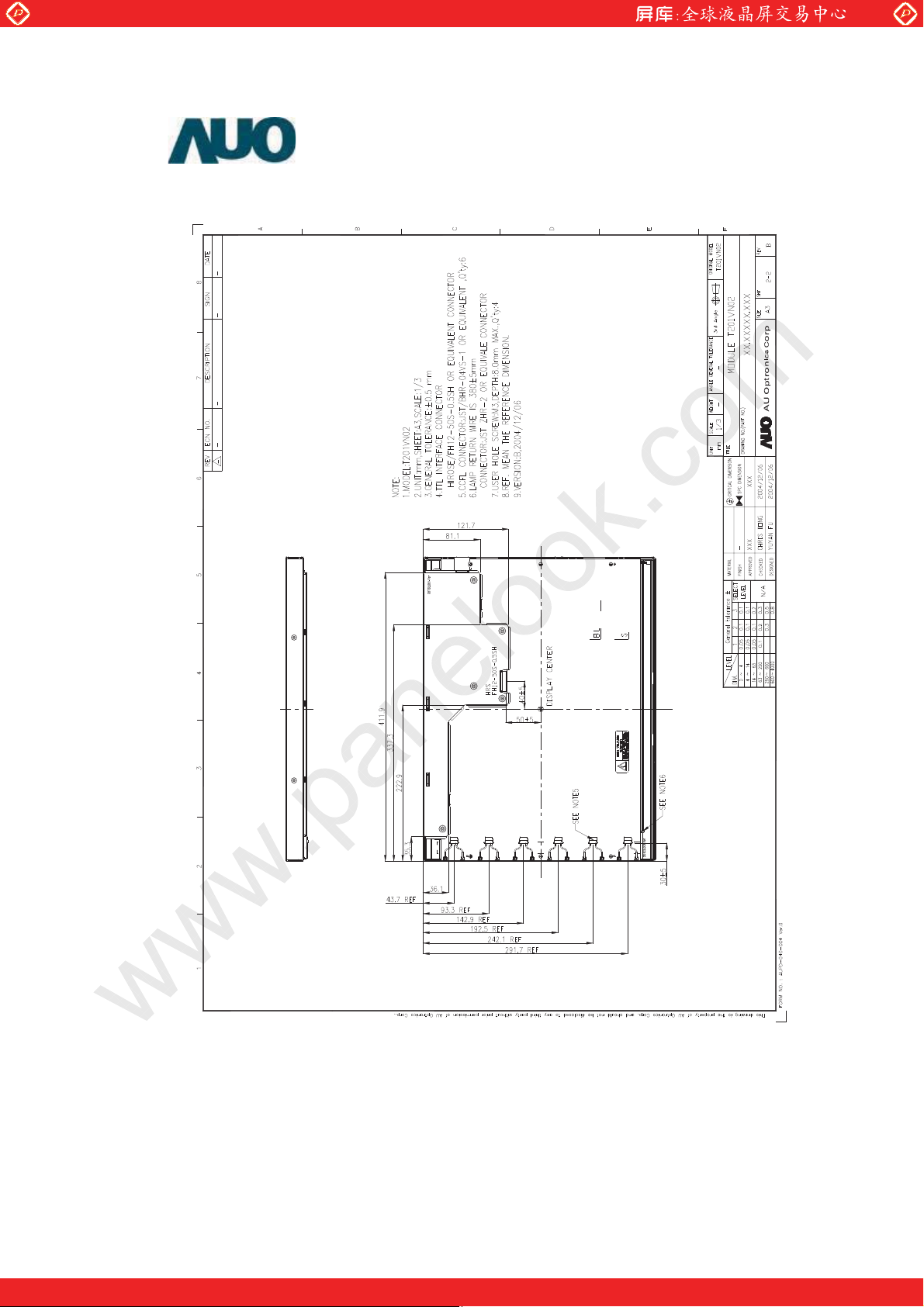

Front View
www.panelook.com
.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 16/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
Rear View
www.panelook.com
.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 17/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6. International Standard
6-1. Safety
(1) UL6500, Underwriters Laboratories, Inc. (AUO file number : E204356)
Standard for Safety of Information Technology Equipment Including electrical Business
Equipment.
(2) CAN/CSA C22.2 No. 950-95 Third Edition, Canadian Standards Association, Jan. 28, 1995
Standard for Safety of Information Technology Equipment Including Electrical Business
Equipment.
(3) EN60950 : 1992+A2: 1993+A2: 1993+C3: 1995+A4: 1997+A11: 1997
IEC 950: 1991+A1: 1992+A2: 1993+C3: 1995+A4:1996
IEC 60065 (AUO Certificate number : JPTUV-008549)
European Committee for Electro technical Standardization (CENELEC)
EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical
Business Equipment.
www.panelook.com
6-2. EMC
a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electrical Equipment in the Range of 9kHz to 40GHz. “American National standards
Institute(ANSI), 1992
b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.” International Special committee on Radio Interference.
c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information
Technology Equipment.” European Committee for Electrotechnical Standardization. (CENELEC),
1998
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 18/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
A
7. Packing
Label Sample
Carton Label
www.panelook.com
UO
ptronics
MODEL NO: T201VN02 VX
PART NO: 97.20T03.XXX
CUSTOMER NO:
CARTON NO:
Made in Taiwan
Cushion set Carton Box, 330mm(W)x580mm(L)x420mm(H)
*PM100-01A1600001*
QTY: 5
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 19/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center

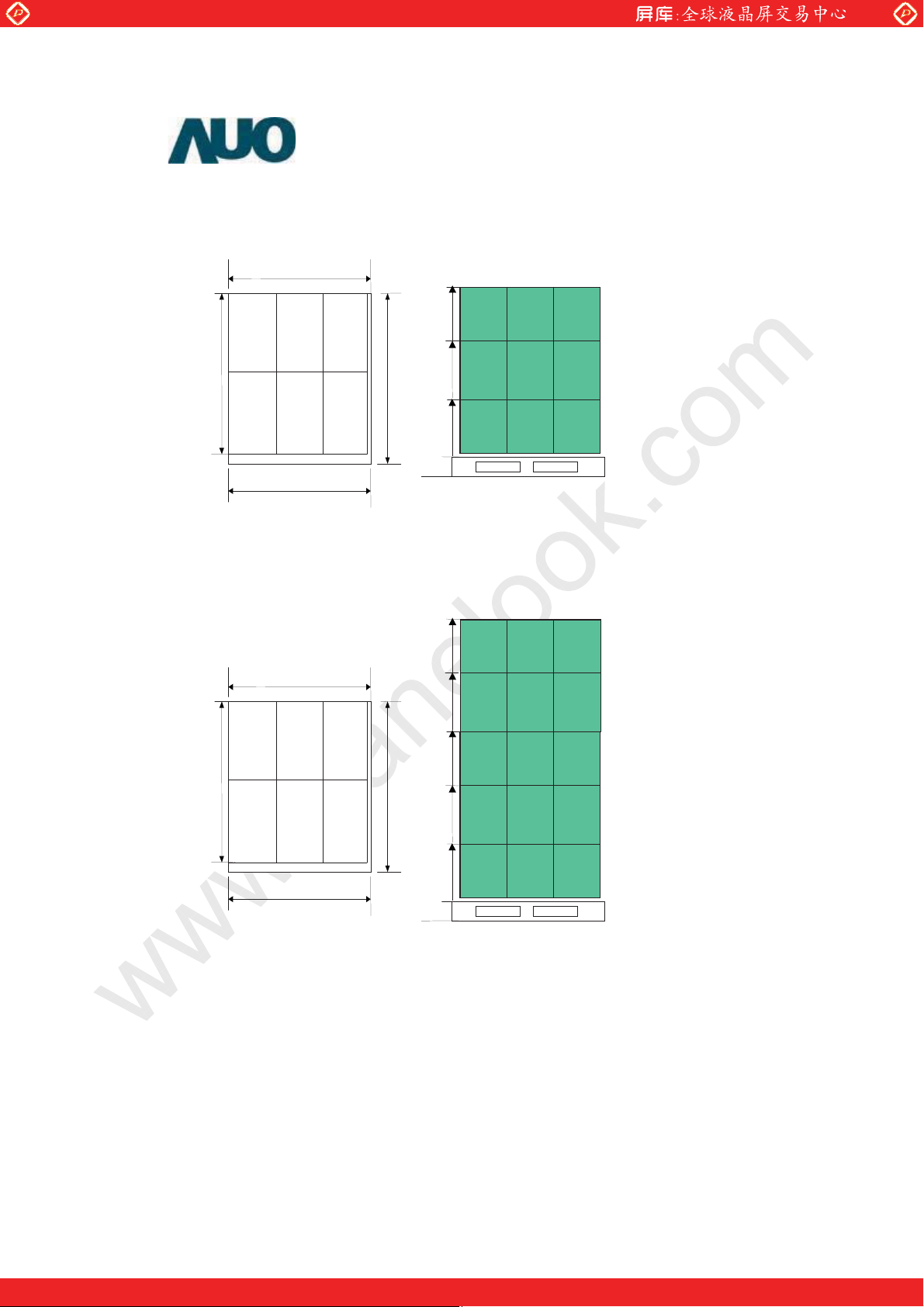

Pallet Package
Air Cargo : (3 *2) *3 layers, total 18 boxes with 90 pcs panel in one pallet
1000
www.panelook.com
1380
960
1200
540
1160
330
580
120
990
Top view Side view
Ocean shipping : (3 *2) *5layers, total 30 boxes with 150 pcs panel in one pellet
2220
1000
1800
1380
1160
330
1200
960
580
540
990
120
Top view Side view
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 20/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
8. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
8-1 MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not
applied to module. And the case on which a module is mounted should have sufficient strength so
that external force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the
polarizer. Transparent protective plate should have sufficient strength in order to the resist external
force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the
former generates corrosive gas of attacking the polarizer at high temperature and the latter causes
circuit break by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than
HB pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the
surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the
polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft
materials like chamois soaks with petroleum benzene. Normal-hexane is recommended for
cleaning the adhesives used to attach front/ rear polarizers. Do not use acetone, toluene and
alcohol because they cause chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer
causes deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
www.panelook.com
8-2 OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than following
voltage: V=200mV(Over and under shoot voltage)
(2) Response time depends on the temperature. (In lower temperature, it becomes
longer..)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.) And
in lower temperature, response time (required time that brightness is stable after turned
on) becomes longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 21/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
damage to polarizer or electrical contacted parts. And after fading condensation, smear
or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference shall be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interface.
8-3 ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make
certain that treatment persons are connected to ground through wrist band etc. And don’t touch
interface pin directly.
www.panelook.com
8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
8-5 STORAGE
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5 and 35 at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is recommended that
they be stored in the container in which they were shipped.
8-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) The protection film is attached to the bezel with a small masking tape. When the protection film is
peeled off, static electricity is generated between the film and polarizer. This should be peeled off
slowly and carefully by people who are electrically grounded and with well ion-blown equipment or
in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains
a very small amount of flue still on the Bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the Bezel or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with
normal-hexane.
©Copyright AU Optronics, Inc.
January, 2004 All Rights Reserved. T201VN02 V0 Ver0 22/21
No Reproduction and Redistribution Allowed
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
