P500HVF01.0 Product Specification
Rev. 0.0
Issue Date : 2012/11/14
Customer Signature Date AUO Date
Approved By
_________________________________
Note
Approval By PM Director
Paley Fang
____________________________________
Reviewed By RD Director
Eugene Chen
____________________________________
Reviewed By Project Leader
Mingyu Yu
____________________________________
Prepared By PM
Rafael Lu
____________________________________
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 1 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
Rev. 0.0
Contents
No
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATION
3-1 POWER SPECIFICATIONS
3-2 SIGNAL ELECTRICAL CHARACTERISTICS
3-3 CONNECTOR
3-4 HDMI CONNECTOR PIN ASSIGNMENT
3-5 COLOR INPUT DATA REFERENCE
4 OPTICAL SPECIFICATION
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY TEST ITEMS
7 PACKING
7-1 DEFINITION OF LABEL
7-2 PACKING METHODS
7-3 PALLET AND SHIPMENT INFORMATION
8 PRECAUTION
8-1 MOUNTING PRECAUTIONS
8-2 OPERATING PRECAUTIONS
8-3 ELECTROSTATIC DISCHARGE CONTROL
8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
8-5 STORAGE
8-6 HANDLING PRECAUTIONS FOR PROTECT FILM
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 2 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Record of Revision
Version Date Page Description
0.0 2012/11/14 First release
www.panelook.com
P500HVF01.0 Product Specification
Rev. 0.0
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 3 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
1. General Description
This specification applies to the 50 inch Integrated Transparent LCD Module, P500HVF01.0. This module
consists of a TFT LCD panel, a metal frame and a driver board with shield cover. The Module has a TFT active
matrix type liquid crystal panel with 1920 x 1080 pixels and displays up to 16.7M colors. The P500HVF01.0 has
been designed to apply HDMI interface for easy use. It is intended to support applications such as shopping
window, exhibition cabinet, vending machine, etc.
* General Information
Items Specification Unit Note
Rev. 0.0
Active Screen Size 50 inch
Display Area 1095.84 (H) x 616.41 (V) mm
Outline Dimension 1147.84(V) x 704.91(H) x 22(D) mm (Dmax)
Driver Element a-Si TFT active matrix
Display Colors 8 bit, 16.7M Colors
Number of Pixels 1920 x 1080 Pixel
Pixel Pitch 0.1903*0.5708 mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black
Surface Treatment Anti-Glare, 3H Haze 2%
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 4 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
2. Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause faulty operation or damage to the unit
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VDD -0.3 14 [Volt] Note 1
Input Voltage of Signal Vin -0.3 4 [Volt] Note 1
Operating Temperature TOP 0 +50 [oC] Note 2
Operating Humidity HOP 10 90 [%RH] Note 2
Storage Temperature TST -20 +60 [oC] Note 2
Storage Humidity HST 10 90 [%RH] Note 2
Panel Surface Temperature PST - 65 [oC] Note 3
Rev. 0.0
Note 1: Duration:50 msec.
Note 2 : Maximum Wet-Bulb should be 39 and No condensation.
The relative humidity must not exceed 90% non-condensing at temperatures of 40 or less. At temperatures
greater than 40 , the wet bulb temperature must not exceed 39 .
Note 3: Surface temperature is measured at 50
кк
к
к
Dry condition
к
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 5 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
3. Electrical Specification
The P500HVF01.0 requires one power input. It is employed to power the LCD electronics and to drive the TFT
array and liquid crystal.
3.1 Power Specifications
Input power specifications are as followings:
Symbol Parameter Min Typ Max Unit Conditions
Rev. 0.0
VDD
IDD Input Current - 1.2 1.4 [A]
PDD VDD Power - 14.4 18.48 [Watt]
LCD Drive Voltage
10.8 12.0 13.2 [Volt] +/-10%
VDD= 12.0V,All white
Pattern, At 60Hz
VDD= 12.0V,All white
Pattern, At 60Hz
3.2 Signal Electrical Characteristics
Input signals shall be HDMI.
It is recommended to refer the specifications of VESA in details.
3.3 Connector
Physical interface is described as follows for the connector on module. These connectors are
capable of accommodating the following signals and will be following components.
HDMI Connector
Manufacturer SINGATRON or compatible
Type Part Number 2HE.51U1.N08
DC Jack
Manufacturer ဏཆ壄യڶૻֆ or compatible
Type Part Number
HF-DX-00330-AE100ASH1
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 6 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
3.4 HDMI Connector Pin Assignment
PIN # NAME
1 HDMI2+
2 HDMI_WP
3 HDMI2-
4 HDMI1+
5 GND
6 HDMI1-
7 HDMI0+
8 GND
9 HDMI0-
www.panelook.com
P500HVF01.0 Product Specification
Rev. 0.0
10 HDMICK+
11 GND
12 HDMICK-
13 NC
14 GND
15 HDMI_SCL
16 HDMI_SDA
17 GND
18 HDMI_5V1
19 HP_DET_HDMI
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 7 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
3.5 Color Input Data Reference
The brightness of each primary color (red, green and blue) is based on the 10 bit gray scale data input for the color;
the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.
Color Data Reference
Input Color Data
Rev.0.0
Color
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
Basic
Blue(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
Color
ʳ
Cyan 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
ʳ
Magenta 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
ʳ
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(001) 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
R
ʳ
----
RED(1022) 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(1023) 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
MSB LSB
R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
RED
MSB LSB
ʳʳʳʳʳʳʳʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ
GREEN
BLUE
MSB LSB
GREEN(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
G
ʳ
----
GREEN(1022) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0
GREEN(1023) 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
BLUE(000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE(001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
B
ʳ
----
BLUE(1022) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0
BLUE(1023) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
ʳʳʳʳʳʳʳʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ
ʳʳʳʳʳʳʳʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ ʳ
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 8 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
4. Optical Specification

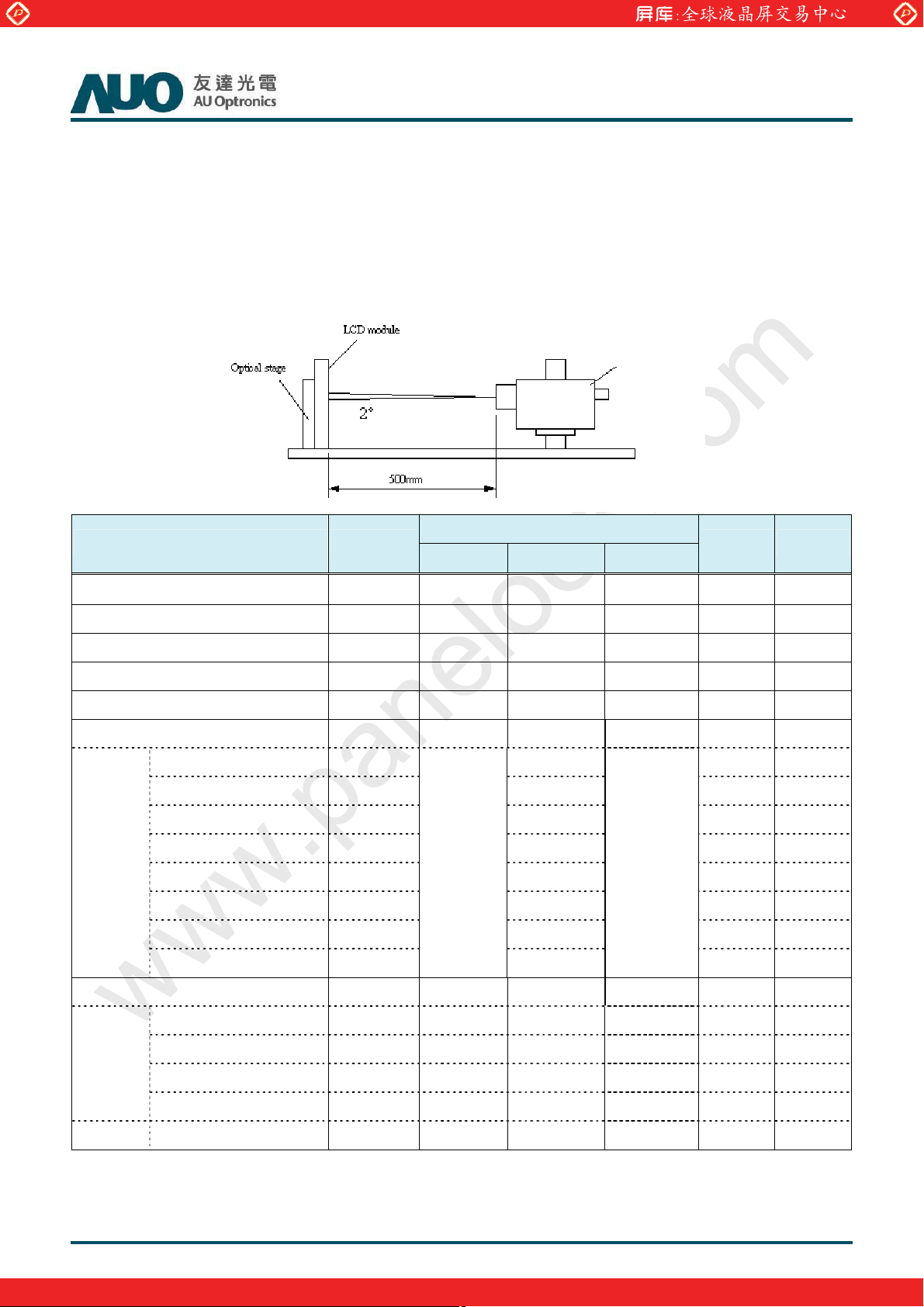

Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a
dark environment at 25°C. The values specified are at an approximate distance 50cm from the LCD surface at a
viewing angle of ij and ș equal to 0°.
Fig.1 presents additional information concerning the measurement equipment and method.
SR3 or equivalent
Rev.0.0
Parameter Symbol
Min. Typ. Max
Contrast Ratio(2D) CR 3200 4000 -- 1
Surface Luminance (White) L
Luminance Variation į
280 360 -- cd/m2 2
WH
WHITE(9P)
-- -- 1.33 3
Response Time (G to G) TȖ -- 8 -- Ms 4
Color Gamut NTSC 72 %
Color Coordinates
Red RX 0.630
R
0.330
Y
Green GX 0.320
G
0.620
Y
Typ.-0.03
Blue BX 0.150
B
0.040
Y
White WX 0.280
Values
Unit Notes
Typ.+0.03
W
Y
0.290
Viewing Angle 5
x axis, right(ij=0°) ș r -- 89 -- degree
x axis, left(ij=180°) ș l -- 89 -- degree
y axis, up(ij=90°) ș u -- 89 -- degree
y axis, down (ij=270°) ș
x axis, left + right ș
-- 89 -- degree
d
100 degree 6,7
l +șr
Note:
1. Contrast Ratio (CR) is defined mathematically as:
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 9 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
Surface Luminance of
Contrast Ratio=
Surface Luminance of
2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels
displaying white. From more information see FIG 2.
3. The variation in surface luminance, į WHITE is defined (center of Screen) as:
L
on5
L
off5
Rev.0.0
į
WHITE(9P)
4. Response time 7
luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on F
= Maximum(L
ӫʳ
is the average time required for display transition by switching the input signal for five
on1
, L
on2
,…,L
)/ Minimum(L
on9
on1
, L
on2
,…L
on9
)
=60Hz to optimize. From more
v
information see FIG 3.
Measured
Response Time
0% 25% 50% 75% 100%
Target
0% 0% to 25% 0% to 50% 0% to 75% 0% to 100%
25% 25% to 0% 25% to 50% 25% to 75% 25% to 100%
Start
50% 50% to 0% 50% to 25% 50% to 75% 50% to 100%
75% 75% to 0% 75% to 25% 75% to 50% 75% to 100%
100% 100% to 0% 100% to 25% 100% to 50% 100% to 75%
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the
horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For
more information see FIG4.
6. head in 0 degrees vertical angle from mid axis

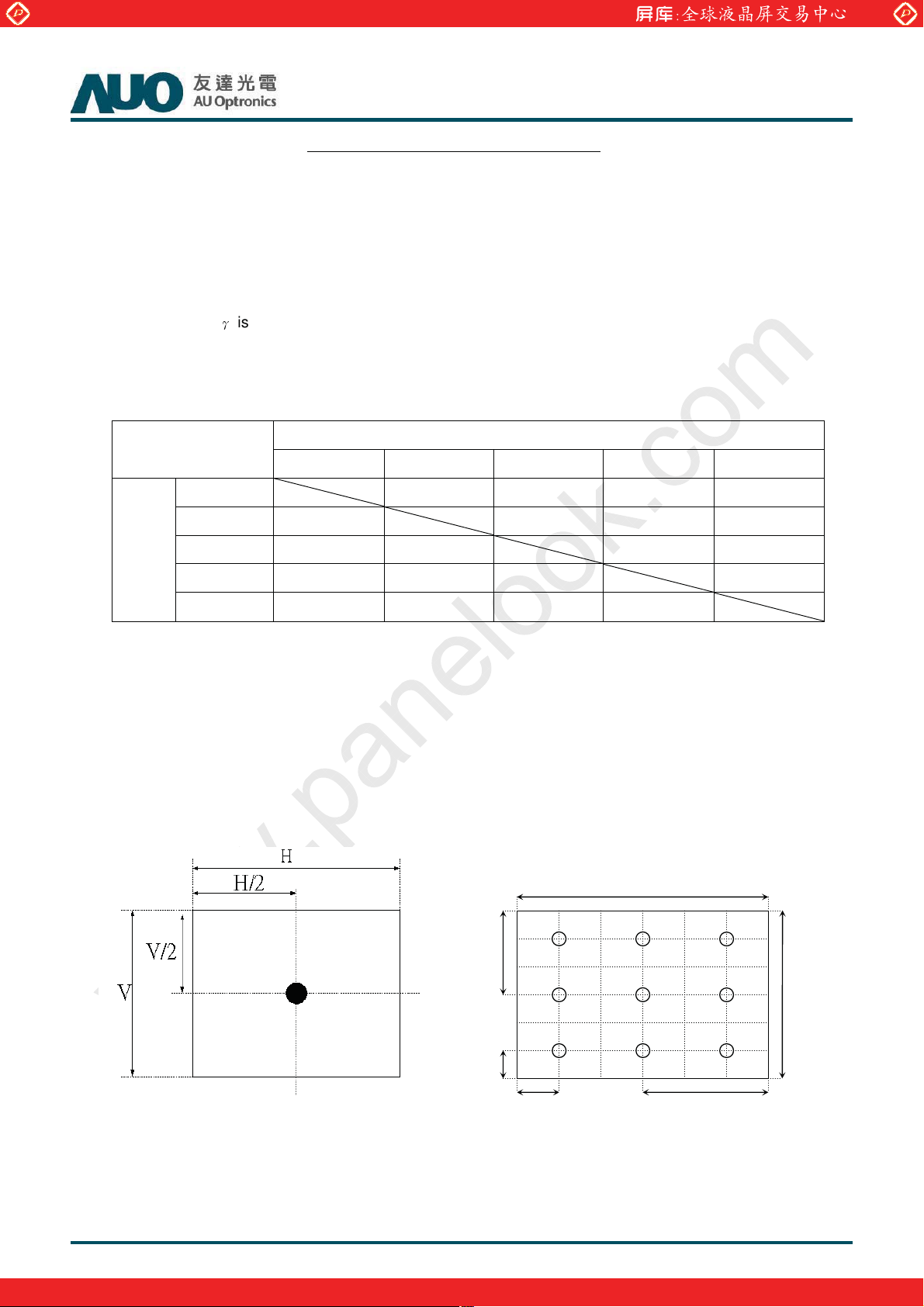

FIG. 2 Luminance
V
2
H/2
H/6
1
7
H
V/2 V/6
FIG.3 Response Time

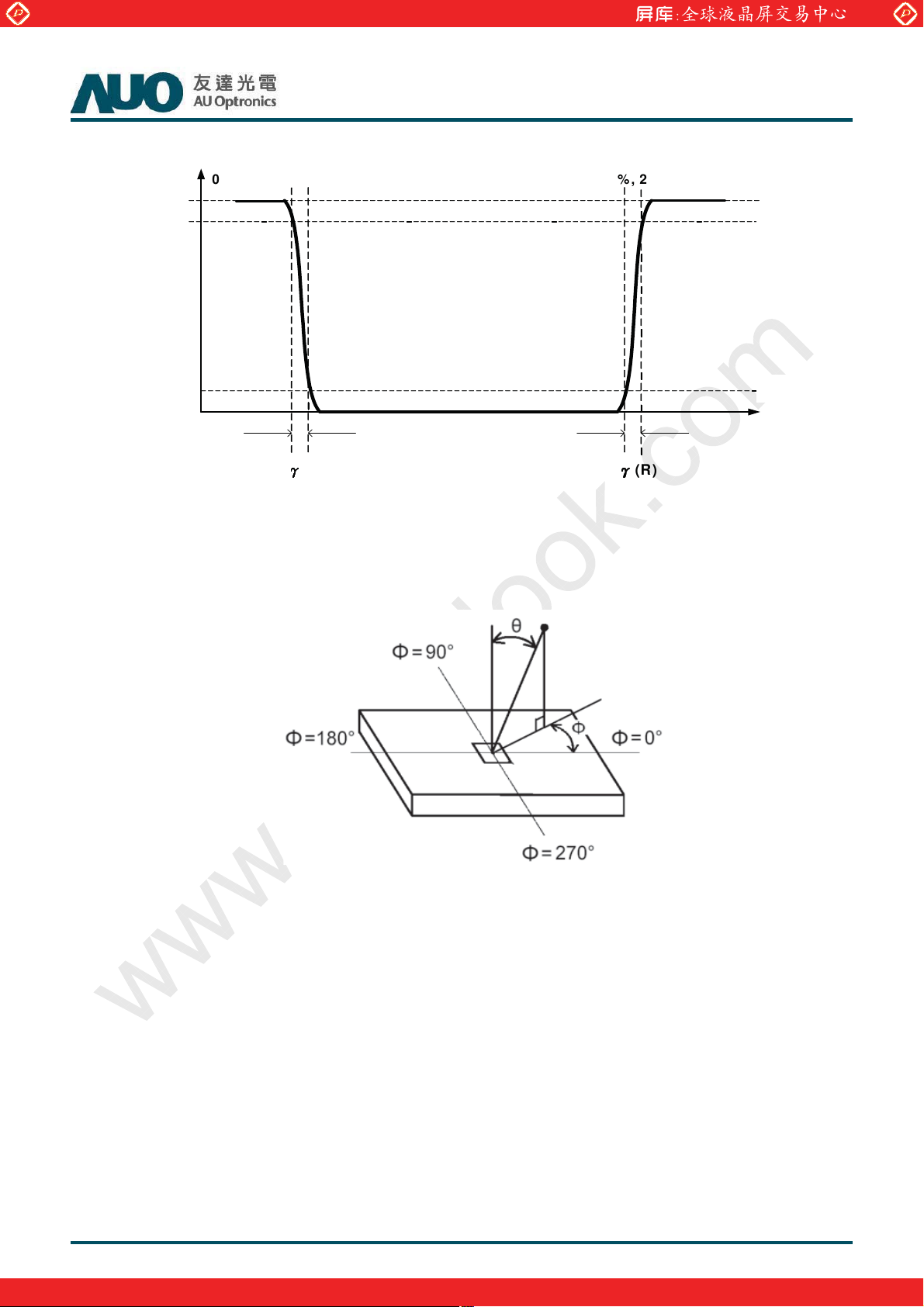

The response time is defined as the following figure and shall be measured by switching the input signal for “any
level of grey(bright) “ and “any level of gray(dark)”.
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 10 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
Any level of gray (Bright) Any level of gray (Dark) Any level of gray (Bright)
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
Photodetector
Output
FIG.4 Viewing Angle
0%, 25%, 50%, 75%, 100%
0%, 25%, 50%, 75%, 100%
T
ӫ ӫ ӫ ӫ
(F)
0%, 25%, 50%, 75%, 100%
90%
10%
Time
T
ӫ ӫ ӫ ӫ
(R)
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 11 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
5. Mechanical Characteristics
The contents provide general mechanical characteristics for the model P500HVF01.0. In addition the figures in the
next page are detailed mechanical drawing of the LCD.
Horizontal 1147.84mm
Rev.0.0
Outline Dimension
Bezel Opening
Active Display Area
Weight 5000 g (Typ.)
Surface Treatment AG, 3H
Vertical 704.91mm
8.3mm
Depth
(thinnest)
Horizontal 1100.84mm
Vertical 621.41mm
Horizontal 1095.84mm
Vertical 616.41mm
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 12 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
Rev.0.0
P500HVF01.0 Product Specification
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

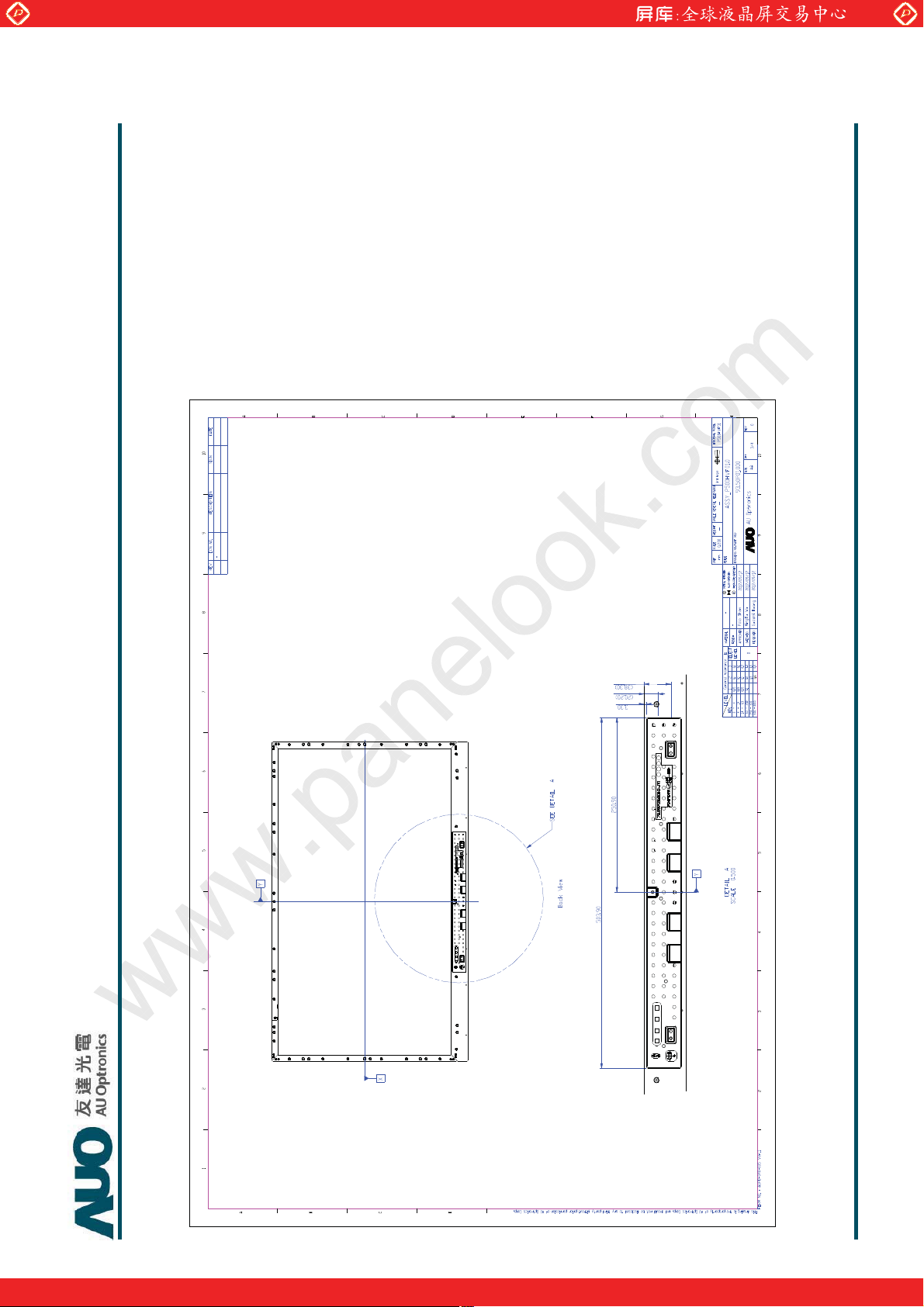

Front View
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 13 / 20
www.panelook.com
Page 14
Global LCD Panel Exchange Center
Rev.0.0
P500HVF01.0 Product Specification
www.panelook.com

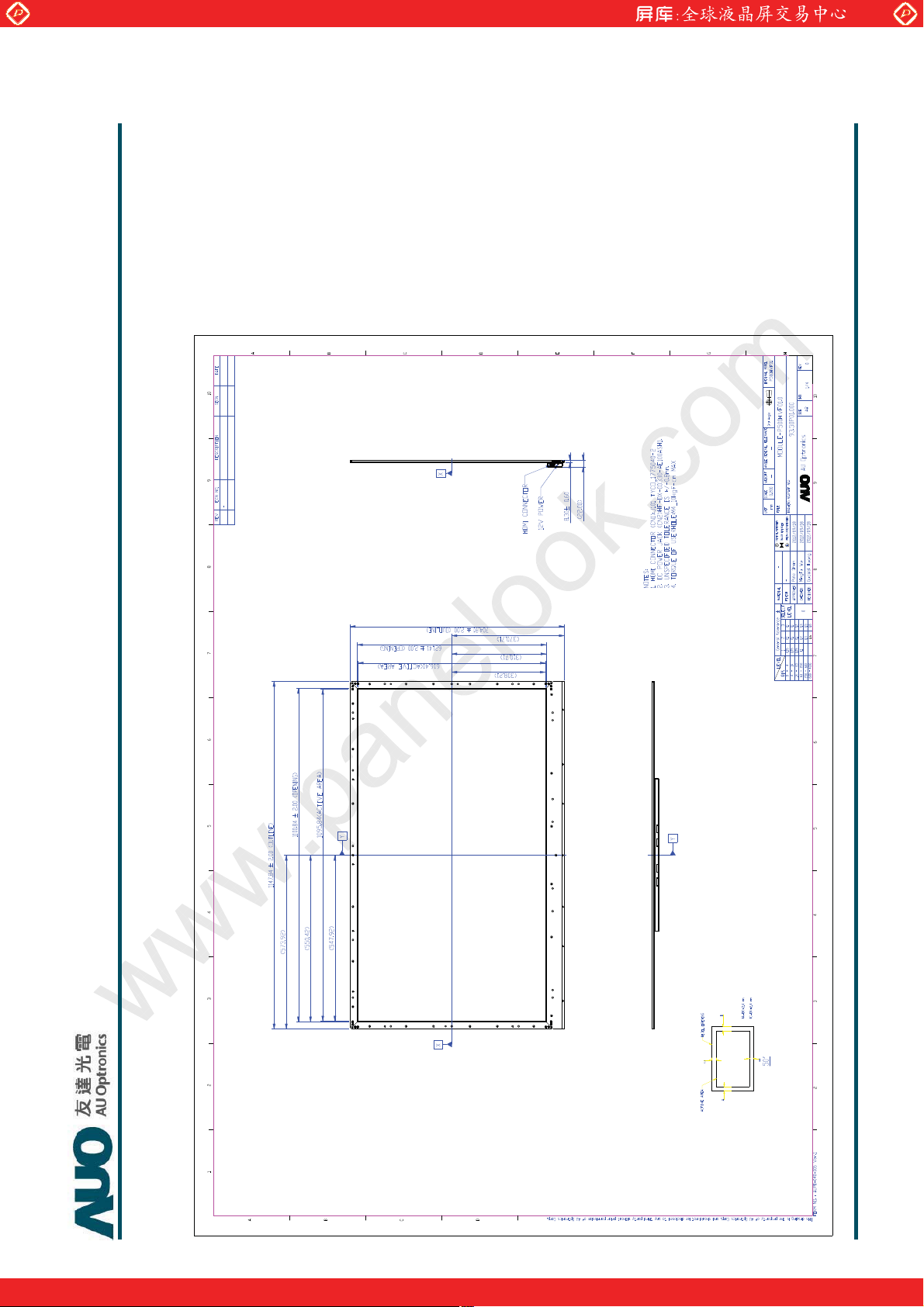

Back View
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 14 / 20
www.panelook.com
Page 15
Global LCD Panel Exchange Center
6. Reliability Test Items
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
1 High temperature storage test 3 60к , 300hrs
2 Low temperature storage test 3 -20к , 300hrs
3 High temperature operation test 3 50к , 300hrs
4 Low temperature operation test 3 -5к , 300hrs
5 Vibration test (With carton) 5
6 Drop test (With carton) 5
Test Item Q’ty Condition
Random wave (1.05G RMS, 10-200Hz)
10mins/ Per each X,Y,Z axes
Height: 25.4 cm
Direction: Only bottom flat twice
(ASTMD4169-I)
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 15 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
7. Packing

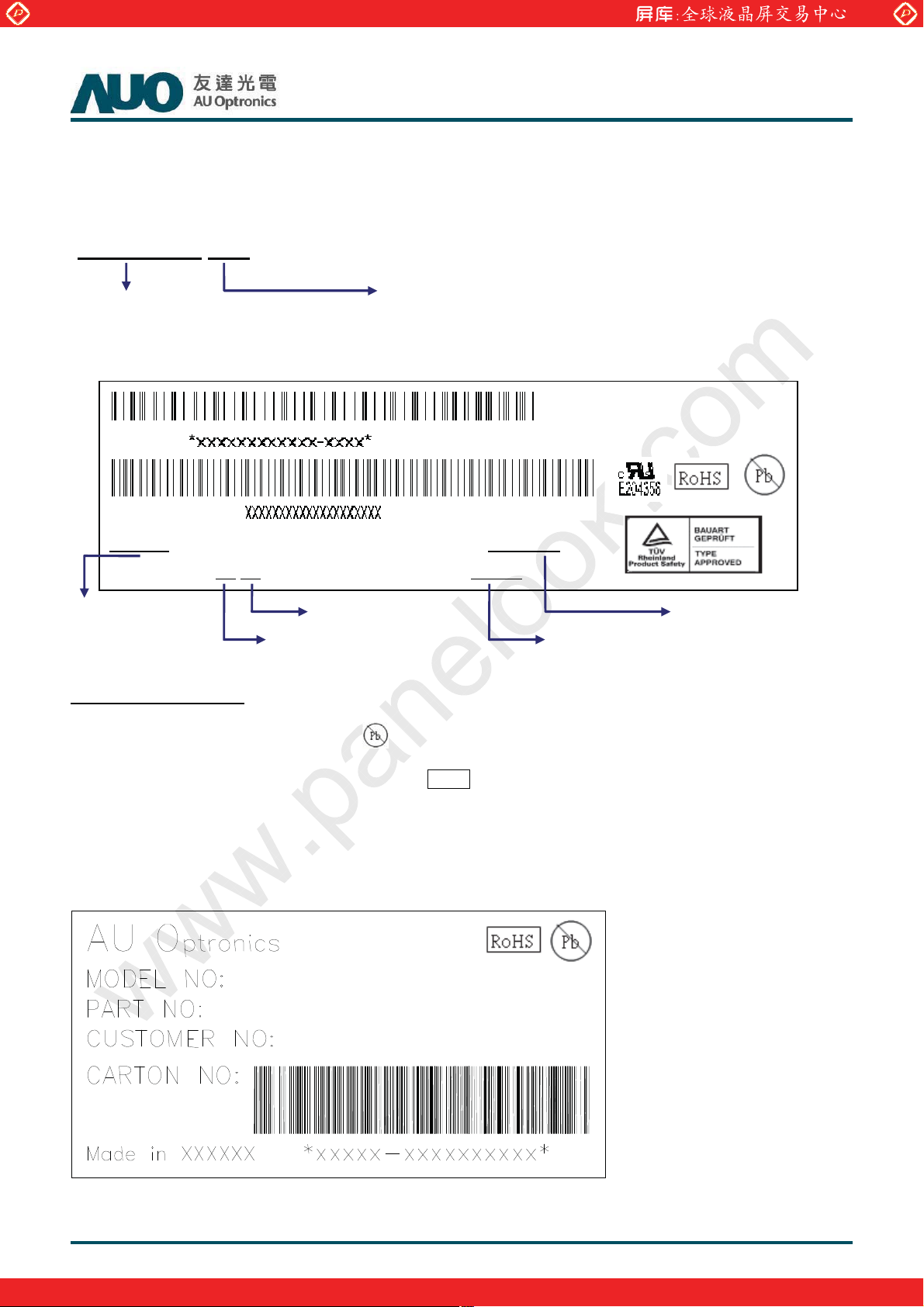

7.1 Definition of Label :
A. Panel Label:
*xxxxxxxxxxxx
-xxxx*
Panel Unique ID
AUO Internal Use
XXXXX Model NO: P500HVF01.0 XXXXXXX
Manufactured XX
/XX MADE IN XXXXX
AU Optronics
AUO Internal Use
Year
Week
Fab Location
AUO Internal Use
Green mark description
(1) For Pb Free Product, AUO will add
(2) For RoHs compatible products, AUO will add RoHS for identification.
Note: The green Mark will be present only when the green documents have been ready by AUO internal green
team. (definition of green design follows the AUO green design checklist.)
for identification.
B. Carton Label:
QTY :5
3+9)
3
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 16 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center

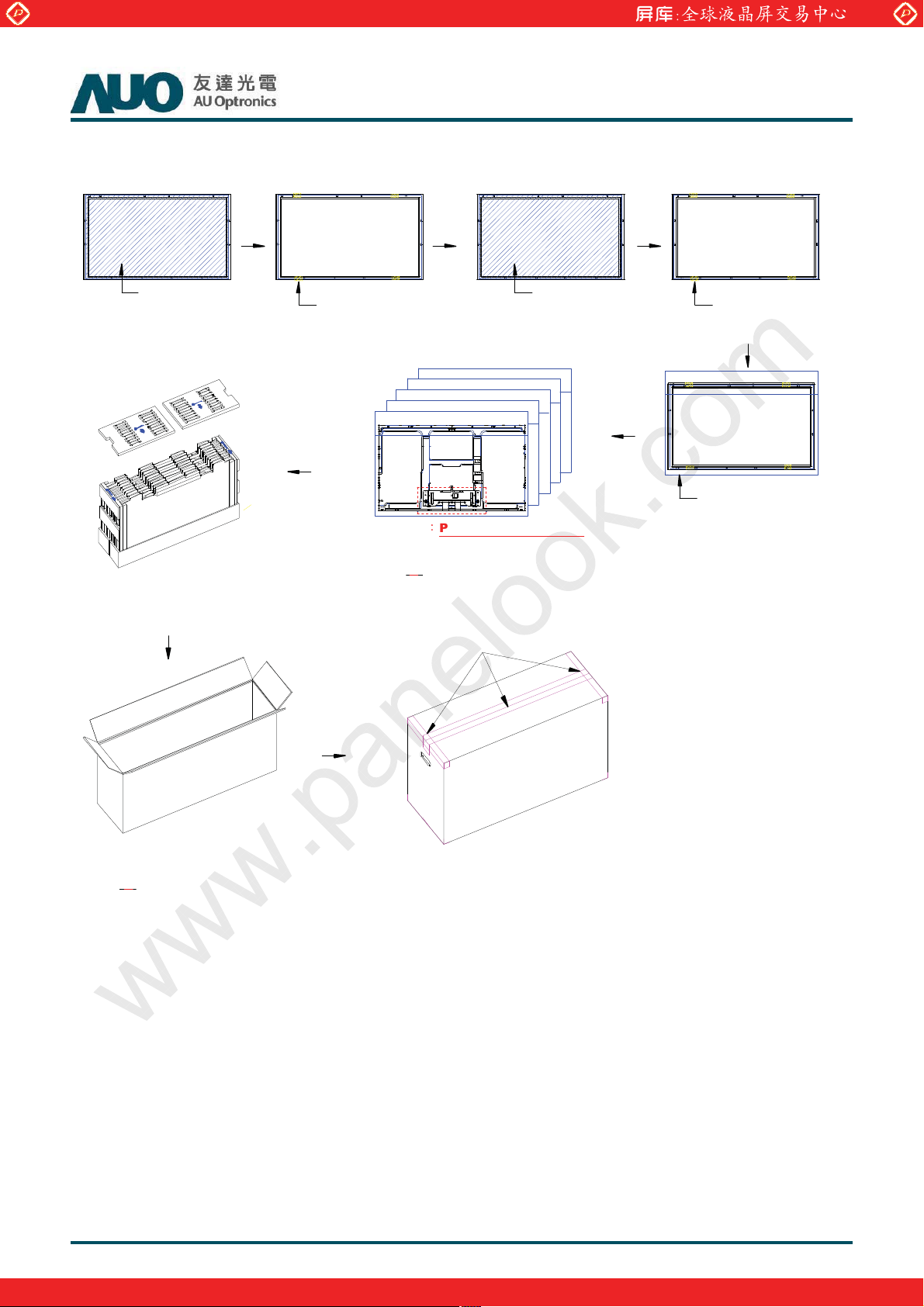

7.2 Packing Methods:
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
Pr otect Film
(Fron t Face)
Cushion Set
Creped Paper Tape
3DFNLQJ:D\Ǻ 3DQHO7RS6LGH'RZQ
( 5 ) Pcs Modules
"H" Tape
Protect Film
(Rear Face)
Creped Paper Tape
Anti-Static Bag (Blue)
( 5 ) Pcs / 1 Carton
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 17 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
7.3 Pallet and Shipment Information
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
Item
1 Packing Box 5 1270 x 375 x 800 (mm) 12.65
2 Pallet 1 1315 x 1150 x 138 (mm) 17.7
3 Boxes per Pallet 3 boxes/pallet
4 Panels per Pallet 15 pcs/pallet
5 Pallet after packing 15 1315 x 1150 x 938 (mm) 134.43
Qty. Dimension Weight (kg)
Specification
Packing
Remark
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 18 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
8. PRECAUTIONS
Please pay attention to the followings when you use this TFT LCD module.
8.1 MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. twisted stress) is not applied
to module. And the case on which a module is mounted should have sufficient strength so that
external force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter cause circuit
broken by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizer with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment. Do not touch the
surface of polarizer for bare hand or greasy cloth. (Some cosmetics are detrimental to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials
like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the
adhesives used to attach front/ rear polarizer. Do not use acetone, toluene and alcohol because
they cause chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
8.2 OPERATING PRECAUTIONS
(1) The device listed in the product specification sheets was designed and manufactured for TV
application
(2) The spike noise causes the mis-operation of circuits. It should be lower than following voltage:
V=±200mV(Over and under shoot voltage)
(3) Response time depends on the temperature. (In lower temperature, it becomes longer..)
(4) Brightness of LED depends on the temperature. (In lower temperature, it becomes lower.) And in
lower temperature, response time (required time that brightness is stable after turned on) becomes
longer.
(5) Be careful for condensation at sudden temperature change. Condensation makes damage to
polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.
(6) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(7) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 19 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
be done by system manufacturers. Grounding and shielding methods may be important to minimize
the interface.
8.3 ELECTROSTATIC DISCHARGE CONTROL
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain
that treatment persons are connected to ground through wristband etc. And don’t touch interface pin
directly.
8.4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
Strong light exposure causes degradation of polarizer and color filter.
8.5 STORAGE
www.panelook.com
P500HVF01.0 Product Specification
Rev.0.0
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5 and 35 at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is recommended that they
be stored in the container in which they were shipped.
кк
8.6 HANDLING PRECAUTIONS FOR PROTECTION FILM
(1) The protection film is attached to the bezel with a small masking tape. When the protection film is
peeled off, static electricity is generated between the film and polarizer. This should be peeled off
slowly and carefully by people who are electrically grounded and with well ion-blown equipment or
in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a
very small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with
normal-hexane.
© Copyright AUO Optronics Corp. 2010 All Rights Reserved. Page 20 / 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
