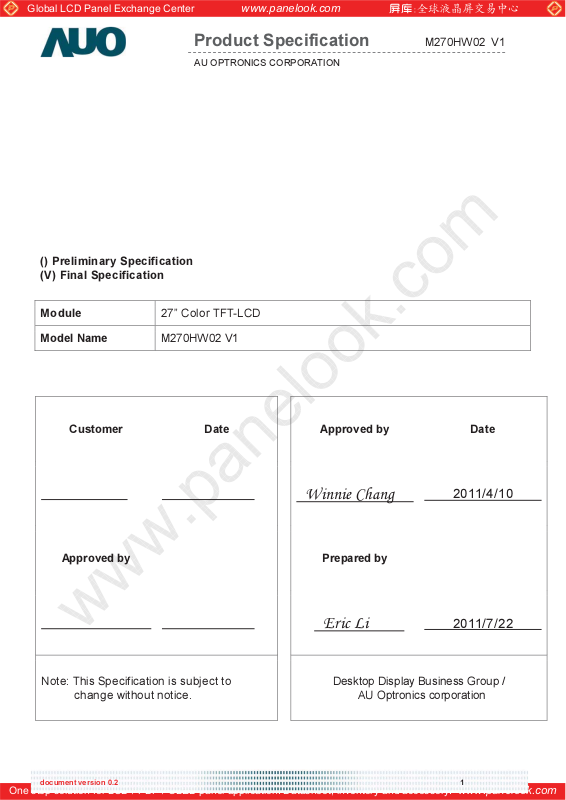

Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
() Preliminary Specification
(V) Final Specification
Module 27” Color TFT-LCD
Model Name M270HW02 V1
Customer Date
Approved by
Approved by Date
Winnie Chang
Prepared by
2011/4/10
Note: This Specification is subject to
change without notice.
document version 0.2 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Eric Li
Desktop Display Business Group /
AU Optronics corporation
2011/7/22
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
Contents
1.0 Handling Precautions .................................................................................... 4
2.0 General Description....................................................................................... 5
2.1 Display Characteristics...........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6
3.0 Functional Block Diagram........................................................................... 10
4.0 Absolute Maximum Ratings ........................................................................ 11
4.1 TFT LCD Module ..................................................................................................................11
4.2 Backlight Unit........................................................................................................................11

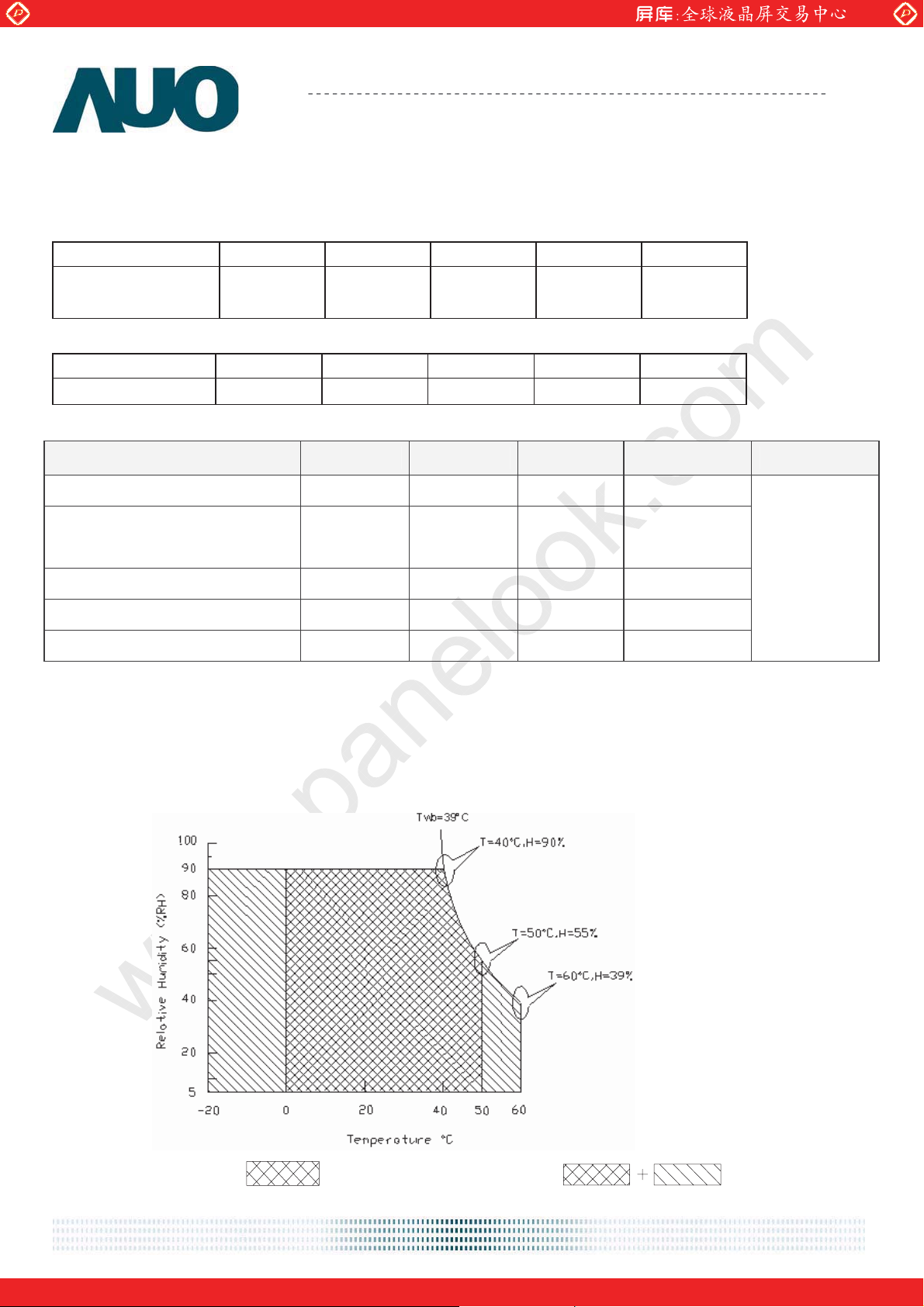

4.3 Absolute Ratings of Environment.........................................................................................11
5.0 Electrical characteristics............................................................................. 12
5.1 TFT LCD Module ................................................................................................................. 12
5.1.1 Power Specification .......................................................................................................................................12
5.1.2 Signal Electrical Characteristics .....................................................................................................................13
5.2 Backlight Unit....................................................................................................................... 15
6.0 Signal Characteristic ................................................................................... 16
6.1 Pixel Format Image ............................................................................................................. 16
6.2 The input data format .......................................................................................................... 16
6.3 Signal Description ............................................................................................................... 17
6.4 Timing Characteristics ......................................................................................................... 19

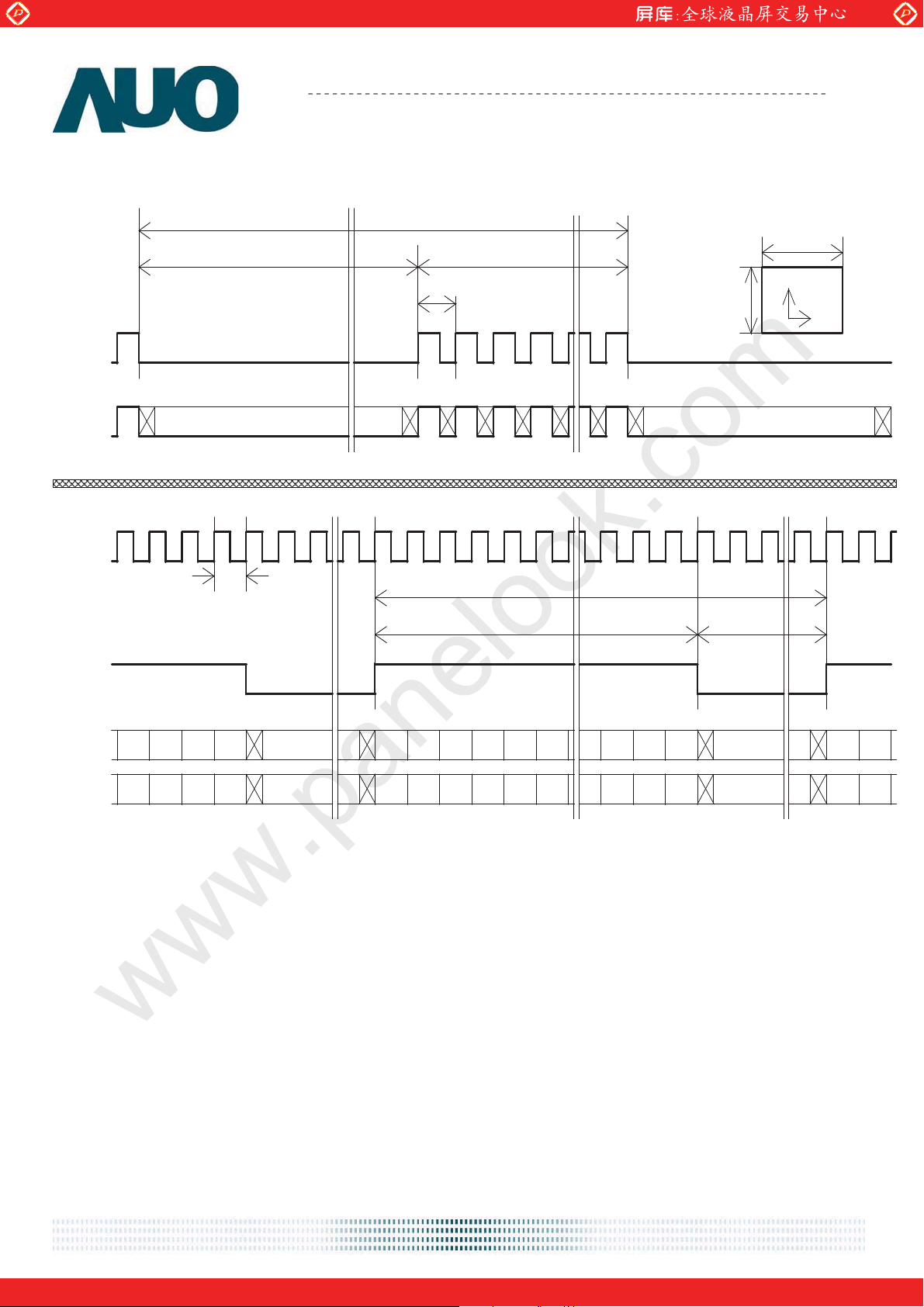

6.5 Timing diagram .................................................................................................................... 20

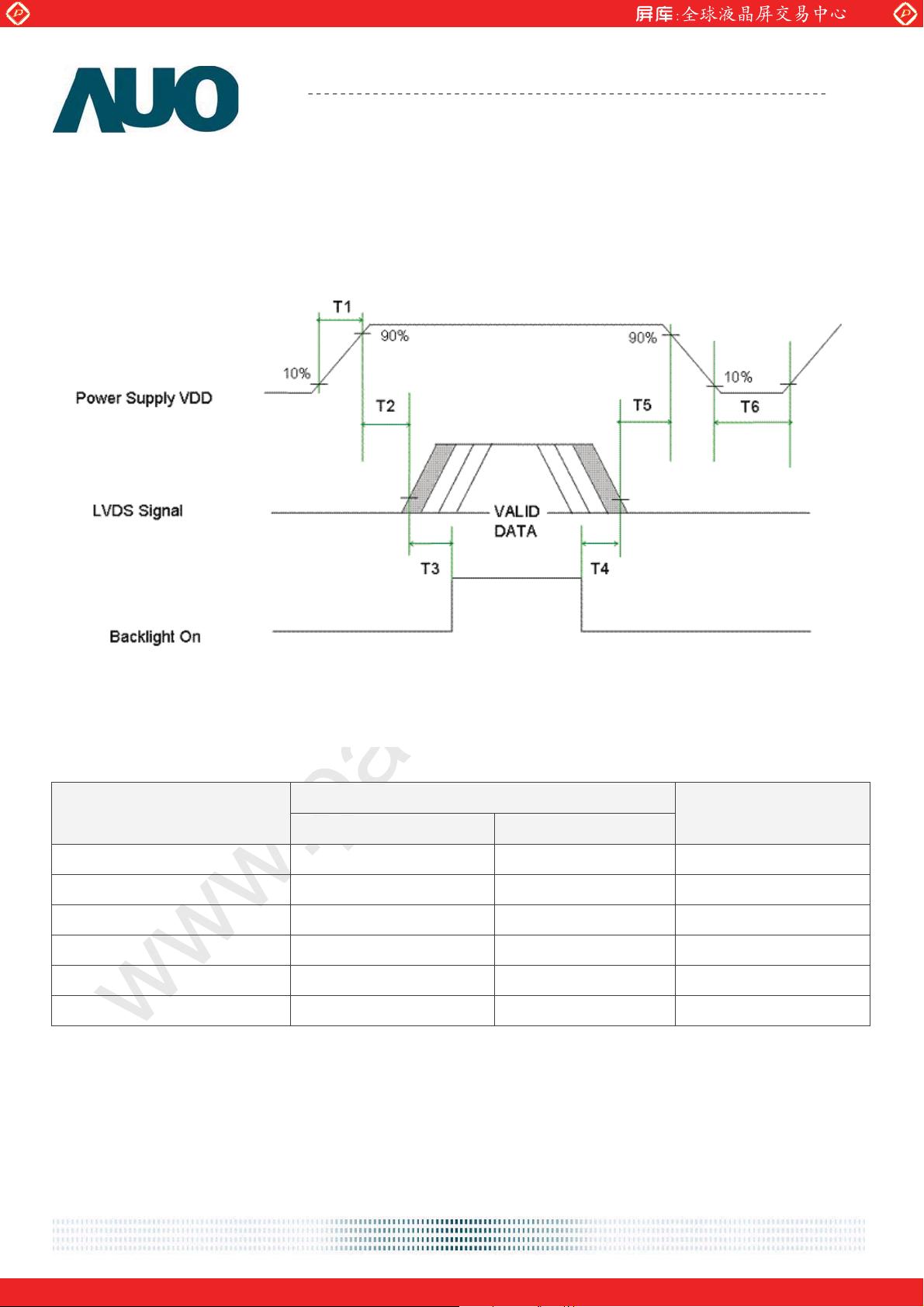

6.6 Power ON/OFF Sequence .................................................................................................. 20

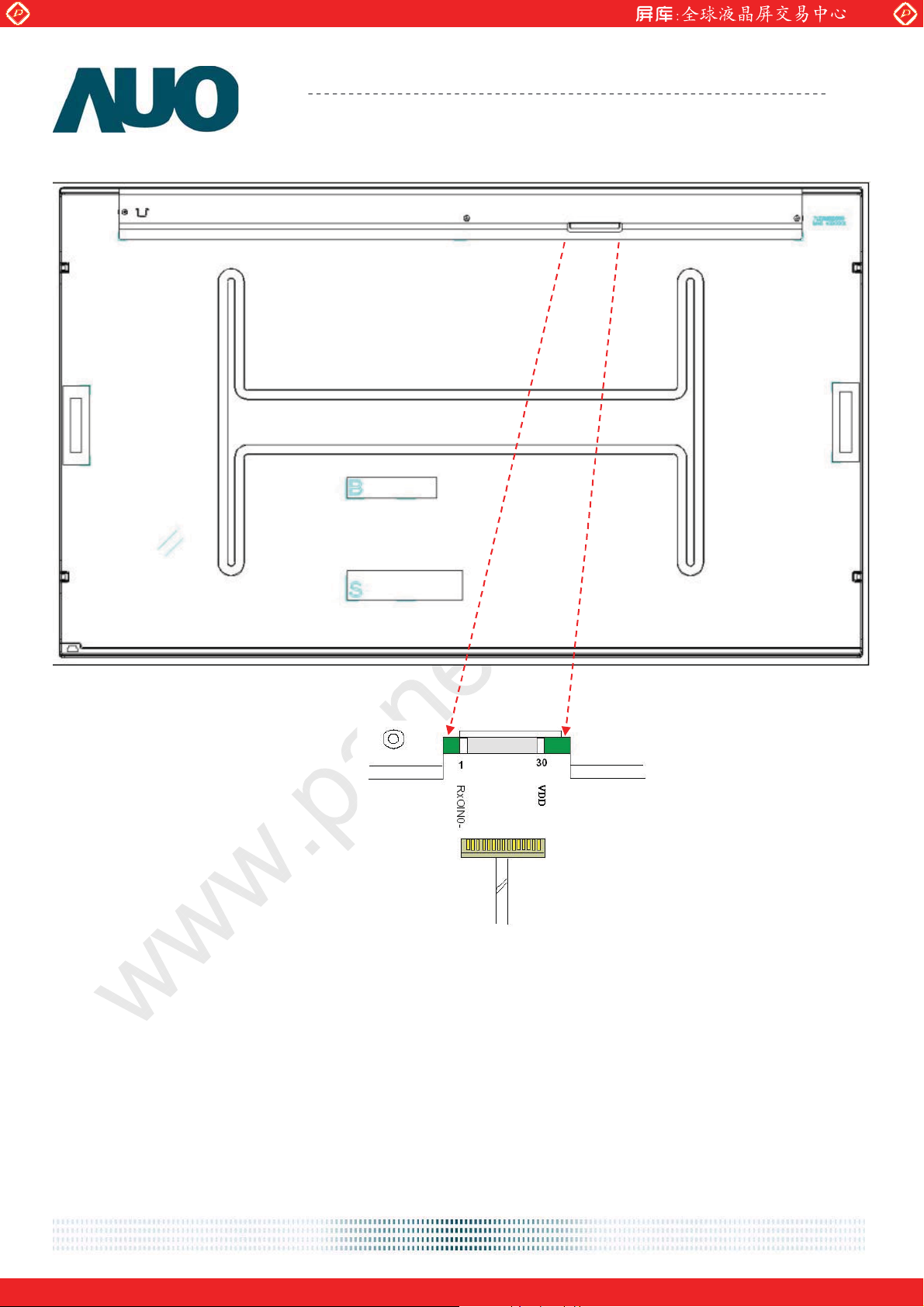

7.0 Connector & Pin Assignment...................................................................... 22
7.1 TFT LCD Module ................................................................................................................. 22
7.1.1 Pin Assignment ..............................................................................................................................................22
7.2 Recommend connector for Backlight Unit .......................................................................... 23
7.2.1 Pin assignment...............................................................................................................................................23
8.0 Reliability Test ............................................................................................. 24
9.0 Shipping Label ............................................................................................. 25

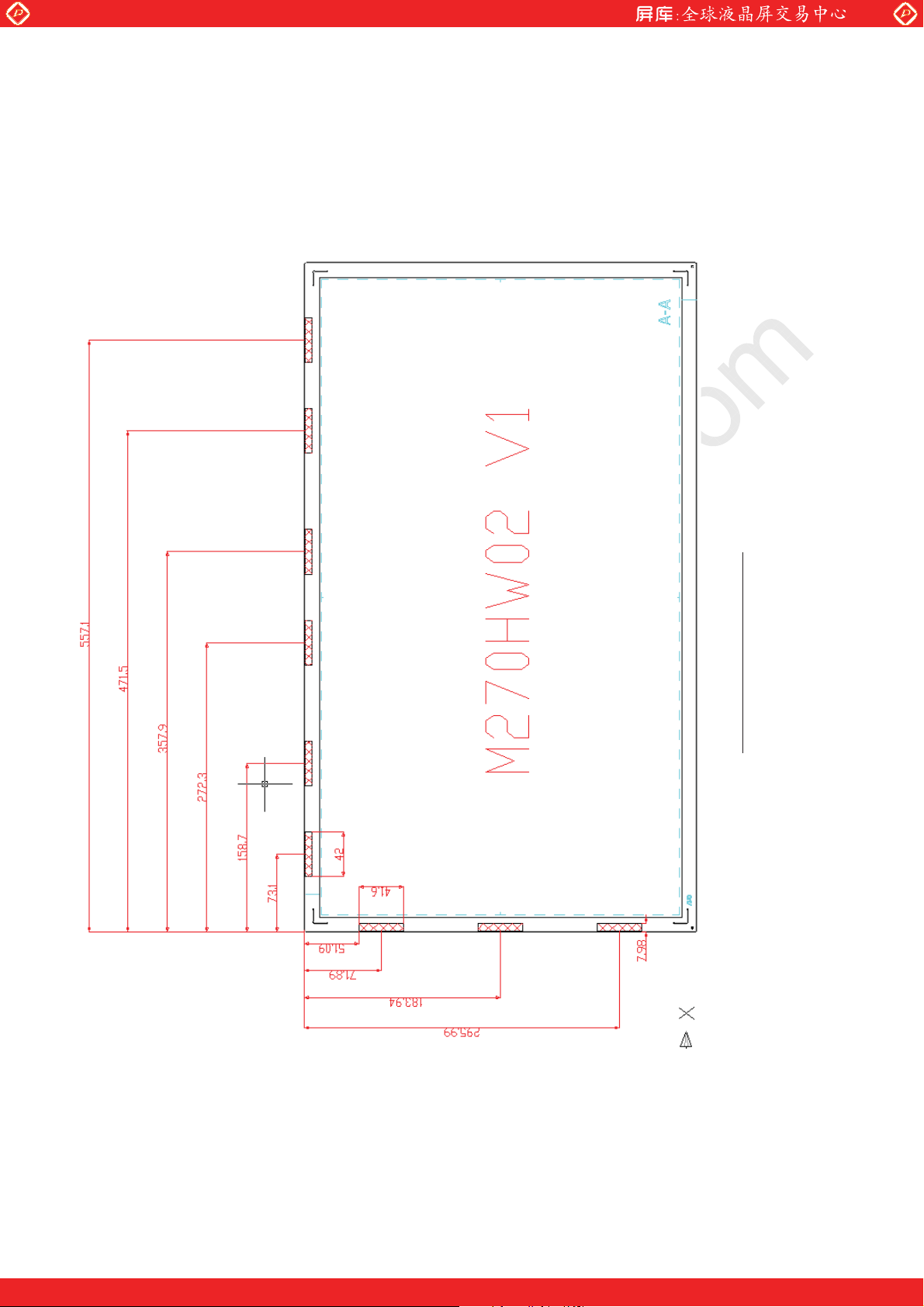

10.0 Mechanical Characteristics....................................................................... 26
document version 0.2 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
Record of Revision
Version and Date Page Old description New Description Remark
V0.1 2011.4.6 6
V0.2 2011.4.6 8
V0.3 2011.6.7 18
V0.4 2011.6.7 26
V0.5 2011.7.22 8
Color / Chromaticity is TBD
TrR + TfF = 16 msec TrR + TfF = 12 msec
Old label position Label position alteration
Old label position Label position alteration
Note 3: Contrast ratio is measured by
TOPCON SR-3
Color / Chromaticity is defined
by Min/Tpy/Max
Note 3: Contrast ratio is measured from
central point of the screen byTOPCON SR-3.
document version 0.2 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the LED lightbar edge. Instead, press at the
far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Please avoid touching COF position while you are doing mechanical design.
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5к and 35к at normal humidity.
document version 0.2 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
2.0 General Description
This specification applies to the 27 inch-FHD Color a-Si TFT-LCD Module M270HW02. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bits). The
light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface and
this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25к condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 685.65(27.0”)
Active Area [mm] 597.6 (H) x 336.15 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 311.25 (per one triad) ×311.25
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode VA Mode, Normally Black
White Luminance ( Center ) [cd/m2]
300 cd/m
Contrast Ratio 5000(Typ.)
Optical Response Time [msec] 12ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] +5.0 V (Typ)
Power Consumption
(VDD line + LED line)
Weight [Grams]
[Watt] 32.5W (Typ.)
(without inverter, all white pattern)
˅ˋ˃˃ Typ.
Physical Size [mm] 630.0(H)x368.2(V)x11.5(D)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 8-bit )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
TCO Compiance TCO 5.1 Compiance
2
(Typ.)
document version 0.1 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle [degree]
Contrast ratio Normal Direction
Response Time [msec]
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2]
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
Horizontal (Right)
CR = 10 (Left)
150
Vertical (Up)
CR = 10 (Down)
150
4000 5000 -
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
- 7 9
- 5 7
- 12 16
0.615 0.645 0.675
0.304 0.334 0.364
0.301 0.331 0.361
0.599 0.629 0.659
0.125 0.155 0.185
0.017 0.047 0.077
0.283 0.313 0.343
0.299 0.329 0.359
240 300 -
[%]
[%]
dB
75 80 -
M270HW02 V1
178
178
1.5 8
-20
-
-
2
-
-
3
4
5
6
7
9
document version 0.1 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35
. In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room. ʳ
Photo detector
Measured distance
-
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
Center of the screen
document version 0.1 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA Ø 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M270HW02 V1
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
B R G B
G
R
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
Level DC
document version 0.1 9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
ght
Y
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1

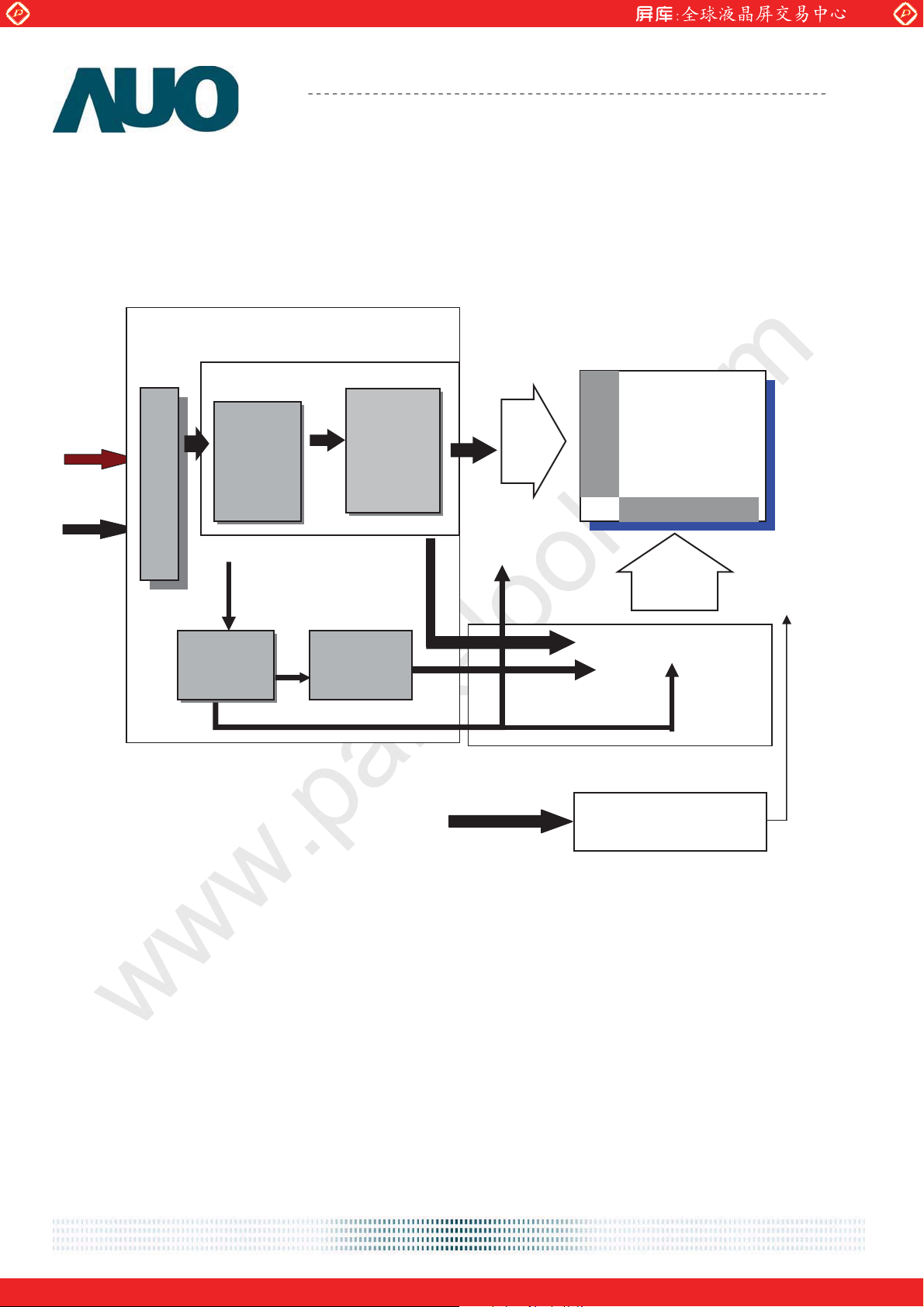

3.0 Functional Block Diagram
The following diagram shows the functional block of the 27.0 inch Color TFT-LCD Module:
LVDS
+5V
LVDS
Receiver
Connector
DC/DC
Converter
AUO
ASIC
Correction
Timing
Controller
miniLVDS
Transmitter
Gamma
G1
-Driver IC
1920(x3) x 1080
G1080
D1
TFT-LCD
Pixels
X-Driver IC
D5760
Backli
LED
I/F + X-PCB
I/F PCB Interface:
FI-XPB30SRLAHF11
01-187121-30091-3(A)
Mating Type:
FI-X30HL(Locked Type)
DC
LED Driver on system
document version 0.1 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
VDD 0 5.5 [Volt] Note 1,2
4.2 Backlight Unit
Item Symbol ˧˧˧˧
LED Current ILED
Max Unit Conditions
120 126
[mA] Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Center Glass surface temperature
(operation)
Operation Humidity HOP 5 90 [%RH]
TGS 0 +50 [
o
C]
Note 3
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
Note 1: With in Ta (25к)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Taʳ Љˆˌкʼʳ
2. Max wet-bulb temperature at 39кʳ ʳ˿˸ˁʳʻʳ˧˴ʳ Љˆˌкʼʳ
ʳʳʳʳʳʳʳʳˆˁʳˡʳ˶˷˸˴˼
5 90
[%RH]
Operating Range
document version 0.1 11
Storage Range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD
IDD Input Current
PDD
Logic/LCD Drive
Voltage
VDD Power
5.0 5.5
4.5
-
-
0.8 1.0 [A]
0.9 1.1
4.0 5.0 [Watt]
4.5 5.5
[Volt] +/-10%
VDD= 5.0V, All White Pattern At
60Hz,
VDD= 5.0V, All White Pattern At
75Hz,
VDD= 5.0V, All White Pattern At
60Hz
VDD= 5.0V, All White Pattern At
75Hz
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
-
-
- 2.0 [A]
- 500 [mV] p-p VDD= 5.0V, All White Pattern At 75Hz
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
Note 1
document version 0.1 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
ūVIDū Input Differential Voltage 100 - 600 [mV] Note 1
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV]
-100 - - [mV]
+1.0 +1.2 +1.5 [V]
VICM = 1.2V
Note 1
VICM = 1.2V
Note 1
VTH-VTL = 200MV (max)
Note 1

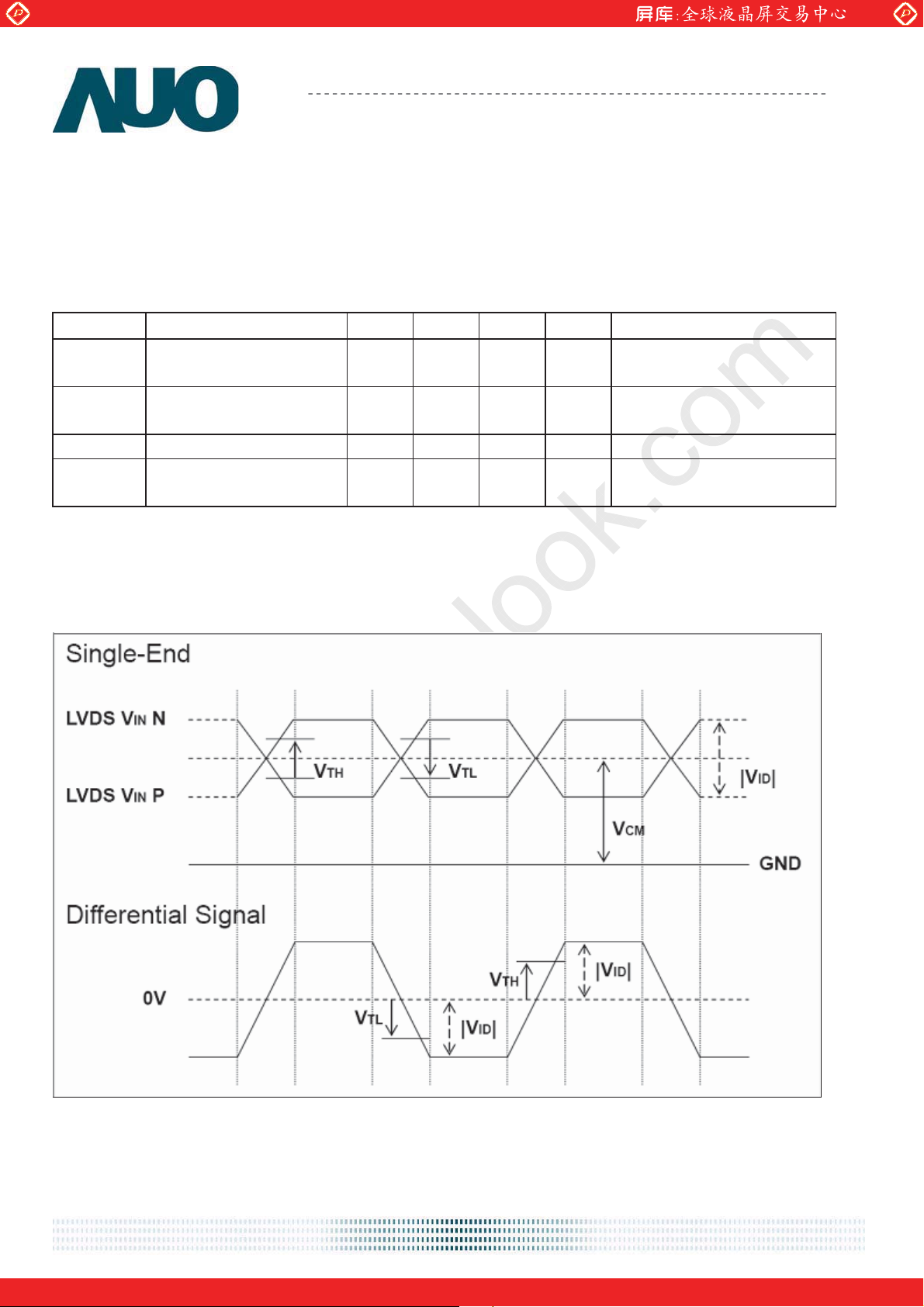

Note 1: LVDS Signal Waveform
document version 0.1 13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
r
V
www.panelook.com

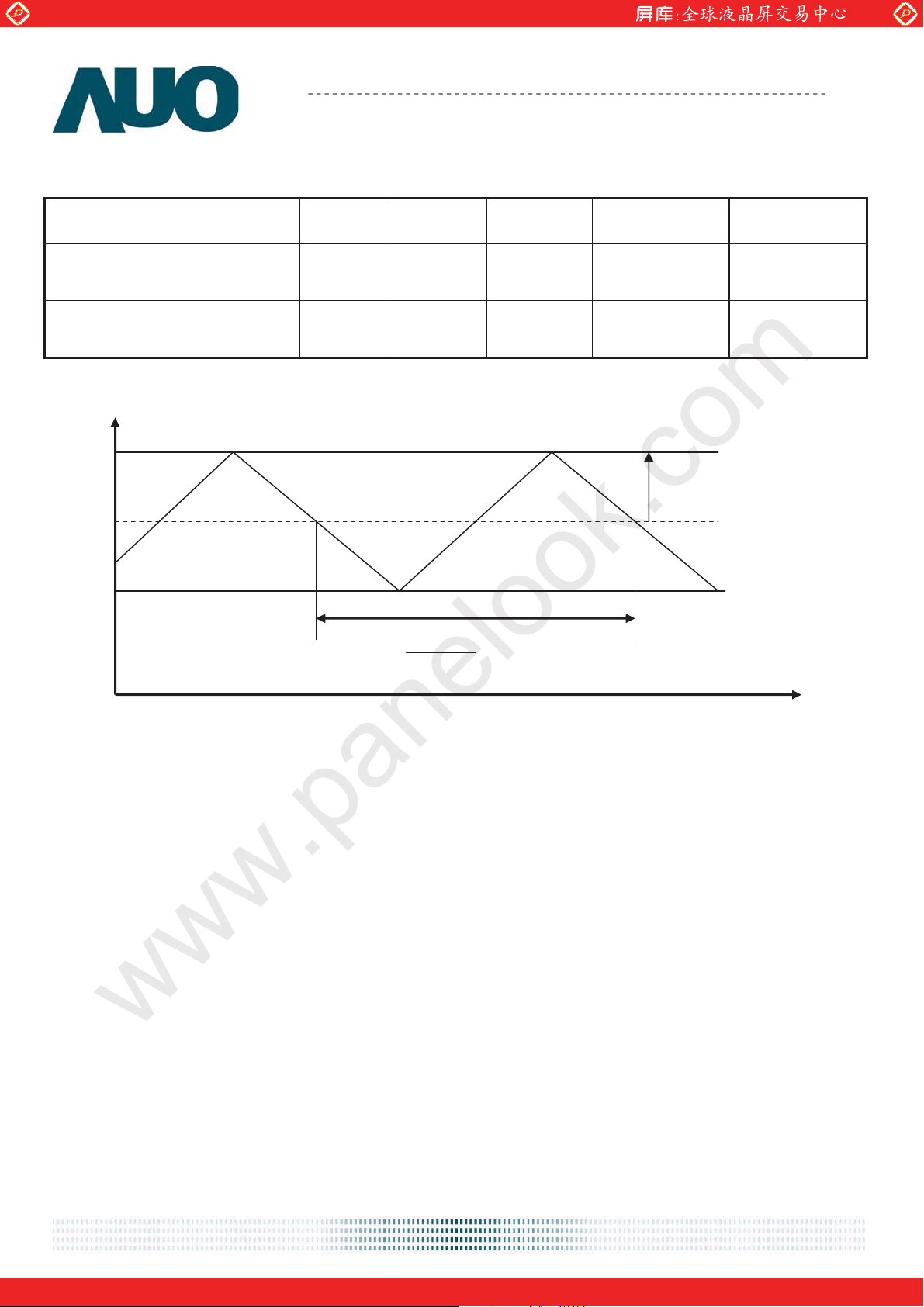

2. AC Characteristics
Description Symbol Min Max Unit Note
Maximum deviation of input
clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
Freq
F
max
Fcente
Product Specification
AU OPTRONICS CORPORATION
FDEV - 3 %
FMOD - 300 KHz
M270HW02 V1
Fcenter * FDE
Fmin
1
F
MOD
< Spread Spectrum>
time
document version 0.1 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25к (Room Temperature):
Symbol Parameter Min. Typ. Max. Unit Note
IR
LED Operation Current - 120
LED
VLB
P
BLU Power consumption (for reference)
BLU
LT
LED life Time (Typical)
LED
Light Bar Operation Voltage
(for reference)
- 59.4 64.8
- 28.5 32.7 [Watt]
30000 - -
126
Note 1 :The specified current is input LED chip 100% duty current.
Note 2 : The value showed in the table is one light bar’s operation voltage.
Note 3 : Definition of life time : brightness becomes 50% of its original value. The minimum life time of LED unit is on the
condition of IR
= 120mA and 25±2к(Room temperature).
LED
Note 4: Each LED light bar consists of 72 pcs LED package ( 4 strings x 18 pcs / string ).
[mA]
Note 1
[Volt]
Note 2
[Hour]
Note 3
Operating with fixed
driving current
document version 0.1 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.0 Signal Characteristic

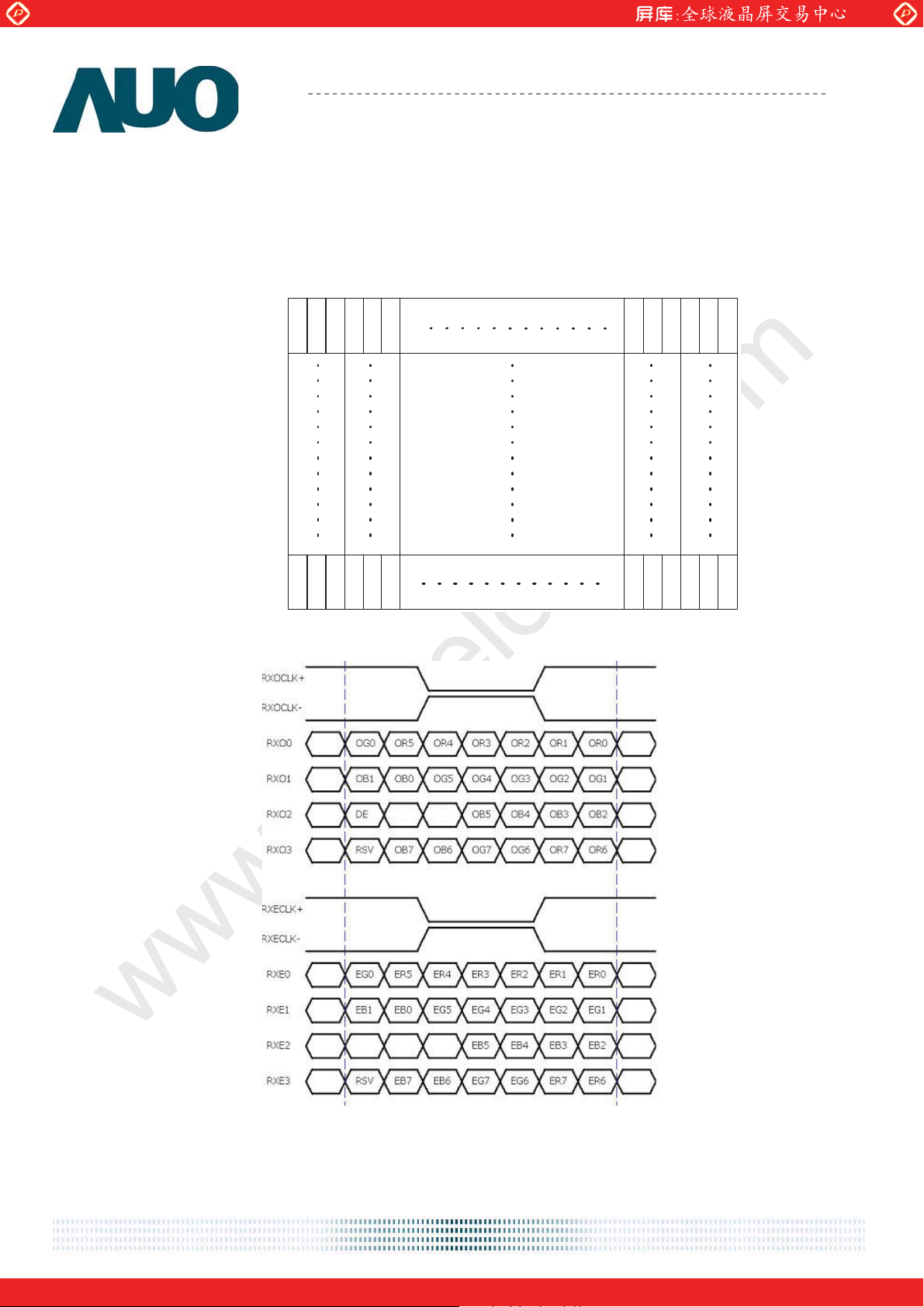

6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
M270HW02 V1
1080 Line
R G B R G B
6.2 The input data format
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
document version 0.1 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a
differential signal technology for LCD interface and high speed data transfer device. LVDS
transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx)
transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
Note1: Start from left side
document version 0.1 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
s
Note2: Input signals of odd and even clock shall be the same timing.
document version 0.1 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK
Tcl k
40
72
85
[MHz]
Period Th 1004 1050 2047 [Tclk]
H-section
Display Area Tdisp(h) 960 960 960 [Tclk]
Blanking Tblk(h) 44 90 1087 [Tclk]
Period Tv 1088 1130 2047 [Th]
V-section
Display Area Tdisp(h) 1080 1080 1080 [Th]
Blanking Tblk(h) 8 50 967 [Th]
Frame Rate F 50 60 75 [Hz]
document version 0.1 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
6.5 Timing diagram
DE
RGB Data
N
Line
Tblk(v)
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
4
1
32
LineLine
LineLine
N
Line
M270HW02 V1
M pixel
Y
N Line
Invalid Data
X
CLK
RGB Data
(Odd)
RGB Data
(Even)
Tclk
DE
Pixel
Pixel
M-7
Pixel
M-6
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
Pixel
1
Pixel Pixel
2
5
3
Pixel
4
6M-2
Th
M-1
Tblk(h)
Invalid Data
Invalid Data
Tdisp(h)
Pixel
7
Pixel
8M
Pixel
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
Pixel
Pixel
M-3
PixelPixel
Pixel
Pixel
Pixel
1
3
Pixel
4
2M-4
document version 0.1 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M270HW02 V1
AU OPTRONICS CORPORATION
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Value
Parameter
Unit
Min. Max.
T1 0.5 10 [msec]
T2 0 50 [msec]
T3 500 - [msec]
T4 200 - [msec]
T5 0 50 [msec]
T6 1000 - [msec]
document version 0.1 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M270HW02 V1
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer
JAE
P-TWO
FI-XPB30SRLA-HF11
Type Part Number
01-187121-30091-3(A)
Mating Housing Part Number FI-X30HL (Locked Type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
RxOIN0-
RxOIN1-
RxOIN2-
GND
RxOCLKIN+
RxOIN3+
RxEIN0+
RxEIN1-
GND
RxEIN2+
RxECLKIN+
RxEIN3+
NC
(for AUO test only. Do not
connect)
NC
connect)
(for AUO test only. Do not
VDD
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
RxOIN0+
RxOIN1+
RxOIN2+
RxOCLKIN-
RxOIN3-
RxEIN0-
GND
RxEIN1+
RxEIN2-
RxECLKIN-
RxEIN3-
GND
(for AUO test only. Do not
NC
connect)
VDD
VDD
document version 0.1 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.2 Connector on Backlight Unit.
This connector is mounted on LED light-bar.
Connector Name / Designation Light Bar Connector
Manufacturer ˘ˡ˧˘˥ˬʳ˜ˡ˗˨˦˧˥˜˔˟ʳ˖ˢˁʿʳ˟˧˗ˁ
Type Part Number 3707K-Q06N-01R
7.2.1 Pin assignment
Pin no. Signal name
M270HW02 V1
1 IRLED (current out)
2 IRLED (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED (current out)
6 IRLED (current out)
document version 0.1 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Ta= 50
Ta= 50
Ta= 0
Ta= 60
Ta= -20
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
к, 80%RH, 300hours
к, 50%RH, 300hours
к, 300hours
к, 300hours
к, 300hours
M270HW02 V1
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST)
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
к/30min, 60к/30min, 100 cycles
-20
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point.
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point.
Operation:10,000 ft
Non-Operation:30,000 ft
1
2
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 0.1 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label
The label is on the panel as shown below:
Manufactured: XX/XX
Model No: M270HW02 V.1
AU Optronics
Made in XXXXX
M270HW02 V1
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 0.1 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
26

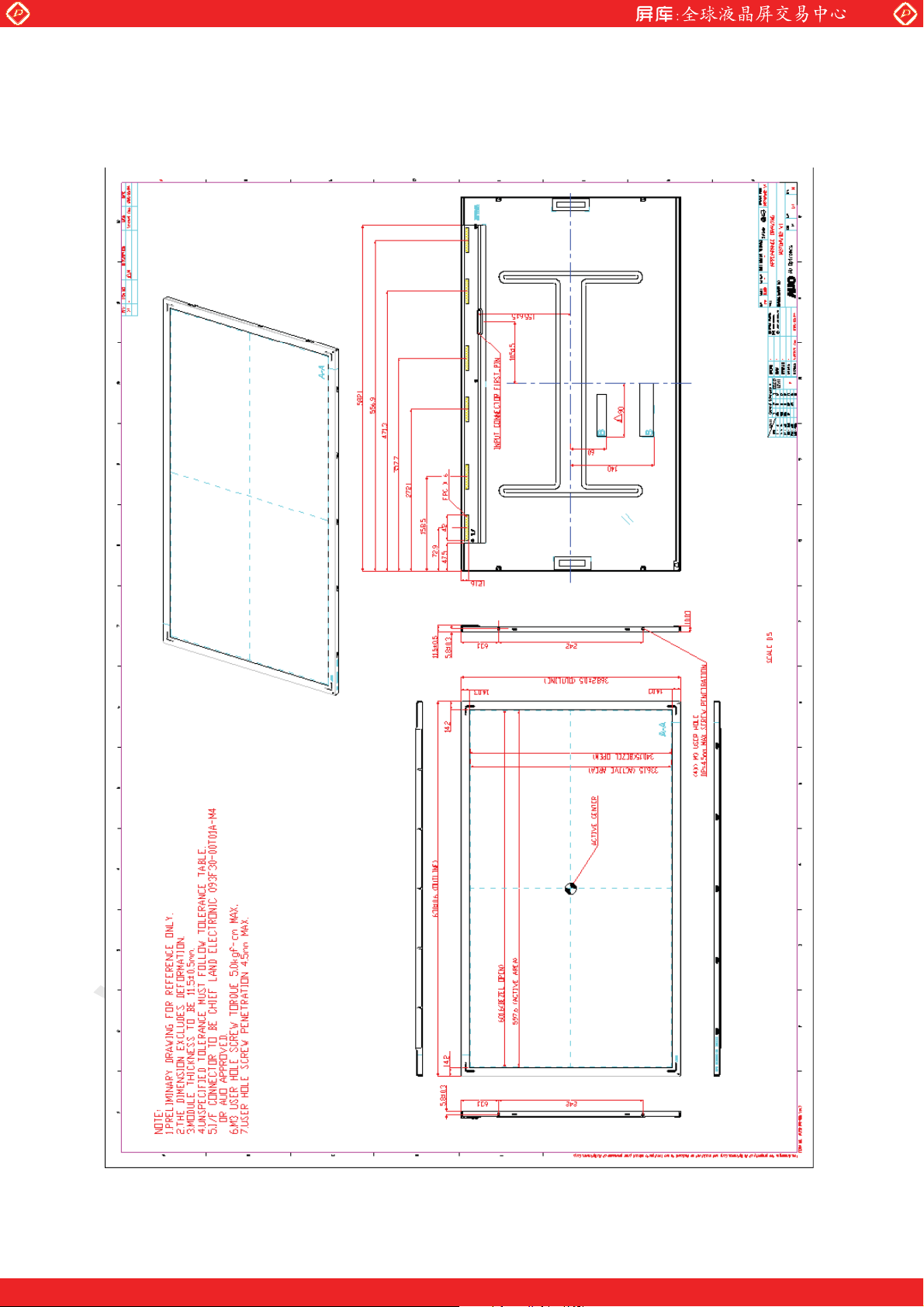

10.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
27
COF Position (Front View)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
˸

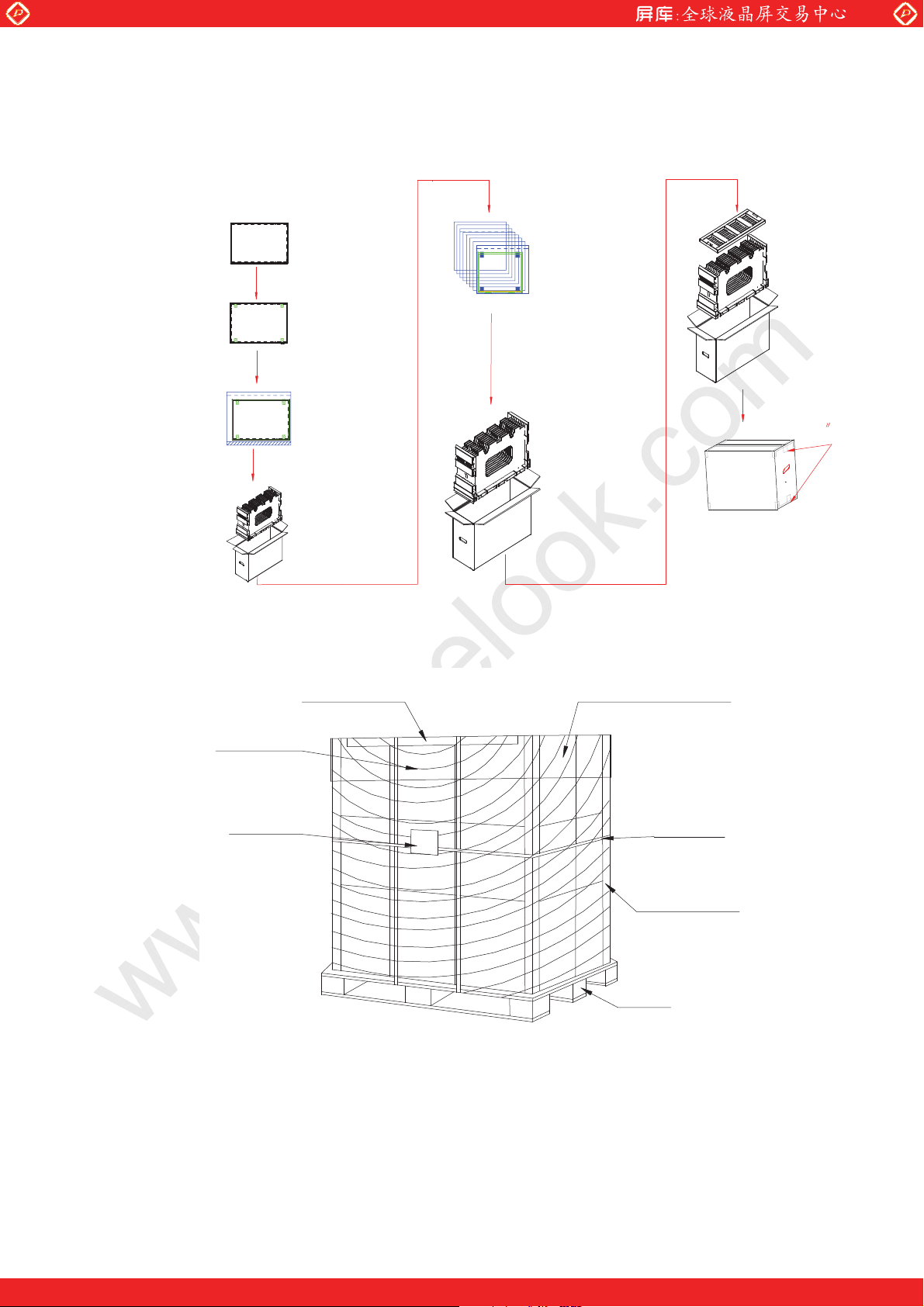

11. Packing Specification
ˠ ˷ ˿˸
ˣ˴˸ʳ˸˶ʳ˹˼˿
www.panelook.com
ˋˣ˖˦˂˖˴
ˣʳʳ˶˸
Stretch film
Label
˄˶ʳˠ˷˿˸˂˘˦˗
ˢ˸ʳ˧ʳ˶˸
Corner angle
ˣ˴˸ʳ˖˻˼
˛ʳʵʳ˧˴
ˣ˴˸ʳ˖˴
Moisture-proof film
PET band
Corner angle
Pallet
28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
2. Pallet and shipment information
www.panelook.com
Item
Q'ty Dimension Weight(kg)
1 Panel 1
630(H)mm x 368.2(V)mm x
Specification
11.5(D)mm
Remark
2.9 Kg
2 Cushion 1 - 3.408 Kg
3 Box 1
4 Packing Box 8 pcs/Box
5 Pallet 1
6
Pallet after
Packing
4boxes/ pallet
760(L)mm x 264(W)mm x
460(H)mm
760(L)mm x 264(W)mm x
460(H)mm
1060(L)mm x 74(W)mm x
13.8(H)mm
1060(L)mm x 74(W)mm x
13.8(H)mm
1.243Kg
˅ˊˁˋˈ˞˺
˄ˈ˞˺
234.81Kg
without Panel &
cushion
with panel & cushion
Ver 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
