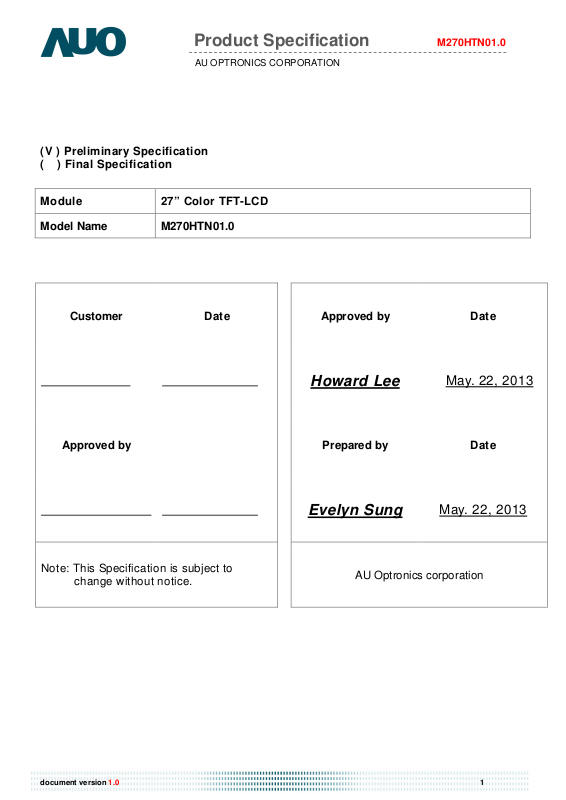

AUO M270HTN01.0 Specification

Product Specification

Preliminary Specification

(V ) ( ) Final Specification

Module 27” Color TFT-LCD

Model Name M270HTN01.0

AU OPTRONICS CORPORATION

M270HTN01.0

Customer Date

Approved by

Approved by Date

Howard Lee

Prepared by Date

Evelyn Sung

May. 22, 2013

Note: This Specification is subject to

change without notice.

document version 1.0 1

AU Optronics corporation

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

Contents

1 Handling Precautions................................................................4

2 General Description ..................................................................5

2.1 Display Characteristics....................................................................................................... 5

2.2 Absolute Maximum Rating of Environment ........................................................................ 6

2.3 Optical Characteristics ....................................................................................................... 7

2.4 Mechanical Characteristics (For TPV ONLY)................................................................... 11

3 TFT-LCD Module ......................................................................12

3.1 Block Diagram.................................................................................................................. 12

3.2 Interface Connection........................................................................................................ 13

3.2.1 Connector Type....................................................................................................... 13

3.2.2 Connector Pin Assignment...................................................................................... 13

3.3 Electrical Characteristics.................................................................................................. 13

3.3.1 Absolute Maximum Rating ...................................................................................... 16

3.3.2 Recommended Operating Condition....................................................................... 16

3.4 Signal Characteristics ...................................................................................................... 17

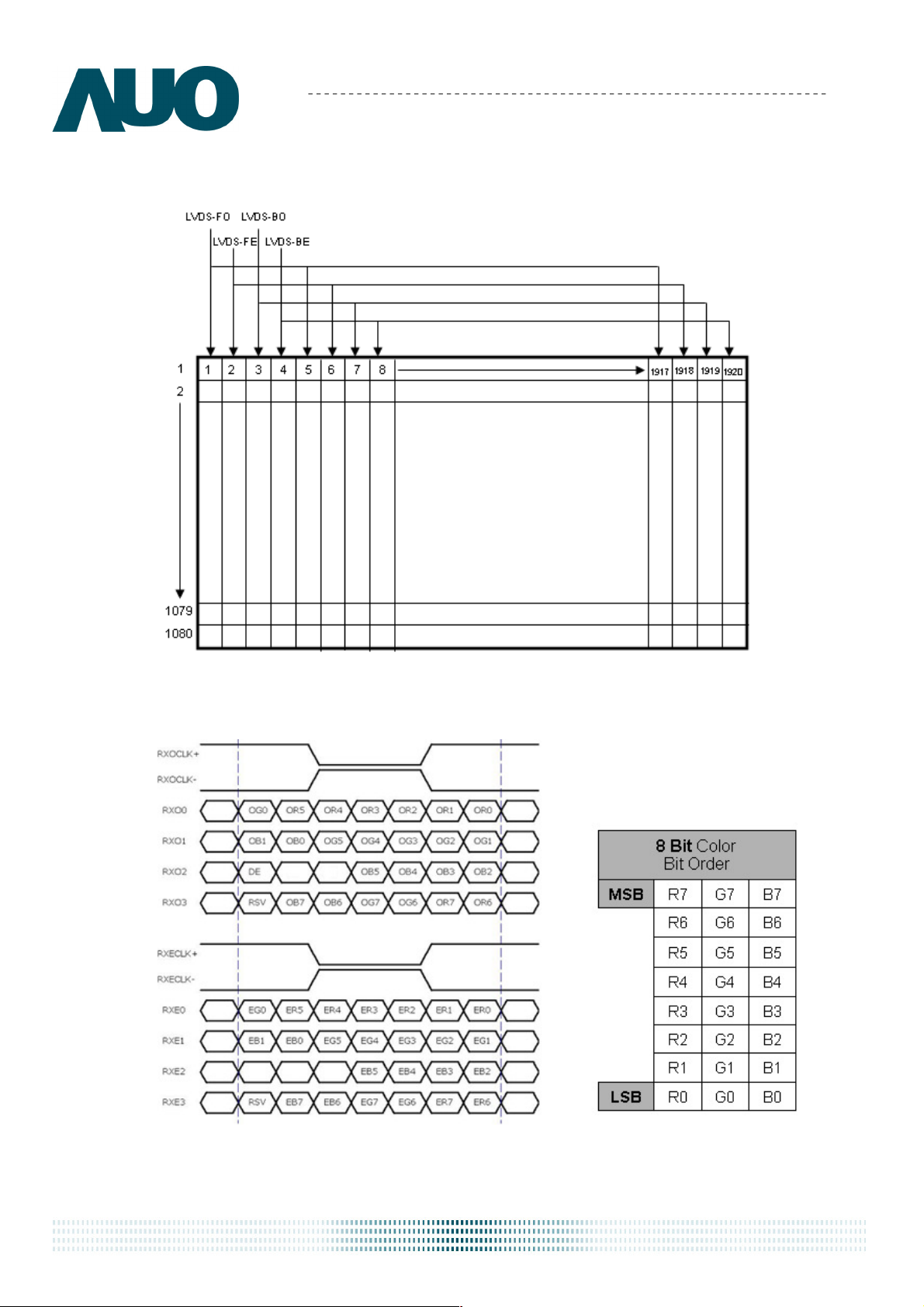

3.4.1 LCD Pixel Format.................................................................................................... 17

3.4.2 LVDS Data Format.................................................................................................. 17

3.4.3 Color versus Input Data .......................................................................................... 18

3.4.4 LVDS Specification.................................................................................................. 19

3.4.5 Input Timing Specification ....................................................................................... 21

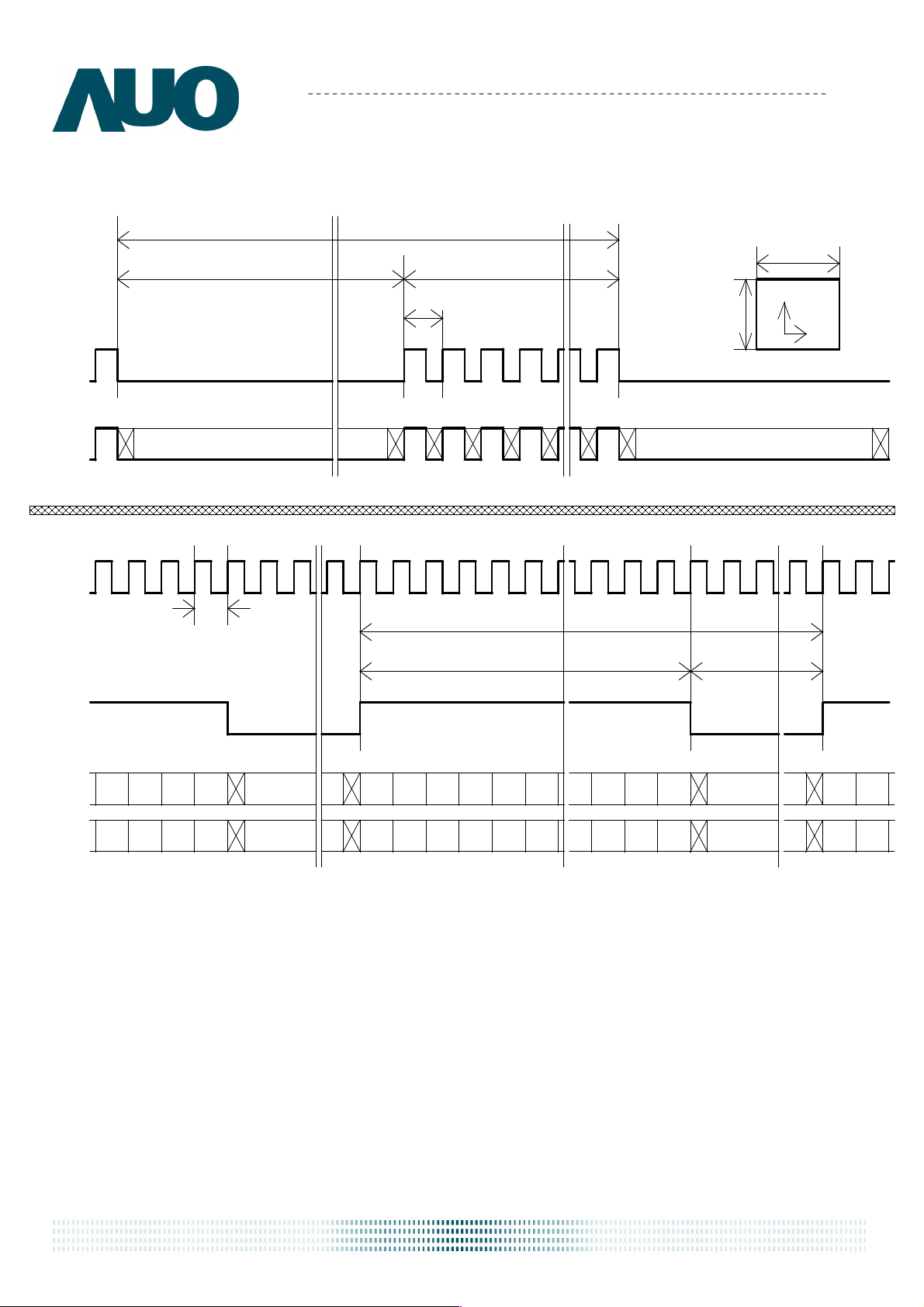

3.4.6 Input Timing Diagram.............................................................................................. 22

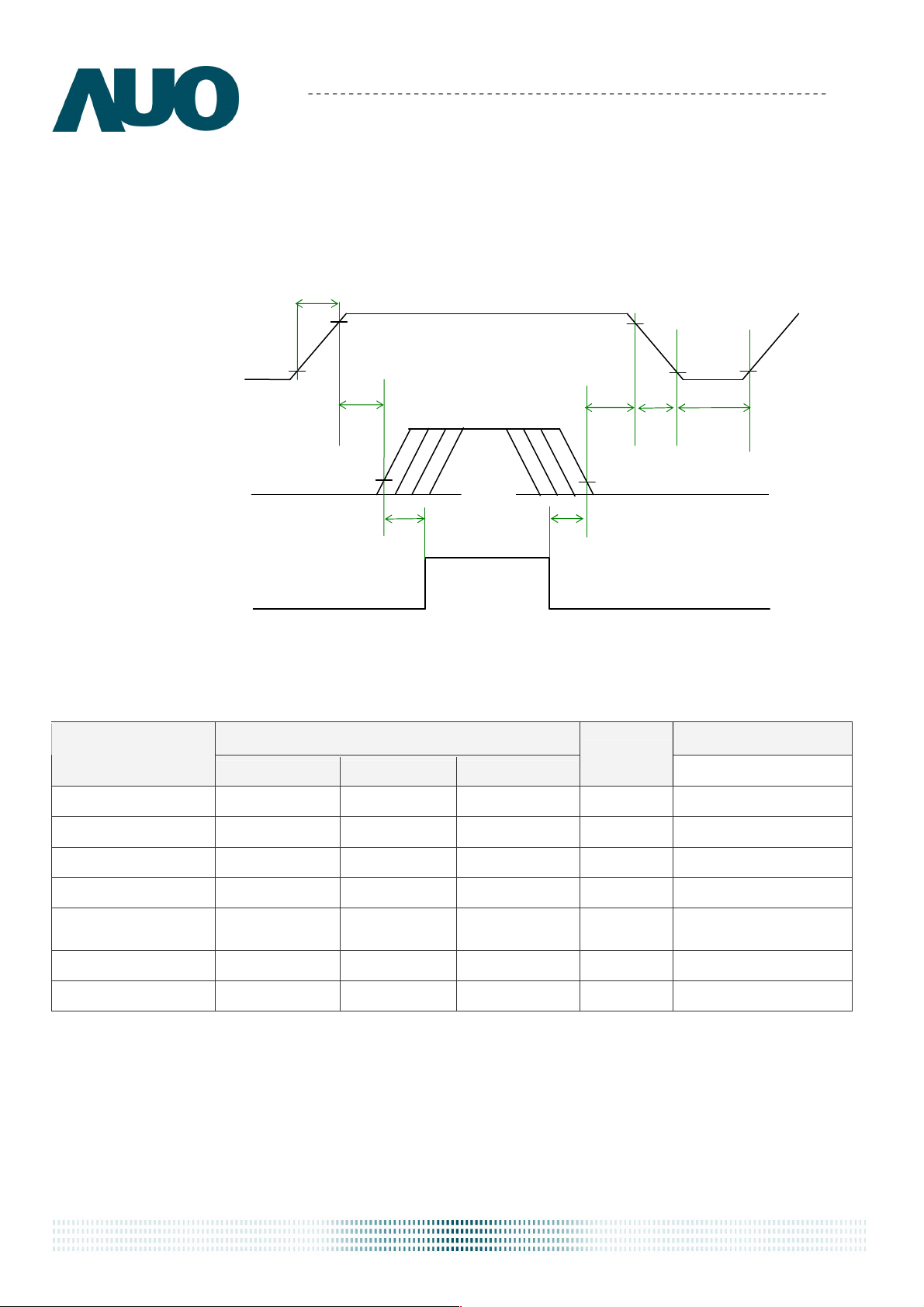

3.5 Power ON/OFF Sequence ............................................................................................... 23

4 Backlight Unit .........................................................................24

4.1 Block Diagram.................................................................................................................. 24

4.2 Interface Connection........................................................................................................ 25

4.2.1 Connector Type....................................................................................................... 25

4.2.2 Connector Pin Assignment...................................................................................... 27

4.3 Electrical Characteristics................................................................................................. 28.

4.3.1 Absolute Maximum Rating ...................................................................................... 28

4.3.2 Recommended Operating Condition....................................................................... 28

5 Reliability Test........................................................................30

6 Shipping Label ........................................................................31

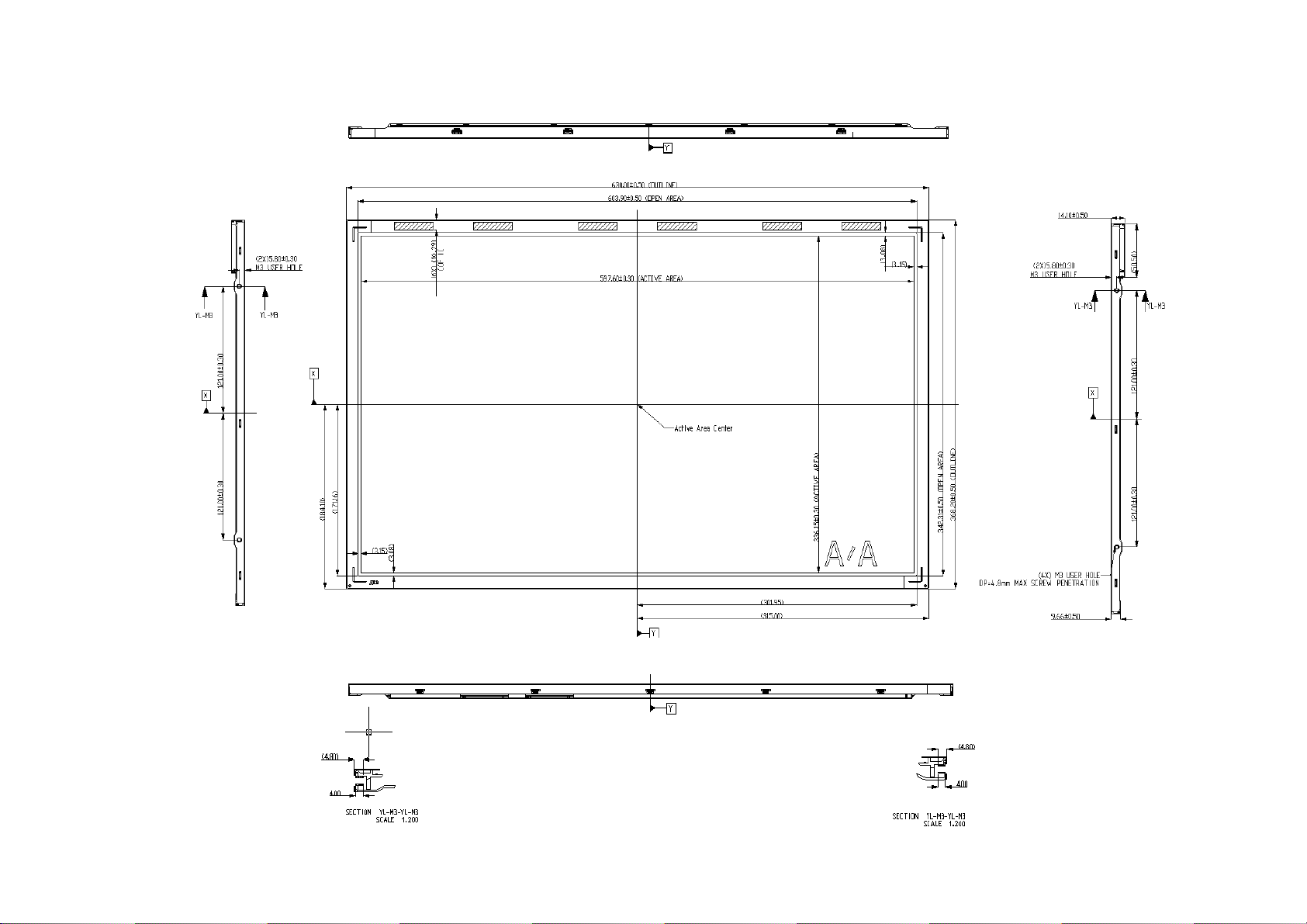

7 Mechanical Characteristics .....................................................32

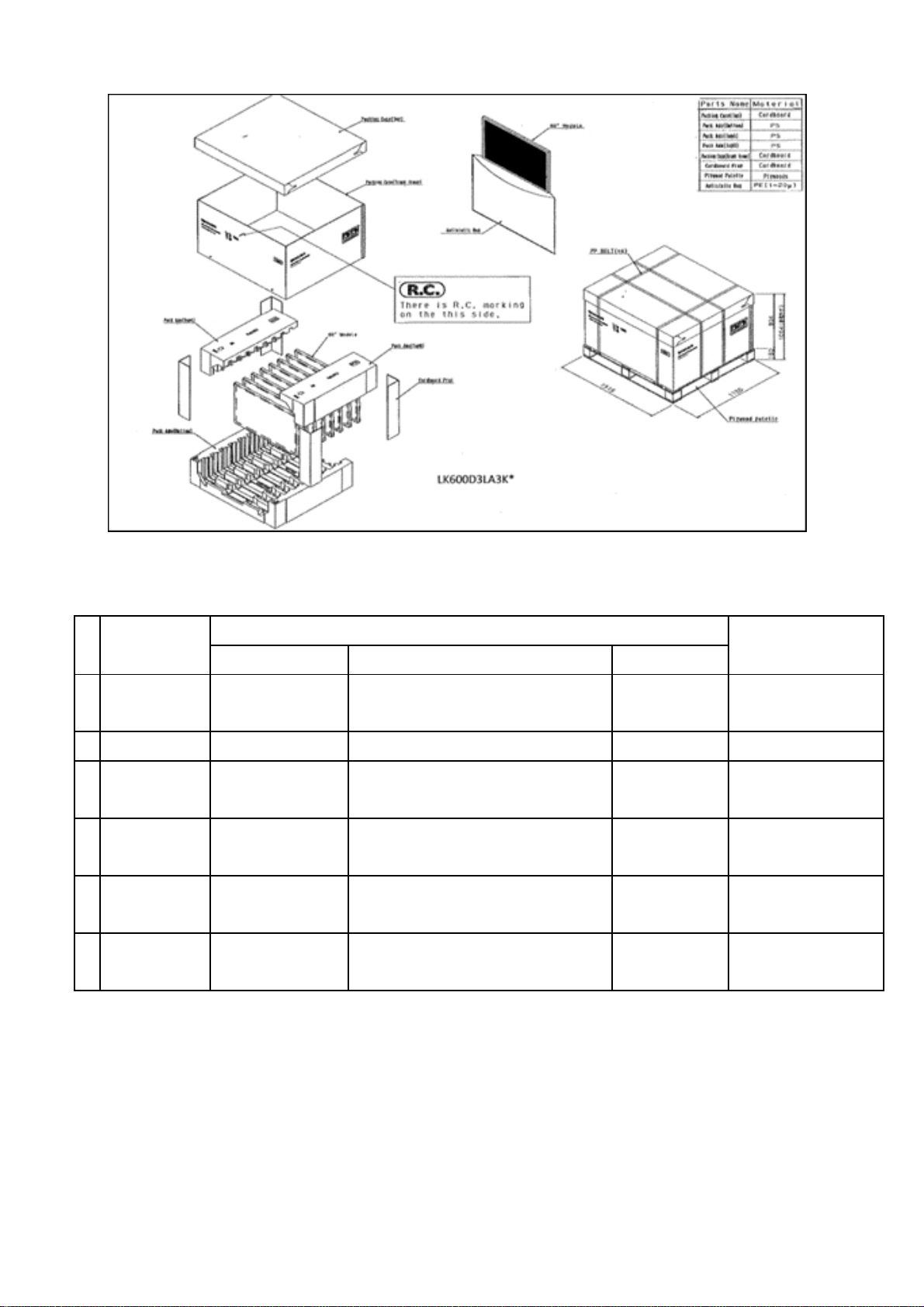

8 Packing Specification..............................................................32

document version 1.0 2

Product Specification

R G B R G B

1 2 1

919 1

920

1st Line

1080

Line

M270HTN01.0

AU OPTRONICS CORPORATION

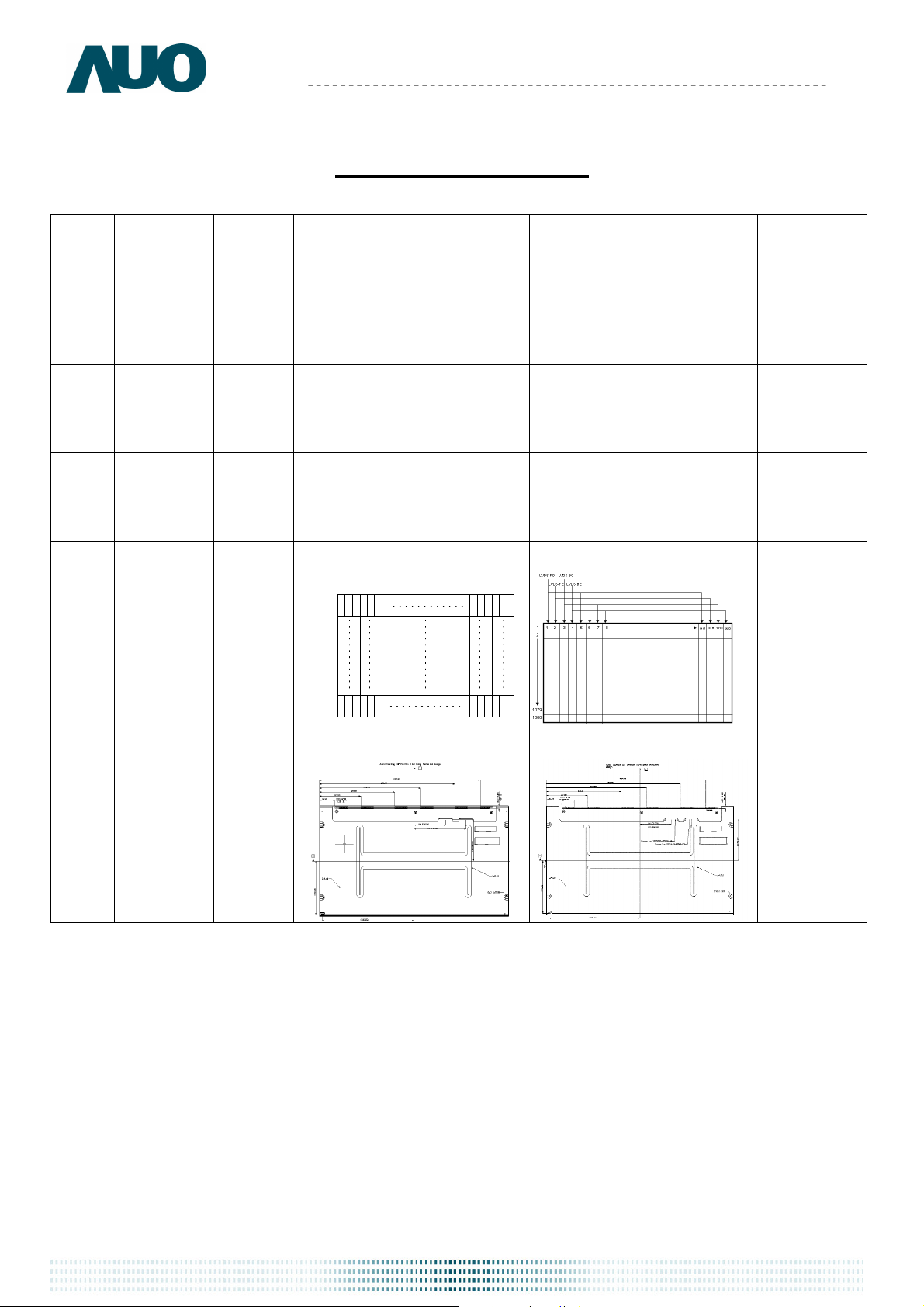

Record of Revision

Version

i0.1 2013/3/22

Date Page Old description New Description Remark

All First version release -

1.1 2013/5/2 13 3.2.1 Connector Type (30 pin)

2013/5/2 13-15

3.2.2 Connector Pin Assignment

3.4.1 LCD Pixel Format

2013/5/2 17

3.2.1 Connector Type (30 pin & 40 pin)

Modify 3.2.2 Connector Pin Assignment

3.4.1 LCD Pixel Format

2013/5/2 32

7 Mechanical Characteristics

document version 1.0 3

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

1 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open or modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) In case a TFT-LCD Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the LED lightbar edge. Otherwise the TFT-LCD Module may be damaged.

10) Insert or pull out the interface connector, be sure not to rotate nor tilt it of the TFT-LCD Module.

11) Do not twist nor bend the TFT -LCD Module even momentary. It should be taken into consideration that no bending/twisting forces are applied to the TFT-LCD Module from outside. Otherwise the TFT-LCD Module may be damaged.

12) Please avoid touching COF position while you are doing mechanical design.

13) When storing modules as spares for a long time, the following precaution is necessary:

Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep

the temperature between 5℃ and 35℃ at normal humidity.

document version 1.0 4

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

2 General Description

This specification applies to the 27 inch wide Color a-Si TFT-LCD Module M270HTN01.0. The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). The input interface is Four channel LVDS and this module doesn’t contain an driver board for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25℃ condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 685.65(27”) Active Area [mm] 597.6 (H) x 336.15 (V) Pixels H x V - 1920(x3) x 1080 Pixel Pitch [um] 311.25 (per one triad) ×311.25 Pixel Arrangement - R.G.B. Vertical Stripe Display Mode - TN Mode, Normally White White Luminance ( Center ) [cd/m2] 300 (Typ.) Contrast Ratio - 1000:1 (Typ.) Response Time [msec] 5ms (Typ., on/off) Power Consumption (LCD Module + Backligh unit)

Weight [Grams] 2860 Outline Dimension [mm] 630 (W) × 368.2 (H) × 14.1(D) Electrical Interface - Four channel LVDS Support Color - 16.7M colors (RGB 6-bit + Hi_FRC ) Surface Treatment - Anti-Glare, 3H Temperature Range Operating Storage (Shipping) RoHS Compliance - RoHS Compliance TCO Compliance - TCO 6.0 Compliance

[Watt] 29.52 (Typ.)

LCD module : PDD (Typ.)=8.92 @ Black pattern,Fv=144Hz Backlight unit : P

[oC] [oC]

0 to +50

-20 to +60

(Typ.) =20.6 @Is=120mA

BLU

document version 1.2 5

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

2.2 Absolute Maximum Rating of Environment

Permanent damage may occur if exceeding the following maximum rating.

Symbol Description Min. Max. Unit Remark

TOP Operating Temperature 0 +50 [oC] Note 2-1

TGS

Glass surface temperature (operation)

0 +65 [oC]

Function judged only

HOP Operation Humidity 5 90 [%RH]

TST Storage Temperature -20 +60 [oC]

HST Storage Humidity

5 90

[%RH]

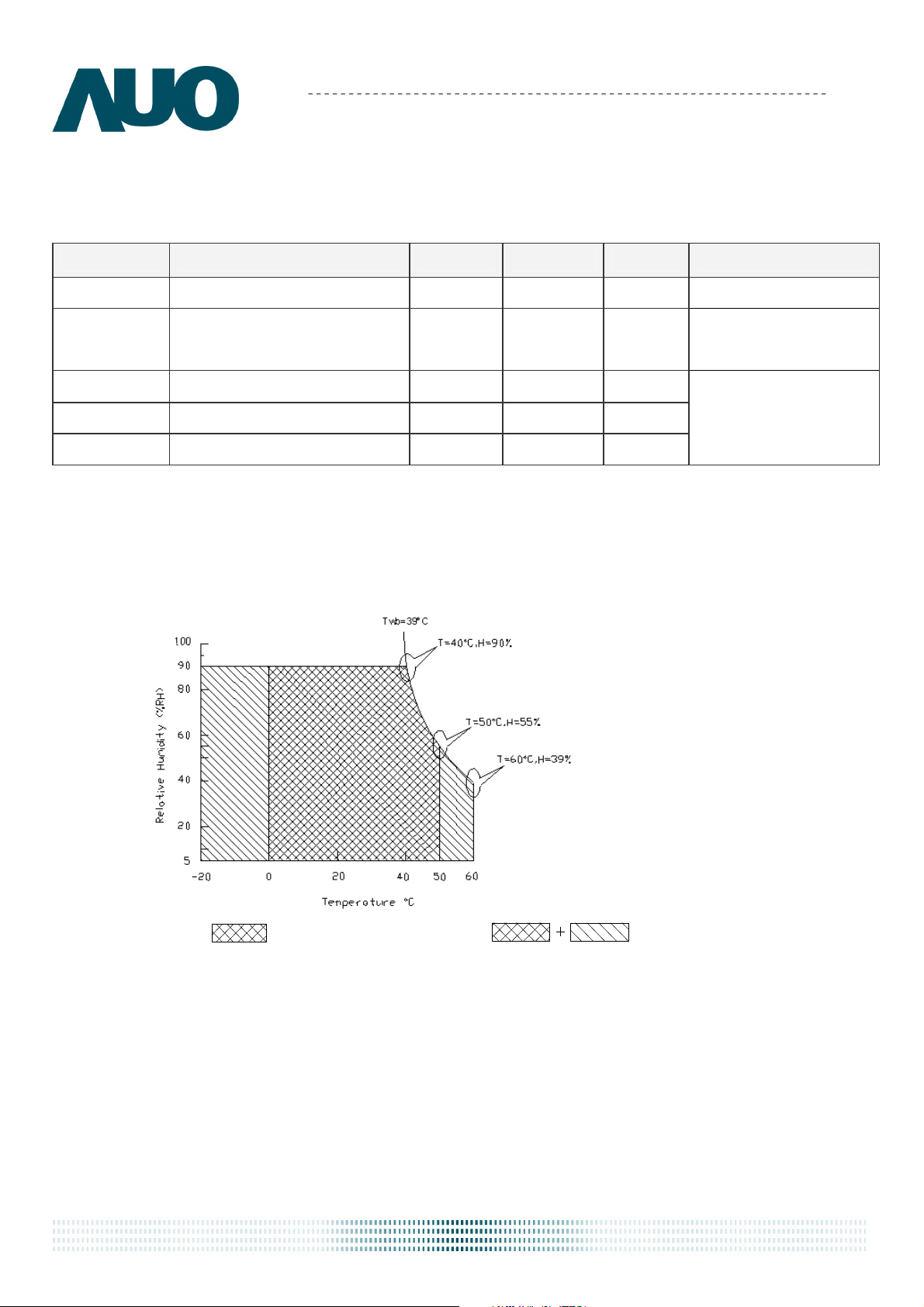

Note 2-1: Temperature and relative humidity range are shown as the below figure.

1. 90% RH Max ( Ta ≦39℃)

2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)

3. No condensation

Note 2-1

Operating Range Storage Range

document version 1.2 6

Product Specification

AU OPTRONICS CORPORATION

2.3 Optical Characteristics

The optical characteristics are measured on the following test condition.

Test Condition:

1. Equipment setup: Please refer to Note 2-2.

2. Panel Lighting time: 30 minutes

3. VDD=5.0V, Fv=144Hz,Is=120mA,Ta=25℃

M270HTN01.0

Symbol

Lw

L

uni

CR

θR

θL

ΦH

ΦL

θR

θL

ΦH

ΦL

TR

TF

-

Rx

Ry

Gx

Gy

Bx

By

Wx

Wy

CT

FdB

Description Min. Typ. Max. Unit Remark

White Luminance (Center of screen)

Luminance Uniformity (9 points)

Contrast Ratio (Center of screen)

Horizontal Viewing Angle

(CR=10)

Vertical Viewing Angle

(CR=10)

Horizontal Viewing Angle

(CR=5)

Vertical Viewing Angle

(CR=5)

Response Time

Color Coordinates

(CIE 1931)

Crosstalk - -

Flicker (Center of screen) - -

Right 75 85 -

Down 70 80 -

Right 75 88 -

Down 70 85 -

Rising Time - 3.8

Falling Time -

Rising + Falling -

Red x

Red y

Green x

Green y

Blue x

Blue y

White x

White y

240 300

75 80

600 1000

Left 75 85 -

Up

Left 75 88 -

Up

70 80 -

70 85 -

5.5

1.2 2.5

5 8

0.615

0.315 0.345 0.375

0.291 0.321 0.351

0.603 0.633 0.663

0.121 0.151 0.181

0.018 0.048 0.078

0.283 0.313 0.343

0.299 0.329 0.359

0.645 0.675

1.5

-20

[cd/m2]

-

- -

[%]

[degree]

[msec]

[%]

[dB]

-

Note 2-2

By SR-3

Note 2-3

By SR-3

Note 2-4

By SR-3

Note 2-5

By SR-3

Note 2-6

By TRD-100

By SR-3

Note 2-7

By SR-3

Note 2-8

By SR-3

document version 1.2 7

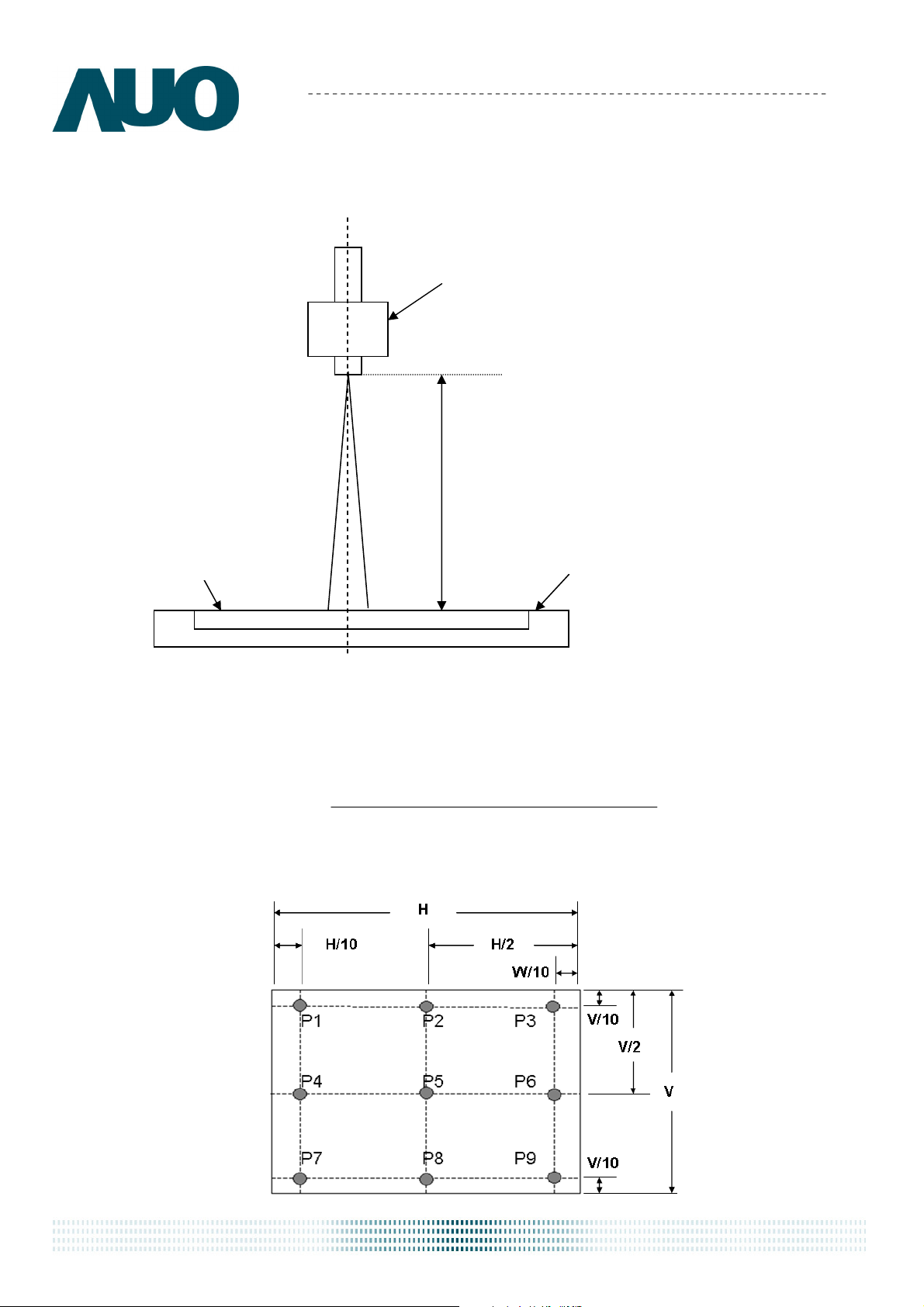

Note 2-2: Equipment setup :

Product Specification

AU OPTRONICS CORPORATION

Photo detector (SR-3, TRD-100)

Measured distance (50cm)

M270HTN01.0

Center of the screen

Note 2-3: Luminance Uniformity Measurement

Definition:

y UniformitLuminance =

a.Test pattern: White Pattern

P9)~(P1 Points 9 of Luminance Minimum

P9)~(P1 Points 9 of Luminance Maximum

document version 1.2 8

Product Specification

100

90

W hite

100

White

Black

1 Frame

AU OPTRONICS CORPORATION

M270HTN01.0

Note 2-4: Contrast Ratio Measurement

Definition:

RatioContrast =

a. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)

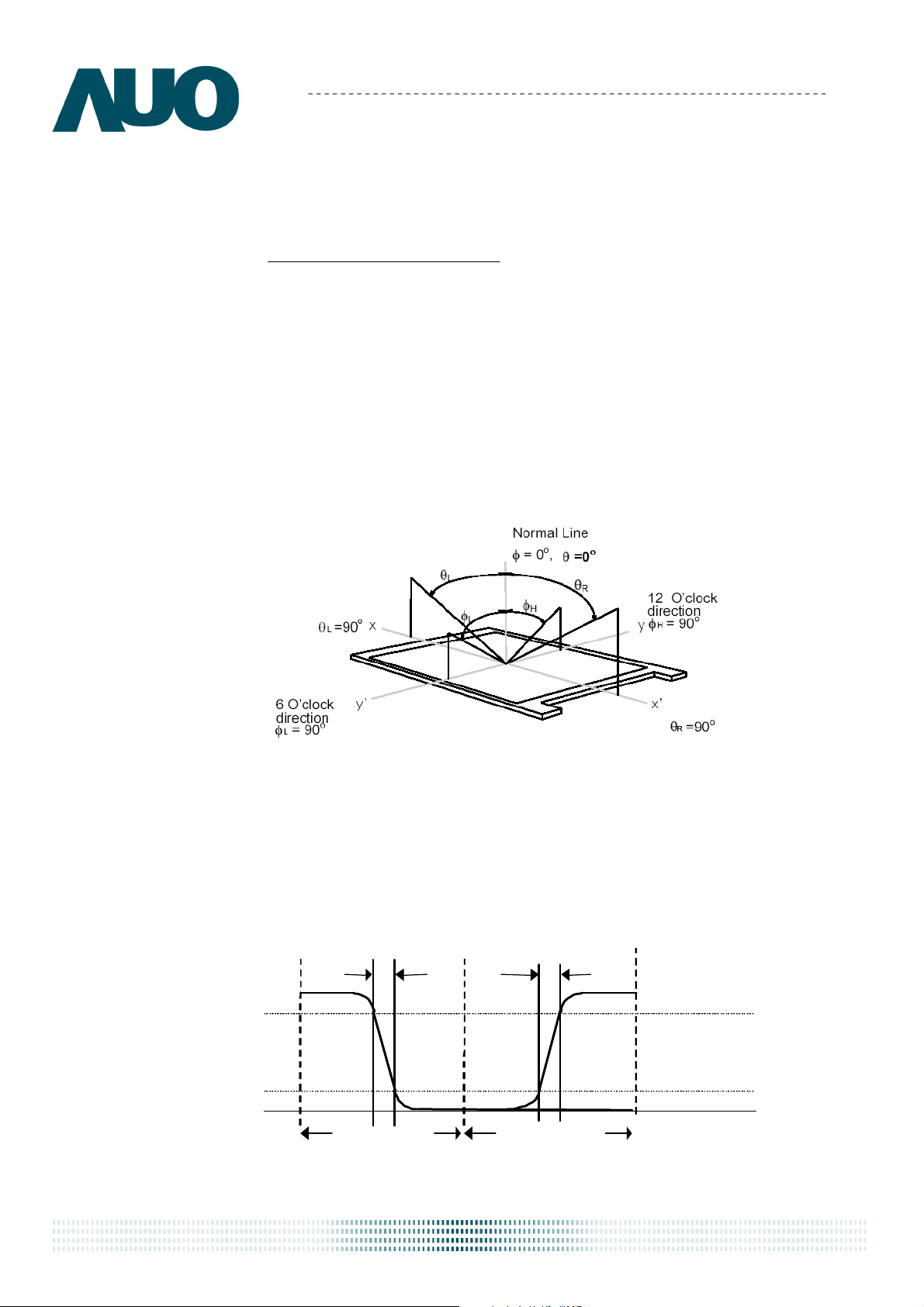

Note 2-5: Viewing angle measurement

Definition: The angle at which the contrast ratio is greater than 10 & 5 .

a. Horizontal view angle: Divide to left & right (θL & θR)

Vertical view angle: Divide to up & down (ΦH &ΦL)

pattern Whiteof Luminance

pattern Black of Luminance

Note 2-6: Response time measurement

The output signals of photo detector are measured when the input signals are changed

from “Black” to “White” (rising time, TR), and from “White” to “Black” (falling time, TF),

respectively. The response time is interval between the 10% and 90% of optical

response. (Black & White color definition: Please refer section 3.4.3)

%

Optical

respon se

10

0

document version 1.2 9

T

F

T

R

Product Specification

AU OPTRONICS CORPORATION

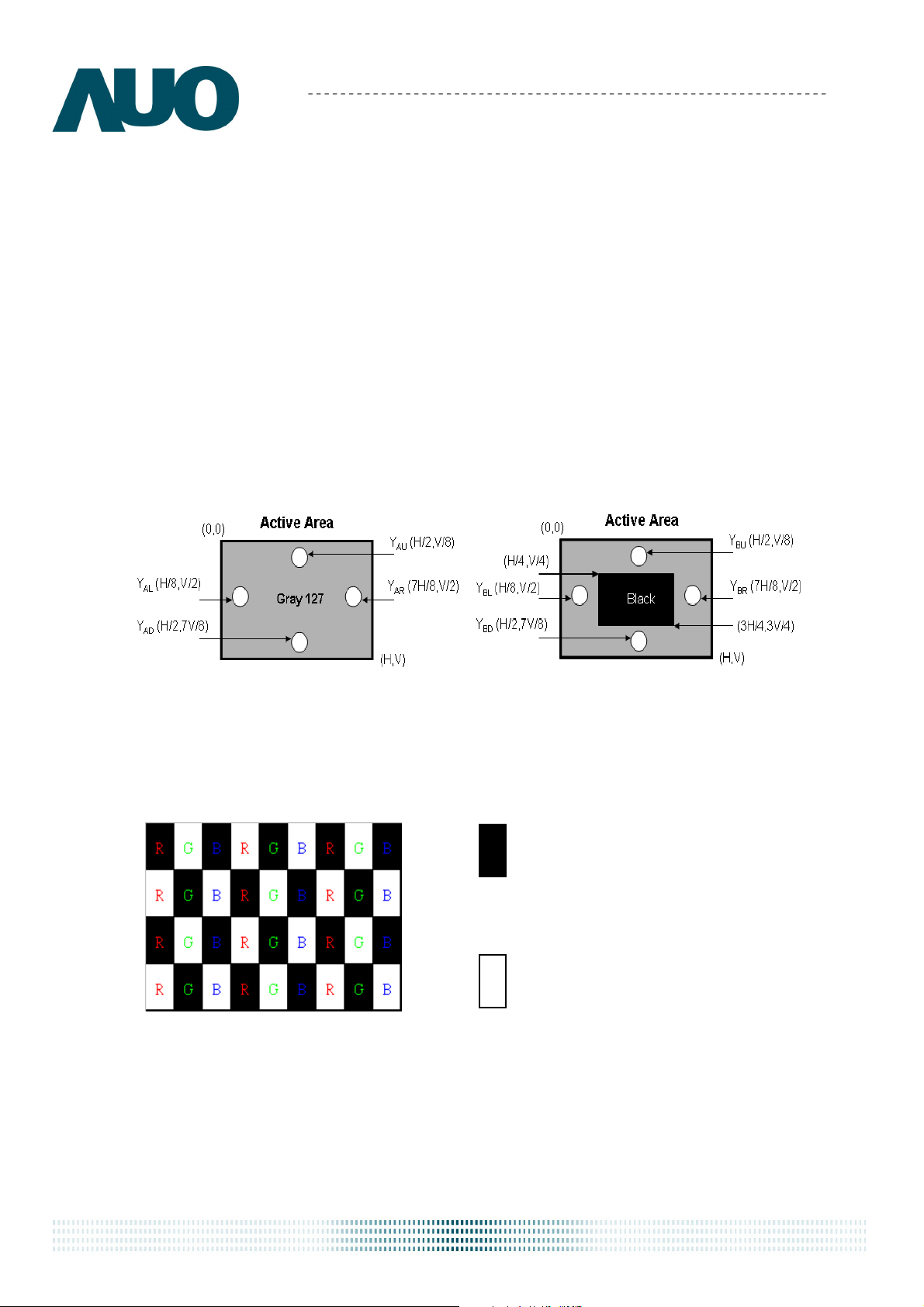

Note 2-7: Crosstalk measurement

Definition:

CT = Max. (CTH,CTV);

Where

a.Maximum Horizontal Crosstalk :

CTH = Max. (| YBL – YAL | / YAL × 100 %, | YBR – YAR | / YAR × 100 %);

Maximum Vertical Crosstalk:

CTV = Max. (| YBU – YAU | / YAU × 100 %, | YBD – YAD | / YAD × 100 %);

b. YAU, YAD, YAL, YAR = Luminance of measured location without Black pattern

YBU, YBD, YBL, YBR = Luminance of measured location with Black pattern

M270HTN01.0

Note 2-8: Flicker measurement

a. Test pattern: It is listed as following.

Gray level = L0

Gray level = L127

R: Red, G: Green, B:Blue

b. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)

document version 1.2 10

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

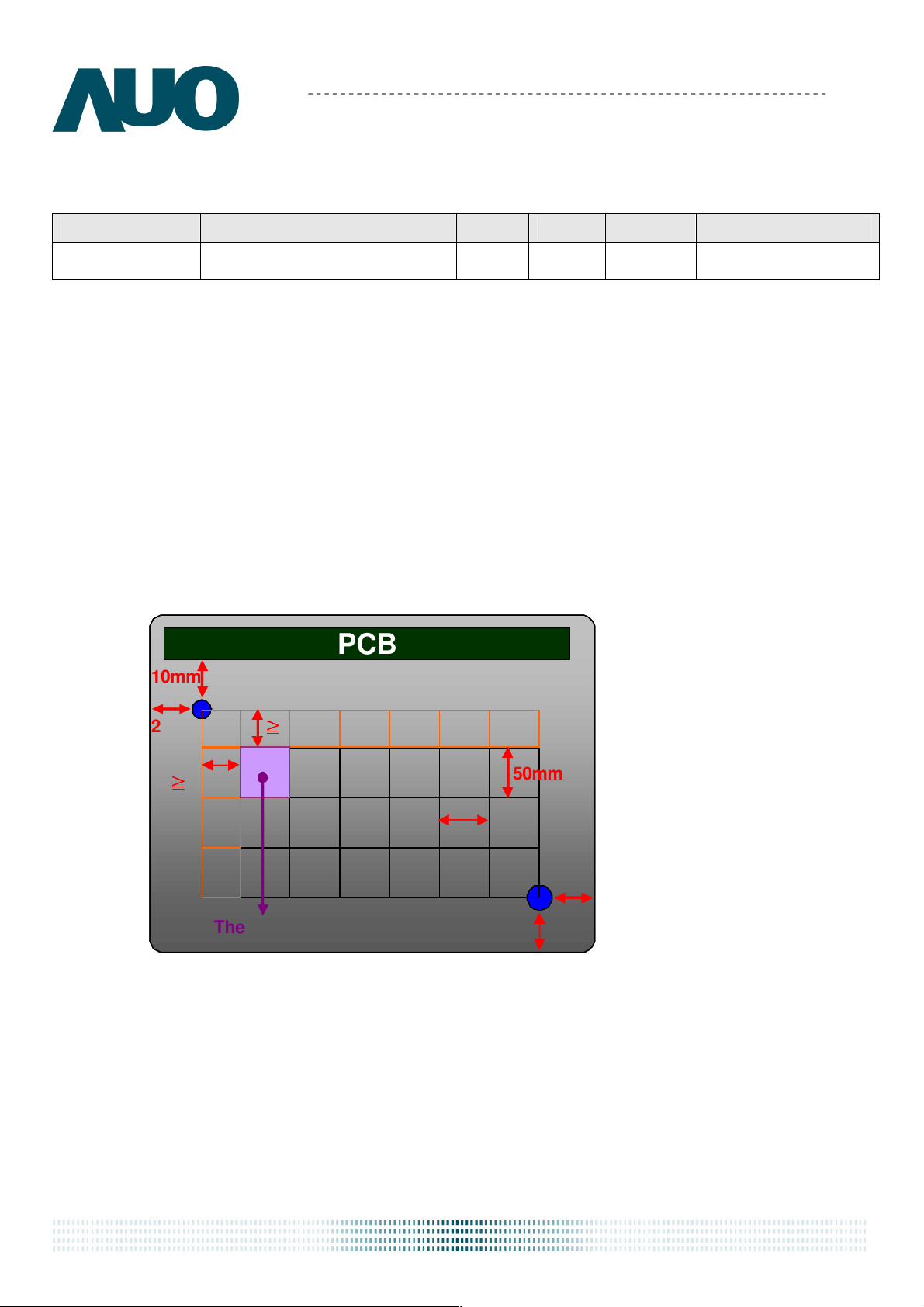

2.4 Mechanical Characteristics

Symbol Description Min. Max. Unit Remark

Pbc Backside Compression

2.5 - [Kgf] Note 2-9

Note 2-9: Test Method:

The point is at a distance from right-downside 25mm x 25mm defined as the Start Point

of Measure Points, and the point is at a distance 25mm from left-side & around 10mm

from PCB defined as the End Point.

Align 50mm x 50mm block from Start Point on the Bezel Back, and the corners of each

block are Measure Points.

If the distance from the last block to each side of the End Point ≧ 25mm, add other

blocks to make sure that most area of Bezel Back can be measured.

10mm

25mm

≧≧≧≧

25mm

≧≧≧≧

25mm

End Point

≧≧≧≧

25mm

≧≧≧≧

25mm

The last block

PCB

50mm

Start Point

25mm

document version 1.2 11

Product Specification

VDD

AUO ASIC

Connector

G2160

D2880

AU OPTRONICS CORPORATION

M270HTN01.0

3 TFT-LCD Module

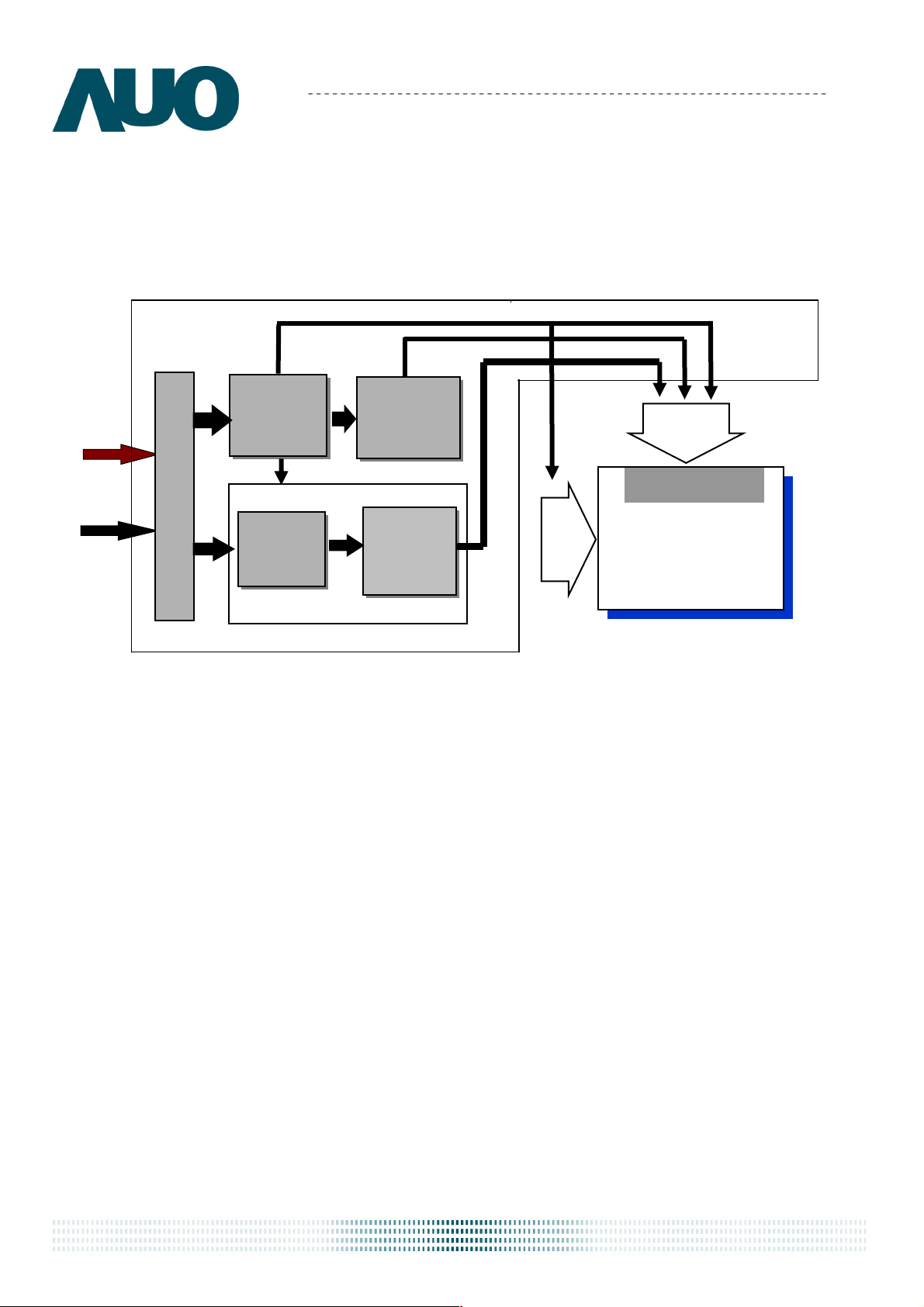

3.1 Block Diagram

The following shows the block diagram of the 27 inch Color TFT-LCD Module.

LVDS

Signal

DC/DC

Converter

Receiver

LVDS

Control Board

Correction

ASIC

Gamma

Timing

Controller

Mini LVDS

Transmitter

D1

G1

TFT-LCD

1920(x3) x 1080

Pixels

document version 1.2 12

Manufacturer

STARCONN

3.2 Interface Connection

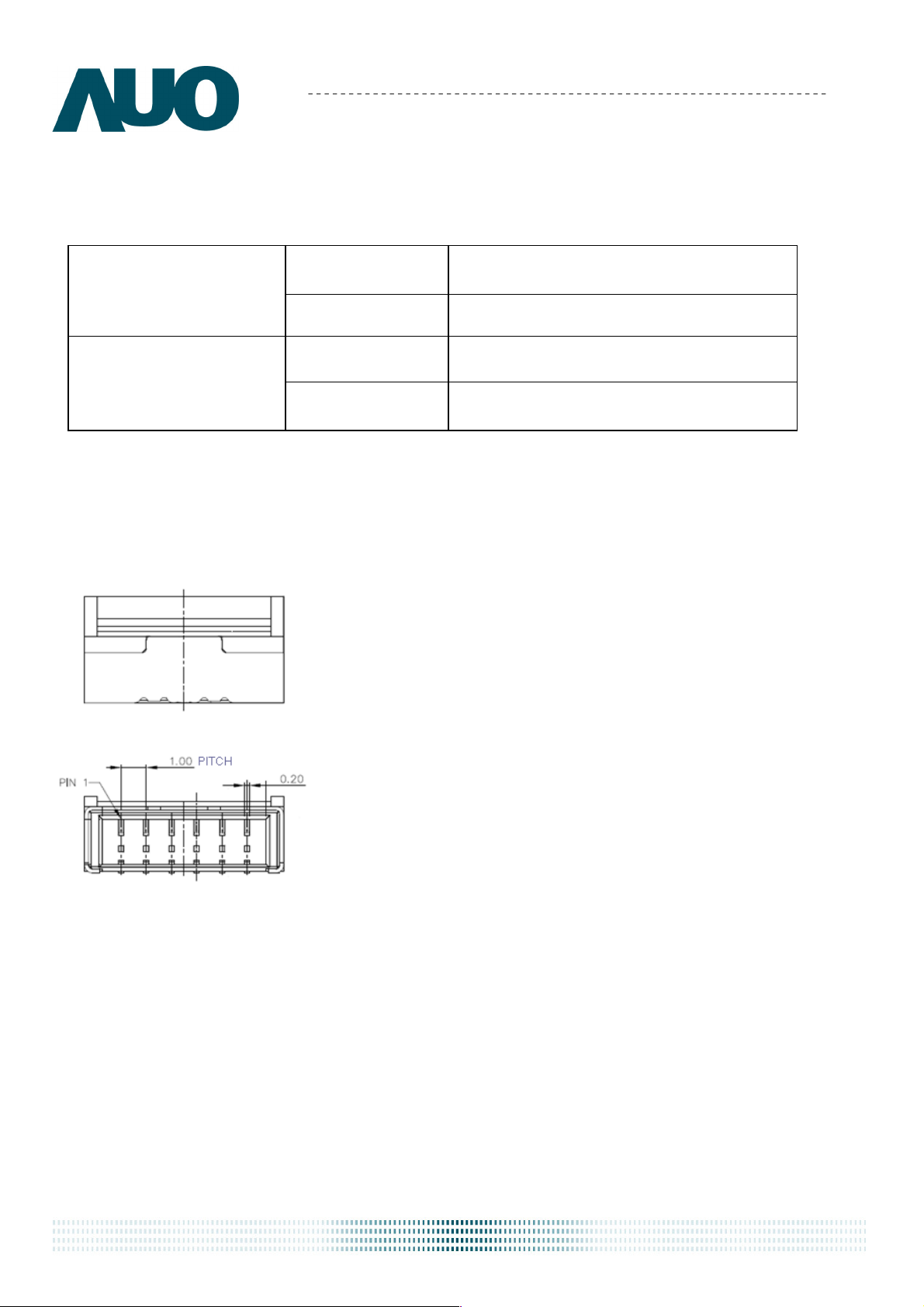

3.2.1 Connector Type

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

Mating Connector

Part Number

Manufacturer JAE

093G30-02001AM4 MSCKT2407P30HB

Part Number FI-X30HL (Locked Type)

TFT-LCD Connector

Mating Connector

Part Number Manufacturer JAE

115F40-R000RA-M3

Part Number FI-NX40HL (Locked Type)

3.2.2 Connector Pin Assignment

Pin number Signal name Description

1 RxO1CN0 F path_ Negative LVDS differential data input (Odd data)

2 RxO1CP0 F path_ Positive LVDS differential data input (Odd data)

3 RxO1CN1 F path_ Negative LVDS differential data input (Odd data)

4 RxO1CP1 F path_ Positive LVDS differential data input (Odd data)

5 RxO1CN2 F path_ Negative LVDS differential data input (Odd data)

6 RxO1CP2 F path_ Positive LVDS differential data input (Odd data)

7 GND Power Ground

8 RxO1CCLKN F path_ Negative LVDS differential clock input (Odd clock)

9 RxO1CCLKP F path_ Positive LVDS differential clock input (Odd clock)

10 GND Power Ground

11 RxO1CN3 F path_ Negative LVDS differential data input (Odd data)

12 RxO1CP3 F path_ Positive LVDS differential data input (Odd data)

13 NC Do not connect (for AUO test only.)

14 NC Do not connect (for AUO test only.)

15 GND

Power Ground

16 RxE2CN0 F path_ Negative LVDS differential data input (Even data)

17 RxE2CP0 F path_ Positive LVDS differential data input (Even data)

18 RxE2CN1 F path_ Negative LVDS differential data input (Even data)

19 RxE2CP1 F path_ Positive LVDS differential data input (Even data)

20 RxE2CN2 F path_ Negative LVDS differential data input (Even data)

21 RxE2CP2 F path_ Positive LVDS differential data input (Even data)

22 GND Power Ground

23 RxE2CCLKN F path_ Negative LVDS differential clock input (Even clock)

24 RxE2CCLKP F path_ Positive LVDS differential clock input (Even clock)

document version 1.2 13

25 GND Power Ground

26 RxE2CN3 F path_ Negative LVDS differential data input (Even data)

Product Specification

M270HTN01.0

AU OPTRONICS CORPORATION

27 RxE2CP3 F path_ Positive LVDS differential data input (Even data)

28 NC Do not connect (for AUO test only.)

29 NC Do not connect (for AUO test only.)

30 GND Power Ground

document version 1.2 14

Product Specification

AU OPTRONICS CORPORATION

Pin number Signal name Description

1 RxO3CN0 B path_ Negative LVDS differential data input (Odd data)

2 RxO3CP0 B path_ Positive LVDS differential data input (Odd data)

3 RxO3CN1 B path_ Negative LVDS differential data input (Odd data)

4 RxO3CP1 B path_ Positive LVDS differential data input (Odd data)

5 RxO3CN2 B path_ Negative LVDS differential data input (Odd data)

6 RxO3CP2 B path_ Positive LVDS differential data input (Odd data)

7 GND Power Ground

8 RxO3CCLKN B path_ Negative LVDS differential clock input (Odd clock)

9 RxO3CCLKP B path_ Positive LVDS differential clock input (Odd clock)

10 GND Power Ground

11 RxO3CN3 B path_ Negative LVDS differential data input (Odd data)

12 RxO3CP3 B path_ Positive LVDS differential data input (Odd data)

13 NC Do not connect (for AUO test only.)

M270HTN01.0

14 NC Do not connect (for AUO test only.)

15 GND

Power Ground

16 RxE4CN0 B path_ Negative LVDS differential data input (Even data)

17 RxE4CP0 B path_ Positive LVDS differential data input (Even data)

18 RxE4CN1 B path_ Negative LVDS differential data input (Even data)

19 RxE4CP1 B path_ Positive LVDS differential data input (Even data)

20 RxE4CN2 B path_ Negative LVDS differential data input (Even data)

21 RxE4CP2 B path_ Positive LVDS differential data input (Even data)

22 GND Power Ground

23 RxE4CCLKN B path_ Negative LVDS differential clock input (Even clock)

24 RxE4CCLKP B path_ Positive LVDS differential clock input (Even clock)

25 GND Power Ground

26 RxE4CN3 B path_ Negative LVDS differential data input (Even data)

27 RxE4CP3 B path_ Positive LVDS differential data input (Even data)

28 NC Do not connect (for AUO test only.)

29 NC Do not connect (for AUO test only.)

30 GND Power Ground

31 NC Do not connect (for AUO test only.)

32 NC Do not connect (for AUO test only.)

33 GND Power Ground

34 GND Power Ground

35 GND Power Ground

36 VDD Power +5V

37 VDD Power +5V

38 VDD Power +5V

39 VDD Power +5V

document version 1.2 15

40 VDD Power +5V

Product Specification

AU OPTRONICS CORPORATION

3.3 Electrical Characteristics

3.3.1 Absolute Maximum Rating

Permanent damage may occur if exceeding the following maximum rating.

M270HTN01.0

Symbol

VDD

Description Min Max Unit

Power Supply

Input Voltage

GND-0.3 6.0 [Volt]

3.3.2 Recommended Operating Condition

Symbol

VDD

IDD

PDD

IRush Inrush Current

VDDrp

Description Min Typ Max Unit

Power supply

Input voltage

Power supply

Input Current

(RMS)

VDD Power

Consumption

Allowable VDD

Ripple Voltage

4.5 5.0 5.5 [Volt]

- 1.2 1.4

1.4 1.7

- 7 6.5

6.5 8.0

-

- 3.0 [A]

- 500 [mV]

[A]

[Watt]

Remark

Ta=25°C

Remark

VDD= 5.0V, Black Pattern, Fv=60Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

VDD= 5.0V, Black Pattern, Fv=60Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

Note 3-1

VDD= 5.0V, Black Pattern, Fv=75Hz

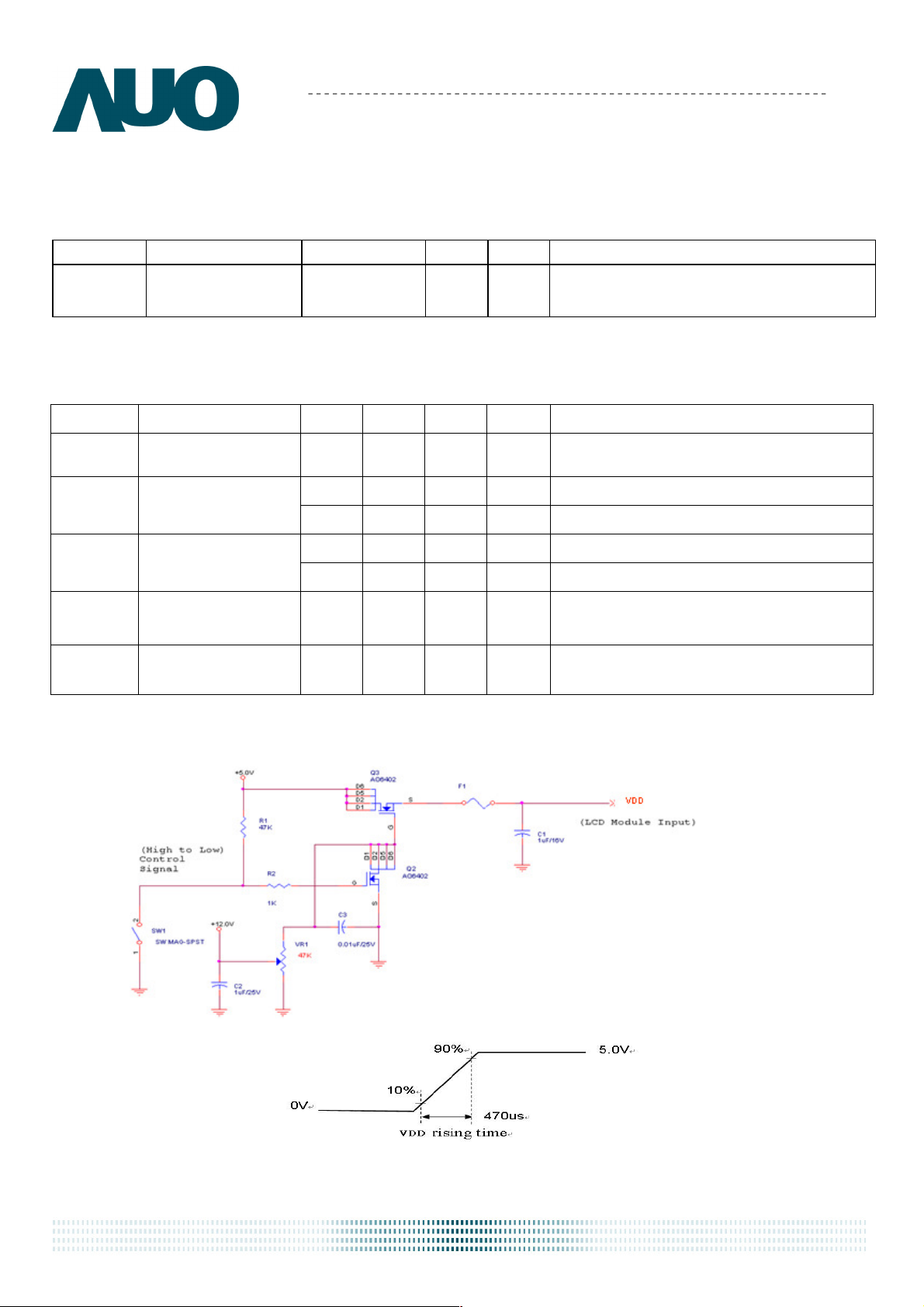

Note 3-1: Inrush Current measurement:

Test circuit:

The duration of VDD rising time: 470us.

document version 1.2 16

3.4 Signal Characteristics

3.4.1 LCD Pixel Format

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

3.4.2 LVDS Data Format

Note 3-2:

a. O = “Odd Pixel Data” E = “Even Pixel Data” b. Refer to 3.4.1 LCD pixel format, the 1st data is 1 (Odd Pixel Data), the 2

nd

data is 2 (Even Pixel Data) and

the last data is 1920 (Even Pixel Data).

document version 1.2 17

Product Specification

M270HTN01.0

AU OPTRONICS CORPORATION

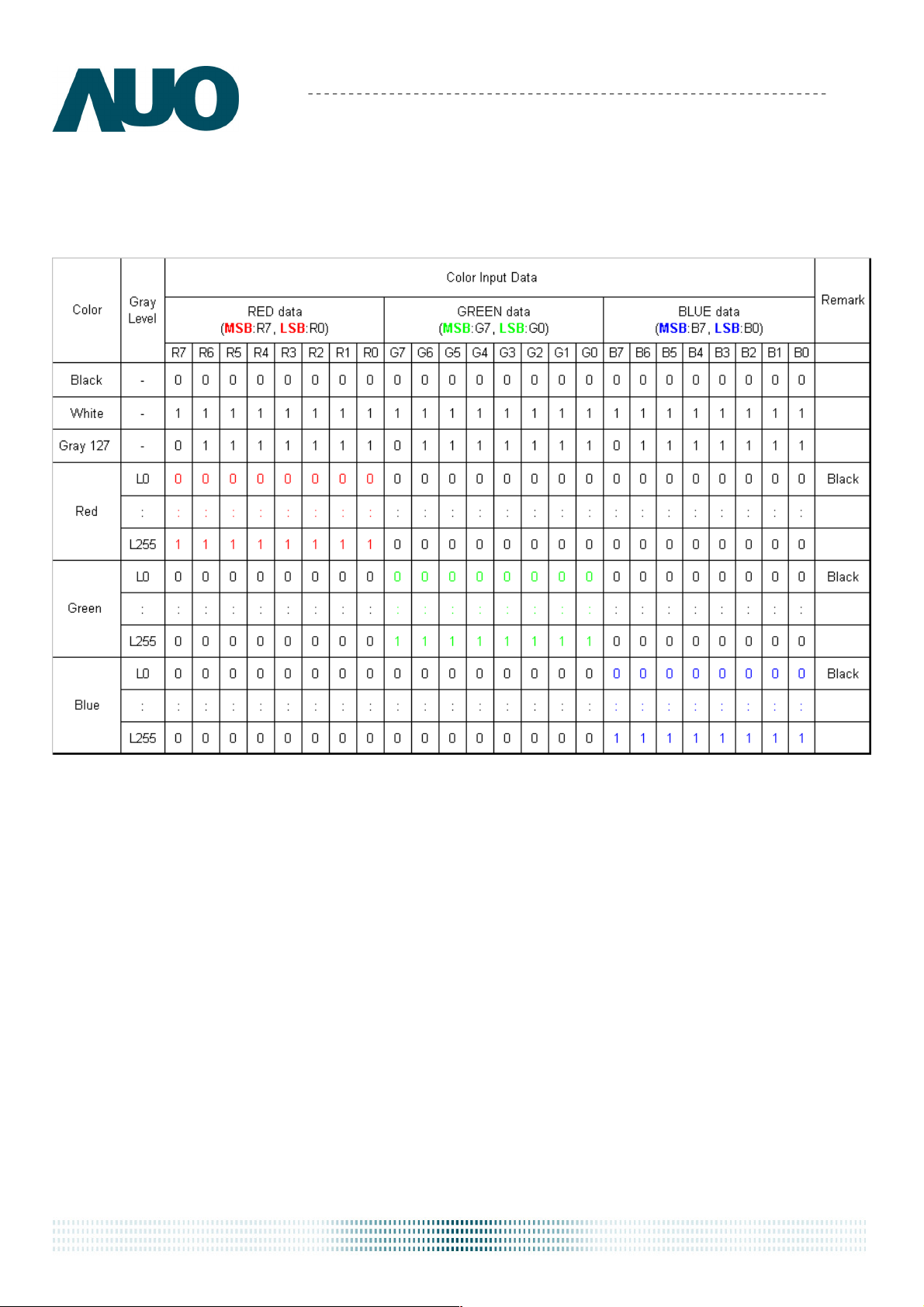

3.4.3 Color versus Input Data

The following table is for color versus input data (8bit). The higher the gray level, the brighter the color.

document version 1.2 18

3.4.4 LVDS Specification

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

a. DC Characteristics:

Symbol

VTH

VTL

│VID│

VCM

Description Min Typ Max Units

LVDS Differential Input High Threshold LVDS Differential Input Low Threshold LVDS Differential Input Voltage LVDS Common Mode Voltage

-100

100 - 600 [mV]

+1.0 +1.2 +1.5 [V] VTH-VTL = 200mV

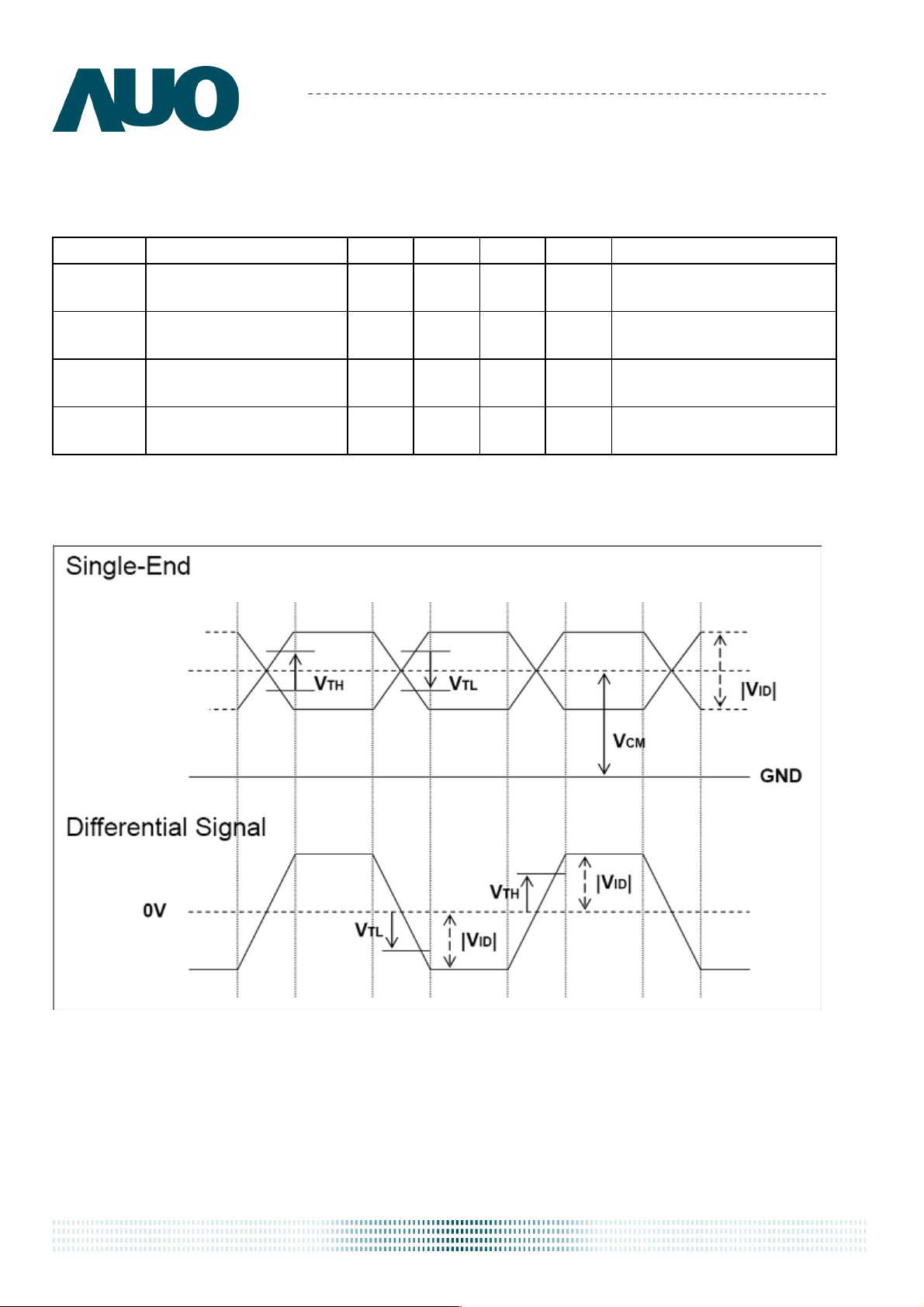

LVDS Signal Waveform:

Use RxOCLK- & RxOCLK+ as example.

RxOCLK-

Condition

- - +100 [mV] VCM = 1.2V

- - [mV] VCM = 1.2V

RxOCLK+

document version 1.2 19

Product Specification

Freq

F

max

F

clk

F

min

F

clk

* F

DEV

< Spread Spectrum>

T

ime

AU OPTRONICS CORPORATION

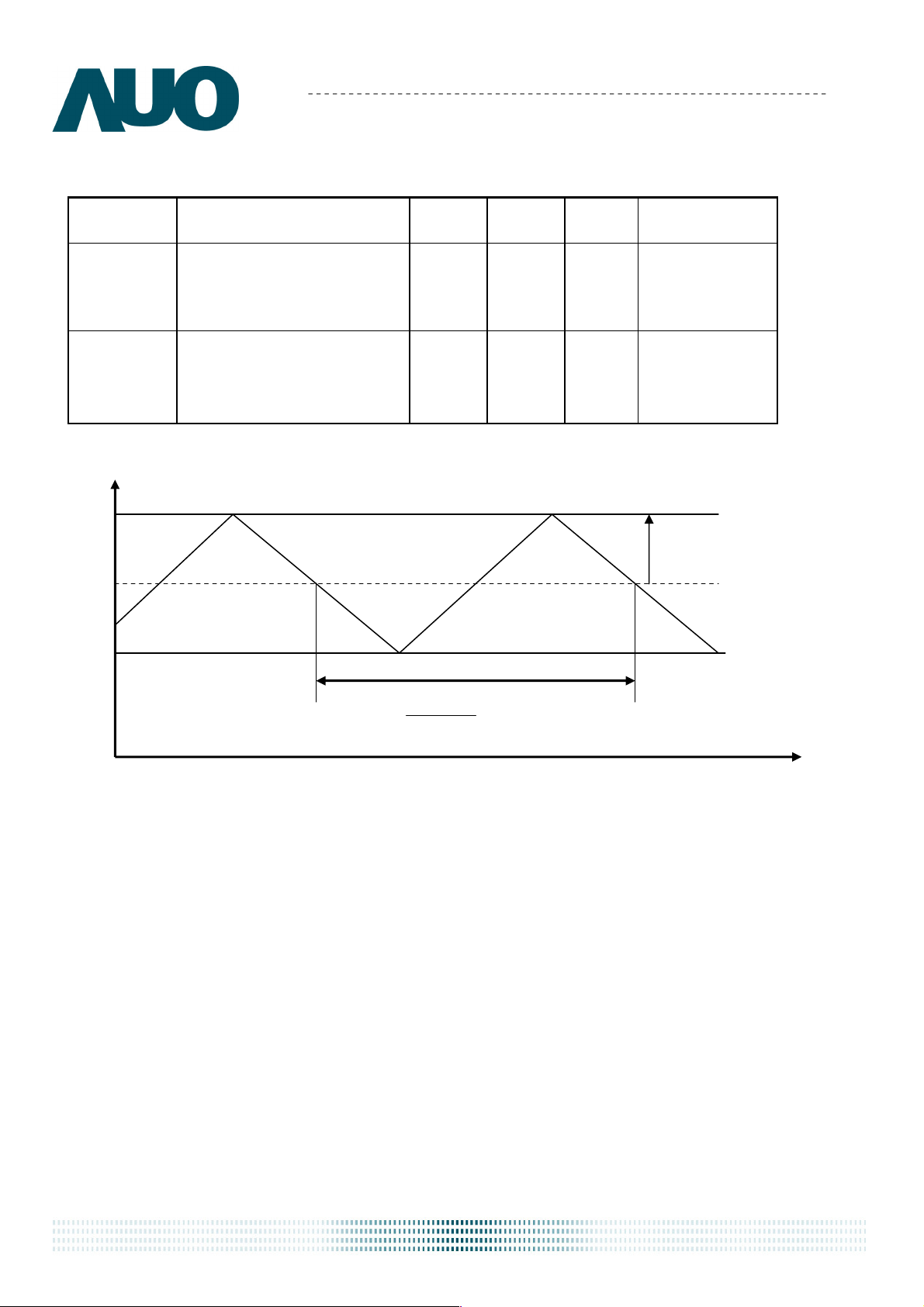

b. AC Characteristics:

Symbol Description Min Max Unit Remark

Maximum deviation of

F

DEV

input clock frequency

during Spread Spectrum

Maximum modulation

F

MOD

frequency of input clock

during Spread Spectrum

- ± 3 %

- 200 KHz

M270HTN01.0

Fclk: LVDS Clock Frequency

F

1

MOD

document version 1.2 20

Product Specification

AU OPTRONICS CORPORATION

3.4.5 Input Timing Specification

It only support DE mode, and the input timing are shown as the following table.

Symbol Description Min. Typ. Max. Unit

M270HTN01.0

Remark

Tv Period

Tdisp (v) Active

Vertical Section

Tblk (v) Blanking

Fv

Frequency

Th Period

Tdisp (h) Active

Horizontal Section

Tblk (h) Blanking

Fh

Frequency TBD 75.9 TBD KHz

Tclk Period

LVDS Clock

Fclk

Frequency

TBD 1130 TBD

TBD 1080 TBD

TBD

50 TBD

50 60 76

TBD 560 TBD

TBD 480 TBD

TBD

80 TBD

TBD 13.2 TBD

50 120 144

Th

Hz

Tclk

Note 3-3

ns 1/Fclk

MHz

Note 3-4

Note 3-3: The equation is listed as following. Please don’t exceed the above recommended value.

Fh (Min.) = Fclk (Min.) / Th (Min.); Fh (Typ.) = Fclk (Typ.) / Th (Typ.); Fh (Max.)= Fclk (Max.) / Th (Min.);

Note 3-4: The equation is listed as following. Please don’t exceed the above recommended value.

Fclk (Min.) = Fv (Min.) x Th (Min.) x Tv (Min.); Fclk (Typ.) = Fv (Typ.) x Th (Typ.) x Tv (Typ.);

Fclk (Max.) = Fv (Max.) x Th (Typ.) x Tv (Typ.);

document version 1.2 21

3.4.6 Input Timing Diagram

DE

RGB Data

CLK

DE

RGB Data

(Odd)

RGB Data

(Even)

N

Line

Pixel

M-7

Pixel

M-6

Pixel

M-5

Pixel

M-3

Pixel

M-2

Tblk(v)

Invalid Data

Tclk

Pixel

M-1

Pixel

M

Invalid Data

Product Specification

AU OPTRONICS CORPORATION

Tv

Tdisp(v)

Th

32

LineLine

Th

Tdisp(h)

Pixel

10

4

LineLine

Pixel

119

Pixel

12

1

Pixel

1

Pixel Pixel

2

Pixel

3

4

Pixel

7

5

Pixel

6 M-2

8 M

N

Line

M-5

M-4

Pixel

M-3

Pixel

M-1

PixelPixel

M270HTN01.0

M pixel

Y

N Line

Invalid Data

Tblk(h)

Invalid Data

X

Pixel

1

Pixel

2M-4

Pixel

3

Pixel

4

document version 1.2 22

Product Specification

10%

90%

10%

90%

AU OPTRONICS CORPORATION

M270HTN01.0

3.5 Power ON/OFF Sequence

VDD power,LVDS signal and backlight on/off sequence are as following. LVDS signals from any system shall be Hi-Z state when VDD is off.

Backlight Off

T1

LVDS Signal

Symbol

VDD

V

SLED

Backlight Off

T2

VALID

T3

Backlight On

Power Sequence Timing

T5

T4

Backlight Off

T6

T7

Value Remark

Unit

Min. Typ. Max.

T1 0.5 - 10 [ms]

T2 0 - 50 [ms]

T3 500 - - [ms]

T4 100 - - [ms]

T5 0 50 [ms]

T6 0 - 100 [ms]

T7 1000 - - [ms]

Note 3-5 Note 3-6

Note 3-6

Note 3-5 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.

Note 3-6 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.

document version 1.2 23

Product Specification

V

SLED

S

Ch1

Ch2

Ch3

Ch4

AU OPTRONICS CORPORATION

4 Backlight Unit

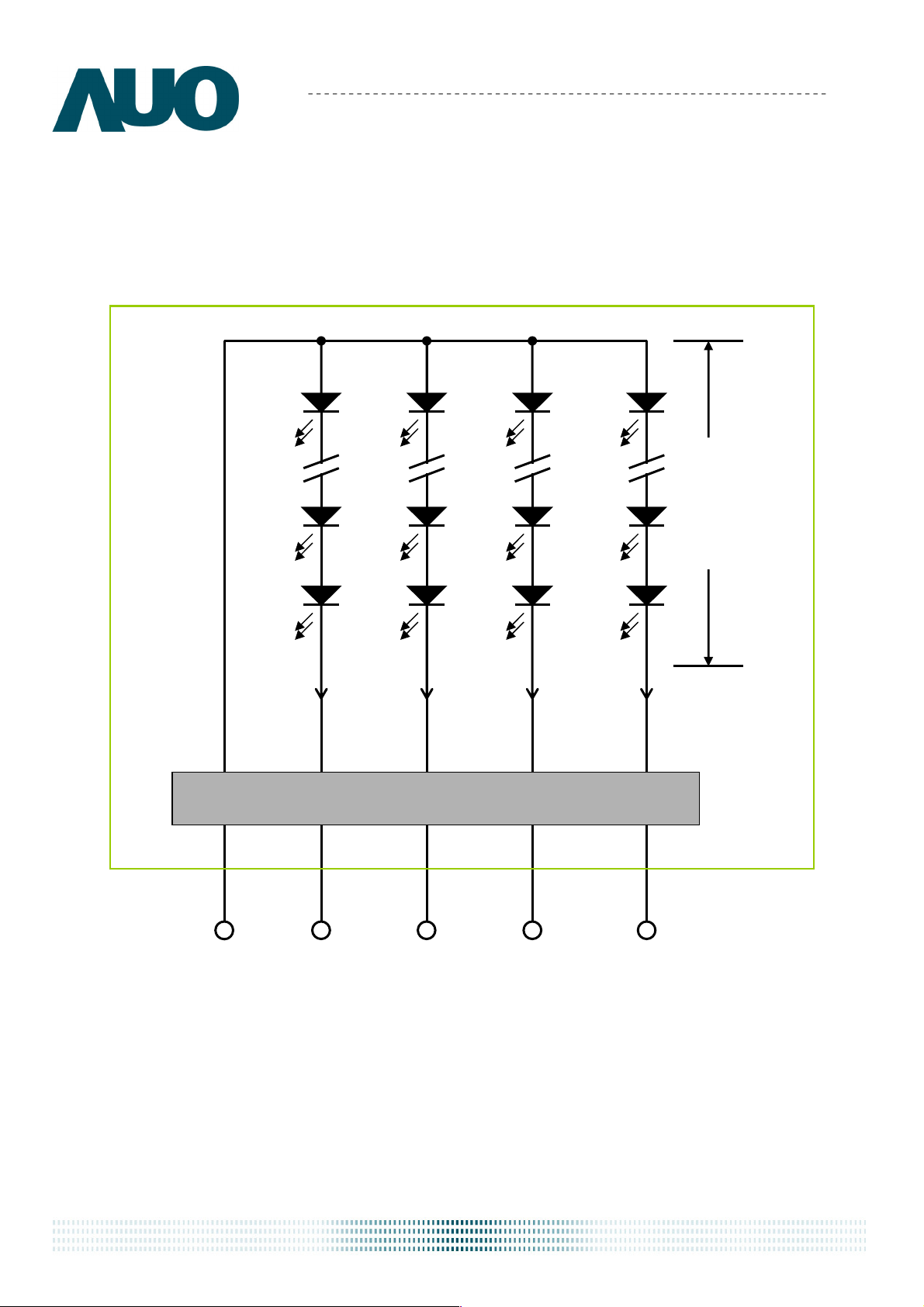

4.1 Block Diagram

The following shows the block diagram of the 27 inch Backlight Unit. And it includes 52 pcs LED in the LED light bar. (4 strings and 13 pcs LED of one string).

M270HTN01.0

+

V

-

I

S

I

S

I

S

Connector

I

S

document version 1.2 24

Product Specification

==××=××

AU OPTRONICS CORPORATION

4.2 Interface Connection

4.2.1 Connector Type

Backlight Connector

Mating Connector

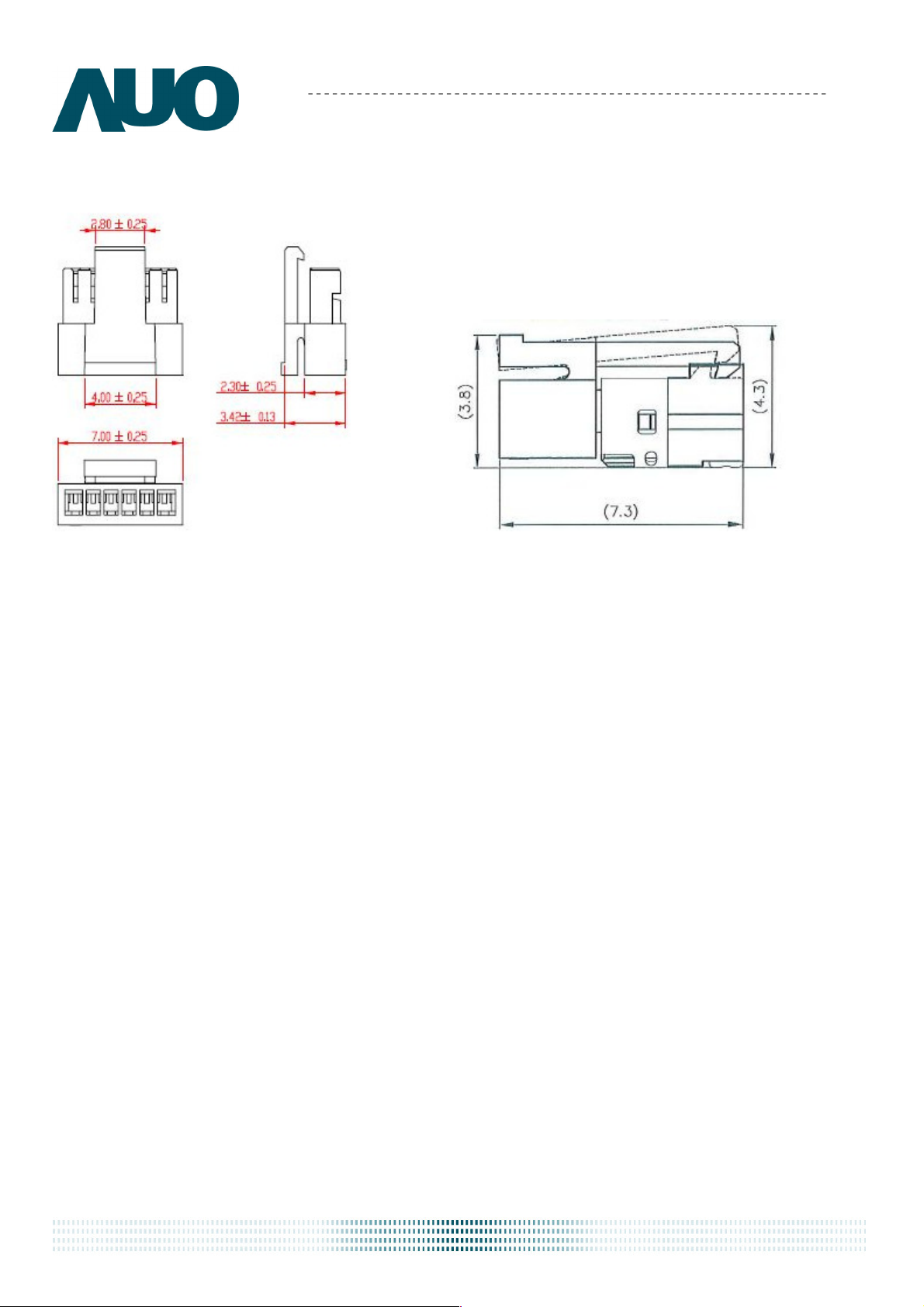

Backlight Connector dimension:

Manufacturer ENTERY

Part Number 3707K-S06N-21R

Manufacturer ENTERY

Part Number

M270HTN01.0

H112K-P06N-00B (Non-Locking type) H112K-P06N-03B (Locking type)

)(0.1,25.400.39.13 mmunitPitchDVH

document version 1.2 25

Mating Connector dimension:

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

document version 1.2 26

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

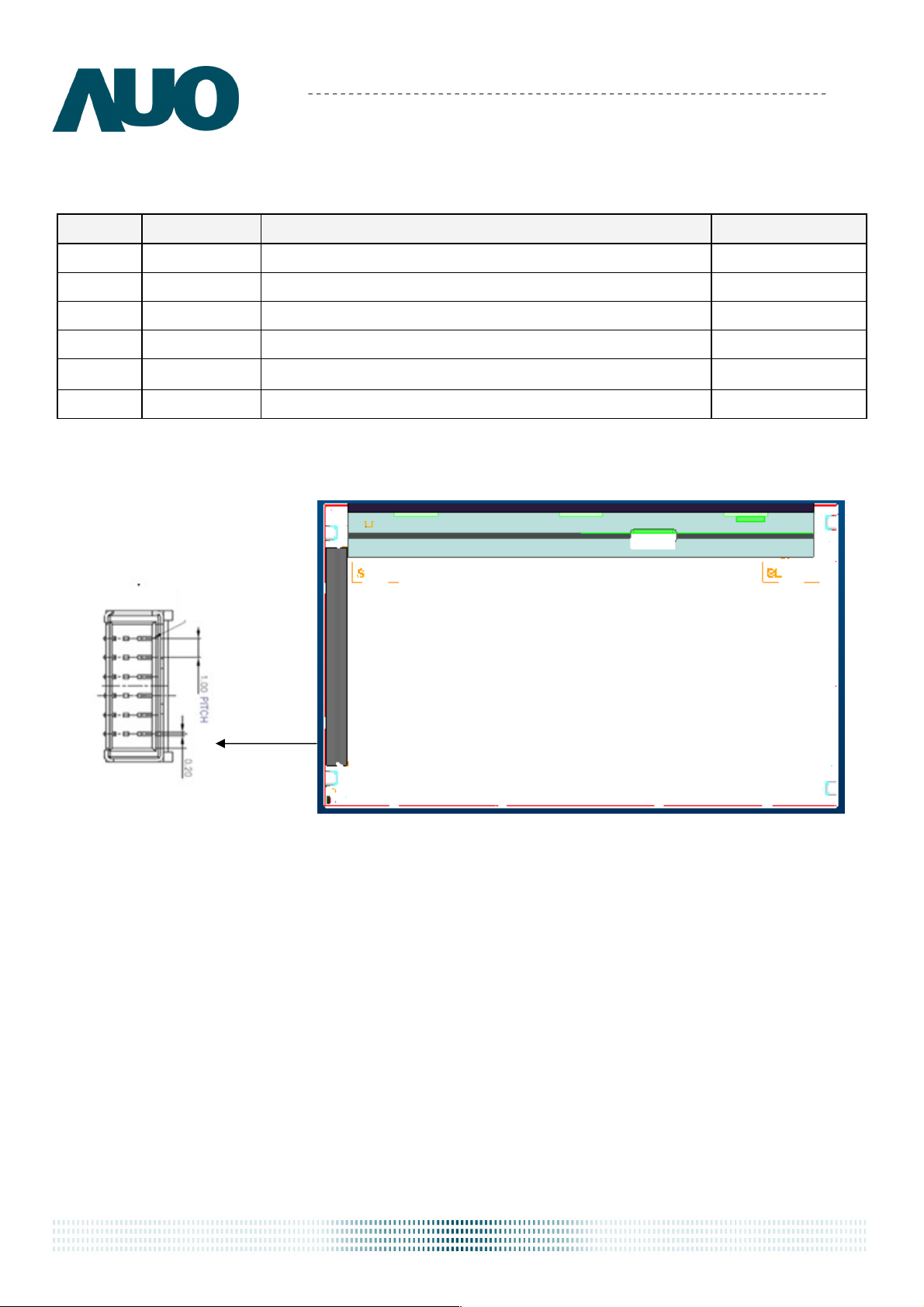

4.2.2 Connector Pin Assignment

Pin# Symbol Description Remark

1 Ch1 LED Current Feedback Terminal (Channel 1)

2 Ch2 LED Current Feedback Terminal (Channel 2)

3 V

4 V

LED Power Supply Voltage Input Terminal

SLED

LED Power Supply Voltage Input Terminal

SLED

5 Ch3 LED Current Feedback Terminal (Channel 3)

6 Ch4 LED Current Feedback Terminal (Channel 4)

document version 1.2 27

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

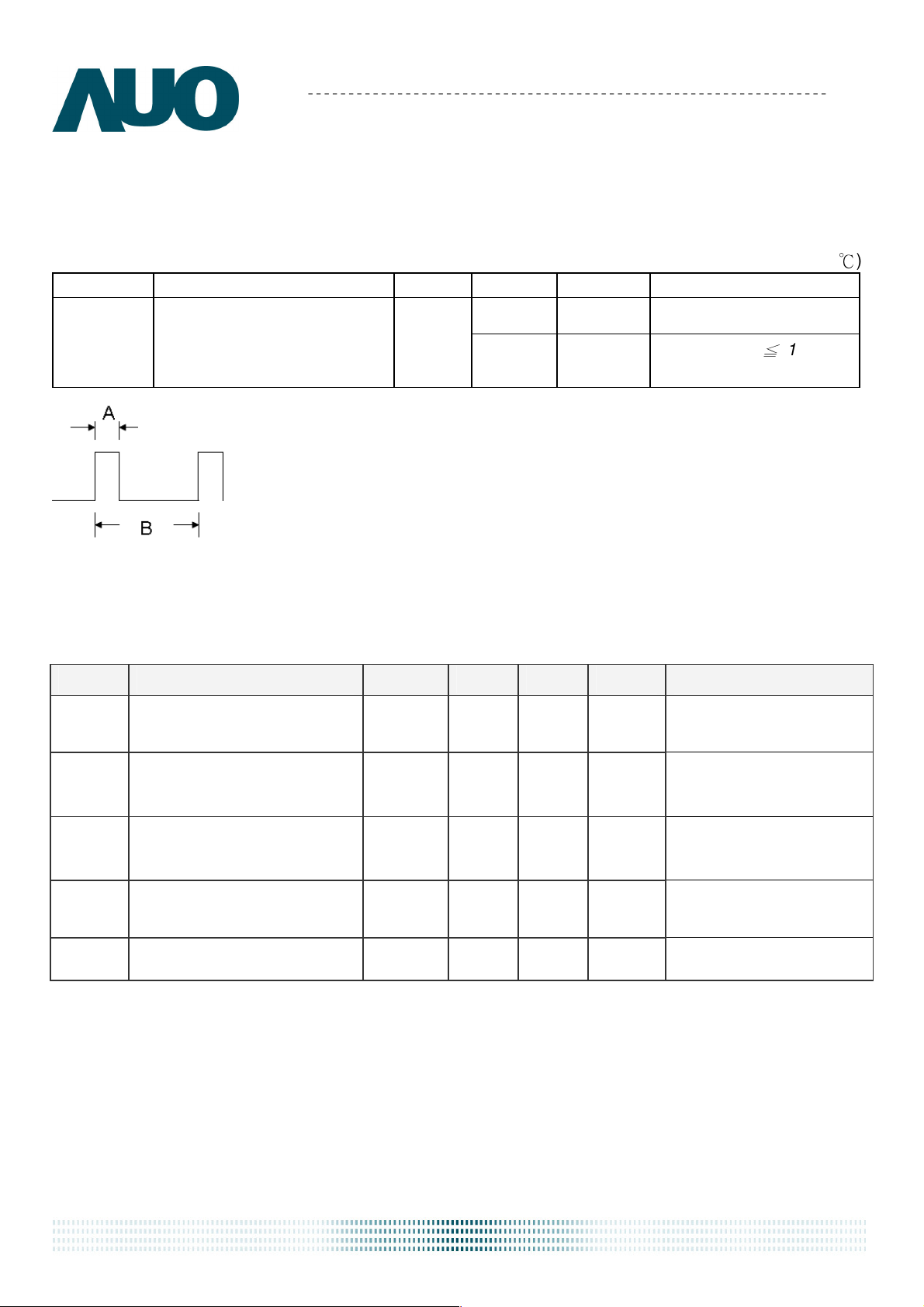

4.3 Electrical Characteristics

4.3.1 Absolute Maximum Rating

Permanent damage may occur if exceeding the following maximum rating.

Symbol Description Min Max Unit Remark

(Ta=25℃)

150

Is

LED String Current 0

300

Duty ratio= (A / B) X 100% ; (A: Pulse time, B: Period)

4.3.2 Recommended Operating Condition

Symbol

Description

Is LED String Current -

Min.

Typ. Max. Unit Remark

120 132

[mA]

100% duty ratio

Duty ratio≦ 10%

Pulse time=10 ms

(Ta=25℃)

[mA]

100% duty ratio of LED

chip

Vs LED String Voltage

∆Vs

Maximum Vs Voltage Deviation of light bar

LED Light Bar Power

P

BLU

LT

LED

document version 1.2 28

Consumption

LED Life Time 30,000

39 42.9 46.8

-

- 2.6

20.6 24.7

- - [Hour] Note 4-4

[Volt]

[Watt] Note 4-3

Is=120mA @ 100% duty

ratio; Note 4-1

Is=120mA @ 100% duty

ratio; Note 4-2

Product Specification

AU OPTRONICS CORPORATION

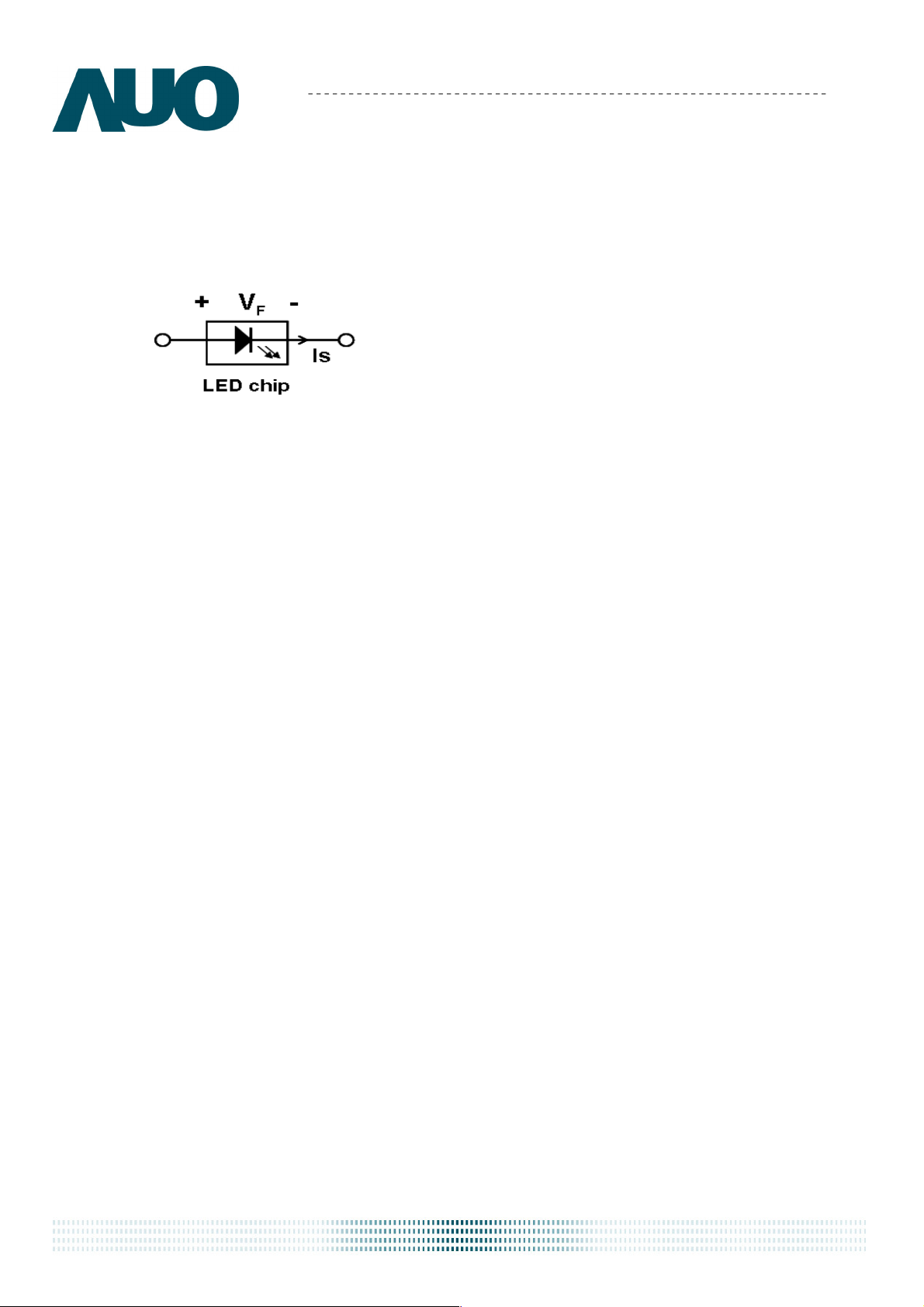

Note 4-1: Vs (Typ.) = VF (Typ.) X LED No. (one string);

a. VF: LED chip forward voltage, VF (Min.)=3.0V, VF(Typ.)=3.3V, VF(Max.)=3.6V b. The same euqation to calculate Vs(Min.) & Vs (Max.) for respective VF (Min.) & VF(Max.);

M270HTN01.0

Note 4-2: ∆Vs (Max.) = ∆VF X LED No. (one string);

a. ∆V

Note 4-3: P

P

BLU

LED chip forward voltage deviation; (0.2 V , each Bin of LED VF)

F:

(Typ.) = Vs (Typ.) X Is (Typ.) X 4 ; ( 4 is total String No. of LED Light bar)

(Max.) = Vs (Max.) X Is (Max.) X 4 ;

Note 4-4: Definition of life time:

a. Brightness of LED becomes to 50% of its original value b. Test condition: Is = 120mA and 25℃ (Room Temperature)

document version 1.2 29

KV, 150pF(330Ω ) 1sec,

Air Discharge: ± 15KV, 150pF(330Ω ) 1sec

5 Reliability Test

Product Specification

AU OPTRONICS CORPORATION

M270HTN01.0

AUO reliability test items are listed as following table. (Bare Panel only)

Items Condition

Temperature Humidity Bias (THB)

High Temperature Operation (HTO)

Low Temperature Operation (LTO)

High Temperature Storage (HTS)

Low Temperature Storage (LTS)

Vibration Test (Non-operation)

Shock Test (Non-operation)

Drop Test Height: 60 cm, package test

Ta= 50℃, 80%RH, 300hours

Ta= 50℃, 50%RH, 300hours

Ta= 0℃, 300hours

Ta= 60℃, 300hours

Ta= -20℃, 300hours

Acceleration: 1.5 Grms Wave: Random Frequency: 10 - 200 Hz Sweep: 30 Minutes each Axis (X, Y, Z)

Acceleration: 50 G Wave: Half-sine Active Time: 20 ms Direction: ±X, ±Y, ±Z (one time for each Axis)

Remark

Thermal Shock Test (TST)

On/Off Test On/10sec, Off/10sec, 30,000 cycles

-20℃/30min, 60℃/30min, 100 cycles

Note 5-1

Contact Discharge: ± 15 8 points, 25 times/ point.

ESD (Electro Static Discharge)

Note 5-2

8 points, 25 times/ point.

Altitude Test

Operation:18,000 ft Non-Operation:40,000 ft

Note 5-1: a. A cycle of rapid temperature change consists of varying the temperature from -20 to ℃

60 , and back again. Power is not applied during the test. ℃

b. After finish temperature cycling, the unit is placed in normal room ambient for at least

4 hours before power on.

Note 5-2: EN61000-4-2, ESD class B: Certain performance degradation allowed

No data lost Self-recoverable No hardware failures.

document version 1.2 30

Product Specification

AU OPTRONICS CORPORATION

6 Shipping Label

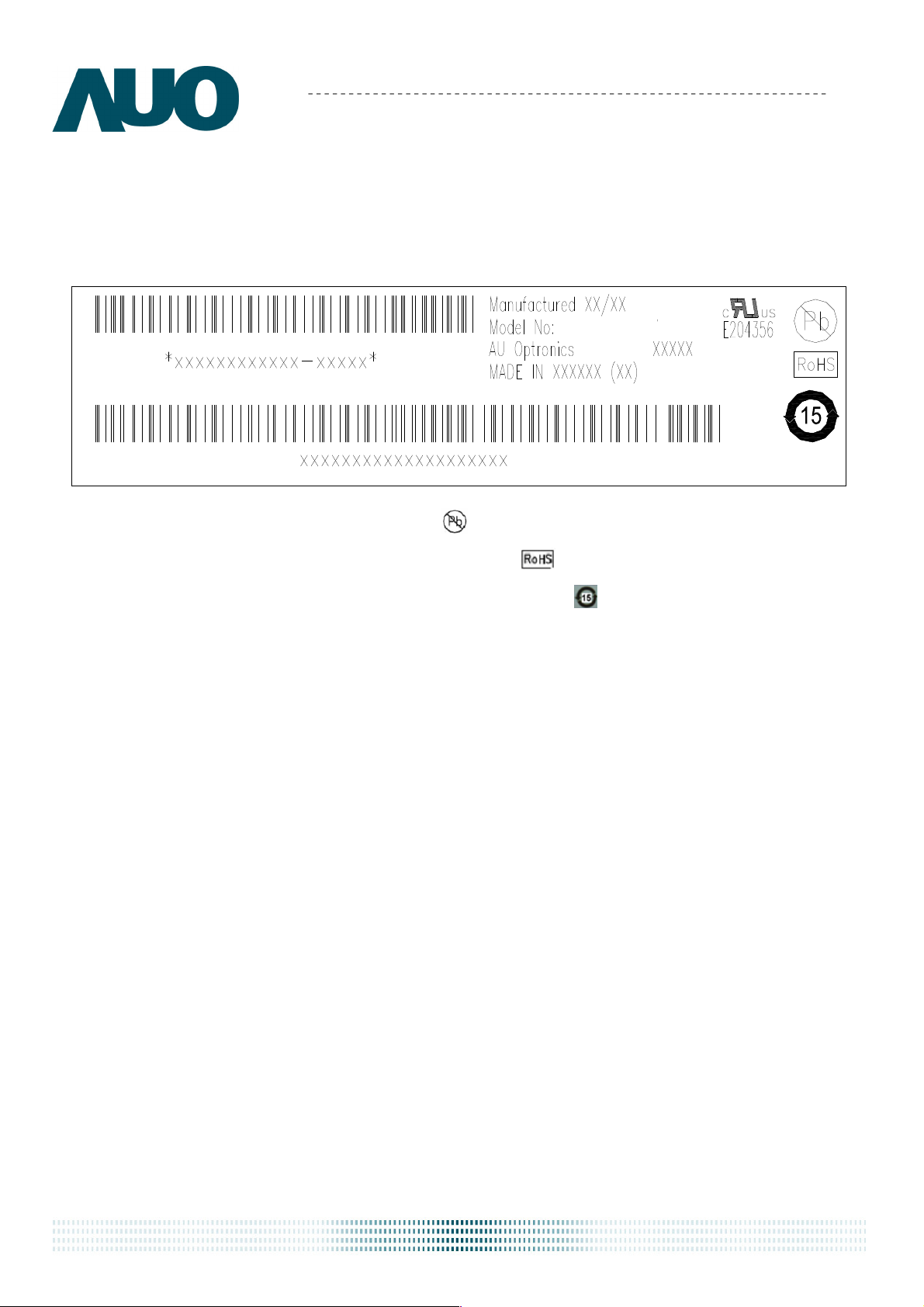

The label is on the panel as shown below:

Note 6-1: For Pb Free products, AUO will add for identification.

M270HTN01.0

Note 6-2: For RoHS compatible products, AUO will add for identification.

Note 6-3: For China RoHS compatible products, AUO will add for identification.

Note 6-4: The Green Mark will be presented only when the green documents have been ready by

AUO Internal Green Team.

document version 1.2 31

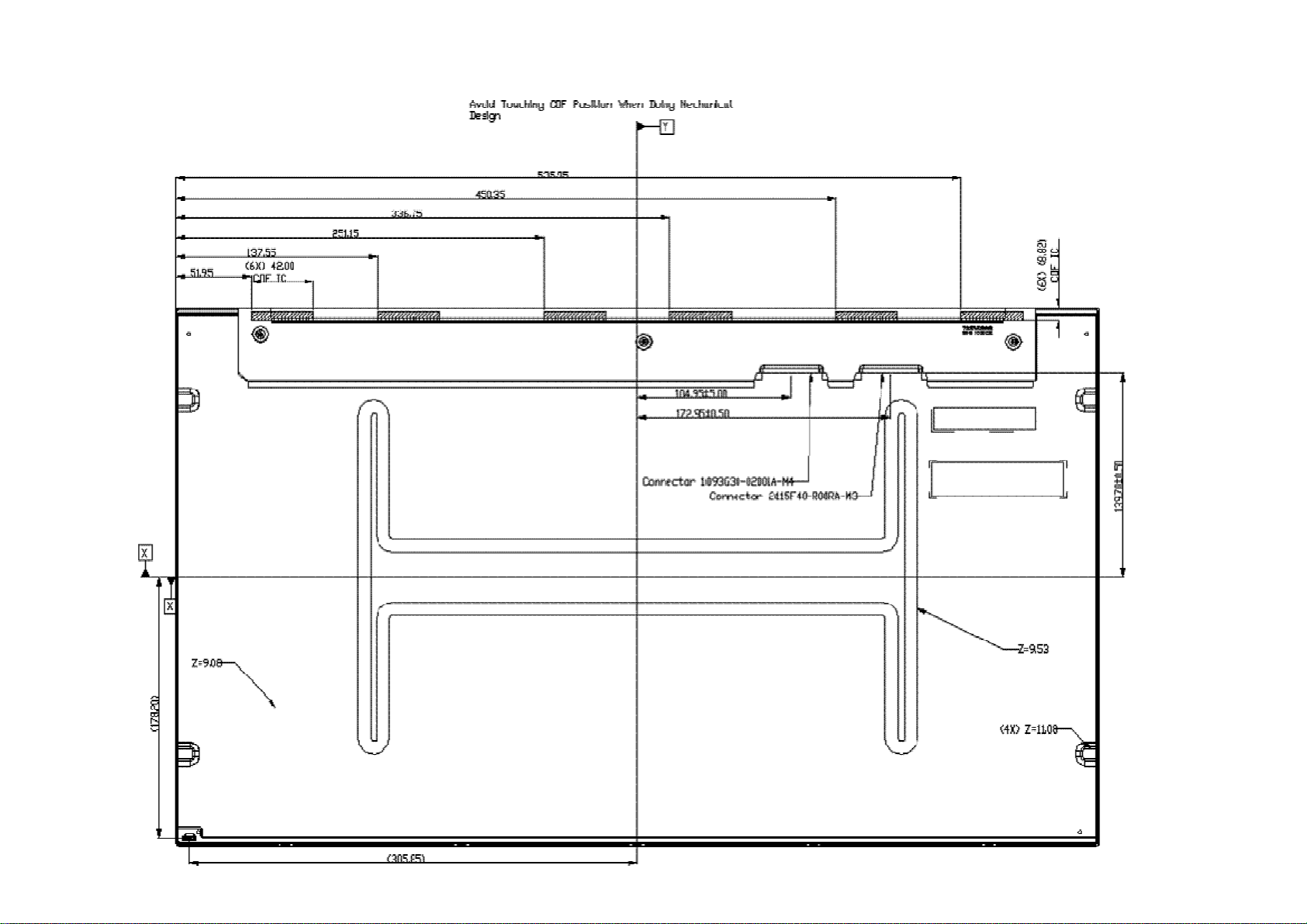

7 Mechanical Characteristics

Avoid touching COF position when doing mechanical design

Ver 1.2

8 Packing Specification

Pallet and shipment information

Specification

Item

Remark

Q'ty Dimension Weight(kg)

630(H)mm x 368.2(V)mm x

1 Panel 1

2.86

14.1(D)mm

2 Cushion 1 - 2.97

3 Box 1

4 Packing Box 7 pcs/Box

715(L)mm x 261(W)mm x

1.43

455(H)mm

715(L)mm x 261(W)mm x

24.42

455(H)mm

without Panel &

cushion

with panel &

cushion

1070(L)mm x 740(W)mm x

5 Pallet 1

12

138(H)mm

Pallet after

6

Packing

8 boxes/pallet

1070(L)mm x 740(W)mm x

262.48

138(H)mm

Ver 1.2
