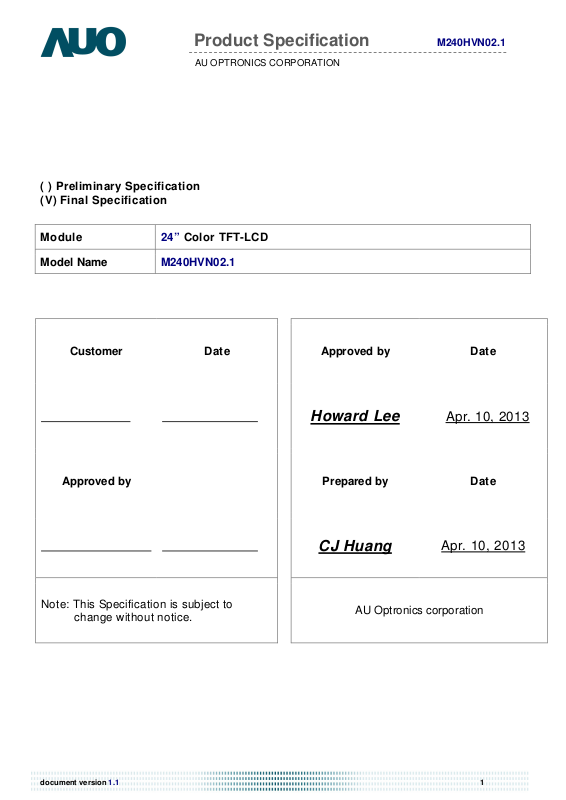

Product Specification
Preliminary Specification
( )
(V) Final Specification
Module 24” Color TFT-LCD
Model Name M240HVN02.1
AU OPTRONICS CORPORATION
M240HVN02.1
Customer Date
Approved by
Approved by Date
Howard Lee
Prepared by Date
CJ Huang
Apr. 10, 2013
Apr. 10, 2013
Note: This Specification is subject to
change without notice.
document version 1.1 1
AU Optronics corporation
Page 2
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
Contents
1 Handling Precautions................................................................4
2 General Description ..................................................................5
2.1 Display Characteristics....................................................................................................... 5
2.2 Absolute Maximum Rating of Environment ........................................................................ 6
2.3 Optical Characteristics ....................................................................................................... 7
3 TFT-LCD Module ......................................................................11
3.1 Block Diagram.................................................................................................................. 11
3.2 Interface Connection........................................................................................................ 12
3.2.1 Connector Type....................................................................................................... 12
3.2.2 Connector Pin Assignment...................................................................................... 12
3.3 Electrical Characteristics.................................................................................................. 14
3.3.1 Absolute Maximum Rating ...................................................................................... 14
3.3.2 Recommended Operating Condition....................................................................... 14
3.4 Signal Characteristics ...................................................................................................... 15
3.4.1 LCD Pixel Format.................................................................................................... 15
3.4.2 LVDS Data Format.................................................................................................. 15
3.4.3 Color versus Input Data .......................................................................................... 16
3.4.4 LVDS Specification.................................................................................................. 17
3.4.5 Input Timing Specification ....................................................................................... 19
3.4.6 Input Timing Diagram.............................................................................................. 20
3.5 Power ON/OFF Sequence ............................................................................................... 21
4 Backlight Unit .........................................................................22
4.1 Block Diagram.................................................................................................................. 22
4.2 Interface Connection........................................................................................................ 23
4.2.1 Connector Type....................................................................................................... 23
4.2.2 Connector Pin Assignment...................................................................................... 25
4.3 Electrical Characteristics.................................................................................................. 26
4.3.1 Absolute Maximum Rating ...................................................................................... 26
4.3.2 Recommended Operating Condition....................................................................... 26
5 Reliability Test........................................................................28
6 Shipping Label ........................................................................29
7 Mechanical Characteristics .....................................................30
8 Packing Specification..............................................................32
8.1 Packing Flow.................................................................................................................... 32
8.2 Pallet and shipment information....................................................................................... 33
document version 1.1 2
Page 3
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
Record of Revision
Version
0.1 2013/01/05
0.2 2013/01/22
1.0 2013/02/27
1.1 2013/04/10
Date Page Old description New Description Remark
All First version release -
P30
P30
P7
Bezel Open:
534.96 × 302.5 mm
(Rx, Ry) 0.648, 0.333
(Gx, Gy) 0.314, 0.612
(Bx, By) 0.149, 0.059
Bezel Open:
535.36 ×302.9 mm
Update P30_Fig. (Mechanical
Characteristics)
(Rx, Ry) 0.644, 0.333
(Gx, Gy) 0.315, 0.618
(Bx, By) 0.150, 0.061
document version 1.1 3
Page 4
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case a TFT-LCD Module has to be put back into the packing container slot after once it
was taken out from the container, do not press the center of the LED lightbar edge. Otherwise
the TFT-LCD Module may be damaged.
10) Insert or pull out the interface connector, be sure not to rotate nor tilt it of the TFT-LCD
Module.
11) Do not twist nor bend the TFT -LCD Module even momentary. It should be taken into
consideration that no bending/twisting forces are applied to the TFT-LCD Module from
outside. Otherwise the TFT-LCD Module may be damaged.
12) Please avoid touching COF position while you are doing mechanical design.
13) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5℃ and 35℃ at normal humidity.
document version 1.1 4
Page 5
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
2 General Description
This specification applies to the 24 inch wide Color a-Si TFT-LCD Module M240HVN02.1. The
display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bit
data). The input interface is Dual channel LVDS and this module doesn’t contain an driver
board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V -
Pixel Pitch
[um]
Pixel Arrangement -
Display Mode -
White Luminance ( Center ) [cd/m2]
Contrast Ratio -
Response Time [msec]
Power Consumption
[Watt]
(LCD Module + Backligh unit)
Weight [Grams]
Outline Dimension [mm]
Electrical Interface Support Color Surface Treatment Temperature Range
Operating
Storage (Shipping)
[oC]
[oC]
RoHS Compliance TCO Compliance -
609.6 (24.0”)
531.36 (H) x 298.89 (V)
1920(x3) x 1080
276.75 (per one triad) ×276.75
R.G.B. Vertical Stripe
VA Mode, Normally Black
250 (Typ.)
3000 (Typ.)
12(Typ., on/off)
20.62 (typ)
VDD line : PDD (typ), All white pattern at 60Hz =5.5
LED line : PBLU (typ) = 15.12
1670 (Typ.)
556.0 (H) x 323.2 (V) x 9.5 (D) (Typ.)
Dual channel LVDS
16.7M colors (RGB 8-bit)
Anti-Glare, 3H
0 to +50
-20 to +60
RoHS Compliance
TCO 6.0 Compliance
document version 1.1 5
Page 6
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
2.2 Absolute Maximum Rating of Environment
Permanent damage may occur if exceeding the following maximum rating.
Symbol Description Min. Max. Unit Remark
TOP Operating Temperature 0 +50 [oC] Note 2-1
TGS
Glass surface temperature
(operation)
0 +65 [oC]
Function judged only
HOP Operation Humidity 5 90 [%RH]
TST Storage Temperature -20 +60 [oC]
HST Storage Humidity
5 90
[%RH]
Note 2-1: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39℃)
2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)
3. No condensation
Note 2-1
Note 2-1
Operating Range Storage Range
document version 1.1 6
Page 7
Product Specification
0.614
0.644
4
0.303
0.333
0.363
0.285
0.315
0.345
0.588
0.618
0.648
0.120
0.150
0.180
0.031
0.061
0.091
AU OPTRONICS CORPORATION
2.3 Optical Characteristics
The optical characteristics are measured on the following test condition.
Test Condition:
1. Equipment setup: Please refer to Note 2-2.
2. Panel Lighting time: 30 minutes
3. VDD=5.0V, Fv=60Hz,Is=65mA,Ta=25℃
M240HVN02.1
Symbol
Lw
L
uni
CR
θR
θL
ΦH
ΦL
θR
θL
ΦH
ΦL
TR
TF
-
Rx
Ry
Description Min. Typ. Max. Unit Remark
White Luminance (Center of screen)
Luminance Uniformity (9 points)
Contrast Ratio (Center of screen)
Horizontal Viewing Angle
(CR=10)
Vertical Viewing Angle
(CR=10)
Horizontal Viewing Angle
(CR=5)
Vertical Viewing Angle
(CR=5)
Response Time
Right
Down
Right
Down
Rising Time
Falling Time
Rising + Falling
Red x
Red y
Left
Up
Left
Up
200 250
75 80
1800 3000 -
75 89 -
75 89 -
75 89 -
75 89 -
75 89 -
75 89 -
75 89 -
75 89 -
- 7
-
-
5 -
12
12
1212
0.67
-
-
-
-
[cd/m2]
[%]
-
[degree]
[msec]
Note 2-2
By SR-3
Note 2-3
By SR-3
Note 2-4
By SR-3
Note 2-5
By SR-3
Note 2-6
By TRD-100
Gx
Gy
Bx
Color Coordinates
(CIE 1931)
By
Wx
Wy
CT
FdB
document version 1.1 7
Flicker (Center of screen)
Crosstalk
Green x
Green y
Blue x
Blue y
White x
White y
0.283 0.313 0.343
0.299 0.329 0.359
- -
- -
1.5
-20
-
[%]
[dB]
By SR-3
Note 2-7
By SR-3
Note 2-8
By SR-3
Page 8
Note 2-2: Equipment setup :
Product Specification
AU OPTRONICS CORPORATION
Photo detector (SR-3, TRD-100)
Measured distance (50cm)
M240HVN02.1
Center of the screen
Note 2-3: Luminance Uniformity Measurement
Definition:
y UniformitLuminance =
a.Test pattern: White Pattern
P9)~(P1 Points 9 of Luminance Minimum
P9)~(P1 Points 9 of Luminance Maximum
document version 1.1 8
Page 9
Product Specification
100
90
W hite
100
White
Black
Black
1 Frame
1 Frame
AU OPTRONICS CORPORATION
M240HVN02.1
Note 2-4: Contrast Ratio Measurement
Definition:
RatioContrast =
a. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)
Note 2-5: Viewing angle measurement
Definition: The angle at which the contrast ratio is greater than 10 & 5 .
a. Horizontal view angle: Divide to left & right (θL & θR)
Vertical view angle: Divide to up & down (ΦH &ΦL)
pattern Whiteof Luminance
pattern Black of Luminance
Note 2-6: Response time measurement
The output signals of photo detector are measured when the input signals are changed
from “Black” to “White” (rising time, TR), and from “White” to “Black” (falling time, TF),
respectively. The response time is interval between the 10% and 90% of optical
response. (Black & White color definition: Please refer section 3.4.3)
%
%
Optical
Optical
respon se
respon se
10
10
0
0
document version 1.1 9
T
F
T
R
Page 10
Product Specification
AU OPTRONICS CORPORATION
Note 2-7: Crosstalk measurement
Definition:
CT = Max. (CTH,CTV);
Where
a.Maximum Horizontal Crosstalk :
CTH = Max. (| YBL – YAL | / YAL × 100 %, | YBR – YAR | / YAR × 100 %);
Maximum Vertical Crosstalk:
CTV = Max. (| YBU – YAU | / YAU × 100 %, | YBD – YAD | / YAD × 100 %);
b. YAU, YAD, YAL, YAR = Luminance of measured location without Black pattern
YBU, YBD, YBL, YBR = Luminance of measured location with Black pattern
M240HVN02.1
Note 2-8: Flicker measurement
a. Test pattern: It is listed as following.
Gray level = L0
Gray level = L127
R: Red, G: Green, B:Blue
b. Measured position: Center of screen (P5) & perpendicular to the screen (θ=Φ=0°)
document version 1.1 10
Page 11
Product Specification
VDD
AUO ASIC
Connector
G
1080
D
5760
AU OPTRONICS CORPORATION
M240HVN02.1
3 TFT-LCD Module

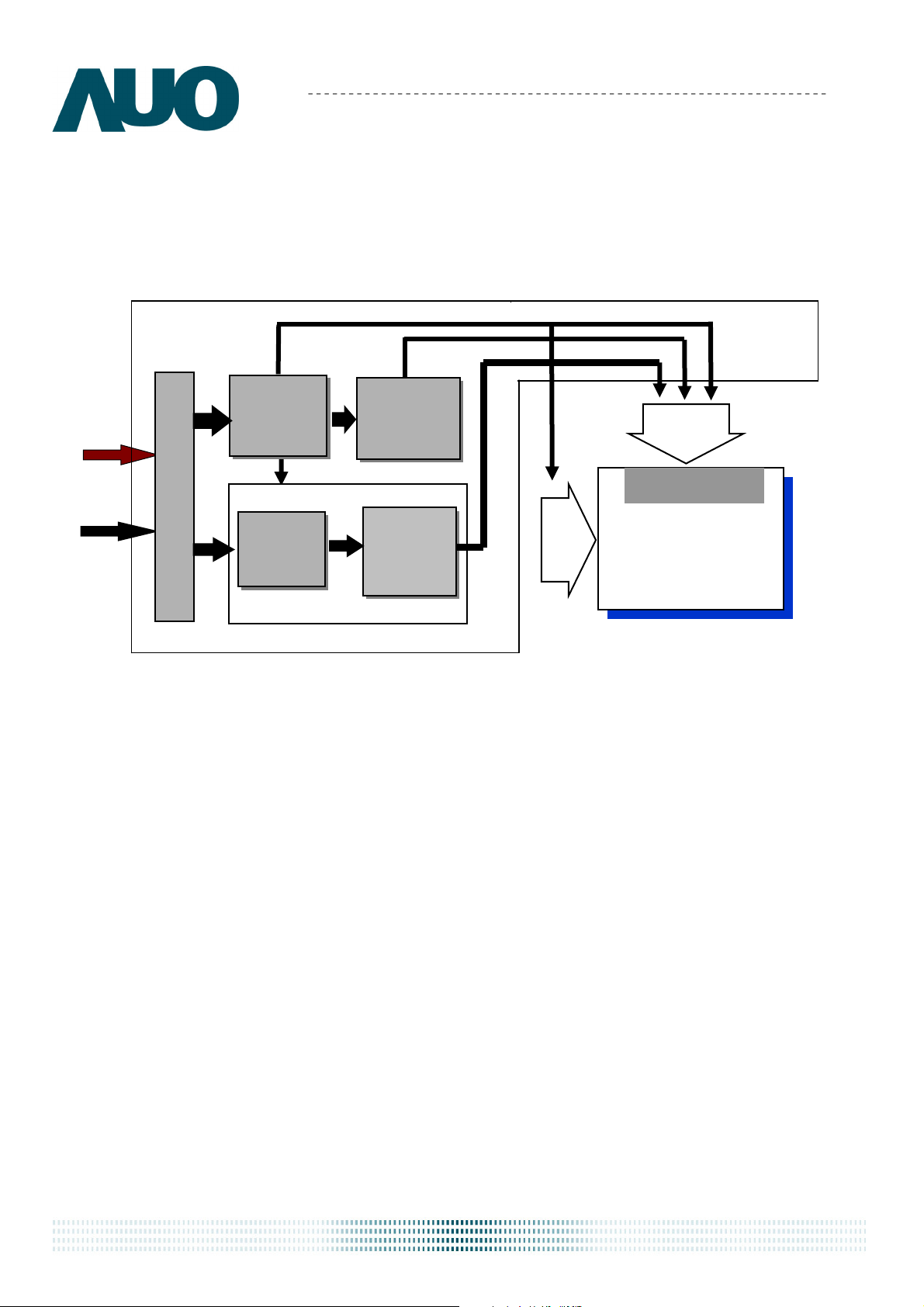

3.1 Block Diagram
The following shows the block diagram of the 24 inch Color TFT-LCD Module.
LVDS
Signal
DC/DC
Converter
Receiver
LVDS
Control Board
Correction
ASIC
Gamma
Timing
Controller
Mini LVDS
Transmitter
D1
G1
TFT-LCD
1920(x3) x 1080
Pixels
document version 1.1 11
Page 12
Product Specification
1 RxO0
- Negative LVDS differential data input (Odd data)
2 RxO0+
Positive LVDS dif
ferential data input (Odd data)
3 RxO1
- Negative LVDS differential data input (Odd data)
4 RxO1+
Positive LVDS differential data input (Odd data)
5 RxO2
- Negative LVDS differential data input (Odd data)
6 RxO2+
Positive LVDS differential data input
(Odd data)
7 GND
Power Ground
8 RxOCLK
- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+
Positive LVDS differential clock input (Odd clock)
10 RxO3
- Negative LVDS differential data input (Odd data)
11 RxO3+
Positive LVDS differential
data input (Odd data)
12 RxE0
- Negative LVDS differential data input (Even data)
13 RxE0+
Positive LVDS differential data input (Even data)
14 GND
Power Ground
15 RxE1
- Negative LVDS differential data input (Even data)
16 RxE1+
Positive LVDS dif
ferential data input (Even data)
17 GND
Power Ground
18 RxE2
- Negative LVDS differential data input (Even data)
19 RxE2+
Positive LVDS differential data input (Even data)
20 RxECLK
- Negative LVDS differential clock input (Even clock)
21 RxECLK+
Positive LVDS differential clock input (Even clock)
22 RxE3
- Negative LVDS differential data input (Even data)
23 RxE3+
Positive LVDS differential data input (Even data)
24 GND
Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC
No connection (for AUO test only. Do not connect)
AU OPTRONICS CORPORATION
M240HVN02.1
3.2 Interface Connection
3.2.1 Connector Type
Manufacturer P-TWO STM
TFT-LCD Connector
Part Number AL230F-A0G1D-P
MSCKT2407P30HB
Manufacturer JAE
Mating Connector
Part Number FI-X30HL (Locked Type)

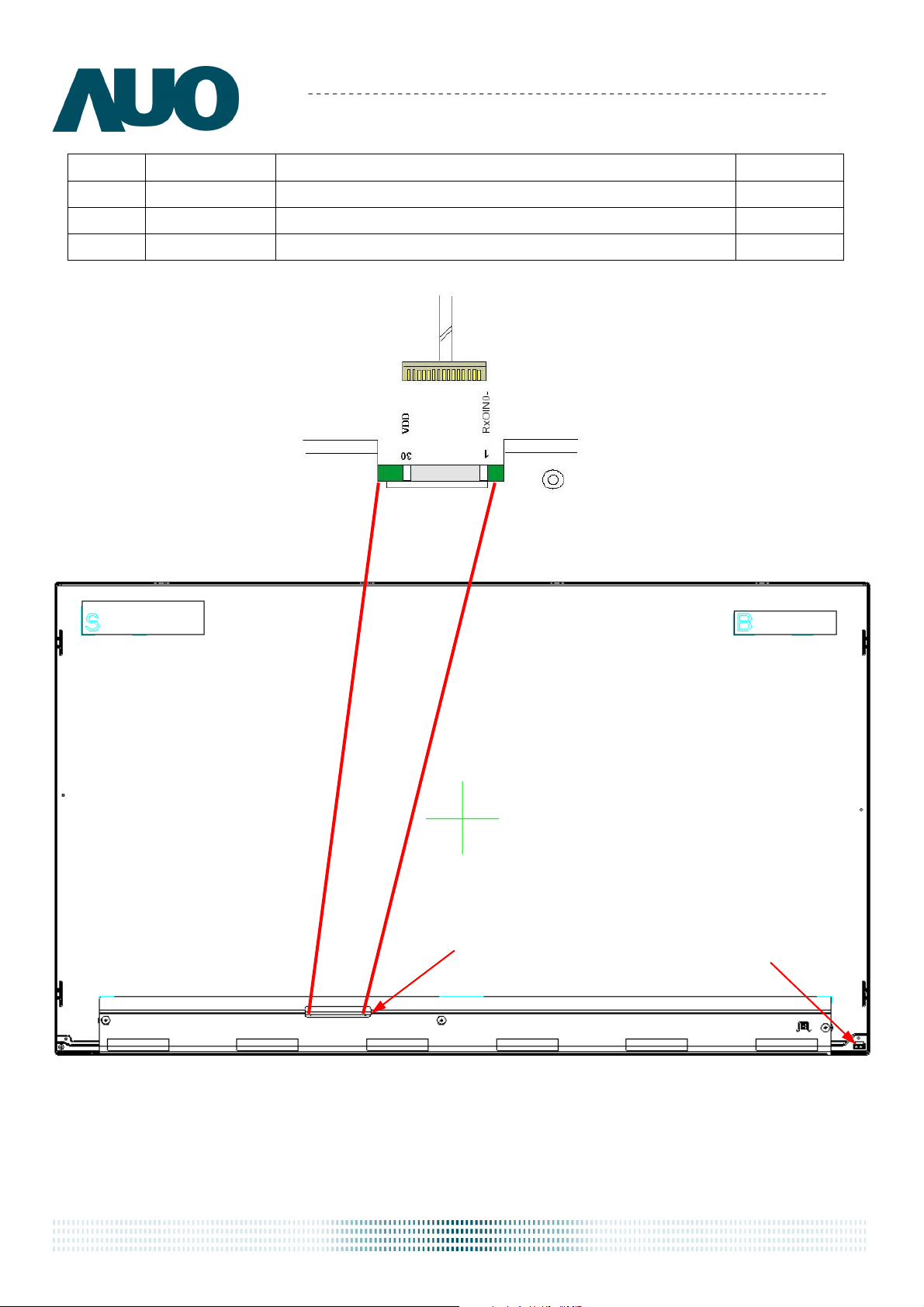

3.2.2 Connector Pin Assignment
PIN # Symbol Description Remark
document version 1.1 12
Page 13
Product Specification
27 NC No connection (for AUO test only. Do not connect)
28 VDD
Power Supply Input Voltage
29 VDD
Power Supply Input Voltage
30 VDD
Power Supply Input Voltage
AU OPTRONICS CORPORATION
M240HVN02.1
LVDS C/N PIN 1
L/B C/N PIN 1
document version 1.1 13
Page 14
Product Specification
AU OPTRONICS CORPORATION
3.3 Electrical Characteristics
3.3.1 Absolute Maximum Rating
Permanent damage may occur if exceeding the following maximum rating.
M240HVN02.1
Symbol
VDD
Description Min Max Unit
Power Supply
Input Voltage
GND-0.3 6.0 [Volt]
3.3.2 Recommended Operating Condition
Symbol
VDD
IDD
PDD
IRush Inrush Current
VDDrp
Description Min Typ Max Unit
Power supply
Input voltage
Power supply
Input Current
(RMS)
VDD Power
Consumption
Allowable VDD
Ripple Voltage
4.5 5.0 5.5
- 1.1 1.3
1.2 1.4
- 5.5 6.5
6.0 7.0
-
-
- 3.0
- 500
[Volt]
[A]
[A]
[Watt]
[Watt]
[A]
[mV]
Remark
Ta=25℃
Remark
VDD= 5.0V, All white Pattern, Fv=60Hz
VDD= 5.0V, All white Pattern , Fv=75Hz
VDD= 5.0V, All white Pattern , Fv=60Hz
VDD= 5.0V, All white Pattern , Fv=75Hz
Note 3-1
VDD= 5.0V, All white Pattern , Fv=75Hz

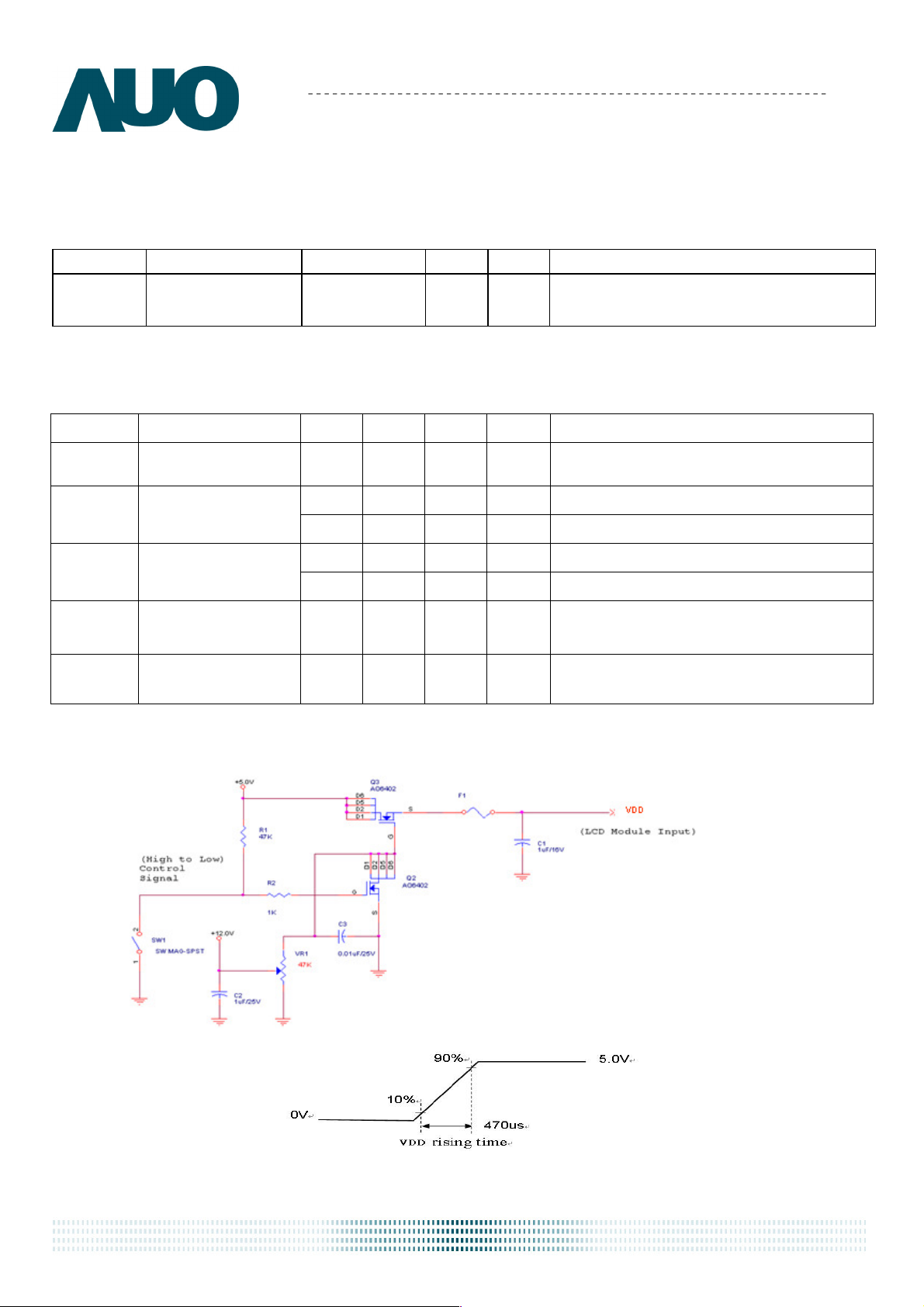

Note 3-1: Inrush Current measurement:
Test circuit:
The duration of VDD rising time: 470us.
document version 1.1 14
Page 15
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
919 1
920
1st Line
1080
Line
3.4 Signal Characteristics
3.4.1 LCD Pixel Format
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1

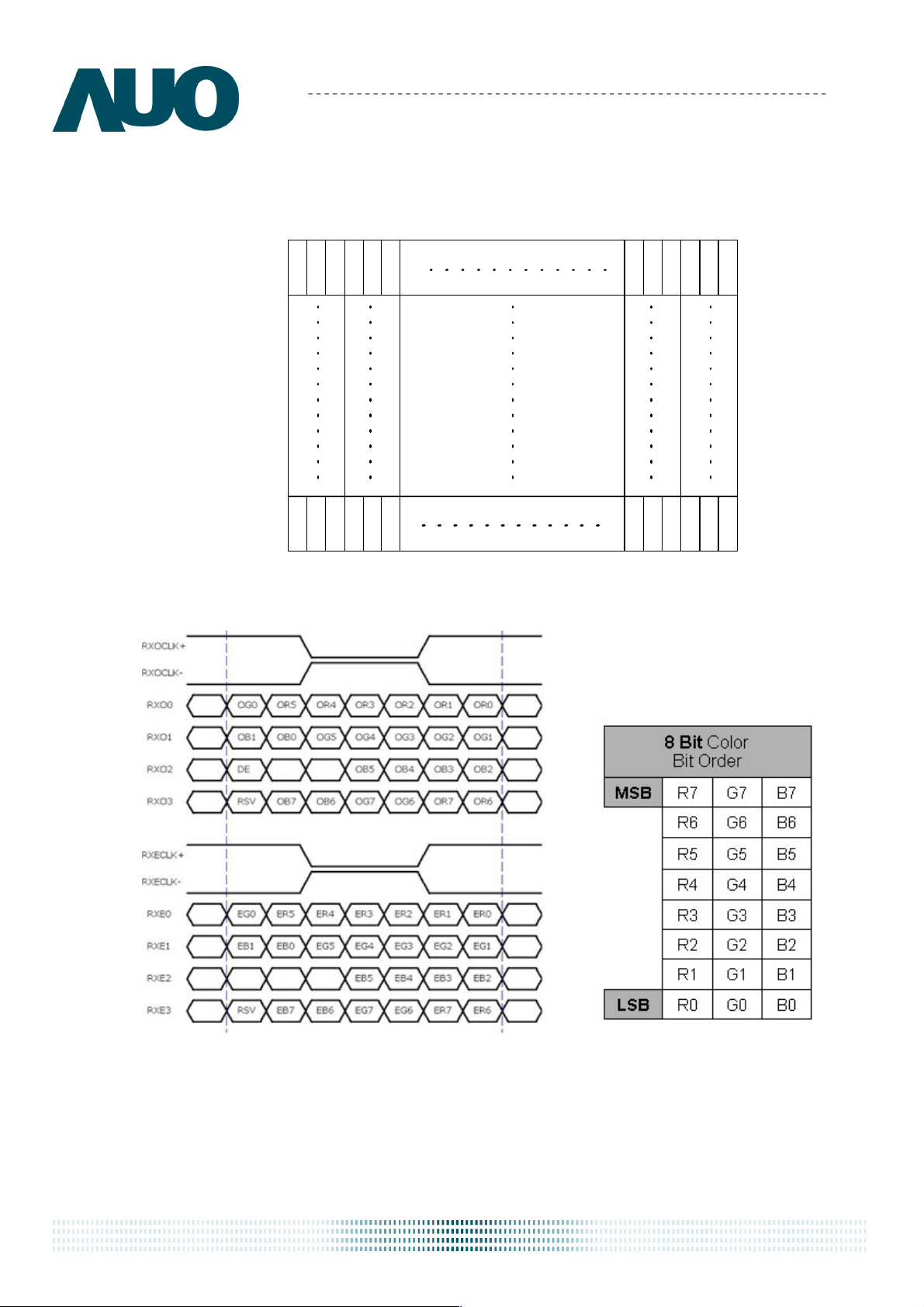

3.4.2 LVDS Data Format
Note 3-2:
a. O = “Odd Pixel Data” E = “Even Pixel Data”
b. Refer to 3.4.1 LCD pixel format, the 1st data is 1 (Odd Pixel Data), the 2nd data is 2 (Even Pixel Data) and
the last data is 1920 (Even Pixel Data).
document version 1.1 15
Page 16
Product Specification
M240HVN02.1
AU OPTRONICS CORPORATION
3.4.3 Color versus Input Data

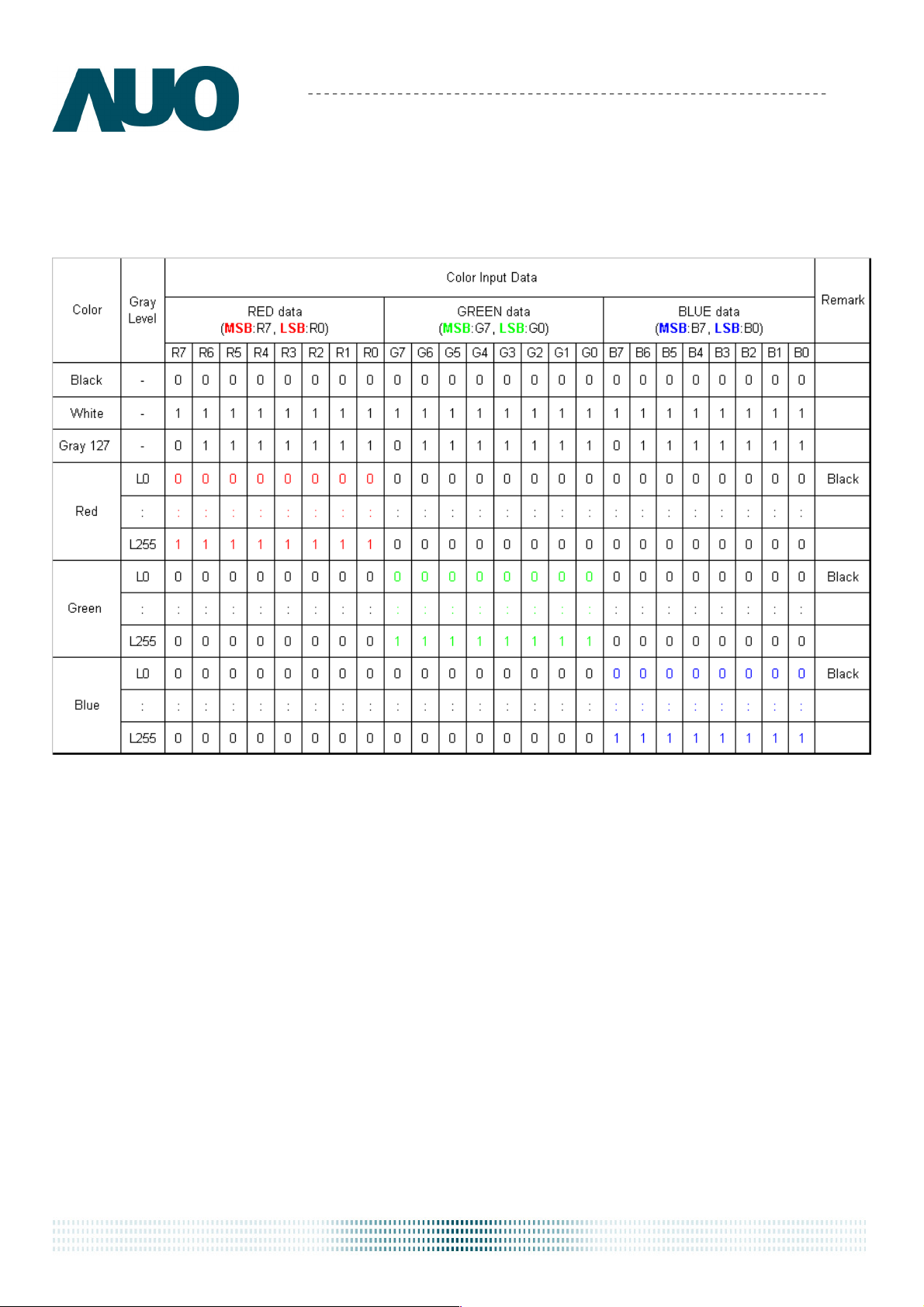

The following table is for color versus input data (8bit). The higher the gray level, the brighter
the color.
document version 1.1 16
Page 17
3.4.4 LVDS Specification
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
a. DC Characteristics:
Symbol
VTH
VTL
│VID│
VCM
Description Min Typ Max Units
LVDS Differential
Input High Threshold
LVDS Differential
Input Low Threshold
LVDS Differential
Input Voltage
LVDS Common Mode
Voltage
-100
100 - 600 [mV]
+1.0 +1.2 +1.5 [V] VTH-VTL = 200mV

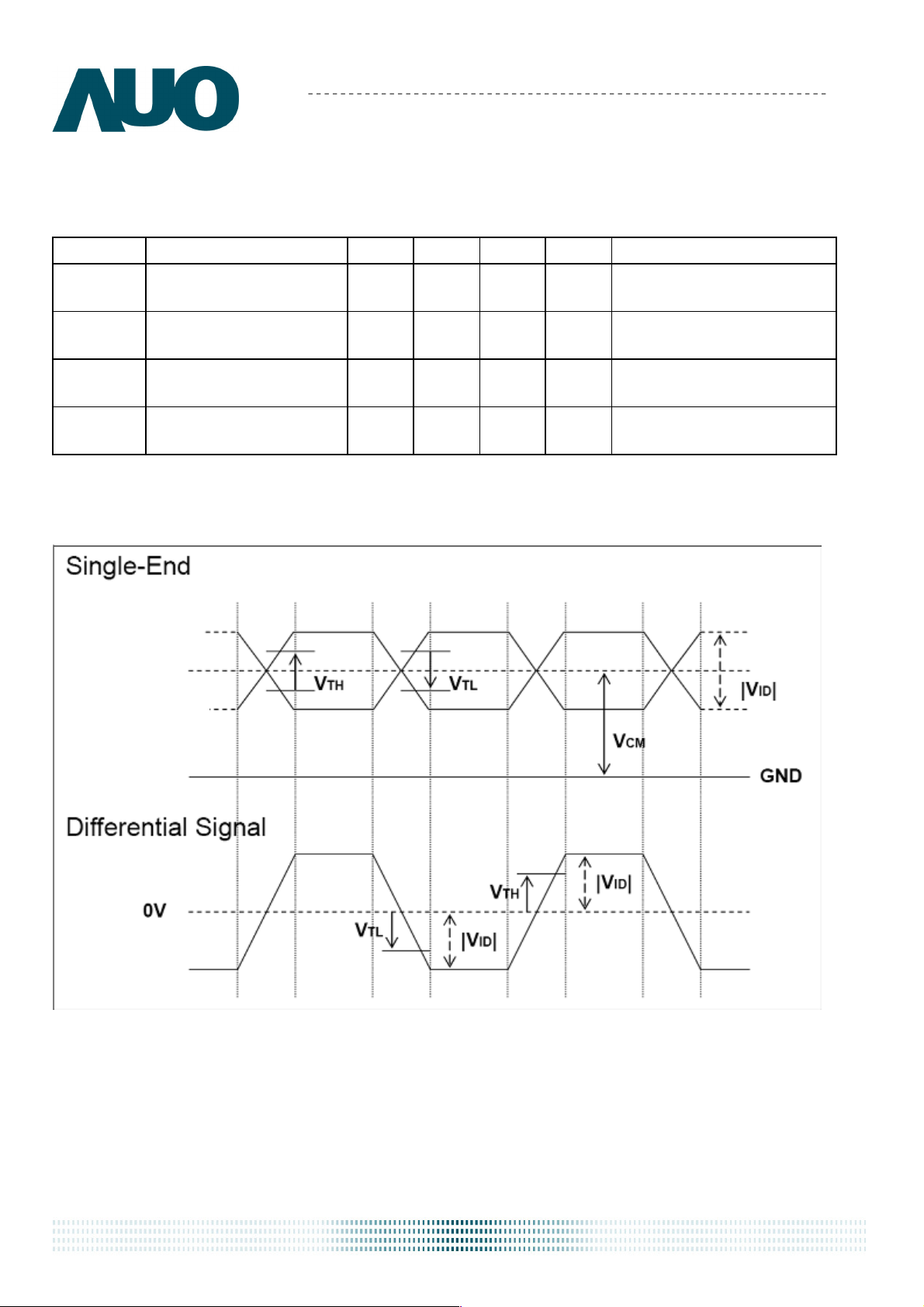

LVDS Signal Waveform:
Use RxOCLK- & RxOCLK+ as example.
RxOCLK-
Condition
- - +100 [mV] VCM = 1.2V
- - [mV] VCM = 1.2V
RxOCLK+
document version 1.1 17
Page 18
Product Specification
Freq
F
max
F
clk
F
min
F
clk
* F
DEV

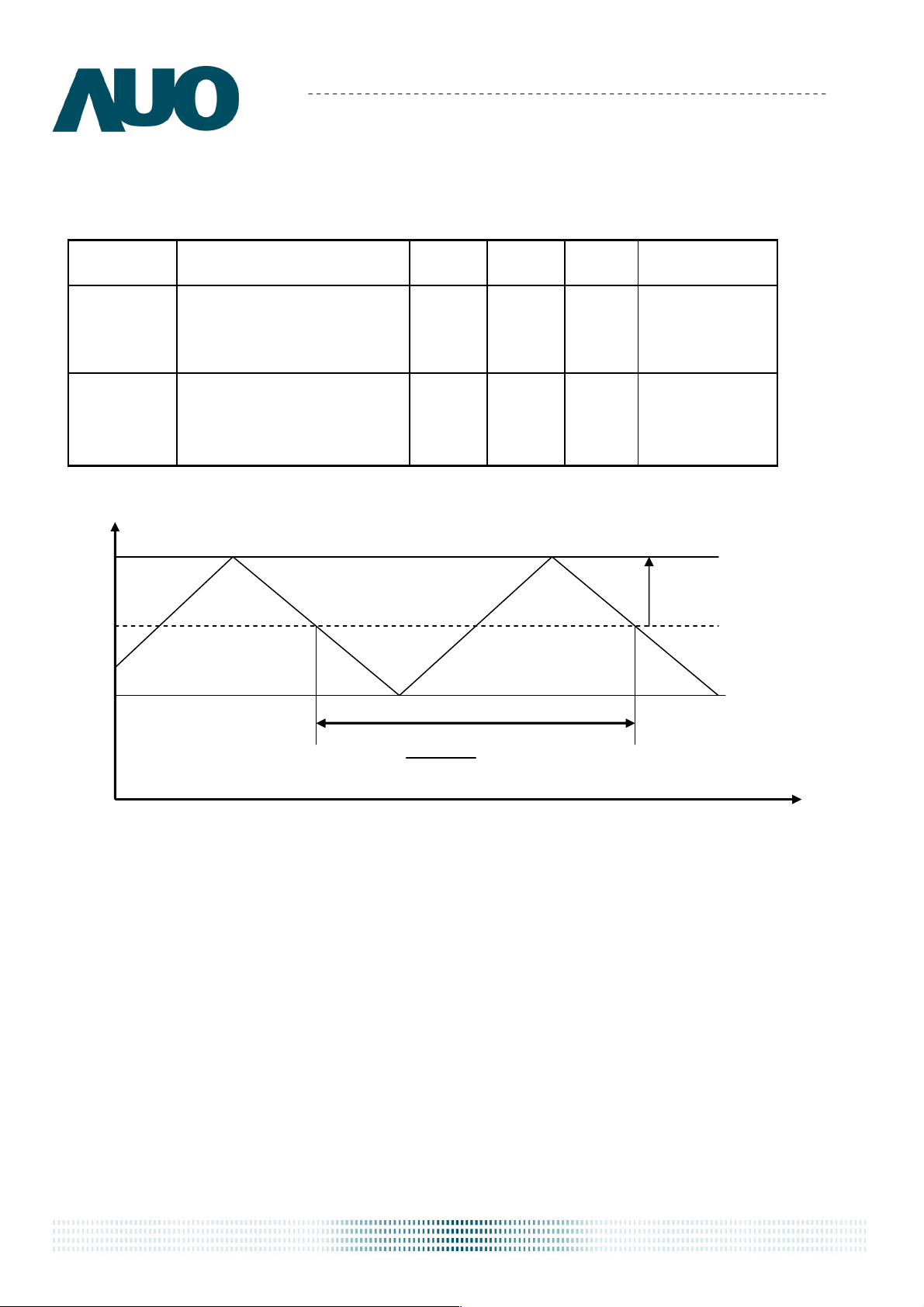

< Spread Spectrum>
T
ime
AU OPTRONICS CORPORATION
b. AC Characteristics:
Symbol Description Min Max Unit Remark
Maximum deviation of
F
DEV
input clock frequency
during Spread Spectrum
Maximum modulation
F
MOD
frequency of input clock
during Spread Spectrum
- ± 3 %
- 200 KHz
M240HVN02.1
Fclk: LVDS Clock Frequency
F
1
MOD
document version 1.1 18
Page 19
Product Specification
AU OPTRONICS CORPORATION
3.4.5 Input Timing Specification
It only support DE mode, and the input timing are shown as the following table.
M240HVN02.1
Symbol Description Min. Typ. Max. Unit
Tv Period
Tdisp (v) Active
Vertical Section
Tblk (v) Blanking
Fv
Frequency
Th Period
Tdisp (h) Active
Horizontal Section
Tblk (h) Blanking
Fh
Frequency
Tclk Period
LVDS Clock
Fclk
Frequency
1092 1130 1793
1080 1080 1080
12 50 713
50 60 76
1004 1050 1100
960 960 960
44 90 140
55
68
90
11.1 14.0 18.2
54.8 71.2 90.0
Th
Th
Th
Hz
Tclk
Tclk
Tclk
KHz
ns 1/Fclk
MHz
Remark
Note 3-3
Note 3-4
Note 3-3: The equation is listed as following. Please don’t exceed the above recommended value.
Fh (Min.) = Fclk (Min.) / Th (Min.);
Fh (Typ.) = Fclk (Typ.) / Th (Typ.);
Fh (Max.)= Fclk (Max.) / Th (Min.);
Note 3-4: The equation is listed as following. Please don’t exceed the above recommended value.
Fclk (Min.) = Fv (Min.) x Th (Min.) x Tv (Min.);
Fclk (Typ.) = Fv (Typ.) x Th (Typ.) x Tv (Typ.);
Fclk (Max.) = Fv (Max.) x Th (Typ.) x Tv (Typ.);
document version 1.1 19
Page 20

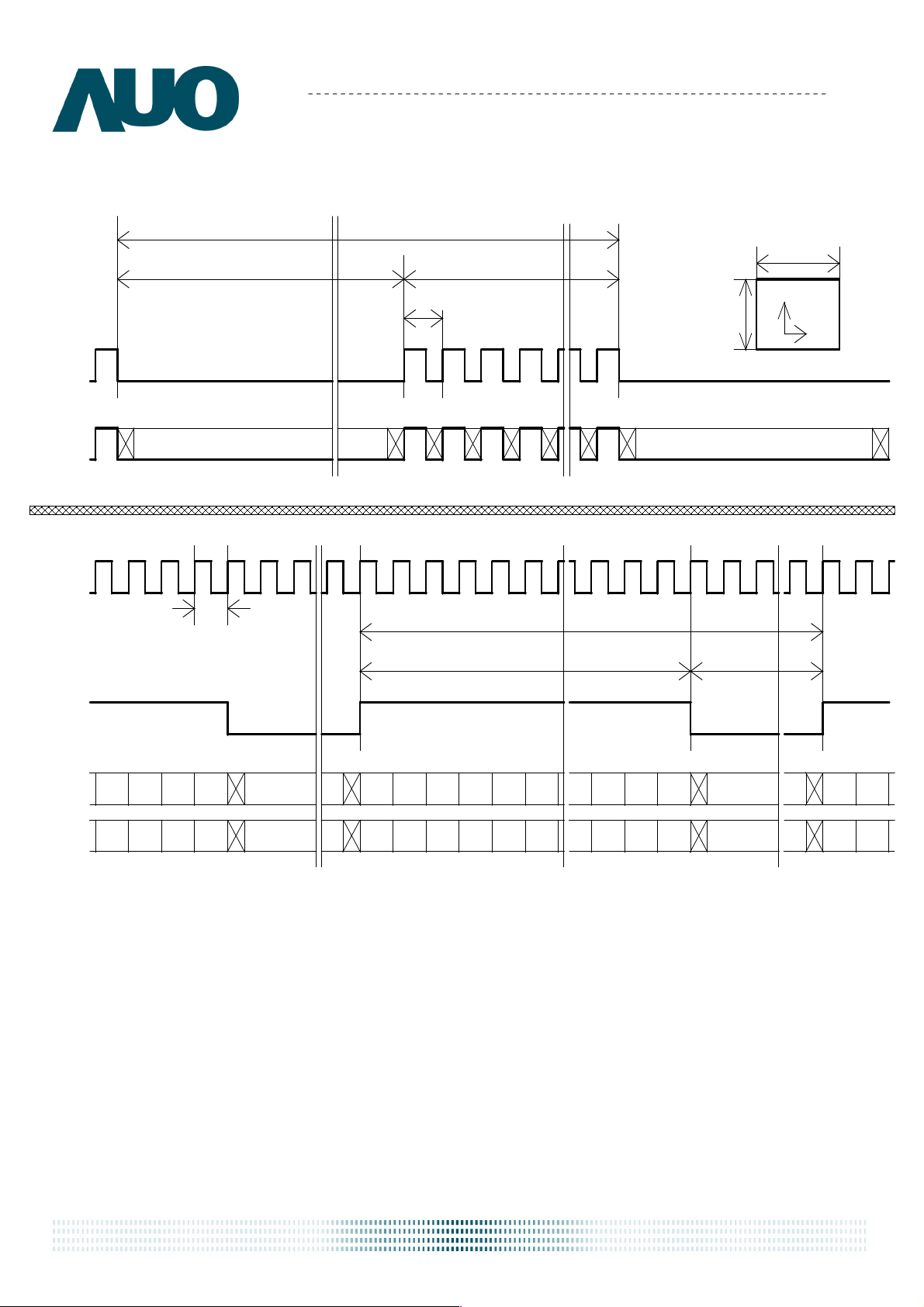

3.4.6 Input Timing Diagram
DE
RGB Data
CLK
DE
RGB Data
(Odd)
RGB Data
(Even)
N
Line
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Tblk(v)
Invalid Data
Tclk
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
32
LineLine
Th
Tdisp(h)
Pixel
Pixel
10
4
LineLine
Pixel
Pixel
119
Pixel
12
1
Pixel
1
Pixel Pixel
2
Pixel
Pixel
3
4
Pixel
7
5
Pixel
Pixel
6 M-2
8 M
N
Line
M-5
M-4
Pixel
M-3
Pixel
Pixel
M-1
PixelPixel
M240HVN02.1
M pixel
Y
N Line
Invalid Data
Tblk(h)
Invalid Data
Invalid Data
X
Pixel
1
Pixel
2M-4
Pixel
3
Pixel
4
document version 1.1 20
Page 21
Product Specification
10%
90%
10%
90%
AU OPTRONICS CORPORATION
M240HVN02.1

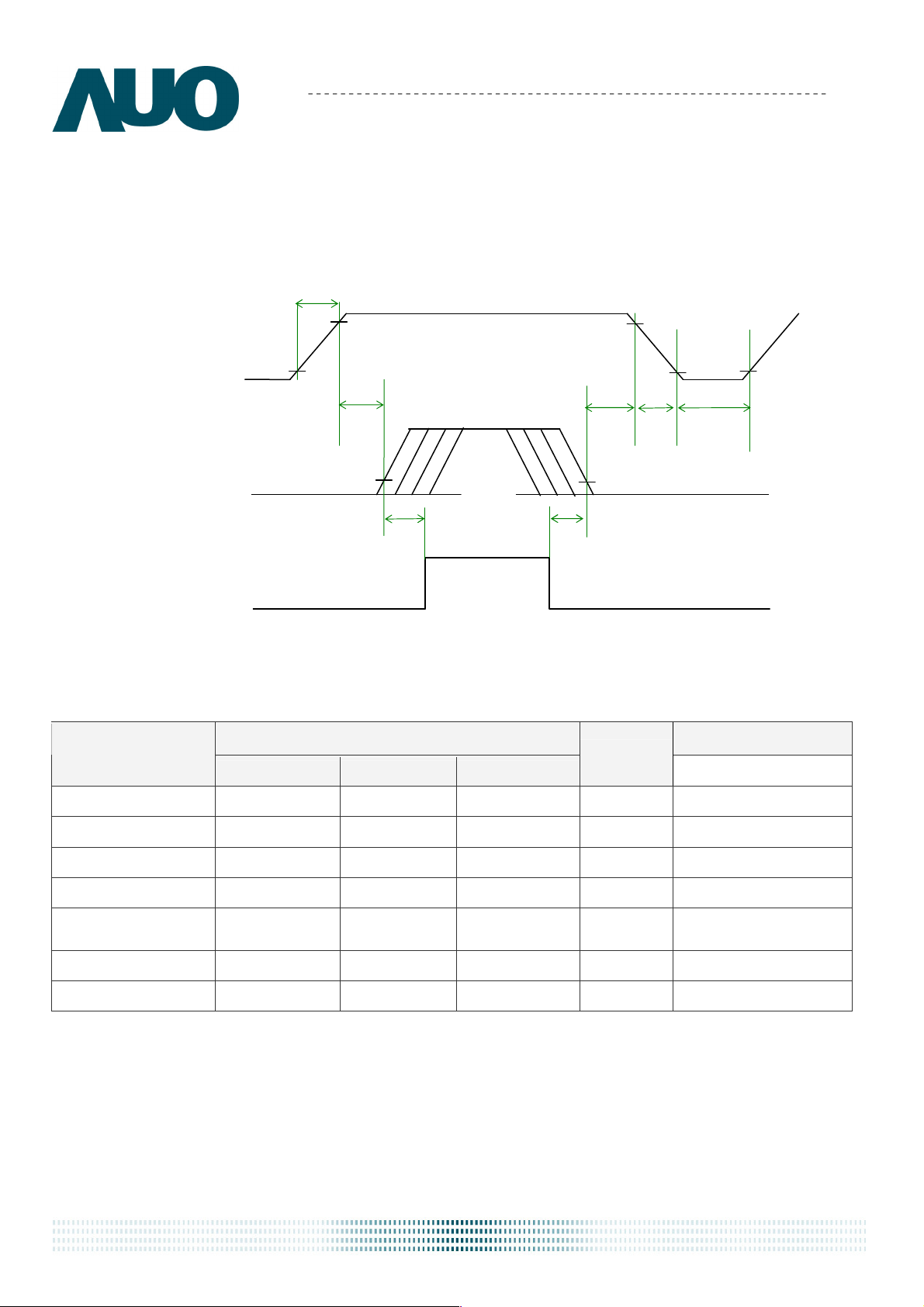

3.5 Power ON/OFF Sequence
VDD power,LVDS signal and backlight on/off sequence are as following. LVDS signals
from any system shall be Hi-Z state when VDD is off.
Backlight Off
T1
LVDS Signal
Symbol
VDD
V
SLED
T1
T2
T2
VALID
T3
Backlight Off
Power Sequence Timing
Backlight On
Value Remark
Min. Typ. Max.
0.5 - 10
0 - 50
T5
T4
Backlight Off
Unit
[ms]
[ms]
T6
T7
T3
T4
T5
T6
T7
500 - -
100 - -
0 50
5 - 150
1000 - -
[ms]
[ms]
[ms]
[ms]
[ms]
Note 3-5
Note 3-6
Note 3-6
Note 3-5 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note 3-6 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
document version 1.1 21
Page 22
Product Specification
V
SLED
S
Ch1
Ch2
Ch3
Ch4
AU OPTRONICS CORPORATION
4 Backlight Unit
4.1 Block Diagram

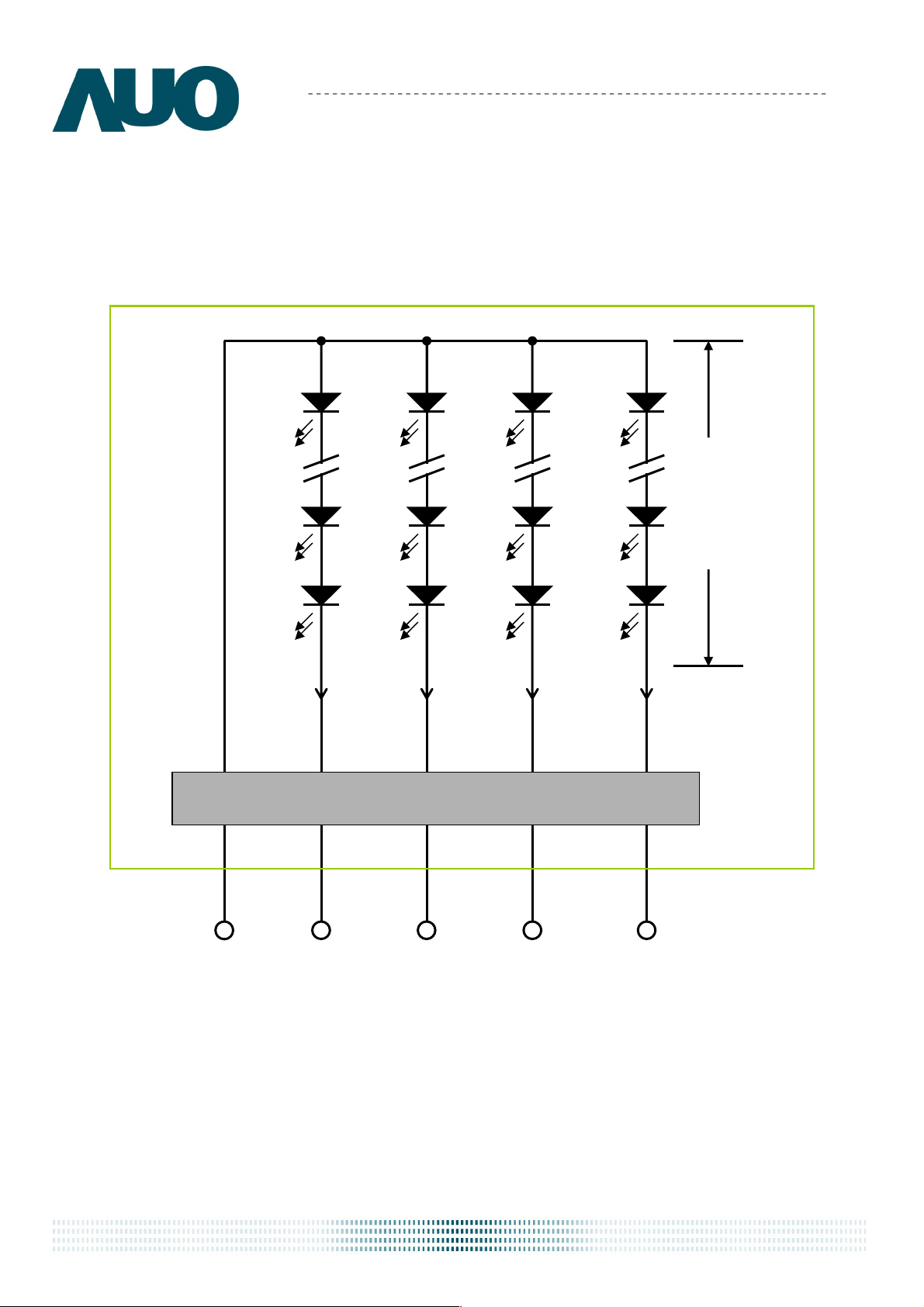

The following shows the block diagram of the 24 inch Backlight Unit. And it includes 56 pcs LED in
the LED light bar. (4 strings and 14 pcs LED of one string).
M240HVN02.1
+
V
-
I
S
I
S
I
S
Connector
I
S
document version 1.1 22
Page 23
==××=××
4.2 Interface Connection
4.2.1 Connector Type
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
Manufacturer
Backlight Connector
Part Number
Manufacturer
Mating Connector
Part Number

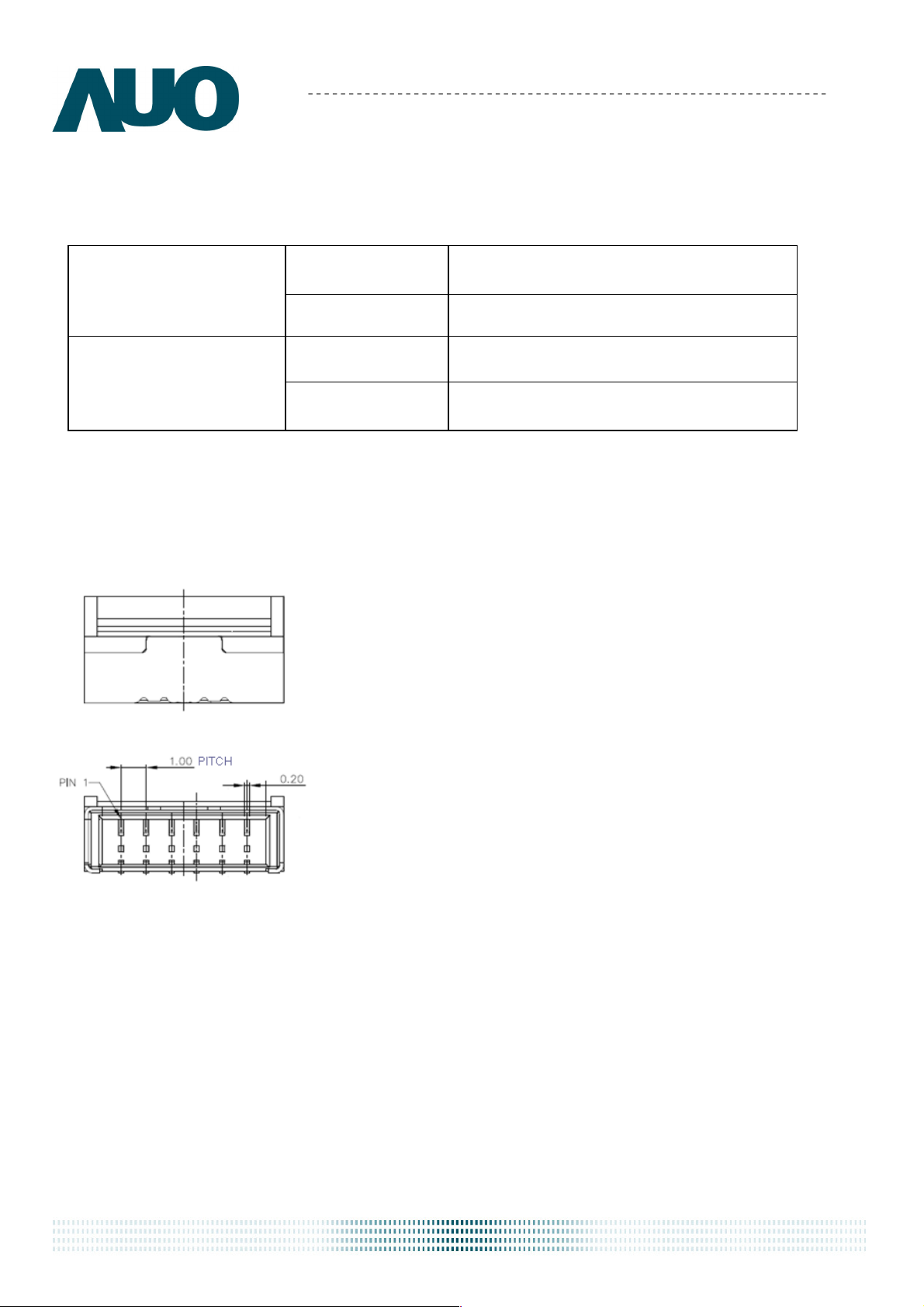

Backlight Connector dimension:
ENTERY INDUSTRIAL CO., LTD.
3707K-S06N-21R (Wire Harness)
ENTERY INDUSTRIAL CO., LTD.
H112K-P06N-11B (Locked Type, White) or
H112K-P06N-13B (Locked Type, Black)
)(0.1,25.400.39.13 mmunitPitchDVH
document version 1.1 23
Page 24

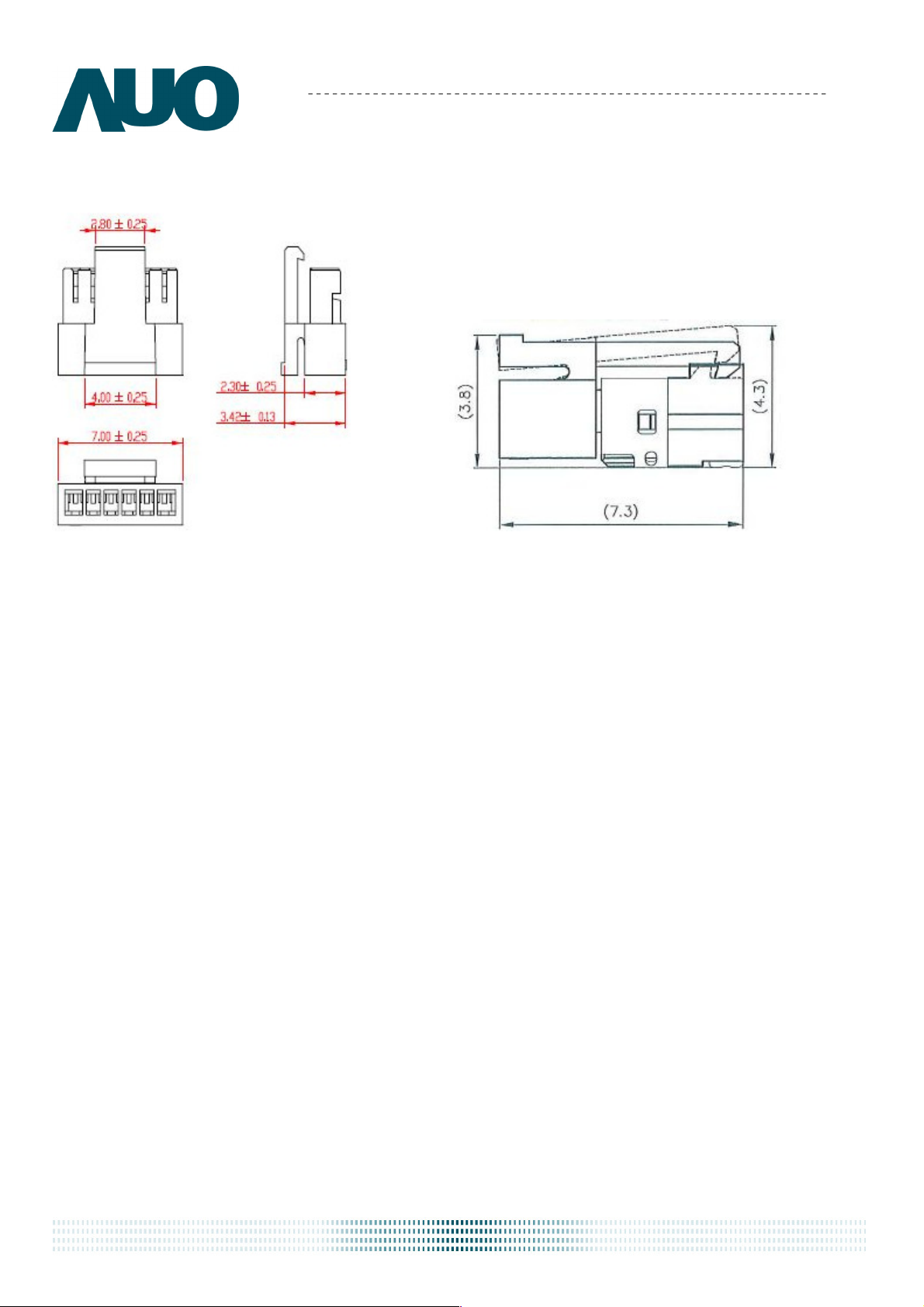

Mating Connector dimension:
Product Specification
M240HVN02.1
AU OPTRONICS CORPORATION
document version 1.1 24
Page 25
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1

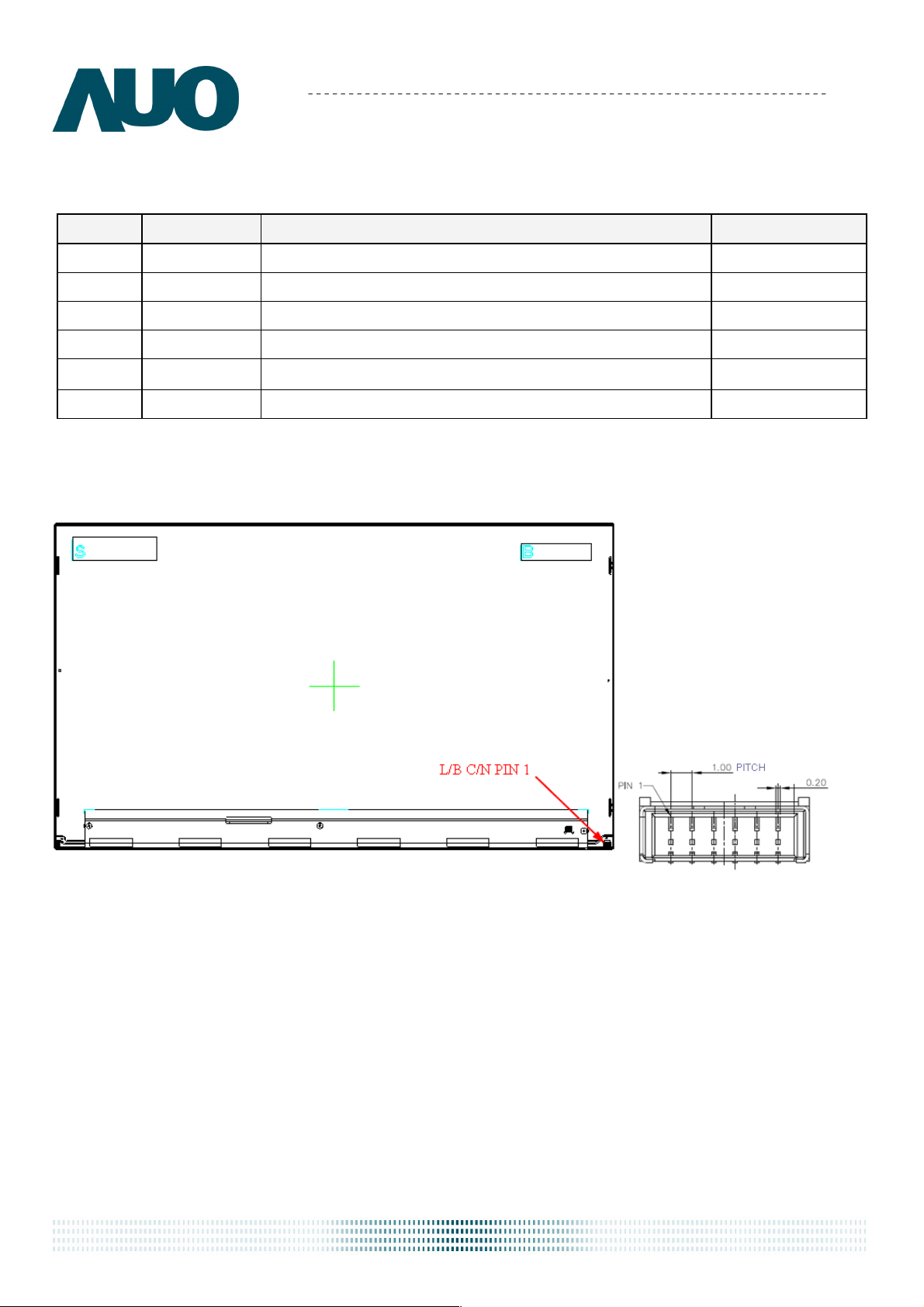

4.2.2 Connector Pin Assignment
Pin# Symbol Description Remark
1 Ch1 LED Current Feedback Terminal (Channel 1)
2 Ch2 LED Current Feedback Terminal (Channel 2)
3 V
4 V
LED Power Supply Voltage Input Terminal
SLED
LED Power Supply Voltage Input Terminal
SLED
5 Ch3 LED Current Feedback Terminal (Channel 3)
6 Ch4 LED Current Feedback Terminal (Channel 4)
document version 1.1 25
Page 26
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
4.3 Electrical Characteristics
4.3.1 Absolute Maximum Rating
Permanent damage may occur if exceeding the following maximum rating.
Symbol Description Min Max Unit Remark
(Ta=25℃)
Is
LED String Current
0

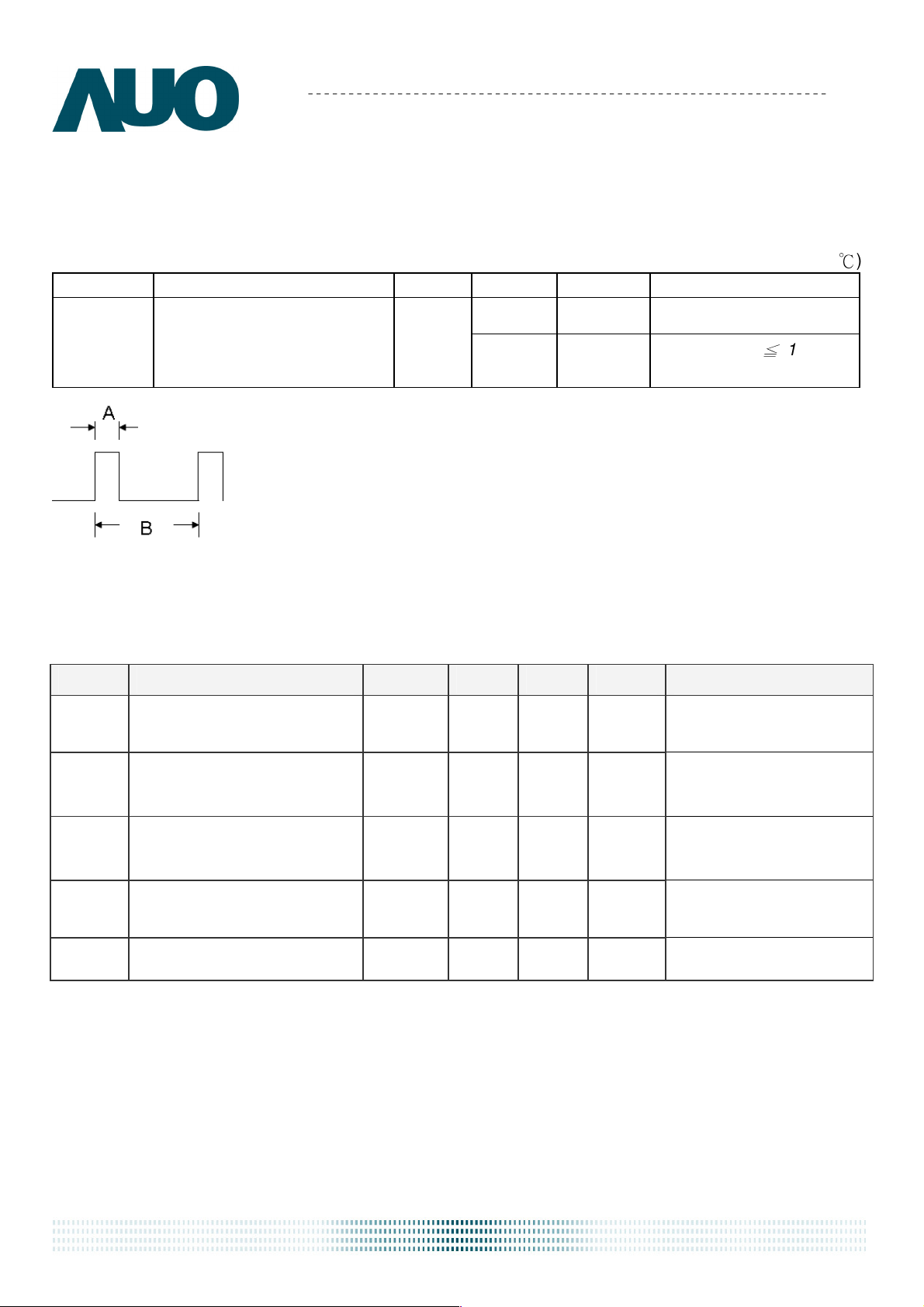

Duty ratio= (A / B) X 100% ; (A: Pulse time, B: Period)
4.3.2 Recommended Operating Condition
Symbol
Description
Is LED String Current -
Min.
Typ. Max. Unit Remark
90 99
150 [mA]
210
[mA]
[mA]
100% duty ratio
Duty ratio≦ 10%
Pulse time=10 ms
(Ta=25℃)
100% duty ratio of LED
chip
Vs LED String Voltage
37.8 42 46.2
[Volt]
ratio; Note 4-1
Is=90mA @ 100% duty
∆Vs
Maximum Vs Voltage
Deviation of light bar
-
- 2.8
[Volt]
Is=90mA @ 100% duty
ratio; Note 4-2
LED Light Bar Power
P
BLU
LT
LED
document version 1.1 26
Consumption
LED Life Time 30,000 - - [Hour] Note 4-4
- 15.12 18.29
[Watt] Note 4-3
Page 27
Product Specification
AU OPTRONICS CORPORATION

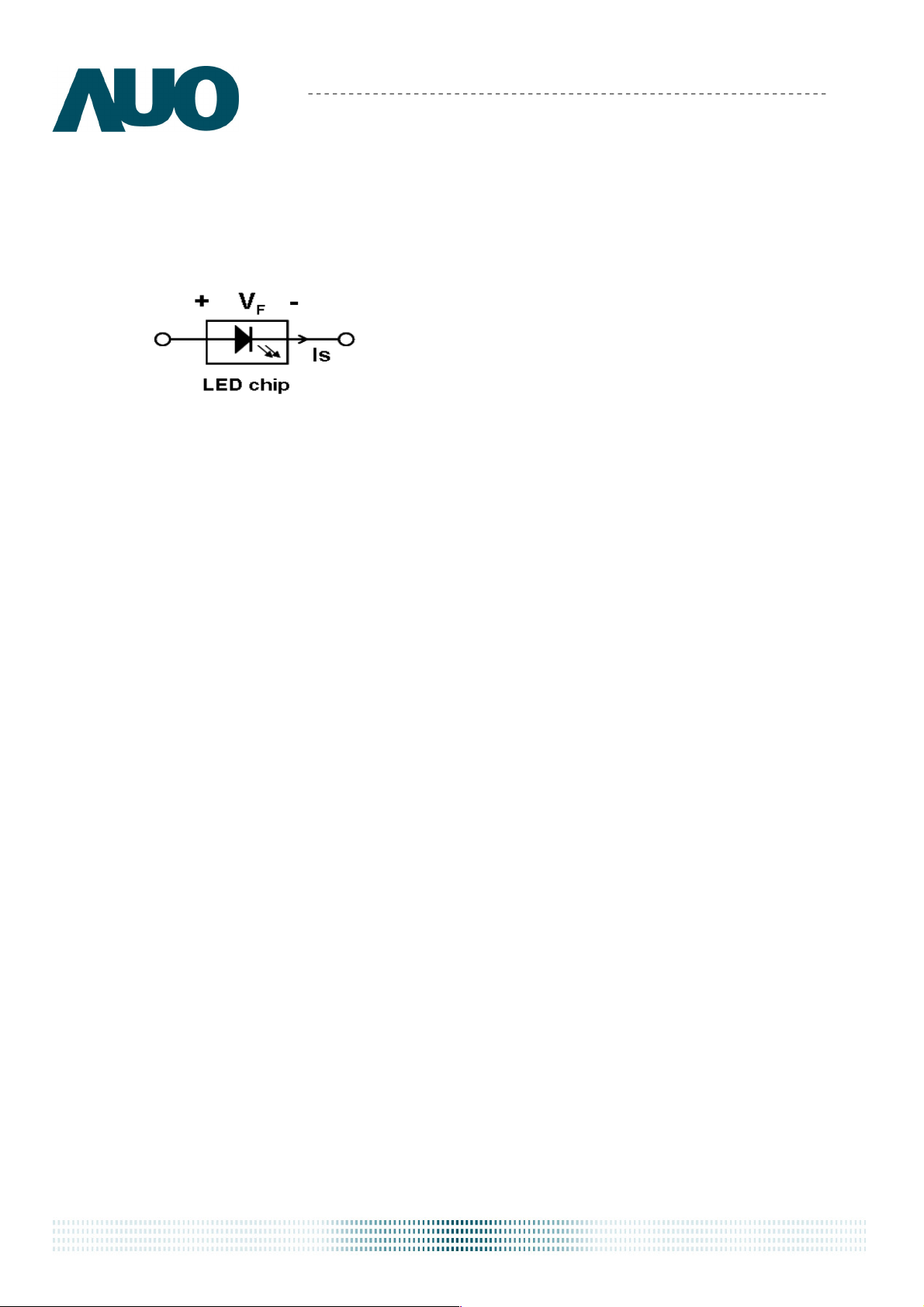

Note 4-1: Vs (Typ.) = VF (Typ.) X LED No. (one string);
a. VF: LED chip forward voltage, VF (Min.)=2.7V, VF(Typ.)=3.0V, VF(Max.)=3.3V
b. The same euqation to calculate Vs(Min.) & Vs (Max.) for respective VF (Min.) &
VF(Max.);
M240HVN02.1
Note 4-2: ∆Vs (Max.) = ∆VF X LED No. (one string);
a. ∆V
Note 4-3: P
BLU
P
BLU
LED chip forward voltage deviation; (0.2 V , each Bin of LED VF)
F:
(Typ.) = Vs (Typ.) X Is (Typ.) X 4 ; ( 4 is total String No. of LED Light bar)
(Max.) = Vs (Max.) X Is (Max.) X 4 ;
Note 4-4: Definition of life time:
a. Brightness of LED becomes to 50% of its original value
b. Test condition: Is = 90mA and 25℃ (Room Temperature)
document version 1.1 27
Page 28
KV, 150pF(330Ω ) 1sec,
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
5 Reliability Test
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.1
AUO reliability test items are listed as following table. (Bare Panel only)
Items Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Drop Test
Ta= 50℃, 80%RH, 300hours
Ta= 50℃, 50%RH, 300hours
Ta= 0℃, 300hours
Ta= 60℃, 300hours
Ta= -20℃, 300hours
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Height: 46 cm, package test
Remark
Thermal Shock Test (TST)
On/Off Test On/10sec, Off/10sec, 30,000 cycles
-20℃/30min, 60℃/30min, 100 cycles
Note 5-1
Contact Discharge: ± 15
8 points, 25 times/ point.
ESD (Electro Static Discharge)
Note 5-2
8 points, 25 times/ point.
Altitude Test
Operation:18,000 ft
Non-Operation:40,000 ft
Note 5-1: a. A cycle of rapid temperature change consists of varying the temperature from -20 to ℃
60 , and back again. Power is not applied during the test. ℃
b. After finish temperature cycling, the unit is placed in normal room ambient for at least
4 hours before power on.
Note 5-2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 1.1 28
Page 29
Product Specification
AU OPTRONICS CORPORATION

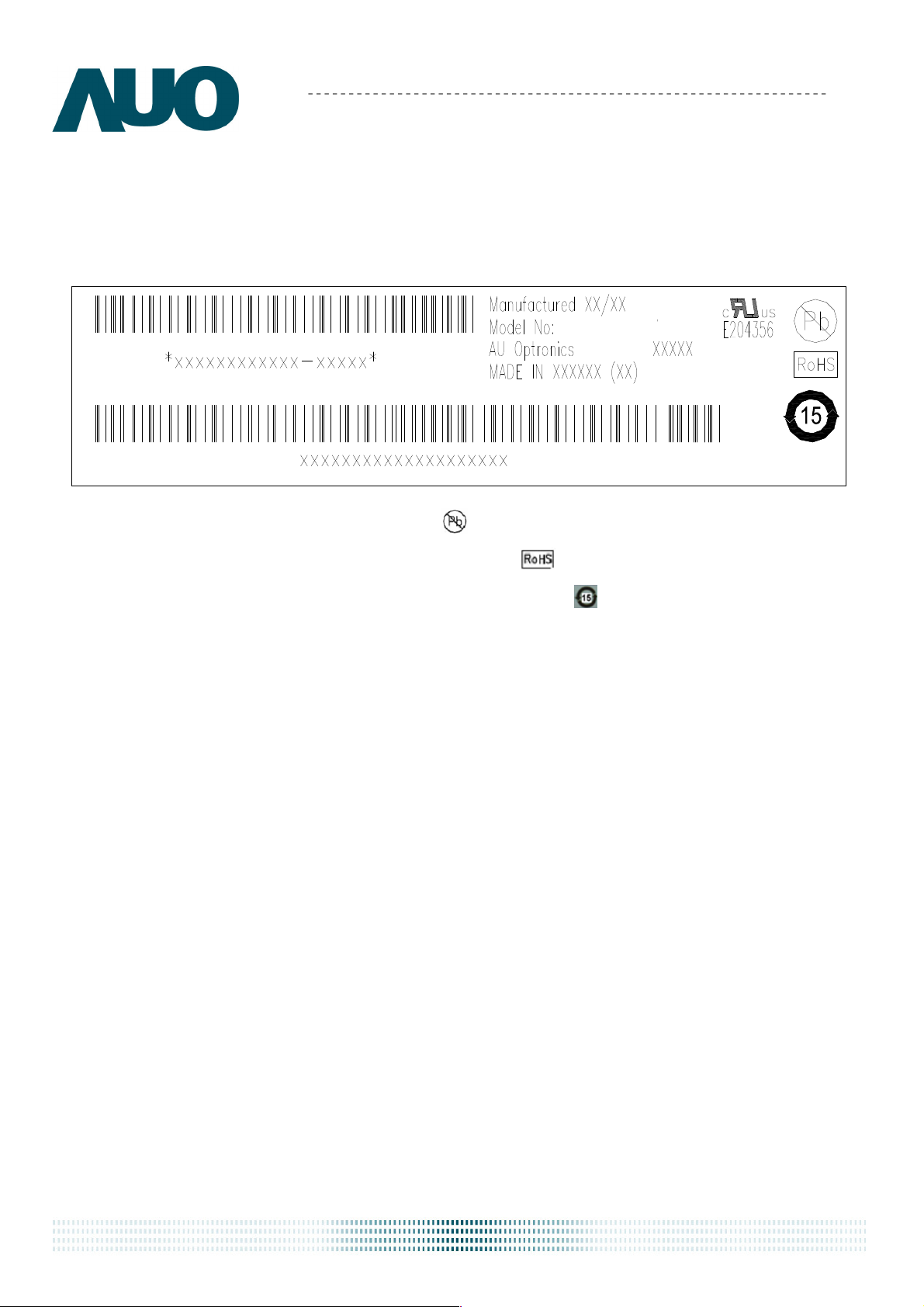

6 Shipping Label
The label is on the panel as shown below:
Note 6-1: For Pb Free products, AUO will add for identification.
M240HVN02.1
M240HVN02.1
Note 6-2: For RoHS compatible products, AUO will add for identification.
Note 6-3: For China RoHS compatible products, AUO will add for identification.
Note 6-4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.1 29
Page 30

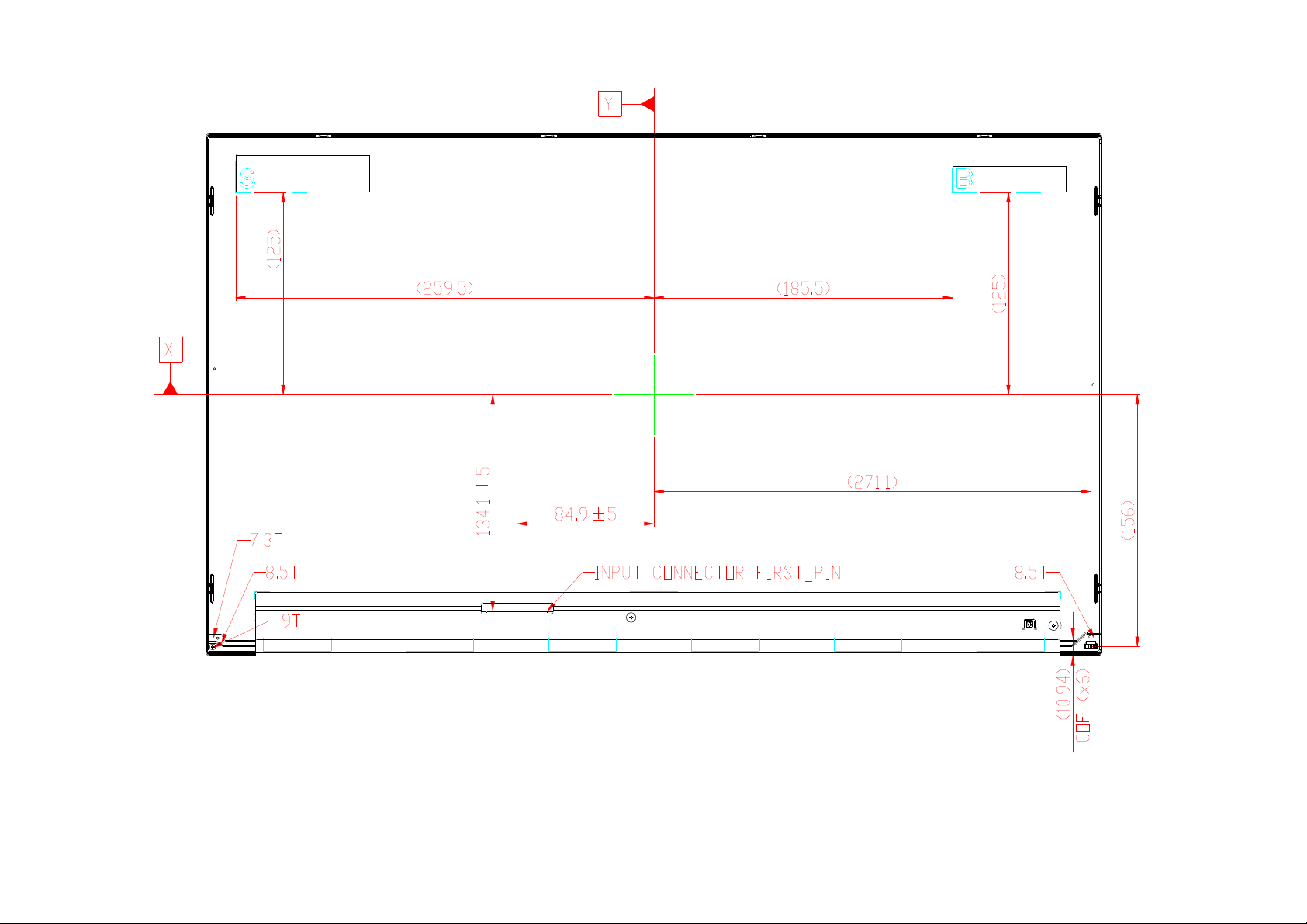

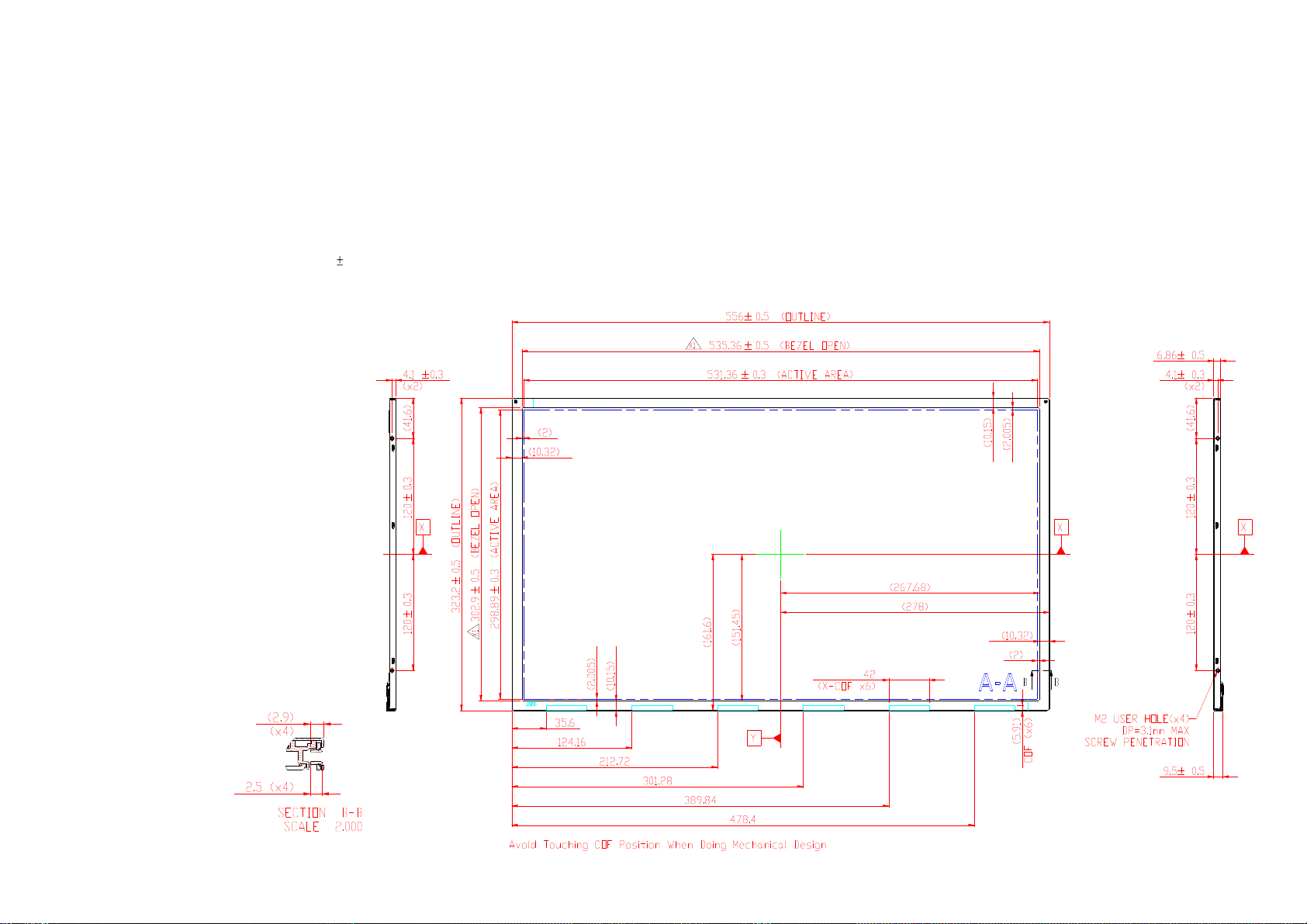

7 Mechanical Characteristics
NOTES:
1. PRELIMINARY DRAWING FOR REFERENCE ONLY.
2. THE DIMENSION EXCLUDES DEFORMATION.
3. BACKLIGHT: LED LIGHT-BAR.
4. MODULE THICKNESS TO BE 10.0mm MAX.
5. I/F CONNECTOR (Mating Type) TO BE JAE FI-X30HL OR
COMPATIBLE.
6. TOLERANCE WITHOUT SPECIFIED TO BE
7. TORQUE OF M2 USER HOLE SCREW SHOULD BE
WITHIN 3.0kgf-cm AND RE-SCREW 10 TIMES.
8. USER HOLE SCREW PENETRATION 3.1mm MAX.
±
0.5mm.
Ver 1.2
document version 1.1 30
Page 31
Ver 1.2
document version 1.1 31
Page 32
8 Packing Specification

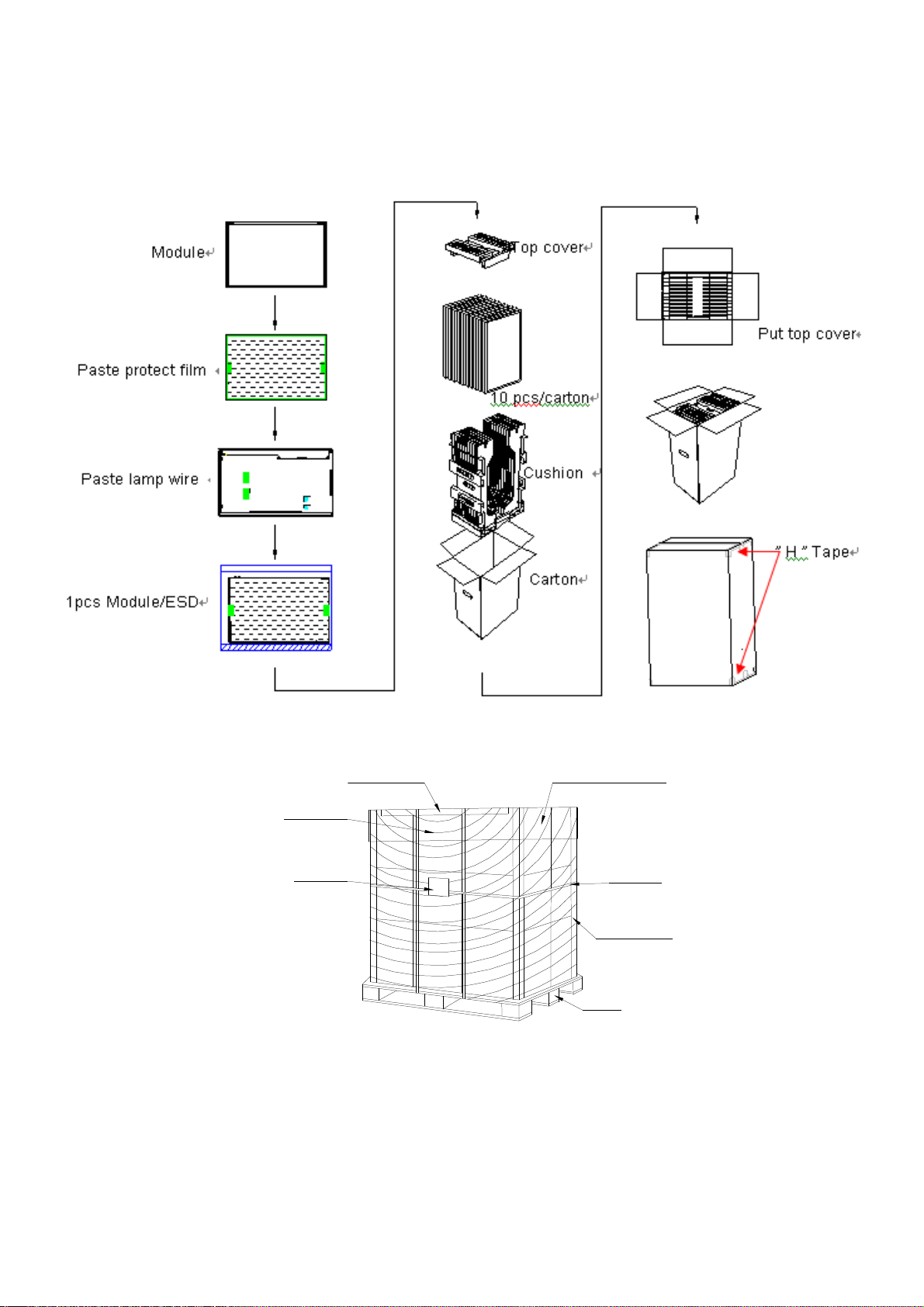

8.1 Packing Flow
Stretch film
Label
Corner angle
Moisture-proof film
PET band
Corner angle
Pallet
Ver 1.2
document version 1.1 32
Page 33
8.2 Pallet and shipment information
Item
Q'ty
Panel 1
Specification
Dimension
556.0 (H) x 323.2 (V) x 9.5 (D)
Weight(kg)
1.670
Cushion 1 - 1.7
Box 1 406(L)mm x 281(W)mm x 651(H)mm
Packing Box 10 pcs/Box 406(L)mm x 281(W)mm x 651(H)mm
1.2 without Panel & cushion
19.6 with panel & cushion
Pallet 1 1150(L)mm x 840(W)mm x 132(H)mm 12.00
Pallet after Packing 16 boxes/pallet 1150(L)mm x 840(W)mm x 1434(H)mm
325.6
Remark
Ver 1.2
document version 1.1 33
Loading...
