M240HTN01.1
Specification
31 pgs1.45 Mb0

AUO M240HTN01.1 Specification

Download

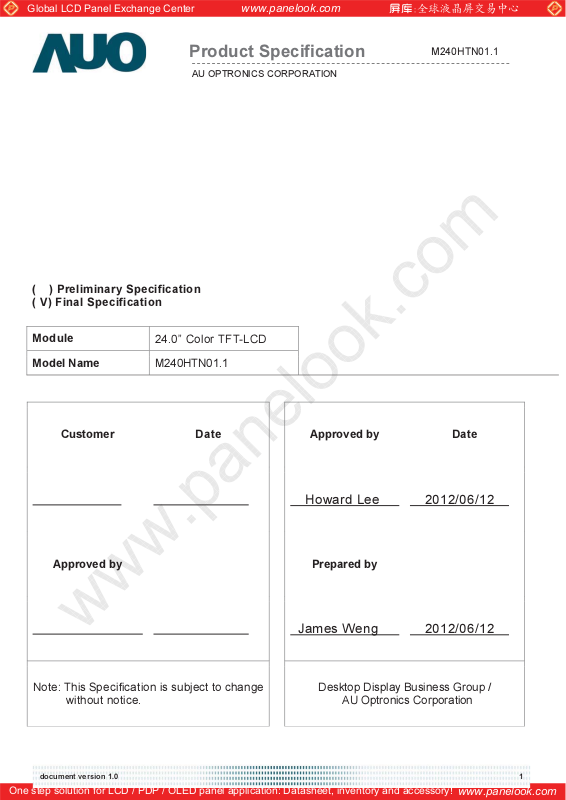

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
Module
Model Name
24.0” Color TFT-LCD
M240HTN01.1
Customer Date
Approved by
Approved by Date
Howard Lee 2012/06/12
Prepared by
Note: This Specification is subject to change
without notice.
document version 1.0 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
James Weng 2012/06/12
Desktop Display Business Group /
AU Optronics Corporation
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
Content
1 HANDLING PRECAUTIONS.......................................................................................................... 4
2 GENERAL DESCRIPTION.............................................................................................................5
2.1 Display Characteristics............................................................................................................................. 5
2.2 Optical Characteristics.............................................................................................................................. 6
3 FUNCTIONAL BLOCK DIAGRAM ..............................................................................................10
4 ABSOLUTE MAXIMUM RATINGS .............................................................................................. 11
4.1 TFT LCD Module .................................................................................................................................... 11
4.2 Backlight Unit.......................................................................................................................................... 11

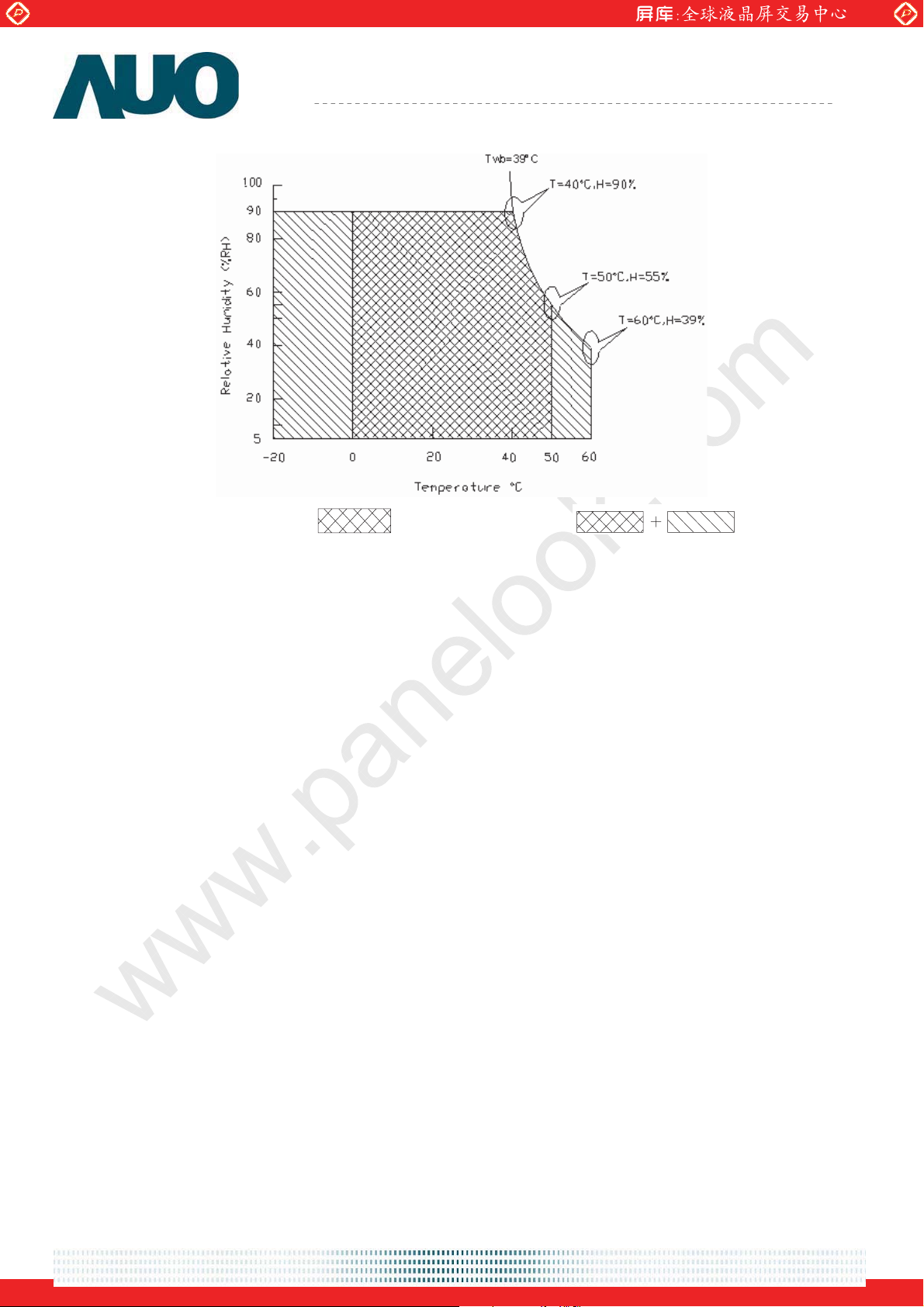

4.3 Absolute Ratings of Environment........................................................................................................... 11
5 ELECTRICAL CHARACTERISTICS ...........................................................................................13
5.1 TFT LCD Module .................................................................................................................................... 13
5.1.1 Power Specification ........................................................................................................................................ 13

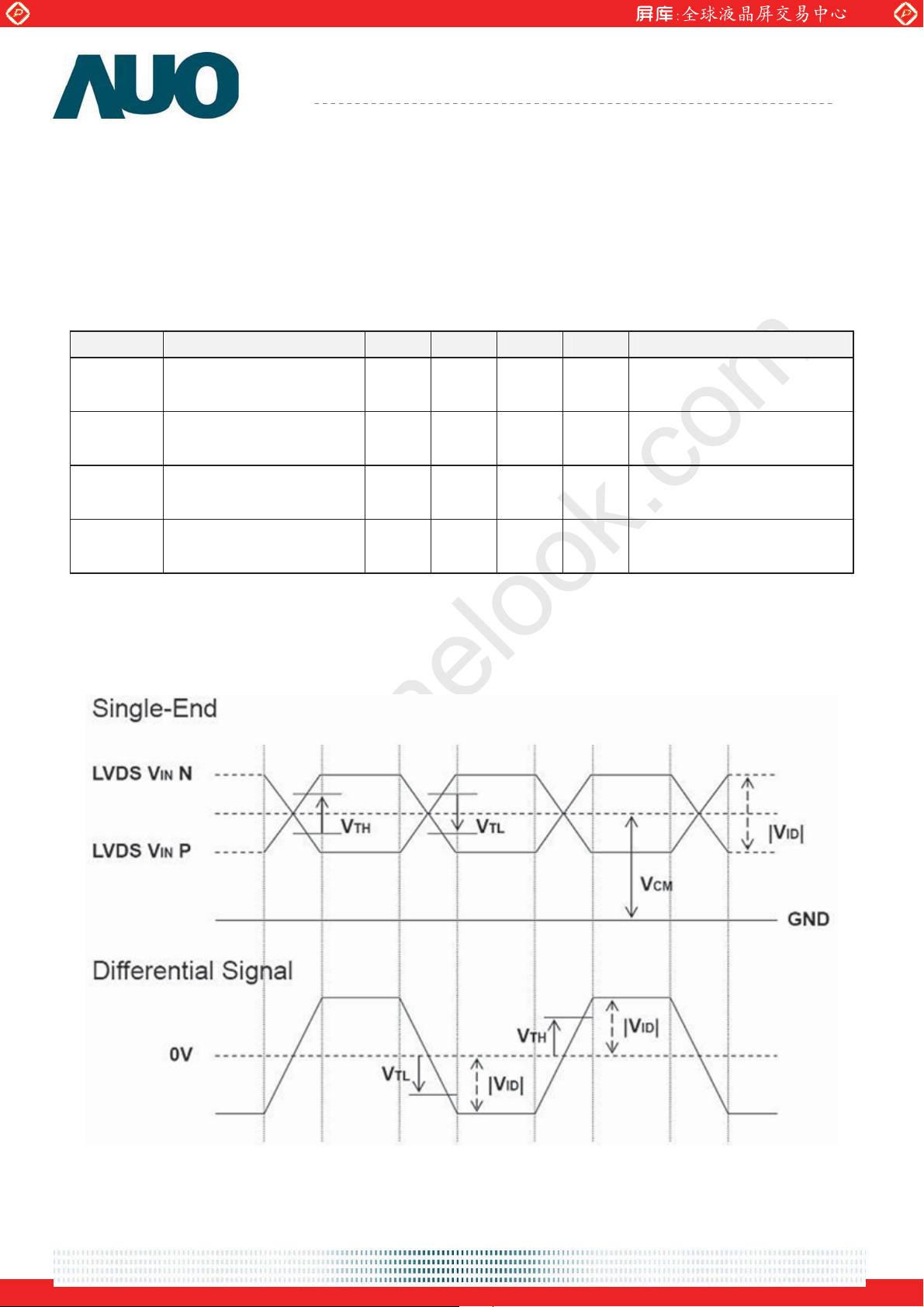

5.1.2 Signal Electrical Characteristics ..................................................................................................................... 14
5.2 Backlight Unit.......................................................................................................................................... 16
6 SIGNAL CHARACTERISTICS..................................................................................................... 17

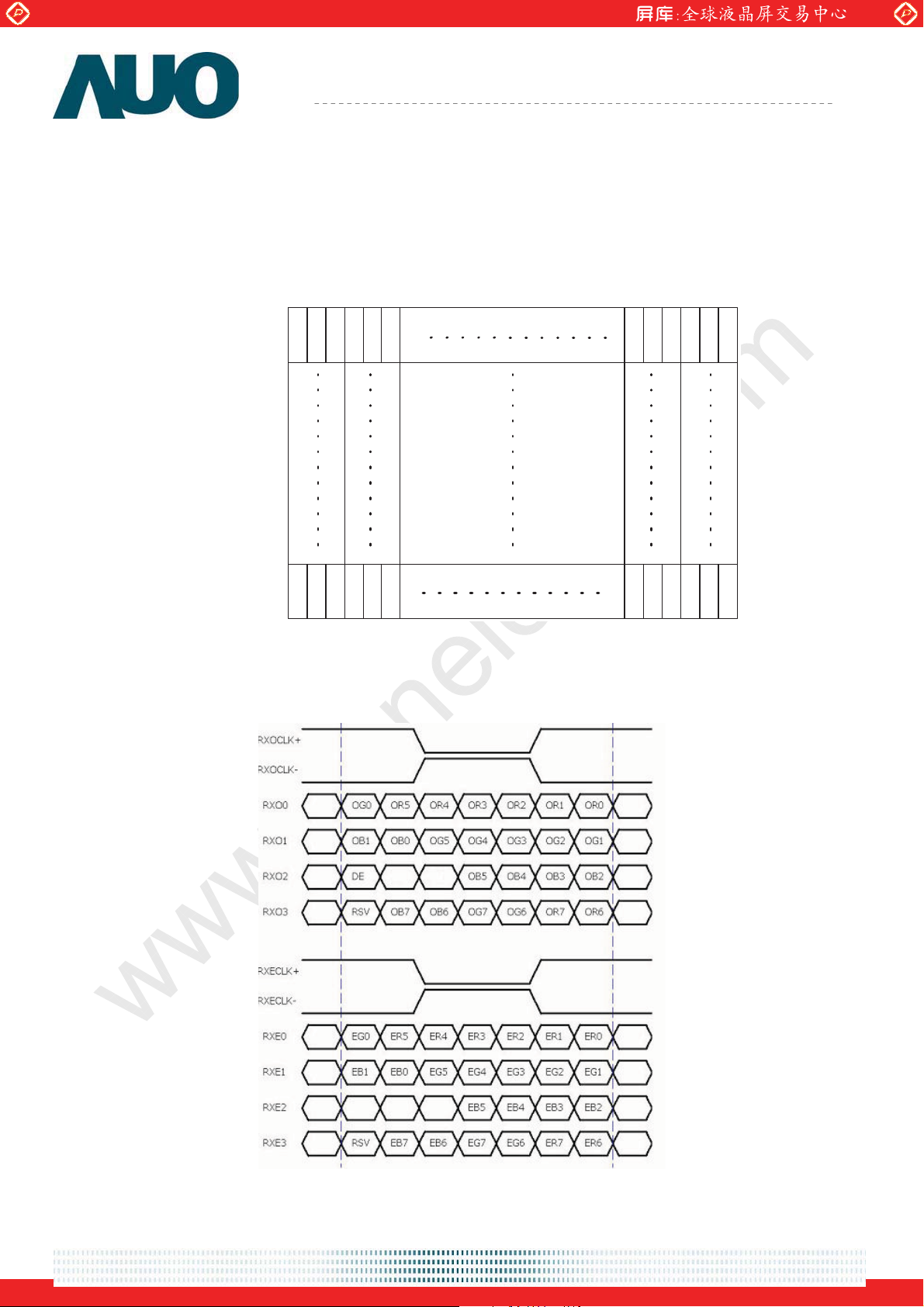

6.1 Pixel Format Definition ........................................................................................................................... 17
6.2 Input Data Format Definition .................................................................................................................. 17
6.3 Signal Description................................................................................................................................... 18
6.4 Timing Characteristics............................................................................................................................ 20

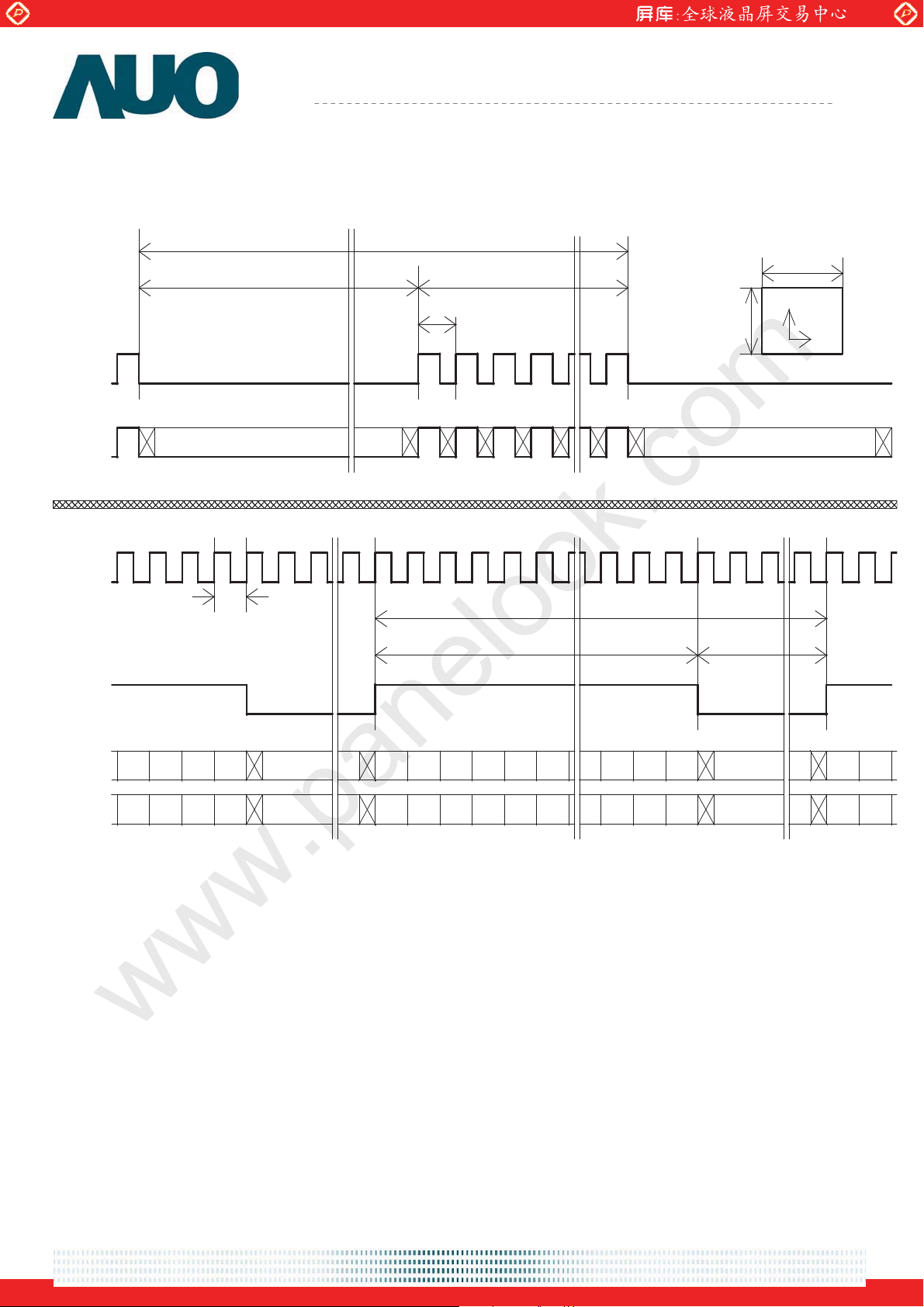

6.5 Timing Diagram ...................................................................................................................................... 21
6.6 Power ON/OFF Sequence ..................................................................................................................... 22
7 CONNECTOR AND PIN ASSIGNMENT ..................................................................................... 23
7.1 TFT LCD Module .................................................................................................................................... 23
7.1.1 LVDS Connector Pin Assignment .................................................................................................................. 23
7.2 Backlight Unit.......................................................................................................................................... 24
7.2.1 LED Pin Assignment....................................................................................................................................... 24

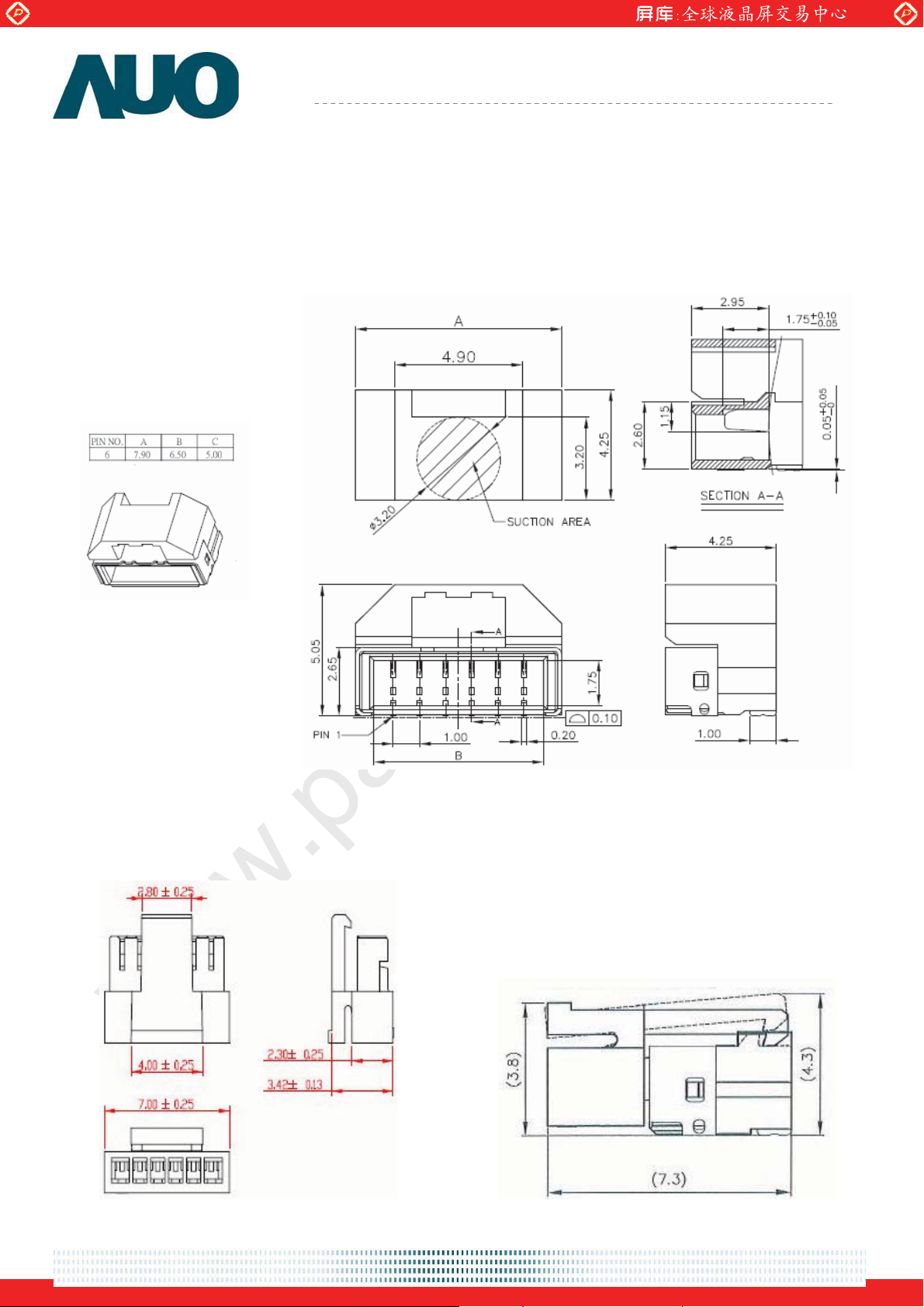

7.2.2 LED Connector dimension....................................................................................................................................... 25
7.2.3 LED Mating housing dimension ............................................................................................................................... 25
8 RELIABILITY TEST......................................................................................................................26

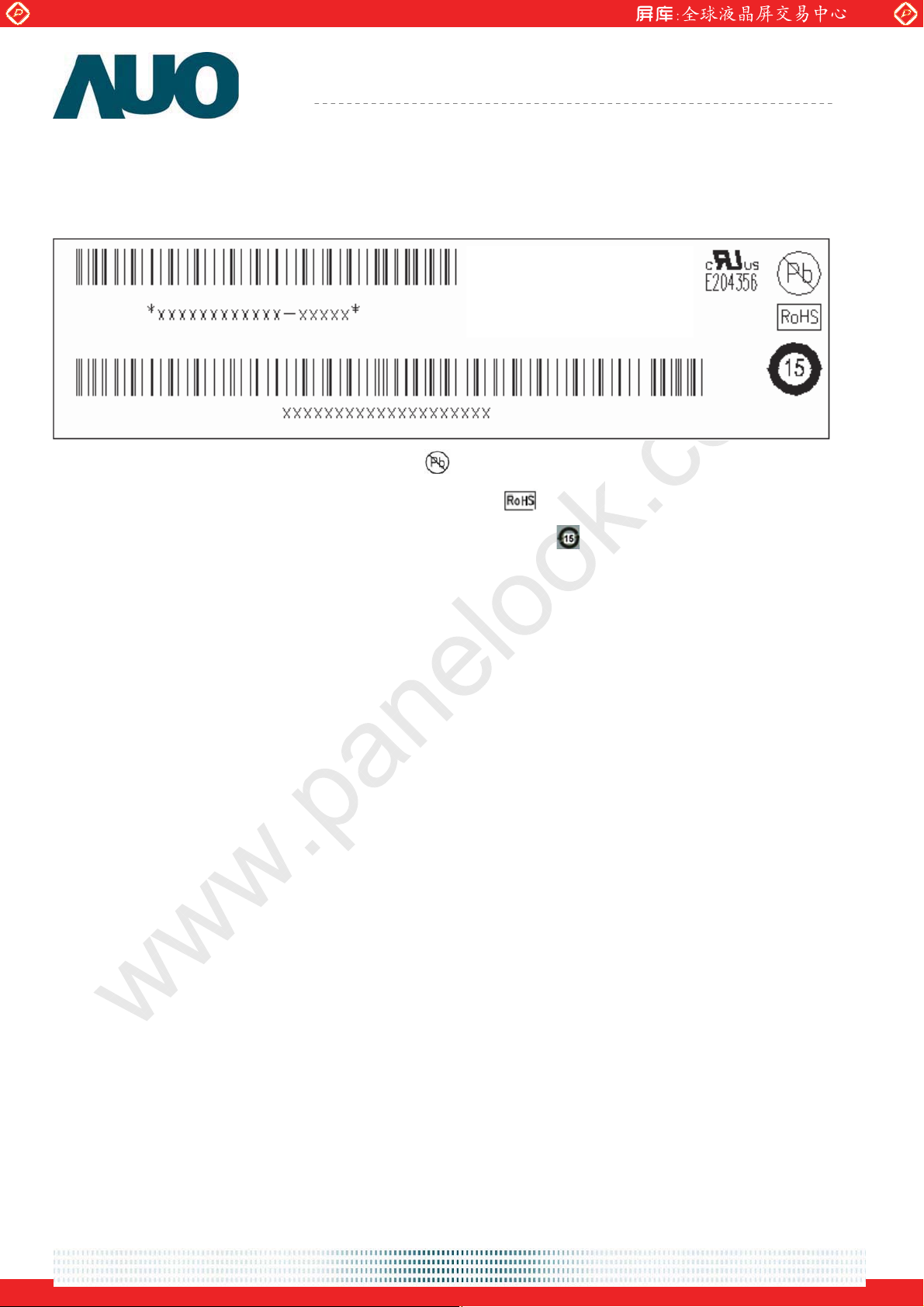

9 SHIPPING LABEL ........................................................................................................................27

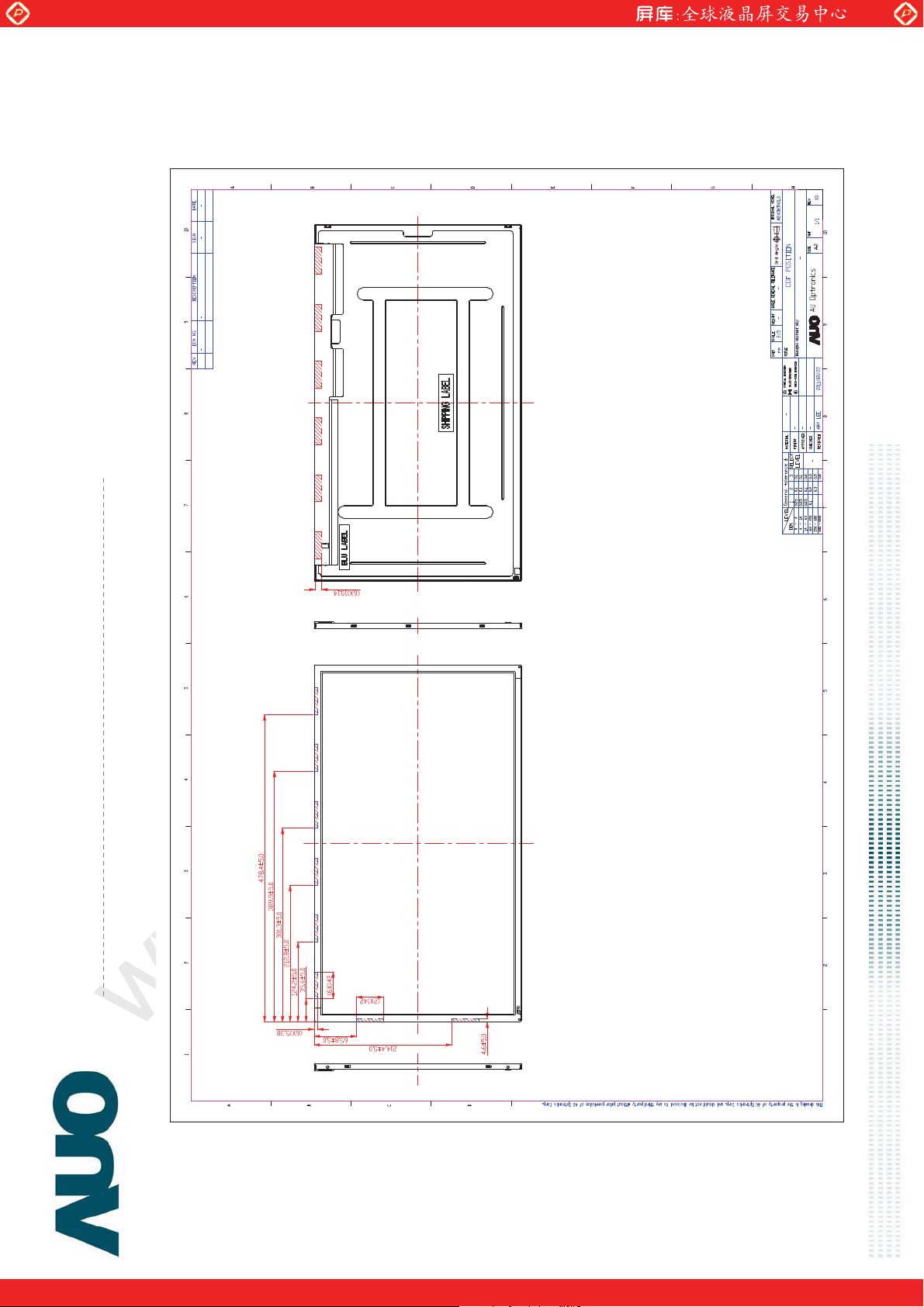

10 MECHANICAL CHARACTERISTICS.......................................................................................... 28
11 PACKING SPECIFICATION ........................................................................................................30

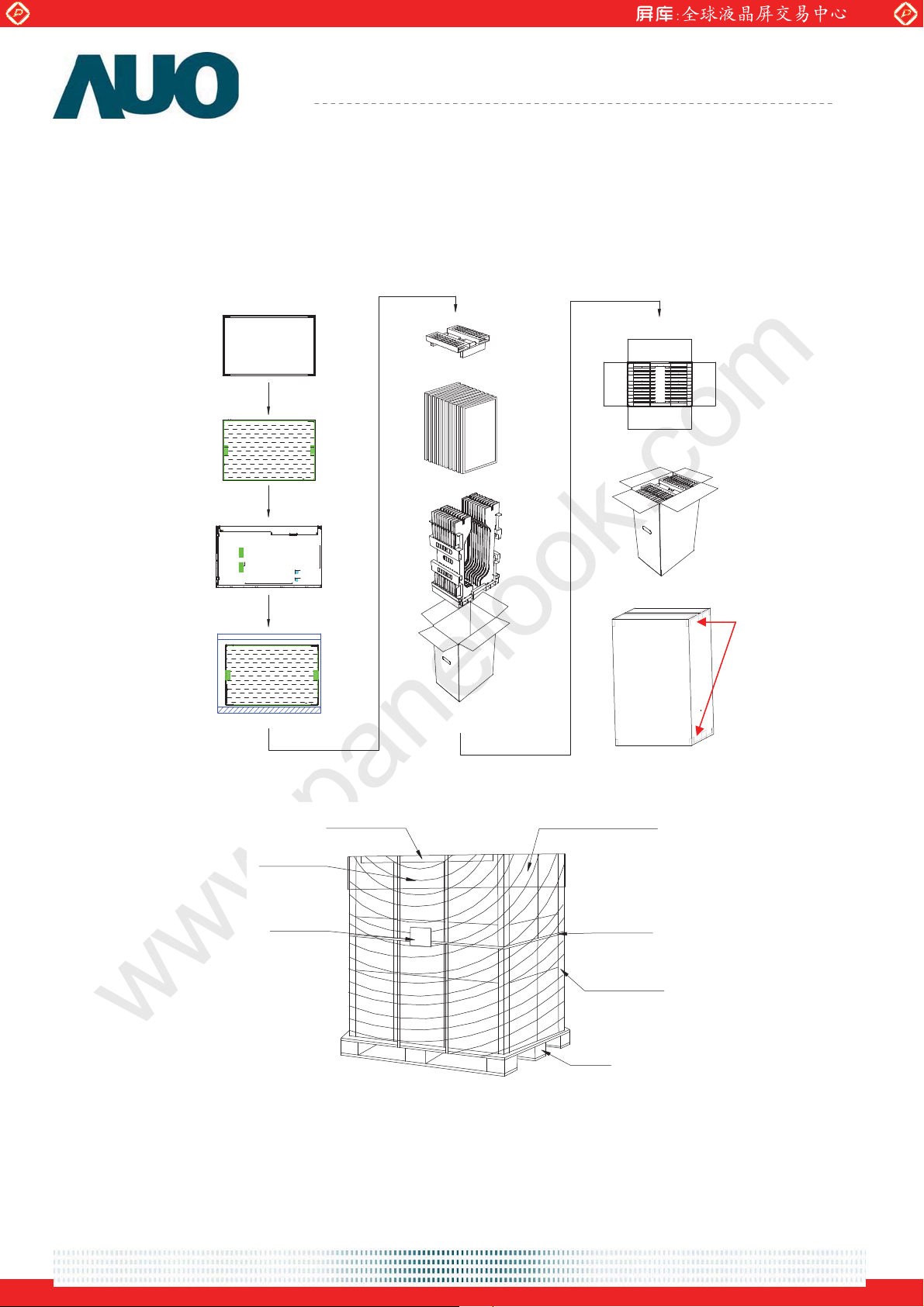

11.1 Packing Flow .......................................................................................................................................... 30
11.2 Pallet and Shipment Information............................................................................................................ 31
document version 1.0 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
Records of Revision
Version and Date Page Old Description New Description Remark
1.0, 2012/6/12 5 Power consumption 15.55W Power consumption 15.8W
1.0 2012/6/12 11 4.2 Backligh unit Add new item & spec
1.0, 2012/6/12 13 VDD power 3.25W at 60Hz VDD power 3.5W at 60Hz
1.0 2012/6/12 13 Inrush current =3 Inrush current =TBD
1.0 2012/6/12 15 Max=300 Max=200
1.0 2012/6/12 22 Old power on/off sequence
1.0 2012/6/12 24 7.2.1, Add new figure
Update the chart and table
1.0 2012/6/12 25 7.2.2 Update the figure
1.0 2012/6/12 25 Blank Add 7.2.3 LED Mating housing
dimension
1.0 2012/6/12 26 Contact Discharge: ± 8KV Contact Discharge: ± 15KV
document version 1.0 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Avoid touching COF position while doing mechanical design.
14) While storing modules as spares for a long time, the following precautions are necessary:
Store modules in a dark place. Do not expose them to sunlight or fluorescent light.
Keep the temperature between 5°C and 35°C at normal humidity.
document version 1.0 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
2 General Description
This specification applies to the 24 inch-FHD color a-Si TFT-LCD Module M240HTN01.1. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bit + Hi-FRC
data). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS
interface and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm] 609.7 (24.0”) Active Area [mm] 531.36 (H) x 298.89 (V) Pixels H x V 1920(x3) x 1080 Pixel Pitch [um] 276.75 (per one triad) ×276.75 Pixel Arrangement R.G.B. Vertical Stripe Display Mode TN Mode, Normally White White Luminance ( Center ) [cd/m2] 200 cd/m2 (Typ.) Contrast Ratio 600 (Typ.) Optical Response Time [msec] 5ms (Typ., on/off) Nominal Input Voltage VDD [Volt] + 5.0 V
Power Consumption (VDD line + LED line)
Weight [g] 2018 Physical Size [mm] 556.0 (W) x 323.2 (H) x 11.5(D) (Typ.) Electrical Interface Dual channel LVDS Support Color 16.7M colors (RGB 6-bit + Hi_FRC) Surface Treatment Anti-Glare, 3H Temperature Range
[Watt]
15.8 (Typ.) (VDD line : PDD (typ), All black pattern at 60Hz =
3.5W, LED line : PBLU (typ) = 12.3W)
Operating Storage (Shipping) RoHS Compliance RoHS Compliance TCO Compliance TCO 5.1 Compliance
document version 1.0 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
[°C] [°C]
0 to +50
-20 to +60
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
Contrast Ratio Normal Direction
Response Time [msec]
CR = 10 (Left) Vertical (Up) CR = 10 (Down)
Rising Time (TrR) - 3.5 7.4 Falling Time (TrF) - 1.5 2.6
40 40 15 40
360
45 45 20 45
600 - 3
-
-
-
-
2
4
Rising + Falling - 5 10 Red x 0.618 0.648 0.678
Red y 0.296 0.326 0.356 Color / Chromaticity Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2] 160 200 - 6 Luminance Uniformity [%] 75 80 - 7 Crosstalk (in 60Hz) [%] 1.5 8 Flicker dB -20 9
Green x 0.293 0.323 0.353
Green y 0.595 0.625 0.655
Blue x 0.122 0.152 0.182
Blue y 0.023 0.053 0.083
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
5
document version 1.0 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1

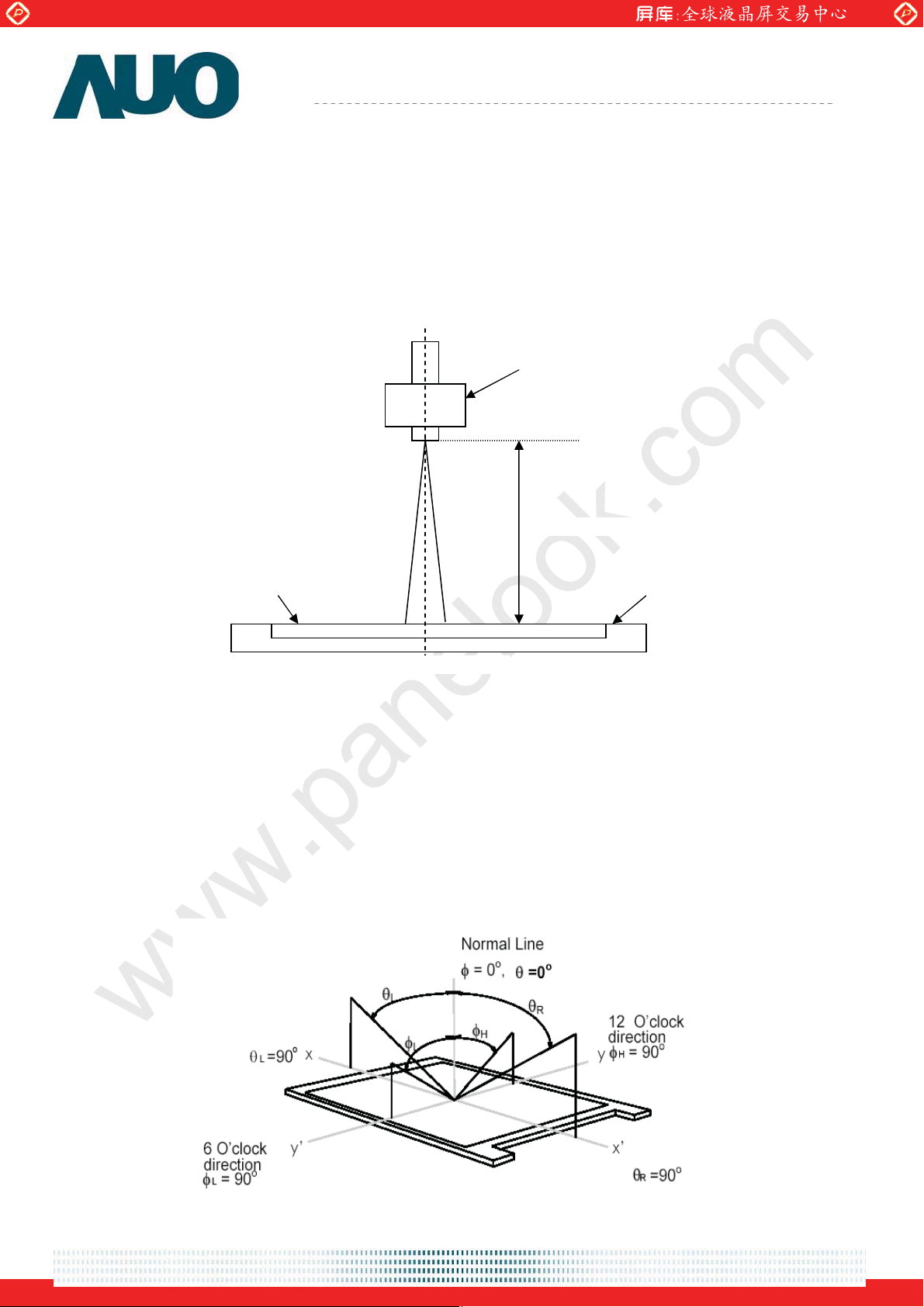

Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
Photo Detector
Measured Distance
LCD Panel
TFT-LCD Module
Center of the screen
Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
document version 1.0 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
Note 3: Contrast Ratio measured by TOPCON SR-3

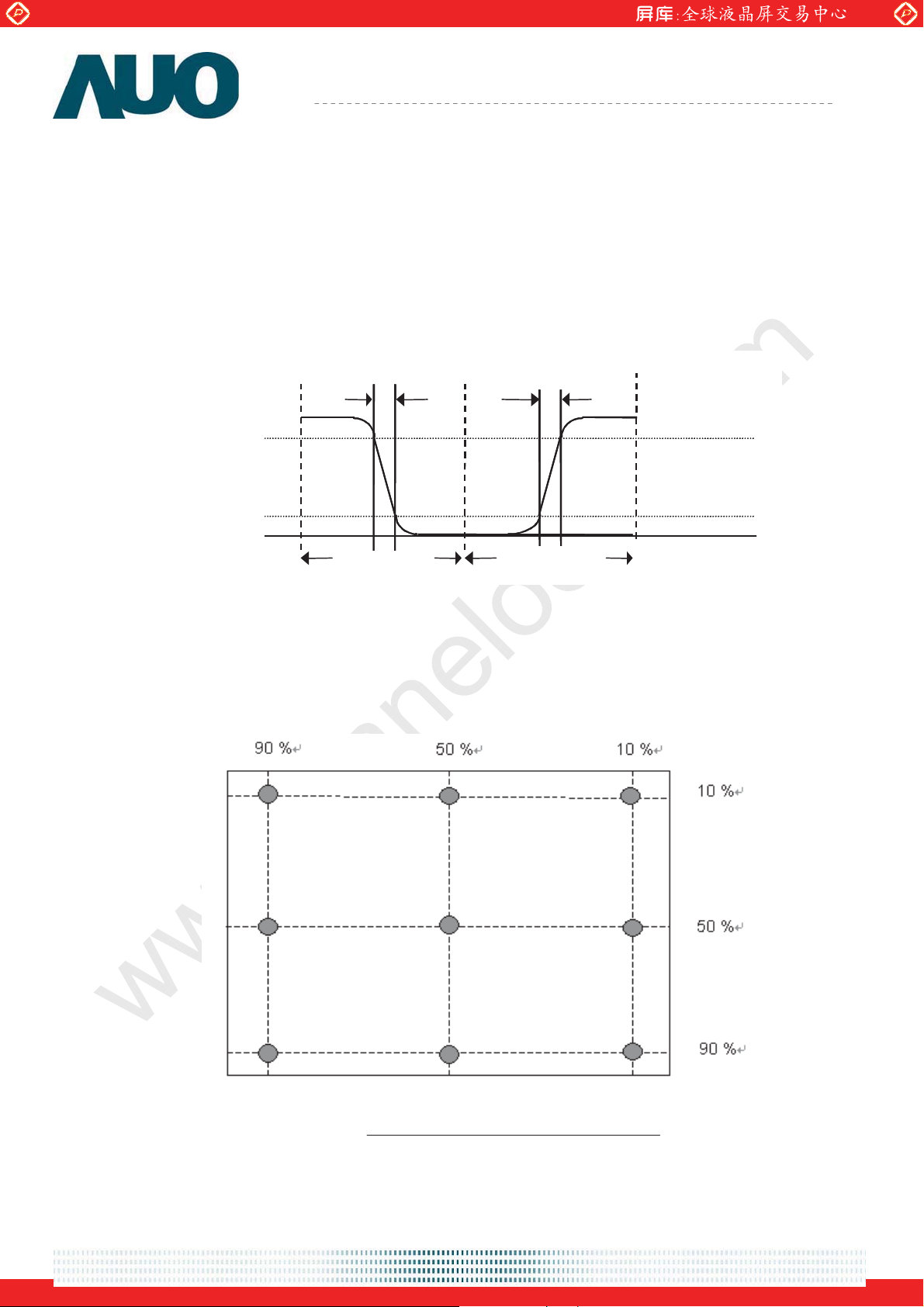

Note 4: Response Time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling time, TfF),
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes. TrR + TfF = 5 msec (typ.)
Optical
Optical
response
response
100
100
90
10
10
%
%
White Black
0
0
Tr
Tr
F
F
Black
1 Frame 1 Frame
Tr
Tr
R
R
White
Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3
Note 6: Central Luminance measured by TOPCON SR-3
Note 7: Luminance Uniformity of these 9 points defined as below and measured by TOPCON
SR-3
Uniformity =
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum

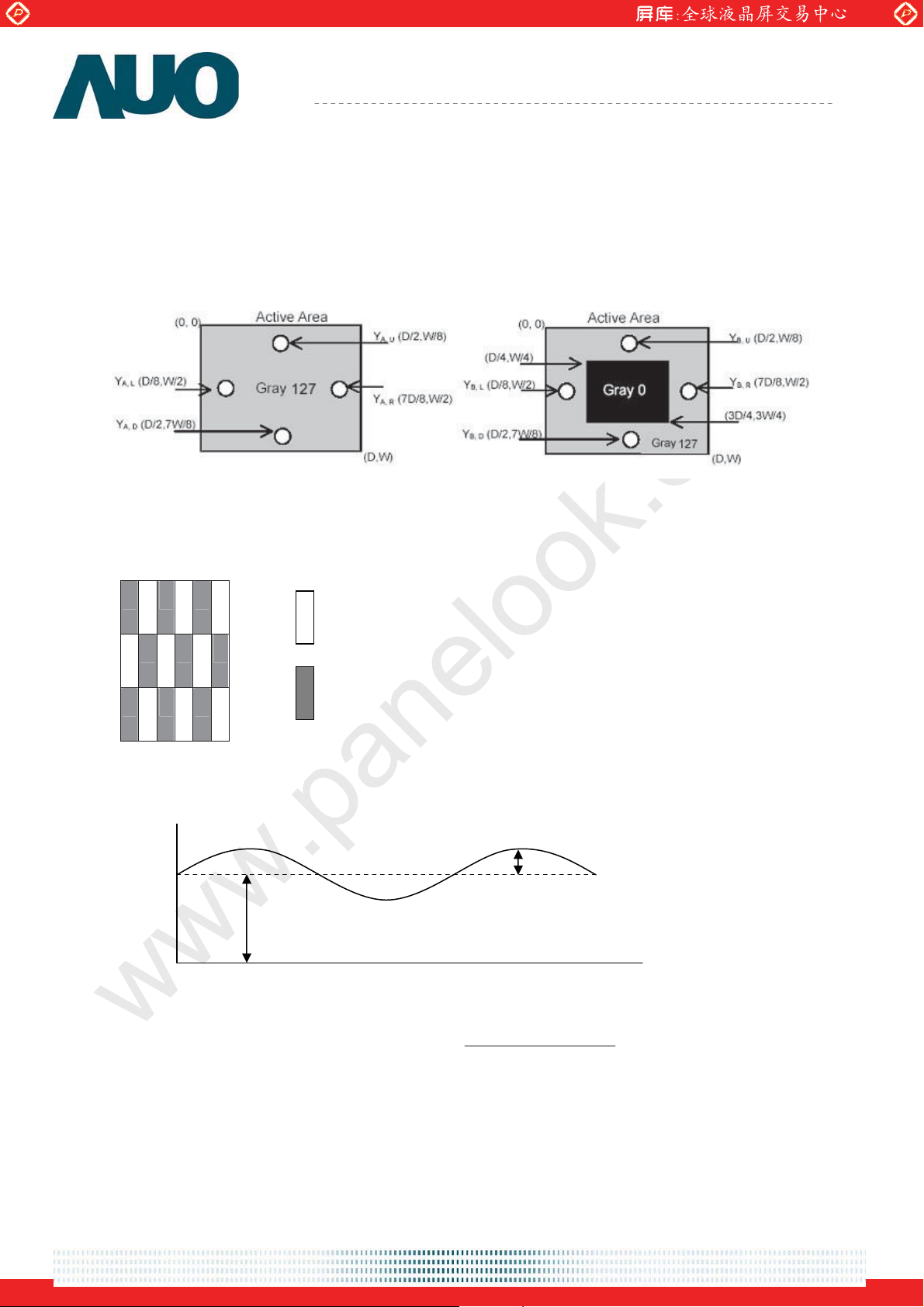

Note 8: Crosstalk defined as below and measured by TOPCON SR-3
document version 1.0 8
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
AU OPTRONICS CORPORATION
M240HTN01.1
Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
RGBRGB
Gray Level = L127
R GBRGB
RGBRGB
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
Time
log20(dB)Flicker =
document version 1.0 9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Hz) 30Level(at AC
evel DC
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1

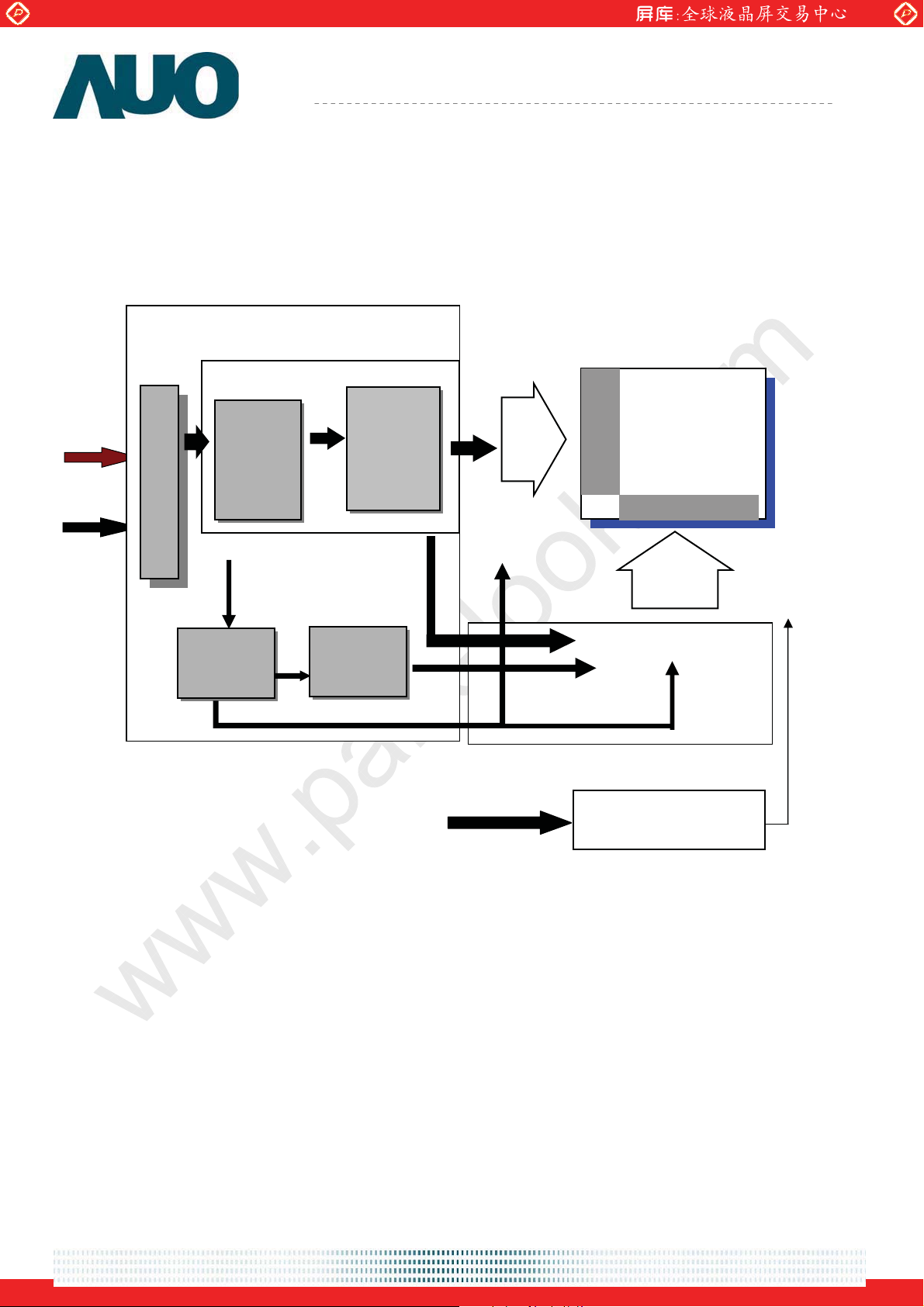

3 Functional Block Diagram
The following diagram shows the functional block of the 24.0 inch Color TFT-LCD Module:
LVDS
+5V
Connector
Receiver
LVDS
AUO
ASIC
Timing
Controller
miniLVDS
Transmitter
G1080
G1
Y-Driver IC
TFT-LCD
1920(x3) x 1080
Pixels
-
D1
D5760
LED
Backlight
DC/DC
Converter
I/F PCB Interface:
FI-XPB30SRLA-HF11
187145-30091-3
MSCK2407P30
Gamma
Correction
I/F + X-PCB
DC
LED Driver on system
Mating Type:
FI-X30HL(Locked Type)
document version 1.0 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current
AU OPTRONICS CORPORATION
VDD 0 6.0 [Volt] Note 1, 2
IRLED1 IRLED2
IRLED3
0 150
[mA]
M240HTN01.1
Note 1,2,5
100% duty
IRLED4 IPLED1
LED Pulse Forward Current
LED forward Voltage variation
(per string variation)
IPLED2 IPLED3
IPLED4
ӔVf
- 200
- 3.4
[mA]
[Volt]
Note 1,2,5
10% duty @100Hz
Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [°C] Note 3 Glass Surface Temperature
(Operation) Operation Humidity HOP 5 90 [%RH] Storage Temperature TST -20 +60 [°C] Storage Humidity HST 5 90 [%RH]
Note 1: With in Ta (25 °C) Note 2: Permanent damage to the device may occur if exceeding maximum values Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta Љ39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta Љ39°C)
3. No condensation
Note 4: Function Judged only Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
TGS 0 +65 [°C]
Note3 Note4
Note 3
document version 1.0 11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Operating Range
Product Specification
AU OPTRONICS CORPORATION
Storage Range
M240HTN01.1
document version 1.0 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
A
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
IDD1 Input Current
PDD1 VDD Power
Logic/LCD Drive
4.5 5.0 5.5 [Volt] +/-10%
Voltage
VDD= 5.0V, All
- 0.65 0.78 [A] Black Pattern at 60 Hz
VDD= 5.0V, All
- 0.8 0.96 [A] Black Pattern at 75 Hz
VDD= 5.0V, All
- 3.5 3.9 [Watt] Black Pattern at 60 Hz
VDD= 5.0V, All
- 4 4.8 [Watt] Black Pattern at 75 Hz
IRush Inrush Current - - TBD [A] Note 1
VDDrp
llowable Logic/LCD
- - 500 [mV] p-p
Drive Ripple Voltage
VDD= 5.0V, All Black Pattern at 75 Hz

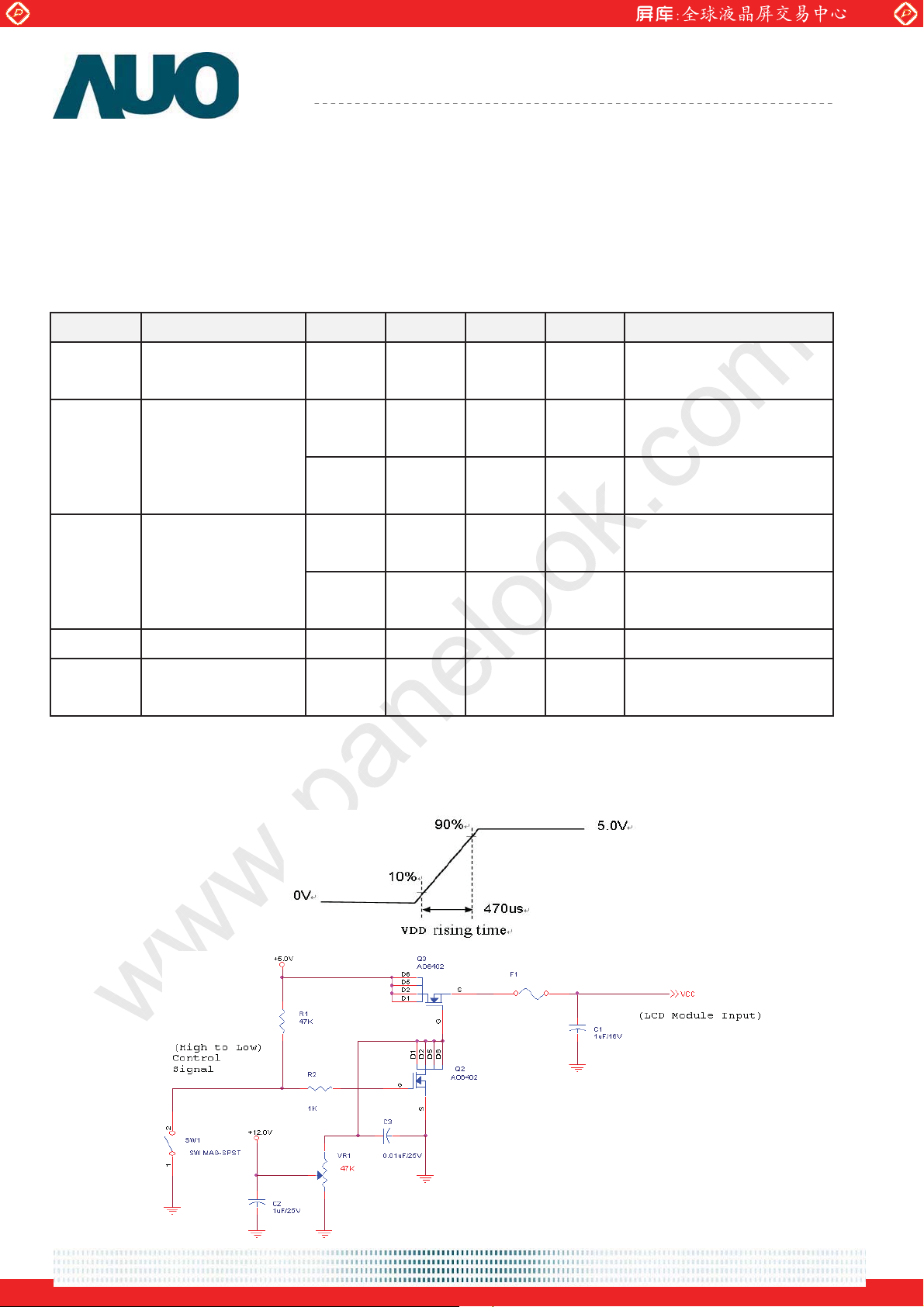

Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
document version 1.0 13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
1) Characteristics of each signal are listed as follows:
Symbol Description Min Typ Max Units Conditions
VTH
VTL
│VID│
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
- +50 +100
-100 -50 -
100 - 600
[mV]
[mV]
[mV] Note 1
= 1.2V
V
CM
Note 1
= 1.2V
V
CM
Note 1
VCM
Differential Input
Common Mode Voltage
Note 1: LVDS Signal Waveform
+1.0 +1.2 +1.5
[V]
V
TH-VTL
= 200MV (max)
Note 1
document version 1.0 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1

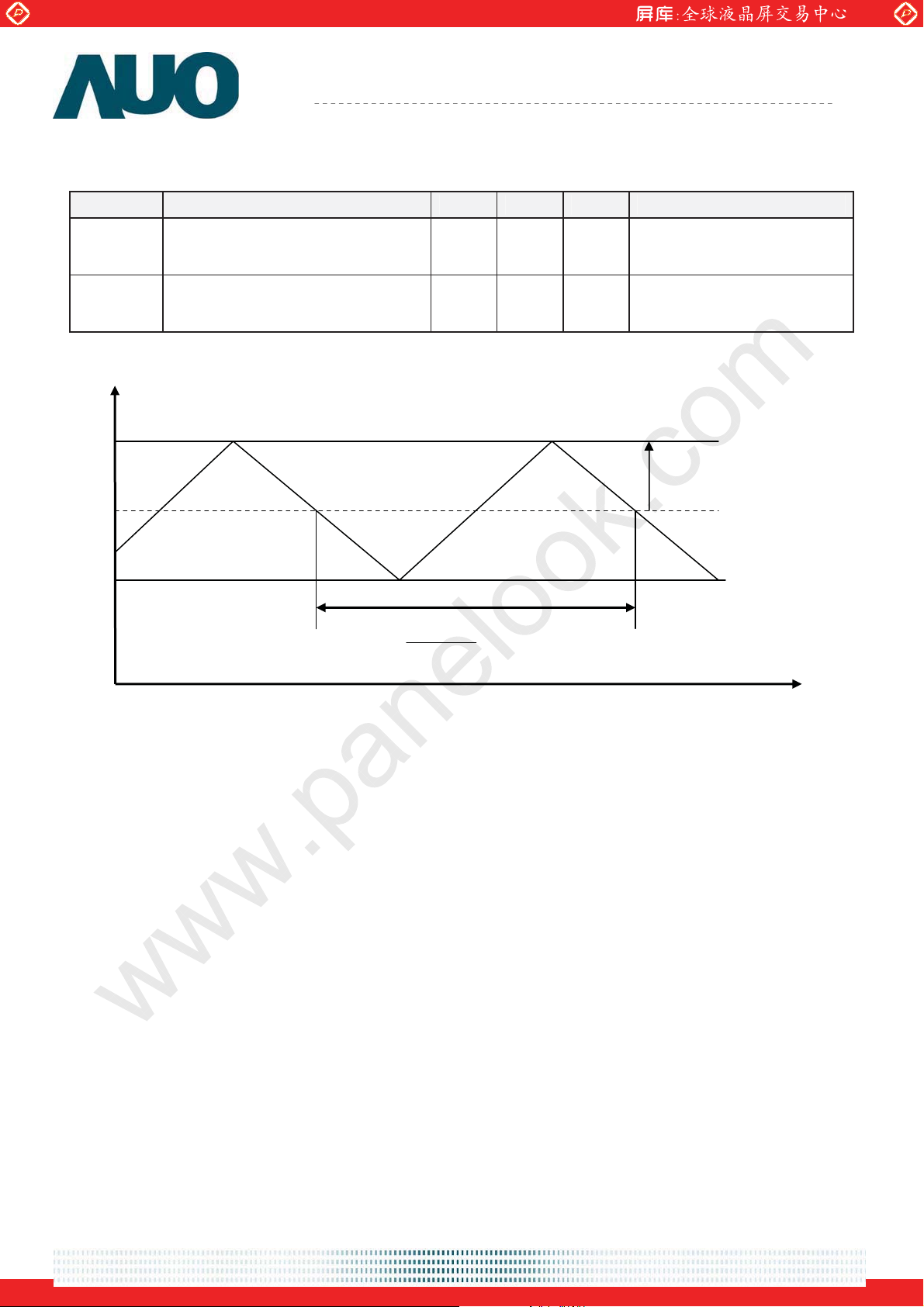

2) AC Characteristics
Symbol Description Min Max Units Conditions
F
F
DEV
MOD
Maximum deviation of input clock frequency during SSC Maximum modulation frequency of input clock during SSC
- ± 3 %
- 200 KHz
Freq
F
max
F
center
* F
DEV
F
min
1
F
MOD
Time
< Spread Spectrum>
document version 1.0 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25
Symbol Description Min.
IRLED1
IRLED2
LED Operation Current - 120 126
IRLED3
IRLED4
Light Bar Operation Voltage
VLED
(for reference)
PBLU BLU Power Consumption (for reference) - 12.3 13.7 [Watt]
AU OPTRONICS CORPORATION
Typ. Max. Unit Note
- 25.6 27.2
°C (Room Temperature):
[mA]
Note 1
[Volt]
Note 2
M240HTN01.1
Operating in fixed
driving current
LTLED LED Life Time (Typical) 30,000 - -
[Hour]
Note 3
Note 1: The specified current is 100% duty of LED chip input current.
Note 2: The value showed is one light bar’s operation voltage.
Note 3: Definition of life time: Brightness becomes to 50% of its original value. The minimum life
time of LED unit is on the condition of IR
= 120mA and 25±2°C (Room Temperature).
LED
Note 4: Each module consists of 32 pcs LED ( 4 strings x 8 pcs / string )
document version 1.0 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
6 Signal Characteristics
6.1 Pixel Format Definition
Following figure shows the relationship between the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
1080 Line
R G B R G B
6.2 Input Data Format Definition
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
document version 1.0 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.3 Signal Description
PIN # Signal Name Description
1 RxOIN0- Negative LVDS differential data input (Odd data) 2 RxOIN0+ Positive LVDS differential data input (Odd data) 3 RxOIN1- Negative LVDS differential data input (Odd data) 4 RxOIN1+ Positive LVDS differential data input (Odd data) 5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG) 6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG) 7 GND Power Ground 8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock) 10 RxOIN3- Negative LVDS differential data input (Odd data) 11 RxOIN3+ Positive LVDS differential data input (Odd data) 12 RxEIN0- Negative LVDS differential data input (Even data) 13 RxEIN0+ Positive LVDS differential data input (Even data) 14 GND Power Ground 15 RxEIN1- Negative LVDS differential data input (Even data) 16 RxEIN1+ Positive LVDS differential data input (Even data) 17 GND Power Ground 18 RxEIN2- Negative LVDS differential data input (Even data) 19 RxEIN2+ Positive LVDS differential data input (Even data) 20 RxECLK- Negative LVDS differential clock input (Even clock) 21 RxECLK+ Positive LVDS differential clock input (Even clock) 22 RxEIN3- Negative LVDS differential data input (Even data) 23 RxEIN3+ Positive LVDS differential data input (Even data) 24 GND Power Ground 25 NC No connection (for AUO test only. Do not connect) 26 NC No connection (for AUO test only. Do not connect) 27 NC No connection (for AUO test only. Do not connect) 28 VDD Power +5V 29 VDD Power +5V 30 VDD Power +5V
AU OPTRONICS CORPORATION
M240HTN01.1
Note 1: LVDS connector Pin 1 starts from left side
document version 1.0 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

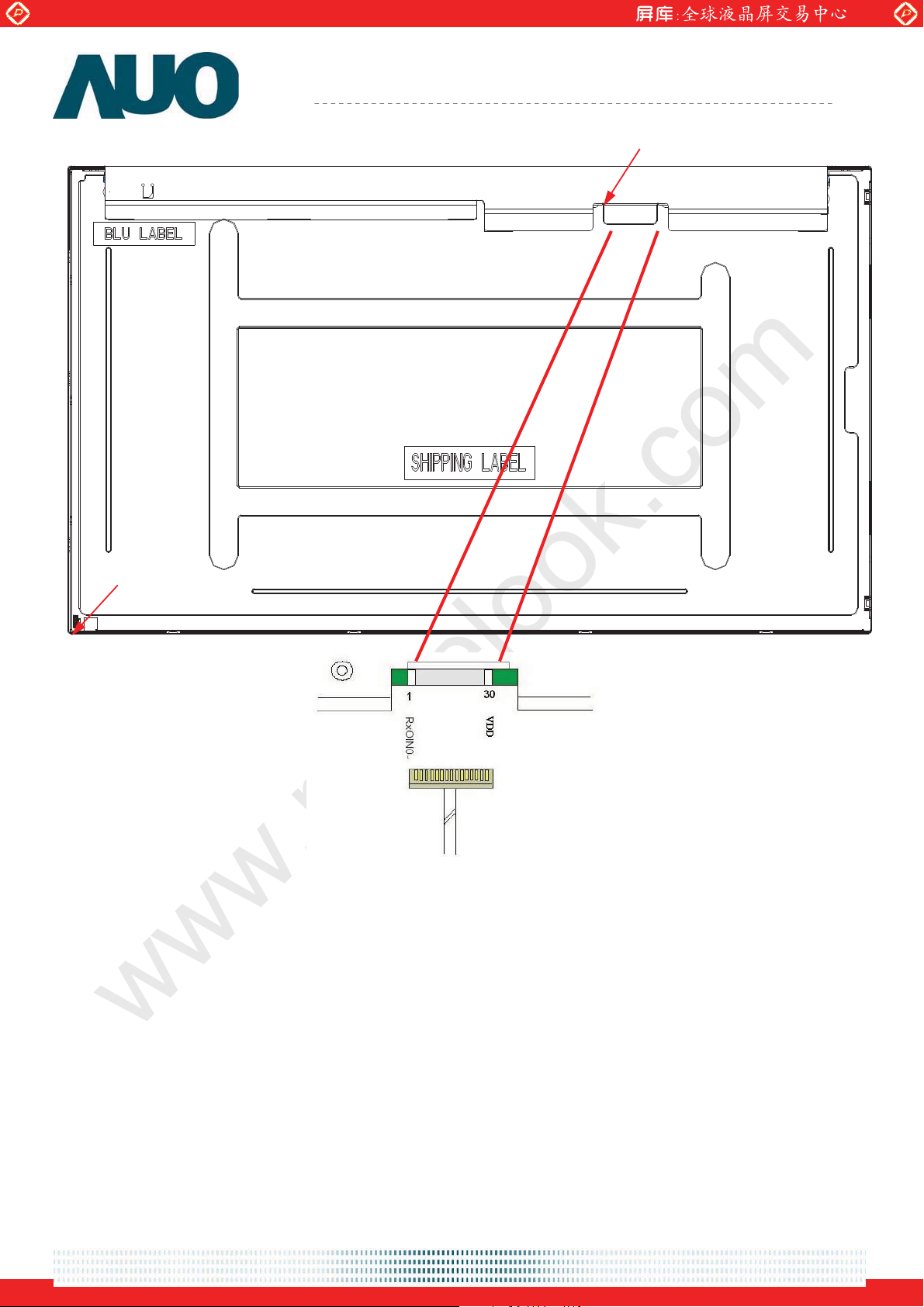

LVDS C/N PIN 1
M240HTN01.1
L/B C/N PIN 1
Note 2: Input signals of odd and even clock shall be the same timing.
document version 1.0 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Period Tv 1088 1120 2047 [Th]
V-section
H-section
Data CLK
Frame Rate F 50 60 75 [Hz]
Display Area Tdisp(v) 1080 1080 1080 [Th]
Blanking
Period Th 1034 1060 2047 [Tclk]
Display Area Tdisp(h) 960 960 960 [Tclk]
Blanking
Period Tclk 25 13.3 11.1 ns
Frequency Freq 40 75 94 [MHz]
Tbp(v)+Tfp(v)+PWvs
Tbp(h)+Tfp(h)+PWhs
8 40 967 [Th]
74 100 1087 [Tclk]
Note 1: DE mode only
document version 1.0 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
6.5 Timing Diagram
DE
RGB Data
N
Line
Invalid Data
Tblk(v)
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
4
1
32
LineLine
LineLine
N
Line
M240HTN01.1
M pixel
Y
N Line
Invalid Data
X
CLK
RGB Data (Odd)
RGB Data (Even)
Tclk
DE
Pixel
Pixel
M-7
Pixel
M-6
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
1
Pixel Pixel
2
Pixel
5
3
Pixel
4
6M-2
Th
Tdisp(h)
Pixel
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
7
Pixel
8M
Pixel
Pixel
M-3
Pixel
M-1
PixelPixel
Tblk(h)
Invalid Data
Invalid Data
Pixel
Pixel
Pixel
3
1
Pixel
2M-4
4
document version 1.0 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1

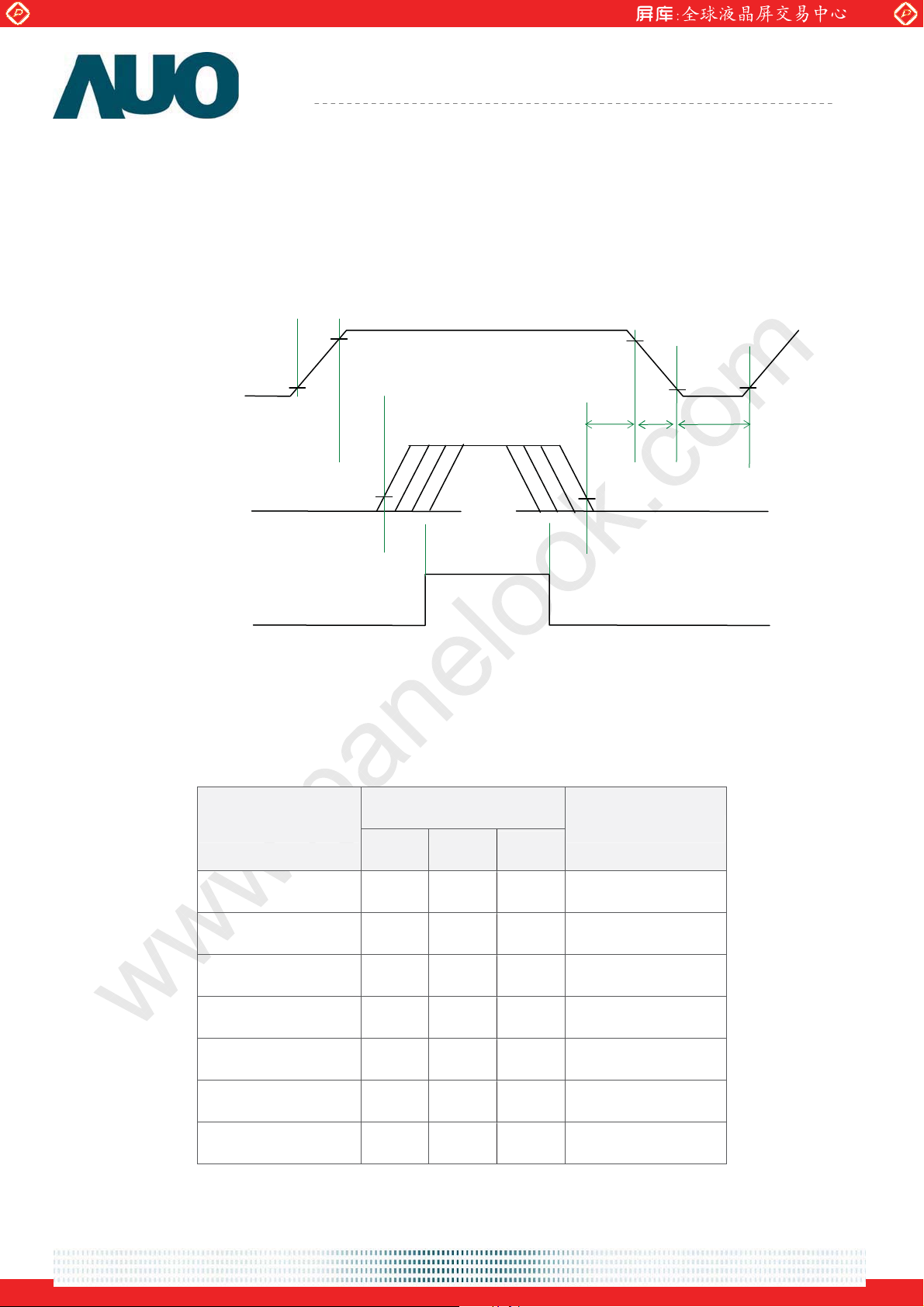

6.6 Power ON/OFF Sequence
VDD power and backlight power on/off sequence are specified as follows. Interface signals are also
shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
T1
90%
90%
Power Supply VDD
10%
T2
T5
T6
10%
T7
LVDS Signal
VALID DATA
T3
T4
Backlight On
Note : Insert a white pattern after valid data and last until VDD falls to 10%
Value
Parameter
Min. Typ. Max.
T1 0.5 - 10 [msec]
T2 0 - 50 [msec]
T3 500 - - [msec]
T4 100 - - [msec]
T5 0 - 50
T6 5 - 100
Unit
[ms]
Note1,2
[ms]
Note1,2
T7 1000 - -
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off. Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
[ms]
document version 1.0 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
7 Connector and Pin Assignment
Physical interface is described as follows for the connector on module. These connectors are
capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
JAE
Manufacturer
Type Part Number
P-TWO STM
FI-XPB30SRLA-HF11 187145-30091-3 MSCK2407P30
Mating Housing Part Number FI-X30HL (Locked Type)
7.1.1 LVDS Connector Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+ 3 RxOIN1- 4 RxOIN1+ 5 RxOIN2- 6 RxOIN2+ 7 GND 8 RxOCLKIN­9 RxOCLKIN+ 10 RxOIN3­11 RxOIN3+ 12 RxEIN0­13 RxEIN0+ 14 GND 15 RxEIN1- 16 RxEIN1+ 17 GND 18 RxEIN2­19 RxEIN2+ 20 RxECLKIN­21 RxECLKIN+ 22 RxEIN3­23 RxEIN3+ 24 GND
25
27
29 VDD 30 VDD
document version 1.0 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
NC (for AUO test only. Do not
26
connect) NC (for AUO test only. Do not
28 VDD
connect)
NC (for AUO test only. Do not connect)
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

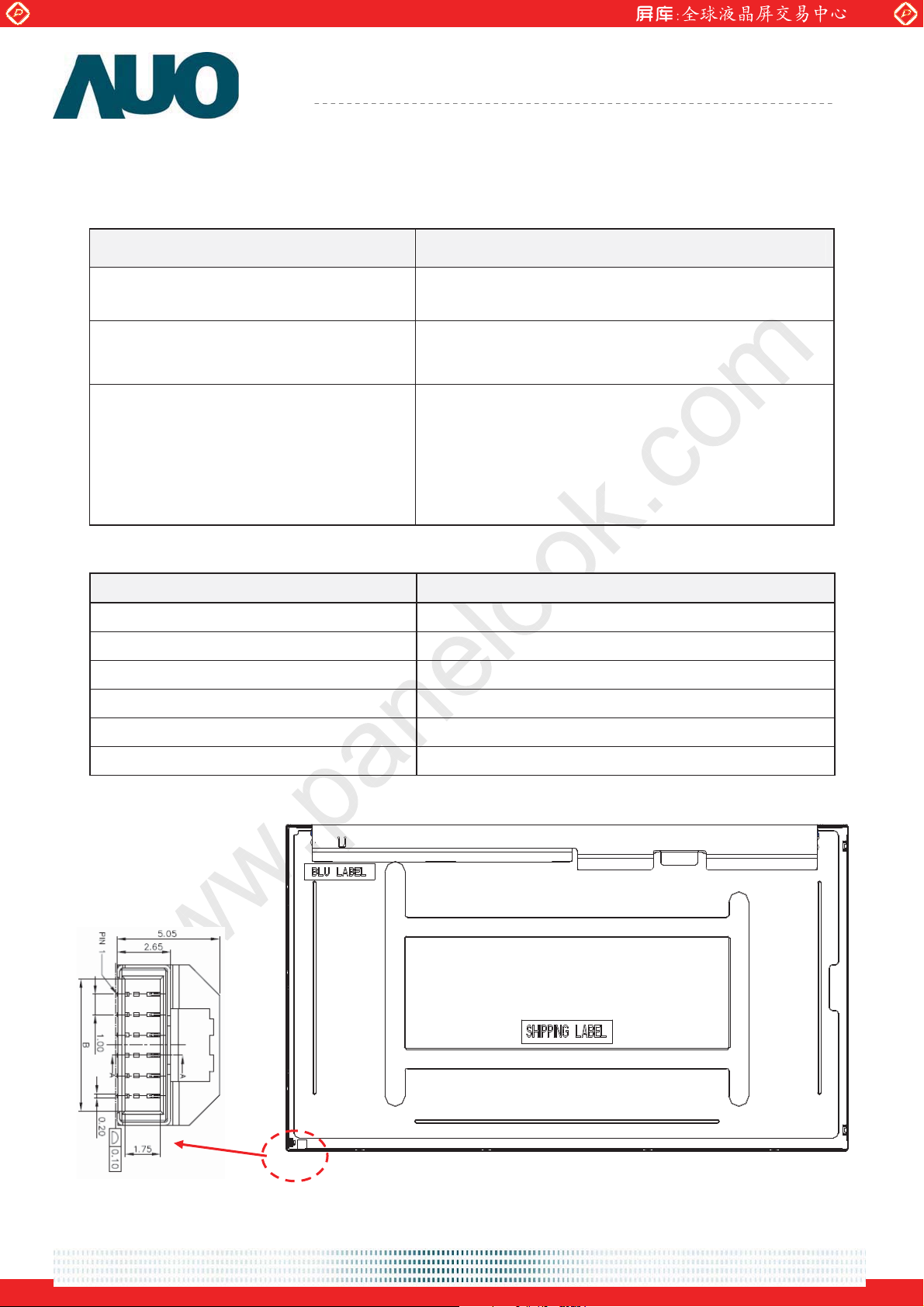

7.2 Backlight Unit
This connector is mounted on LED light bar.
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY INDUSTRIAL CO., LTD.
Type Part Number
Mating Type Part Number (Housing)
AU OPTRONICS CORPORATION
3707K-S06N-07L (Locking Type, Wire Harness)
(1)H112K-P06N-03B(Black, Length: 7.3mm ) (2)H112K-P06N-01B(White Length: 7.3mm) (3)H112K-D06N-04B(White; Length: 6.8mm) (4)H112K-D06N-05B (Black; Length: 6.8mm) or equivalent
M240HTN01.1
7.2.1 LED Pin Assignment
Pin# Signal Name
1 IRLED (current out) 2 IRLED (current out) 3 VLED (voltage in) 4 VLED (voltage in) 5 IRLED (current out) 6 IRLED (current out)
document version 1.0 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7.2.2 LED Connector dimension
AU OPTRONICS CORPORATION
M240HTN01.1
)(0.1,25.405.59.7 mmunitPitchDVH ==××=××
7.2.3 LED Mating housing dimension
document version 1.0 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.1
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
High Temperature Operation (HTO) Ta= 50°C, 50%RH, 300 hours
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Acceleration: 1.5 Grms Vibration Test (Non-operation)
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G Shock Test (Non-operation)
Drop Test Height: 46 cm, package test Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles Note 1 On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Contact Discharge: ± 15KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point
Note 2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point
Operation: 10,000 ft
Non-Operation: 30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20
°C to 60°C, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
No data lost
Self-recoverable
No hardware failures
document version 1.0 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
A
www.panelook.com
Product Specification
9 Shipping Label
The label on the panel is shown as below:
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
AU OPTRONICS CORPORATION
Manufactured XX/XX Model No: M240HTN01.1
for identification.
M240HTN01.1
U Optronics
for identification.
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.0 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
M240HTN01.1
AU OPTRONICS CORPORATION
Product Specification

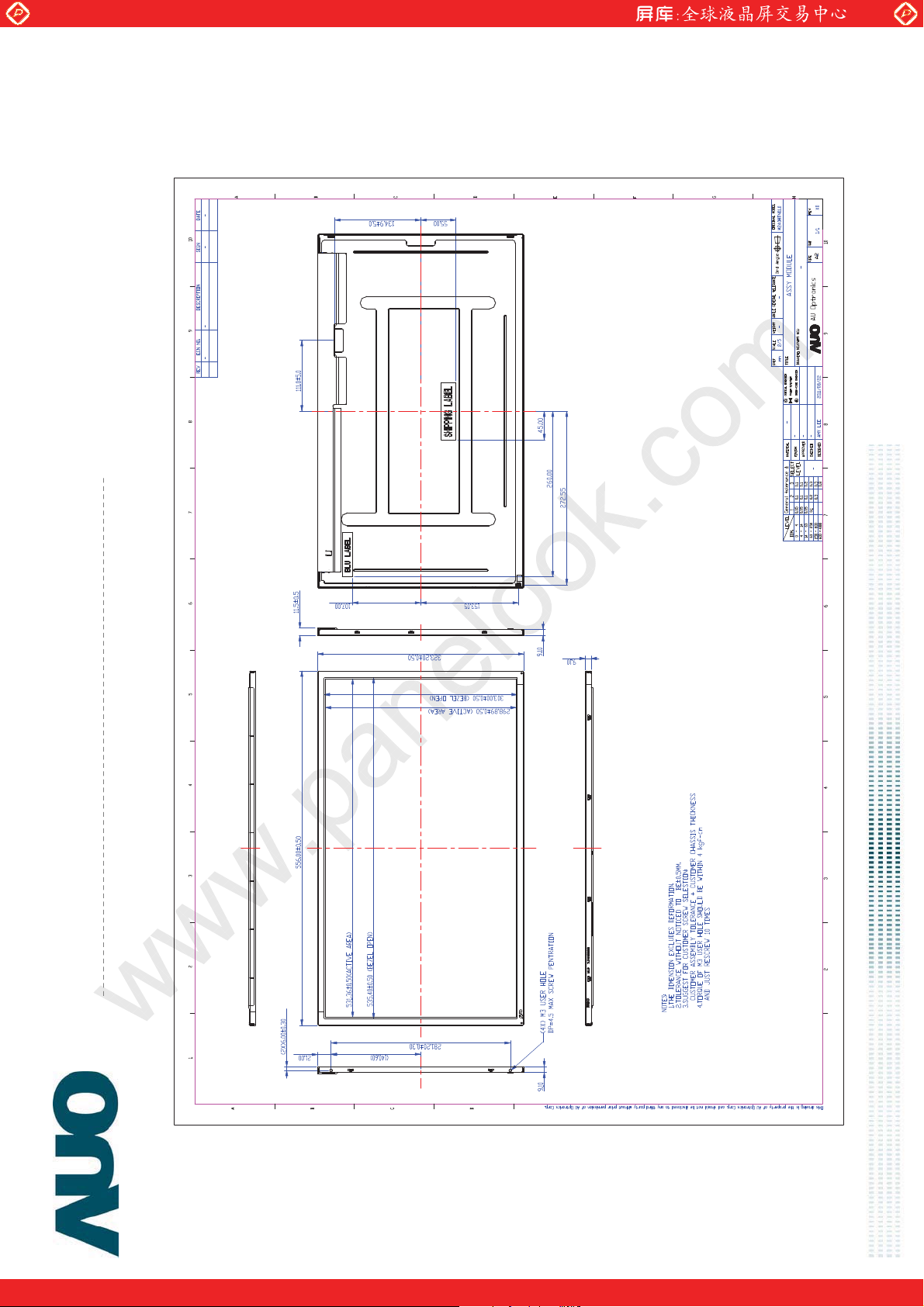

10 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.0 28
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
M240HTN01.1
AU OPTRONICS CORPORATION
Product Specification
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.0 29
www.panelook.com
Page 30
Global LCD Panel Exchange Center
p
p
www.panelook.com
11 Packing Specification
11.1 Packing Flow
Module
Paste protect film
Product Specification
AU OPTRONICS CORPORATION
To
cover
10 pcs/carton
M240HTN01.1
Put top cover
Paste lamp wire
1pcs Module/ESD
Stretch film
Label
Corner angle
Cushion
Carton
Moi sture-proof fi lm
PET band
Corner angle
”H ”Ta
e
Pall et
document version 1.0 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
w
w
www.panelook.com
Product Specification
11.2 Pallet and Shipment Information
1 Panel
2 Cushion
3 Box
4 Packing Box
5 Pallet
6 Pallet after Packing
Item
10 pcs/Box 406(L)mm x 281(W)mm x 651(H)mm 23.55
boxes/pallet
AU OPTRONICS CORPORATION
Q'ty Dimension Weight(kg)
1 556(H)mm x 323.2(V)mm x 9.08(D)mm 2.065
1 -- 1.7
1 406(L)mm x 281(W)mm x 651(H)mm 1.2
1 1150(L)mm x 840(W)mm x 138(H)mm 12
16
1140(L)mm x 830(W)mm x 1440(H)mm 388.8
M240HTN01.1
Specification
Remark
Note 1
ithout Panel & cushion
Note 1
ith panel & cushion
Note 1
Note 1
Note 1
Note 1: Estimated value which is subject to change based on real measured data.
document version 1.0 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
