AU OPTRONICS CORPORATION
( v ) Preliminary Specification
( ) Final Specification
Module 24.0” Color TFT-LCD
Model Name M240HTN01.0
M240HTN01.0
Customer Date
Approved by
Note: This Specification is subject to change
without notice.
Approved by Date
Howard Lee
Prepared by
Phoebe chen 2012/11/07
Desktop Display Business Group /
AU Optronics Corporation
Document version 0.0 1
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
Content
1 HANDLING PRECAUTIONS...................................................................................................... 4
2 GENERAL DESCRIPTION......................................................................................................... 5
2.1 Display Characteristics.........................................................................................................................5
2.2 Optical Characteristics..........................................................................................................................6
3 FUNCTIONAL BLOCK DIAGRAM........................................................................................... 10
4 ABSOLUTE MAXIMUM RATINGS........................................................................................... 11
4.1 TFT LCD Module................................................................................................................................11
4.2 Absolute Ratings of Environment .......................................................................................................11
5 ELECTRICAL CHARACTERISTICS ........................................................................................ 12
5.1 TFT LCD Module................................................................................................................................12
5.1.1 Power Specification ........................................................................................................................................ 12
5.1.2 Signal Electrical Characteristics..................................................................................................................... 13
6 SIGNAL CHARACTERISTICS ................................................................................................. 15
6.1 Pixel Format Definition .......................................................................................................................15
6.2 Input Data Format Definition...............................................................................................................15
6.3 Signal Description ..............................................................................................................................16
6.4 Timing Characteristics........................................................................................................................17
6.5 Timing Diagram..................................................................................................................................18
6.6 Power ON/OFF Sequence..................................................................................................................19
7 CONNECTOR AND PIN ASSIGNMENT .................................................................................. 20
7.1 TFT LCD Module................................................................................................................................20
7.1.1 Pin Assignment .............................................................................................................................................. 20
8 RELIABILITY TEST.................................................................................................................. 21
9 MECHANICAL CHARACTERISTICS....................................................................................... 22
10 PACKING SPECIFICATION..................................................................................................... 23
10.1 Packing Flow......................................................................................................................................23
10.2 Pallet and Shipment Information.........................................................................................................24
Document version 0.0 2
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
Records of Revision
Version and Date Page Old description New Description Remark
Document version 0.0 3
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
3) When the cell surface is soiled, wipe it with absorbent cotton or other soft cloth.
4) Since the cell is made of glass, it may break or crack if dropped or bumped on hard surface.
5) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
6) Do not press or pat the panel surface by fingers, hand or tooling.
7) Please handle TFT cell with care. The FPCs can only sustain for quite limited stress.
8) The cell package tray is packed in clean room. Please do pack & unpack it in clean room.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT cell.
10) Pls avoid touching COF position while you are doing mechanical design.
11) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5 and 35 at normal humidity.
Document version 0.0 4
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
2 General Description
This specification applies to the 24 inch-FHD color a-Si TFT-LCD Module M240HTN01.2. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bit + Hi-FRC
data).All input signals are 2-channel LVDS interface and this module doesn’t contain a driver for
backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm] 609.7 (24.0”)
Active Area [mm] 531.36 (H) x 298.89 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 276.75 (per one triad) ×276.75
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
Optical Response Time [msec] 5ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] + 5.0 V
Power Consumption
[Watt]
(VDD line+LED line)
Weight [g] TBD
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC)
Surface Treatment Anti-Glare, 3H
Cell thickness [mm] 1.5 (the thickness of polarizer film is 0.25 mm each
TBD
Without LED BL, All black pattern at 60Hz
5.4% (Typ.)Cell transmittance
4.59%(min)
side)
(base on AUO LED Backlight)
Document version 0.0 5
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max. Note
Rising Time (TrR) - 3.5 7.4
Response Time [msec]
Crosstalk (in 60Hz) [%] 1.5 8
Flicker dB -20 9
Falling Time (TrF) - 1.5 2.6
Rising + Falling - 5 10
4

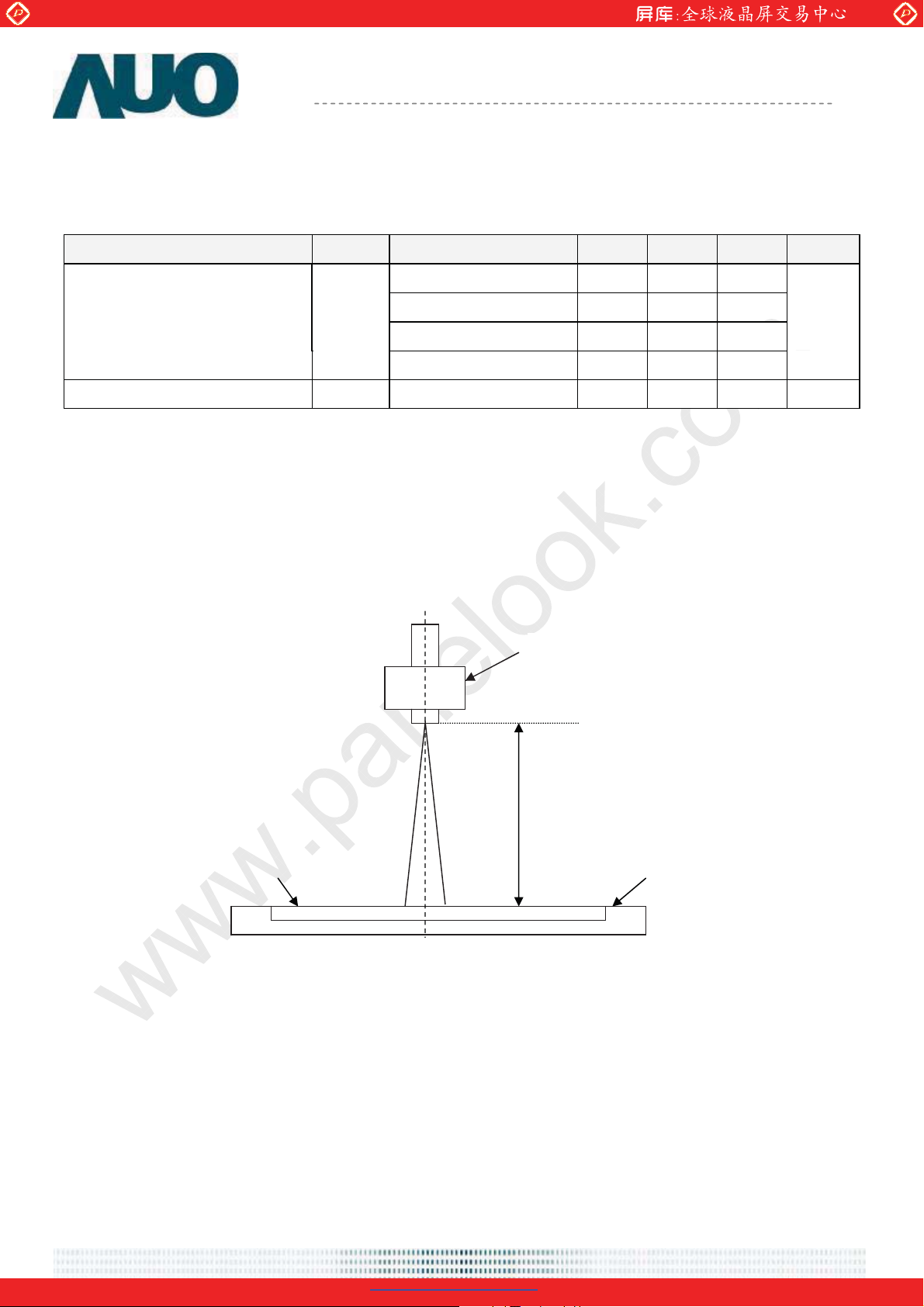

Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
Photo Detector
Measured Distance
LCD Panel
Center of the screen
TFT-LCD Module
Document version 0.0 6
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0

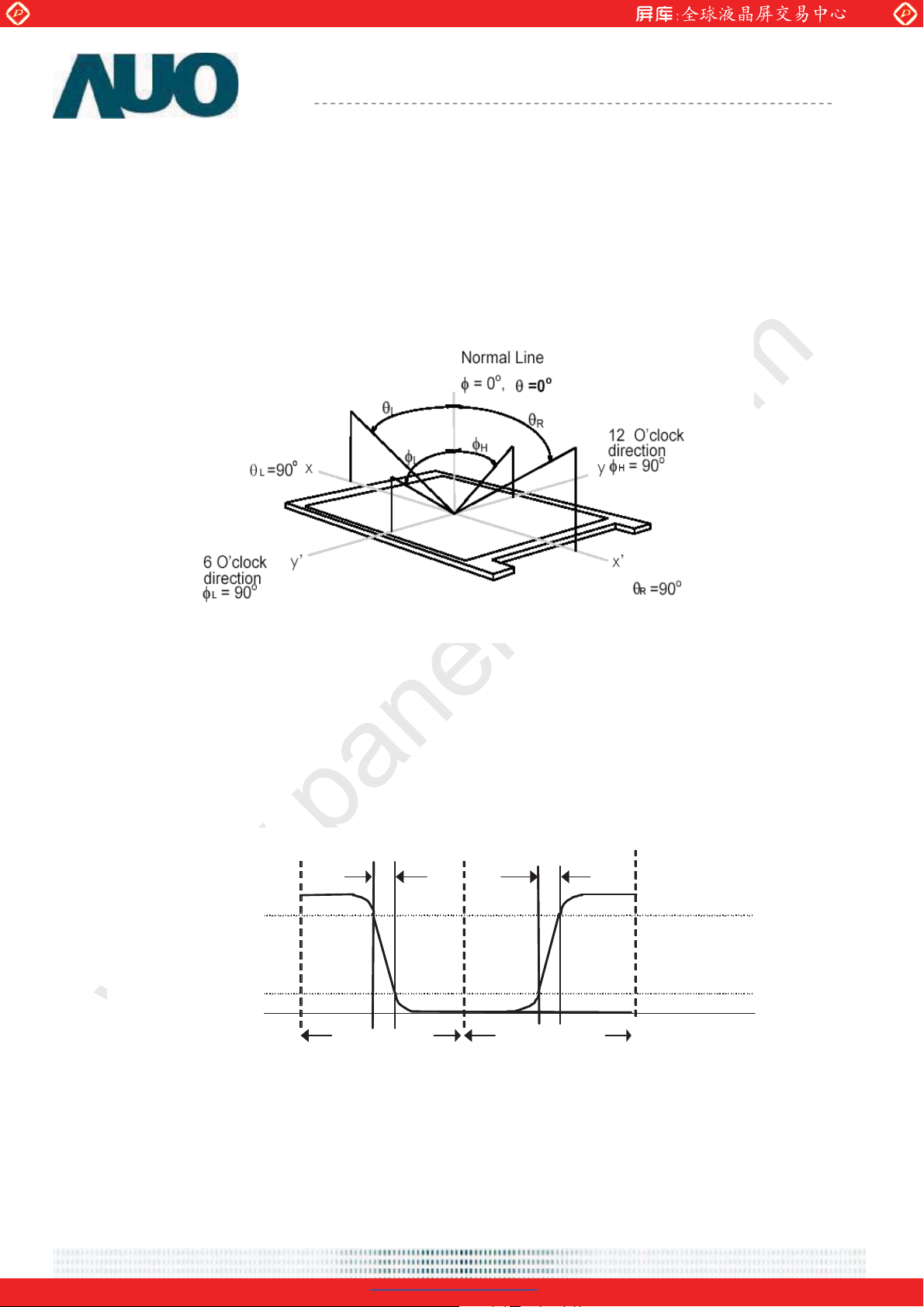

Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
Note 3: Contrast Ratio measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, T
), and from “Full White” to “Full Black” (falling time, TrF),
rR
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
%
Optical
Optical
response
response
+ TrF = 5msec(typ.).
T
rR
100
100
90
10
10
%
White Black
0
0
T
rF
Black
1Frame 1Frame
T
rR
White
Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3
Note 6: Central Luminance measured by TOPCON SR-3
Document version 0.0 7
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0

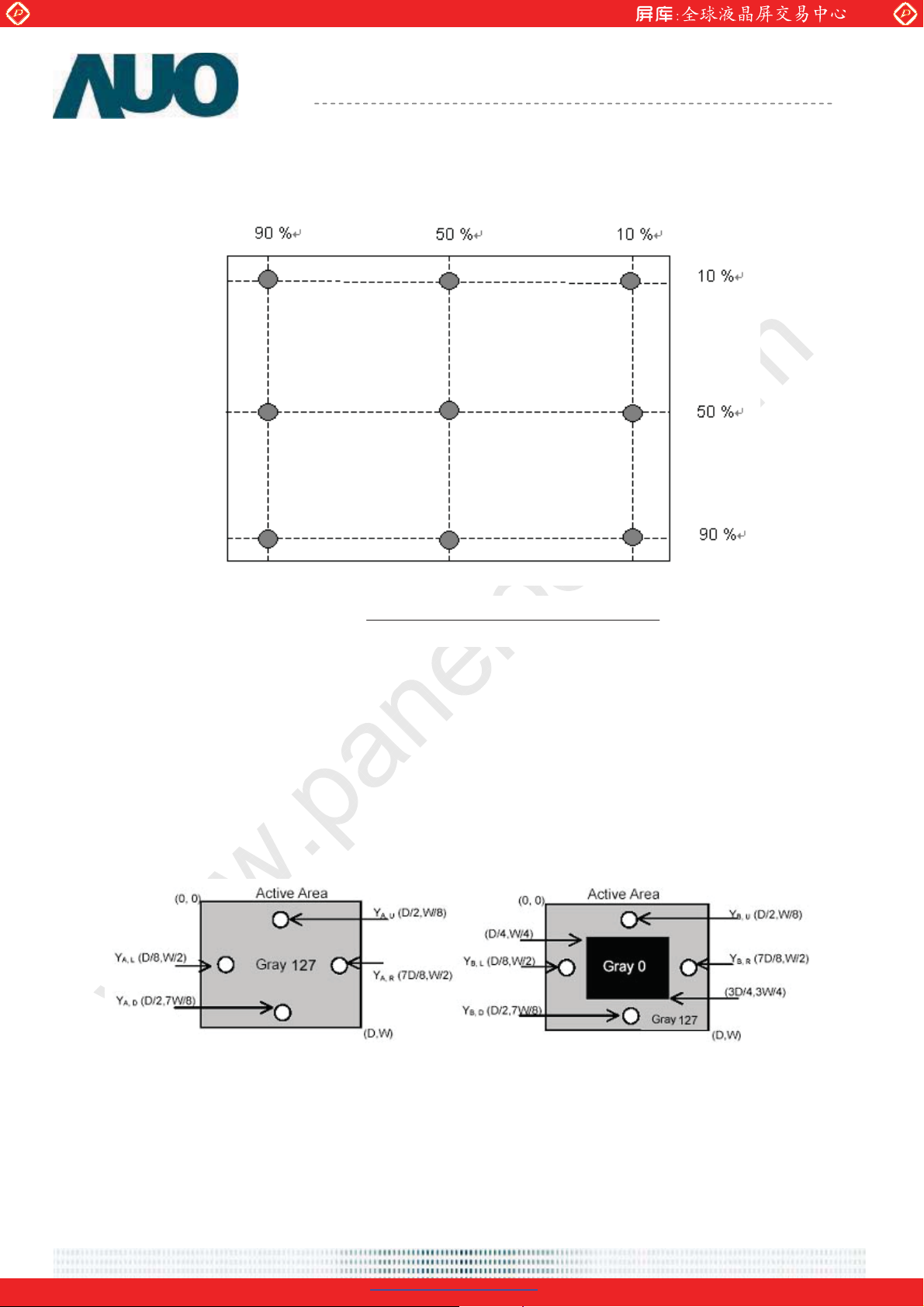

Note 7: Luminance Uniformity of these 9 points defined as below and measured by TOPCON
SR-3
Uniformity =
Note 8: Crosstalk defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
9)-(1points9inLuminanceMinimum
9)-(1Points9inLuminanceMaximum
Document version 0.0 8
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

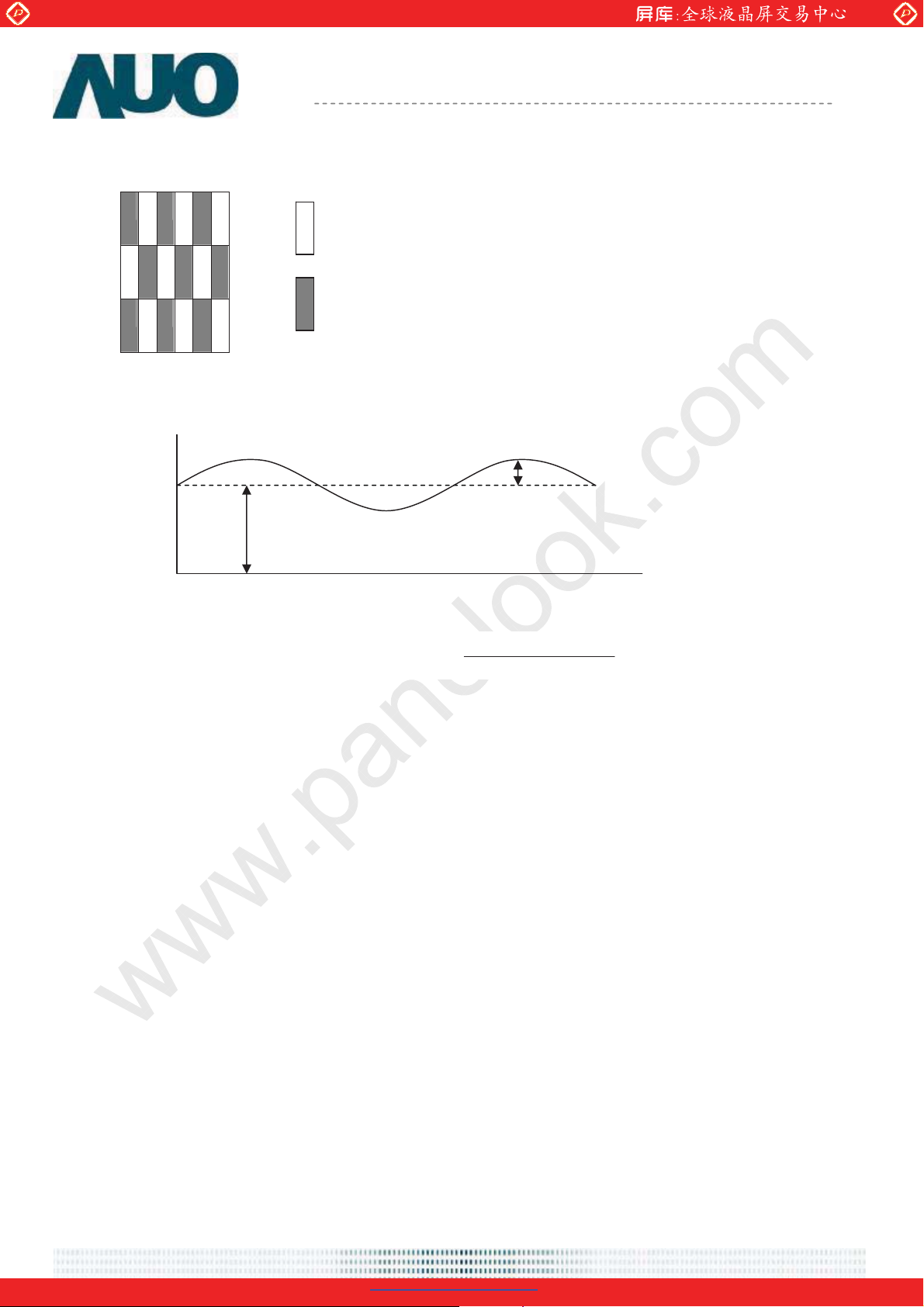

Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
Gray Level = L0
R G B R G B
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
M240HTN01.0
Time
log20(dB)Flicker =
Hz)30Level(atAC
LevelDC
Document version 0.0 9
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0

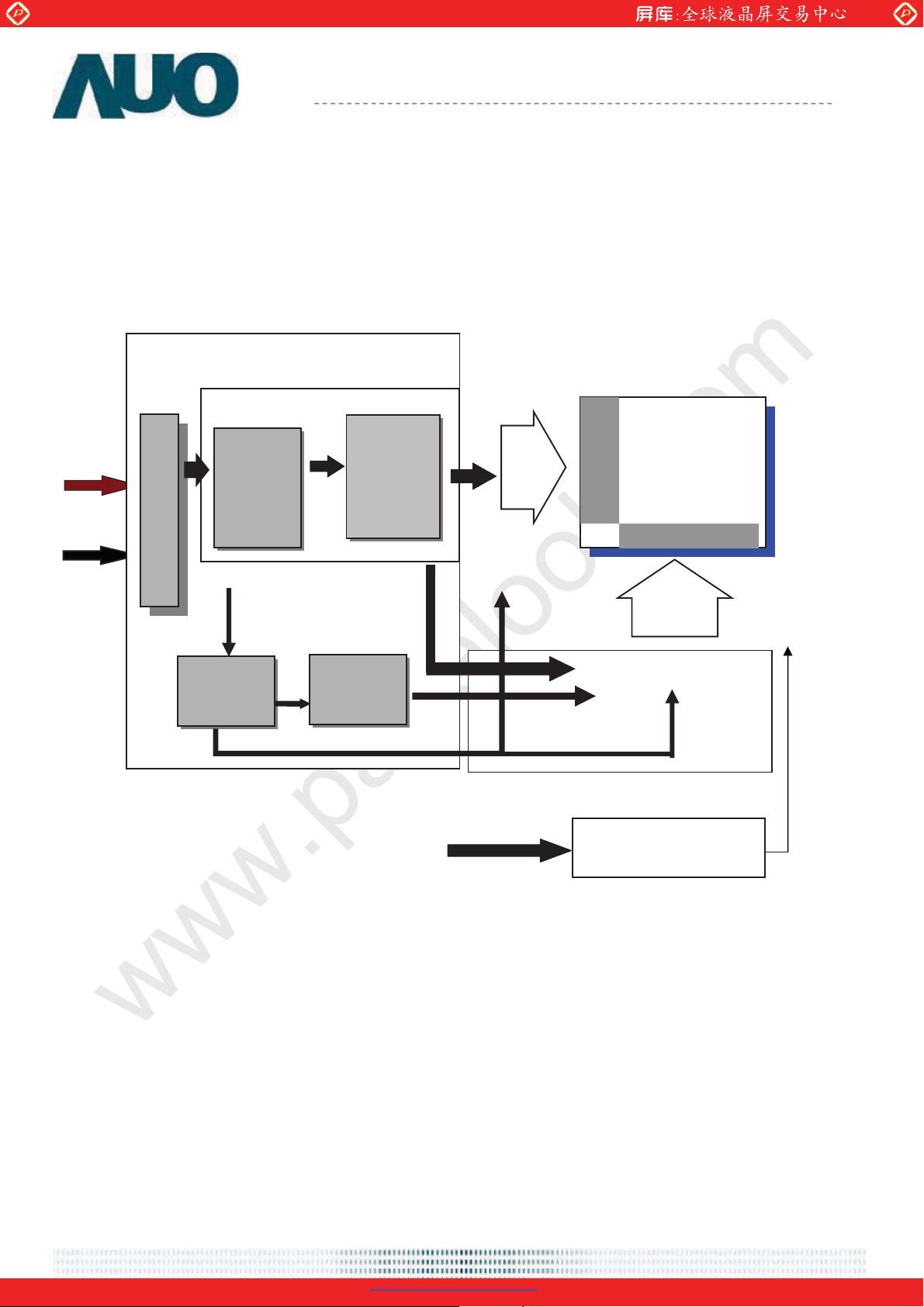

3 Functional Block Diagram
The following diagram shows the functional block of the 24.0 inch Color TFT-LCD Module:
AUO
LVDS
+5V
Connector
Receiver
LVDS
ASIC
Timing
Controller
miniLVDS
Transmitter
G1
G1080
Y-Driver IC
TFT-LCD
1920(x3) x 1080
Pixels
D1
-
D5760
DC/DC
Converter
I/F PCB Interface:
FI-XPB30SRLA-HF11
01-187121-30091-3(A)
MSCK2407P30
LED
Backlight
Gamma
Correction
I/F + X-PCB
DC
LED Driver on system
Mating Type:
FI-X30HL(Locked Type)
Document version 0.0 10
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0

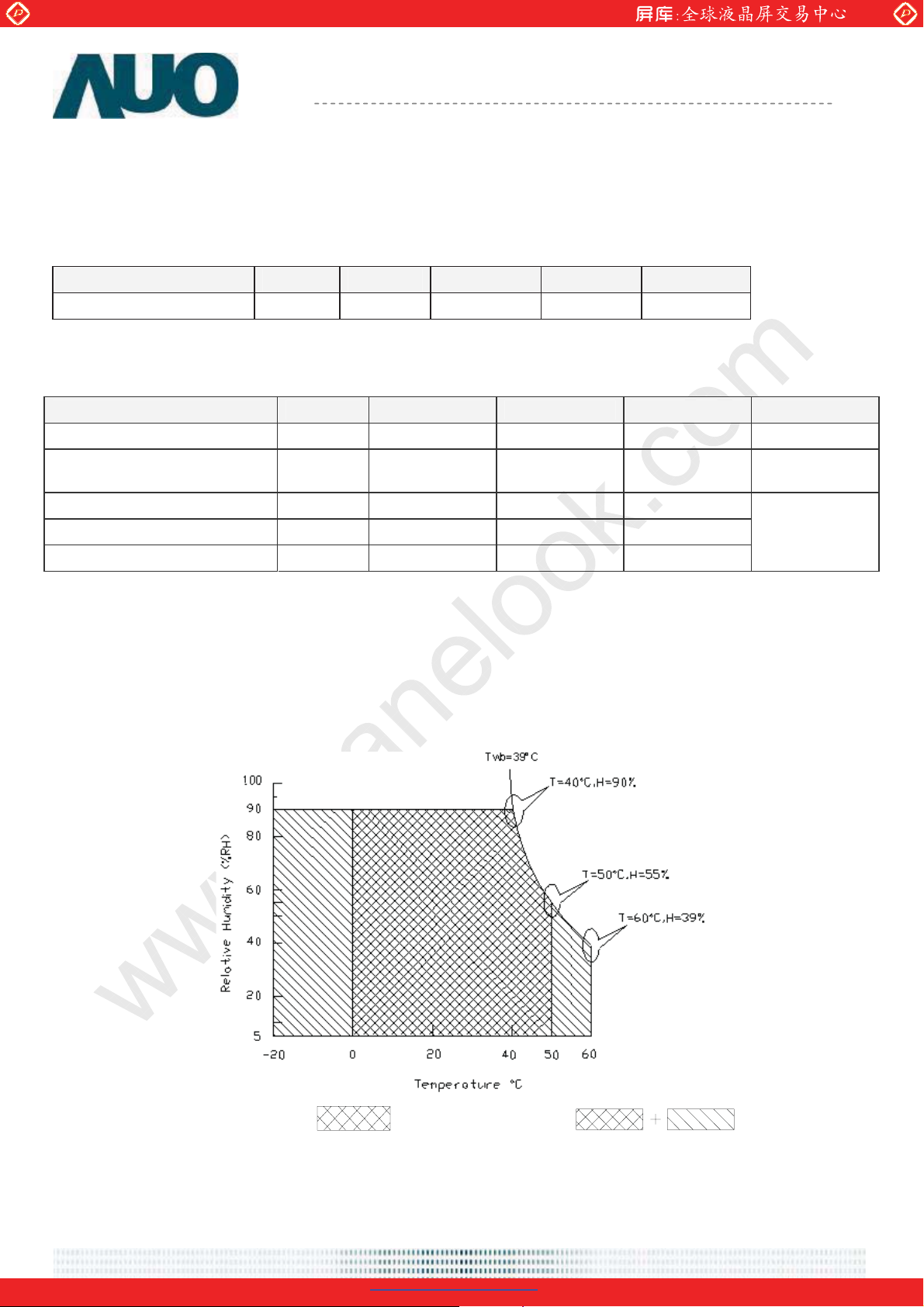

4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [°C] Note 3
Glass Surface Temperature
(Operation)
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [° C]
Storage Humidity HST 5 90 [%RH]
VDD 0 6.0 [Volt] Note 1, 2
TGS 0 +65 [°C]
Note3
Note4
Note 3
Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta 39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta 39°C)
3. No condensation
Note 4: Function Judged only
Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
Operating Range Storage Range
Document version 0.0 11
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
IDD1 Input Current
PDD1 VDD Power
4.5 5.0 5.5 [Volt] +/-10%
- 0.65 0.78 [A] VDD= 5.0V, All Black Pattern at 60 Hz
- 0.8 0.96 [A] VDD= 5.0V, All Black Pattern at 75 Hz
- 3.25 3.9 [Watt] VDD= 5.0V, All Black Pattern at 60 Hz
- 4 4.8 [Watt] VDD= 5.0V, All Black Pattern at 75 Hz

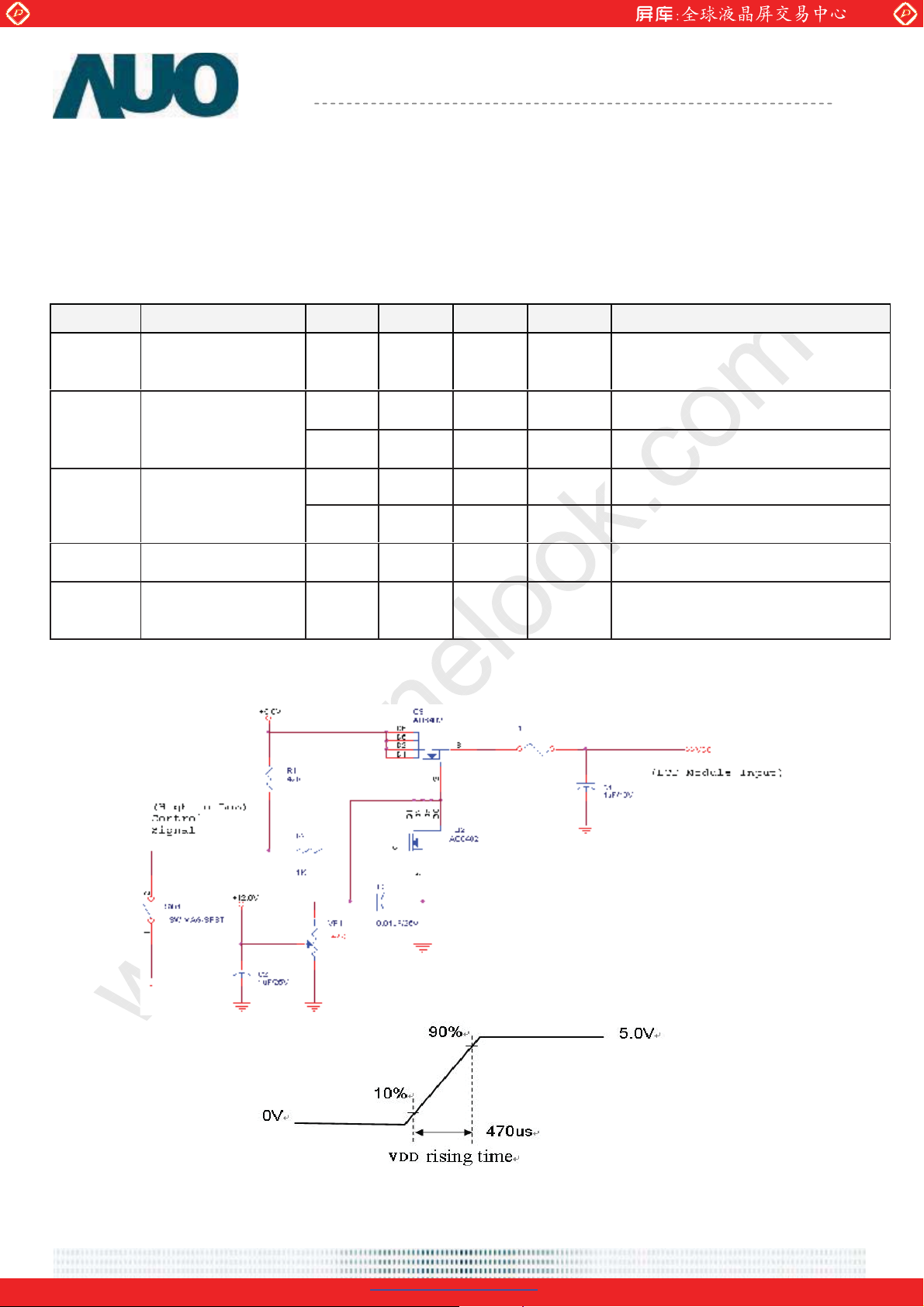

IRush Inrush Current - - 3 [A] Note 1
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
- - 500 [mV] p-p VDD= 5.0V, All Black Pattern at 75 Hz
Document version 0.0 12
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

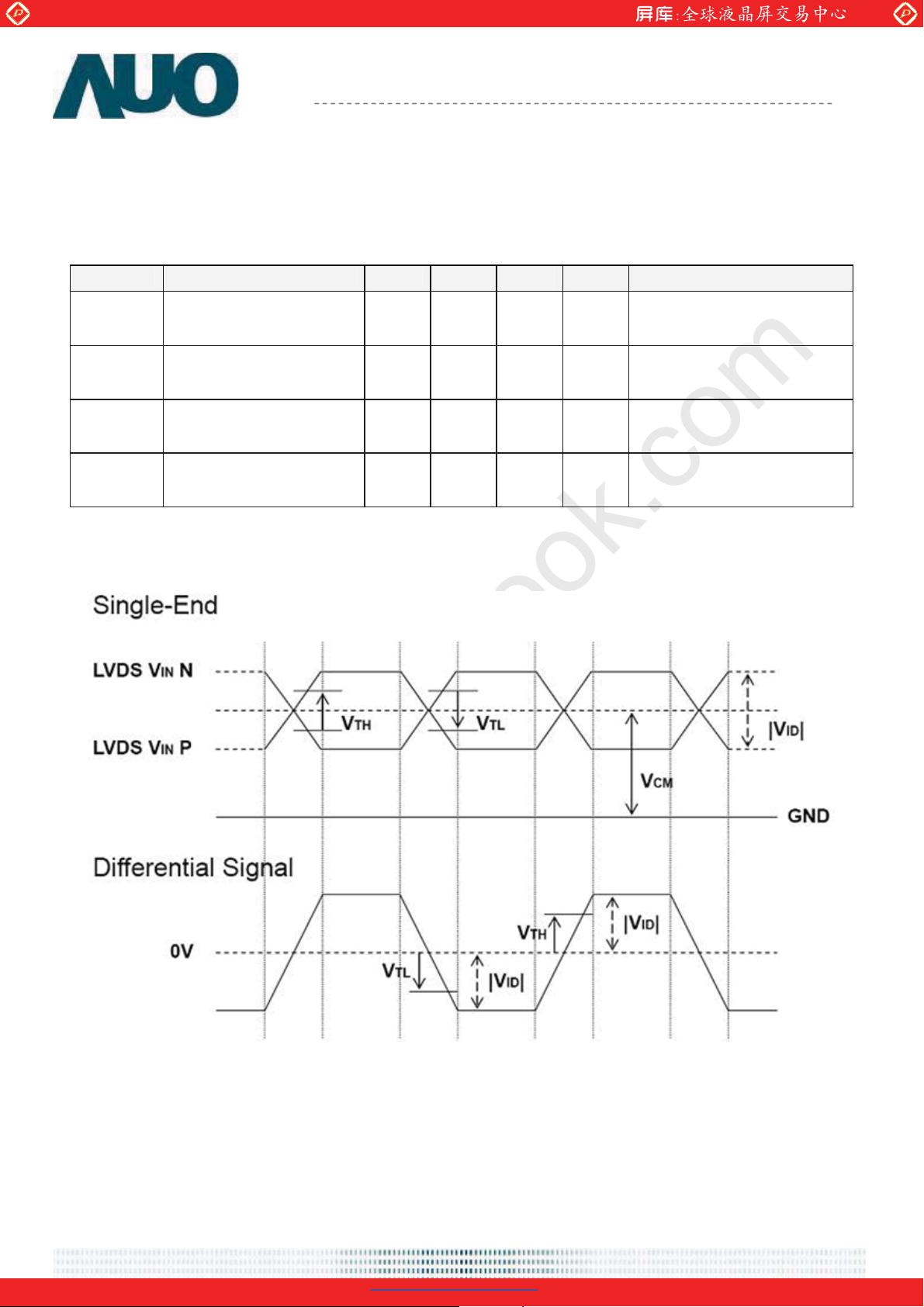

5.1.2 Signal Electrical Characteristics
(1) DC Characteristics of each signal are as following:
M240HTN01.0
Symbol Description Min Typ Max Units Conditions
V
TH
V
TL
│VID│
V
CM
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
Differential Input
Common Mode Voltage
-+50+100
-100 -50 -
100 - 600
+1.0 +1.2 +1.5
[mV]
[mV]
[mV] Note 1
[V]
V
TH-VTL
V
V
= 1.2V
CM
Note 1
= 1.2V
CM
Note 1
= 200MV (max)
Note 1
Note 1: LVDS Signal Waveform
Document version 0.0 13
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

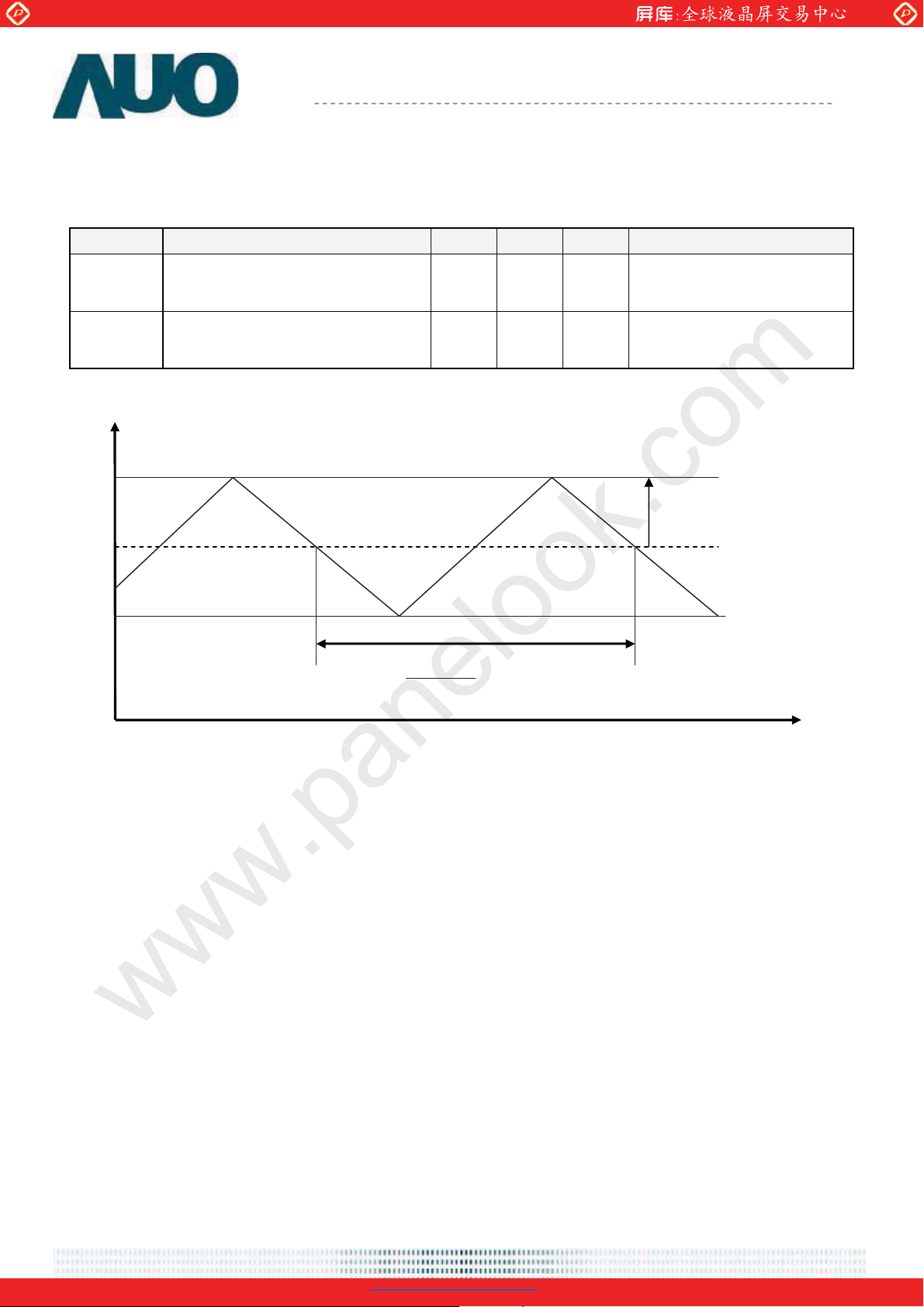

(2) AC Characteristics
M240HTN01.0
Symbol Description Min Max Units Conditions
Maximum deviation of input clock
- ± 3 %
frequency during SSC
Maximum modulation frequency of
- 300 KHz
input clock during SSC
F
F
DEV
MOD
Freq
F
max
F
center
* F
DEV
F
min
1
F
MOD
< Spread Spectrum>
Time
Document version 0.0 14
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6 Signal Characteristics
6.1 Pixel Format Definition

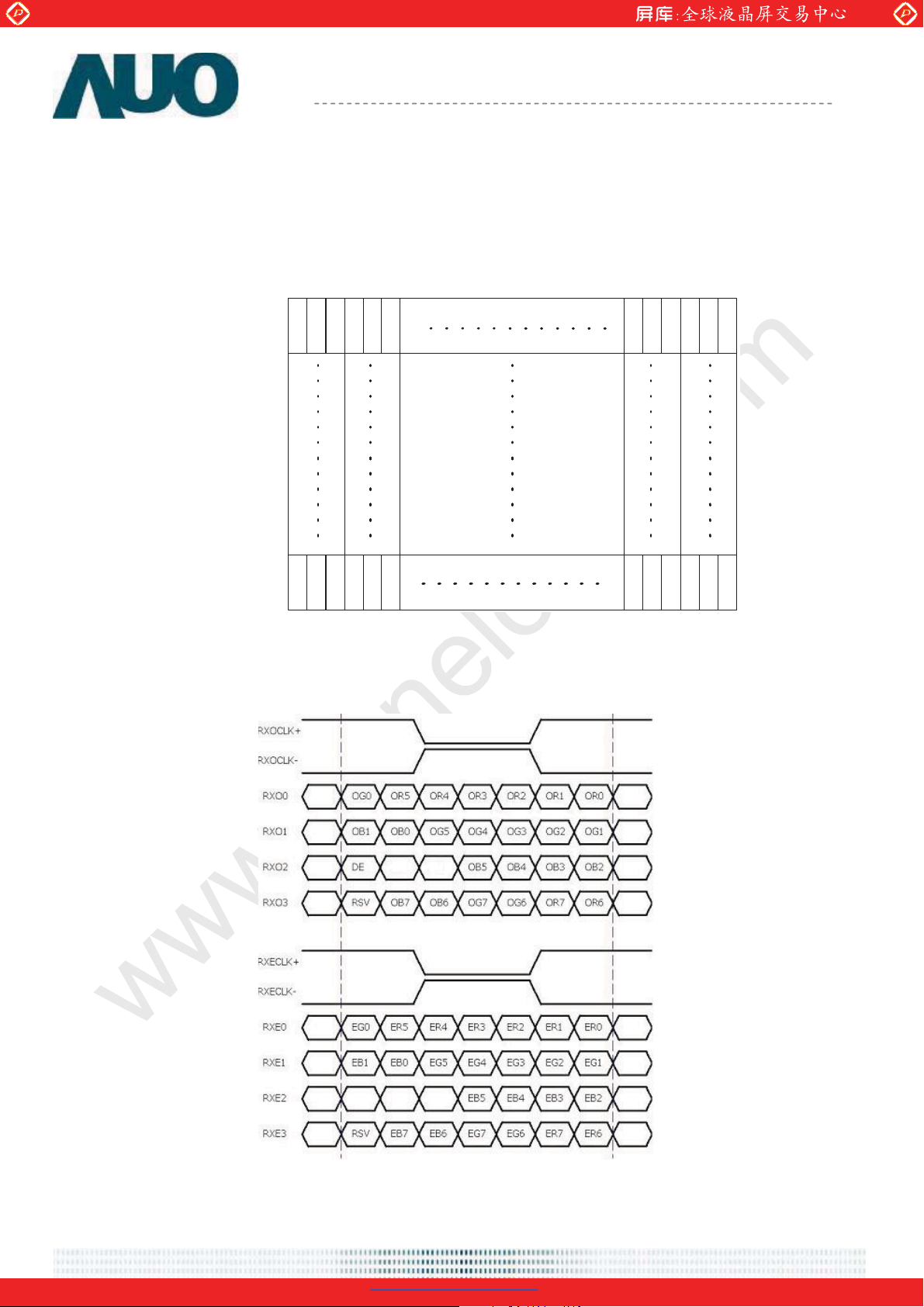

Following figure shows the relationship between the input signals and LCD pixel format.
1 2 1919 1920
1st Line
R G B R G B
R G B R G B
M240HTN01.0
1080 Line
R G B R G B
6.2 Input Data Format Definition
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E=“Even Pixel Data”
Document version 0.0 15
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.3 Signal Description
PIN # SIGNAL NAME DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
RxOIN0- Negative LVDS differential data input (Odd data)
RxOIN0+ Positive LVDS differential data input (Odd data)
RxOIN1- Negative LVDS differential data input (Odd data)
RxOIN1+ Positive LVDS differential data input (Odd data)
RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG)
RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG)
GND Power Ground
RxOCLK- Negative LVDS differential clock input (Odd clock)
RxOCLK+ Positive LVDS differential clock input (Odd clock)
RxOIN3- Negative LVDS differential data input (Odd data)
RxOIN3+ Positive LVDS differential data input (Odd data)
RxEIN0- Negative LVDS differential data input (Even data)
RxEIN0+ Positive LVDS differential data input (Even data)
GND Power Ground
RxEIN1- Negative LVDS differential data input (Even data)
RxEIN1+ Positive LVDS differential data input (Even data)
GND Power Ground
RxEIN2- Negative LVDS differential data input (Even data)
RxEIN2+ Positive LVDS differential data input (Even data)
RxECLK- Negative LVDS differential clock input (Even clock)
RxECLK+ Positive LVDS differential clock input (Even clock)
RxEIN3- Negative LVDS differential data input (Even data)
RxEIN3+ Positive LVDS differential data input (Even data)
GND Power Ground
NC No connection (for AUO test only. Do not connect)
NC No connection (for AUO test only. Do not connect)
NC No connection (for AUO test only. Do not connect)
VDD Power +5V
VDD Power +5V
VDD Power +5V
M240HTN01.0
AU OPTRONICS CORPORATION
Note 1: Input signals of odd and even clock shall be the same timing.
Document version 0.0 16
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
OPEN CELL layout
M240HTN01.0
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v)
Section
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Horizontal
Active Tdisp(h)
Section
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Clock
Frequency Freq
Frame rate Frame rate VFreq 50 60 75 Hz
Hsync
Hsync
HFreq
Frequency
Frequency
1088 1120 2047
1080 1080 1080
8 40 967
1034 1060 1034
960 960 960
74 100 74
25 13.3 11.1
40 75 94
Th
Th
Th
Tclk
Tclk
Tclk
Ns
MHz
55 68 91 KHz
Note 1: DE mode o
Document version 0.0 17
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com

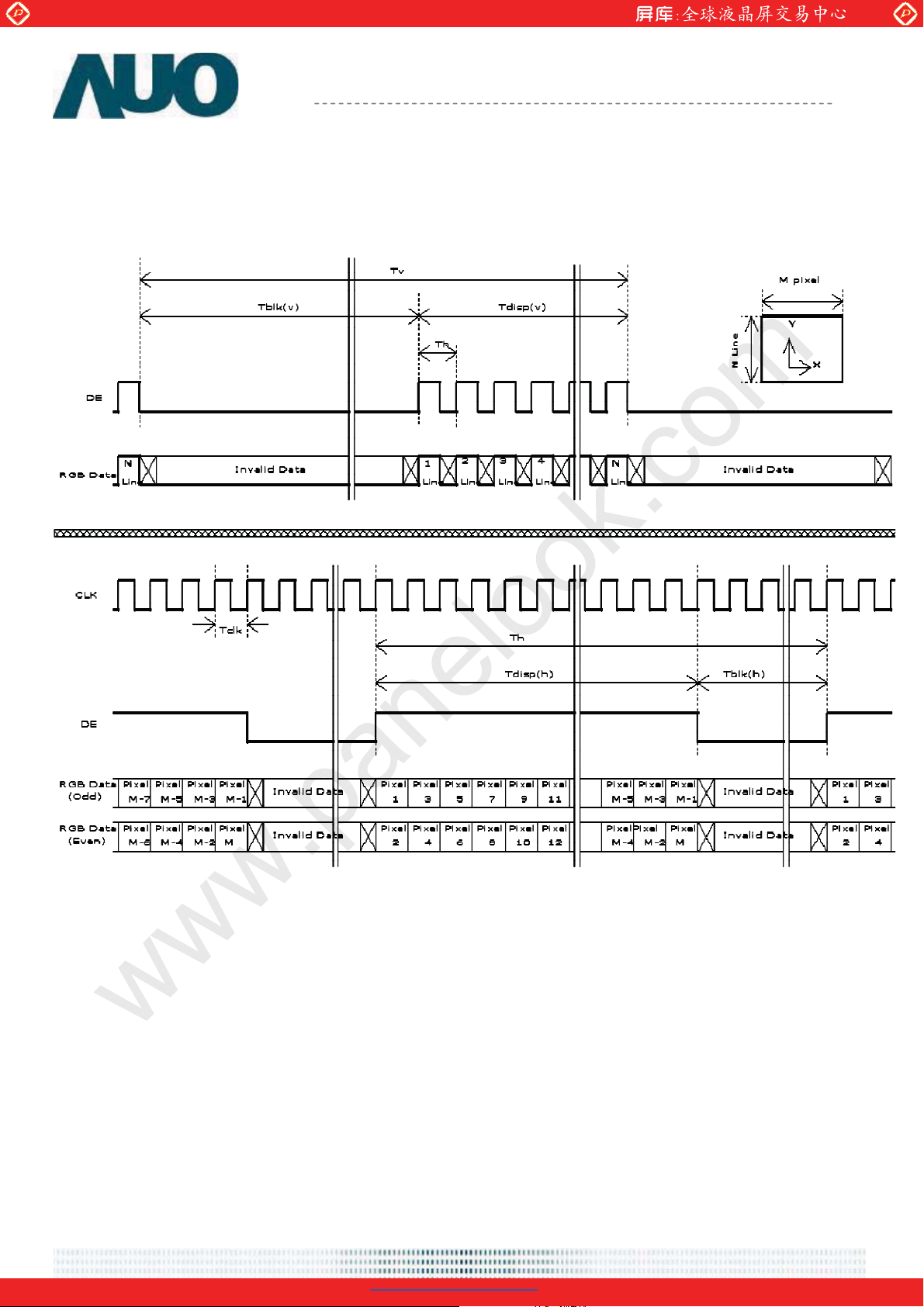

6.5 Timing Diagram
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
Document version 0.0 18
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state when VDD is off.
T1
Power Supply VDD
LVDS Signal
90%
10%
T2
VALID
DATA
90%
T5
T6
10%
T7
Backlight On
Parameter
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 200 - - [ms]
T5 40 - -
T6 5 - 100
T7 1000 - - [ms]
T3
T4
Power Sequence Timing
Value
Min. Typ. Max.
Unit
[ms]
Note1,2
[ms]
Note1,2
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
Document version 0.0 19
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
7 Connector and Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
Manufacturer
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
P-TWO
STM
MSCKT2407P30HB (STM)
AL230F-A0G1D-P (P-TWO)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
NC (for AUO test only. Do not
25
connect)
26
NC (for AUO test only. Do not
connect)
27
29 VDD 30 VDD
Document version 0.0 20
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
NC (for AUO test only. Do not
28 VDD
connect)
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
High Temperature Operation (HTO) Ta= 50°C, 50%RH, 300 hours
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Acceleration: 1.5 Grms
Vibration Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles Note 1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid temperature change.
A cycle of rapid temperature change consists of varying the temperature from -20°C to 60°C, and back again. Power is
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Contact Discharge: ± 15KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point
Note 2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point
Operation: 18,000 ft
Non-Operation: 40,000 ft
not applied during the test. After temperature cycling, the unit is placed in normal room ambient for at least 4 hours
before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
No data lost
Self-recoverable
No hardware failures
Document version 0.0 21
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
M240HTN01.0
AU OPTRONICS CORPORATION
Product Specification
9 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Document version 0.0 22
PDF created with pdfFactory trial version www.pdffactory.com
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
10 Packing Specification

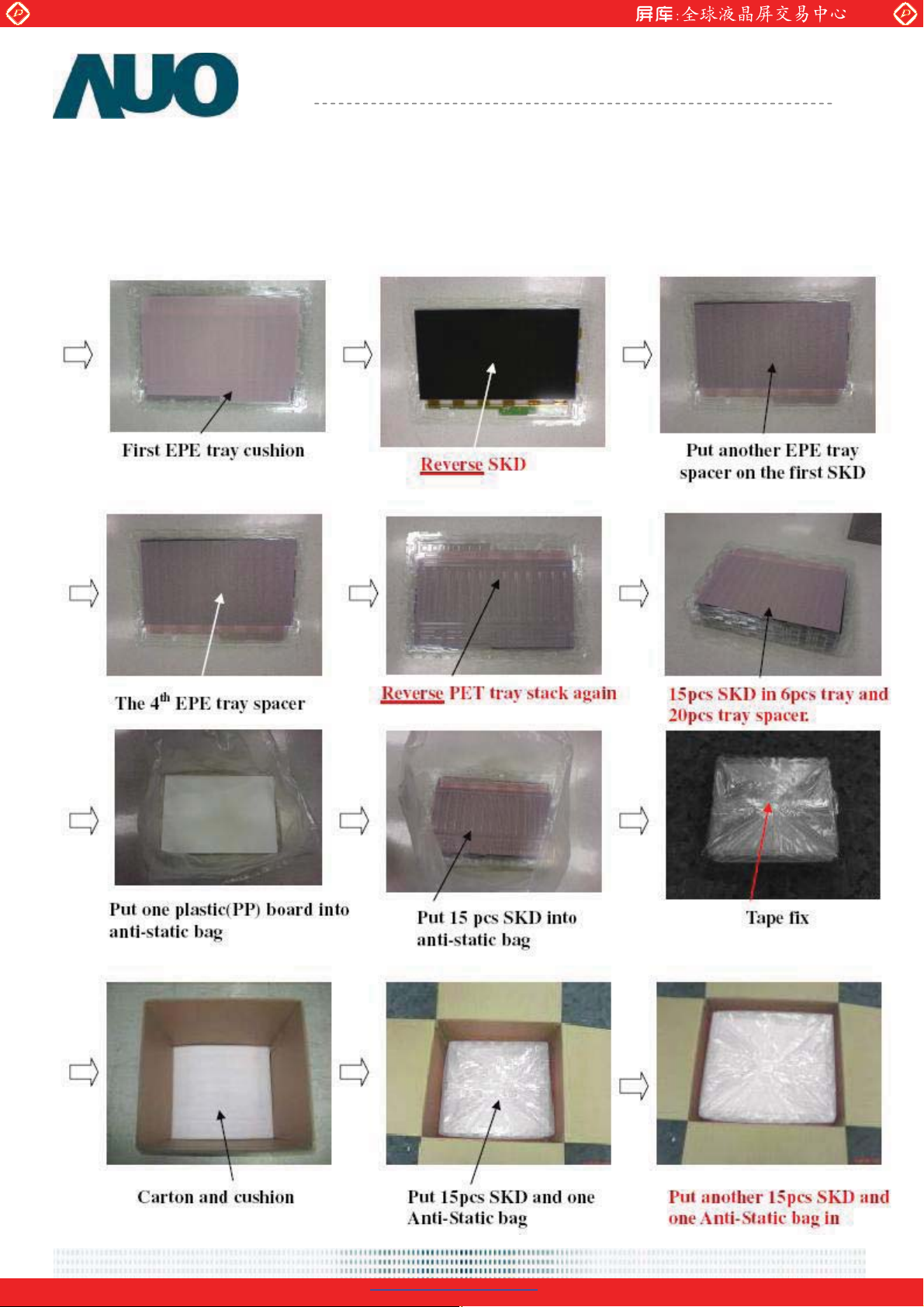

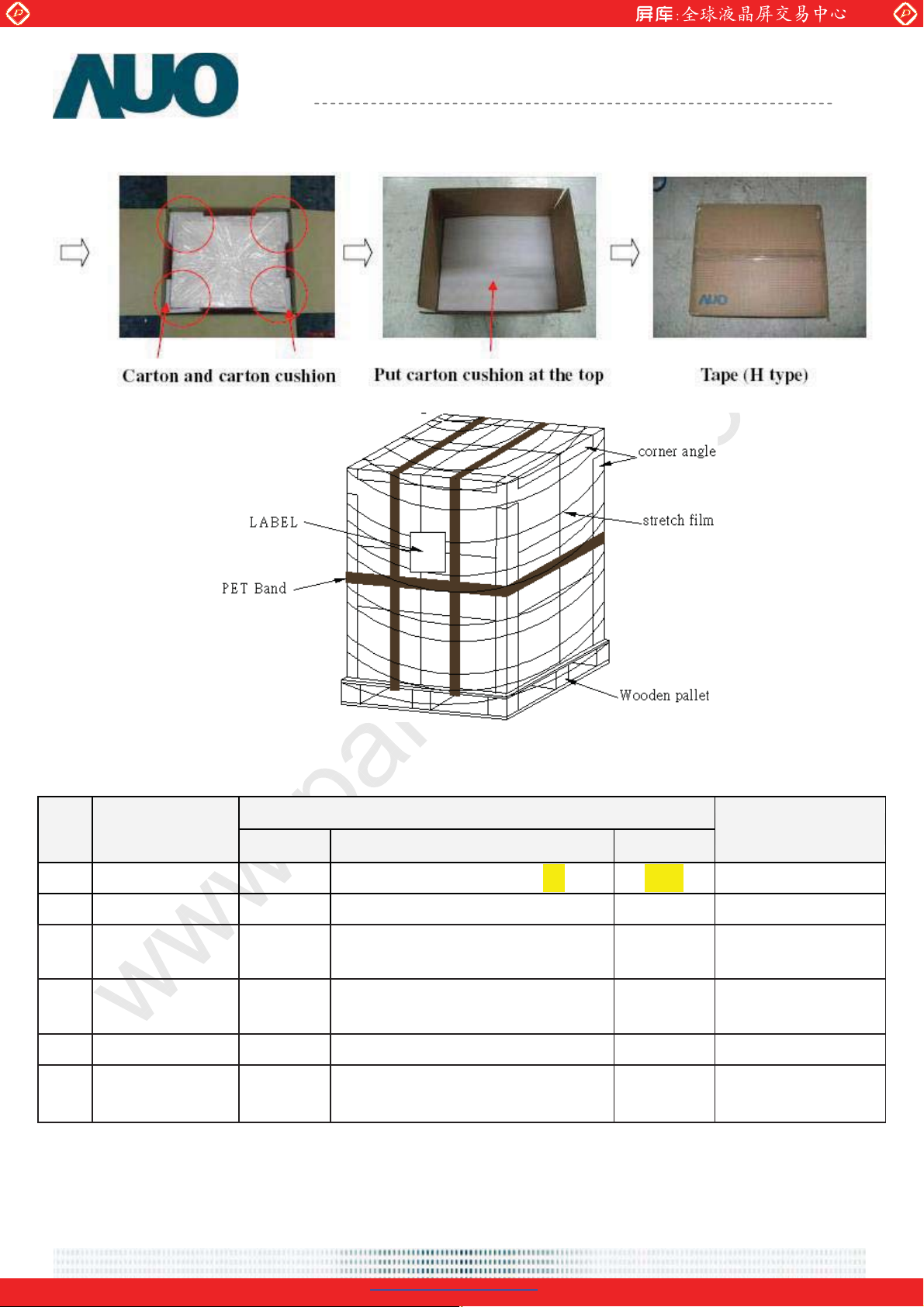

10.1Packing Flow
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
Document version 0.0 23
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HTN01.0
10.2 Pallet and Shipment Information
Specification
Item
Q'ty Dimension Weight(kg)
1 Panel
2 Cushion
3Box
4 Packing Box
5 Pallet
6 Pallet after Packing
Note 1: Estimated value which is subject to change based on real measured data.
1
1 -- 6.86
1 687(L)mm x 502(W)mm x 358(H)mm 1.9
30 pcs/Box 687(L)mm x 502(W)mm x 358(H)mm 24.18
1 1060(L)mm x 740(W)mm x 138(H)mm 12
8
boxes/pallet
546.8(H)mm x 313.5(V)mm x 1.5(D)mm 0.514
1060(L)mm x 740(W)mm x1570(H)mm 205.4
Remark
Note 1
without Panel & cushion
Note 1
with panel & cushion
Note 1
Note 1
Note 1
Document version 0.0 24
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
