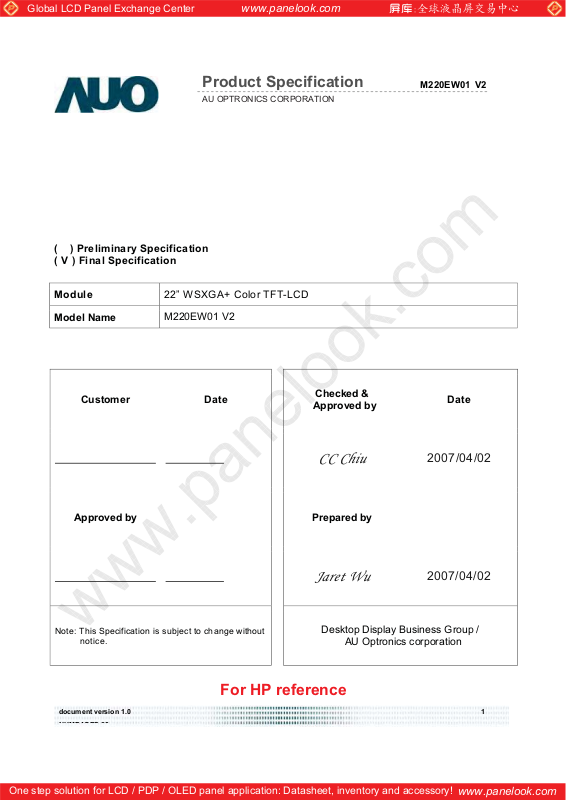

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
( ) Preliminary Specification
( V ) Final Specification
Module
Model Name
22” WSXGA+ Color TFT-LCD
M220EW01 V2
Customer Date
Approved by
Note: This Specification is subject to change without
notice.
Checked &
Approved by
CC Chiu
Prepared by
Jaret Wu
Desktop Display Business Group /
AU Optronics corporation
Date
2007/04/02
2007/04/02
For HP reference
document version 1.0 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
Contents
1. Handling Precautions .............................................................................................................. 3
2. General Description................................................................................................................. 4
2.1 Display Characteristics .................................................................................................................. 4
3. Functional Block Diagram....................................................................................................... 9
4. Absolute Maximum Ratings .................................................................................................. 10
4.1 Absolute Ratings of TFT LCD Module ........................................................................................ 10
4.2 Absolute Ratings of Backlight Unit.............................................................................................. 10
4.3 Absolute Ratings of Environment .................................................................................................11
5. Electrical characteristics....................................................................................................... 12
5.1 TFT LCD Module........................................................................................................................ 12
5.2 Backlight Unit ............................................................................................................................. 14
6. Signal Characteristic ............................................................................................................. 15
6.1 Pixel Format Image ..................................................................................................................... 15

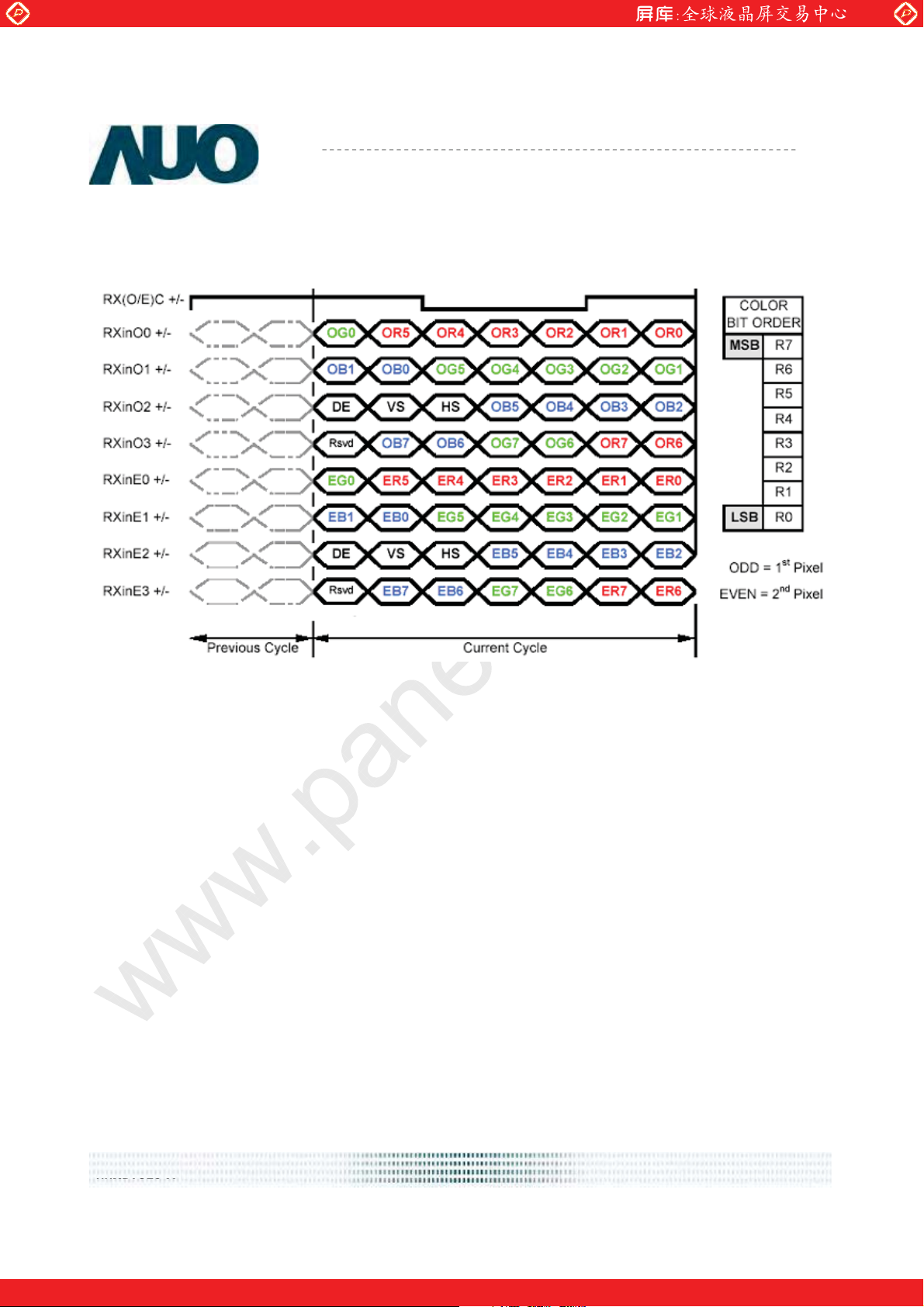

6.2 The Input Data Format................................................................................................................. 16

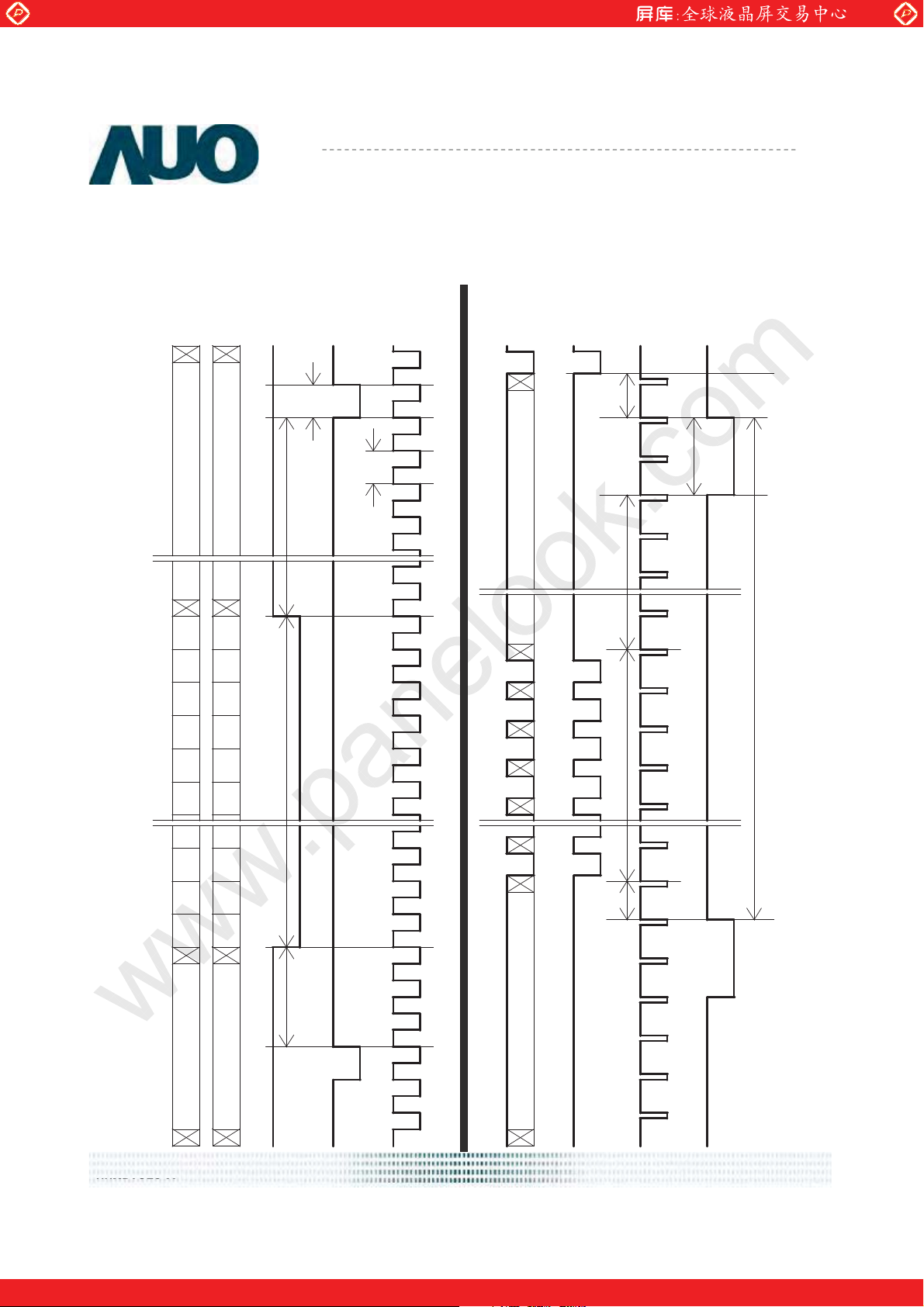

6.4 Interface Timing .......................................................................................................................... 19

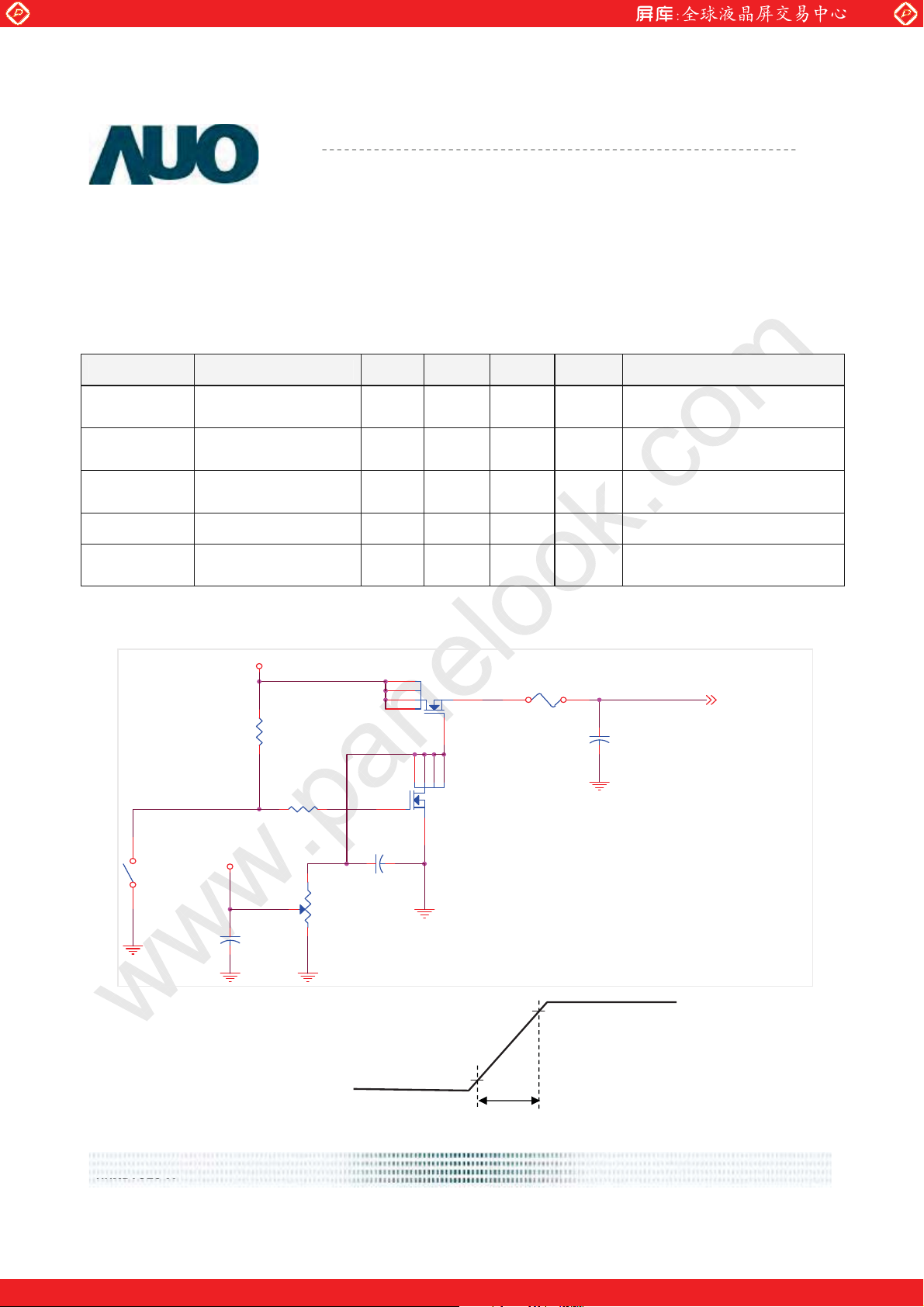

6.5 Power ON/OFF Sequence ............................................................................................................ 21

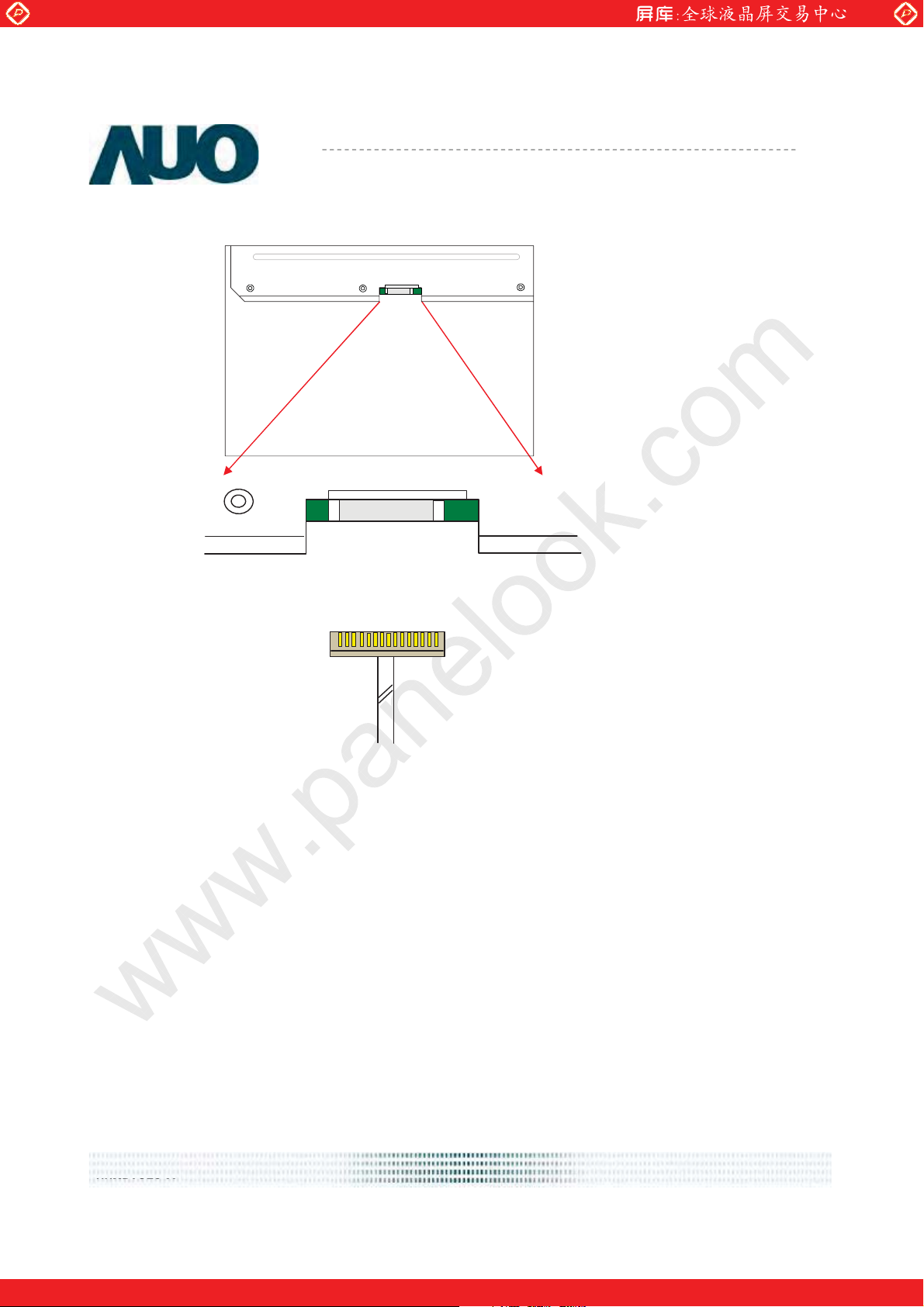

7. Connector & Pin Assignment................................................................................................ 22
7.1 TFT LCD Module........................................................................................................................ 22
7.2 Backlight Unit ............................................................................................................................. 23
8. Reliability Test........................................................................................................................ 24
9. Shipping Label ....................................................................................................................... 25

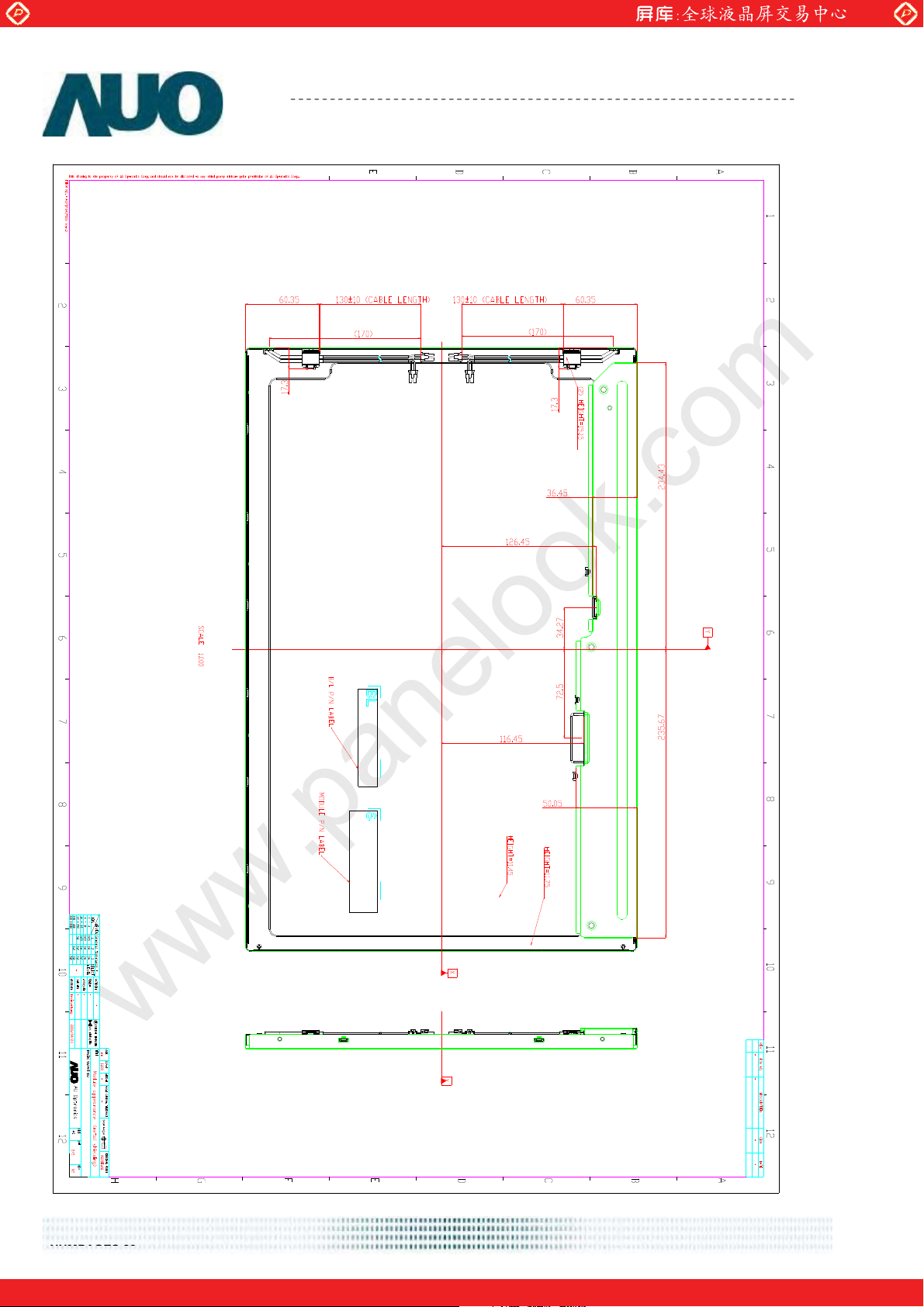

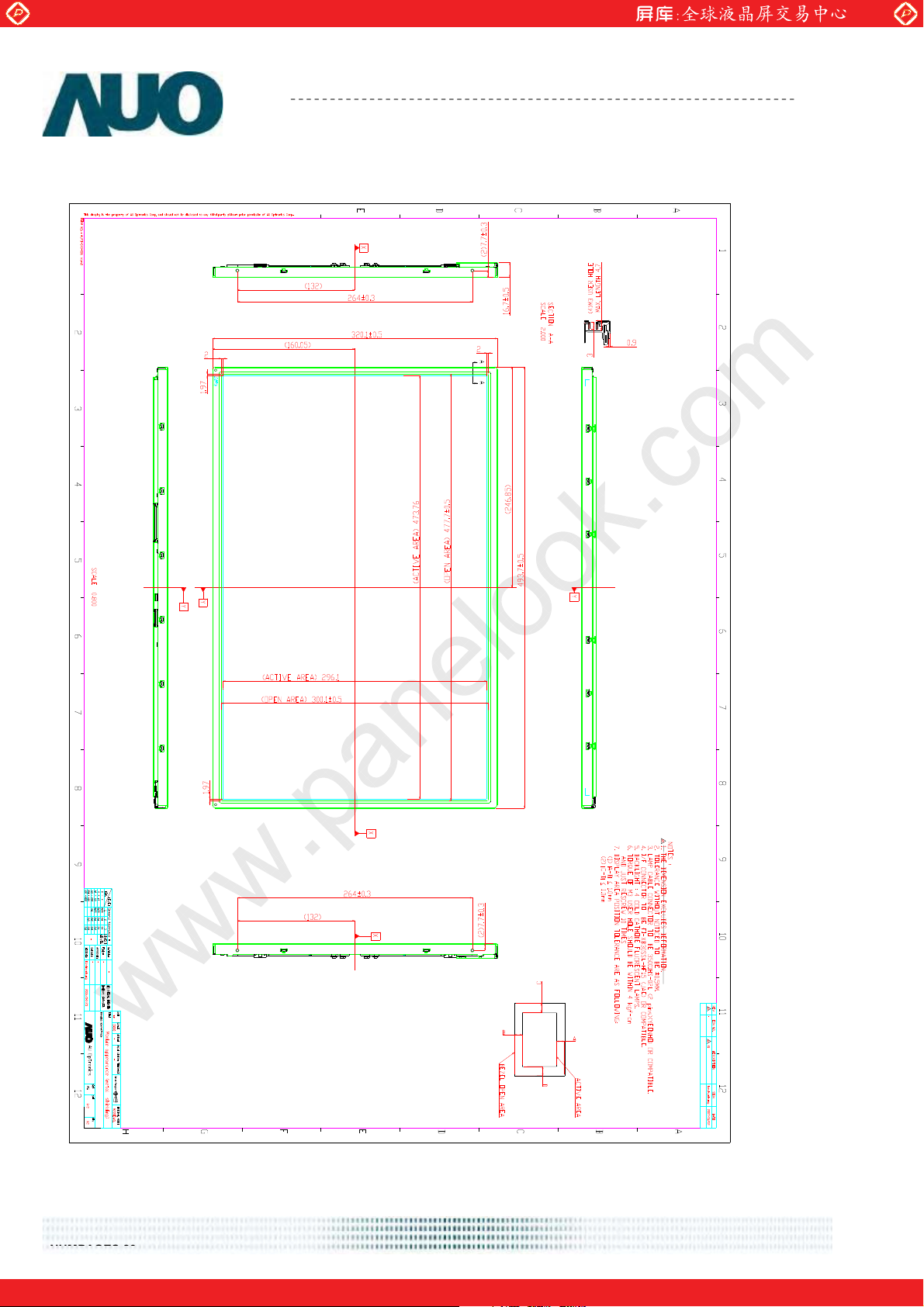

10. Mechanical Characteristics................................................................................................. 26
document version 1.0 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 1.0 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
2. General Description
This specification applies to the 22 inch-wide Color TFT-LCD Module M220EW01.
The display supports the WSXGA+ (1680(H) x 1050(V)) screen format and 16.7M colors. All input signals are 2
Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items Unit Specifications
Active Area [mm] 473.76 (H) x 296.1(V)
Pixels H x V 1680x3(RGB) x 1050
Pixel Pitch [mm] 0.282x 0.282
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode,Normally White
White Luminance [cd/m2]
300 cd/m
2 @ 7.0mA
(Typ)
Contrast Ratio 1000:1 (Typ)
Optical ResponseTime [msec] 5 (Typ, on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
[Watt]
28.5W (Typ)
(Without Invertor, All black pattern)
Weight [Grams] 2385 (Typ)
Physical Size (H x V x D) [mm] 493.7(W) x 320.1(H) x 16.7(D) (Typ)
Electrical Interface Dual Channel LVDS
Support Colors 16.7M colors (6-bits + HiFRC)
Temperature Range
Operating
Storage (Shipping)
o
C]
[
o
[
C]
0 to +50
-20 to +60
Surface Treatment Hard-coating (2H), Glare treatment
RoHS Compliance RoHS Compliance
document version 1.0 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Luminance Uniformity [%] 9 Points
Rising -
Optical Response Time [msec]
Falling -
Rising + Falling -
Red x
Red y
Green x
Color / Chromaticity
Green y
Coordinates
(CIE 1931)
Blue x
Blue y
White x
White y
White Luminance
(At CCFL= 7.0mA)
[cd/m2 ]
80
80
75
75
75 80
0.616 0.646 0.676
0.309 0.339 0.369
0.260 0.290 0.320
0.573 0.603 0.633
0.115 0.145 0.175
0.040 0.070 0.100
0.283 0.313 0.343
0.299 0.329 0.359
250 300 -
85
85
80
80
-
-
- 2, 3
3.6
5.7
1.4 2.3
5 8
1
4, 6
4
4
Contrast Ratio Normal Direction
Cross Talk (At 75Hz) [%]
Flicker [dB]
600 1000 -
- - 1.5
- - -20
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
document version 1.0 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
5
7
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

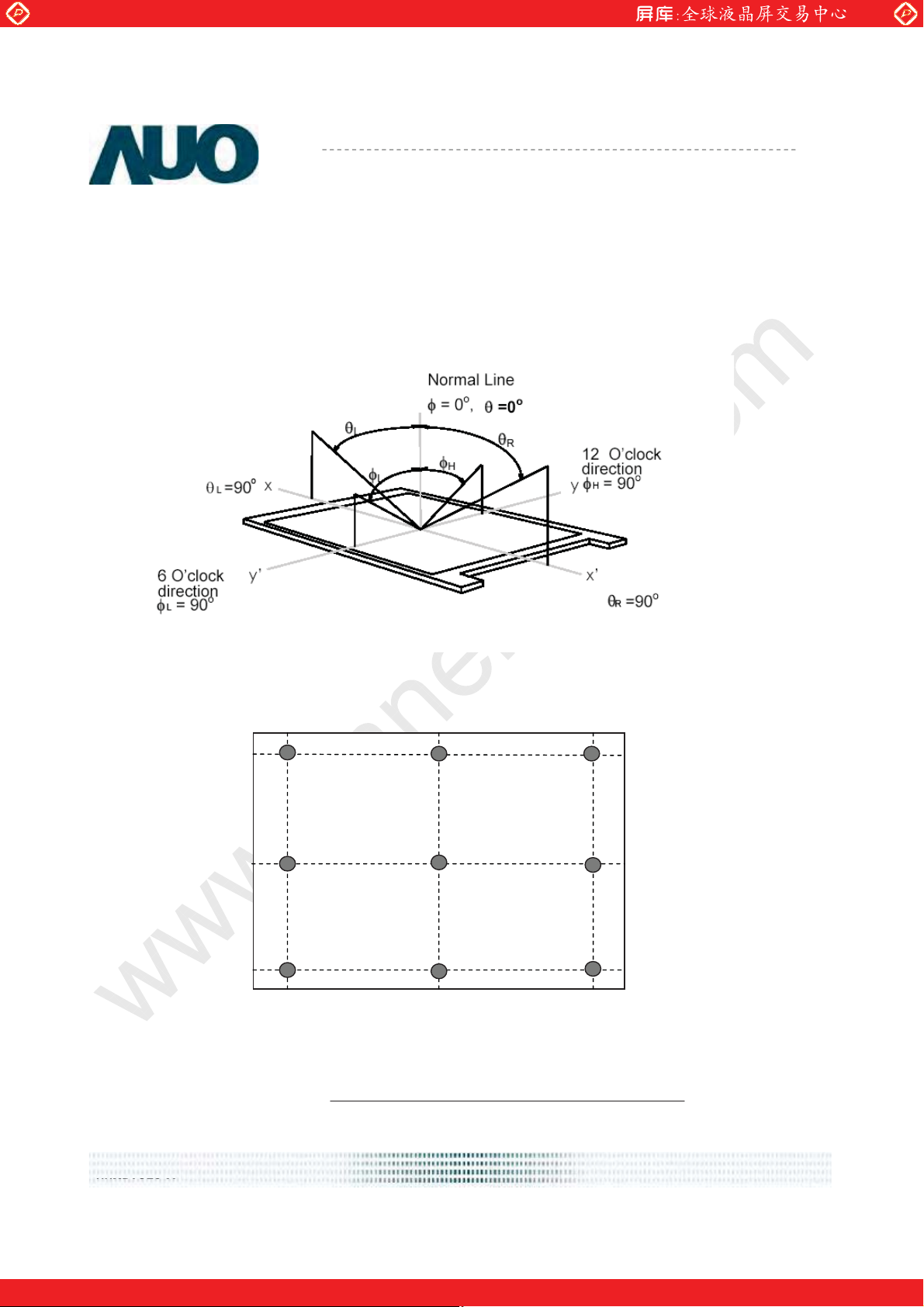

Note 1: Definition of viewing angle: measured by ELDIM (
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal
and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as
follows; 90° () horizontal left and right and 90° () vertical, high (up) and low (down). The
measurement direction is typically perpendicular to the display surface with the screen rotated about its
center to develop the desired measurement viewing angle.
EZContrast 88)
M220EW01 V2
Note 2: 9 points position
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
90 %
50 %
10 %
10 %
50 %
90 %
document version 1.0 6
Minimum Luminance of 9 points
=
W9
Maximum Luminance of 9 points
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

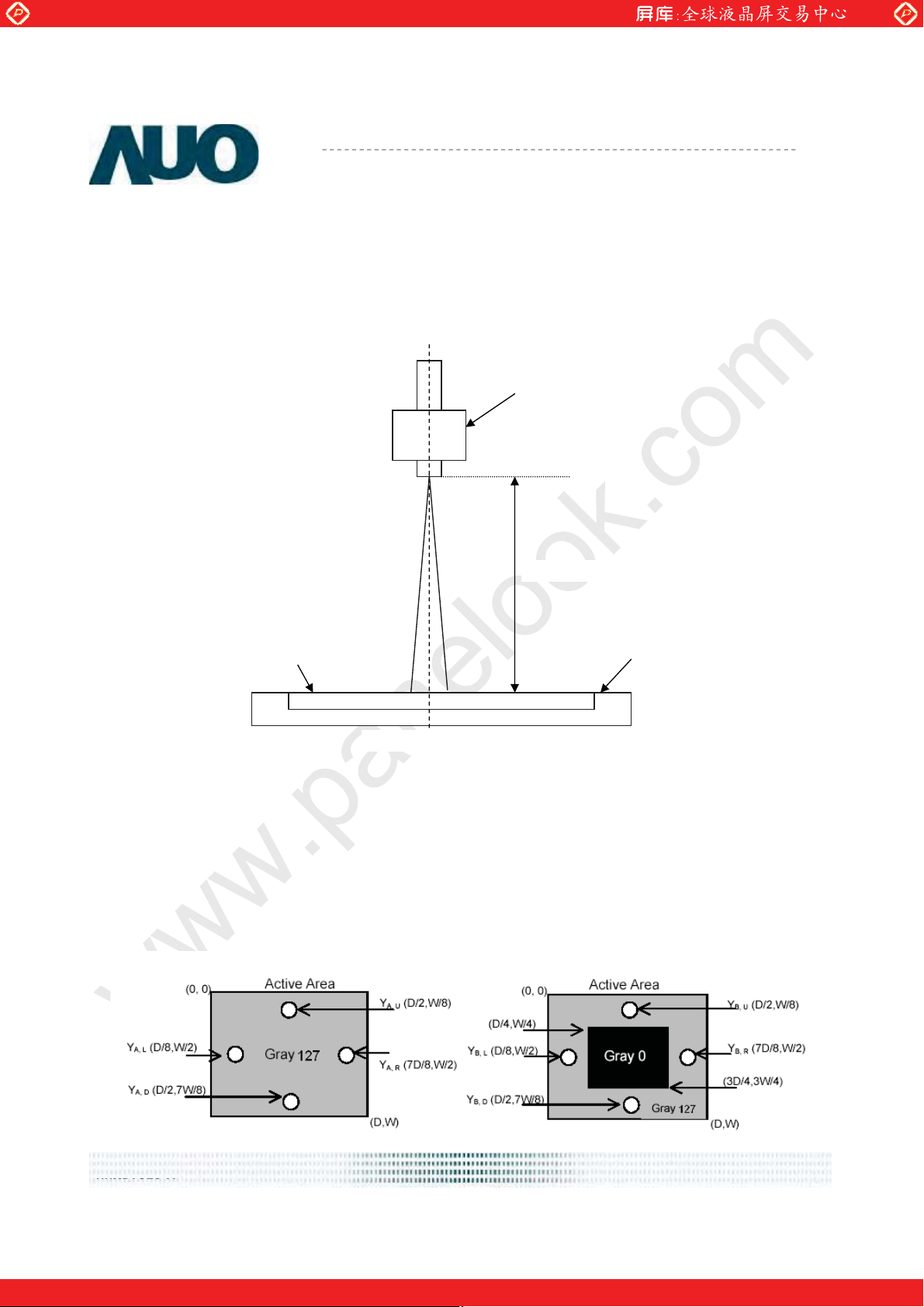

Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room.
M220EW01 V2
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
document version 1.0 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2

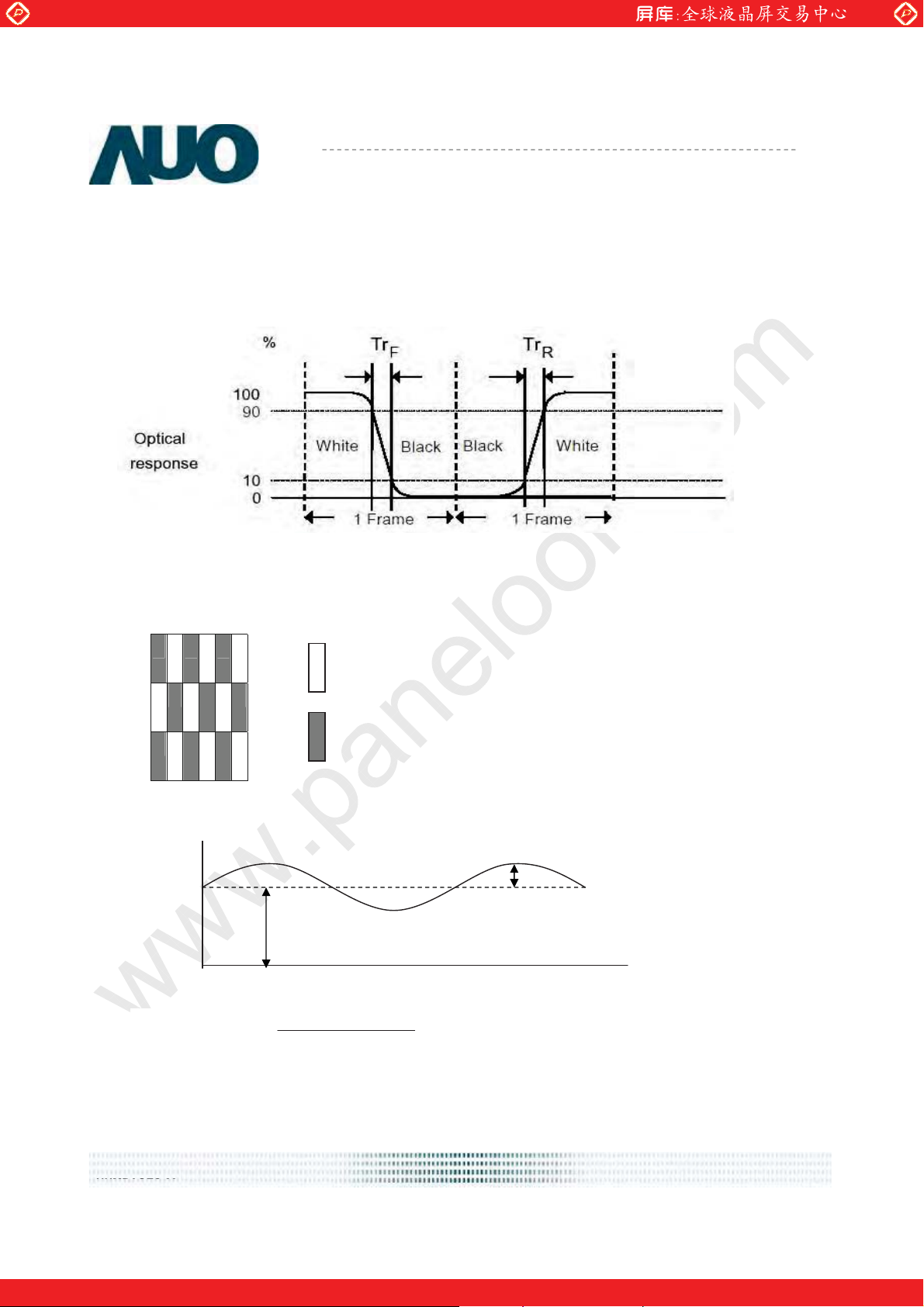

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Note 7: Subchecker Pattern
R G B R G B
Gray Level = L127
R GB R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Hz) 30Level(at AC
log20(dB)Flicker =
AC
Level DC
Time
document version 1.0 8
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
C PO
Y
Driver IC
www.panelook.com
Product Specification
M220EW01 V2
AU OPTRONICS CORPORATION

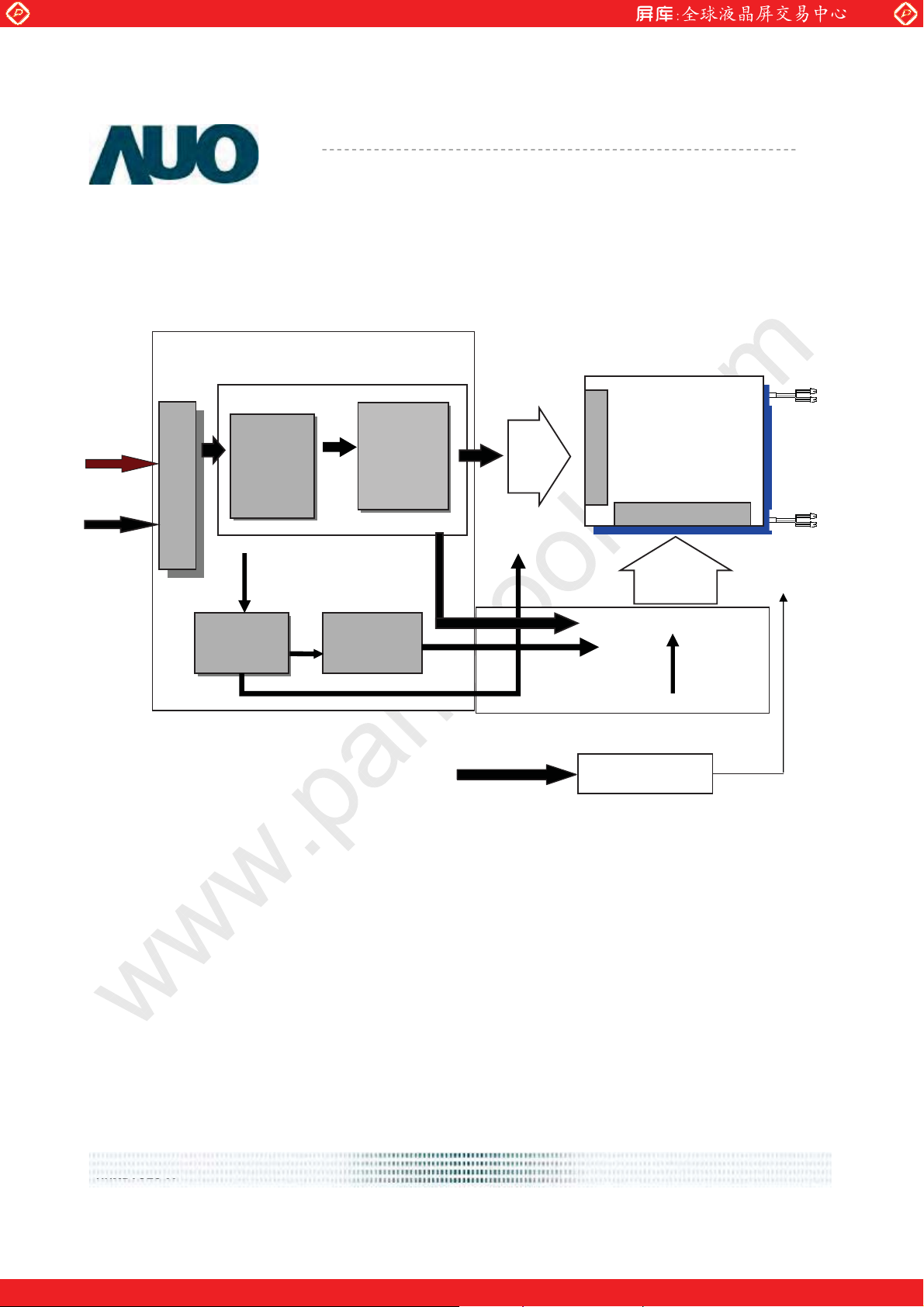

3. Functional Block Diagram
The following diagram shows the functional block of the 22 inches wide Color TFT-LCD Module:
LVD
+5V
Connector
Receiver
DC/DC
Converter
I/F + X-PCB
LVDS
A
AI
Timing
Controller
Gamma
Correction
G1
-
TFT-LCD
1680*(3)*1050
Pixels
G1050
D1 D5040
-
4 CCFL
D
WER
Inverter
document version 1.0 9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
MDF76URW-30S-1H
FI-XB30SSRL-HF16 or compatible
Mating Type: FI-X30S-H
YEON HO 35001HS-02L or compatible
Mating Type: 35001WR-02L or
SM02B-BHSS-1-TB
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
4. Absolute Maximum Ratings
Absolutely maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive
Voltage
VDD -0.3 +5.5 [Volt] Note 1, 2
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
CCFL Current ICFL - 8 [mA] rms Note 1, 2
document version 1.0 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2

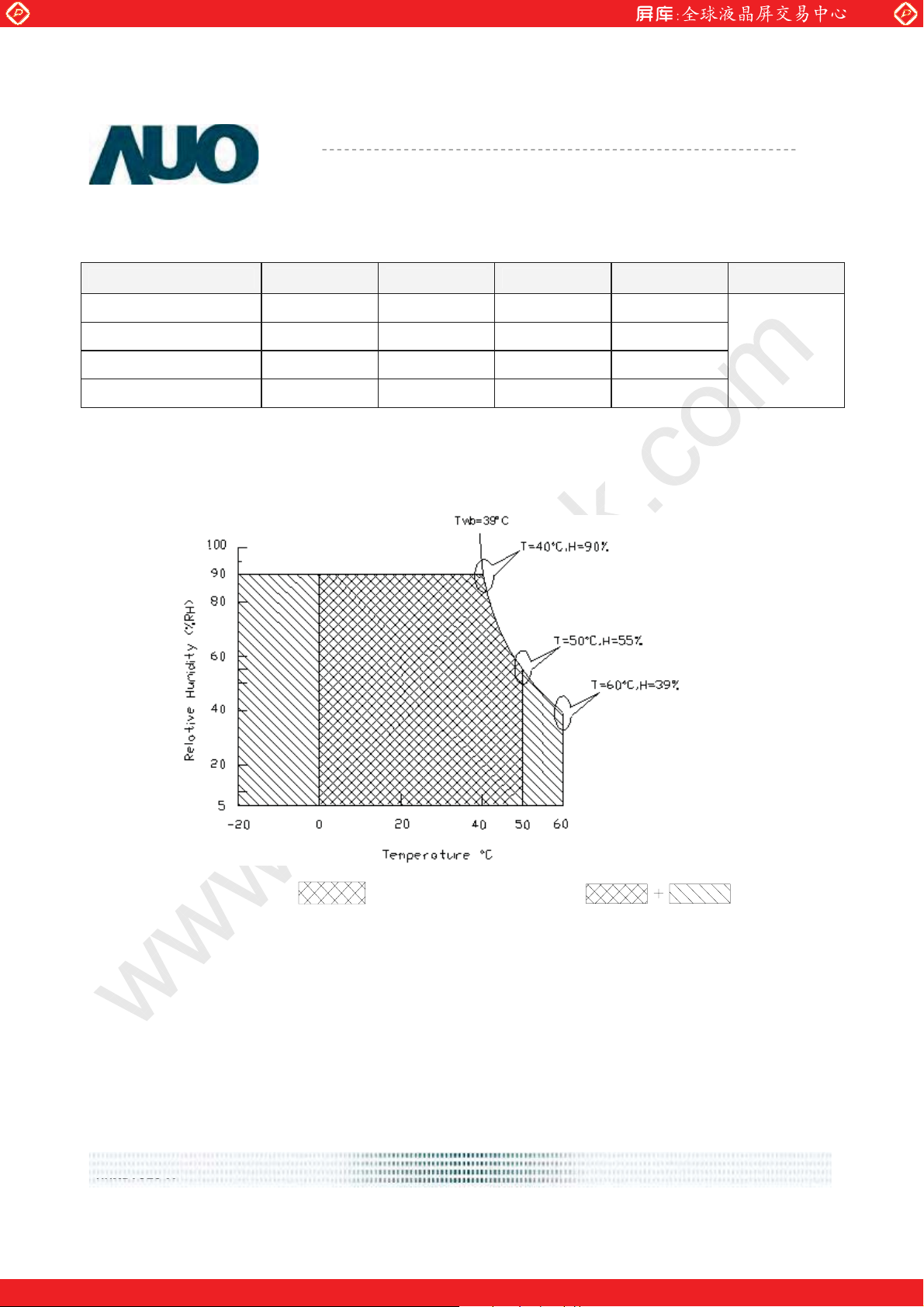

4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
8 90
Note 1: With in Ta= 25
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
[%RH]
Note 3
Operating Range Storage Range
document version 1.0 11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M220EW01 V2
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VDD
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt]
IDD Input Current - 1000 1400 [mA]
PDD VDD Power - 5 7 [Watt]
IRush Inrush Current - - 2.5 [A] Note 2
VDDrp
Allowable logic/LCD
Drive Ripple Voltage
200
[mV]
p-p
10%
VDD= 5.0V, All Black Pattern
At 60Hz
VDD= 5.0V, All Black Pattern
At 60Hz , Note 1
VDD=5.0, All black pattern at
75Hz
Note 1: The variance of VDD power consumption is ±10%.
Note 2: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
VDD rising time
0V
document version 1.0 12
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
AO6402
10%
F1
VCC
(LCD Module Input)
C1
1uF/16V
Q3
90%
5.0V
0.5ms
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2

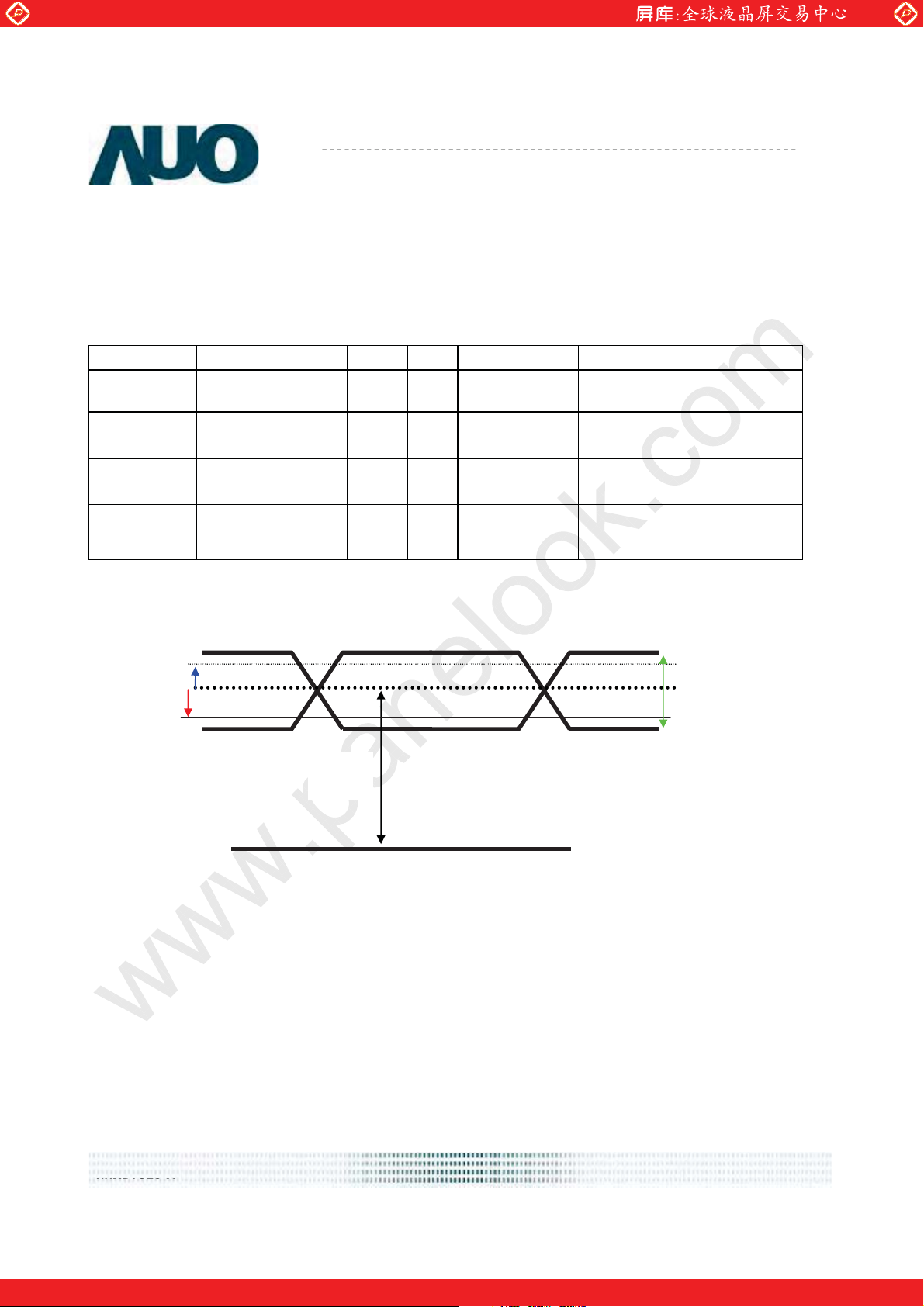

5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
VID
Differential Input
High Threshold
Differential Input
Low Threshold
Input Differential
Voltage
Differential Input
VICM
Common Mode
Voltage
- -
-100 -
100 400 600 [mV]
0.3 - 1.25 [V]
100 [mV]
- [mV]
VICM = 1.2V Note
VICM = 1.2V Note
Note
VDD=
%05.03.3 ±V
Note: LVDS Signal Waveform
VTH
VTL
VICM
VSS
VID
document version 1.0 13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25 (Room Temperature):
Parameter Min. Typ. Max. Unit Condition
CCFL Standard Current (ISCFL)
6.5 7.0 7.5
CCFL Operation Current(IRCFL) 3.5 7.0 8.0 [mA] rms Note 2
CCFL Frequency(FCFL) 40 50 60 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL, Ta= 0)
(End of the lamp wire connector)
CCFL Ignition Voltage(ViCF, Ta= 25)
(End of the lamp wire connector)
CCFL Operation Voltage (VCFL) -
1730 - - [Volt] rms
1330 - - [Volt] rms
800
(@ 7.0mA)
CCFL Power Consumption(PCFL) - 22.4 24.5 [Watt] Note 6
[mA] rms Note 2
Note 5
[Volt] rms Note 6
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 4mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,500
voltage. Lamp units need 1,500 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
4 = PCFL)
Note 7: Definition of CCFL life Time (LTCFL): brightness becomes 50%. (The typical life time of CCFL is on
the condition at 7.0 mA lamp current).
document version 1.0 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
12 1679 1680
1st Line
R G B R G B
R G B R G B
M220EW01 V2
1050 Line
R G B R G B
R G B R G B
document version 1.0 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: 8-bits signal input.
Note3: L:NS alike H:Thine alike
document version 1.0 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync, V-Sync, DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync, V-Sync, DSPTMG)
7 GND Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No contact (For AUO test only)
26 NC No contact (For AUO test only)
27 NC No contact (For AUO test only)
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 1.0 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
r
RxO
IN
0
CC
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note1: Start from left side
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
Connecto
30
V
-
M220EW01 V2
document version 1.0 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
6.4 Interface Timing
6.4.1 Timing Characteristics
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Section
Horizontal
Section
Clock
Frame Rate Frequency 1/Tv 50 60 75 Hz
Active Tdisp(v) 1050 1050 1050 Th
Blanking Tbp(v)+Tfp(v)+PWvs 8 16 998 Th
Period Th 880 1128 2048 Tclk
Active Tdisp(h) 840 840 840 Tclk
Blanking Tbp(h)+Tfp(h)+PWhs 40 288 1208 Tclk
Period Tclk 11.76 13.86 16.67 ns
Frequency Freq. 60 72.1 85 MHz
Note : DE mode only
1058 1066 2048 Th
document version 1.0 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
6.4.2 Timing Diagram
RGB Data
(Even)
Invalid Data
(Odd)
RGB Data
Invalid Data
Product Specification
M220EW01 V2
AU OPTRONICS CORPORATION
Hsync
DE
PWhs
Tbp(h)
CLK
Tclk
RGB Data
Line Line Li ne Line Line Line
Invalid Data
DE
Hsync
N
Tfp(v)
Tbp(v)
Vsync
PWvs
Pixel
Pixel
2
1
Pixel Pixel
Pixel
39 M-1
4
65
8
10
12
M-4
M-2
M
Pixel Pixel Pixel Pixel Pixel Pixel
Invalid Data
Pixel
7
11
PixelPixelPixelPixel
M-5
M-3
PixelPixel
Invalid Data
Tv
2
Tdisp(h)
43
N1
Invalid Data
Tfp(h)
Tdisp(v)
Th
document version 1.0 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2

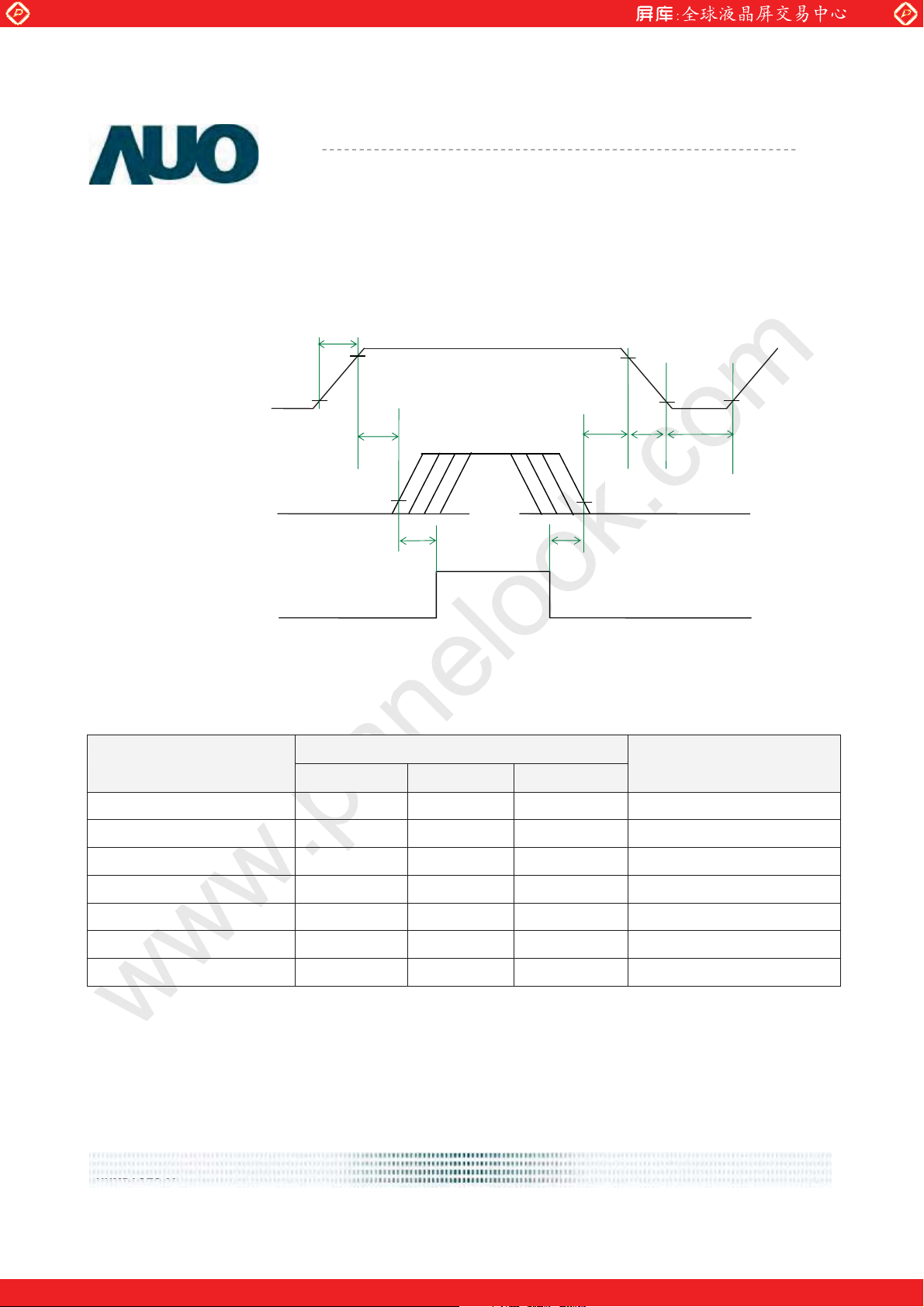

6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
Parameter
T1
90%
10%
T2
T3
VALID
DATA
Power Sequence Timing
Value
Min. Typ. Max.
T4
90%
T5
T6
10%
T7
Unit
T1 0.5 - 10 [ms]
T2 0 40 50 [ms]
T3 350 - - [ms]
T4 350 - - [ms]
T5 0.5 16 50 [ms]
T6 - - 100 [ms]
T7 1000 - - [ms]
document version 1.0 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer
Type Part Number
Mating Housing Part Number
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
LVDS: HIROSE/ JAE or compatible
LVDS :MDF76URW-30S-1H/ FI-XB30SSRL-HF16
FI-X30S-H ( Unlocked Type ) or equivalent
5 RxOIN2- 6 RxOIN2+
7
GND
8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14
GND
15 RxEIN1- 16 RxEIN1+
17
GND
18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24
GND
25 NC 26 NC
27 NC 28 VCC
29 VCC 30 VCC
document version 1.0 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer
Type Part Number
Mating Type Part Number
7.2.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
CN1
Upper
CN2
1 Hot1 Sky Blue High Voltage (Lamp 1)
2 Cold1
1 Hot2 Pink High Voltage (Lamp 2)
2 Cold2
YEONHO or compatible
35001HS-02L
35001WR-02L or SM02B-BHSS-1-TB
Black Low Voltage (Lamp 1)
White Low Voltage (Lamp 2)
Connector No. Pin No. Input Color Function
CN3
Lower
CN4
1 Hot1 Sky Blue High Voltage (Lamp 3)
2 Cold1 Black Low Voltage (Lamp 3)
1 Hot2 Pink High Voltage (Lamp 4)
2 Cold2 White Low Voltage (Lamp 4)
document version 1.0 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Ta= 50, 80%RH, 300hours
Ta= 50, 300hours
Ta= 0, 300hours
Ta= 60, 300hours
Ta= -20, 300hours
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: X, Y, Z (one time for each Axis)
M220EW01 V2
Note
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST)
-20/30min, 60/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20 to 60, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 1.0 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

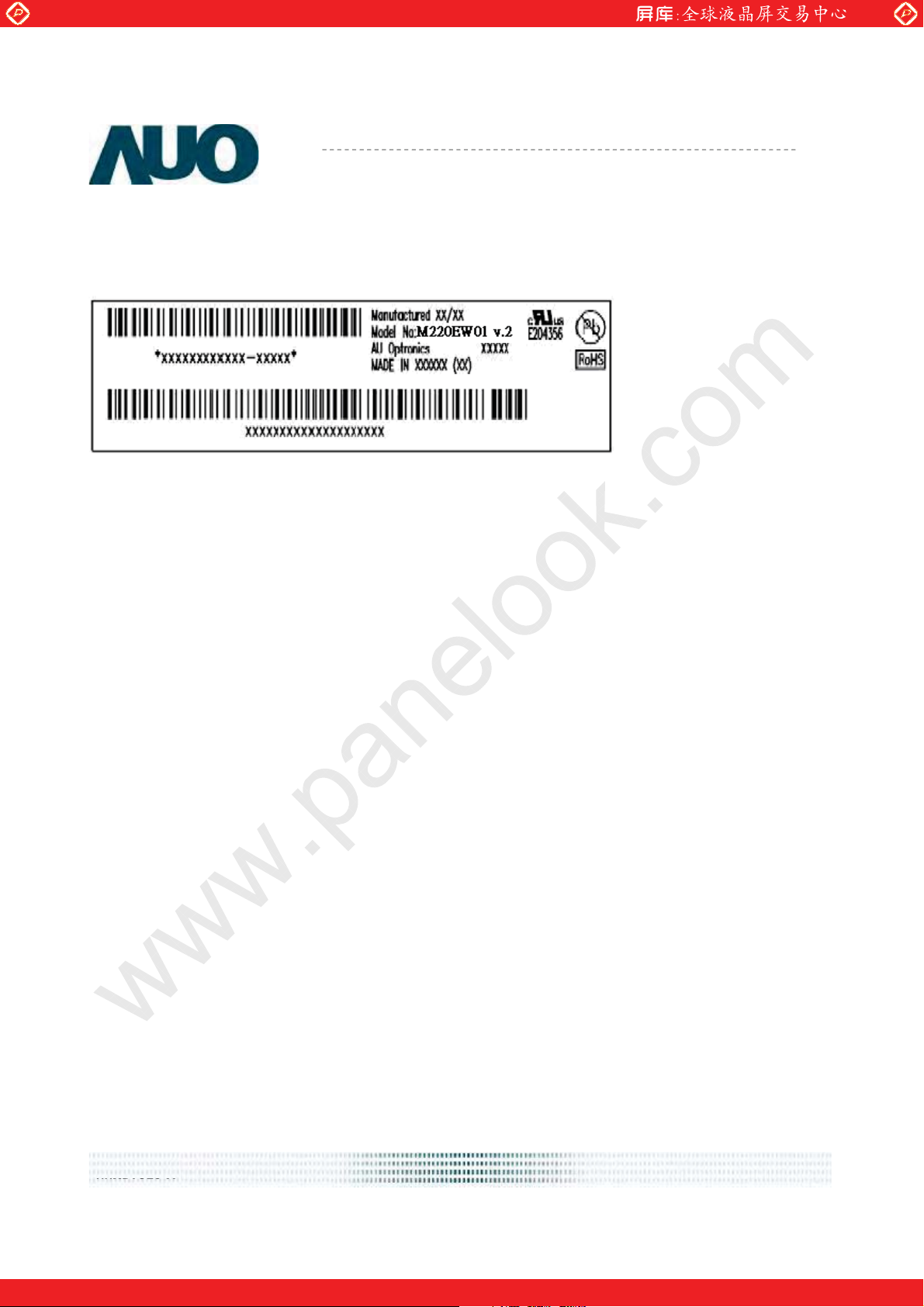

9. Shipping Label
The shipping label format is shown as below.
M220EW01 V2
document version 1.0 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristics
M220EW01 V2
document version 1.0 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V2
document version 1.0 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
