AUO M215HW01 VB Specification

Download

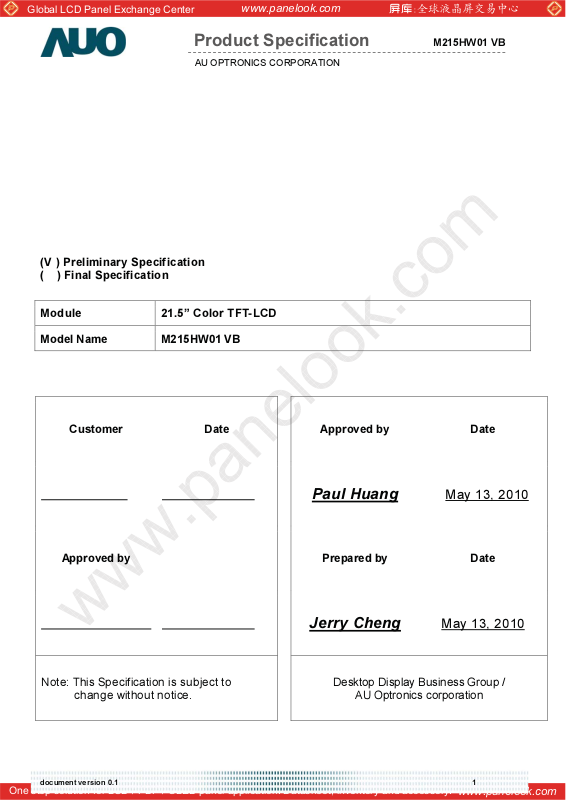

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
) Preliminary Specification
(V ( ) Final Specification
Module 21.5” Color TFT-LCD
Model Name M215HW01 VB
Customer Date
Approved by
Approved by Date
Paul Huang
Prepared by Date
May 13, 2010
Note: This Specification is subject to
change without notice.
document version 0.1 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Jerry Cheng
Desktop Display Business Group /
AU Optronics corporation
May 13, 2010
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Contents
1.0 Handling Precautions .................................................................................... 4
2.0 General Description....................................................................................... 5
2.1 Display Characteristics...........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6
3.0 Functional Block Diagram........................................................................... 10
4.1 TFT LCD Module ..................................................................................................................11
4.2 Absolute Ratings of Environment.........................................................................................11
5.0 Electrical characteristics............................................................................. 12
5.1 TFT LCD Module ................................................................................................................. 12
5.1.1 Power Specification.......................................................................................................... 12
5.1.2 Signal Electrical Characteristics....................................................................................... 13
6.1 Pixel Format Image ............................................................................................................. 16
6.2 The input data format .......................................................................................................... 16
6.3 Signal Description ............................................................................................................... 17
6.4 Timing Characteristics ......................................................................................................... 18
6.5 Timing diagram .................................................................................................................... 19
6.6 Power ON/OFF Sequence .................................................................................................. 20
7.0 Connector & Pin Assignment...................................................................... 21
7.1 TFT LCD Module ................................................................................................................. 21
7.1.1 Pin Assignment ..............................................................................................................................................21
7.2 Connector on Backlight Unit. .............................................................................................. 22
7.2.1 Signal for LED light bar connector .................................................................................................................22
8.0 Reliability Test ............................................................................................. 23
9.0 Shipping Label ............................................................................................. 24
document version 0.1 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date
0.1 2010/05/13 All First Edition for Customer -
Page Old description New Description Remark
document version 0.1 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the LED lightbar edge. Instead, press at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.
document version 0.1 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
2.0 General Description
This specification applies to the 21.5 inch-wide Color a-Si TFT-LCD Module M215HW01.The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 2-channel LVDS interface and this module doesn’t contain an driver board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] Active Area [mm] 476.64 (H) x 268.11 (V) Pixels H x V 1920(x3) x 1080 Pixel Pitch [um] 248.25 (per one triad) ×248.25 Pixel Arrangement R.G.B. Vertical Stripe Display Mode TN Mode, Normally White White Luminance ( Center ) [cd/m2]
Contrast Ratio 1000 (Typ.) Optical Response Time [msec] 5ms (Typ., on/off) Nominal Input Voltage VDD [Volt] +5.0 V Power Consumption
[Watt] (VDD line + LED line) Weight [Grams] 1800 (max.) Physical Size [mm] 495.6(W) × 292.2(H) × 10.3(D) Typ. Electrical Interface Dual channel LVDS Support Color 16.7M colors (RGB 6-bit + Hi_FRC ) Surface Treatment Anti-Glare, 3H Temperature Range Operating Storage (Shipping)
o
C]
[
o
C]
[ RoHS Compliance RoHS Compliance TC0’03 Compliance TC0’03 Compliance
546.86(21.53”)
2
250cd/m
17.6 (Typ.) (without driver board, all black pattern)
(Typ.)
0 to +50
-20 to +60
condition:
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
Contrast ratio Normal Direction 600 1000 -
Response Time [msec]
Color / Chromaticity Coordinates (CIE)
Color Coordinates (CIE) White
CR = 10 (Left) Vertical (Up)
CR = 10 (Down)
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
0.605 0.635 0.665
0.319 0.349 0.379
0.302 0.332 0.362
0.589 0.619 0.649
0.125 0.155 0.185
0.025 0.055 0.085
0.283 0.313 0.343
0.299 0.329 0.359
:
150 170
140 160
-
-
-
3.8
1.2 2.5
5 8
-
-
-
-
5.5
2
3
4
5
Central Luminance [cd/m2] 200 250 - 6 Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
75 80
-
1.5 8
-20
7
9
document version 0.1
6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change during measuring (at surface 35
). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
Photo detector
Measured distance
LCD Panel
Center of the screen
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88) Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
TFT-LCD Module
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling time, TfF),
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
Optical
Optical
response
response
100
100
90
10
10
%
%
White Black
0
0
Tr
Tr
F
F
Black
1 Frame 1 Frame
Tr
Tr
R
R
White
+ TfF = 5 msec (typ.).
Tr
R
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

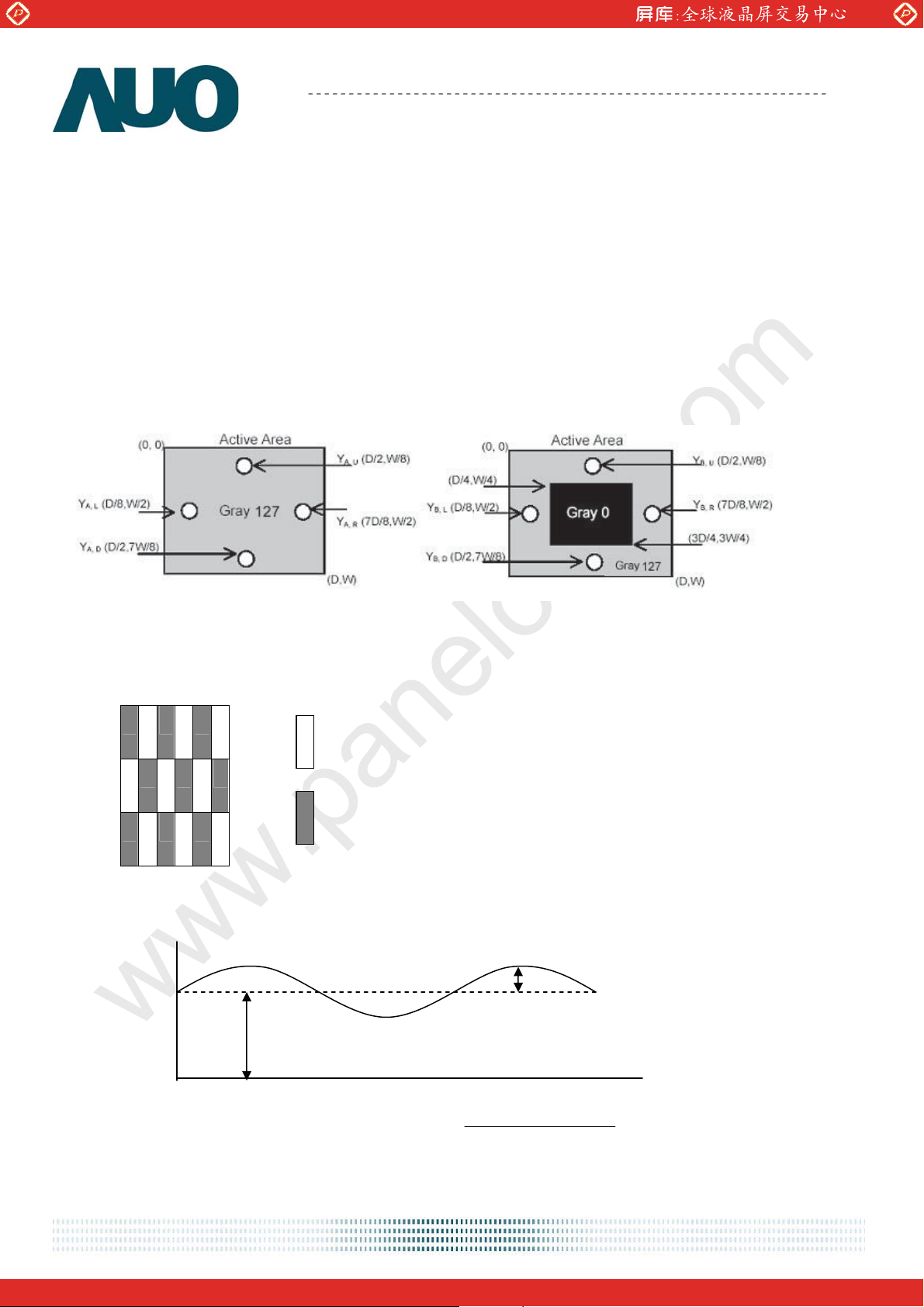

Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M215HW01 VB
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
RGBRGB
Gray Level = L127
R GBRGB
Gray Level = L0
RGBRGB
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
log20(dB)Flicker =
Hz) 30Level(at AC
evel DC
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
S
AUO AS
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB

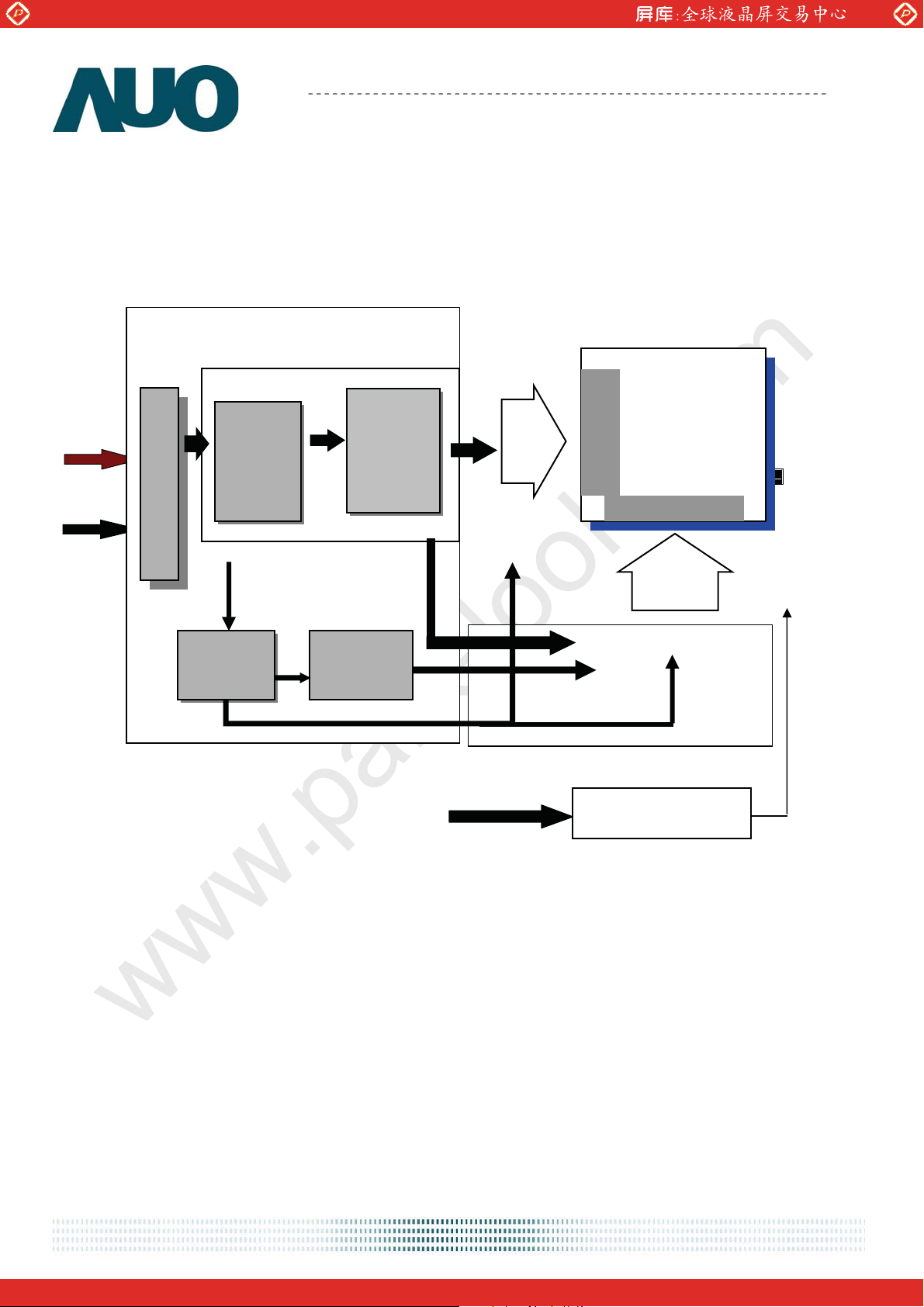

3.0 Functional Block Diagram
The following diagram shows the functional block of the 21.5 inch Color TFT-LCD Module:
+5V
LVD
LVD
Connector
Receiver
AUO ASIC
LVDS
IC
Timing
Controller
Mini LVDS
Transmitter
G1
G1080
Y-Driver IC
TFT-LCD
1920(x3) x 1080
Pixels
-
D1 D5760
LED Backlight
DC/DC
Converter
I/F + X-PCB
Gamma
Correction
DC
LED Driver on system
I/F PCB Interface: FI-XB30SRL-HF11(JAE)Ε093F30-B0T01A(Starconn)
Mating Type:
FI-X30HL (Locked Type)
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
VDD 0 6.0 [Volt] Note 1,2

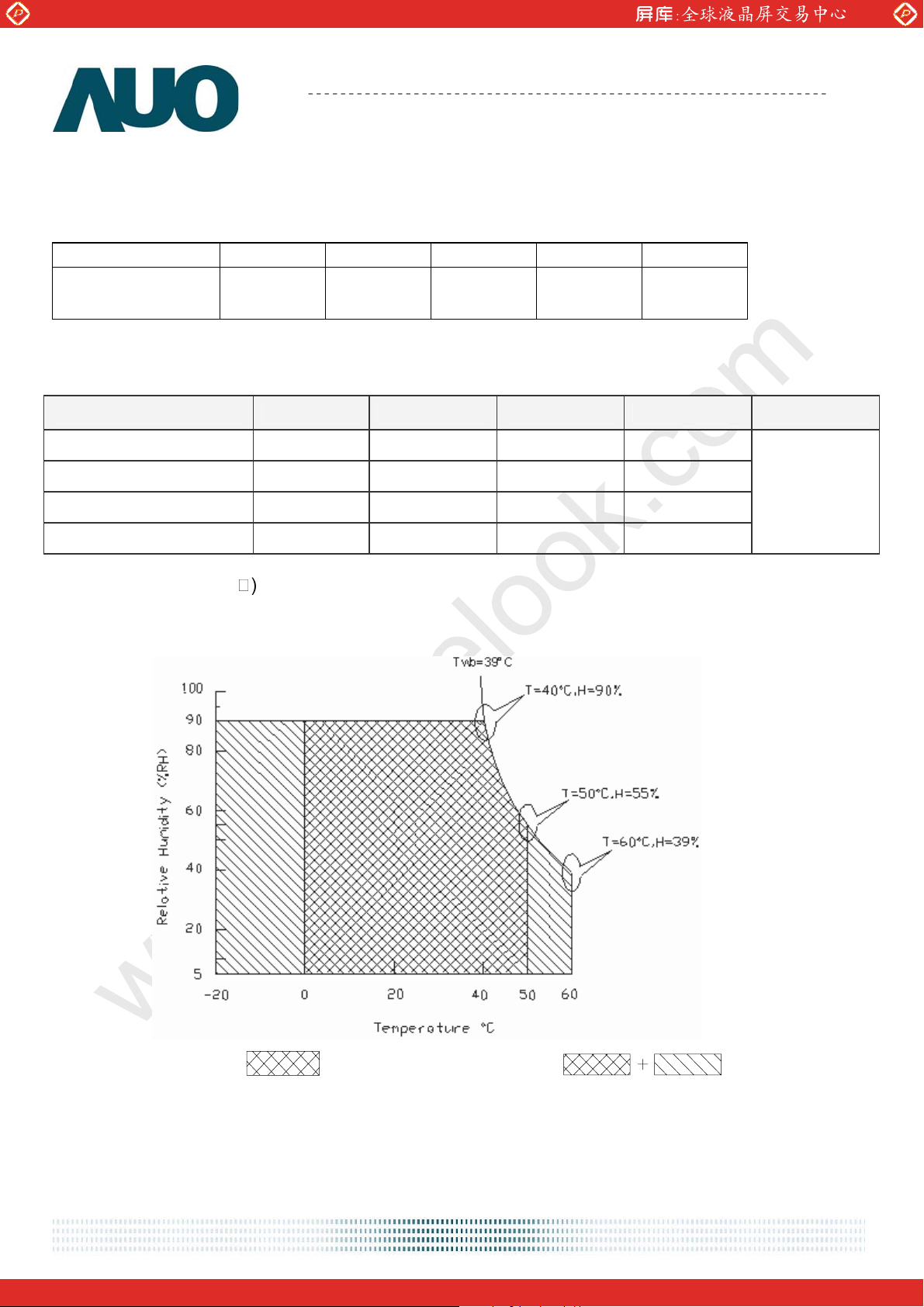

4.2 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Note 3
Storage Humidity HST
5 90
[%RH]
Note 1: With in Ta (25) Note 2: Permanent damage to the device may occur if exceeding maximum values Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
Operating Range Storage Range
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD
IDD Input Current
PDD VDD Power
IRush Inrush Current
VDDrp
Logic/LCD Drive
Voltage
Allowable Logic/LCD
Drive Ripple Voltage
4.5
-
-
-
-
5.0 5.5 [Volt] +/-10%
0.98 1.22 [A]
4.9 6.1 [Watt]
- 3 [A]
- 500 [mV] p-p
VDD= 5.0V, All Black Pattern At 60Hz VDD= 5.0V, All Black Pattern At 60Hz
Note 1
VDD= 5.0V, All Black Pattern At 75Hz

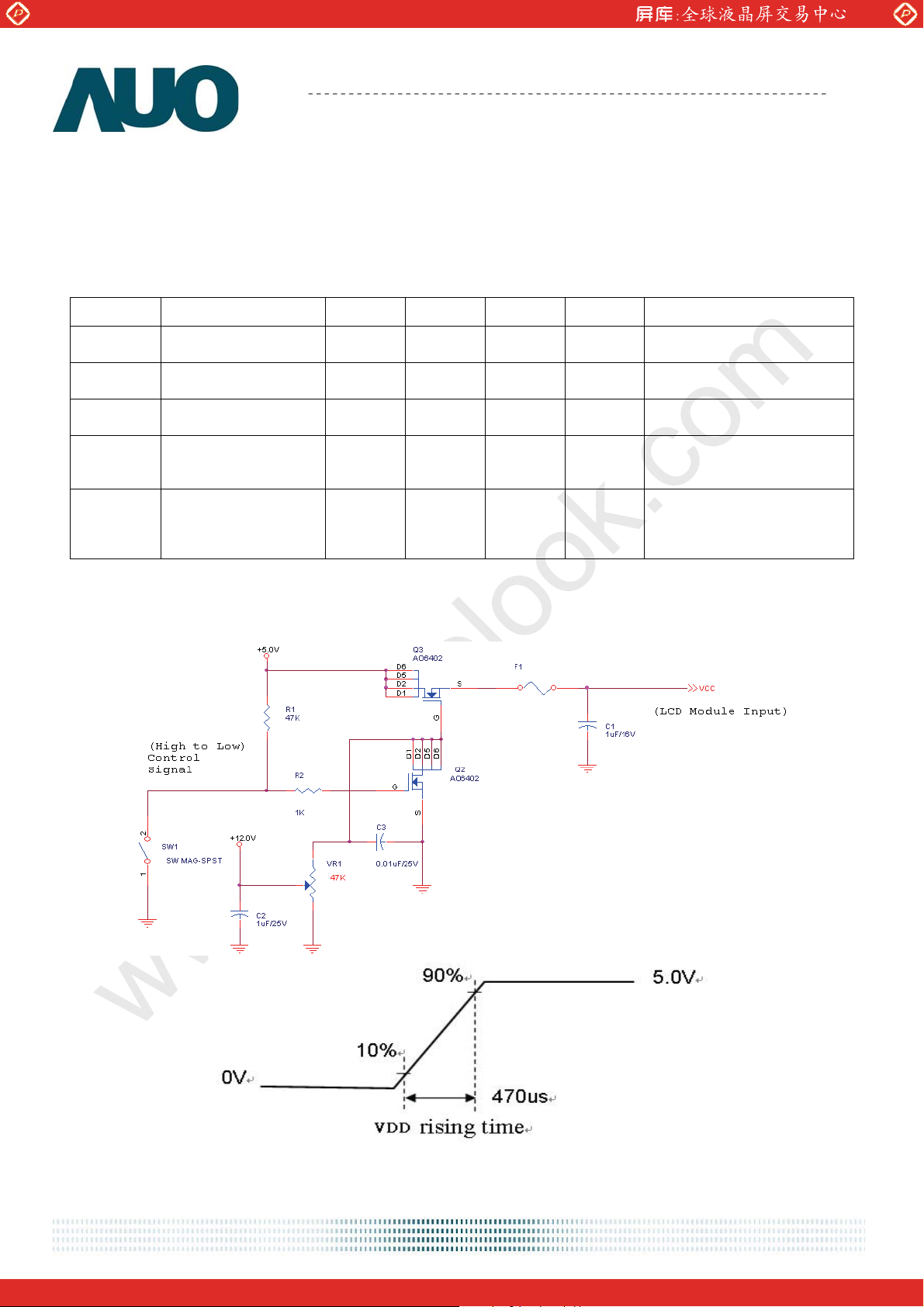

Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
document version 0.1
12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M215HW01 VB
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
│VID│ Input Differential Voltage 100 - 600 [mV] Note 1
VICM
Differential Input High Threshold Differential Input Low Threshold
Differential Input Common Mode Voltage
- - +100 [mV]
-100 - - [mV]
+1.0 +1.2 +1.5 [V]
VICM = 1.2V Note 1 VICM = 1.2V Note 1
VTH-VTL = 200MV (max) Note 1

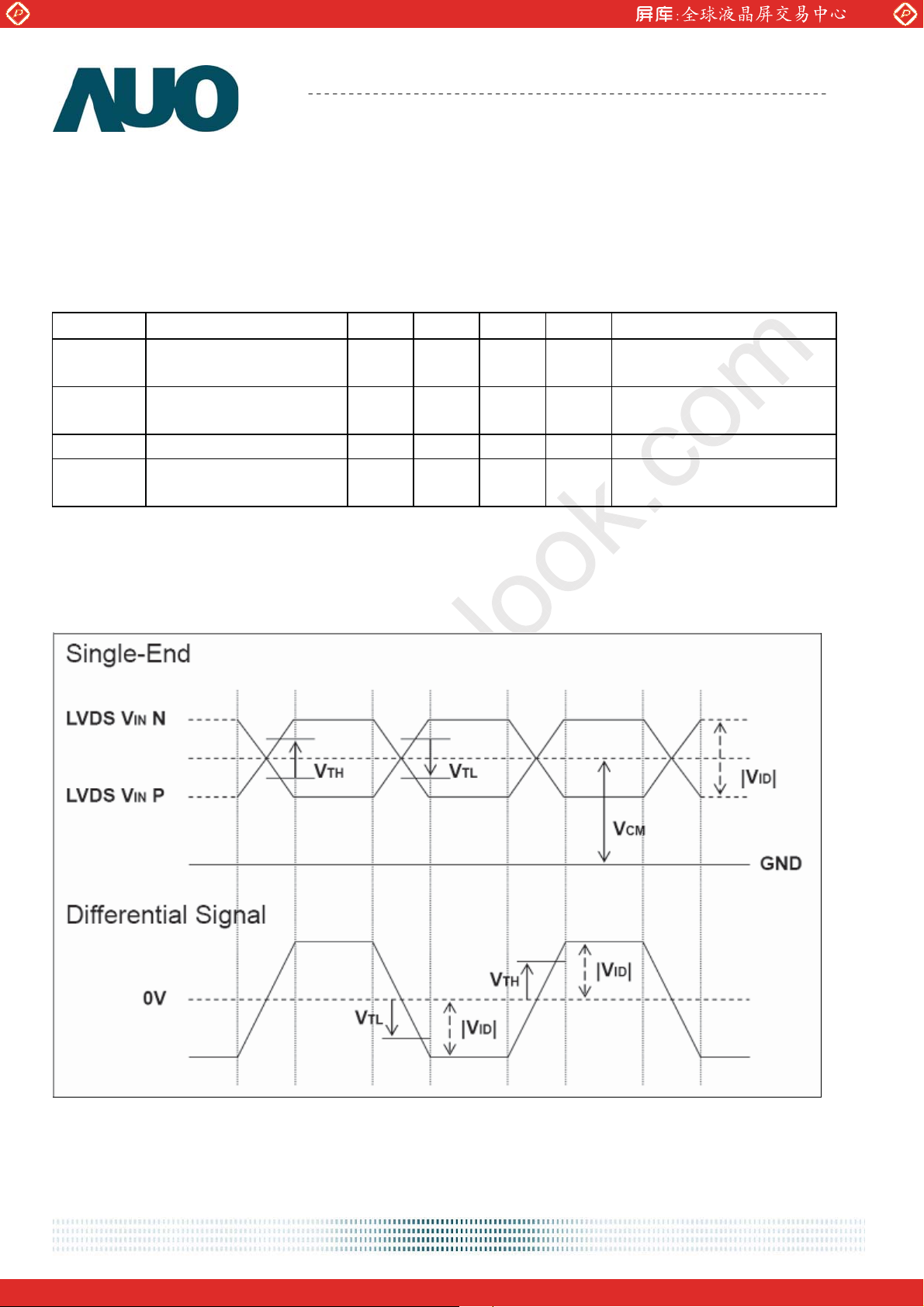

Note 1: LVDS Signal Waveform
document version 0.1
13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
q
x
r
V
t
www.panelook.com

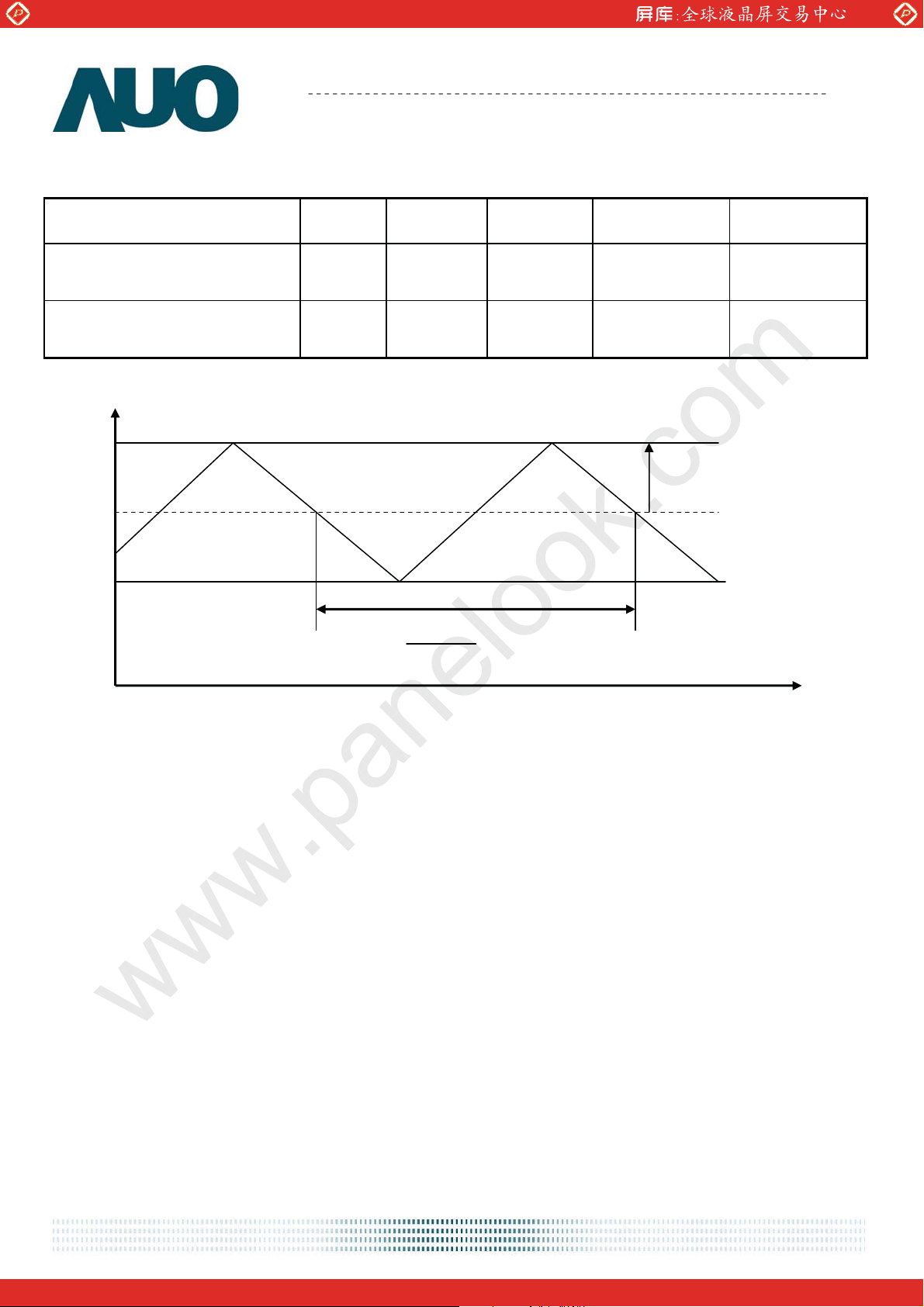

2. AC Characteristics
Description Symbol Min Max Unit Note
Maximum deviation of input
clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
Fre
Fma
Fcente
Product Specification
AU OPTRONICS CORPORATION
DEV - ± 3 %
F
MOD - 200 KHz
F
M215HW01 VB
Fcenter * FDE
Fmin
1
F
MOD
< Spread Spectrum>
ime
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for LED driver is under stable conditions at 25
Symbol Parameter Min.
IR
LED Operation Current - 60 63
LED
VLB
P
BLU Power consumption (for reference)
BLU
LT
LED life Time
LED
Note 1 :The specified current is input LED chip 100% duty current. Note 2 : The value showed in the table is one light bar’s operation voltage. Note 3 : Based on the operating current is 60mA. Note 4: Each LED light bar consists of 64 pcs LED package ( 4 strings x 16 pcs / string ).
Light Bar Operation Voltage
(for reference)
Typ. Max. Unit Note
48 52.8 57.6
12.7 13.8
30000
(Room Temperature):
[mA]
Note 1
[Volt]
Note 2
[Watt]
Note 3
[Hour]
Note 3
M215HW01 VB
Operating with fixed
driving current
document version 0.1
15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
M215HW01 VB
1080 Line
6.2 The input data format
R G B R G B
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “First Pixel Data” E = “Second Pixel Data”
document version 0.1
16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
g
)
)
g
)
)
g
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)28V
V
V
V
V
V
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a differential signal technology for LCD interface and high speed data transfer device. LVDS transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION 1RxOIN0- Ne 2 RxOIN0+ Positive LVDS differential data input (Odd data 3RxOIN1- Ne 4 RxOIN1+ Positive LVDS differential data input (Odd data 5RxOIN2- Ne 6 RxOIN2+ Positive LVDS differential data input (Odd data,DSPTMG 7 GND Power Ground 8 RxOCLK- Negative LVDS differential clock input (Odd clock
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data,DSPTMG
9 RxOCLK+ Positive LVDS differential clock input (Odd clock 10 RxOIN3- Negative LVDS differential data input (Odd data 11 RxOIN3+ Positive LVDS differential data input (Odd data 12 RxEIN0- Negative LVDS differential data input (Even data 13 RxEIN0+ Positive LVDS differential data input (Even data 14 GND Power Ground 15 RxEIN1- Positive LVDS differential data input (Even data 16 RxEIN1+ Negative LVDS differential data input (Even data 17 GND Power Ground 18 RxEIN2- Negative LVDS differential data input (Even data 19 RxEIN2+ Positive LVDS differential data input (Even data 20 RxECLK- Negative LVDS differential clock input (Even clock 21 RxECLK+ Positive LVDS differential clock input (Even clock 22 RxEIN3- Negative LVDS differential data input (Even data 23 RxEIN3+ Positive LVDS differential data input (Even data 24 GND Power Ground 25 NC No connection(for AUO test only. Do not connect 26 NC No connection(for AUO test only. Do not connect 27 NC No connection (for AUO test only. Do not connect
DD Power +5 29 30
DD Power +5
DD Power +5
Note1: Start from left side
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB
Note2: Input
signals of odd and even clock shall be the same timing.
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK
Tcl k
40
75
90
[MHz]
Period Th 1034 1060 2047 [Tclk]
H-section
Display Area Tdisp(h) 960 960 960 [Tclk]
Blanking Tblk(h) 74 100 1087 [Tclk]
Period Tv 1088 1120 2047 [Th]
V-section
Display Area Tdisp(h) 1080 1080 1080 [Th]
Blanking Tblk(h) 8 40 967 [Th]
Frame Rate F 50 60 75 [Hz]
Note : DE mode only
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

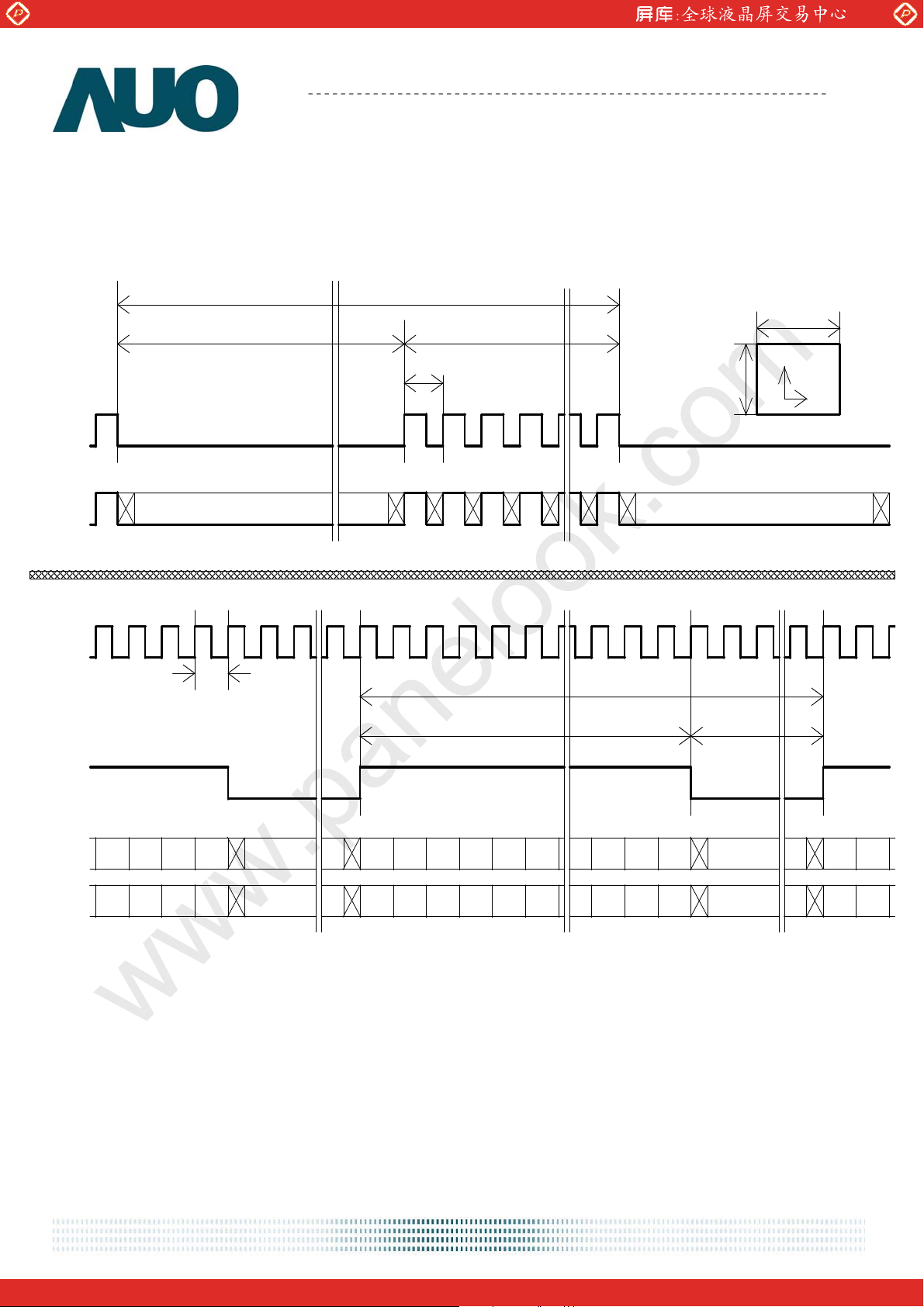

6.5 Timing diagram
DE
RGB Data
CLK
RGB Data (Odd)
RGB Data (Even)
DE
N
Line
Pixel
Pixel
M-7
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Invalid Data
Tclk
Pixel
M-1
Pixel
M
Tblk(v)
Invalid Data
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
32
LineLine
Th
Tdisp(h)
Pixel
Pixel
10
4
LineLine
Pixel
119
12
Pixel
Pixel
1
Pixel
1
Pixel Pixel
2
Pixel
Pixel
3
4
Pixel
7
5
Pixel
Pixel
8M
6M-2
N
Line
M-5
M-4
Pixel
Pixel
M-3
M215HW01 VB
N Line
Invalid Data
Tblk(h)
Pixel
M-1
PixelPixel
Invalid Data
Invalid Data
M pixel
Y
X
Pixel
Pixel
1
3
Pixel
Pixel
4
2M-4
document version 0.1
19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M215HW01 VB
AU OPTRONICS CORPORATION

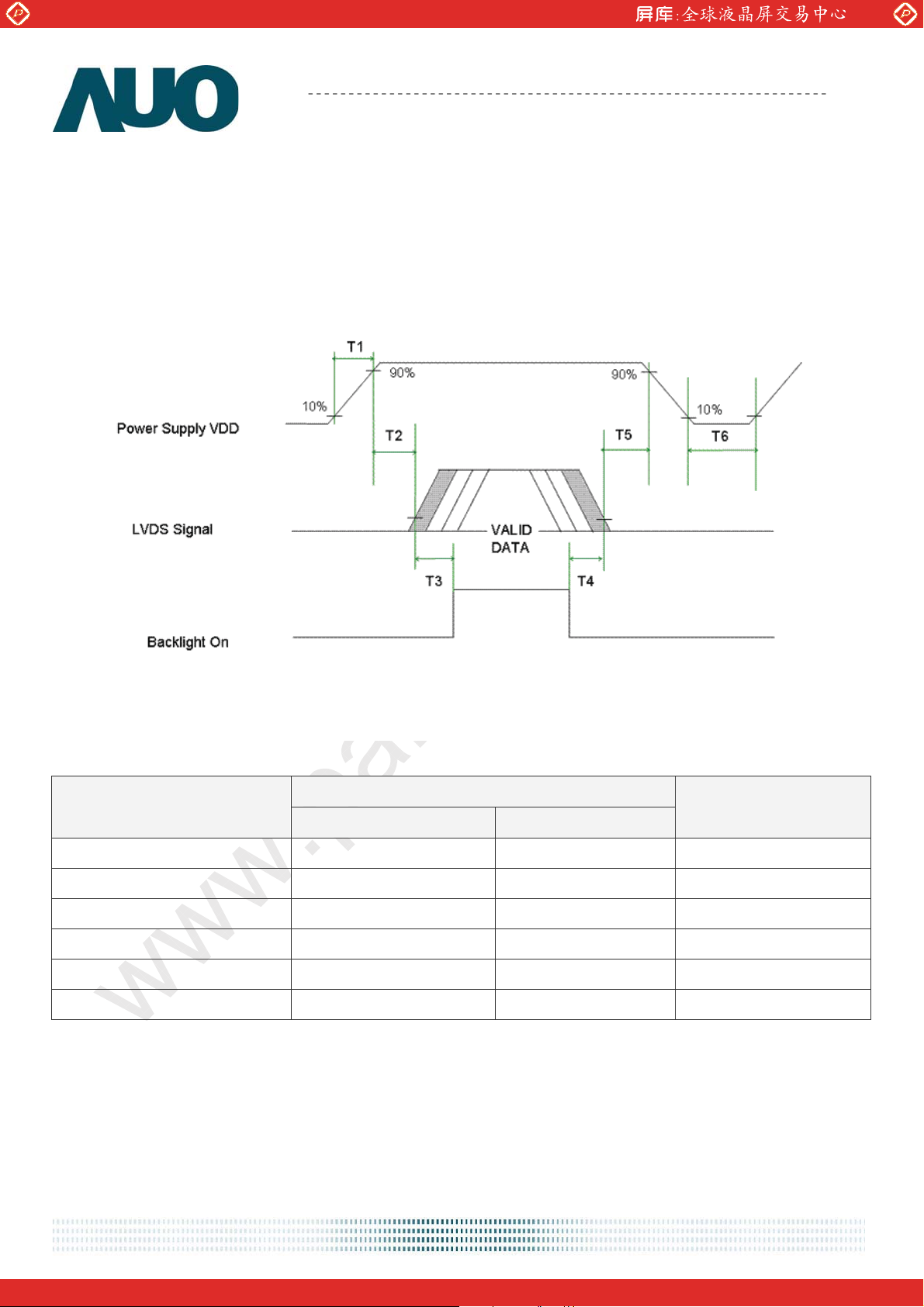

6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Value
Parameter
Unit
Min. Max.
T1 0.5 10 [msec]
T2 0 50 [msec]
T3 500 - [msec]
T4 200 - [msec]
T5 0 50 [msec]
T6 1000 - [msec]
document version 0.1
20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M215HW01 VB

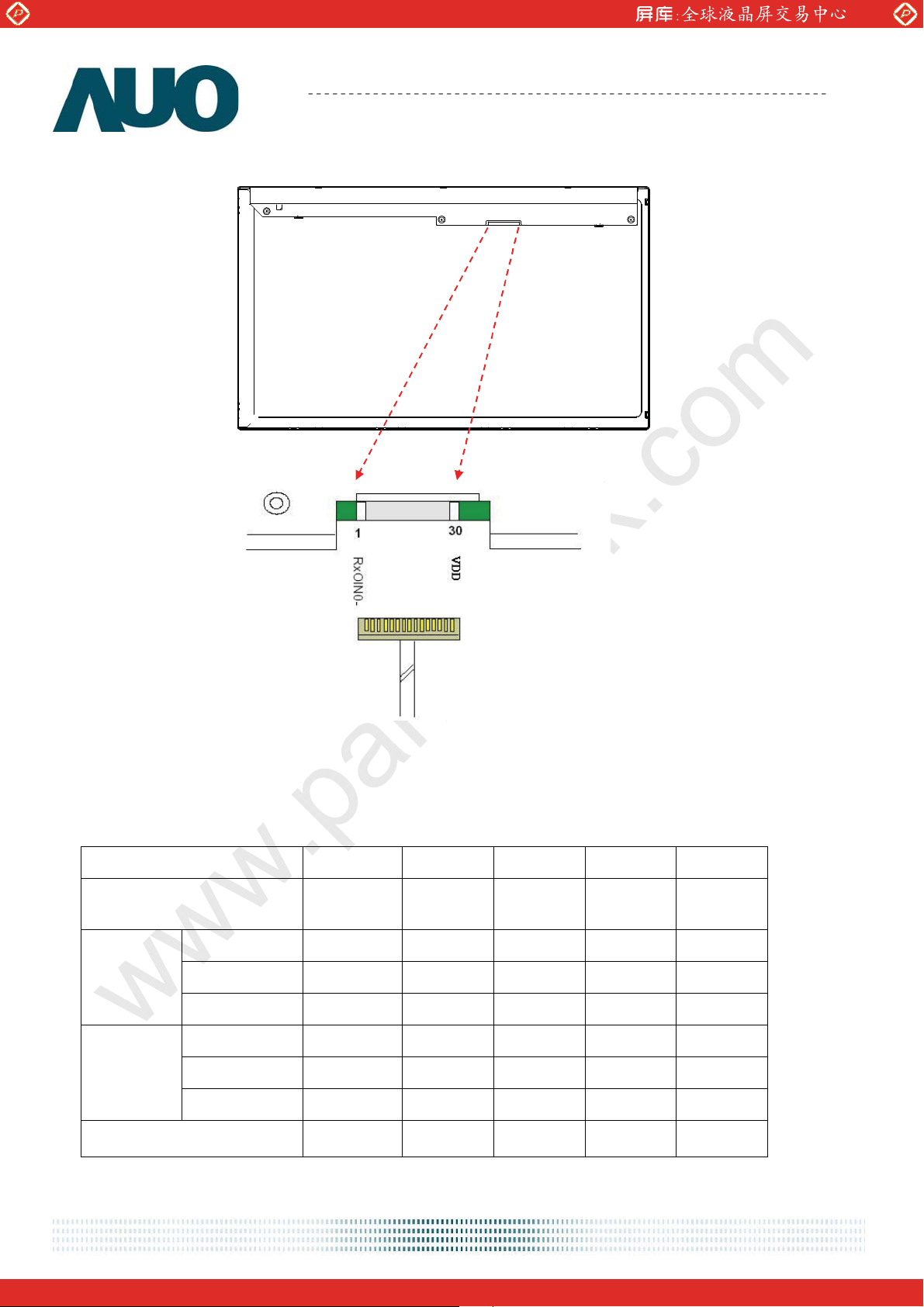

7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector
Manufacturer JAE, Starconn
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
FI-XB30SRL-HF11(JAE) 093F30-B0T01A(Starconn)
/ Interface card
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND 25 NC (for AUO test only. Do not
connect)
27 NC (for AUO test only. Do not
connect)
29 VDD 30 VDD
26 NC
(for AUO test only. Do not
connect)
28 VDD
document version 0.1
21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.2 Connector on Backlight Unit.
This connector is mounted on LED light-bar.
Connector Name / Designation Light Bar Connector
Manufacturer CVILUX
Type Part Number CI1406M1HRB-NH
7.2.1 Signal for LED light bar connector
Pin no. Signal name
1 I
2 I
3 V
4 V
5 I
6 I
(current out)
LED
(current out)
LED
(voltage in)
LED
(voltage in)
LED
(current out)
LED
(current out)
LED
M215HW01 VB
document version 0.1
22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test (Non-operation)
Ta= 50
Ta= 50
Ta= 0
Ta= 60
Ta= -20
, 80%RH, 300hours
, 50%RH, 300hours
, 300hours
, 300hours
, 300hours
Acceleration: 1.5 Grms Wave: Random Frequency: 10 - 200 Hz Sweep: 30 Minutes each Axis (X, Y, Z)
M215HW01 VB
Note
Acceleration: 50 G Shock Test (Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST)
/30min, 60/30min, 100 cycles 1
-20
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point. ESD (Electro Static Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid temperature change. A cycle of rapid temperature change consists of varying the temperature from
-
!
"
e
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost Self-recoverable No hardware failures.
document version 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

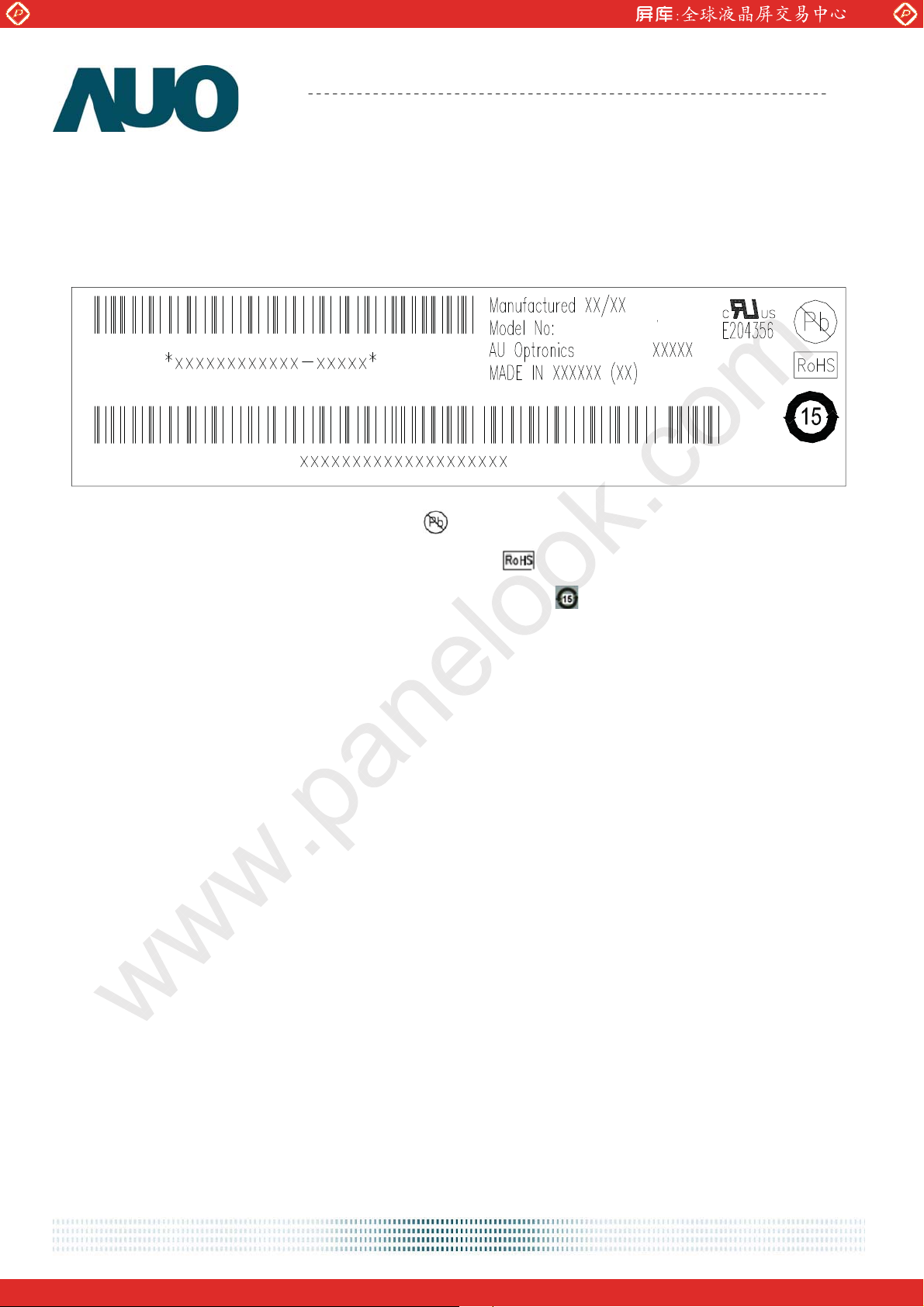

9.0 Shipping Label
The label is on the panel as shown below:
Note 1: For Pb Free products, AUO will add
for identification.
M215HW01 VB
M215HW01 VB
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team
document version 0.1
24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

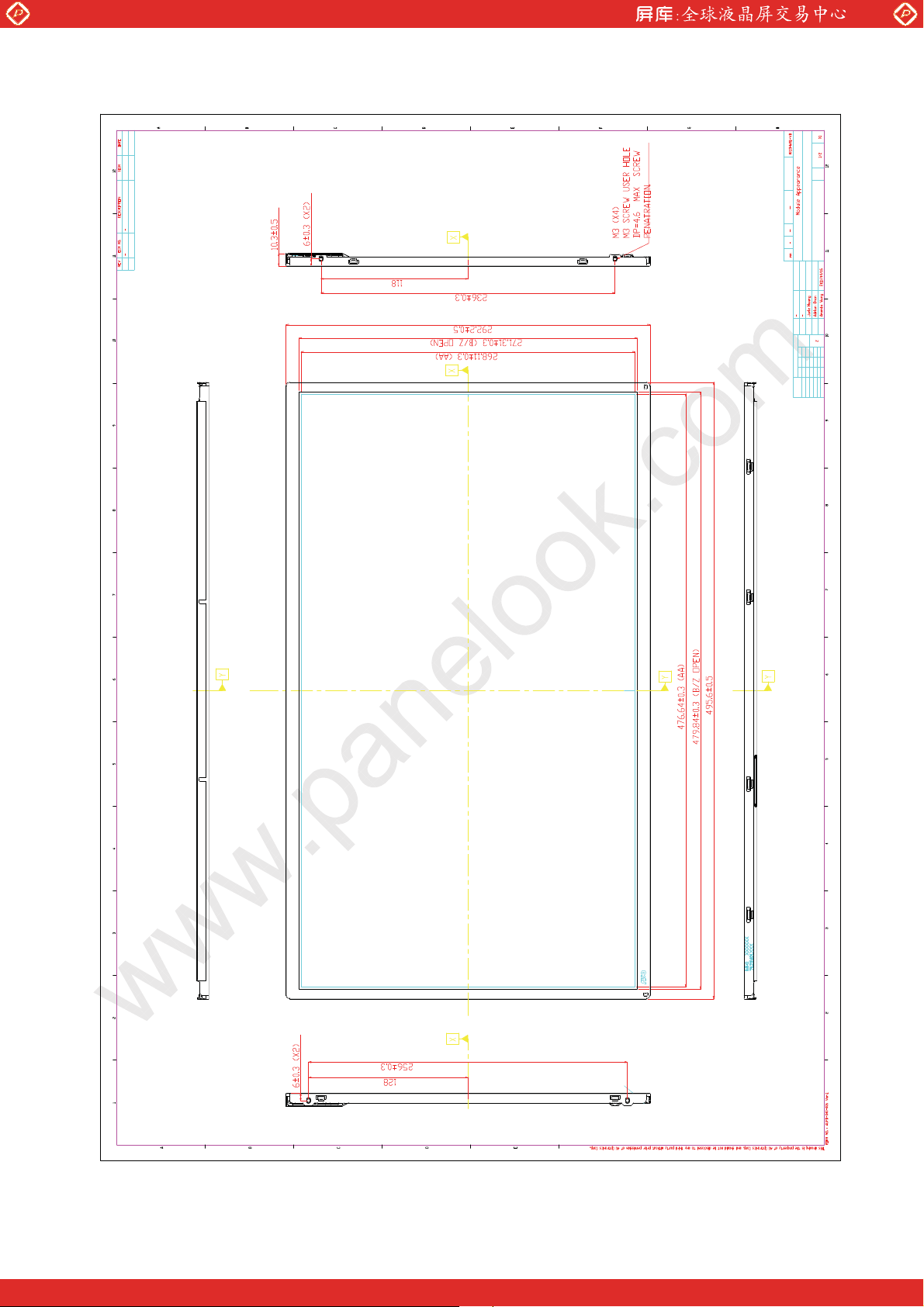

Page 25
Global LCD Panel Exchange Center
www.panelook.com
Ver 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

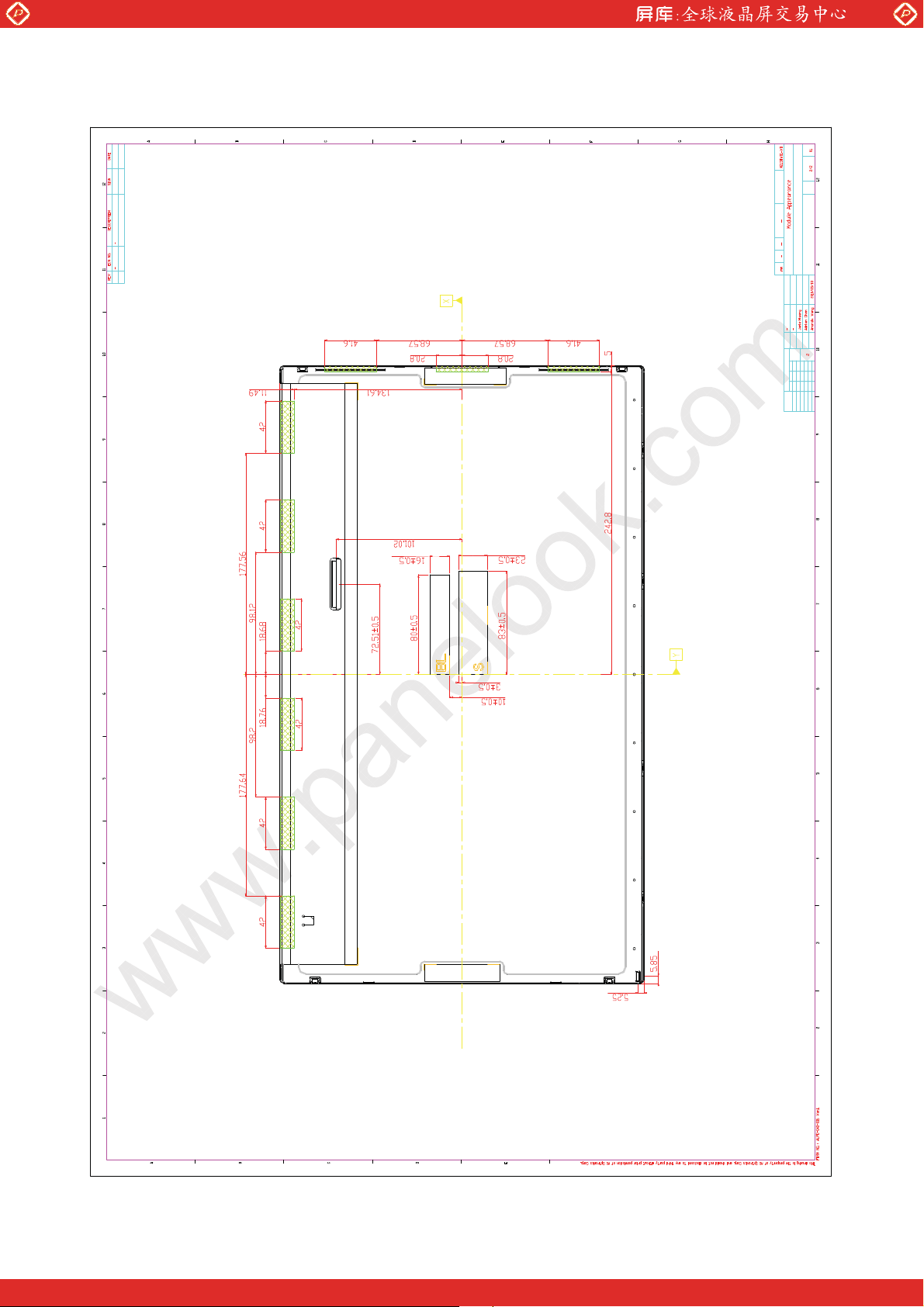

Page 26
Global LCD Panel Exchange Center
www.panelook.com
Ver 0.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
