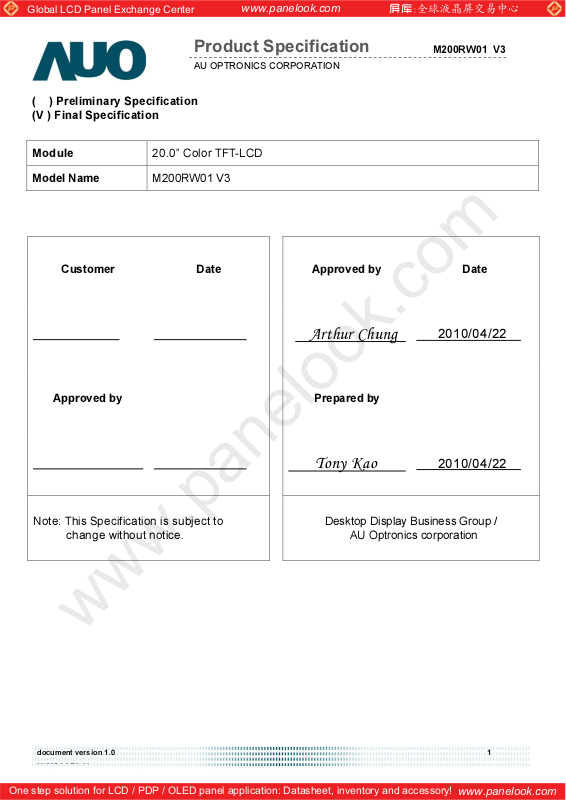

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
( ) Preliminary Specification
(V
) Final Specification
Module 20.0” Color TFT-LCD
Model Name M200RW01 V3
Customer Date
Approved by Date
Approved by
Note: This Specification is subject to
change without notice.
Arthur Chung
Prepared by
Tony Kao
Desktop Display Business Group /
AU Optronics corporation
2010/04/22
2010/04/22
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
Contents
1.0 Handling Precautions .................................................................................... 4
2.0 General Description....................................................................................... 5
2.1 Display Characteristics ..........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6

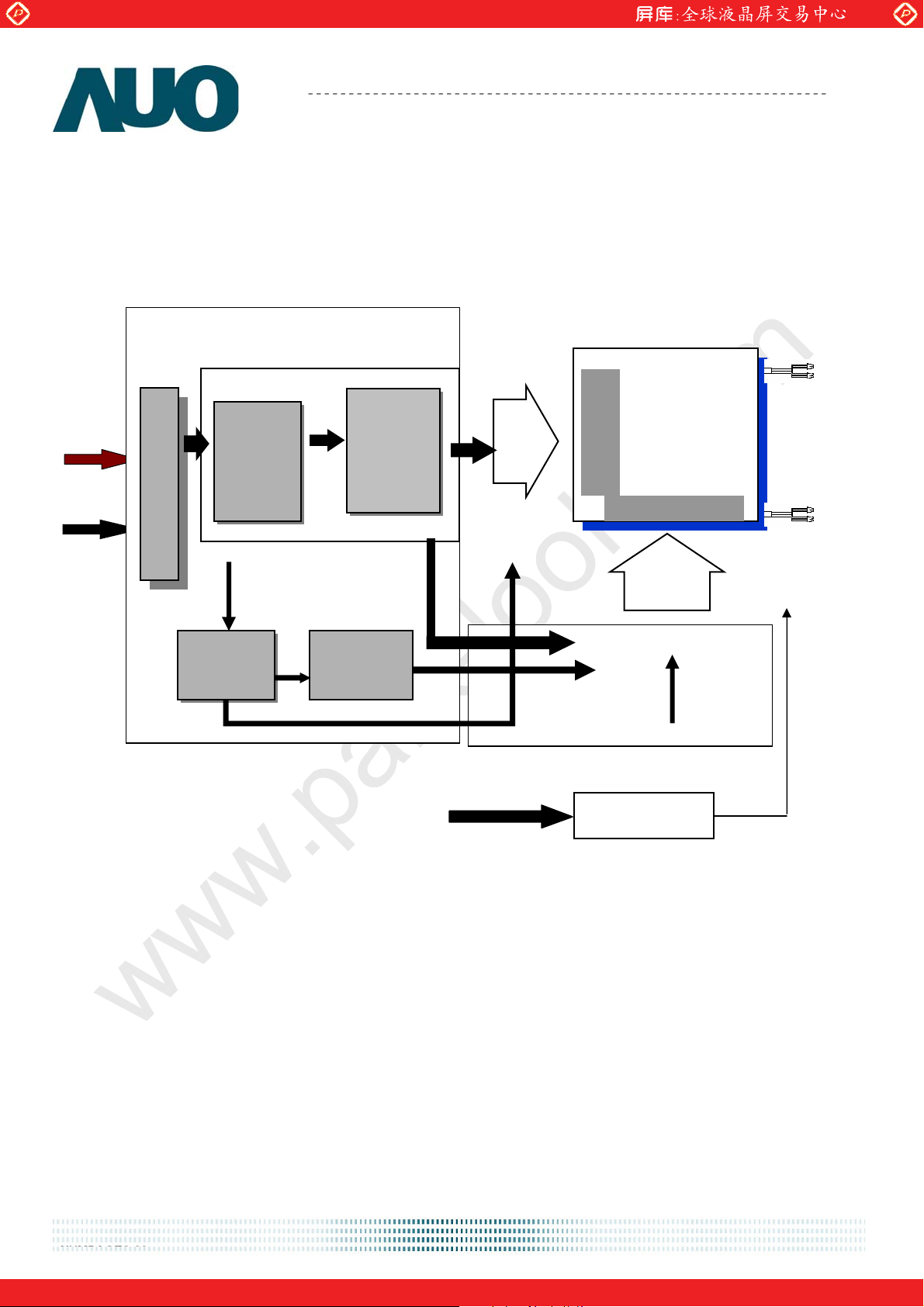

3.0 Functional Block Diagram ........................................................................... 10
4.0 Absolute Maximum Ratings ........................................................................ 11
4.1 TFT LCD Module.................................................................................................................. 11
4.2 Backlight Unit ....................................................................................................................... 11

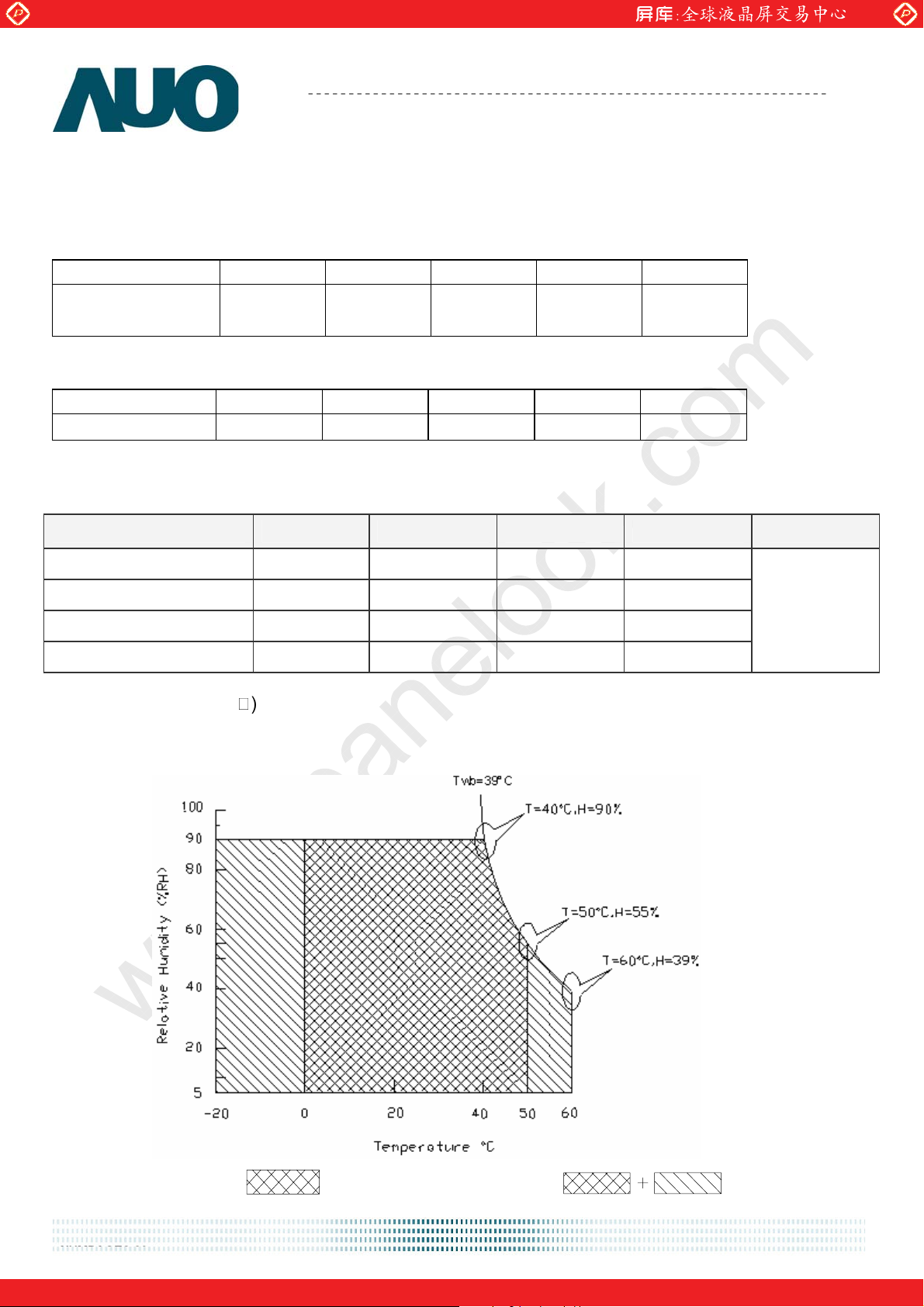

4.3 Absolute Ratings of Environment ........................................................................................ 11
5.0 Electrical characteristics............................................................................. 12
5.1 TFT LCD Module.................................................................................................................. 12
5.1.1 Power Specification .......................................................................................................12
5.1.2 Signal Electrical Characteristics ....................................................................................13
5.2 Backlight Unit .......................................................................................................................14
6.0 Signal Characteristic ................................................................................... 16

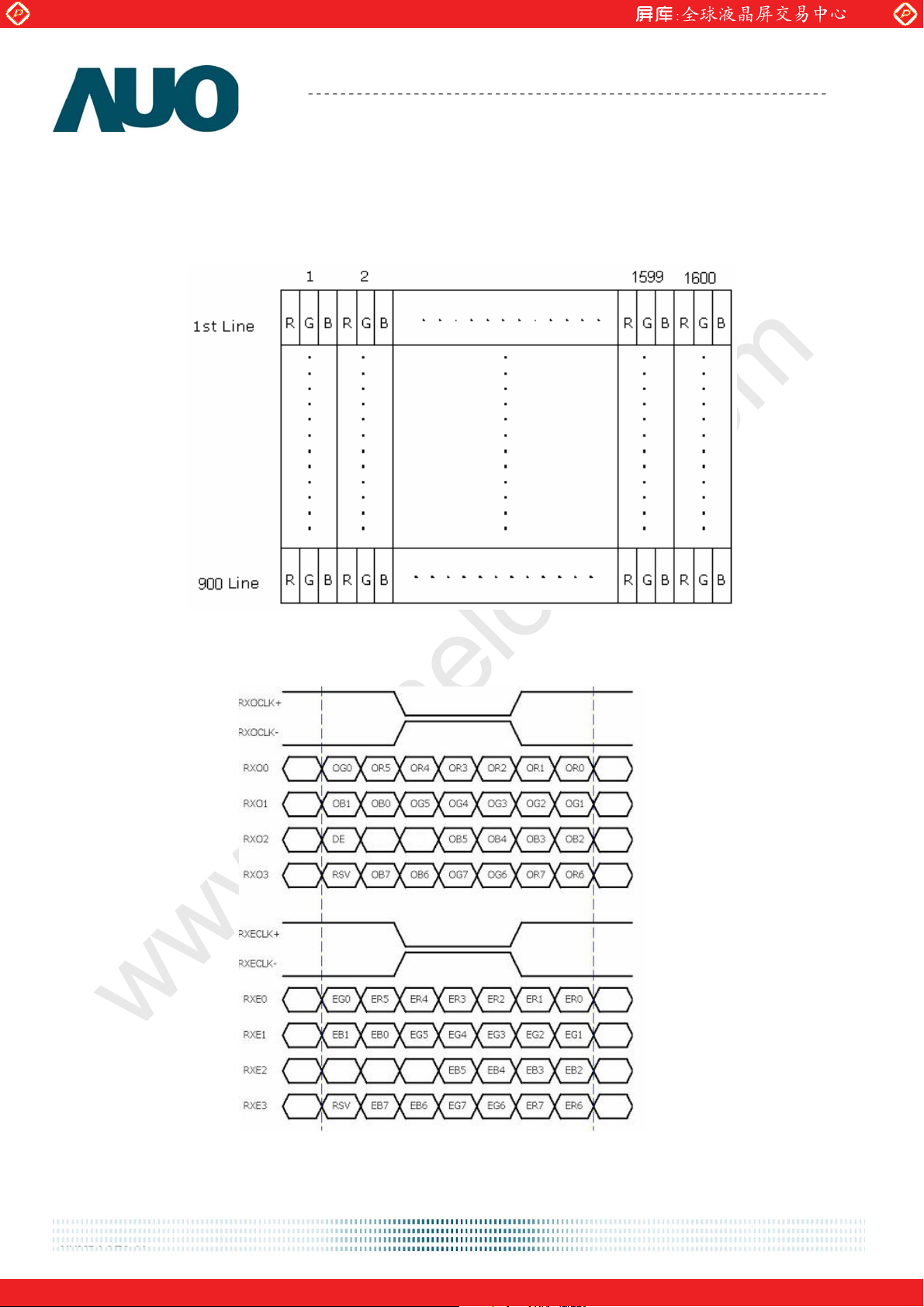

6.1 Pixel Format Image.............................................................................................................. 16
6.2 The input data format...........................................................................................................16
6.3 Signal Description ................................................................................................................17
6.4 Timing Characteristics..........................................................................................................18

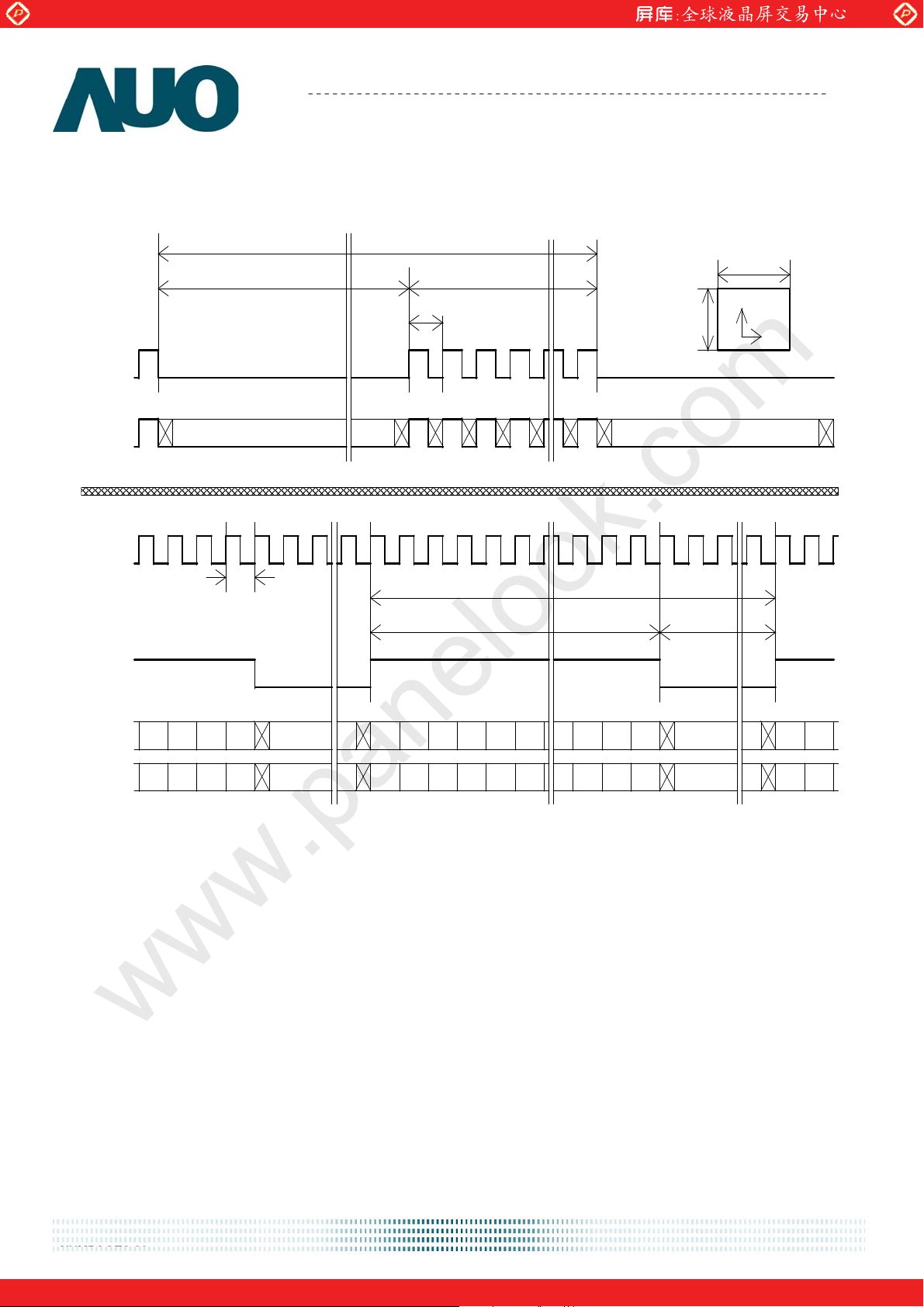

6.5 Timing diagram.....................................................................................................................19

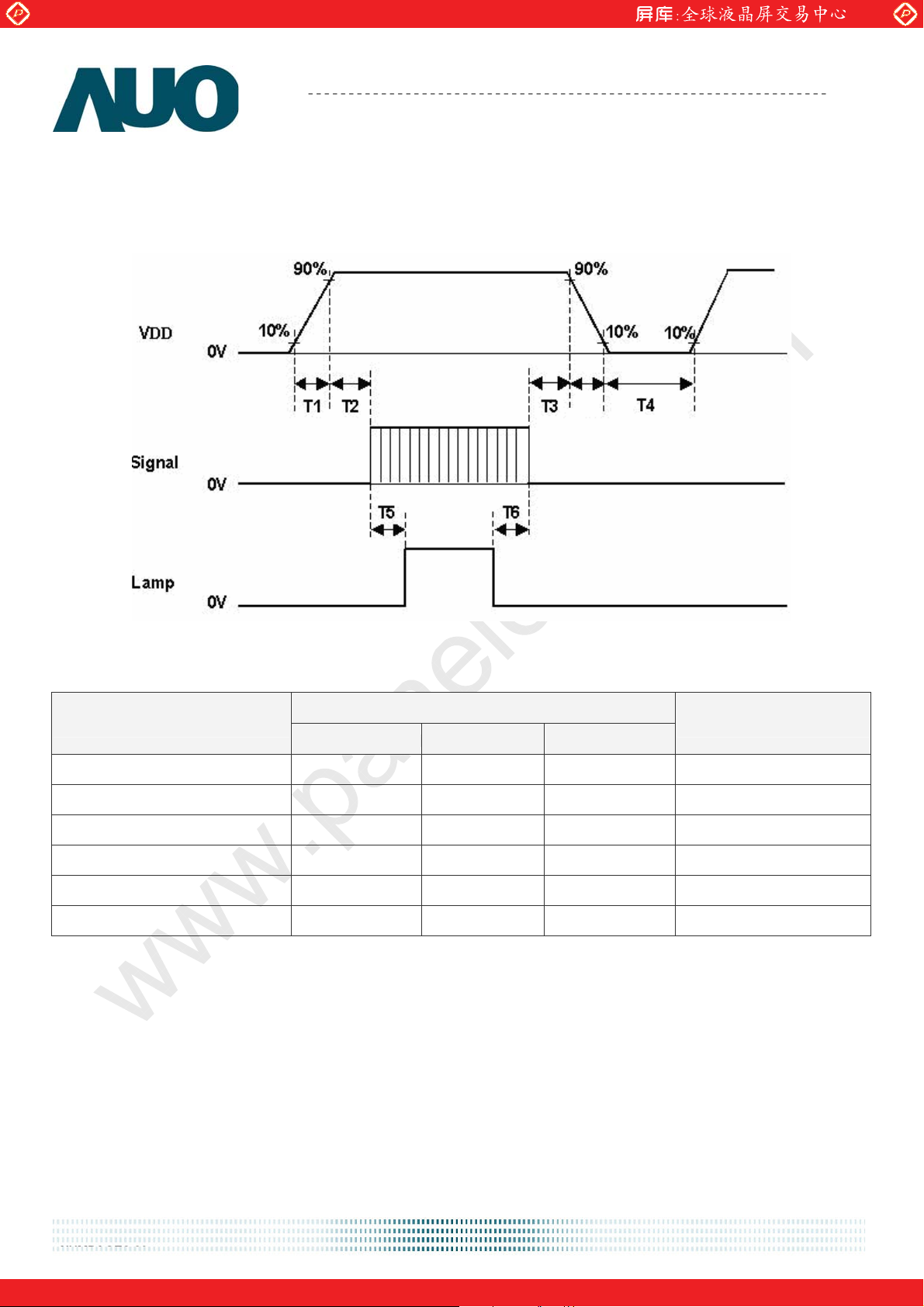

6.6 Power ON/OFF Sequence...................................................................................................19

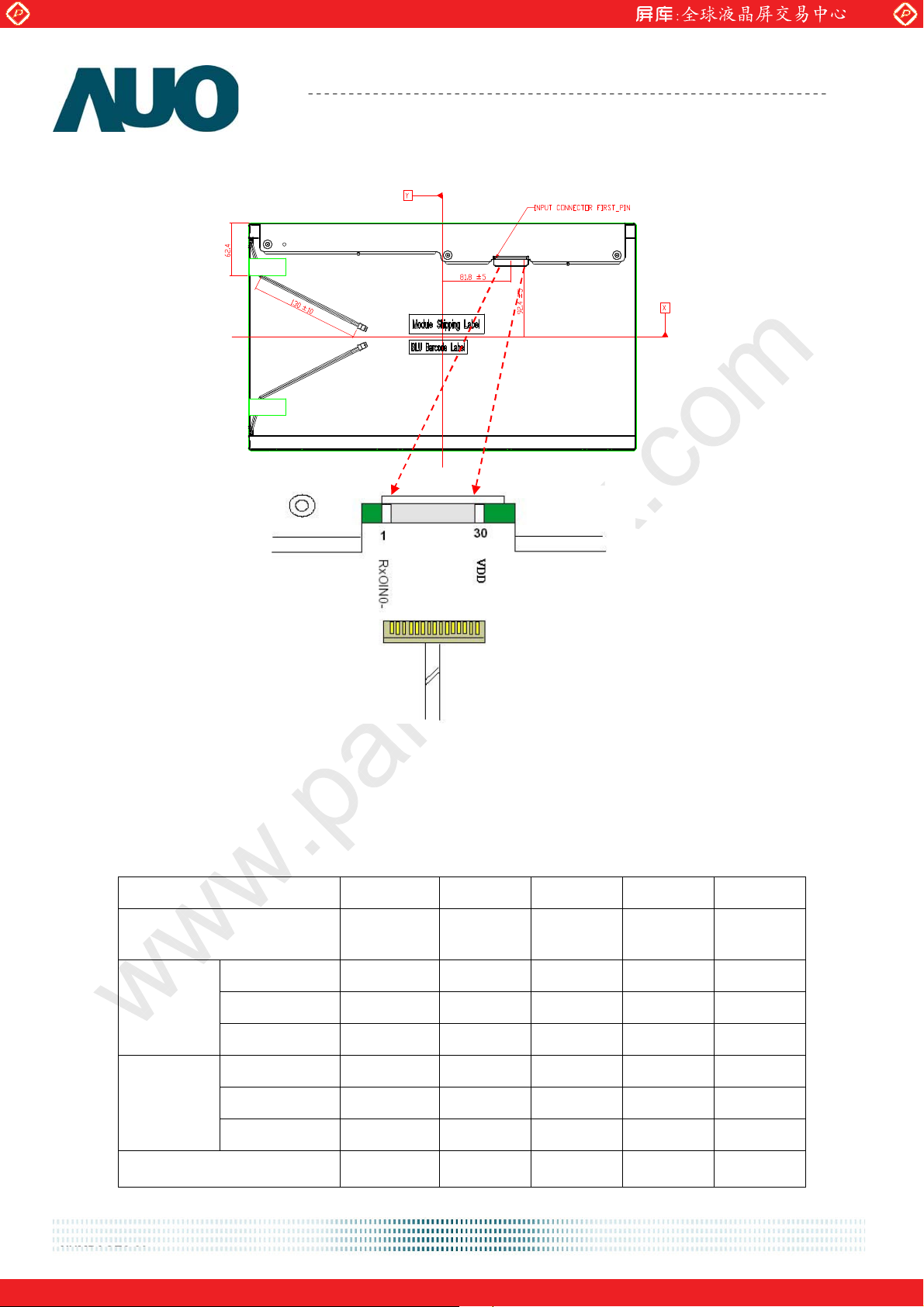

7.0 Connector & Pin Assignment...................................................................... 21
7.1 TFT LCD Module.................................................................................................................. 21
7.1.1 Pin Assignment ..............................................................................................................21
7.2 Backlight Unit .......................................................................................................................22
7.2.1 Signal for Lamp connector ............................................................................................22
8.0 Reliability Test ............................................................................................. 23

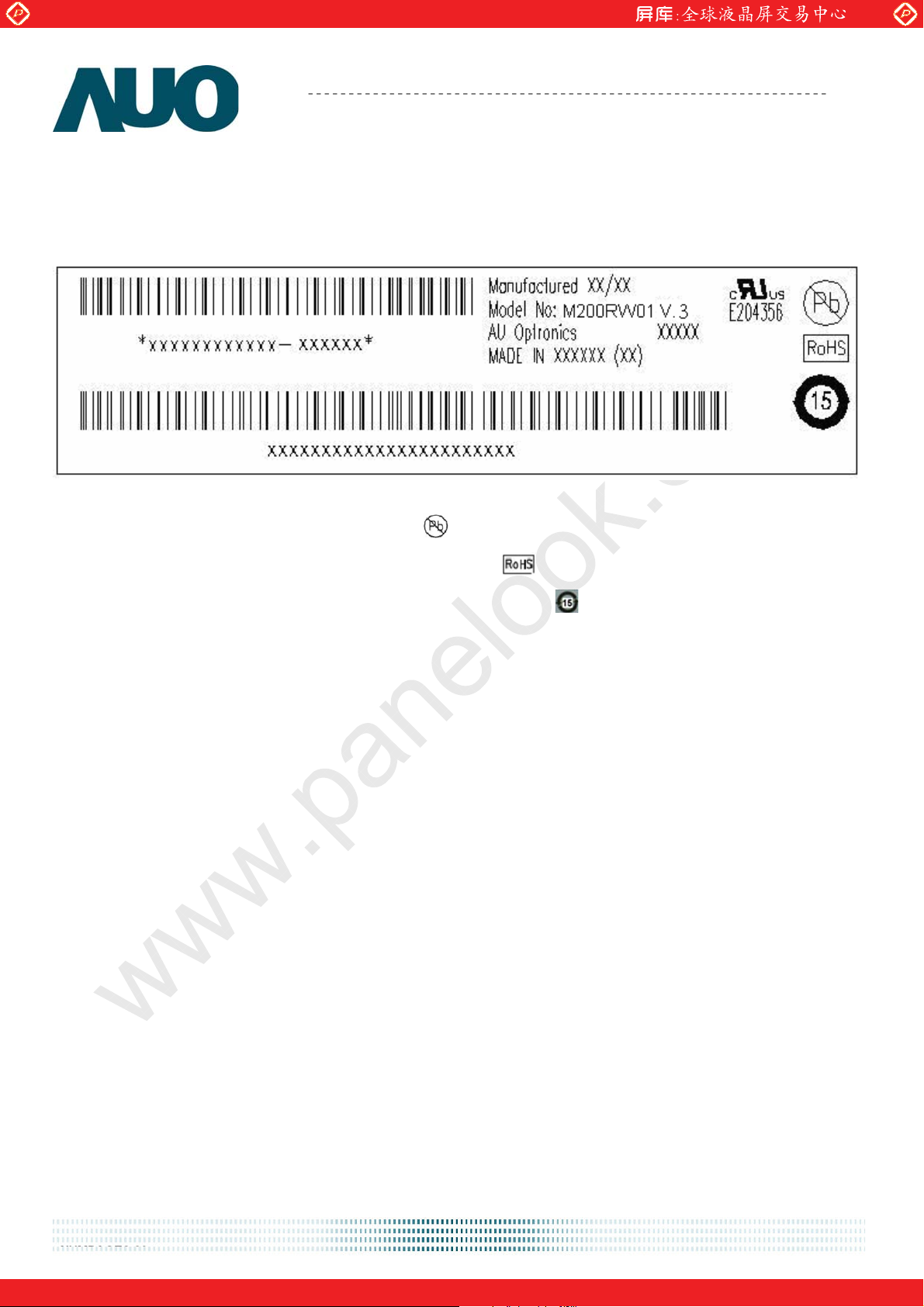

9.0 Shipping Label ............................................................................................. 24

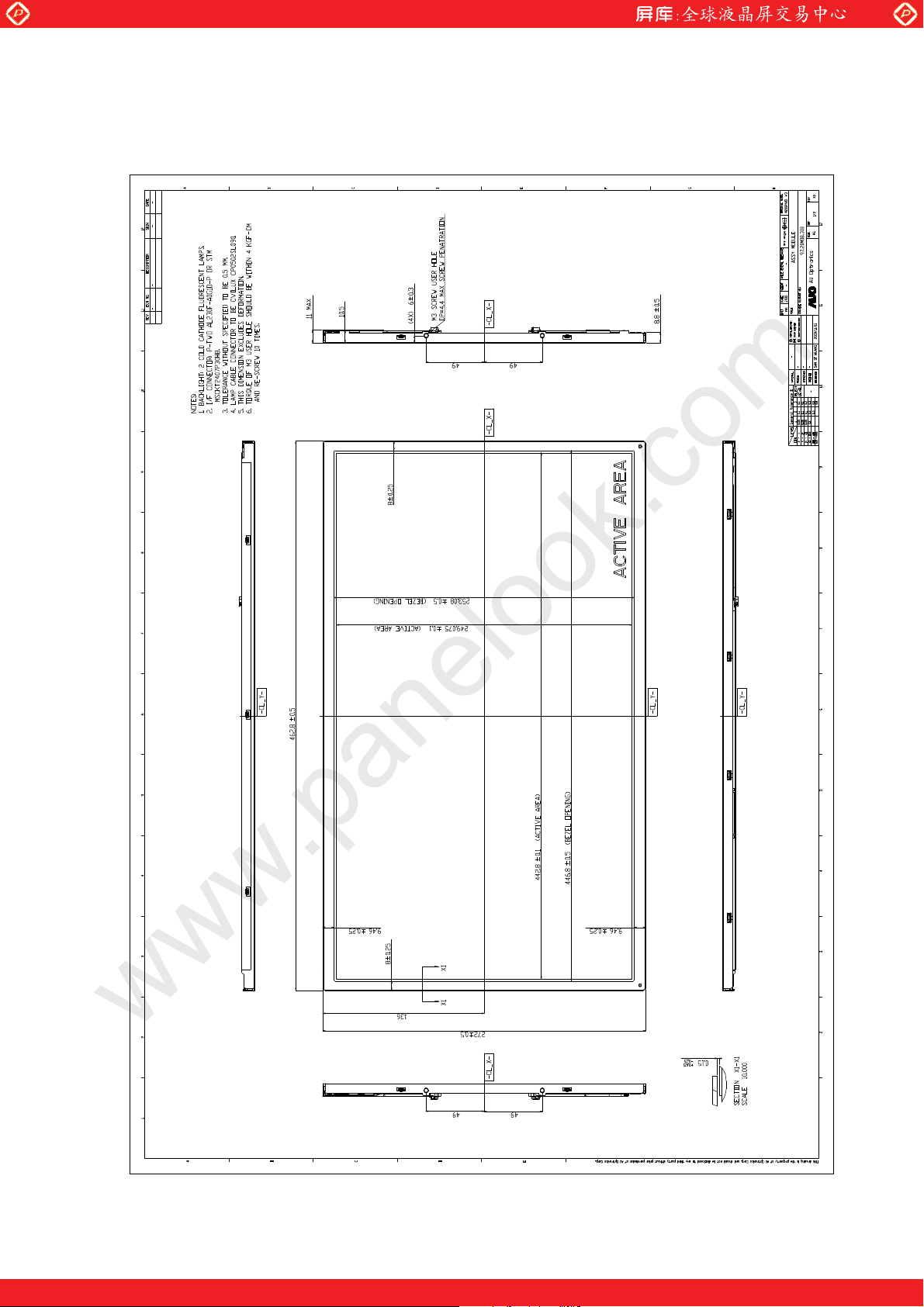

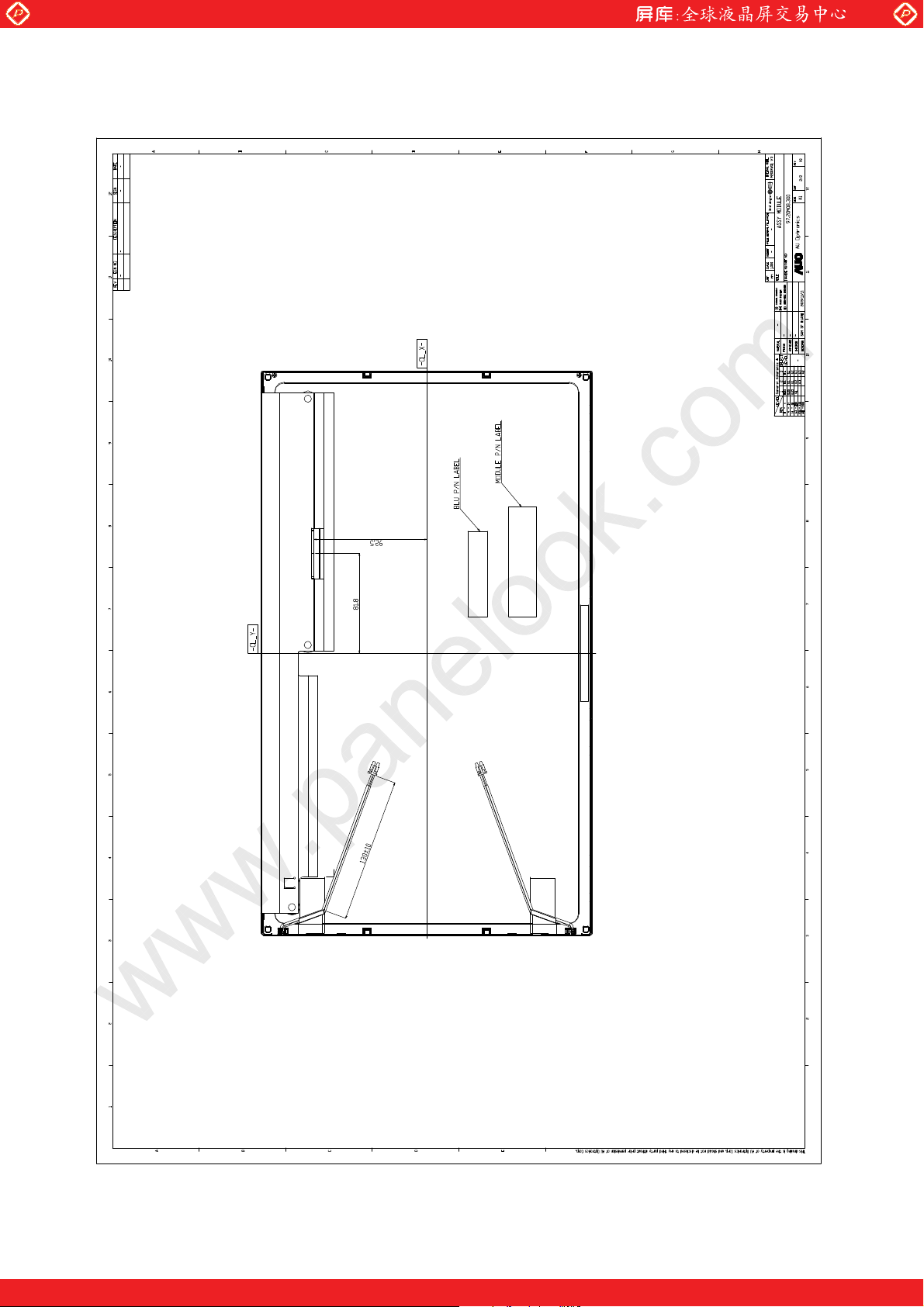

10.0 Mechanical Characteristics ....................................................................... 25
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page Old description New Description
0.1 2009/11/16 All
0.2 2010/01/22 6
10
12
First Edition for Customer N/A
2.2 Optical Characteristics
2.2 Optical Characteristics
3.0 Functional Block Diagram
I/F PCB Interface:
MSCKT2407P30HB
3.0 Functional Block Diagram
I/F PCB Interface:
AL230F-A0G1D-P (P-TWO)
MSCKT2407P30HB (STM)

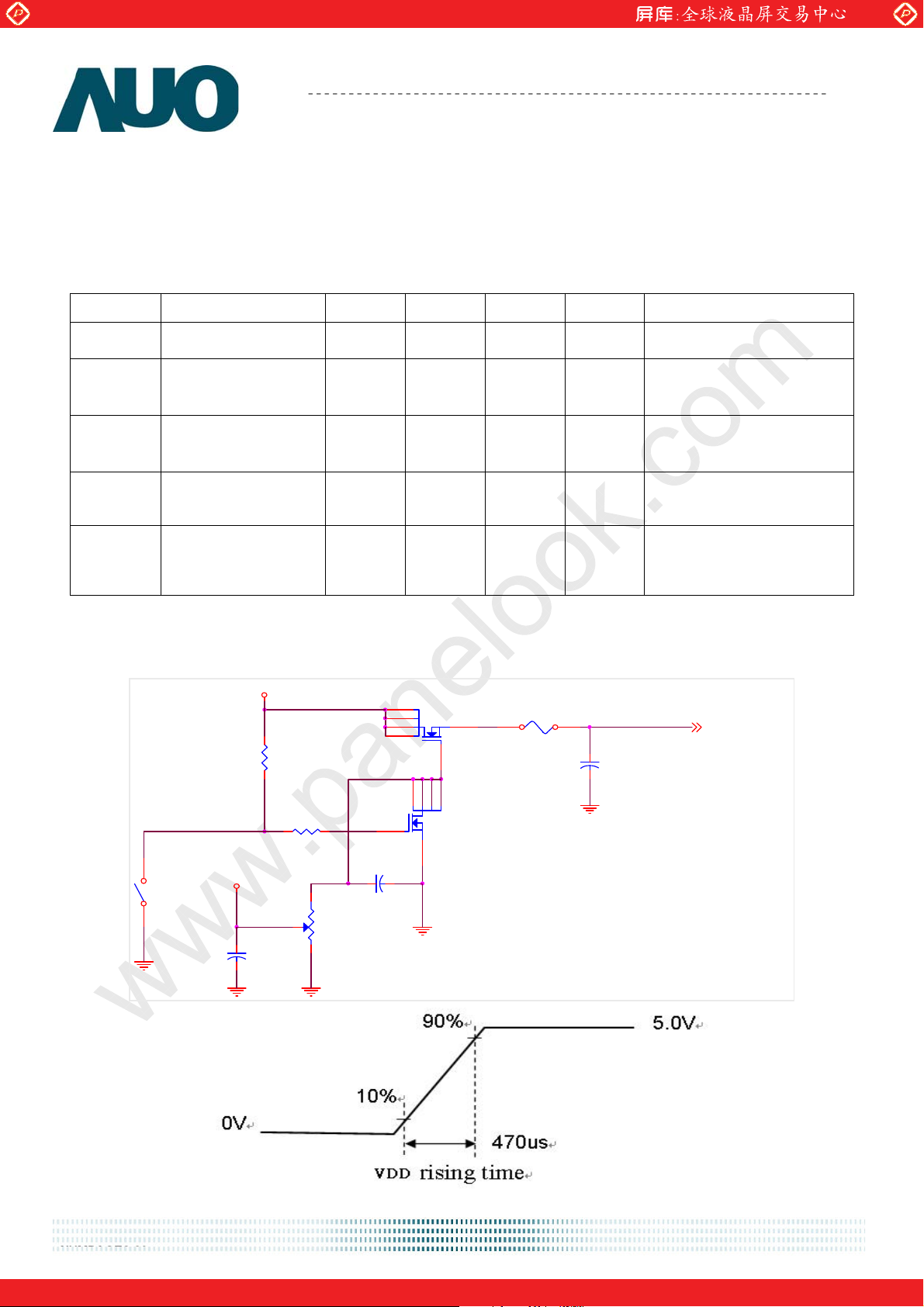

5.1.1 Power Specification
IRush Max. 2.5 [A]
5.1.1 Power Specification
IRush Max. 3 [A]
M200RW01 V3
Remar
k
13
14
20
21

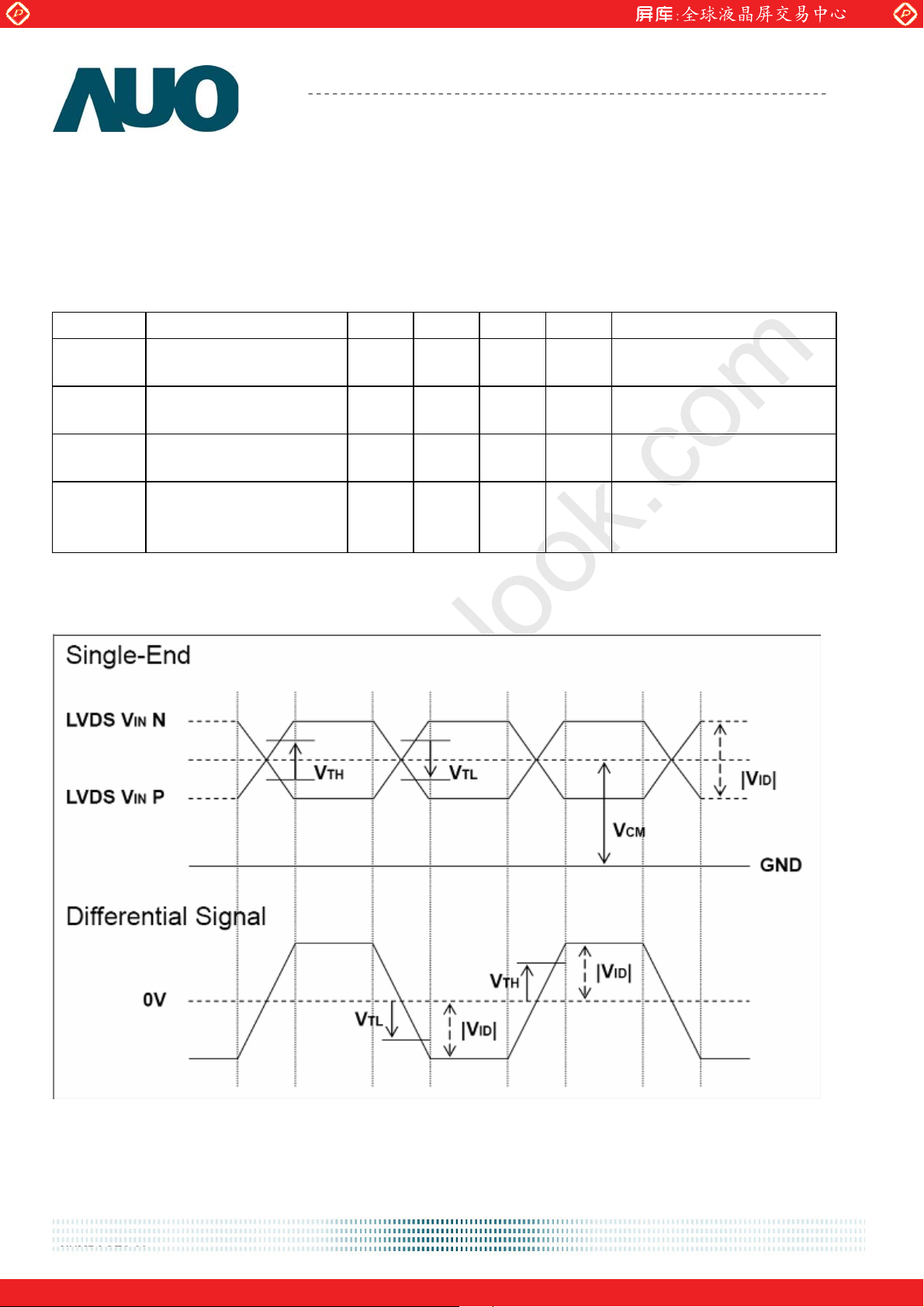

Note 1: LVDS Signal Waveform
5.2 Backlight Unit
Max. 1620 [Volt] rms
Max. 1240 [Volt] rms
6.6 Power ON/OFF Sequence
T1 value:
Min. 0.5msec / Max. 10msec
7.1 TFT LCD Module
Type Part Number: MSCKT2407P30HB
Note 1: LVDS Signal Waveform
5.2 Backlight Unit
Max. 1660 [Volt] rms
Max. 1280 [Volt] rms
6.6 Power ON/OFF Sequence
T1 value:
Min. 0.2msec / Max. 1msec
7.1 TFT LCD Module
Type Part Number:
AL230F-A0G1D-P (P-TWO)
MSCKT2407P30HB (STM)
1.0
2010/04/22
252610.0 Mechanical Characteristics.
10.0 Mechanical Characteristics.
Revised 2D drawing
All N/A Final Spec
document version 1.0
3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the CCFL reflector edge. Instead, press at
the far ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
Module may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit
(IEC60950 or UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 1.0
4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
2.0 General Description
This specification applies to the 20 inch-wide Color a-Si TFT-LCD Module M200RW01.The
display supports the HD+ 1600(H) x 900(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC
data). All input signals are 2-channel LVDS interface and this module doesn’t contain an inverter
board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 508.05 (20.0”)
Active Area [mm] 442.8 (H) x 249.075 (V)
Pixels H x V 1600(x3) x 900
Pixel Pitch [um] 276.75 (per one triad) ×276.75
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance ( Center ) [cd/m2]
200 cd/m
2
(Typ.)
Contrast Ratio 700 (Typ.)
Optical Response Time [msec] 5ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
[Watt] 16 (Typ.)
(without inverter, all black pattern)
Weight [Grams] 1800 (Typ.)
Physical Size [mm] 462.8 (W) x 272.0 (H) x 11.0 Max.(D)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
[oC]
[oC]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle [degree]
Contrast ratio Normal Direction
Response Time [msec]
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
40
40
15
40
420
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
-
-
-
0.620 0.650 0.680
M200RW01 V3
45
45
20
45
-
-
-
-
700 -
3.4 7.4
1.6 2.6
5 10
2
3
4
Color / Chromaticity
Coordinates (CIE)
Red y
Green x
Green y
Blue x
Blue y
White x
0.307 0.337 0.367
0.259 0.289 0.319
0.580 0.610 0.640
0.116 0.146 0.176
0.037 0.067 0.097
0.283 0.313 0.343
Color Coordinates (CIE)
White
White y
0.299 0.329 0.359
Central Luminance [cd/m2] 180 200 - 6
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
75 80
-
1.5 8
-20
5
7
9
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35
. In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room. ʳ
Photo detector
Measured distance
LCD Panel
Center of the screen
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
TFT-LCD Module
document version 1.0
7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, Tr
), and from “Full White” to “Full Black” (falling time, TfF),
R
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
Optical
Optical
response
response
100
100
90
10
10
%
%
White Black
0
0
Tr
Tr
F
F
Black
1 Frame 1 Frame
Tr
Tr
R
R
White
Tr
+ TfF = 5 msec (typ.).
R
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M200RW01 V3
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
RGBRGB
Gray Level = L127
R GBRGB
RGBRGB
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
evel DC
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
3.0 Functional Block Diagram
The following diagram shows the functional block of the 20.0 inch Color TFT-LCD Module:
+5V
LVD
Connector
Receiver
AUO ASIC
LVDS
Timing
Controller
Mini-LVDS
Transmitter
G1
G900
Y-Driver IC
TFT-LCD
1600(x3) x 900
Pixels
D1
-
D4800
DC/DC
Converter
I/F + X-PCB
I/F PCB Interface:
AL230F-A0G1D-P (P-TWO)
MSCKT2407P30HB (STM)
Mating Type:
P2407P30 (Unlocked type)
PK2407P30 (Locked type)
2 CCFL
Gamma
Correction
DC
Inverter
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL
4.3 Absolute Ratings of Environment
VDD 0 5.5 [Volt] Note 1,2
3.0 8
M200RW01 V3
[mA] rms Note 1,2
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 1: With in Ta (25)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
Note 3
Operating Range Storage Range
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M200RW01 V3
AU OPTRONICS CORPORATION
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
IDD Input Current
PDD VDD Power
IRush Inrush Current
4.5 5.0 5.5 [Volt] +/-10%
VDD= 5.0V, All Black Pattern
- 1.00 1.18 [A]
At 60Hz, +30%
VDD= 5.0V, All Black Pattern
- 5.00 5.90 [Watt]
At 60Hz
- - 3 [A]
Note 1
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
- - 300 [mV] p-p
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
+5.0V
C2
1uF/25V
R1
47K
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
VDD= 5.0V, All Black Pattern
At 60Hz
F1
VCC
(LCD Module Input)
C1
1uF/16V
document version 1.0
12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
│VID│
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
Differential Input
Common Mode
Voltage
- +50 +100 [mV]
-100 -50 - [mV]
100 - 600 [mV] Note 1
+1.0 +1.2 +1.5 [V]
VICM = 1.2V
Note 1
VICM = 1.2V
Note 1
VTH-VTL = 200MV
(max)
Note 1
Note 1: LVDS Signal Waveform
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M200RW01 V3
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25
! " #
$
&
"
%
'
Parameter Min.( Typ. Max.( Unit Note
CCFL Standard Current (ISCFL) 7.0 7.5 8.0 [mA] rms 1
CCFL Operation Current (IRCFL) 3.0 7.5 8.0 [mA] rms 2
CCFL Frequency (FCFL) 40 55 80 [KHz] 3, 4
CCFL Ignition Voltage (ViCFL, Ta=
1660 - - [Volt] rms
5
CCFL Ignition Voltage (ViCF, Ta=
CCFL Operation Voltage (VCFL)
1280 - - [Volt] rms
724
(@8.0 mA)
732
(@7.5 mA)
888
(@3.0 mA)
[Volt] rms
6
CCFL Power Consumption (PCFL) - 11.0 - [Watt]
CCFL Life Time (LTCFL)
50,000
-
- [Hour] 7
Note 1: Typ. values are AUO recommended design values.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 It is recommended to check the inverter carefully. Sometimes, interfering noise stripes appear on
the screen, and substandard luminance or flicker at low power may happen.
*3 While designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has certain delay time after applying kick-off voltage. It is recommended to
keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current will increase CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of the inverter should be carefully designed so the
inverter will not produce too much leakage current from high-voltage output.
*6 For 2 CCFL models, both CCFLs in the same CCFL set (Single lamp on each side of a panel) is
designed for identical phase driving. Reversed phase driving of CCFL set is not encouraged.

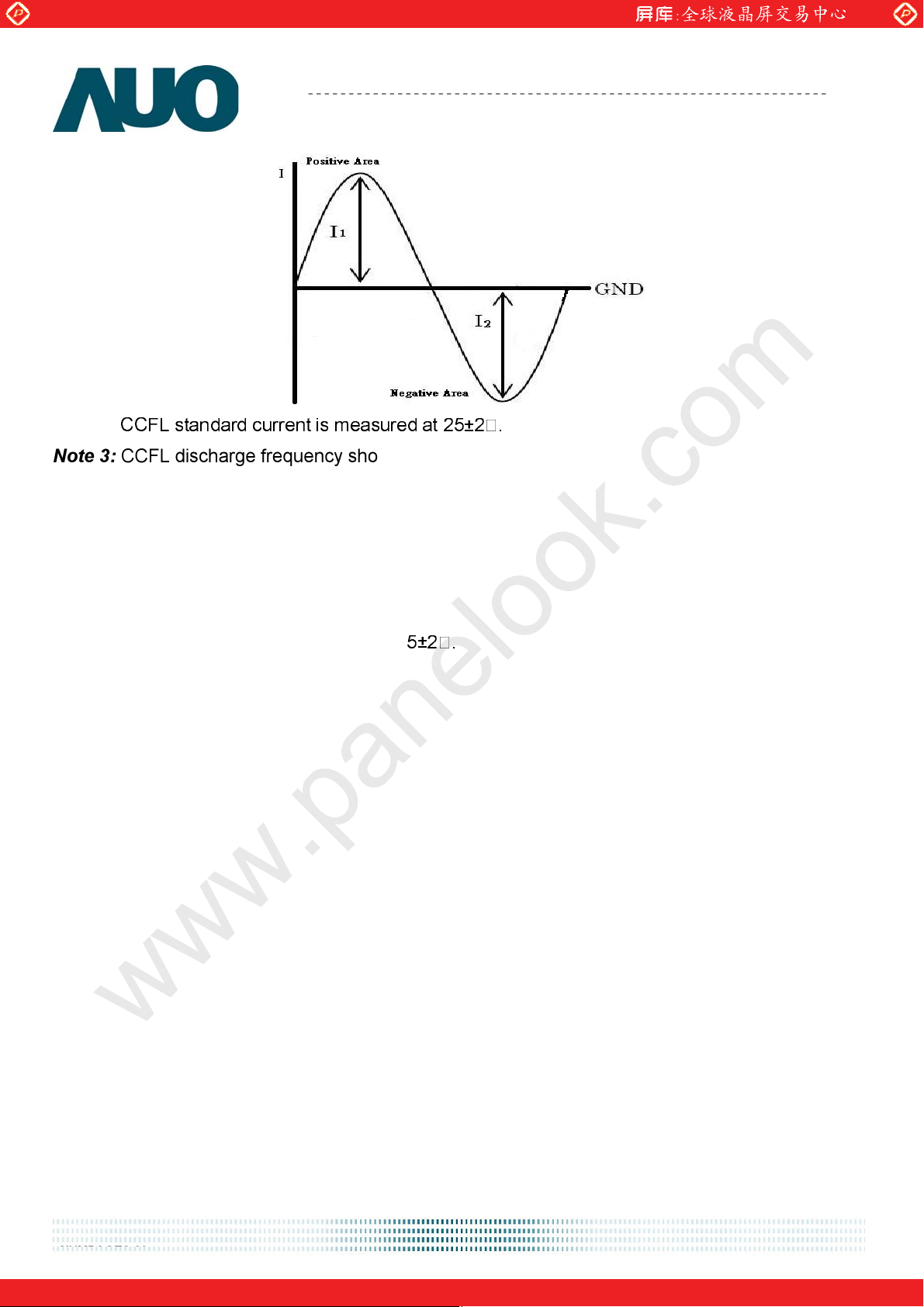

*7 For designing CCFL current, it is highly recommanded to use symmetric and consistent
sinusoidal wave for each CCFL input current with asymmetric ration of 10% or less in both
postive area and negative area (ie. 0.9*√2*I
< I1 & I2 < 1.1*√2*I
rms
) as refer to the following
rms
diagram, otherwise proper CCFL functionality cannot be guarantied.
document version 1.0
14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M200RW01 V3
AU OPTRONICS CORPORATION
Note 2:
) )
* +,-
. /0. 10231 1 4 /
- 5
, 6 4 . ,31 40.
- 7 897
:
;
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between
inverter and TFT LCD.
Note 4: The frequency range will not affect lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to release power that has generating capacity exceeding
1660 volt. Lamp units need minimum voltage, 1660 Volt, for ignition.
Note 6: The variance of CCFL power consumption is ±10%. (IRCFL × VCFL × 2 = PCFL)
Note 7: Definition of life time: brightness becomes 50%. The minimum life time of CCFL unit is on
the condition of 7.5mA CCFL current and 2
897
:
;
document version 1.0
15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
M200RW01 V3
6.2 The input data format
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “First Pixel Data” E = “Second Pixel Data”
document version 1.0
16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
V
V
V
V
V
V
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a
differential signal technology for LCD interface and high speed data transfer device. LVDS
transmitters shall be SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx)
transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data
2 RxOIN0+ Positive LVDS differential data input (Odd data
3 RxOIN1- Negative LVDS differential data input (Odd data
4 RxOIN1+ Positive LVDS differential data input (Odd data
5 RxOIN2- Negative LVDS differential data input (Odd data, DSPTMG
6 RxOIN2+ Positive LVDS differential data input (Odd data, DSPTMG
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock
9 RxOCLK+ Positive LVDS differential clock input (Odd clock
10 RxOIN3- Negative LVDS differential data input (Odd data
11 RxOIN3+ Positive LVDS differential data input (Odd data
12 RxEIN0- Negative LVDS differential data input (Even data
13 RxEIN0+ Positive LVDS differential data input (Even data
14 GND Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data
16 RxEIN1+ Negative LVDS differential data input (Even data
17 GND Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data
19 RxEIN2+ Positive LVDS differential data input (Even data
20 RxECLK- Negative LVDS differential clock input (Even clock
21 RxECLK+ Positive LVDS differential clock input (Even clock
22 RxEIN3- Negative LVDS differential data input (Even data
23 RxEIN3+ Positive LVDS differential data input (Even data
24 GND Power Ground
25 NC No connection(for AUO test only. Do not connect
26 NC No connection(for AUO test only. Do not connect
27 NC No connection (for AUO test only. Do not connect
28
29
30
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
DD Power +5
DD Power +5
DD Power +5
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
Note2: Input signals of odd and even clock shall be the same timing.
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK 1/Tclk
H-section
V-section
Period Th
Display Area Tdisp(h)
Blanking
Tblk(h)
Period Tv
Display Area Tdisp(v)
Blanking
Tblk(v)
43.2 60.5 80
950 1080 2047
800 800 800
150 280 910 934 2047
900 900 900
10 34 -
[MHz]
[Tclk]
[Tclk]
[Tclk]
[Th]
[Th]
[Th]
Frame Rate F
50 60 75
Note : DE mode only
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
[Hz]
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
6.5 Timing diagram
DE
RGB Data
CLK
DE
RGB Data
(Odd)
RGB Data
(Even)
N
Line
Pixel
Pixel
M-7
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Invalid Data
Tclk
Pixel
M-1
Pixel
M
Tblk(v)
Invalid Data
Invalid Data
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
32
1
Pixel
Pixel
Pixel
3
1
Pixel Pixel
2
4
Pixel
5
Pixel
Pixel
6M-2
4
LineLine
LineLine
Th
Tdisp(h)
Pixel
Pixel
10
Pixel
119
12
7
8M
N
Line
Pixel
M-5
Pixel
M-4
Pixel
Pixel
M-3
Pixel
PixelPixel
M-1
M200RW01 V3
M pixel
Y
N Line
Invalid Data
Tblk(h)
Invalid Data
Invalid Data
X
Pixel
Pixel
Pixel
3
1
Pixel
4
2M-4
6.6 Power ON/OFF Sequence
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M200RW01 V3
AU OPTRONICS CORPORATION
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Value
Parameter
Unit
Min. Typ. Max.
T1 0.2 - 1 [msec]
T2 0 - 50 [msec]
T3 0.5 - 50 [msec]
T4 1000 - - [msec]
T5 500 - - [msec]
T6 200 - - [msec]
document version 1.0
20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer STM / P-TWO
Type Part Number
Mating Housing Part Number
AL230F-A0G1D-P (P-TWO)
MSCKT2407P30HB(STM
P2407P30 (Unlocked type)
PK2407P30 (Locked type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25 NC (for AUO test only. Do not connect) 26 NC (for AUO test only. Do not connect)
27 NC (for AUO test only. Do not connect) 28 VDD
29 VDD 30 VDD
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M200RW01 V3
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer
Type Part Number
Mating Type Part Number
CVILUX
CP0502SL090
CP0502P1ML0
7.2.1 Signal for Lamp connector
Upper
Lower
Connector No. Pin No. Input Color Function
1 Hot1 Blue High Voltage
CN1
2 Cold1 White Low Voltage
Connector No. Pin No. Input Color Function
1 Hot1 Blue High Voltage
CN2
2 Cold1 White Low Voltage
document version 1.0
22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 5
High Temperature Storage (HTS) Ta=
Low Temperature Storage (LTS) Ta= -
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
=
>
80%RH, 300hours
<
@
=
? <
F <
A
BCD E
>
< <
@
=
>
< <
A
BCD E
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
M200RW01 V3
Note
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20=/30min, 60=/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (Electro Static Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 1.0
23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label
The label is on the panel as shown below:
M200RW01 V3
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.0
24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Ver 1.0
10.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Ver 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Ver 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
