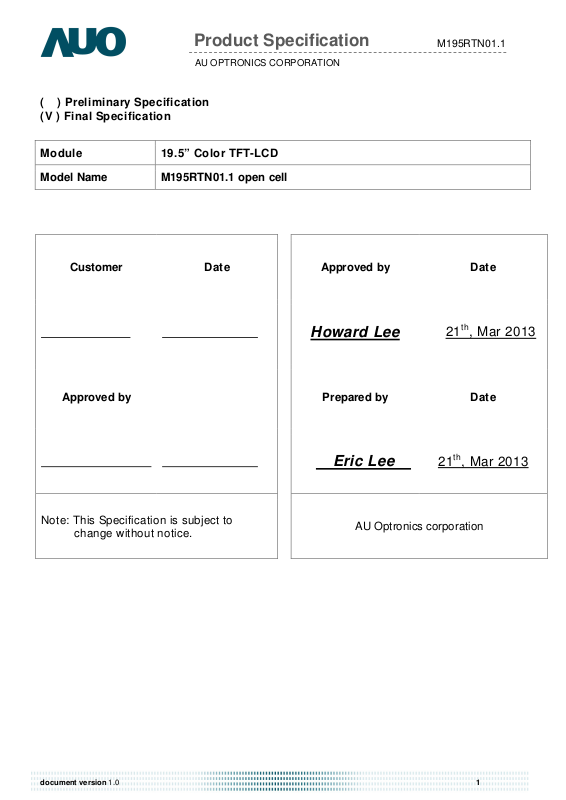

AUO M195RTN01.1 Specification

Product Specification

Preliminary Specification

( ) (V ) Final Specification

Module 19.5” Color TFT-LCD

Model Name M195RTN01.1 open cell

AU OPTRONICS CORPORATION

M195RTN01.1

Customer Date

Approved by

Approved by Date

Howard Lee

Prepared by Date

Eric Lee

21th, Mar 2013

Note: This Specification is subject to

change without notice.

document version 1.0 1

AU Optronics corporation

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

Contents

1 Handling Precautions................................................................4

2 General Description ..................................................................5

2.1 Display Characteristics....................................................................................................... 5

2.2 Absolute Maximum Rating of Environment ........................................................................ 6

2.3 Optical Characteristics ....................................................................................................... 7

3 TFT-LCD Module ......................................................................10

3.1 Block Diagram.................................................................................................................. 10

3.2 Interface Connection........................................................................................................ 11

3.2.1 Connector Type....................................................................................................... 11

3.2.2 Connector Pin Assignment...................................................................................... 11

3.3 Electrical Characteristics.................................................................................................. 13

3.3.1 Absolute Maximum Rating ...................................................................................... 13

3.3.2 Recommended Operating Condition....................................................................... 13

3.4 Signal Characteristics ...................................................................................................... 14

3.4.1 LCD Pixel Format.................................................................................................... 14

3.4.2 LVDS Data Format.................................................................................................. 14

3.4.3 Color versus Input Data .......................................................................................... 15

3.4.4 LVDS Specification.................................................................................................. 16

3.4.5 Input Timing Specification ....................................................................................... 18

3.4.6 Input Timing Diagram.............................................................................................. 19

3.5 Power ON/OFF Sequence ............................................................................................... 20

4 Reliability Test........................................................................21

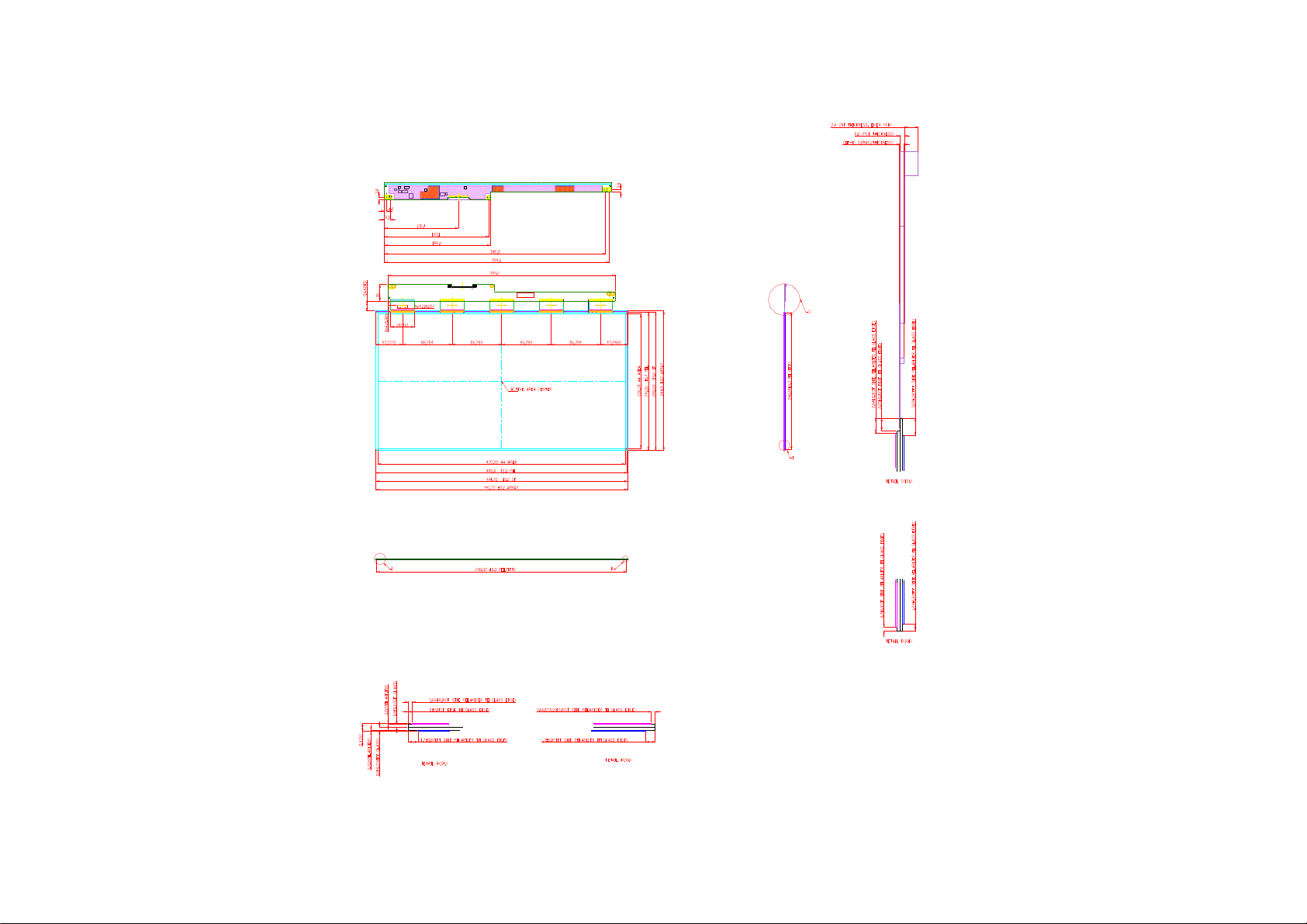

5 Mechanical Characteristic .......................................................22

document version 1.0 2

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

Record of Revision

Version

Date Page

Old description New Description Remark

-

document version 1.0 3

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

1 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

3) When the cell surface is soiled, wipe it with absorbent cotton or other soft cloth.

4) Since the cell is made of glass, it may break or crack if dropped or bumped on hard surface.

5) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

6) Do not press or pat the panel surface by fingers, hand or tooling.

7) Please handle TFT cell with care. The FPCs can only sustain for quite limited stress.

8) The cell package tray is packed in clean room. Please do pack & unpack it in clean room.

9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT cell.

10) Pls avoid touching COF position while you are doing mechanical design.

11) When storing modules as spares for a long time, the following precaution is necessary:

Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep

the temperature between 5℃ and 35℃ at normal humidity.

document version 1.0 4

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

2 General Description

This specification applies to the 19.5 inch wide Color a-Si TFT-LCD Module M195RTN01.1. The display supports the HD+ 1600(H) x 900(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). The input interface is Dual channel LVDS.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25℃ condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 495.3 (19.5”) Active Area [mm] 433.92 (H) x 236.34(V) Pixels H x V - 1600x3(RGB) x 900 Pixel Pitch [um] 271.2 x 262.6 Pixel Arrangement - R.G.B. Vertical Stripe Display Mode - TN Mode, Normally White Response Time [msec] 5 (Typ., on/off)

Power Consumption [Watt]

VDD line : PDD (typ)=

3.5

W

Weight [Grams] 335.6 gram Electrical Interface - Dual channel LVDS Support Color - 16.7M colors (RGB 6-bit + Hi_FRC ) Surface Treatment - Anti-Glare, 3H Temperature Range Operating Storage (Shipping)

[oC]

Cell transmittance [%]

0 to +50

-20 to +60

6.17 (Typ.)

5.27 (Min.)

Base on AUO LED Backlight

Cell thickness [mm] 1.265

document version 1.0 5

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

2.2 Absolute Maximum Rating of Environment

Permanent damage may occur if exceeding the following maximum rating.

Symbol Description Min. Max. Unit Remark

TOP Operating Temperature 0 +50 [oC] Note 2-1

TGS

Glass surface temperature (operation)

0 +65 [oC]

Function judged only

HOP Operation Humidity 5 90 [%RH]

TST Storage Temperature -20 +60 [oC]

HST Storage Humidity

5 90

[%RH]

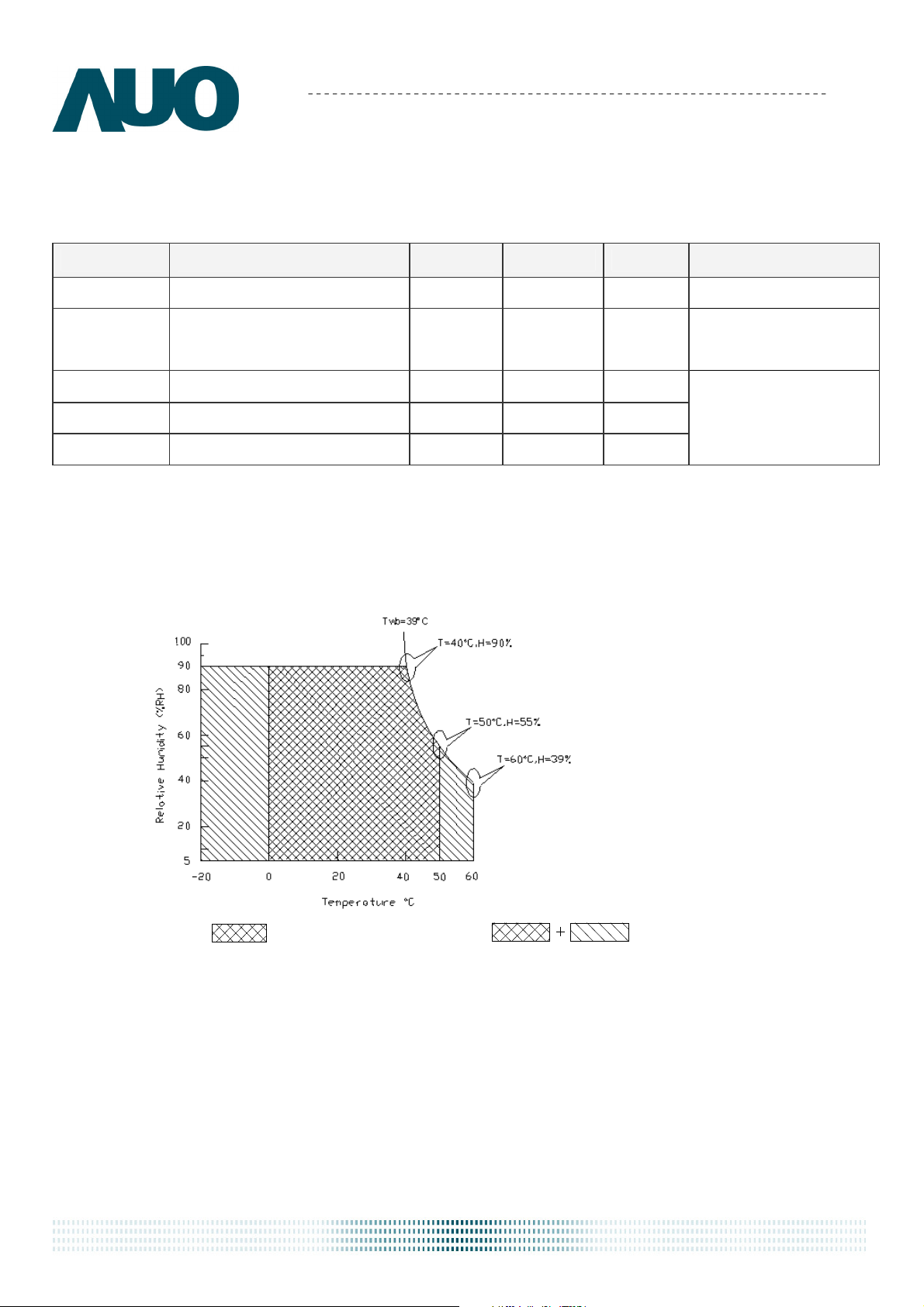

Note 2-1: Temperature and relative humidity range are shown as the below figure.

1. 90% RH Max ( Ta ≦39℃)

2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)

3. No condensation

Note 2-1

Operating Range Storage Range

document version 1.0 6

Product Specification

AU OPTRONICS CORPORATION

2.3 Optical Characteristics

The optical characteristics are measured on the following test condition.

Test Condition:

1. Equipment setup: Please refer to Note 2-2.

2. Panel Lighting time: 30 minutes

3. VDD=5.0V, Fv=60Hz,Is=65mA,Ta=25℃

M195RTN01.1

Symbol Description Min. Typ. Max. Unit Remark

TR

TF

Response Time

-

CT

FdB

Flicker (Center of screen) - -

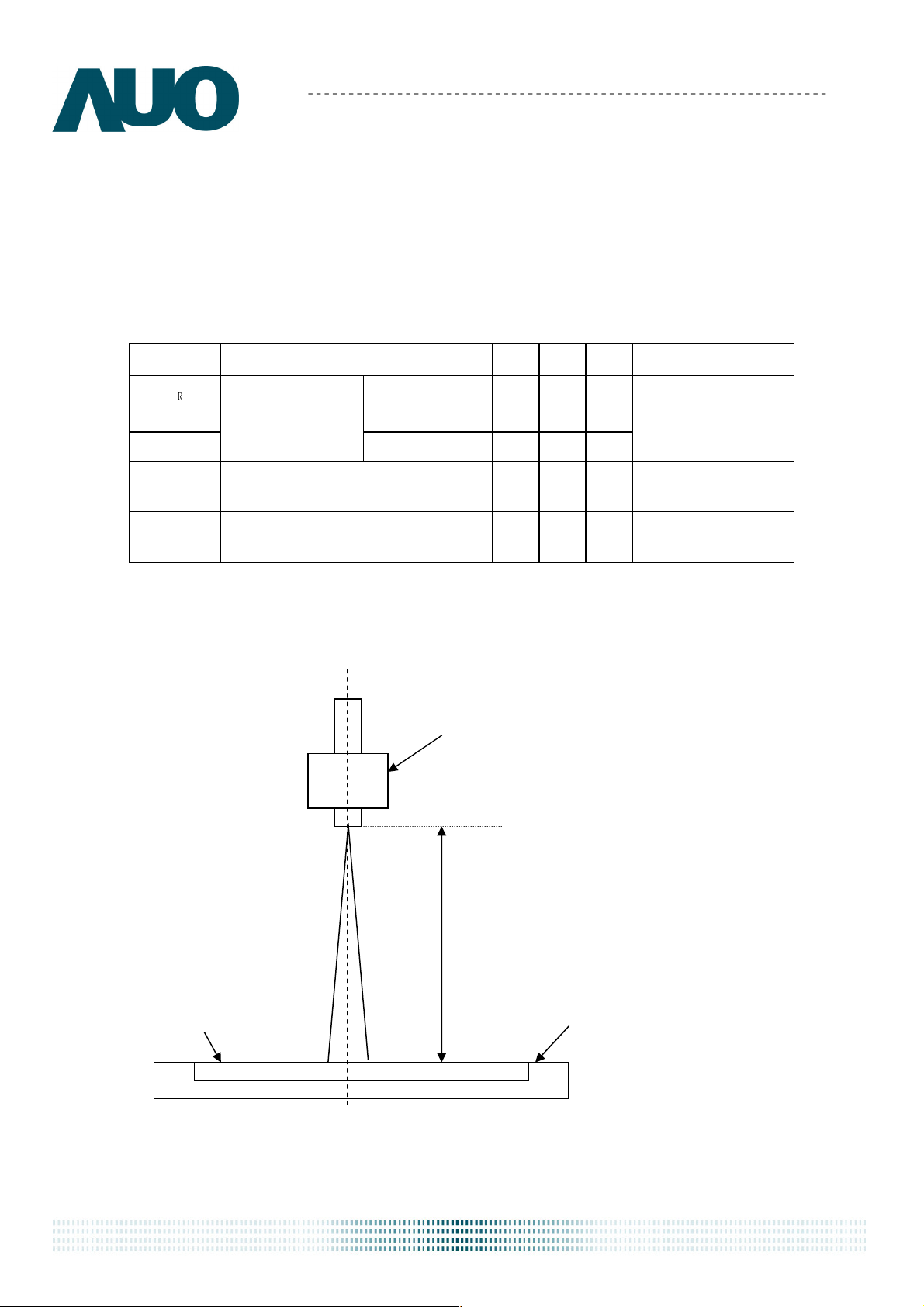

Note 2-2: Equipment setup :

Rising Time - 3.8 5.5

Falling Time -

Rising + Falling

Crosstalk - -

1.2 2.5

-

Photo detector (SR-3, TRD-100)

5 8

1.5

-20

[msec]

[%]

[dB]

Note 2-3

By TRD-100

Note 2-4

By SR-3

Note 2-5

By SR-3

Measured distance (50cm)

Center of the screen

document version 1.0 7

Product Specification

100

90

W hite

100

White

Black

1 Frame

AU OPTRONICS CORPORATION

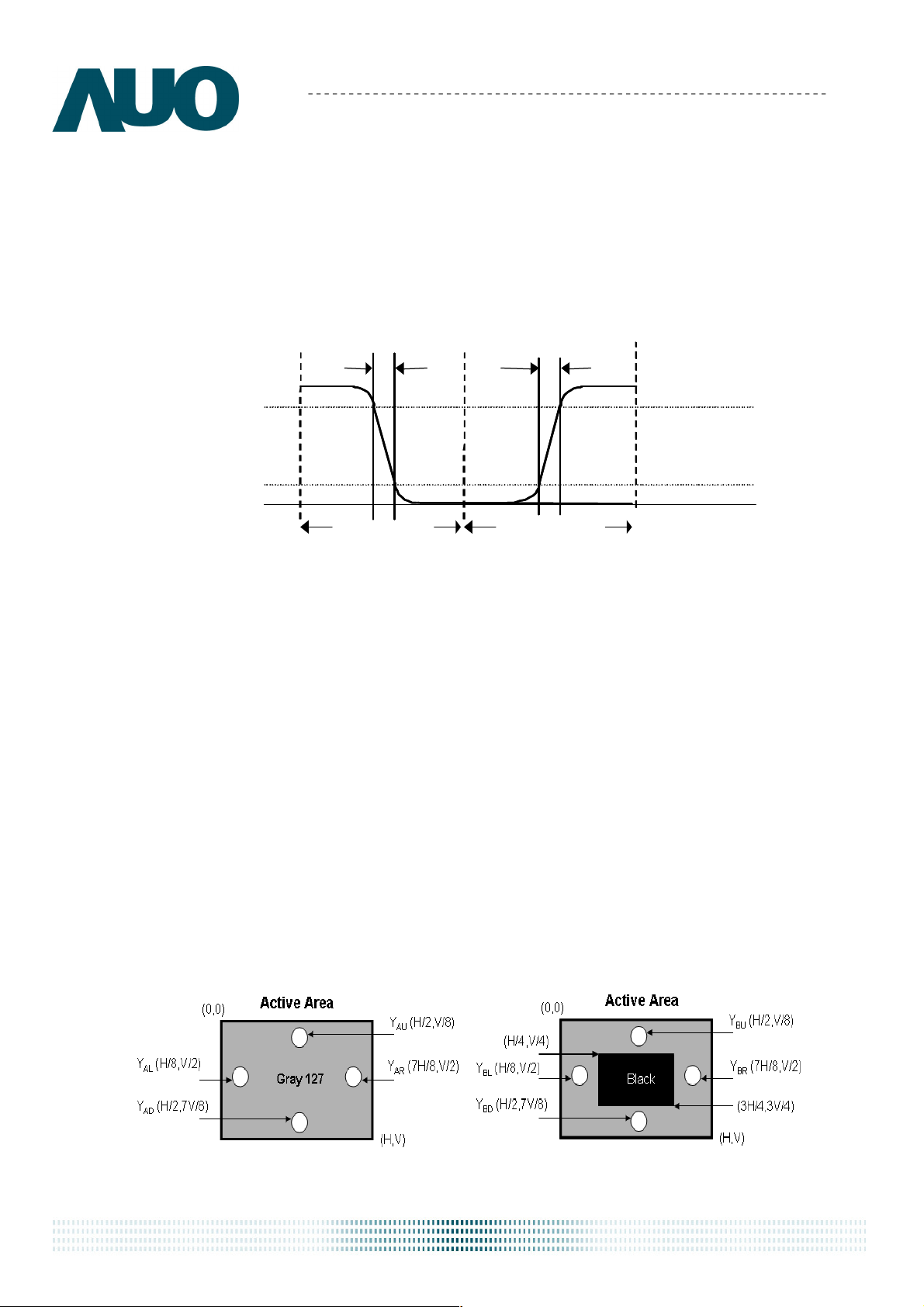

Note 2-3: Response time measurement

The output signals of photo detector are measured when the input signals are changed

from “Black” to “White” (rising time, TR), and from “White” to “Black” (falling time, TF),

respectively. The response time is interval between the 10% and 90% of optical

response. (Black & White color definition: Please refer section 3.4.3)

Optical

respon se

10

%

0

T

M195RTN01.1

T

F

R

Note 2-4: Crosstalk measurement

Definition:

CT = Max. (CTH,CTV);

Where

a.Maximum Horizontal Crosstalk :

CTH = Max. (| YBL – YAL | / YAL × 100 %, | YBR – YAR | / YAR × 100 %);

Maximum Vertical Crosstalk:

CTV = Max. (| YBU – YAU | / YAU × 100 %, | YBD – YAD | / YAD × 100 %);

b. YAU, YAD, YAL, YAR = Luminance of measured location without Black pattern

YBU, YBD, YBL, YBR = Luminance of measured location with Black pattern

document version 1.0 8

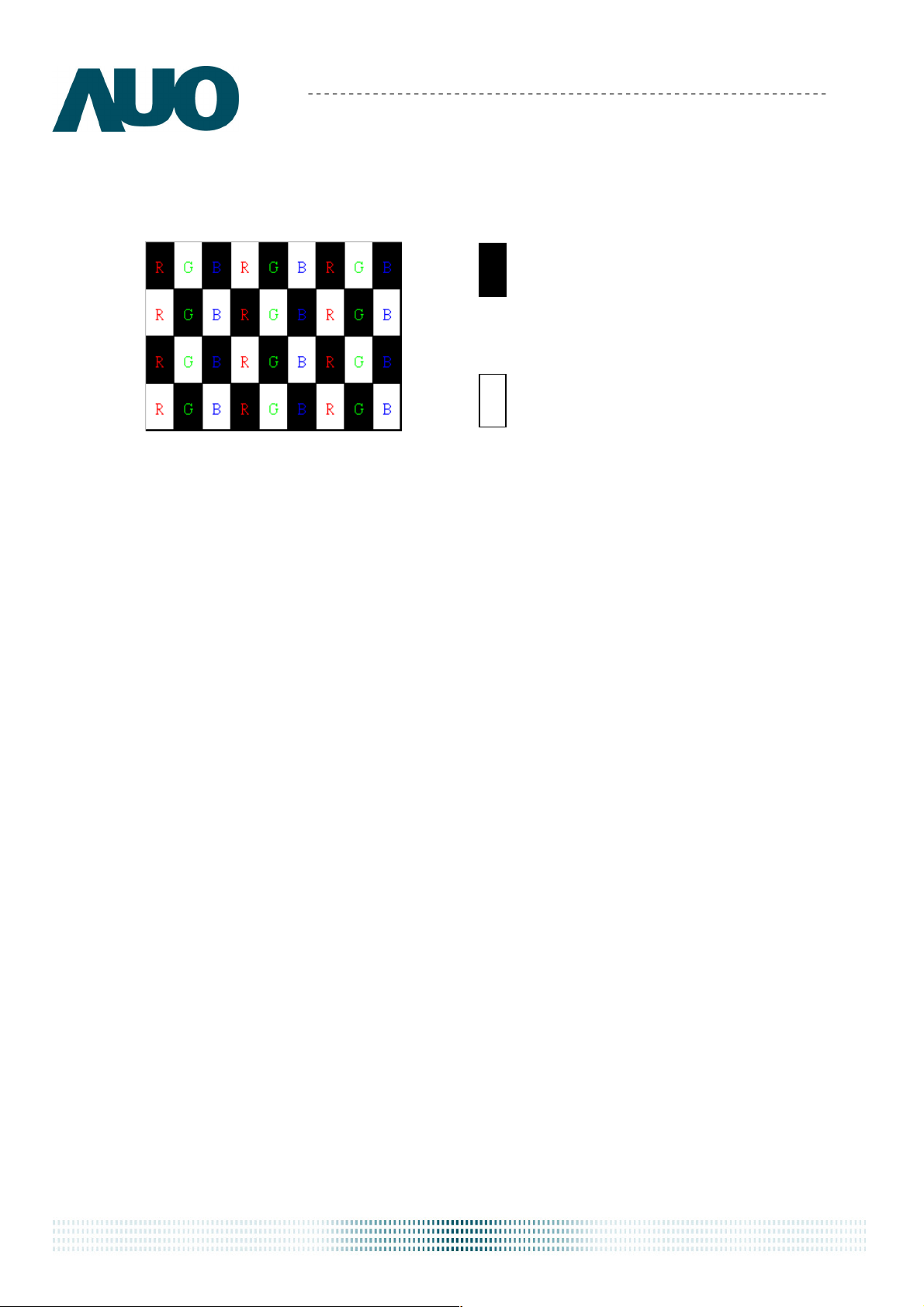

Note 2-5: Flicker measurement

a. Test pattern: It is listed as following.

Product Specification

AU OPTRONICS CORPORATION

Gray level = L0

Gray level = L127

M195RTN01.1

R: Red, G: Green, B:Blue

b. Measured position: Center of screen & perpendicular to the screen

document version 1.0 9

Product Specification

M195RTN01.1

AU OPTRONICS CORPORATION

3 TFT-LCD Module

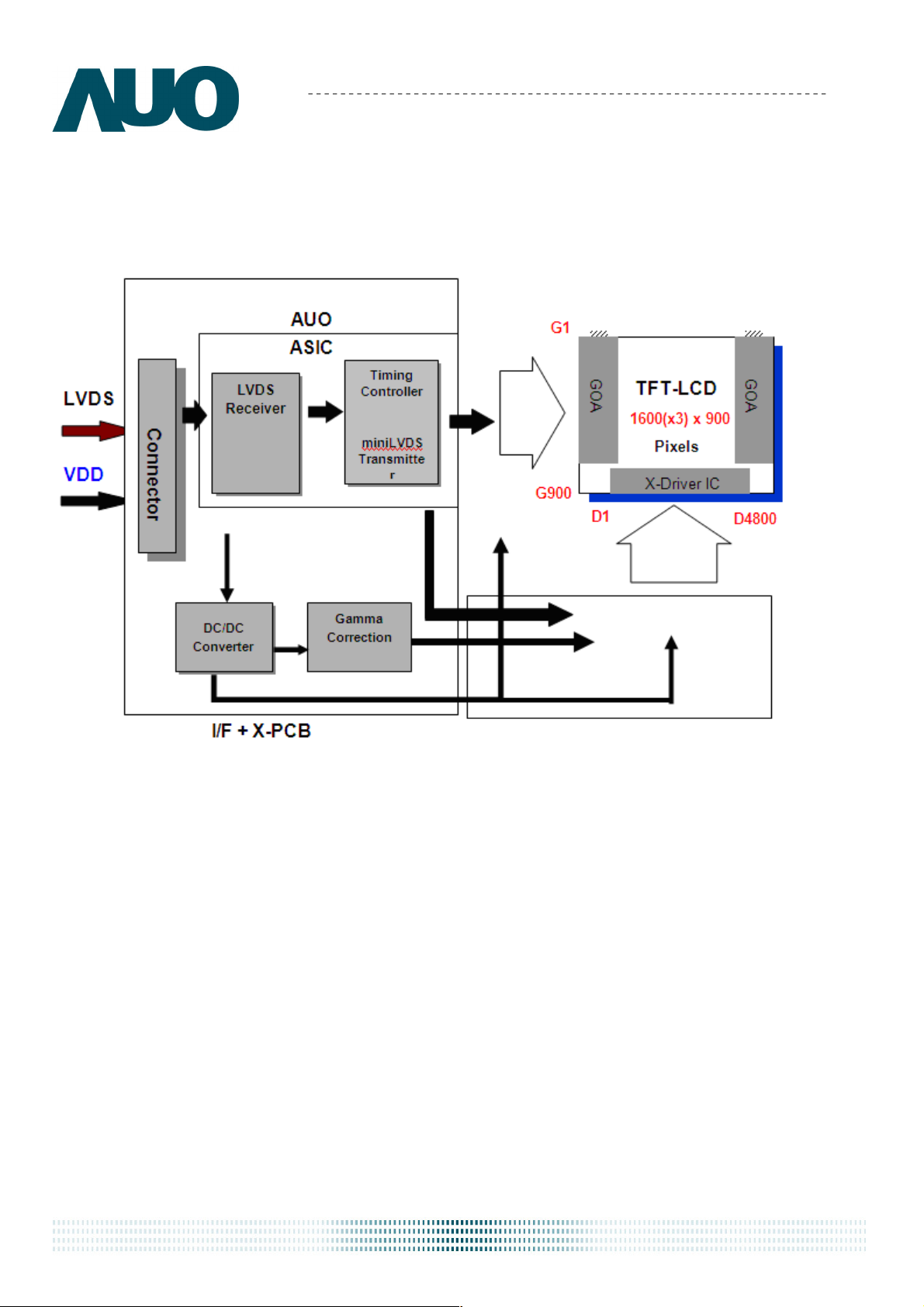

3.1 Block Diagram

The following shows the block diagram of the 19.5 inch Color TFT-LCD Module.

document version 1.0 10

Product Specification

1 RxO0

- Negative LVDS differential data input (Odd data)

2 RxO0+

Positiv

e LVDS differential data input (Odd data)

3 RxO1

- Negative LVDS differential data input (Odd data)

4 RxO1+

Positive LVDS differential data input (Odd data)

5 RxO2

- Negative LVDS differential data input (Odd data)

6 RxO2+

Positive LVDS differential

data input (Odd data)

7 GND

Ground

8 RxOCLK

- Negative LVDS differential clock input (Odd clock)

9 RxOCLK+

Positive LVDS differential clock input (Odd clock)

10 RxO3

- Negative LVDS differential data input (Odd data)

11 RxO3+

Positive LVDS differen

tial data input (Odd data)

12 RxE0

- Negative LVDS differential data input (Even data)

13 RxE0+

Positive LVDS differential data input (Even data)

14 GND

Ground

15 RxE1

- Negative LVDS differential data input (Even data)

16 RxE1+

Positive LVDS diffe

rential data input (Even data)

17 GND

Ground

18 RxE2

- Negative LVDS differential data input (Even data)

19 RxE2+

Positive LVDS differential data input (Even data)

20 RxECLK

- Negative LVDS differential clock input (Even clock)

21 RxECLK+

Positive

LVDS differential clock input (Even clock)

22 RxE3

- Negative LVDS differential data input (Even data)

23 RxE3+

Positive LVDS differential data input (Even data)

24 GND

Ground

25 NC No connection (for AUO test only. Do not connect)

26 NC No connec

tion (for AUO test only. Do not connect)

AU OPTRONICS CORPORATION

M195RTN01.1

3.2 Interface Connection

3.2.1 Connector Type

Manufacturer P-Two STM

TFT-LCD Connector

Part Number

AL230F-A0G1D-P MSCKT2407P30HB

Manufacturer JAE

Mating Connector

Part Number

FI-X30HL (Locked Type)

3.2.2 Connector Pin Assignment

PIN # Symbol Description Remark

document version 1.0 11

Product Specification

27 NC No connection (for AUO test only. Do not connect)

28 VDD

Power Supply Input Voltage

29 VDD

Power Supply Input Voltage

30 VDD

Power Supply Input Voltage

AU OPTRONICS CORPORATION

M195RTN01.1

document version 1.0 12

Product Specification

AU OPTRONICS CORPORATION

3.3 Electrical Characteristics

3.3.1 Absolute Maximum Rating

Permanent damage may occur if exceeding the following maximum rating.

M195RTN01.1

Symbol

VDD

Description Min Max Unit

Power Supply

Input Voltage

GND-0.3 6.0 [Volt]

3.3.2 Recommended Operating Condition

Symbol

VDD

IDD

PDD

IRush Inrush Current

VDDrp

Description Min Typ Max Unit

Power supply

Input voltage

Power supply

Input Current

(RMS)

VDD Power

Consumption

Allowable VDD

Ripple Voltage

4.5 5.0 5.5 [Volt]

- 0.7 0.9

0.8

- 3.5

4.0

-

- 3.0 [A]

- 500 [mV]

1.0

4.2

4.8

[A]

[Watt]

Remark

Ta=25℃

Remark

VDD= 5.0V, Black Pattern, Fv=60Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

VDD= 5.0V, Black Pattern, Fv=60Hz

VDD= 5.0V, Black Pattern, Fv=75Hz

Note 3-1

VDD= 5.0V, Black Pattern, Fv=75Hz

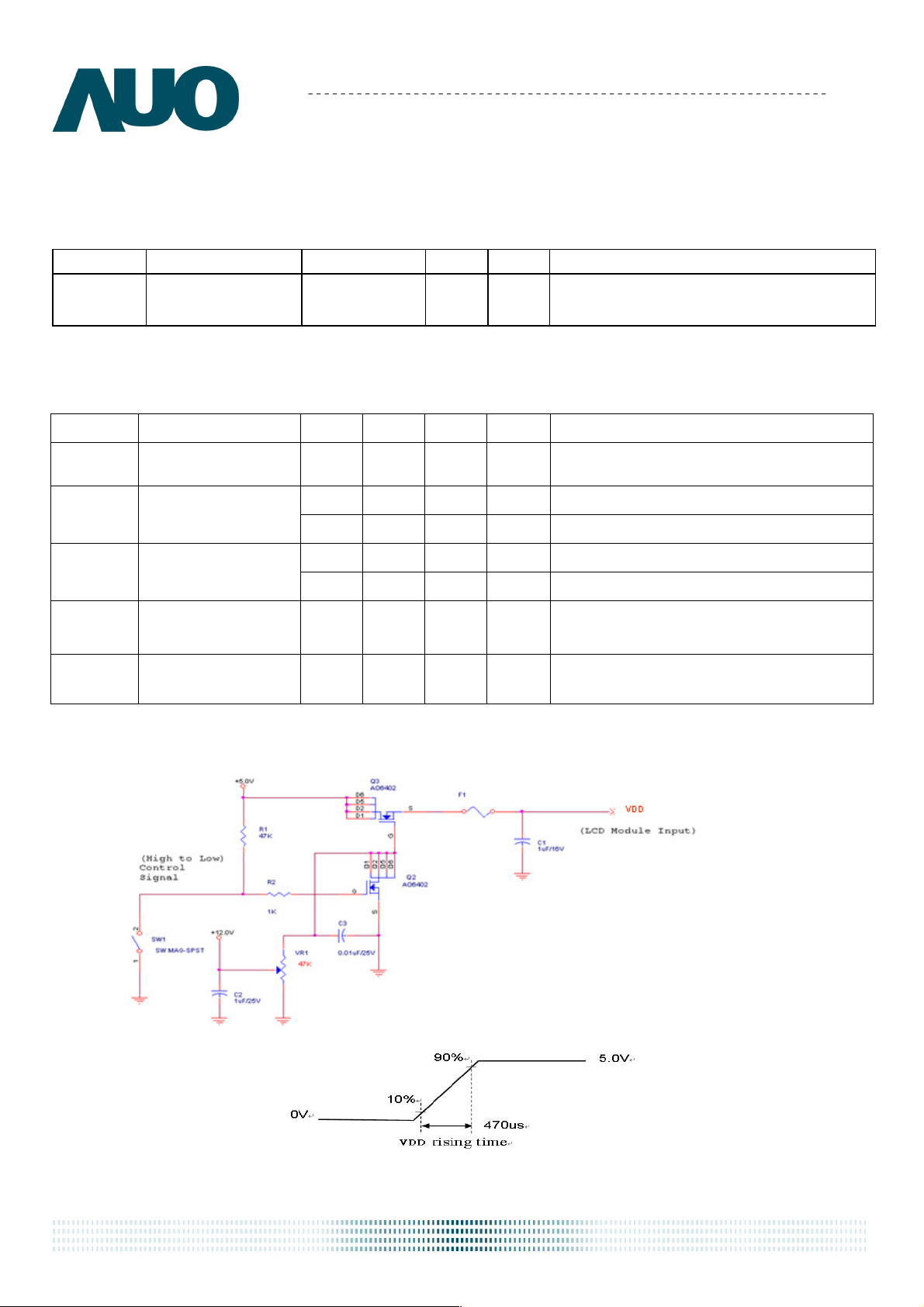

Note 3-1: Inrush Current measurement:

Test circuit:

The duration of VDD rising time: 470us.

document version 1.0 13

R G B R G B

1 2 1599

1600

1st Line

900

Line

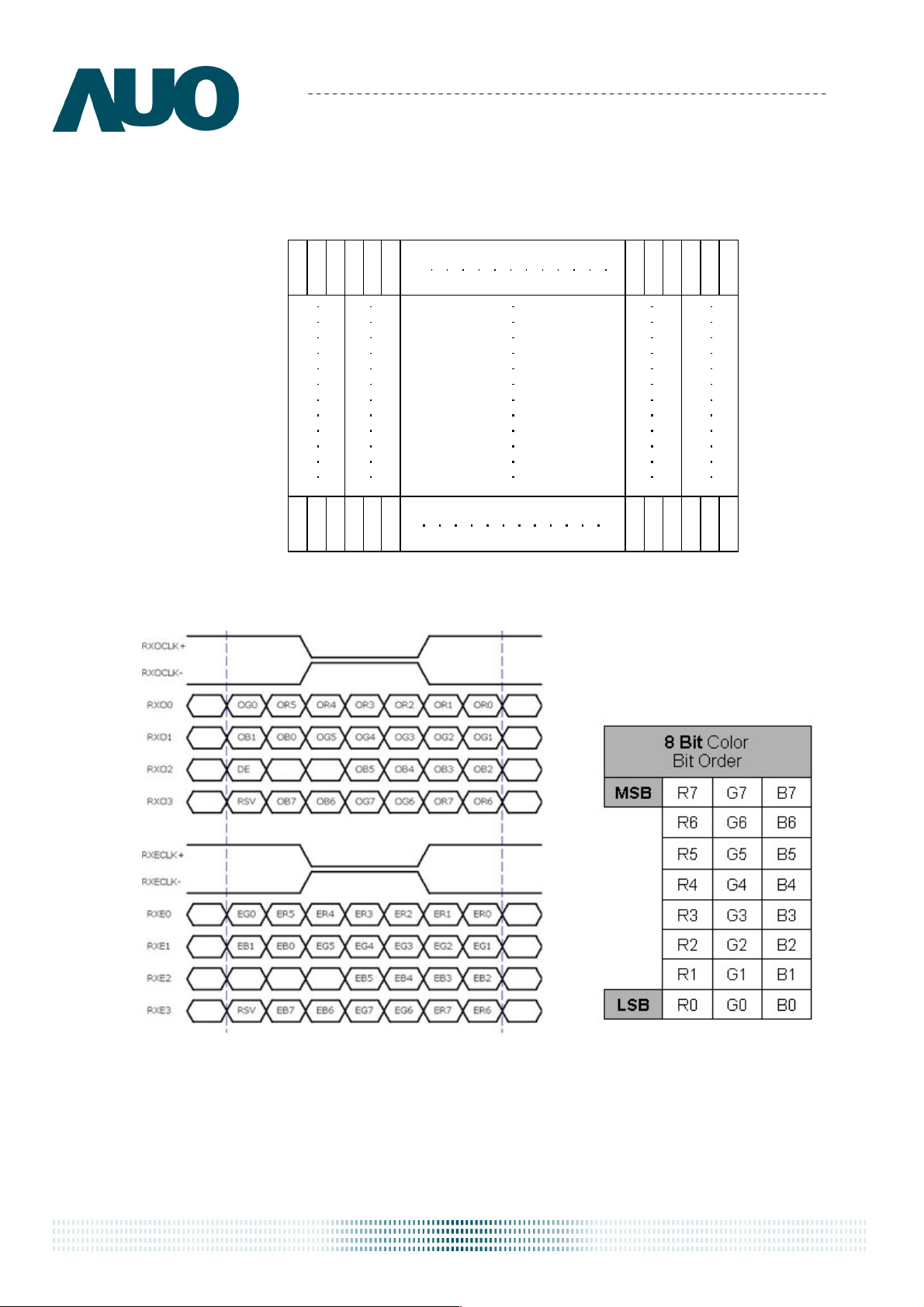

3.4 Signal Characteristics

3.4.1 LCD Pixel Format

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

3.4.2 LVDS Data Format

Note 3-2:

a. O = “Odd Pixel Data” E = “Even Pixel Data” b. Refer to 3.4.1 LCD pixel format, the 1st data is 1 (Odd Pixel Data), the 2nd data is 2 (Even Pixel Data) and

the last data is 1600 (Even Pixel Data).

document version 1.0 14

Product Specification

M195RTN01.1

AU OPTRONICS CORPORATION

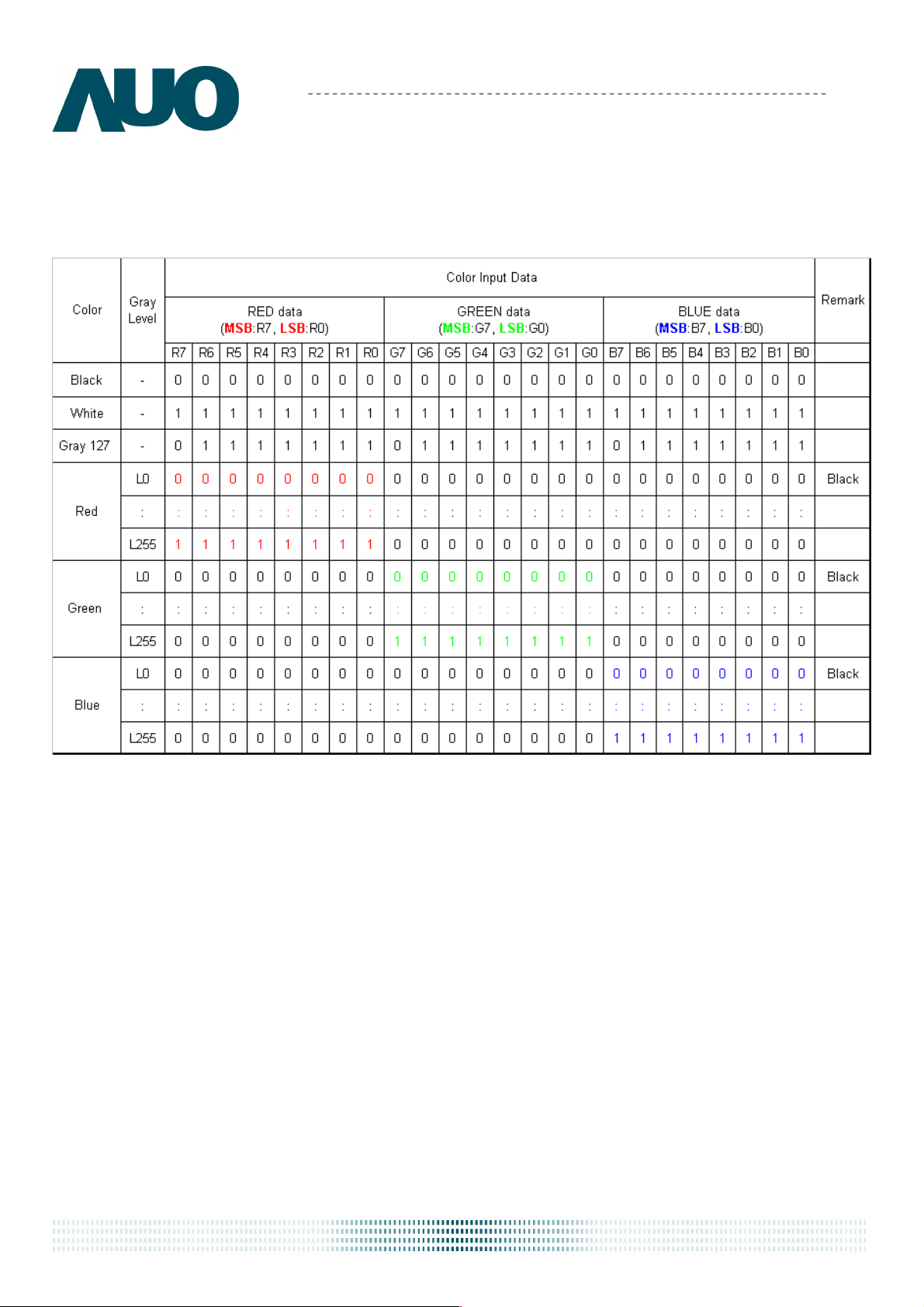

3.4.3 Color versus Input Data

The following table is for color versus input data (8bit). The higher the gray level, the brighter the color.

document version 1.0 15

3.4.4 LVDS Specification

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

a. DC Characteristics:

Symbol

VTH

VTL

│VID│

VCM

Description Min Typ Max Units

LVDS Differential Input High Threshold LVDS Differential Input Low Threshold LVDS Differential Input Voltage LVDS Common Mode Voltage

-100

100 - 600 [mV]

+1.0 +1.2 +1.5 [V] VTH-VTL = 200mV

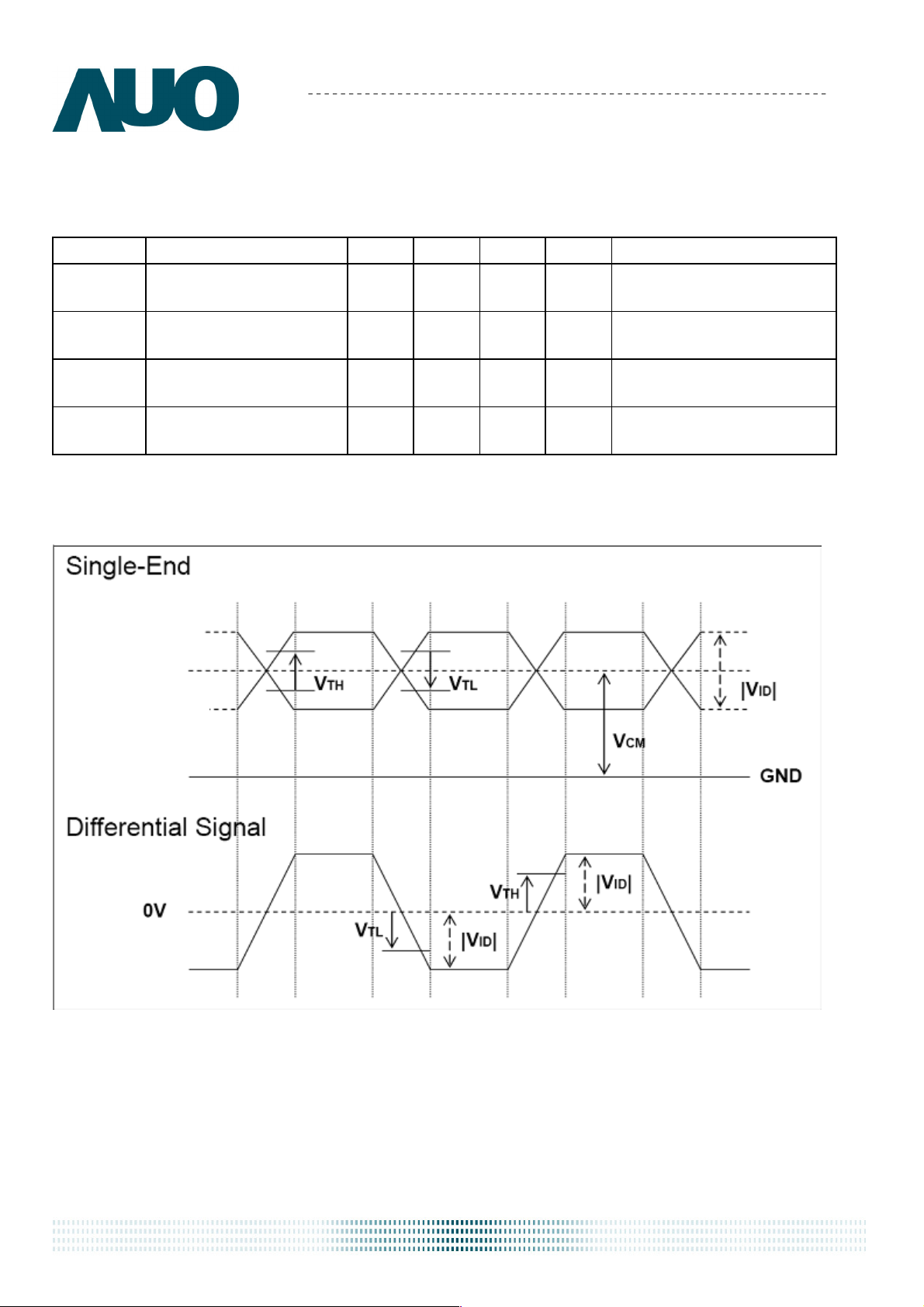

LVDS Signal Waveform:

Use RxOCLK- & RxOCLK+ as example.

RxOCLK-

Condition

- - +100 [mV] VCM = 1.2V

- - [mV] VCM = 1.2V

RxOCLK+

document version 1.0 16

Product Specification

Freq

F

max

F

clk

F

min

F

clk

* F

DEV

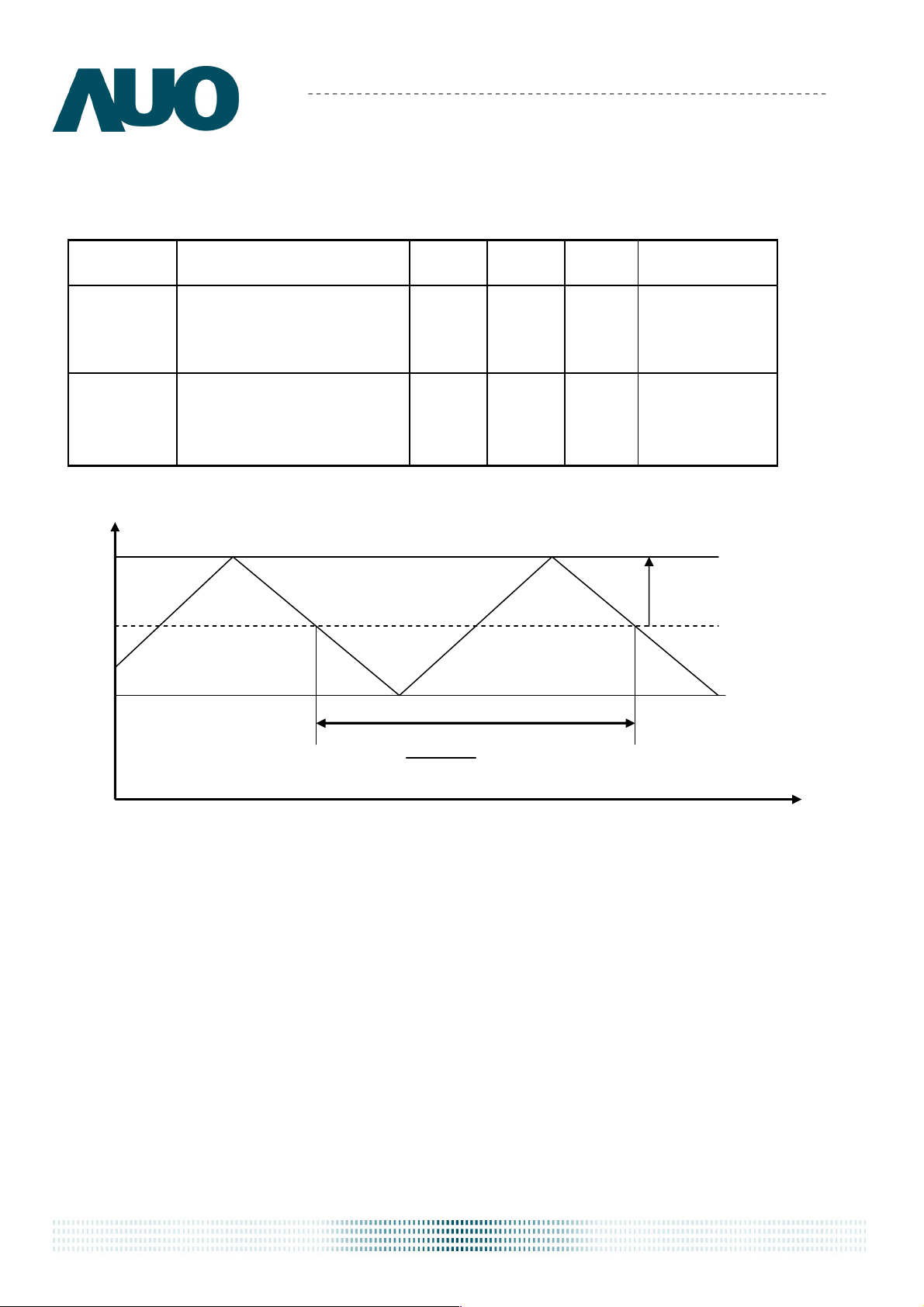

< Spread Spectrum>

T

ime

AU OPTRONICS CORPORATION

b. AC Characteristics:

Symbol Description Min Max Unit Remark

Maximum deviation of

F

DEV

input clock frequency

during Spread Spectrum

Maximum modulation

F

MOD

frequency of input clock

during Spread Spectrum

- ± 3 %

- 200 KHz

M195RTN01.1

Fclk: LVDS Clock Frequency

F

1

MOD

document version 1.0 17

Product Specification

AU OPTRONICS CORPORATION

3.4.5 Input Timing Specification

It only support DE mode, and the input timing are shown as the following table.

M195RTN01.1

Symbol Description Min. Typ. Max. Unit

Tv Period

Tdisp (v) Active

912 934 1564

900 900 900

Th

Remark

Vertical Section

Tblk (v) Blanking

Fv

Frequency

Th Period

Tdisp (h) Active

12 34 664

50 60 76

980 1080 1150

800 800 800

Th

Hz

Tclk

Horizontal Section

Tblk (h) Blanking

Fh

Frequency

Tclk Period

180 280 350

45.6 56.0 78.2

13.0 16.5 22.4

Tclk

KHz

Note 3-3

ns 1/Fclk

LVDS Clock

Fclk

Frequency

44.7 60.5 76.6

MHz

Note 3-4

Note 3-3: The equation is listed as following. Please don’t exceed the above recommended value.

Fh (Min.) = Fclk (Min.) / Th (Min.); Fh (Typ.) = Fclk (Typ.) / Th (Typ.); Fh (Max.)= Fclk (Max.) / Th (Min.);

Note 3-4: The equation is listed as following. Please don’t exceed the above recommended value.

Fclk (Min.) = Fv (Min.) x Th (Min.) x Tv (Min.); Fclk (Typ.) = Fv (Typ.) x Th (Typ.) x Tv (Typ.);

Fclk (Max.) = Fv (Max.) x Th (Typ.) x Tv (Typ.);

document version 1.0 18

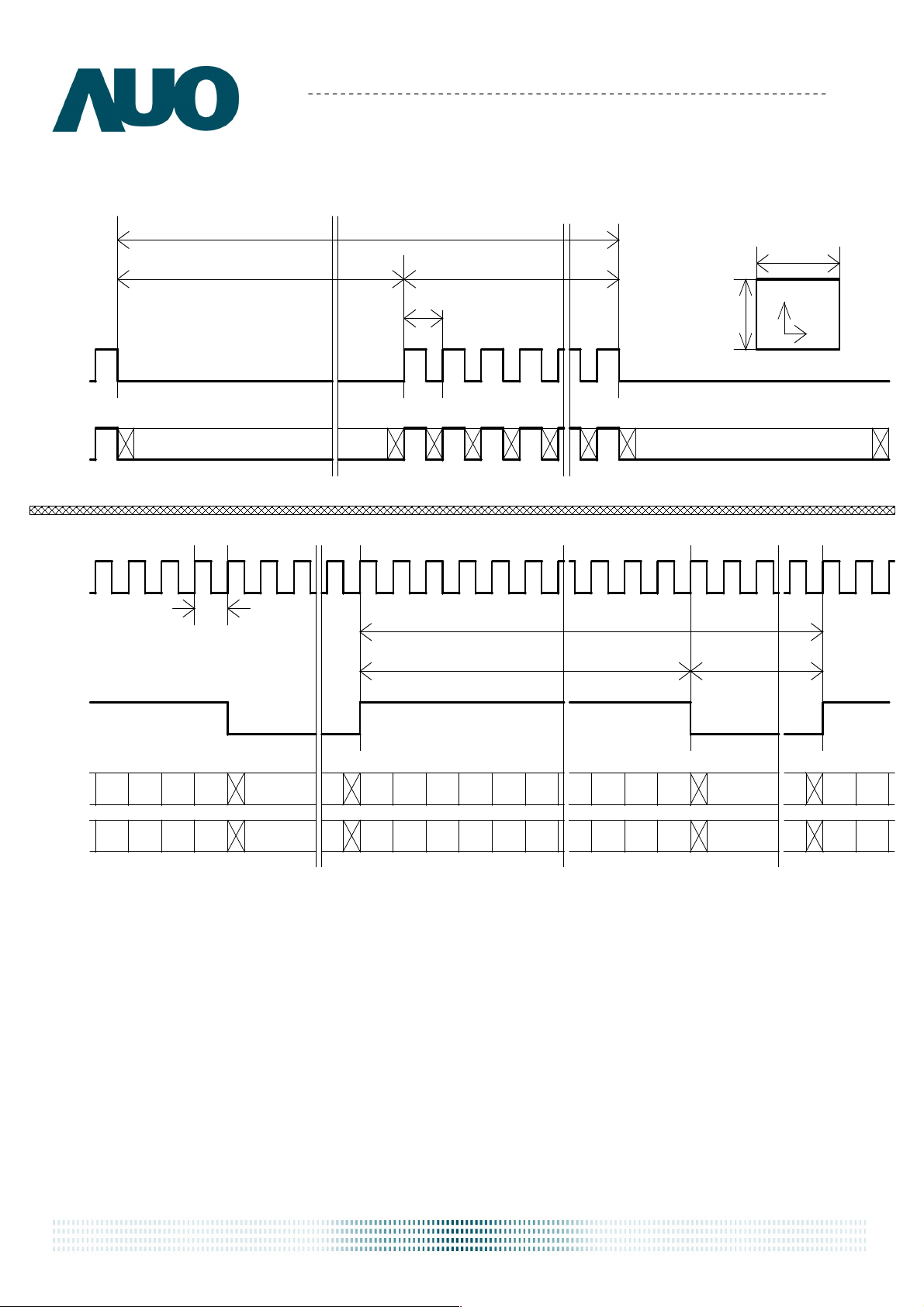

3.4.6 Input Timing Diagram

DE

RGB Data

CLK

DE

RGB Data

(Odd)

RGB Data

(Even)

N

Line

Pixel

M-7

Pixel

M-6

Pixel

M-5

Pixel

M-3

Pixel

M-2

Tblk(v)

Invalid Data

Tclk

Pixel

M-1

Pixel

M

Invalid Data

Product Specification

AU OPTRONICS CORPORATION

Tv

Tdisp(v)

Th

32

LineLine

Th

Tdisp(h)

Pixel

10

4

LineLine

Pixel

119

Pixel

12

1

Pixel

1

Pixel Pixel

2

Pixel

3

4

Pixel

7

5

Pixel

6 M-2

8 M

N

Line

M-5

M-4

Pixel

M-3

Pixel

M-1

PixelPixel

M195RTN01.1

M pixel

Y

N Line

Invalid Data

Tblk(h)

Invalid Data

X

Pixel

1

Pixel

2M-4

Pixel

3

Pixel

4

document version 1.0 19

Product Specification

10%

90%

10%

90%

AU OPTRONICS CORPORATION

M195RTN01.1

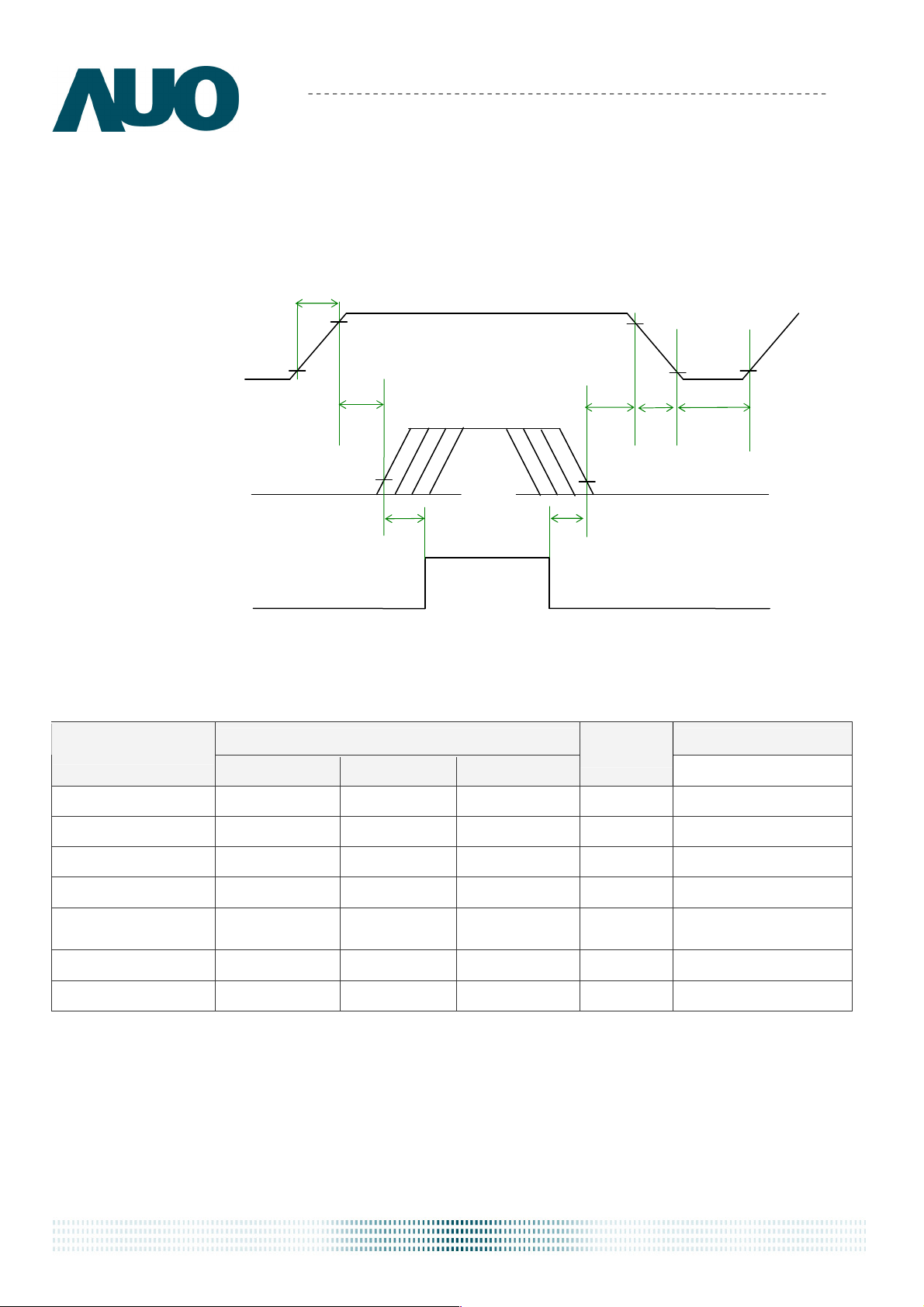

3.5 Power ON/OFF Sequence

VDD power,LVDS signal and backlight on/off sequence are as following. LVDS signals from any system shall be Hi-Z state when VDD is off.

T1

VDD

LVDS Signal

Backlight Enable

Signal (system)

Symbol

T1 0.5 - 10 [ms]

T2 0 - 50 [ms]

T2

T3

Backlight Off

Power Sequence Timing

Backlight On

Value Remark

Min. Typ. Max.

VALID

T5

T4

Backlight Off

Unit

T6

T7

T3 500 - - [ms]

T4 100 - - [ms]

T5 0 50 [ms]

T6 0 - 150 [ms]

T7 1000 - - [ms]

Note 3-5 Note 3-6

Note 3-6

Note 3-5 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.

Note 3-6 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.

document version 1.0 20

KV, 150pF(330Ω ) 1sec,

Air Discharge: ± 15KV, 150pF(330Ω ) 1sec

4 Reliability Test

Product Specification

AU OPTRONICS CORPORATION

M195RTN01.1

AUO reliability test items are listed as following table. (Bare Panel only)

Items Condition

Temperature Humidity Bias (THB)

High Temperature Operation (HTO)

Low Temperature Operation (LTO)

High Temperature Storage (HTS)

Low Temperature Storage (LTS)

Vibration Test (Non-operation)

Shock Test (Non-operation)

Drop Test Height: 60 cm, package test

Ta= 50℃, 80%RH, 300hours

Ta= 50℃, 50%RH, 300hours

Ta= 0℃, 300hours

Ta= 60℃, 300hours

Ta= -20℃, 300hours

Acceleration: 1.5 Grms Wave: Random Frequency: 10 - 200 Hz Sweep: 30 Minutes each Axis (X, Y, Z)

Acceleration: 50 G Wave: Half-sine Active Time: 20 ms Direction: ±X, ±Y, ±Z (one time for each Axis)

Remark

Thermal Shock Test (TST)

On/Off Test On/10sec, Off/10sec, 30,000 cycles

-20℃/30min, 60℃/30min, 100 cycles

Note 4-1

Contact Discharge: ± 15 8 points, 25 times/ point.

ESD (Electro Static Discharge)

Note 4-2

8 points, 25 times/ point.

Altitude Test

Operation:18,000 ft Non-Operation:40,000 ft

Note 4-1: a. A cycle of rapid temperature change consists of varying the temperature from -20 to ℃

60 , and back again. Power is not applied during the test. ℃

b. After finish temperature cycling, the unit is placed in normal room ambient for at least

4 hours before power on.

Note 4-2: EN61000-4-2, ESD class B: Certain performance degradation allowed

No data lost Self-recoverable No hardware failures.

document version 1.0 21

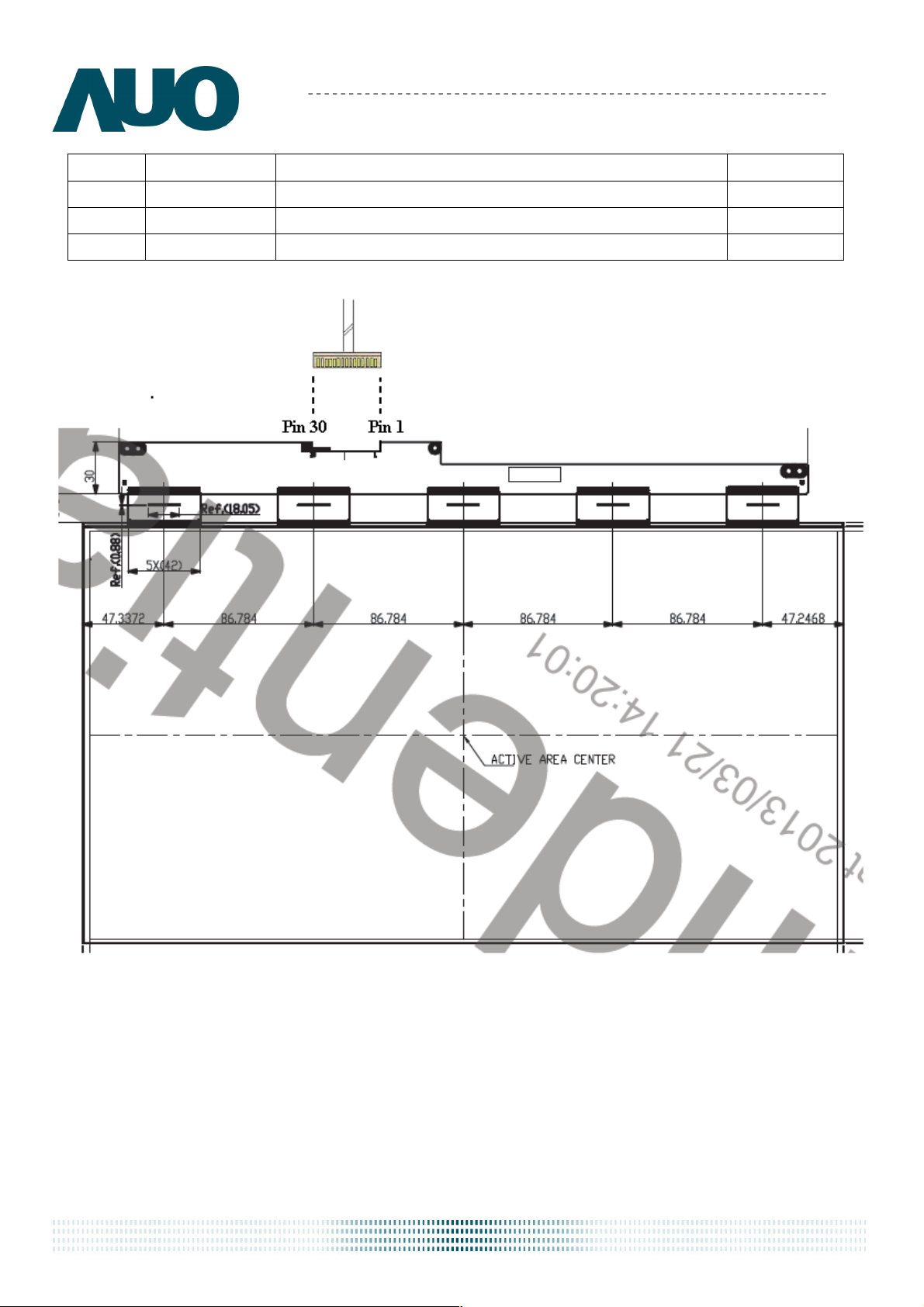

5 Mechanical Characteristic

Avoid touching COF position when doing mechanical design

Ver 1.2
