Product Specification
( ) Preliminary Specification
( V) Final Specification
AU OPTRONICS CORPORATION
M190PTN01.0
Module 19” WXGA+ Color TFT-LCD
Model Name M190PTN01.0
Customer Date
Approved by
Note: This Specification is subject to change
without notice.
Approved by Date
Howard Lee 2013/02/01
Prepared by
Amy Wu
Desktop Display Business Group /
AU Optronics Corporation
2013/02/01
Document version 1.2 1
Page 2

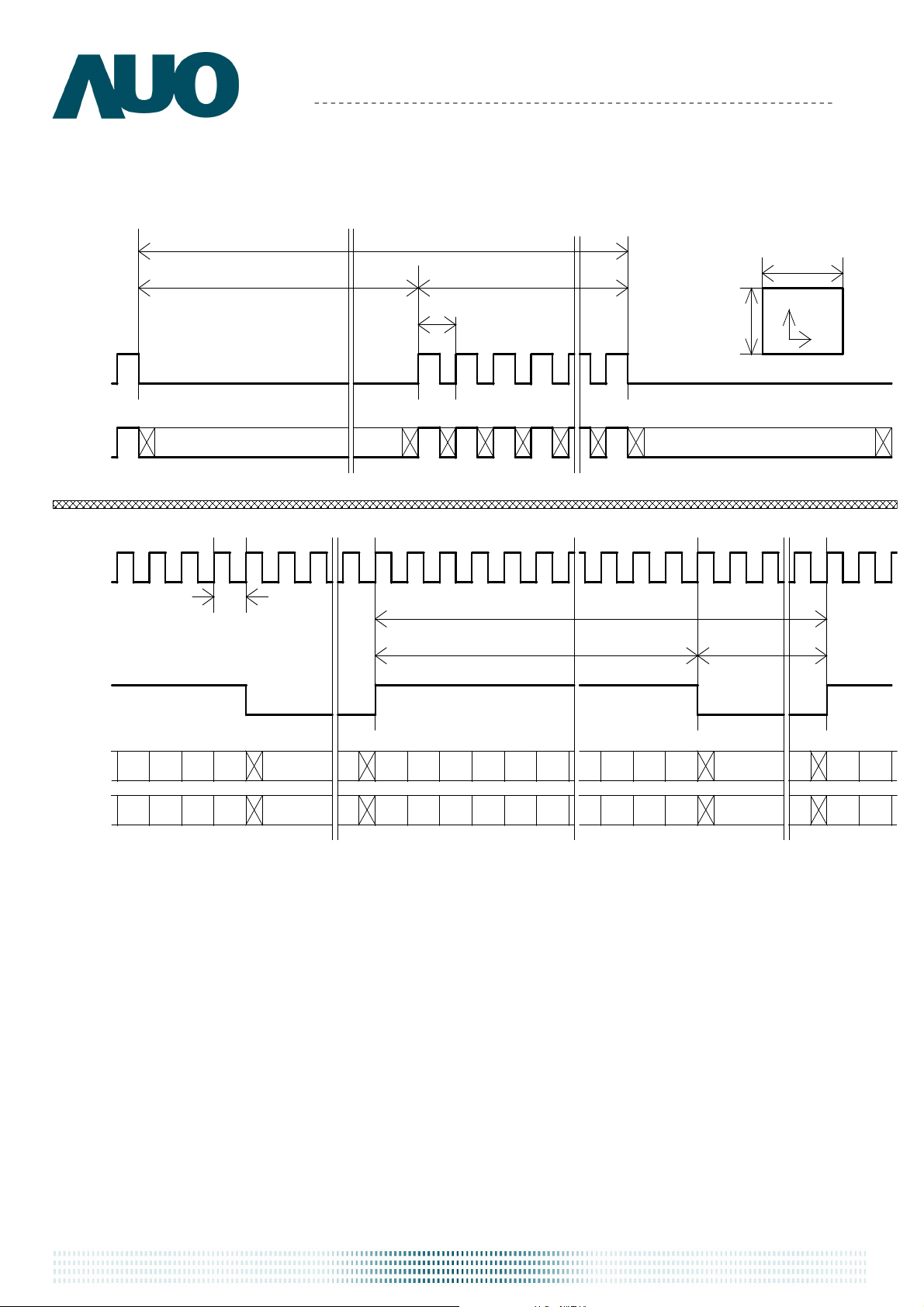

Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
Content
1 HANDLING PRECAUTIONS...................................................................................................... 4
2 GENERAL DESCRIPTION......................................................................................................... 5
2.1 Display Characteristics ........................................................................................................................ 5
2.2 Optical Characteristics......................................................................................................................... 6
3 FUNCTIONAL BLOCK DIAGRAM .......................................................................................... 10
4 ABSOLUTE MAXIMUM RATINGS .......................................................................................... 11
4.1 TFT LCD Module............................................................................................................................... 11
4.2 Backlight Unit .................................................................................................................................... 11
4.3 Absolute Ratings of Environment....................................................................................................... 11
5 ELECTRICAL CHARACTERISTICS........................................................................................ 13
5.1 TFT LCD Module............................................................................................................................... 13
5.1.1
Power Specification ........................................................................................................................................13
5.1.2
Signal Electrical Characteristics .....................................................................................................................14
5.2 Backlight Unit .................................................................................................................................... 16
6 SIGNAL CHARACTERISTICS................................................................................................. 17
6.1 Pixel Format Definition....................................................................................................................... 17
6.2 Input Data Format Definition.............................................................................................................. 17
6.3 Signal Description.............................................................................................................................. 18
6.4 Timing Characteristics ....................................................................................................................... 20
6.5 Timing Diagram ................................................................................................................................. 21
6.6 Power ON/OFF Sequence................................................................................................................. 22
7 CONNECTOR AND PIN ASSIGNMENT .................................................................................. 23
7.1 TFT LCD Module............................................................................................................................... 23
7.1.1
Pin Assignment ...............................................................................................................................................23
7.2 LED Connector on Backlight Unit ...................................................................................................... 24
7.2.1
LED Pin assignment .......................................................................................................................................24
7.2.2
LED Connector Dimension .............................................................................................................................25
7.2.3
LED Mating housing dimension......................................................................................................................25
8 RELIABILITY TEST ................................................................................................................. 26
9 SHIPPING LABEL ................................................................................................................... 27
10 MECHANICAL CHARACTERISTICS ...................................................................................... 28
11 PACKING SPECIFICATION .................................................................................................... 29
11.1 Packing Flow ..................................................................................................................................... 29
11.2 Pallet and Shipment Information........................................................................................................ 30
Document version 1.2 2
Page 3
Product Specification
a) IDD1 input
rent max value: 0.46(A) & 0.53(A) b)
PDD1 VDD Power max value: 2.30(watt)
: a) IDD1 input
current max value: 0.47(A) & 0.57(A) b)
PDD1 VDD Power max value:
PDD1 VDD Power max value: 2.40(watt)
: a) IDD1 input
AU OPTRONICS CORPORATION
M190PTN01.0
Records of Revision
Version and Date Page
0.1 2012/09/12 All
1.0 2012/10/19 All Final Edition for customers N/A
1.1 2013/01/23
1.2 2013/02/01 13 5.1.1 Power Specification: a) IDD1 input
First Edition for Customer N/A
5.1.1 Power Specification:
cur
13
& 2.65(watt)
26 8 Reliability test: drop test
height_46cm
30 11.2 Pallet & Shipment information:
item 2, 3, 4, 5 & 6
current max value: 0.47(A) at 60Hz b)
at 60Hz
Old description New Description Remark
5.1.1 Power Specification
2.40(watt) & 2.85(watt)
8 Reliability test: drop test
height_45.7cm
11.2 Pallet & Shipment information:
item 2, 3, 4, 5 & 6
5.1.1 Power Specification
current max value: 0.51(A) at 60Hz b)
PDD1 VDD Power max value: 2.55
(watt) at 60Hz
Document version 1.2 3
Page 4
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Pls avoid touching COF position while you are doing mechanical design
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
temperature between 5℃ and 35℃ at normal humidity.
Document version 1.2 4
Page 5
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
2 General Description
This specification applies to the 19 inch- WXGA+ color a-Si TFT-LCD Module M190PTN01.0 The
display supports the WXGA+ (1440(H) x 900(V)) screen format and 16.7M colors (RGB
6-bits+HiFRC). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel
LVDS interface and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [um]
Pixel Arrangement
Display Mode
White Luminance ( Center ) [cd/m2]
Contrast Ratio
Optical Response Time [msec]
Nominal Input Voltage VDD [Volt]
Power Consumption
(VDD line + LED line)
Weight [g]
Physical Size [mm]
Electrical Interface
Support Color
Surface Treatment
Temperature Range
Operating
Storage (Shipping)
RoHS Compliance
TCO Compliance
[Watt]
[°C]
[°C]
481.4(18.9”)
408.24 (H) x 255.15(V)
1440x3(RGB) x 900
283.5 (per one triad) ×283.5
R.G.B. Vertical Stripe
TN Mode, Normally White
250 cd/m
1000 (Typ.)
5ms (Typ., on/off)
+5.0 V
10.66 W (Typ.)
VDD line : PDD (typ), All black pattern at 60Hz = 1.95W
LED line : PBLU (typ) = 8.71W
1520 (Typ.)
428.0(W) x 278.0(H) x 10.3(D) (Typ.)
Dual channel LVDS
16.7M colors (RGB 6-bit + Hi_FRC )
Anti-Glare, 3H
0 to +50
-20 to +60
RoHS Compliance
TCO6.0 Compliance
2
(Typ.)
Document version 1.2 5
Page 6
2.2 Optical Characteristics
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
Contrast Ratio Normal Direction
Response Time [msec]
Color / Chromaticity
Coordinates (CIE)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Rising Time (TrR) - 3.6 5.7
Falling Time (TrF) - 1.4 2.3
Rising + Falling - 5 8
Red x 0.615 0.645 0.675
Red y 0.314 0.344 0.374
Green x 0.292 0.322 0.352
Green y 0.604 0.634 0.664
Blue x 0.124 0.154 0.184
75
75
70
70
600
85
85
80
80
1000 - 3
-
-
-
-
2
4
5
Blue y 0.02 0.05 0.08
Color Coordinates (CIE) White
Central Luminance [cd/m2] 200 250 - 6
Luminance Uniformity [%] 75 80 - 7
Crosstalk (in 60Hz) [%] 1.5 8
Flicker dB -20 9
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
Document version 1.2 6
Page 7
Product Specification
Center of the screen
TFT-LCD Module
AU OPTRONICS CORPORATION
M190PTN01.0
Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
LCD Panel
Photo Detector
Measured Distance

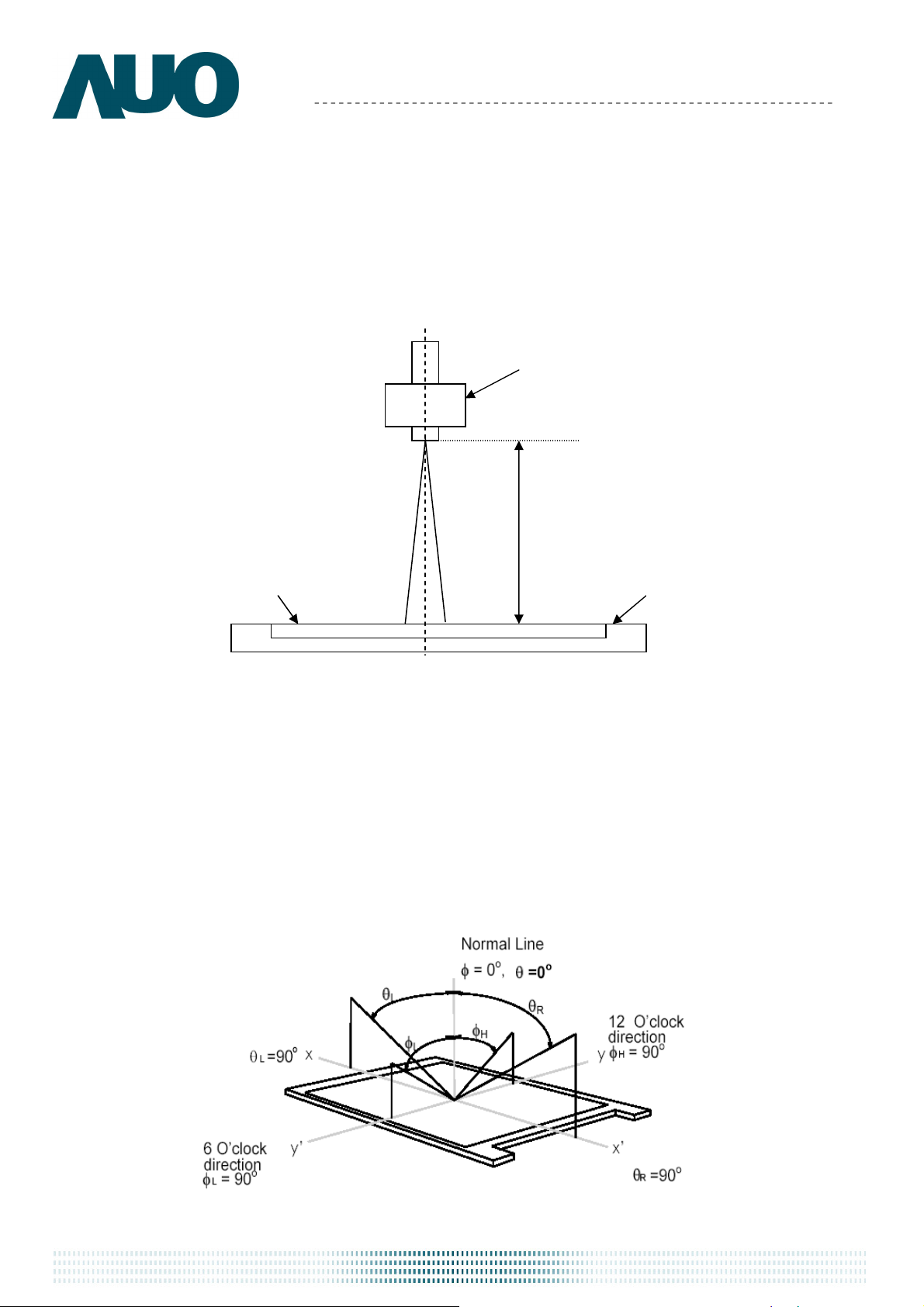

Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
Document version 1.2 7
Page 8
Product Specification
90
1 Frame
AU OPTRONICS CORPORATION
M190PTN01.0
Note 3: Contrast Ratio measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A

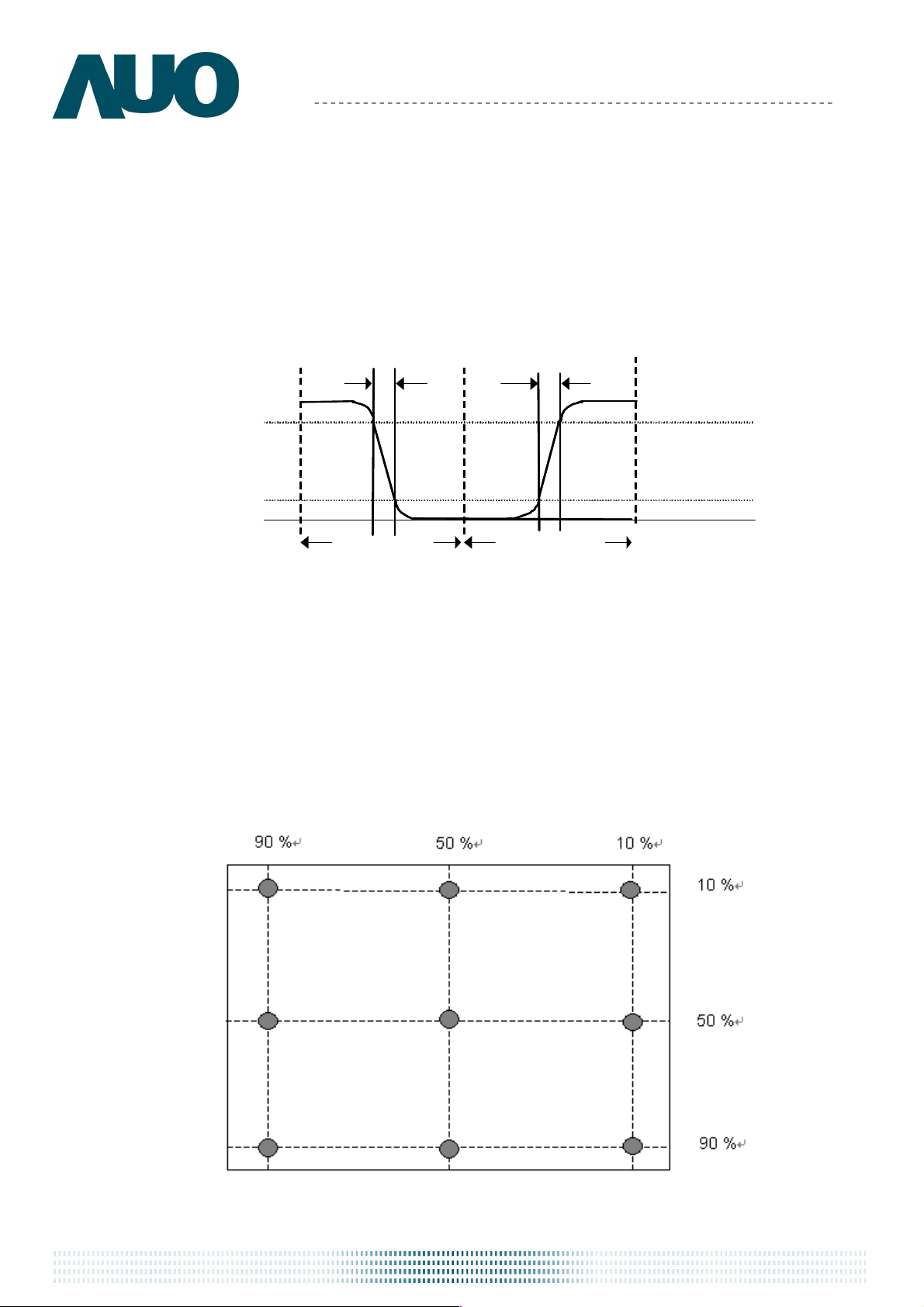

The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling time, TrF),
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
%
Optical
Optical
response
response
100
100
10
10
%
White
0
0
T
rF
Black
1 Frame
Black
T
rR
White
TrR + TrF = 5 msec (typ.).
Algorithm:┃Gray Level A – Gray Level B┃≧16, then the average gray to gray response time is 2
ms,
(F= 60 Hz).
Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3
Note 6: Central Luminance measured by TOPCON SR-3
Note 7: Luminance Uniformity of these 9 points defined as below and measured by TOPCON
SR-3
Document version 1.2 8
Page 9
Product Specification
Level
DC
Time
AU OPTRONICS CORPORATION
M190PTN01.0
Uniformity =

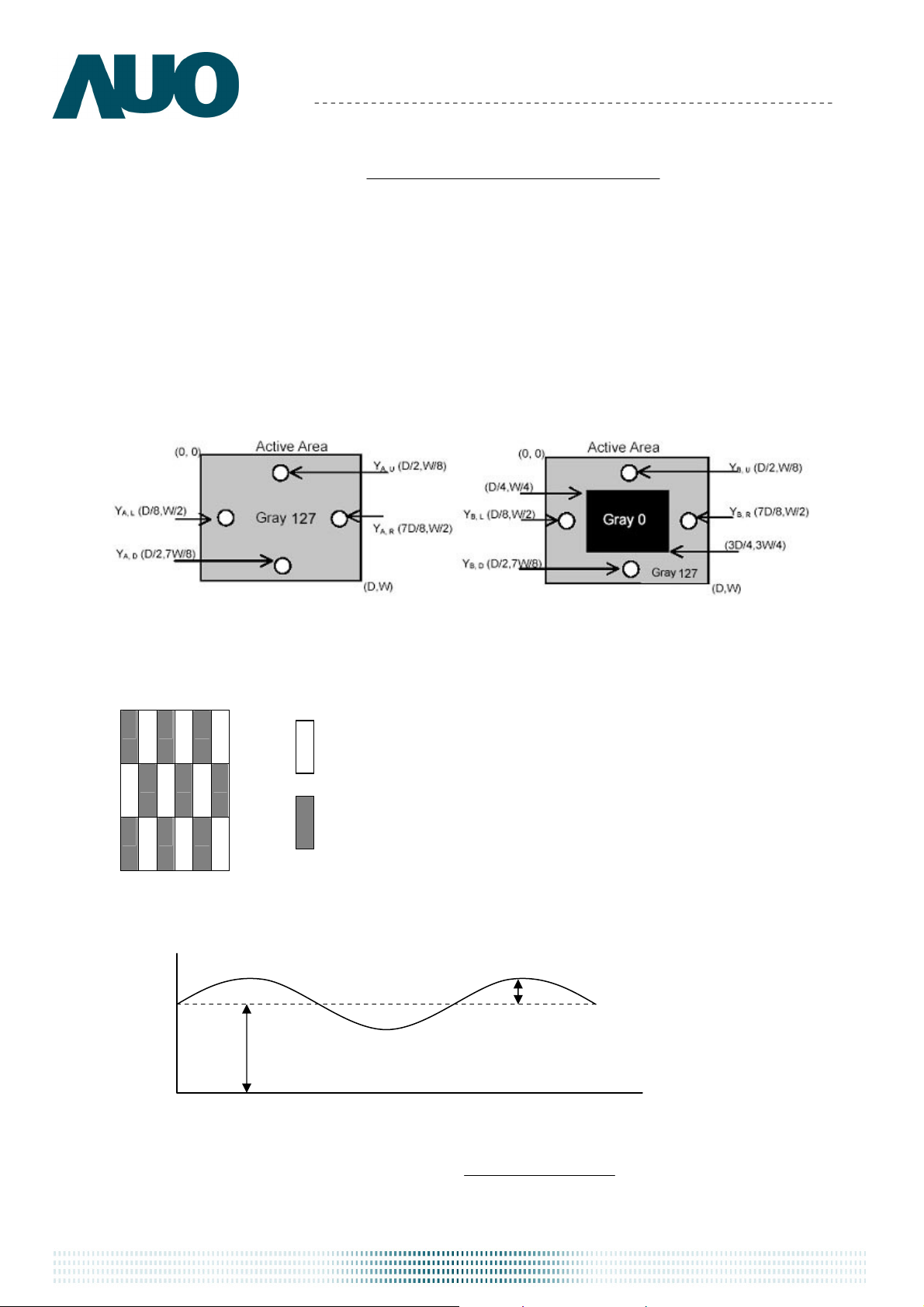

Note 8: Crosstalk defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum
Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
log20(dB)Flicker =
Document version 1.2 9
Hz) 30Level(at AC
Page 10
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
3 Functional Block Diagram

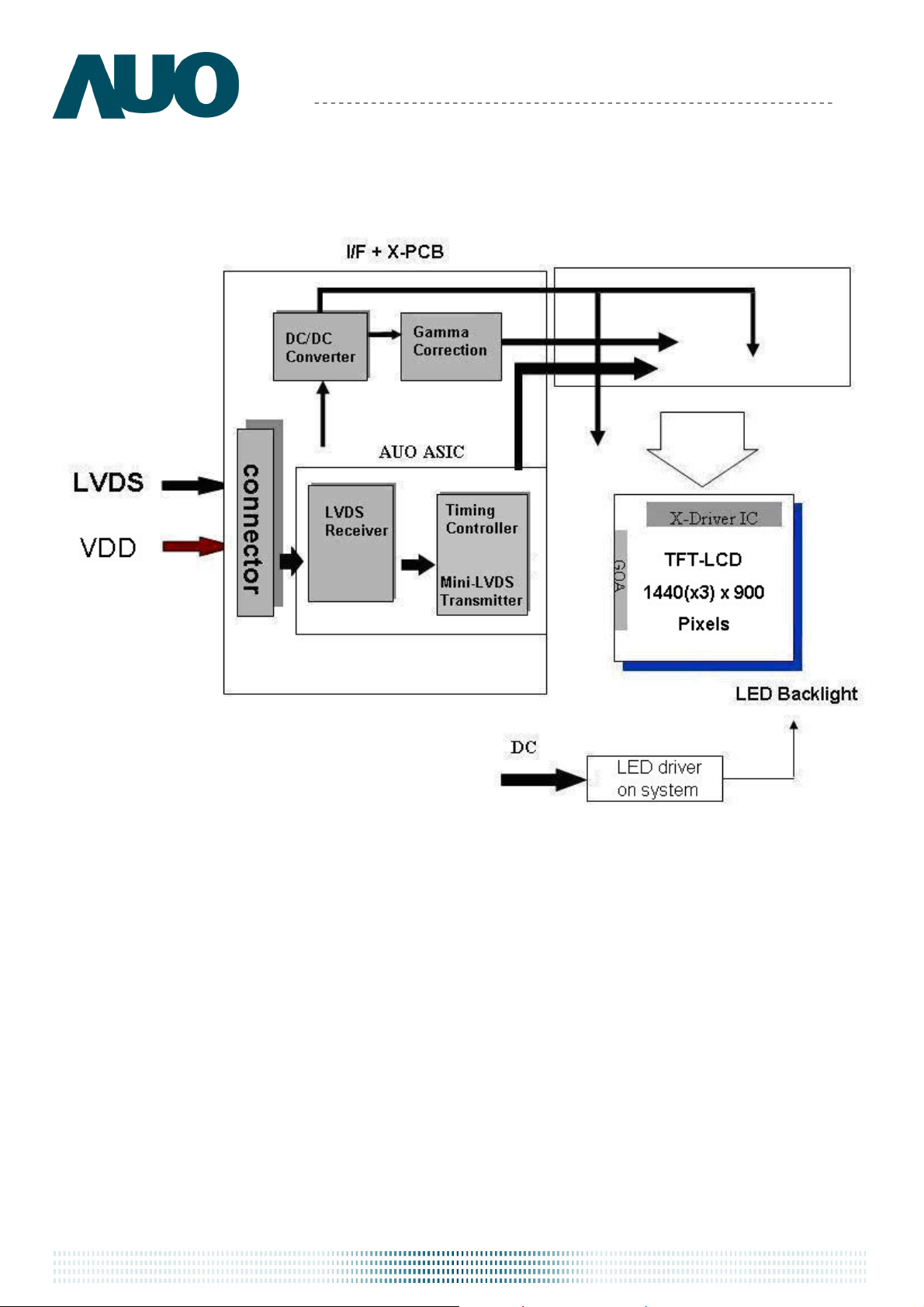

The following diagram shows the functional block of the 19.0 inch Color TFT-LCD Module:
Document version 1.2 10
Page 11
Product Specification
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
AU OPTRONICS CORPORATION
M190PTN01.0
Item Symbol
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current
LED
Pulse
Forward Current
LED forward Voltage variation
(per string variation)
Min Max Unit Conditions
VDD -0.3 6.0 [Volt] Note 1, 2
IRLED1
IRLED2
IRLED3
IRLED4
IPLED1
IPLED2
IPLED3
IPLED4
Δ
Vf
0
- 150
- 2.2
90
[mA]
[mA]
[Volt]
10% duty @100Hz
Note 1,2,5
100% duty
Note 1,2,5
Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [°C] Note 3
Glass Surface Temperature
(Operation)
TGS 0 +65 [°C]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [°C]
Storage Humidity HST 5 90 [%RH]
Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values

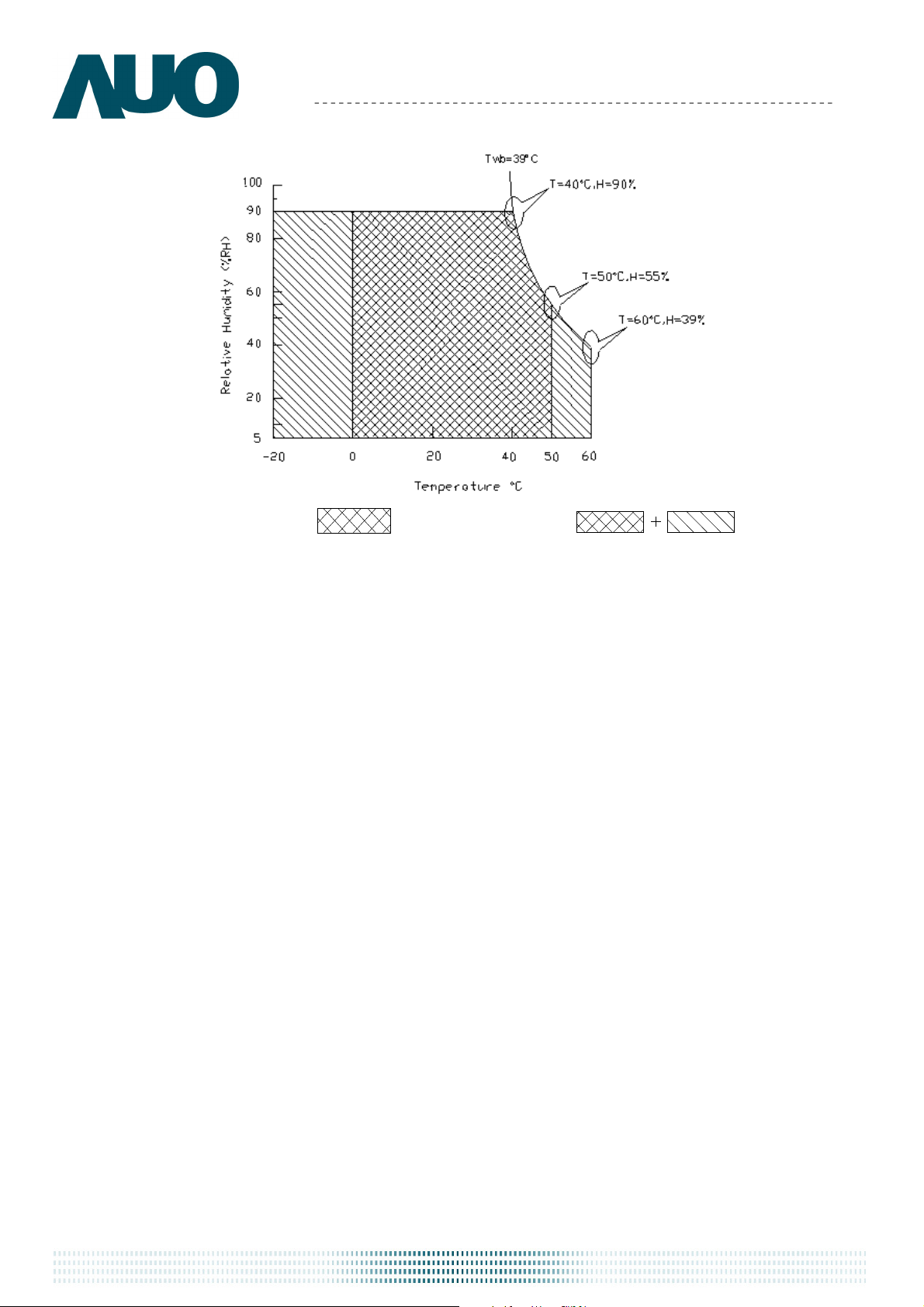

Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta ≦39°C)
3. No condensation
Note 4: Function Judged only
Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
Note3
Note4
Note 3
Document version 1.2 11
Page 12
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
Operating Range Storage Range
Document version 1.2 12
Page 13
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
4.5
IDD1
Input Current
0.44 0.57 [A] VDD= 5.0V, All black Pattern at 75 Hz
PDD1
IRush
VDDrp

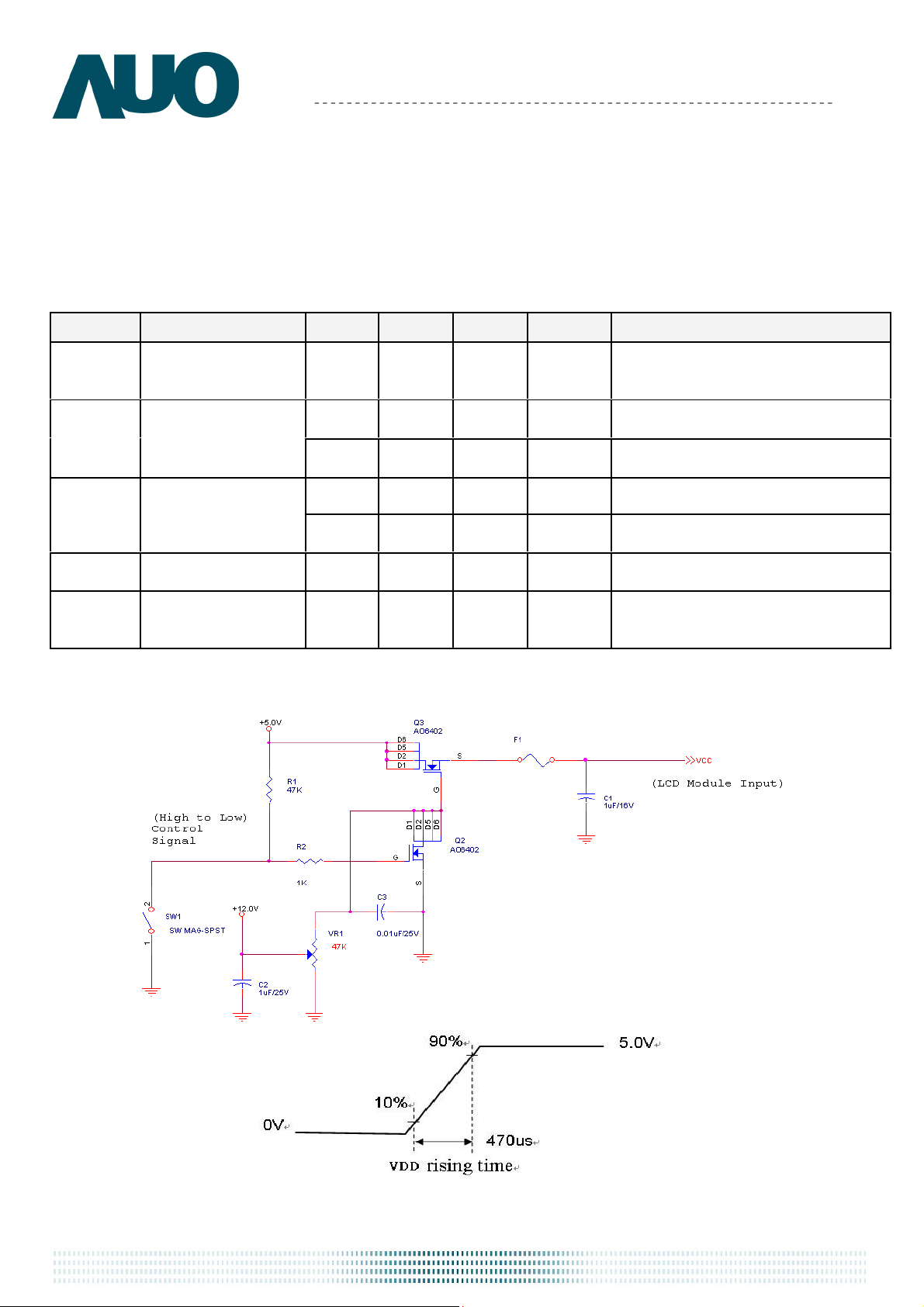

Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
VDD Power
Inrush Current
Allowable Logic/LCD
Drive Ripple Voltage
2.2 2.85 [Watt] VDD= 5.0V, All black Pattern at 75 Hz
5
0.39
1.95
1.4
5.5
0.51
2.55
3
500
[Volt] +/-10%
[A]
VDD= 5.0V, All black Pattern at 60 Hz
[Watt] VDD= 5.0V, All black Pattern at 60 Hz
[A]
Note 1
[mV] p-p VDD= 5.0V, All black Pattern at 75 Hz
Document version 1.2 13
Page 14
Product Specification
5.1.2 Signal Electrical Characteristics

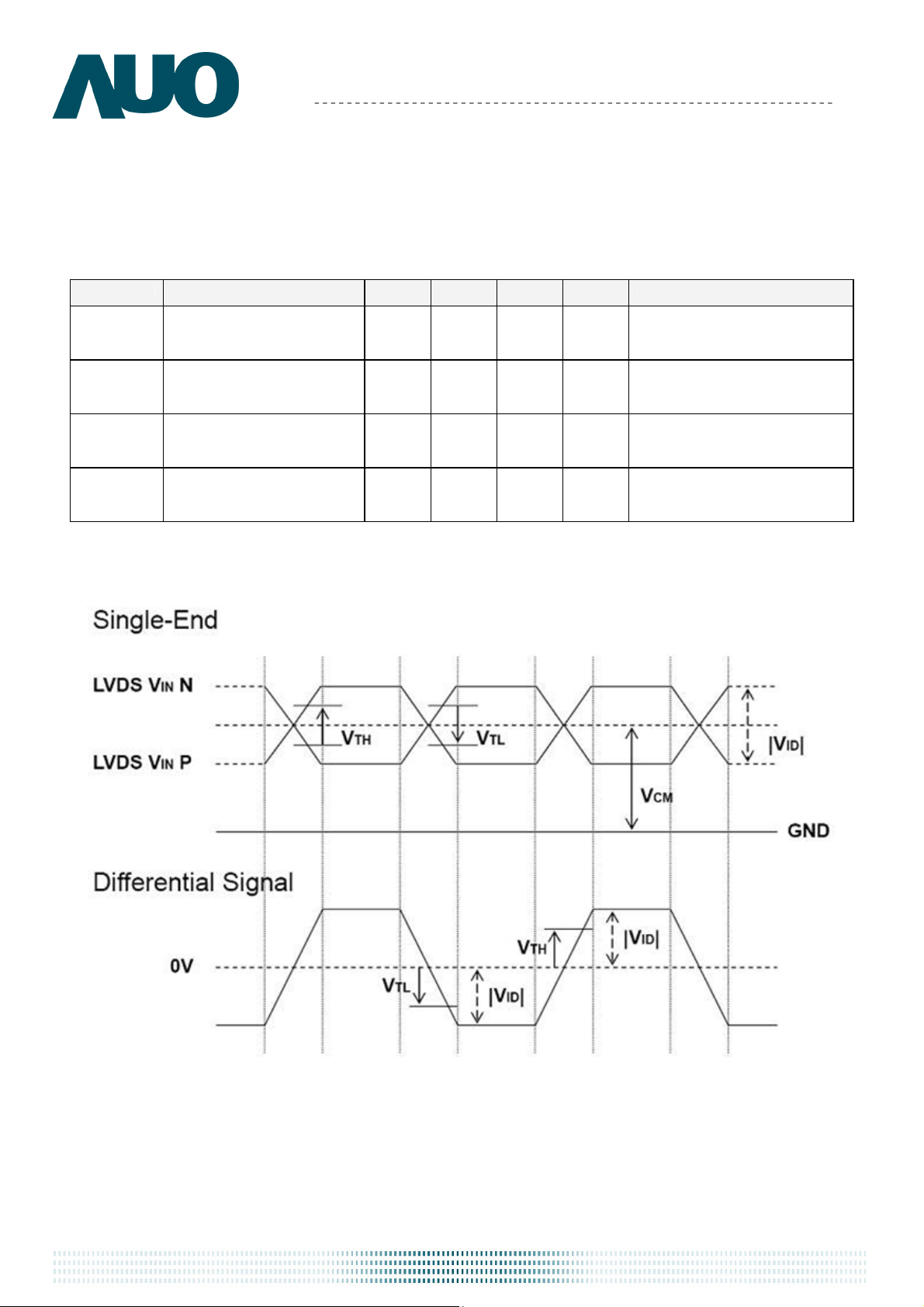

(1) DC Characteristics of each signal are as following:
AU OPTRONICS CORPORATION
M190PTN01.0
Symbol Description Min Typ Max Units
VTH
VTL
│VID│
VCM
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
Differential Input
Common Mode Voltage
- - +100
-100 - -
100 - 600
+1.0 +1.2 +1.5
Note 1: LVDS Signal Waveform
Conditions
[mV]
[mV]
VCM = 1.2V
Note 1
VCM = 1.2V
Note 1
[mV] Note 1
[V]
VTH-V
= 200MV (max)
TL
Note 1
Document version 1.2 14
Page 15

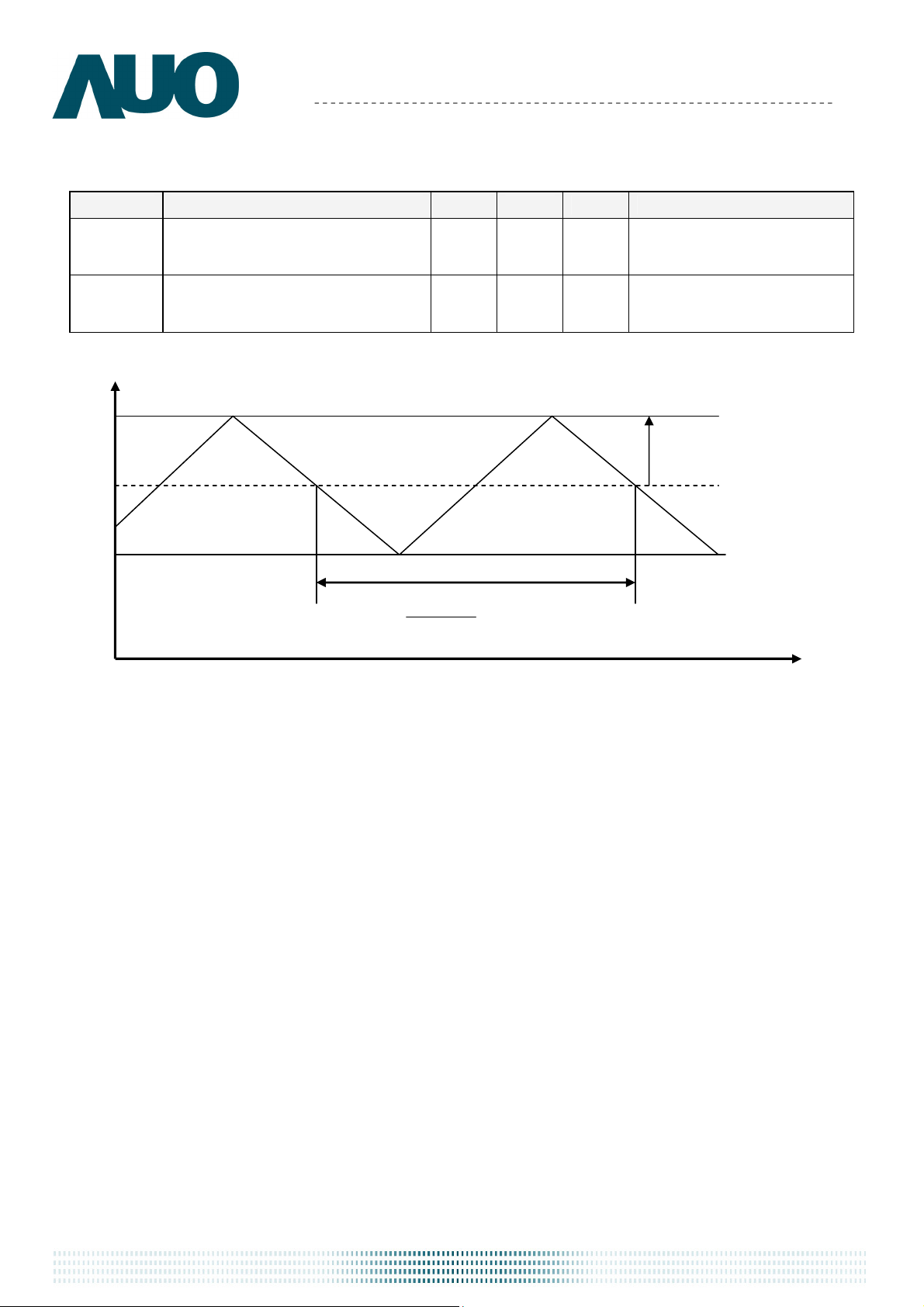

(2) AC Characteristics
Freq
F
max
F
center
F
min
F
center
* F
DEV
< Spread Spectrum>
time
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
Symbol Description Min Max Units
F
F
DEV
MOD
Maximum deviation of input clock
frequency during SSC
Maximum modulation frequency
of input clock during SSC
- ± 3 %
- 200 KHz
1
F
MOD
Conditions
Document version 1.2 15
Page 16
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25 °C (Room Temperature):
Symbol Description Min.
IRLED1
IRLED2
IRLED3
IRLED4
VLB
PBLU BLU Power Consumption (for reference)
LTLED LED Life Time (Typical) 30,000
LED Forward Current
Light Bar Operation Voltage
(for reference)
- 60 63 [mA] Note 1
30.8 36.3 39.6 [Volt] Note 2
- 8.71 9.98 [Watt] Note 3
Typ. Max. Unit Note
- -
[Hour]
Note 4
Each module consists of 44 pcs LED ( 4 strings x 11 pcs / string )
Note 1: The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as per
strings LED current.
Note 2: The value showed is one string operation voltage.
Note 3: PBLU = VLED *( IRLED1+IRLED2+IRLED3+IRLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum life
time of LED unit is on the condition of IRLED = 60mA and 25±2°C (Room Temperature).
Document version 1.2 16
Page 17
Product Specification
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
439 1
440
1st Line
900
Line
AU OPTRONICS CORPORATION
M190PTN01.0
6 Signal Characteristics

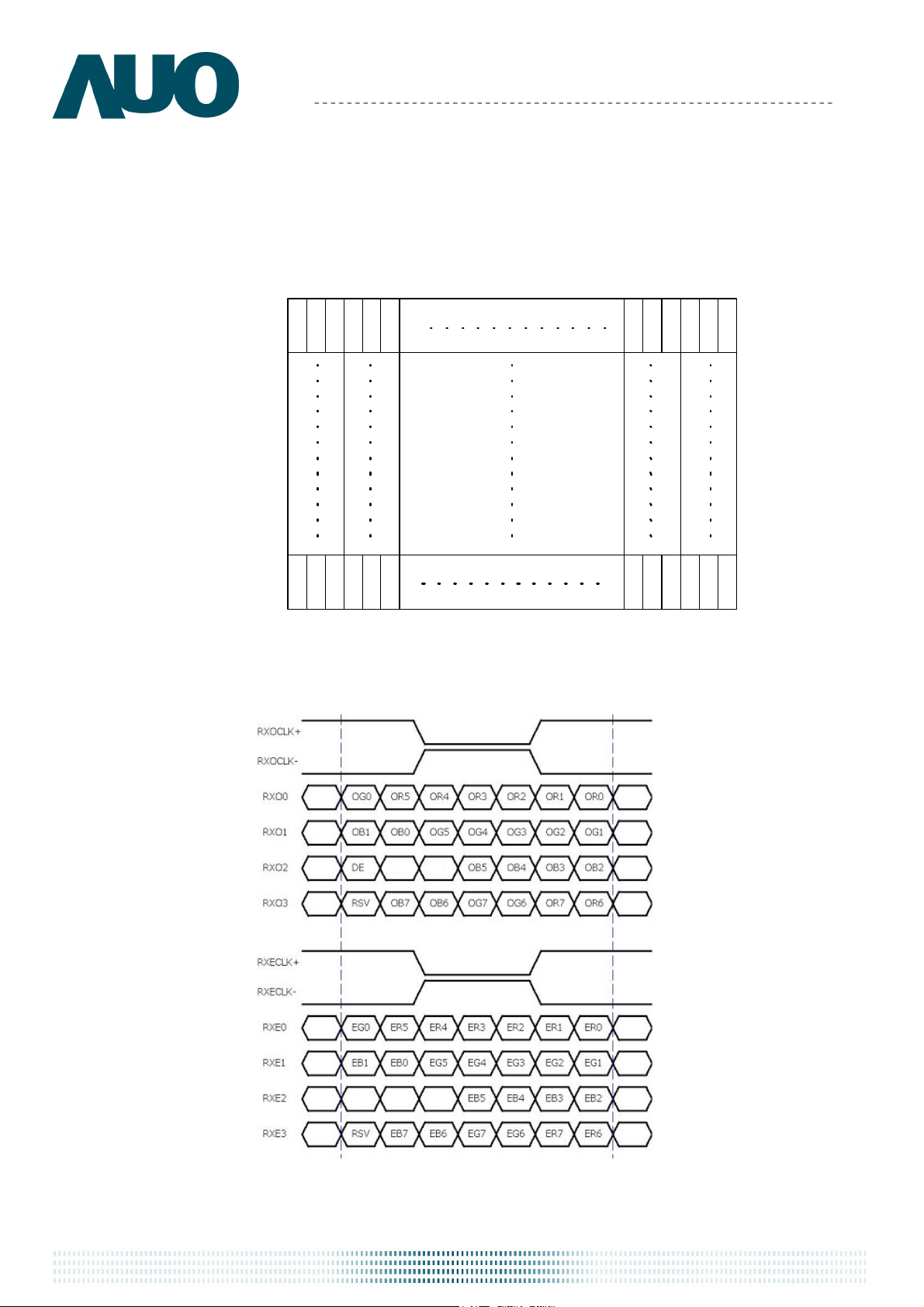

6.1 Pixel Format Definition
Following figure shows the relationship between the input signals and LCD pixel format.
6.2 Input Data Format Definition
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
Document version 1.2 17
Page 18
Product Specification
6.3 Signal Description
PIN # SIGNAL NAME DESCRIPTION
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
AU OPTRONICS CORPORATION
M190PTN01.0
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Power Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28 VDD Power +5V
29 VDD Power +5V
30 VDD Power +5V
Note 1: Input signals of odd and even clock shall be the same timing.
Document version 1.2 18
Page 19
Product Specification
AU OPTRONICS CORPORATION

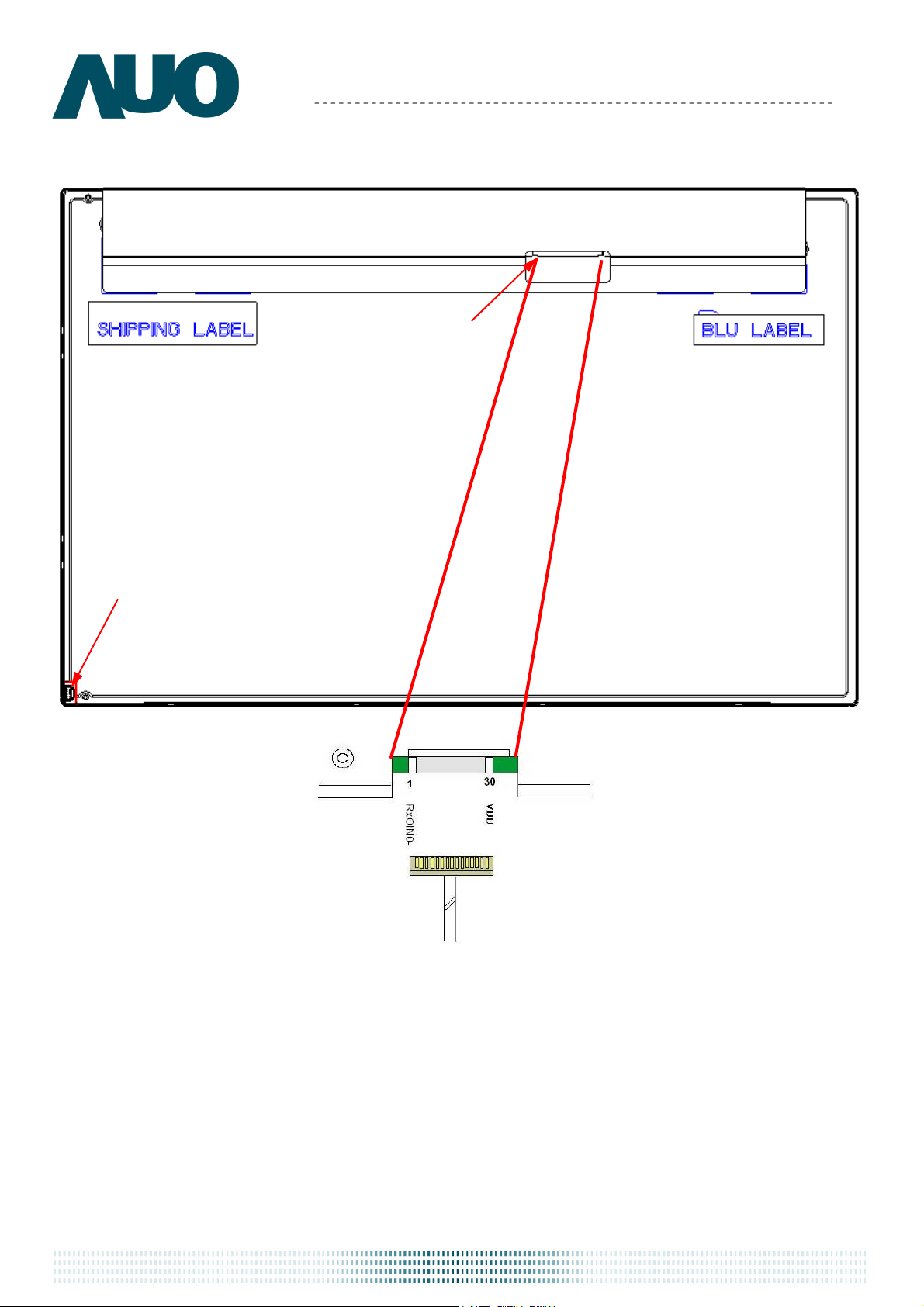

LVDS C/N PIN 1
M190PTN01.0
L/B C/N PIN 1
Document version 1.2 19
Page 20
Product Specification
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal
Item
Period Tv 912 916 1651 Th
Vertical
Active Tdisp(v) 900 900 900 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th 813 964 1472 Tclk
Horizontal
Active Tdisp(h) 720 720 720 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk 14.9 18.9 27.0 Ns
Clock
Frequency Freq 37.1 53.0 67.1 MHz
Frame rate Frame rate VFreq 50 60 76 Hz
AU OPTRONICS CORPORATION
Symbol
Min
Typ
12 16 751 Th
93 244 752 Tclk
Max Unit
M190PTN01.0
Hsync
Frequency
Note 1: DE mode only
Hsync
HFreq 45.6 55.0 82.5 KHz
Frequency
Document version 1.2 20
Page 21
6.5 Timing Diagram
Product Specification
AU OPTRONICS CORPORATION
Tv
M190PTN01.0
M pixel
DE
RGB Data
CLK
DE
N
Line
Tblk(v)
Invalid Data
Tclk
Tdisp(v)
Y
Th
N Line
32
LineLine
Th
Tdisp(h)
4
LineLine
N
Line
Invalid Data
Tblk(h)
1
X
RGB Data
(Odd)
RGB Data
(Even)
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
1
Pixel Pixel
2
Pixel
Pixel
3
5
Pixel
6 M-2
4
Pixel
Pixel
7
Pixel
8 M
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
M-3
Pixel
Pixel
M-1
PixelPixel
Invalid Data
Invalid Data
Pixel
1
Pixel
2M-4
Pixel
3
Pixel
4
Document version 1.2 21
Page 22
Product Specification
T5 T2
T1
T6
AU OPTRONICS CORPORATION
M190PTN01.0

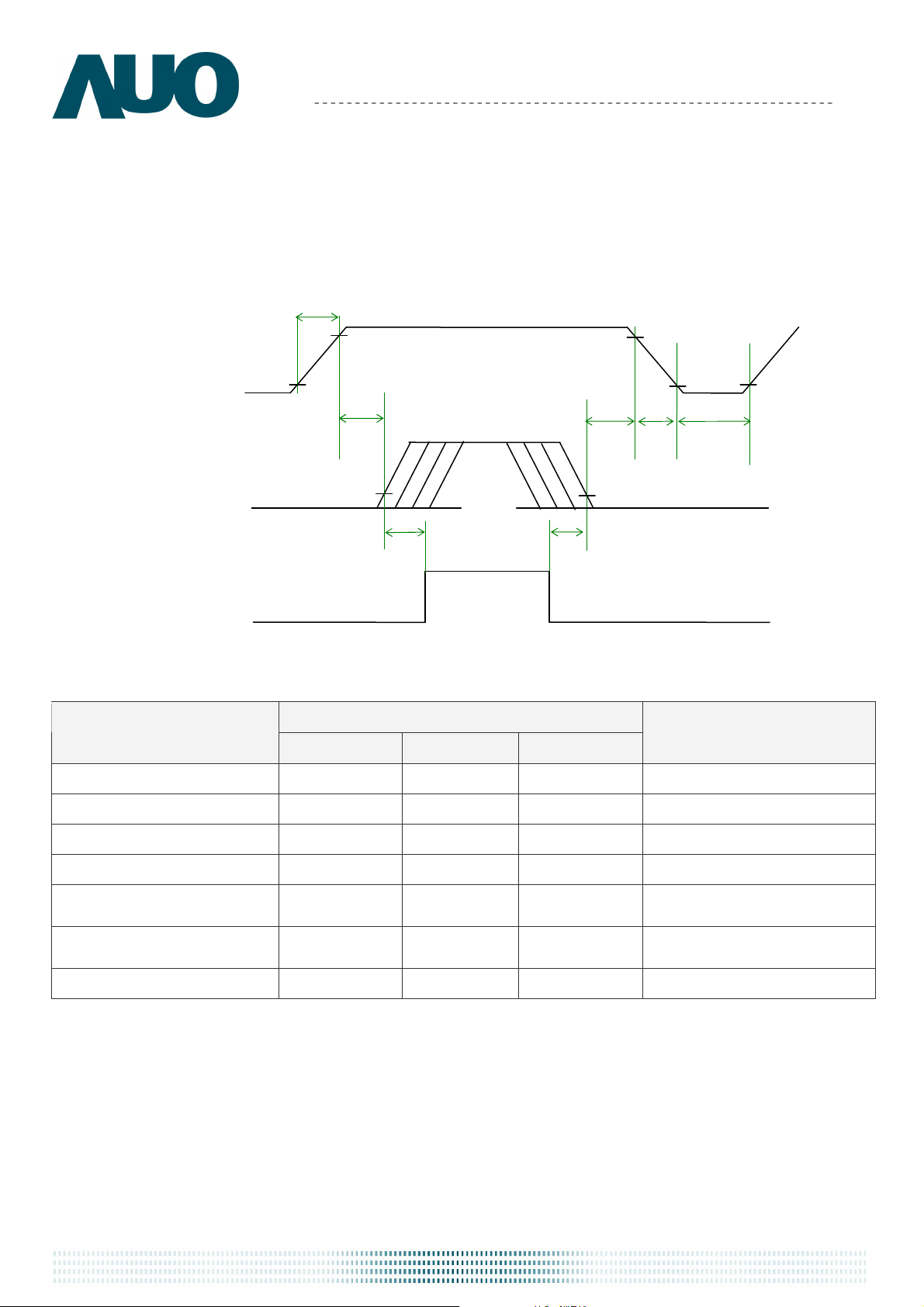

6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
Parameter
T1 0.5 - 10 [ms]
10%
90%
VALID
DATA
T3
T4
Power Sequence Timing
Value
Min. Typ. Max.
90%
10%
T7
Unit
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 - 50
T6 0 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
[ms]
Note1,2
[ms]
Note1,2
Document version 1.2 22
Page 23
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
7 Connector and Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
Manufacturer
Type Part Number
STM
P-TWO
MSCKT2407P30HB
AL230F-A0G1D-P
Mating Housing Part Number
FI-X30HL (Locked Type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
RxO0-
RxO1-
RxO2-
GND
RxOCLKIN+
RxO3+
RxE0+
RxE1-
GND
RxE2+
RxECLKIN+
RxE3+
NC
(for AUO test only. Do not
connect)
NC
connect)
(for AUO test only. Do not
VDD
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
RxO0+
RxO1+
RxO2+
RxOCLKIN-
RxO3-
RxE0-
GND
RxE1+
RxE2-
RxECLKIN-
RxE3-
GND
NC
(for AUO test only. Do not
connect)
VDD
VDD
Document version 1.2 23
Page 24
Product Specification

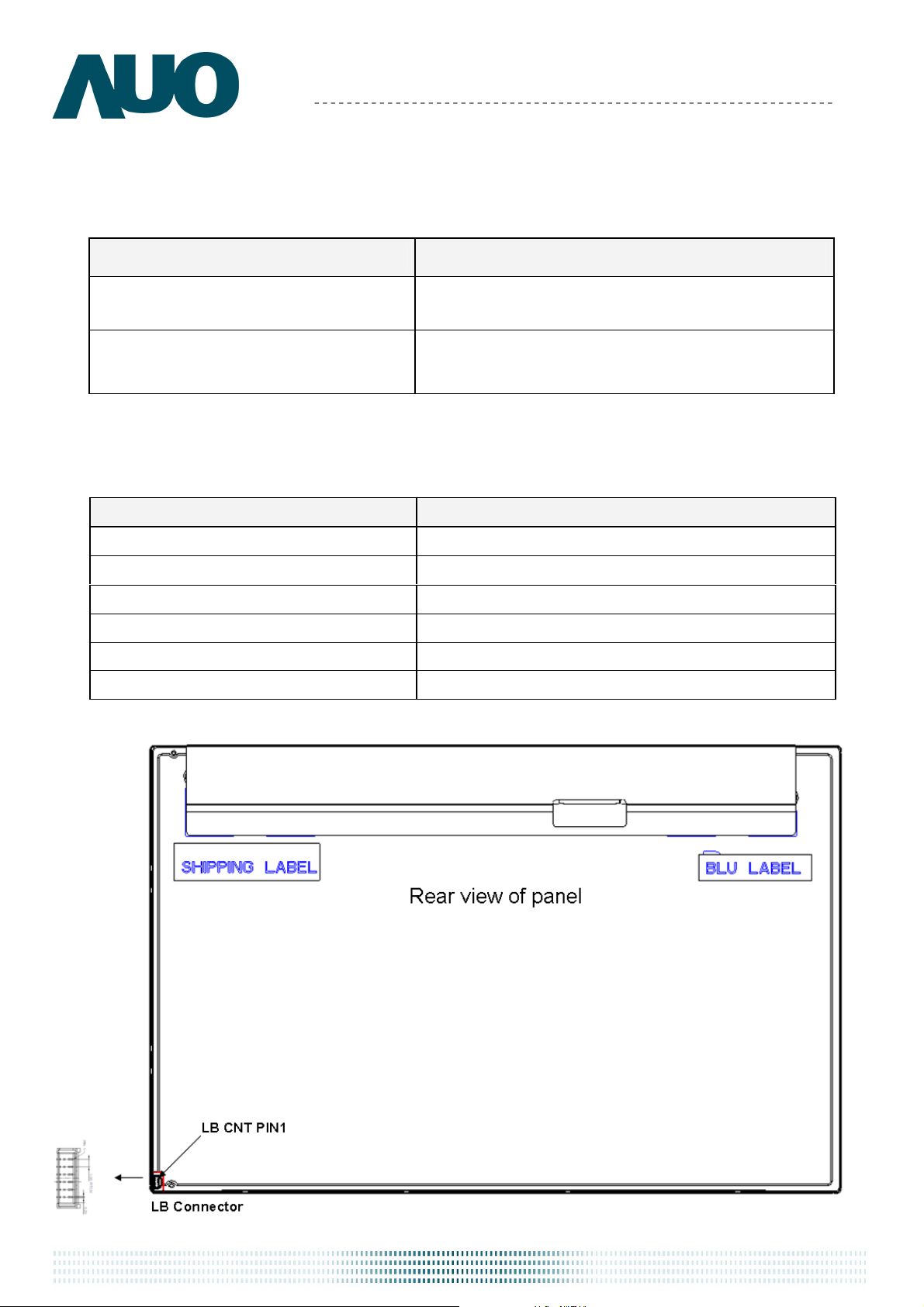

7.2 LED Connector on Backlight Unit
This connector is mounted on LED light bar.
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY INDUSTRIAL CO., LTD.
AU OPTRONICS CORPORATION
M190PTN01.0
Type Part Number
3707K-S06N-21 (BLACK)
(Locking Type, Wire Harness)
7.2.1 LED Pin assignment
Pin# Signal Name
1 IRLED1 (current out)
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
6 IRLED4 (current out)
Document version 1.2 24
Page 25
Product Specification
==××=××

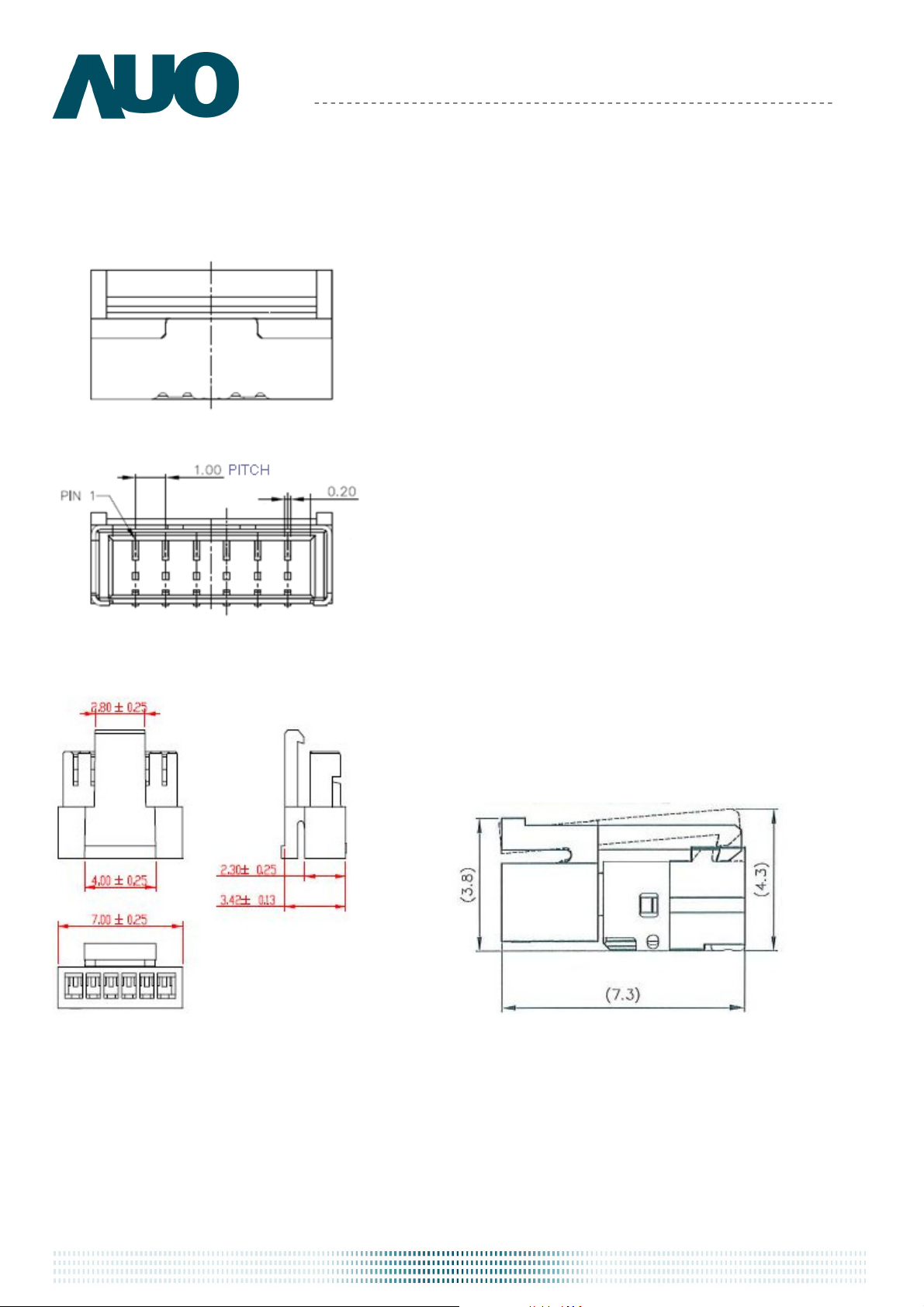

7.2.2 LED Connector Dimension
AU OPTRONICS CORPORATION
M190PTN01.0
)(0.1,25.400.39.13 mmunitPitchDVH
7.2.3 LED Mating housing dimension
Document version 1.2 25
Page 26
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
High Temperature Operation (HTO) Ta= 50°C, 50%RH, 300 hours
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Acceleration: 1.5 Grms
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Drop Test Height: 45.7 cm, package test
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles Note 1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point
Note 2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point
Operation: 18,000 ft
Non-Operation: 40,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20°C to 60°C, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
No data lost
Self-recoverable
No hardware failures
Document version 1.2 26
Page 27
Product Specification
AU Optronics
9 Shipping Label

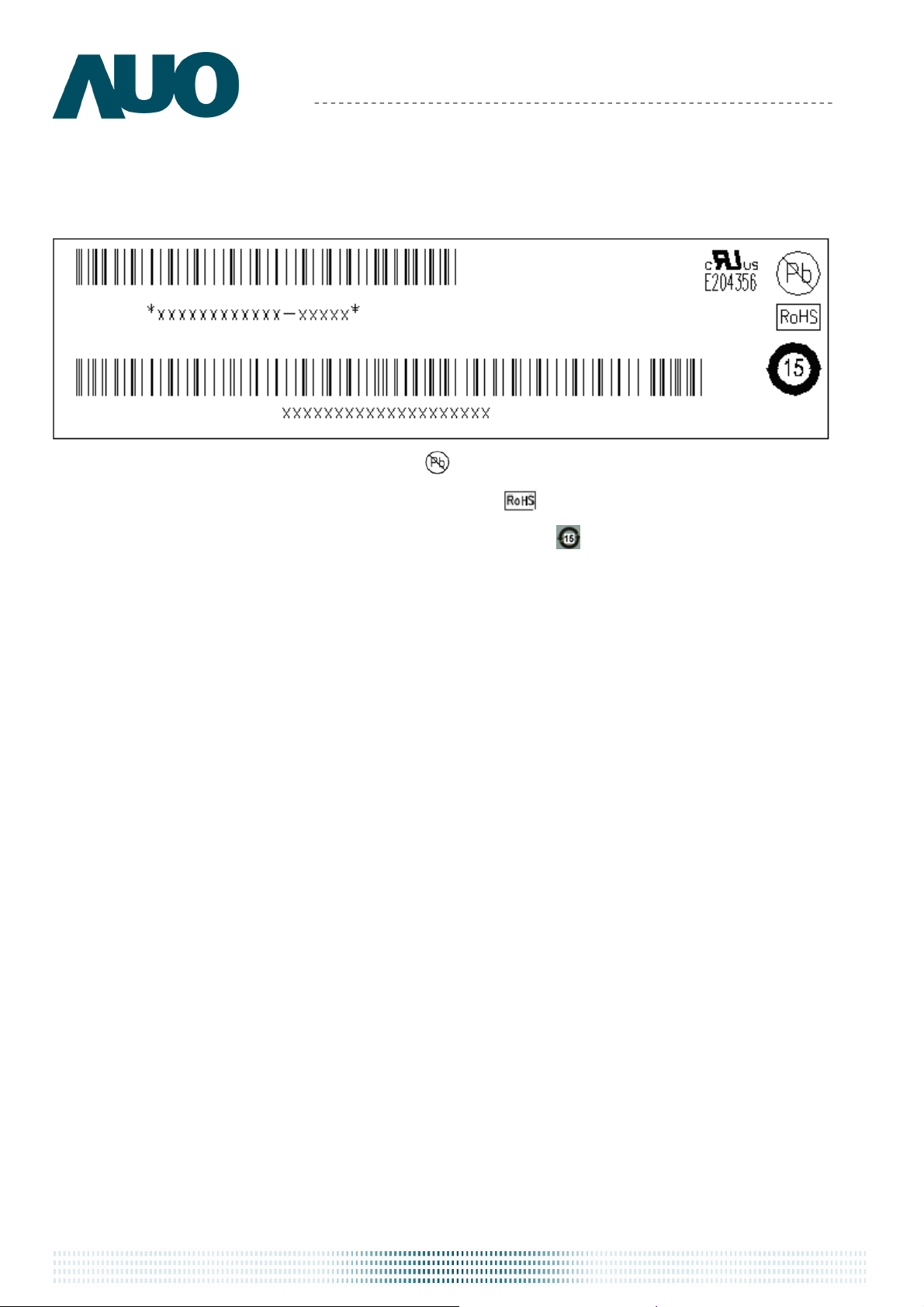

The label on the panel is shown as below:
Note 1: For Pb Free products, AUO will add for identification.
Note 2: For RoHS compatible products, AUO will add for identification.
AU OPTRONICS CORPORATION
Manufactured XX/XX
Model No: M190PTN01.0
M190PTN01.0
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
Document version 1.2 27
Page 28
Product Specification

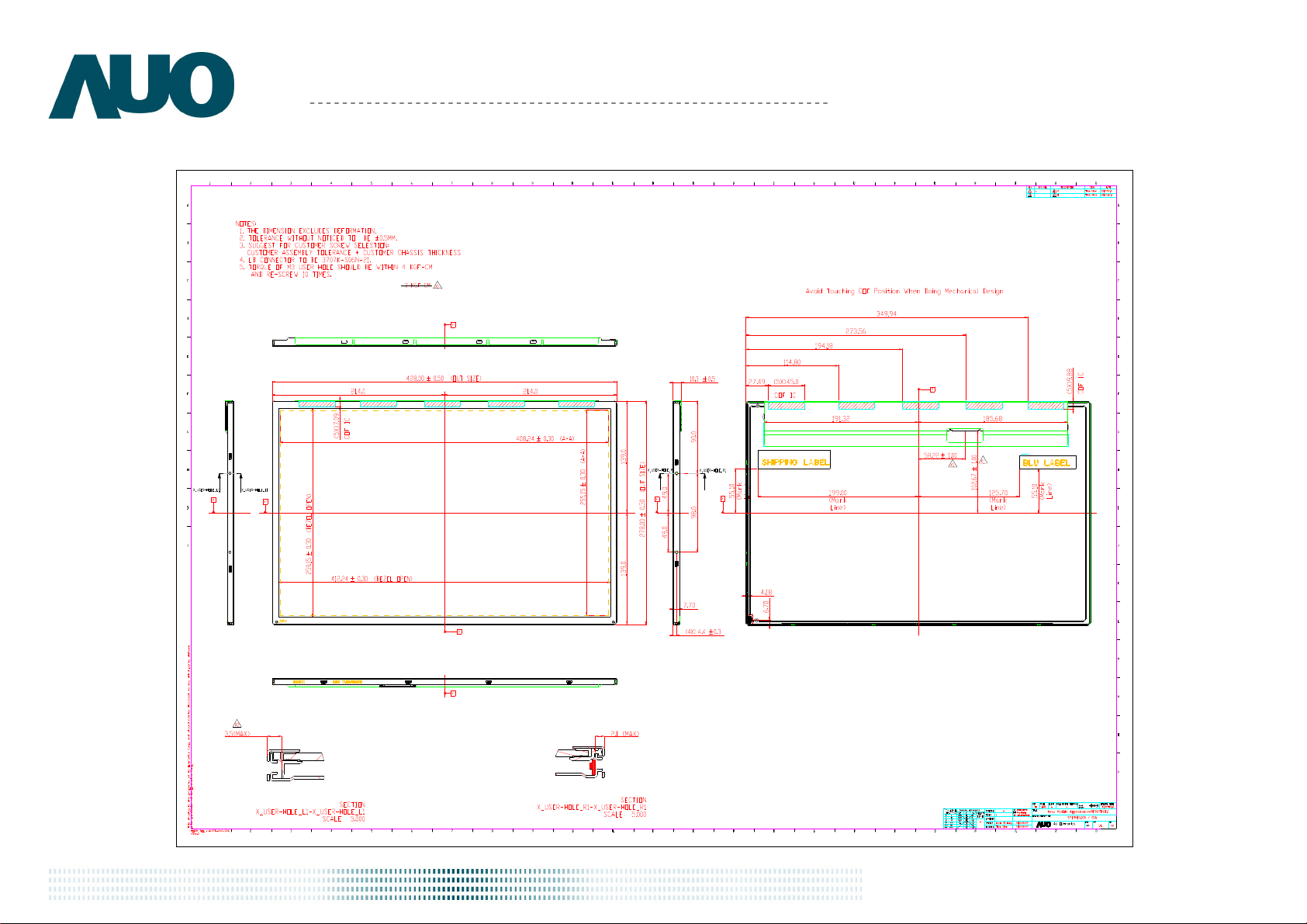

10 Mechanical Characteristics
AU OPTRONICS CORPORATION
M190PTN01.0
Document version 1.2 28
Page 29
Module
Past
e protect film
Past
e lamp wire
1pcs Module/ESD
Top cover
10 pcs/carton
Carton
”
H ” Tape
Cushion
Put top cover
11 Packing Specification

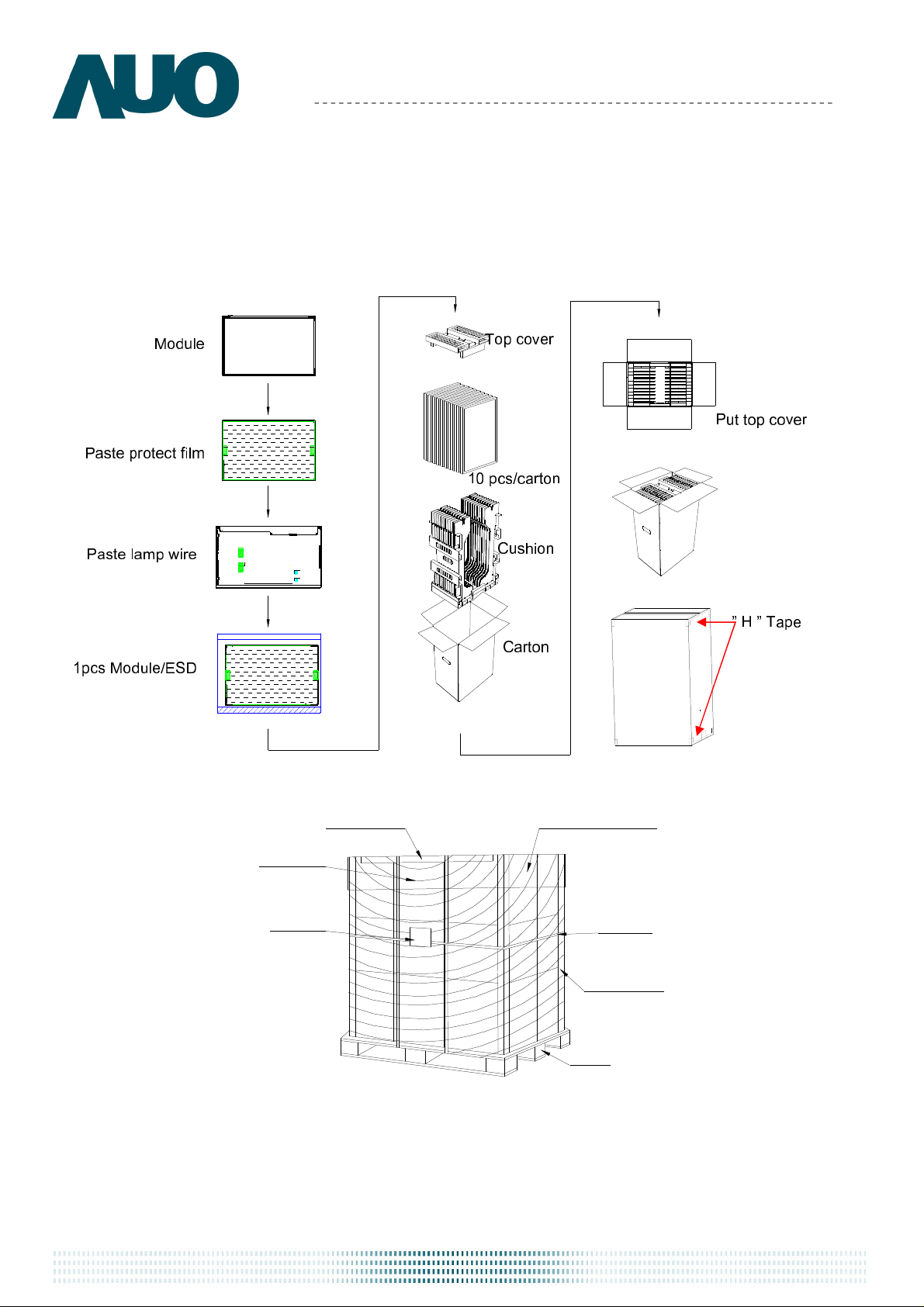

11.1 Packing Flow
Product Specification
AU OPTRONICS CORPORATION
M190PTN01.0
Corner angle
Stretch film
Label
Moisture-proof film
PET band
Corner angle
Pallet
Document version 1.2 29
Page 30
Product Specification
without Panel & cushion
with panel & cushion
11.2 Pallet and Shipment Information
AU OPTRONICS CORPORATION
M190PTN01.0
Specification
Item
Panel
Cushion
Box
Pallet
1
2
3
4
Packing Box
5
Pallet after Packing
6
Note 1: Estimated value which is subject to change based on real measured data.
Q'ty Dimension Weight(kg)
1
1
1
10 pcs/Box
1
24
boxes/pallet
428(H)mm x 278(V)mm x 10.3(D)mm
-
480(L)mm x 276(W)mm x 430(H)mm
524(L)mm x 282(W)mm x 356(H)mm
1150(L)mm x 1070(W)mm x 138(H)mm
1150(L)mm x 1070(W)mm x 1208(H)mm
1.52
1.9
1.1
18.2
13
448.8
Remark
Note 1
Note 1
Note 1
Note 1
Note 1
Document version 1.2 30
Loading...
