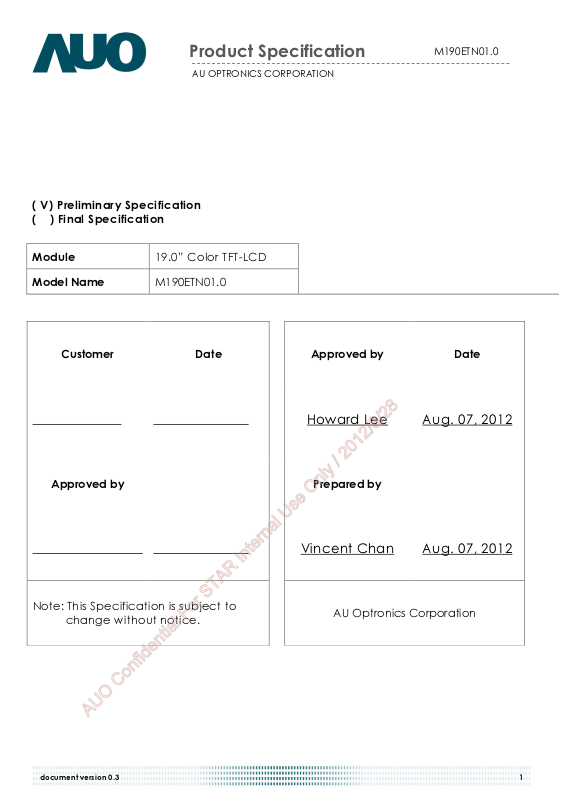

Page 1
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
( V) Preliminary Specification
( ) Final Specification
Module
Model Name
19.0” Color TFT-LCD
M190ETN01.0
Customer Date
Approved by
Approved by Date
Howard Lee Aug. 07, 2012
Prepared by
Note: This Specification is subject to
change without notice.
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 1
Vincent Chan Aug. 07, 2012
AU Optronics Corporation
Page 2
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
Content
1 HANDLING PRECAUTIONS ............................................................................................................5
2 GENERAL DESCRIPTION................................................................................................................. 6
2.1 Display Characteristics .......................................................................................................................... 6
2.2 Optical Characteristics.......................................................................................................................... 7

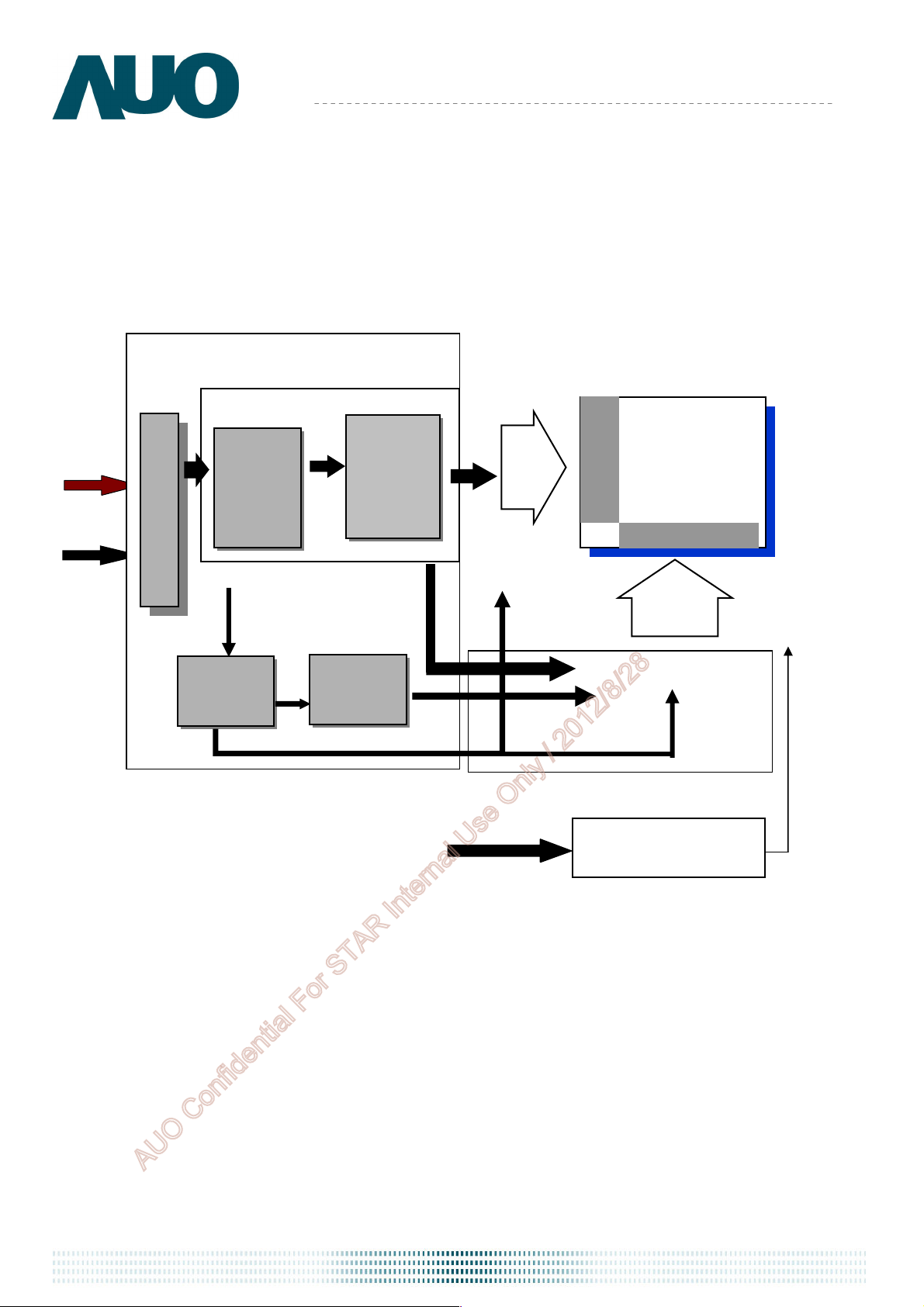

3 FUNCTIONAL BLOCK DIAGRAM................................................................................................. 12
4 ABSOLUTE MAXIMUM RATINGS.................................................................................................. 13
4.1 TFT LCD Module.................................................................................................................................... 13
4.2 Backlight Unit ........................................................................................................................................ 13

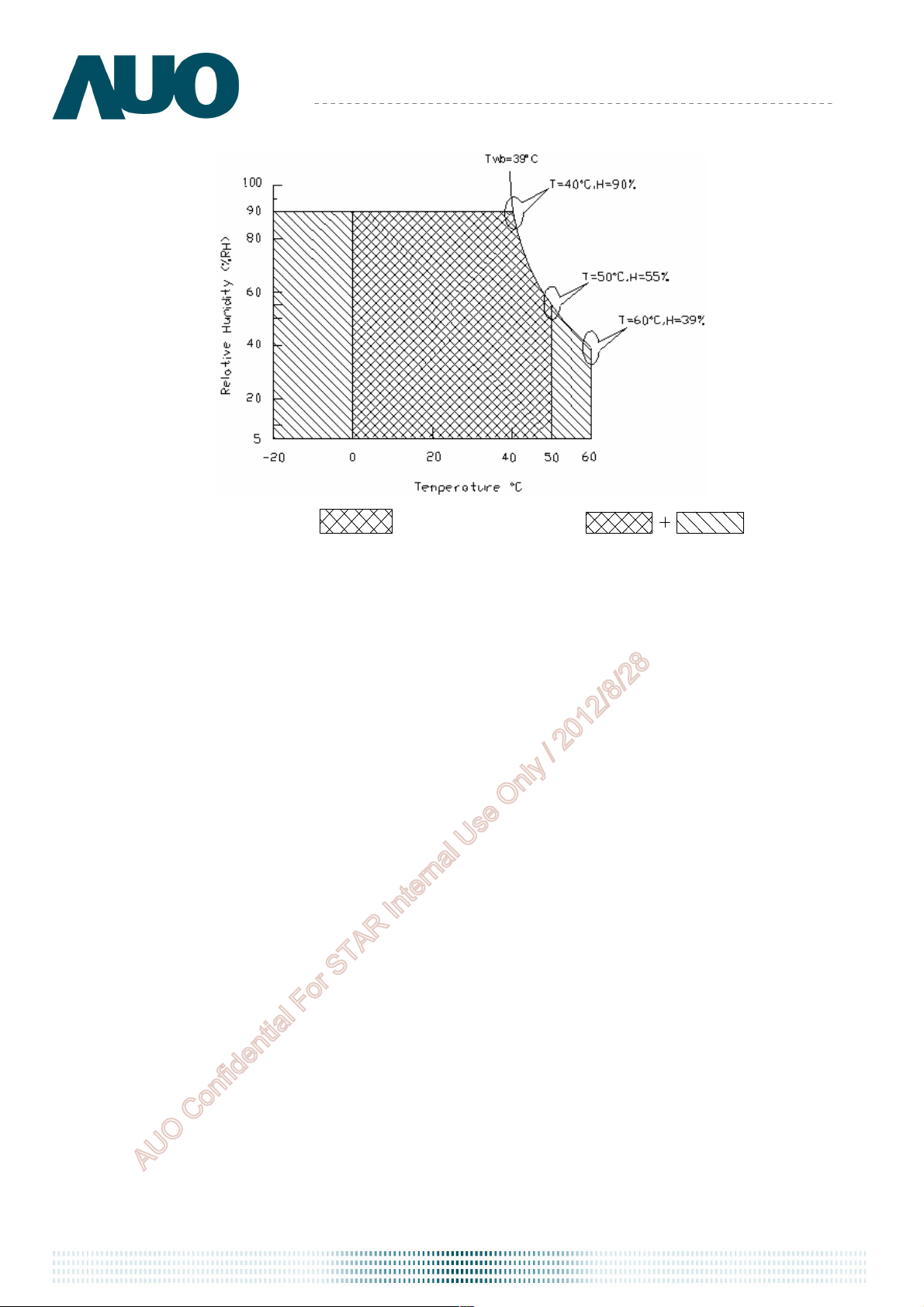

4.3 Absolute Ratings of Environment ....................................................................................................... 13
5 ELECTRICAL CHARACTERISTICS..................................................................................................15
5.1 TFT LCD Module.................................................................................................................................... 15
5.1.1 Power Specification..................................................................................................................................... 15
5.1.2 Signal Electrical Characteristics ................................................................................................................. 17
5.2 Backlight Unit ........................................................................................................................................ 19
6 SIGNAL CHARACTERISTICS .........................................................................................................20
6.1 Pixel Format Definition ......................................................................................................................... 20

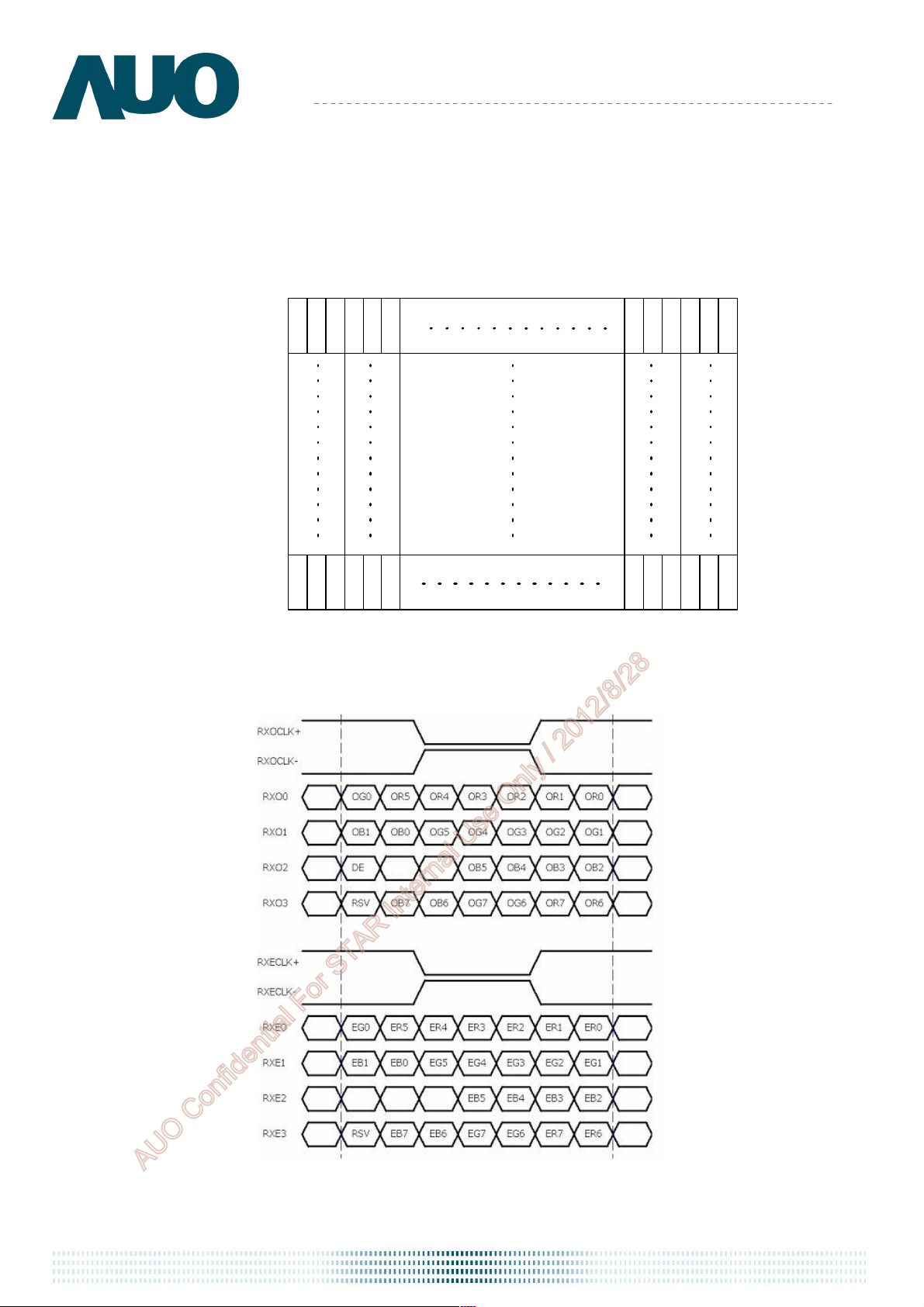

6.2 Input Data Format Definition .............................................................................................................. 20
6.3 Signal Description................................................................................................................................. 21
6.4 Timing Characteristics.......................................................................................................................... 23

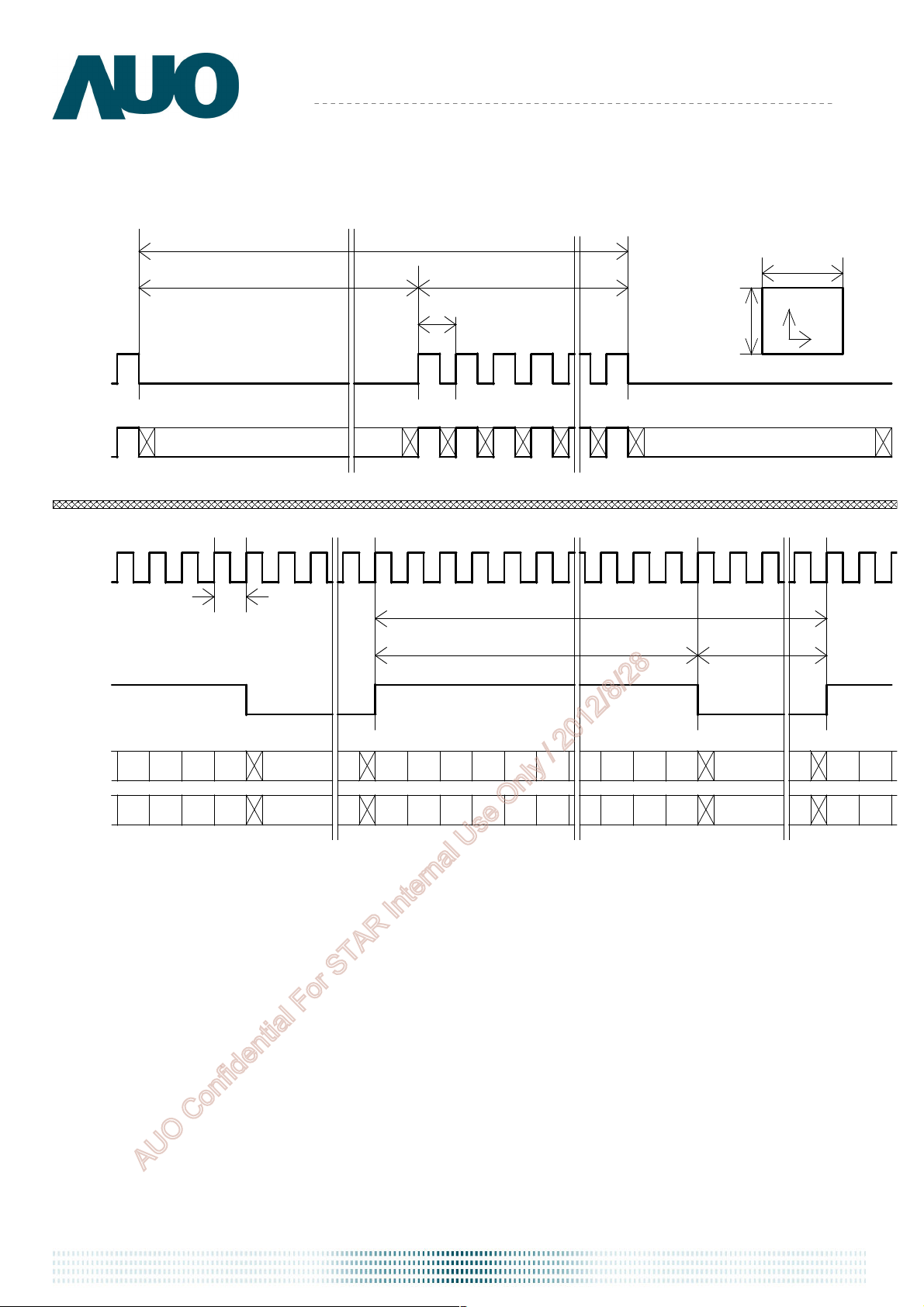

6.5 Timing Diagram..................................................................................................................................... 24

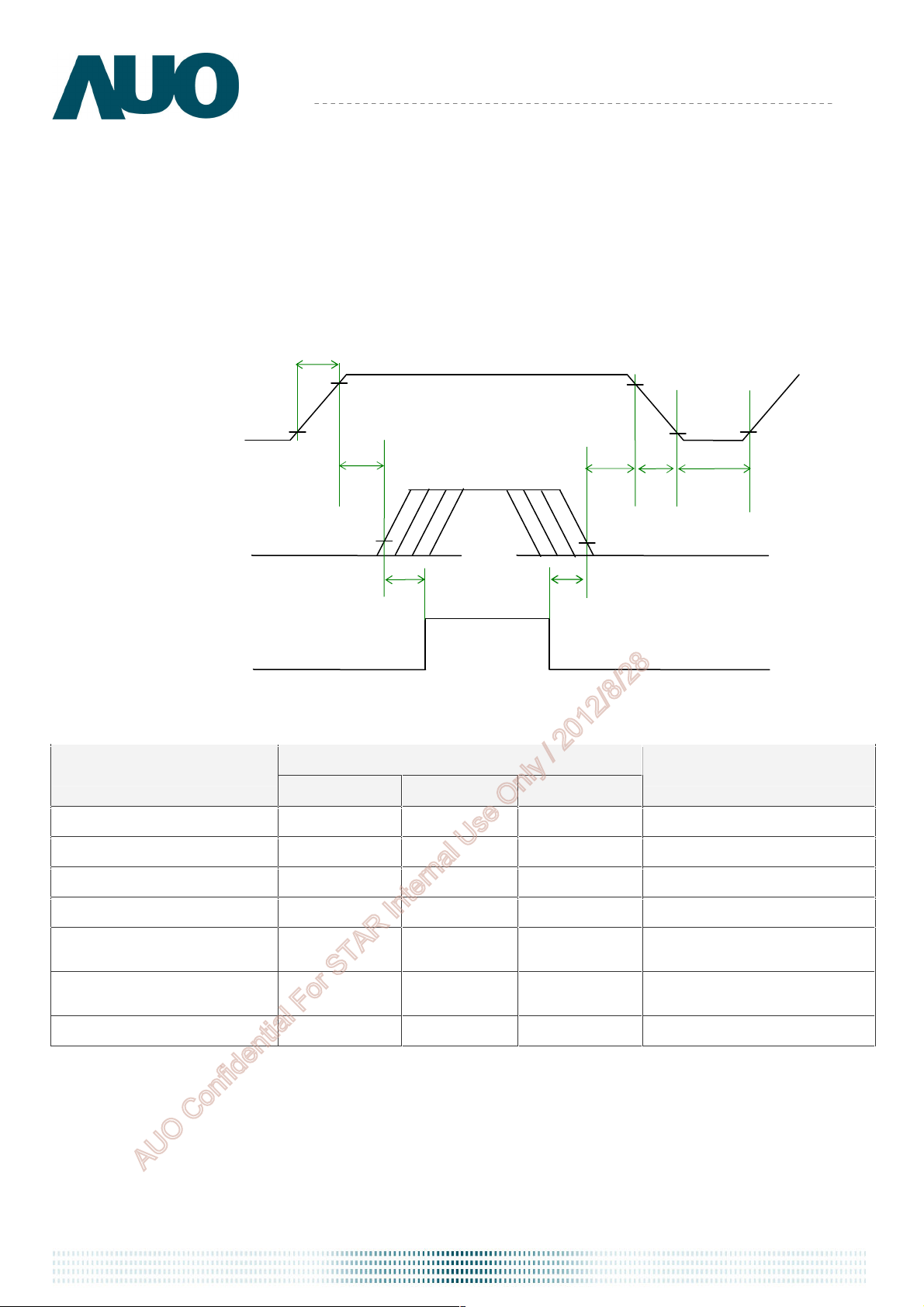

6.6 Power ON/OFF Sequence................................................................................................................... 25
7 CONNECTOR AND PIN ASSIGNMENT........................................................................................26
7.1 TFT LCD Module.................................................................................................................................... 26
7.1.1 Pin Assignment.............................................................................................................................................. 26
7.2 LED Connector on Backlight Unit....................................................................................................... 27
7.2.1 LED Pin assignment....................................................................................................................................... 27

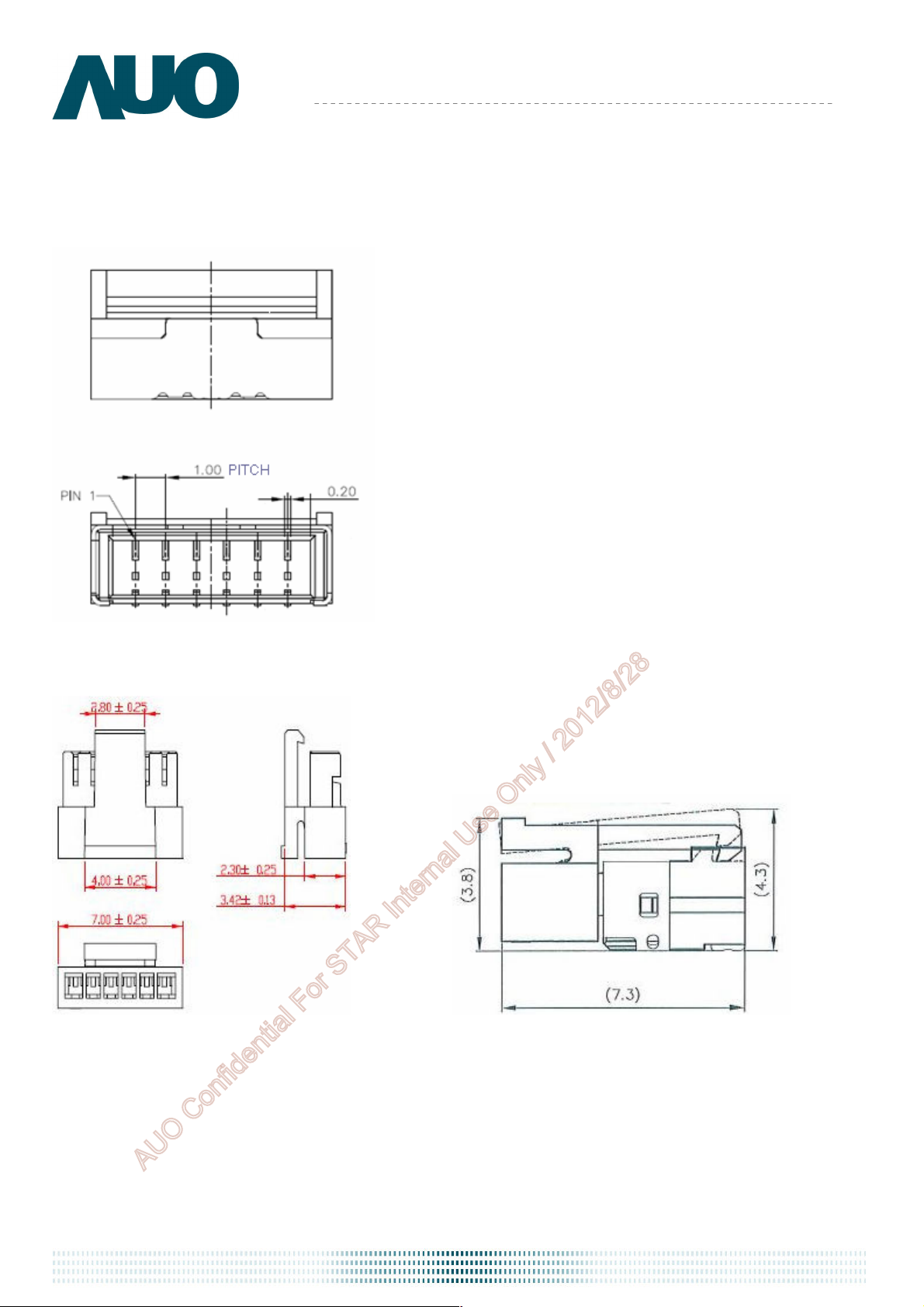

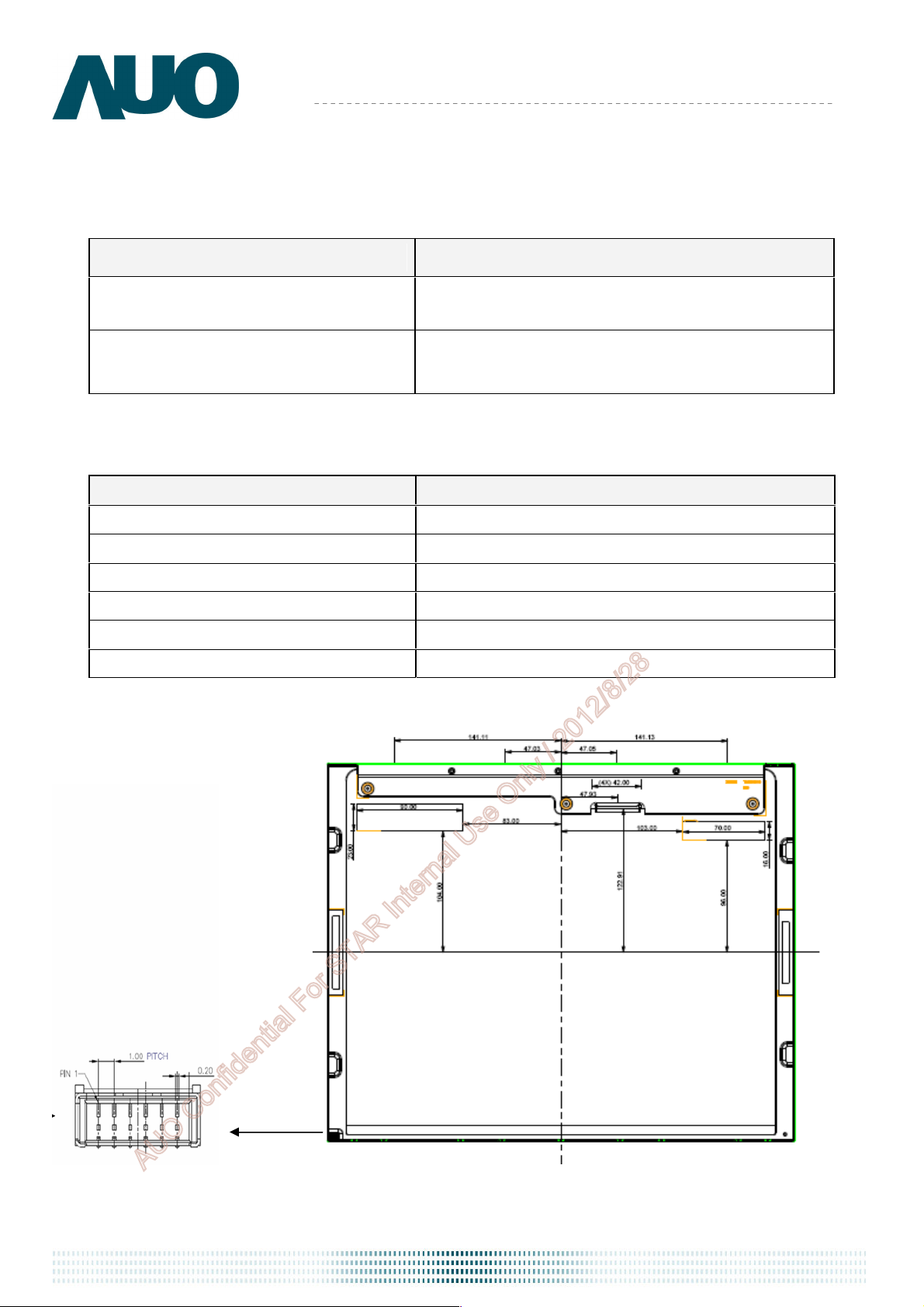

7.2.2 LED Connector Dimension .......................................................................................................................... 28
7.2.3 LED Mating housing dimension................................................................................................................... 28
8 RELIABILITY TEST............................................................................................................................29
9 SHIPPING LABEL ...........................................................................................................................31
10 MECHANICAL CHARACTERISTICS..............................................................................................32
11 PACKING SPECIFICATION ..........................................................................................................33

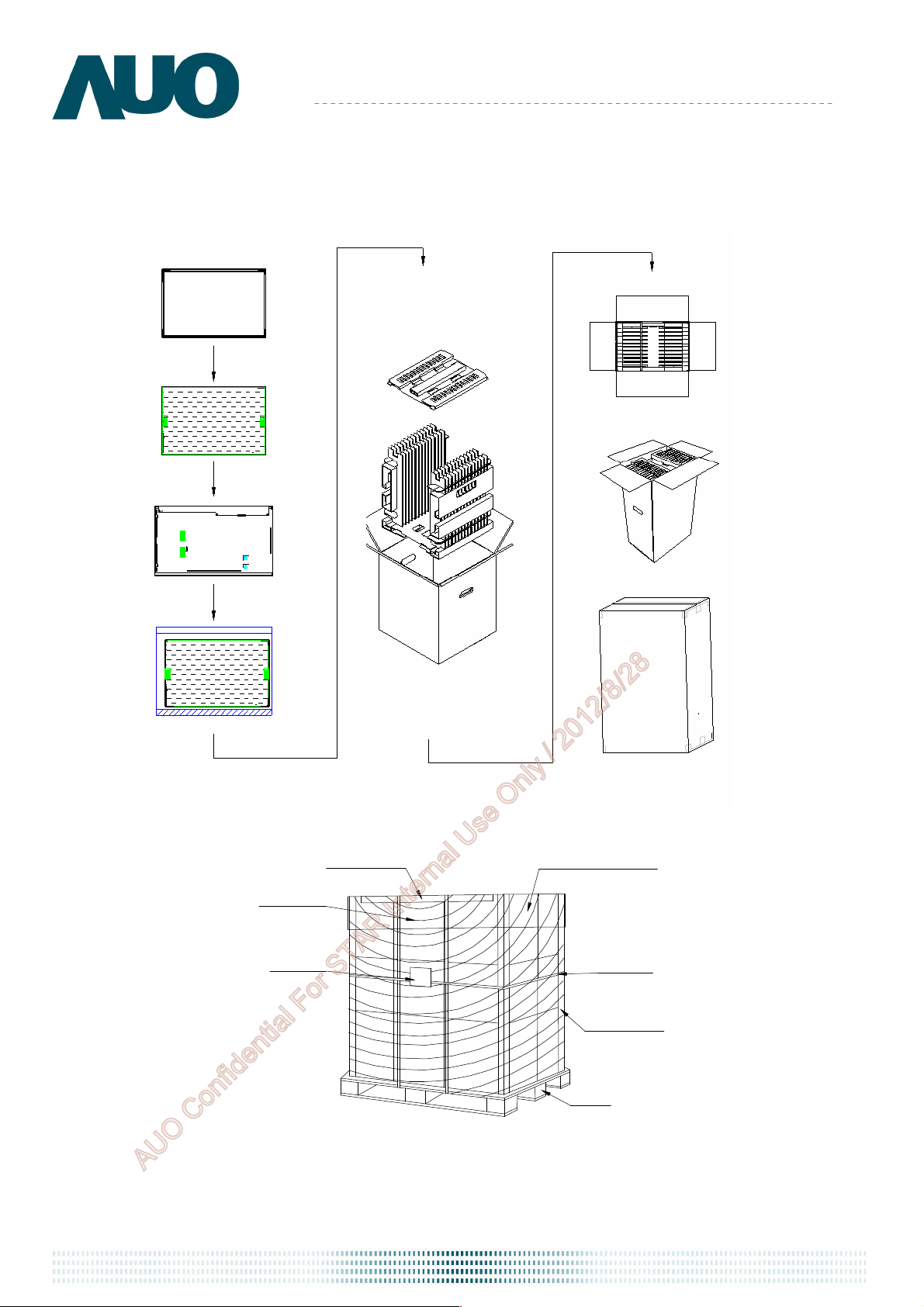

11.1 Packing Flow......................................................................................................................................... 33
11.2 Pallet and Shipment Information ....................................................................................................... 34
document version 0.3 2
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 3
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
Records of Revision
Version and Date
0.1 2012/06/21 All Frist Edition for Customer
Pag
e
Old description New Description Remark
0.2 2012/08/03
0.3 2012/08/07 11
5
28 Add screw torque value.
4.1 TFT LCD Module: Logic/LCD
Drive Voltage : Min 0V
2.1Display Characteristics / Power
Consumption /
11.38 watt
VDD line : PDD (typ), All black pattern
at 60Hz =3.05W
LED line : PBLU (typ) = 8.33W
4.1 TFT LCD Module: Logic/LCD
Drive Voltage : Min -0.3V
2.1Display Characteristics / Power
Consumption /
11.03 watt
VDD line : PDD (typ), All black pattern
at 60Hz =2.7W
LED line : PBLU (typ) = 8.33W
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 3
Page 4
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 4
Page 5
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human
earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was
taken out from the container, do not press the center of LED light bar edge. Instead,
press at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be
damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT
Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT Module from
outside. Otherwise the TFT Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited
Power Source (IEC60950 or UL1950), or be applied exemption.
13) Avoid touching COF position while doing mechanical design.
14) While storing modules as spares for a long time, the following precautions are
necessary:
Store modules in a dark place. Do not expose them to sunlight or fluorescent light.
Keep the temperature between 5°C and 35°C at normal humidity.
15) Pls avoid touching COF position while you are doing mechanical design.
16) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light.
Keep the temperature between 5℃ and 35℃ at normal humidity.
document version 0.3 5
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 6
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
2 General Description
This specification applies to the 19 inch-SXGA color a-Si TFT-LCD Module M190ETN01.0 The
display supports the SXGA - 1280(H) x 1024(V) screen format and 16.7M colors (RGB 6-bit
data + HiFRC data). The light source of this TFT-LCD module is W-LED. All input signals are
2-channel LVDS interface and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [um]
Pixel Arrangement
Display Mode
White Luminance ( Center ) [cd/m2]
Contrast Ratio
Optical Response Time [msec]
Nominal Input Voltage VDD [Volt]
Power Consumption
[Watt]
(VDD line + LED line)
Weight [g]
Physical Size [mm]
Electrical Interface
Support Color
482.6 (19.0" )
376.32 (H) x 301.06 (V)
1280(x3) x 1024
0.294 (per one triad) x 0.294
R.G.B. Vertical Stripe
Normally White
250 (center, Typ) @60.0mA
1000 : 1 (Typ)
5 ms(Typ, on/off)
+5.0 V
11.03 watt
VDD line : PDD (typ), All black pattern at
60Hz =2.7W
LED line : PBLU (typ) = 8.33W
1800 (Typ)
396 (H) x 324 (V) x 10.9(D) (Typ)
Dual channel LVDS
16.7M colors (RGB 6-bit + Hi_FRC)
Surface Treatment
Temperature Range
Operating
Storage (Shipping)
RoHS Compliance
TCO Compliance
document version 0.3 6
AUO Confidential For STAR Internal Use Only / 2012/8/28
[°C]
[°C]
Anti-Glare, 3H
0 to +50
-20 to +60
RoHS Compliance
TCO 6.0 Compliance
Page 7
2.2 Optical Characteristics
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max.
Horizontal (Right)
Viewing Angle
[degre
e]
Contrast Ratio Normal Direction
Response Time [msec]
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE)
White
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Rising Time (TrR)
Falling Time (TrF)
Rising + Falling
Gray to Gray(16x16
avg.)
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
75
75
70
70
600 1000
- 3.6 5.7
- 1.4 2.3
- 5 8
0.609 0.639 0.669
0.316 0.346 0.376
0.294 0.324 0.354
0.597 0.627 0.657
0.124 0.154 0.184
0.024 0.054 0.084
0.283 0.313 0.343
0.299 0.329 0.359
85
85
80
80
Note
-
2
-
-
3
4
5
Central Luminance
[cd/m2
]
Luminance Uniformity [%]
Crosstalk (in 60Hz) [%]
Flicker dB
AUO Confidential For STAR Internal Use Only / 2012/8/28
200 250 - 6
75 80 - 7
1.5 8
-20 9
document version 0.3 7
Page 8
Product Specification
Center of the screen
TFT-LCD Module
AU OPTRONICS CORPORATION
M190ETN01.0

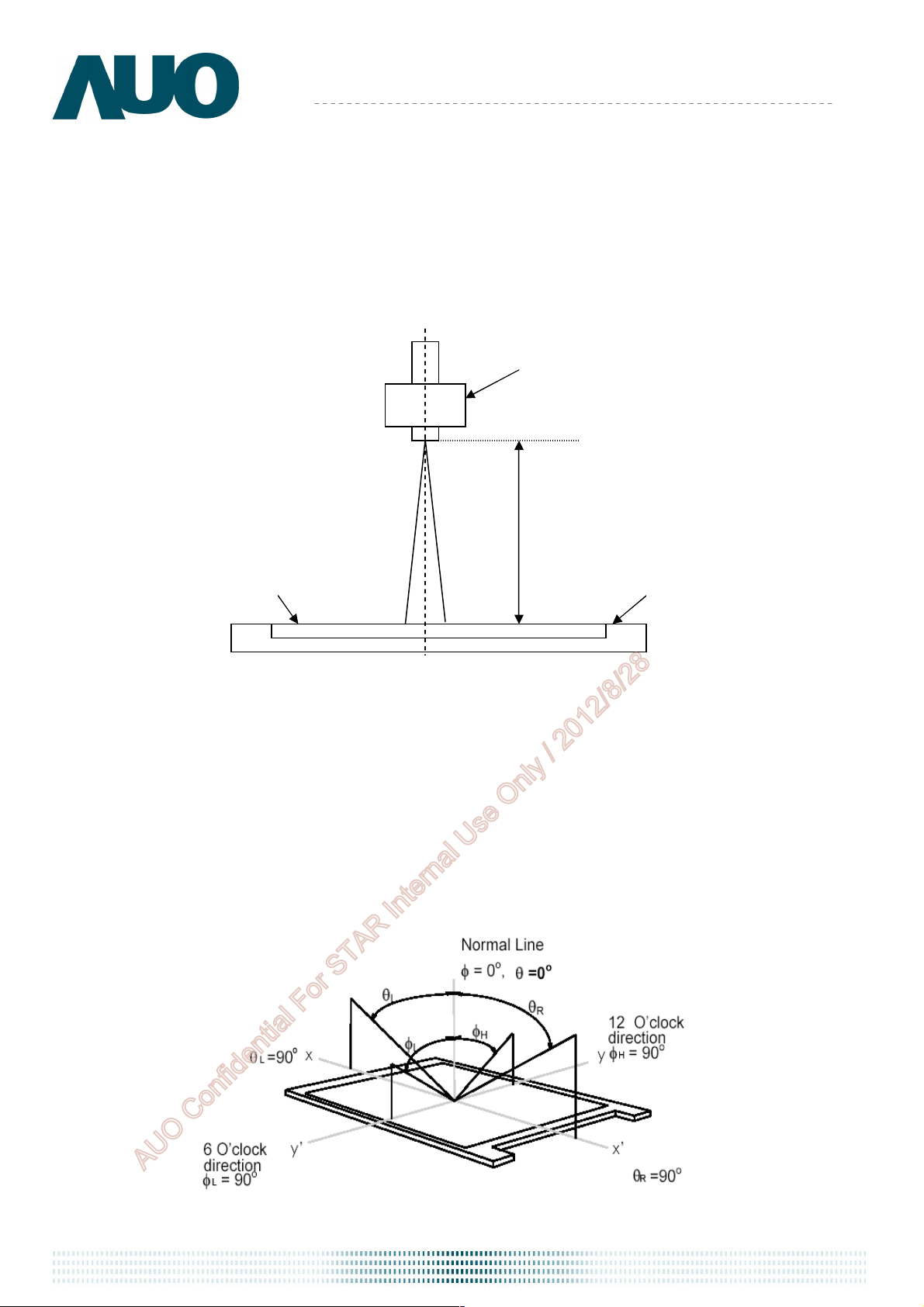

Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the
luminance, the measurement should be executed after lighting Backlight for 30 minutes in
a stable, windless and dark room.
LCD Panel
Photo Detector
Measured Distance
Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle
range is broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high
(up) and low (down). The measurement direction is typically perpendicular to the display
surface with the screen rotated about its center to develop the desired measurement
viewing angle.
document version 0.3 8
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 9
Product Specification
100
90
10
0
response
T
100
10
0
response
1 Frame
1 Frame
T
AU OPTRONICS CORPORATION
M190ETN01.0
Note 3: Contrast Ratio measured by TOPCON SR-3

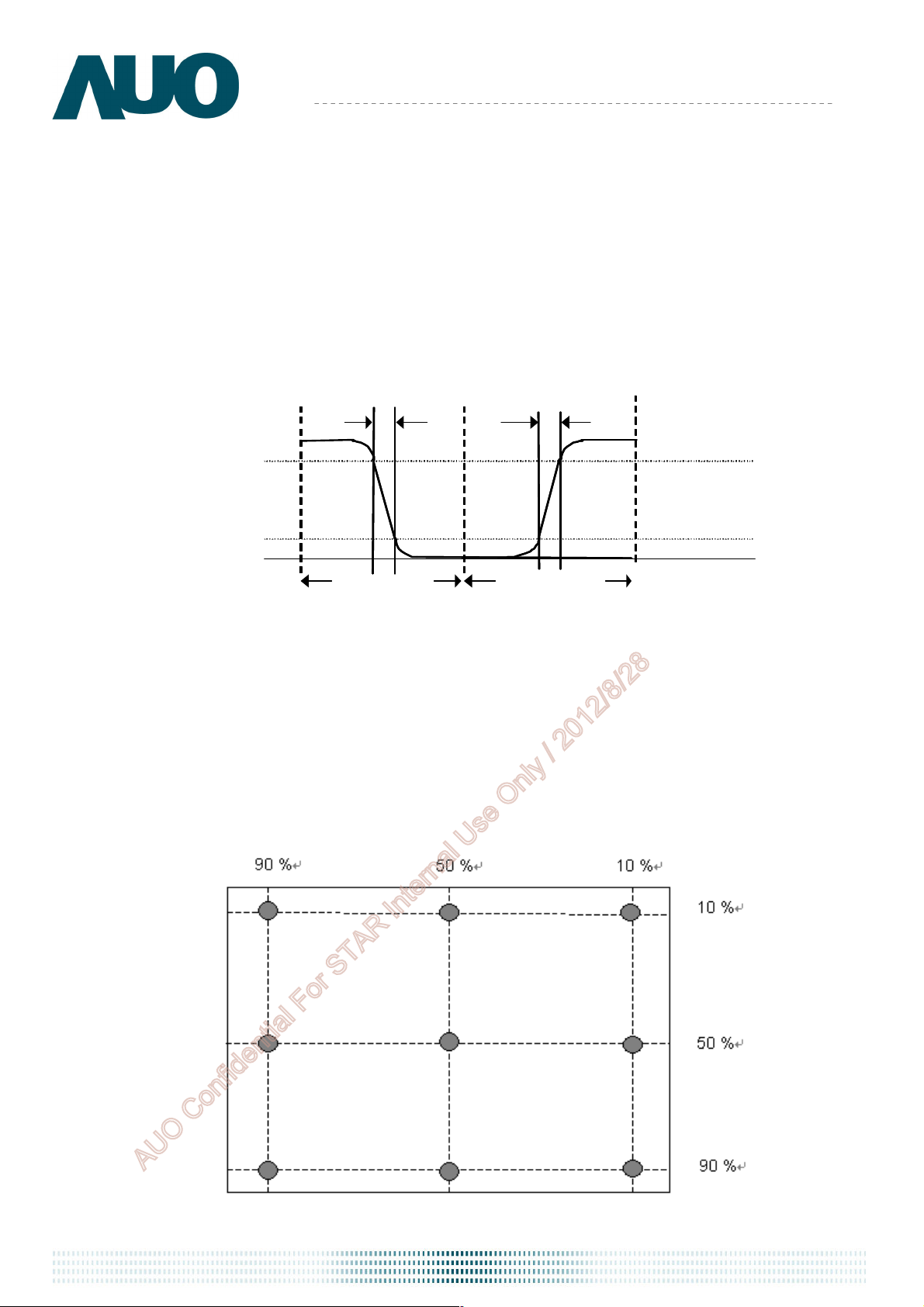

Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed
from “Full Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling
time, TrF), respectively. The response time is interval between the 10% and 90% (1 frame at
60 Hz) of amplitudes.
%
Optical
Optical
%
White
rF
Black
Black
rR
White
TrR + TrF = 5 msec (typ.).
Algorithm:┃Gray Level A – Gray Level B┃≧16, then the average gray to gray response
time is 2 ms,(F= 60 Hz)
Note 5: Color Chromaticity and Coordinates (CIE) measured by TOPCON SR-3
Note 6: Central Luminance measured by TOPCON SR-3
Note 7: Luminance Uniformity of these 9 points defined as below and measured by
TOPCON SR-3
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 9
Page 10
Product Specification
Level
DC
Time
AU OPTRONICS CORPORATION
M190ETN01.0
Uniformity =
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum

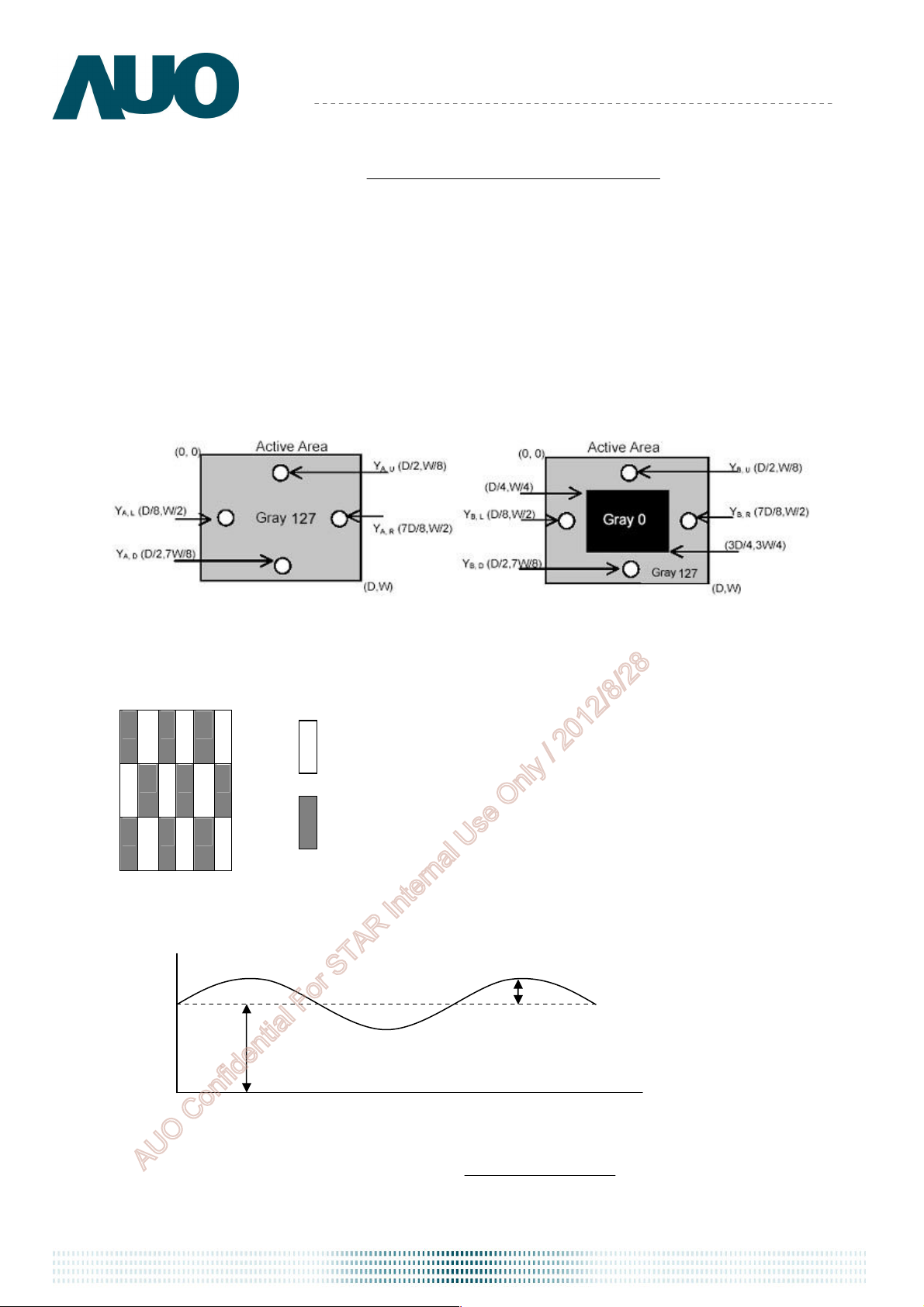

Note 8: Crosstalk defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 10
log20(dB)Flicker =
Hz) 30Level(at AC
Page 11
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 11
Page 12
Product Specification
DC
Connector
Timing
LVD
S
X-Driver IC
AU OPTRONICS CORPORATION
M190ETN01.0
3 Functional Block Diagram
The following diagram shows the functional block of the 19.0 inch Color TFT-LCD Module:
+5V
DC/DC
Converter
AUO
ASIC
LVDS
Receiver
Correction
I/F + X-PCB
Controller
miniLVDS
Transmitter
Gamma
G1024
G1
D1
TFT-LCD
1280(x3) x 1024
Pixels
D3840
LED
Backlight
LED Driver on system
I/F PCB Interface:
187034-30091 / FI-XB30SSLA-HF15 (P-TWO)
FI-XB30SSLA-HF15 (JAE)
Mating Type:
FI-X30HL(Locked Type)
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 12
Page 13
Product Specification
Glass Surface
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
AU OPTRONICS CORPORATION
M190ETN01.0
Item Symbol
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current
LED Pulse Forward Current
LED forward Voltage variation
(per string variation)
Min Max Unit Conditions
VDD -0.3 6.0 [Volt] Note 1, 2
IRLED1
IRLED2
IRLED3
IRLED4
IPLED1
IPLED2
IPLED3
IPLED4
ΔVf
0 90
- 150
- 3.4
[mA]
[mA]
[Volt]
Note 1,2,5
100% duty
Note 1,2,5
10% duty @100Hz
Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [°C]
Temperature
TGS 0 +65 [°C]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [°C]
Storage Humidity HST 5 90 [%RH]
Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta ≦39°C)
3. No condensation
Note 4: Function Judged only
Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
AUO Confidential For STAR Internal Use Only / 2012/8/28
Note 3
Note3
Note4
Note 3
document version 0.3 13
Page 14
Product Specification
Operating Range Storage Range
AU OPTRONICS CORPORATION
M190ETN01.0
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 14
Page 15
Product Specification
Allowable Logic/LCD
AU OPTRONICS CORPORATION
M190ETN01.0

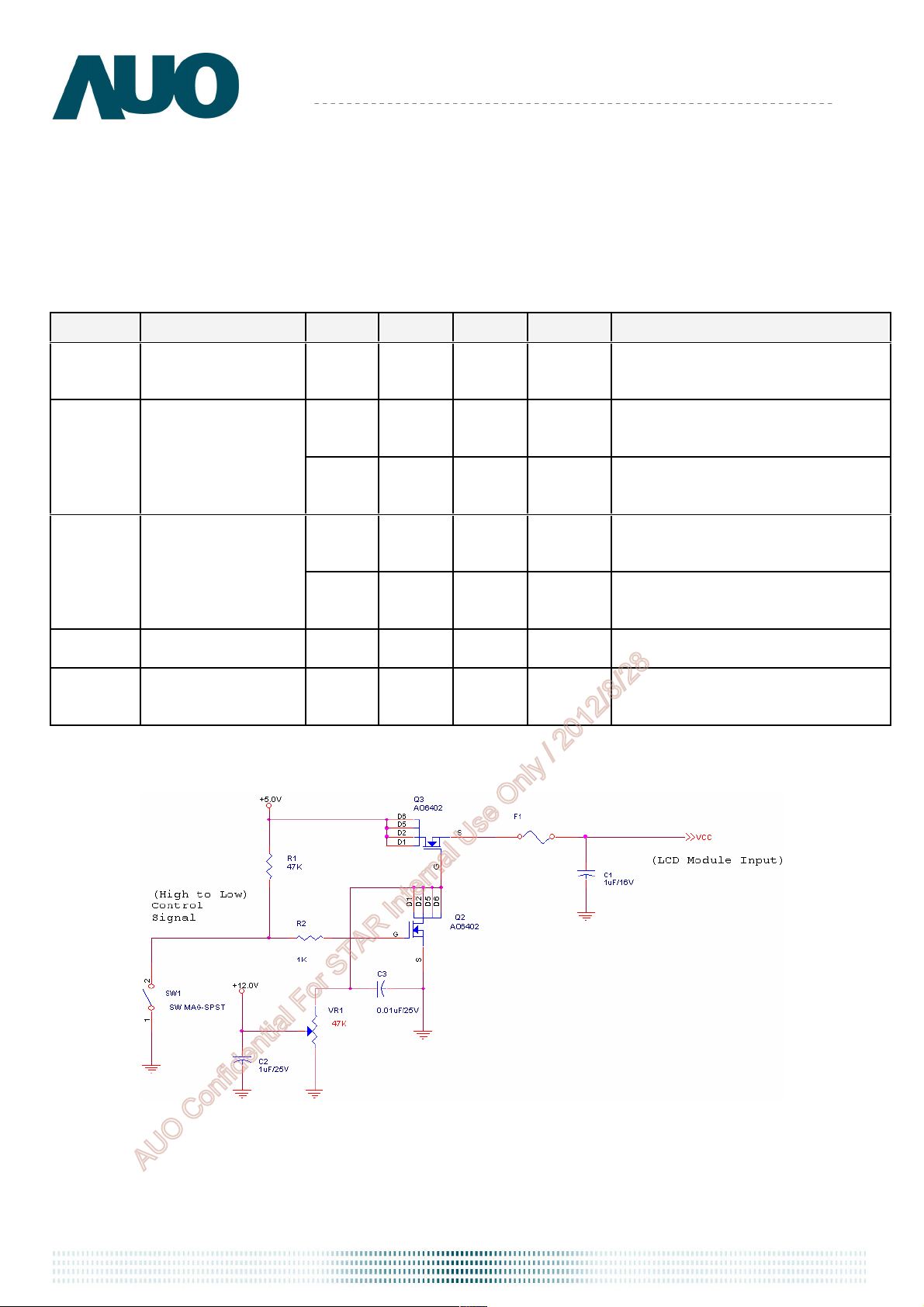

5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
IDD1 Input Current
PDD1 VDD Power
IRush Inrush Current - - 3 [A]
VDDrp

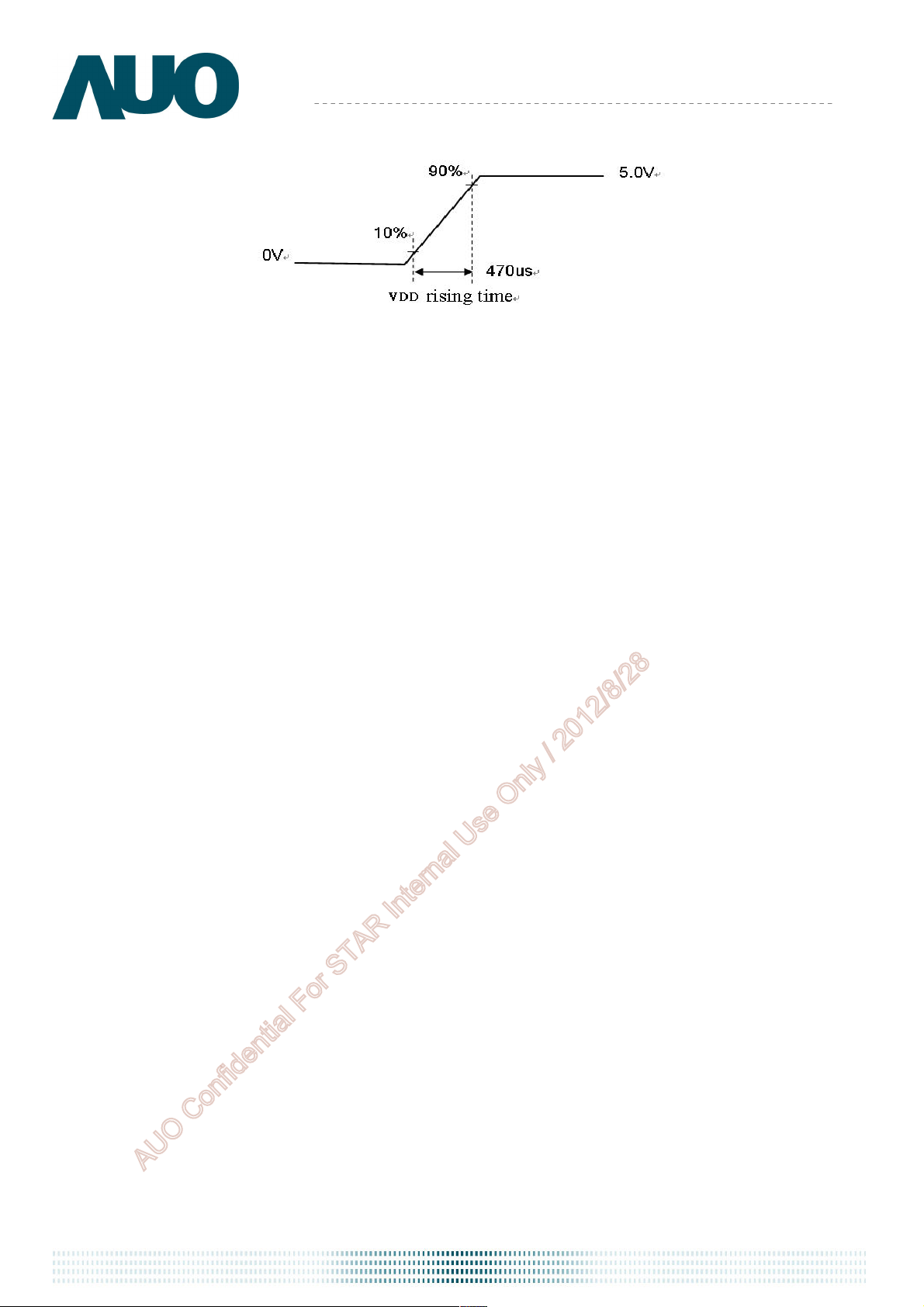

Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
Logic/LCD Drive
4.5 5.0 5.5 [Volt] +/-10%
Voltage
- 0.53 0.64 [A]
- 0.61 0.73 [A]
- 2.7 3.2 [Watt]
- 3.05 3.7 [Watt]
- - 500 [mV] p-p VDD= 5.0V, All black Pattern at 75 Hz
Drive Ripple Voltage
VDD= 5.0V, All black Pattern at 60
Hz
VDD= 5.0V, All black Pattern at 75
Hz
VDD= 5.0V, All black Pattern at 60
Hz
VDD= 5.0V, All black Pattern at 75
Hz
Note 1
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 15
Page 16
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 16
Page 17
Product Specification
= 1.2V
5.1.2 Signal Electrical Characteristics
(1) DC Characteristics of each signal are as following:
AU OPTRONICS CORPORATION
M190ETN01.0
Symbol Description Min Typ Max Units
VTH
VTL
│VID│
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
- - +100
-100 - -
100 - 600
Differential Input
VCM
Common Mode
+1.0 +1.2 +1.5
Voltage

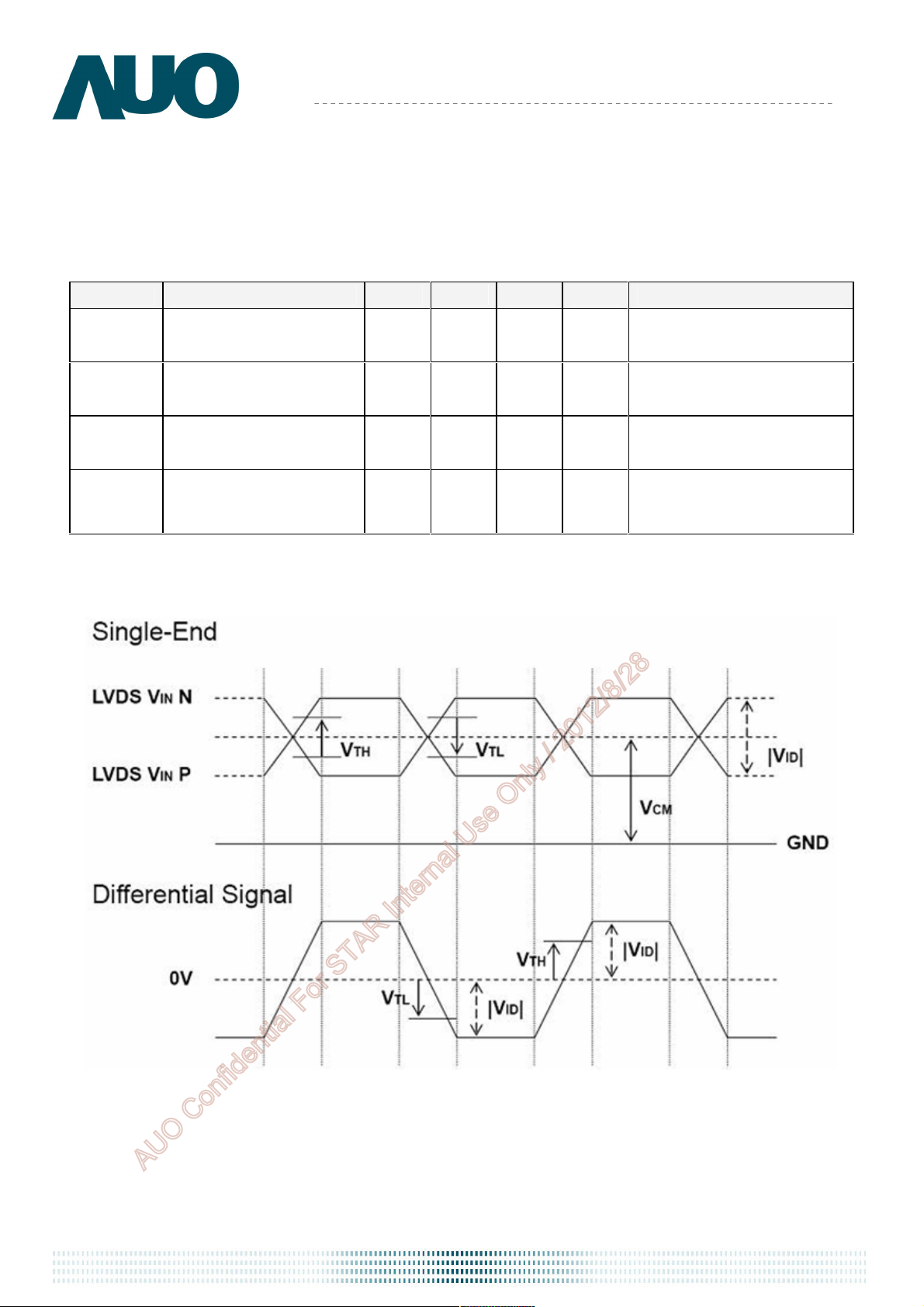

Note 1: LVDS Signal Waveform
[mV]
[mV]
[mV]
[V]
VTH-V
Conditions
V
CM
Note 1
VCM = 1.2V
Note 1
Note 1
= 200MV (max)
TL
Note 1
document version 0.3 17
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 18

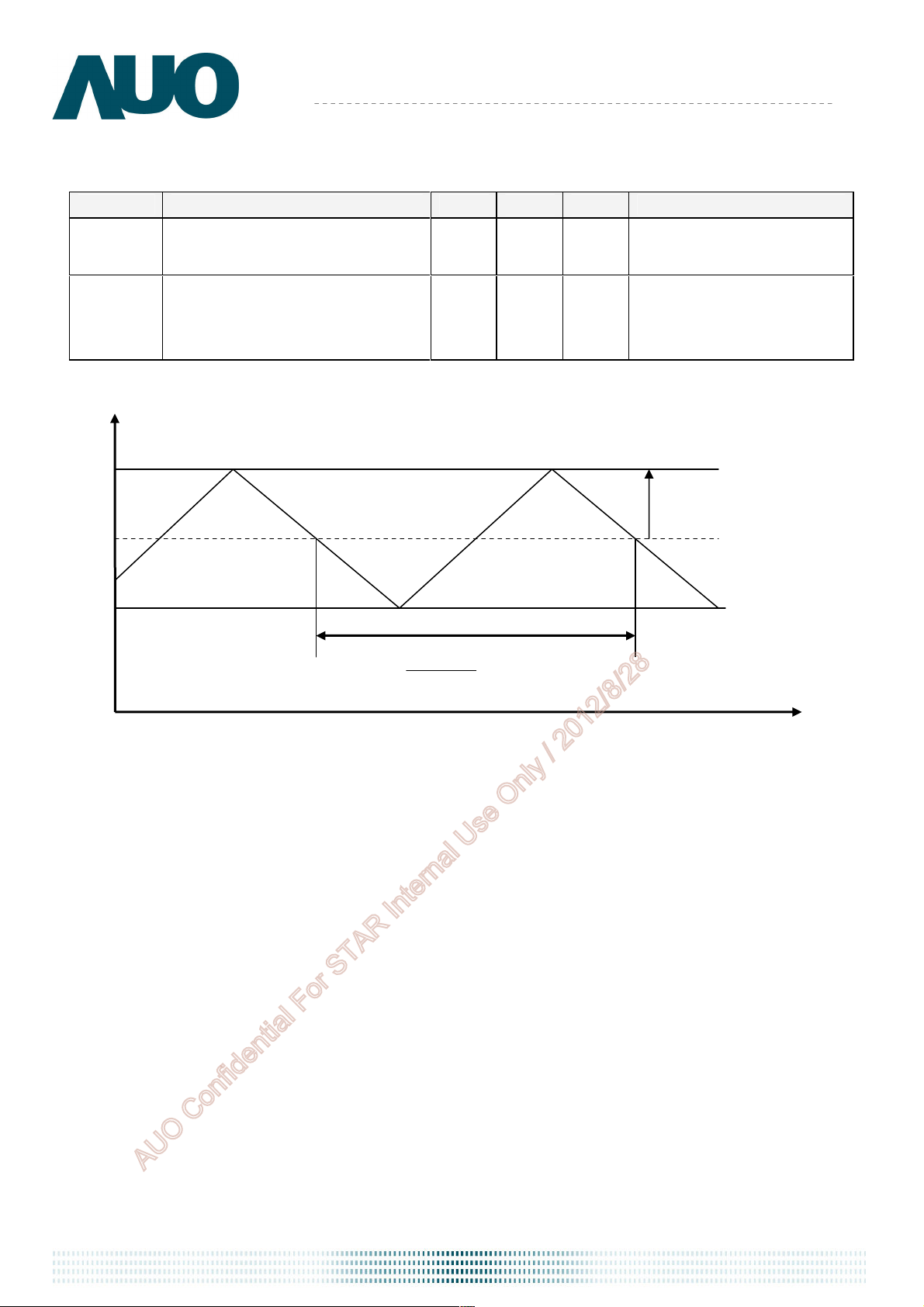

< Spread Spectrum>
T
ime
(2) AC Characteristics
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
Symbol Description Min Max Units
F
F
DEV
MOD
Maximum deviation of input
clock frequency during SSC
Maximum modulation
frequency of input clock
during SSC
- ± 3 %
- 200 KHz
Freq
F
max
F
min
F
center
Conditions
* F
DEV
1
F
MOD
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 18
Page 19
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25 °C (Room Temperature):
Symbol Description Min.
IRLED1
IRLED2
LED Operation Current - 60 63 [mA]
IRLED3
IRLED4
Light Bar Operation Voltage
VLB
(for reference)
BLU Power Consumption (for
PBLU
reference)
LTLED LED Life Time (Typical) 30,000
Typ. Max.
33.0 35.2 37.4 [Volt]
- 8.45 9.42 [Watt]
- -
Unit Note
Note 1
Note 2
Note 3
[Hour]
Note 4
Each module consists of 44 pcs LED ( 4 strings x 11 pcs / string )
Note 1: The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as
per strings LED current.
Note 2: The value showed is one string operation voltage.
Note 3: PBLU = VLED *( IRLED1+IRLED2+IRLED3+IRLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum
life time of LED unit is on the condition of IRLED = 60mA and 25±2°C (Room Temperature).
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 19
Page 20
Product Specification
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
919 1
920
1st Line
1080
Line
AU OPTRONICS CORPORATION
M190ETN01.0
6 Signal Characteristics
6.1 Pixel Format Definition
Following figure shows the relationship between the input signals and LCD pixel format.
6.2 Input Data Format Definition
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel
AUO Confidential For STAR Internal Use Only / 2012/8/28
Data”
document version 0.3 20
Page 21

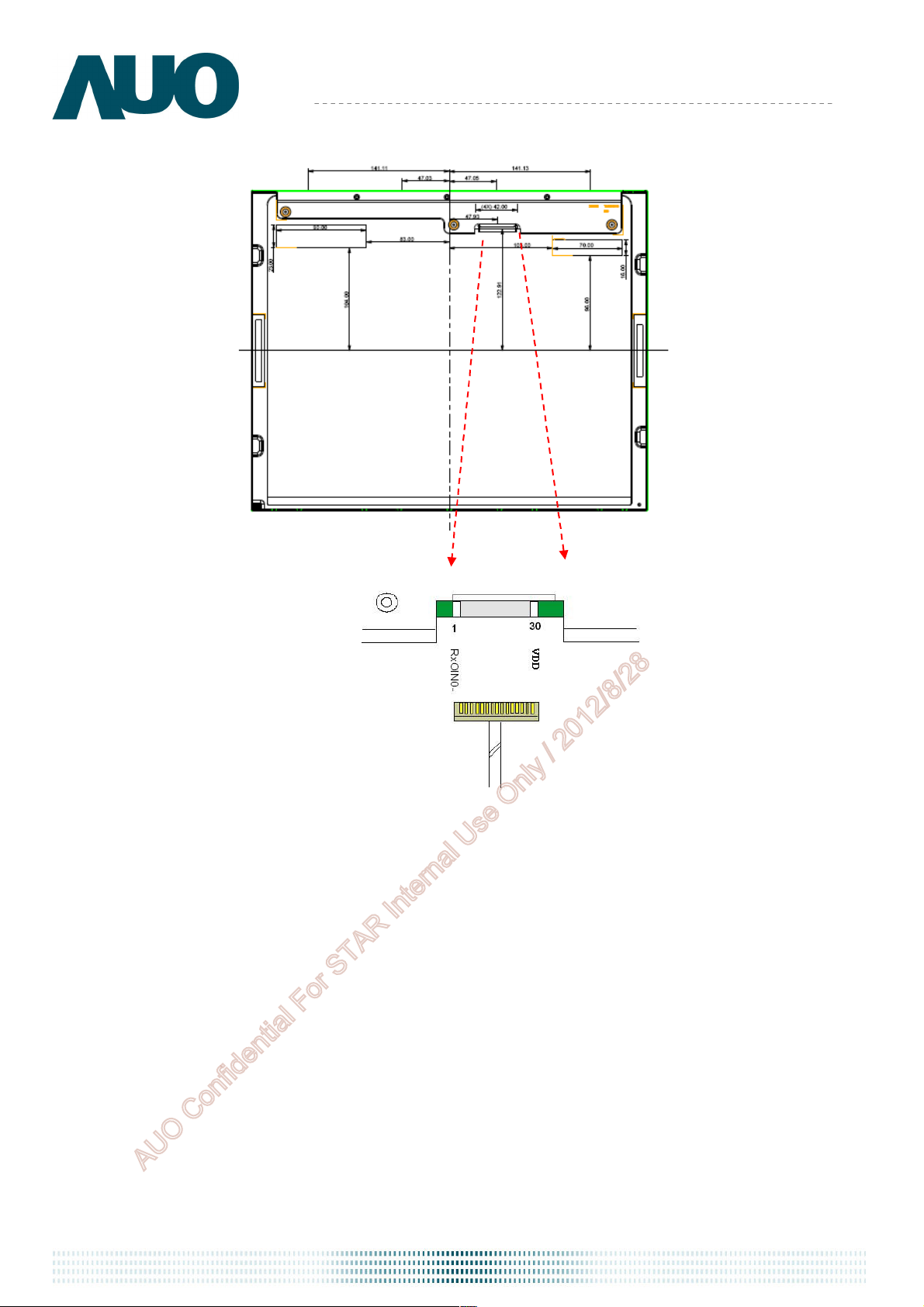

PIN #
SIGNAL NAME
DESCRIPTIO
N
1 RxOIN0
- Negative LVDS differential data input (Odd data)
2 RxOIN0+
Positive LVDS differential data input (Odd data)
3 RxOIN1
- Negative LVDS differential data input (Odd data)
4 RxOIN1+
Positive LVDS differential data input (Odd data)
5 RxOIN2
- Neg
ative LVDS differential data input (Odd data, DSPTMG)
6 RxOIN2+
Positive LVDS differential data input (Odd data, DSPTMG)
7 GND
Power Ground
8 RxOCLK
- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+
Positive LVDS differential clock input (O
dd clock)
10 RxOIN3
- Negative LVDS differential data input (Odd data)
11 RxOIN3+
Positive LVDS differential data input (Odd data)
12 RxEIN0
- Negative LVDS differential data input (Even data)
13 RxEIN0+
LVDS differential data input (Even data)
14 GND
Power Ground
15 RxEIN1
- Negative LVDS differential data input (Even data)
16 RxEIN1+
Positive LVDS differential data input (Even data)
17 GND
Power Ground
18 RxEIN2
- Negative LVDS differential data input (Even data)
19 RxEIN2+
Positive LVDS differentia
l data input (Even data)
20 RxECLK
- Negative LVDS differential clock input (Even clock)
21 RxECLK+
Positive LVDS differential clock input (Even clock)
22 RxEIN3
- Negative LVDS differential data input (Even data)
23 RxEIN3+
Positive LVDS differential da
ta input (Even data)
24 GND
Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28 VDD
Power +5V
29 VDD
Power +5V
30 VDD
Power +5V
6.3 Signal Description
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
Note 1: Input signals of odd and even clock shall be the same timing.
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 21
Page 22
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 22
Page 23
Product Specification
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal Item Symbol Min Typ Max Unit
AU OPTRONICS CORPORATION
M190ETN01.0
Vertical
Section
Horizontal
Section
Clock
Frequency
Frame rate
Note 1: DE mode only
Period Tv
Active Tdisp(v)
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Active Tdisp(h)
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Freq
Frame
F
rate
1032 1066 1186
1024 1024 1024
8 42 126
780 844 2047
640 640 640
140 204 1407
25.0 18.52 14.81
40 54 67.5
50 60 76
Th
Th
Th
Tclk
Tclk
Tclk
ns
MHz
Hz
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 23
Page 24
6.5 Timing Diagram
Product Specification
AU OPTRONICS CORPORATION
Tv
M190ETN01.0
M pixel
DE
RGB Data
CLK
DE
N
Line
Invalid Data
Tclk
Tblk(v)
Tdisp(v)
Y
Th
N Line
4
1
32
LineLine
Th
Tdisp(h)
LineLine
N
Line
Invalid Data
Tblk(h)
X
RGB Data
(Odd)
RGB Data
(Even)
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
1
3
Pixel Pixel
4
2
Pixel
Pixel
5
7
Pixel
Pixel
8 M
6 M-2
Pixel
Pixel
10
Pixel
119
12
Pixel
M-5
Pixel
M-4
Pixel
M-3
Pixel
Pixel
M-1
PixelPixel
Invalid Data
Invalid Data
AUO Confidential For STAR Internal Use Only / 2012/8/28
Pixel
Pixel
Pixel
1
3
Pixel
4
2M-4
document version 0.3 24
Page 25
Product Specification
T5
T2
T1
T6
AU OPTRONICS CORPORATION
M190ETN01.0
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also
shown in the chart. Signals from any system shall be Hi-Z state when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
Parameter
T1 0.5 - 10 [ms]
10%
90%
90%
VALID
DATA
T3
T4
Power Sequence Timing
Value
Min. Typ. Max.
10%
T7
Unit
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 - 50
T6 5 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
[ms]
Note1,2
[ms]
Note1,2
document version 0.3 25
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 26
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
7 Connector and Pin Assignment
Physical interface is described as for the connector on module. These connectors are
capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
Manufacturer
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
JAE
P-TWO
187034-30091 / FI-XB30SSLA-HF15
17 GND 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 GND
25
27
29 VDD 30 VDD
NC (for AUO test only. Do not
26
connect)
NC (for AUO test only. Do not
28 VDD
connect)
NC (for AUO test only. Do not
connect)
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 26
Page 27
Product Specification
7.2 LED Connector on Backlight Unit
This connector is mounted on LED light bar.
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY INDUSTRIAL CO., LTD.
Type Part Number 3707K-S06N-21R
AU OPTRONICS CORPORATION
7.2.1 LED Pin assignment
Pin# Signal Name
1 IRLED1 (current out)
M190ETN01.0
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
6 IRLED4 (current out)
Connector
document version 0.3 27
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 28
Product Specification
==××=××
7.2.2 LED Connector Dimension
AU OPTRONICS CORPORATION
M190ETN01.0
)(0.1,25.400.39.13 mmunitPitchDVH
7.2.3 LED Mating housing dimension
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 28
Page 29
Product Specification
High Temperature Operation
) 1sec,
AU OPTRONICS CORPORATION
M190ETN01.0
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
(HTO)
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Ta= 50°C, 50%RH, 300 hours
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 15KV, 150pF(330Ω
15 points, 25 times/ point
ESD (Electro Static Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point
Operation: 18,000 ft
Altitude Test
Non-Operation: 40,000 ft
Note 1
Note 2
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of
rapid temperature change. A cycle of rapid temperature change consists of varying the
temperature from -20°C to 60°C, and back again. Power is not applied during the test. After
temperature cycling, the unit is placed in normal room ambient for at least 4 hours before
power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
AUO Confidential For STAR Internal Use Only / 2012/8/28
No data lost
Self-recoverable
No hardware failures
document version 0.3 29
Page 30
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 30
Page 31
Product Specification
AU Optronics
9 Shipping Label

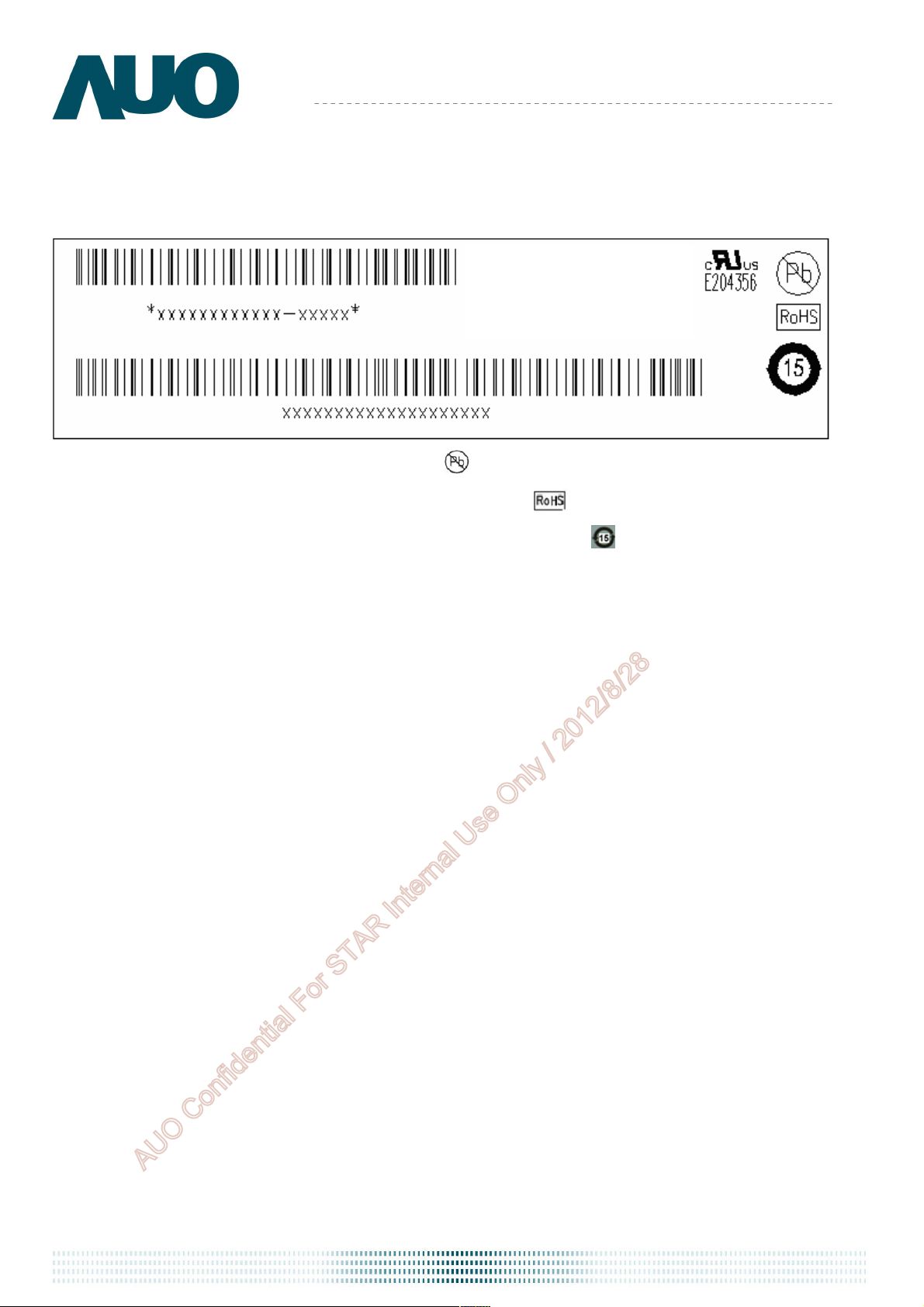

The label on the panel is shown as below:
Note 1: For Pb Free products, AUO will add for identification.
AU OPTRONICS CORPORATION
Manufactured XX/XX
Model No: M190ETN01.0
M190ETN01.0
Note 2: For RoHS compatible products, AUO will add
for identification.
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been
ready by AUO Internal Green Team.
document version 0.3 31
AUO Confidential For STAR Internal Use Only / 2012/8/28
Page 32
doing mechanical design
Avoid touching COF position when
M190ETN01.0
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For STAR Internal Use Only / 2012/8/28
10 Mechanical Characteristics
document version 0.3 32
Page 33
To
p cover
11 Packing Specification
11.1 Packing Flow
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
Paste protect film
Paste lamp wire
1pcs Module/ESD
Module
10 pcs/carton
Cushion
Carton
Put top cover
Corner angle
Stretch film
Label
Moisture-proof film
PET band
Corner angle
Pallet
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 33
Page 34
Product Specification
AU OPTRONICS CORPORATION
M190ETN01.0
11.2 Pallet and Shipment Information
Specification
Item
1 Panel
2 Cushion
3 Box
4 Packing Box
5 Pallet
6
Note 1: Estimated value which is subject to change based on real measured data.
Pallet after
Packing
Q'ty Dimension Weight(kg)
1 396(H)mm x 324(V)mm x 10.9(D)mm
1 -- 1.85
1 409(L)mm x 367(W)mm x 475(H)mm
13 pcs/Box
1 1140(L)mm x 830(W)mm x 138(H)mm 12
18
boxes/pallet
409(L)mm x 367(W)mm x 475(H)mm
1140(L)mm x 830(W)mm x
156.5(H)mm
1.8
1.44
26.83
492.42
Remark
Note 1
without Panel &
cushion
Note 1
with panel & cushion
Note 1
Note 1
Note 1
AUO Confidential For STAR Internal Use Only / 2012/8/28
document version 0.3 34
Loading...
