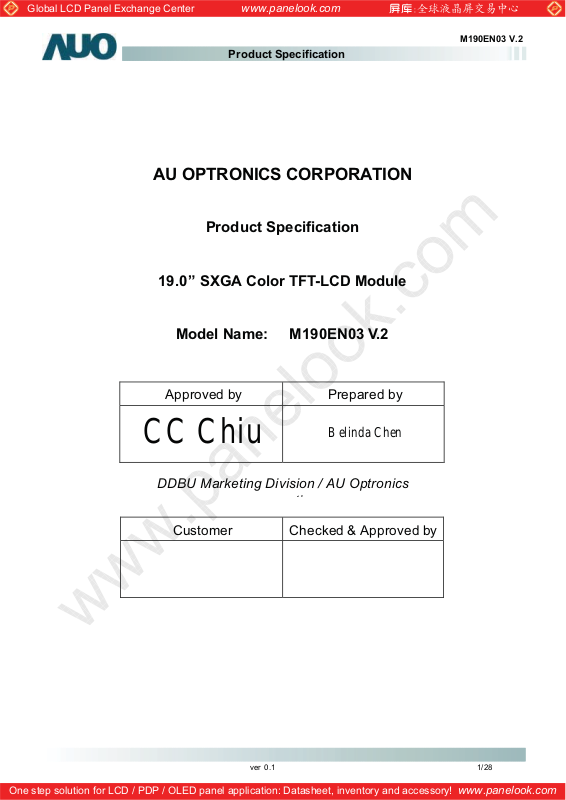

Global LCD Panel Exchange Center
AU OPTRONICS CORPORATION
19.0” SXGA Color TFT-LCD Module
www.panelook.com
M190EN03 V.2
Product Specification
Product Specification
Model Name: M190EN03 V.2
Approved by Prepared by
CC Chiu
DDBU Marketing Division / AU Optronics
Customer Checked & Approved by
Belinda Chen
ver 0.1 1/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
M190EN03 V.2
Product Specification
Product Specification
19.0” SXGA Color TFT-LCD Module
Model Name: M190EN03
V.2
() Preliminary Specifications
( ) Final Specifications
Note: This Specification is subject to change without notice.
ver 0.1 2/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
M190EN03 V.2
Product Specification
Contents
1.0 Handling Precautions.........................................................................................6
2.0 General Description............................................................................................7
2.1 Display Characteristics....................................................................................................................7
2.2 Optical Characteristics.....................................................................................................................8

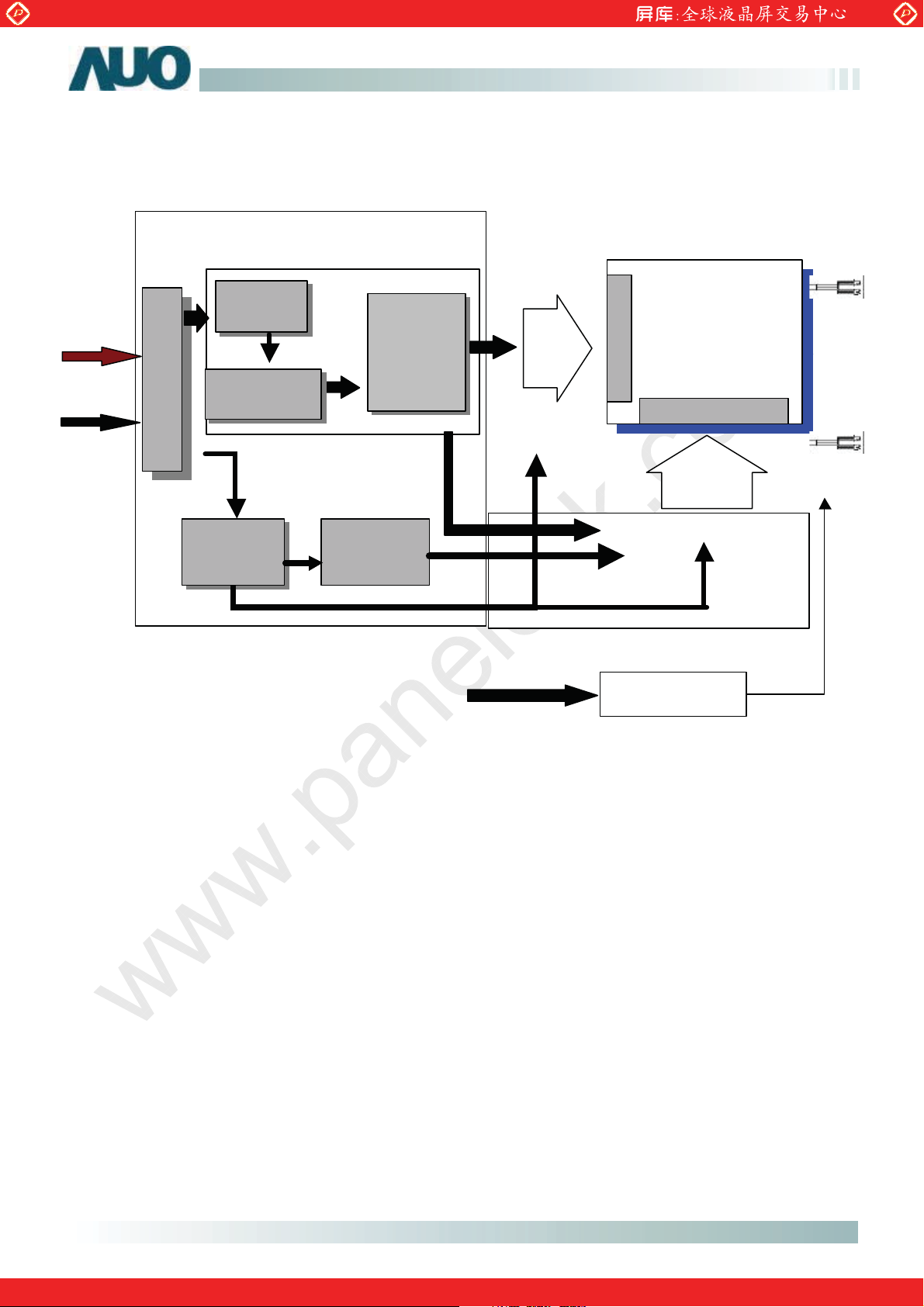

3.0 Functional Block Diagram...............................................................................11
4.0 Absolute Maximum Ratings ............................................................................12
4.1 TFT LCD Module ............................................................................................................................12
4.2 Backlight Unit ..................................................................................................................................12
4.3 Absolute Ratings of Environment ..................................................................................................12
5.0 Electrical characteristics.................................................................................13
5.1 TFT LCD Module ............................................................................................................................13
5.1.1 Power Specification..........................................................................................................................13
5.1.2 Signal Electrical Characteristics........................................................................................................14
5.2 Backlight Unit ..................................................................................................................................15
6.0 Signal Characteristics......................................................................................16
6.1 Pixel Format Image ........................................................................................................................16
6.2 The Input Data Format....................................................................................................................16
6.3 Signal Description..........................................................................................................................17
6.4.1 Timing Characteristics......................................................................................................................18
6.4.2 Timing Diagram................................................................................................................................19
6.5 Power ON/OFF Sequence ............................................................................................................20
7.0 Connector & Pin Assignment.........................................................................21
7.1 TFT LCD Module ............................................................................................................................21
7.2 Backlight Unit ..................................................................................................................................21
7.3 Signal for Lamp Connector............................................................................................................22
8.0 Vibration, Shock, and Drop.............................................................................22
8.1 Vibration & Shock...........................................................................................................................22
8.2 Drop Test .........................................................................................................................................22
9.0 Environment.......................................................................................................22
9.1 Temperature and Humidity.............................................................................................................23
9.1.1 Operating Conditions ........................................................................................................................23
9.1.2 Shipping Conditions .........................................................................................................................23
9.2 Atmospheric Pressure....................................................................................................................23
9.3 Thermal Shock ................................................................................................................................23
10.0 Reliability...........................................................................................................24
ver 0.1 3/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
M190EN03 V.2
Product Specification
10.1 Failure Criteria..............................................................................................................................24
10.2 Failure Rate...................................................................................................................................24
10.2.1 Usage ...........................................................................................................................................24
10.2.2 Component De-rating......................................................................................................................24
10.3 On/OFF Cycle ...............................................................................................................................24
11.0 Safety.................................................................................................................25
11.1 Sharp Edge Requirements..........................................................................................................25
11.2 Materials ........................................................................................................................................25
11.2.1 Toxicity .........................................................................................................................................25
11.2.2 Flammability..................................................................................................................................25
11.3 Capacitors.....................................................................................................................................25
12.0 Other requirement ..........................................................................................25
12.1 National Test Lab Requirement...................................................................................................25
12.2 Label..............................................................................................................................................25
13.0 Mechanical Characteristics..........................................................................26
ver 0.1 4/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
M190EN03 V.2
Product Specification
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2005/03/14 All First Edition for Customer All
ver 0.1 5/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open nor modify the Module Assembly.
M190EN03 V.2
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a module has to be put back into the packing container slot after once it was taken out from the
container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL
reflector edge softly. Otherwise the TFT module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT module.
11) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not twist
nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise the
TFT module may be damaged.
ver 0.1 6/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
2.0 General Description
This specification applies to the 19.0 inch Color TFT-LCD Module M190EN03 V2.
The display supports the SXGA (1280(H) x 1024(V)) screen format and 16.7M colors (RGB 8-bits data).
All input signals are 2 Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 480(19")
Active Area [mm] 376.32 (H) x 301.056 (V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.294 (per one triad) x 0.294
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally Black
White Luminance ( Center ) [cd/m2]
Contrast Ratio 1,000 : 1 (Typ)
Optical Response Time [msec] 8ms GTG (Avg. Typ.); 20ms (Typ on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 2500 (Max)
Physical Size [mm] Min. Typ. Max.
Electrical Interface Dual channel LVDS, DE mode
Support Color 16.7M colors (RGB 8-bit data )
Surface Treatment Anti-glare, hard coating (3H)
Temperature Range
Operating
Storage (Shipping)
[Watt] 28W(Typ) (w/o Inverter, All white pattern)
o
C]
[
o
C]
[
250 cd/m
Horizontal(H) 395.5 396 396.5
Vertical(V) 323.5 324 324.5
Depth(D) 17.0 17.5 18.0
0 to +50
-20 to +60
2 @7mA
(Typ)
M190EN03 V.2
ver 0.1 7/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

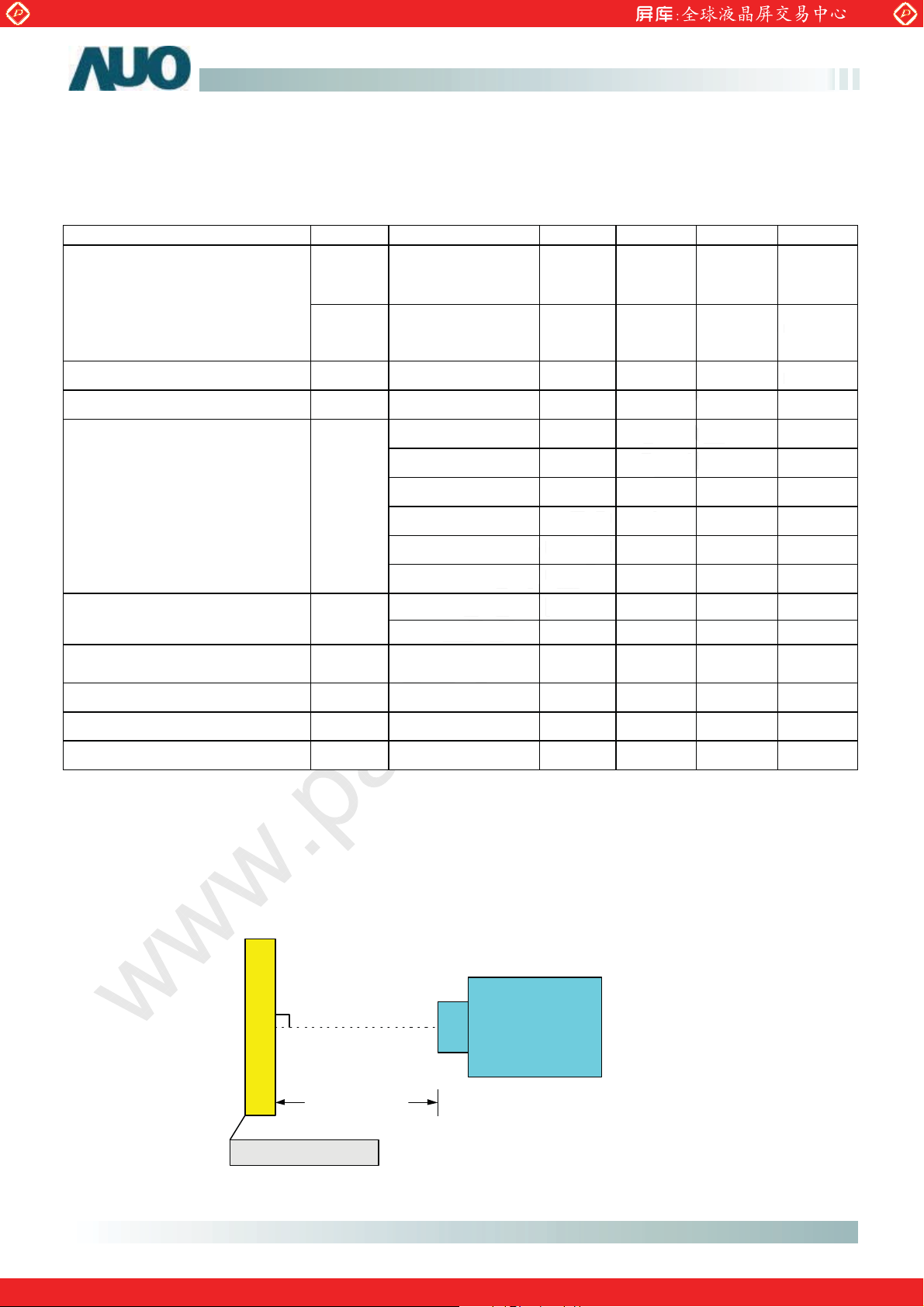

2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle
[degree]
[degree]
Horizontal (Right)
CR = 10 (Left)
75
75
85
85
M190EN03 V.2
-
-
[degree]
[degree]
Contrast ratio Normal Direction 500 1,000
Response time [msec] Grey to Grey - 8(Avg.) 16
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
White Luminance at CCFL 7.0mA
(central point)
Luminance Uniformity
Crosstalk (in75Hz)
Flicker
[cd/m2] 200 250 -
[%] 75 80 - Note 2
[%] 1.5 Note 3
dB -20 Note 4
Vertical (Up)
CR = 10 (Down)
Red x 0.611 0.641 0.671
Red y 0.323 0.353 0.383
Green x 0.259 0.289 0.319
Green y 0.596 0.626 0.656
Blue x 0.112 0.142 0.172
Blue y 0.048 0.078 0.108
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
75
75
85
85
-
-
-
Note 1
Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A / BM7,
CS-1000, CA210, SR_3, EZ Contrast*, Optiscope& Westar TRD-100)
Aperture 1°with 100cm VD or 2°with 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
LCD Module
PR-880 /
BM5A /
BM7
measuring distance
Module Driving Equipment
*’ EZ Contrast is different measurement tool with very close viewing distance.
ver 0.1 8/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center

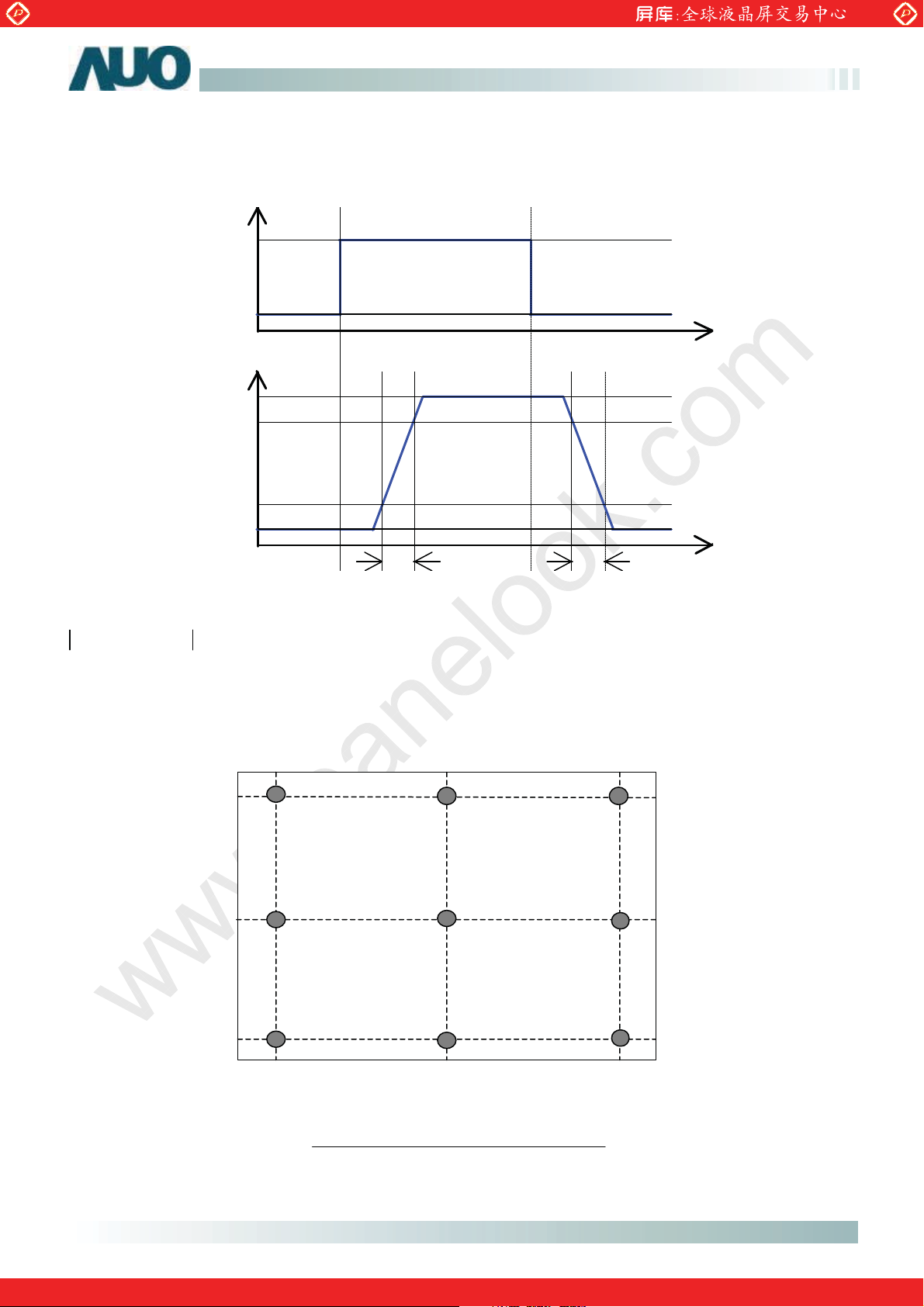

Note1: Definition of Response time:
B
A
100%
90%
www.panelook.com
M190EN03 V.2
Product Specification
Time
10%
0%
Optical Response Driving Signal
Tr Tf
Algorithm:
Time
16BLevel- A Level ≥ then the average of Grey -to-Grey response time is 8ms. ( F= 60 Hz).
(rising time; from “Full Black” to “Full White”) + TrF(Falling time; from “Full White” to “Full Black”) = 20ms(typ).
Tr
R
Note2: Brightness uniformity of these 9 points is defined as below
90 %
50 %
10 %
10 %
50 %
90 %
Uniformity =
9)-(1points9inLuminanceMinimum
9)-(1Points9inLuminanceMaximum
ver 0.1 9/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
l
2
2
6
6
A
2
2
6
6
31/3
3
3
A

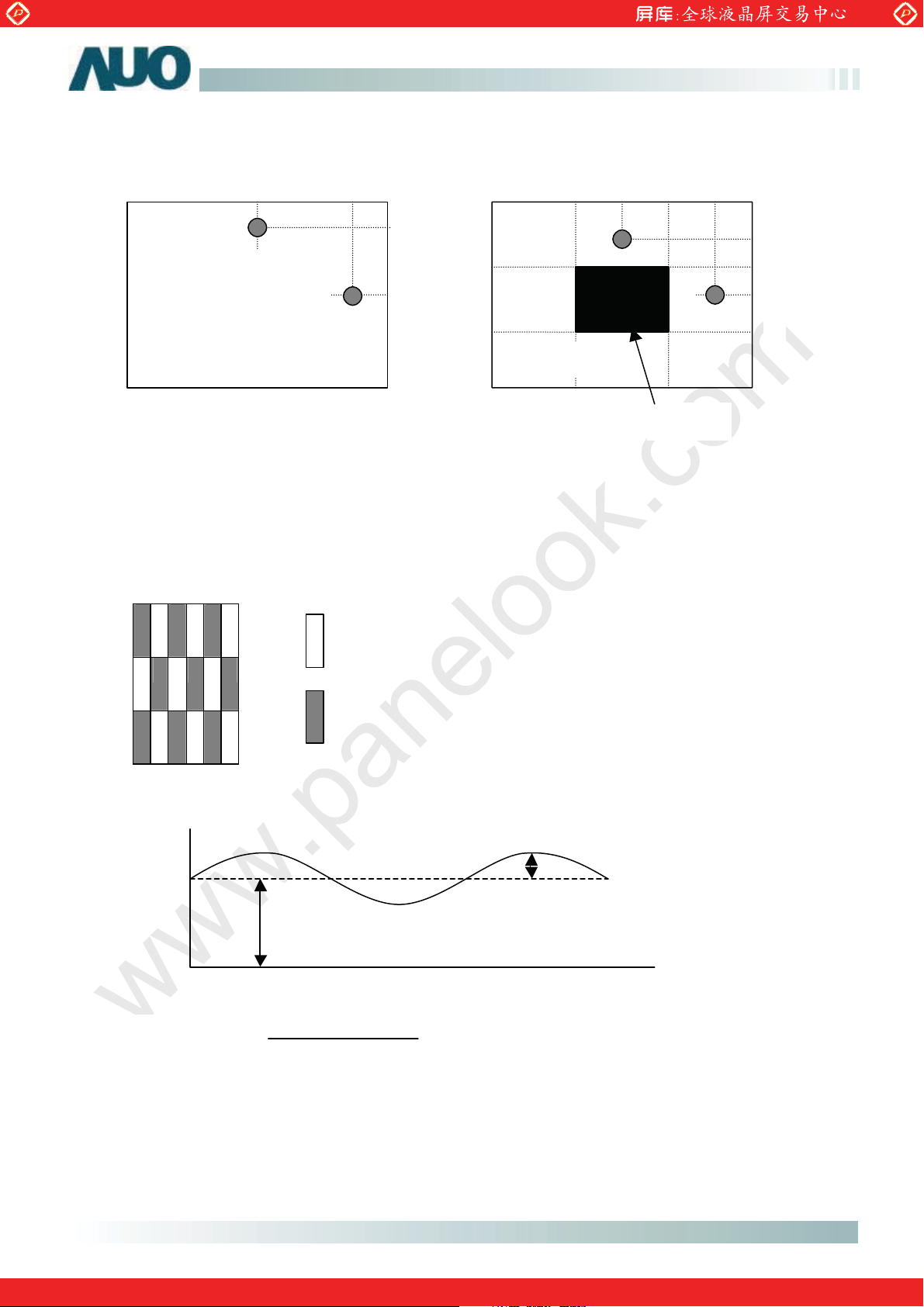

Note 3: Crosstalk is defined as below :
www.panelook.com
M190EN03 V.2
Product Specification
1/
B
184 gray level 184 gray level
Unit: percentage of dimension of display area
l L
Note 4: Test Paterm: Subchecker Pattern
l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B
A-LA’
l L
l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’
B-LB’
R G B R G B
1/
1/
1/
Gray Level = L127
2/
1/
’
0 gray level
1/
1/
1/
1/
B’
2/
R G B R G B
R G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
log20(dB)Flicker =
DC
Gray Level = L0
Hz)30Level(atAC
Leve
AC
Time
ver 0.1 10/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
X
C
AUO ASIC
www.panelook.com
Product Specification
3.0 Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches wide Color TFT/LCD Module:
M190EN03 V.2
LVD
+ 5V
Connector
Receiver
Over-Driver
DC/DC
Converter
LVDS
Timing
Controller
Gamma
Correction
DC
G1
G1024
-
TFT-LCD
1280*(3)*1024
Pixels
-Driver I
D1 D3840
4 CCFL
Inverter
I/F + X-PCB
HIROSE MDF76KBW-30S-1H(58) JST BHSR-02VS-1
Mating Type: Mating Type:
HIROSE MDF 76G-30P-1SD SM02B-BHSS-1-TB
ver 0.1 11/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VIN -0.3 +5.5 [Volt] Note 1,2
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL - 7.5 [mA] rms Note 1,2
M190EN03 V.2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 5 90 [%RH] Note 3
Storage Temperature TST -20 +60 [oC] Note 3
Storage Humidity HST 5 90 [%RH] Note 3
Please refer the graph below for corresponding of Min/Max values of temperature and humidity.
Note 1: With in Ta (25℃ )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard)
.
ver 0.1 12/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
0%
www.panelook.com
Product Specification
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units Condition
M190EN03 V.2
VDD
Logic/LCD Drive
Voltage
4.5 5 5.5 [Volt] ±10%
IDD VDD current - 1400 1800 [mA]
Irush LCD Inrush Current - - 3.5 [A] Note
PDD VDD Power - 7 9 [Watt]
VDDrp
VDDns
Allowable Logic/LCD
Drive Ripple Voltage
Allowable Logic/LCD
Drive Ripple Voltage
100
100
[mV]
p-p
[mV]
p-p

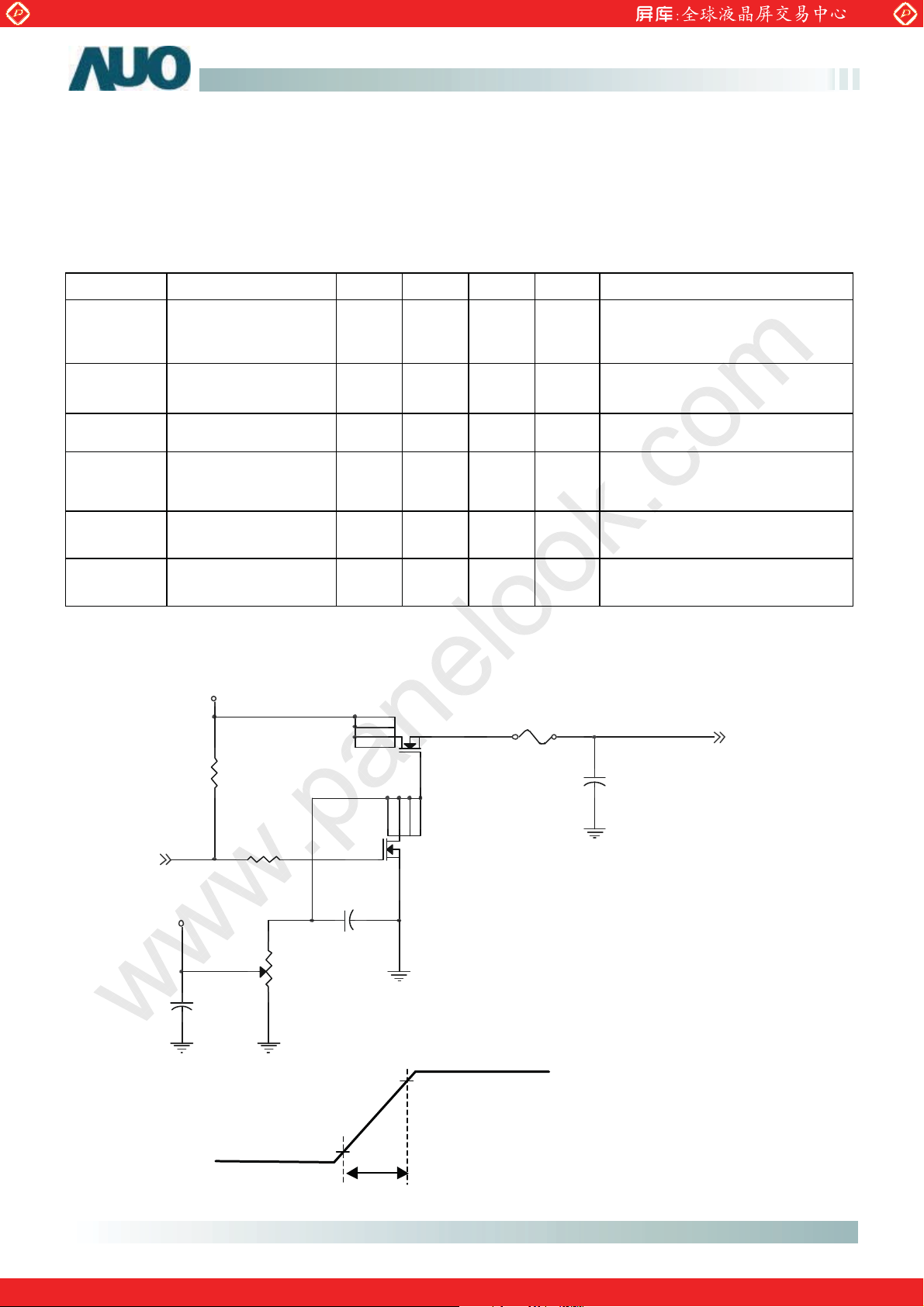

Note: Measurement conditions:
(High to Low)
Control Signal
SW
+12.0V
+5.0V
R1
47K
R2
1K
D6
D5
D2 S
D1
G
C3
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
Vin=5V , All White Pattern,
+30%, at 75Hz
Vin=5V , All White Pattern,
+30%, at 75Hz
VCC
(LCD Module Input)
C1
1uF/16V
C2
1uF/25V
VR1
47K
0.01uF/25V
5.0V
1
0V
470 us
Vin rising time
ver 0.1 13/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
¦ VID¦ Input Differential Voltage 100 400 600 [mV] Note
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV] VICM = 1.2V Note
-100 - - [mV]
+1.0 +1.2 +1.35 [V]
VICM = 1.2V
Note
VTH/VTL = ±100mV
Note
M190EN03 V.2

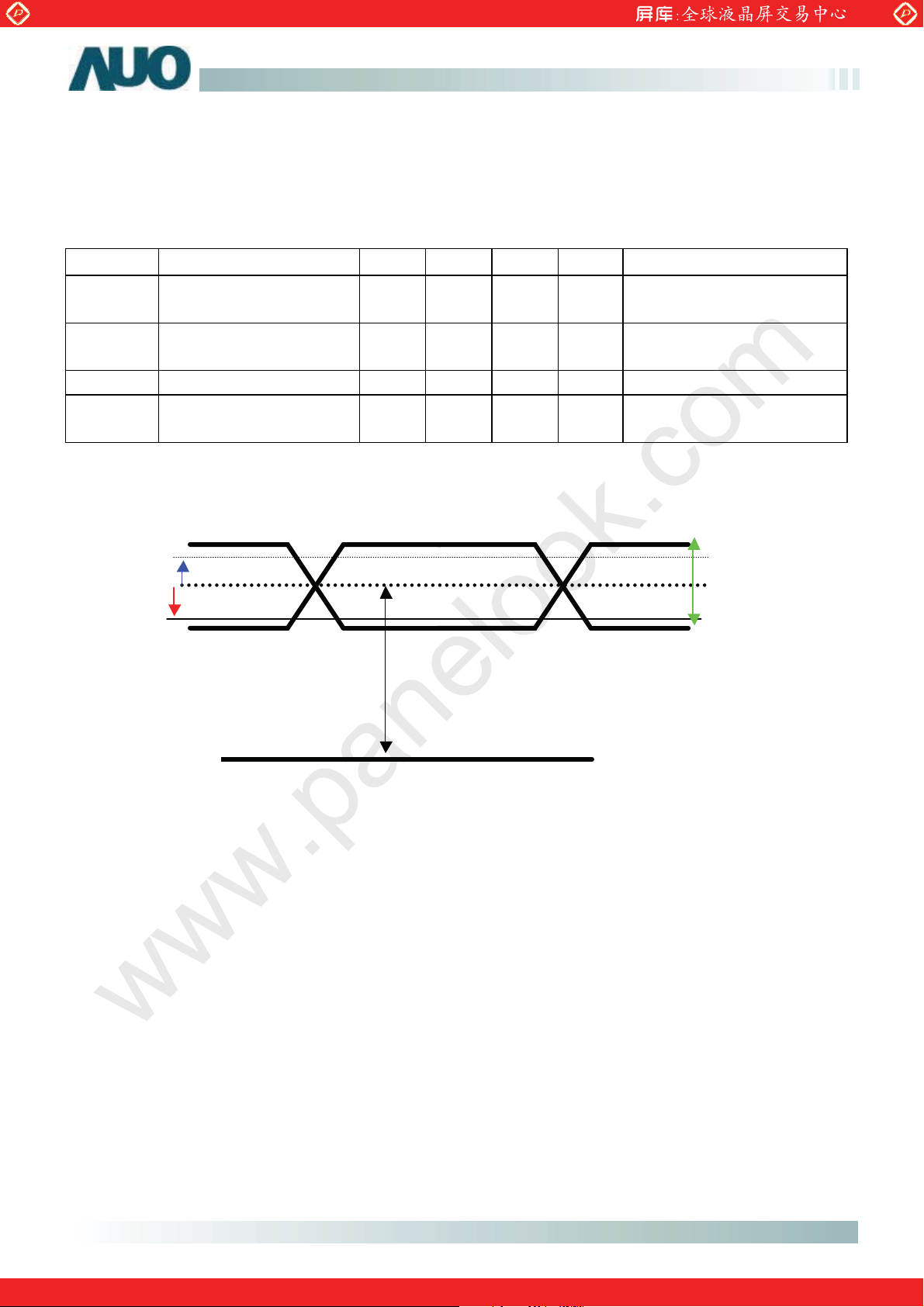

Note: LVDS Signal Waveform
VTH
VTL
VSS
│VID│
VICM
ver 0.1 14/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
M190EN03 V.2
Product Specification
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Symbol Parameter Min. Typ. Max. Unit Condition
ISCFL CCFL standard current 6.5 7.0 7.5
IRCFL CCFL operation range
2.5 7.0 7.5
[mA]
rms
[mA]
rms
FCFL CCFL Frequency 40 50 60 [KHz] (Ta=25oC) Note 2
ViCFL
o
(0
C)
ViCF
o
(25
C)
VCFL
PCFL
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Operation Voltage
(for reference)
CCFL Power consumption (for
reference)
1810 - -
1540 - -
-
750
@7mA
800
- 21 23.1 [Watt] (Ta=25
[Volt]
rms
[Volt]
rms
[Volt]
rms
(Ta=25
(Ta=25
(Ta=0
(Ta=25
(Ta=25
o
C) Note 3
o
C) Note 1
o
C)
o
C) Note 3
o
C) Note 4
o
C) Note 5
LTCFL CCFL life Time 40,000 50,000 - [Hour] (Ta=25oC) Note 6
Note 1: CCFL standard current is measured at 25±2℃..
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
Note 3: ViCFL means Ignition Voltage for both ends of the lamp, and CCFL inverter should be able to give out a
power that has a generating capacity of over 1810 voltage. Lamp units need 1810 voltage minimum for
ignition
Note 4: CCFL operation voltage is measured at 25±2℃.
Note 5: The variance of CCFL power consumption is ±10%. Calculator value for reference (ICFL×VCFL×4=PCFL).
Note 6: Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL..The typical
life time of CCFL is on the condition at 7.0mA lamp current.
ver 0.1 15/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.0 Signal Characteristic
6.1 Pixel Format Image

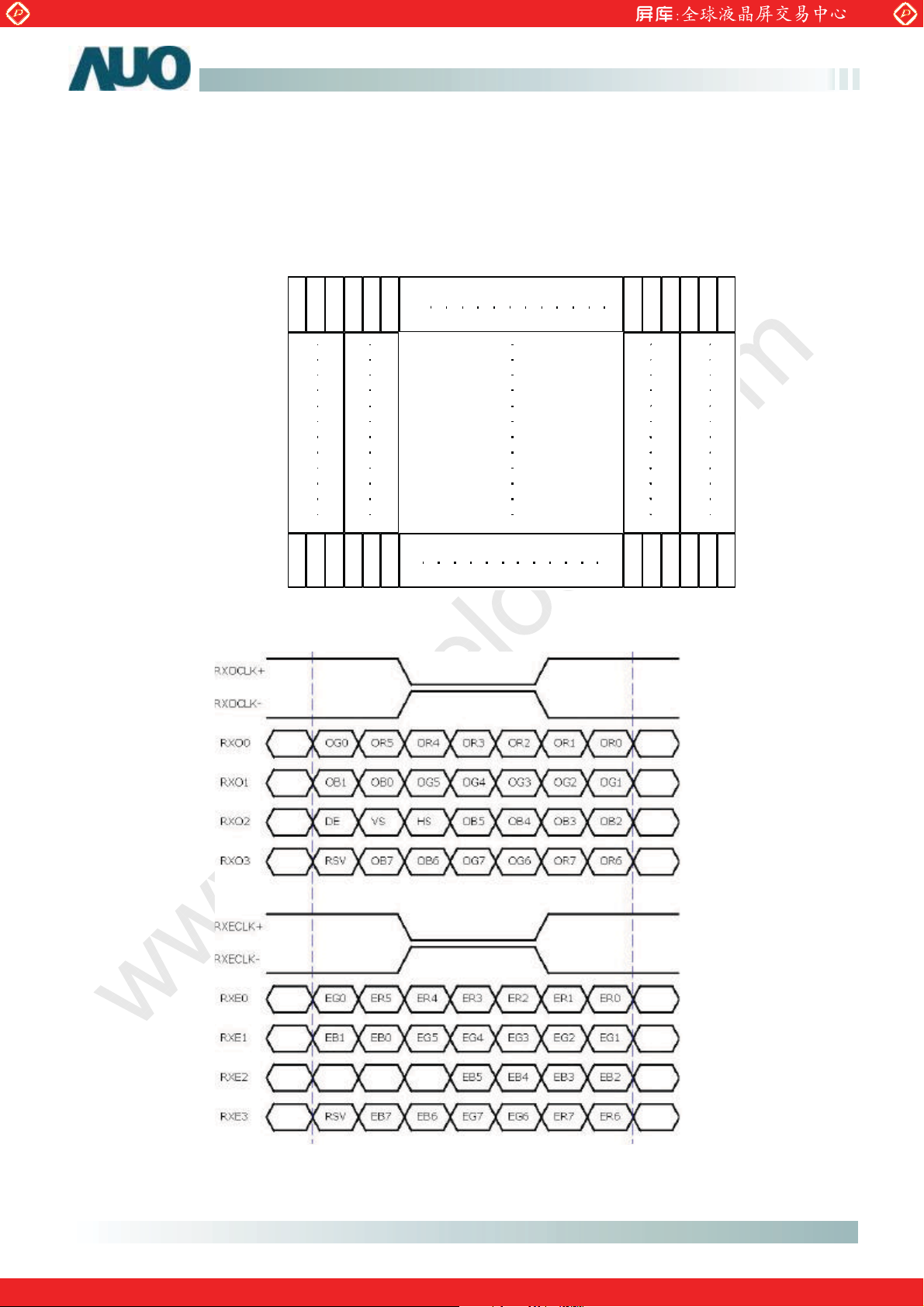

Following figure shows the relationship of the input signals and LCD pixel format.
1 2 1279 1280
M190EN03 V.2
1st Line
1024 Line
6.2 The input data format
R G B R G B
R G B R G B
R G B R G B
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB
O = “ First Pixel Data”
ver 0.1 16/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
O
)
O
)
O
)
O
)
O
)
O
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
y
y
y
www.panelook.com
Product Specification
E = “ Second Pixel Data”
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential
signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
M190EN03 V.2
1Rx
2Rx
3Rx
4Rx
5Rx
6Rx
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock
9 RxOCKIN+ Positive LVDS differential clock input (Odd clock
10 RxOIN3- Negative LVDS differential data input (Odd data
11 RxOIN3+ Positive LVDS differential data input (Odd data
12 RxEIN0- Negative LVDS differential data input (Even clock
13 RxEIN0+ Positive LVDS differential data input (Even data
14 VSS Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data
16 RxEIN1+ Negative LVDS differential data input (Even data
17 VSS Power Ground
IN0- Negative LVDS differential data input (Odd data
IN0+ Positive LVDS differential data input (Odd data
IN1- Negative LVDS differential data input (Odd data
IN1+ Positive LVDS differential data input (Odd data
IN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG
IN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG
18 RxEIN2- Negative LVDS differential data input (Even data
19 RxEIN2+ Positive LVDS differential data input (Even data
20 RxECLKIN- Negative LVDS differential clock input (Even clock
21 RxECLKIN+ Positive LVDS differential clock input (Even clock
22 RxEIN3- Negative LVDS differential data input (Even data
23 RxEIN3+ Positive LVDS differential data input (Even data
24 VSS Power Ground
25 NC -
26 NC -
27 NC -
28 VCC +5.0V Power Suppl
29 VCC +5.0V Power Suppl
30 VCC +5.0V Power Suppl
ver 0.1 17/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
Note1: Start from left side
www.panelook.com
M190EN03 V.2
Product Specification
Connector
1
RxOIN0-
Note2: Input signals of odd and even clock shall be the same timing.
30
VCC
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 1024 1024 1024 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs 11 - 1024 Th
1035 - 2048 Th
Horizontal
Period Th 720 - 1024 Tclk
Active Tdisp(h) 640 640 640 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 80 - 384 Tclk
Period Tclk 12 - - ns
Clock
Frequency Freq 30 - 83 MHz
Frame Rate Frequency F 50 60 75 Hz
ver 0.1 18/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Note : DE mode only

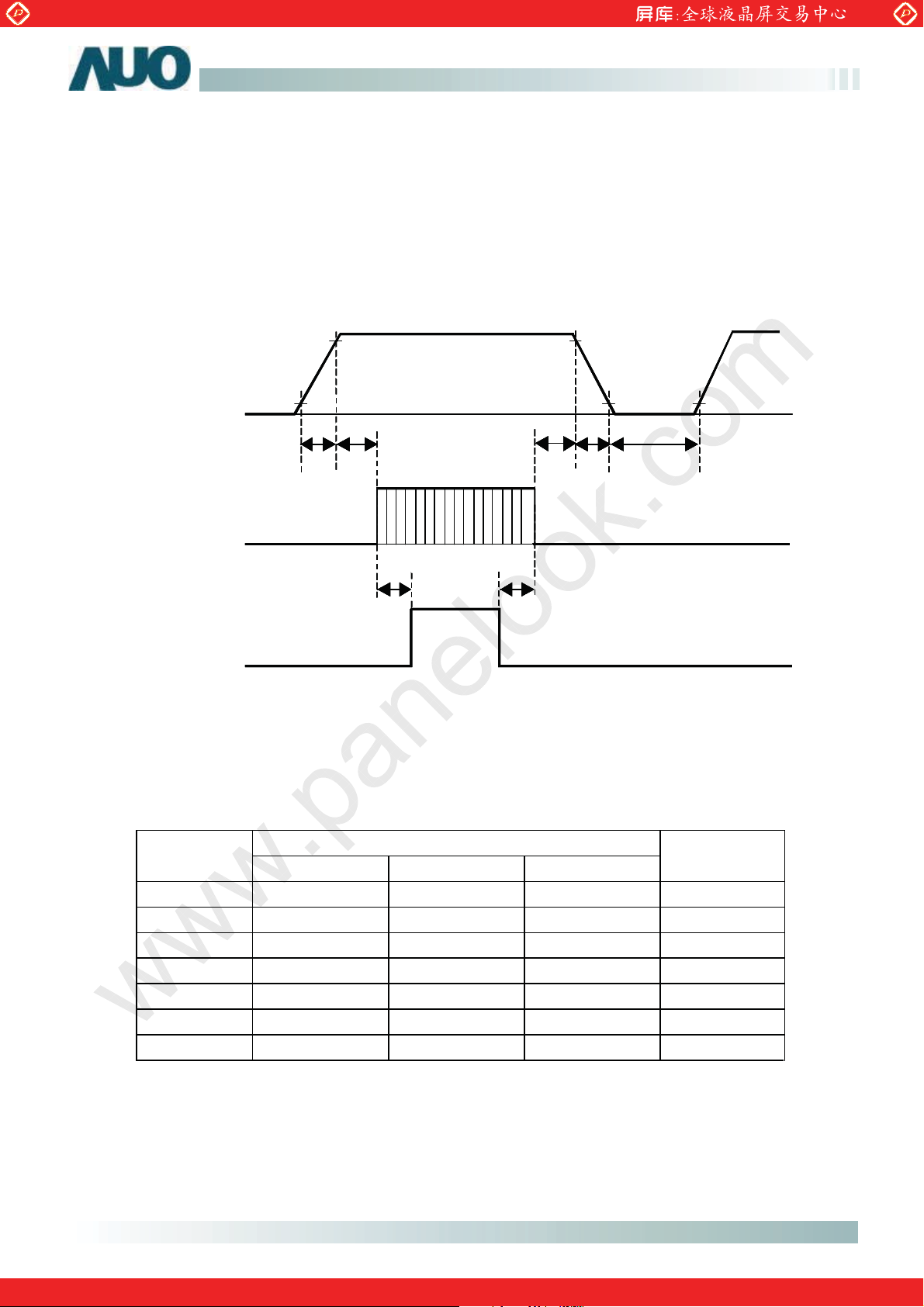

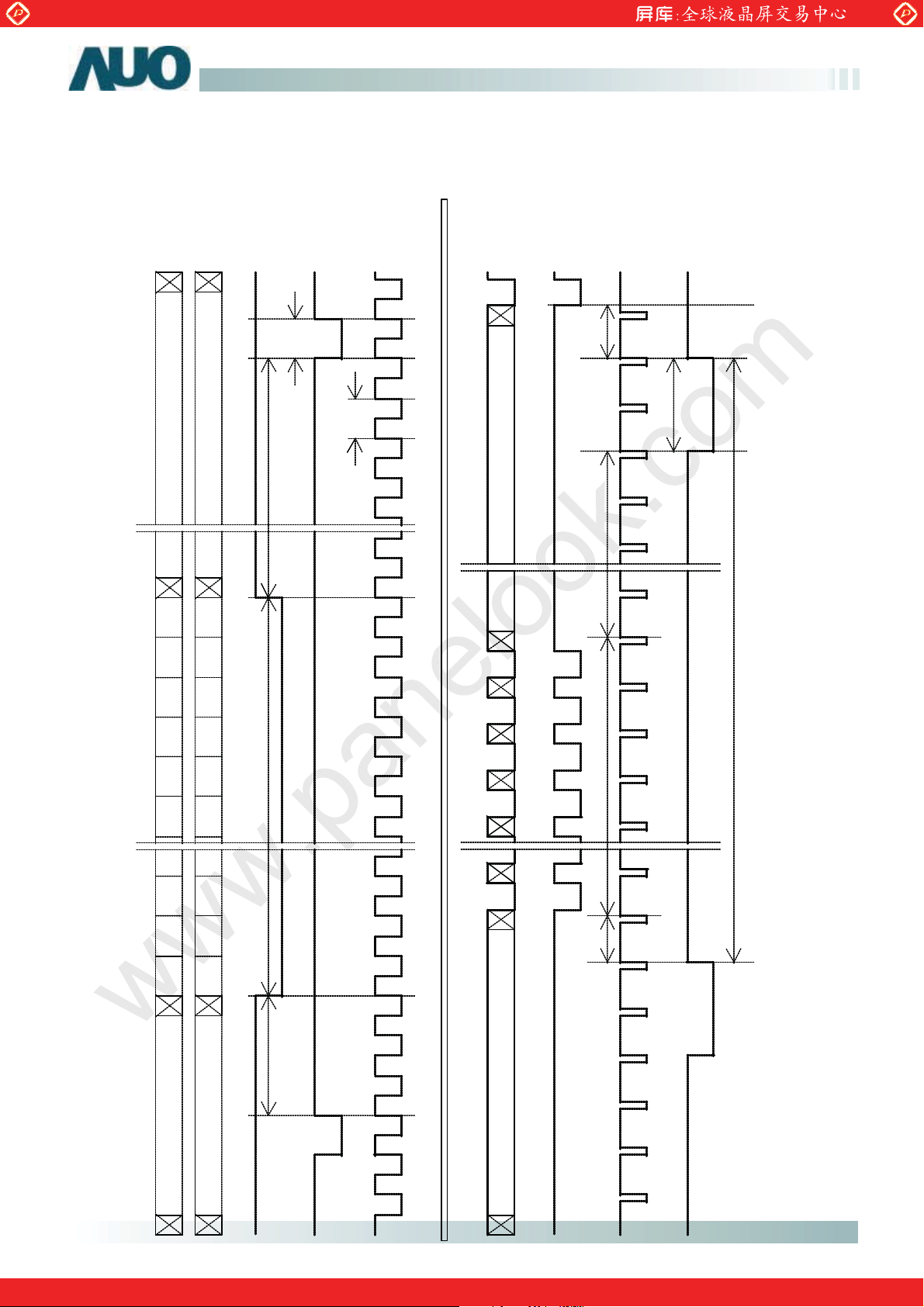

6.4.2 Timing diagram
RGB Data
(Odd)
RGB Data
(Even)
DE
Hsync
www.panelook.com
Product Specification
RGB Data
CLK
Line Line Line Line Line Line
N
DE
Hsync
M190EN03 V.2
Vsync
Invalid Data
Invalid Data
Pixel
1
2
Pixel Pixel
3 9 M-1
4
6
5 M-3
Pixel Pixel Pixel Pixel Pixel Pixel
7
8
10
12
11
Pixel
PWhs
Tbp(h)
Tdisp(h)
Tclk
Tfp(v)
PWvs
Invalid Data
Tbp(v)
Tv
2
Tdisp(v)
43
PixelPixelPixelPixelPixel
M-5
M-4
M-2
M
Invalid Data
Invalid Data
PixelPixelPixel
Tfp(h)
N1
Th
Invalid Data
ver 0.1 19/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.5 Power ON/OFF Sequence
Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from
any system shall be Hi-Z state or low level when Vin is off.
90% 90%
90% 90%
90% 90%
10%
10%
Vin 10%
Vin 10%
Vin 10%
0V
0V
0V
10%
10%
10%
10%
M190EN03 V.2
Signal
Signal
Signal
Lamp
Lamp
Lamp
Symbol
T1 T2 T5 T6 T7
T1 T2 T5 T6 T7
T1 T2 T5 T6 T7
0V
0V
0V
T3
T3
T3
0V
0V
0V
Values
Min Typ Max
T1 0.5 - 10 [ms]
T2 0.5 40 50 [ms]
T3 200 - - [ms]
T4 200 - - [ms]
T5 0.5 16 50 [ms]
T6 0.5 - 10 [ms]
T7 1000 - - [ms]
T4
T4
T4
Unit
ver 0.1 20/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

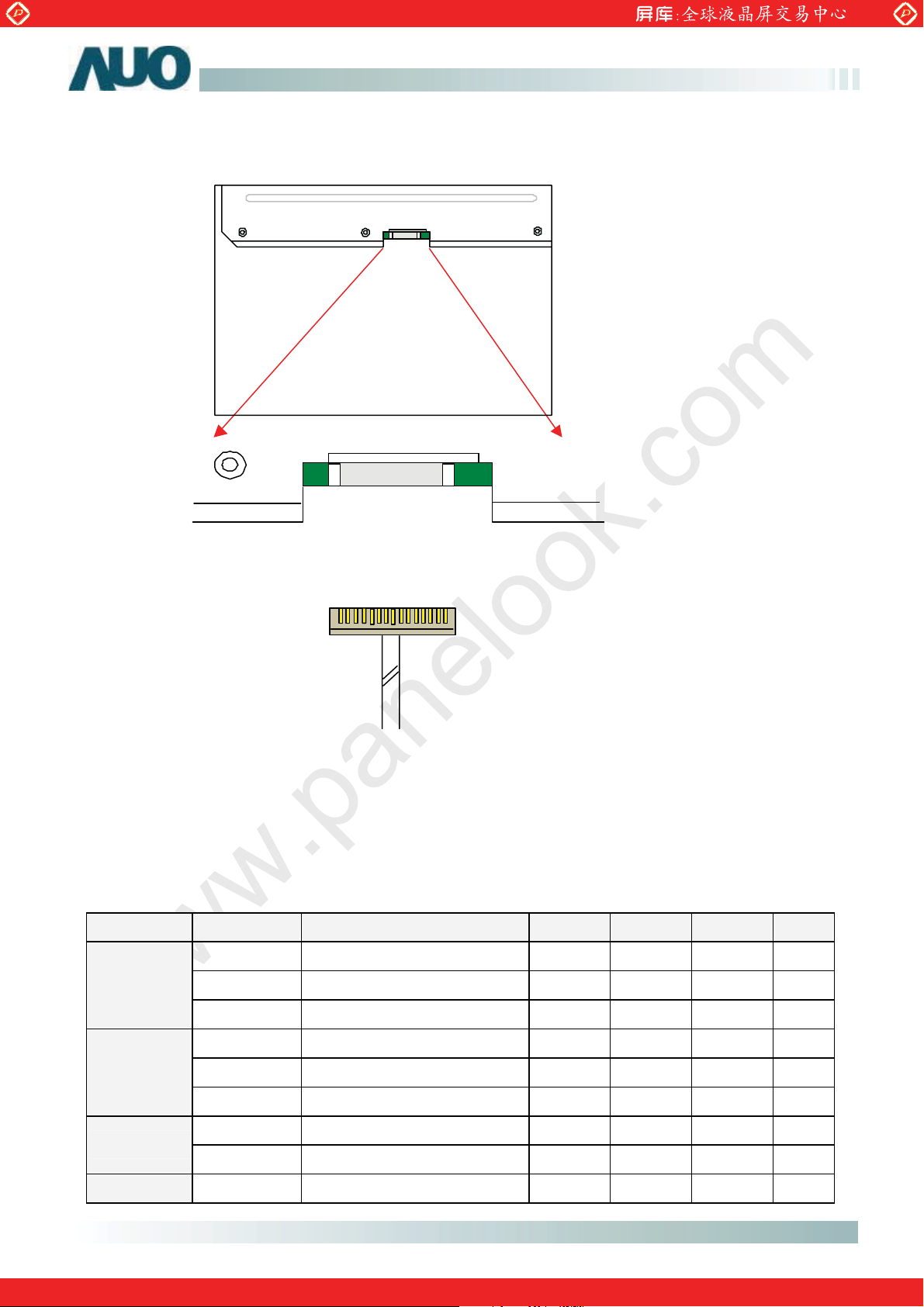

7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer HIROSE/ JAE or compatible
Type Part Number MDF 76KBW-30S-1H(58)/ FI-XB30SL-HF10
M190EN03 V.2
Mating Housing Part Number
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 Rx OIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VS S
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 NC 26 NC
MDF 70G-30P-1SD/ FI-X30HL-T ( Locked Type ),
FI-X30S-H ( Unlocked Type )
27 NC 28 VCC
29 VCC 30 VCC
7.2 Backlight Unit
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer JST
Type Part Number BHSR-02VS-1
Mating Type Part Number SM02B-BHSS-1-TB
ver 0.1 21/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
7.3 Signal for Lamp connector
Connector No. Pin No. Input Color Function
www.panelook.com
M190EN03 V.2
Product Specification
CN1
Upper
CN2
CN3
Lower
CN4
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
8.0 Vibration, Shock, and Drop
8.1 Vibration & Shock
Vibration Test Spec:
Frequency: 10 - 200Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 1.5G(10~200Hz P- P)
Test method:
Acceleration (G) 1.5
Frequency (Hz) 10~200~10
Active time (min) 30
Shock Test Spec:
Acceleration (G) –a 50
Active time -b 20 ms
Wave form Half-sin
Times 1
Direction: ±X , ±Y, ±Z
8.2 Drop test
Package test: The drop height is 60cm.
9.0 Environment
The display module will meet the provision of this specification during operating condition or after storage or
shipment condition specified below. Operation at 10% beyond the specified range will not cause physical
damage to the unit.
ver 0.1 22/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center

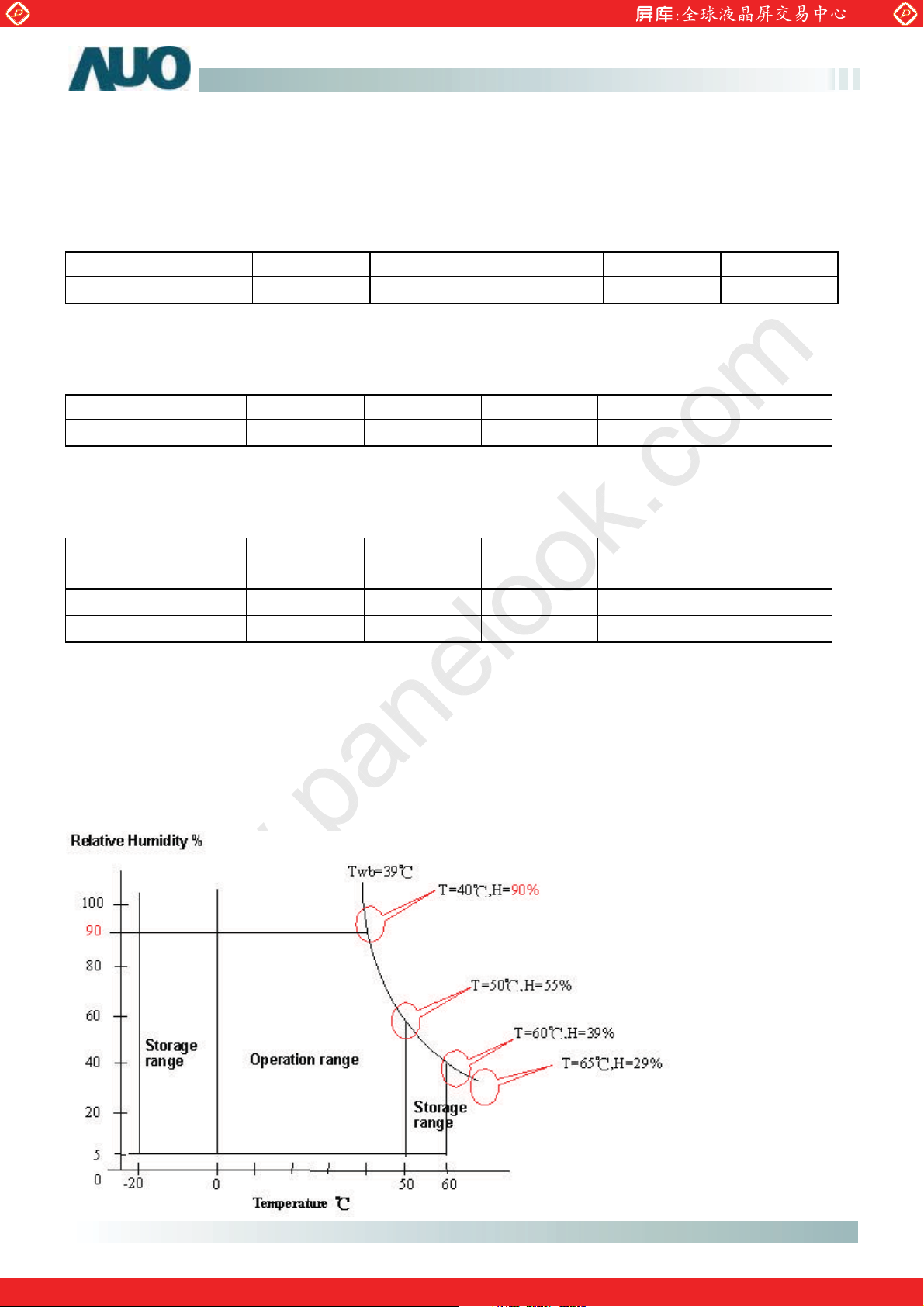

9.1 Temperature and Humidity
9.1.1 Operating Conditions
The display module operates error free, when operated under the following conditions;
Temperature 0
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0
9.1.2 Shipping Conditions
The display module operates error free, after the following conditions;
Temperature -20
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0
www.panelook.com
Product Specification
0
C to 50 0C
0
C
0
C to 60 0C
0
C
M190EN03 V.2
9.2 Atmospheric Pressure
The display assembly is capable of being operated without affecting its operations over the
pressure range as following specified;
Maximum Pressure 1040hPa 0m = sea level
Minimum Pressure 674hPa 3048m = 10.000 feet
Note : Non-operation attitude limit of this display module = 30,000 feet. = 9145 m.
9.3 Thermal Shock
The display module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature
from -20
Thermal shock cycle -20
Power is not applied during the test. After temperature cycling, the unit is placed in normal room
ambient for at least 4 hours before powering on.
0
C to 600C, and back again.
0
C for 30min
0
C for 30min
60
Pressure Note
ver 0.1 23/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
10.0 Reliability
This display module and the packaging of that will comply following standards.
10.1 Failure Criteria
The display assembly will be considered as failing unit when it no longer meets any of the
requirements stated in this specification. Only as for maximum white luminance, following criteria is
applicable.
Maximum white Luminance shall be 125cd/m
10.2 Failure Rate
The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed
1.0%. The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7%
per 1000 hours.
2
or more.
M190EN03 V.2
10.2.1 Usage
The assumed usage for the above criteria is:
220 power-on hours per month
500 power on/off cycles per month
Maximum brightness setting
Operation to be within office environment (25
0
C typical)
10.2.2 Component De-rating
All the components used in this device will be checked the load condition to meet the failure rate criteria.
10.3 On/OFF Cycle
The display module will be capable of being operated over the following ON/OFF Cycles.
ON/OFF Value Cycles
+Vin and CCFL power 30,000 10 seconds on / 10 seconds off
ver 0.1 24/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
11.0 Safety
11.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
11.2 Materials
11.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic materials
are used, they will be reviewed and approved by the responsible AUO Toxicologist.
11.2.2 Flammability
All components including electrical components that do not meet the flammability grade
www.panelook.com
M190EN03 V.2
Product Specification
UL94-V1 in the module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL
flammability rating will be printed on the printed circuit board.
11.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep
them from being inserted backwards.
12.0 Other requirement
12.1 National Test Lab Requirement
The display module will satisfy all requirements for compliance to
UL 1950, First Edition U.S.A. Information Technology Equipment
CSA C22.2 No.950-M89 Canada, Information Technology Equipment
EEC 950 International, Information Technology Equipment
EN 60 950 International, Information Processing Equipment
(European Norm for IEC950)
12.2 Label
The label is on the panel as shown below:
ver 0.1 25/28/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Ver0.1 26/28

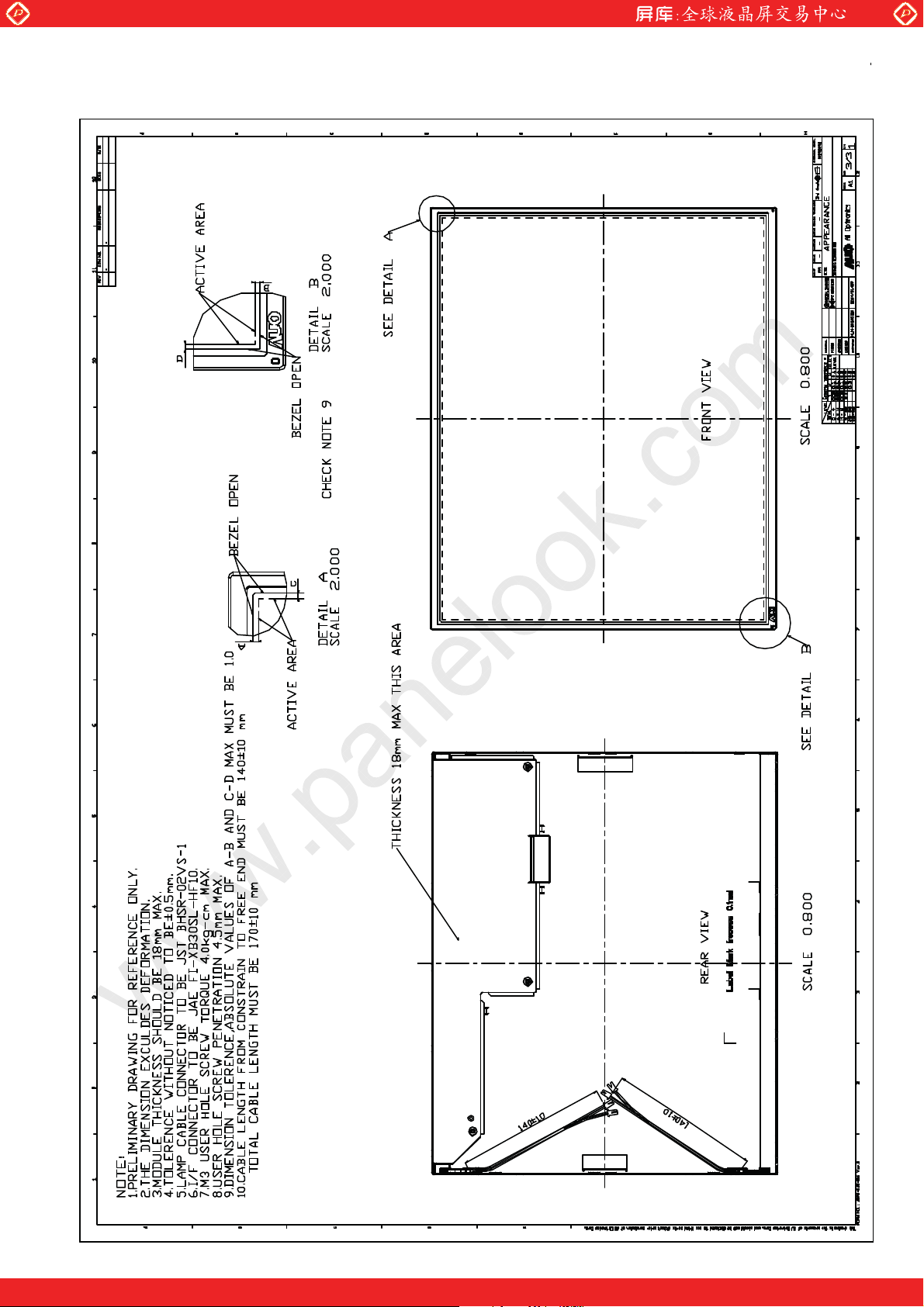

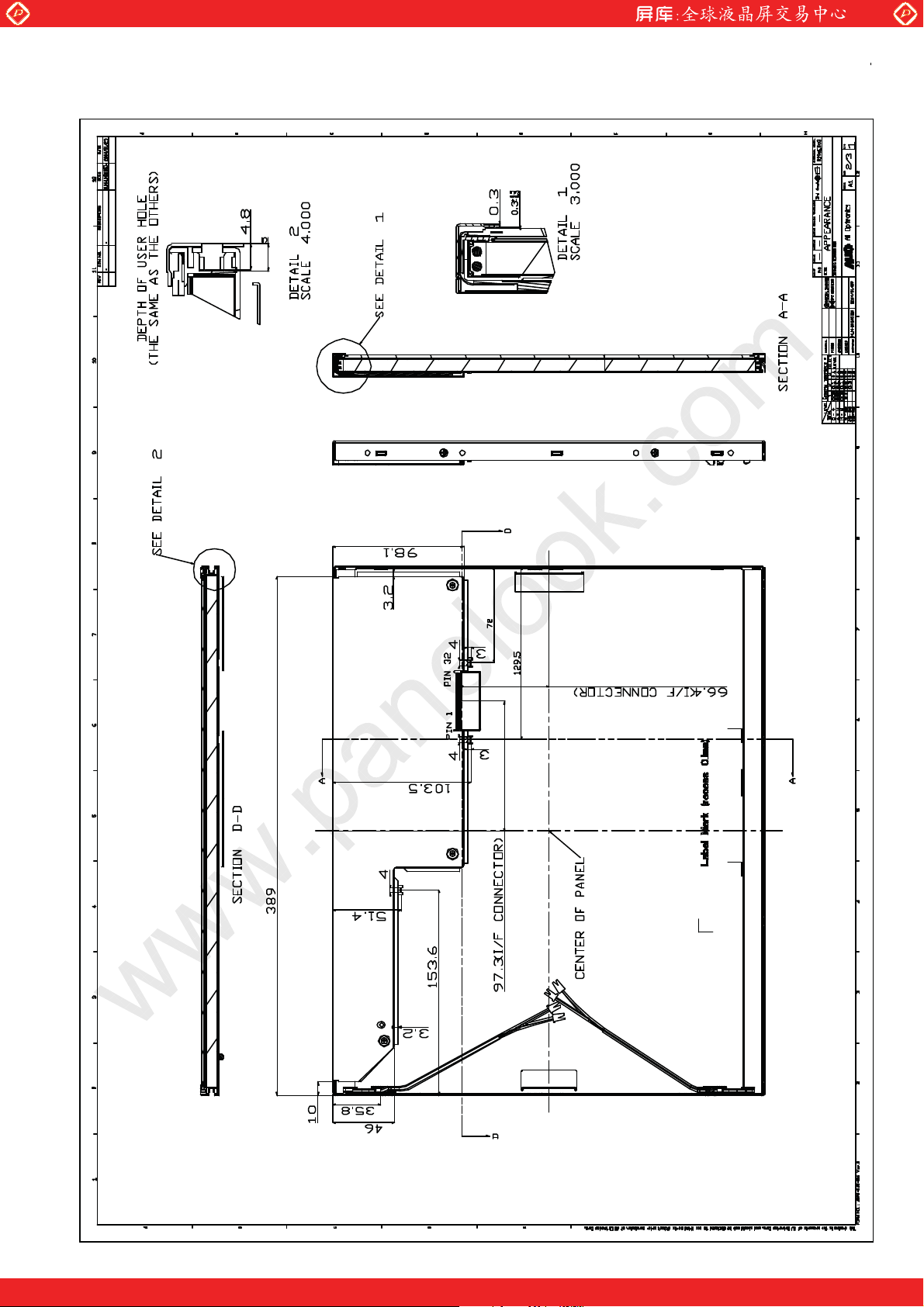

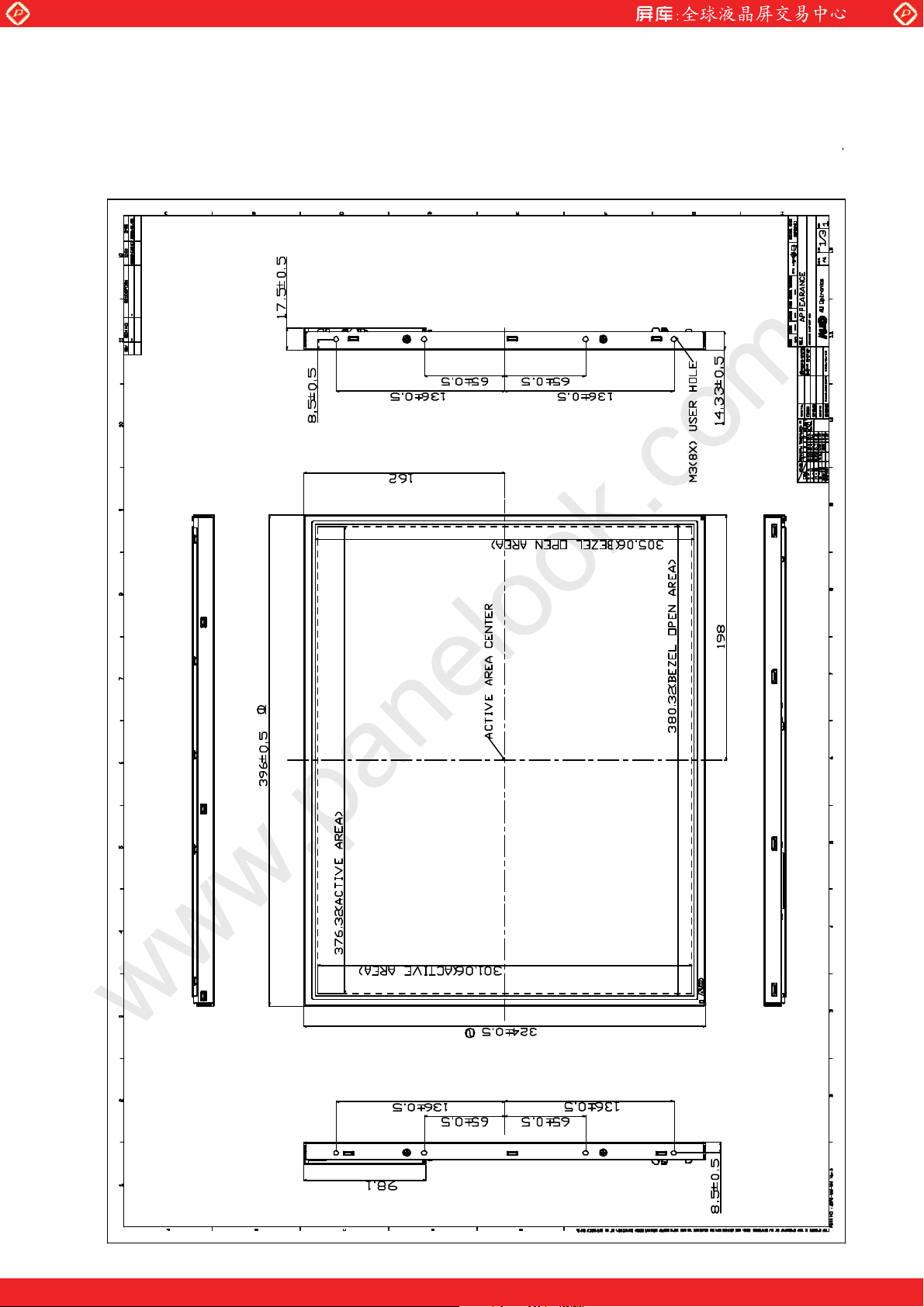

13.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Ver0.1 27/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Ver0.1 28/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
