AU OPTRONICS CORPORATION
M190EG02 V8
( ) Preliminary Specification
( V ) Final Specification
Module 19.0” SXGA Color TFT-LCD
Model Name M190EG02 V8
Customer Date
Approved by
Checked &
Approved by
Paul Huang
Prepared by
BD Lee
Date
July. 30, 2010
July. 30, 2010
Note: This Specification is subject to change without
notice.
document version 0.1 1/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Desktop Display Business Group /
AU Optronics corporation
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
Contents
1. Handling Precautions ..................................................................................................................4
2. General Description..................................................................................................................... 5
2.1 Display Characteristics ..........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6
3. Functional Block Diagram.........................................................................................................10
4. Absolute Maximum Ratings...................................................................................................... 11
4.1 Absolute Ratings of TFT LCD Module................................................................................. 11
4.2 Absolute Ratings of Backlight Unit....................................................................................... 11
4.3 Absolute Ratings of Environment ........................................................................................ 11
5. Electrical characteristics ..........................................................................................................12
5.1 TFT LCD Module.................................................................................................................. 12
5.2 Backlight Unit ....................................................................................................................... 15
6. Signal Characteristic .................................................................................................................16
6.1 Pixel Format Image..............................................................................................................16
6.2 The Input Data Format.........................................................................................................16
6.3 Signal Description ................................................................................................................17
6.4 Interface Timing....................................................................................................................19
6.5 Power ON/OFF Sequence...................................................................................................21
7. Connector & Pin Assignment ...................................................................................................22
7.1 TFT LCD Module.................................................................................................................. 22
7.2 Backlight Unit ....................................................................................................................... 23
8. Reliability Test............................................................................................................................ 24
9. Shipping Label............................................................................................................................25
10. Mechanical Characteristic ......................................................................................................26
document version 0.1 2/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
Record of Revision
Version & Date Page Old Description New Description Remark
0.1 2010/08/04 All Frist Edition for Customer
document version 0.1 3/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the Cold Cathode Fluorescent Lamp (CCFL) reflector
edge. Instead, press at the far ends of the CCFL reflector edge softly. Otherwise the TFT Module
may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold Cathode Fluorescent Lamp (CCFL) in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 0.1 4/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
2. General Description
M190EG02 V8 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit,
and a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and
16.7M colors (RGB 6-bits + HiFRC data). All input signals are 2-channel LVDS interface compatible.
Inverter card of backlight is not included. M190EG02 V8 is designed for a display unit of personal
computer.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
Screen Diagonal [mm] 482.6 (19.0" )
Active Area [mm] 376.32 (H) x 301.06 (V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.294 (per one triad) x 0.294
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 250 (center, Typ) @ 8.0mA
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] 5 ms(Typ, on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption [Watt]
Weight [Grams] 2300 (Typ)
Physical Size (H x V x D) [mm] 396 (H) x 324 (V) x 16.3 (D) (Typ)
Electrical Interface Dual channel LVDS
Surface Treatment Hard-coating (3H), Non-Glare treatment
Support Color 16.7M colors (RGB 6-bit data + HiFRC data)
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance RoHS Compliance
Digital Gamma turn on Compliance TCO5.0 Compliance
document version 0.1 5/28
o
C]
[
o
C]
[
14.3 W (Typ)
(PDD= 4.6 W, PCFL=9.7 W @Lamp=8.0mA)
0 to +50
-20 to +60
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Viewing Angle [degree]
Horizontal (Up)
CR = 5 (Down)
Vertical (Up)
CR = 5 (Down)
75
75
70
70
75
75
75
75
85
85
80
80
85
85
85
85
-
-
-
-
2
Contrast Ratio Normal Direction 600 1000 - 3
- 3.6 5.7
- 1.4 2.3
4
Optical Response Time [msec]
Raising Time (TrR)
Falling Time (TrF)
Rising + Falling - 5 8
Red x 0.617 0.647 0.677
Red y 0.310 0.340 0.370
Green x 0.258 0.288 0.318
Color / Chromaticity
Coordinates
(CIE)
Green y 0.575 0.605 0.635
5
Blue x 0.115 0.145 0.175
Blue y 0.041 0.071 0.101
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
White Luminance
(At CCFL= 8.0 mA)
2
] 200 250 - 6
[cd/m
Luminance Uniformity [%] 9 Points 75 80 - 7
Cross Talk (At 60Hz) [%] - - 1.5 8
Flicker [dB] - - -20
document version 0.1 6/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
9
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring (at surface 35). In order to stabilize the luminance, the measurement should be
executed after lighting Backlight for 30 minutes in a stable, windless and dark room.
Photo detector
Measured distance
LCD Panel
Center of the screen
TFT-LCD

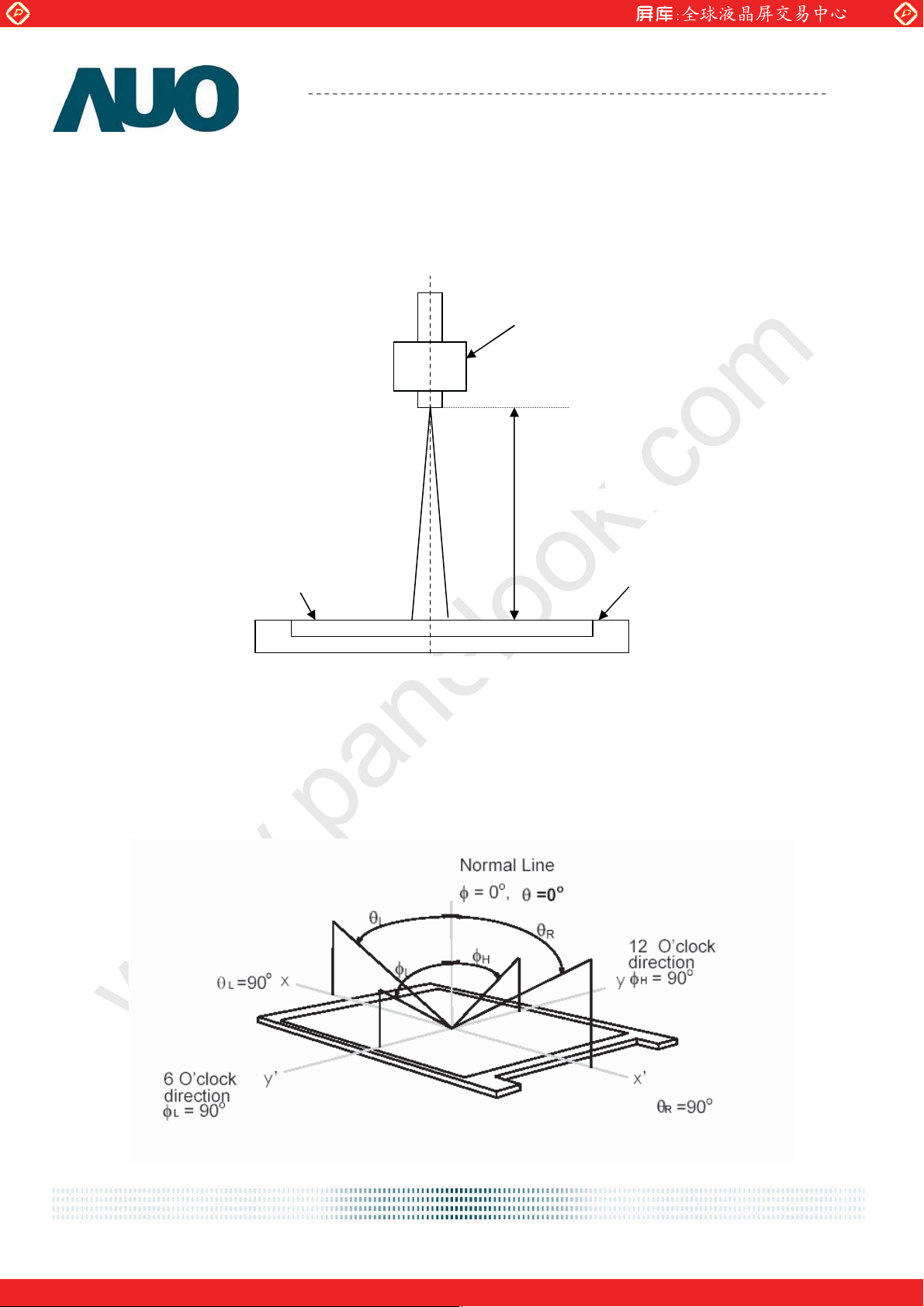

Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
document version 0.1 7/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8

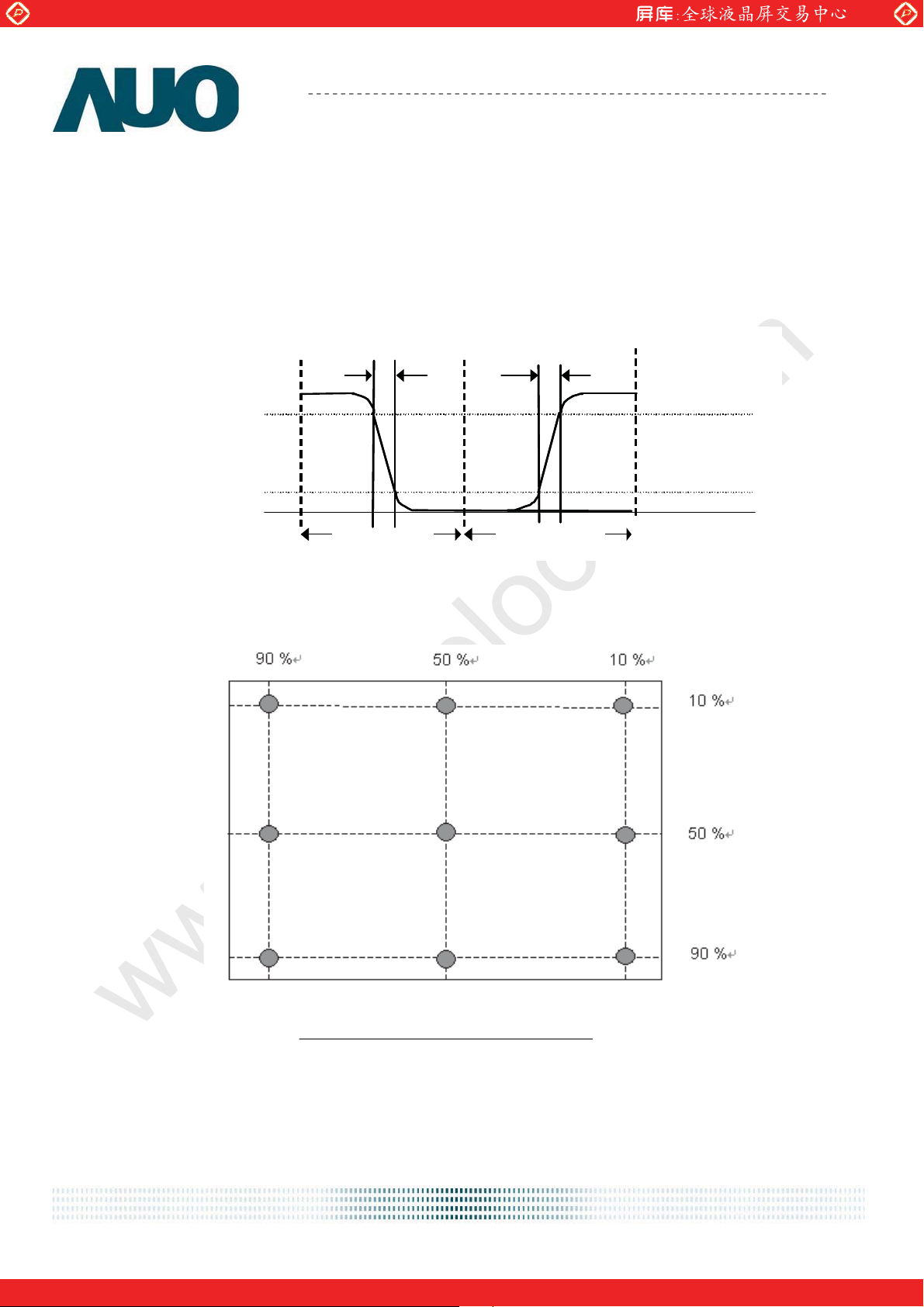

Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time, T
), and from “Full White” to “Full Black” (falling time, TrF), respectively. The
rR
response time is interval between the 10% and 90% (1 frame at 60 Hz) of amplitudes.
T
+ TrF = 5 msec (typ.).
rR
%
100
100
%
T
rF
T
rR
90
Optical
Optical
response
response
10
10
White Black
0
0
Black
White
1 Frame 1 Frame
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by TOPCON SR-3
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
document version 0.1 8/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

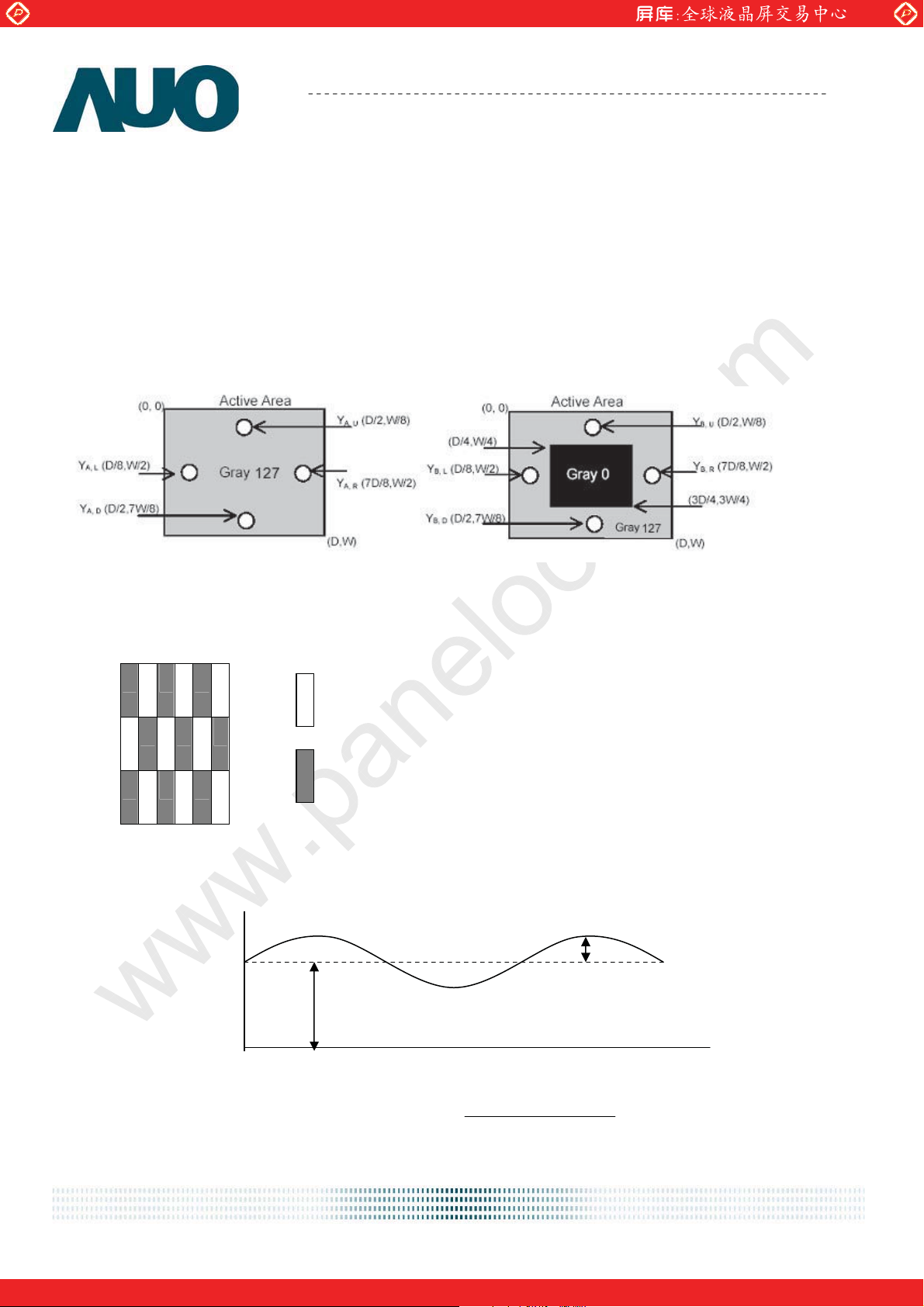

Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA Ø 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M190EG02 V8
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
RGBRGB
Gray Level = L127
R GBRGB
Gray Level = L0
RGBRGB
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
Time
Hz) 30Level(at AC

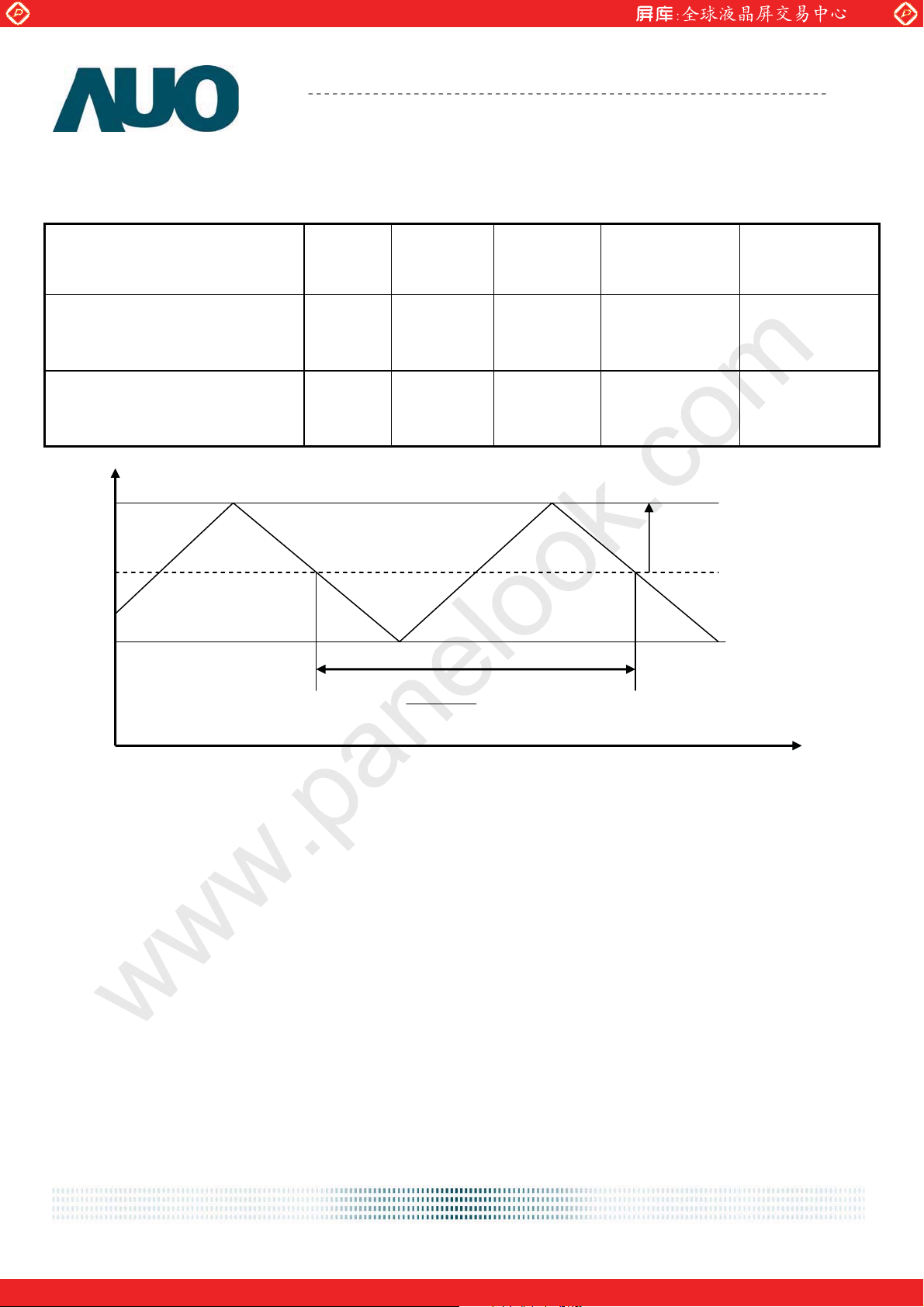

log20(dB)Flicker =
evel DC
document version 0.1 9/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8

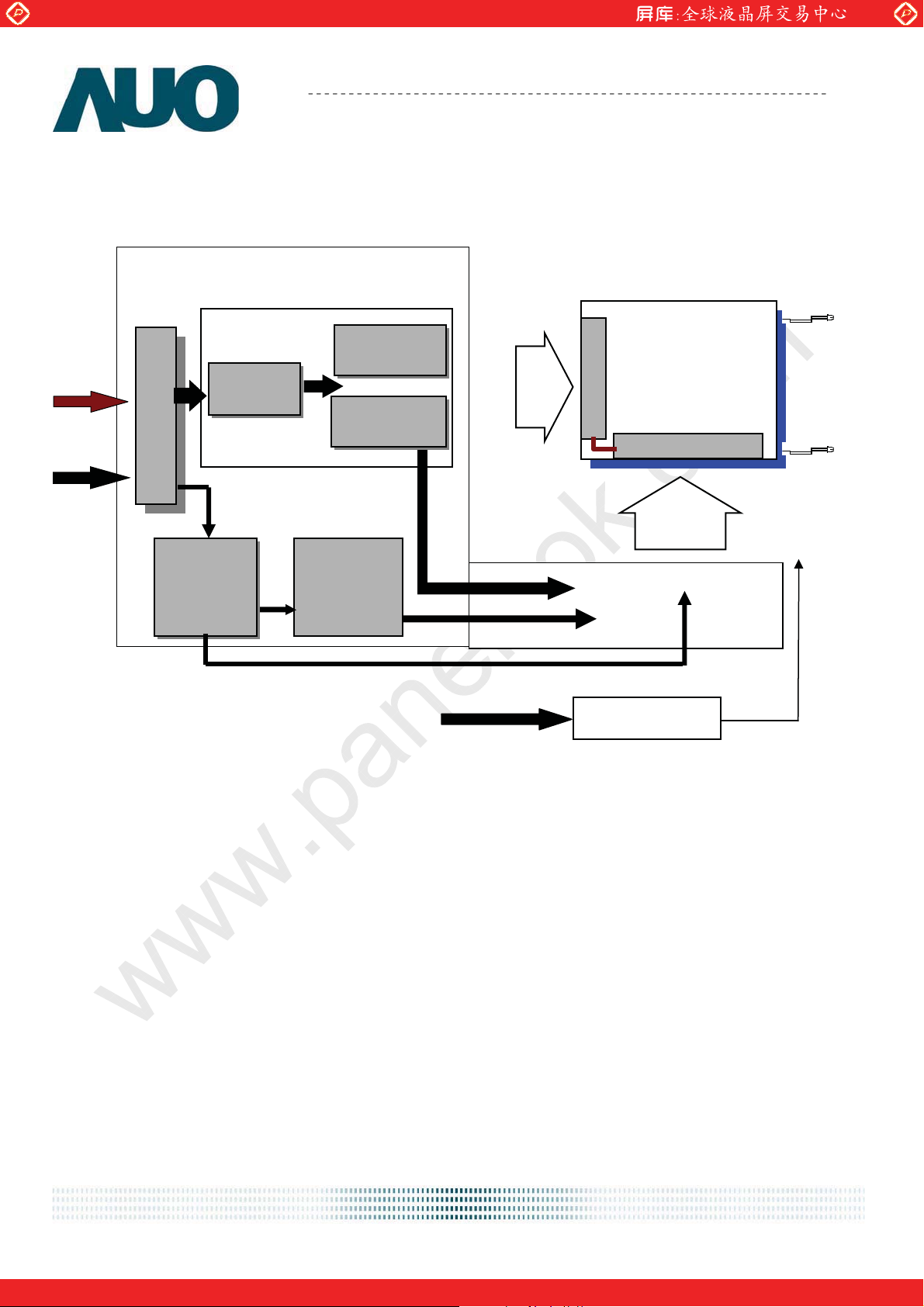

3. Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches Color TFT-LCD Module:
G1024
G1
TFT-LCD
1280*(3)*1024
Pixels
-
D1 D3840
LVDS
+ 5V
Connector
Receiver
ASIC
Timing
Controller
LVDS
RSDS
Transmitter
DC/DC
Converter
Gamma
Correction
I/F PCB Interface:
FI-XB30SSLA-HF15 / 187034-30091
Mating Type:
FI-X30HL (Locked Type)
FI-X30H (Unlocked Type)
DC POWER
2 CCFL
Inverter
document version 0.1 10/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
4. Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive Voltage VDD -0.3 +6 [Volt] Note 1, 2
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
CCFL Current ICFL - 8 [mA] rms Note 1, 2

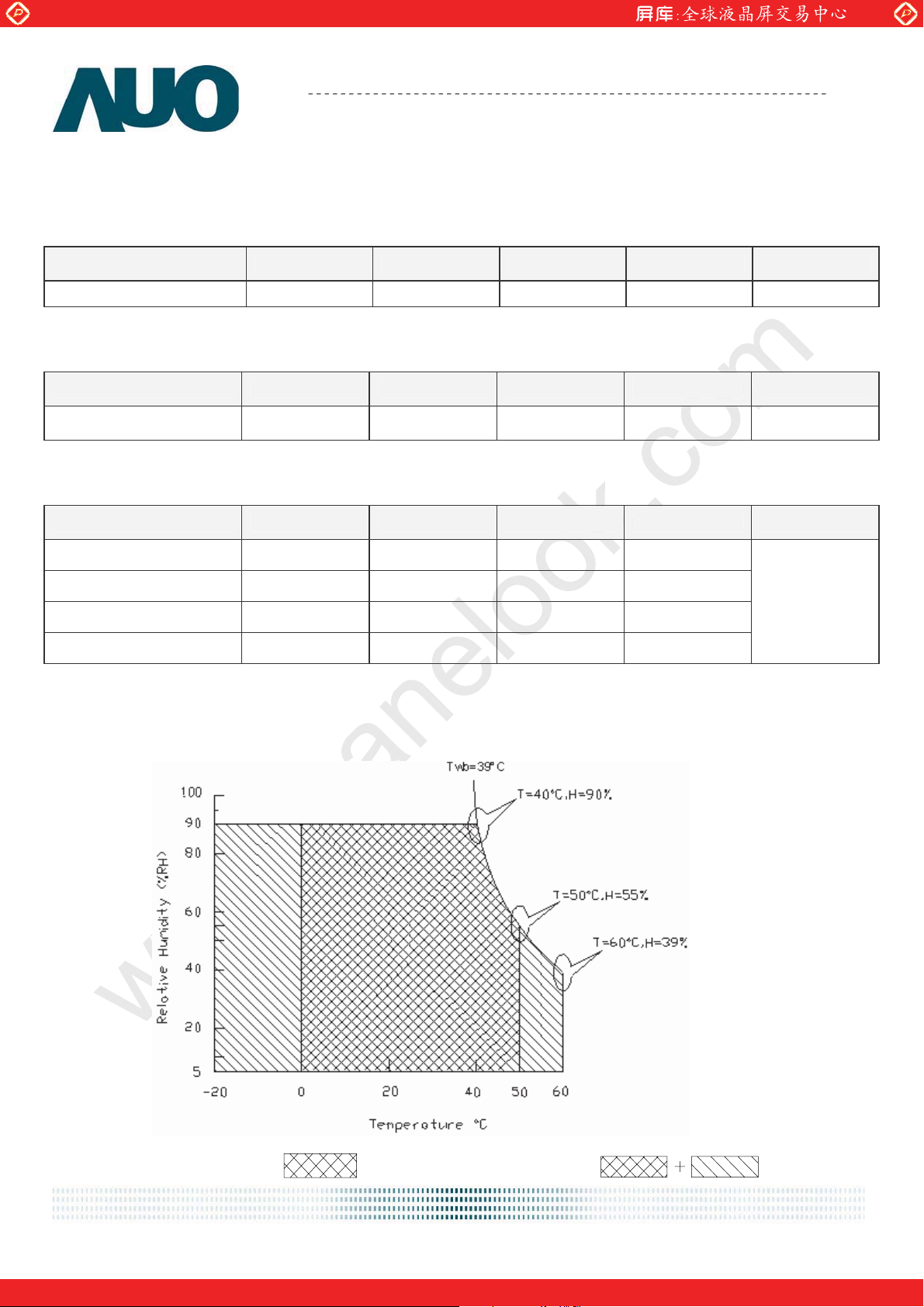

4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 1: With in Ta (25к)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
Note 3
Operating Range Storage Range
document version 0.1 11/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VCC Logic/LCD Drive Voltage 4.5 5.0 5.5 [Volt] f10%
ICC Input Current - 0.94 1.1 [A]
IRush Inrush Current - - 3.0 [A] Note 1
PCC VCCPower - 4.7 5.5 [Watt]
VCCrp
Allowable Logic/LCD Drive
Ripple Voltage
- 100
[mV]
p-p
Vin=5V , All Black Pattern,
at 60Hz
Vin=5V , All Black Pattern,
at 60Hz
With panel loading

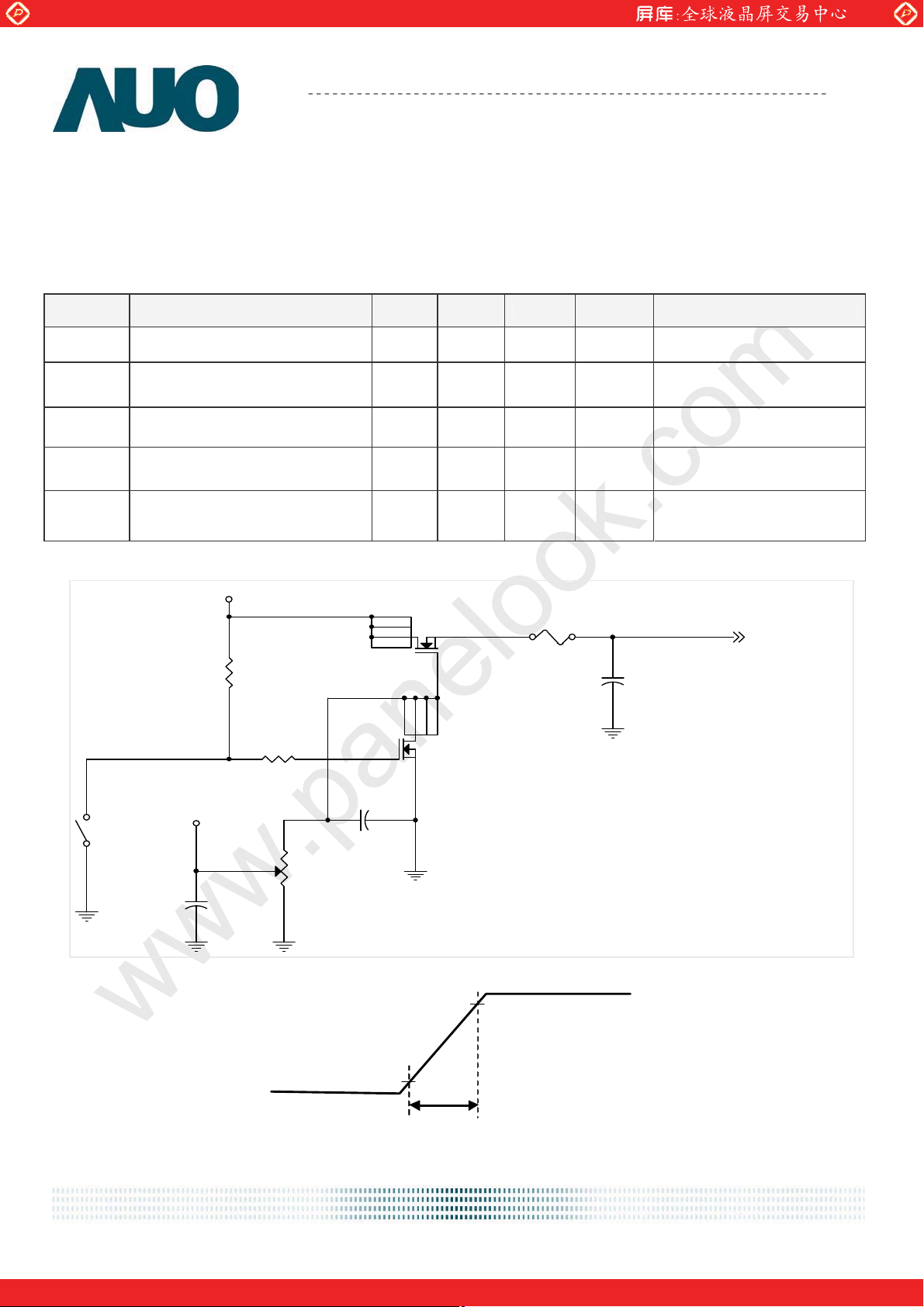

Note 1: Measurement conditions
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
AO6402
90%
F1
VCC
(LCD Module Input)
C1
1uF/16V
Q3
10%
Vin rising time
document version 0.1 12/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of SN75LVDS82DGG
(Texas Instruments) in detail.
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
- - +100 [mV]
-100 - - [mV]
ūVIDū Input Differential Voltage 100 400 600 [mV] Note 1
VCM
Differential Input Common
Mode Voltage
|VID|/2 +1.2
2.4-|VID|/2 VDDIO 3.3V
VDD-0.4-|V
|/2
ID
[V]
= 1.2V
V
CM
Note 1
= 1.2V
V
CM
Note 1
VDDIO 2.5 V

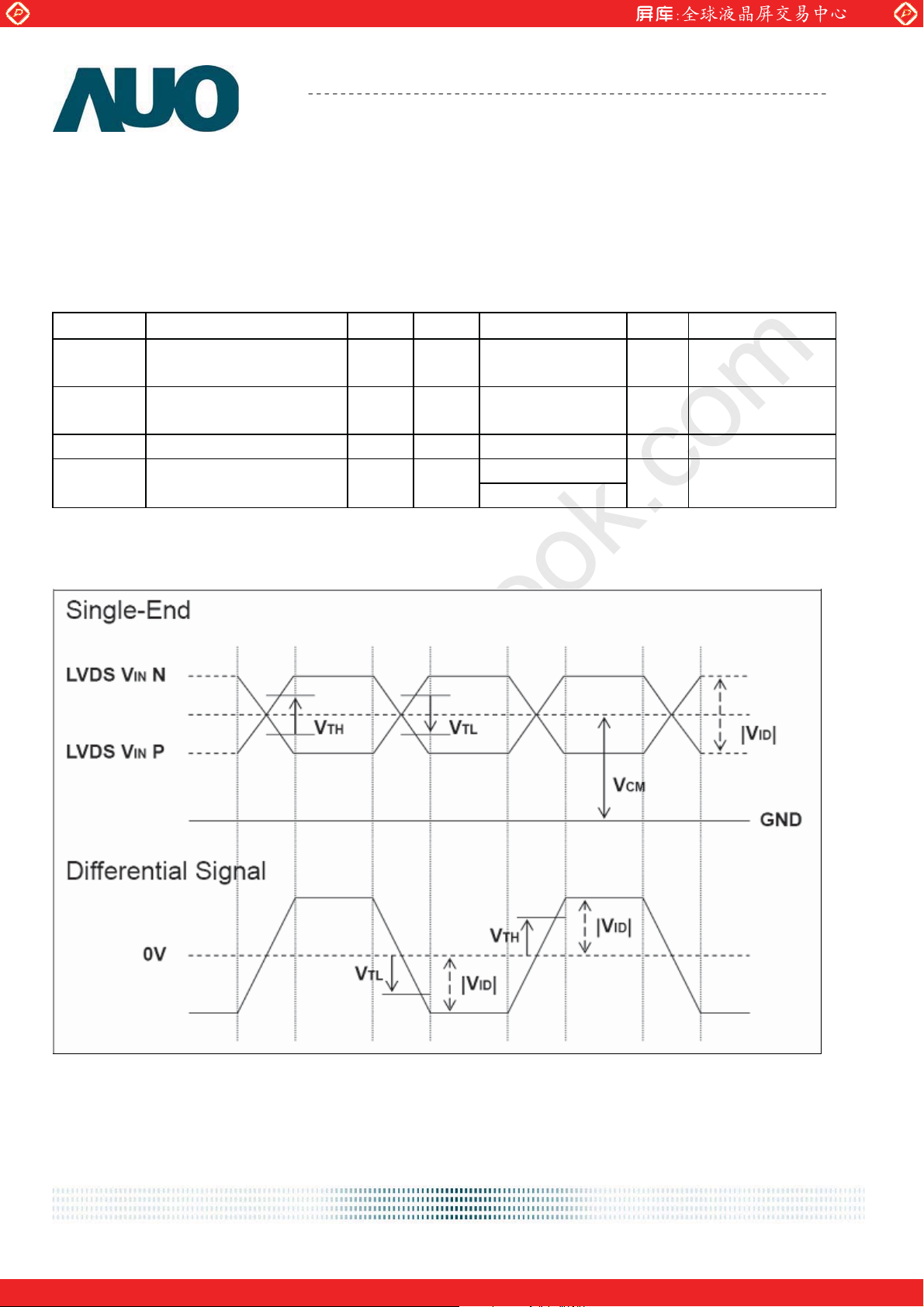

Note 1: LVDS Signal Waveform
document version 0.1 13/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
q
x
r
V
t
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
2. AC characteristic
Description Symbol Min Max Unit Note
Maximum deviation of input clock
frequency during SSC
Maximum modulation frequency of
input clock during SSC
DEV -
F
F
MOD - 200 KHz
3
%
Fre
Fma
Fcente
Fmin
1
F
MOD
< Spread Spectrum>
Fcenter * FDE
ime
document version 0.1 14/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25
Parameter Min. Typ. Max. Unit Condition
CCFL Standard Current(ISCFL) 7.5 8.0 8.5 [mA] rms Note 2
CCFL Operation Current(IRCFL) 3.0 8.0 8.5 [mA] rms Note 2
CCFL Frequency(FCFL) 40 55 80 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL,
CCFL Ignition Voltage(ViCF, Ta= 25
CCFL Operation Voltage (VCFL) -
1470 - - [Volt] rms
1130 - - [Volt] rms
605
(@8.0 mA)
- [Volt] rms Note 6
Note 5
CCFL Power Consumption(PCFL) - 9.68 - [Watt] Note 6
CCFL Life Time(LTCFL) 50000 - - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL,
for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: CCFL standard current is measured at 252к.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and
TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,650
voltage. Lamp units need 1,650 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
2 = PCFL)
Note 7: Definition of life: brightness becomes 50%. The typical life time of CCFL is on the condition at 8.0 mA
lamp current and 252к..
document version 0.1 15/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
1st Line
1 2 1279 1280
R G B R G B
R G B R G B
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
M190EG02 V8
1024th Line
R G B R G B

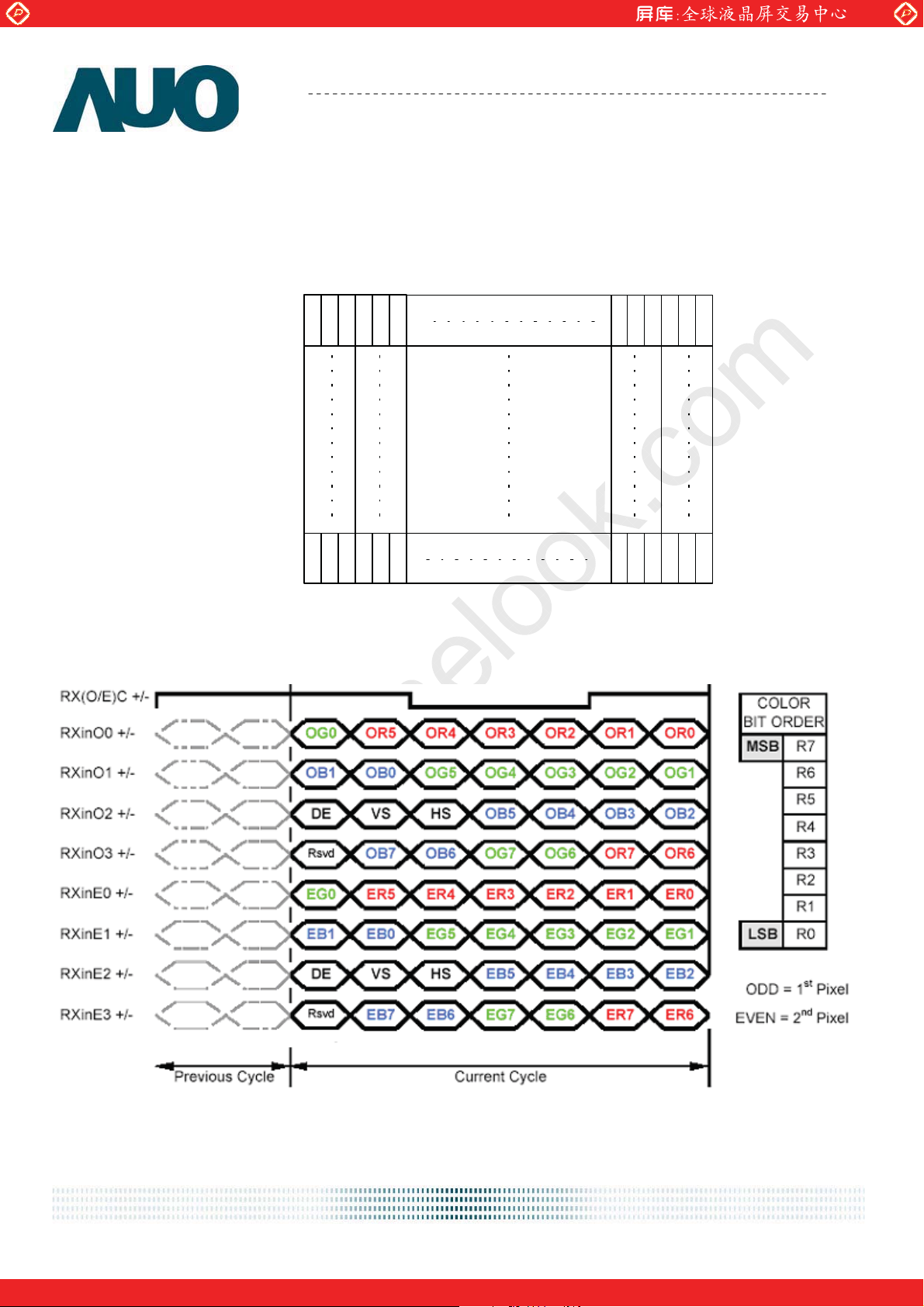

6.2 The Input Data Format
R G B R G B
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
document version 0.1 16/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data)
16 RxEIN1+ Positive LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC Do not connect ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 0.1 17/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
V
www.panelook.com

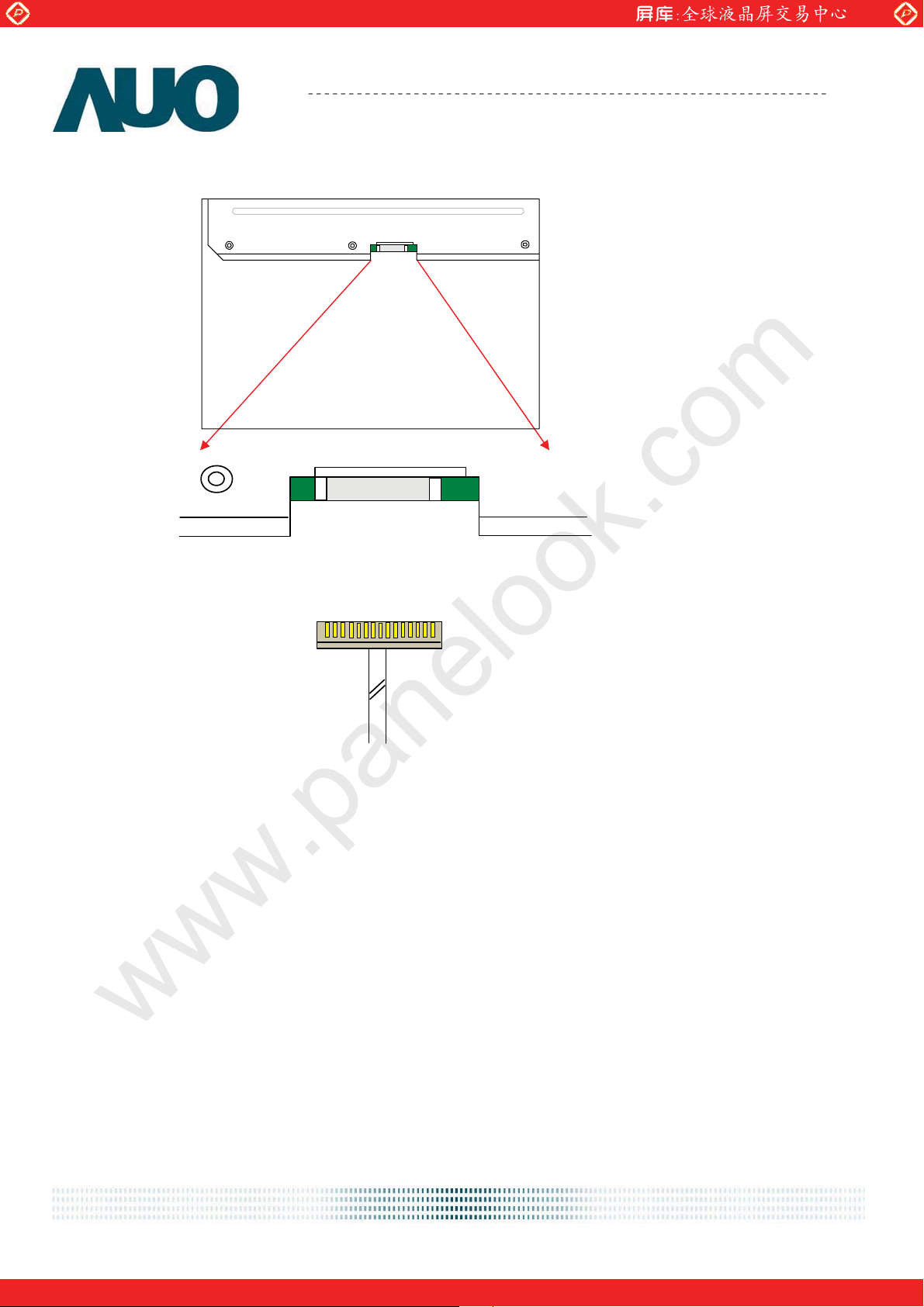

Note1: Start from left side
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
Connector
30
RxOIN0-
CC
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
document version 0.1 18/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
6.4 Interface Timing
6.4.1 Timing Characteristics
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 1024 1024 1024 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs 8 42 126 Th
Period Th 780 844 2047 Tclk
Horizontal
Active Tdisp(h) 640 640 640 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 140 204 - Tclk
Period Tclk 22.2 18.52 14.81 ns
Clock
Frequency Freq. 45 54 67.5 MHz
Frame Rate Frequency 1/Tv 50 60 75 Hz
Note : DE mode only
1032 1066 1150 Th
document version 0.1 19/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

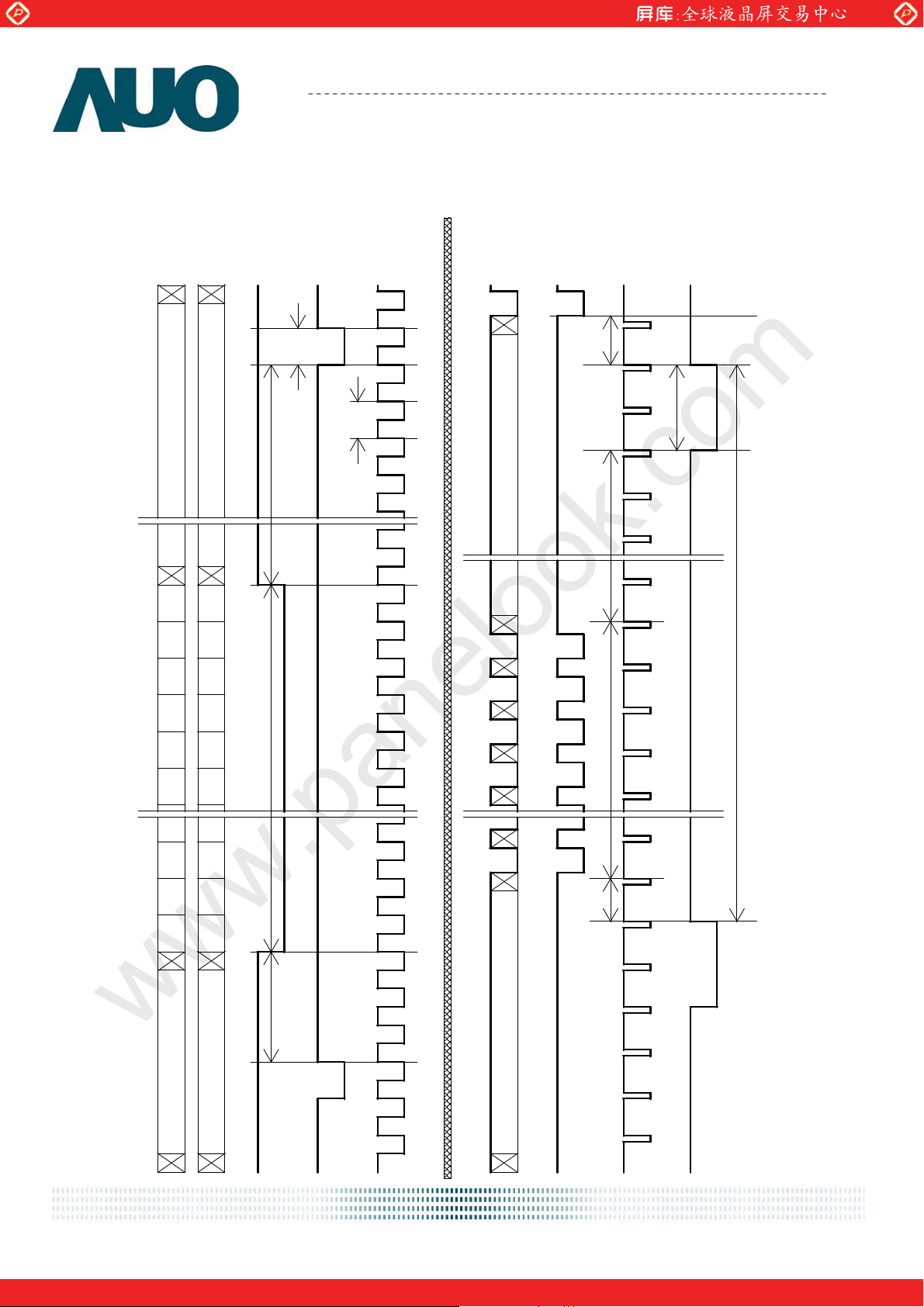

6.4.2 Timing Diagram
RGB Data
(Odd)
RGB Data
(Even)
Invalid Data
Invalid Data
Product Specification
M190EG02 V8
AU OPTRONICS CORPORATION
RGB Data
Line Line Line Line Line Line
N
Invalid Data
DE
Tfp(v)
Tbp(v)
Hsync
Vsync
PWvs
DE
Tbp(h)
PWhs
Hsync
CLK
Tclk
Pixel
Pixel
2
1
Pixel Pixel
Pixel
4
39 M-1
Pixel
6
5M-3
Pixel Pixel Pixel Pixel Pixel Pixel
8
7
10
12
11
M-5
M-4
M-2
M
Invalid Data
Tdisp(h)
PixelPixelPixelPixel
PixelPixel
Tfp(h)
Invalid Data
Tv
2
Tdisp(v)
43
N1
Th
Invalid Data
document version 0.1 20/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8

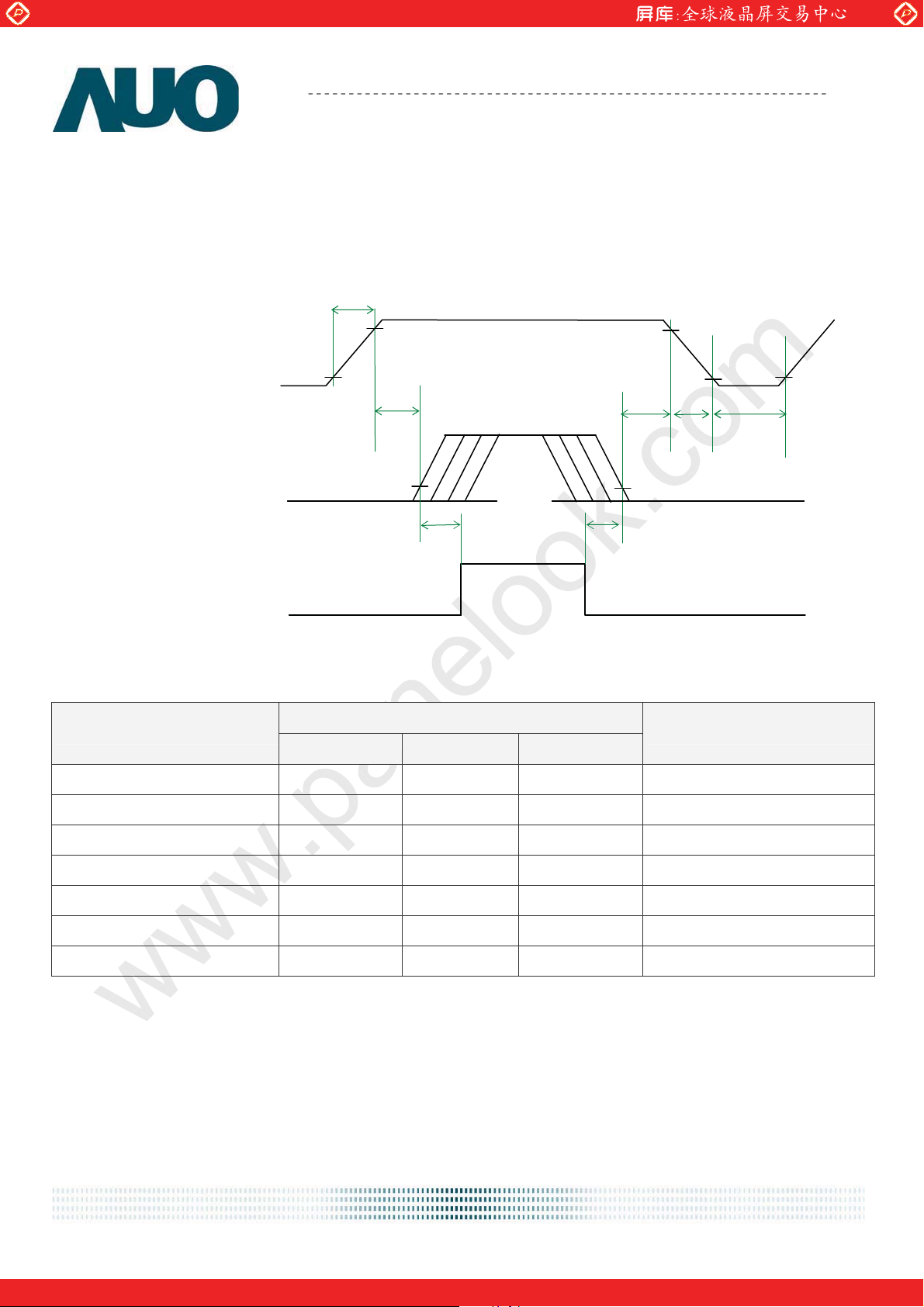

6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
T1
Power Supply VDD
LVDS Signal
90%
10%
T2
VALID
DATA
90%
T5
T6
10%
T7
T3
Backlight On
T4
Power Sequence Timing
Value
Parameter
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 40 50 [ms]
T3 300 - - [ms]
T4 300 - - [ms]
T5 0.5 16 50 [ms]
T6 - - - [ms]
T7 1000 - - [ms]
document version 0.1 21/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE / P-TWO
Type Part Number FI-XB30SSLA-HF15 / 187034-30091
Mating Housing Part Number
FI-X30HL
FI-X30H (Unlocked Type)
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
document version 0.1 22/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V8
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer CVILUX / YEONHO
Type Part Number CP0502SL090/ 35001 HS-02L
Mating Type Part Number CP0502P1ML0/ 35001 WR-02L
7.2.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage
Upper
CN1
2 Cold1 White Low Voltage
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
Lower
CN2
document version 0.1 23/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 5
High Temperature Operation (HTO) Ta= 5
Low Temperature Operation (LTO) Ta=
High Temperature Storage (HTS) Ta=
Low Temperature Storage (LTS) Ta= -
Vibration Test
(Non-operation)
80%RH, 300hours
50%RH, 300hours
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
M190EG02 V8
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20/30min, 60/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
9 points, 25 times/ point.
ESD (ElectroStatic Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
9 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B:
1
2
Some performance degradation allowed.
No data lost.
Self-recoverable.
No hardware failures.
document version 0.1 24/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

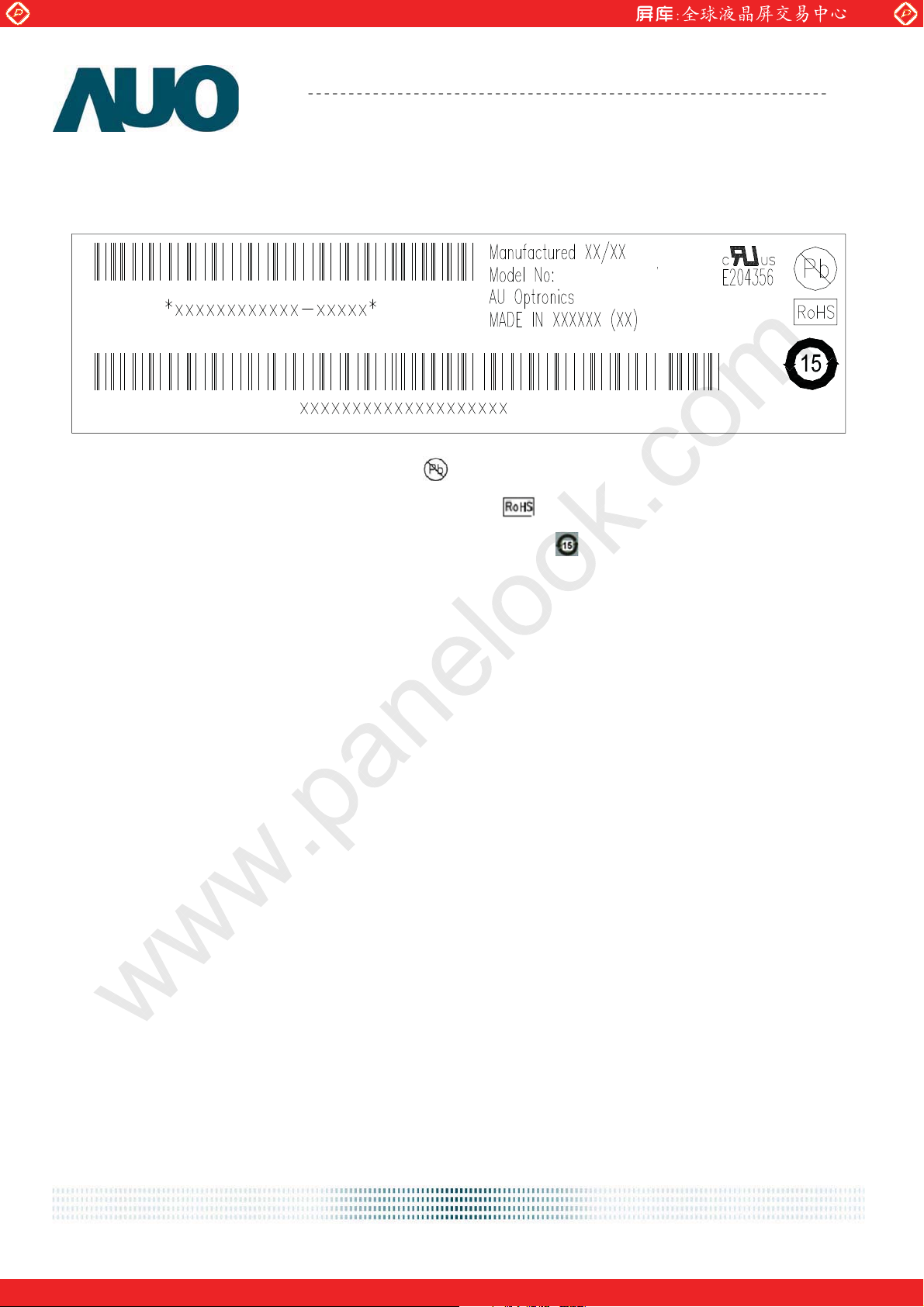

9. Shipping Label
The shipping label format is shown as below.
Note 1: For Pb Free products, AUO will add
Note 2: For RoHS compatible products, AUO will add
for identification.
M190EG02 V8
M190EG02 V.8
for identification.
Note 3: For China RoHS compatible products, AUO will add
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 0.1 25/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
M190EG02 V8
Product Specification
AU OPTRONICS CORPORATION

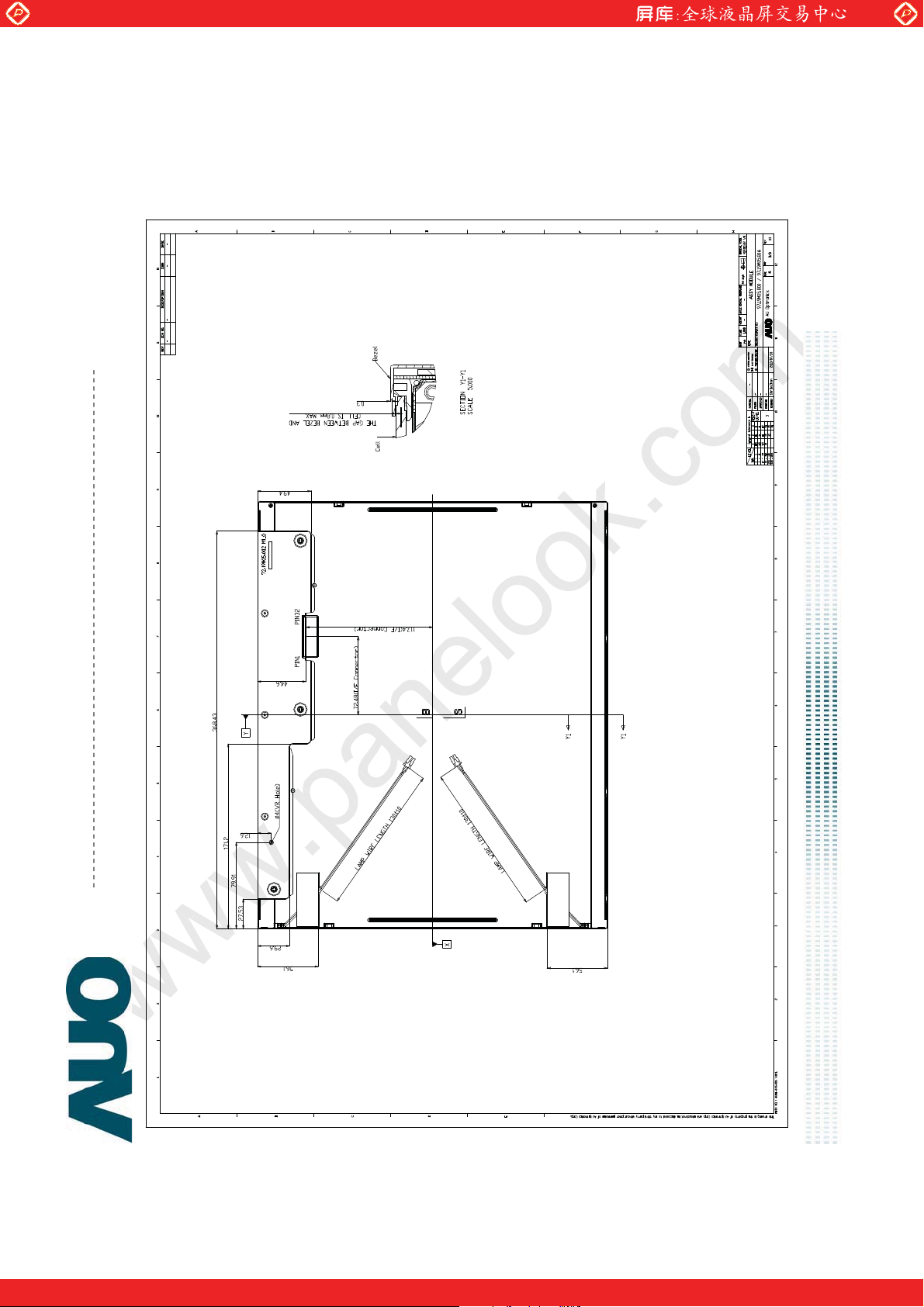

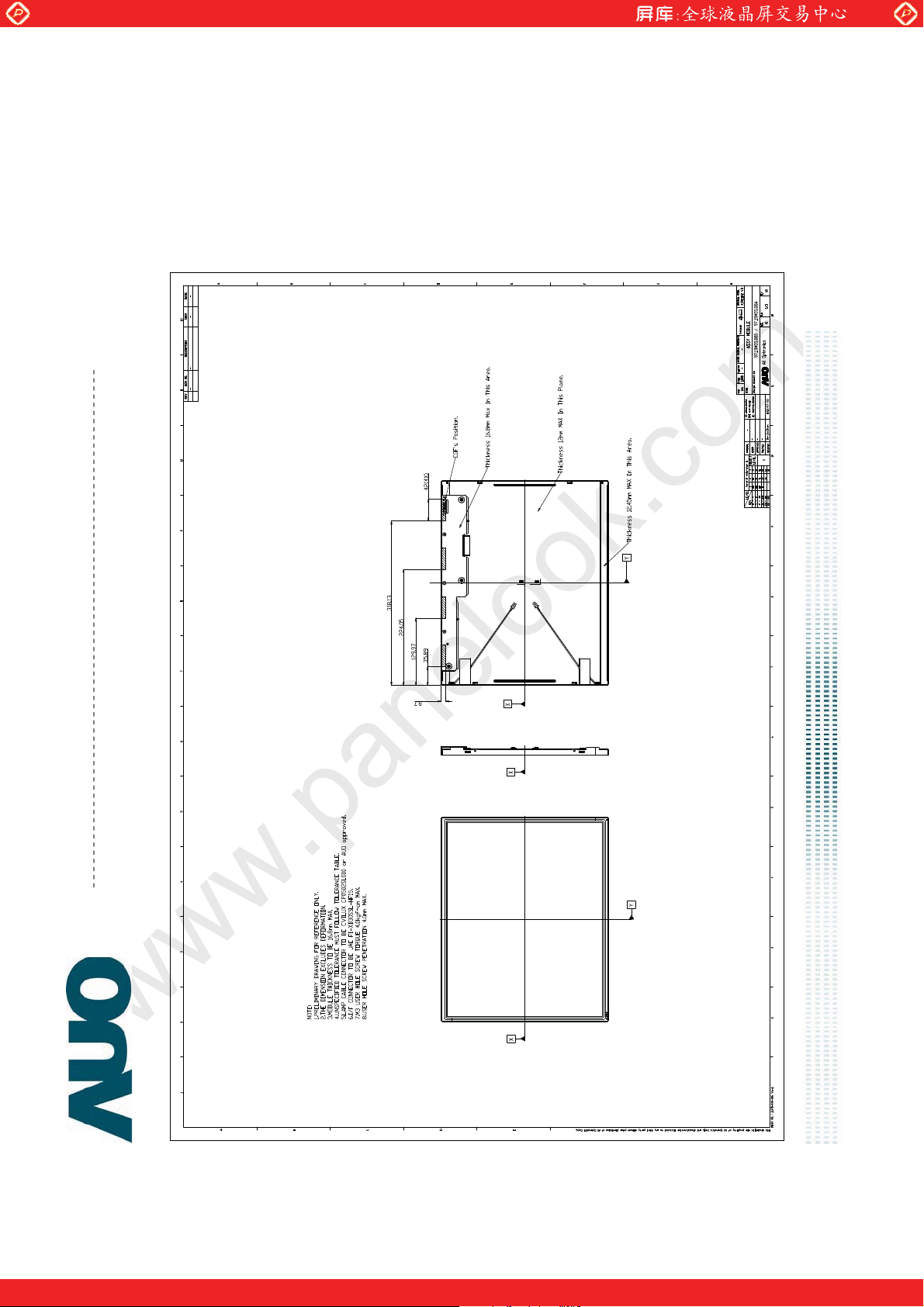

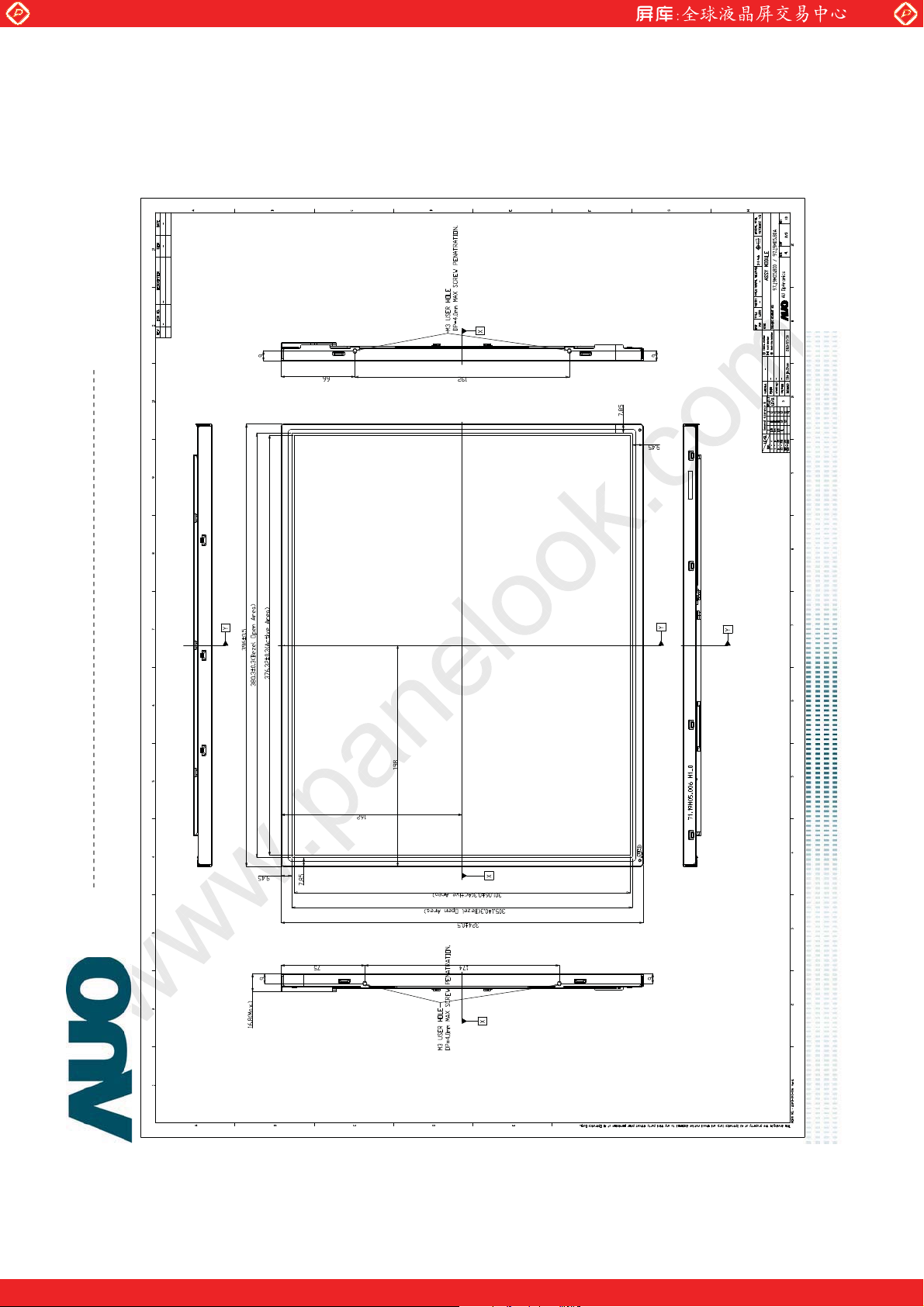

10. Mechanical Characteristic
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 26/28
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
M190EG02 V8
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 27/28
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
M190EG02 V8
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 28/28
www.panelook.com
Loading...
