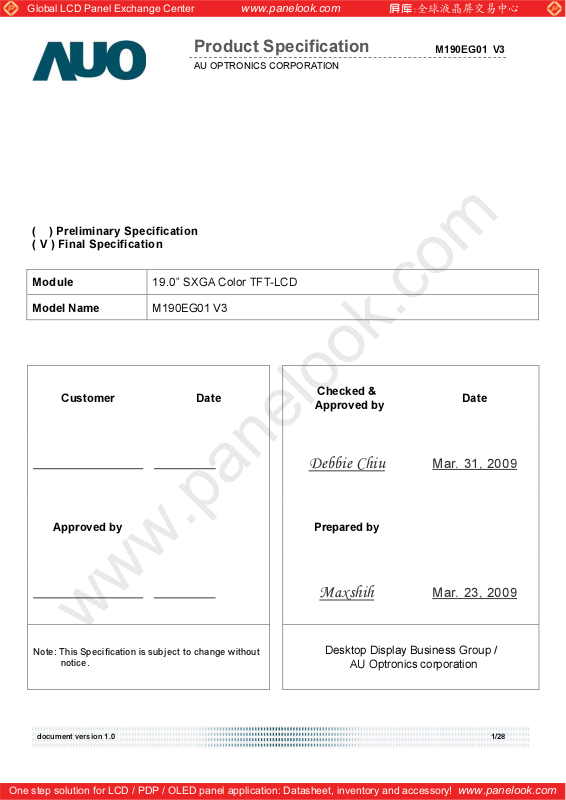

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
( ) Preliminary Specification
( V ) Final Specification
Module 19.0” SXGA Color TFT-LCD
Model Name M190EG01 V3
Customer Date
Approved by
Checked &
Approved by
Debbie Chiu
Prepared by
Maxshih
Date
Mar. 31, 2009
Mar. 23, 2009
Note: This Specification is subject to change without
notice.
document version 1.0 1/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Desktop Display Business Group /
AU Optronics corporation
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
Record of Revision
Version & Date Page Old Description New Description Remark
0.1 2009/3/31 All First Edition for Customer
0.2 2009/4/22 15
VDD= 5.0V, All White Pattern
At 75Hz
1.0 2009/10/26 6,7 Contrast ratio=1300:1 Contrast ratio=2000:1
1.0 2009/10/30 15 IDD input current typ=1.5 Max=1.8 IDD input current typ=1 Max=1.2
1.0 2009/10/30 15 PDD VDD power typ=7.5 Max=9 PDD VDD power typ=5 Max=6
VDD= 5.0V, All White Pattern
At 60Hz
Revised
Revised
Revised
Revised
1.0 2009/11/5 16
Old Parameter guideline for CCFL
Inverter table
New Parameter guideline for CCFL
Inverter table
Revised
document version 1.0 2/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
Contents
1. Handling Precautions ..................................................................................................................4
2. General Description..................................................................................................................... 5
2.1 Display Characteristics ........................................................................................................................6

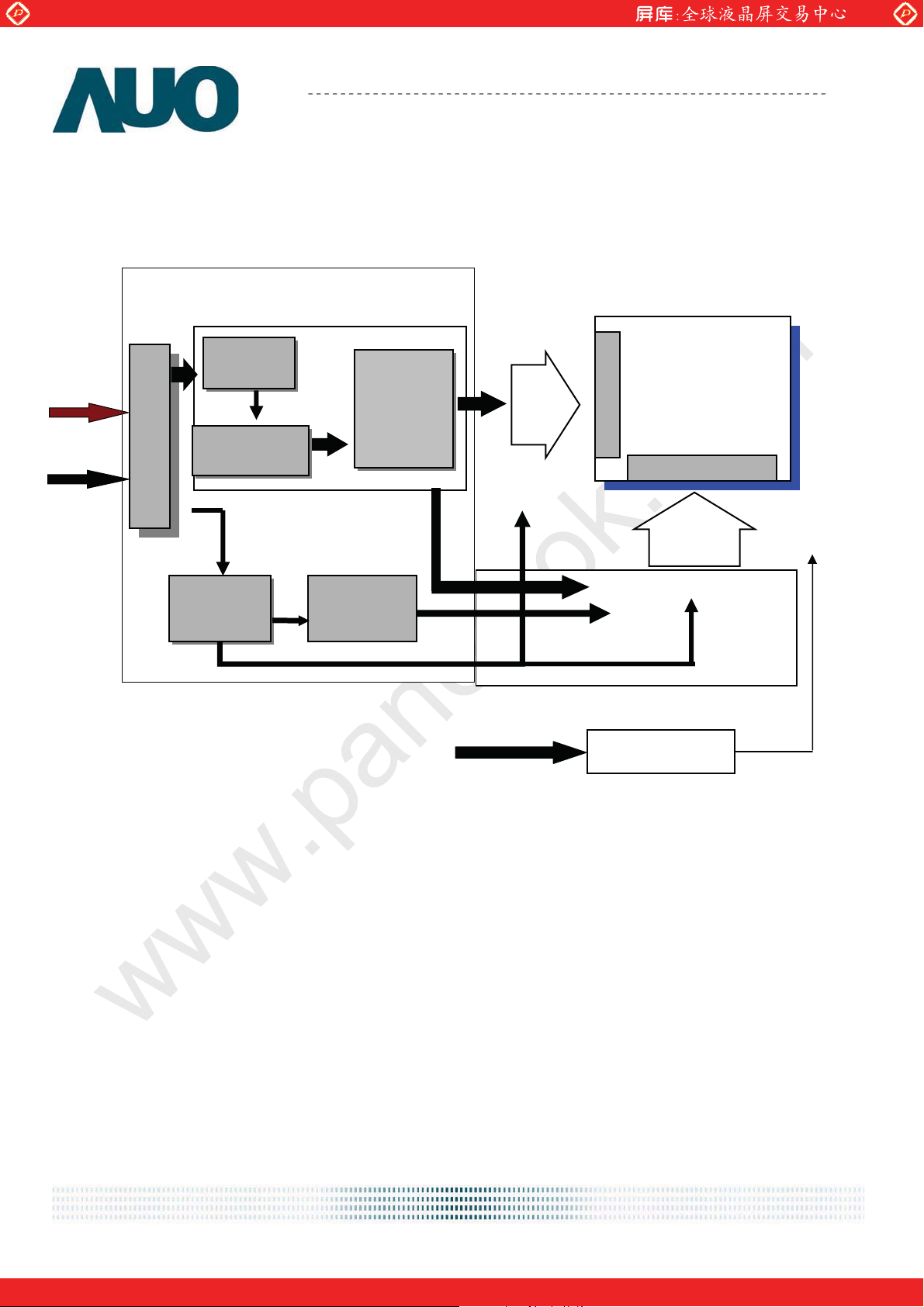

3. Functional Block Diagram.........................................................................................................12
4. Absolute Maximum Ratings...................................................................................................... 13
4.1 Absolute Ratings of TFT LCD Module ............................................................................................. 13
4.2 Absolute Ratings of Backlight Unit ................................................................................................... 13

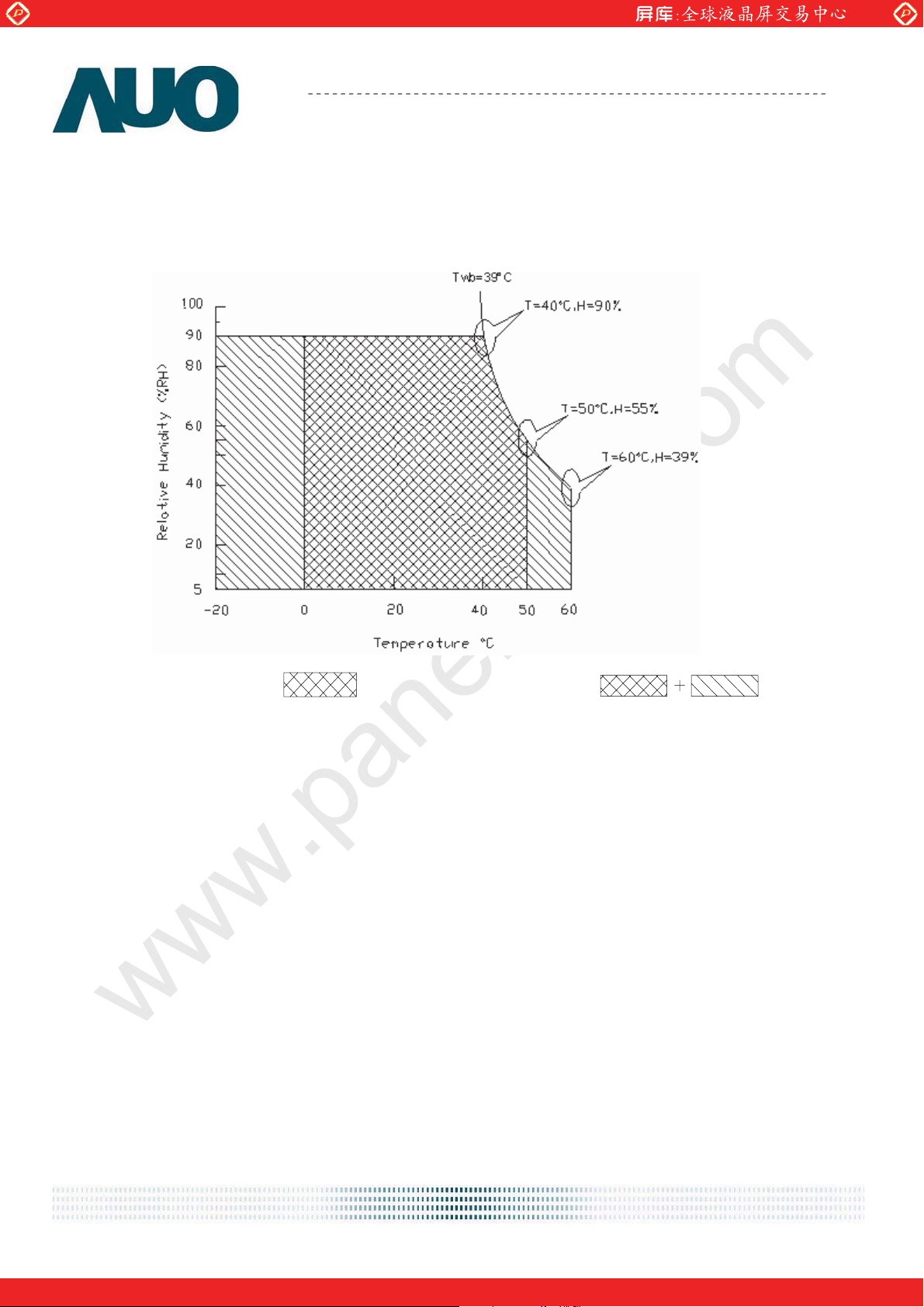

4.3 Absolute Ratings of Environment ...................................................................................................... 13
5. Electrical characteristics .......................................................................................................... 15
5.1 TFT LCD Module ............................................................................................................................. 15
5.2 Backlight Unit.................................................................................................................................... 16
6. Signal Characteristic .................................................................................................................17
6.1 Pixel Format Image ........................................................................................................................... 17

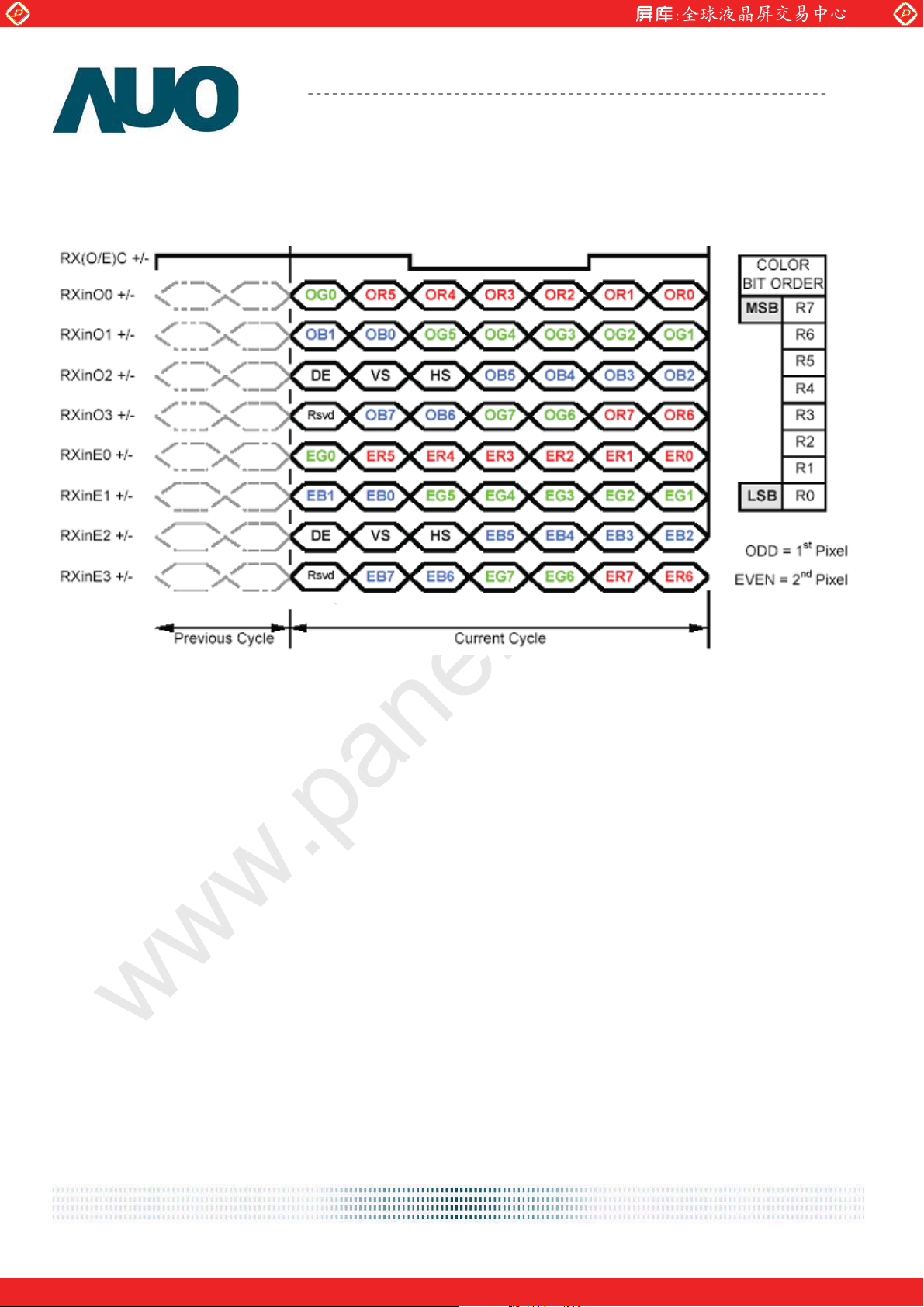

6.2 The Input Data Format ...................................................................................................................... 18

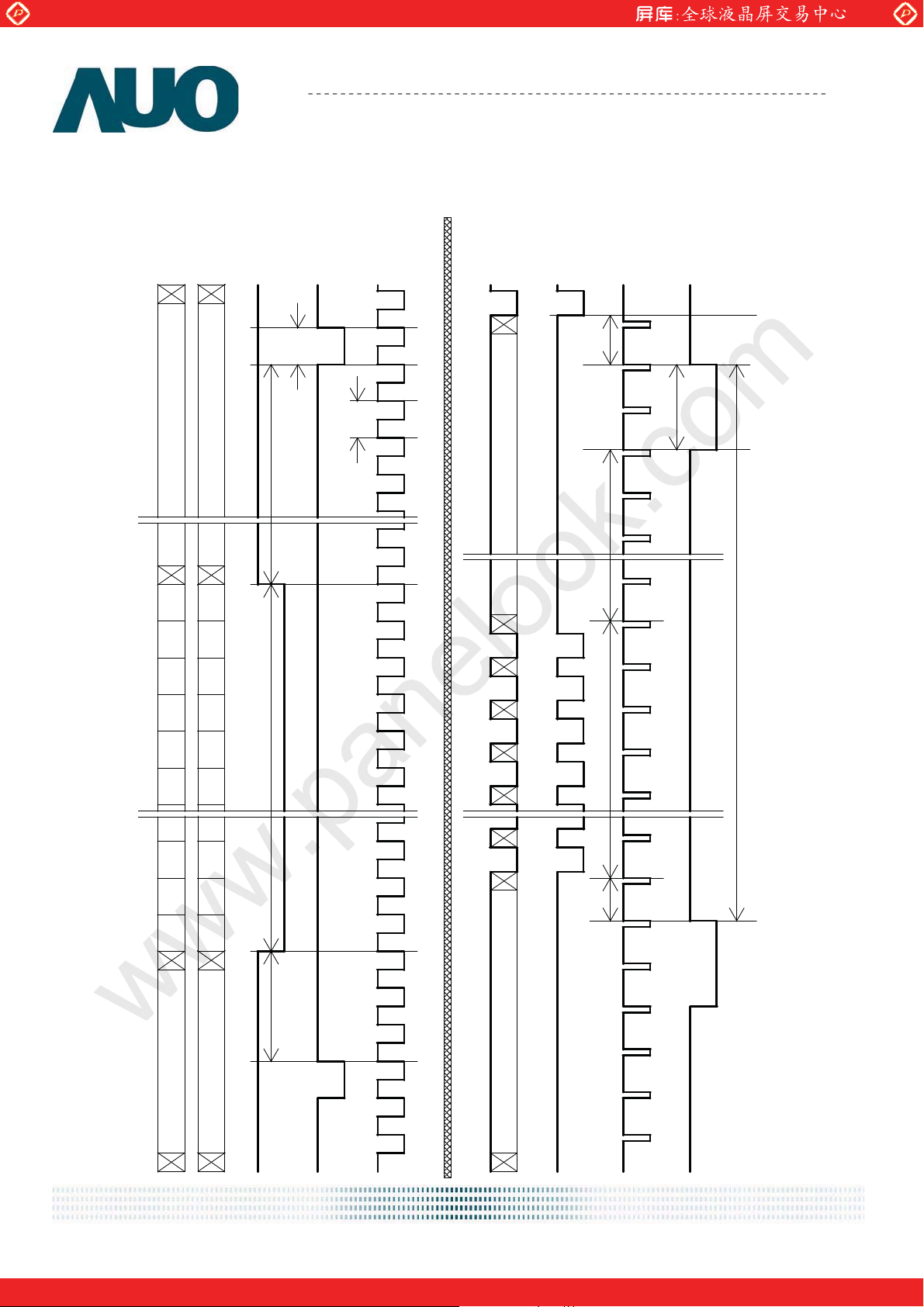

6.4 Interface Timing................................................................................................................................. 20

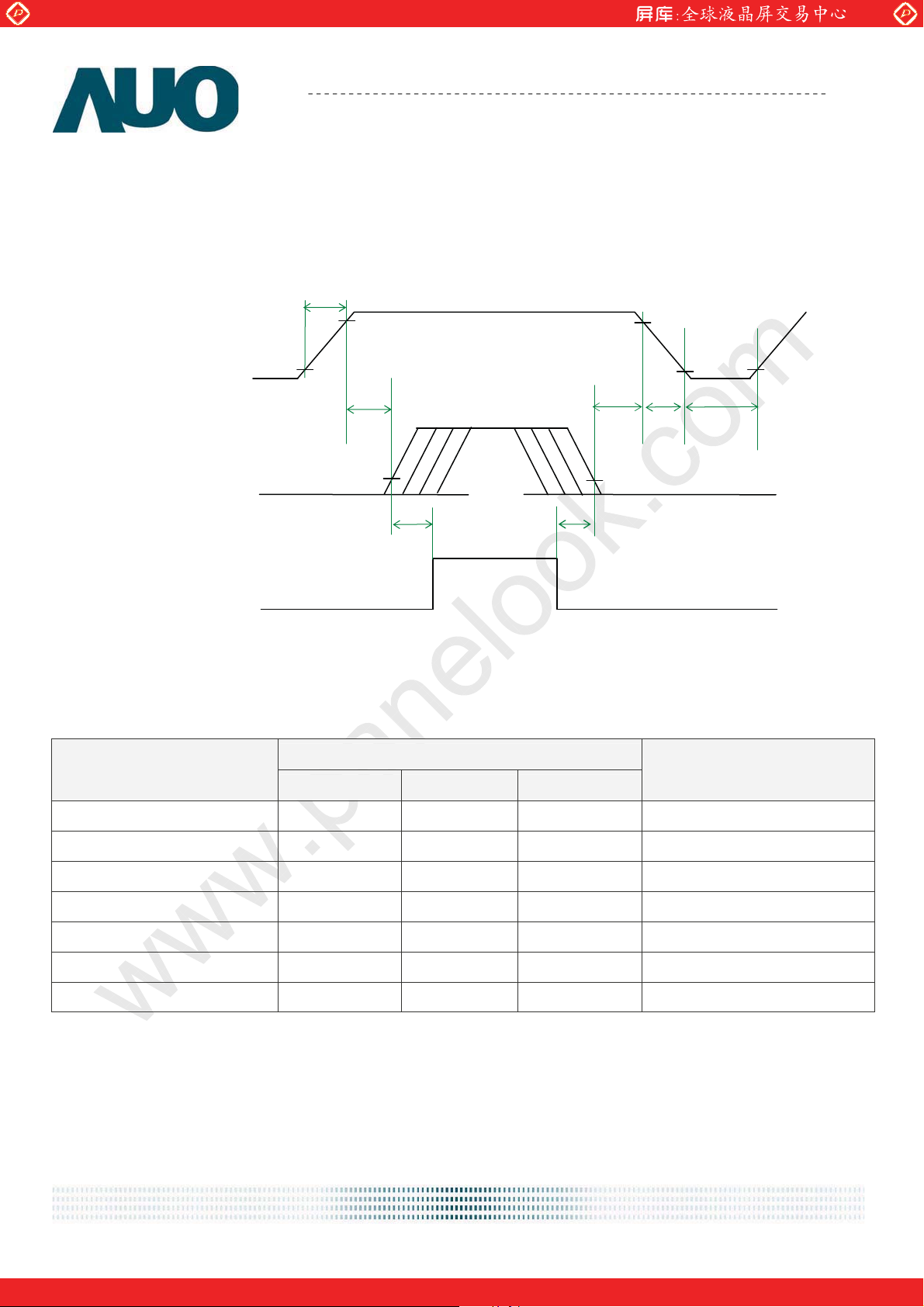

6.5 Power ON/OFF Sequence................................................................................................................. 22

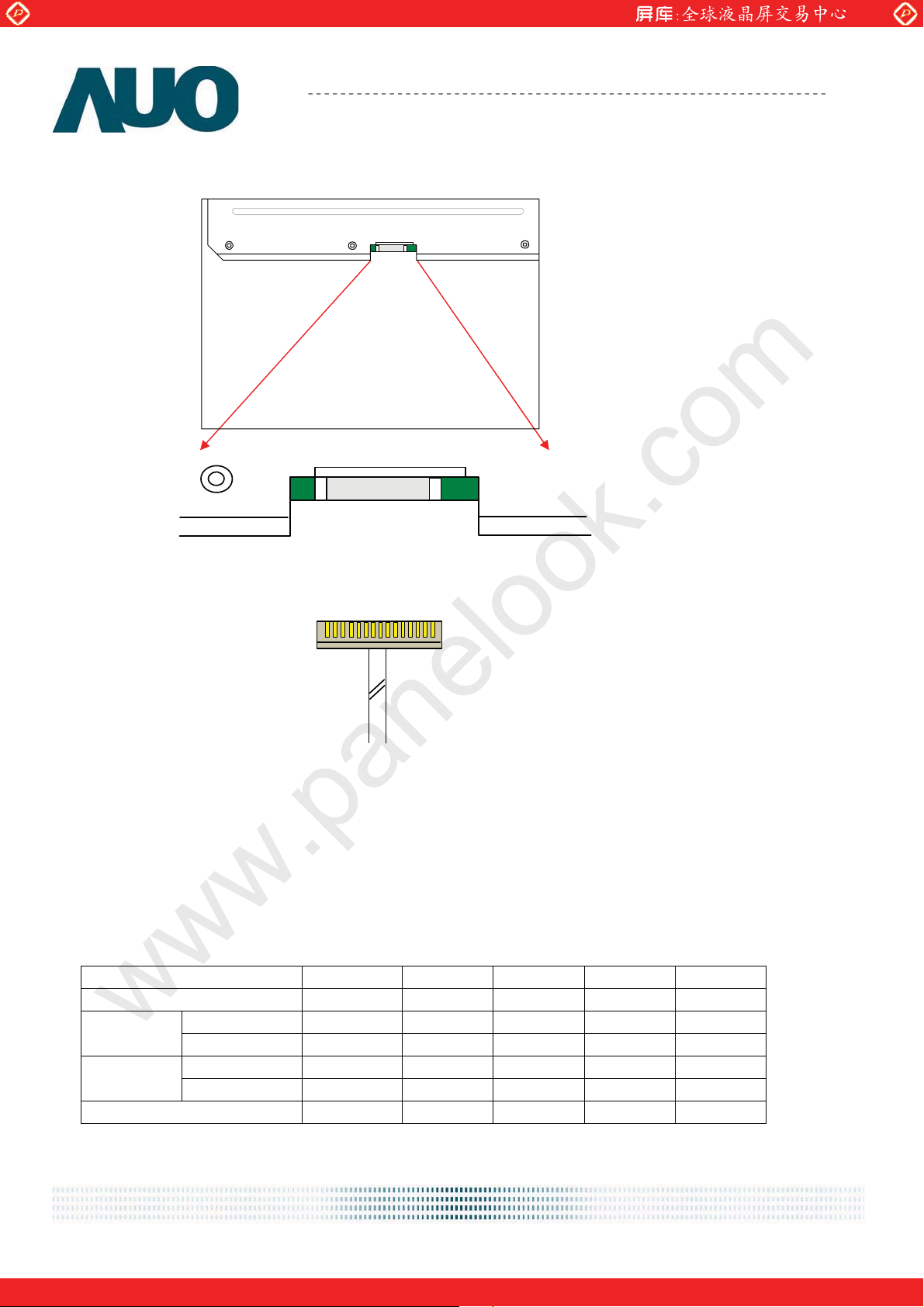

7. Connector & Pin Assignment ...................................................................................................23
7.1 TFT LCD Module ............................................................................................................................. 23
7.2 Backlight Unit.................................................................................................................................... 24
8. Reliability Test............................................................................................................................ 25

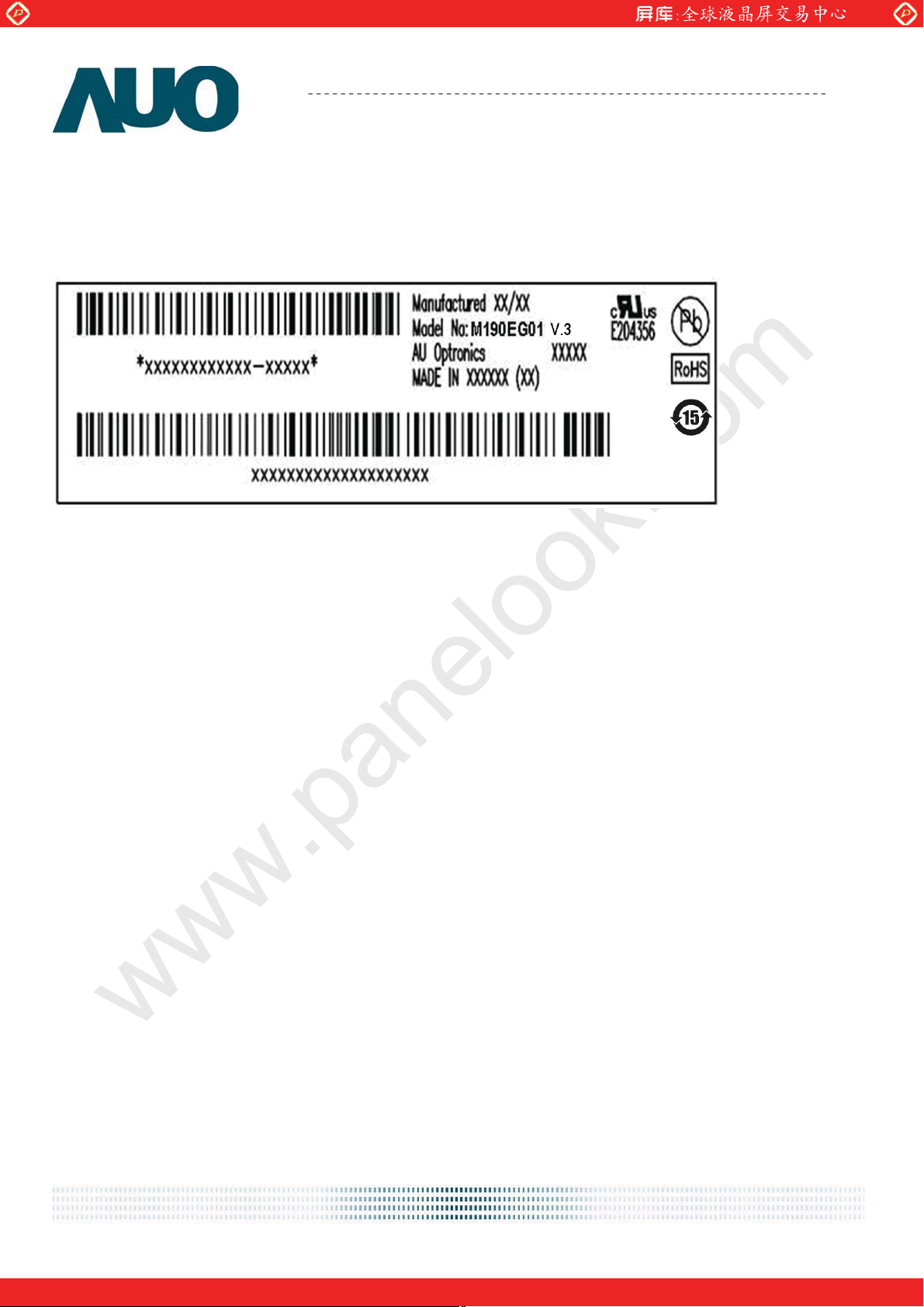

9. Shipping Label............................................................................................................................26

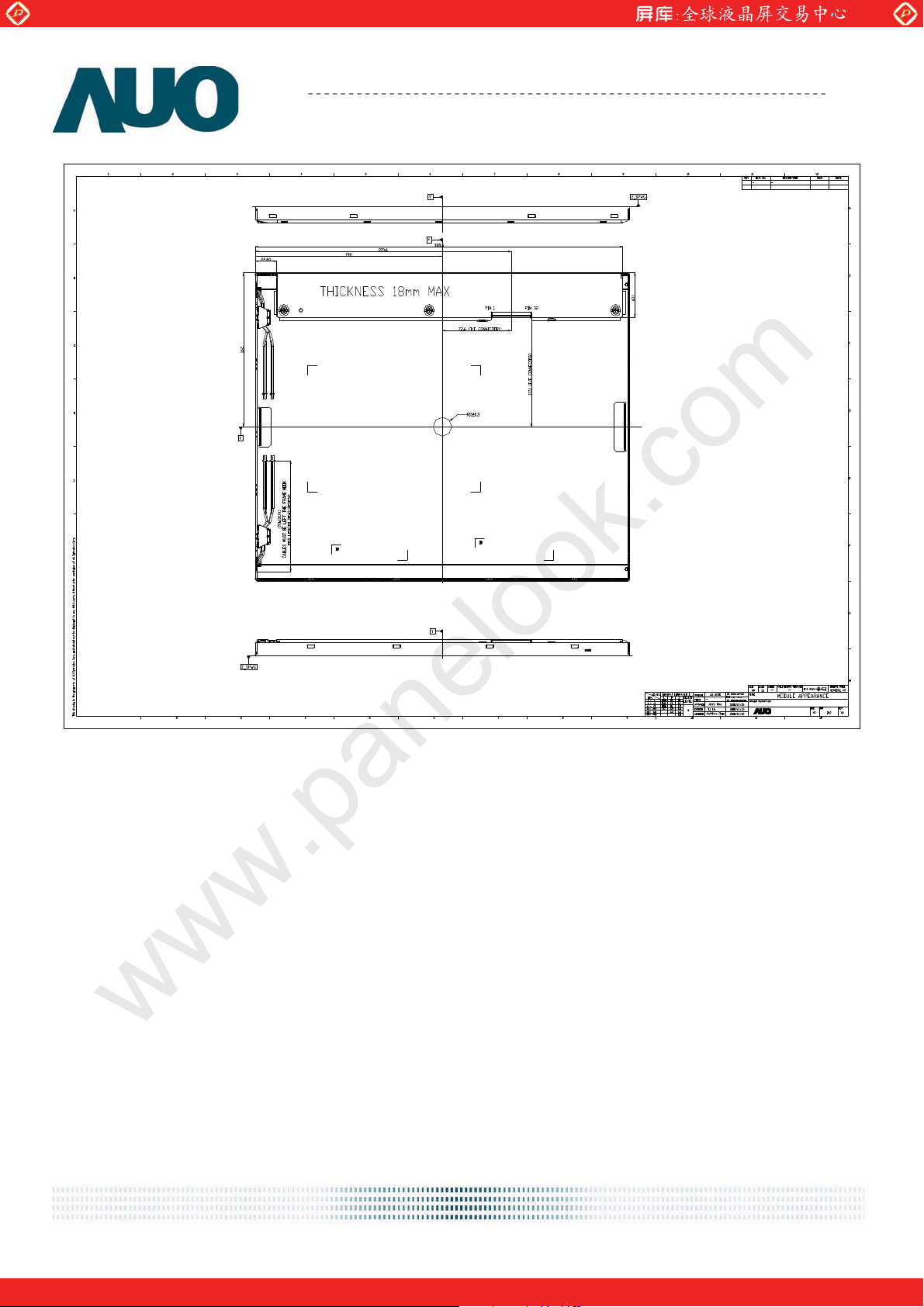

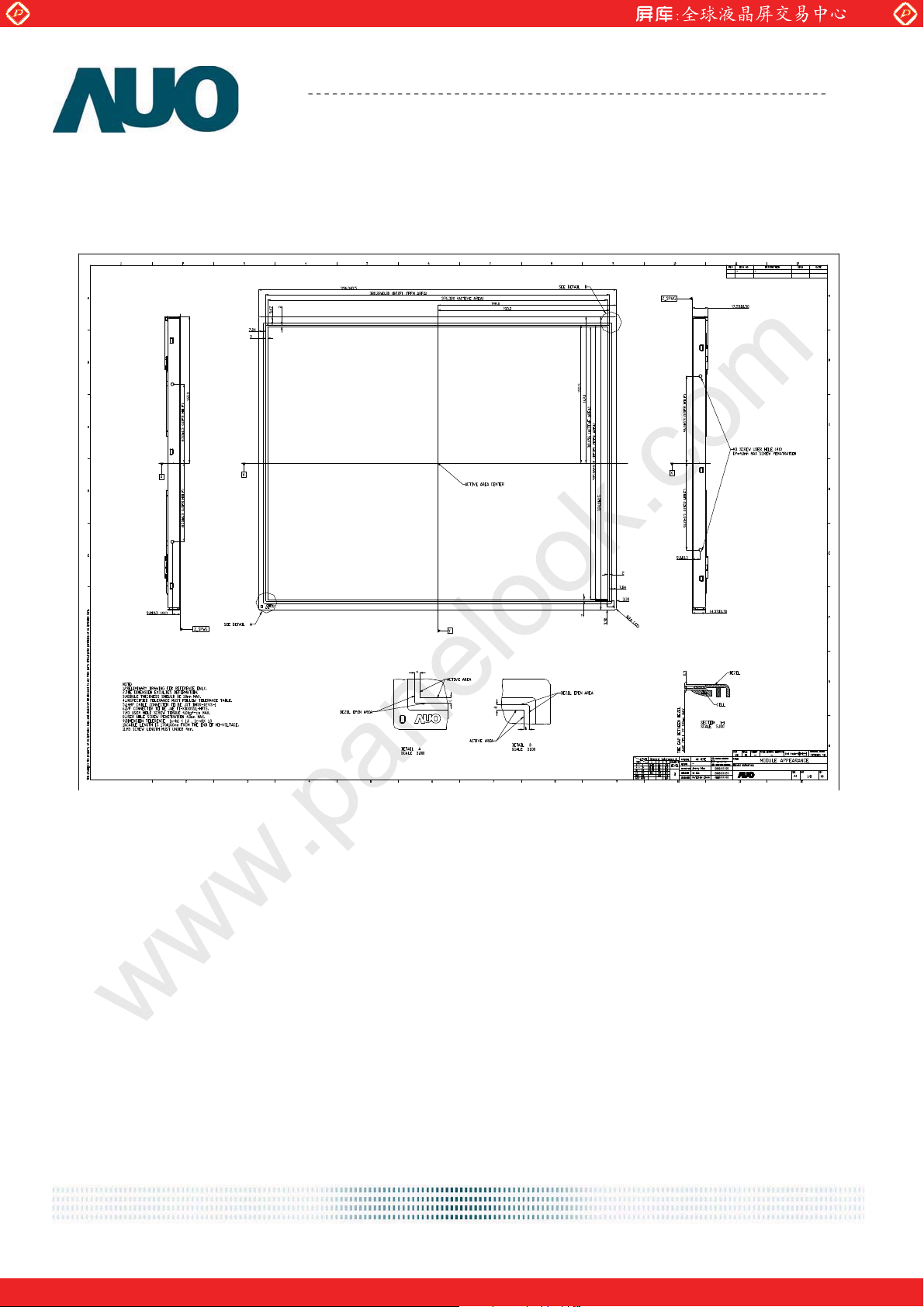

10. Mechanical Characteristic ......................................................................................................27
document version 1.0 3/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 1.0 4/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
2. General Description
M190EG01 V3 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit,
and backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and
16.7M colors 8-bits. All input signals are LVDS interface compatible. Inverter card of backlight is not
included. M190EG01 V3 is designed for a general display unit.
document version 1.0 5/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [mm]
Pixel Arrangement
Display Mode
White Luminance [cd/m2] 300 (center, Typ) @ 7.5mA
Contrast Ratio
Optical ResponseTime [msec]
Nominal Input Voltage VDD [Volt]
Power Consumption [Watt]
482.6 (19.0" )
376.32 (H) x 301.056 (V)
1280(x3) x 1024
0.294 (per one triad) x 0.294
R.G.B. Vertical Stripe
Normally Black
2000 : 1 (Typ)
8ms GTG (Avg. Typ.); 20 ms(Typ, on/off)
+5.0 V
28 W (Typ)
(w/o Inverter, All white pattern)
Weight [Grams]
Physical Size (H x V x D) [mm]
Electrical Interface
2500 (Typ) ; 2700 (Max)
396 (H) x 324 (V) x 17.5 (D) (Typ)
Dual channel LVDS
Surface Treatment Anti-Glare treatment
Support Color
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance
o
C]
[
o
[
C]
16.7M colors 8-bits
0 to +50
-20 to +60
RoHS Compliance
document version 1.0 6/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising
Falling
Response time [msec]
Rising + Falling
75
75
75
75
89
89
89
89
15 25
5 15
20 40
-
-
1
4,6
4,6
4,6
Grey to Grey (Avg.) - 8 16 4,6
Red x 0.617 0.647 0.677
Red y 0.31 0.34 0.37
Green x 0.263 0.293 0.323
Color / Chromaticity
Coordinates
(CIE 1931)
Green y 0.571 0.601 0.641
4
Blue x 0.112 0.142 0.172
Blue y 0.037 0.067 0.099
White x 0.283 0.313 0.34
White y 0.299 0.329 0.359
Black Luminance
(At CCFL=7.5mA)
White Luminance
(At CCFL= 7.5mA)
[cd/m2 ]
[cd/m2 ]
0.15 0.5 4
240 300 - 4
Contrast Ratio 1000 2000 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
7
Optical Equipment: BM-5A, PR880, SR3, CS1000 or equivalent.
document version 1.0 7/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (Ӱ) horizontal left and right and 90° (ӥ) vertical, high (up) and low (down). The measurement direction
is typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
M190EG01 V3
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
document version 1.0 8/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
M190EG01 V3
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA Ø 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
document version 1.0 9/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
T
www.panelook.com

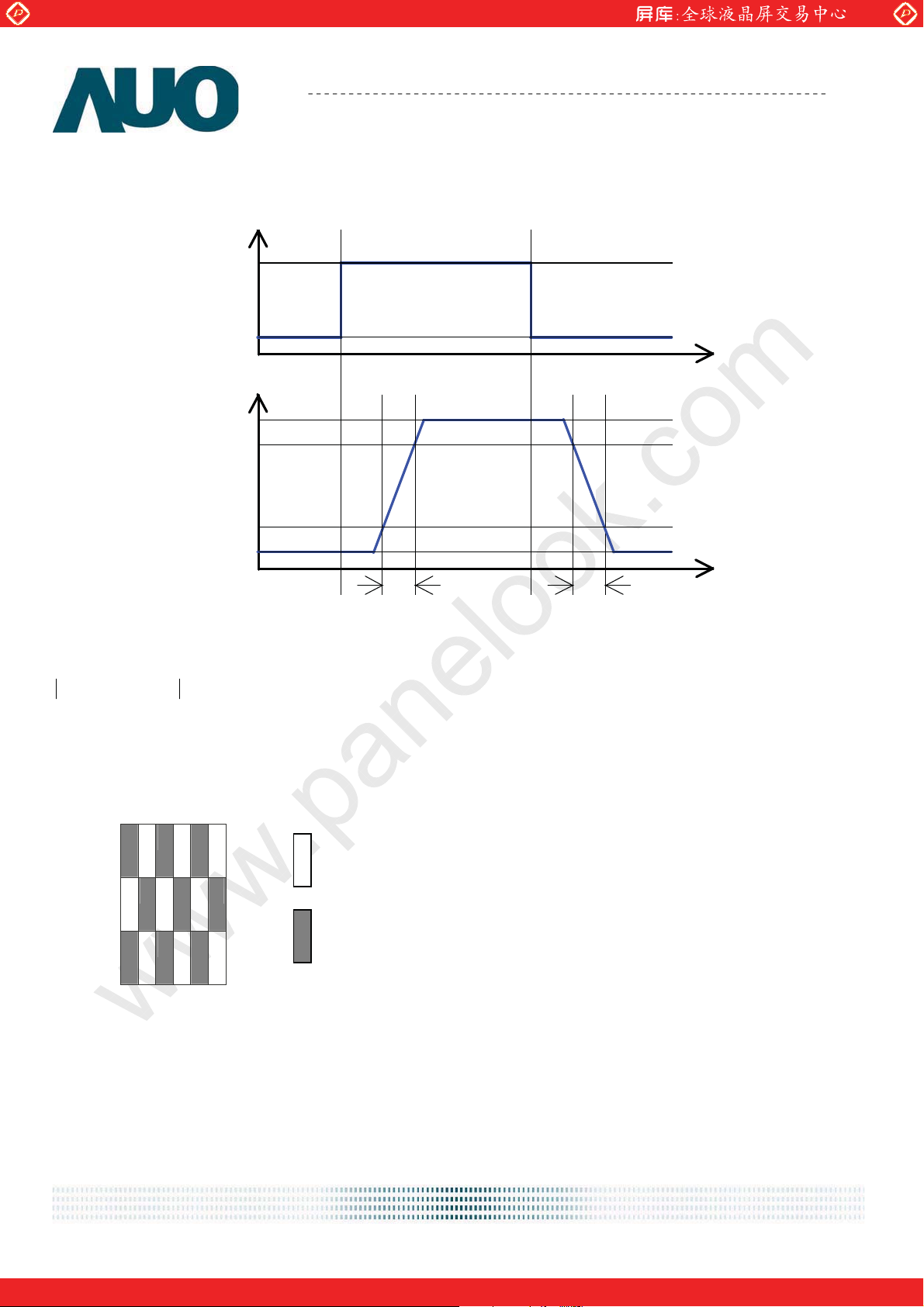

Note 6: Definition of response time:
B
A
100%
90%
10%
0%
Optical Response Driving Signal
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
Time
Tr Tf
Algorithm:
16 B Level - A Level ≥ then the average of Grey-to-Grey response time is 8ms. ( F= 60 Hz).
Tr
(rising time; from “All Black” to “All White”) + Tr
R
Note 7: Subchecker Pattern
R G B R G B
R G B R G B
G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
(Falling time; from “All White” to “All Black”) = 20ms(typ).
F
Gray Level = L127
Gray Level = L0
ime
document version 1.0 10/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com

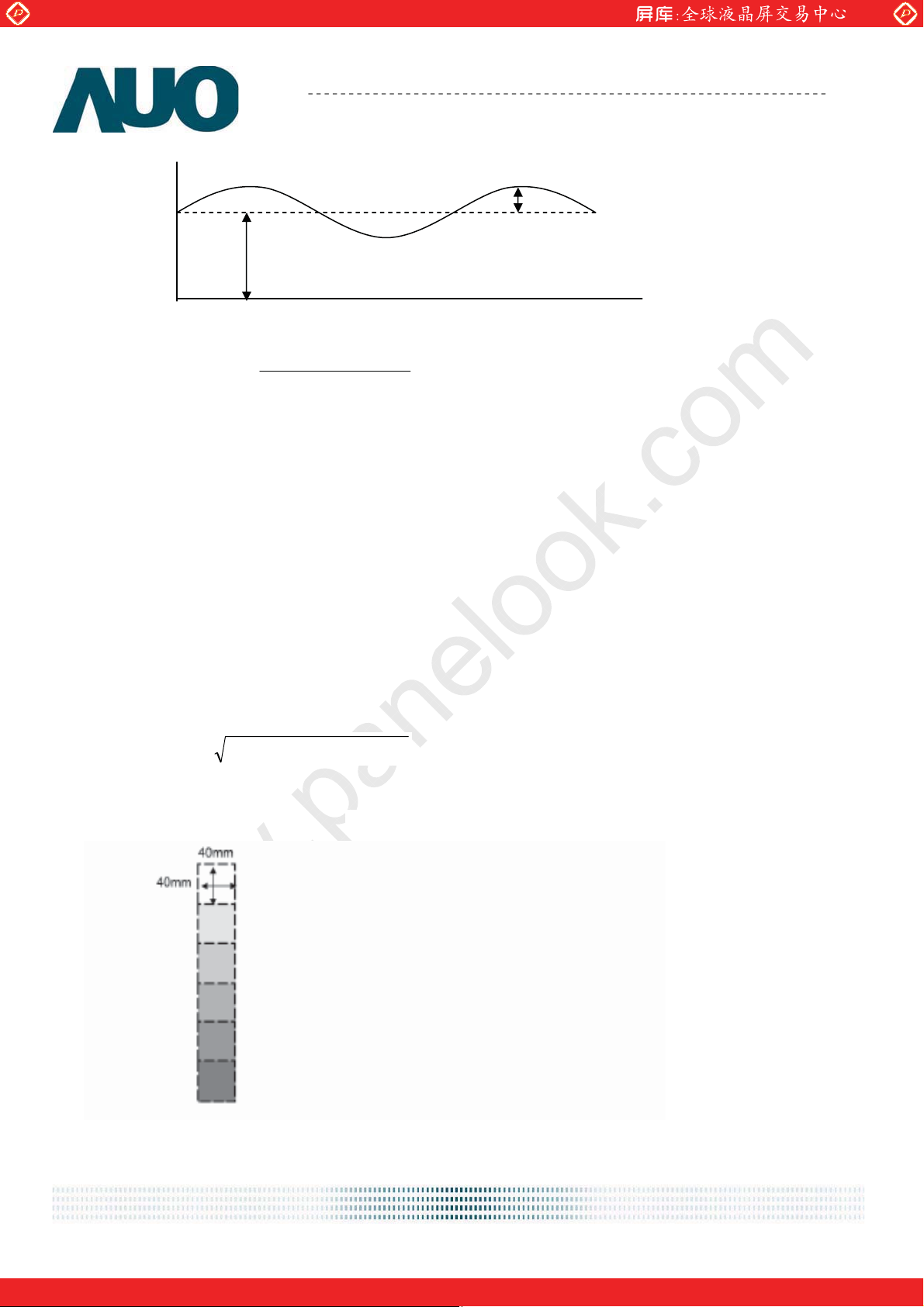

Amplitude
DC
log20(dB)Flicker =
Note 8: Color Grayscale Linearity
a. Test imageΚ100% full white pattern with a test pattern as below
b. Test patternΚSquares,40mm by 40mm in size, filled with 255, 225,195,165,135 and 105 grays
steps should be arranged at the center of the screen.
Product Specification
AU OPTRONICS CORPORATION
AC
Time
Hz) 30Level(at AC
Level DC
M190EG01 V3
c. Test method
st
gray scaleΚMove a square of 255 gray level should be moved into the center of the screen
-1
and measure luminance and u’ and v’ coordinates.
- Next gray stepΚMove a 225 gray square into the center and measure both lumince and
coordinates, too.
d. Test evaluation
22
)''()''(''
vvuuvu −+−=Δ
BABA
Where A,BΚ2 gray levels found to have the largest color differences between them
i.e. get largest
'uΔ and 'vΔ of each 6 pair of 'u and 'v and calculate '' vuΔ
document version 1.0 11/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION
3. Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
Receiver
Over-Driver
DC/DC
Converter
LVDS
Timing
Controller
Gamma
Correction
G1024
-
1280*(3)*1024
D1 D3840
Inverter
TFT-LCD
Pixels
X-Driver IC
document version 1.0 12/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
V
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive
oltage
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
VDD -0.3 +6 [Volt] Note 1, 2
M190EG01 V3
CCFL Current ICFL - 8 [mA] rms Note 1, 2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 3
document version 1.0 13/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION
Note 1: With in Ta= 25к
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Operating Range Storage Range
document version 1.0 14/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION

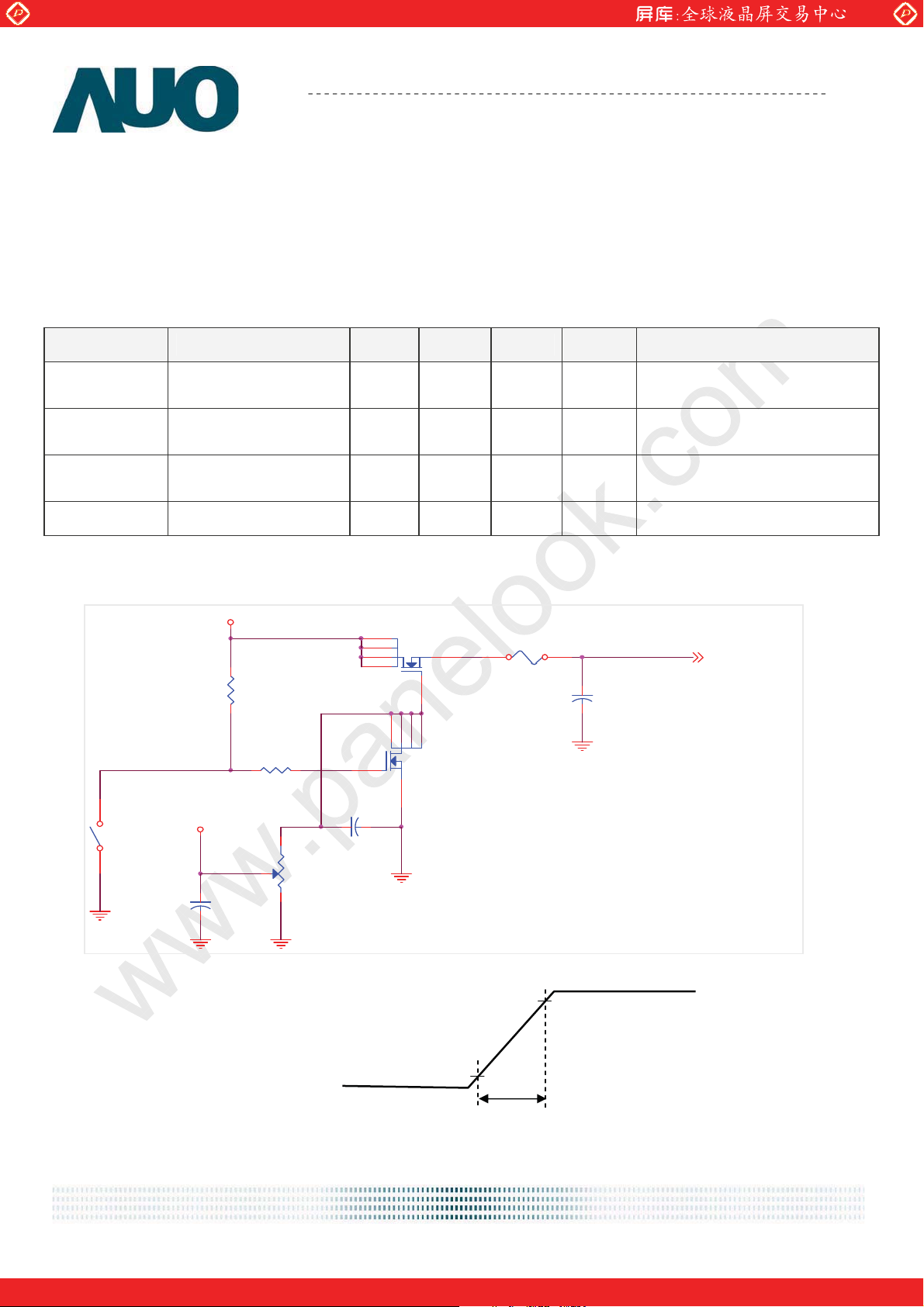

5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VDD
IDD Input Current - 1 1.2 [A]
PDD VDD Power - 5 6 [Watt]
IRush Inrush Current - 2 3 [A] Note 2
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt] ±10%
VDD= 5.0V, All White Pattern
At 60Hz
VDD= 5.0V, All White Pattern
At 60Hz , Note 1
Note 1: The variance of VDD power consumption is ±10%.
Note 2: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
90%
C1
1uF/16V
VCC
(LCD Module Input)
5.0V
VDD rising time
0V
10%
470 us
document version 1.0 15/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
@
www.panelook.com
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25
Parameter Min. Typ. Max. Unit Condition
CCFL Operation Current(IRCFL) - 7.5 8.0 [mA] rms Note 2
CCFL Frequency(FCFL) 40 60 80 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL,
CCFL Ignition Voltage(ViCF, Ta= 25
CCFL Operation Voltage (VCFL) -
- - 1500 [Volt] rms Note 5
- - 1200 [Volt] rms
690
7.5mA
[Volt] rms
Note 6
CCFL Power Consumption(PCFL) - 20.72 21.44 [Watt] Note 6
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL,
for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: CCFL standard current is measured at 252к.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and
TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1200
voltage. Lamp units need 1200 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
4 = PCFL)
Note 7: Definition of life: brightness becomes 50%. The typical life time of CCFL is on the condition at 7.5 mA
lamp current.
document version 1.0 16/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
0 1 1279 1280
R G B R G B
M190EG01 V3
R G B R G B
1024th Line
R G B R G B
R G B R G B
document version 1.0 17/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow VESA.
Note3: 8-bit in
document version 1.0 18/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data)
16 RxEIN1+ Positive LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC No Connection ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 1.0 19/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
r
V
www.panelook.com
Note1: Start from left side
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION
Connecto
30
RxOIN0-
CC
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK Tclk 30 54 83 MHz
H-section
V-section
Frame Rate F 50 60 75 Hz
Note : DE mode only
Period Th 720 844 1024 Tclk
Display Area Tdisp(h) 640 640 640 Tclk
Period Tv 1035 1066 2048 Th
Display Area Tdisp(v) 1024 1024 1024 Th
document version 1.0 20/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
6.4.2 Timing Digram
RGB Data
(Odd)
RGB Data
(Even)
Invalid Data
Invalid Data
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION
RGB Data
Line Line Line Line Line Line
N
Invalid Data
DE
Tfp(v)
Tbp(v)
Hsync
Vsync
PWvs
DE
Tbp(h)
PWhs
Hsync
CLK
Tclk
Pixel
Pixel
2
1
Pixel Pixel
Pixel
4
39 M-1
Pixel
6
5M-3
Pixel Pixel Pixel Pixel Pixel Pixel
7
8
10
11
12
M-5
M-4
M-2
M
Invalid Data
Tdisp(h)
PixelPixelPixelPixel
PixelPixel
Tfp(h)
Invalid Data
Tv
2
Tdisp(v)
43
N1
Th
Invalid Data
document version 1.0 21/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
10%
T1
90%
T2
T3
Power Sequence Timing
VALID
DATA
T4
90%
T5
T6
10%
T7
Parameter
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 200 - - [ms]
T4 200 - - [ms]
T5 0 16 50 [ms]
T6 - - 10 [ms]
T7 500 - - [ms]
Note: The values of the table are follow VESA.
document version 1.0 22/28
Value
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE or compatible
Type Part Number FI-XB30SSL-HF15
Mating Housing Part Number FI-X30HL
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
document version 1.0 23/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M190EG01 V3
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer JST
Type Part Number BHSR-02VS-1
Mating Type Part Number
SM02B-BHSS-1-TB
7.2.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage
CN1
Upper
CN2
2 Cold1 Black Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 White Low Voltage
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage
CN3
Lower
CN4
2 Cold1 Black Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 White Low Voltage
document version 1.0 24/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 5
High Temperature Operation (HTO) Ta= 5
Low Temperature Operation (LTO) Ta=
High Temperature Storage (HTS) Ta=
Low Temperature Storage (LTS) Ta= -
Vibration Test
(Non-operation)
80%RH, 300hours
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
M190EG01 V3
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20/30min, 60/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 1.0 25/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label
The shipping label format is shown as below.
M190EG01 V3
document version 1.0 26/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristic
M190EG01 V3
AU Optronics
document version 1.0 27/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M190EG01 V3
AU OPTRONICS CORPORATION
AU O ptron ics
document version 1.0 28/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
