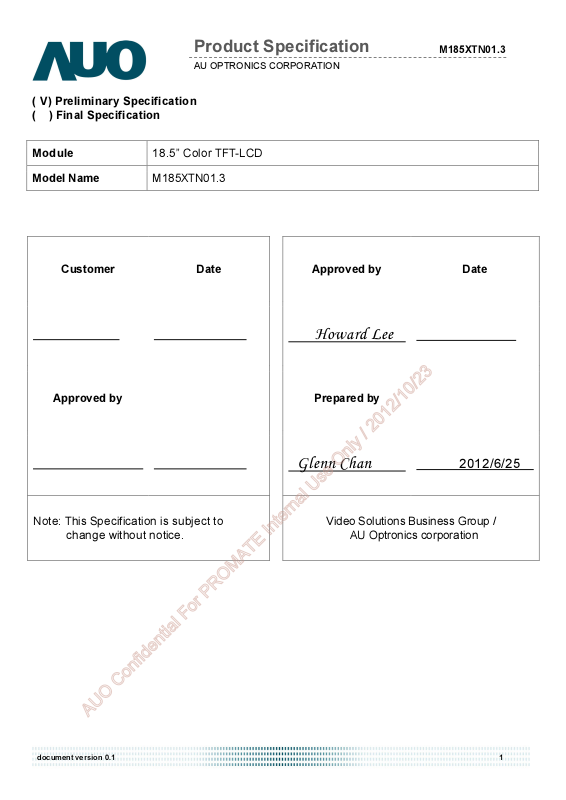

Page 1
Product Specification
) Preliminary Specification
AU OPTRONICS CORPORATION
( V
( ) Final Specification
Module 18.5” Color TFT-LCD
Model Name M185XTN01.3
M185XTN01.3
Customer Date
Approved by
Approved by Date
Howard Lee
Prepared by
Glenn Chan
2012/6/25
Note: This Specification is subject to
change without notice.
Video Solutions Business Group /
AU Optronics corporation
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 1
Page 2
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
Contents
1.0 Handling Precautions .............................................................4
2.0 General Description................................................................5
2.1 Display Characteristics ...................................................................................................................5
2.2 Optical Characteristics .................................................................................................................... 6
3.0 Functional Block Diagram.....................................................10
4.0 Absolute Maximum Ratings .........................................................11
4.1 TFT LCD Module ............................................................................................................................. 11
4.2 Backlight Unit.................................................................................................................................... 11

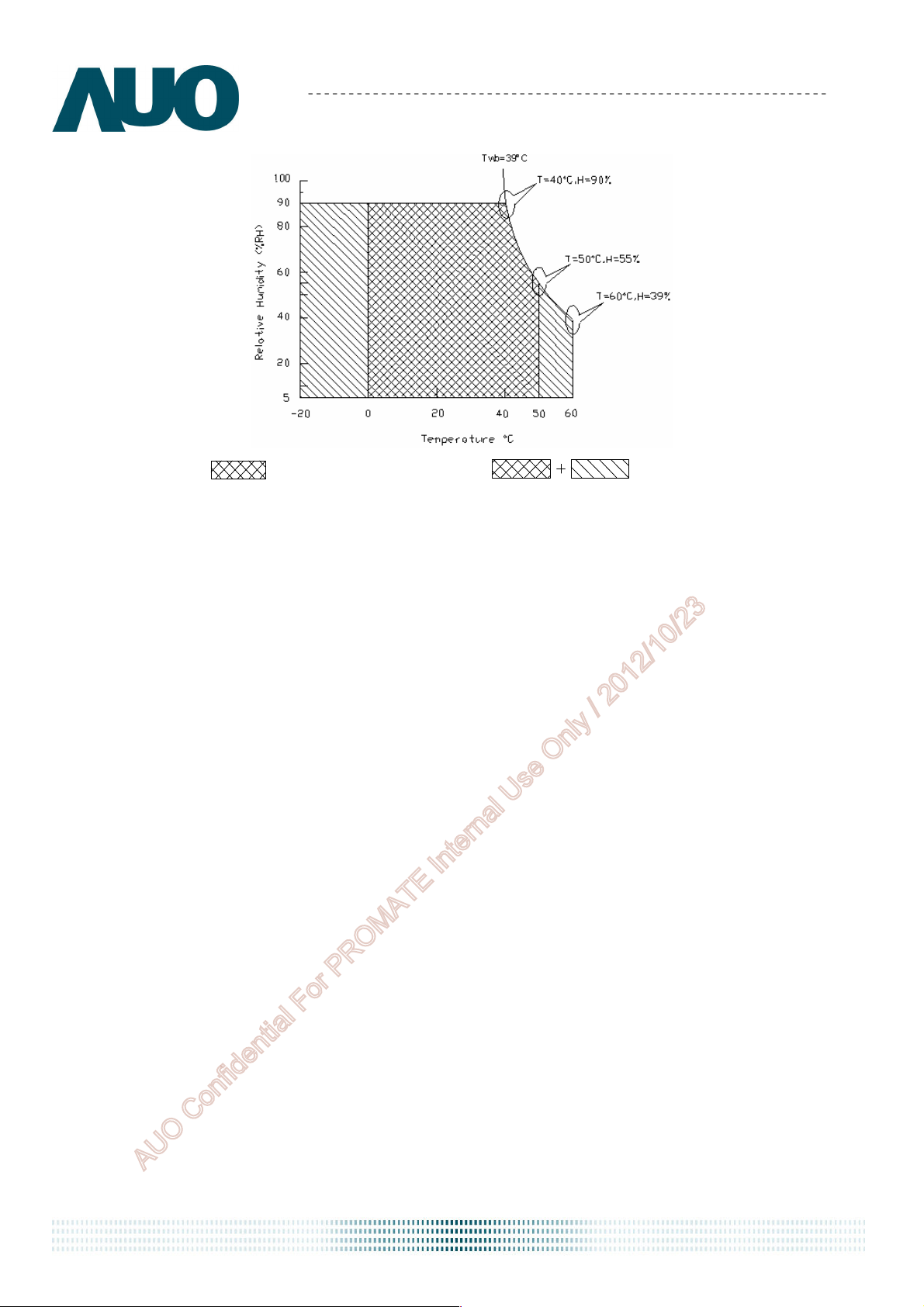

4.3 Absolute Ratings of Environment ...................................................................................................... 11
5.0 Electrical characteristics ......................................................13
5.1 TFT LCD Module............................................................................................................................ 13
5.1.1 Power Specification ......................................................13

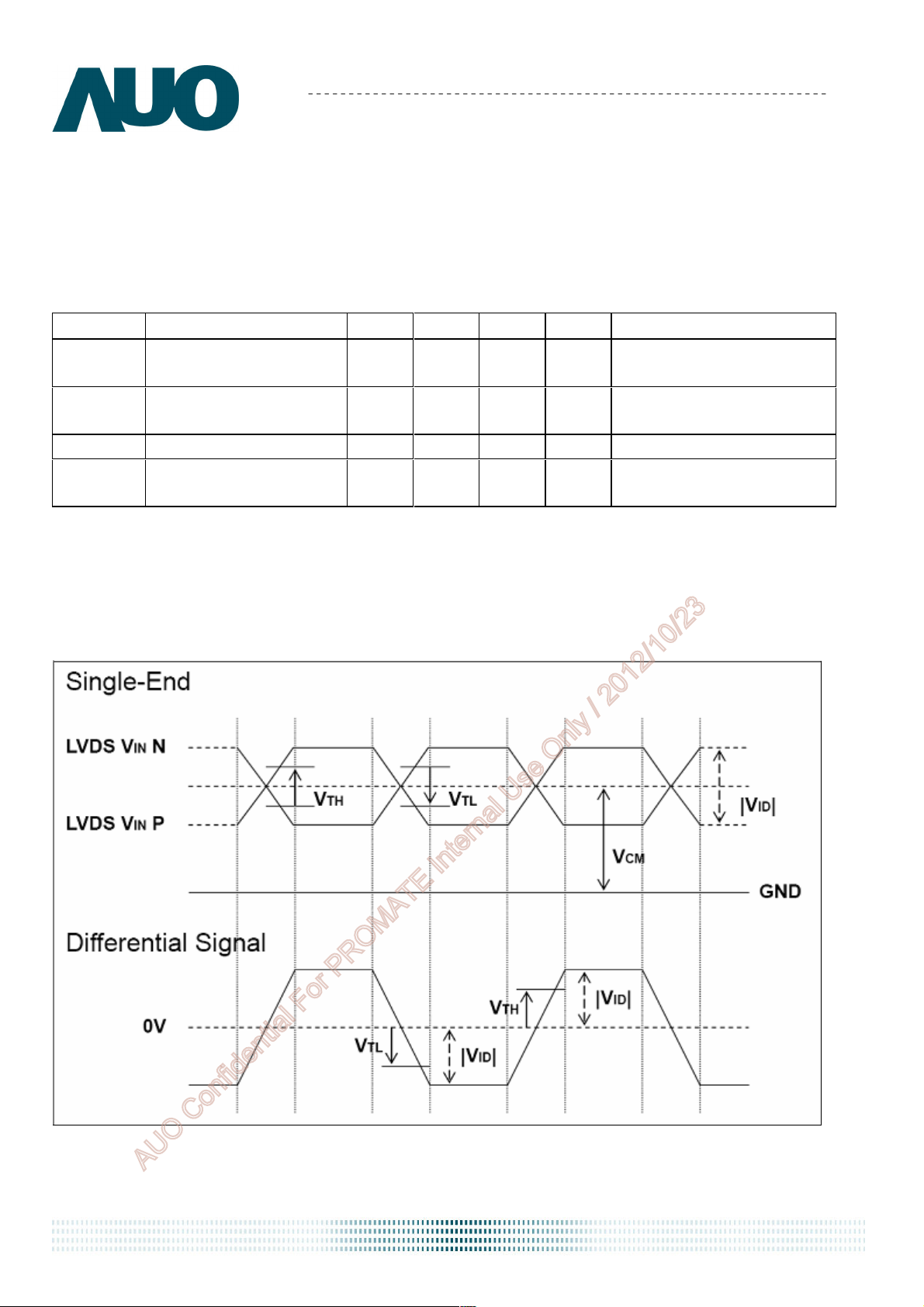

5.1.2 Signal Electrical Characteristics....................................14
5.2 Backlight Unit.................................................................................................................................... 16
6.0 Signal Characteristic ............................................................17

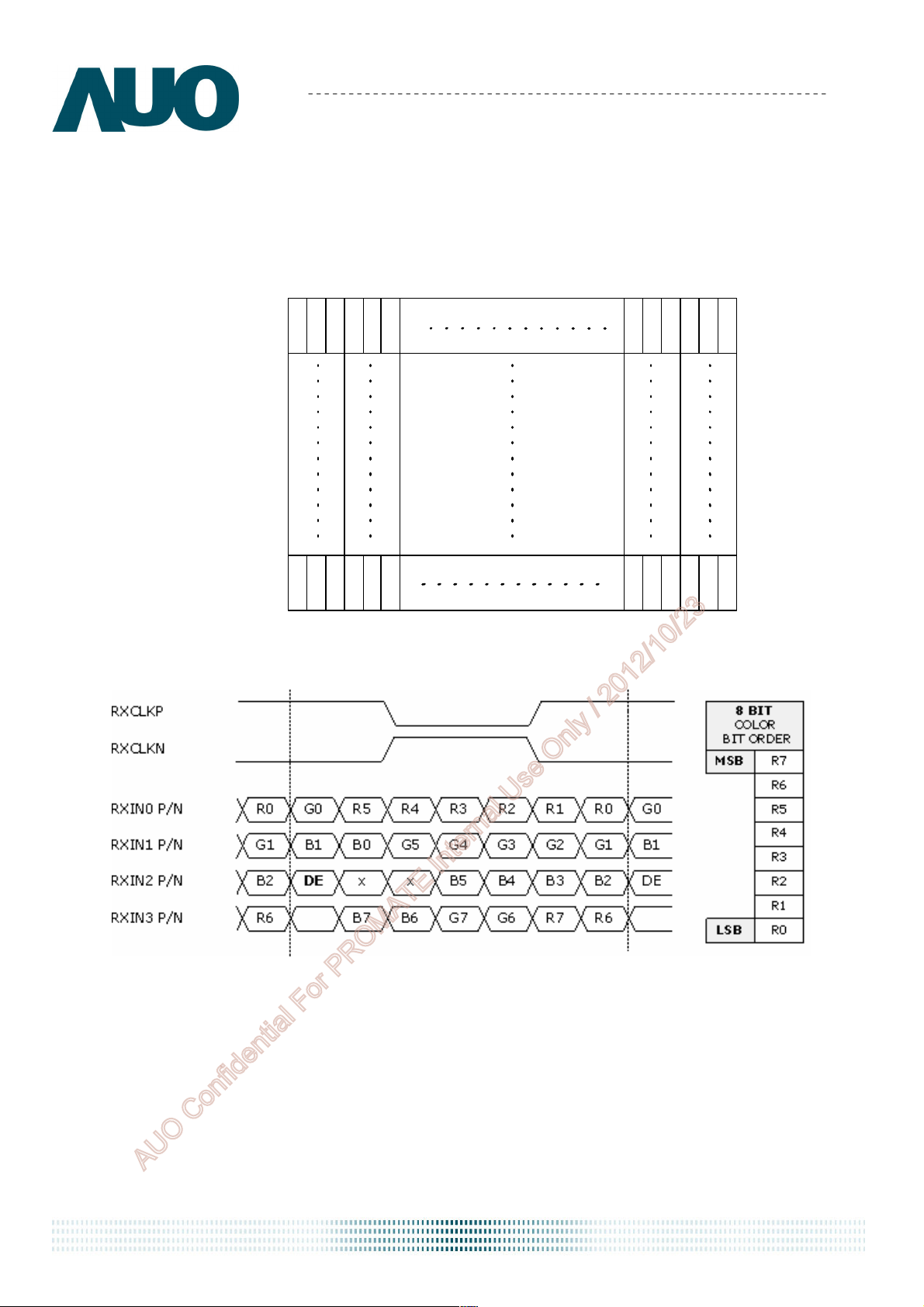

6.1 Pixel Format Image ....................................................................................................................... 17
6.2 The input data format.................................................................................................................... 17
6.3 Signal Description.......................................................................................................................... 18
6.4 Timing Characteristics ....................................................................................................................... 20

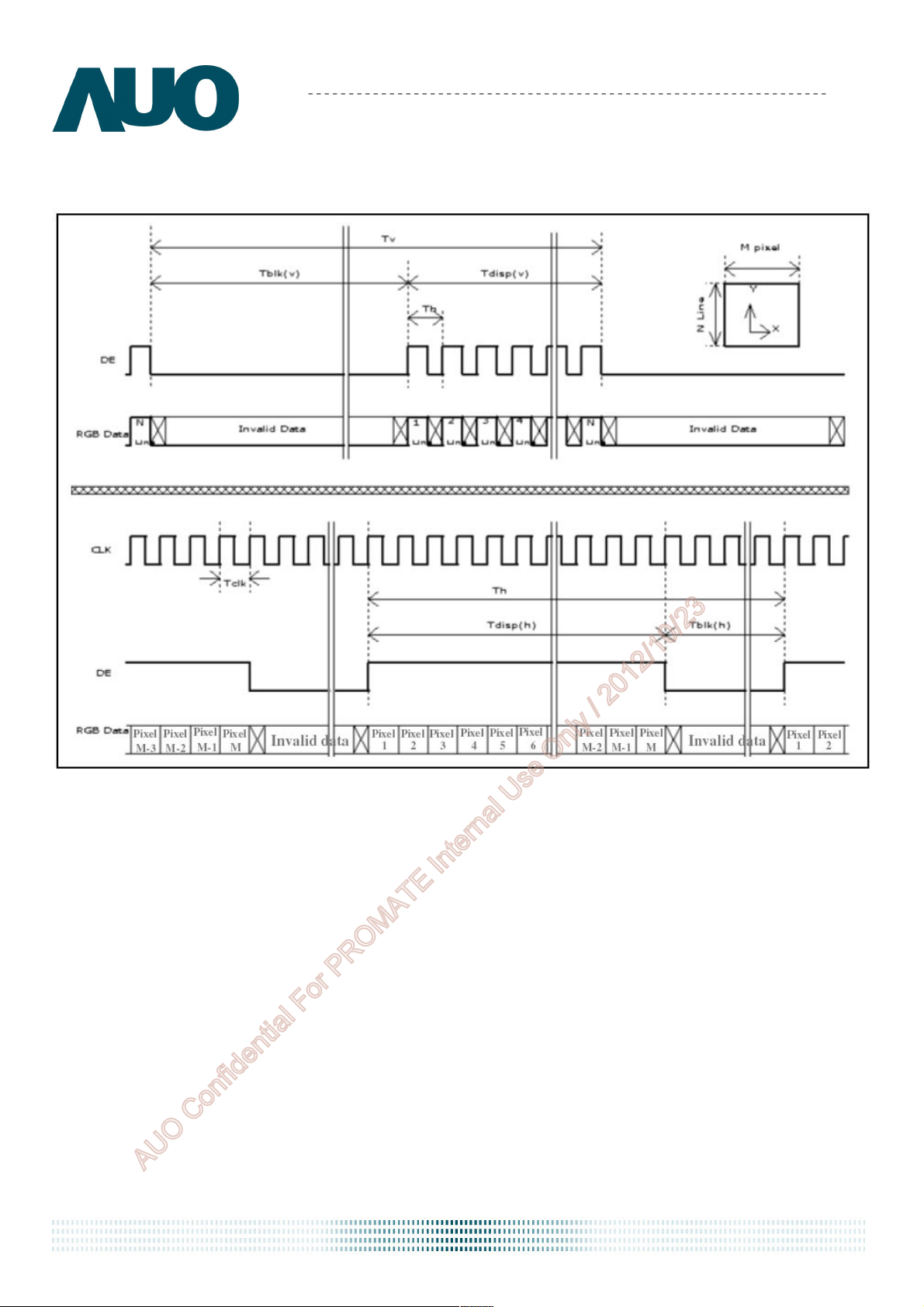

6.5 Timing diagram............................................................................................................................... 21

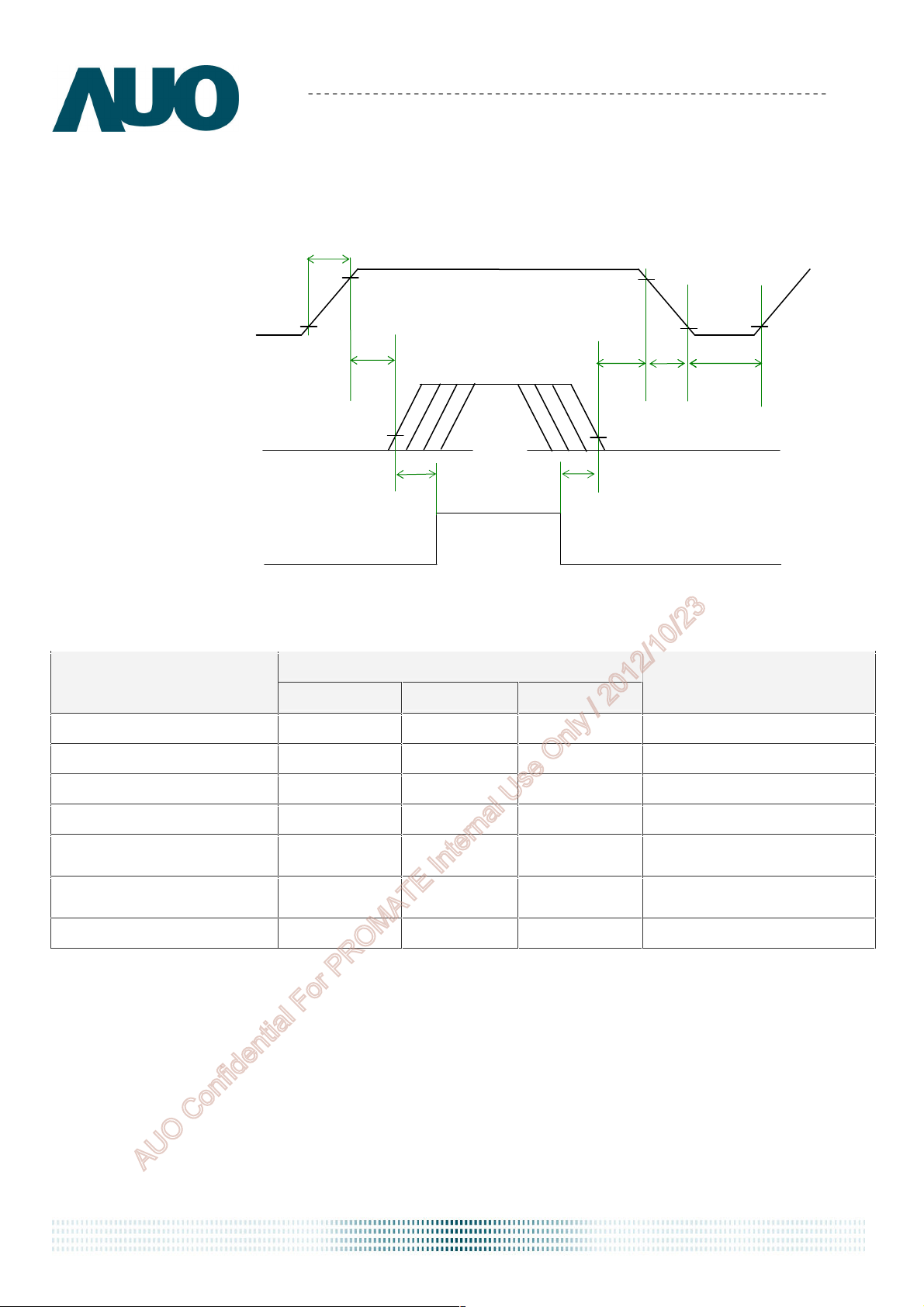

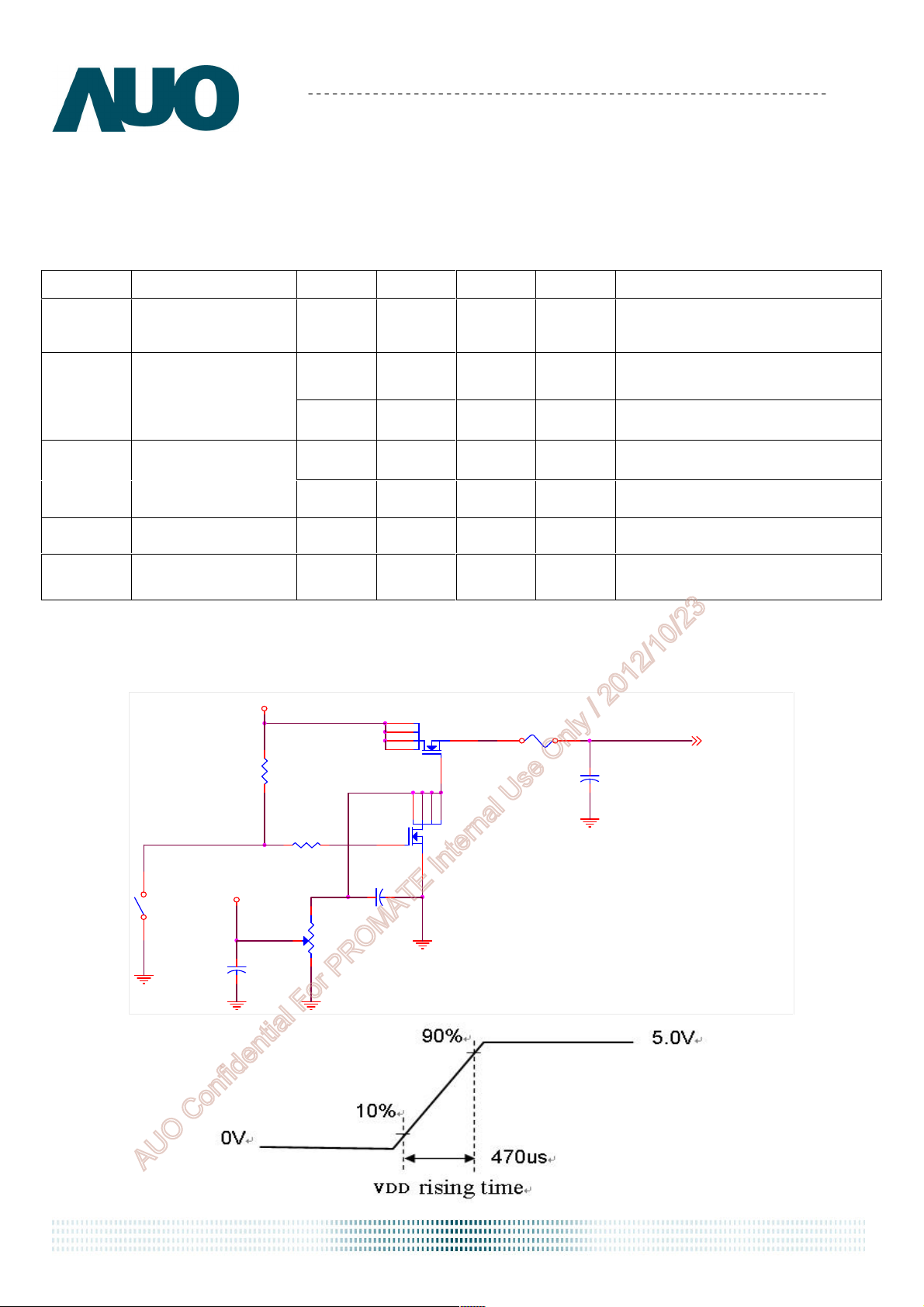

6.6 Power ON/OFF Sequence ........................................................................................................... 22

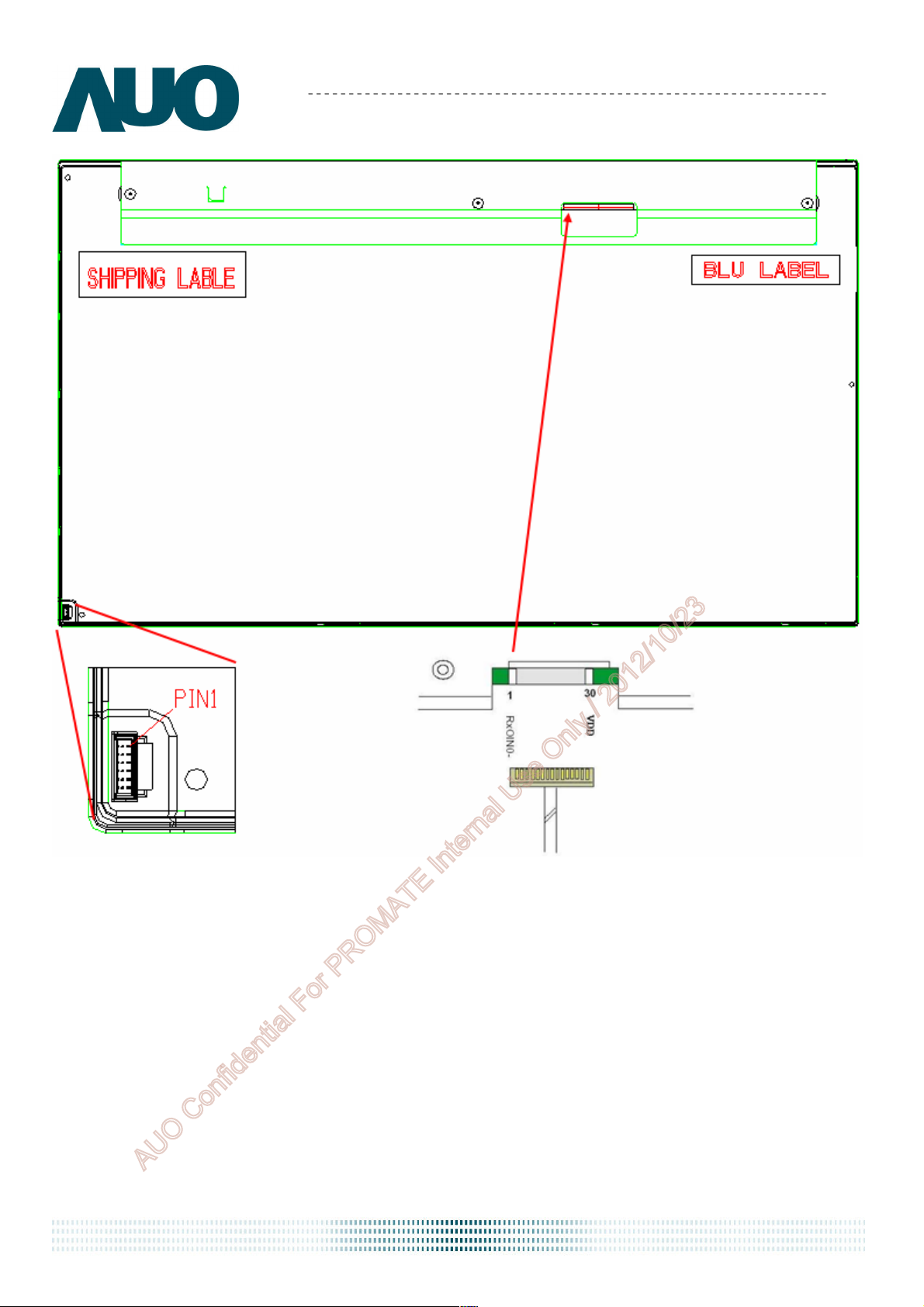

7.0 Connector & Pin Assignment ................................................23
7.1 TFT LCD Module............................................................................................................................ 23
7.1.1 Pin Assignment.............................................................23

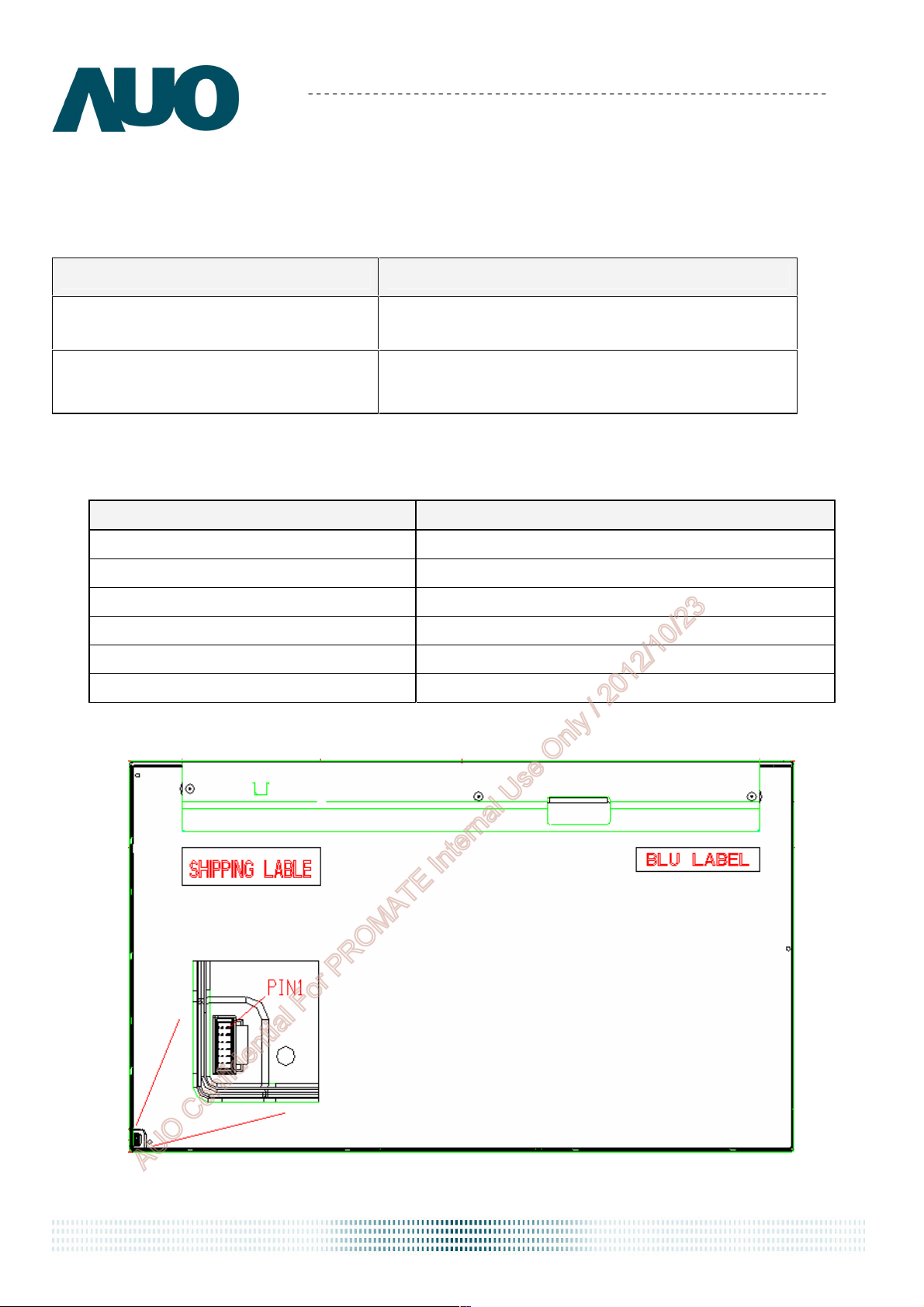

7.2 LED Connector on Backlight Unit..................................................................................................... 24
7.2.1 LED Pin assignment ......................................................24

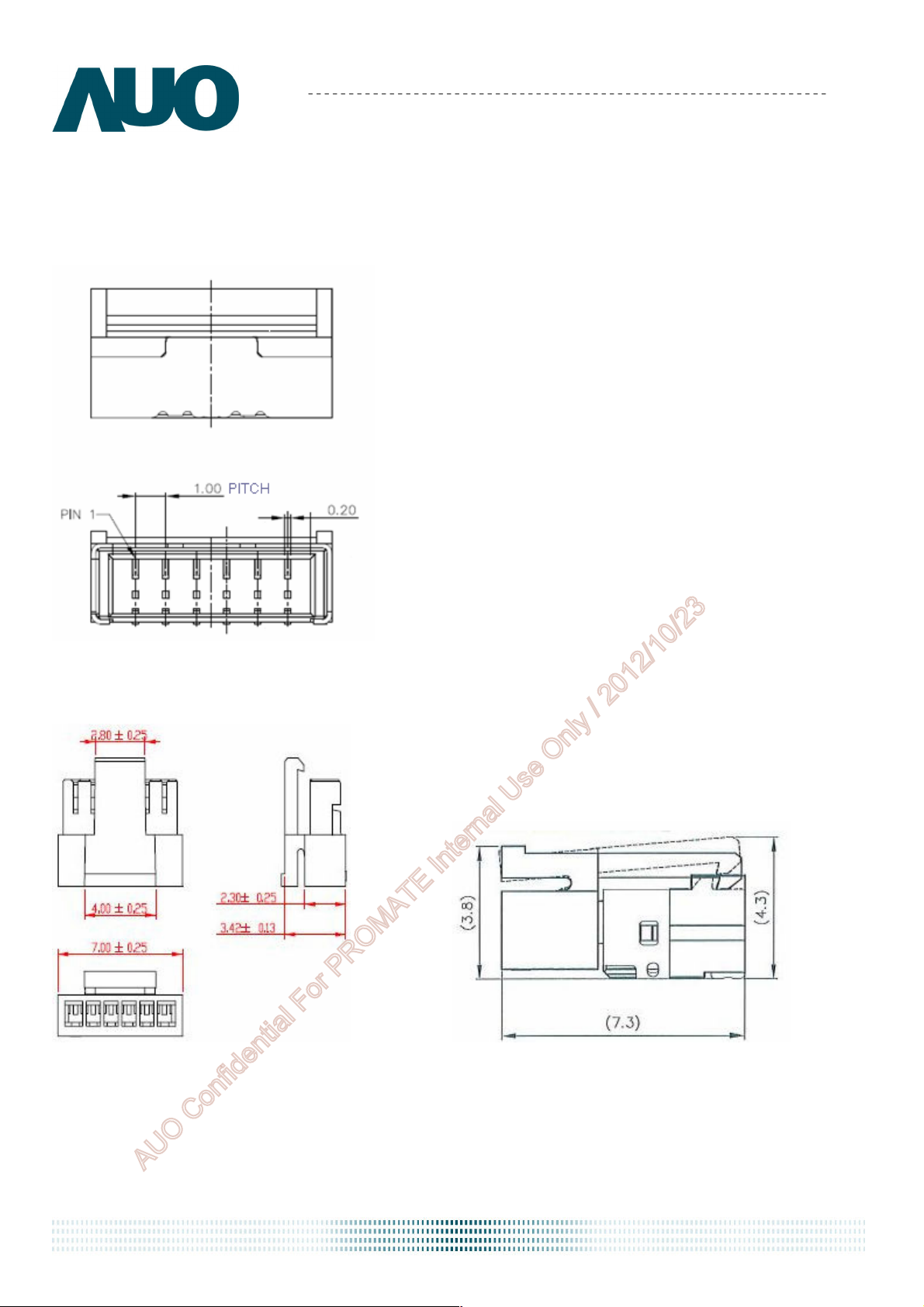

7.2.2 LED Connector dimension .............................................25
7.2.3 LED Mating housing dimension .....................................25
8.0 Reliability Test .....................................................................26

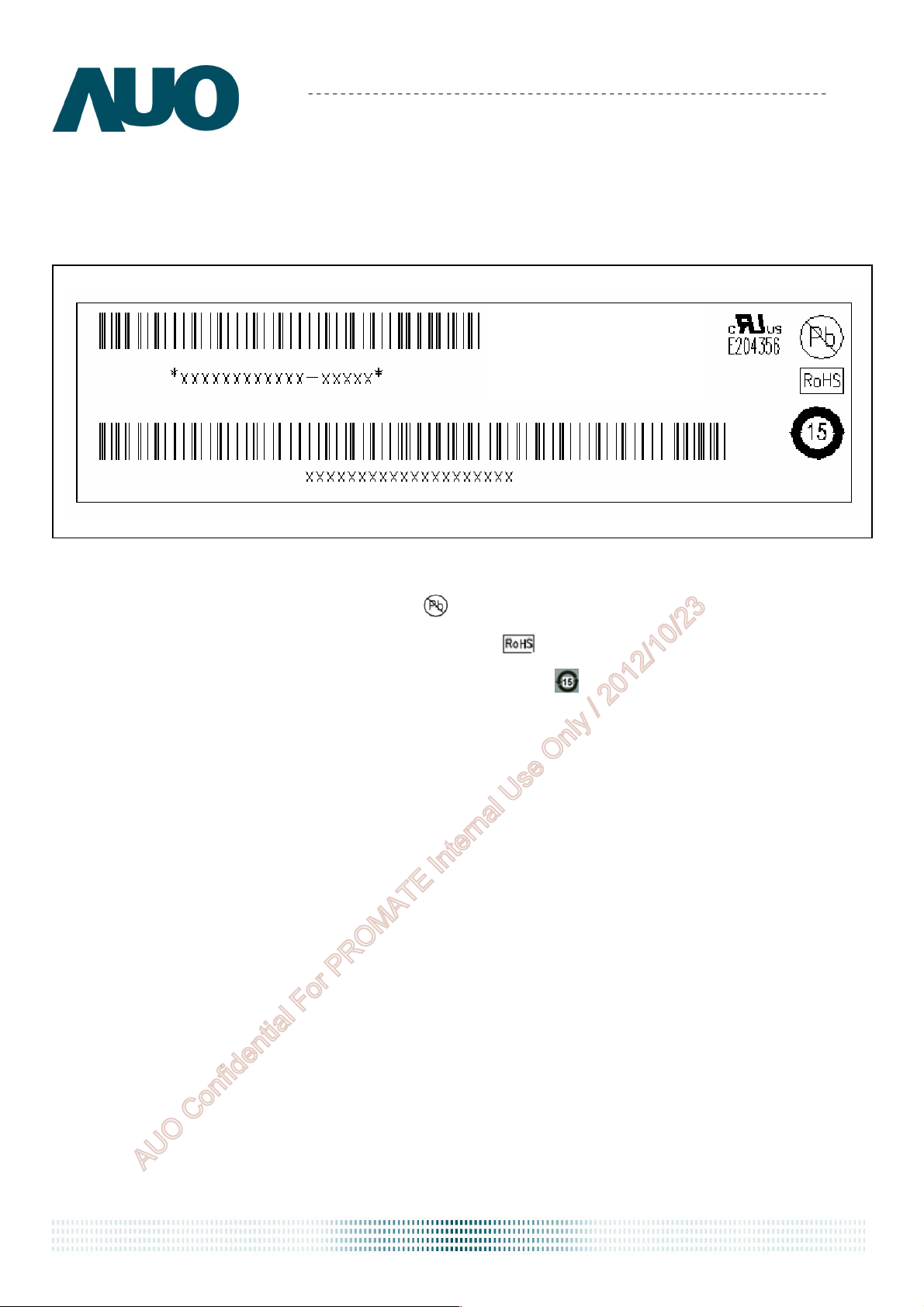

9.0 Shipping Label......................................................................27
10.0 Mechanical Characteristics .................................................28

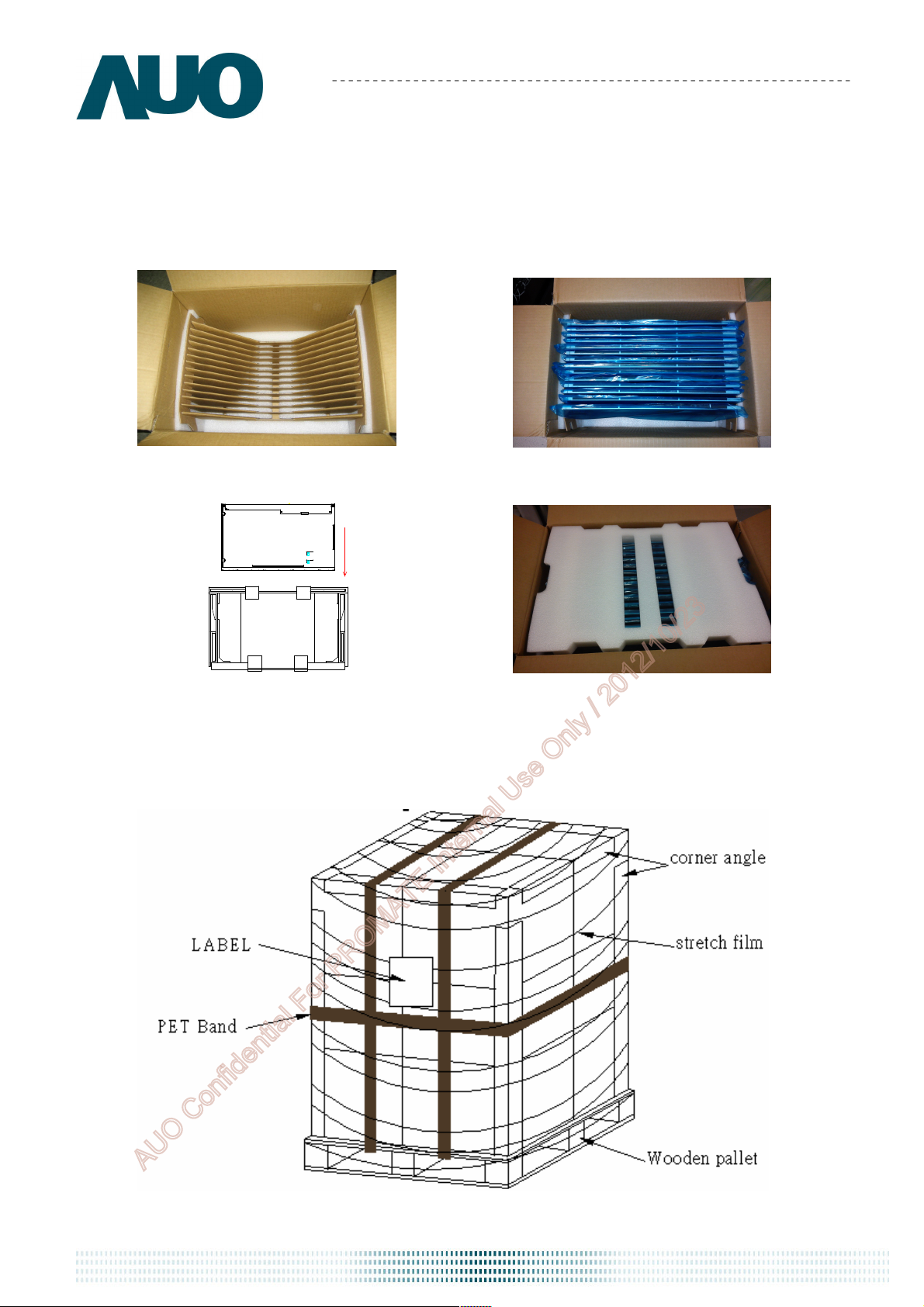

11. Packing Specification ...........................................................31
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 2
Page 3
Product Specification
M185XTN01.3
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page
0.1
2012/06/25
Preliminary Version
Old description New Description Remark
document version 0.1 3
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 4
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken
out from the container, do not press the center of the LED lightbar edge. Instead, press at the
far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT
Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Please avoid touching COF contact while handling or fitting the TFT module into your system.
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5℃ and 35℃ at normal humidity.
document version 0.1 4
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 5
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
2.0 General Description
This specification applies to the 18.5 inch-wide Color a-Si TFT-LCD Module M185XTN01.The
display supports the WXGA - 1366(H) x 768(V) screen format and 16.7M colors (RGB 6-bits +
Hi-FRC data). All input signals are 1-channel LVDS interface and this module doesn’t contain an
inverter board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm]
Active Area [mm] 409.8 (H) x 230.4 (V)
Pixels H x V 1366(x3) x 768
Pixel Pitch [um] 300 (per one triad) × 300
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode, Normally White
White Luminance ( Center ) [cd/m2]
Contrast Ratio 700 (Typ.)
Optical Response Time [msec] 5ms (Typ., on/off)
Nominal Input Voltage VDD [Volt] +5.0 V (Typ)
Power Consumption
[Watt]
(VDD line + LED line)
Weight [Grams]
Physical Size [mm] 430.4 (W) x 254.6 (H) Typ. x 9.9 (D) Typ
Interface One channel LVDS
Support Color 16.7M colors (RGB 6-bit + Hi_FRC )
Surface Treatment Anti-Glare, 3H
Temperature Range
Operating
Storage (Shipping)
[oC]
[oC]
TCO 6.0 Compliance No
470.1(18.51”)
200 cd/m
VDD line: PDD (typ)= 1.75W, All black pattern at 60Hz
LED line : PBLU (typ) = 6.5 W
Total : 8.25 W
2
(Typ.)
1290(Typ)
0 to +50
-20 to +60
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 5
Page 6
2.2 Optical Characteristics
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
The optical characteristics are measured under stable conditions at 25℃:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Contrast ratio Normal Direction
Raising Time (TrR)
Response Time [msec]
Falling Time (TrF)
Raising + Falling
Red x
Red y
Color / Chromaticity
Coordinates (CIE)
Green x
Green y
Blue x
Blue y
Color Coordinates (CIE) White
White x
White y
40
40
15
40
420
-
-
-
45
45
20
45
700 -
3.6 -
1.4 -
5 -
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
0.283 0.313 0.343
0.299 0.329 0.359
-
-
-
-
Central Luminance [cd/m2] 160 200 - 6
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
75 80
-
1.5 8
-20
2
3
4
5
7
9
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 6
Page 7
Center of the screen
Note 1: Measurement method
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35
)
. In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
Photo detector
Measured distance
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
document version 0.1 7
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 8
Product Specification
100
90
10
0
response
T
100
10
0
response
1 Frame
1 Frame
T
AU OPTRONICS CORPORATION
M185XTN01.3
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling time, TrF),
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
%
Optical
Optical
%
White
rF
Black
Black
rR
White
TrR + TrF = 5 msec (typ.).
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Uniformity =
document version 0.1 8
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
Page 9
Product Specification
Level
DC
AU OPTRONICS CORPORATION
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M185XTN01.3
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
log20(dB)Flicker =
Hz) 30Level(at AC
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 9
Page 10
Product Specification
DC
Connector
LVD
S
Y
-
Driver IC
AU OPTRONICS CORPORATION
M185XTN01.3
3.0 Functional Block Diagram
The following diagram shows the functional block of the 18.5 inch Color TFT-LCD Module:
+5V
DC/DC
Converter
AUO
ASIC
LVDS
Receiver
Correction
I/F + X-PCB
Timing
Controller
mini
Transmitter
Gamma
G1
G768
TFT-LCD
1366(x3) x 768
Pixels
D1 D4098
LED
Driver
I/F PCB Interface:
MSCKT2407P30HB (STM) / AL230F-A0G1D-P (P-TWO)
Mating Type:
FI-X30HL(JAE) (Locked Type)
FI-X30H (JAE)(Unlocked Type)
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 10
Page 11
Product Specification
AU OPTRONICS CORPORATION
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current
LED Pulse Forward Current
VDD -0.3 +6.0 [Volt] Note 1,2
IRLED1
IRLED2
IRLED3
IRLED4
IPLED1
IPLED2
IPLED3
IPLED4
0 90
- 150
[mA]
[mA]
M185XTN01.3
Note 1,2,5
100% duty
Note 1,2,5
10% duty @100Hz
LED forward Voltage variation
(per string variation)
ΔVf
- 3.4
[Volt]
Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 3
Glass surface temperature
(operation)
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
Note 1: With in Ta (25℃)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta ≦39℃)
2. Max wet-bulb temperature at 39℃ or less. ( Ta ≦39℃)
3. No condensation
Note 4: Function Judged only
Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
TGS 0 +65 [oC] Note 3, Note 4
Note 3
5 90
[%RH]
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 11
Page 12
Product Specification
M185XTN01.3
AU OPTRONICS CORPORATION
Operating Range
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Storage Range
document version 0.1 12
Page 13
Product Specification
M185XTN01.3
AU OPTRONICS CORPORATION
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
Symbol Parameter Min Typ Max Unit Conditions
VDD Logic/LCD Drive Voltage
4.5
5.0
5.5
[Volt] +/-10%
IDD Input Current
-
-
PDD
VDD Power
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
-
-
-
-
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
R2
1K
VR1
47K
C3
0.01uF/25V
0.35
0.42
[A] VDD= 5.0V, All Black Pattern At 60Hz,
0.42 0.5 VDD= 5.0V, All Black Pattern At 75Hz
1.75 2.1 [Watt] VDD= 5.0V, All Black Pattern At 60Hz
2.1 2.5 VDD= 5.0V, All Black Pattern At 75Hz
- TBD [A] Note 1
- 350 [mV] p-p VDD= 5.0V, All Black Pattern At 75Hz
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
G
Q3
AO6402
F1
VCC
C1
1uF/16V
(LCD Module Input)
C2
1uF/25V
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 13
Page 14
Product Specification
M185XTN01.3
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas Instruments) in detail.
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
- - +100 [mV]
-100 - - [mV]
VCM = 1.2V
Note 1
VCM = 1.2V
Note 1
│VID│ Input Differential Voltage 100 - 600 [mV] Note 1
VCM
Differential Input Common
Mode Voltage
+1.0 +1.2 +1.5 [V]
VTH-VTL = 200MV (max)
Note 1
Note 1: LVDS Signal Waveform
Condition
document version 0.1 14
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 15
Freq
F
max
F
center
F
min
F
center
* F
DEV

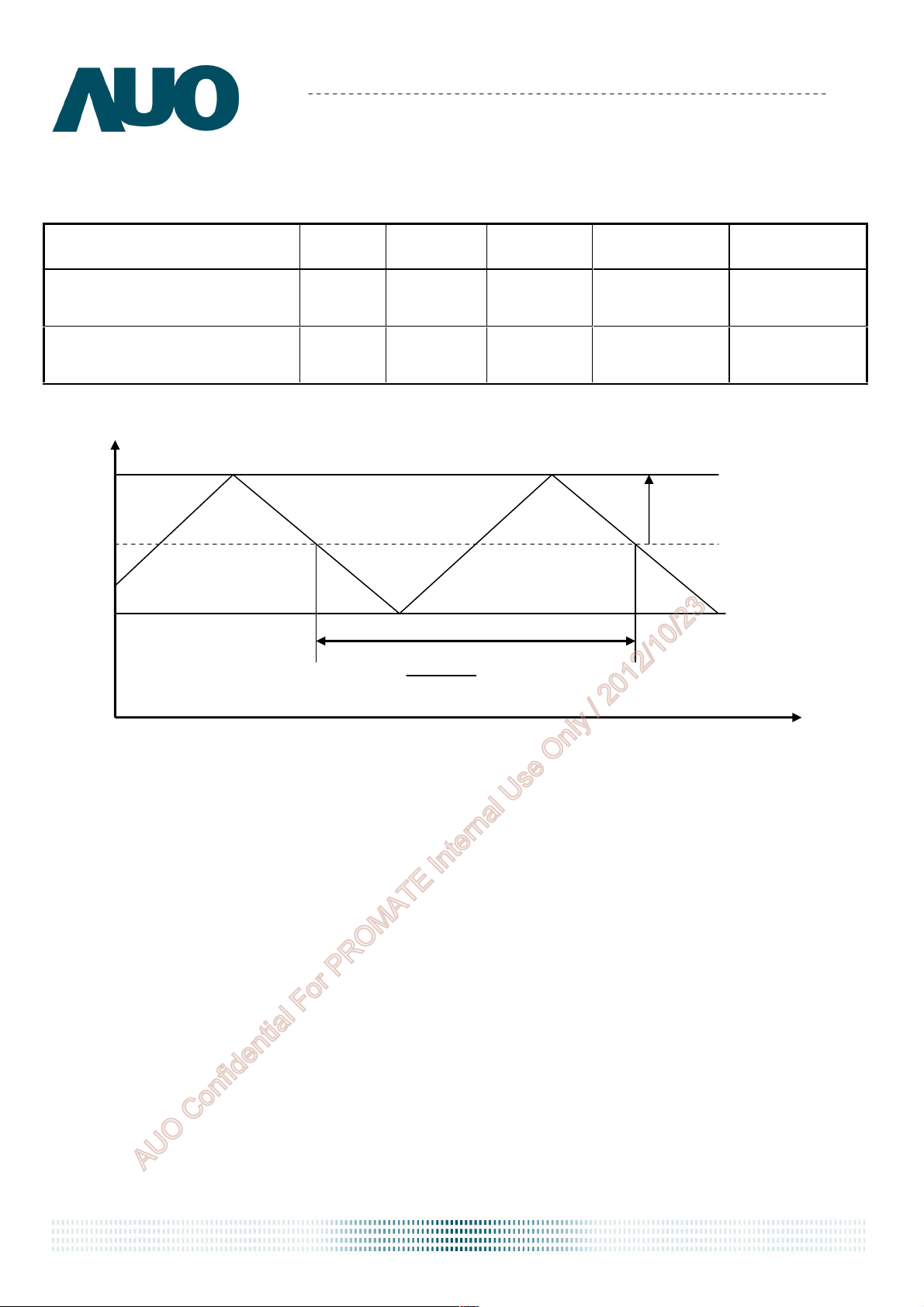

< Spread Spectrum>
time
2. AC Characteristics
Description Symbol Min Max Unit Note
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
Maximum deviation of input
clock frequency during SSC
Maximum modulation frequency
of input clock during SSC
FDEV -
FMOD - 200 KHz
±±±± 3
%
1
FMOD
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 15
Page 16
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25℃ (Room Temperature):
Symbol Description Min.
IRLED1
IRLED2
LED Operation Current 67 70 73 [mA] Note 1
IRLED3
IRLED4
VLED Light Bar Operation Voltage 21 23.1 25.2 [Volt]
PBLU BLU Power Consumption 5.6 6.5 7.4 [Watt]
LTLED LED Life Time (Typical) 30,000
Typ. Max. Unit Note
Note 2
Note 3
- - [Hour]
Note 4
Each module consists of 28 pcs LED ( 4 strings x 7 pcs / string )
Note 1 : The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as per
strings LED current.
Note 2 : The value showed in the table is one light bar’s operation voltage.
Note 3 : PBLU = VLED *( IRLED1+IRLED2+IRLED3+IRLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum life
time of LED unit is on the condition of IRLED = 70mA and 25±2°C (Room Temperature).
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 16
Page 17
Product Specification
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
365 1
366
1st Line
768
Line
AU OPTRONICS CORPORATION
6.0 Signal Characteristic
6.1 Pixel Format Image
M185XTN01.3
Following figure shows the relationship of the input signals and LCD pixel format.
6.2 The input data format
LVDS Data Mapping of NS Format
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: 8-bits signal input.
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 17
Page 18
6.3 Signal Description
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
PIN #
SIGNAL NAME DESCRIPTION
1 NC No contact (For AUO internal use)
2 NC No contact (For AUO internal use)
3 NC No contact (For AUO internal use)
4 GND Power Ground
5 RXIN0- Negative LVDS differential data input (0)
6 RXIN0+ Positive LVDS differential data input (0)
7 GND Power Ground
8 RXIN1- Negative LVDS differential data input (1)
9 RXIN1+ Positive LVDS differential data input (1)
10 GND Power Ground
11 RXIN2- Negative LVDS differential data input (2)
12 RXIN2+ Positive LVDS differential data input (2)
13 GND Power Ground
14 RXCLKIN- Negative LVDS differential clock input (clock)
15 RXCLKIN+ Positive LVDS differential data input (clock)
16 GND Power Ground
17 RXIN3- Negative LVDS differential data input (3)
18 RXIN3+ Positive LVDS differential data input (3)
19 GND Power Ground
20 NC No contact (For AUO internal use)
21 NC No contact (For AUO internal use)
22 NC No contact (For AUO internal use)
23 GND Power Ground
24 GND Power Ground
25 GND Power Ground
26 VDD +5V power supply
27 VDD +5V power supply
28 VDD +5V power supply
29 VDD +5V power supply
30 VDD +5V power supply
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 18
Page 19
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 19
Page 20
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
6.4 Timing Characteristics
Basically, interface timing described here is not actual input timing of LCD module but close to
output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Period Tv 776 808 1023 Th
Active Tdisp(v) 768 768 768 Th
V-section
Blanking Tblk(v) 8
40 255 Th
Period Th 1416 1606 2047 Tclk
Active Tdisp(h) 1366 1366 1366 Tclk
H-section
Blanking Tblk(h) 50
240 681 Tclk
Period Tclk - 12.8 - ns
Clock
Clock
ClockClock
Frame Rate
Frame Rate
Frame RateFrame Rate
Frequency
Frame
Rate
Freq 55 78 90 MHz
F
50 60 75 Hz
Note1 : DE mode only
Note2 : Clock Frequency 90MHz(Max.)= 1416(H)*847(V)*75Hz
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 20
Page 21
6.5 Timing diagram
Product Specification
M185XTN01.3
AU OPTRONICS CORPORATION
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 21
Page 22
Product Specification
T5
T2
T1
T6
AU OPTRONICS CORPORATION
M185XTN01.3
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
Parameter
90%
10%
VALID
DATA
T3
90%
10%
T7
T4
Power Sequence Timing
Value
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 50
T6 5 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
[ms]
Note1,2
[ms]
Note1,2
document version 0.1 22
Page 23
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer STM or P-TWO
MSCKT2407P30HB (STM) / AL230F-A0G1D-P
Type Part Number
(P-TWO)
Mating Housing Part Number
FI-X30HL(JAE) (Locked Type)
FI-X30H (JAE)(Unlocked Type)
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 NC 2 NC
3 NC 4 GND
5
7
9
11
13
15
17
19
RXIN0-
GND
RXIN1+
RXIN2-
GND
RXCLKIN+
RXIN3-
GND
6
8
10
12
14
16
18
20 NC
21 NC 22 NC
RXIN0+
RXIN1-
GND
RXIN2+
RXCLKIN-
GND
RXIN3+
23
25
GND
GND
24
26 VDD
GND
27 VDD 28 VDD
29 VDD 30 VDD
document version 0.1 23
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 24
Product Specification
AU OPTRONICS CORPORATION
7.2 LED Connector on Backlight Unit.
M185XTN01.3
This connector is mounted on LED light-bar.
Connector Name / Designation Light Bar Connector
Manufacturer
Mating Type Part Number
7.2.1 LED Pin assignment
Pin# Signal Name
1 IRLED1 (current out)
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
ENTERY (E&T) Corporation
3707K-Q06N-01R
(Wire harness)
6 IRLED4 (current out)
document version 0.1 24
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 25
==××=××
==××=××
7.2.2 LED Connector dimension
Product Specification
AU OPTRONICS CORPORATION
)(0.1,25.400.39.13 mmunitPitchDVH
)(0.1,25.400.39.13 mmunitPitchDVH
M185XTN01.3
7.2.3 LED Mating housing dimension
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 25
Page 26
Product Specification
AU OPTRONICS CORPORATION
8.0 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
Ta= 50℃, 80%RH, 300hours
M185XTN01.3
Note
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST)
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Ta= 50℃, 50%RH, 300hours
Ta= 0℃, 300hours
Ta= 60℃, 300hours
Ta= -20℃, 300hours
Acceleration: 1.5 Grms
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
-20℃/30min, 60℃/30min, 100 cycles
Contact Discharge: ± 15KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point.
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point.
1
2
Altitude Test
Operation:18,000 ft
Non-Operation:40,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20℃ to 60℃, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B:
Certain performance degradation allowed
No data lost
Self-recoverable
No hardware failures.
document version 0.1 26
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
Page 27
Product Specification
AU OPTRONICS CORPORATION
9.0 Shipping Label
The label is on the panel as shown below:
Manufactured: XX/XX
Model No: M185XTN01.2
AU Optronics
Made in XXXXX
M185XTN01.3
Note 1: For Pb Free products, AUO will add for identification.
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 27
Page 28
M185XTN01.3
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
10.0 Mechanical Characteristics
document version 0.1 28
Page 29
M185XTN01.3
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 29
Page 30
M185XTN01.3
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 30
Page 31
Product Specification
AU OPTRONICS CORPORATION
11. Packing Specification
M185 14片裝
料號
料號:
料號料號
Carton:81.18M02.008 /Cushion:84.18M02.037
將M185模組置入靜電袋中並折疊後
依序放入包裝隔板中
片裝:48.5*37.2*34.8cm
片裝片裝
M185XTN01.3
放置14片，放入上蓋緩衝，封箱完成
document version 0.1 31
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
單層
單層 pallet 打棧示意圖
單層單層
打棧示意圖
打棧示意圖打棧示意圖
Page 32
Pallet and shipment information
Product Specification
AU OPTRONICS CORPORATION
M185XTN01.3
Q'ty Dimension Weight(kg)
1 Panel 1 430.37(H)mm x 254.6(V)mm x 9.9(D)mm
2 Cushion 1 -
Item
1.330
1.125
Remark
3 Box 1 485(L)mm x 372(W)mm x 348(H)mm 1.00 without Panel & cushion
4 Packing Box 14 pcs/Box 485(L)mm x 372(W)mm x 348(H)mm 20.745 with panel & cushion
Specification
5 Pallet 1
6 Pallet after Packing
24 boxes/pallet 1150(L)mm x 980(W)mm x 138(H)mm
1150(L)mm x 980(W)mm x 138(H)mm
15
509
AUO Confidential For PROMATE Internal Use Only / 2012/10/23
document version 0.1 32
