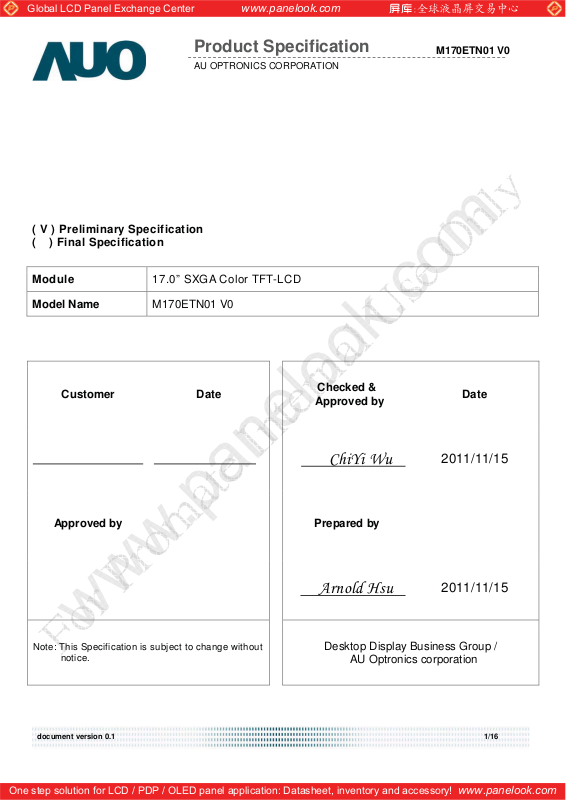

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
( V ) Preliminary Specification
( ) Final Specification
Module
Model Name
17.0” SXGA Color TFT-LCD
M170ETN01 V0
Customer Date
Approved by
ȱ
Checked &
Approved by
&KL<L:X
Prepared by
$UQROG+VX
Date
2011/11/15ȱ
2011/11/15
Note: This Specification is subject to change without
notice.
document version 0.1 1/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Desktop Display Business Group /
AU Optronics corporation
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
Contents
1. Handling Precautions.............................................................................................................. 4
2. General Description ................................................................................................................ 5
2.1 Display Characteristics ....................................................................................................................... 5
3. Functional Block Diagram .................................................................................................... 10
4. Absolute Maximum Ratings.................................................................................................. 11
4.1 TFT LCD Module ............................................................................................................................. 11
4.2 Backlight Unit................................................................................................................................... 11

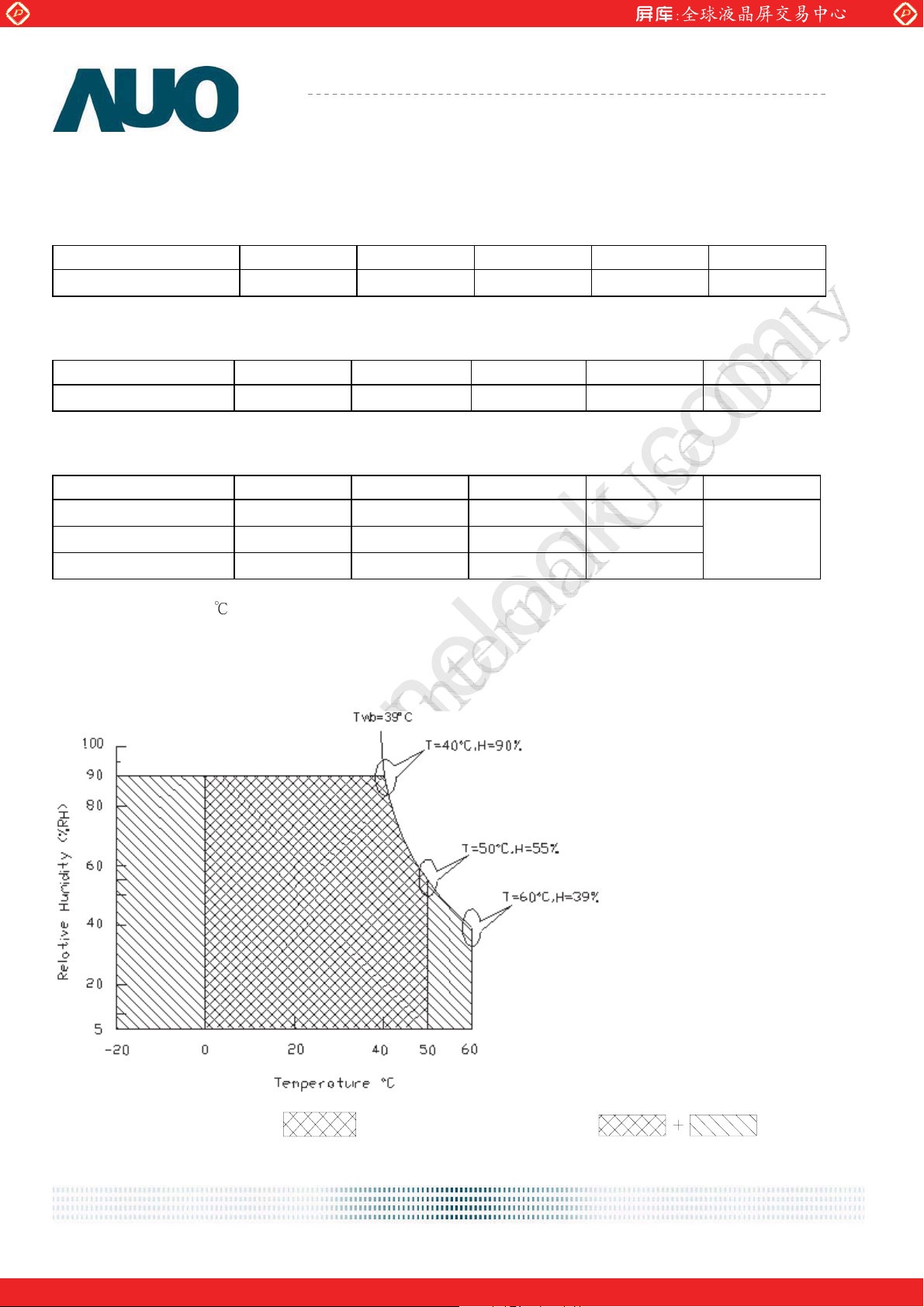

4.3 Absolute Ratings of Environment..................................................................................................... 11
5. Electrical characteristics ...................................................................................................... 12
5.1 TFT LCD Module ............................................................................................................................. 12
5.2 Backlight Unit................................................................................................................................... 14
6. Signal Characteristic............................................................................................................. 15
6.1 Pixel Format Image........................................................................................................................... 15
6.2 The Input Data Format...................................................................................................................... 15
6.4 Timing Characteristics ...................................................................................................................... 16

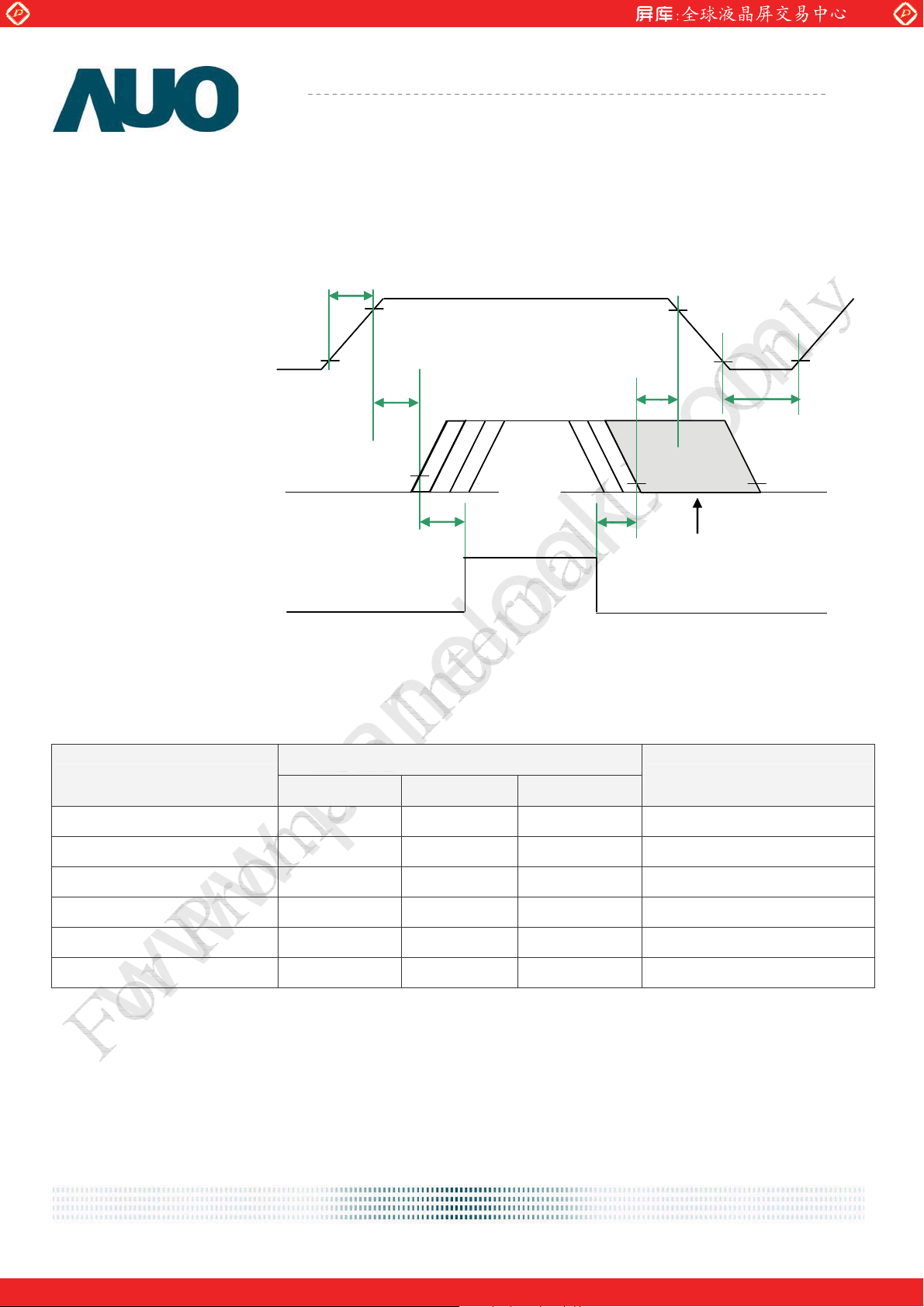

6.5 Power ON/OFF Sequence................................................................................................................. 16

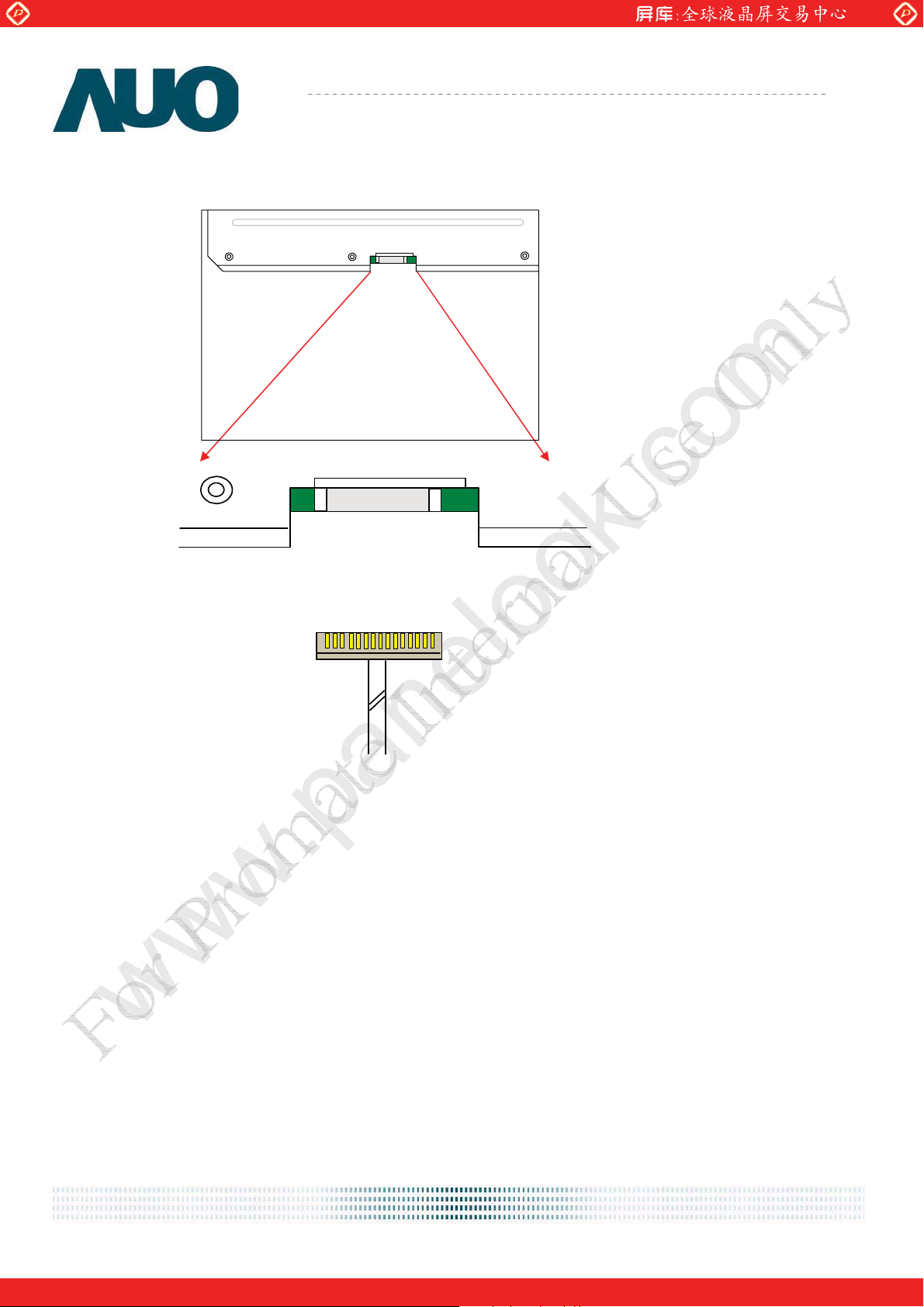

7. Connector & Pin Assignment............................................................................................... 16
7.1 TFT LCD Module ............................................................................................................................. 16
7.2 Backlight Unit................................................................................................................................... 16
8. Reliability Test ....................................................................................................................... 16

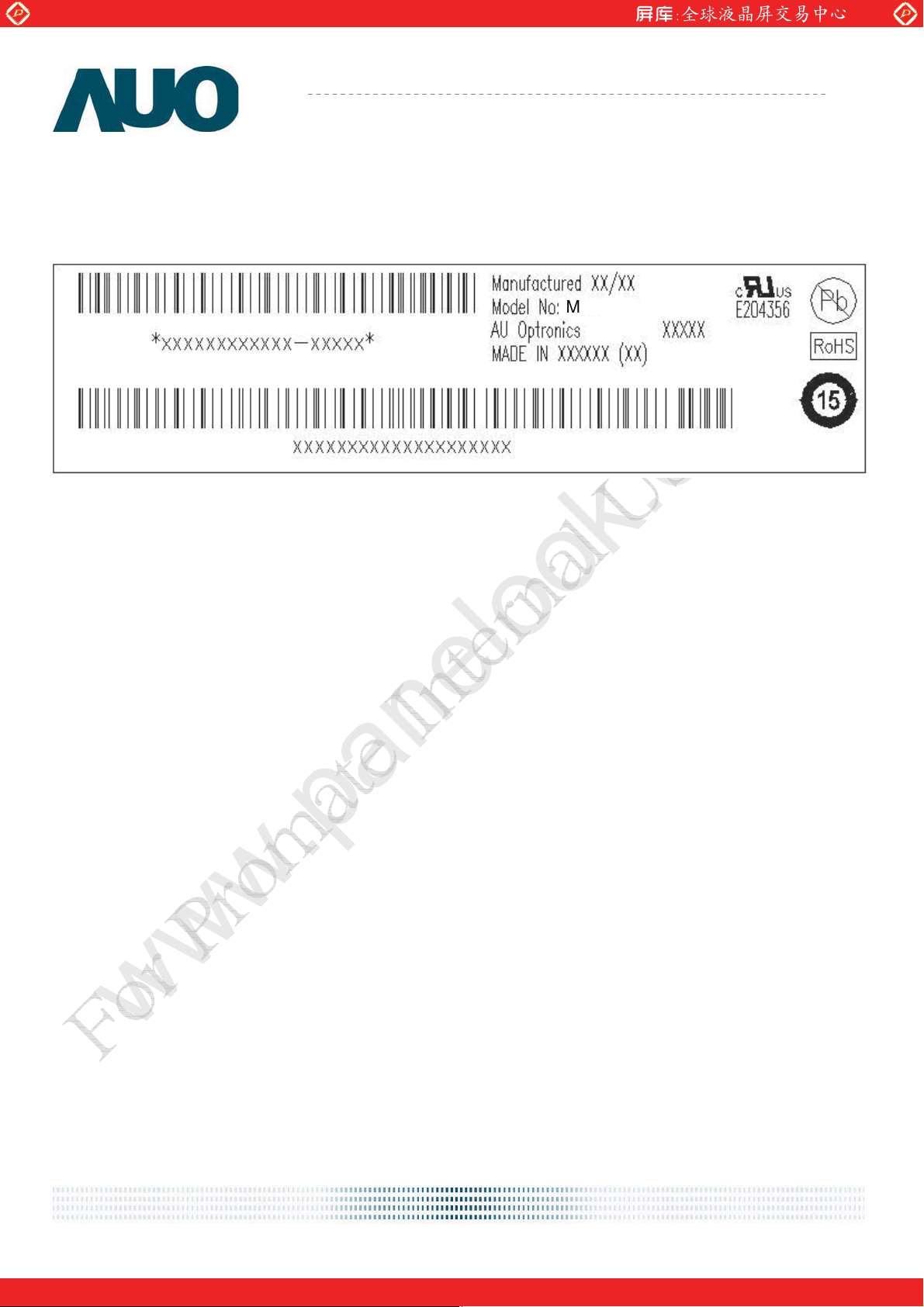

9. Shipping Label....................................................................................................................... 16

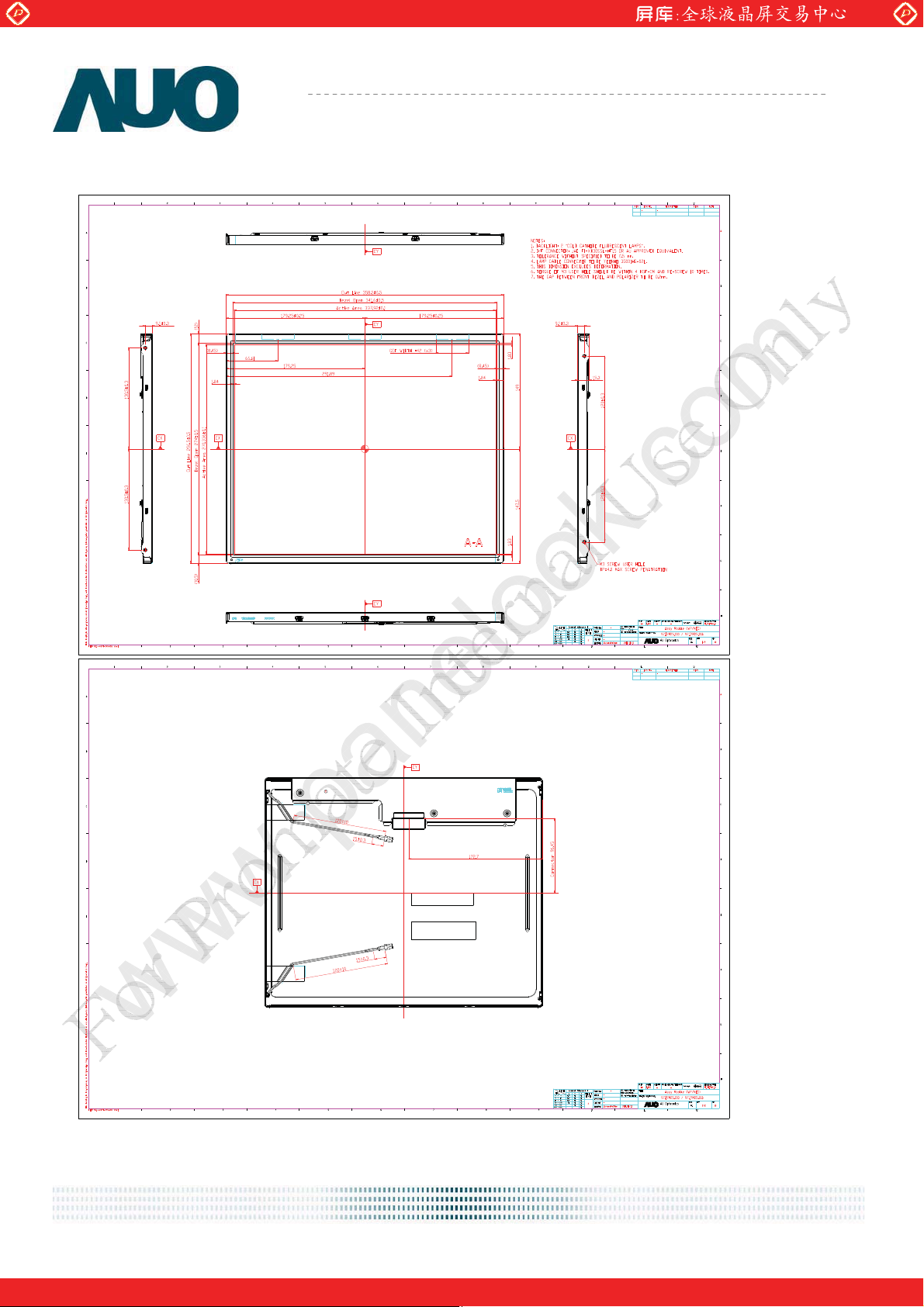

10. Mechanical Characteristics ................................................................................................ 16
document version 0.1 2/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
Record of Revision
Version and
Date
$OO )LUVW(GLWLRQIRU&XVWRPHU $OO
Page Old description New Description Remark
document version 0.1 3/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
15) 3OHDVHDYRLGWRXFKLQJ&2)SRVLWLRQZKLOH\RXDUHGRLQJPHFKDQLFDOGHVLJQ
document version 0.1 4/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
2. General Description
This specification applies to the 17 inch Color TFT-LCD Module M170ETN01 V0.
The display supports the SXGA+ (1280(H) x 1024(V)) screen format and 16.7M colors (RGB 6-bits+Hi-RFC
data).All input signals are 2 Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
Screen Diagonal [mm] 432 (17.0”)
Active Area [mm] 337.920(H) × 270.336(V)
Pixels H x V 1280 × 3(RGB) × 1024
Pixel Pitch [mm] 0.264(per one triad) × 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 250 (center,Typ)@7.5 mA
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] 5 (Typ)
Nominal Input Voltage VDD [Volt] +5.0 (Typ)
Power Consumption
(VDD line + CCFL line)
[Watt]
12.55W => (Typ.)
(without inverter, all black pattern)
Weight [Grams] 1990 Typ.
Physical Size (H x V x D) [mm] 358.5(H) x 296.5(V) Typ. x 15.8(D) Max.
Electrical Interface Dual Channel LVDS
Surface Treatment Anti-glare type, Hardness 3H
Support Color 16.7M colors (RGB 6-bits +Hi-FRC data)
Temperature Range
Operating
Storage (Non-Operating)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
Digital Gamma turn on Compliance
TCO5.0 Compliance
document version 0.1 5/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2.2 Optical Characteristics
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - 3.5 6
Optical Response Time [msec]
Falling - 1.5 3
Rising + Falling - 5 9
140 170 -
1
140 160 -
4, 6
Red x 0.623 0.653 0.683
Red y 0.298 0.328 0.358
Green x 0.273 0.303 0.333
Color / Chromaticity
Coordinates
(CIE 1931)
Green y 0.578 0.608 0.638
4
Blue x 0.114 0.144 0.174
Blue y 0.034 0.064 0.094
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
White Luminance
(At CCFL= 7.5mA)
[cd/m2 ]
200 250 - 4
Contrast Ratio 600 1000 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
7
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
document version 0.1 6/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

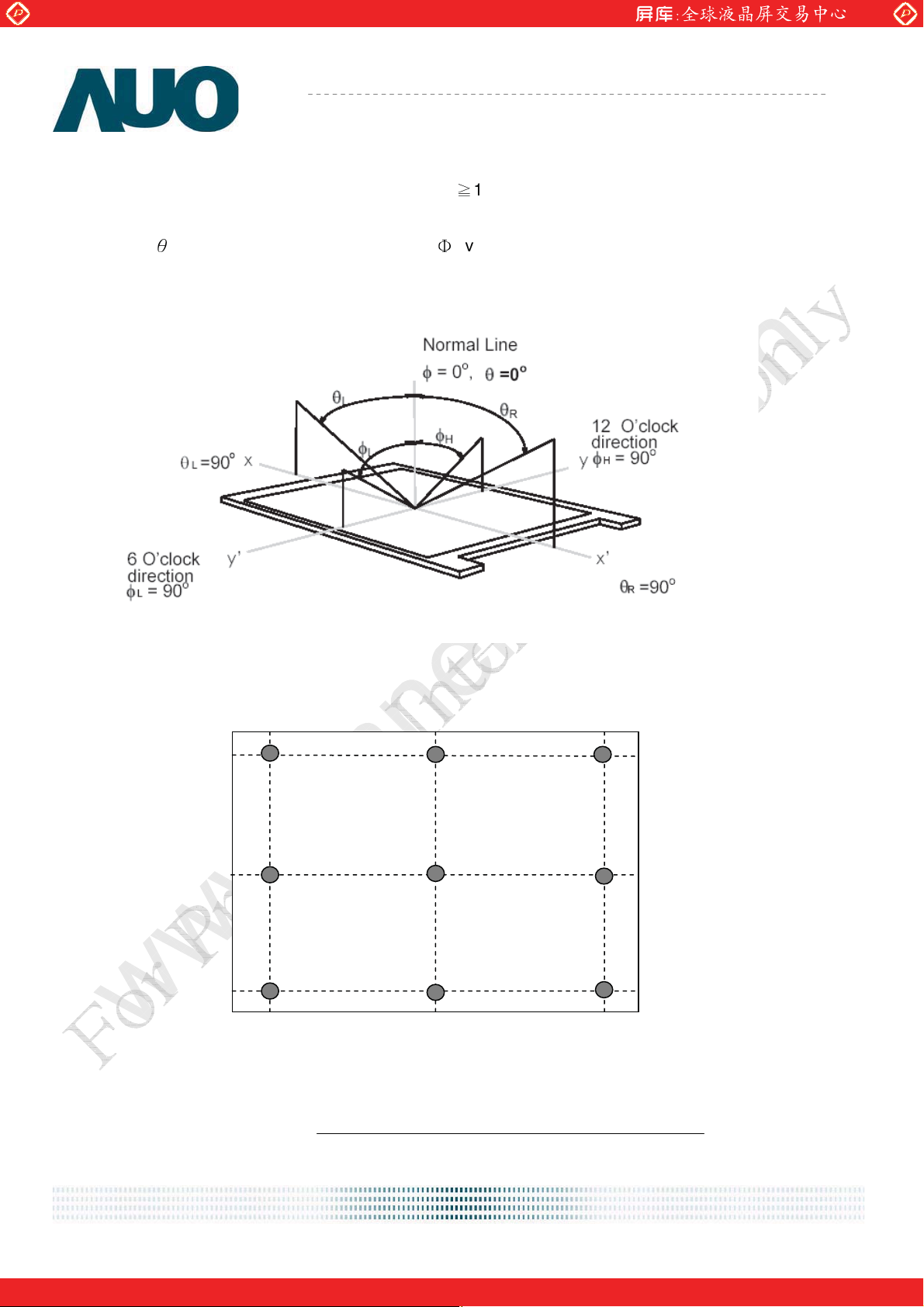

Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio
and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as
Ӱ
follows; 90° (
measurement direction is typically perpendicular to the display surface with the screen rotated about its
center to develop the desired measurement viewing angle.
) horizontal left and right and 90° (ӥ) vertical, high (up) and low (down). The
Њ
10, at the screen center, over a 180° horizontal
M170ETN01 V0
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
document version 0.1 7/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0

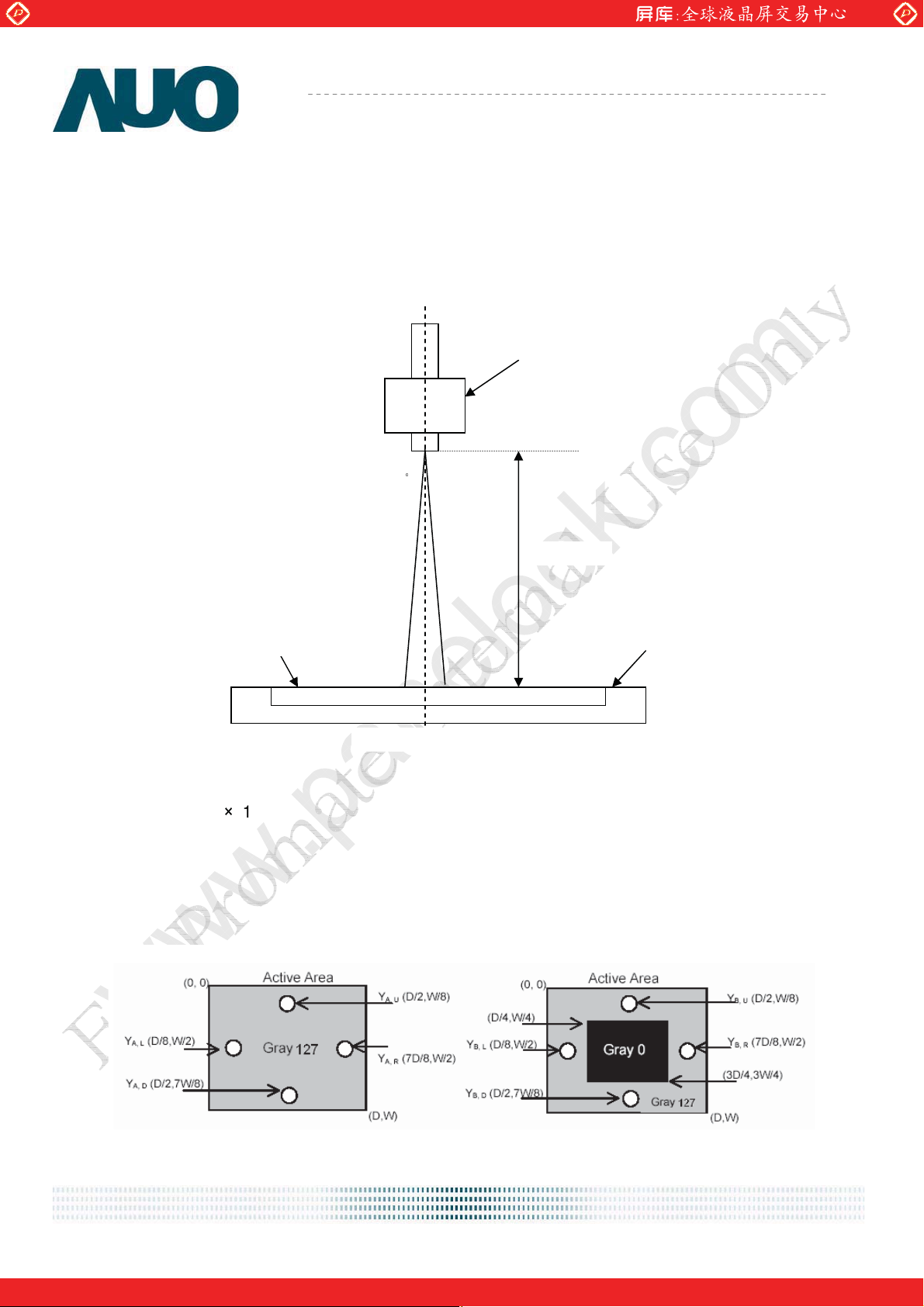

Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room.
ʳ
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
100 (%)
Center of the screen
TFT-LCD Module
document version 0.1 8/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0

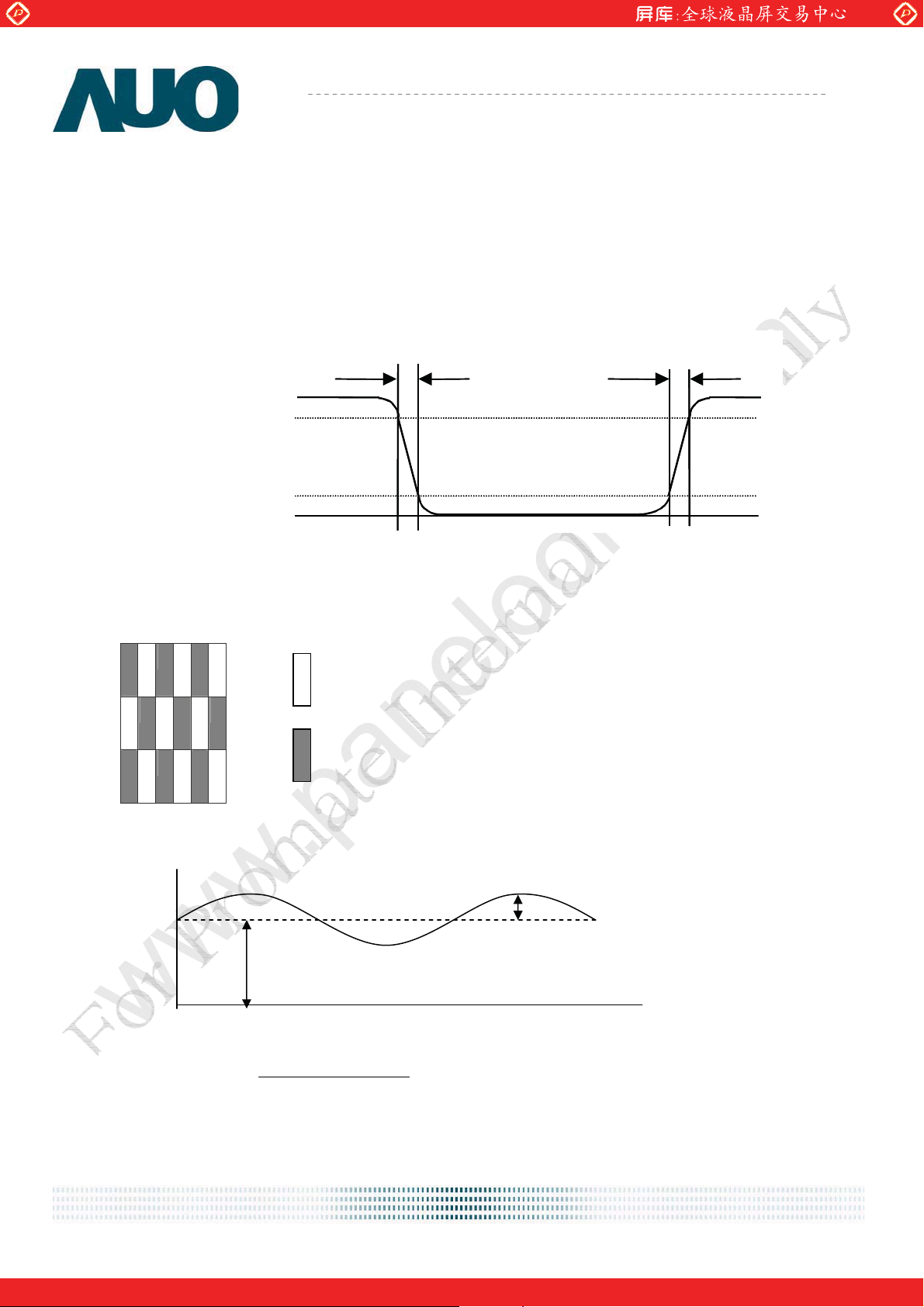

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black ”(falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
F
F
Black
Black
Tr
Tr
R
R
White
White
Note 7: Subchecker Pattern
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Gray Level = L0
AC
Time
log20(dB)Flicker =
Hz) 30Level(at AC
Level DC
document version 0.1 9/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION

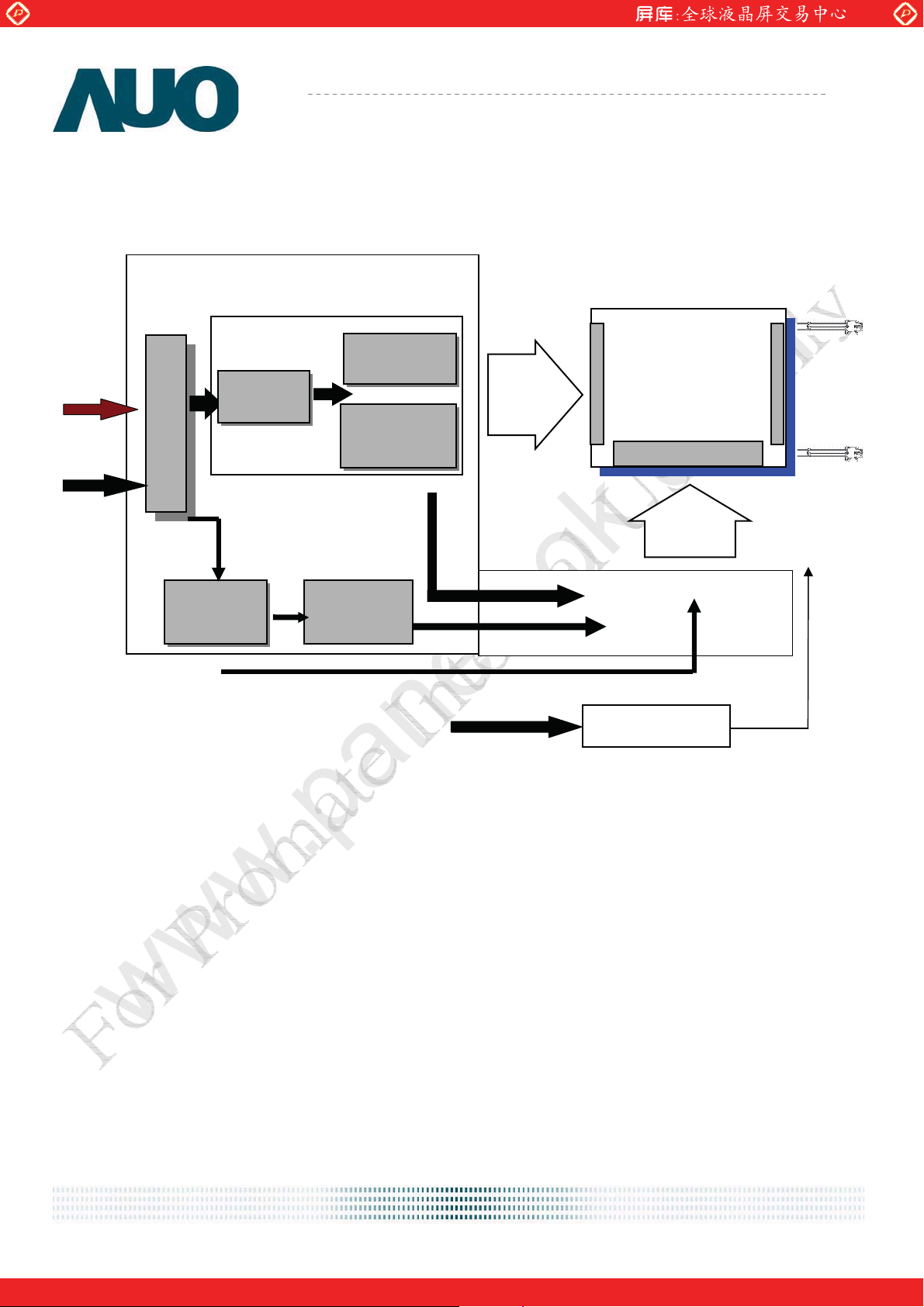

3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
DC/DC
Converter
AU ASIC
LVDS
Timing
Controller
Mini-LVDS
Transmitter
Gamma
Correction
G1024
DC POWER
TFT-LCD
1280*(3)*1024
Pixels
G1
D1 D3840
2 CCFL
Inverte
I/F PCB Interface: CCFL Connector:
JAE FI-XB30SSLA-HF15 YEONHO 35001HS-02L
P-TWO 187034-30091 CVILUX CP0502SL090
STM MSBKT2407P30HB
Mating Type:
FI-X30HL (Locked Type)
FI-X30H (Unlocked Type)
document version 0.1 10/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VIN -0.3 6 [Volt] Note 1,2
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL - 8 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Note 3
Storage Humidity HST 5 90 [%RH]
Note 1: With in Ta (25к )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3:
For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Operating Range
document version 0.1 11/16
Storage Range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symbol Parameter Min Typ Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
IDD Input Current
PDD
VDD Power
4.5
-
-
5.0
0.47
0.59 0.71 VDD= 5.0V, All Black Pattern At 75Hz,
2.35 2.82
2.95 3.54 VDD= 5.0V, All Black Pattern At 75Hz
5.5
0.56
[Volt] +/-10%
[A] VDD= 5.0V, All Black Pattern At 60Hz,
[Watt] VDD= 5.0V, All Black Pattern At 60Hz
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
Note: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
-
-
C3
0.01uF/25V
- TBD [A]
Note 1
- 500 [mV] p-p VDD= 5.0V, All Black Pattern At 75Hz
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
G
Q3
AO6402
F1
VCC
(LCD Module Input)
C1
1uF/16V
90%
5.0V
document version 0.1 12/16
VDD rising time
0V
10%
0.5ms
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
֥
VID֥ Input Differential Voltage 100 400 600 [mV] Note
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV]
-100 - - [mV]
+1.0 +1.2 +1.5 [V]
VICM = 1.2V
Note
VICM = 1.2V
Note
VTH-VTL = 200mV(min)
Note
Note: LVDS Signal Waveform
document version 0.1 13/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Parameter Min. Typ. Max. Unit Condition
CCFL standard current(ISCFL) 7 7.5 8 [mA] rms
CCFL Operation Current (IRCFL) 3 7.5 8 [mA] rms
CCFL Frequency (FCFL) 40 60 80 [KHz]
CCFL Ignition Voltage (ViCFL, Ta= 0к)
CCFL Ignition Voltage (ViCF, Ta= 25к)
CCFL Operation Voltage (VCFL)
1560 -
1200 -
580
@ 7.5mA
630
@ 7.5mA
ʳ
[Volt] rms
ʳ
[Volt] rms
680
@ 7.5mA
[Volt] rms
CCFL Power Consumption (PCFL) 8.7 9.45 10.2 [Watt]
(Ta=25
(Ta=25
(Ta=25
(Ta=0
(Ta=25
(Ta=25
(Ta=25
CCFL Life Time (LTCFL) 50,000 - - [Hour] (Ta=25oC)
o
C) Note 2
o
C) Note 2
o
C) Note 3,4
o
C) Note 5
o
C) Note 5
o
C) Note 6
o
C) Note 6
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 3mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,560
voltage. Lamp units need 1,560 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
2= PCFL)
Note 7:Definition of Life time: Brightness becomes 50%. The typical life time CCFL in on the condition at 7.5
m A lamp current.
document version 0.1 14/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
VW/LQH
5 * % 5 * %
5 * % 5 * %
5 * % 5 * %
WK/LQH
6.2 The Input Data Format
5 * % 5 * %
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
document version 0.1 15/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
(
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxO2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 GND Power Ground
8 RxOC- Negative LVDS differential clock input (Odd clock)
9 RxOC+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Power Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxEC- Negative LVDS differential clock input (Even clock)
21 RxEC+ Positive LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 GND Power Ground
26 NC No contact
27 GND Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 0.1 16/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
For AUO test Aging+HVS mode )
www.panelook.com
Page 17
Global LCD Panel Exchange Center
RxO
IN
0
CC
www.panelook.com
Note1: Start from left side
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
Connector
30
V
-
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
document version 0.1 17/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
6.4 Timing Characteristics
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 1024 1024 1024 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Horizontal
Active Tdisp(h) 640 640 640 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk 14.81 18.52 25 ns
Clock
Frequency Freq 40 54
1032
8
780
140
1066
42
1150
126
844 2048 Tclk
204 1408 Tclk
67.5
Th
Th
MHz
Frame rate Frame rate F
Note : DE mode only
50
60
75
Hz
document version 0.1 18/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

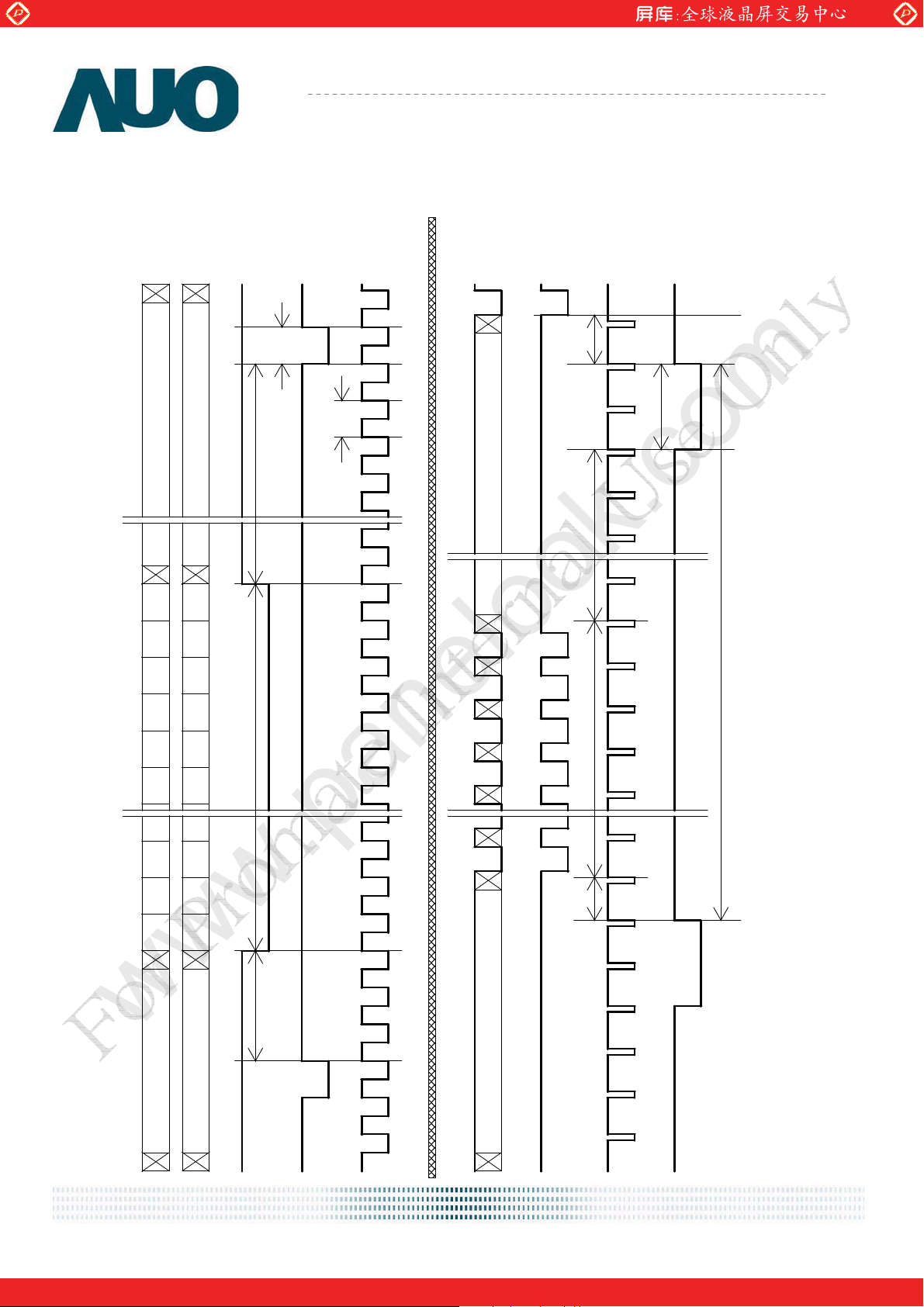

6.4.2 Timing Digram
5*%'DWD
(YHQ
5*%'DWD
2GG
,QYDOLG'DWD
,QYDOLG'DWD
Product Specification
M170ETN01 V0
AU OPTRONICS CORPORATION
5*%'DWD
'(
/LQH /LQH /LQH /LQH /LQH /LQH
1
,QYDOLG'DWD
+V\QF
7ISY
7ESY
9V\QF
3:YV
'(
7ESK
+V\QF
3:KV
&/.
7FON
3L[HO
3L[HO
3L[HO 3L[HO
3L[HO
0
3L[HO
0
3L[HO 3L[HO 3L[HO 3L[HO 3L[HO 3L[HO
0
0
0
0
,QYDOLG'DWD
7GLVSK
3L[HO3L[HO3L[HO3L[HO
3L[HO3L[HO
7ISK
,QYDOLG'DWD
7Y
7GLVSY
1
7K
,QYDOLG'DWD
document version 0.1 19/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
Power Supply VDD
LVDS Signal
LVDS Signal
Backlight On
Backlight On
0V
0V
10%
10%
T1
T1
90%
90%
T2
T2
VALID
VALID
DATA
DATA
T3
T3
Power Sequence Timing
T4
T4
90%
90%
T5
T5
Note
Note
10%
10%
T6
T6
Parameter
Unit
Min. Typ. Max.
Value
T1
T2
T3
T4
T5
T6
0.5 10 0.5
0 50 0
500 - 500
200 - 200
40 - 40
1000 - 1000
Note: The values of the table are follow PSWG.
document version 0.1 20/16
[ms]
[ms]
[ms]
[ms]
[ms]
[ms]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE / P-TWO / STM
Type Part Number
Mating Housing Part Number JAE FI-X30HL
FI-XB30SSLA-HF15/187034-3009/
MSBKT2407P30HB
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
GND
GND
8 RxOCLKIN-
GND
18 RxEIN2-
GND
7
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14
15 RxEIN1- 16 RxEIN1+
17
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24
25 GND (AGMODE+HVS) 26 NC
27 GND 28 VCC
29 VCC 30 VCC
document version 0.1 21/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170ETN01 V0
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer YEONHO or CVILUX
Type Part Number
Mating Type Part Number
35001HS-02L or CP0502SL090
35001WR-02L or CP0502P1ML0
7.2.1 Signal for Lamp connector
ʳ
Connector No. Pin No. Input Color Function
1 Hot1 Pink
Upper CN1
2 Cold1 White
ʳ
Connector No. Pin No. Input Color Function
1 Hot1 Pink
Lower CN2
2 Cold1 White
High Voltage (Lamp 1)
Low Voltage (Lamp 1)
High Voltage (Lamp 2)
Low Voltage (Lamp 2)
document version 0.1 22/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50 , к80%RH, 300hours
High Temperature Operation (HTO) Ta= 50 , к50%RH, 300hours
Low Temperature Operation (LTO) Ta= 0 , 300hoursк
High Temperature Storage (HTS) Ta= 60 , 300hoursк
Low Temperature Storage (LTS) Ta= -20 , 300hoursк
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction:
X,ʳY,ʳ
Z (one time for each Axis)
M170ETN01 V0
Note
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20к/30min, 60к/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330ȍ ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
2
Air Discharge: ± 15KV, 150pF(330ȍ ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
˃к
to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
-2
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 0.1 23/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label
The shipping label format is shown as below.
M170ETN01 V0
M170ETN01 V0
ʳ
document version 0.1 24/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristics
M170ETN01 V0
document version 0.1 25/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
