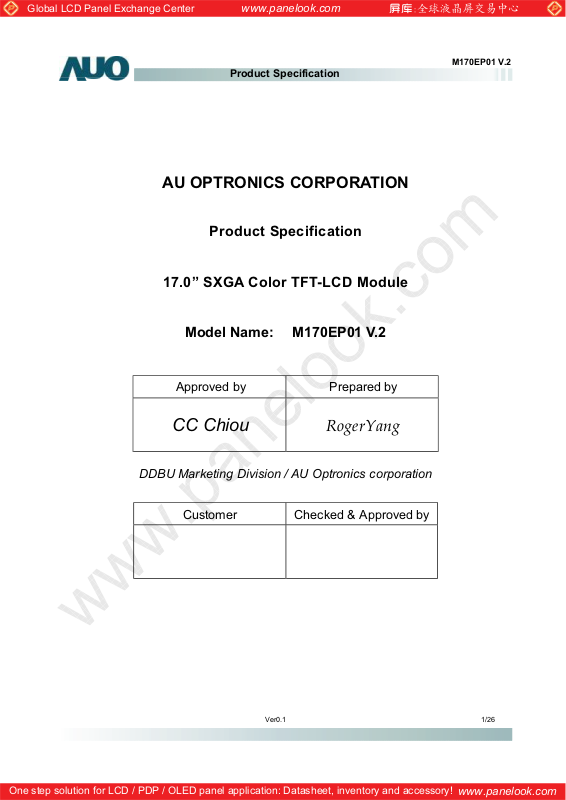

17.0” SXGA Color TFT-LCD Module
www.panelook.com
M170EP01 V.2
Product Specification
Product Specification
Model Name: M170EP01 V.2
Approved by Prepared by
CC Chiou
DDBU Marketing Division / AU Optronics corporation
Customer Checked & Approved by
RogerYang
Ver0.1 1/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
M170EP01 V.2
Product Specification
Page intentionally left blank.
Ver0.1 2/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
M170EP01 V.2
Product Specification
Product Specification
17.0” SXGA Color TFT-LCD Module
Model Name: M170EP01
V.2
() Preliminary Specifications
(…) Final Specifications
Note: This Specification is subject to change without notice.
Ver0.1 3/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
M170EP01 V.2
Product Specification
Page intentionally left blank.
Ver0.1 7/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2.0 General Description ............................................................ 13
2.1 Display Characteristics..................................................................................................... 13
2.2 Functional Block Diagram ................................................................................................. 14
2.3 Optical Characteristics ..................................................................................................... 15
2.4 Pixel format image.......................................................................................................... 17
3.0 Electrical characteristics ..................................................... 18
3.1 Absolute Maximum Ratings ............................................................................................... 18
3.2 Connectors .................................................................................................................. 19
3.3 Pin Assignment ............................................................................................................. 20
3.4 Signal Description .......................................................................................................... 21
3.5 Signal Electrical Characteristics .......................................................................................... 24
3.6 Interface Timings ........................................................................................................... 24
3.6.1 Timing Characteristics ........................................................................................... 24
3.6.2 Definition of terms ................................................................................................ 25
3.8 Power ON/OFF Sequence ................................................................................................ 27
4.0 Backlight Characteristics .................................................... 29
www.panelook.com
M170EP01 V.2
Product Specification
Contents
4.1 Signal for Lamp connector ................................................................................................ 29
4.2 Parameter guideline for CCFL Inverter.................................................................................. 29
5.0 Vibration, Shock, and Drop ................................................. 31
5.1 Vibration & Shock........................................................................................................... 31
5.2 Drop test ..................................................................................................................... 31
6.0 Environment ....................................................................... 32
6.1 Temperature and Humidity................................................................................................ 32
6.1.1 Operating Conditions ............................................................................................. 32
6.1.2 Shipping Conditions .............................................................................................. 32
6.2 Atmospheric Pressure ..................................................................................................... 32
6.3 Thermal Shock .............................................................................................................. 32
7.0 Reliability............................................................................ 33
7.1 Failure Criteria .............................................................................................................. 33
7.2 Failure Rate.................................................................................................................. 33
7.2.1 Usage.................................................................................................................. 33
8.0 Safety ................................................................................. 34
8.1 Sharp Edge Requirements ................................................................................................ 34
8.2 Materials ..................................................................................................................... 34
8.2.1 Toxicity ............................................................................................................... 34
8.2.2 Flammability ........................................................................................................ 34
8.3 Capacitors ................................................................................................................... 34
9.0 Other requirement .............................................................. 35
Ver0.1 8/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
M170EP01 V.2
Product Specification
9.1 National Test Lab Requirement
9.2 Label
.......................................................................................................................... 35
.......................................................................................... 35
10.0 Mechanical Characteristics................................................ 36
Ver0.1 9/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
Version and Date Page Old description New Description Remark
0.1 4/26/2005 All First Edition for Customer All
www.panelook.com
M170EP01 V.2
Product Specification
Record of Revision
Ver0.1 10/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
M170EP01 V.2
Product Specification
Page intentionally left blank.
Ver0.1 11/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
1.0 Handling Precautions
1) Do not scratch the front polarier of panel. The front polarier is easily damaged
2) Be sure to turn off power supply when inserting and disconnecting from input connector.
3) Wipe off water drop immediately. Contacted with water in a long time may cause discoloration or spots.
4) Use absorbent cotton or other kind of soft cloth to wipe when the panel is dusty.
5) Do not drop it on hard surface. The face of panel is fragile
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
www.panelook.com
M170EP01 V.2
Product Specification
9) The TFT module will be damaged if the center of the CCFL reflector is pressed heavily.
10) Keep the connector interface straight during the period of inserting and disconnecting it.
11) Do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise the TFT
module may be damaged.
Ver0.1 12/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
2.0 General Description
This specification applies to the 17.0 inch Color TFT/LCD Module M170EP01 V0.
This module is designed for a display unit of personal computer.
The display supports the SXGA (1280(H) x 1024(V)) screen format and 16.2M colors (RGB 6-bits + FRC data).
The input signal is Analog RGB interface compatible, DVI interface optional.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 432(17.0")
Active Area [mm] 337.920 (H) x 270.336(V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.264 (per one triad) x 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 300 (Typ)
Contrast Ratio 500:1(Typ)
Optical Rise Time/Fall Time [msec] 8 (Typ)
Input Voltage Required (VDD) [Volt] Min Typical Max
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 2000 (Typ)
Physical Size [mm]
Electrical Interface VESA standard Analog RGB (DVI 1.0 optional)
Support Color 16.2M colors (RGB 6-bit + FRC data)
Plug & Play VESA DDC1/2B/2Bi/2B+/CI
Compability PC/MAC
Maximum Firmware Code Size [bite] 64K
Max. Pixel Clock [MHz]
White Point (CIE x,y) (0.313,0.329) +/-0.02
Auto Adjustment Yes
OSD function
Temperature Range
Operating
Storage (Shipping)
TC0-03 Compliance TC0’03 Compliance
www.panelook.com
Product Specification
1
2
4.8 5.0 5.2
[Watt] 27 W(Typ) 0.5W (stand by)
(PDD=7 W, PCFL=20 W @Lamp=7.5mA)
Min. Typ. Max.
Horizatal(H) 358 358.5 359.0
Vertical(V) 296 296.5 297
Depth(D) 19.5 20 20.5
Analog: 140MHz
Digital: 135MHz (optional)
3
o
[
C]
o
C]
[
0 to +50
-20 to +60
4
M170EP01 V.2
3
1
at 7.5 mA
2
normal direction
3
with AUO standard firmware
4
AUO standard power module & firmware
Ver0.1 13/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
2.2 Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT/LCD Module:
www.panelook.com
M170EP01 V.2
Product Specification
Ver0.1 14/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center

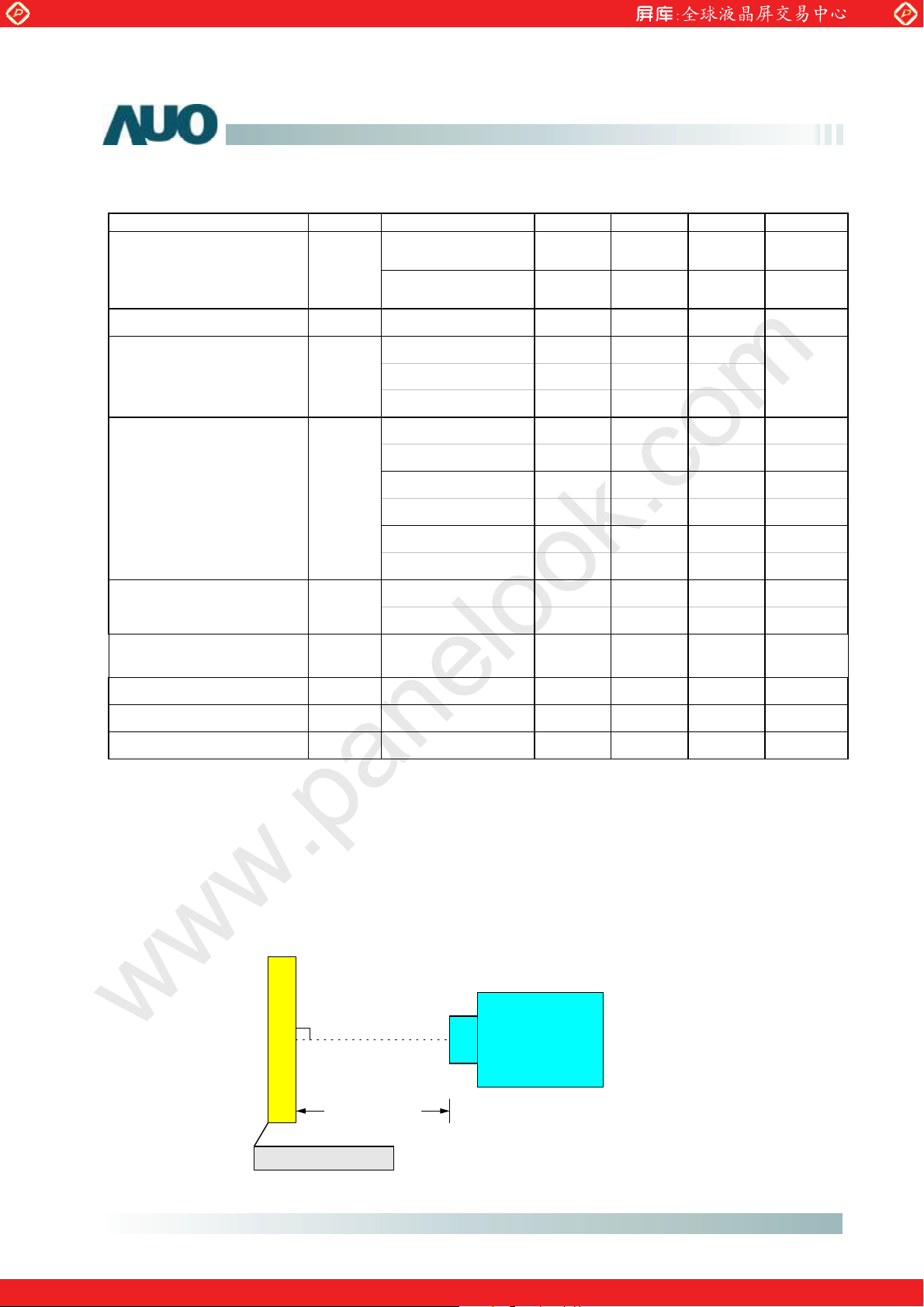

2.3 Optical Characteristics
The optical characteristics are measured under stable conditions at 25(Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle [degree]
Contrast ratio Normal Direction 250 450
Response Time [msec]
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE)
White
White Luminance @ CCFL
7.5mA (center)
[cd/m
www.panelook.com
Product Specification
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Raising Time
Falling Time
Raising + Falling
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
2
]
M170EP01 V.2
60
60
60
50
-
-24
-813
0.61 0.64 0.67
0.31 0.34 0.37
0.26 0.29 0.32
0.58 0.61 0.64
0.11 0.14 0.17
0.04 0.07 0.10
0.28 0.31 0.34
0.30 0.33 0.36
250 300 Note 2
70
70
70
60
69
-
-
-
Note 1
Luminance Uniformity
Crosstalk (in 75Hz)
Flicker
Equipment: Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter
(PR 880, BM-5A / BM7)
Aperture 1with 100cm VD or 2with 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
[%] 75 80 Note 3
[%] 1.5 Note 4
dB -20
LCD Module
PR-880 /
BM5A /
BM7
measuring distance
Module Driving Equipment
Ver0.1 15/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center

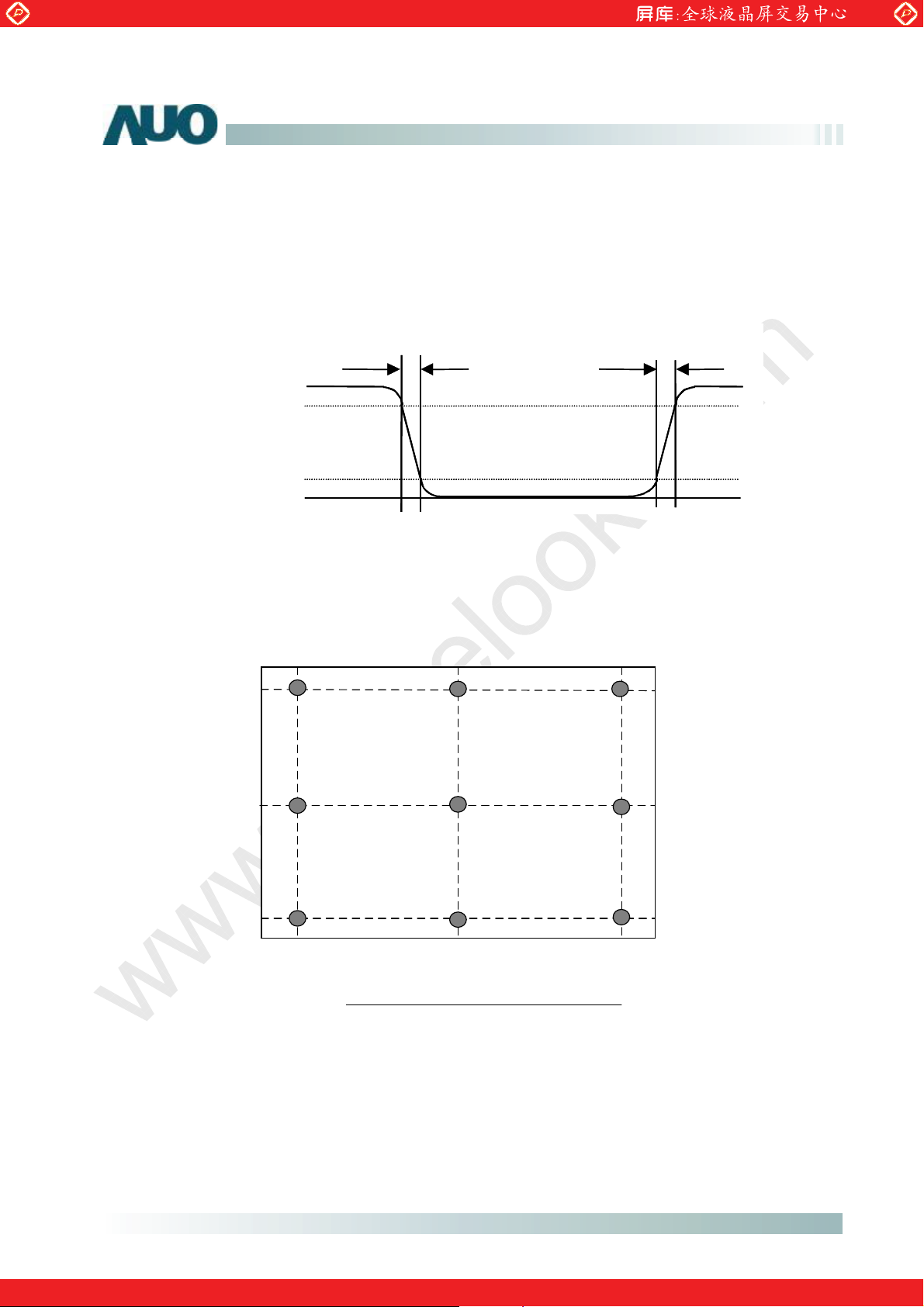

Note 1: Definition of Response time
The output signals of photodetector are measured when the input signals are changed from “Black” to “White”
(rising time), and from “W hite” to “Black ”(falling time), respectively. The response time is interval between the
10% and 90% of amplitudes.
%
%
100
100
90
90
Optical
Optical
response
response
10
10
0
0
Note 2: Definition of center brightness
The brightness of center is measured at 30mins when opening lamp.
www.panelook.com
Product Specification
Tr
Tr
F
F
White Black White
White Black White
Tr
Tr
R
R
M170EP01 V.2
Note 3: Brightness uniformity of these 9 points is defined as below
90 %
50 %
Uniformity =
10 %
10 %
50 %
90 %
9)-(1points9inLuminanceMinimum
9)-(1Points9inLuminanceMaximum
Ver0.1 16/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
A
A

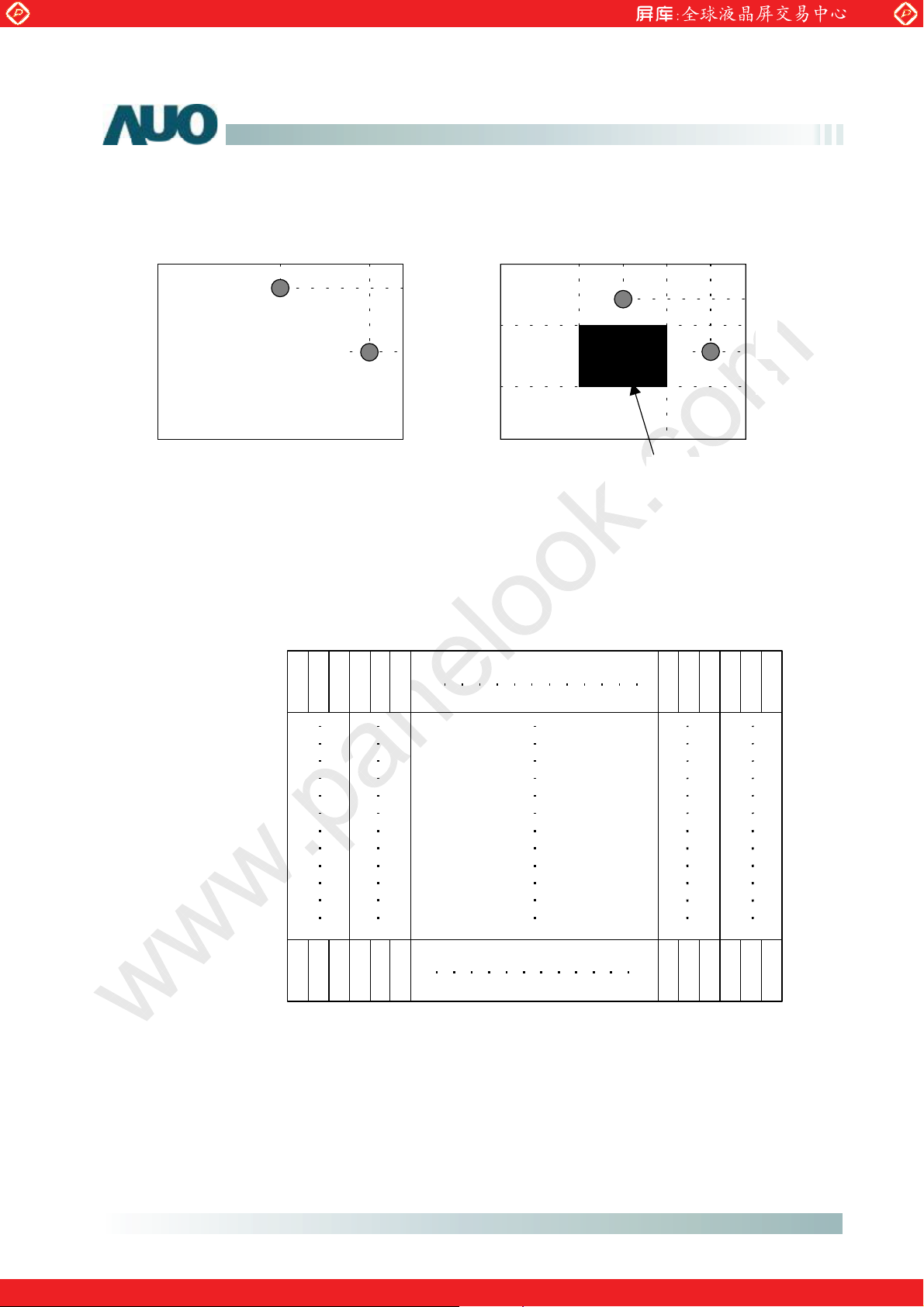

Note 4:
1/2
www.panelook.com
Product Specification
1/6
1/2
2/3 1/3
M170EP01 V.2
1/6
B
184 gray level 184 gray level
Unit: percentage of dimension of display area
l / LAx 100%= 1.5% max., LA and LB are brightness at location A and B
l L
A-LA’
l L
l / LBx 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’
B-LB’
1/6
1/2
’
2.4 Pixel format image
Following figure shows the relationship of the input signals and LCD pixel format.
1 2 1279 1280
1st Line
R G B R G B
B’
0 gray level
R G B R G B
1/6
1/3
1/2
2/3
1024th
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
R G B R G B
Ver0.1 17/26
R G B R G B
www.panelook.com
Page 15
Global LCD Panel Exchange Center
3.0 Electrical characteristics

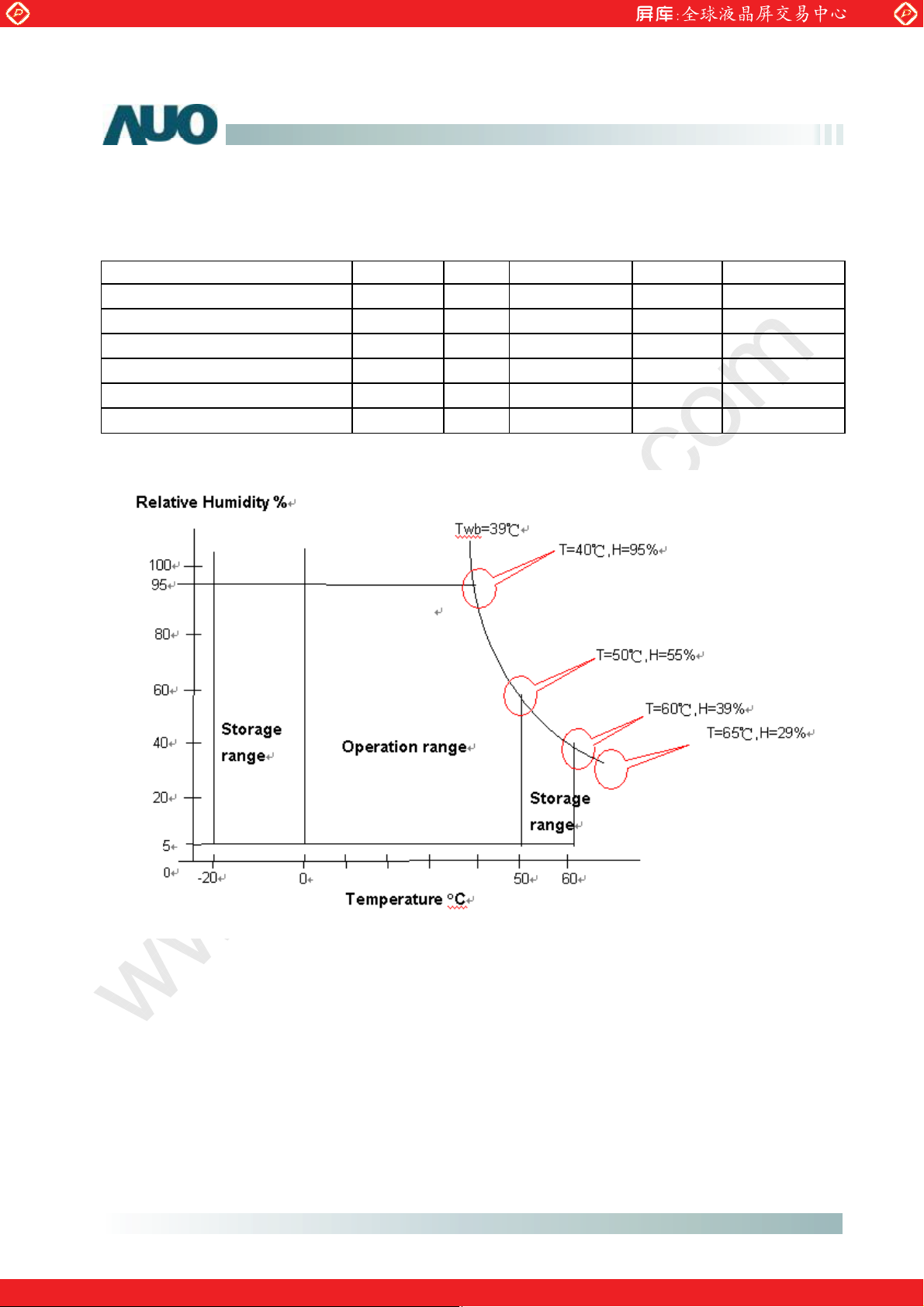

3.1 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VIN +4.5 +5.5 [Volt]
CCFL Current ICFL - 8.5 [mA] rms
Operating Temperature TOP 0 +50 [oC]
Operating Humidity HOP 8 95 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST 8 95 [%RH]
Note : Maximum Wet-Bulb should be 39
www.panelook.com
Product Specification
and No condensation.
M170EP01 V.2
Note
Note
Note
Note
Ver0.1 18/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
3.2 Connectors
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
www.panelook.com
M170EP01 V.2
Product Specification
Connector Name / Designation
Manufacturer
Type Part Number
Mating Housing Part Number
Connector Name / Designation
Manufacturer
Type Part Number
Mating Housing Part Number
Connector Name / Designation
Manufacturer
Type Part Number
Mating Housing Part Number
Power Connector (J1)
STM or compatiable
STM MS242612R
STM P242612
OSD Connector (J4)
STM or compatiable
STM MS242613R
STM PS242613
VGA Connector (J2)
STM or compatiable
STM MS242614R
STM P242614R
Connector Name / Designation
Manufacturer
Type Part Number
Mating Housing Part Number
Connector Name / Designation
Manufacturer
Type Part Number
Mating Type Part Number
DVI Connector (optional)
STM or compatiable
STM MDS240315
STM PDS240315
Lamp Connector / Backlight lamp
JST
BHSR-02VS-1
SM02(4.0)B-BHS-1-TB
Ver0.1 19/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
3.3 Pin Assignment
VGA connector
Pin # Signal Name Pin # Signal Name
1 GND 2 VS
3 HS 4 GNDB
5 BIN 6 GNDG
7 GIN 8 GNDR
9 RIN 10 GND
11 SDA 12 SCL
13 PC5V 14 VGA_CON
Power connector
Pin # Signal Name Pin # Signal Name
1 VCC 2 VCC
3 GND 4 GND
5 NC 6 GND
7 BKLT_ADJ 8 BKLT_EN
9 AUDIO _EN 10 MUTE
11 VOLUME 12 GND
www.panelook.com
M170EP01 V.2
Product Specification
OSD connector
Pin # Signal Name Pin # Signal Name
1 GND 2 SOURCE
3 SELECT 4 LED_G
5 LED_A 6 UP
7 DOWN 8 MINUS
9 PLUS 10 MENU
11 Power 12 NC
13 GND
DVI connector (optional)
Pin # Signal Name Pin # Signal Name
1 GND 2 GND
3 RX2+ 4 DVI_5V
5 RX2- 6 HPD
7 GND 8 GND
9 RX1+ 10 SDA
11 RX1- 12 SCL
13 GND 14 GND
15 RX0+ 16 NC
17 RX0- 18 NC
19 GND 20 GND
21 RXC+ 22 DVI_CON
23 RXC- 24 GND
25 GND 26 NC
27 NC 28 GND
29 GND 30 NC
Ver0.1 20/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
3.4 Signal Description
The module using analog RGB signal format (DVI optional). The signal description is listed as following table
VGA connector (J2)
Pin# Sugnal Name Description
1 GND Ground
2 VS Vsync input from VGA host
3 HS Hsync input from VGA host
4 GNDB Ground for the video blue signal
5 BIN Video blue signal
6 GNDG Ground for the video green signal
7 GIN Video green signal
8 GNDR Ground for the video red signal
9 RIN Video red signal
10 GND Ground
11 SDA Data signal for the DDC2B
12 SCL Clock signal for the DDC2B
13 PC5V DC 5V from the PC host
14 VGA_CON Video cable connected detect signal(host connect this pin to ground)
www.panelook.com
M170EP01 V.2
Product Specification
Power connector (J1)
Pin# Sugnal Name Description
1 VCC DC 5V
2 VCC DC 5V
3 GND Ground
4 GND Ground
5NCNC
6 GND Ground
7 BKLT_ADJ Light adjust for the DC/AC inverter(PWM)
8 BKLT_EN Enable for the DC/AC inverter
9 AUDIO _EN Enable audio power control signal
10 MUTE Mute audio
11 VOLUME Adjust audio volume(PWM)
12 GND Ground
OSD connector (J4)
Pin# Sugnal Name Description
1 GND Ground
2 SOURCE OSD item source function.
3 SELECT OSD item select function.
4 LED_G LED Green for the full mode.
5 LED_A LED Amber for the sleep mode.
6 UP OSD up selection function.
7 DOWN OSD down selection function.
8 MINUS OSD minus selection function.
9 PLUS OSD plus selection function.
10 MENU OSD menu on/off function.
11 Power Power on/off function.
NC
12
13 GND Ground
Ver0.1 21/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
DVI interface (J3 optional)
Pin# Sugnal Name Description
1 GND Ground
2 GND Ground
3 RX2+ TMDS RX2+ signal
4 DVI_5V DC 5V from the PC host
5 RX2- TMDS RX2- signal
6 HPD Host detect for the DVI
7 GND Ground
8 GND Ground
9 RX1+ TMDS RX1+ signal
10 SDA Data signal for the DDC2B
11 RX1- TMDS RX1- signal
12 SCL Clock signal for the DDC2B
13 GND Ground
14 GND Ground
15 RX0+ TMDS RX0+ signal
16 NC
17 RX0- TMDS RX0- signal
18 NC
19 GND Ground
20 GND Ground
21 RXC+ TMDS RXC+ signal
22 DVI_CON DVI cable connected detect
23 RXC- TMDS RXC- signal
24 GND Ground
25 GND Ground
26 NC
27 NC
28 GND Ground
29 GND Ground
30 NC
www.panelook.com
M170EP01 V.2
Product Specification
Ver0.1 22/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
The input data format is followed the VESA Vedio Signal Standard. In each RGB termination is described as following
table
Max Luminance Voltage Input Data = (FFh) 0.700 Volts +0.070 /-0.035 volts
Min Luminance voltage Input Data = (00h) 0.000 Volts
Video Channel Rise/Fall Time Max 25% of minimum pixel clock period
Maximum Settling Time after overshoot/undershoot
Monotonic Yes
Resolution 1 LSB
Integral Linearity Error +/- 1 LSB
Differential Linearity Error +/- 1 LSB
Video Channel to Video Channel Mismatch 6% of any video output voltage over the full voltage range
Video Noise injection ratio +/- 2.5 % of Max Luminance Voltage
Video Channel to Video Channel Output Skew 50% of minimum pixel clock period
Overshoot/Undershoot
www.panelook.com
M170EP01 V.2
Product Specification
Value
30% of minimum pixel clock period averaged over 100
waveforms to 5% final full-scale value.
+/-12% of step function voltage level over the full voltage
range
The Synchronization (Hsync and Vsync) Signal format is described as following table
Min Max
Driver Logic Level “1” 2.4 Volts 5.5 Volts
Driver Logic Level “0” 0.0 Volts 0.5 Vots
Driver High Level Output Current 8mA
Driver Low Level Output Current 8mA
Receiver Logic Level “1” 2.0 Volts
Receiver Logic Level “0” 0.8 Volts
Fall Time Max 80% of minimum pixel clock period
Rise Time Max 80% of minimum pixel clock period
Monotonic Rise/Fall Voltage range 0.5-2.4 Volts
30% of high level signal voltage range
Overshoot/Undershoot
Jitter (Measured between Hsync
pulses).
LSB Least Significant Bit
Monotonic
1. The property of either never increasing or never decreasing in reference to the slope of a Transient response. 2. A
constant slope value containing no inflection points.
Sync Synchronization Signals
No signal excursions allowed in the
0.5-2.4 volt voltage range
Over the frequency spectrum: One
half of the difference between the
maximum and minimum interval
between Hsync pulses measured over
100,000 intervals shall be less than
15% of the pixel clock, 0Hz to max.
horizontal refresh rate at all image
formats, worst-case screen patterns.
For more detail, please refer to VESA (Video Electronics Standards Association) Video Signal Standard.
Ver0.1 23/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
3.5 Signal Electrical Characteristics
VGA interface
Pin Name Type Min. Typ. Max. Unit
1 GND
2VS
3HS
4 GNDB
5 BIN 700 mV
6 GNDG
7 GIN 700 mV
8 GNDR
9 RIN 700 mV
10 GND
11 SDA
12 SCL
13 PC5V
14 VGA_CON
Please follow Mstar MST8116B SPEC.
www.panelook.com
M170EP01 V.2
Product Specification
High 2.5 VCC V
Low GND 0.8
High 2.5 VCC V
Low GND 0.8
High 3.5 VCC V
Low GND 0.8 V
High 3.5 VCC V
Low GND 0.8 V
OSD interface
Pin Name Type Min. Typ. Max. Unit
1 GND
2 SOURCE
3 SELECT
4 LED_G VCC
5 LED_A VCC
6UP
7 DOWN
8 MINUS
9 PLUS
10 MENU
11 Power
12 NC
13 GND
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
High 4 VCC V
Low 0 0.45 V
3.6 Interface Timings
The signal interface of the TFT module is analog RGB compatible
3.6.1 Timing Characteristics
The timings are supported by the signal interface of M170EP01 are listed as following table.
Ver0.1 24/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
Horizontal
Resolution
640x350 31.47(P) 70.08(N) 25.17 1280x943 DOS
720x400 31.47(N) 70.08(P) 28.32 1280x1024 DOS
640x480 31.47(N) 60.00(N) 25.18 1280x1024 DOS
640x480 35.00(N) 67.00(N) 30.24 1280x1024 Macintosh
640x480 37.86(N) 72.80(N) 31.5 1280x1024 VESA
640x480 37.50(N) 75.00(N) 31.5 1280x1024 VESA
800x600 37.88(P) 60.32(P) 40 1280x1024 VESA
800x600 48.08(P) 72.19(P) 50 1280x1024 VESA
800x600 46.86(P) 75.00(P) 49.5 1280x1024 VESA
832X624 49.72(N) 74.55(N) 57.29 1280x1024 Macintosh
1024x768 48.36(N) 60.00(N) 65 1280x1024 VESA
1024x768 56.48(N) 70.10(N) 75 1280x1024 VESA
1024x768 60.02(P) 75.00(P) 78.75 1280x1024 VESA
1024X768 60.24(N) 74.93(N) 80 1280x1024 Macintosh
1152x864 67.50(P) 75.00(P) 108 1280x1024 VESA
1152x870 68.68(N) 75.06(N) 100 1280x1024 Macintosh
1152x900 61.80(N) 66.00(N) 94.5 1280x1024 SUN 66
1152x900 71.81(N) 76.14(N) 108 1280x1024 SUN
1280x1024 64.00(P) 60.00(P) 108 1280x1024 VESA
1280x1024 75.83(N) 71.53(N) 128 1280x1024 IBM1
1280x1024 80.00(P) 75.00(P) 135 1280x1024 VESA
1280x1024 81.18(N) 76.16(N) 135.09 1280x1024 SPARC2
P”, “N” stands for “Positive”, “Negative” polarity of incoming H-sync/V-sync (input timing)
For each timming detail, please refer to individual video siganl standard.
Frequency
(KHz)
www.panelook.com
Product Specification
Vertical
Frequency
(Hz)
Dot Clock
(MHz)
M170EP01 V.2
Actually Display Resolution Remark

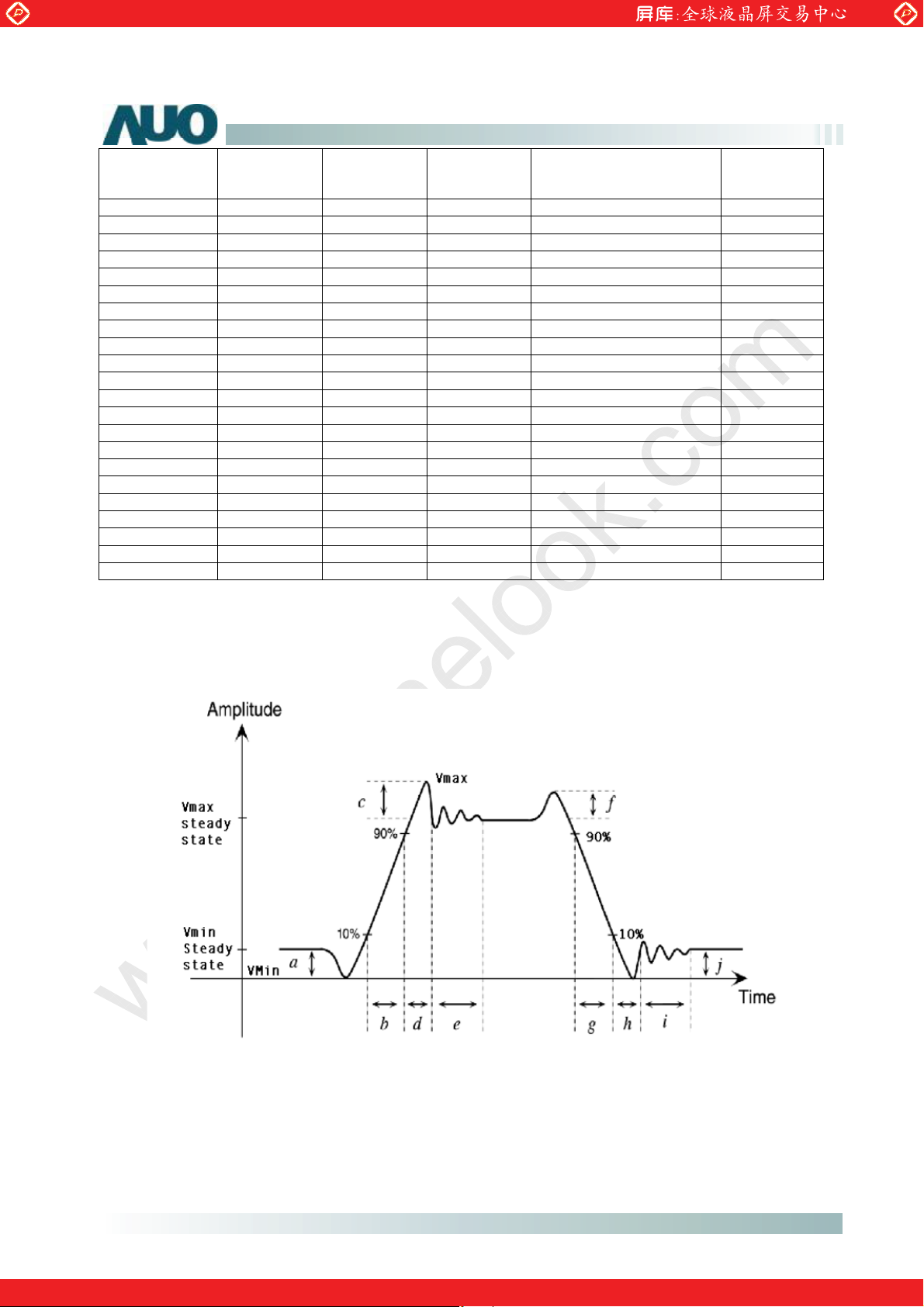

3.6.2 Definition of terms
Video Signal Definition
a) Vmin steady state Amplitude before transition
b) Video Rise Time Delta (t), (measured from the 10% to 90% points of Vmin Steady State to Vmax Steady State)
c) Overshoot Amplitude
d) Undefined
e) Settling Time - Measured from the end of the overshoot to the point where the amplitude of the video ringing is
down to +/- 5% of the final steady state value
Ver0.1 25/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
f) Undefined
g) Video Fall Time Delta (t), (measured from the 90% to 10% points of Vmax Steady State to Vmin Steady State)
h) Undefined here, Note: Undershoot is within this period and with an Amplitude of (j)
i) Settling Time - Measured from the end of the undershoot to the point where the amplitude of the video ringing is
down to +/- 5% of the final steady state value
j) Vmin steady state Amplitude after transition

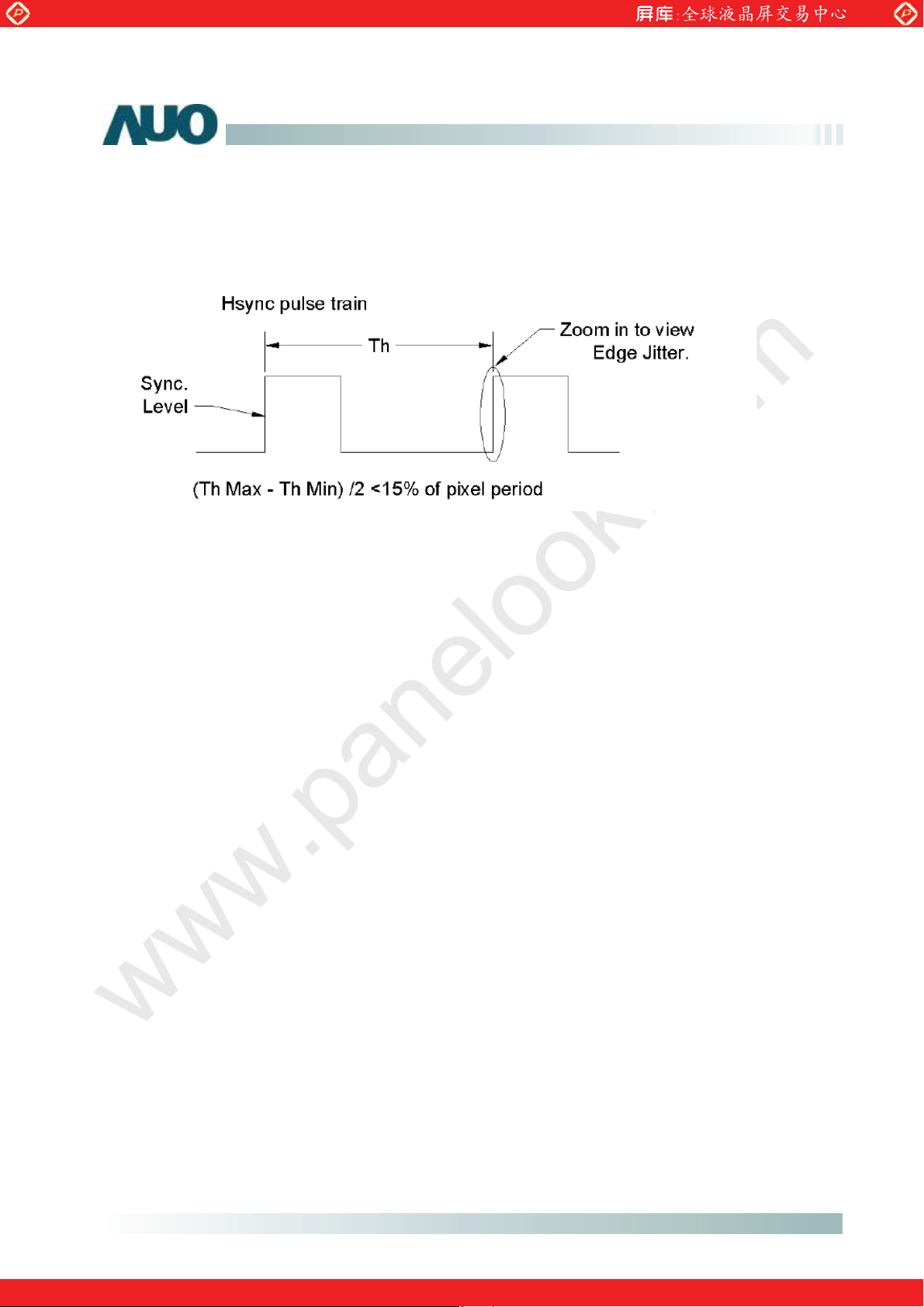

Synchronization Signal Definition
www.panelook.com
M170EP01 V.2
Product Specification
Ver0.1 26/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
3.7 Power Consumption
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units Condition
VDD Logic/LCD Drive
Voltage
IDD* VDD current - 1100 1500 [mA] Vin=5.1V ,All Black Pattern.
PDD* VDD Power 5.6 7.6 [Watt] Vin=5.1V ,All Black Pattern.
VDDrp Allowable
Logic/LCD Drive
Ripple Voltage
Power Saving
*2 line dot inversion

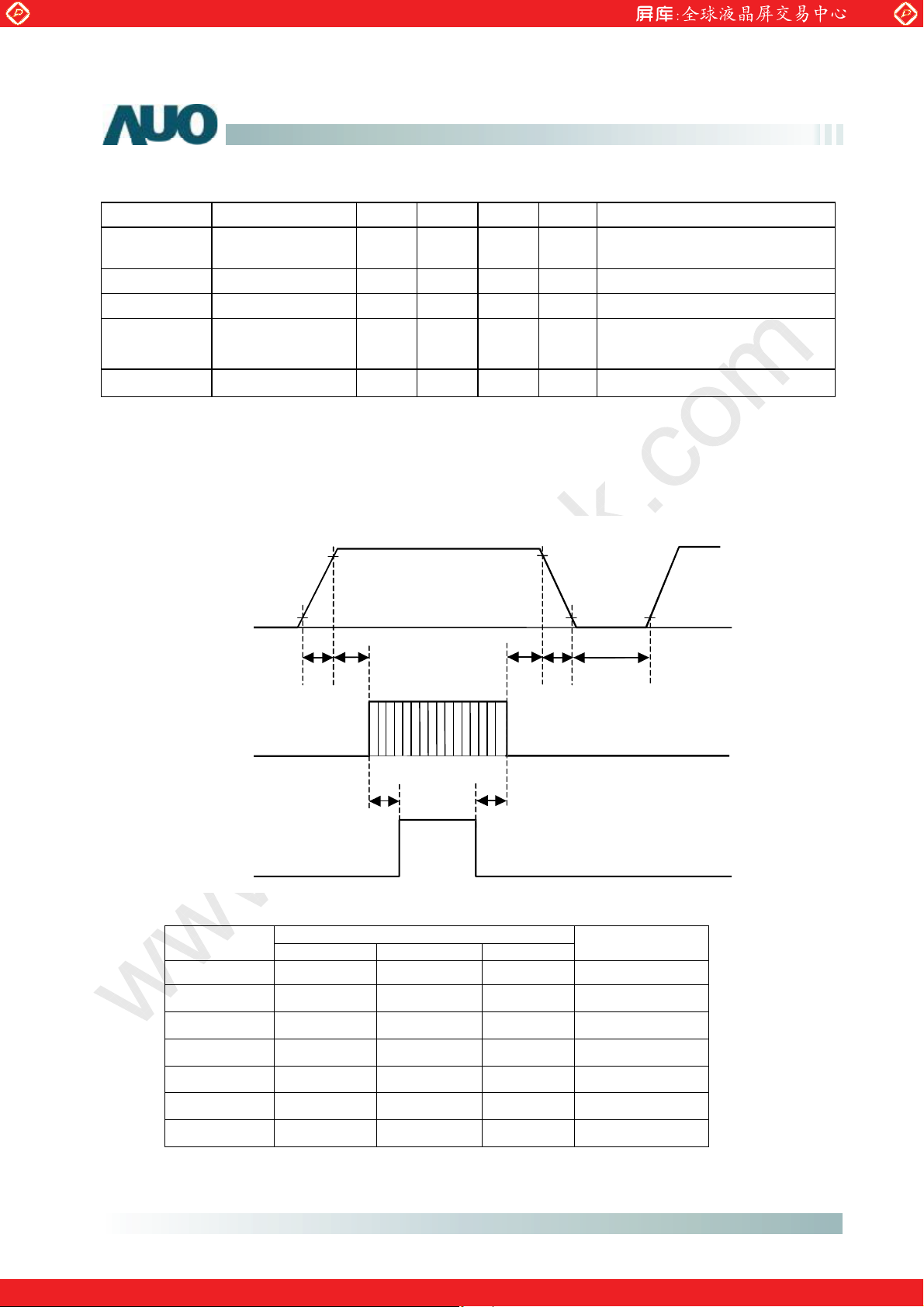

3.8 Power ON/OFF Sequence
Vin and lamp power on/off sequence are as follows. The timing parameters of interface signal are shown in
the table below. The signal please reference “3.4 Signal Description”.
www.panelook.com
M170EP01 V.2
Product Specification
4.9 5.1 5.3 [Volt]
100 [mV]
p-p
- 0.4 0.5 [Watt] Vin=5.1V
90% 90%
Panel
Power
10%
0V
T2 T5 T6 T7
T1
Panel
Signal
0V
T3
Lamp
0V
Symbol
T1
T2 5 10 -
T3 200
T4 100
T5
T6
T7 1000
Min. Typ. Max.
- 0.1
016
- 200
Values
--
--
--
10%
10%
T4
Unit
-ms
ms
ms
ms
50
-
ms
ms
ms
Ver0.1 27/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
M170EP01 V.2
Product Specification
Ver0.1 28/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
4.0 Backlight Characteristics
4.1 Signal for Lamp connector
Pin No. Input Color Function
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
Upper
Lower
3 Hot2 Blue High Voltage
4 Cold2 Black Low Voltage
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
3 Hot2 Blue High Voltage
4 Cold2 Black Low Voltage
www.panelook.com
M170EP01 V.2
Product Specification
4.2 Parameter guideline for CCFL Inverter
Symbol Parameter Min. Typ. Max. Unit Condition
ISCFL CCFL standard current
IRCFL CCFL operation range
FCFL CCFL Frequency
ViCFL
o
C)
(0
ViCF
o
C)
(25
VCFL
PCFL
CCFL Ignition Voltage 1500 - -
CCFL Ignition Voltage 1150 - -
CCFL Operation Voltage
CCFL Power consumption
(for reference)
7.0 7.5 8.5
3.0 7.5 8.5
40 60 80
-
660
@7.5mA
- 19.8 21.8 [Watt] (Ta=25oC) Note 4
700
@3.0mA
[mA]
rms
[mA]
rms
[KHz] (Ta=25oC)
[Volt]
rms
[Volt]
rms
[Volt]
rms
(Ta=25oC)
(Ta=25oC)
o
(Ta=0
C)
o
(Ta=25
(Ta=25oC)
C)
Note 1
Note 2
Note 3
LTCFL CCFL life Time 40,000 45,000 - [Hour] (Ta=25oC)
: CCFL standard current is measured at 252. The variance of the current is 10%.When lamp current
Note 1
achieve to Max. 8.5mA, brightness will decay more than 7.5mA. But it still could be opened.
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
: CCFL operation voltage is measured at 252.
Note 3
Note 4: The variance of CCFL power consumption is 10%. Calculator value for reference
(ICFL×VCFL×4=PCFL).
Note 5: CCFL life time is determined as the time at which brightness of lamp is 50%.The typical life time of
Ver0.1 29/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Note 5
www.panelook.com
Page 27
Global LCD Panel Exchange Center
CCFL is on the condition at 7.5mA lamp current.
www.panelook.com
M170EP01 V.2
Product Specification
Ver0.1 30/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
5.0 Vibration, Shock, and Drop
5.1 Vibration & Shock
Vibration Test Spec:
www.panelook.com
M170EP01 V.2
Product Specification
Shock Test Spec:
Frequency: 10 - 200Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 1.5G(10~200Hz P- P)
Test method:
Direction: X , Y, Z
5.2 Drop test
Acceleration (G)
Frequency (Hz)
Active time (min) 30
Acceleration (G) –a
Active time -b 20 ms
Wave form
Times
1.5
10~200~10
50
Half-sin
1
Package test: The drop height is 60cm.
Ver0.1 31/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 29
Global LCD Panel Exchange Center
6.0 Environment
The display module will meet the provision of this specification during operating condition or after storage or
shipment condition specified below. Operation at 10% beyond the specified range will not cause physical
damage to the unit.
6.1 Temperature and Humidity
6.1.1 Operating Conditions
The display module operates error free, when operated under the following conditions;
Temperature 0
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0
6.1.2 Shipping Conditions
The display module operates error free, after the following conditions;
Temperature -20
Relative Humidity 5% to l00%
Wet Bulb Temperature 39.0
www.panelook.com
Product Specification
0
C to 50 0C
0
C
0
C to 60 0C
0
C
M170EP01 V.2
6.2 Atmospheric Pressure
The display assembly is capable of being operated without affecting its operations over the
pressure range as following specified;
Maximum Pressure 1040hPa (sea level)
Minimum Pressure 674hPa (3048m)
6.3 Thermal Shock
The display module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature
from -20
Thermal shock cycle -20
Power is not applied during the test. After temperature cycling, the unit is placed in normal room
ambient for at least 4 hours before powering on.
0
C to 600C, and back again.
0
C for 30min
0
60
C for 30min
Pressure Note
Ver0.1 32/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 30
Global LCD Panel Exchange Center
7.0 Reliability
This display module and the packaging of that will comply following standards.
7.1 Failure Criteria
The display assembly will be considered as failing unit when it no longer meets any of the
requirements stated in this specification. Only as for maximum white luminance, following criteria is
applicable.
Maximum white Luminance shall be above 150cd/m
7.2 Failure Rate
The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed
1.0%. The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7%
per 1000 hours.
www.panelook.com
Product Specification
M170EP01 V.2
2
.
7.2.1 Usage
The assumed usage for the above criteria is:
220 power-on hours per month
500 power on/off cycles per month
Maximum brightness setting
Operation to be within office environment (25
0
C typical)
Ver0.1 33/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
8.0 Safety
8.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
8.2 Materials
8.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic
materials are used, they will be reviewed and approved by the responsible AUO Toxicologist.
8.2.2 Flammability
All components including electrical components that do not meet the flammability grade
UL94-V1 in the module will complete the flammability rating exception approval process.
www.panelook.com
M170EP01 V.2
Product Specification
The printed circuit board will be made from material rated 94-V1 or better. The actual UL
flammability rating will be printed on the printed circuit board.
8.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep
them from being inserted backwards.
Ver0.1 34/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 32
Global LCD Panel Exchange Center
9.0 Other requirement
9.1 National Test Lab Requirement
The display module will satisfy all requirements for compliance to
UL 1950, First Edition U.S.A. Information Technology Equipment
CSA C22.2 No.950-M89 Canada, Information Technology Equipment
EEC 950 International, Information Technology Equipment
EN 60 950 International, Information Processing Equipment

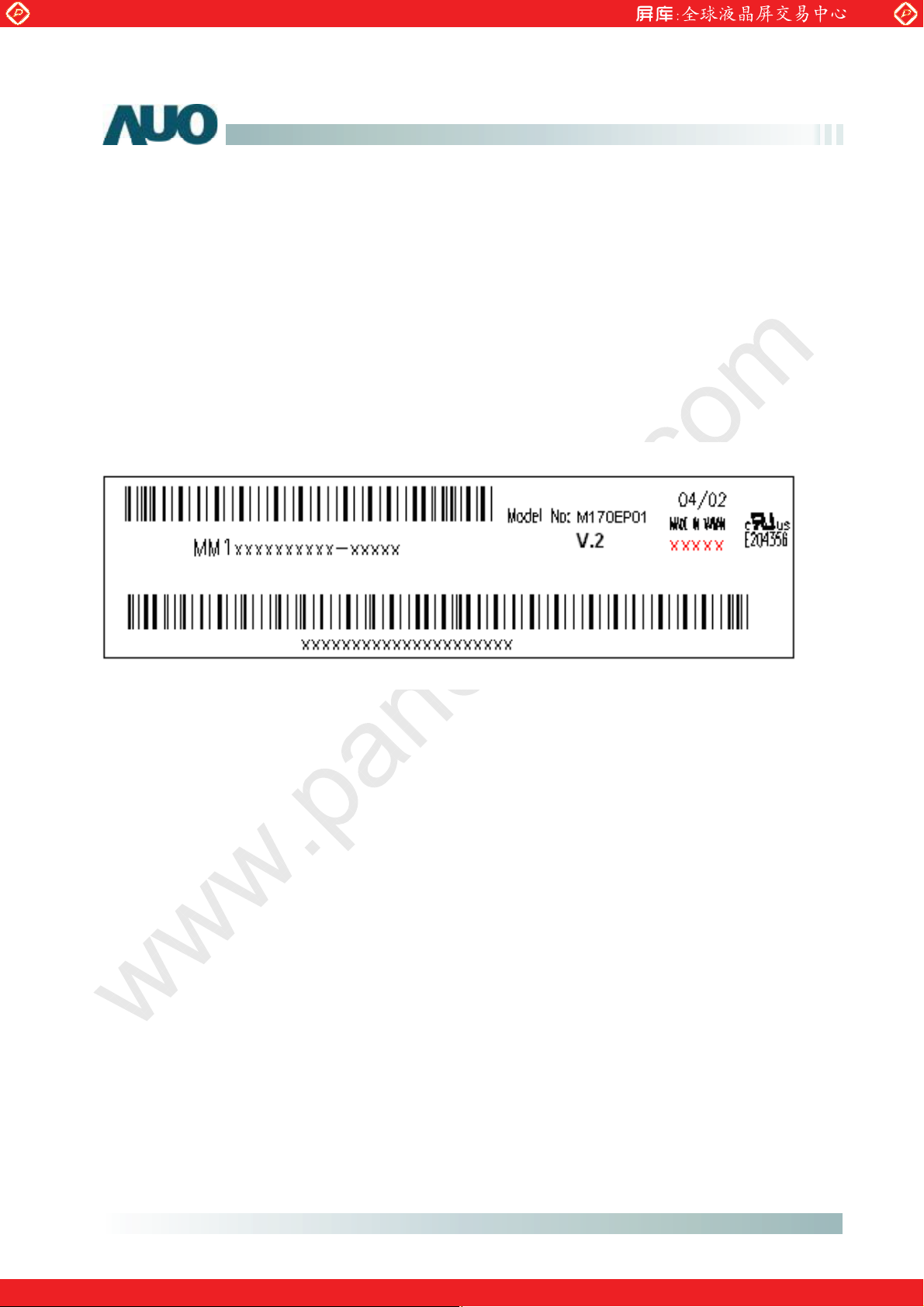

9.2 Label
The label is on the panel as shown below:
www.panelook.com
M170EP01 V.2
Product Specification
(European Norm for IEC950)
Ver0.1 35/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 33
Global LCD Panel Exchange Center
www.panelook.com

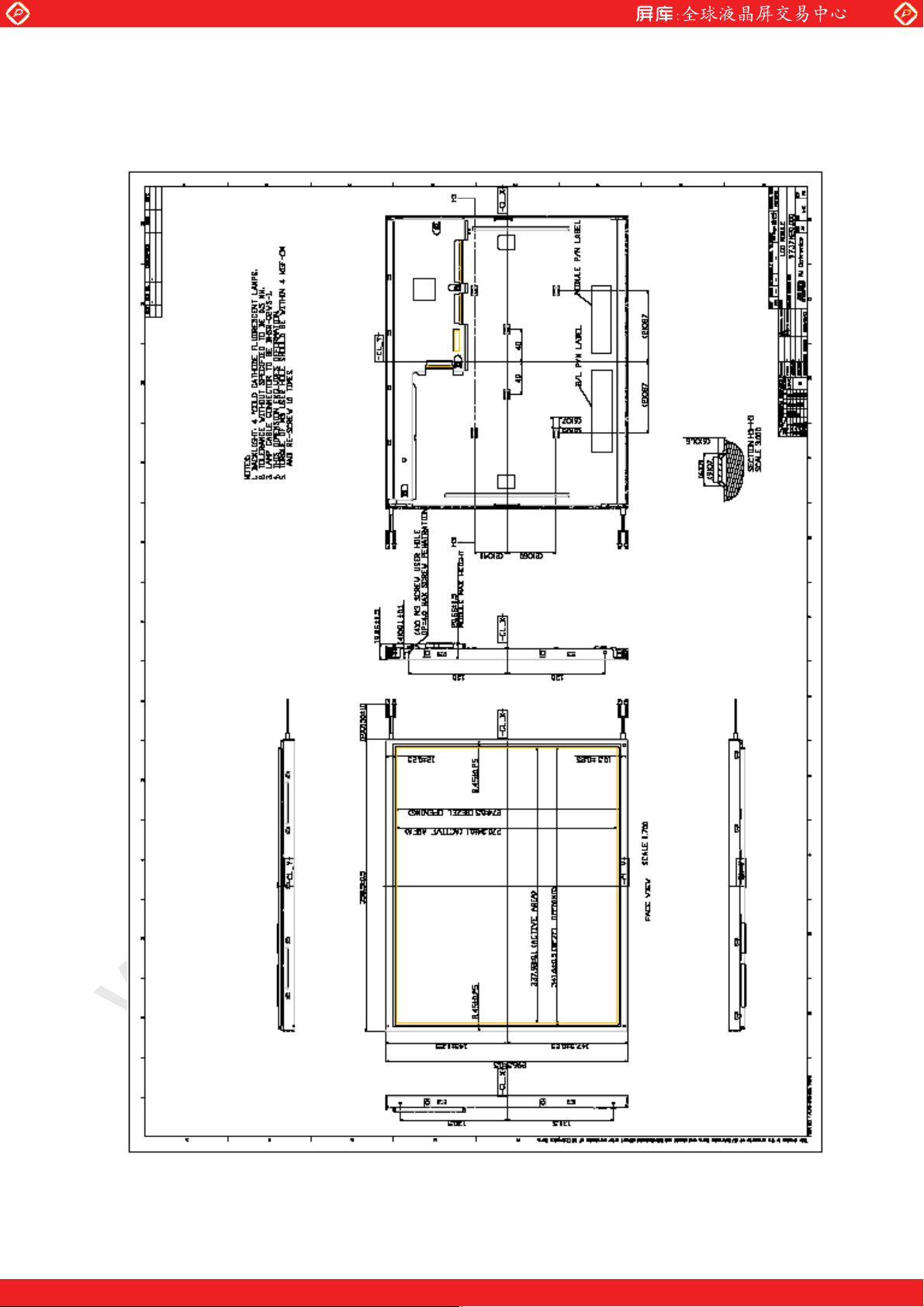

0.0 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ver0.1 36/26
www.panelook.com
Page 34
Global LCD Panel Exchange Center

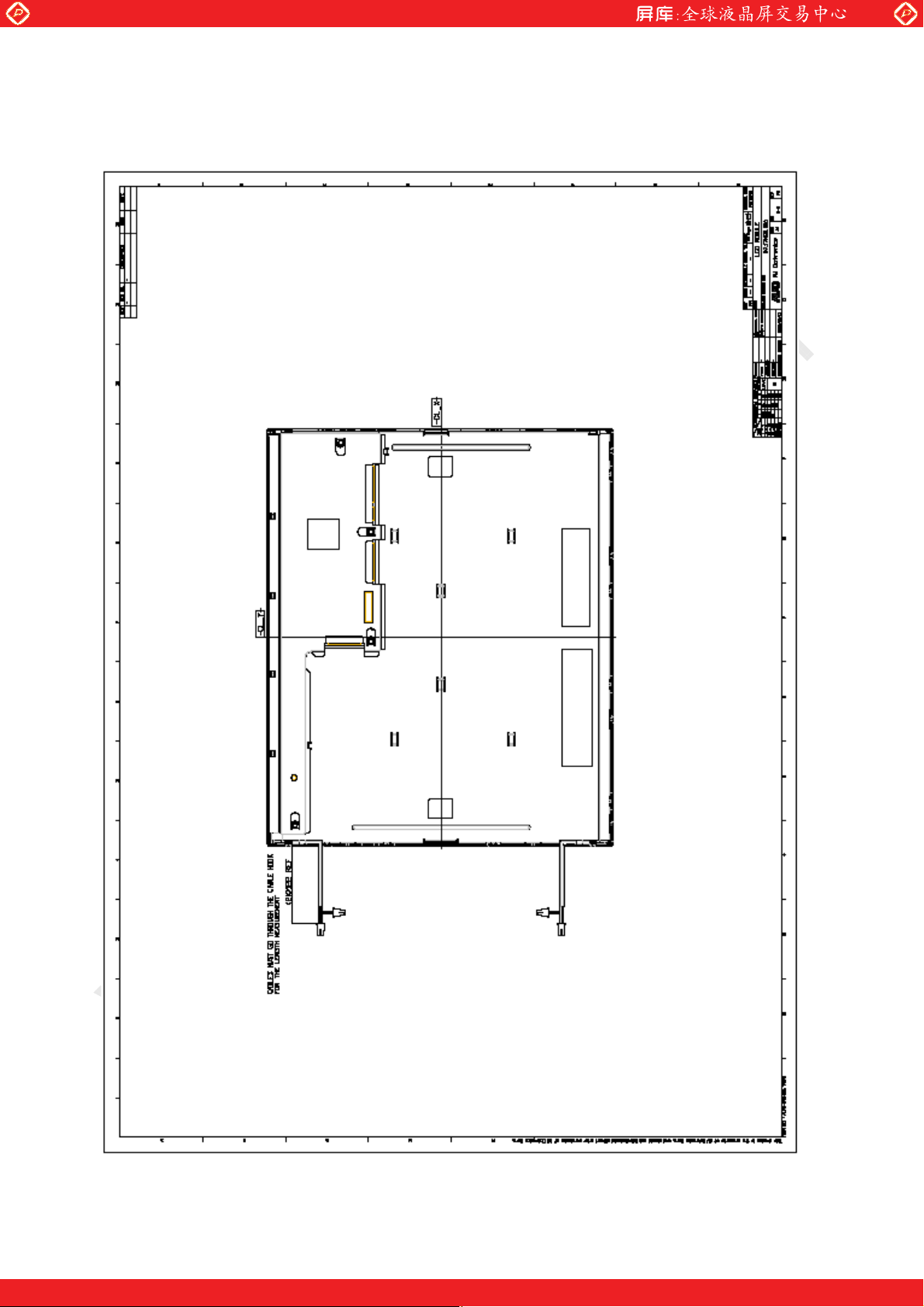

www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ver0.1 37/26
www.panelook.com
Loading...
