AUO M170EN05 V4 Specification

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

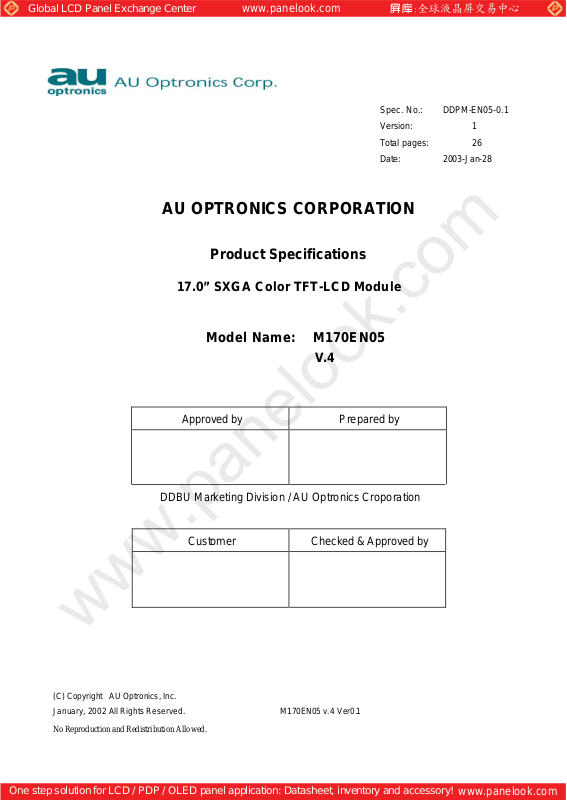

Spec. No.: DDPM- EN05-0.1 Version: 1 Total pages: 26 Date: 2003-Jan -28

AU OPTRONICS CORPORATION

Product Specifications

17.0” SXGA Color TFT-LCD Module

Model Name: M170EN05

V.4

Approved by Prepared by

DDBU Marketing Division / AU Optronics Croporation

Customer Checked & Approved by

No Reproduction and Redistribution Allowed.

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

( ) Preliminary Specifications

Product Spe cifications

17.0” SXGA Color TFT-LCD Module Model Name: M170EN05

V.4

(u) Final Specifications

Note: This Specification is subject to change without notice.

1

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

i Contents ii Record of Revision

1.0 Handling Precautions

2.0 General Description

2.1 Display Characteristics

2.2 Functional Block Diagram

2.3 Opt ical Characteristics

2.4 Pixel format image

3.0 Electrical characteristics

3.1 Absolute Maximum Ratings

3.2 Connectors

3.3 Signal Pin

3.4 Signal Description

3.5 Signal Electrical Characteristics

3.6 Interface Timing

3.6.1 Timing Characteristics

3.6.2 Timing Definition

3.7 Power Consumption

3.8 Power ON/OFF Sequence

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

4.2 Parameter guide line for CCFL Inverter

5.0 Vibration, shock and drop

5.1 Vibration and shock

5.2 Drop test

6.0 Environment

6.1 Temperature and humidity

6.1.1 Operating conditions

6.1.2 Shipping conditions

6.2 Atmospheric pressure

6.3 Thermal shock

7.0 Reliability

7.1 Failure criteria

7.2 Failure rate

7.2.1 Usage

7.2.2 Components de -rating

7.3 CCFL life

7.4 ON/OFF cycle

2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

8.0 Safety

8.1 Sharp edge requirement

8.2 Material

8.2.1 Toxicity

8.2.2 Flammability

8.3 Capacitors

8.4 Hazardous voltage

9.0 Other requirements

9.1 Smoke free design

9.2 National test lab requirement

10.0 Mechanical Characteristics

3

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

ii Record of Revision

Version and Date Page Old description New Description Remark

0.1 2002/01/07 All First Edition for Customer All

0.2. 2002/01/30 6 8 n.a. TCO99 luminance uniformity <1.7 Add

24 ME drawing ME drawing Update

0.3 2002/03/22 5 Color Chromaticity Color Chromaticity Add

0.4. 2002/04/08 17 Power ON/OFF Sequence Power ON/OFF Sequence Update 24 ME drawing ME drawing (hook posi tion) Update 24 ME drawing ME drawing (screw hole depth) Update

0.5. 2002/05/03 6 Viewing angle 5 Brightness: 280nits(center) Brightness: 260nits(center) Update 5 12 V front porch: 1(min); 1(typ) V front porch: 2(min); 2(typ) Update

5 Green x: 0.28; Green y: 0.62 Green x: 0.29; Green y: 0.61 Update

Uniformity(5-pts): 85%(typ) ; 80%(min)

Raising Time: 11.5(typ) /18(max) Falling Time: 4.5(typ) /7(max)

Uniformity(9- pts): 80%(typ) ; 75%(min)

70/70/70/70 (CR=10) 80/80/80/80 (CR=5)

Raising Time: 12(typ) /20(max) Falling Time: 4(typ) /5(max)

Change

Update

0.6. 2002/7/20 24 Old label New label Update 25,26 ME drawing ME drawing(Bezel modify) Update 6 Weight: 1900g Weight: 2000g Update 17 V front porch: 2(min); 2(typ) V front porch: 1(min); 1(typ) Update 20 n.a. 8 Contrast: 400(typ) Contrast: 450(typ) Update

8

0.7 2002/9/18 6 Power consumption: 25W Power consumption: 25W (typ) Add 8 n.a. Test equipment setup Add 21 n.a Lamp soldering method Add

Raising Time: 12(typ) / 20(max) Falling Time: 4(typ) / 5(max)

CCFL Inrush current

Raising Time: 4(typ) / 5(max) Falling Time: 12(typ) / 20(max)

Add

Update

4

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

1.0 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT-LCD module.

10) After installation of the TFT-LCD module into an enclosure (LCD monitor housing, for example), do not twist nor bend the TFT -LCD module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT -LCD module from outside. Otherwise the TFT -LCD module may be damaged.

5

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

General Description

This specification applies to the 17.0 inch C olor TFT-LCD Module M170EN05. The display supports the SXGA (1280(H) x 1024(V)) screen format and 262k colors (RGB 6-bits data).

All input signals are 2 Channel LVDS interface compatible. This module does not contain an inverter card for backlight.

2.1 Di splay Characteristics

The following items are characteristics summary on the table under 25 ℃ condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 432(17.0") Active Area [mm] 337.920 (H) x 270.336(V) Pixels H x V 1280(x3) x 1024 Pixel Pitch [mm] 0.264 (per one triad) x 0.264 Pixel Arrangement R.G.B. Vertical Stripe Display Mode Normally White White Luminance [cd/m2] 260 (center) @ 7mA Contrast Ratio 450 : 1 (Typ) Optical Response Time [msec] 16 (Typ) Color Saturation 72% NTSC Nominal Input Voltage VDD [Volt] +5.0 V Power Consumption (VDD line + CCFL line) Weight [Grams] 2000 (Typ) Physical Size [mm] 358.5(W) x 296.5(H) x 19.0(D) Electrical Interface Even/Odd R/G/B data, 3 sync signal,

Support Color 262k colors (RGB 6-bit data ) Temperature Range Operating Storage (Shipping)

[Watt] 25W (typ)

(w/o Inverter, All black pattern)

Clock

[oC] [oC]

0 to +50

-20 to +60

6

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

Y-Driver IC

D1

2.2

Functional Block Diagram

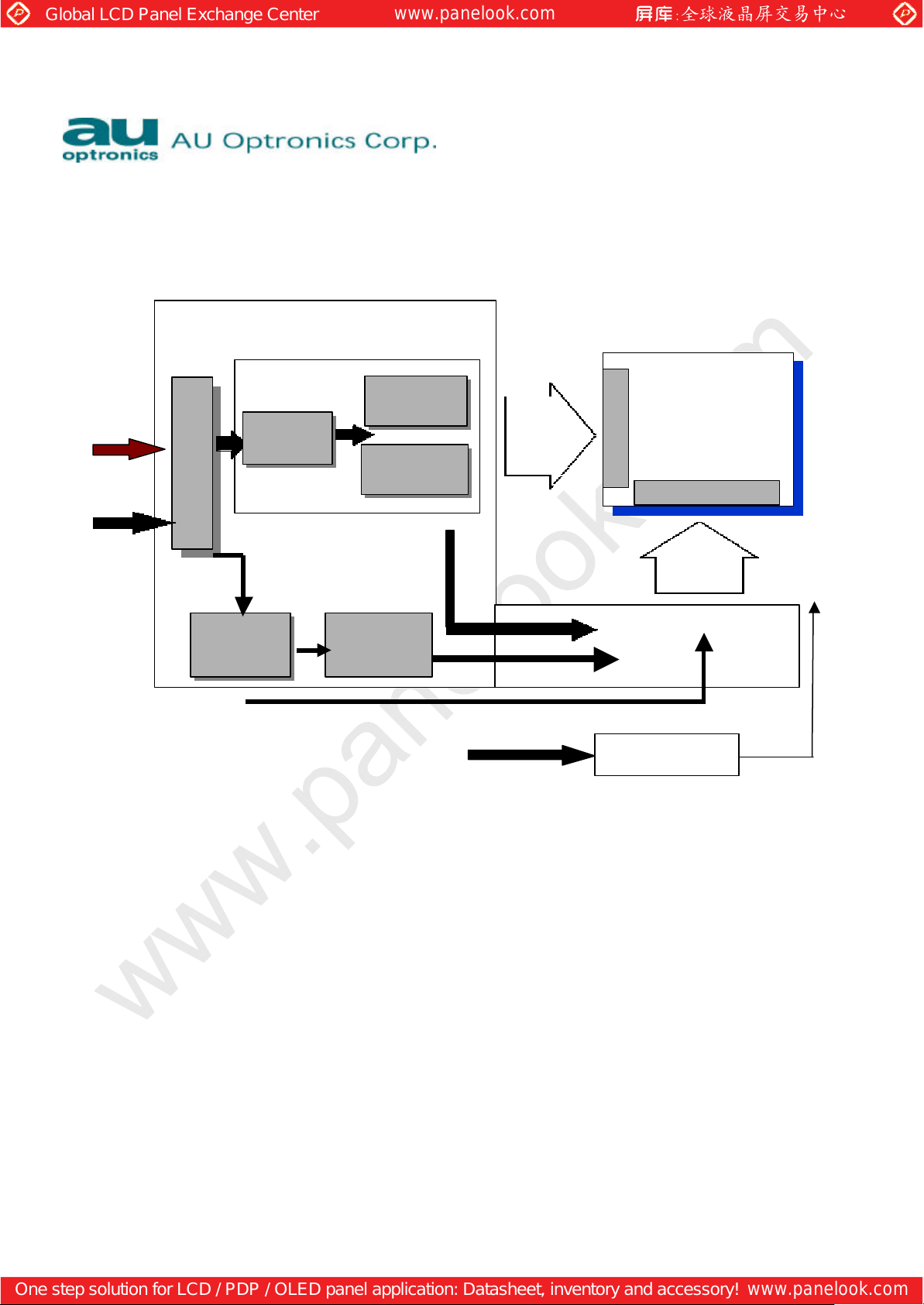

The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:

LVDS

+ 5V

Connector

Receiver

DC/DC

Converter

LVDS

AU ASIC

Transmitter

Gamma

Correction

Timing

Controller

RSDS

G1

G1024

DC POWER

JAE FI-X30S-HF JST BHR-04VS-1 Mating Type: JAE FI-X30S-H Mating Type: SM04(4.0)B-BHS-1-TB

TFT- LCD

1280*(3)*1024

Pixels

D3840

4 CCFL

Inverter

7

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

TCO99 1.5.2B luminance uniformity

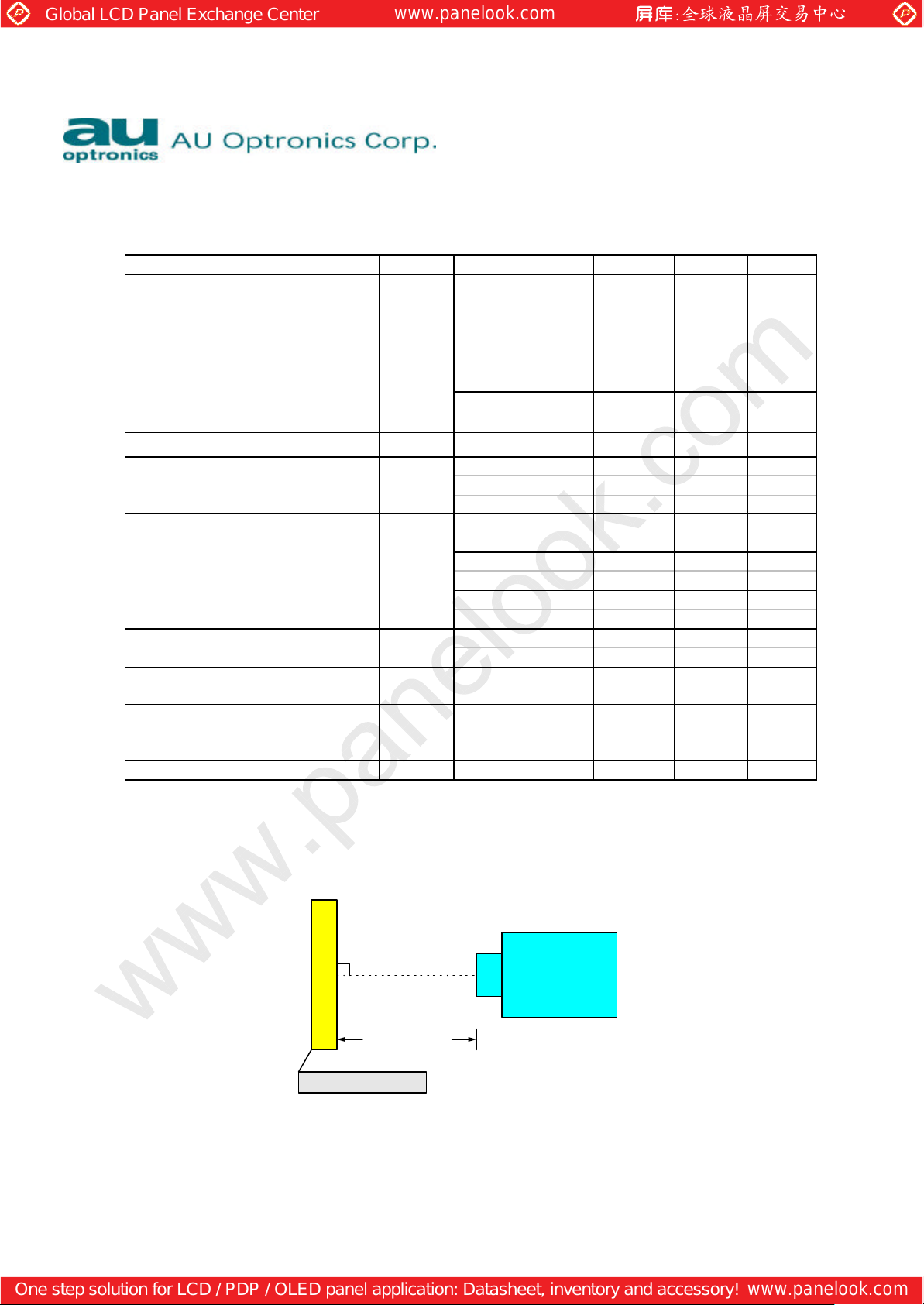

2.3 Optical Characteristics

The optical characteristics are measured under stable conditions at 25℃ (Room Temperature) :

Item Unit Conditions Min. Typ. Max.

Viewing Angle [degree]

Contrast ratio Normal Direction 250 450 -

Response Time (Note 1)

Color / Chromaticity Coordinates (CIE)

Color Coordinates (CIE) White White Luminance @ CCFL 7.0mA

(center) Luminance Uniformity (Note 2) [%] 75 80 -

Horizontal (Right) CR = 10 (Left)

Vertical (Up) CR = 10 (Down)

Horizontal (Right) CR = 5 (Left)

Vertical (Up) CR = 5 (Down)

[msec]

[cd/m2]

Raising Time - 4 5 Falling Time - 12 20 Raising + Falling - 16 25 Red x 0.61 0.64 0.67 Red y 0.31 0.34 0.37 Green x 0.26 0.29 0.32 Green y 0.58 0.61 0.64 Blue x 0.11 0.14 0.17 Blue y 0.04 0.07 0.10 White x 0.28 0.31 0.34 White y 0.30 0.33 0.36

200 260 -

60 60

70 70

80 80

-

Crosstalk (in 75Hz) (Note 4) [%] 1.5

(Note 3)

Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM -5A) Aperture 1with 100cm VD or 2with 50cm viewing distance

Test Point Center (ISO point 22)

Environment < 1 lux

1.7

LCD Module

PR-880 /

BM5A /

BM7

measuring distance

Module Driving Equipment

8

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

Note 1: Definition of Response time:

The output signals of photodetector are measured when the input signals are changed from “ Black” to “ White”

(falling time), and from “White” to “ Black” (rising time), respectively. The response time is interval between the 10% and 90% of amplitudes.

TrR

%

100

90

Optical Response

TrD

10

white

0

black

white

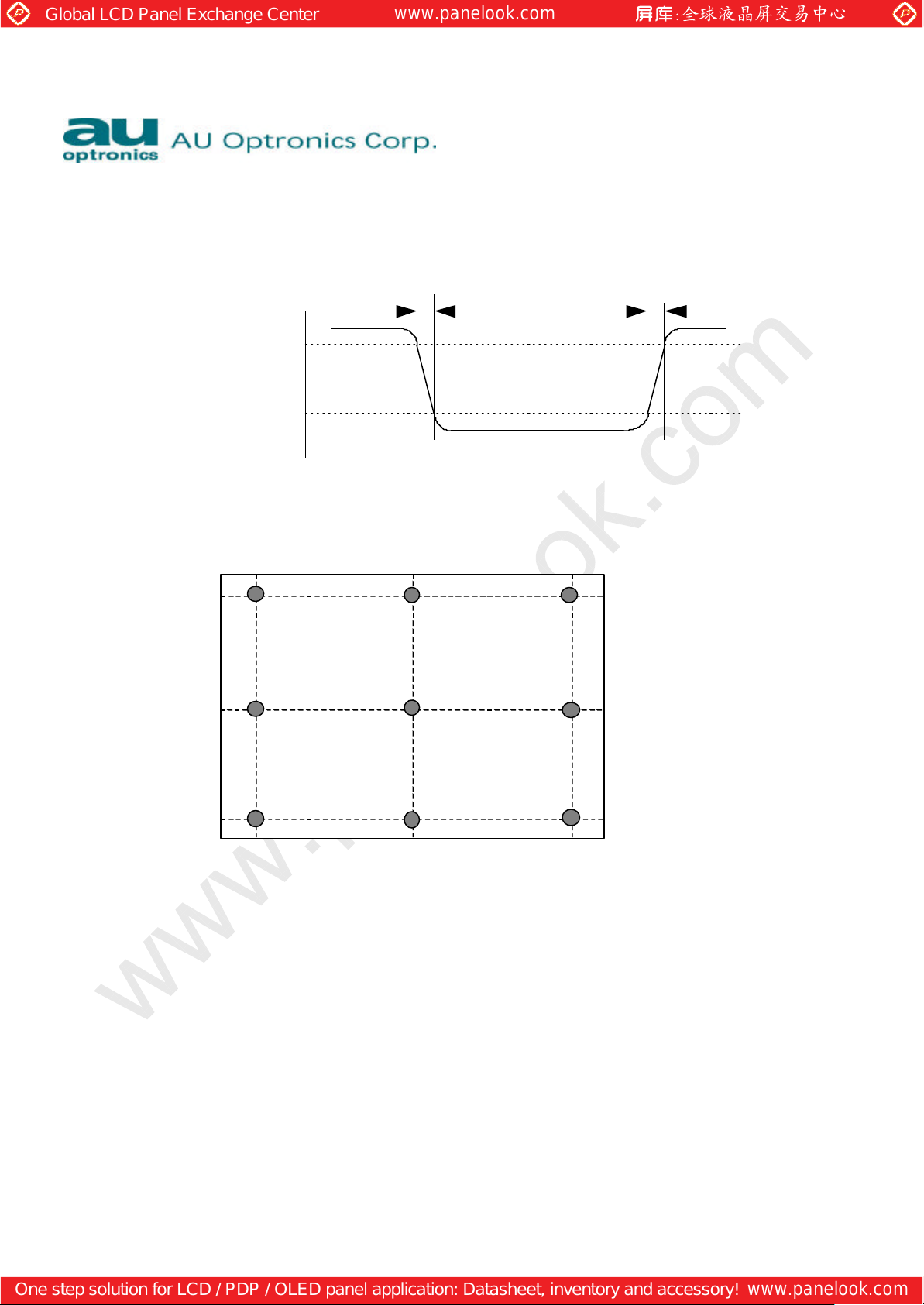

Note 2: Brightness uniformity of these 9 points is defined as below:

90 %

50 %

10 %

50 %

90 %

Minimum Luminance in 9 Points (1-9) Uniformity = ———————————————————— Maximum Luminance in 9 Points (1-9)

Note 3: TCO ’99 Certification Requirements and test m ethods for environmental labeling of Display Report No. 2 defines Luminance uniformity as below:

((Lmax,+30deg. / Lmin,+30deg.) + (Lmax,-30deg. / Lmin,-30deg.)) / 2

This panel is compatible with TCO99 approbation in luminance uniformity <1.7, luminance contrast >0.5

9

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

R G B R G B R G B R G B R G B R G B R G B R G B 1 2 1279

1280

1st Line

1024th

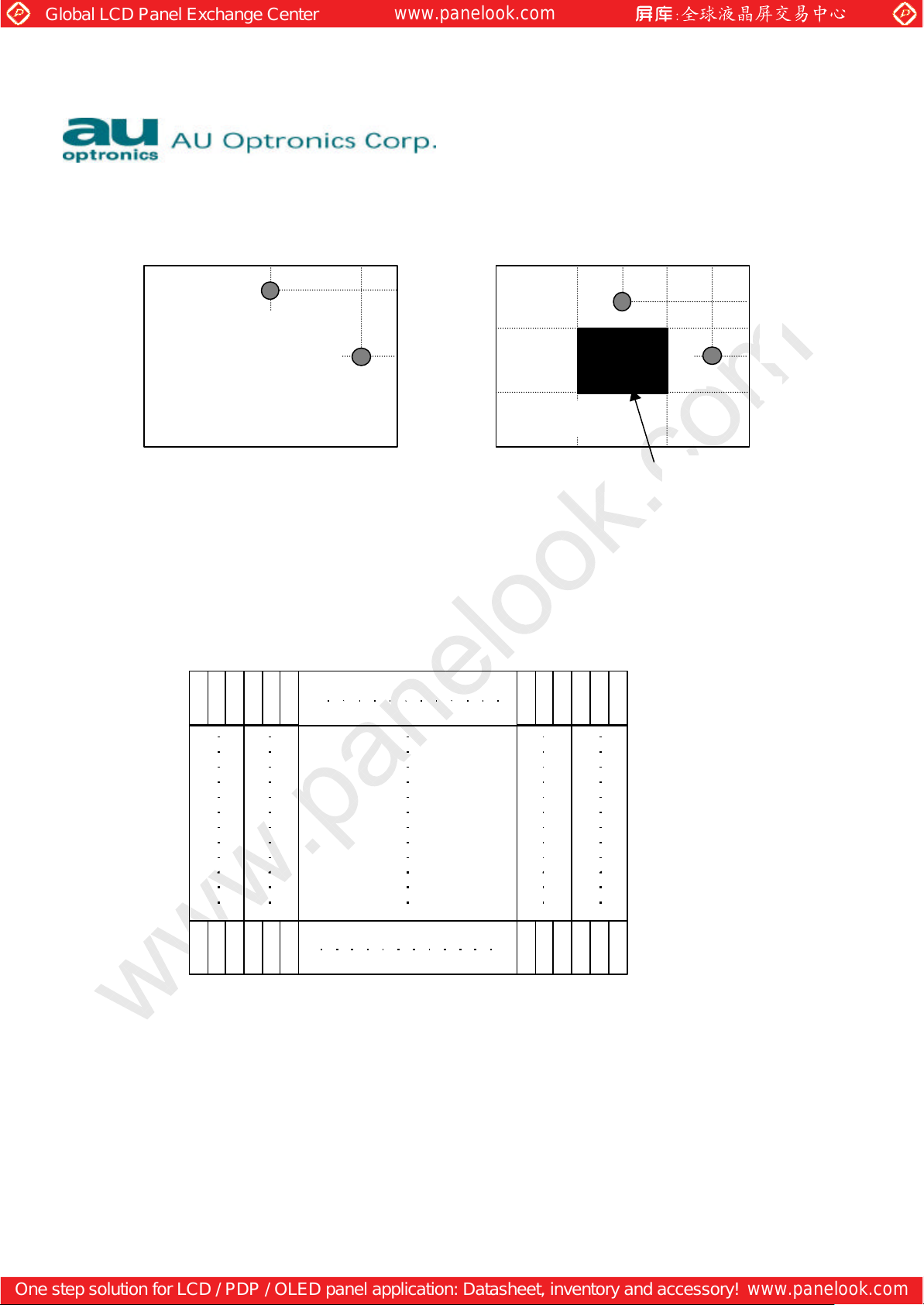

Note 4:

Unit: percentage of dimension of display area l LA-L

l LB-LB’ l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’

184 gray level 184 gray level

l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B

’

A

1/2

A

B

1/6

1/2

2/3 1/3

A’

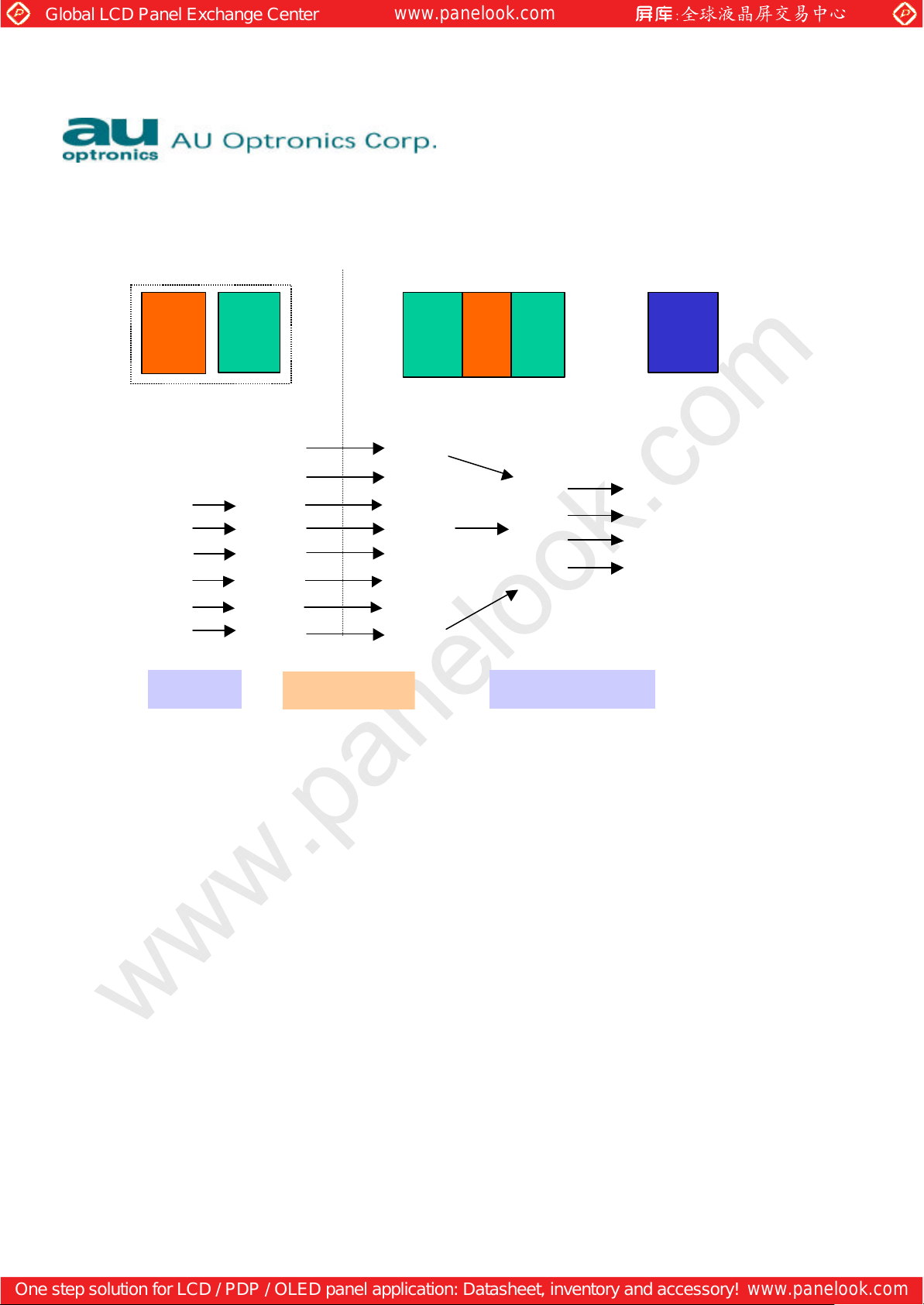

2.4: Pixel format image

Following figure shows the relationship of the input signals and LCD pixel format.

1/6

1/6 1/3 1/2

B

2/3

0 gray level

10

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

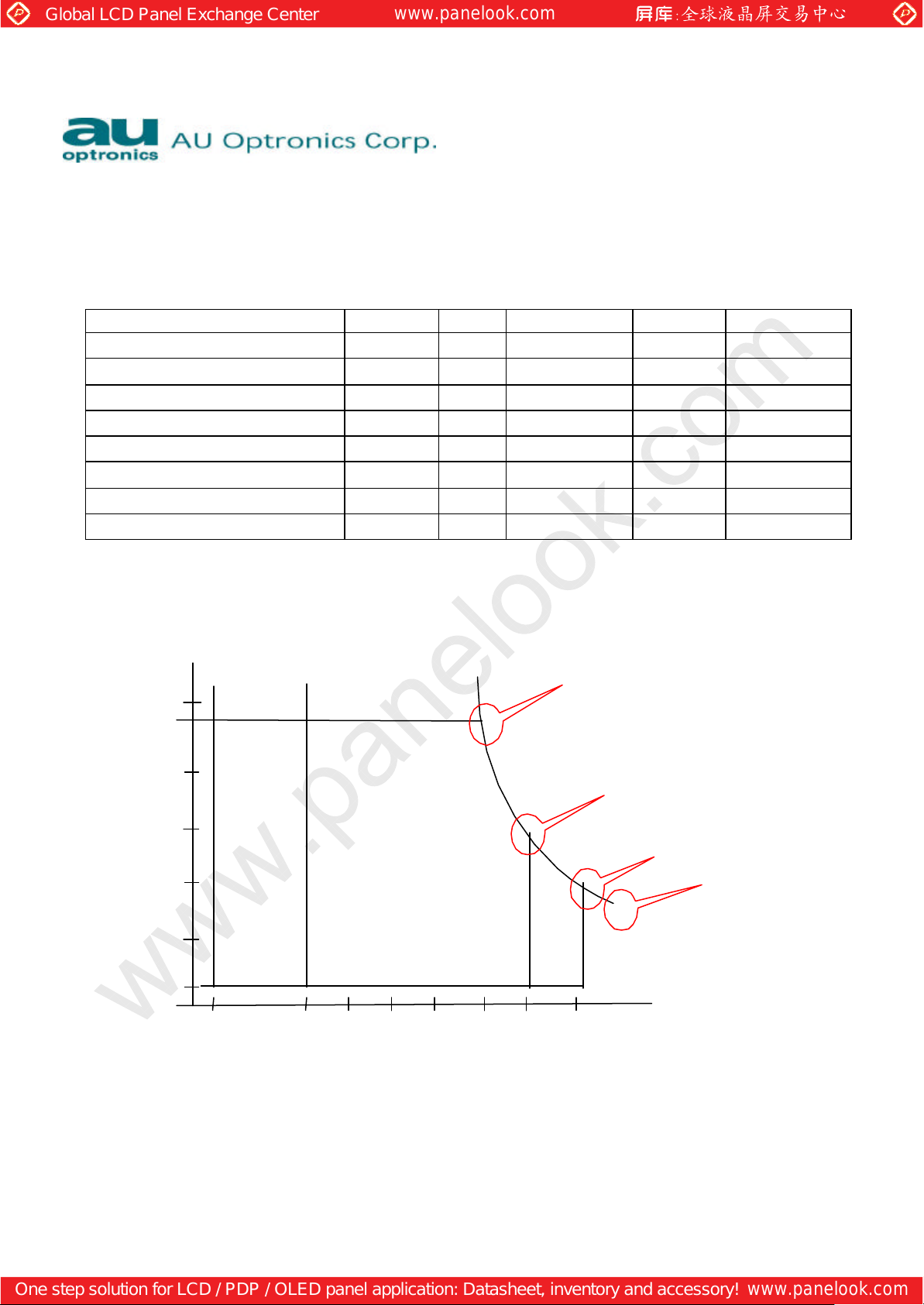

Temperature oC

60

T=60℃,H=39%

3.0 Electrical characteristics

3.1 Absolute Maximum Ratings

Absolute maximum ratings of the module is as following:

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VIN -0.3 +5.5 [Volt] Select LVDS data order SELLVDS NC NC [Volt] CCFL Inrush current ICFLL - 38 [mA] CCFL Current ICFL - 7.6 [mA] rms Operating Temperature TOP 0 +50 [oC] Note 1 Operating Humidity HOP 8 95 [%RH] Note 1 Storage Temperature TST -20 +60 [oC] Note 1 Storage Humidity HST 8 95 [%RH] Note 1

Note 1 : Maximum Wet-Bulb should be 39℃ and No condensation.

Relative Humidity %

Twb=39℃

T=40℃,H=95%

100

95

80

T=50℃,H=55%

40

Storage range

Operation range

T=65℃,H=29 %

20

5

Storage range

0

-20

0 60 50

11

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

3.2 Connectors

Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be following components.

Connector Name / Designation Interface Connector / Interface card Manufacturer

Type Part Number FI-X30S-HF Mating Housing Part Number FI-X30S-H

JAE or compatible

Connector Name / Designation Lamp Connector / Backlight lamp Manufacturer JST Type Part Number BHR- 04VS-1

Mating Type Part Number SM04(4.0)B-BHS-1-TB

3.3 Signal Pin

Pin# Signal Name Pin# Signal Name

1 RxO0- 2 RxO0+ 3 RxO1- 4 RxO1+ 5 RxO2- 6 RxO2+ 7 GND 8 RxOC-

9 RxOC+ 10 RxO3- 11 RxO3+ 12 RxE013 RxE0+ 14 GND 15 RxE1- 16 RxE1+ 17 GND 18 RxE219 RxE2+ 20 RxEC21 RxEC+ 22 RxE323 RxE3+ 24 GND 25 NC 26 NC 27 NC 28 Power 29 Power 30 Power

12

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

3.4 Signal Description

The module using a pair of LVDS receiver SN75LVDS82 (Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.

PIN # SIGNAL NAME DESCRIPTION 1 RxO0- Negative LVDS differential data input (Odd data) 2 RxO0+ Positive LVDS differential data input (Odd data) 3 RxO1- Negative LVDS differential data input (Odd data) 4 RxO1+ 5 RxO2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)

6 RxO2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG) 7 GND Power Ground 8 RxOC- Negative LVDS differential clock input (Odd clock)

9 RxOC+ Positive LVDS differential clock input (Odd clock) 10 RxO3- Negative LVDS differential data input (Odd data)

11 RxO3+ Positive LVDS differential data input (Odd data) 12 RxE0- Negative LVDS differential data input (Even clock) 13 RxE0+ Positive LVDS differential data input (Even data) 14 GND Power Ground 15 RxE1- Positive LVDS differential data input (Even data) 16 RxE1+ Negative LVDS differential data input (Even data) 17 GND Power Ground 18 RxE2- Negative LVDS differential data input (Even data) 19 RxE2+ Positive LVDS differential data input (Even data) 20 RxEC- Negative LVDS differential clock input (Even clock) 21 RxEC+ Positive LVDS differential clock input (Even clock) 22 RxE3- Negative LVDS differential data input (Even data) 23 RxE3+ Positive LVDS differential data input (Even data) 24 GND Power Ground 25 NC 26 NC 27 NC 28 POWER Power 29 POWER Power 30 POWER Power

Note: Input signals of odd and even clock shall be the same timing.

Positive LVDS differential data input (Odd data)

LVDS DATA Name Description

DSP Display Timing: When the signal is high, the pixel data shall be valid to be displayed V- S Vertical Sync: Both Positive and Negative polarity are acceptable H- S Horizontal Sync: Both Positive and Negative polarity are acceptable

13

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

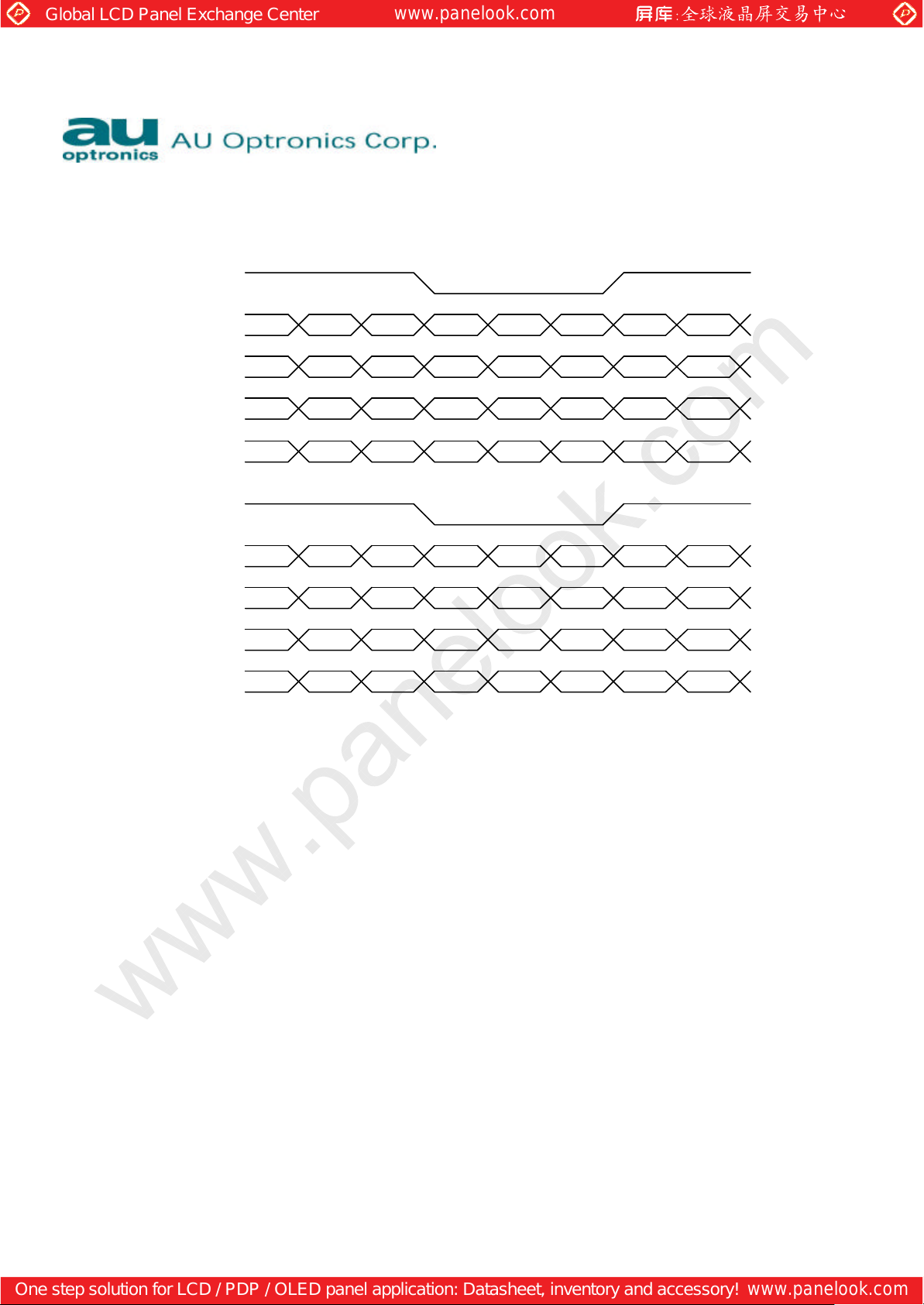

TI LVDS X’mitter

SN75LVDS83

Signal Name Low(open)

D0 Red0 D1 Red1 D2 Red2 D3 Red3 D4 Red4 D5 Red7 D6 Red5 D7 Green0 D8 Green1

D9 Green2 D10 Green6 D11 Green7 D12 Green3 D13 Green4 D14 Green5 D15 Blue0 D16 Blue6 D17 Blue7 D18 Blue1 D19 Blue2 D20 Blue3 D21 Blue4 D22 Blue5 D23 NA D24 H Sync D25 V Sync D26 Display Timing D27 Red6

Module LVDS signal

(interface connector pin7)

14

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

8bits input: M170EN05 only catch bit 2 to bit 7 for 6 bit display 6bits input data format marked with ( ).

RCLKP1

RAP1

RBP1

RCP1

RDP1

G0(0) R5(R3) R4(R2) R3(R1) R2(R0) R1(0) R0(0)

B1(0) B0(0) G5(G3) G4(G2) G3(G1) G2(G0) G1(0)

DE VS HS B5(B3) B4(B2) B3(B1) B2(B0) RSV B7(B5) B6(B4) G7(G5) G6(G4) R7(R5) R6(R4)

RCLKP2

RAP2

RBP2

G0(0) R5(R3) R4(R2) R3(R1) R2(R0) R1(0) R0(0)

B1(0) B0(0) G5(G3) G4(G2) G3(G1) G2(G0) G1(0)

RCP2

RDP2

Note: R/G/B data 7:MSB, R/G/B data 0:LSB

O = “First Pixel Data”

E = “Second Pixel Data”

RSV B7(B5) B6(B4) G7(G5) G6(G4) R7(R5) R6(R4)

B5(B3) B4(B2) B3(B1) B2(B0)

15

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

Scaling IC

6 bits+FRC

8 bits LVDS transmitter

0 1 2 3 4 5

System

0 1 2 3 4 5 6 7

LVDS interface

Controller IC

8 bits LVDS Receiver

0 1 2 3 4 5 6 7

8 bits RSDS transmitter

M170EN05 module

01 23 45

67

Driver IC

6 bits RSDS receiver driver IC

open

01 23 45

16

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

3.5 Signal Electrical Characteristics

Input signals shall be low or Hi-Z state when Vin is off It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.

Each signal characteristics are as follows;

Parameter Condition Min Max Unit

Vth

Vtl

Differential InputHigh Voltage(Vcm=+1.2V)

Differential Input Low Voltage(Vcm=+1.2V)

-100

100

3.6 Interface Timings

Basically, interface timings described here is not actual input timing of LCD module but output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.

3.6.1 Timing Characteristics

Signal Item Symbol MIN TYP MAX Unit DTCLK Freq. Fdck 50 67.5 70 MHz DTCLK Cycle Tck 14.2 14.8 20 ns +V-Sync Frame Rate 1/Tv 56.25 75 77 Hz +V-Sync Cycle Tv 13 13.33 17.78 ms +V-Sync Cycle Tv 1035 1066 2047 lines +V-Sync Active level Tva 3 3 lines +V-Sync V-back porch Tvb 7 38 63 lines +V-Sync V-front porch Tvf 1 1 lines +DSPTMG V-Line m - 1024 - lines +H-Sync Scan rate 1/Th - 80.06 - KHz +H-Sync Cycle Th 800 844 1023 Tck +H-Sync Active level Tha (*1) 4 56 Tck +H-Sync Back porch Thb (*1) 4 124 Tck +H-Sync Front porch Thf 4 24 Tck +DSPTMG Display Pixels n - 640 - Tck

Note: Typical value refer to VESA STANDARD (*1) Tha+Thb should be less than 1024 Tck.

[mV]

17

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

112dot

248dot

48dot

1H

38H

3H

DSPTMG

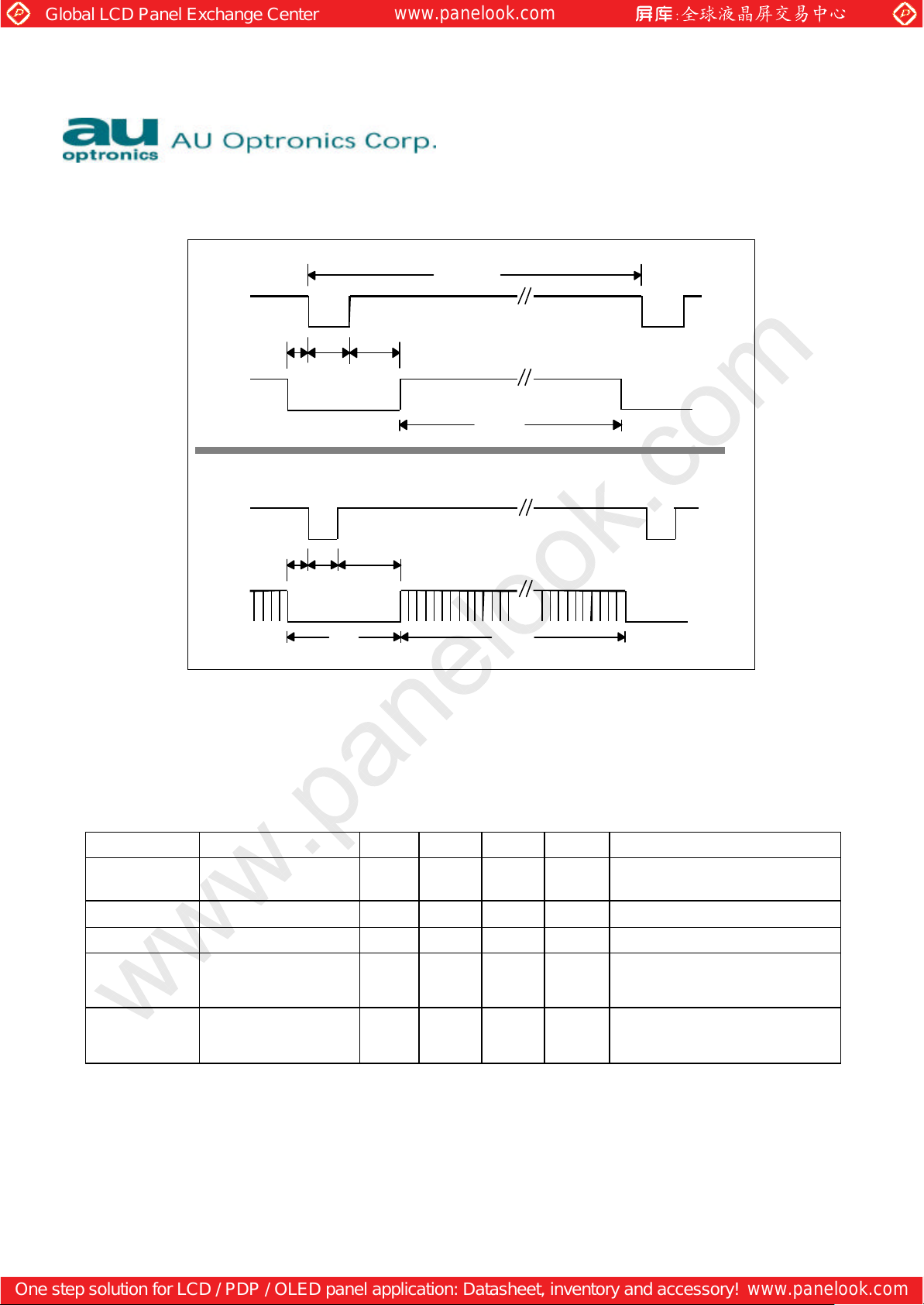

3.6.2 Timing Definition

H-Sync

DSPTMG

1688dot

1280dot

V-Sync

3.7 Power Consumption

Input power specifications are as follows;

Symbol Parameter Min Typ Max Units Condition

VDD Logic/LCD Drive

Voltage

IDD VDD current 950 1200 [mA] PDD VDD Power 4.75 VDDrp Allowable

Logic/LCD Drive Ripple Voltage

VDDns Allowable

Logic/LCD Drive Ripple Noise

4.5 5 5.5 [Volt]

6.6 [Watt] Vin=5V, All Black Pattern

100 [mV]

p-p

100 [mV]

p-p

18

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

10%

90%

1sec

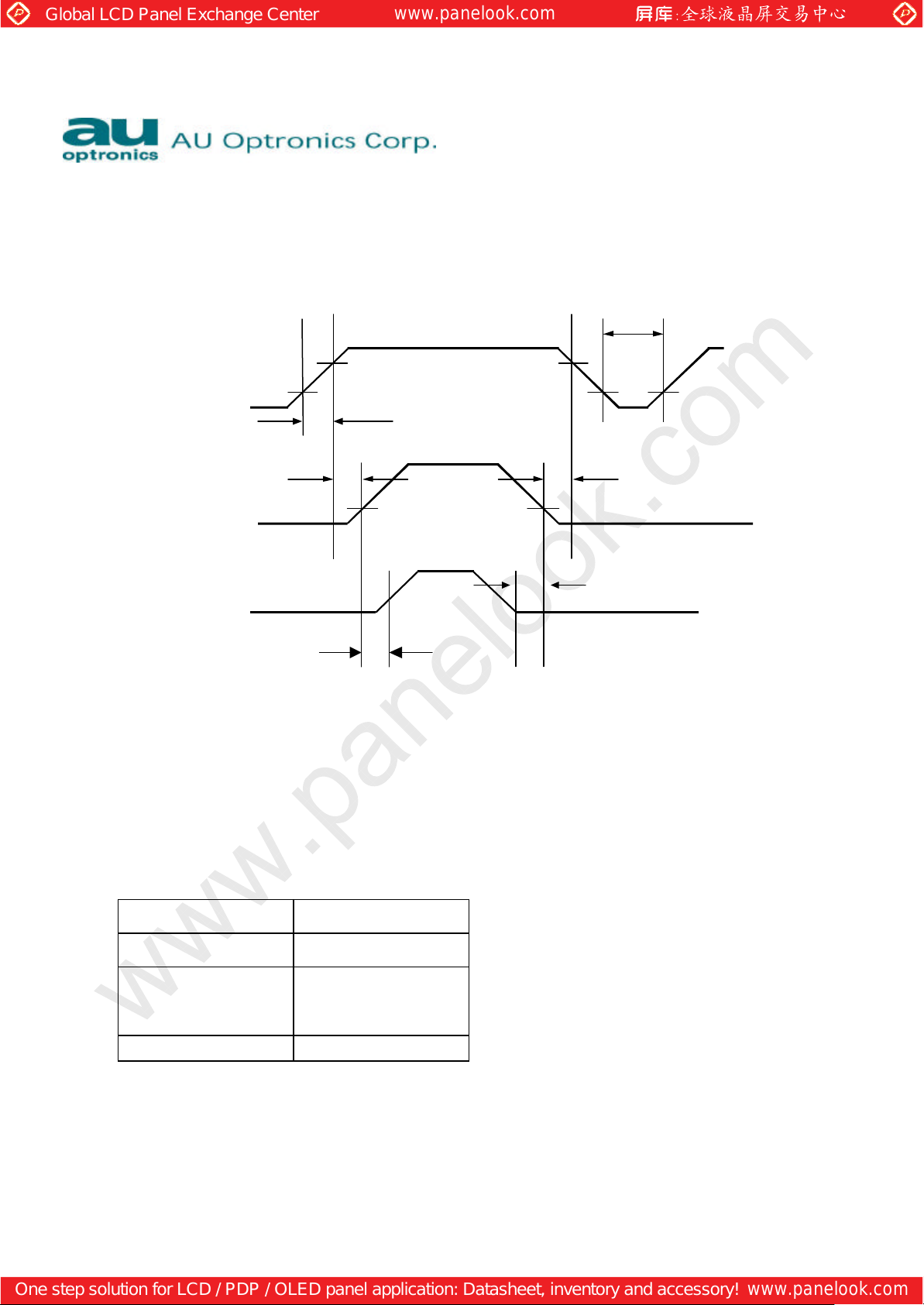

3.8 Power ON/OFF Sequence

Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when Vin is off.

min.

Vin

0 V

15ms max.

Signal

Lamp On

0 V

0 min.

10%

0 V

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

Pin # Signal Name

250ms

10%

0 min.

1 Lamp High Voltage

2

3 4

Lamp High Voltage No Connection

Ground

19

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

4.2 Parameter guideline for CFL Inverter

Symbol Parameter Min Typ Max Units Condition

(L63) White Luminance 200 260 -

ISCFL CCFL standard current 6.5 7.0 7.5

IRCFL CCFL operation range 3.0 7.0 7.5

ICFL CCFL Inrush current - 26 34 [mA] Note 1

fCFL CCFL Frequency 40 50 80 [KHz]

ViCFL

(0oC)

ViCFL

(25oC)

TCFL CCFL Dark start time 1.0 sec (Ta=25oC)

VCFL

PCFL CCFL Power consumption

Note 1: Duration=50 [msec] Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD Note 3: CCFL inverter should be able to give out a power that has a generating capacity of over 1700 voltage. Lamp units need 1700 voltage minimum for ignition Note 4: Calculator value for reference (ICFL×VCFL=PCFL) Note 5: Lamp soldering method is required to use “Hook Soldering”.

CCFL Ignition Voltage 1700 CCFL Ignition Voltage 1200

CCFL Discharge Voltage

(Reference)

700 860

19.6 25.8 [Watt]

[cd/m2 ]

[mA] [mA]

rms

[Volt]

rms

[Volt]

rms

[Volt]

rms

(Ta=25oC) (Ta=25oC)

(Ta=25oC)

Note 2

(Ta=0oC)

Note 3

(Ta=25oC)

Note 3

(Ta=25oC)

Note 4

(Ta=25oC)

Note 4

20

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

5.0 Vibration, Shock, and Drop

5.1 Vibration & Shock

Frequency: 10 - 200Hz Sweep: 30 Minutes each Axis (X, Y, Z) Acceleration: 1.5G(10~200Hz P- P) Test method:

5.2 Shock Test Spec:

Acceleration (G) 1.5

Frequency (Hz) 10~200~10

Active time(min) 30

Acceleration (G) 50 Act ive time 20 Wave form half-sin Times 1

Direction: ±X , ±Y, ±Z

5.3 Drop test

Package test: The drop height is 60 cm.

6.0 Environment

The display module will meet the provision of this specification during operating condition or after storage or shipment condition specified below. Operation at 10% beyond the specified range will not cause physical damage to the unit.

6.1 Temperature and Humidity

6.1.1 Operating Conditions

The display module operates error free, when operated under the following co nditions; Temperature 0 0C to 50 0C Relative Humidity 8% to 95% Wet Bulb Temperature 39.0 0C

21

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

6.1.2 Shipping Conditions

The display module operates error free, after the following conditions; Temperature -20 0C to 60 0C Relative Humidity 8% to 95% Wet Bulb Temperature 39.0 0C

6.2 Atmospheric Pressure

The display assembly is capable of being operated without affecting its operations over the pressure range as following specified;

Pressure Note

Maximum Pressure 1040hPa 0m = sea level

Minimum Pressure 674hPa 3048m = 10.000 feet

Note : Non -operation attitude limit of this display module = 30,000 feet. = 9145 m.

6.3 Thermal Shock

The display module will not sustain damage after being subjected to 100 cycles of rapid temperature change. A cycle of rapid temperature change consists of varying the temperature from -200C to 600C, and back again.

Thermal shock cycle -20 0C for 30min 60 0C for 30min

Power is not applied during the test. After temperature cycling, the unit is placed in normal room ambient for at least 4 hours before powering on.

7.0 Reliability

This display module and the packaging of that will comply following standards.

7.1 Failure Criteria

The display assembly will be considered as failing unit when it no longe r meets any of the requirements stated in this specification. Only as for maximum white luminance, following criteria is applicable.

Note : Maximum white Luminance shall be 115 cd/m2or more.

7.2 Failure Rate

The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed 1.0%. The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7% per 1000 hours.

22

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

7.2.1 Usage

The assumed usage for the above criteria is:

220 power-on hours per month 500 power on/off cycles per month Maximum brightness setting Operation to be within office environment (250C typical)

7.2.2 Component De-rating

All the components used in this device will be checked the load condition to meet the failure rate criteria.

7.3 CCFL Life

The assumed CCFL Life will be longer than 30,000 hours, typical value is 40,000 hours under stable condition at 25 ± 5oC; Standard current at 7.0 ± 0.5mA. Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.

7.4 ON/OFF Cycle

The display module will be capable of being operated over the following ON/OFF Cycles.

ON/OFF Value Cycles

+Vin and CCFL power 30,000 10 seconds on / 10 seconds off

8.0 Safety

8.1 Sharp Edge Requirements

There will be no sharp edges or comers on the display assembly that could cause injury.

8.2 Materials

8.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used, they will be reviewed and approved by the responsible AU Toxicologist.

8.2.2 Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in the module will complete the flammability rating exception approval process. The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed circuit board.

23

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

/26

8.3 Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them from being inserted backwards.

8.4 Hazardous Voltages

Any point exceeding 42.4 volts meets the requirement of the limited current circuit. The current through a 2KΩ resistance is less than 0.7 x f (kHz) mA.

9.0 Other requirements

9.1 National Test Lab Requirement

The display module will satisfy all requirements for compliance to

UL 1950, First Edition U.S.A. Information Technology Equipment CSA C22.2 No.950-M89 Canada, Information Technology Equipment EEC 950 International, Information Technology Equipment EN 60 950 International, Information Processing Equipment

9.2 Label

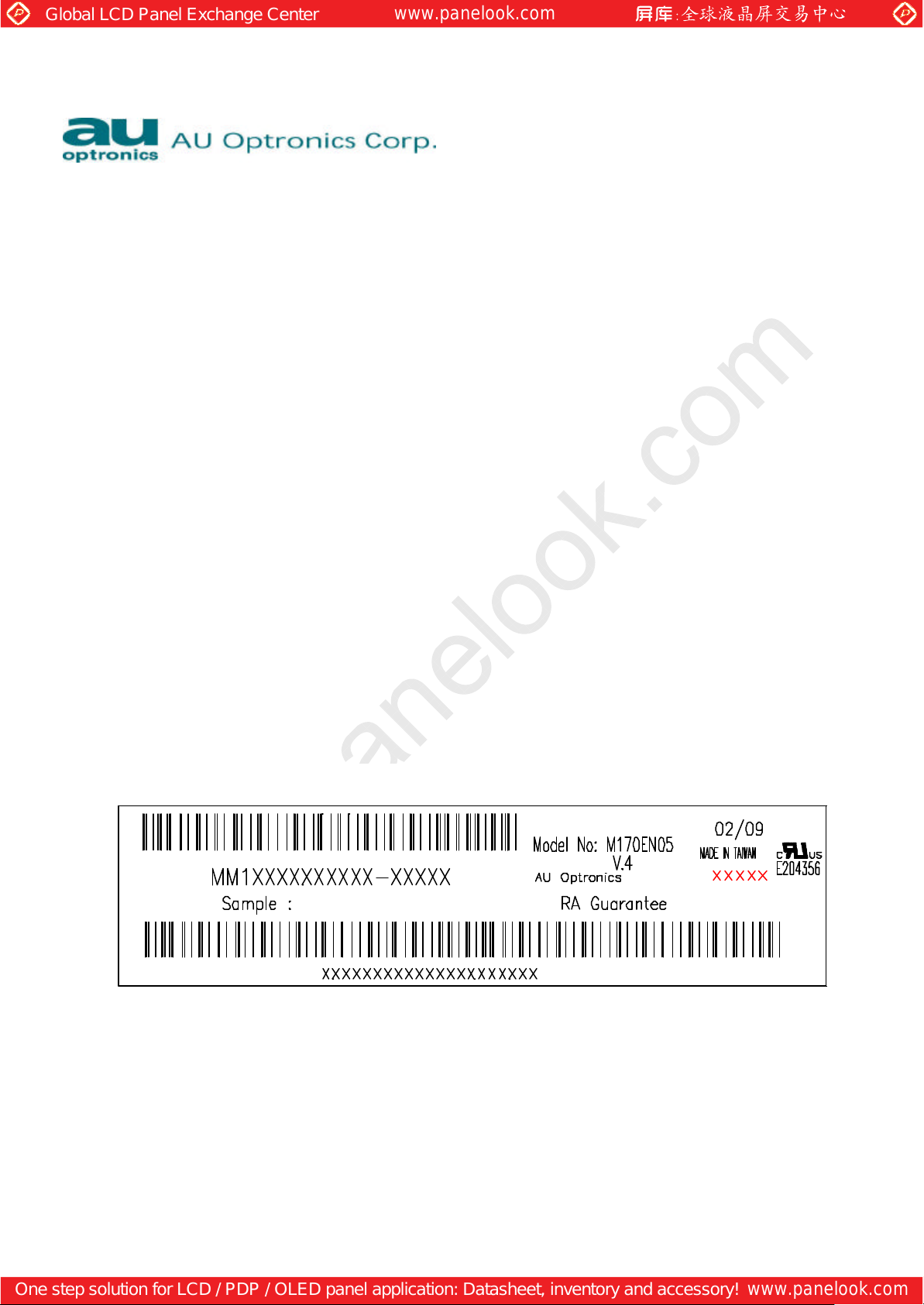

9.2.1 Product label

(European Norm for IEC950)

24

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

25 /26

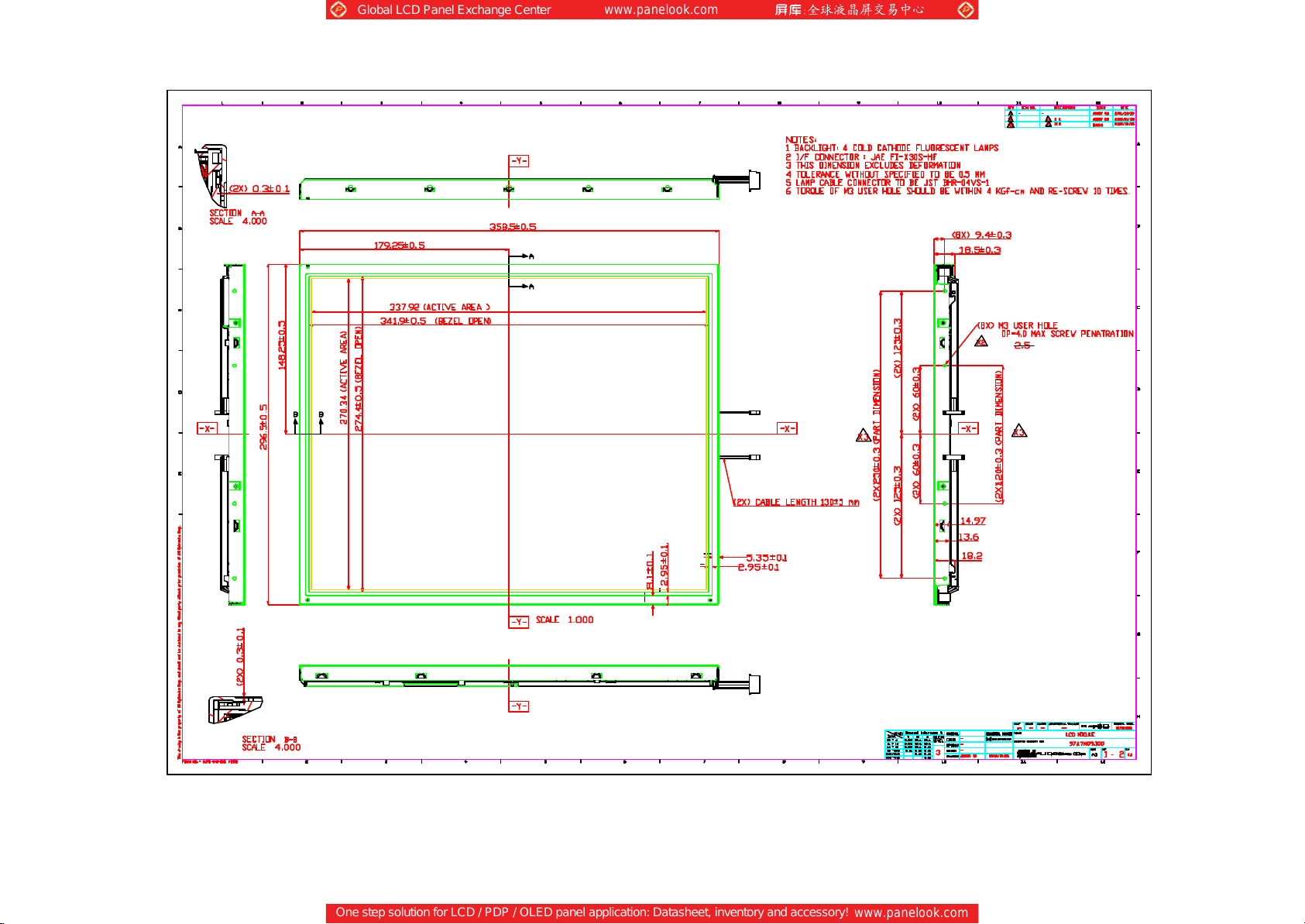

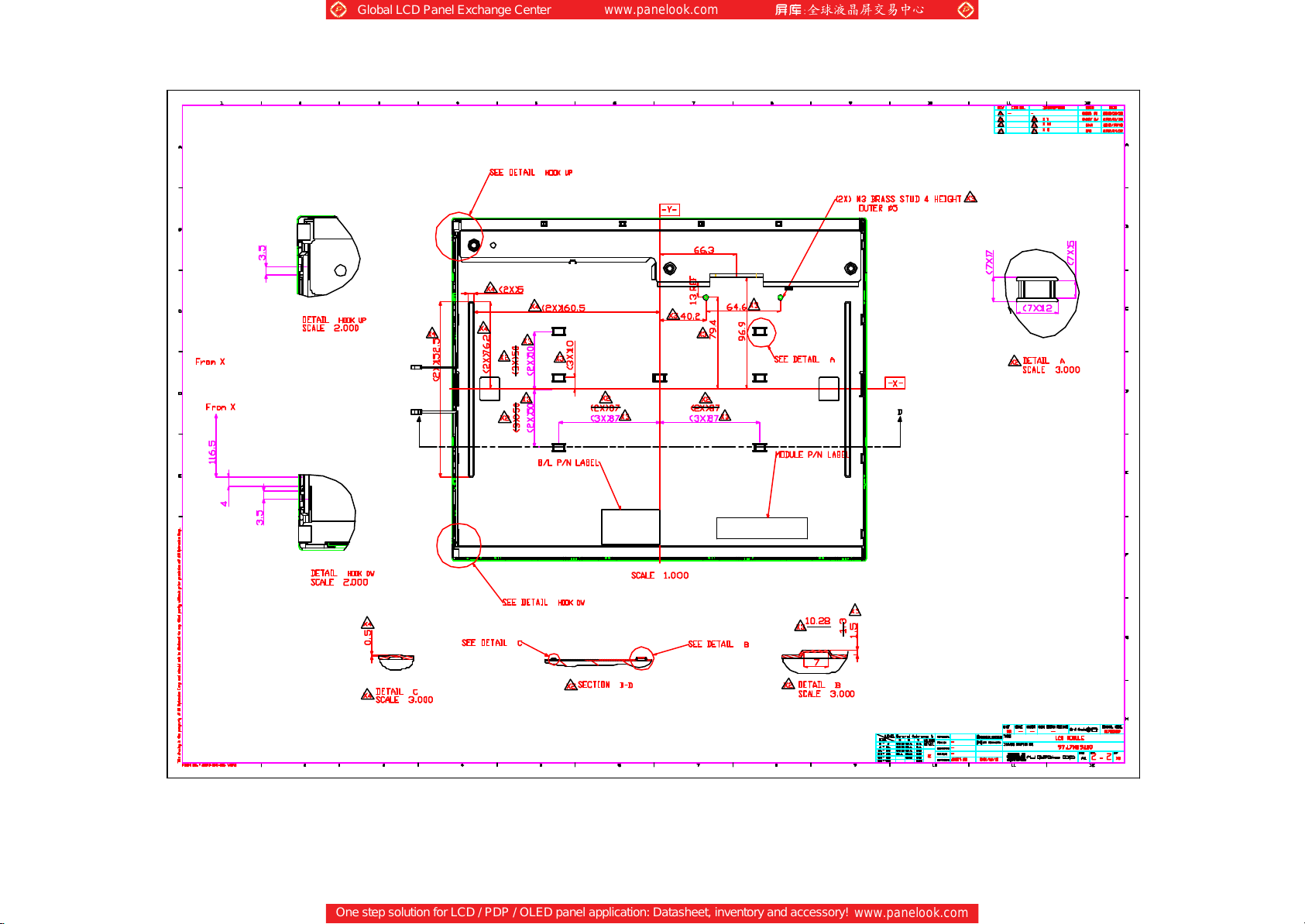

10.0 Mechanical

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

26 /26
