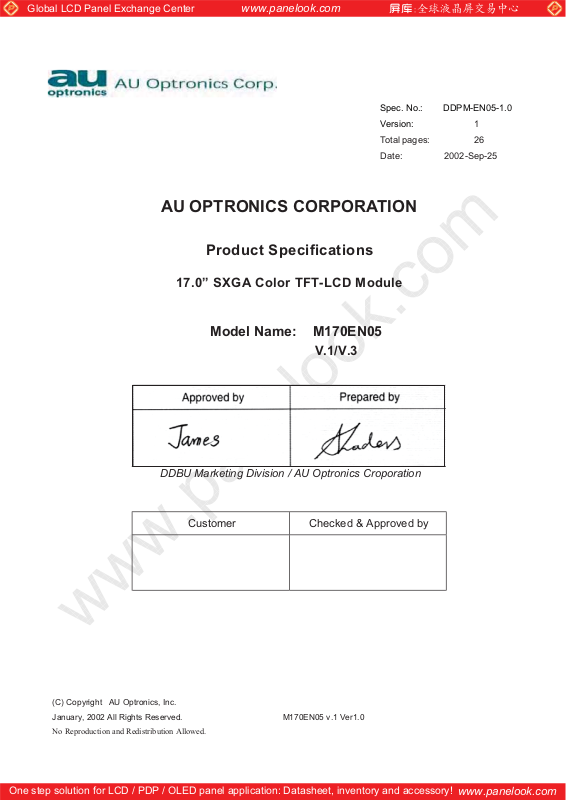

AUO M170EN05 V3 Specification

Download

Page 1

Global LCD Panel Exchange Center

AU OPTRONICS CORPORATION

17.0” SXGA Color TFT-LCD Module

www.panelook.com

Spec. No.: DDPM-EN05-1.0

Version: 1

Total pages: 26

Date: 2002-Sep-25

Product Specifications

Model Name: M170EN05

V.1/V.3

DDBU Marketing Division / AU Optronics Croporation

Customer Checked & Approved by

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

M170EN05 v.1 Ver1.0

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

Product Specifications

17.0” SXGA Color TFT-LCD Module Model Name: M170EN05

V.1

() Preliminary Specifications

(…) Final Specifications

Note: This Specification is subject to change without notice.

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/26

www.panelook.com

Page 3

Global LCD Panel Exchange Center

i Contents

ii Record of Revision

1.0 Handling Precautions

2.0 General Description

2.1 Display Characteristics

2.2 Functional Block Diagram

2.3 Optical Characteristics

2.4 Pixel format image

3.0 Electrical characteristics

3.1 Absolute Maximum Ratings

3.2 Connectors

3.3 Signal Pin

3.4 Signal Description

3.5 Signal Electrical Characteristics

3.6 Interface Timing

3.6.1 Timing Characteristics

3.6.2 Timing Definition

3.7 Power Consumption

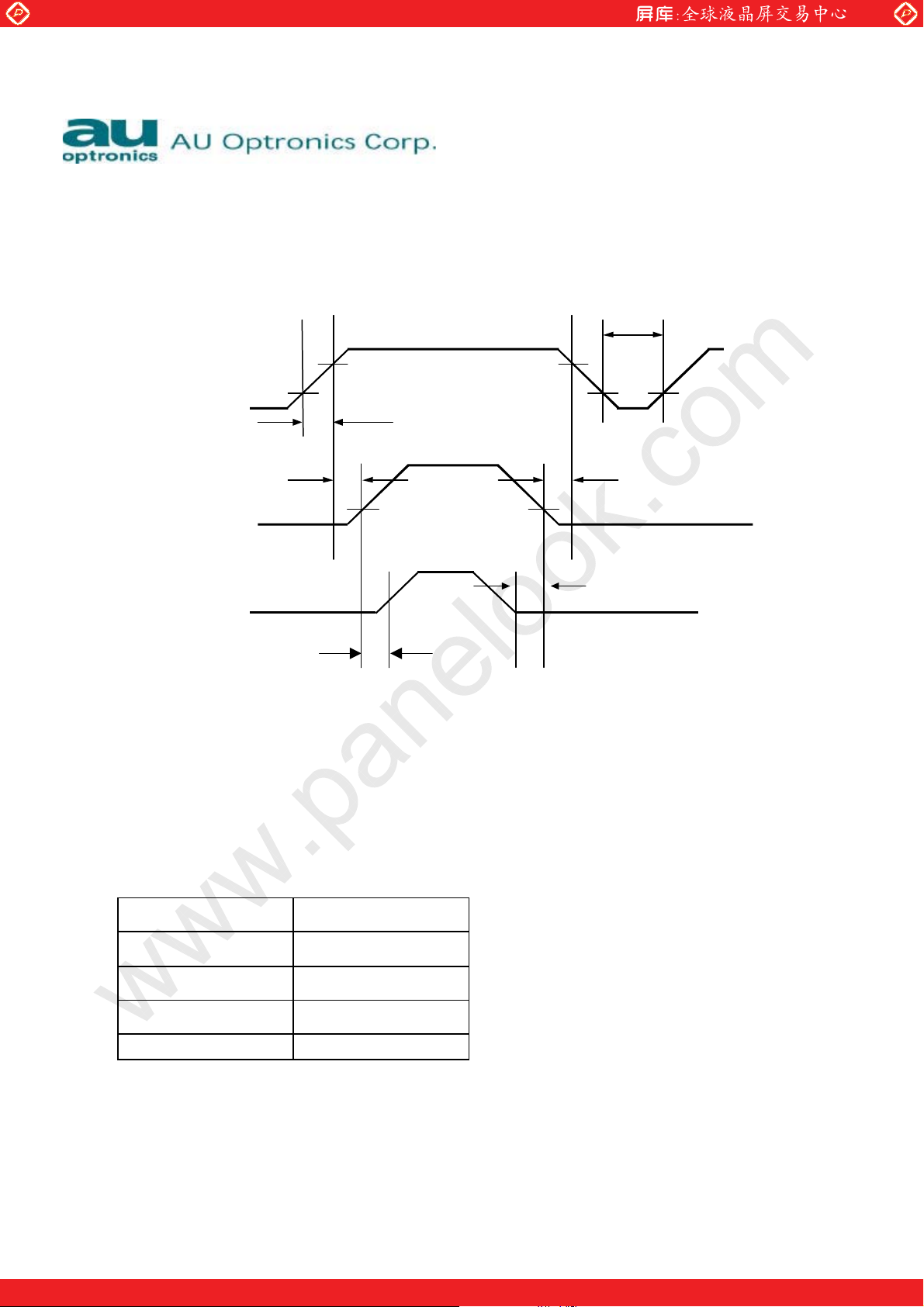

3.8 Power ON/OFF Sequence

www.panelook.com

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

4.2 Parameter guide line for CCFL Inverter

5.0 Vibration, shock and drop

5.1 Vibration and shock

5.2 Drop test

6.0 Environment

6.1 Temperature and humidity

6.1.1 Operating conditions

6.1.2 Shipping conditions

6.2 Atmospheric pressure

6.3 Thermal shock

7.0 Reliability

7.1 Failure criteria

7.2 Failure rate

7.2.1 Usage

7.2.2 Components de-rating

7.3 CCFL life

7.4 ON/OFF cycle

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/26

www.panelook.com

Page 4

Global LCD Panel Exchange Center

8.0 Safety

8.1 Sharp edge requirement

8.2 Material

8.2.1 Toxicity

8.2.2 Flammability

8.3 Capacitors

8.4 Hazardous voltage

9.0 Other requirements

9.1 Smoke free design

9.2 National test lab requirement

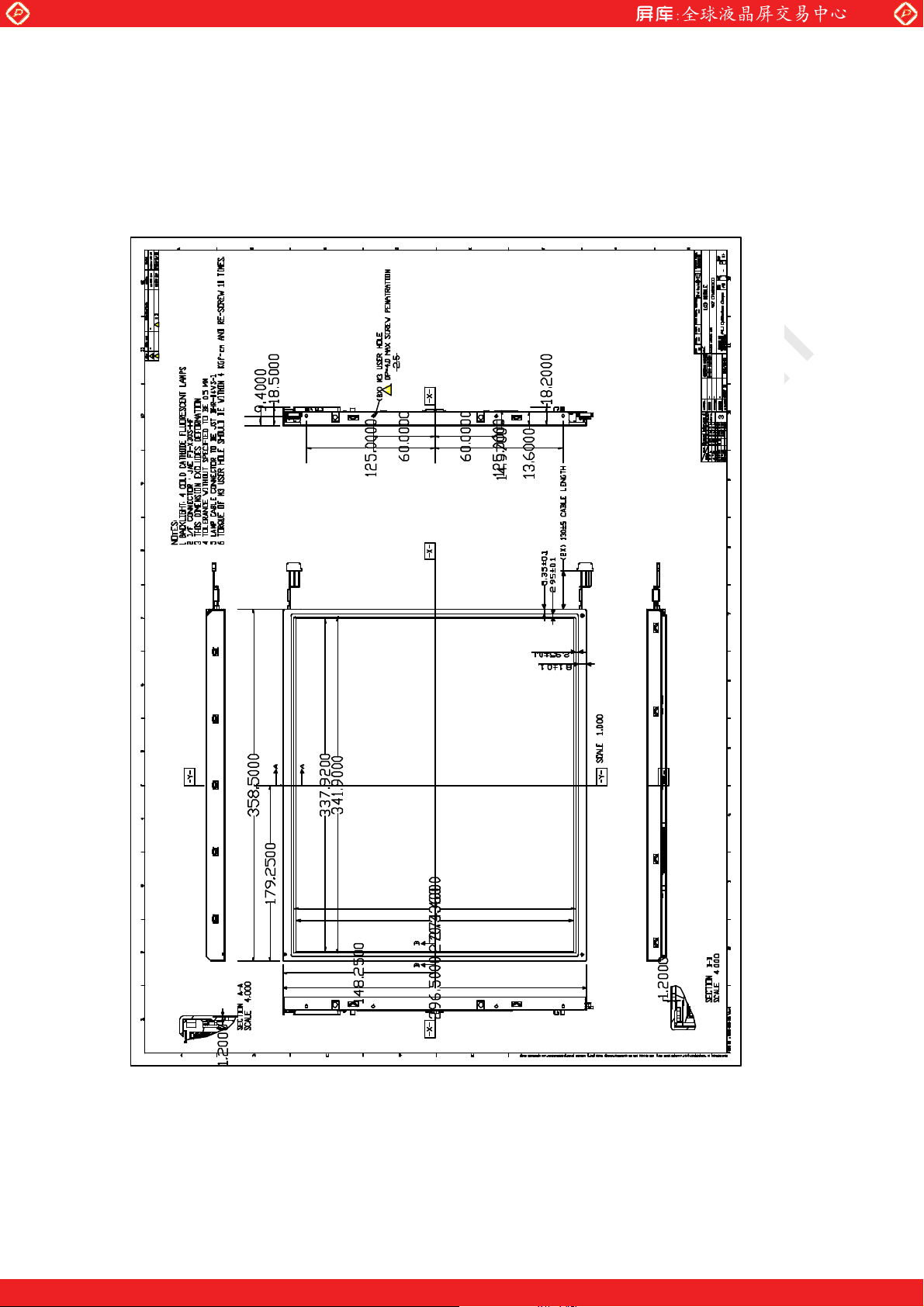

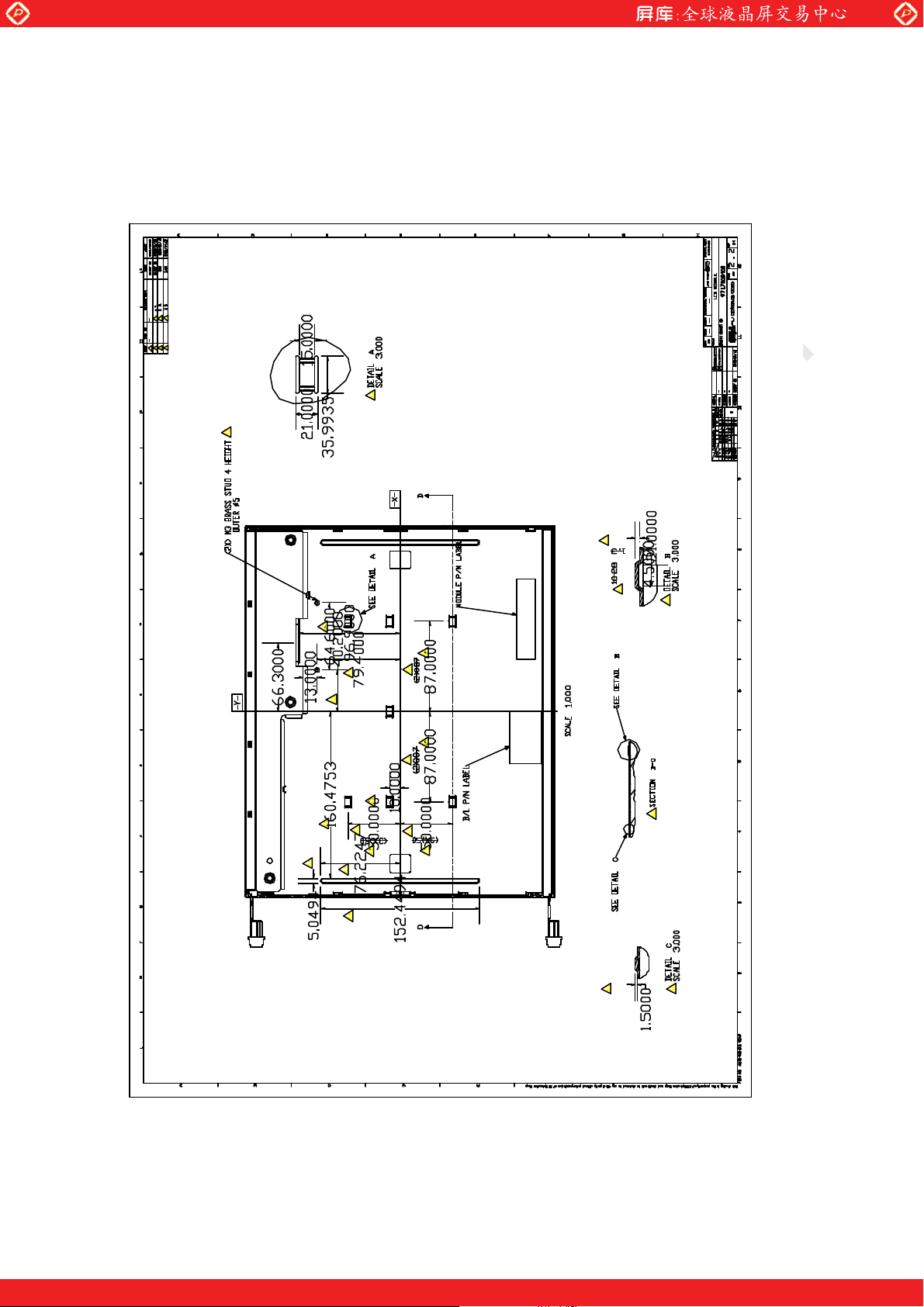

10.0 Mechanical Characteristics

www.panelook.com

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/26

www.panelook.com

Page 5

Global LCD Panel Exchange Center

www.panelook.com

ii Record of Revision

Version and Date Page Old description New Description Remark

0.1 2002/01/07 All First Edition for Customer All

0.2. 2002/01/30 6

8 n.a. TCO99 luminance uniformity <1.7 Add

24 ME drawing ME drawing Update

0.3 2002/03/22 5 Color Chromaticity Color Chromaticity Add

0.4. 2002/04/08 17 Power ON/OFF Sequence Power ON/OFF Sequence Update

24 ME drawing ME drawing (hook position) Update

24 ME drawing ME drawing (screw hole depth) Update

0.5. 2002/05/03 6 Viewing angle

5 Brightness: 280nits(center) Brightness: 260nits(center) Update

12 V front porch: 1(min); 1(typ) V front porch: 2(min); 2(typ) Update

5 Green x: 0.28; Green y: 0.62 Green x: 0.29; Green y: 0.61 Update

Uniformity(5-pts): 85%(typ) ; 80%(min)

Raising Time: 11.5(typ) /18(max) Falling Time: 4.5(typ) /7(max)

Uniformity(9-pts): 80%(typ) ; 75%(min)

70/70/70/70 (CR=10) 80/80/80/80 (CR=5)

Raising Time: 12(typ) /20(max) Falling Time: 4(typ) /5(max)

Change

Update

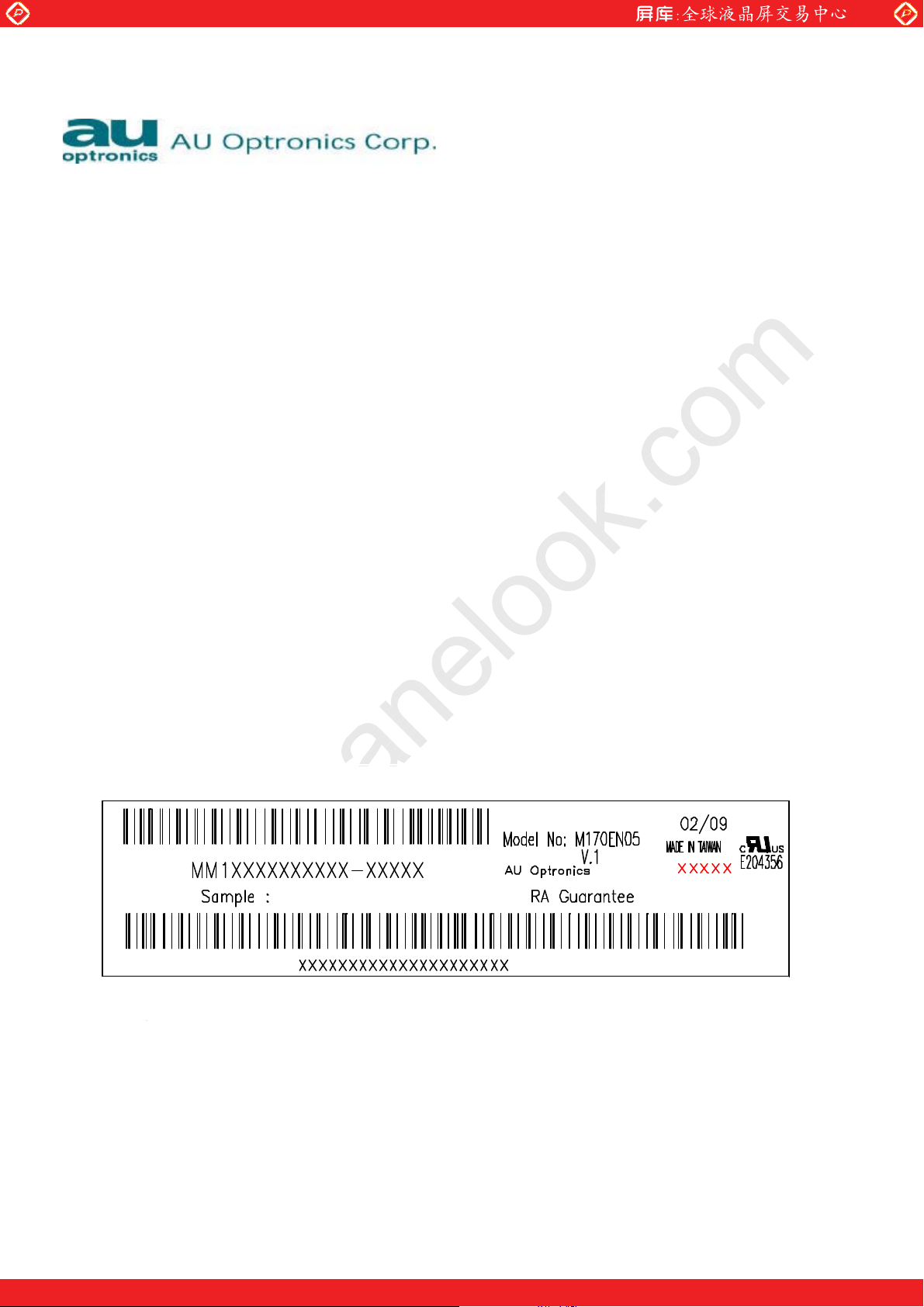

0.6. 2002/7/20 24 Old label New label Update

25,26 ME drawing ME drawing(Bezel modify) Update

6 Weight: 1900g Weight: 2000g Update

17 V front porch: 2(min); 2(typ) V front porch: 1(min); 1(typ) Update

20 n.a.

8 Contrast: 400(typ) Contrast: 450(typ) Update

0.7 2002/9/18 6 Power consumption: 25W Power consumption: 25W (typ) Add

8 n.a. Test equipment setup Add

21 n.a Lamp soldering method Add

Raising Time: 12(typ) / 20(max) Falling Time: 4(typ) / 5(max)

CCFL Inrush current

Raising Time: 4(typ) / 5(max) Falling Time: 12(typ) / 20(max)

Add

Update

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/26

www.panelook.com

Page 6

Global LCD Panel Exchange Center

www.panelook.com

1.0 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT-LCD module.

10) After installation of the TFT-LCD module into an enclosure (LCD monitor housing, for example), do not twist nor bend the TFT -LCD module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT -LCD module from outside. Otherwise the TFT -LCD module may be damaged.

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/26

www.panelook.com

Page 7

Global LCD Panel Exchange Center

www.panelook.com

General Description

This specification applies to the 17.0 inch Color TFT-LCD Module M170EN05.

The display supports the SXGA (1280(H) x 1024(V)) screen format and 262k colors (RGB 6-bits data).

All input signals are 2 Channel LVDS interface compatible.

This module does not contain an inverter card for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25 ℃ condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 432(17.0") Active Area [mm] 337.920 (H) x 270.336(V) Pixels H x V 1280(x3) x 1024 Pixel Pitch [mm] 0.264 (per one triad) x 0.264 Pixel Arrangement R.G.B. Vertical Stripe Display Mode Normally White White Luminance [cd/m2] 260 (center) @ 7mA Contrast Ratio 450 : 1 (Typ) Optical Response Time [msec] 16 (Typ) Color Saturation 72% NTSC Nominal Input Voltage VDD [Volt] +5.0 V Power Consumption (VDD line + CCFL line) Weight [Grams] 2000 (Typ) Physical Size [mm] 358.5(W) x 296.5(H) x 19.0(D) Electrical Interface Even/Odd R/G/B data, 3 sync signal,

Support Color 262k colors (RGB 6-bit data ) Temperature Range Operating St orage (Shipping)

[Watt] 25W (typ)

(w/o Inverter, All black pattern)

Clock

[

0 to +50

-20 to +60

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/26

www.panelook.com

Page 8

Global LCD Panel Exchange Center

www.panelook.com

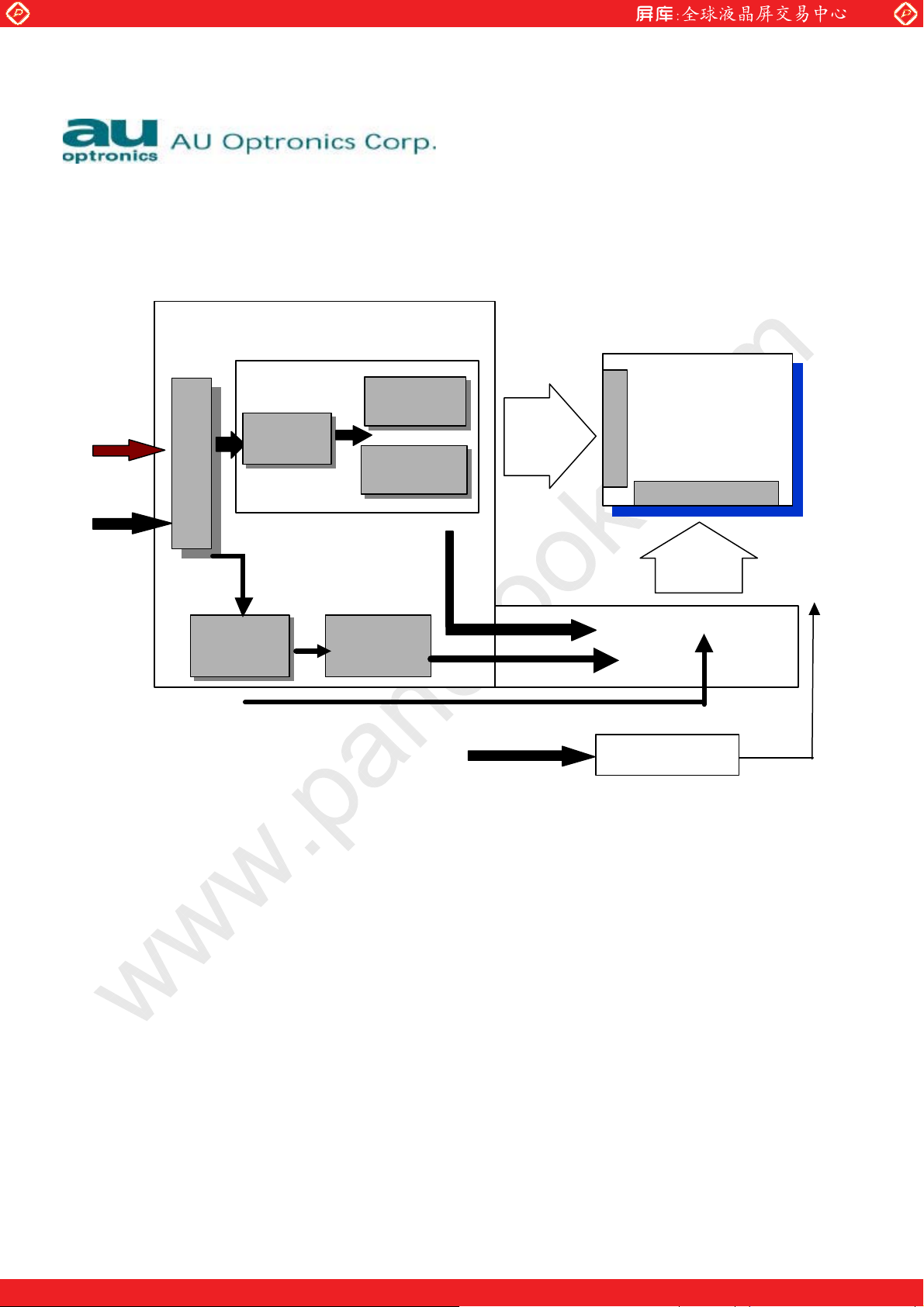

2.2 Functional Block Diagram

The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:

AU ASIC

LVDS

+ 5V

Connector

Receiver

DC/DC

Converter

LVDS

Timing

Controller

RSDS

Transmitter

Gamma

Correction

Y-Driver IC

TFT-LCD

1280*(3)*1024

Pixels

G1024

D1 D3840

4 CCFL

DC POWER

Inverter

JAE FI-X30S-HF JST BHR-04VS - 1 Mating Type: JAE FI-X30S-H Mating Type: SM04(4.0)B-BHS-1-T B

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/26

www.panelook.com

Page 9

Global LCD Panel Exchange Center

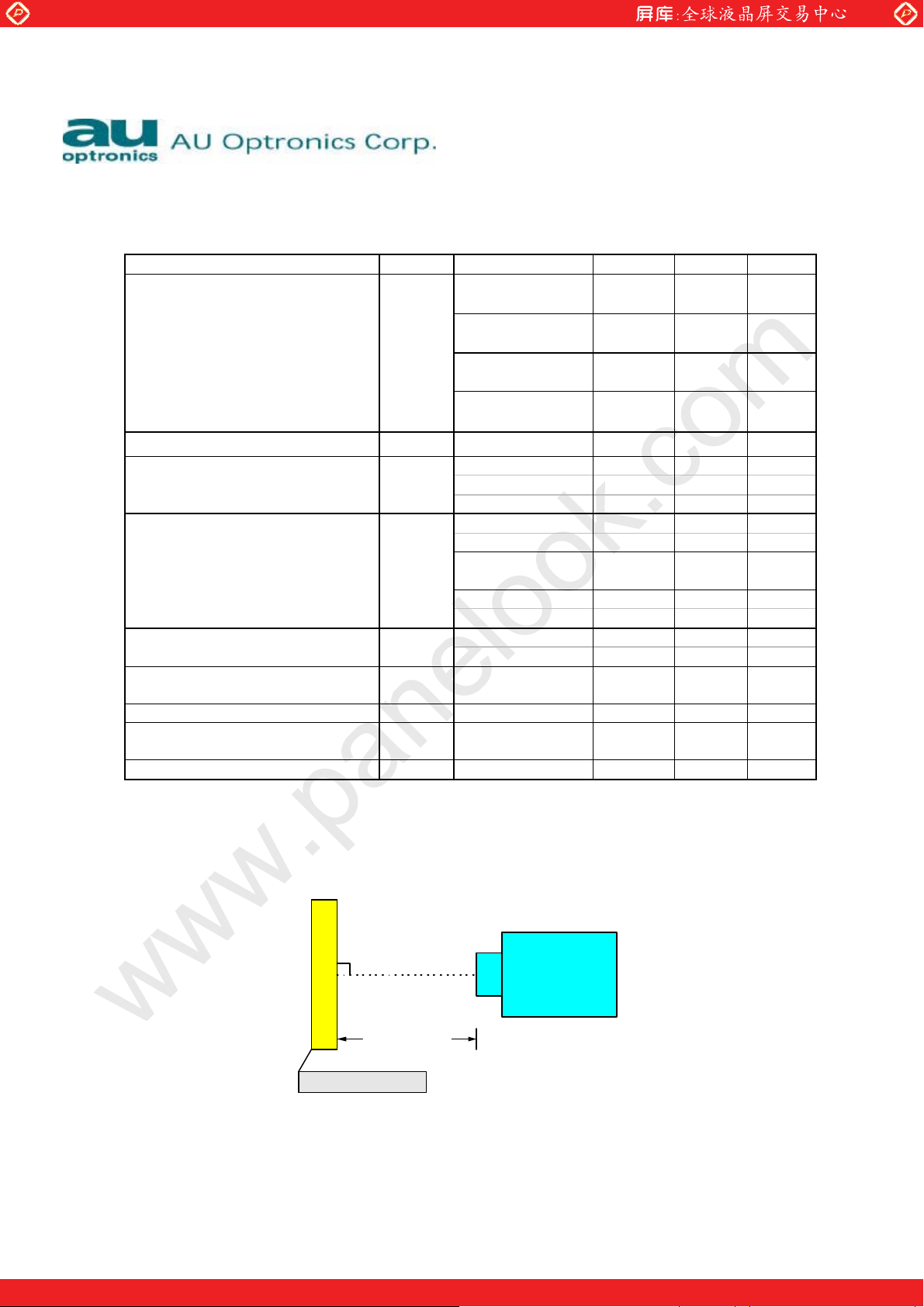

2.3 Optical Characteristics

The optical characteristics are measured under stable conditions at 25℃ (Room Temperature) :

Item Unit Conditions Min. Typ. Max.

Viewing Angle [degree]

Contrast ratio Normal Direction 250 450 -

Response Time (Note 1) [msec]

Color / Chromaticity Coordinates (CIE)

Color Coordinates (CIE) White

White Luminance @ CCFL 7.0mA (center)

Luminance Uniformity (Note 2) [%] 75 80 TCO99 1.5.2B luminance uniformity (Note 3) Crosstalk (in 75Hz) (Note 4) [% ] 1.5

www.panelook.com

Horizontal (Right) CR = 10 (Left)

Vertical (Up) CR = 10 (Down)

Horizontal (Right) CR = 5 (Left)

Vertical (Up) CR = 5 (Down)

Raising Time - 4 5 Falling Time - 12 20 Raising + Falling - 16 25 Red x 0.61 0.64 0.67 Red y 0.31 0.34 0.37 Green x 0.26 0.29 0.32 Green y 0.58 0.61 0.64 Blue x 0.11 0.14 0.17 Blue y 0.04 0.07 0.10 White x 0.28 0.31 0.34 White y 0.30 0.33 0.36

[cd/m2]

60 60

70 70

80 80

200 260 -

1.7

Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A) Aperture 1°with 100cm VD or 2°with 50cm viewing distance

Test Point Center (ISO point 22)

Environment < 1 lux

LCD Module

PR-880 /

BM5A /

BM7

measuring distance

Module Driving Equipment

No Reproduction and Redistribution Allowed.

8/26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

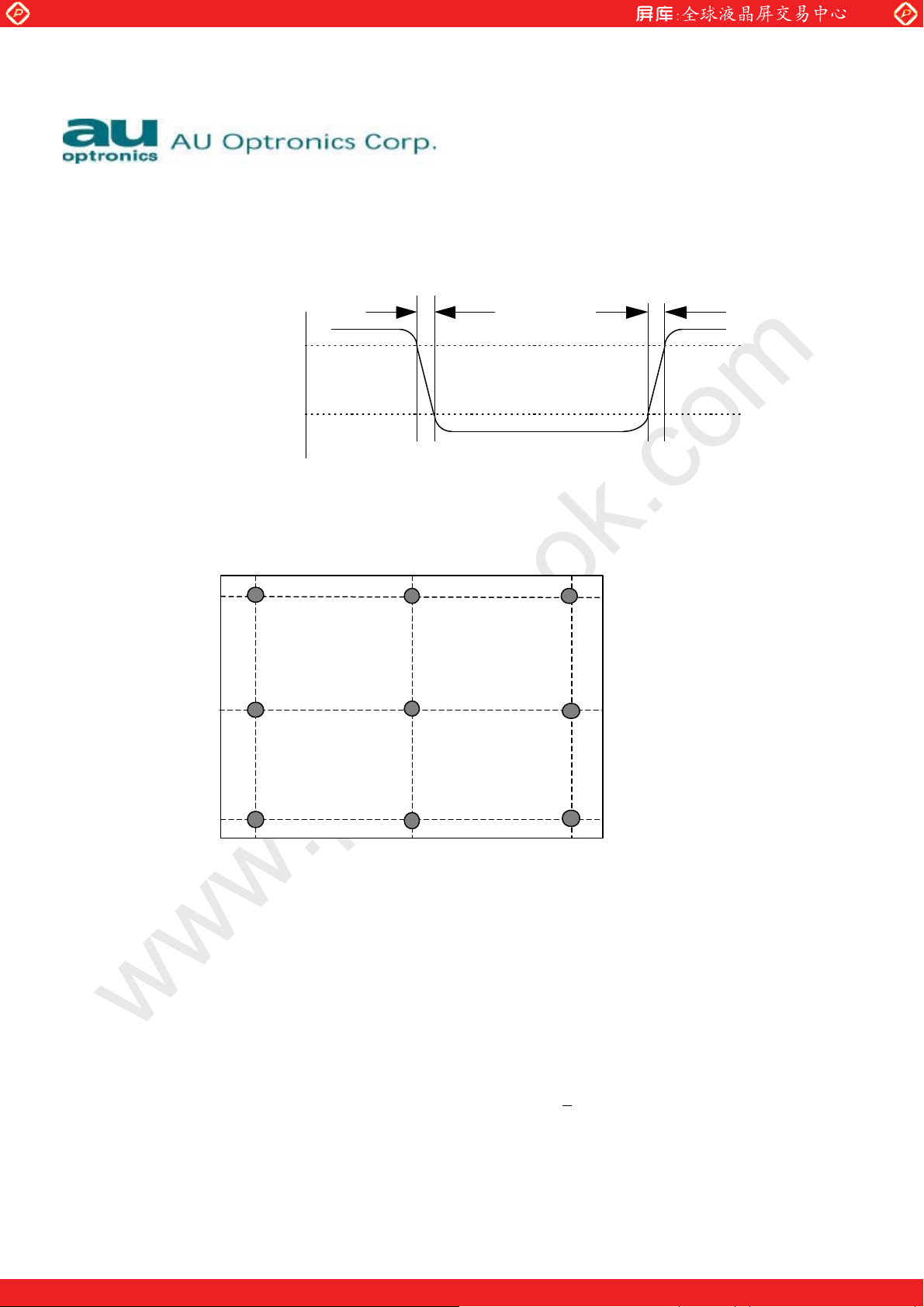

Note 1: Definition of Response time:

The output signals of photodetector are measured when the input signals are changed from “ Black” to “ White” (falling time), and from “ White” to “ Black” (rising time), respectively. The response time is interval between the 10% and 90% of amplitudes.

100

Optical Response

www.panelook.com

TrR

TrD

Note 2: Brightness uniformity of these 9 points is defined as below:

90 %

white

50 %

white

black

10 %

50 %

90 %

Minimum Luminance in 9 Points (1-9)

Uniformity = ————————————————————

Maximum Luminance in 9 Points (1-9)

Note 3: TCO ’ 99 Certification Requirements and test methods for environmental labeling of Display Report No. 2 defines Luminance uniformity as below:

((Lmax,+30deg. / Lmin,+30deg.) + (Lmax,-30deg. / Lmin,-30deg.)) / 2

This panel is compatible with TCO99 approbation in luminance uniformity <

No Reproduction and Redistribution Allowed.

1.7, luminance contrast >0.5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/26

www.panelook.com

Page 11

Global LCD Panel Exchange Center

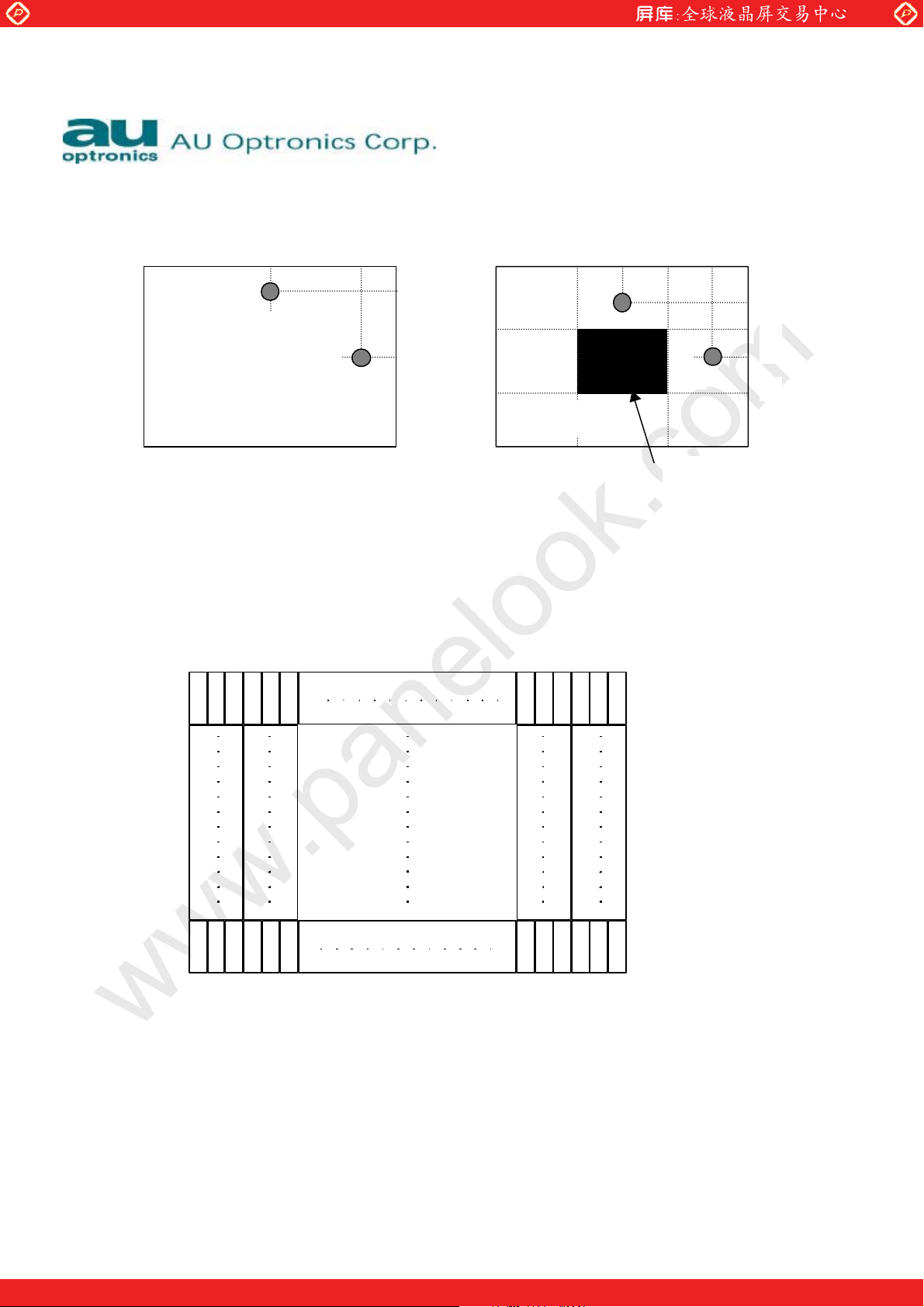

Note 4:

www.panelook.com

1/2

184 gray level 184 gray level

Unit: percentage of dimension of display area

l L

l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B

A-LA’

l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’

B-LB’

1/6

1/2

2/3 1/3

A’

2.4: Pixel format image

Following figure shows the relationship of the input signals and LCD pixel format.

1 2 1279 1280

1/2

1/6

1/3

1/2

B’

2/3

0 gray level

1st Line

1024th

No Reproduction and Redistribution Allowed.

R G B R G B

10/26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

emperature

3.0 Electrical characteristics

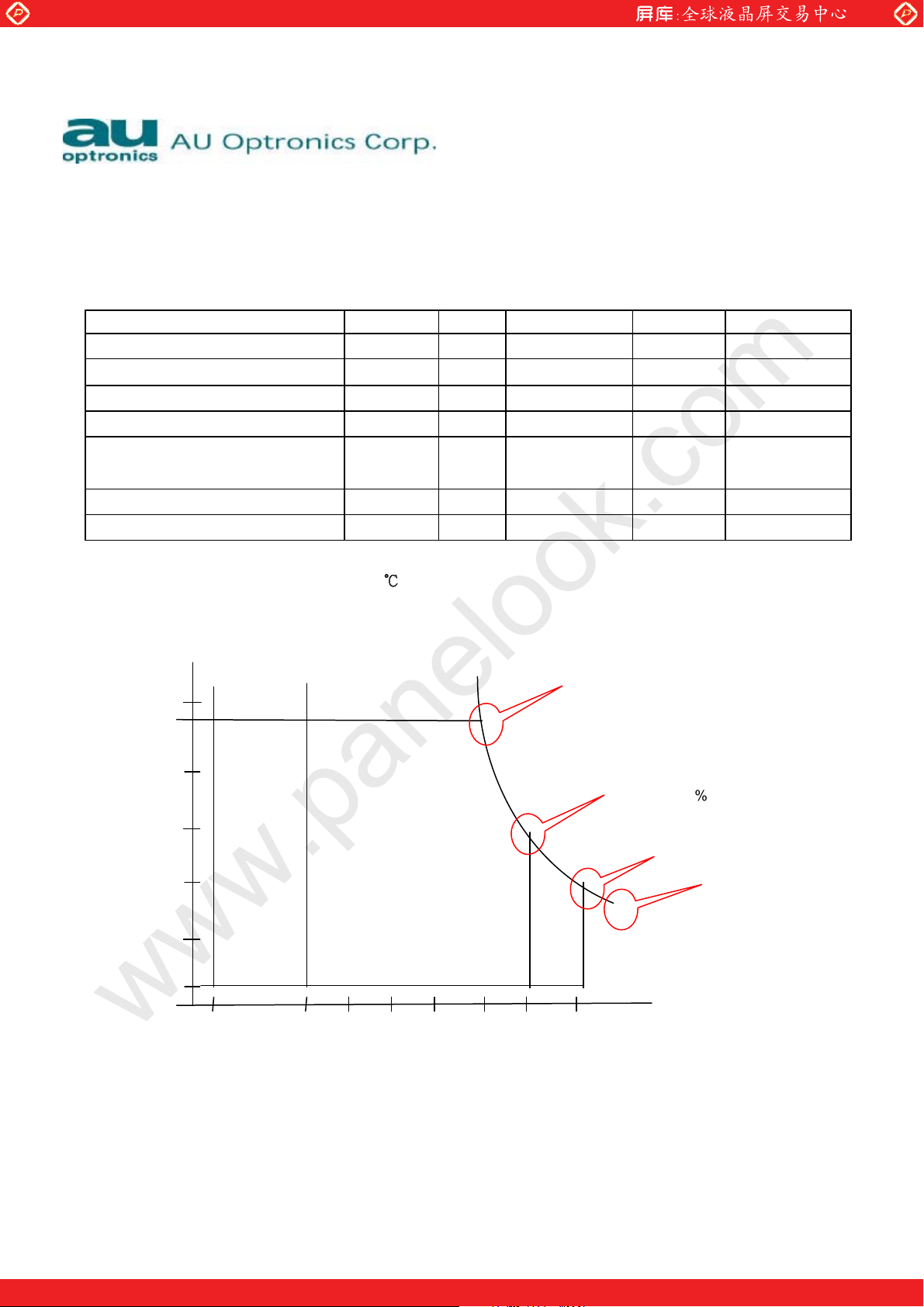

3.1 Absolute Maximum Ratings

Absolute maximum ratings of the module is as following:

Item Symbol Min Ma x Unit Conditions

Logic/LCD Drive Voltage VIN -0.3 +5.5 [Volt]

Select LVDS data order SELLVDS NC NC [Volt]

CCFL Inrush current ICFLL - 38 [mA]

CCFL Current ICFL - 7.6 [mA] rms

Operating Temperature TOP 0 +50 [oC] Note 1

Operating Humidity HOP 8 95 [%RH] Note 1

www.panelook.com

Storage Temperature TST -20 +60 [oC] Note 1

Storage Humidity HST 8 95 [%RH] Note 1

Note 1 : Maximum Wet-Bulb should be 39Ċ and No condensation.

Relative Humidity %

100

Storage

range

Twb=39

Operation range

℃

T=40℃,H=95%

T=50℃,H=55%

T=60℃,H=39%

T=65℃,H=29%

Storage

range

-20

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

06050

11/26

www.panelook.com

Page 13

Global LCD Panel Exchange Center

www.panelook.com

3.2 Connectors

Physical interface is described as for the connector on module.

These connectors are capable of accommodating the following signals and will be following components.

Connector Name / Designation Interface Connector / Interface card

Manufacturer JAE or compatible

Type Part Number FI-X30S -HF

Mating Housing Part Number FI-X30S -H

Connector Name / Designation Lamp Connector / Backlight lamp

Manufacturer JST

Type Part Number BHR-04VS-1

Mating Type Part Number SM04(4.0)B-BHS-1-TB

3.3 Signal Pin

Pin# Signal Name Pin# Signal Name

1 RxO0- 2 RxO0+ 3 RxO1- 4 RxO1+ 5 RxO2- 6 RxO2+ 7 GND 8 RxOC-

9 RxOC+ 10 RxO311 RxO3+ 12 RxE013 RxE0+ 14 GND 15 RxE1- 16 RxE1+ 17 GND 18 RxE219 RxE2+ 20 RxEC21 RxEC+ 22 RxE323 RxE3+ 24 GND 25 NC 26 NC 27 NC 28 Power 29 Power 30 Power

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12/26

www.panelook.com

Page 14

Global LCD Panel Exchange Center

www.panelook.com

3.4 Signal Description

The module using a pair of LVDS receiver SN75LVDS82 (Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.

PIN # SIGNAL NAME DESCRIPTION

1 RxO0- Negative LVDS differential data input (Odd data)

2 RxO0+ Positive LVDS differential data input (Odd data)

3 RxO1- Negative LVDS differential data input (Odd data)

4 RxO1+

5 RxO2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG) 6 RxO2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG) 7 GND Power Ground 8 RxOC- Negative LVDS differential clock input (Odd clock) 9 RxOC+ Positive LVDS differential clock input (Odd clock) 10 RxO3 - Negative LVDS differential data input (Odd data) 11 RxO3+ Positive LVDS differential data input (Odd data) 12 RxE0- Negative LVDS differential data input (Even clock) 13 RxE0+ Positive LVDS differential data input (Even data) 14 GND Power Ground 15 RxE1- Positive LVDS differential data input (Even data) 16 RxE1+ Negative LVDS differential data input (Even data) 17 GND Power Ground 18 RxE2- Negative LVDS differential data input (Even data) 19 RxE2+ Positive LVDS differential data input (Even data) 20 RxEC- Negative LVDS differential clock input (Even clock) 21 RxEC+ Positive LVDS differential clock input (Even clock) 22 RxE3- Negative LVDS differential data input (Even data) 23 RxE3+ Positive LVDS differential data input (Even data) 24 GND Power Ground 25 NC 26 NC 27 NC 28 POWER Power 29 POWER Power 30 POWER Power

Note: Input signals of odd and even clock shall be the same timing.

Positive LVDS differential data input (Odd data)

LVDS DATA Name Description DSP Display Timing: When the signal is high, the pixel data shall be valid to be displayed V-S Vertical Sync: Both Positive and Negative polarity are acceptable H-S Horizontal Sync: Both Positive and Negative polarity are acceptable

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13/26

www.panelook.com

Page 15

Global LCD Panel Exchange Center

www.panelook.com

TI LVDS X’ mitter

SN75LVDS83

Module LVDS signal

(interface connector pin7)

Signal Name Low(open)

D0 Red0 D1 Red1 D2 Red2 D3 Red3 D4 Red4 D5 Red7 D6 Red5 D7 Green0 D8 Green1

D9 Green2 D10 Green6 D11 Green7 D12 Green3 D13 Green4 D14 Green5 D15 Blue0 D16 Blue6 D17 Blue7 D18 Blue1 D19 Blue2 D20 Blue3 D21 Blue4 D22 Blue5 D23 NA D24 H Sync D25 V Sync D26 Display Timing D27 Red6

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14/26

www.panelook.com

Page 16

Global LCD Panel Exchange Center

www.panelook.com

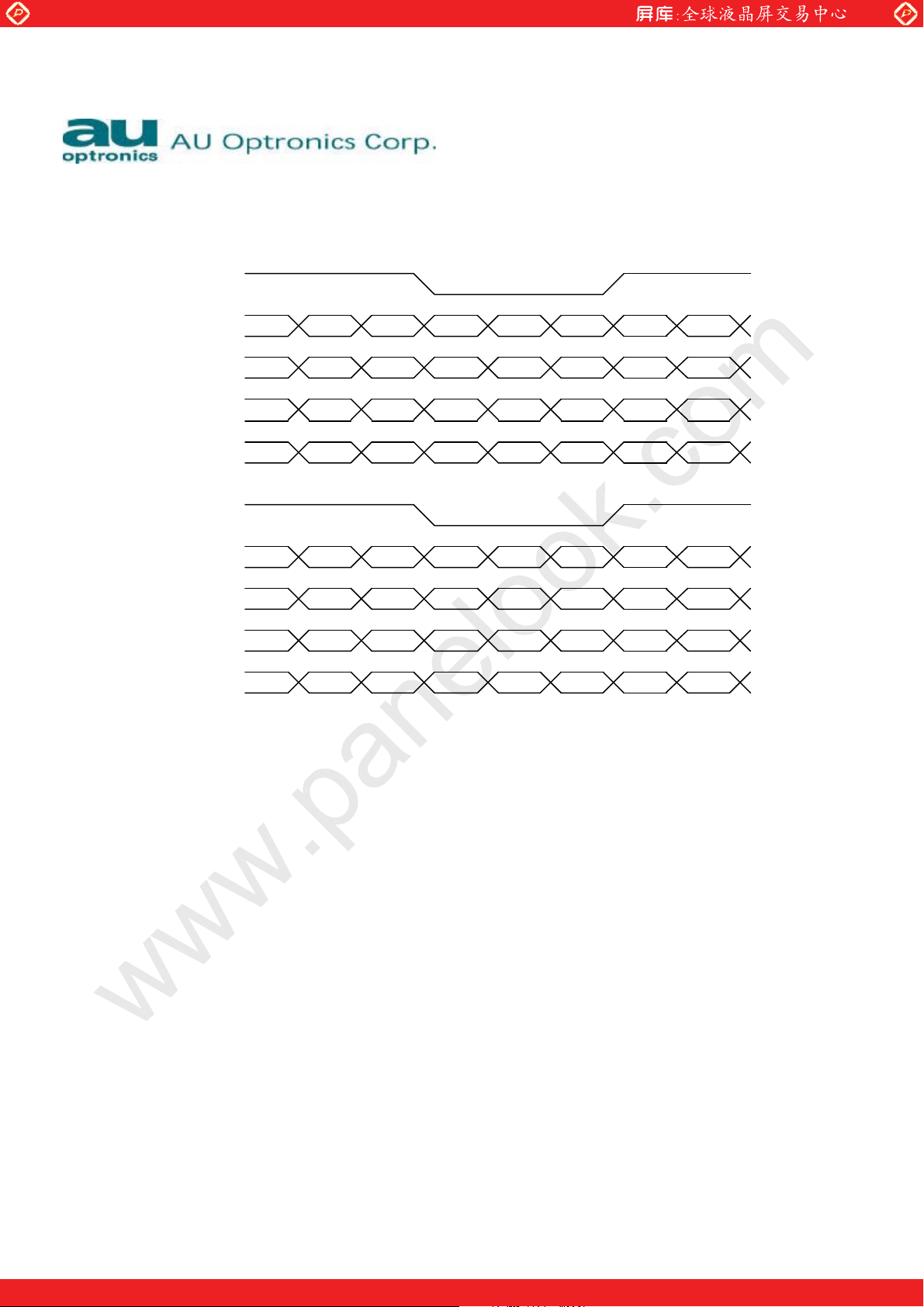

8bits input: M170EN05 only catch bit 2 to bit 7 for 6 bit display 6bits input data format marked with ( ).

RCLKP1

RAP1

RBP1 RCP1

RDP1

G0(0) R5(R3) R4(R2) R3(R1) R2(R0) R1(0) R0(0)

B1(0) B0(0) G5(G3) G4(G2) G3(G1) G2(G0) G1(0)

DE VS HS RSV

B7(B5) B6(B4) G7(G5) G6(G4) R7(R5) R6(R4)

RCLKP2

RAP2

RBP2

G0(0) R5(R3) R4(R2) R3(R1) R2(R0) R1(0) R0(0)

B1(0) B0(0) G5(G3) G4(G2) G3(G1) G2(G0) G1(0)

RCP2

RDP2

Note: R/G/B data 7:MSB, R/G/B data 0:LSB

O = “ First Pixel Data”

E = “Second Pixel Data”

RSV

B7(B5) B6(B4) G7(G5) G6(G4) R7(R5) R6(R4)

B5(B3) B4(B2) B3(B1) B2(B0)

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15/26

www.panelook.com

Page 17

Global LCD Panel Exchange Center

www.panelook.com

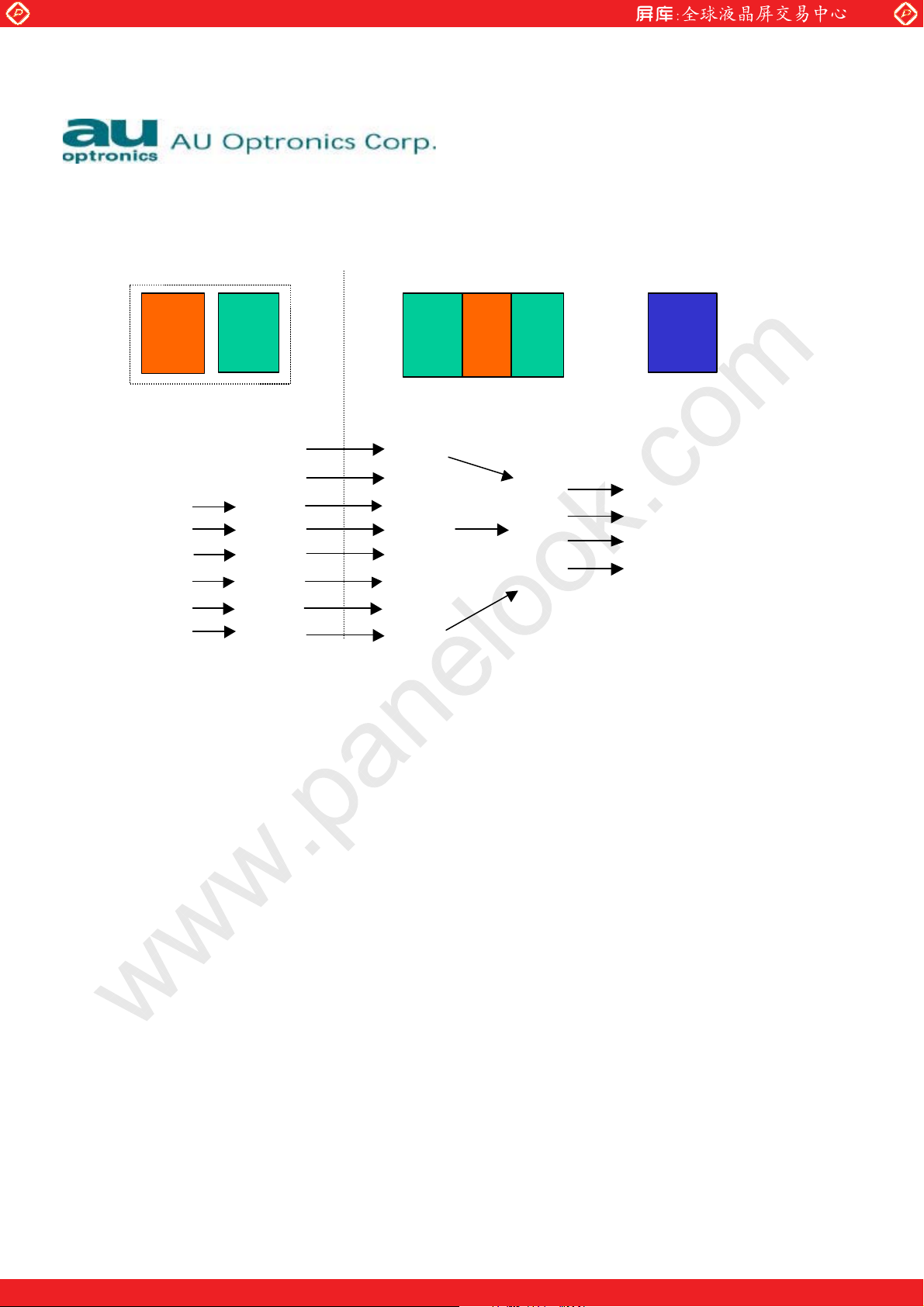

Scaling IC

6 bits+FRC

8 bits LVDS transmitter

Controller IC

8 bits LVDS Receiver

8 bits RSDS transmitter

M170EN05 moduleLVDS interfaceSystem

Driver IC

6 bits RSDS receiver driver IC

open

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16/26

www.panelook.com

Page 18

Global LCD Panel Exchange Center

www.panelook.com

3.5 Signal Electrical Characteristics

Input signals shall be low or Hi-Z state when Vin is off It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.

Each signal characteristics are as follows;

Parameter Condition Min Max Unit

Vth

Vtl

Differential InputHigh Voltage(Vcm=+1.2V)

Differential Input Low Voltage(Vcm=+1.2V)

100

-100

[mV]

3.6 Interface Timings

Basically, interface timings described here is not actual input timing of LCD module but output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.

3.6.1 Timing Characteristics

Signal Item Symbol MIN TYP MAX Unit

DTCLK Freq. Fdck 50 67.5 70 MHz DTCLK Cycle Tck 14.2 14.8 20 ns +V-Sync Frame Rate 1/Tv 56.25 75 77 Hz +V-Sync Cycle Tv 13 13.33 17.78 ms +V-Sync Cycle Tv 1035 1066 2047 lines +V-Sync Active level Tva 3 3 lines +V-Sync V-back porch Tvb 7 38 63 lines +V-Sync V-front porch Tvf 1 1 lines +DSPTMG V-Line m - 1024 - lines +H-Sync Scan rate 1/Th - 80.06 - KHz +H-Sync Cycle Th 800 844 1023 Tck +H-Sync Active level Tha (*1) 4 56 Tck +H-Sync Back porch Thb (*1) 4 124 Tck +H-Sync Front porch Thf 4 24 Tck +DSPTMG Display Pixels n - 640 - Tck

Note: Typical value refer to VESA STANDARD (*1) Tha+Thb should be less than 1024 Tck.

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17/26

www.panelook.com

Page 19

Global LCD Panel Exchange Center

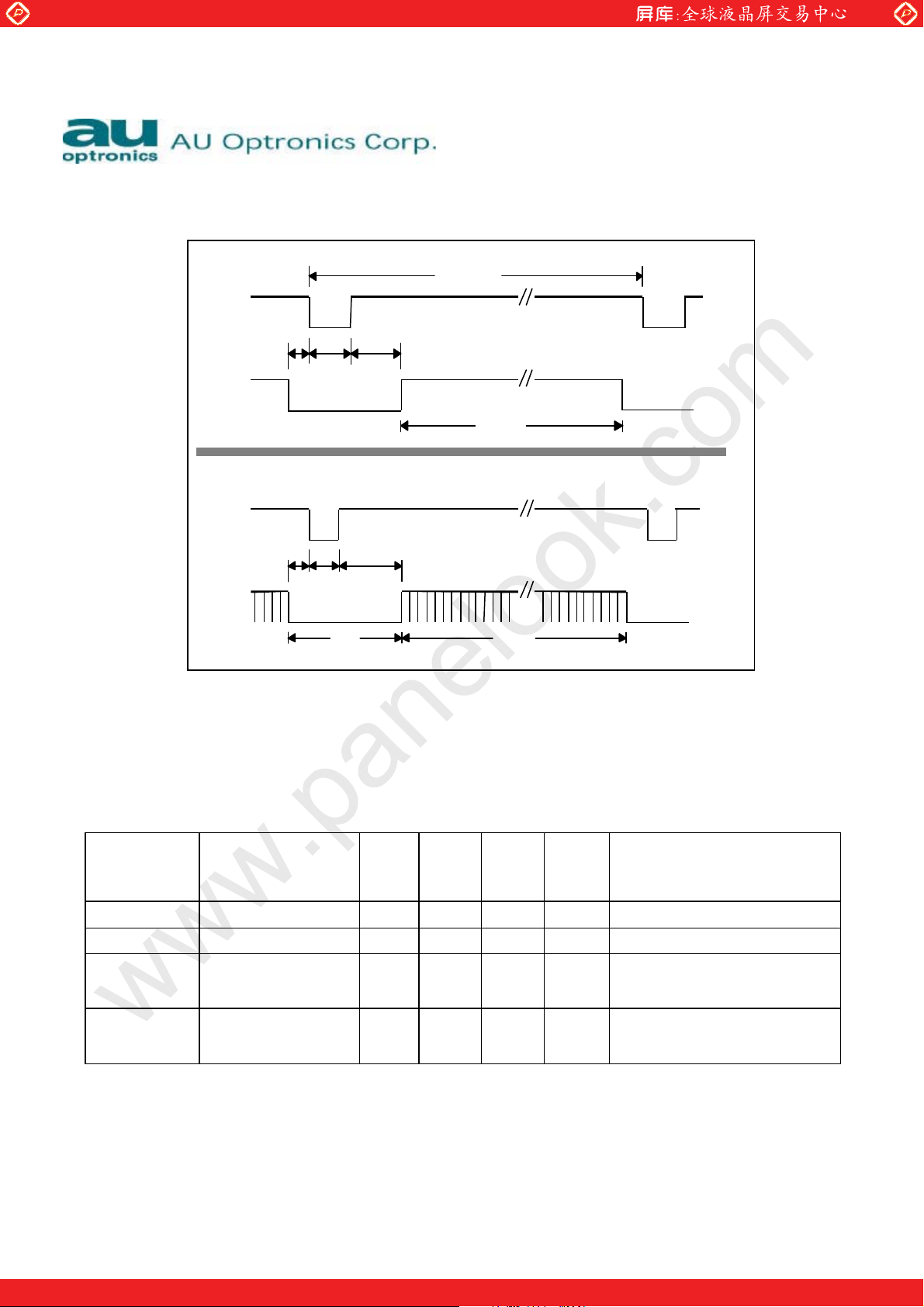

3.6.2 Timing Definition

www.panelook.com

1688dot

H-Sync

DSPTMG

V-Sync

PTM

112dot

1280dot

38H

3.7 Power Consumption

Input power specifications are as follows;

Symbol Parameter Min Typ Max Units Condition

VDD Logic/LCD Drive

Voltage

IDD VDD current 950 1200 [mA]

PDD VDD Power 4.75 6.6 [Watt] Vin=5V, All Black Pattern

VDDrp Allowable

Logic/LCD Drive Ripple Voltage

VDDns Allowable

Logic/LCD Drive Ripple Noise

No Reproduction and Redistribution Allowed.

4.5 5 5.5 [Volt]

100 [mV]

p-p

100 [mV]

p-p

18/26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

www.panelook.com

3.8 Power ON/OFF Sequence

Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when Vin is off.

1sec

min.

Vin

10%

90% 90%

0 V

15ms max.

Signal

0 V

Lamp On

0 V

4.0 Backlight Characteristics

10%

0 min.0 min.

10%10%

0 min.

250ms

4.1 Signal for Lamp connector

Pin # Signal Name

1 Lamp High Voltage

No Reproduction and Redistribution Allowed.

Lamp High Voltage

No Connection

Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19/26

www.panelook.com

Page 21

Global LCD Panel Exchange Center

4.2 Parameter guideline for CFL Inverter

Symbol Parameter Min Typ Max Units Condition

(L63) White Luminanc e 200 260 -

www.panelook.com

[cd/m

]

(Ta=25

ISCFL CCFL standard current 6.5 7.0 7.5

IRCFL CCFL operation range 3.0 7.0 7.5

[mA]

rms

(Ta=25oC)

ICFL CCFL Inrush current - 26 34 [mA] Note 1

fCFL CCFL Frequency 40 50 80 [KHz]

ViCFL

(25

CCFL Ignition Voltage 1700

CCFL Ignition Voltage 1200

[Volt]

rms

[Volt]

rms

(Ta=25

Note 2

(Ta=0

Note 3

TCFL CCFL Dark start time 1.0 sec (Ta=25oC)

VCFL

CCFL Discharge Voltage

(Reference)

700 860

[Volt]

rms

PCFL CCFL Power consumption 19.6 25.8 [Watt]

(Ta=25

Note 4

Note 1: Duration=50 [msec] Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD Note 3: CCFL inverter should be able to give out a power that has a generating capacity of over 1700 voltage. Lamp units need 1700 voltage minimum for ignition Note 4: Calculator value for reference (ICFL×VCFL=PCFL) Note 5: Lamp soldering method is required to use “ Hook Soldering” .

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/26

www.panelook.com

Page 22

Global LCD Panel Exchange Center

5.0 Vibration, Shock, and Drop

5.1 Vibration & Shock

Frequency: 10 - 200Hz Sweep: 30 Minutes each Axis (X, Y, Z) Acceleration: 1.5G(10~200Hz P- P ) Test method:

www.panelook.com

Acceleration (G) 1.5

Frequency (Hz) 10~200~10

Active time(min) 30

5.2 Shock Test Spec:

Acceleration (G) 50 Active time 20 Wave form half-sin Times 1

Direction:±X , ±Y,±Z

5.3 Drop test

Package test: The drop height is 60 cm.

6.0 Environment

The display module will meet the provision of this specification during operating condition or after storage or

shipment condition specified below. Operation at 10% beyond the specified range will not cause physical

damage to the unit.

6.1 Temperature and Humidity

6.1.1 Operating Conditions

The display module operates error free, when operated under the following conditions; Temperature 0 Relative Humidity 8% to 95% Wet Bulb Temperature 39.0

No Reproduction and Redistribution Allowed.

C to 50 0C

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21/26

www.panelook.com

Page 23

Global LCD Panel Exchange Center

6.1.2 Shipping Conditions

The display module operates error free, after the following conditions; Temperature -20 Relative Humidity 8% to 95% Wet Bulb Temperature 39.0

6.2 Atmospheric Pressure

The display assembly is capable of being operated without affecting its operations over the pressure range as following specified;

Maximum Pressure 1040hPa 0m = sea level

Minimum Pressure 674hPa 3048m = 10.000 feet

www.panelook.com

C to 60 0C

Pressure Note

Note : Non-operation attitude limit of this display module = 30,000 feet. = 9145 m.

6.3 Thermal Shock

The display module will not sustain damage after being subjected to 100 cycles of rapid temperature change. A cycle of rapid temperature change consists of varying the temperature from -20

Thermal shock cycle -20

C for 30min

Power is not applied during the test. After temperature cycling, the unit is placed in normal room ambient for at least 4 hours before powering on.

C to 600C, and back again.

7.0 Reliability

This display module and the packaging of that will comply following standards.

7.1 Failure Criteria

The display assembly will be considered as failing unit when it no longer meets any of the requirements stated in this specification. Only as for maximum white luminance, following criteria is applicable.

Note : Maximum white Luminance shall be 115 cd/m

or more.

7.2 Failure Rate

The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed 1.0%. The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7% per 1000 hours.

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22/26

www.panelook.com

Page 24

Global LCD Panel Exchange Center

7.2.1 Usage

The assumed usage for the above criteria is:

220 power-on hours per month 500 power on/off cycles per month Maximum brightness setting Operation to be within office environment (25

7.2.2 Component De -rating

All the components used in this device will be checked the load condition to meet the failure rate criteria.

7.3 CCFL Life

The assumed CCFL Life will be longer than 30,000 hours, typical value is 40,000 hours under stable condition at 25 ±

C; Standard current at 7.0 ± 0.5mA. Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.

www.panelook.com

C typical)

7.4 ON/OFF Cycle

The display module will be capable of being operated over the following ON/OFF Cycles.

ON/OFF Value Cycles

+Vin and CCFL power 30,000 10 seconds on / 10 seconds off

8.0 Safety

8.1 Sharp Edge Requirements

There will be no sharp edges or comers on the display assembly that could cause injury.

8.2 Materials

8.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used, they

will be reviewed and approved by the responsible AU Toxicologist.

8.2.2 Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in the

module will complete the flammability rating exception approval process. The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed circuit board.

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23/26

www.panelook.com

Page 25

Global LCD Panel Exchange Center

8.3 Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them from being

inserted backwards.

8.4 Hazardous Voltages

Any point exceeding 42.4 volts meets the requirement of the limited current circuit. The current through a 2K resistance is less than 0.7 x f (kHz) mA.

www.panelook.com

9.0 Other requirements

9.1 National Test Lab Requirement

The display module will satisfy all requirements for compliance to

UL 1950, First Edition U.S.A. Information Technology Equipment

CSA C22.2 No.950-M89 Canada, Information Technology Equipment

EEC 950 International, Information Technology Equipment

EN 60 950 International, Information Processing Equipment

(European Norm for IEC950)

9.2 Label

9.2.1 Product label

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24/26

www.panelook.com

Page 26

Global LCD Panel Exchange Center

www.panelook.com

25/26

10.0 Mechanical

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

No Reproduction and Redistribution Allowed.

www.panelook.com

Page 27

Global LCD Panel Exchange Center

www.panelook.com

26/26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

No Reproduction and Redistribution Allowed.

www.panelook.com
