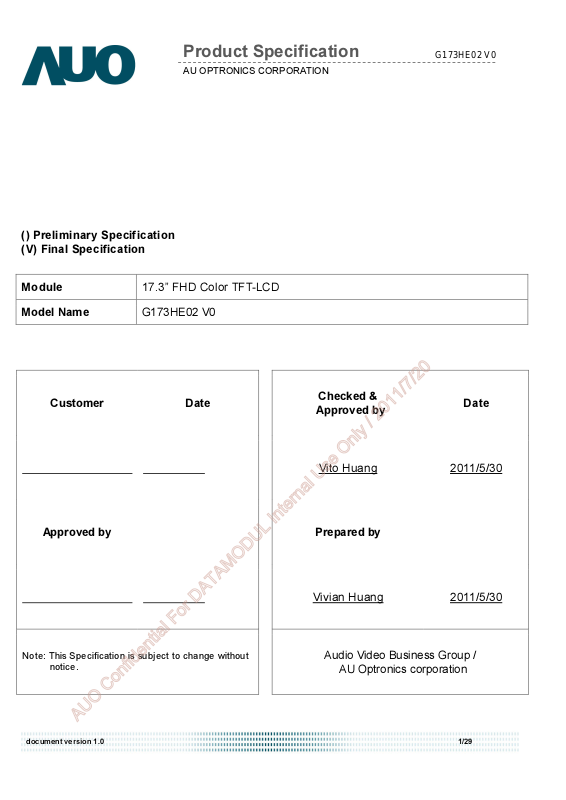

Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
Module 17.3”
FHD Color TFT-LCD
Model Name G173HE02 V0
Customer Date
Approved by
Checked &
Approved by
Vito Huang 2011
Prepared by
Date
/5/30
Note: This Specification is subject to change without
noti
ce.
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
Vivian Huang 2011
Audio Video Business Group /
AU Optronics corporation
1/29
/5/30
Page 2
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
CoEEEEEEntents
1. Handling Precautions ..................................................................................................................4
2. General Description
.....................................................................................................................5
2.1 Display Characteristics ..........................................................................................................5
3. Functional Block Diagram.........................................................................................................10
4. Absolute Maximum Ratings...................................................................................................... 11
4.1 Absolute Ratings of TFT LCD Module................................................................................. 11
4.2 Absolute Ratings of Environment ........................................................................................ 11
5. Electrical characteristics ..........................................................................................................12
5.1 TFT LCD Module.................................................................................................................. 12
5.2 Backlight Unit .......................................................................................................................14
6. Signal Characteristic .................................................................................................................15
6.1 Pixel Format Image..............................................................................................................15
6.2 The Input Data Format.........................................................................................................16
6.4 Interface Timing....................................................................................................................19
6.5 Power ON/OFF Sequence...................................................................................................20
7. Connector & Pin Assignment ...................................................................................................21
7.1 TFT LCD Module.................................................................................................................. 21
7.2 Backlight Unit .......................................................................................................................22
8. Reliability Test............................................................................................................................23
9. Shipping Label............................................................................................................................24
10. Packing Form............................................................................................................................25
10.1 Packaging material ............................................................................................................25
10.2 External packaging material required................................................................................25
10.3 Palletizing sequence..........................................................................................................26
10.4 Packing instruction.............................................................................................................27
11. Outline Drawing........................................................................................................................28
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
2/29
Page 3
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
Record of Revision
Version & Date Page
0.0 2011/1/20 All First Edition for Customer
0.1 2011/1/31 12 IDD unit: A IDD unit: mA
14 VCC Max: 12.6V VCC Max: 13.4V
14 Operation Life LED life time
1.0 2011/5/30 5 White Luminance(cd/m2): 500(Typ.) White Luminance(cd/m2): 400(Typ.)
5 Power Consumption(Watt): TBD(Typ.) Power Consumption(Watt): 17(Typ.)
5 Weight(g): TBD(Typ.) Weight(g): 1080(Typ.)
6
6
5 Optical Response Time(ms): 8(Typ.) Optical Response Time(ms): 40(Typ.)
6
Old Description New Description
Update Viewing Angle
Update Optical Response Time
Update Color / Chromaticity
Coordinates
6 Update White Luminance
12 IDD (mA): 350(Typ), 600(Max) IDD (mA): 1200(Typ)
12 PDD (Watt): TBD(Typ), 2(Max) PDD (Watt): 5(Typ), 6(Max)
12
14 P
14 Update LED Forward Voltage
14 Update Note6 description
25 Update Shipping Label
25 Update Packing Form
28 Update Outline Drawing
(Watt): 11.88(Typ), 13.39(Max) P
VCC
Update the diagram of Vin rising time
(Watt): 12(Typ), 15(Max)
VCC
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
3/29
, 1400(Max)
Page 4
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
1. Handling Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe
off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on
hard surface.
6) To avoid ESD (Electro Static Discharde) damage, be sure to ground yourself before handling
TFT-LCD Module.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) In case if a module has to be put back into the packing container slot after it was taken
out from the container, do not press the center of the LED light bar edge. Instead, press
at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be
damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt
the Interface Connector of the TFT Module.
11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a very
short time. Please design your display product well to avoid external force applying to module
by end-user directly.
12) Small amount of materials without flammability grade are used in the TFT-LCD module. The
TFT-LCD module should be supplied by power complied with requirements of Limited Power
Source (IEC60950 or UL1950), or be applied exemption.
13) Severe temperature condition may result in different luminance, response time and lamp
ignition voltage.
14) Continuous operating TFT-LCD display under low temperature environment may accelerate
lamp exhaustion and reduce luminance dramatically.
15) The data on this specification sheet is applicable when LCD module is placed in landscape
position.
16) Continuous displaying fixed pattern may induce image sticking. It’s recommended to use
screen saver or shuffle content periodically if fixed pattern is displayed on the screen.
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
4/29
Page 5
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
2. General Description
G173HE02 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a LED driver
circuit, and a LED backlight system. The screen format is intended to support the FHD (1920(H) x 1080(V))
screen and 16.7M colors (RGB 6-bits + HiFRC data). Al
Inverter card of backlight is not included.
l input signals are LVDS interface compatible.
2.1 Display Characteristics
The following items are characteristics summary on the t
able under 25 ℃ condition:
Items Unit Specifications
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [mm]
Pixel Arrangement
Display Mode
White Luminance [cd/m2] 400 (Typ.)
Contrast Ratio
Optical ResponseTime [msec]
Nominal Input Voltage VDD [Volt]
Power Consumption [Watt]
Weight [Grams]
Physical Size (H x V x D) [mm]
Electrical Interface
17.3W (17.25)
381.888 (H) x 214.812 (V)
1920(x3) x 1080
0.1989 (per one triad) x 0.1989
R.G.B. Vertical Stripe
Normally White
600 : 1 (Typ)
40 (Typ, on/off)
3.3 V
17 (Typ)
1080 (Typ)
403 (H) x 240 (V) x 12.5 (D) (Typ)
Dual channel LVDS
Surface Treatment Hard-coating (3H), Glare treatment
Support Color
Temperature Range (Ta)
Operating
Storage (Non-Operating)
RoHS Compliance
[oC]
[oC]
16.7M colors (RGB 6-bit data + HiFRC data)
0 to +70
-20 to +70
RoHS Compliance
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
5/29
Page 6
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle [degree]
Luminance Uniformity
[%]
Optical Response Time [msec]
Color / Chromaticity
Coordinates
(CIE 1931)
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
13 Points 75 80
70
70
60
70
80
80
70
80
-
-
- 2, 3
Rising - 37 50
Falling - 3 10
Rising + Falling - 40 60
Red x 0.590 0.640 0.690
Red y 0.296 0.346 0.396
Green x 0.264 0.314 0.364
Green y 0.574 0.624 0.674
Blue x 0.100 0.150 0.200
Blue y 0.004 0.054 0.104
1
4, 5
4
White x 0.255 0.305 0.355
White y 0.268 0.318 0.368
White Luminance
(At LED=100mA)
[cd/m2 ] 320 400 -
Contrast Ratio 500 600 -
NTSC % 72
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
6/29
4
4
Page 7
Product Specification
AU OPTRONICS CORPORATION

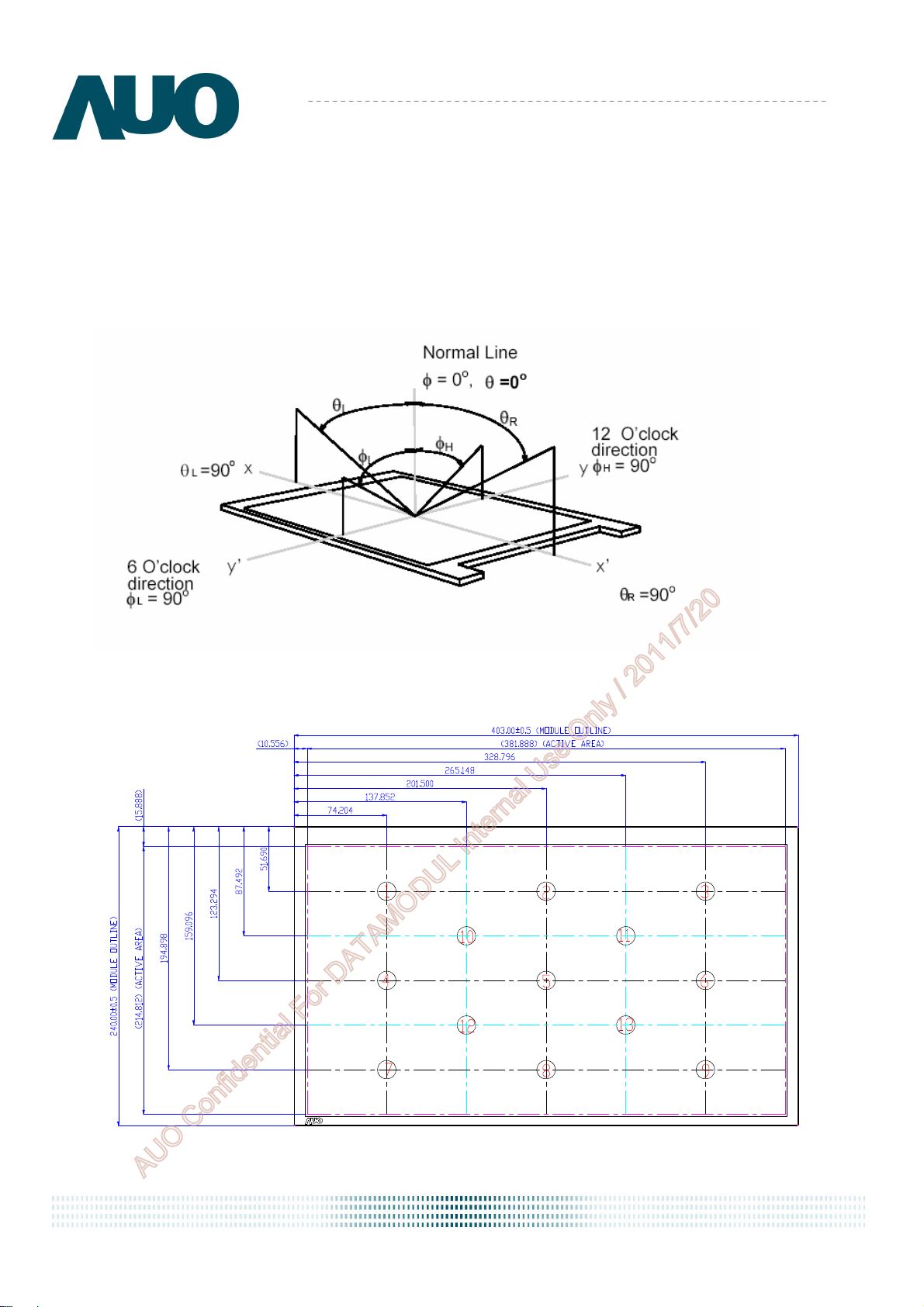

Note 1: Definition of viewing angle
Viewing angle is the
and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
measurement of contrast ratio≧10, or ≧5, at the screen center, over a 180° horizontal
G173HE02 V0
Note 2: 13 points position
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
7/29
Page 8
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
Note 3:
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room.
Photo detector
Field=1°
50 cm
LCD Panel
Center of the screen
TFT-LCD Module
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
8/29
Page 9
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
Note 5: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
Tr
F
F
Black
Black
Tr
R
R
White
White
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
9/29
Page 10
Product Specification
AU OPTRONICS CORPORATION

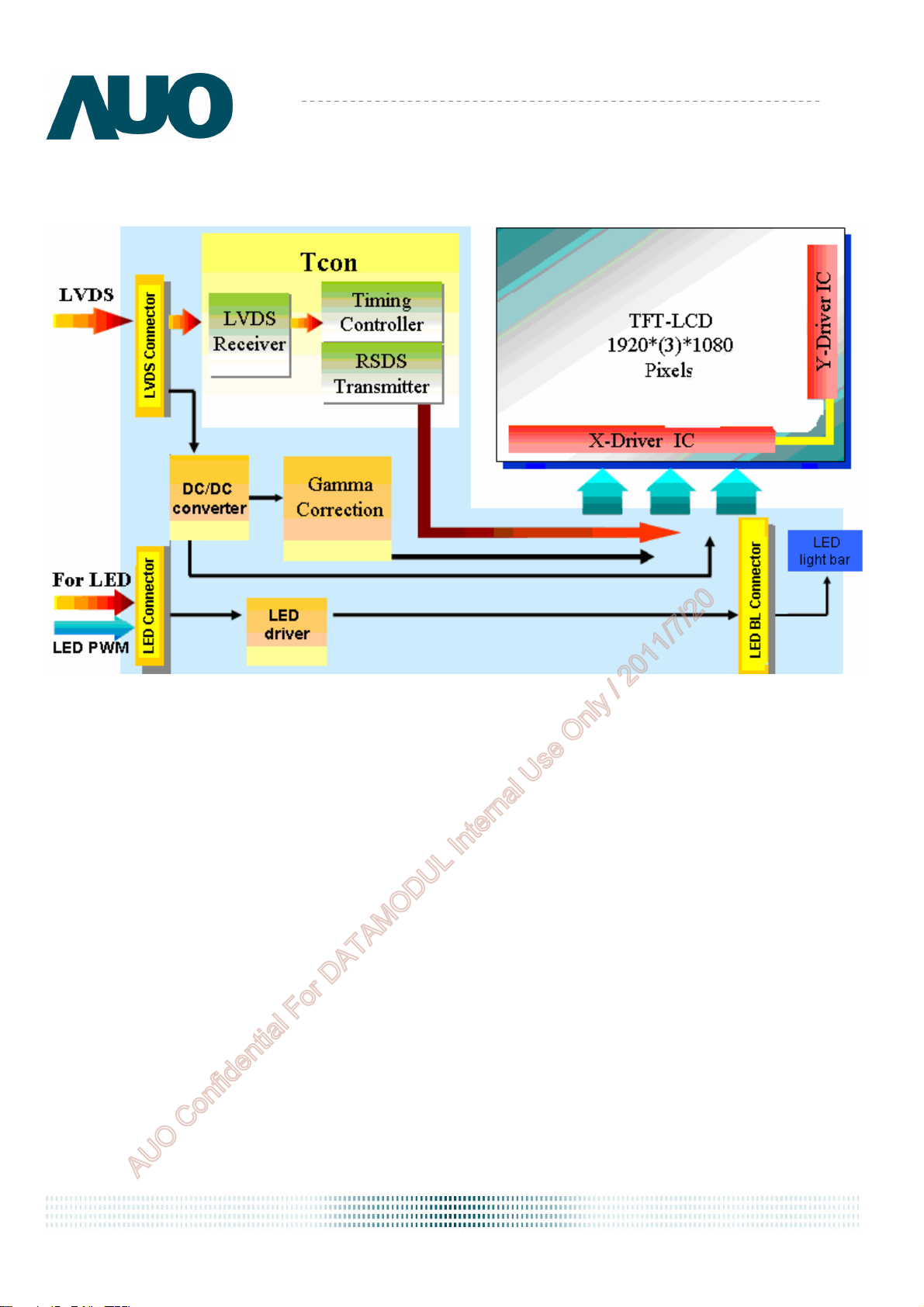

3. Functional Block Diagram
following diagram shows the functional block of the 17.3 inches Color TFT-LCD Module:
The
G173HE02 V0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
10/29
Page 11
Product Specification
Logic/LCD Drive
Voltage
Vin
[Volt]
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit
4.2 Absolute Ratings of Environment
Item Symbol Min Max Unit
-0.3
G173HE02 V0
+3.6
Operating Temperature
TOP 0 +70 [oC]
Operation Humidity HOP 5 95 [%RH]
Storage Temperature
Storage Humidity HST
B
lb
Note: Maximum Wet-
u
TST -20 +70 [oC]
5 95
h
ldb
39
s
ou
e
and no condensation.
[%RH]
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
11/29
Page 12
Product Specification
Vin rising time
V
V
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
G173HE02 V0
Symble Parameter Min. Typ. Max.
VDD
Logic/LCD Drive
Voltage
3.0 3.3 3.6 [Volt]
Unit Condition
IDD Input Current - 1200 1400 [mA]
PDD VDD Power - 5 6
[Watt]
IRush Inrush Current - - 2000 [A] Note 2
VDDrp
Allowable
Logic/LCD Drive
Ripple Voltage
- - 100
[mV]
p-p
Note 1: The variance of VDD power consumption is ±30%.
Note 2: Measurement conditions:
(High to Low)
Control
Signal
+5.0V
R1
47K
R2
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
G
Q3
AO6402
F1
C1
1uF/16V
±10%
VDD= 5.0V, All Black Pattern
At 75Hz, +30%
VDD= 5.0V, All Black Pattern
At 75Hz , Note 1
VDD= 3.3V, All Black Pattern
At 75Hz
VCC
(LCD Module Input)
SW1
SW MAG-SPST
1 2
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
1K
+12.0V
C2
1uF/25V
VR1
47K
C3
0.01uF/25V
0
470 us
3.3
12/29
Page 13
Product Specification
AU OPTRONICS CORPORATION
Symbol Item Min. Typ. Max. Unit
G173HE02 V0
Remark
VTH
VTL
Differential Input High Threshold - - 100
Differential Input Low Threshold
｜｜｜｜VID｜｜｜｜ Input Differential Voltage
VICM
Differential Input Common Mode Voltage
5.1.2 Signal Electrical Characteristics
t signals shall be low or Hi-Z state when VDD is off
Inpu
Note: LVDS Signal Waveform.
-100
- -
100 400 600
1.125
- 1.375
.
VCM=1.2V
[mV]
VCM=1.2V
[mV]
[mV]
VTH/VTL=+-100mV
[V]
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
13/29
Page 14
Product Specification
G173HE02 V0
AU OPTRONICS CORPORATION
5.2 Backlight Unit
owing characteristics are measured under a stable condition using a inverter at 25℃. (Room Temperature):
Foll
Symbol Parameter Min. Typ. Max.
VCC Input Voltage 10.8 12 13.4
I
VCC
P
F
VCC
PWM
Input Current - 0.99 -
Power Consumption - 12 15
Dimming Frequency 200 - 20K
Swing Voltage 3 3.3 5.5
Dimming duty cycle 5 -
IF LED Forward Current - 100 -
VF LED Forward Voltage
P
LED Power Consumption - (10.24) 11.52 [Watt]
LED
LED Life Time
-
-
-
50,000 - - Hrs
(3.3) (3.7)
3.2 3.6
(3.1)
Note 1: Ta means ambient temperature of TFT-LCD module.
Unit Remark
[Volt]
[A] 100% PWM Duty
[Watt]
100% PWM Duty
[Hz]
[Volt]
100
%
[mA] Ta = 25oC
[Volt] IF = 100mA,
[Volt] IF = 100mA,
(3.5)
[Volt] IF = 100mA, Ta = 70oC
IF=100mA,
Ta = 0oC
Ta = 25oC
Ta= 25oC
Note 2: VCC, I
Note 3: IF, VF are defined for one channel LED. There are four LED
Note 4: If module is driven by high curren
G173HE02 V0
VCC
, P
are defined for LED backlight.(100% duty of PWM dimming)
VCC
channel in back light unit.
t or at high ambient temperature & humidity condition. The
operating life will be reduced.
Note 5: Operating life means brightness goes down to 50% initial brightness. Minimum operating life time is estimated
data.
Note 6: LED lifetime is definition: brightness is decreased to 50% of the initial value. LED lifetime is restricted under
l
di
i
norma
t
con
on
bi
am
,
tt
en
empera
25
t
ure
=
dLED
an
i
IF
100
t
opera
ng
=
A
m
.
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
14/29
Page 15
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st
2nd
1919th
G173HE02 V0
th
1920
Pixel
st
1
Line
1080
Lin
R G B R G B
th
R G B R G B
Pixel
Pixel
R G B R G B
R G B R G B
Pixel
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
15/29
Page 16

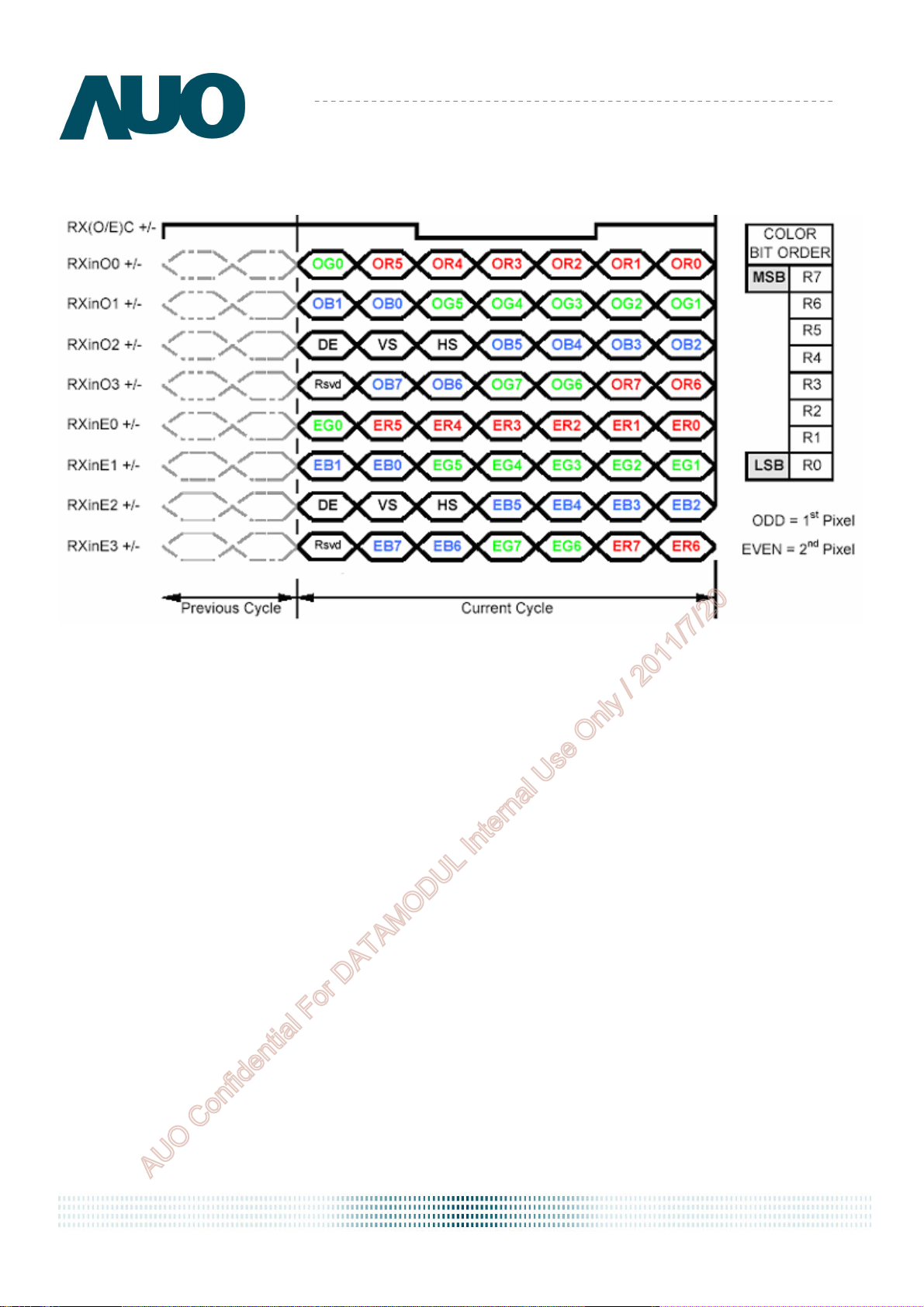

6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: 8-bit in
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
16/29
Page 17
Product Specification
G173HE02 V0
AU OPTRONICS CORPORATION
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+
Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data)
16 RxEIN1+ Positive LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 VSS Power Ground
27 VSS Power Ground
28 VDD +3.3V Power Supply
29 VDD +3.3V Power Supply
30 VDD +3.3V Power Supply
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
17/29
Page 18
VDD
Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
Connector
RxOIN0-
30
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
18/29
Page 19
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0

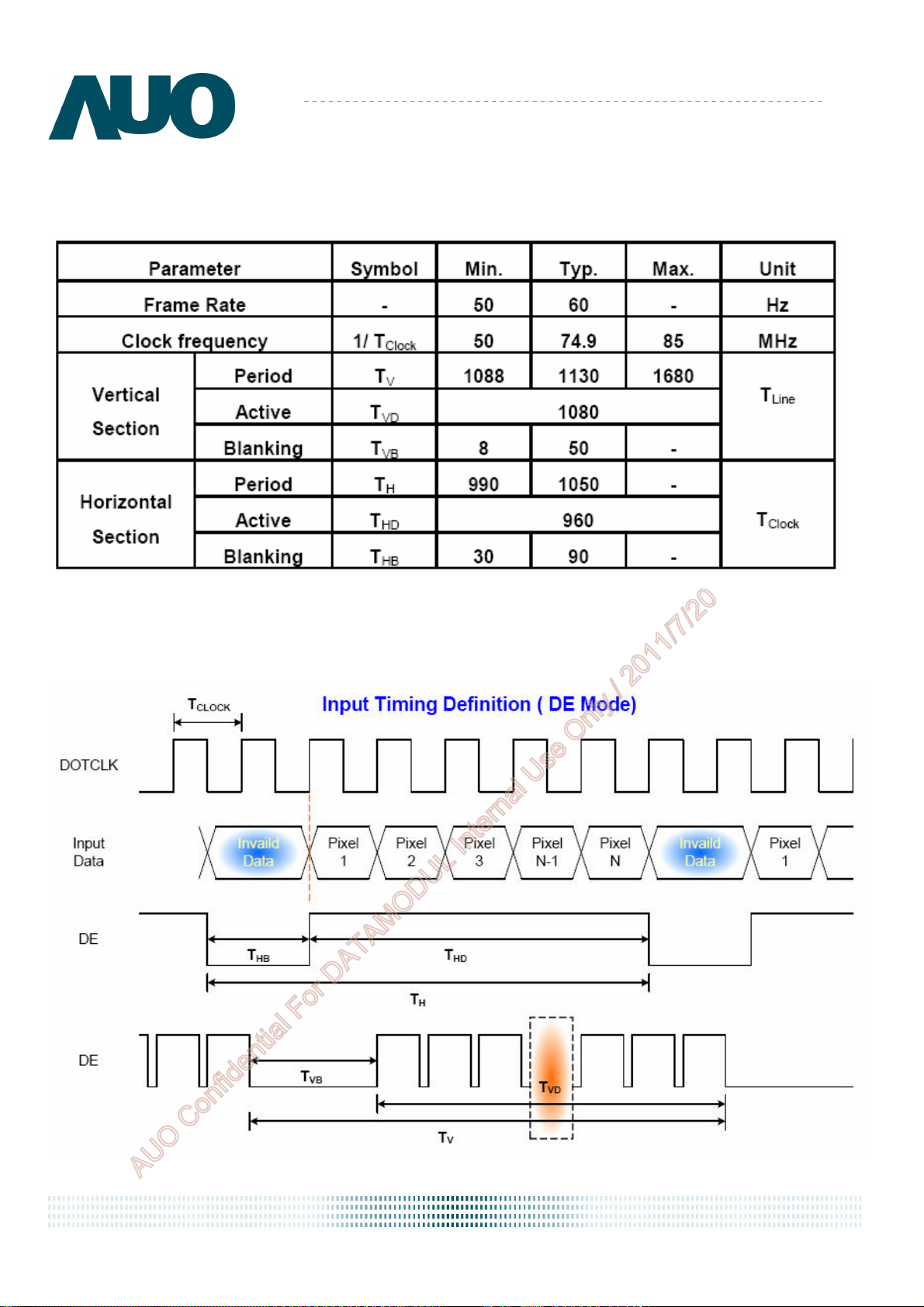

6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1920X1080 / 60Hz manufacturing guide line timing.
Note : DE mode only
6.4.2 Timing Diagram
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
19/29
Page 20
Product Specification
G173HE02 V0
AU OPTRONICS CORPORATION
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
Power Sequence Timing
P
ower Sequence Timing
Parameter
Min. Typ. Max.
T1
T2
T3
T4
T5
T6
T7
T8
T9
T10
T11
T12
T13
0.5 - 10
0 - 50
200 - --
0.5 - 10
10 - -
10 - -
0 - -
10 - -
- - 10
110 - -
0 50
0 10
500 - -
Value
Units
ms
20/29
Page 21
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer HRS
Type Part Number MDF76TW-30S-1H
Mating Type Part Number MDF76-30P-1C
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 VSS
27 VSS 28 VDD
29 VDD 30 VDD
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
21/29
Page 22
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.2.1 Connector
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer HRS
Type Part Number DF14A-6P-1.25H
Mating Type Part Number DF14-6S-1.25C
7.2.2 Pin Assignment
Pin No. Symbol Description
Pin1 VLED 12V input
Pin2 VLED 12V input
Pin3 GND GND
Pin4 GND GND
Pin5 On/OFF 3.3-5V:ON, 0V:OFF
Pin6 Dimming PWM
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
22/29
Page 23
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
Ta= 50℃, 80%RH, 240hours
G173HE02 V0
Note
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Ta= 70℃, 240hours
Ta= 0℃, 240hours
Ta= 70℃, 240hours
Ta= -20℃, 240hours
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: ±
X, ±Y, ±Z (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST)
-20℃/30min, 60℃/30min, 50 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (Electro-Static Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
1
2
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20℃ to 60℃, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2, ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
23/29
Page 24

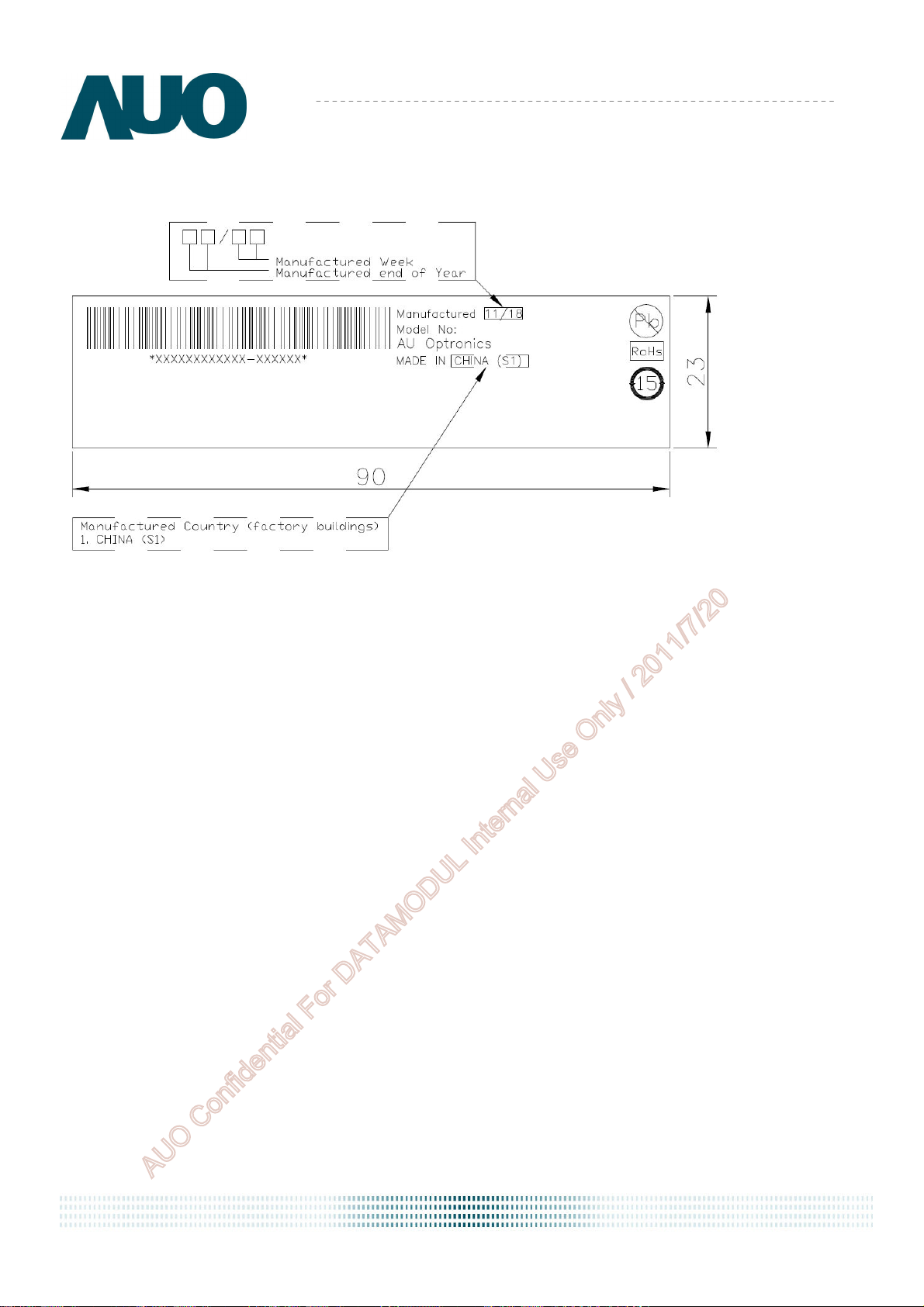

9. Shipping Label
Product Specification
G173HE02 V0
AU OPTRONICS CORPORATION
G173HE02 V0
Unit: mm
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
24/29
Page 25
Product Specification
AU OPTRONICS CORPORATION
10. Packing Form
10.1 Packaging material
FILM PROTECT
BAG ANTI-STATIC
TAPE
TAPE CREPED PAPER
PACKING CARTON
LABEL SPEC
LABEL CARTON.
CUSHION PACKING
10.2 External packaging material required
G173HE02 V0
‧Carton : 524mm*321mm*360mm, weight (carton + cushion
): 1250g
document version 1.0
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
25/29
Page 26
‧Pallet : 1140mm*980mm*140mm
‧Stretch film : 500mm (W)*300M (L)
‧Corner angle : L type fiber board
‧PET band : 19mm (W)
‧ Label : 220mm*200mm
Product Specification
AU OPTRONICS CORPORATION
G173HE02 V0
10.3 Palletizing sequence
pcs / box box / layer layer / pallet pcs / pallet
Shipping by air 10 2*3 3 180
Shipping by sea 10 2*3 3 180
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
26/29
Page 27
G173HE02 V0
27/29
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
10.4 Packing instruction
document version 1.0
Page 28
G173HE02 V0
G173HE02 V0
28/29
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20

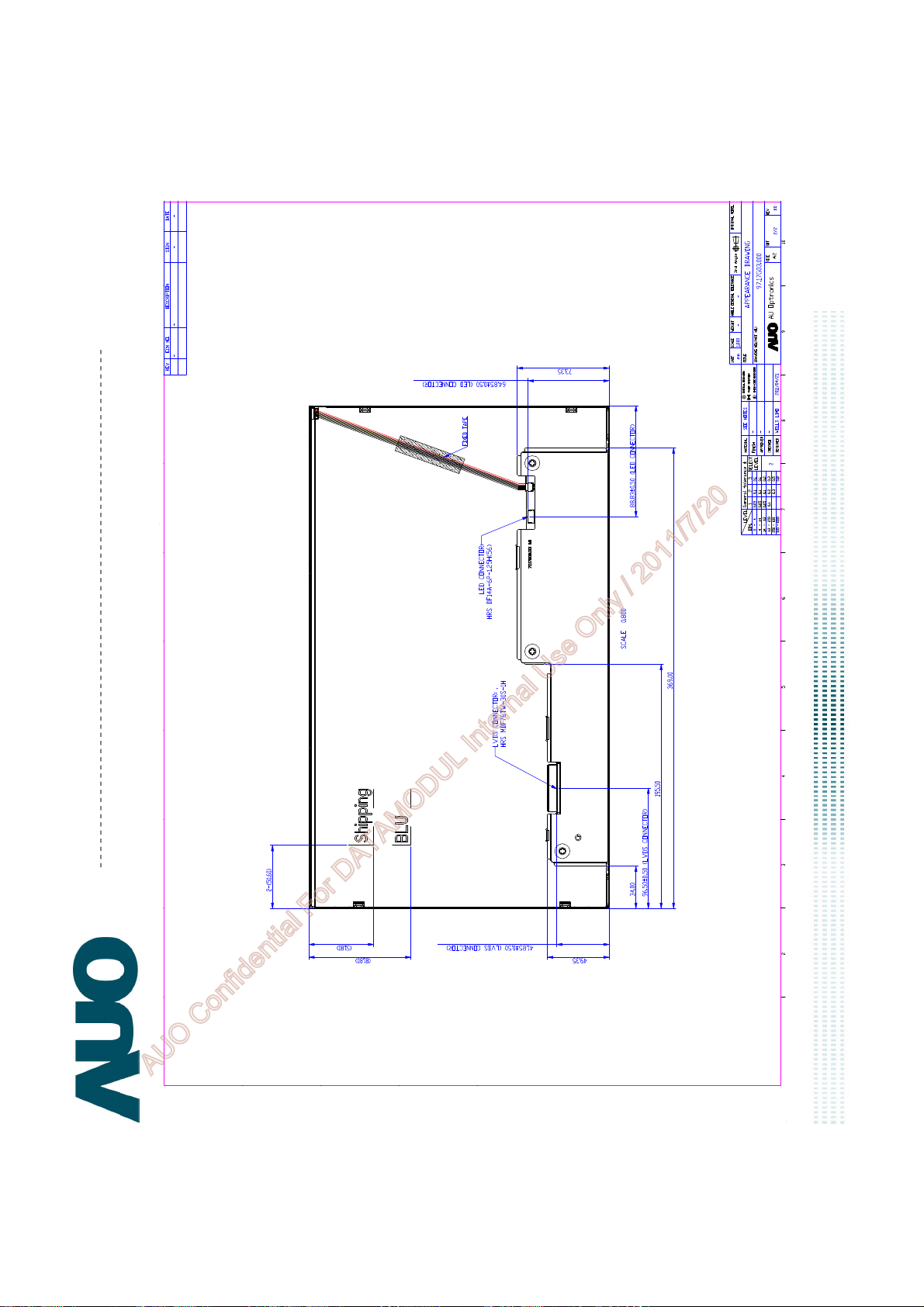

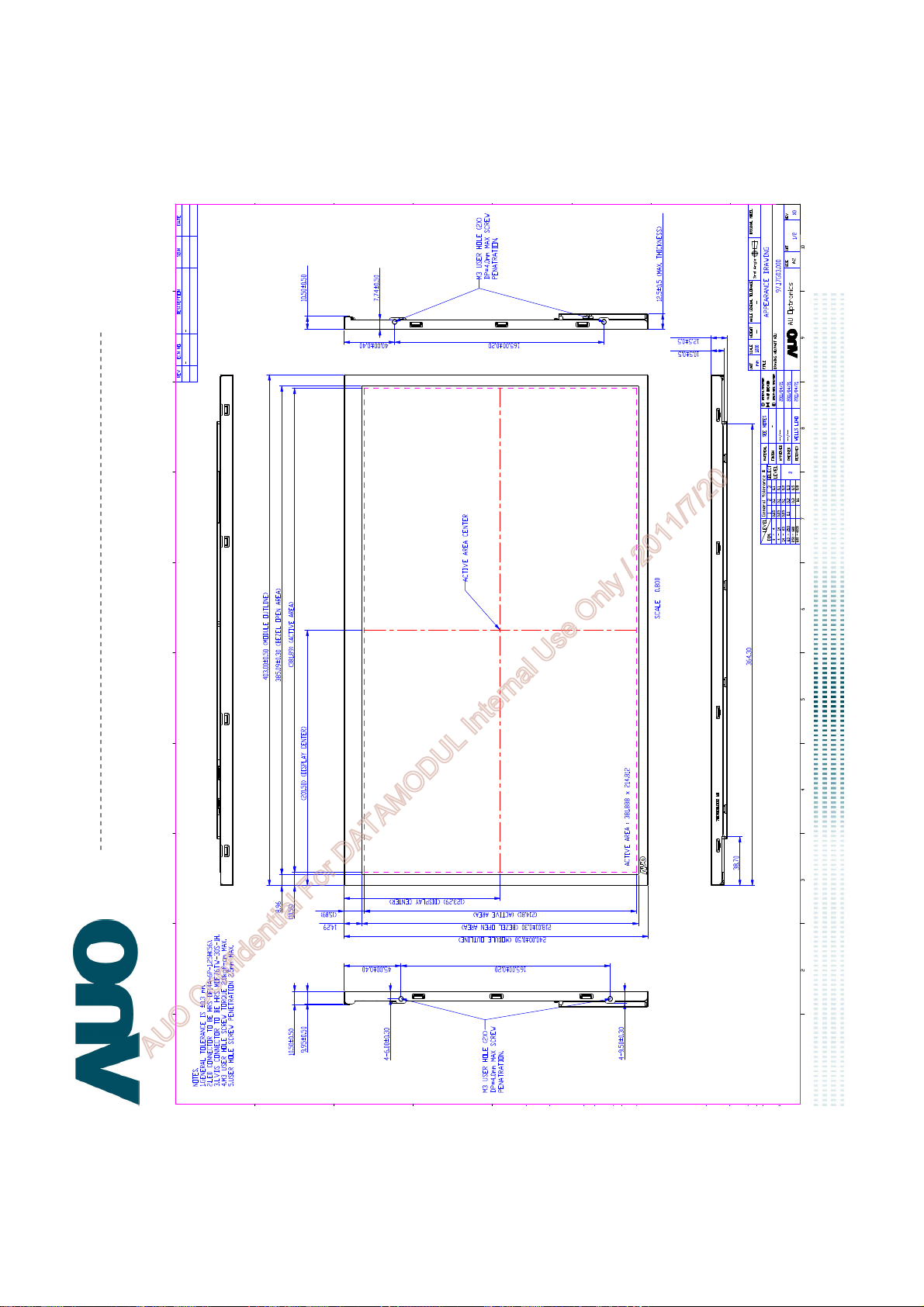

11. Outline Drawing
document version 1.0
Page 29
G173HE02 V0
G173HE02 V0
29/29
AU OPTRONICS CORPORATION
Product Specification
AUO Confidential For DATAMODUL Internal Use Only / 2011/7/20
document version 1.0
Loading...
