Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
Record of Revision
Version and DatePageOld description New Description Remark
0.1 2012/09/25 All First Edition for Customer All
document version 0.1 3/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
document version 0.1 4/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
2. General Description
This specification applies to the 17 inch Color TFT-LCD Module G170ETN01.0.
The display supports the SXGA+ (1280(H) x 1024(V)) screen format and 16.7M colors (RGB 6-bits+Hi-FRC
data).All input signals are 2 Channel LVDS interface compatible.
This module embbededs an LED driver on it.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Items Unit Specifications
Screen Diagonal [mm] 432 (17.0”)
Active Area [mm] 337.920(H) × 270.336(V)
Pixels H x V 1280 × 3(RGB) × 1024
Pixel Pitch [mm] 0.264(per one triad) × 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 250(Typ)
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] 5 (Typ)
Nominal Input Voltage VDD [Volt] +5.0 (Typ)
condition:
Power Consumption
(VDD line + LED line)
[Watt] 13 W
Weight [Grams] TBD
Physical Size (H x V x D) [mm] 358.5(H) x 296.5(V) Typ. x 18.0(D) Max
Electrical Interface Dual Channel LVDS
Surface Treatment Anti-glare type, Hardness 3H
Support Color 16.7M colors (RGB 6-bits +Hi-FRC data)
Temperature Range
Operating
Storage (Non-Operating)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
document version 0.1 5/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25:
Item Unit Conditions Min.Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - 3.5 6
Optical Response Time [msec]
Falling - 1.5 3
Rising + Falling - 5 9
140 170 -
1
140 160 -
4, 6
Color / Chromaticity
Coordinates
(CIE 1931)
White Luminance
(At LED= 60mA)
[cd/m2 ]
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
0.283 0.313 0.343
0.299 0.329 0.359
TBD
TBD
TBD
TBD
TBD
TBD
4
200 250 - 4
Contrast Ratio 600 1000 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
Color Gamut [%] 72
7
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
document version 0.1 6/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

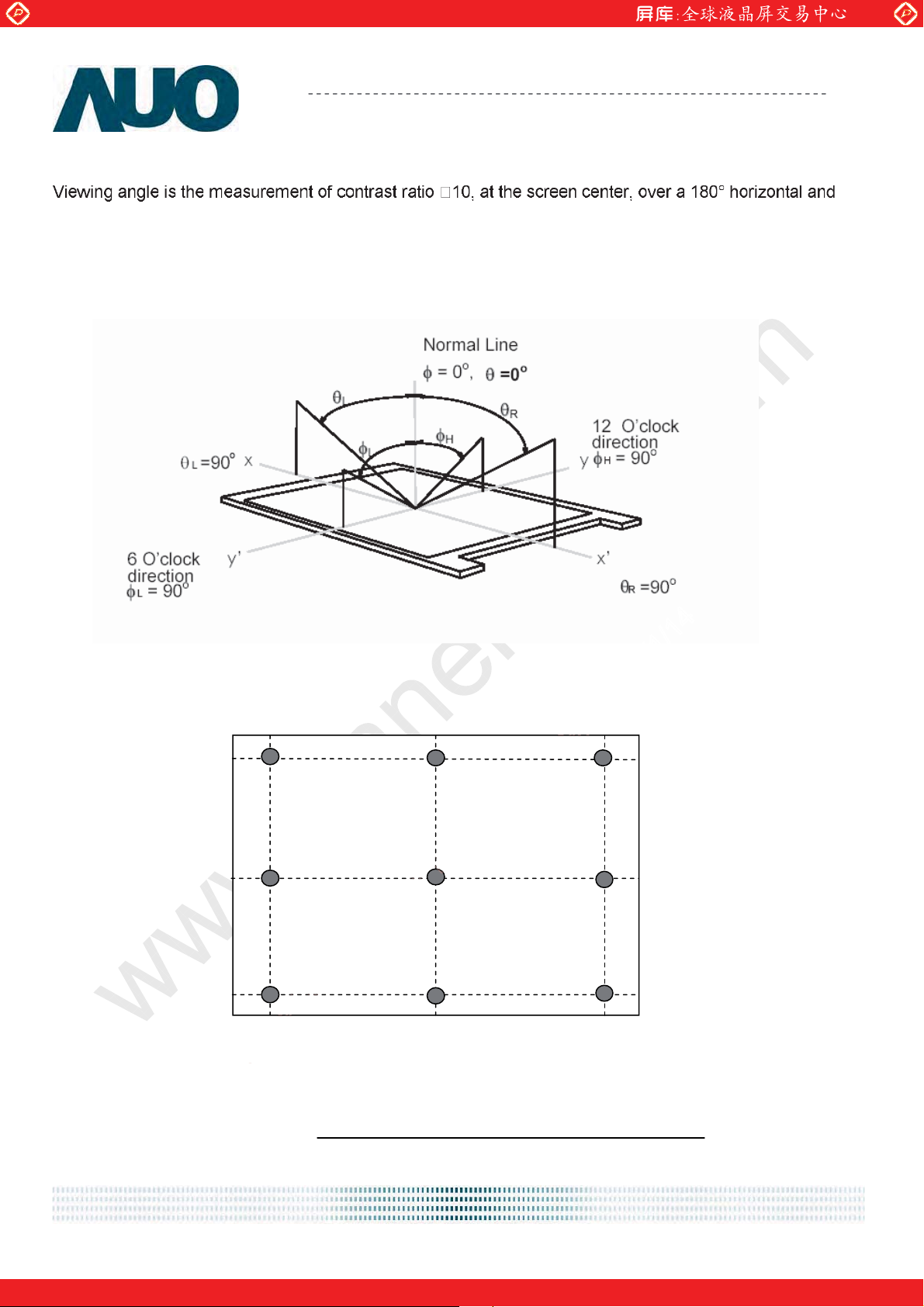

Note 1: Definition of viewing angle
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
G170ETN01.0
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
document version 0.1 7/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

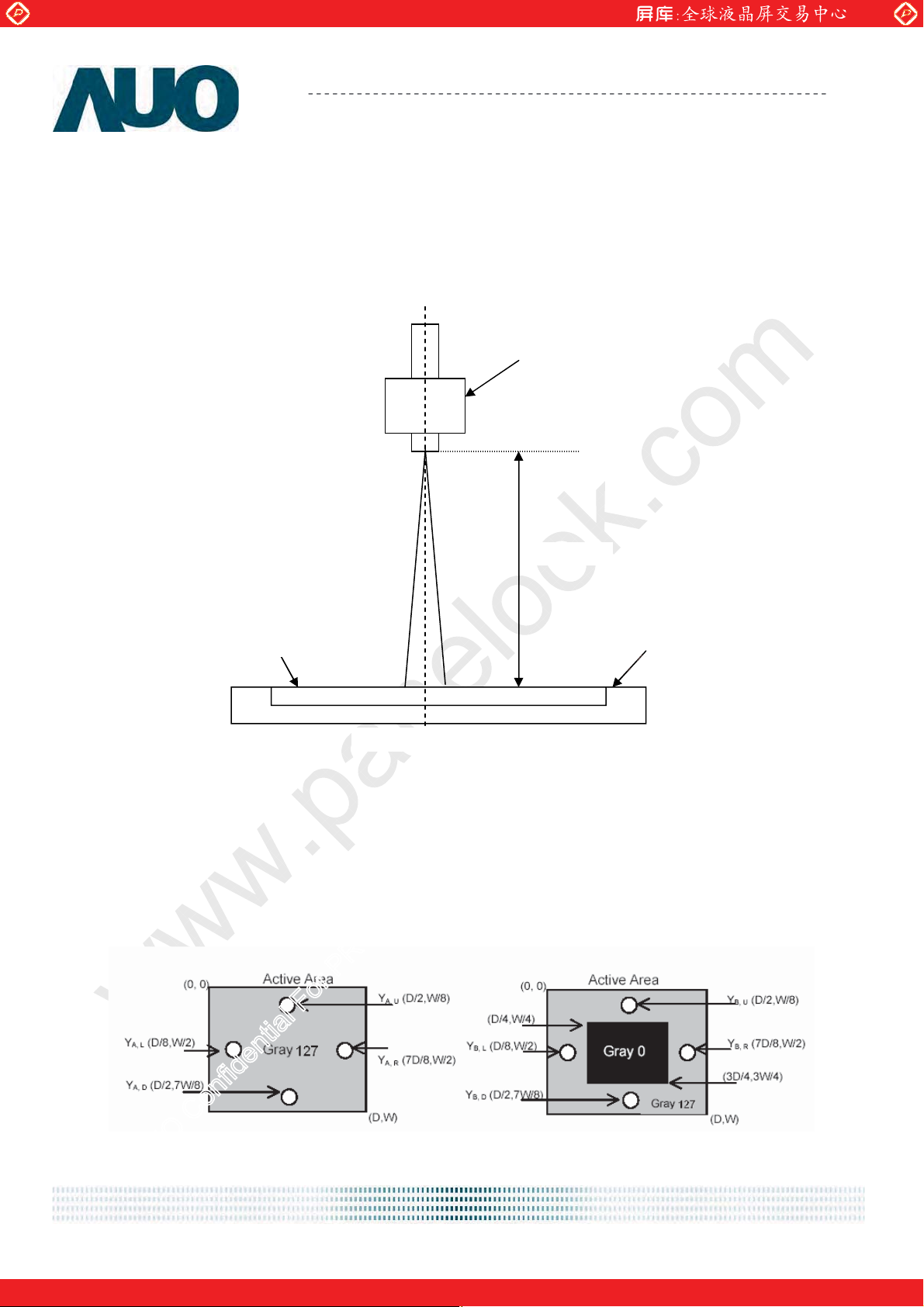

Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
G170ETN01.0
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
document version 0.1 8/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0

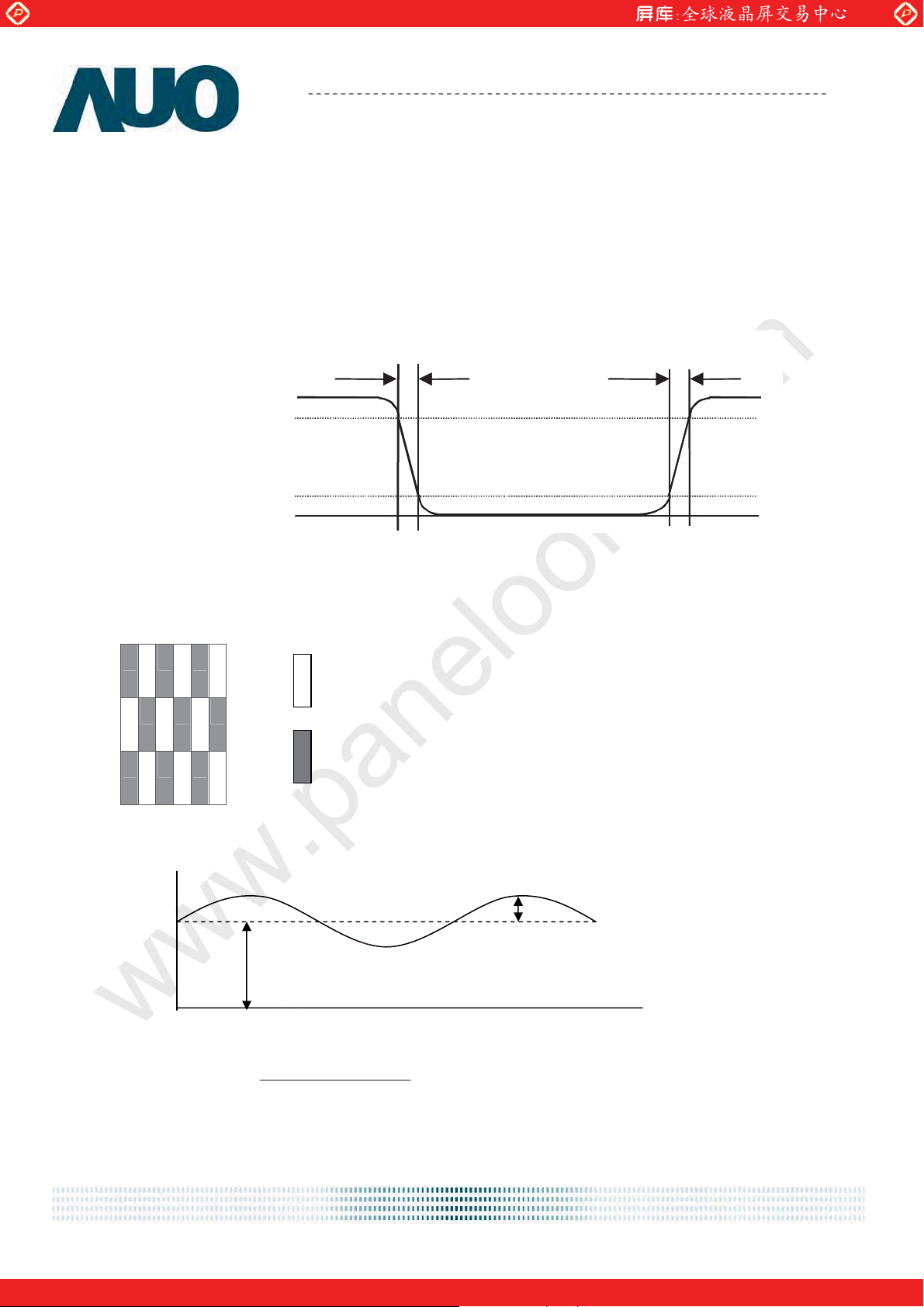

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black ”(falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
100
100
90
90
10
10
%
%
WhiteBlackWhite
WhiteBlackWhite
0
0
Tr
Tr
Tr
F
F
Tr
R
R
Note 7: Subchecker Pattern
RGBRGB
Gray Level = L127
R GBRGB
RGBRGB
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Gray Level = L0
AC
Time
log20(dB)Flicker =
Hz) 30Level(at AC
evel DC
document version 0.1 9/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION

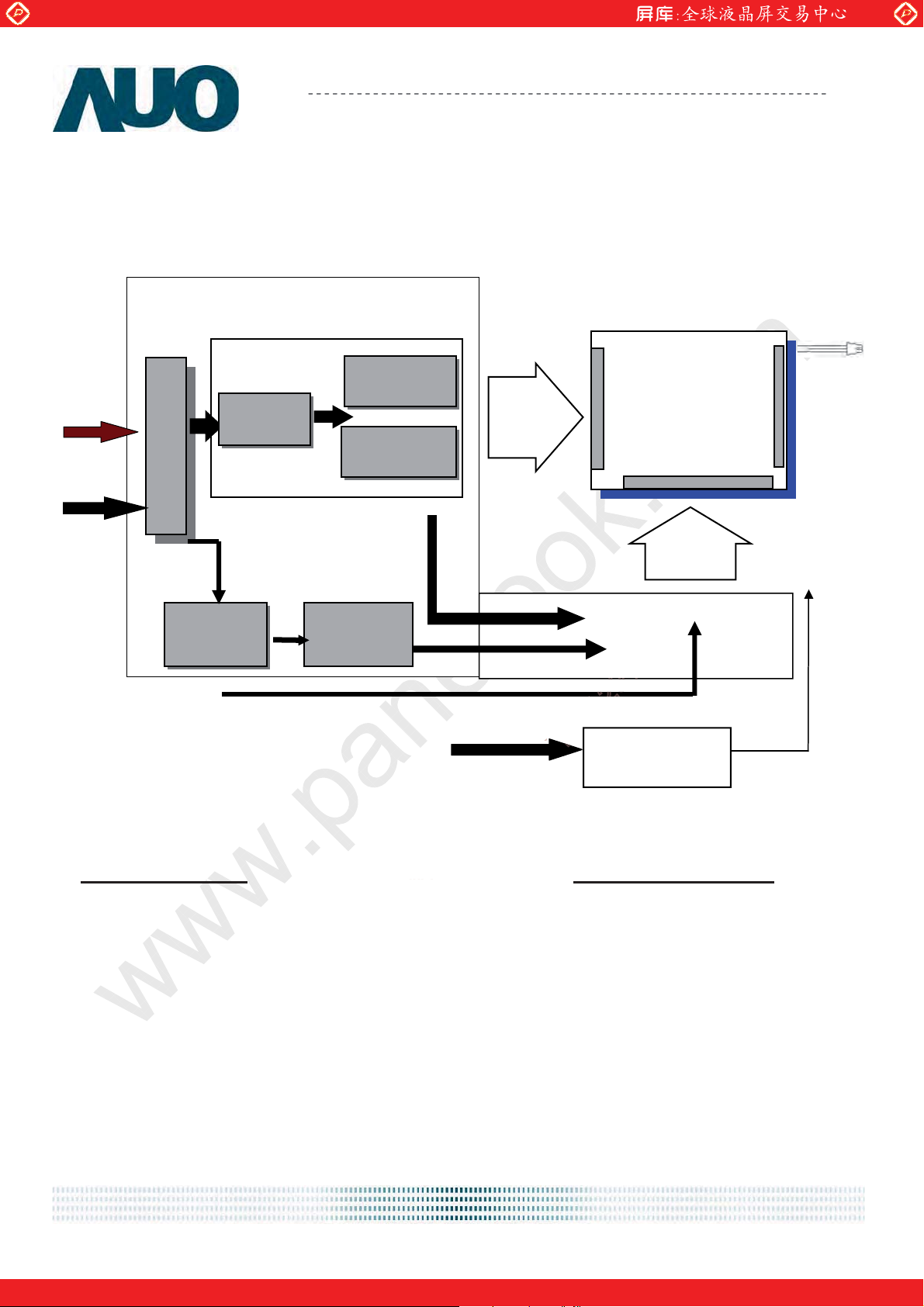

3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
DC/DC
Converter
AU ASIC
LVDS
Timing
Controller
Mini LVDS
Gamma
Correction
DC POWER
G1
TFT-LCD
1280*(3)*1024
Pixels
G1024
D1D3840
LED
Driver
One light bar
PCBA Connector:
LED Driver Connector:
JAE FI-XB30SSL-HF15 Entery 3806K-F06Y-03R
Or Compatible Or Compatible
document version 0.1 10/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive VoltageVIN -0.3 6 [Volt] Note 1,2
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED Forward Current I
- [mA] Note 1,2
F

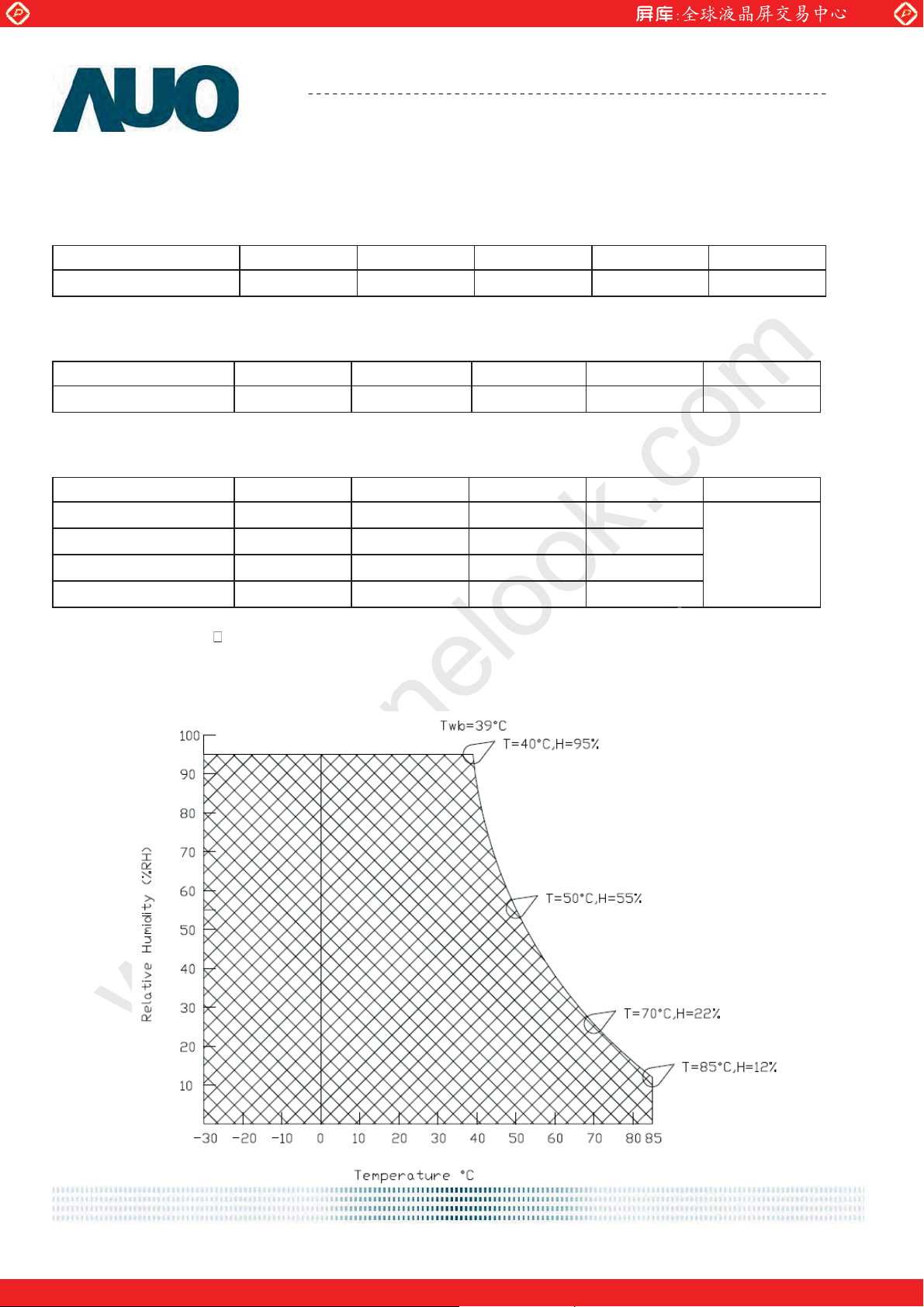

4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating TemperatureTOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 3
Note 1: With in Ta (25 )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
document version 0.1 11/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max.Unit Condition
VCC
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt]
ICC Input Current - 0.59 0.71 [A]
PCC VCCPower - 2.95 3.54 [Watt]
VCCrp
Allowable Logic/LCD
Drive Ripple Voltage
- - 500
[mV]
p-p
±10%
Vin=5V , All Black Pattern,
at 75Hz
Vin=5V , All Black Pattern,
at 75Hz
With panel loading
document version 0.1 12/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
V
www.panelook.com
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
SymbolParameterMinTypMaxUnitsCondition
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
- - +100 [mV]
-100 - - [mV]
VICM = 1.2V
Note
VICM = 1.2V
Note
│VID│ Input Differential Voltage 100 400 600 [mV] Note
VICM
Differential Input Common
Mode Voltage
+1.0 +1.2 +1.5 [V]
VTH/VTL = ±100MV
Note

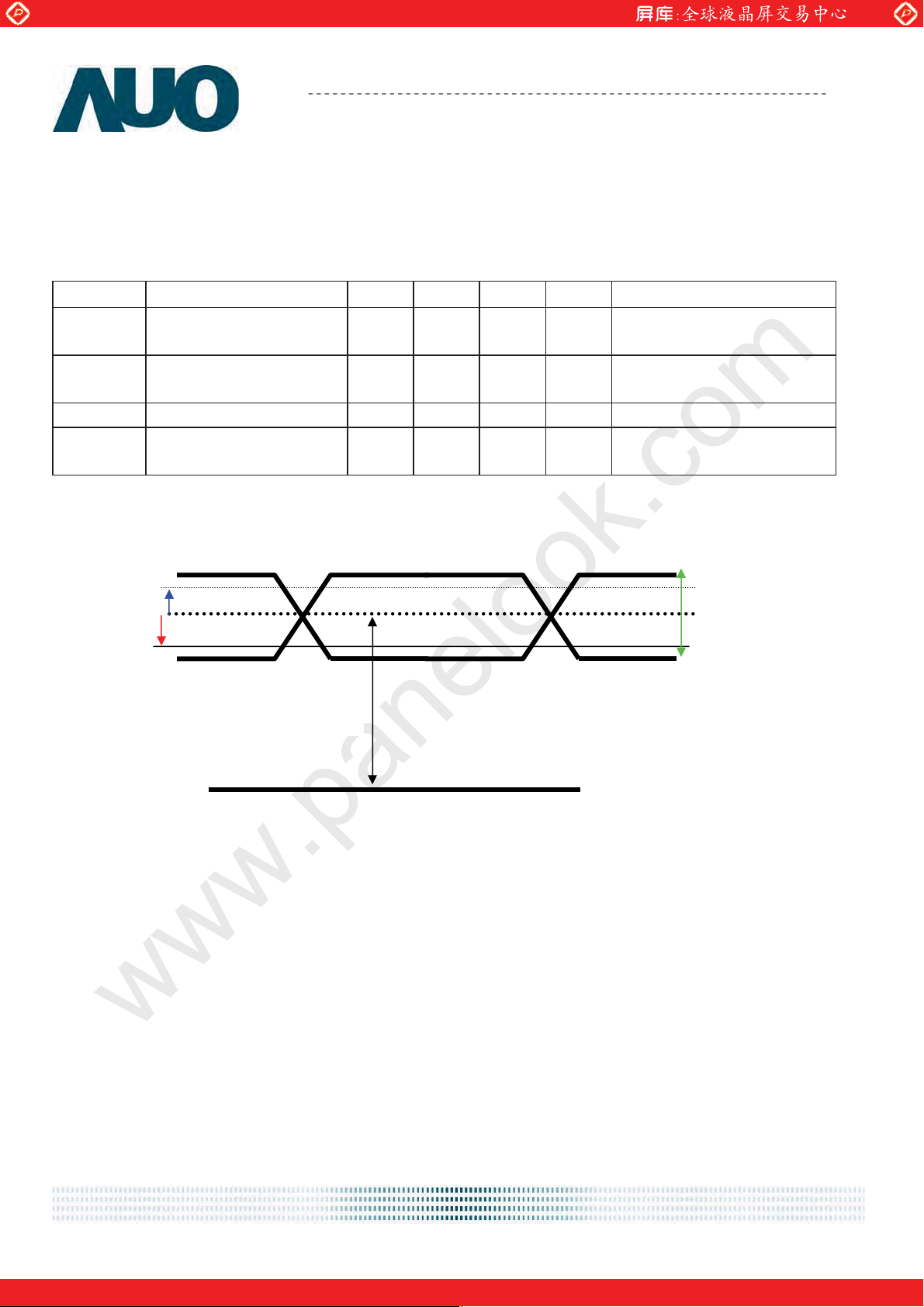

Note: LVDS Signal Waveform
V
T
ѨVIDѨ
VICM
SS
document version 0.1 13/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline LED
Following characteristics are measured under stable condition at 25к (Room Temperature)
Symbol Parameter Min. Typ. Max. Unit Remark
V
Input Voltage 10.8 12 12.6 Volt
LED
I
Input Current - 0.8 - A 100% Dimming
LED
P
Power Consumption - 9.6 - Watt 100% Dimming
LED
I
INRUSH LED
V
V
LED ON/OFF
Inrush Current - - 5.1 A V
F
PWM Dimming Frequency 200 - 20K Hz
PWM
PWM DIM
D
PWM
IF LED Forward Current - 60 - mA
Swing Voltage High 3.0 3.3 5.5 Volt
Swing Voltage Low - - 0.8 Volt
Dimming Duty Cycle 10 - 100 %
On Control Voltage 3.0 3.3 5.5 Volt
Off Control Voltage - - 0.8 Volt
ʳʳ
rising time ~ 470us
LED
Note 1,2
Ta = 25к
Note 3, 4ʳ
Operating Life
ʳʳ
30000 - - Hrs
Note 5, 6
Note 1: PWM dimming function can be operated by PWM signal. PWM duty cycle can adjust white Luminance.
(PWM High: ON and PWM Low: OFF)
Note 2: PWM signal can not be floating and pull-down to ground when waiting.
Note 3: Enable (
Note 4: Enable (
V
LED On/Off
V
LED On/Off
) must be turned on late than V
) must be turned off early than V
and PWM Signal.
LED
and PWM Signal.
LED
Note 5: If G170EG01 V1 module is driven by high current or at high ambient temperature & humidity condition. The
operating life will be reduced.
Note 6: Operating life means brightness goes down to 50% initial brightness. Minimum operating life time is estimated
data.
document version 0.1 14/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
6. Signal Characteristic
6.1 Pixel Format Image

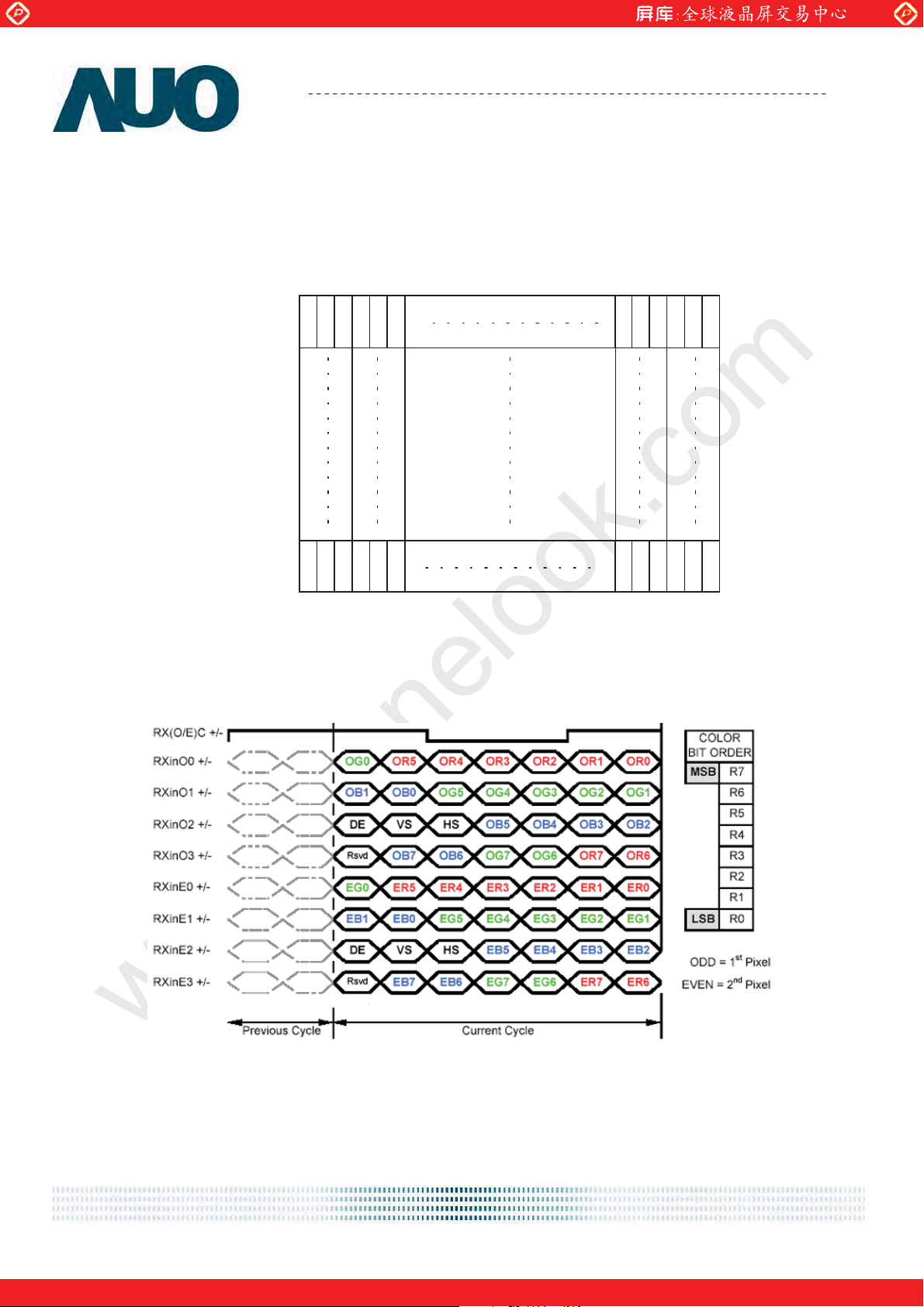

Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
121279 1280
R G B R G B
R G B R G B
1024th Line
R G B R G B
6.2 The Input Data Format
R G B R G B
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
document version 0.1 15/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
g
)
)
g
)
)
g
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
V
y
V
y
V
y
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN #SIGNAL NAMEDESCRIPTION
1RxO0-Ne
2RxO0+Positive LVDS differential data input (Odd data
3RxO1-Ne
4RxO1+Positive LVDS differential data input (Odd data
5RxO2-Ne
6RxO2+Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG
7GNDPower Ground
8RxOC-Negative LVDS differential clock input (Odd clock
9RxOC+Positive LVDS differential clock input (Odd clock
10RxO3-Negative LVDS differential data input (Odd data
11RxO3+Positive LVDS differential data input (Odd data
12RxE0-Negative LVDS differential data input (Even data
13RxE0+Positive LVDS differential data input (Even data
14GNDPower Ground
15RxE1-Negative LVDS differential data input (Even data
16RxE1+Positive LVDS differential data input (Even data
17GNDPower Ground
18RxE2-Negative LVDS differential data input (Even data
19RxE2+Positive LVDS differential data input (Even data
20RxEC-Negative LVDS differential clock input (Even clock
21RxEC+Positive LVDS differential clock input (Even clock
22RxE3-Negative LVDS differential data input (Even data
23RxE3+Positive LVDS differential data input (Even data
24GNDPower Ground
25GNDPower Ground(For AUO test Aging+HVS mode
26NCNo contact
27GNDPower Ground
28
29
30
CC+5.0V Power Suppl
CC+5.0V Power Suppl
CC+5.0V Power Suppl
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG
document version 0.1 16/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
V
www.panelook.com
Note1: Start from left side
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION
Connector
RxO0-
30
CC
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
document version 0.1 17/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION
6.4 Timing Characteristics
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 1024 1024 1024 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs 8 42 126 Th
Period Th 780 844 2048 Tclk
Horizontal
Active Tdisp(h) 640 640 640 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 140 204 1408 Tclk
Period Tclk 14.81 18.52 25 ns
Clock
Frequency Freq 40 54 67.5 MHz
1032 1066 1150 Th
Frame rate Frame rate F 50 60 75 Hz
Note : DE mode only
document version 0.1 18/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

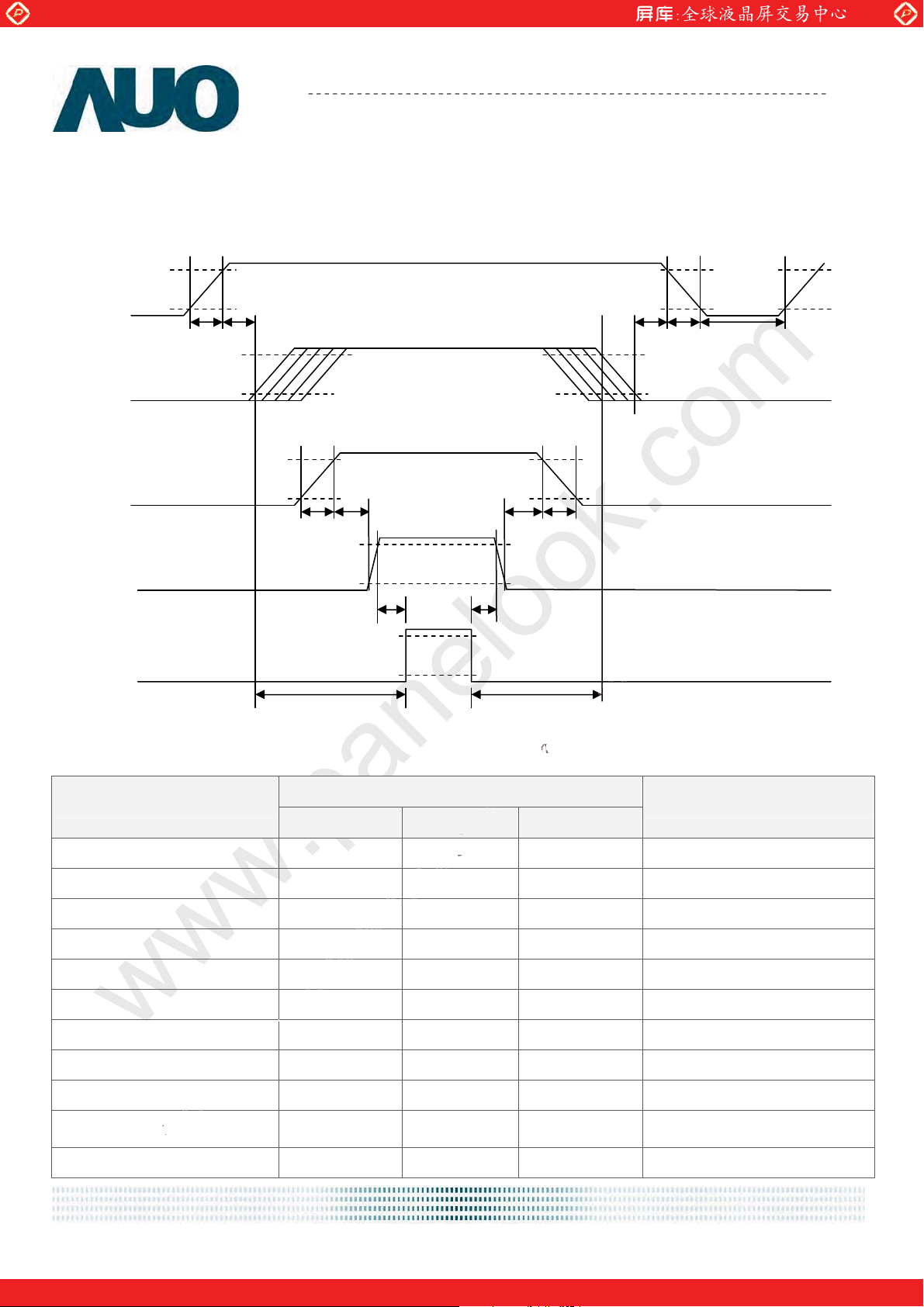

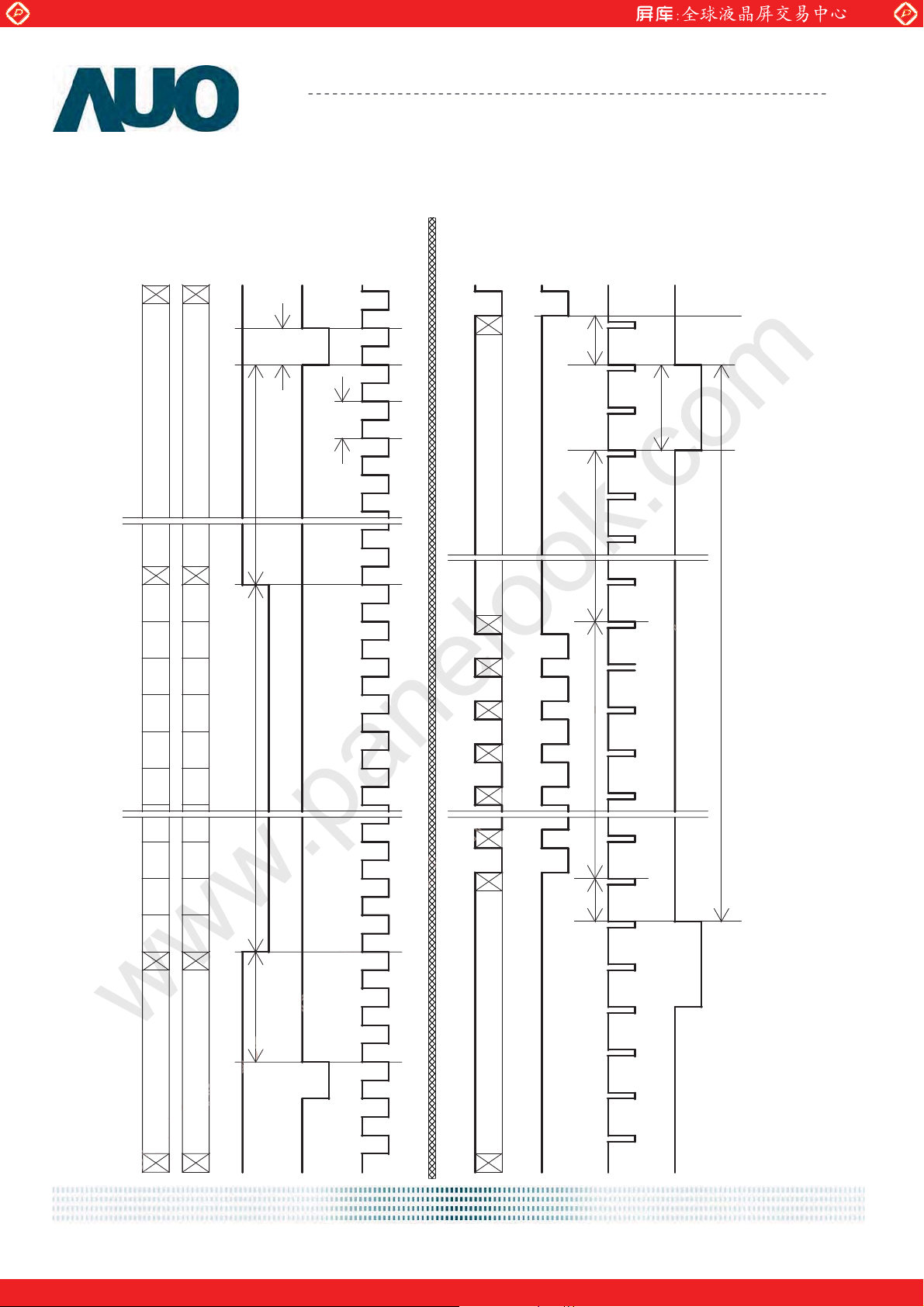

6.4.2 Timing Diagram
RGB Data
(Odd)
RGB Data
(Even)
Invalid Data
Invalid Data
DE
Tbp(h)
Product Specification
AU OPTRONICS CORPORATION
RGB Data
Line
N
Invalid Data
PWhs
Hsync
CLK
Tclk
DE
G170ETN01.0
Hsync
Tfp(v)
Tbp(v)
Vsync
PWvs
Pixel
2
1
Pixel Pixel
4
39M-1
6
5M-3
Pixel Pixel PixelPixel Pixel Pixel
8
7
10
12
11
M-5
M-4
M-2
M
Invalid Data
Pixel
Pixel
Pixel
Tdisp(h)
PixelPixelPixelPixel
PixelPixel
Invalid Data
Tv
2
Tdisp(v)
43
N1
Th
Invalid Data
Tfp(h)
document version 0.1 19/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
90%
VDD
10%
TT
Signal
VLED
Back light dimming
90%
10%
90%
10%
TT
T1 T1T1
90%
10%
90%
10%
TT
90%
10%
90%
10%
Back light
TT
90%
10%
T
T1
Power Sequence Timing
Value
Parameter
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 30 40 50 [ms]
T3 200 - - [ms]
T4 0.5 - 10 [ms]
T5 10 - - [ms]
T6 10 - - [ms]
T7 0 - - [ms]
T8 10 - - [ms]
T9 - - 10 [ms]
T10 110 - - [ms]
T11 0 16 50 [ms]
document version 0.1 20/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
G170ETN01.0
AU OPTRONICS CORPORATION
T12 - - 10 [ms]
T13 1000 - - [ms]
document version 0.1 21/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0

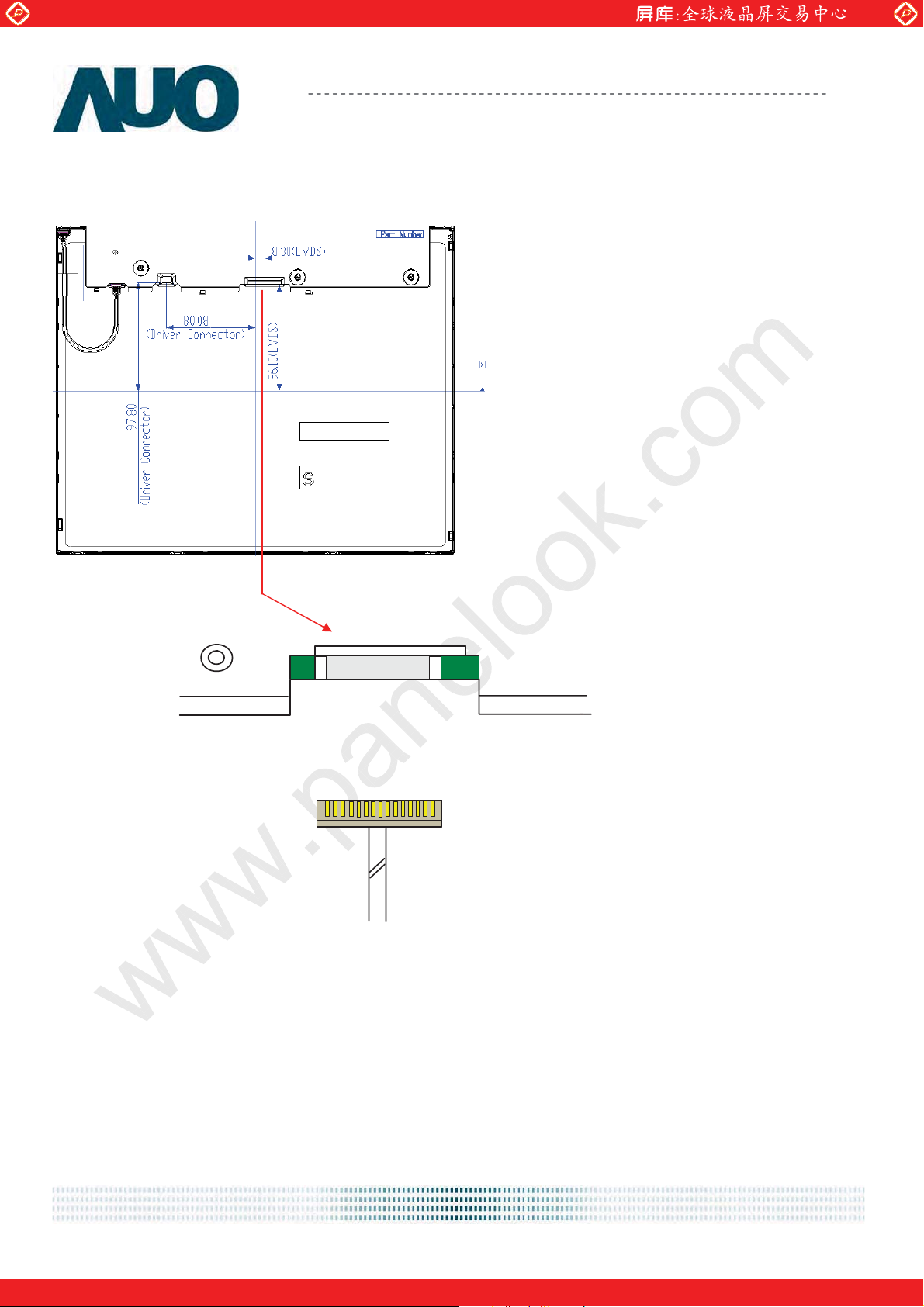

7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector
Manufacturer JAE or Compatible
Type Part Number FI-XB30SSL-HF15 or Compatible
Mating Housing Part Number JAE FI-X30HL or Compatible
7.1.2 Pin Assignment
Pin#Signal Name Pin#Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7
GND
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14
15 RxEIN1- 16 RxEIN1+
17
GND
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24
25 GND (AGMODE+HVS) 26 NC
27 GND 28 VCC
29 VCC 30 VCC
8 RxOCLKIN-
GND
18 RxEIN2-
GND
document version 0.1 22/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170ETN01.0

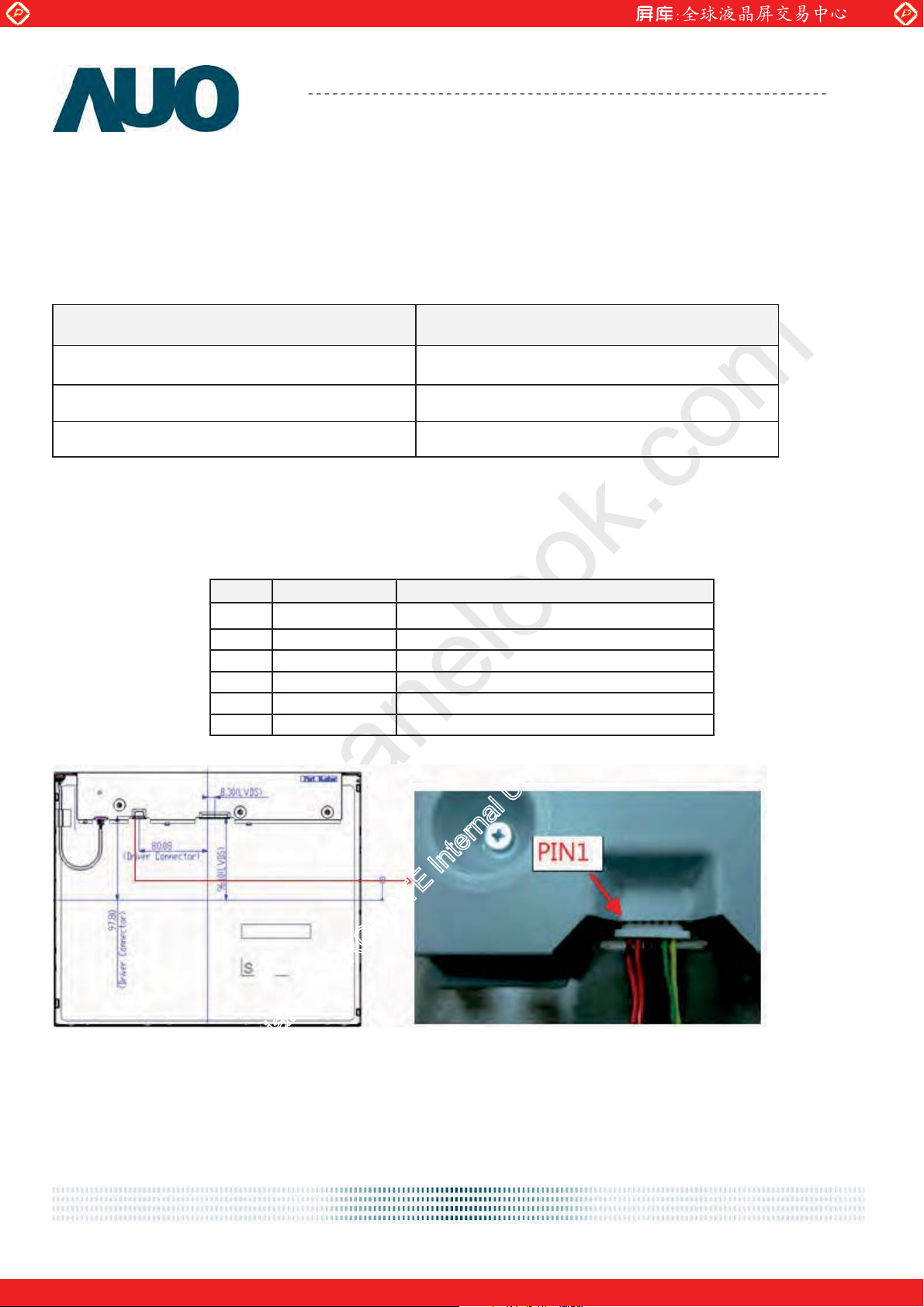

7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector
Manufacturer E&T or compatible
Connector Model Number 3806K-F06Y-03R or compatible
Mating Connector Model Number H208K-P06N-02B or compatible
