G150XTN03.1
(V) Preliminary Specifications
() Final Specifications
Module 15 Inch Color TFT-LCD
Model Name G150XTN03.1
Customer Date
Approved by Date
Checked &
Approved by
Note: This Specification is subject to change
without notice.
Vito Huang 2013/7/18
Prepared by
Wennie Lee 2013/7/18
General Display Business Division /
AU Optronics corporation
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
/27
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
Contents
1. Operating Precautions.....................................................................................4
2. General Description.........................................................................................5
2.1 Display Characteristics...........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6
3. Functional Block Diagram ...............................................................................9
4. Absolute Maximum Ratings ..........................................................................10
4.1 Absolute Ratings of TFT LCD Module .................................................................................10
4.2 Absolute Ratings of Environment ........................................................................................10
5. Electrical Characteristics ..............................................................................11
5.1 TFT LCD Module.................................................................................................................. 11
5.2 Backlight Unit........................................................................................................................13
6. Signal Characteristic .....................................................................................14
6.1 Pixel Format Image ..............................................................................................................14
6.2 Scanning Direction ...............................................................................................................14
6.3 Signal Description ................................................................................................................15
6.4 The Input Data Format .........................................................................................................16
6.5 Interface Timing ....................................................................................................................17
6.6 Power ON/OFF Sequence ...................................................................................................18
7. Connector & Pin Assignment........................................................................19
7.1 TFT LCD Module: LVDS Connector.....................................................................................19
7.2 LED Backlight Unit: LED Driver Connector .........................................................................21
7.3 LED Driver Connector Pin Assignment ...............................................................................21
8. Reliability Test Criteria ..................................................................................22
9. Mechanical Characteristics ...........................................................................23
9.1 LCM Outline Dimension (Front View) ..................................................................................23
9.2 CM Outline Dimension (Rear View).....................................................................................24
10. Label and Packaging....................................................................................25
10.1 Shipping Label (on the rear side of TFT-LCD display)......................................................25
10.2 Carton Package .................................................................................................................25
10.3 Palletizing ...........................................................................................................................26
11 Safety.............................................................................................................27
11.1 Sharp Edge Requirements.................................................................................................27
11.2 Materials .............................................................................................................................27
11.3 Capacitors...........................................................................................................................27
11.4 National Test Lab Requirement..........................................................................................27
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
/27
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
Record of Revision
Version and Date Page Old description New Description
0.0 2013/7/18 All First Version
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
/27
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
1. Operating Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human
earth when handling.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) In case if a module has to be put back into the packing container slot after it was taken
out from the container, do not press the center of the LED Reflector edge. Instead,
press at the far ends of the LED Reflector edge softly. Otherwise the TFT Module may
be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a
very short time. Please design your display product well to avoid external force applying
to module by end-user directly.
12) Small amount of materials without flammability grade are used in the TFT-LCD module.
The TFT-LCD module should be supplied by power complied with requirements of
Limited Power Source(IEC60950-1 or UL60950-1), or be applied exemption.
13) Severe temperature condition may result in different luminance, response time.
14) Continuous operating TFT-LCD Module under high temperature environment may
accelerate LED light bar exhaustion and reduce luminance dramatically.
15) The data on this specification sheet is applicable when TFT-LCD module is placed in
landscape position.
16) Continuous displaying fixed pattern may induce image sticking. It’s recommended to
use screen saver or moving content periodically if fixed pattern is displayed on the
screen.
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
/27
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
2. General Description
G150XTN03.1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a
driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x
768(V)) screen and 262K / 16.2M (RGB 6/8-bits) coloars. All input signals are LVDS interface
compatible.
G150XTN03.1 is designed for industrial display applications
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Items Unit Specifications
Screen Diagonal [inch] 15
Active Area [mm] 304.128(H) x 228.096(V)
condition:
Pixels H x V 1024x3(RGB) x 768
Pixel Pitch [mm] 0.297 x 0.297
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN, Normally White
Nominal Input Voltage VDD [Volt] 3.3 typ.
Typical Power Consumption [Watt] 10.9 W (Typ.),(all black pattern)
Weight [Grams] 1200g (max.)
Physical Size [mm] 326.5(H) x 253.5(V) x 12 (D)
Electrical Interface 1 channel LVDS
Surface Treatment Anti-glare, Hardness 3H
Support Color 16.2M / 262K colors
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance RoHS Compliance
o
C]
[
o
C]
[
0 to +65 (+65
-20 to +65
o
C as panel surface temperature)
Light Bar Unit LED, Non-Replaceable
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
/27
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
White Luminance
Uniformity
Contrast Ratio
Cross talk
Response Time
Viewing Angle
Color / Chromaticity
Coordinates
(CIE 1931)
Color Gamut %
[cd/m2]
%
%
[msec]
[msec]
[msec]
[degree]
[degree]
[degree]
[degree]
200 250 - 1
9 Points
75 80 - 1, 2, 3
400 500 - 4
- - 1.5 5
Rising
Falling
Raising + Falling
Horizontal (Right)
CR = 10 (Left)
Vertical (Upper)
CR = 10 (Lower)
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
-
- 2.3
- 8
TBD
TBD
TBD
TBD
TBD
TBD
0.263 0.313 0.363
0.279 0.329 0.379
60 -
5.7
45
45
15
30
G150XTN03.1
6
-
7
-
-

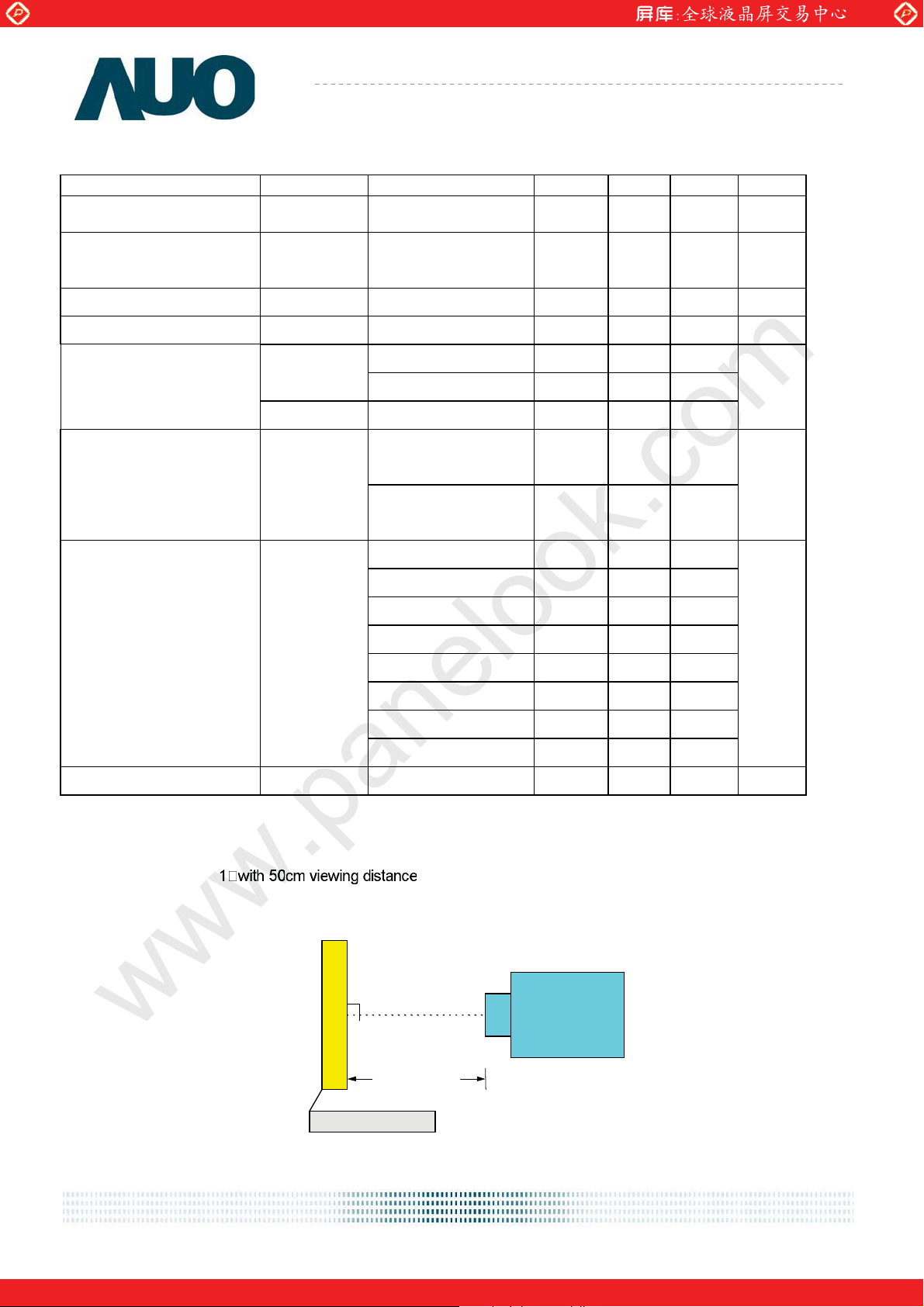

Note 1: Measurement method
Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (SR_3 or equivalent)
Aperture
Test Point Center
Environment < 1 lux
LCD Module
SR_3 or
equivalent
Measuring distance
Module Driving Equipment
G150XTN03.1 rev. 0.0
6
/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
(CR)
g
A
A
www.panelook.com
G150XTN03.1

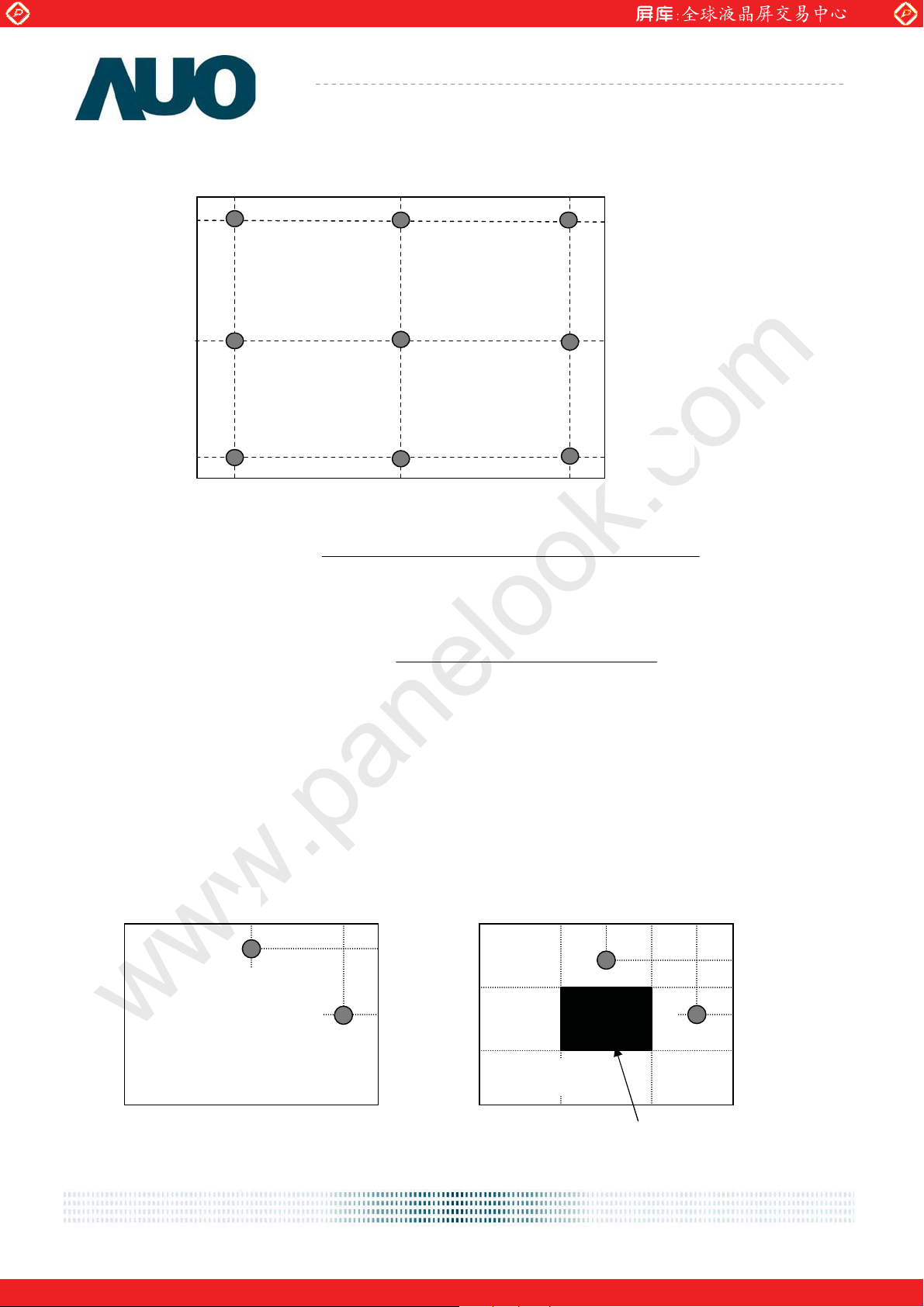

Note 2: Definition of 9 points position (Display active area: 304.128(H) x 228.096(V))
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the minimum luminance values by the maximum test
point luminance
50 %
Minimum Brightness of nine points
W9
=
Maximum Brightness of nine points
Brightness on the “White” state
=
htness on the “Black” state
Bri
Note 4Κ Definition of contrast ratio (CR):
Ӭ
Contrast ratio
N
ote 5Κ Definition of cross talk (CT)
10 %
10 %
50 %
90 %
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
1/2
184 gray level
B
1/6
2/3 1/3
1/6
1/2
1/2
’
1/6
1/6
1/3
1/2
B’
2/3
G150XTN03.1 rev. 0.0
7
/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com

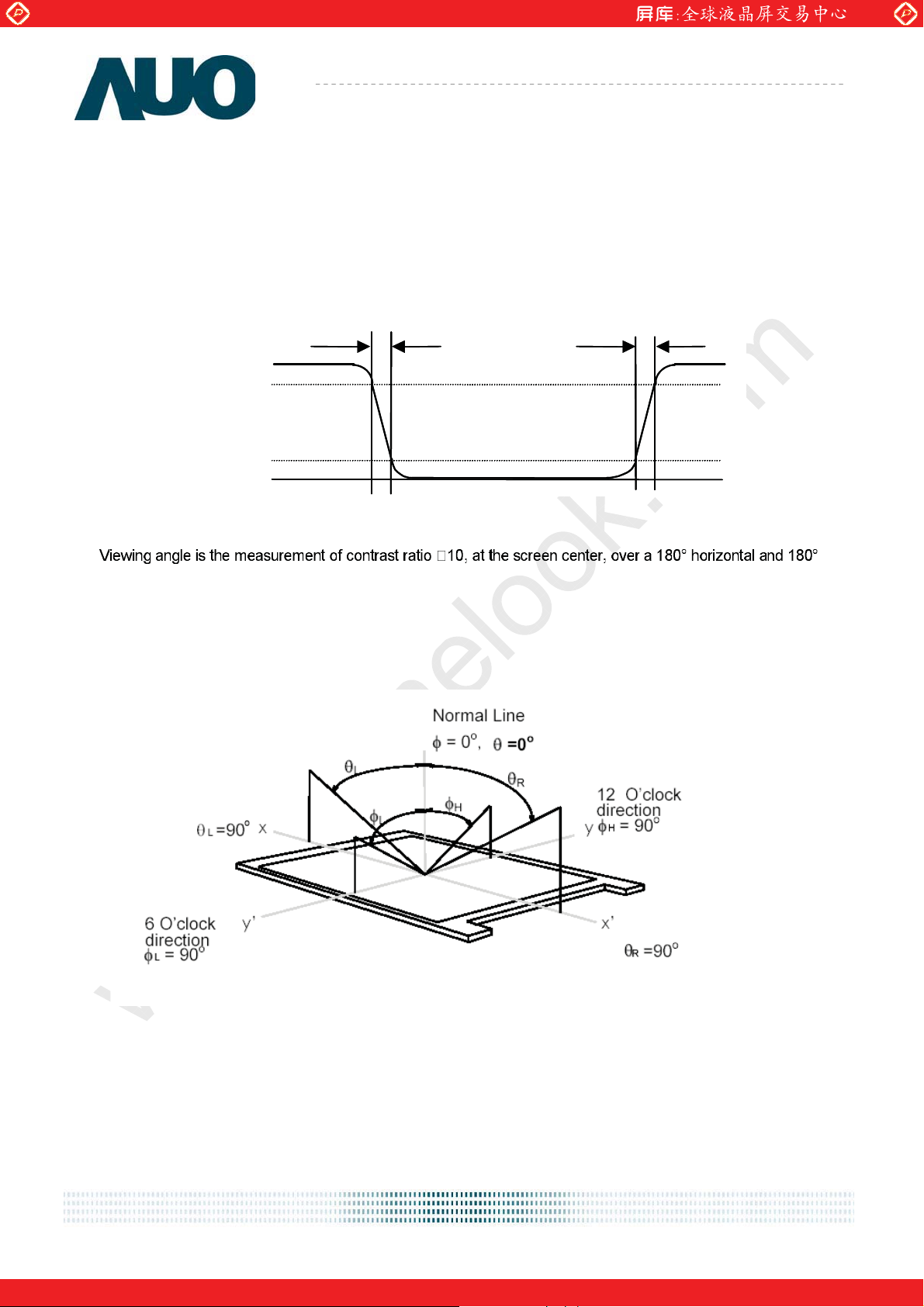

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “White” to “Black”
(falling time) and from “Black” to “White” (rising time), respectively. The response time interval is between 10% and
90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
%
100
90
90
10
10
0
0
Tf Tr
White Black White
White Black White
Tr
G150XTN03.1
Note 7: Definition of viewing angle
vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as below: 90° (θ) horizontal
left and right, and 90° (Φ) vertical high (up) and low (down). The measurement direction is typically perpendicular to the
display surface with the screen rotated to its center to develop the desired
measurement viewing angle.
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
/27
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com

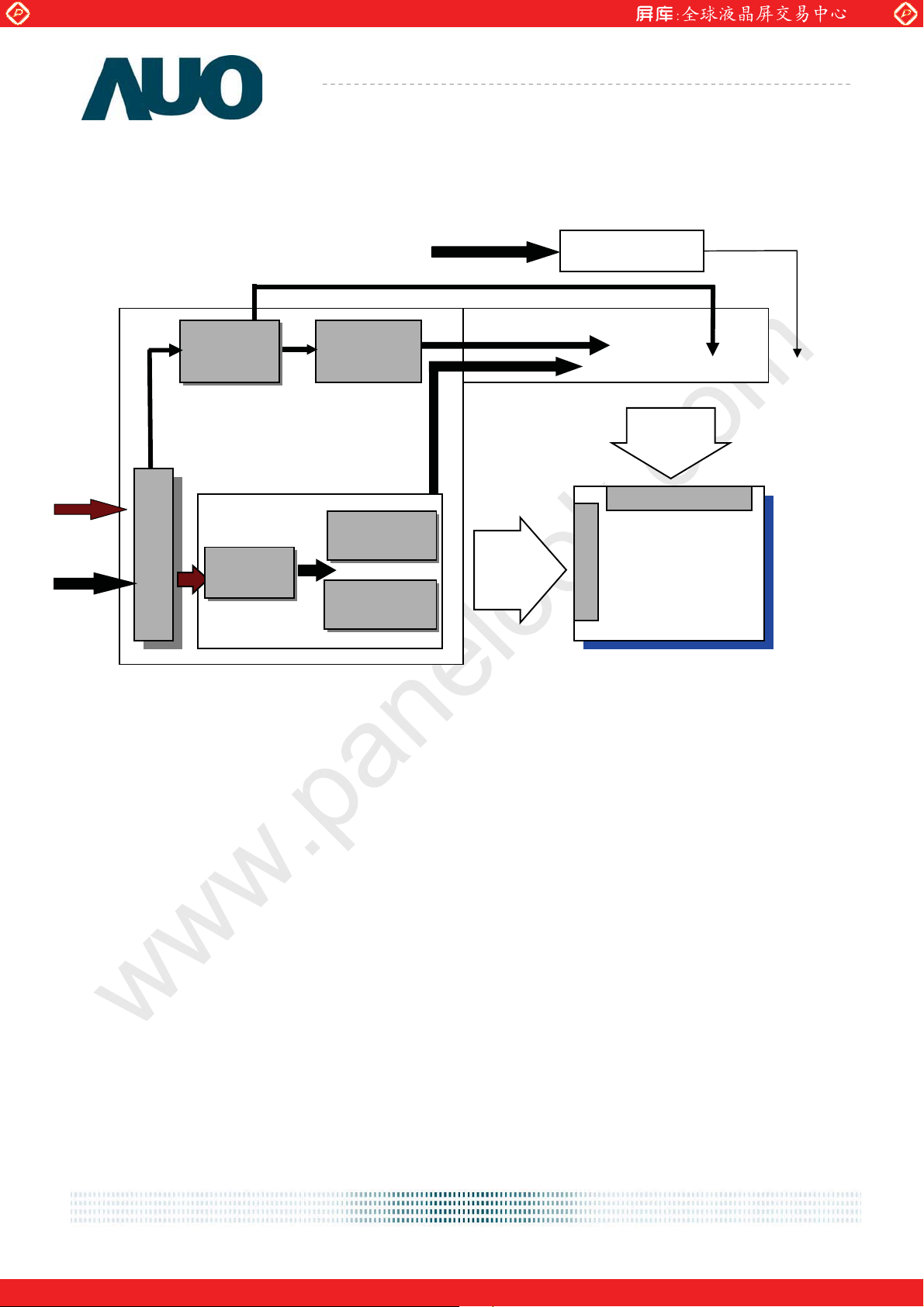

3. Functional Block Diagram
The following diagram shows the functional block of the 15 inch color TFT/LCD module:
LVDS
+ 3.3V
Connector
DC/DC
Converter
AU ASIC
LVDS
Gamma
Correction
Timing
Controller
Mini-LVDS
DC POWER
G150XTN03.1
LED driver
LED BL
D1 D3072
G1
Source Driver IC
TFT-LCD
1024(3)*768
Pixels
MSB240420E
Mating Type: P240420 H208K-P05N-02B
Entery 3808K-F05N-02
G768
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
/27
www.panelook.com
Page 10
Global LCD Panel Exchange Center
V
]
www.panelook.com
4. Absolute Maximum Ratings
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit
Logic/LCD Drive Voltage
in -0.3 +3.6 [Volt

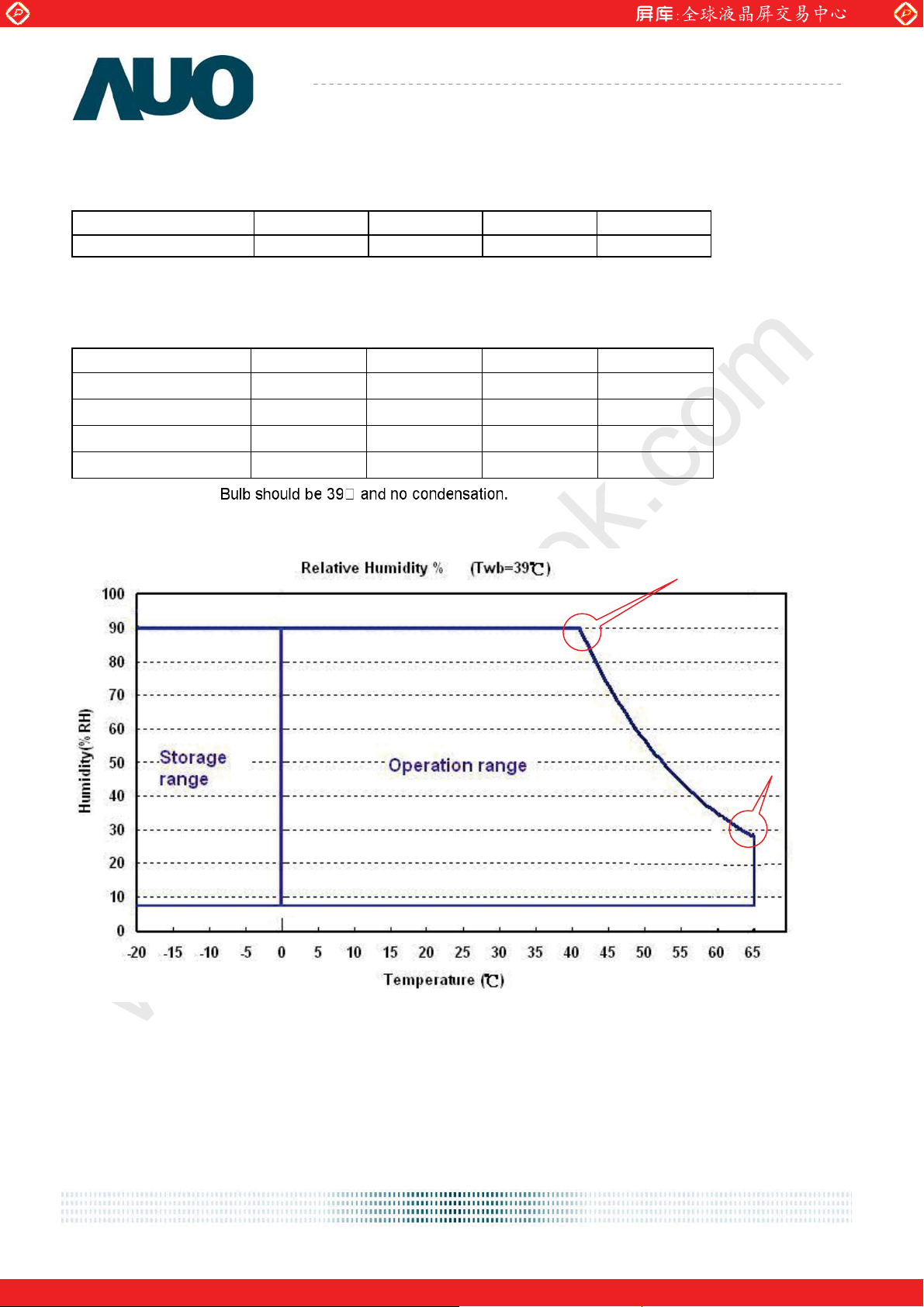

4.2 Absolute Ratings of Environment
Item Symbol Min Max Unit
Operating Temperature TOP 0 +65* [oC]
Operation Humidity HOP 8 90 [%RH]
Storage Temperature TST -20 +65 [oC]
Storage Humidity HST
Note: Maximum Wet-
o
* 65
C is panel surface temperature
8 90
[%RH]
G150XTN03.1
T=65°C, H=27.9%
G150XTN03.1 rev. 0.0
1
0/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
V
www.panelook.com
G150XTN03.1

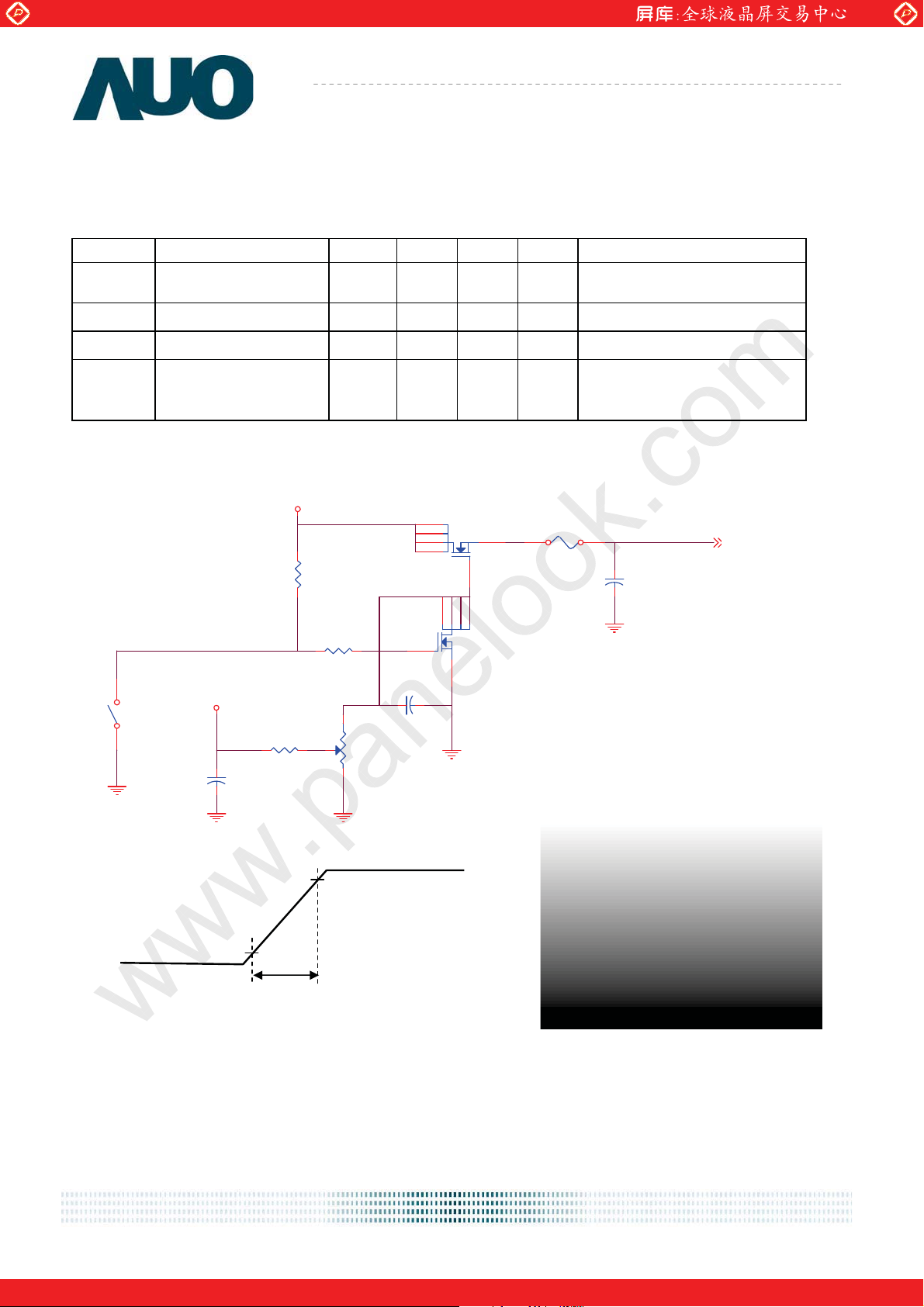

5. Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Symbol Parameter Min Typ Max Units Remark
VDD
IDD
Irush
PDD
Logic/LCD Drive
Voltage
VDD Current
LCD Inrush Current
VDD Power
Note 1: Measurement condition:
(High to Low)
Control
Signal
+3.3V
3.0 3.3 3.6 [Volt]
1.1 1.4 [A]
3 [A]
3.3 5 [Watt]
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
Q3
G
AO6402
R1
47K
-
-
-
R2
f10%
Note 1
F1
DD
VCC
(LCD Module Input)
C1
1uF/16V
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
1K
R2
1K
VR1
C3
0.01uF/25V
47K
90%
3.3V
10%
0V
500 us
VDD rising time
64 Gray pattern
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN03.1 rev. 0.0
1
1/27
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off.
Symbol Item Min. Typ. Max. Unit Remark
VTH
VTL
Differential Input High Threshold - - 100
Differential Input Low Threshold -100 - -
ΨVIDΨ Input Differential Voltage
VICM
Differential Input Common Mode Voltage

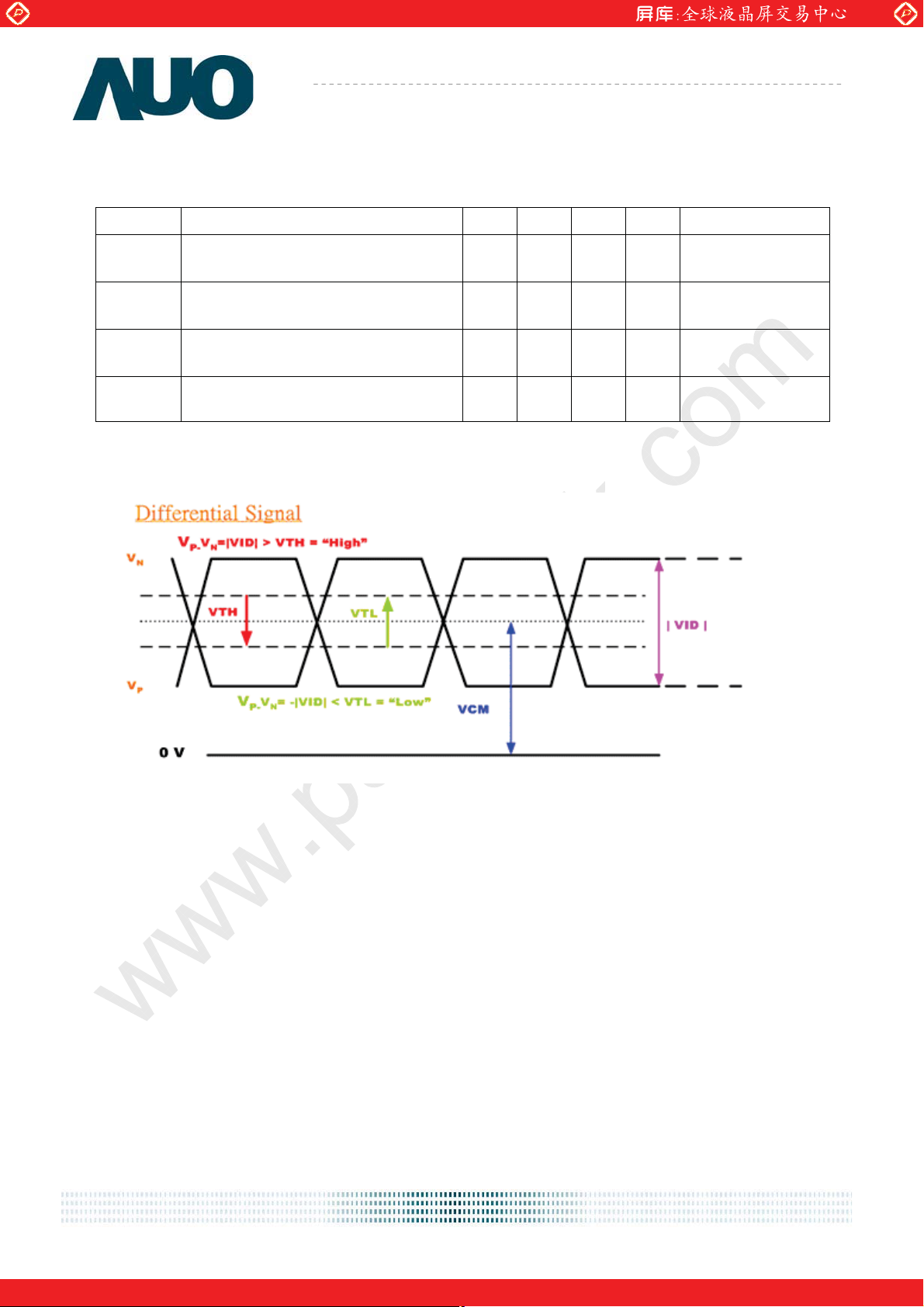

Note: LVDS Signal Waveform.
100 400 600
1.1 1.45
[mV] VCM=1.2V
[mV] VCM=1.2V
[mV]
VTH/VTL=100mV
[V]
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
2/27
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
5.2 Backlight Unit
5.2.1 Parameter guideline for LED
Following characteristics are measured under stable condition using a LED driving board at 25
Symbol Parameter Min. Typ. Max. Unit Remark
Vcc Input Voltage 10.8 12 13.2 Volt
Ivcc Input Curent - 0.7 - A 100% Dimming
PLED Power Consumption - 8.4 10 Watt 100% Dimming
Irush Inrush Current - 2 A
VLED on/off
FPWM
On Control Voltage 2.5 3.3 5.5 Volt
Off Control Voltage - - 0.8 Volt
PWM Dimming
200
20K Hz
Frequency
High Voltage 2.5
3.3
5.5 Volt
G150XTN03.1
om Temperature).
Low Voltage - - 0.8 Volt
Dimming Duty Cycle 5
-
100 %
IF LED Forward Current - 60 mA Ta = 25oC
Operating Life 30000 - Hrs Ta = 25oC
Note 1: Ta means ambient temperature of TFT-LCD module.
Note 2: If G150XTN03.1 module is driven at high ambient temperature & humidity condition. The operating life will be
reduced.
Note 3: Definition of life time: LED brightness becomes 50% of its original value. The minimum life time of LED unit is
on the condition of IR
= 60 mA and 25f2к(Room temperature).
LED
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
3/27
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
6. Signal Characteristic

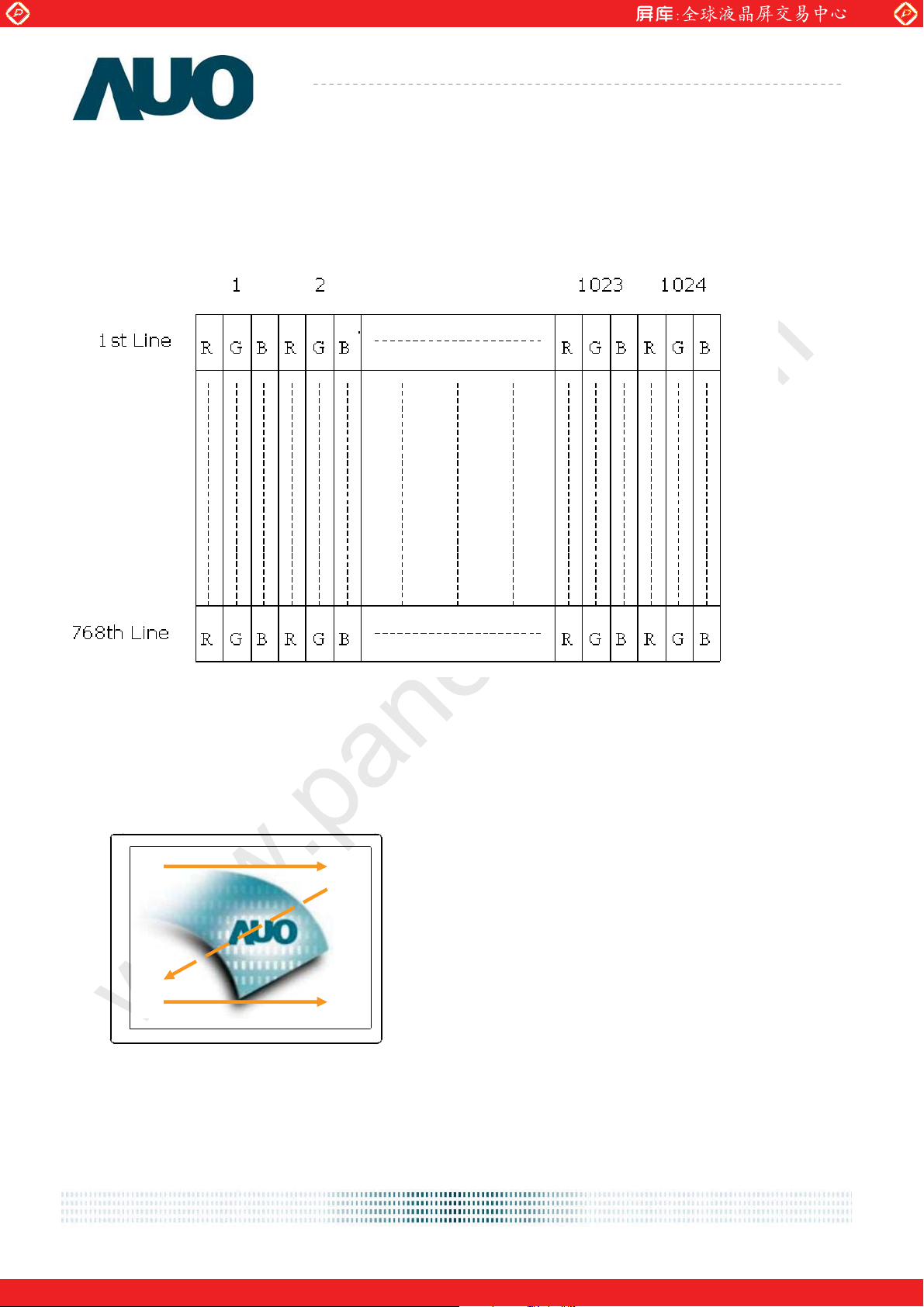

6.1 Pixel Format Image
Following figure shows the relationship between input signal and LCD pixel format.
G150XTN03.1
6.2 Scanning Direction
The following figures show the image seen from the front view. The arrow indicates the direction of scan.
AUO
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
4/27
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential
signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative
edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx)
transmits even pixels.
MSB240420HE(STM)
Pin No. Symbol Description
1 VDD Power Supply, 3.3V (typical)
2 VDD Power Supply, 3.3V (typical)
3 NC No Connect
4 NC No Connect
5 Rin1- - LVDS differential data input (R0-R5, G0)
6 Rin1+ + LVDS differential data input (R0-R5, G0)
7 VSS Ground
8 Rin2- - LVDS differential data input (G1-G5, B0-B1)
9 Rin2+ + LVDS differential data input (G1-G5, B0-B1)
10 VSS Ground
11 Rin3- - LVDS differential data input (B2-B5, HS, VS, DE)
12 Rin3+ + LVDS differential data input (B2-B5, HS, VS, DE)
13 VSS Ground
14 ClkIN- - LVDS differential clock input
15 ClkIN+ + LVDS differential clock input
16 GND Ground
17 Rin4- - LVDS differential data input (R6-R7, G6-G7,B6-B7)
18 Rin4+ - LVDS differential data input (R6-R7, G6-G7,B6-B7)
19 VSS Ground
20 SEL6/8 Select 6 or 8 Bits LVDS Input
Note 1: Input signals shall be in low status when VDD is off.
Note 2: For 6 bits mode, please keep the Pin 17& Pin 18 NC or make sure that the voltage of Pin 18 is always
higher than the voltage of Pin 17.
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
5/27
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com

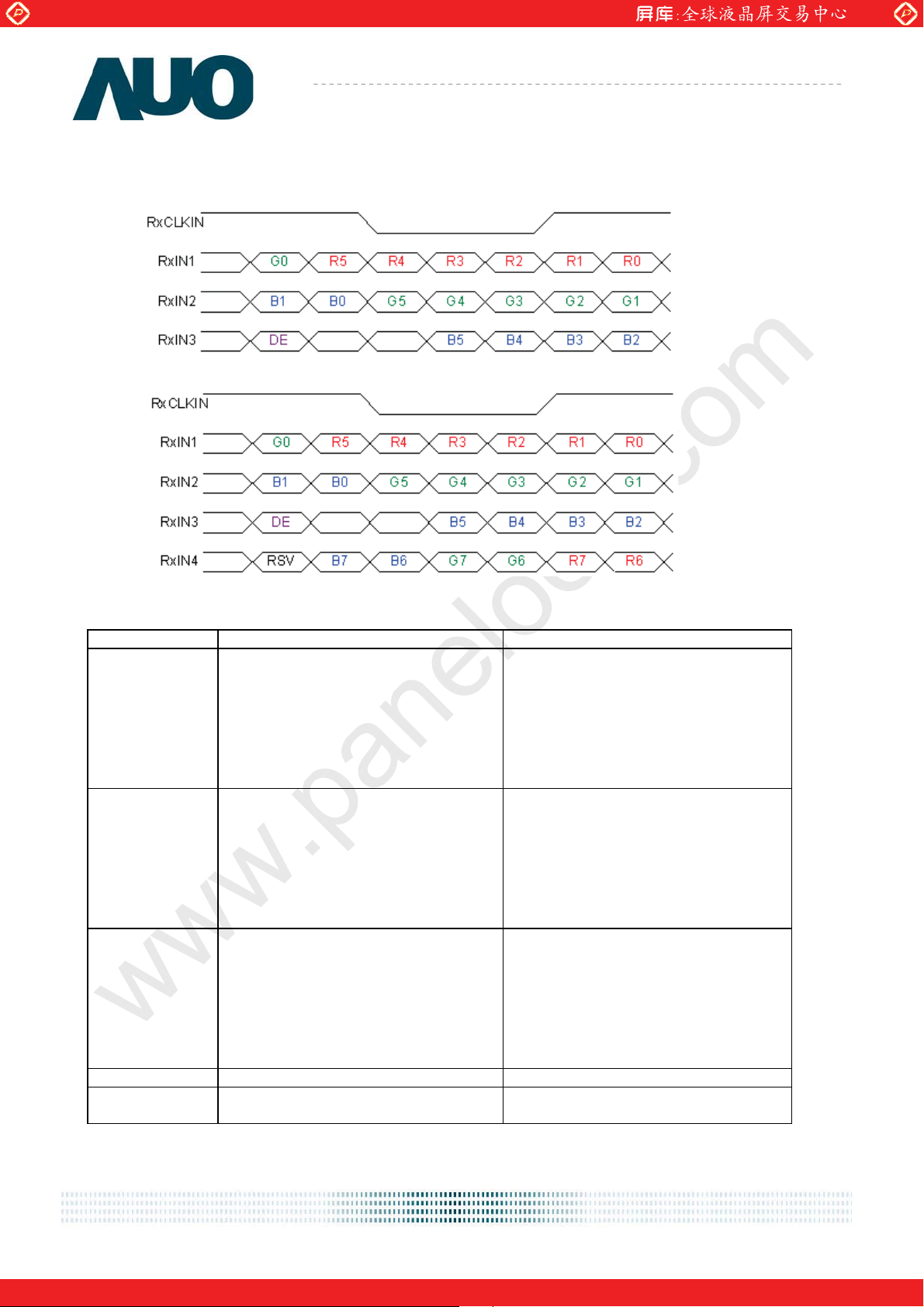

6.4 The Input Data Format
6.4.1 SEL68
SEL68 = ”High” for 6 bits LVDS Input
SEL68 = “Low” or “NC” for 8 bits LVDS Input
G150XTN03.1
Note1: Please follow PSWG.
Note2: R/G/B data 7:MSB, R/G/B data 0:LSB
Signal Name Description Remark
R7
R6
R5
R4
R3
R2
R1
R0
G7
G6
G5
G4
G3
G2
G1
G0
B7
B6
B5
B4
B3
B2
B1
B0
Red Data 7
Red Data 6
Red Data 5
Red Data 4
Red Data 3
Red Data 2
Red Data 1
Red Data 0
Green Data 7
Green Data 6
Green Data 5
Green Data 4
Green Data 3
Green Data 2
Green Data 1
Green Data 0
Blue Data 7
Blue Data 6
Blue Data 5
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0
Red-pixel Data
For 8Bits LVDS input
MSB: R7 ; LSB: R0
For 6Bits LVDS input
MSB: R5 ; LSB: R0
Green-pixel Data
For 8Bits LVDS input
MSB: G7 ; LSB: G0
For 6Bits LVDS input
MSB: G5 ; LSB: G0
Blue-pixel Data
For 8Bits LVDS input
MSB: B7 ; LSB: B0
For 6Bits LVDS input
MSB: B5 ; LSB: B0
RxCLKIN LVDS Data Clock
DE Data Enable Signal When the signal is high, the pixel data
shall be valid to be displayed.
Note: Output signals from any system shall be low or Hi-Z state when VDD is off.
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
6/27
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
6.5 Interface Timing
6.5.1 Timing Characteristics
Signal Parameter Symbol Min. Typ. Max. Unit
Clock Timing Clock frequency 1/ T
Vsync Timing Vertical
Section
Period T
Active T
Blanking T
Hsync Timing Horizontal
Section
Period T
Active T
Blanking T
Note: Support DE mode only.
Note : Typical value refer to VESA STANDARD
Clock
V
VD
VB
H
HD
HB
50 65 81
783 806 968
768 768 768
15 38 200
1224 1344 2024
1024 1024 1024
200 320 1000
MHz
T
Line
T
Clock

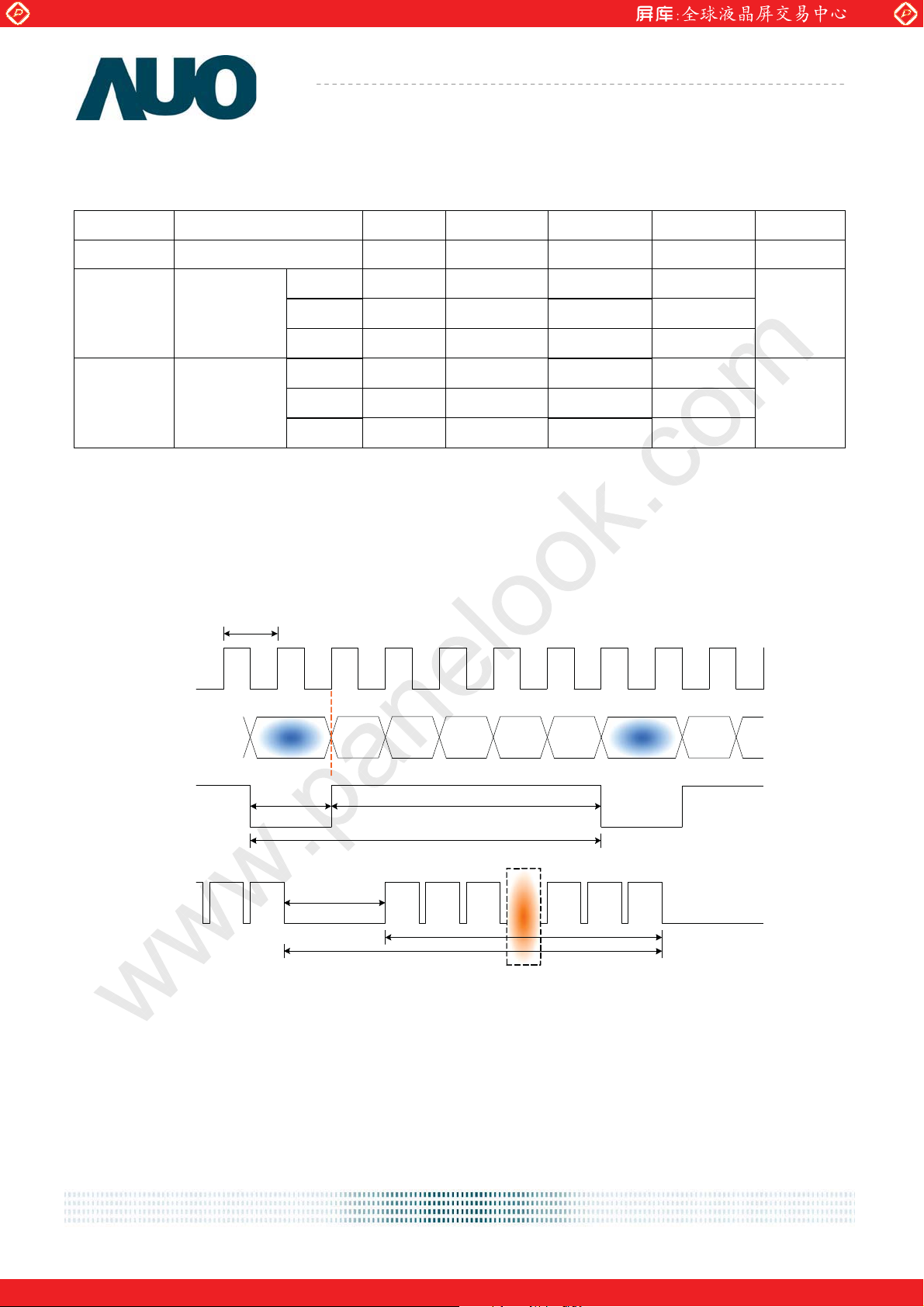

6.5.2 Input Timing Diagram
DOTCLK
Input
Data
DE
DE
T
CLOCK
Invaild
Data
T
HB
Input Timing Definition ( DE Mode)
Pixel1Pixel2Pixel3Pixel
T
HD
T
H
T
VB
T
V
N-1
T
VD
Pixel
N
Invaild
Data
Pixel
1
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
7/27
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1

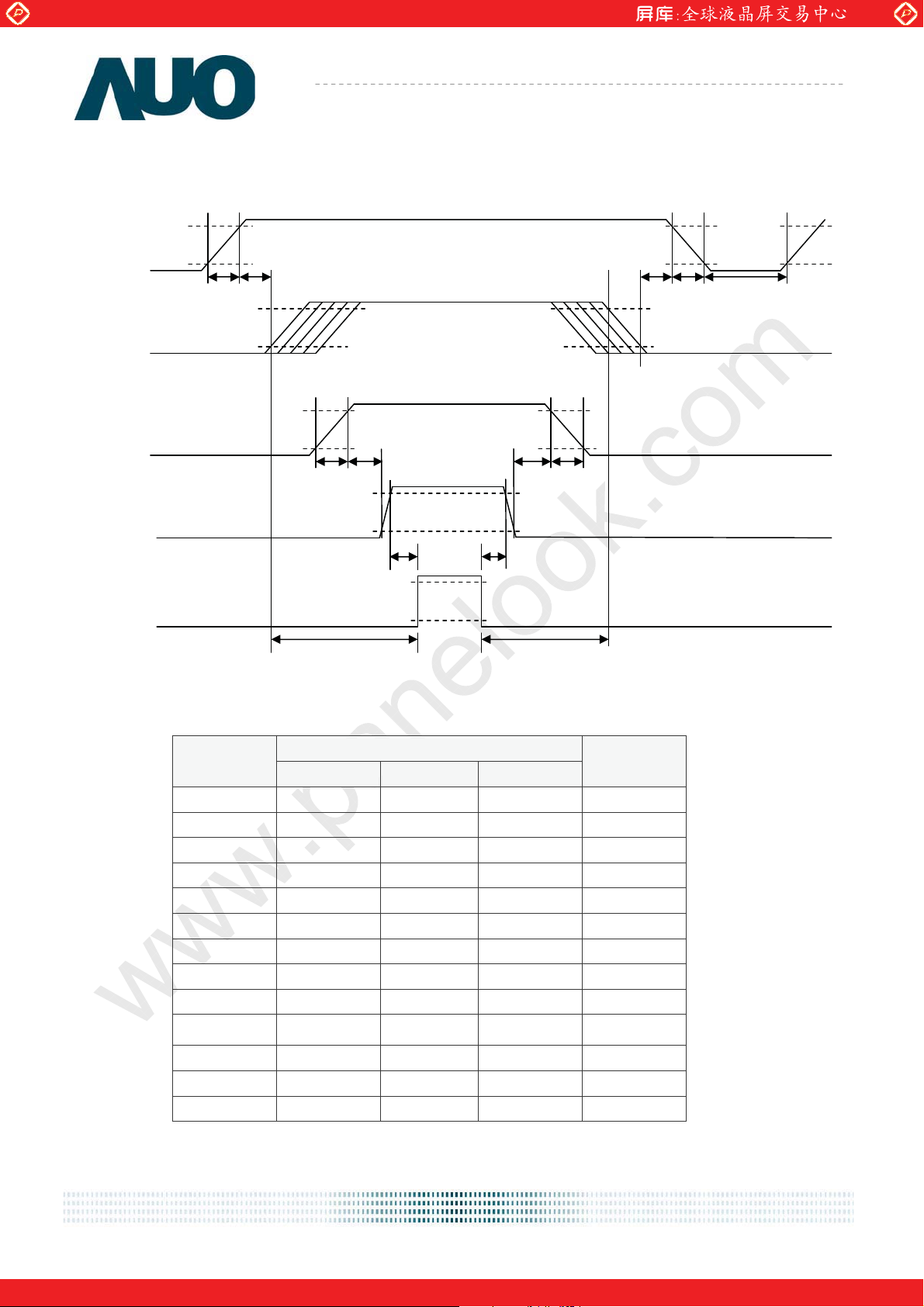

6.6 Power ON/OFF Sequence
VDD power and backlight on/off sequence is as below. Interface signals are also shown in the chart. Signals from any
system shall be Hi-Z state or low level when VDD is off.
90%
VDD
10%
TT
Signal
VLED
Back light dimming
90%
10%
90%
10%
TT
T1 T1 T1
90%
10%
90%
10%
TT
90%
10%
90%
10%
Back light
TT
90%
10%
T
T1
Power Sequence Timing
Parameter
Value
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 30 40 50 [ms]
T3 200 - - [ms]
T4 0.5 - 10 [ms]
T5 10 - - [ms]
T6 10 - - [ms]
T7 0 - - [ms]
T8 10 - - [ms]
T9 - - 10 [ms]
T10 110 - - [ms]
T11 0 16 50 [ms]
T12 - - 10 [ms]
T13 1000 - - [ms]
The above on/off sequence should be applied to avoid abnormal function in the display. Please make sure to turn off
the power when you plug the cable into the input connector or pull the cable out of the connector.
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
8/27
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
G150XTN03.1
7. Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of accommodating
the following signals and will be following components.
7.1 TFT LCD Module: LVDS Connector
Connector Name / Designation Signal Connector
Manufacturer STM or compatible
Connector Model Number MSB240420HE
Adaptable Plug P240420
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
VDD
NC
Rin0-
VSS
Rin1+
Rin2-
VSS
ClkIN+
Rin3-
VSS
2 VDD
4 NC
6
8 Rin1-
10 VSS
12 Rin2+
14
16 GND
18 Rin3+
20 SEL68
Rin0+
ClkIN-
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
9/27
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

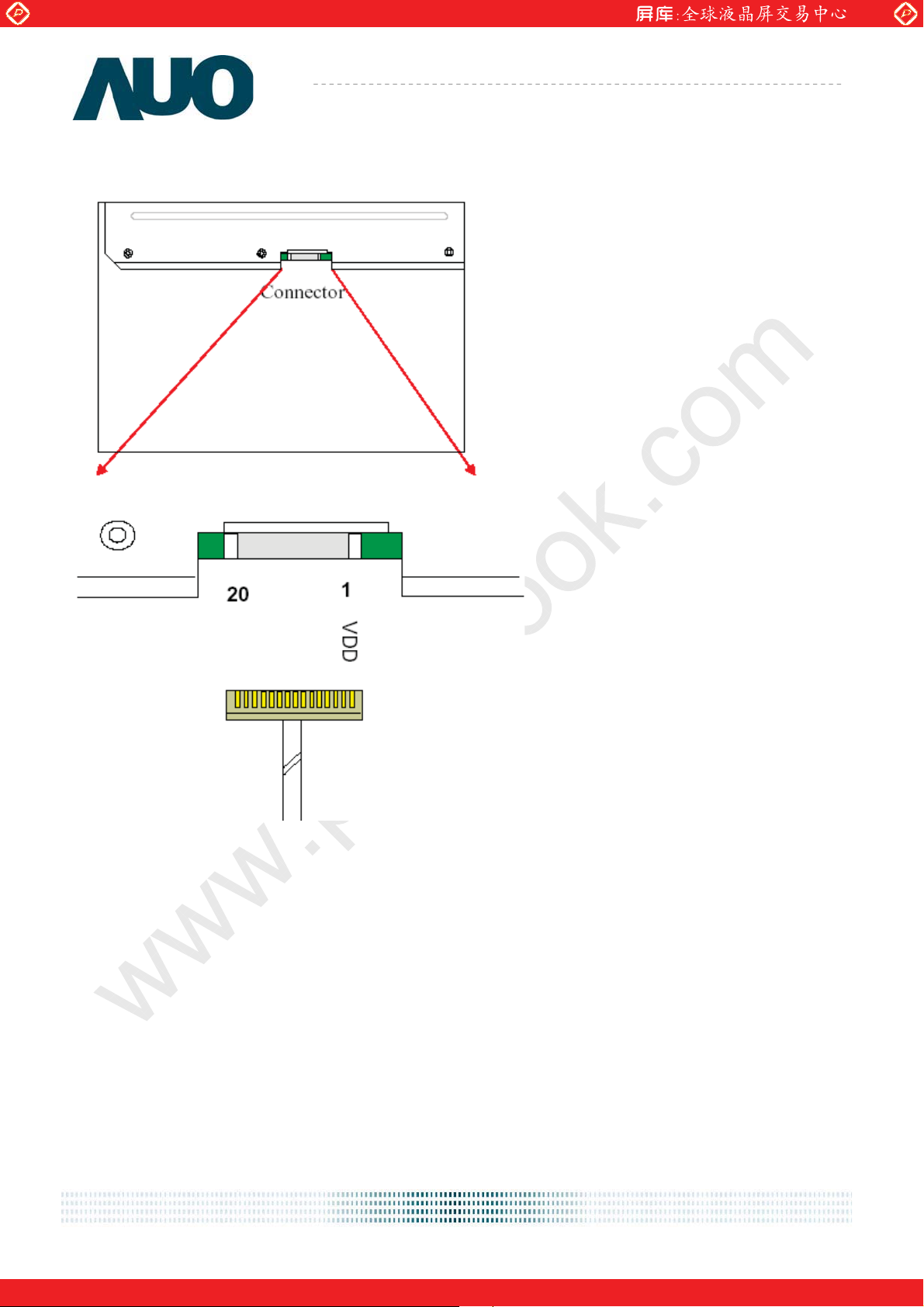

7.1.1 Connector Illustration
G150XTN03.1
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
0/27
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
7.2 LED Backlight Unit: LED Driver Connector
Connector Name / Designation LED Connector
Manufacturer Entery or compatible
Connector Model Number 3808K-F05N-02 or compatible
Mating Model Number H208K-P05N-02B or compatible
7.3 LED Driver Connector Pin Assignment
Pin# Symbol Signal Name
1 Vcc 12V
2 GND GND
3 Enable VLED On/Off
G150XTN03.1
4 Dimming PWM Dimming
5 NC NC
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
1/27
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
8. Reliability Test Criteria
Items
Temperature
Humidity Bias
High Temperature
Operation
Low Temperature
Operation
Hot Storage
Cold Storage
Thermal Shock
Test
Shock Test
(Non-Operating)
Vibration Test
(Non-Operating)
Required Condition Note
80%,300 hours
5
60
,300 hours
,300 hours
65
-
-
50G,20ms,Half-sine wave,( ±X, ±Y, ±Z)
1.5G, (10~200Hz, P-P)
30 mins/axis (X, Y, Z)
G150XTN03.1
On/off test
ESD
On/10 sec, Off/10 sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
Note 1
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
Note1: According to EN61000-4-2, ESD class B: Some performance degradation allowed. No data lost
Self-recoverable. No hardware failures.
Note 2:
ʳ
Water condensation is not allowed for each test items.
Each test is done by new TFT-LCD module. Don’t use the same TFT-LCD module repeatedly for reliability test.
The reliability test is performed only to examine the TFT-LCD module capability.
To inspect TFT-LCD module after reliability test, please store it at room temperature and room humidity for 24
hours at least in advance.
No function failure occurs.
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
2/27
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
3/27
2
G150XTN03.1 rev. 0.0
G150XTN03.1
9. Mechanical Characteristics

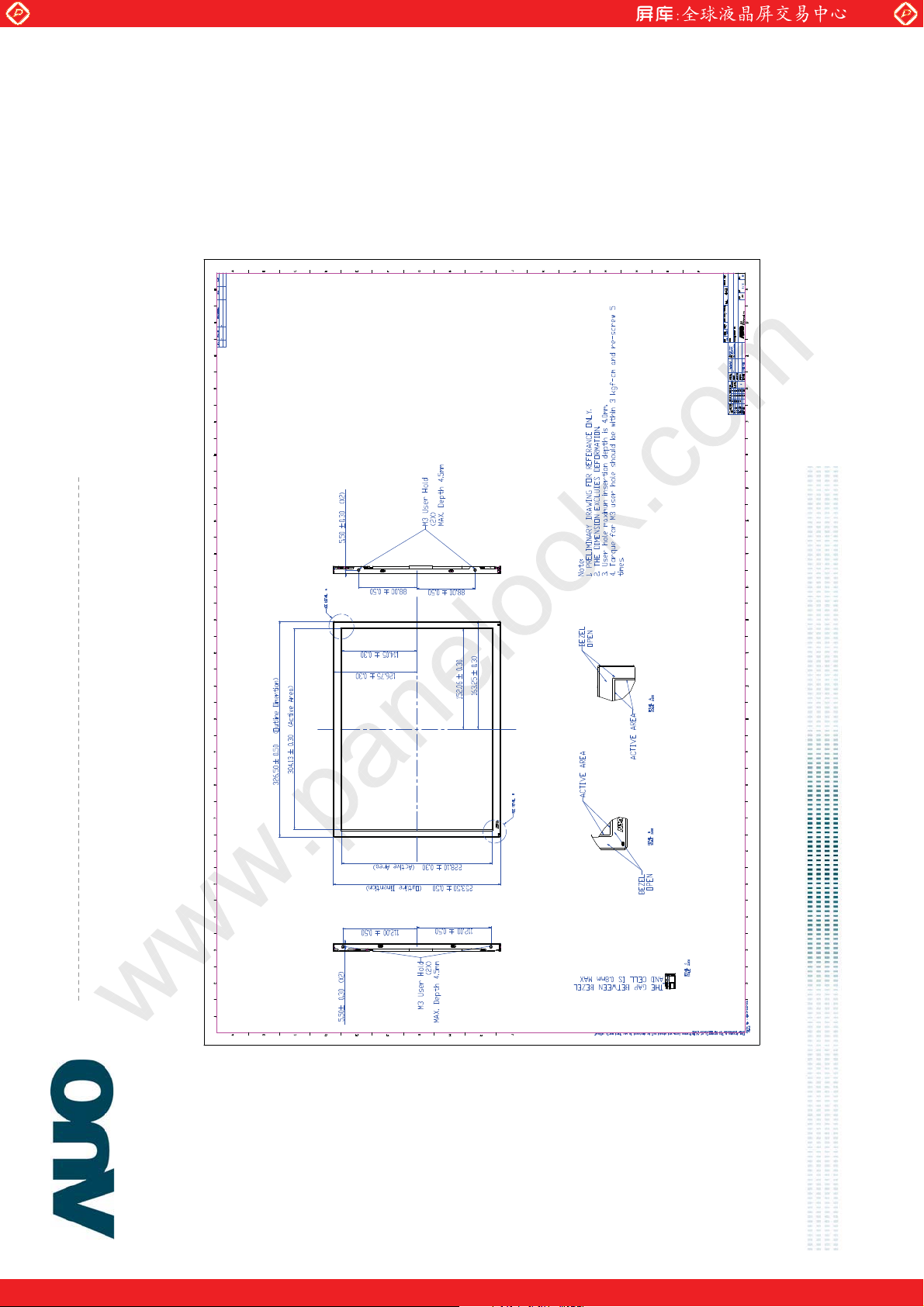

9.1 LCM Outline Dimension (Front View)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
4/27
2
G150XTN03.1 rev. 0.0
G150XTN03.1

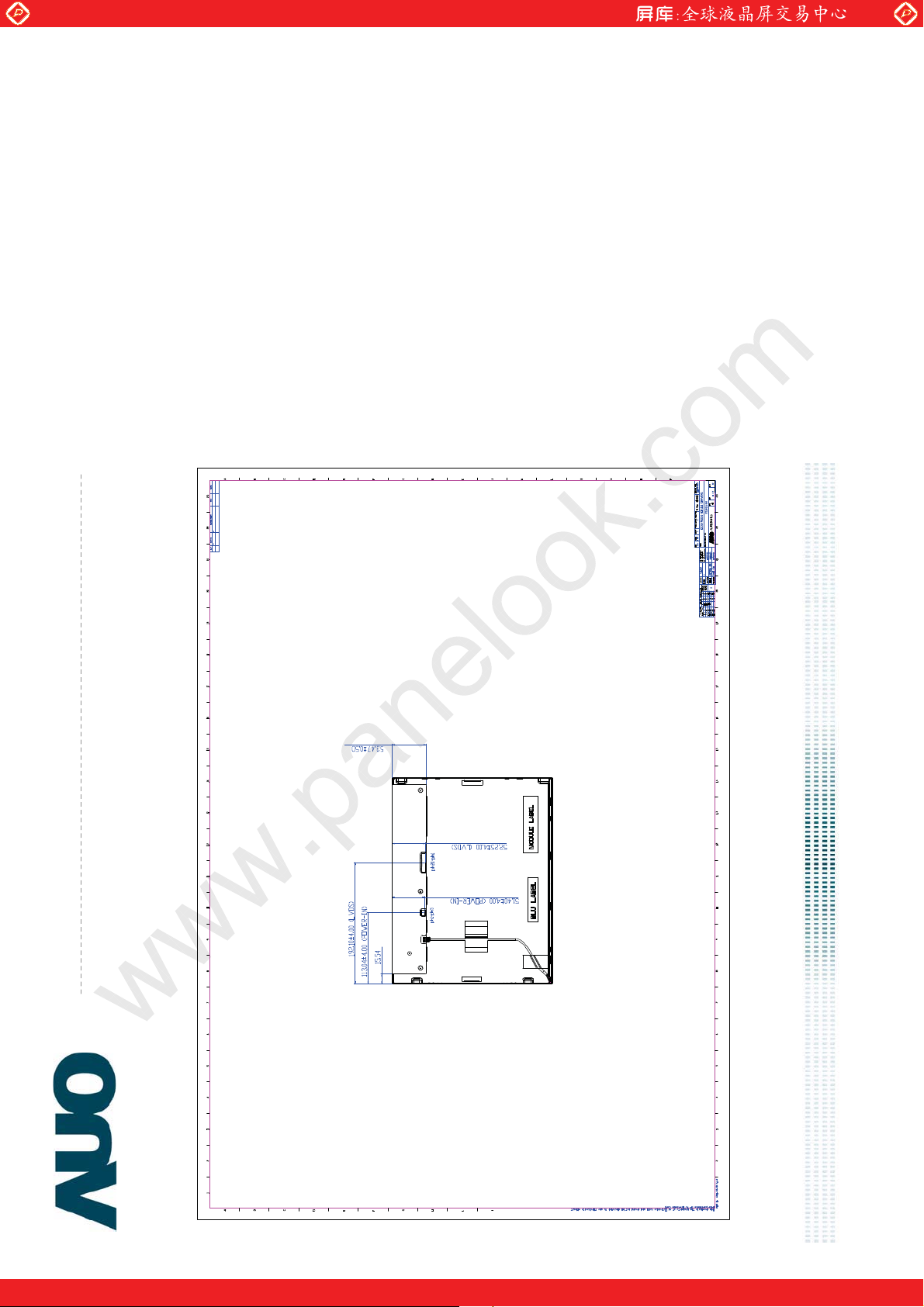

9.2 CM Outline Dimension (Rear View)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
10. Label and Packaging
10.1 Shipping Label
(on the rear side of TFT-LCD display)
10.2 Carton Package
Max capacityΚ15 TFT-LCD module per carton
Max weight: 20 kg per carton
Outside dimension of carton: 434mm(L)* 380mm(W)*353mm(H)
Pallet sizeΚ 1140 mm * 890 mm * 135mm
G150XTN03.1
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/27
2
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
10.3 Palletizing
Module by air_Max: (2 *3) *4 layersΔone pallet put 24 boxesΔtotal 360pcs module
Module by sea_Max: (2 *3) *4 layers + (2 *3) *1 layers , two pallet put 30 boxesΔtotal 450pcs module
Module by sea_HQ_Max: (2 *3) *4 layers+(2 *3) *2 layers, two pallet put 36 boxes, total 540pcs module
G150XTN03.1
G150XTN03.1 rev. 0.0
6/27
2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
11 Safety
11.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
11.2 Materials
11.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,
they will be reviewed and approved by the responsible AUO toxicologist.
11.2.2 Flammability
All components including electrical components that do not meet the flammability grade UL94-V1 in the
module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability
rating will be printed on the printed circuit board.
G150XTN03.1
11.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep them from
being inserted backwards.
11.4 National Test Lab Requirement
The display module will satisfy all requirements for compliance to:
UL 60950-1, Second Edition U.S.A. Information Technology Equipment
G150XTN03.1 rev. 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/27
2
www.panelook.com
Loading...
