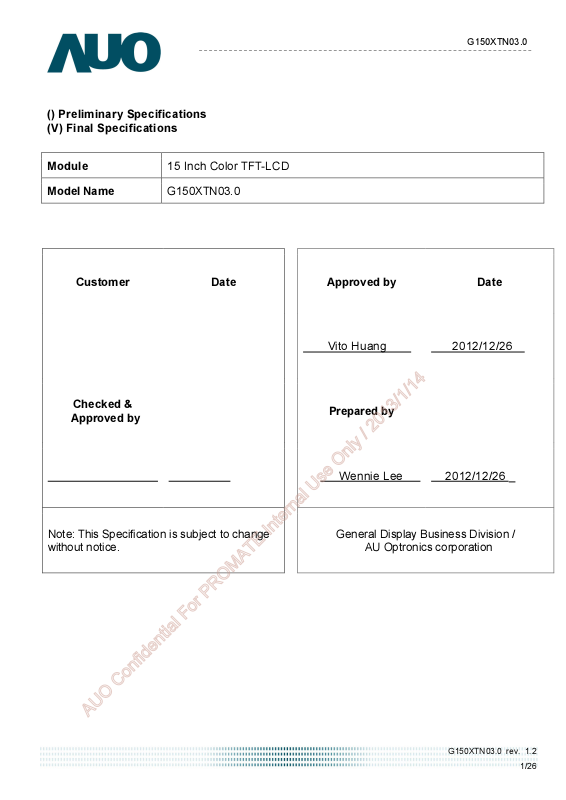

AUO G150XTN03.0 Specification

) Preliminary Specifications

( (V) Final Specifications

Module 15 Inch Color TFT-LCD

Model Name G150XTN03.0

G150XTN03.0

Customer Date

Checked &

Approved by

Approved by Date

Vito Huang 2012/12/26

Prepared by

Wennie Lee

2012/12/26 _

Note: This Specification is subject to change without notice.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

General Display Business Division /

AU Optronics corporation

G150XTN03.0 rev. 1.2

1/26

G150XTN03.0

Contents

1. Operating Precautions.....................................................................................4

2. General Description.........................................................................................5

2.1 Display Characteristics...........................................................................................................5

2.2 Optical Characteristics ...........................................................................................................6

3. Functional Block Diagram ...............................................................................9

4. Absolute Maximum Ratings ..........................................................................10

4.1 Absolute Ratings of TFT LCD Module .................................................................................10

4.2 Absolute Ratings of Environment ........................................................................................10

5. Electrical Characteristics ..............................................................................11

5.1 TFT LCD Module.................................................................................................................. 11

5.2 Backlight Unit........................................................................................................................13

6. Signal Characteristic .....................................................................................14

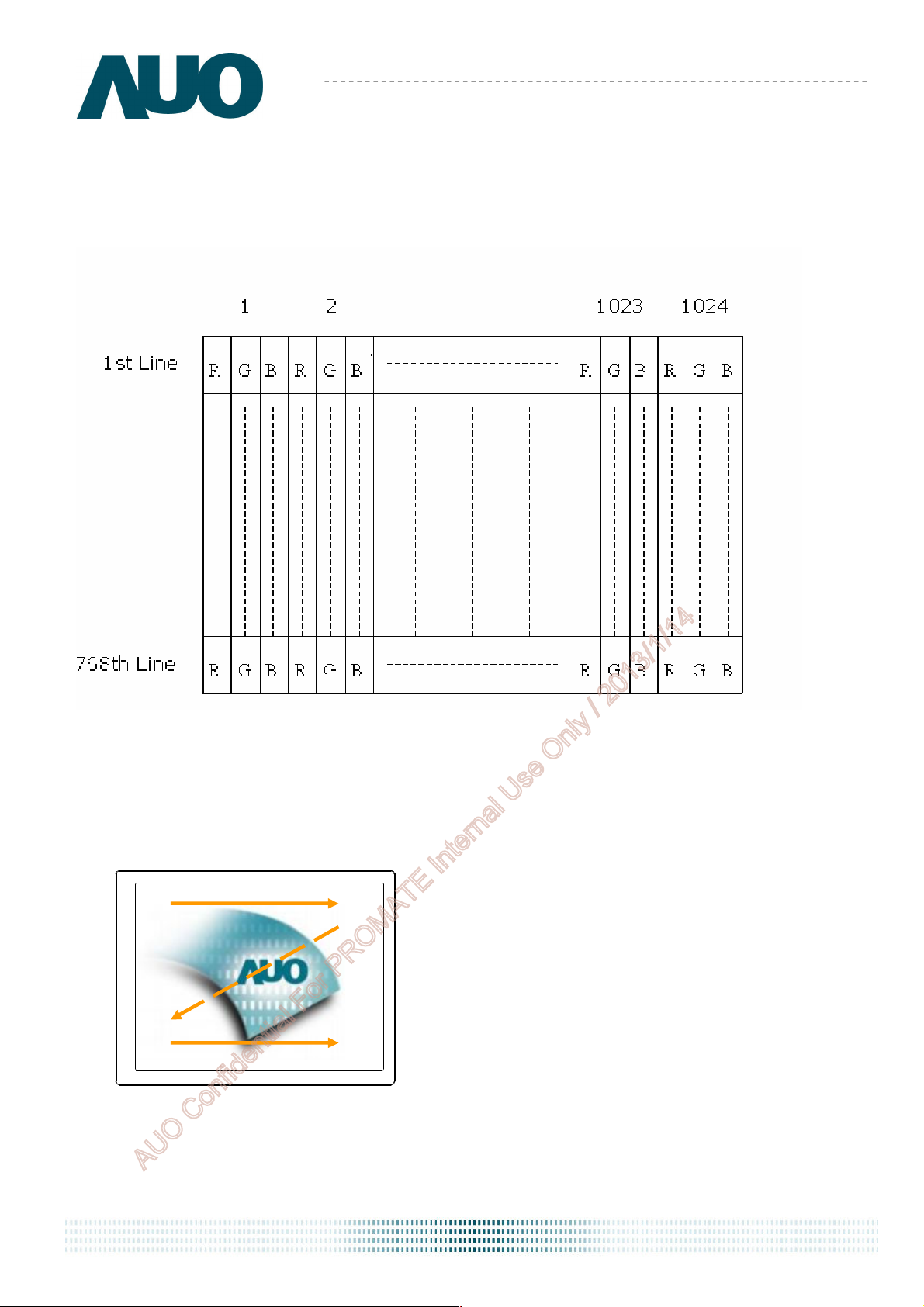

6.1 Pixel Format Image ..............................................................................................................14

6.2 Scanning Direction ...............................................................................................................14

6.3 Signal Description ................................................................................................................15

6.4 The Input Data Format .........................................................................................................16

6.5 Interface Timing ....................................................................................................................17

6.6 Power ON/OFF Sequence ...................................................................................................18

7. Connector & Pin Assignment........................................................................19

7.1 TFT LCD Module: LVDS Connector.....................................................................................19

7.2 LED Backlight Unit: LED Driver Connector .........................................................................20

7.2 LED Backlight Unit: LED Driver Connector .........................................................................21

7.3 LED Driver Connector Pin Assignment ...............................................................................21

8. Reliability Test Criteria ..................................................................................22

9. Mechanical Characteristics ...........................................................................23

9.1 LCM Outline Dimension (Front View) ..................................................................................23

9.2 CM Outline Dimension (Rear View).....................................................................................24

10. Label and Packaging....................................................................................25

10.1 Shipping Label (on the rear side of TFT-LCD display) ......................................................25

10.2 Carton Package .................................................................................................................25

11 Safety.............................................................................................................26

11.1 Sharp Edge Requirements.................................................................................................26

11.2 Materials .............................................................................................................................26

11.3 Capacitors...........................................................................................................................26

11.4 National Test Lab Requirement..........................................................................................26

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

2/26

Record of Revision

G150XTN03.0

Version and Date

0.0 2012/5/16 All First Edition

1.0 2012/9/12 5

11

1.1 2012/11/21 5

15

16

19

1.2 2012/12/26 16

16

Page

Old description New Description

Typical Power Consumption: TBD 10.9 W (Typ.),(all black pattern)

rush: 3A(max)

I

Support Color : 16.2M colors 16.2M / 262K colors

Pin 20: NC SEL6/8

NA Add note

NA Add 6bit input data format

Pin 20: NC SEL 6/8

SEL68=”High” or “NC” for 6 bits LVDS Input SEL68=”High” for 6 bits LVDS Input

SEL68=“Low” for 8 bits LVDS Input SEL68=“Low” or “NC” for 8 bits LVDS Input

NA

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

3/26

G150XTN03.0

1. Operating Precautions

1) Since front polarizer is easily damaged, please be cautious and not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.

5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.

7) Do not open nor modify the module assembly.

8) Do not press the reflector sheet at the back of the module to any direction.

9) In case if a module has to be put back into the packing container slot after it was taken out from the container, do not press the center of the LED Reflector edge. Instead, press at the far ends of the LED Reflector edge softly. Otherwise the TFT Module may be damaged.

10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.

11) 11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a very short time. Please design your display product well to avoid external force applying to module by end-user directly.

12) Small amount of materials without flammability grade are used in the TFT-LCD module. The TFT-LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.

13) Severe temperature condition may result in different luminance, response time.

14) Continuous operating TFT-LCD Module under high temperature environment may accelerate LED light bar exhaustion and reduce luminance dramatically.

15) The data on this specification sheet is applicable when TFT-LCD module is placed in landscape position.

16) Continuous displaying fixed pattern may induce image sticking. It’s recommended to use screen saver or moving content periodically if fixed pattern is displayed on the screen.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

4/26

G150XTN03.0

2. General Description

G150XTN03.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x 768(V)) screen and 262K / 16.2M (RGB 6/8-bits) coloars. All input signals are LVDS interface compatible. All design rules of this module can correspond to PSWG standard.

G150XTN03.0 is designed for industrial display applications.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25

Items Unit Specifications

Screen Diagonal [inch] 15

Active Area [mm] 304.128(H) x 228.096(V)

Pixels H x V 1024x3(RGB) x 768

Pixel Pitch [mm] 0.297 x 0.297

Pixel Arrangement R.G.B. Vertical Stripe

Display Mode TN, Normally White

Nominal Input Voltage VDD [Volt] 3.3 typ.

Typical Power Consumption [Watt] 10.9 W (Typ.),(all black pattern)

Weight [Grams] 1200g (max.)

Physical Size [mm] 326.5(H) x 253.5(V) x 12 (D) (max.)

Electrical Interface 1 channel LVDS



condition:

Surface Treatment Anti-glare, Hardness 3H

Support Color 16.2M / 262K colors

Temperature Range

Operating Storage (Non-Operating)

RoHS Compliance RoHS Compliance

[oC] [oC]

0 to +65 (+65 oC as panel surface temperature)

-20 to +65

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

5/26

Measuring distance

2.2 Optical Characteristics

The optical characteristics are measured under stable conditions at 25 (Room Temperature):

Item Unit Conditions Min. Typ. Max. Note

White Luminance

[cd/m2]

200 250 - 1

G150XTN03.0

Uniformity

%

Contrast Ratio

Cross talk

%

[msec]

Response Time

[msec]

[degree] [degree]

Viewing Angle

[degree] [degree]

Color / Chromaticity Coordinates (CIE 1931)

Color Gamut %

9 Points

400 700 - 4

75 80 - 1, 2, 3

- 1.2 1.5 5

Rising

Falling

Raising + Falling

Horizontal (Right) CR = 10 (Left)

-

- 2.3

- 8

75

5.7

85

6

-

7

Vertical (Upper) CR = 10 (Lower)

Red x

Red y

Green x

Green y

Blue x

Blue y

White x

White y

70

0.547

0.289

0.279

0.546

0.104

0.003

0.263 0.313

0.279 0.329

80

-

0.597 0.647

0.339 0.389

0.329 0.379

0.596 0.646

0.154 0.204

0.053 0.103

0.363

0.379

60 -

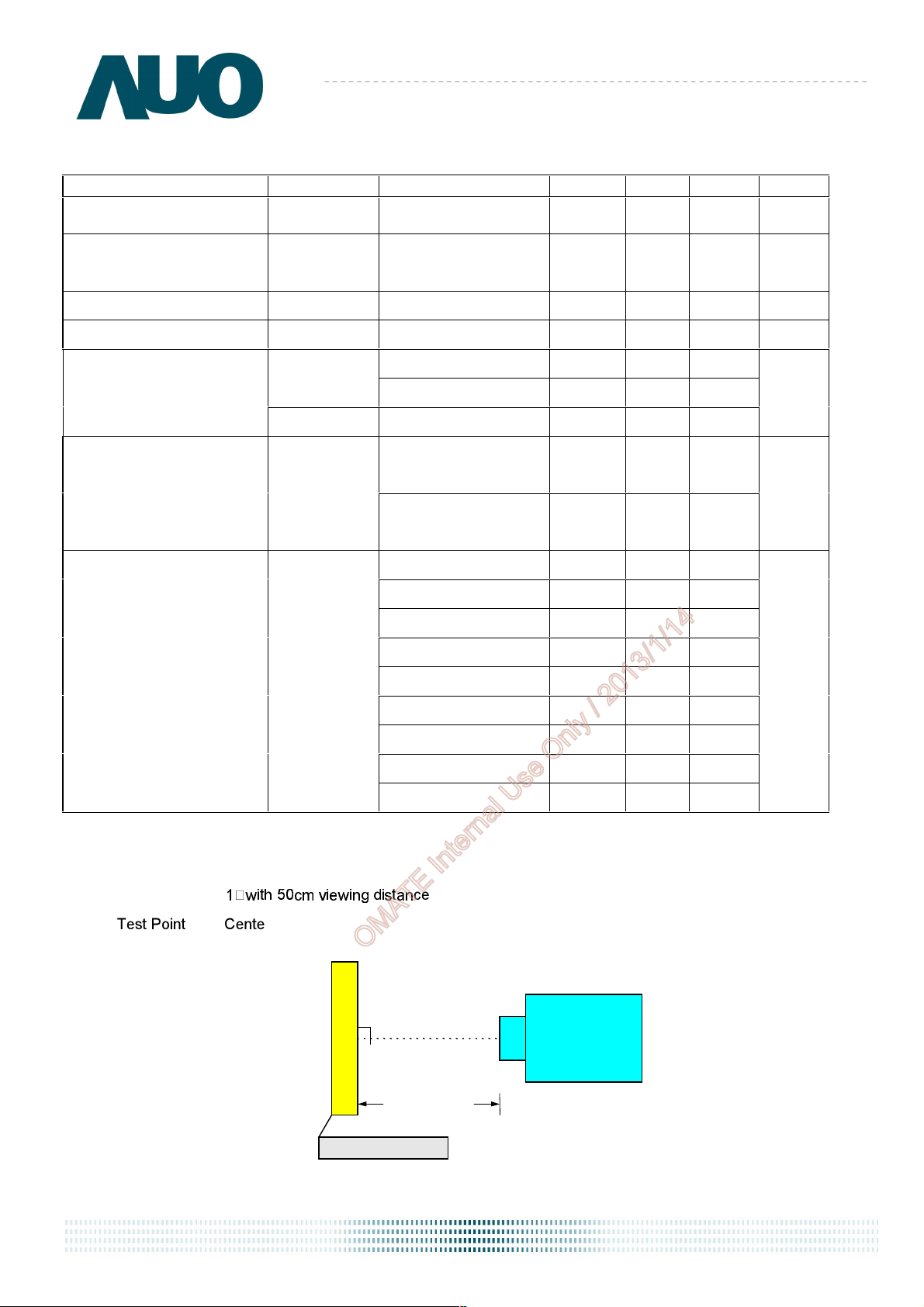

Note 1: Measurement method

Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (SR_3 or equivalent)

Aperture

Test Point Center

Environment < 1 lux

i

h50

t



w

1

i

di

cmv

ew

t

ng

s

an

ce

LCD Module

SR_3 or

equivalent

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

Module Driving Equipment

G150XTN03.0 rev. 1.2

6/26

Minimum

Brightnes

s of nine

poin

ts

=

Maximum

Brightness of

nine

points

Contrast ratio (CR)=

Brightness on the “White” state

Brightness on the “Black” state

90 %

1/2

1/6

A

B

1/2

1/6

2/3 1/3

1/3

2/3

A’

B’

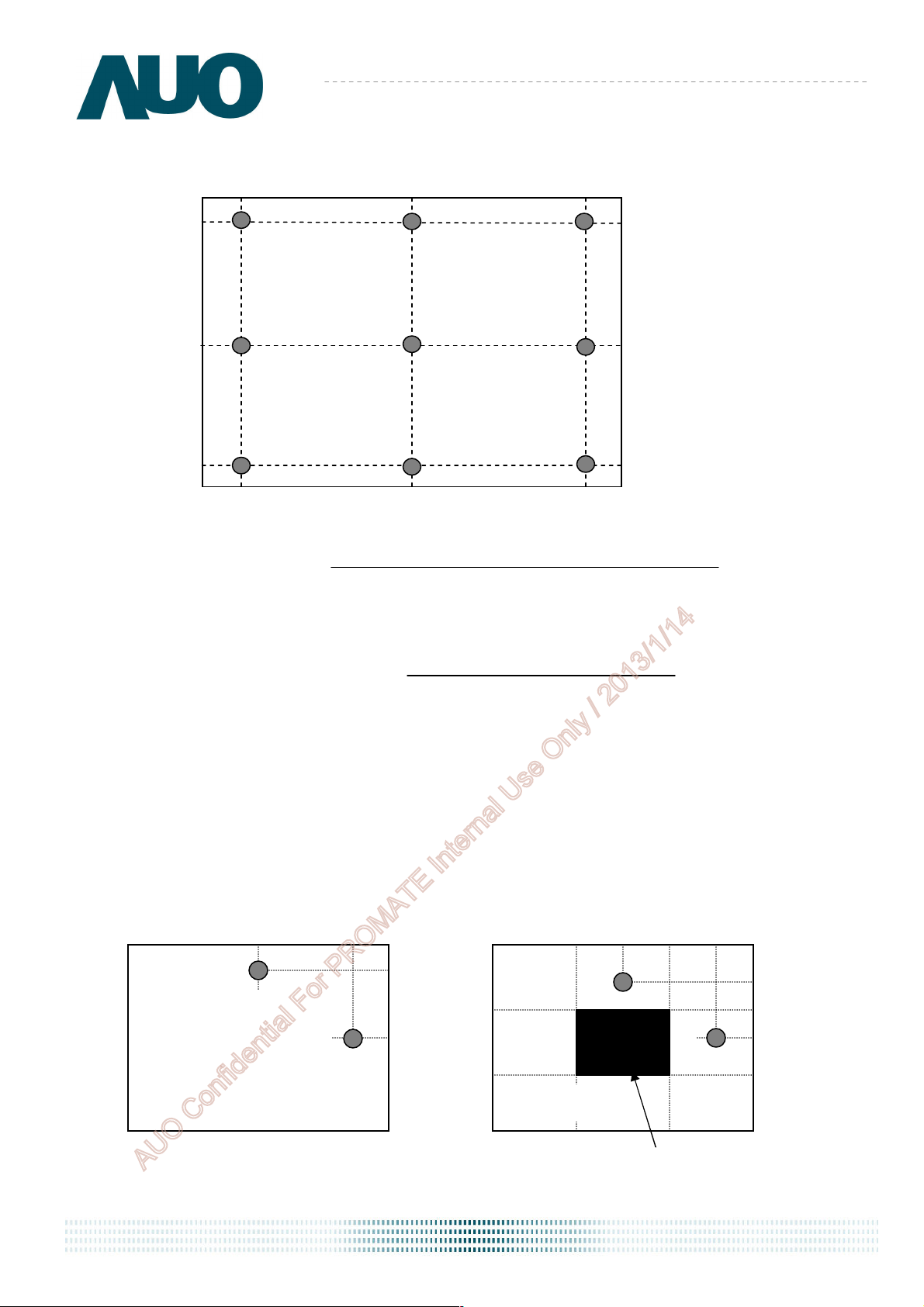

Note 2: Definition of 9 points position (Display active area: 304.128(H) x 228.096(V))

G150XTN03.0

90 %

Note 3: The luminance uniformity of 9 points is defined by dividing the minimum luminance values by the maximum test point luminance

W9

Note 4： Definition of contrast ratio (CR):

δ

50 %

10 %

50 %

Note 5： Definition of cross talk (CT)

CT = | YB – YA | / YA × 100 (%) Where YA = Luminance of measured location without gray level 0 pattern (cd/m2) YB = Luminance of measured location with gray level 0 pattern (cd/m2)

184 gray level

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

7/26

Tr

G150XTN03.0

Note 6: Definition of response time:

The output signals of photo detector are measured when the input signals are changed from “White” to “Black”

(falling time) and from “Black” to “White” (rising time), respectively. The response time interval is between 10% and

90% of amplitudes. Please refer to the figure as below.

Optical

response

%

100

90

10

Tf

White

0

Black

White

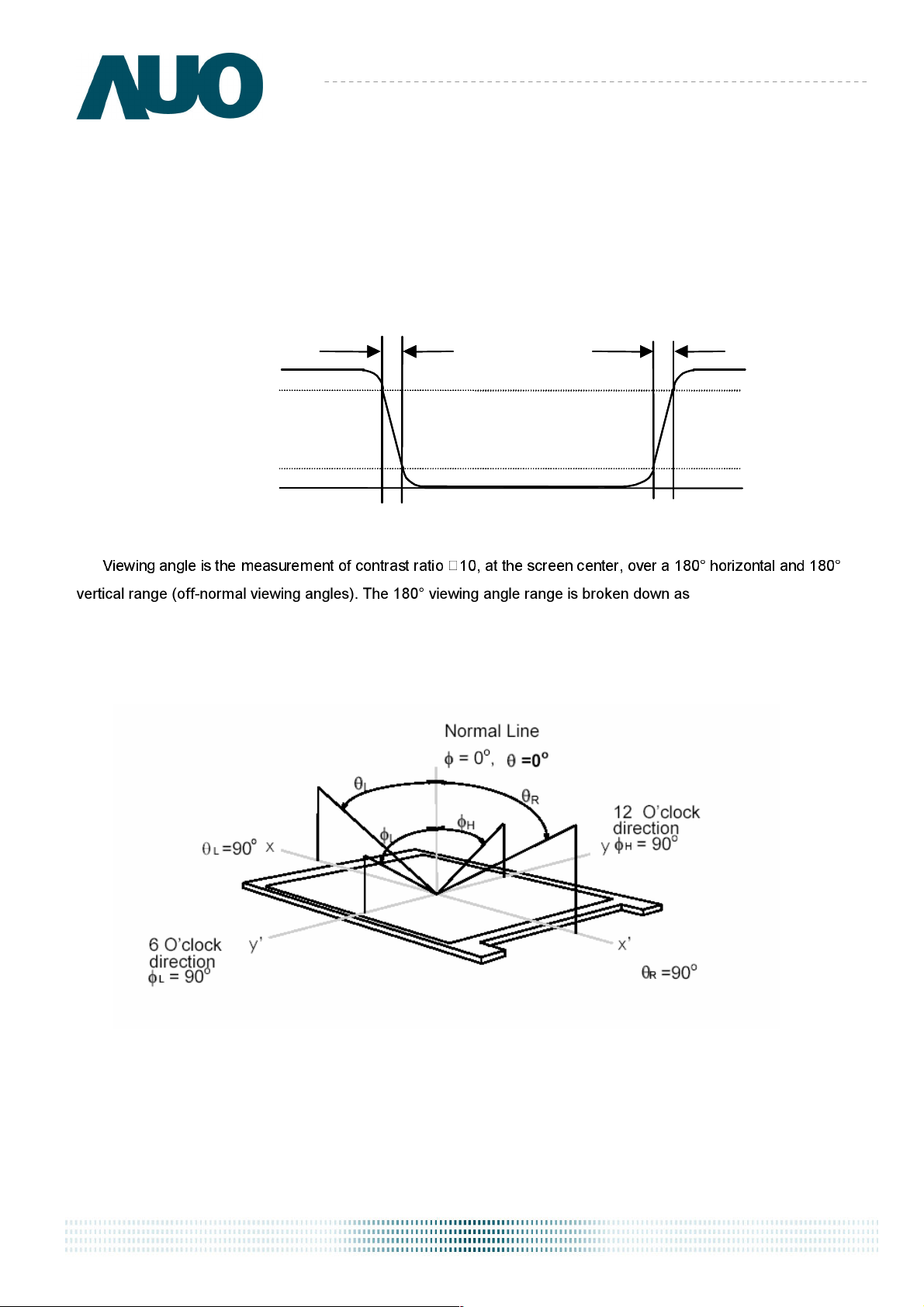

Note 7: Definition of viewing angle

i

ew

V

l

i

h

ngang

t

e

s

emeasuremen

f

t

o

con

ras

i

10

t

#

ra

o

h

tt

a

escreencen

,

t

er

overa

,

180°h

i

l

d180°

t

or

zon

a

an

vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as below: 90° (θ) horizontal

left and right, and 90° (Φ) vertical high (up) and low (down). The measurement direction is typically perpendicular to the display surface with the screen rotated to its center to develop the desired measurement viewing angle.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

8/26

LED BL

Connector

LVDS

D1

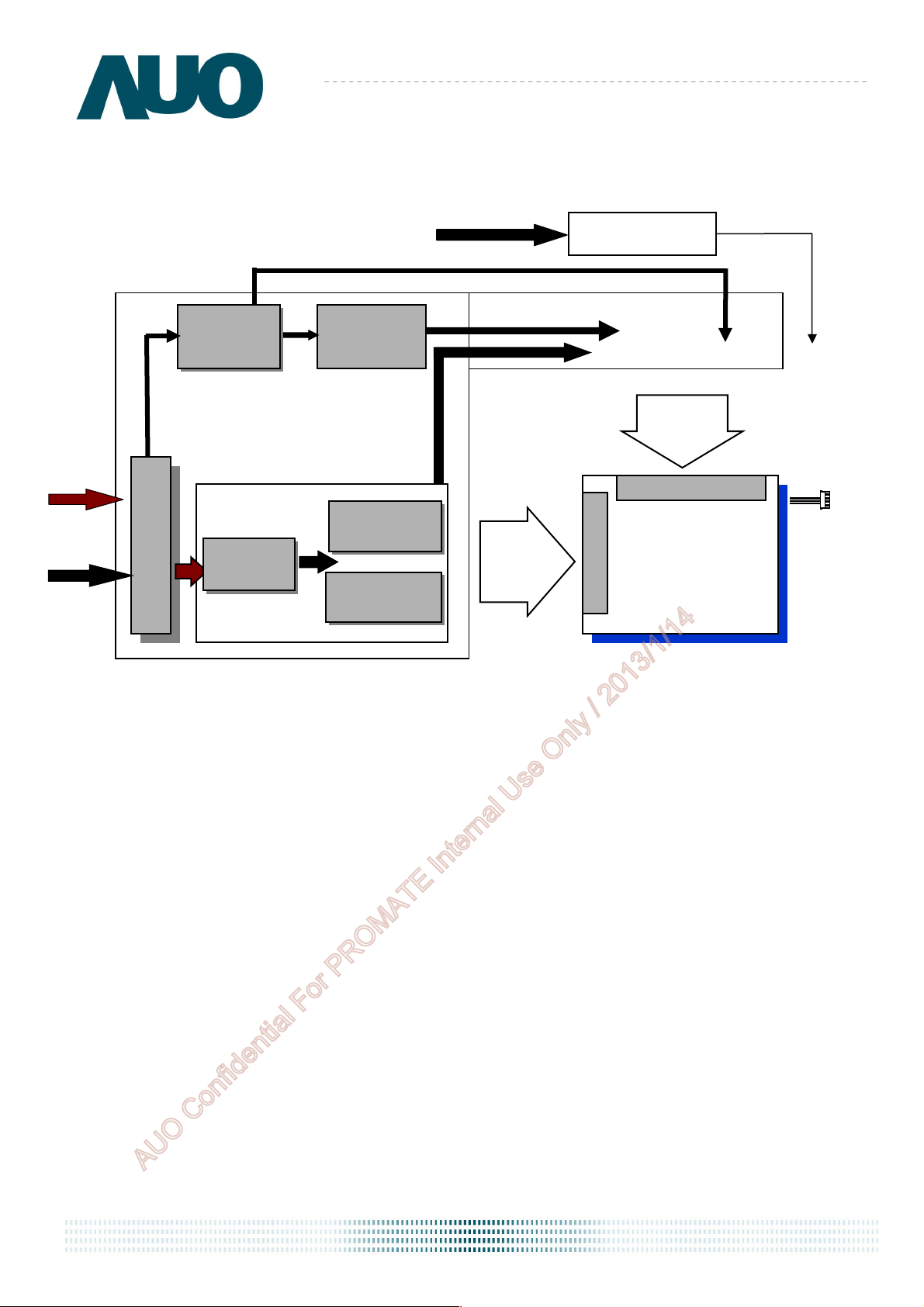

3. Functional Block Diagram

The following diagram shows the functional block of the 15 inch color TFT/LCD module:

G150XTN03.0

+ 3.3V

DC/DC

Converter

LVDS

Gamma

Correction

AU ASIC

Timing

Controller

Mini-LVDS

DC POWER

G1

G768

LED driver

Source Driver IC

TFT-LCD

1024(3)*768

D3072

Pixels

3804-F20N-06R / MSB240420E

Mating Type: HRS DF14-20S-1.25C H208K-P05N-02B

Entery 3808K-F05N-02

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

9/26

Logic/LCD Drive

Voltage

Vin -

0.3 +

3.6 [Volt]

T=40

°

C, H=95%

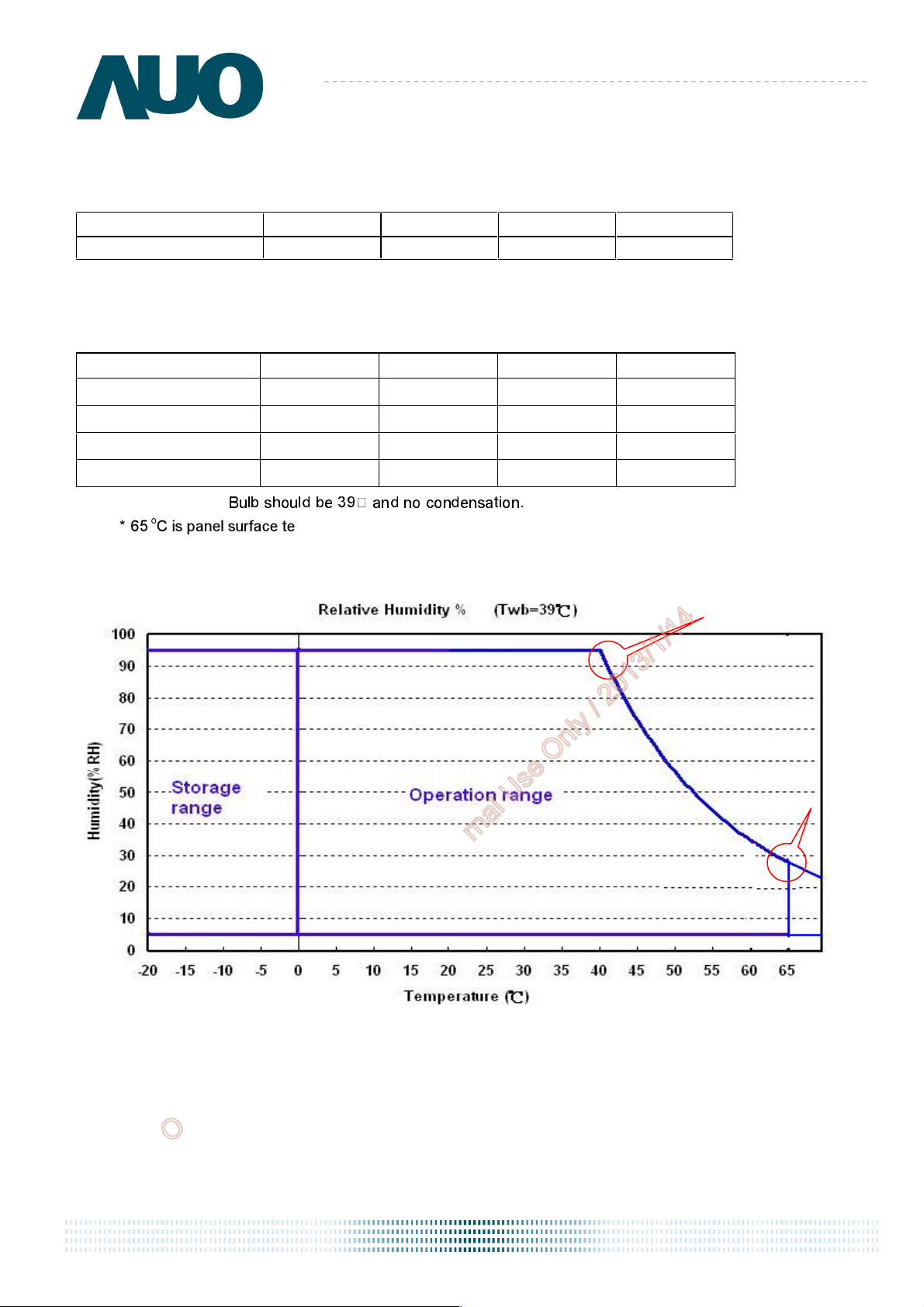

4. Absolute Maximum Ratings

4.1 Absolute Ratings of TFT LCD Module

Item Symbol Min Max Unit

4.2 Absolute Ratings of Environment

Item Symbol Min Max Unit

G150XTN03.0

Operating Temperature

TOP 0 +65* [oC]

Operation Humidity HOP 8 90 [%RH]

Storage Temperature

Storage Humidity HST

lb

u

Note: Maximum Wet-

B

TST -20 +65 [oC]

8 90

h

ldb

s

ou

39

e

d

7

an

nocon

d

i

t

ensa

on

.

* 65 oC is panel surface temperature

[%RH]

T=65°C, H=27.9%

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

10/26

5. Electrical Characteristics

5.1 TFT LCD Module

5.1.1 Power Specification

Symbol Parameter Min Typ Max Units

VDD

IDD

PDD

Logic/LCD Drive Voltage

VDD Current

VDD Power

3.0 3.3 3.6 [Volt]

-

1 1.5 [A]

3.3 5 [Watt]

G150XTN03.0

Remark

±10%

64 Gray Bar Pattern

(VDD=3.3V, at 60Hz) 64 Gray Bar Pattern

(VDD=3.3V, at 60Hz)

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

11/26

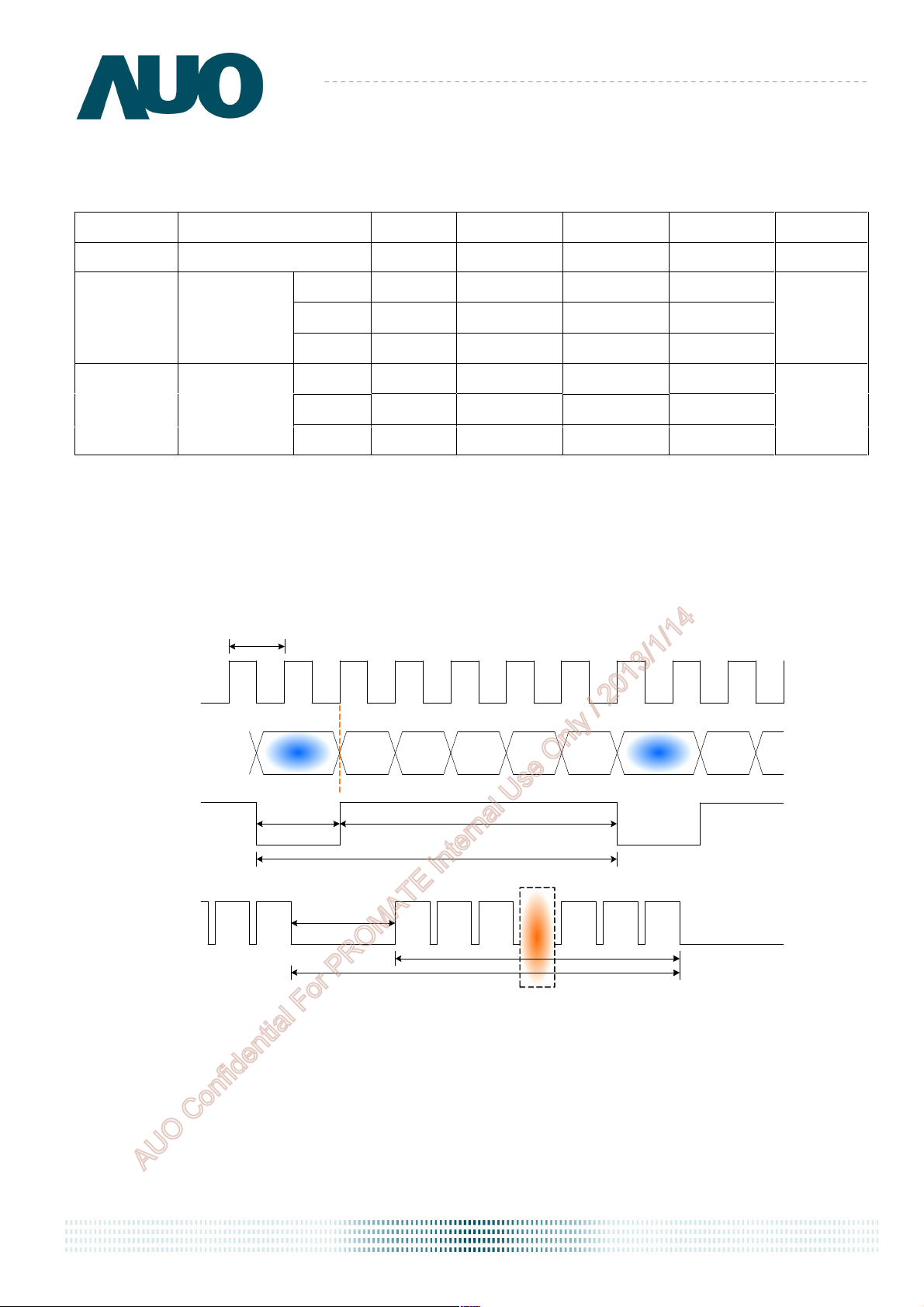

5.1.2 Signal Electrical Characteristics

Input signals shall be low or Hi-Z state when VDD is off.

Symbol Item Min. Typ. Max. Unit Remark

G150XTN03.0

VTH

VTL

Differential Input High Threshold - - 100

Differential Input Low Threshold -100

｜VID｜ Input Differential Voltage

VICM

Differential Input Common Mode Voltage

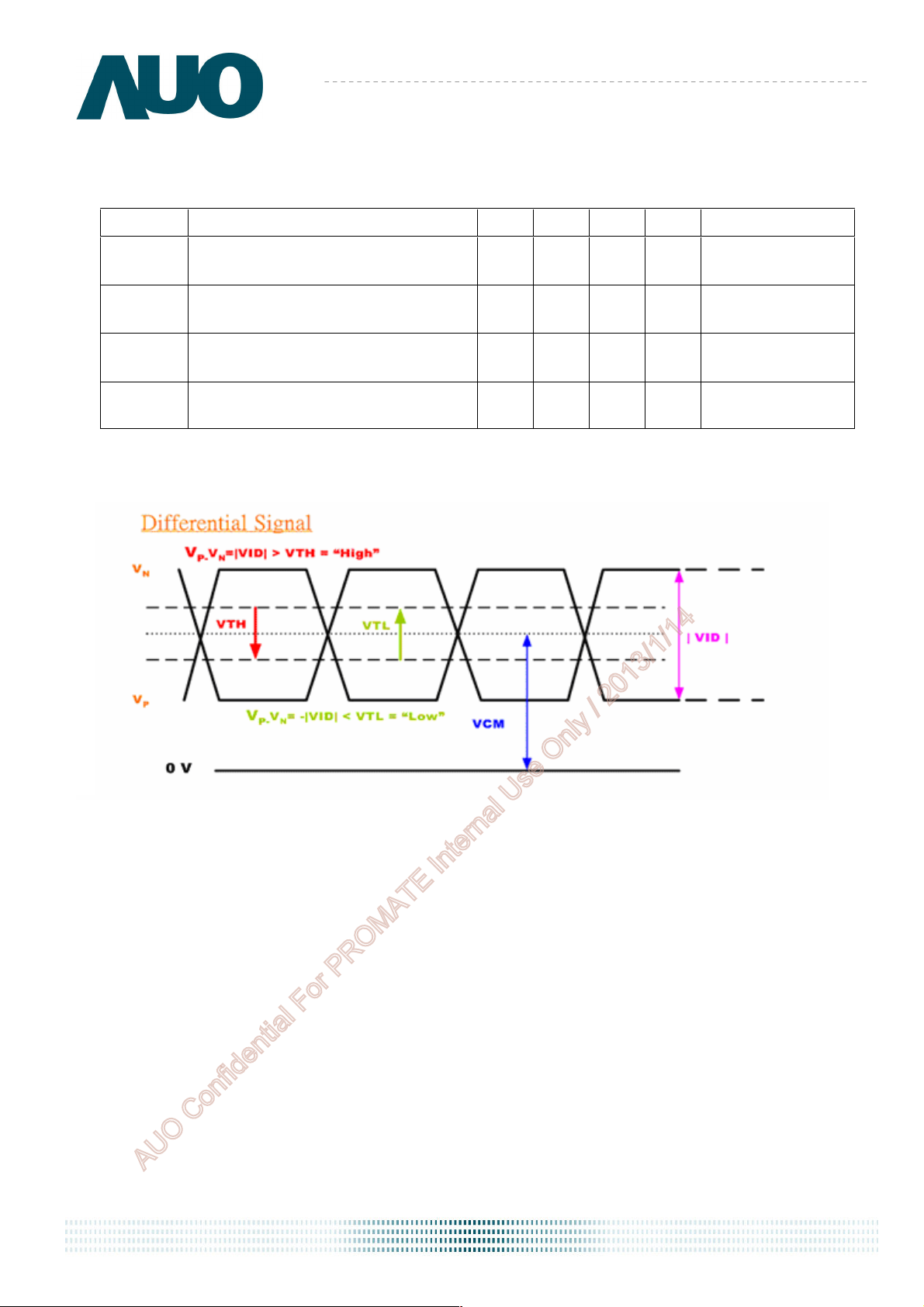

Note: LVDS Signal Waveform.

- -

100 400 600

1.1 1.45

[mV] VCM=1.2V

[mV]

VCM=1.2V

VTH/VTL=±100mV

[V]

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

12/26

5.2 Backlight Unit

5.2.1 Parameter guideline for LED

Following characteristics are measured under stable condition using a LED driving board at 25

Symbol Parameter Min. Typ. Max. Unit Remark

Vcc Input Voltage 10.8 12 13.2 Volt

Ivcc Input Curent - 0.7 - A 100% Dimming

PLED Power Consumption - 8.4 10 Watt 100% Dimming

>

G150XTN03.0

(R

o

om Temperature).

FPWM

200 - 20k Hz

Frequency

Swing Voltage 3 5 5.5 Volt

Dimming Duty Cycle 5 - 100 %

IF LED Forward Current - 60 mA Ta = 25oC

Operating Life 30000 - Hrs Ta = 25oC

Note 1: Ta means ambient temperature of TFT-LCD module.

Note 2: If G150XTN03.0 module is driven at high ambient temperature & humidity condition. The operating life will be

reduced.

Note 3: Operating life means brightness goes down to 50% initial brightness. Min. operating life time is estimated data.

PWM Dimming

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

13/26

6. Signal Characteristic

6.1 Pixel Format Image

Following figure shows the relationship between input signal and LCD pixel format.

G150XTN03.0

6.2 Scanning Direction

The following figures show the image seen from the front view. The arrow indicates the direction of scan.

AUO

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

14/26

G150XTN03.0

6.3 Signal Description

The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.

3804-F20N-06R (E&T) / MSB240420E(STM)

Pin No. Symbol Description

1 VDD Power Supply, 3.3V (typical)

2 VDD Power Supply, 3.3V (typical)

3 VSS Ground

4 GND Ground

5 Rin1- - LVDS differential data input (R0-R5, G0)

6 Rin1+ + LVDS differential data input (R0-R5, G0)

7 VSS Ground

8 Rin2- - LVDS differential data input (G1-G5, B0-B1)

9 Rin2+ + LVDS differential data input (G1-G5, B0-B1)

10 VSS Ground

11 Rin3- - LVDS differential data input (B2-B5, HS, VS, DE)

12 Rin3+ + LVDS differential data input (B2-B5, HS, VS, DE)

13 VSS Ground

14 ClkIN- - LVDS differential clock input

15 ClkIN+ + LVDS differential clock input

16 GND Ground

17 Rin4- - LVDS differential data input (R6-R7, G6-G7,B6-B7)

18 Rin4+ - LVDS differential data input (R6-R7, G6-G7,B6-B7)

19 VSS Ground

20 SEL6/8 Select 6 or 8 Bits LVDS Input

Note 1: Input signals shall be in low status when VDD is off.

Note 2: For 6 bits mode, please keep the Pin 17& Pin 18 NC or make sure that the voltage of Pin 18 is always

higher than the voltage of Pin 17.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

15/26

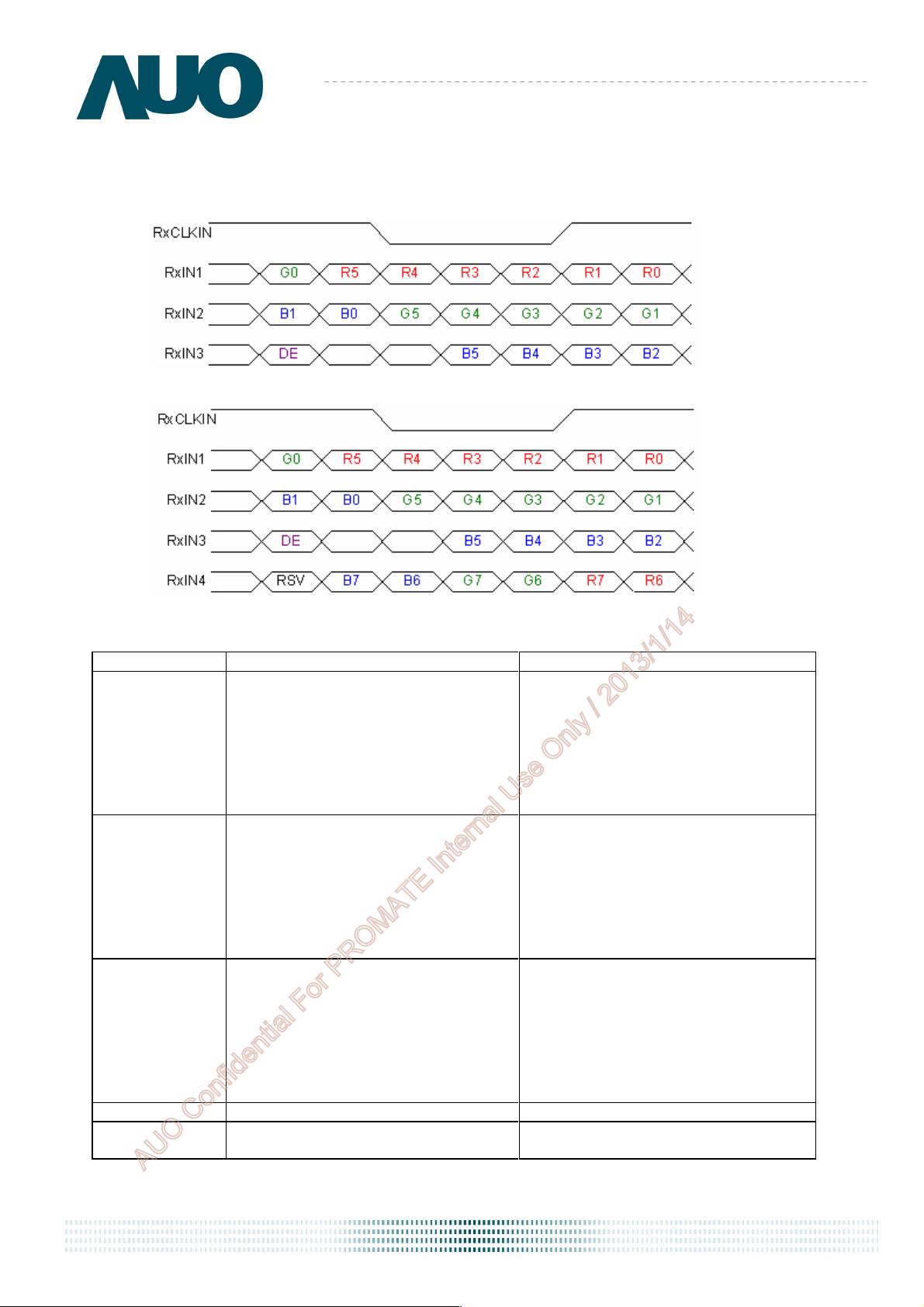

6.4 The Input Data Format

6.4.1 SEL68

SEL68 = ”High” for 6 bits LVDS Input

SEL68 = “Low” or “NC” for 8 bits LVDS Input

G150XTN03.0

Note1: Please follow PSWG. Note2: R/G/B data 7:MSB, R/G/B data 0:LSB

Signal Name Description Remark

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0 RxCLKIN LVDS Data Clock DE Data Enable Signal When the signal is high, the pixel data

Red Data 7 Red Data 6 Red Data 5 Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 Green Data 7 Green Data 6 Green Data 5 Green Data 4 Green Data 3 Green Data 2 Green Data 1 Green Data 0 Blue Data 7 Blue Data 6 Blue Data 5 Blue Data 4 Blue Data 3 Blue Data 2 Blue Data 1 Blue Data 0

Red-pixel Data

For 8Bits LVDS input MSB: R7 ; LSB: R0

For 6Bits LVDS input MSB: R5 ; LSB: R0

Green-pixel Data

For 8Bits LVDS input MSB: G7 ; LSB: G0

For 6Bits LVDS input MSB: G5 ; LSB: G0

Blue-pixel Data

For 8Bits LVDS input MSB: B7 ; LSB: B0

For 6Bits LVDS input MSB: B5 ; LSB: B0

shall be valid to be displayed.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

Note: Output signals from any system shall be low or Hi-Z state when VDD is off.

G150XTN03.0 rev. 1.2

16/26

G150XTN03.0

6.5 Interface Timing

6.5.1 Timing Characteristics

Signal Parameter Symbol Min. Typ. Max. Unit

Clock Timing Clock frequency 1/ T

Vsync Timing

Vertical

Section

Period T

Active T

Blanking

Hsync Timing

Horizontal

Section

Period T

Active T

Blanking

Note: Support DE mode only. Note : Typical value refer to VESA STANDARD

T

Clock

V

VD

VB

H

HD

HB

50 65 81

783 806 968

768 768 768

15 38 200

1224 1344 2024

1024 1024 1024

200 320 1000

MHz

T

Line

T

Clock

6.5.2 Input Timing Diagram

DOTCLK

Input Data

DE

T

CLOCK

Invaild

Data

T

HB

Input Timing Definition ( DE Mode)

Pixel1Pixel2Pixel3Pixel

T

HD

T

H

T

VB

T

V

N-1

T

VD

Pixel

N

Invaild

Data

Pixel

1

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

17/26

G150XTN03.0

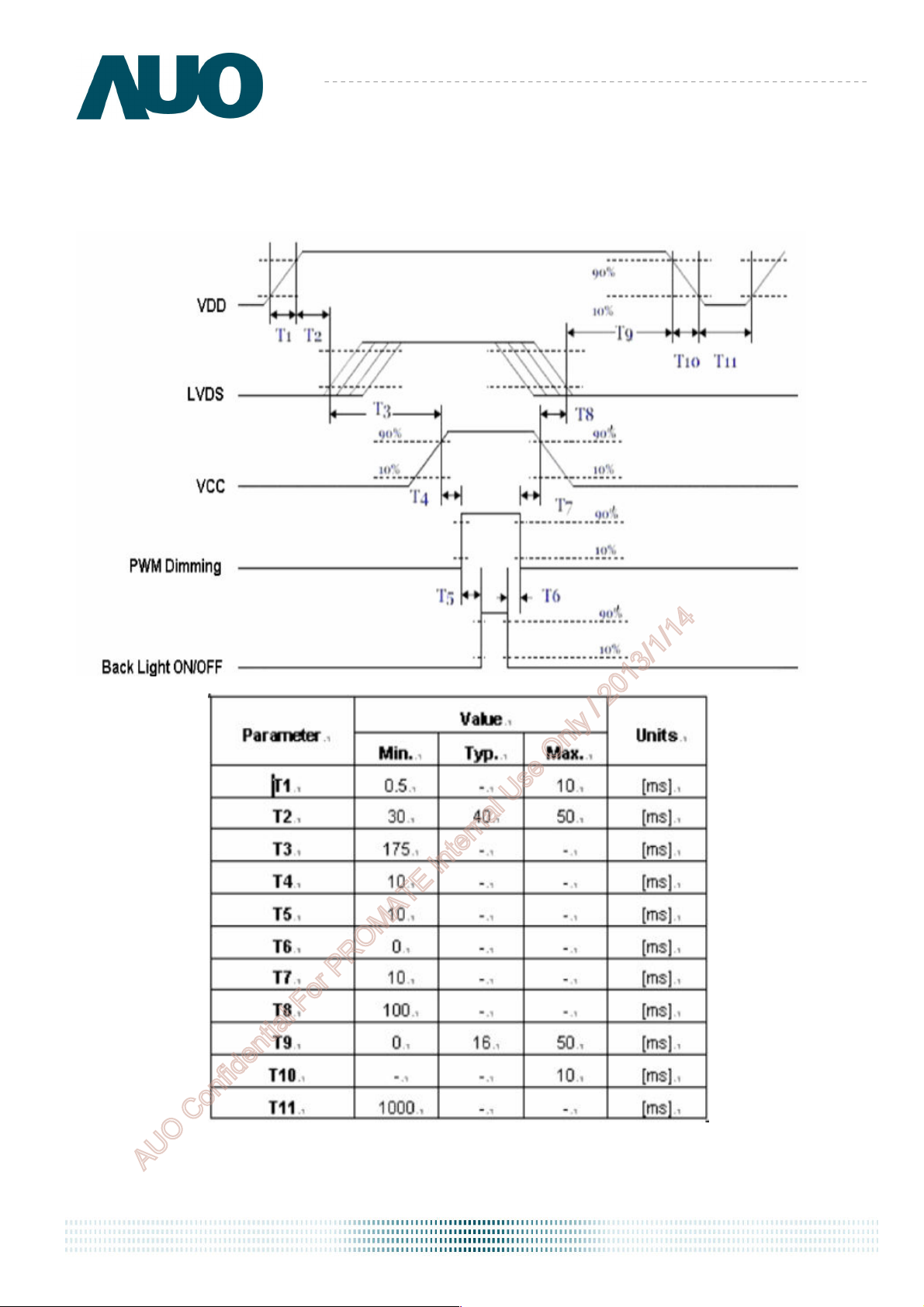

6.6 Power ON/OFF Sequence

VDD power and backlight on/off sequence is as below. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.

The above on/off sequence should be applied to avoid abnormal function in the display. Please make sure to turn off

the power when you plug the cable into the input connector or pull the cable out of the connector.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

18/26

G150XTN03.0

7. Connector & Pin Assignment

Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be following components.

7.1 TFT LCD Module: LVDS Connector

Connector Name / Designation Signal Connector

Manufacturer E&T or compatible

Connector Model Number 3804-F20N-06R / MSB240420E

Adaptable Plug HRS DF14-20S-1.25C

Pin# Signal Name Pin# Signal Name

1

3

5

7

9

11

13

15

17

19

VDD

VSS

Rin1-

VSS

Rin2+

Rin3-

VSS

ClkIN+

Rin4-

VSS

2 VDD

4 GND

6

8 Rin2-

10 VSS

12 Rin3+

14

16 GND

18 Rin4+

20 SEL68

Rin1+

ClkIN-

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

19/26

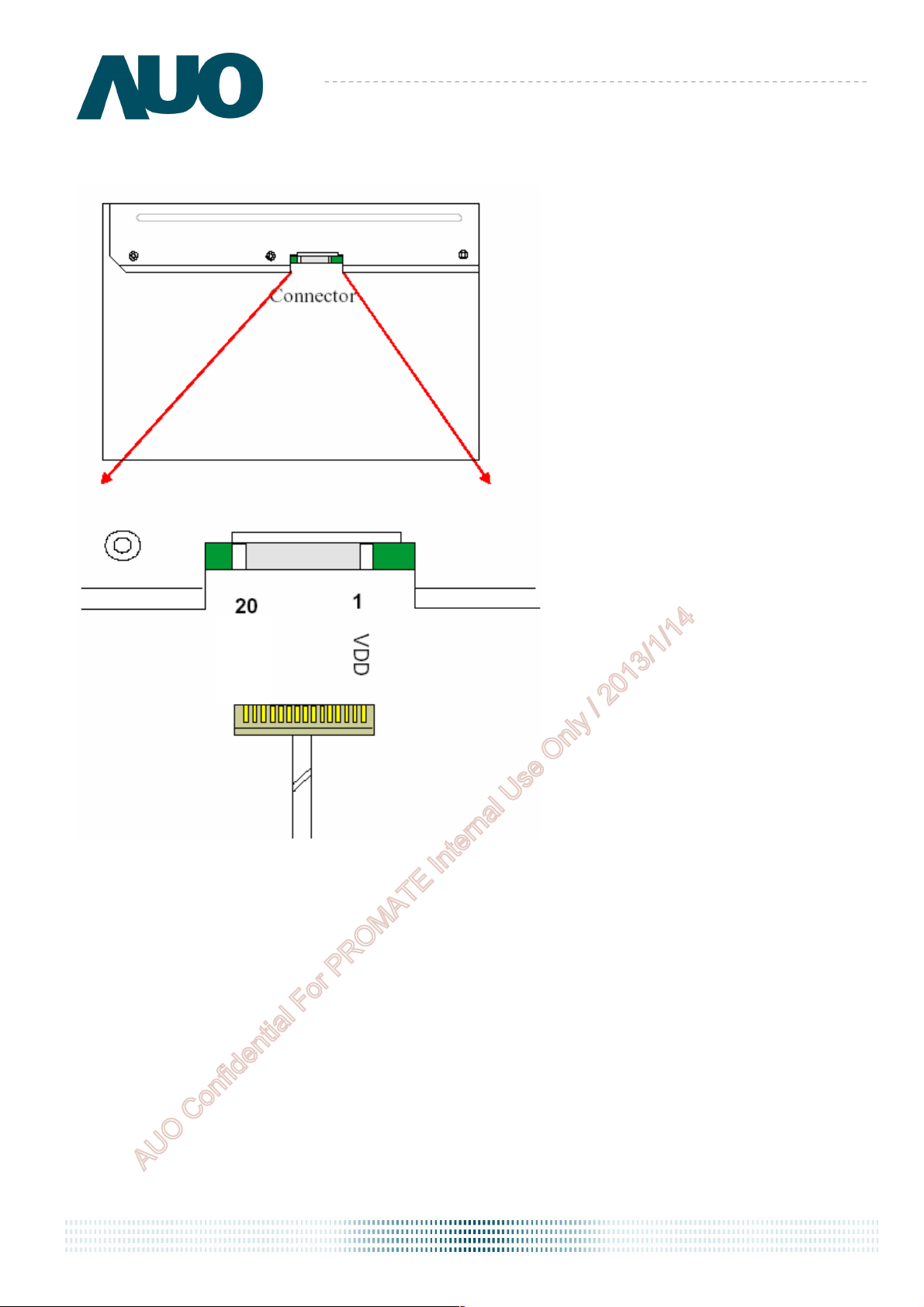

7.1.1 Connector Illustration

G150XTN03.0

GND

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

20/26

7.2 LED Backlight Unit: LED Driver Connector

Connector Name / Designation LED Connector

Manufacturer Entery or compatible

Connector Model Number 3808K-F05N-02 or compatible

Mating Model Number H208K-P05N-02B or compatible

7.3 LED Driver Connector Pin Assignment

Pin# Symbol Signal Name

1 Vcc 12V

2 GND GND

3 Enable 5V-On / 0V-Off

G150XTN03.0

4 Dimming PWM Dimming

5 NC NC

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

21/26

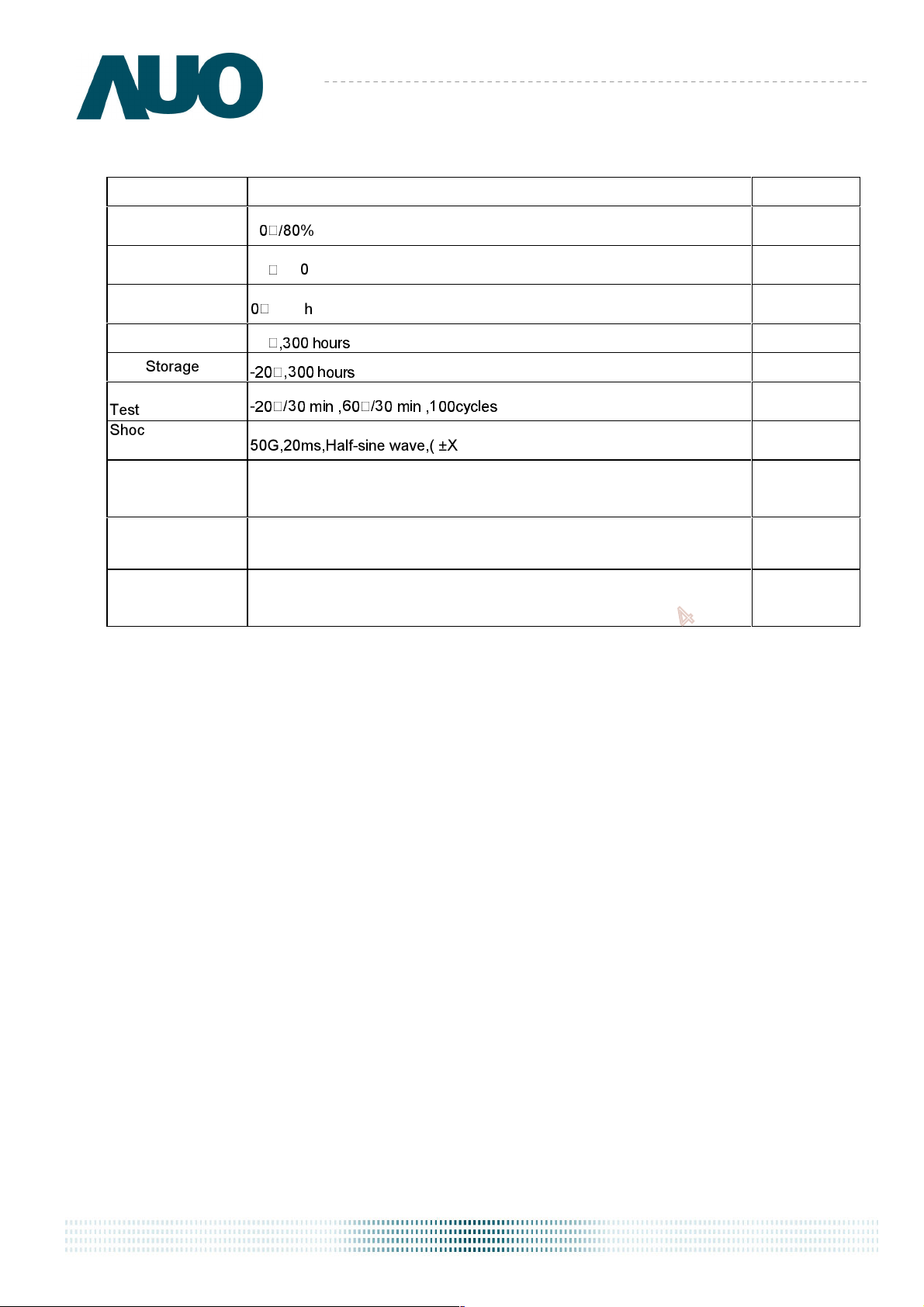

8. Reliability Test Criteria

Items

Temperature Humidity Bias High Temperature Operation Low Temperature Operation

Hot Storage

Cold Storage

Thermal Shock Test Shock Test (Non-Operating)

Required Condition Note

/

C

0

5

80%,300 hours

C

,300 hours

60

C

0

,300 hours

3

h

C

65

C

20

-

C

-

20

ours

,

00

3

h

ours

,

00

/3

i

m

n

0

50G,20ms,Half-sine wave,( ±X, ±Y, ±Z)

G150XTN03.0

6

/3

i

C

,

0

1

m

n

,

0

l

cyc

es

00

Vibration Test (Non-Operating)

On/off test

ESD

1.5G, (10~200Hz, P-P)

30 mins/axis (X, Y, Z)

On/10 sec, Off/10 sec, 30,000 cycles

Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point

Note 1

Air Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point

Note1: According to EN61000-4-2, ESD class B: Some performance degradation allowed. No data lost

. Self-recoverable. No hardware failures.

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

22/26

23/26

G150XTN03.0 rev. 1.2

G150XTN03.0

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

9. Mechanical Characteristics

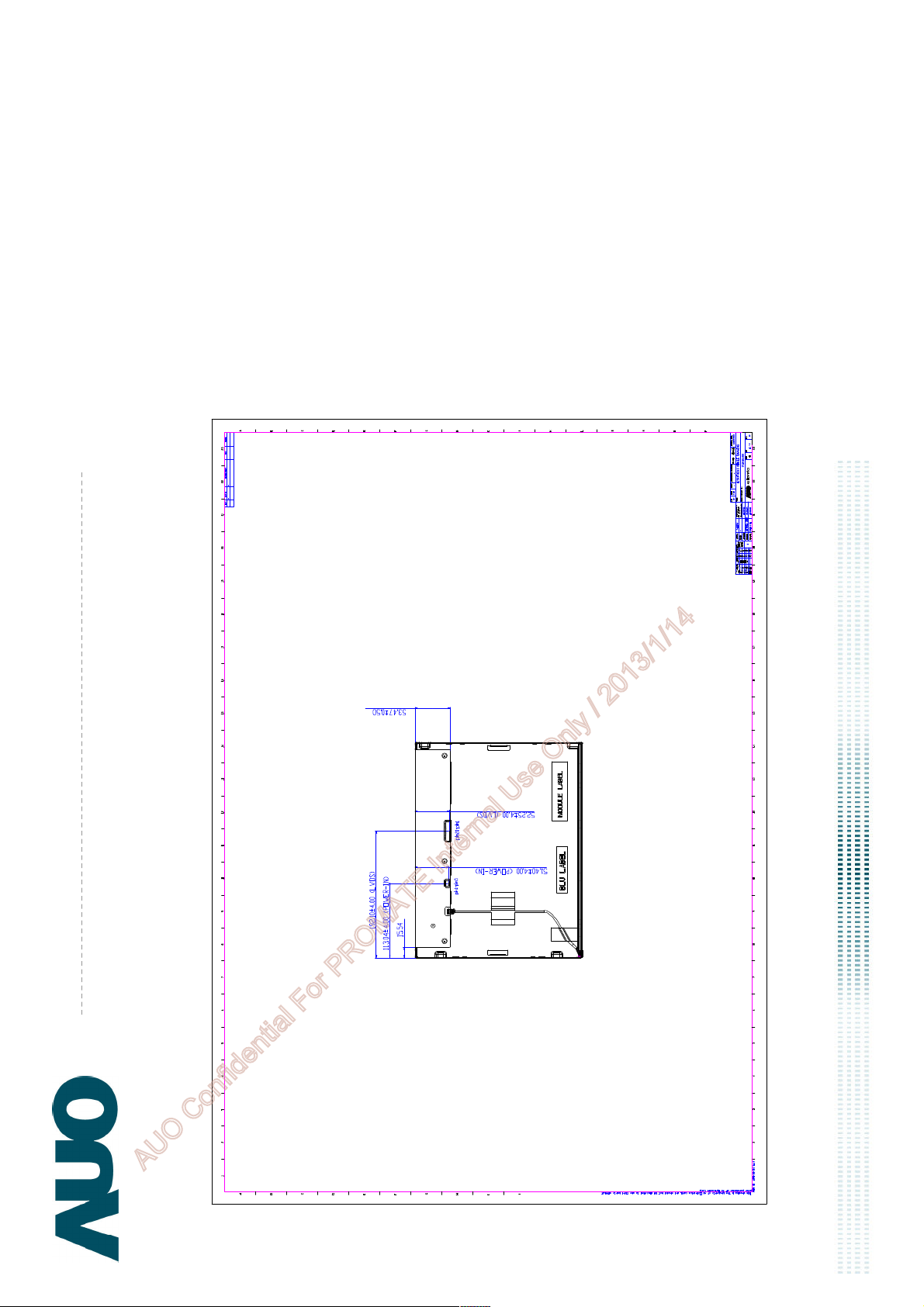

9.1 LCM Outline Dimension (Front View)

24/26

G150XTN03.0 rev. 1.2

G150XTN03.0

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

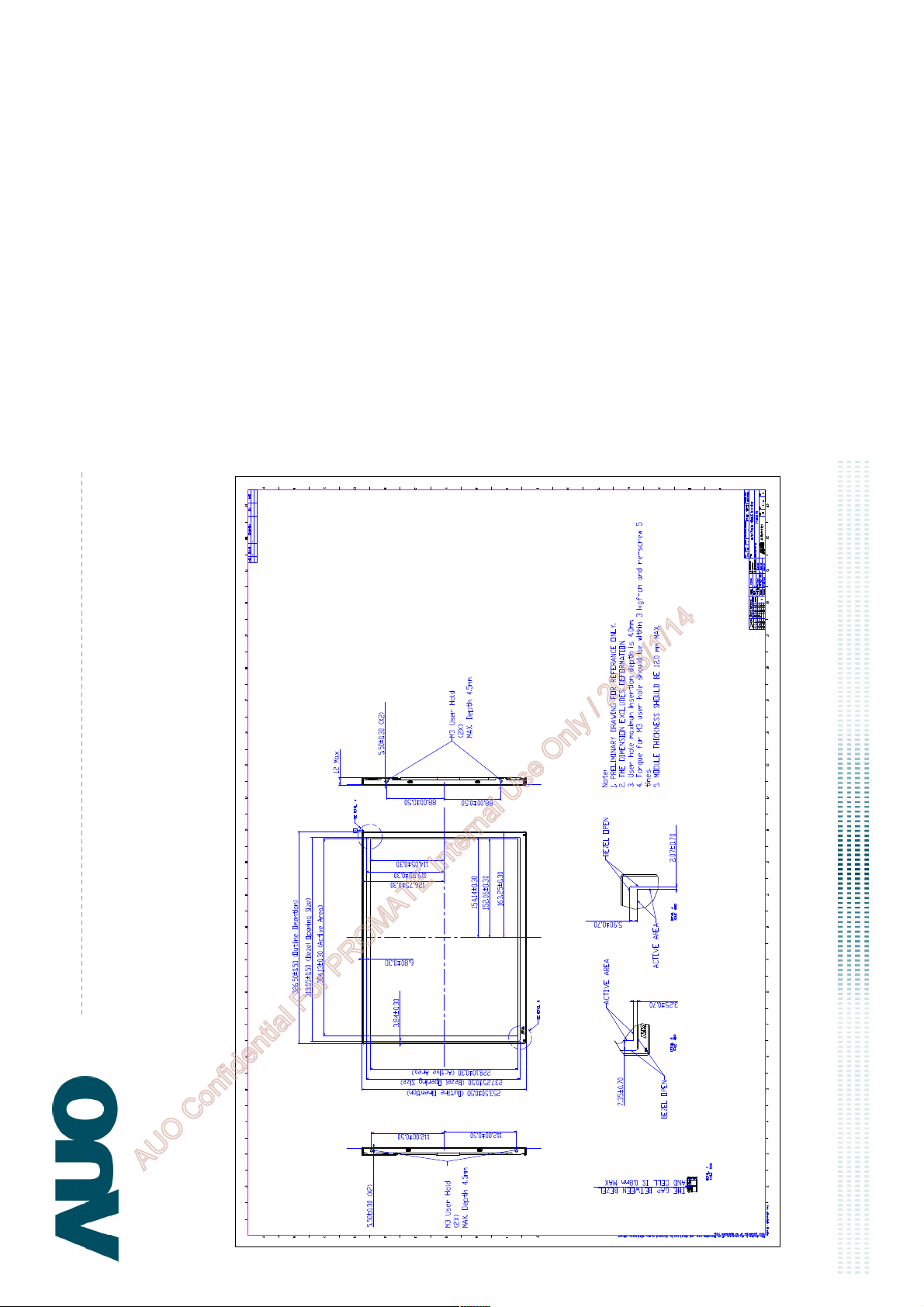

9.2 CM Outline Dimension (Rear View)

10. Label and Packaging

10.1 Shipping Label (on the rear side of TFT-LCD display)

G150XTN03.0

10.2 Carton Package

Max capacity: 15 TFT-LCD module per carton (15pcs * 1 layers)

Max weight: 20 kg per carton Outside dimension of carton: 375(L)mm* 430(W)mm* 360(H)mm

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

25/26

11 Safety

11.1 Sharp Edge Requirements

There will be no sharp edges or comers on the display assembly that could cause injury.

11.2 Materials

11.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,

they will be reviewed and approved by the responsible AUO toxicologist.

11.2.2 Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in the

module will complete the flammability rating exception approval process.

The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability

rating will be printed on the printed circuit board.

G150XTN03.0

11.3 Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them from

being inserted backwards.

11.4 National Test Lab Requirement

The display module will satisfy all requirements for compliance to:

UL 1950, Second Edition U.S.A. Information Technology Equipment

AUO Confidential For PROMATE Internal Use Only / 2013/1/14

G150XTN03.0 rev. 1.2

26/26
