G150XTN01.0
(V)
Preliminary Specifications
() Final Specifications
ate
TFT-LCD
Approved by D
ate
Module 15 Inch Color
Model Name G150XTN01.0
Customer D
Checked &
Approved
by
Note:
This Specification is subject to change
without notice.
Vito Huang
Prep
ared by
2012/3/2
Wennie Lee 2012/3/2
Audio-V
ideo Business Unit /
AU Optronics corporation
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
1/26
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
G150XTN01.0
Contents
1. Operating Precautions
2. General Description.........................................................................................5
2.1 Display Characteristics...........................................................................................................5
2.2 Optical Characteristics ...........................................................................................................6
3. Functional Block Diagram
4. Absolute Maximum Ratings
4.1 Absolute Ratings of TFT LCD Module .................................................................................10
4.2 Absolute Ratings of Environment ........................................................................................10
5. Electrical Characteristics ..............................................................................11
5.1 TFT LCD Module.................................................................................................................. 11
5.2 Backlight Unit........................................................................................................................13
6. Signal Characteristic
6.1 Pixel Format Image ..............................................................................................................14
.....................................................................................4
...............................................................................9
..........................................................................10
.....................................................................................14
6.2 Scanning Direction ...............................................................................................................14
6.3 Signal Description ................................................................................................................15
6.4 The Input Data Format .........................................................................................................16
6.5 Interface Timing ....................................................................................................................17
6.6 Power ON/OFF Sequence ...................................................................................................18
7. Connector & Pin Assignment........................................................................19
7.1 TFT-LCD Signal: LVDS Interface Connector.......................................................................19
7.2 LED Backlight Unit: LED Driver Connector .........................................................................21
7.3 LED Driver Connector Pin Assignment ...............................................................................21
8. Reliability Test Criteria ..................................................................................22
9. Mechanical Characteristics
9.1 LCM Outline Dimension (Front View) ..................................................................................23
9.2 LCM Outline Dimension (Rear View)...................................................................................24
10. Label and Packaging............................
10.1 Shipping Label (on the rear side of TFT-LCD display)......................................................25
10.2 Carton Package .................................................................................................................25
...........................................................................23
........................................................25
11 Safety.............................................................................................................26
11.1 Sharp Edge Requirements.................................................................................................26
11.2 Materials .............................................................................................................................26
11.3 Capacitors...........................................................................................................................26
11.4 National Test Lab Requirement..........................................................................................26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
2/26
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Record of Revision
ersion and Date Page Old description New Description
V
0.0 2012/3/2
First Edition
G150XTN01.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
3/26
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
G150XTN01.0
1. Operating Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human
earth when handling.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) In case if a module has to be put back into the packing container slot after it was taken
out from the container, do not press the center of the LED Reflector edge. Instead,
press at the far ends of the LED Reflector edge softly. Otherwise the TFT Module may
be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a very
short time. Please design your display product well to avoid external force applying to module
by end-user directly.
12) Small amount of materials without flammability grade are used in the TFT-LCD module. The
TFT-LCD module should be supplied by power complied with requirements of Limited Power
Source (IEC60950 or UL1950), or be applied exemption.
13) Severe temperature condition may result in different luminance, response time.
14) Continuous operating TFT-LCD Module under high temperature environment may accelerate
LED light bar exhaustion and reduce luminance dramatically.
15) The data on this specification sheet is applicable when TFT-LCD module is placed in
landscape position.
16) Continuous displaying fixed pattern may induce image sticking. It’s recommended to use
screen saver or moving content periodically if fixed pattern is displayed on the screen.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
4/26
www.panelook.com
Page 5
Global LCD Panel Exchange Center
6
www.panelook.com
G150XTN01.0
2. General Description
G150XTN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display
driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x
768(V)) screen and 16.2M (RGB 8-bits). All input signals are LVDS interface compatible. All
design rules of this module can correspond to PSWG standard.
G150XTN01.0 is designed for industrial display applications.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Items Unit Specifications
Screen Diagonal [inch]
condition:
15
, a
Active Area [mm]
Pixels H x V 1024x2, 768x2 (RGBW)
Pixel Pitch [mm]
Pixel Arrangement R.G.B.W. Rectangle
Display Mode TN, Normally White
Nominal Input Voltage VDD [Volt]
Typical Power Consumption [Watt]
Weight [Grams] 1000g (max.)
Physical Size [mm]
Electrical Interface 1 channel LVDS
Surface Treatment Anti-glare, Hardness 3H
Support Color 16.2M
Temperature Range
Operating
Storage (Non-Operating)
o
C]
[
o
C]
[
304.128(H) x 228.096(V)
0.297 x 0.297
3.3 typ.
TBD ( 64 Gray Bar pattern)
326.5(H)x 253.5(V) x 13.1(D) (max.)
-30 to +85
-30 to +85
oHS Compliance RoHS Compliance
R
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
5/26
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit
White Luminance
Uniformity
Contrast Ratio
Cross talk
Response Time
Viewing Angle
Color / Chromaticity
Coordinates
(CIE 1931)
Color Gamut %
Gamma Value
[cd/m2] 100%
%
%
[msec]
[msec]
[msec]
[degree]
[degree]
[degree]
[degree]
Conditions Min. Typ. Max. Note
Dimming
(center point)
9 Points
400 700
-
Rising
Falling
Raising + Falling
Horizontal (Right)
= 10 (Left)
CR
Vertical (Upper)
= 10 (Lower)
CR
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
280 350 - 1
75
-
- 2.3
- 8
70
70
50
70
80 - 1, 2, 3
1.2 1.5 5
5.7
80
80
60
80
0.577 0.627
0.298 0.348 0.398
0.288 0.338
0.539 0.589
0.100 0.150
0.029 0.079
0.263 0.313
0.279 0.329
- 60
- 2.2
G150XTN01.0
- 4
6
-
7
-
-
0.677
0.388
0.639
0.200
0.129
0.363
0.379
-
- 8
Note 1: Measurement method
Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (SR_3 or equivalent)
Aperture
Point Center
Test
Environment < 1 lux
LCD Module
Measuring distance
Module Driving Equipment
SR_3 or
equivalent
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
6/26
www.panelook.com
Page 7
Global LCD Panel Exchange Center
(CR)
g
g
A
A
www.panelook.com
G150XTN01.0
Note 2: Definition of 9 points position (Display active area : 304.128(H) x 228.096(V))
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the minimum luminance values by the maximum test
point luminance
Minimum
W9
=
Maximum Brightness of nine points
Note 4Κ Definition of contrast ratio (CR):
Ӭ
Contrast ratio
Note 5Κ
Definition of cross talk (CT)
50 %
Brightness of nine points
Bri
htness on the “White” state
=
Bri
htness on the “Black” state
10 %
10 %
50 %
90 %
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
1/2
184 gray level
1/6
1/6
1/2
B
1/2
2/3 1/3
’
1/6
B’
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/6
1/3
1/2
2/3
G150XTN01.0 rev 0.0
7/26
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
G150XTN01.0
Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “White” to “Black”
(falling time) and from “Black” to “White” (rising time), respectively. The response time interval is between 10% and
90% of amplitudes. Please refer to the figure as below.
ical
ical
Opt
Opt
response
response
Note 7: Definition of viewing angle
%
100
90
90
10
10
Tf Tr
ite Black White
ite Black White
Wh
Wh
0
0
Tr
vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as below: 90° (θ) horizontal
left and right, and 90° (Φ) vertical high (up) and low (down). The measurement direction is typically perpendicular to the
display surface with the screen rotated to its center to develop the desired
measurement viewing angle.
Note 8: Note 8: Definition of Gamma Value
Generally, Gamma Value is defined as the slope of a Gray Level – Luminance curve in log-log space, that is
ӫ= d log(Luminance) / d log(Gray Level)
The Gamma Value defined in this spec is Linear Regression (ӫ1, ӫ2, ӫ3…, ӫ16). ӫ1 toӫ16 are the section
gamma of the following 17 sampling points, GL(0), GL(16), GL(32), GL(48), GL(64), GL(80), GL(96), GL(112), GL(128),
GL(144), GL(160), GL(176), GL(192), GL(208), GL(224), GL(240) and GL(255), in 8 bits input.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
8/26
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
3. Functional Block Diagram
The following diagram shows the functional block of the 15 inch color TFT/LCD module:
+ 3.3V
LVDS
+ 12V
LVDS Connector
LED Connector
DC/DC
Converter
LVDS
Receiver
Correction
AU ASIC
Gamma
Timing
Controller
RSDS
Transmitter
D1
G1
Gate Driver IC
1024(2)*768(2)
Source Driver IC
TFT-LCD
Pixels
G150XTN01.0
LED B/L
LED Driver
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
9/26
www.panelook.com
Page 10
Global LCD Panel Exchange Center
g
V
[
]
www.panelook.com
4. Absolute Maximum Ratings
4.1 Absolute Ratings of TFT LCD Module
Item Symbol
Logic/LCD Drive
Volta
e
in -
4.2 Absolute Ratings of Environment
Item Symbol
Operating Temperature
Operation Humidity
Storage Temperature
Storage Humidity
Note: Maximum Wet-
TOP -30 +85 [
HOP 8 90 [%RH]
TST -30 +85 [
HST
Min Max Unit
0.3 +3.6
Min Max Unit
8 90
Volt
o
C]
o
C]
[%RH]
G150XTN01.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
10/26
www.panelook.com
Page 11
Global LCD Panel Exchange Center
V
www.panelook.com
5. Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Symbol Parameter
VDD
IDD
Irush
PDD
Note 1: Measurement condition:
Logic/LCD Drive
Voltage
VDD Current - 700 840
LCD Inrush Current
VDD Power
+3.3V
R1
47K
(High to Low)
Control
Signal
R2
G150XTN01.0
Min Typ Max Units Remark
3.0 3.3
3.6 [Volt]
f10%
64 Gray Bar Pattern
[mA]
(VDD=3.3V, at 60Hz)
- -
3 [A]
Note 1
64 Gray Bar Pattern
-
2.31 2.77
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
G
AO6402
[Watt]
Q3
(VDD=3.3V, at 60Hz)
F1
(LCD Module Input)
C1
1uF/16V
VCC
DD
1K
C3
0.01uF/25V
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
90%
3.3V
10%
0V
500 us
VDD rising time
64 Gray pattern
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
11/26
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off.
Symbol Item
VTH
VTL
ΨVIDΨ
VICM
Note: LVDS Signal Waveform.
Differential Input High Threshold
Differential Input Low Threshold
Input Differential Voltage
Differential Input Common Mode Voltage
G150XTN01.0
Min. Typ. Max. Unit Remark
- - 100
100 - -
100 400 600
1.15
1.2 1.45
[mV] VCM=1.2V
[mV] VCM=1.2V
[mV]
VTH/VTL=100mV
[V]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
12/26
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
G150XTN01.0
5.2 Backlight Unit
5.2.1 Parameter guideline for LED
Following characteristics are measured under stable condition using a LED driving board at 25 om Temperature).
Symbol Parameter
Vcc Input
Ivcc
P
LED
FPWM
Swing
IF
Operating Life
Voltage 10.8 12 12.6 Volt
Input Curent - TBD - A 100% Dimming
Power Consumption - TBD TBD Watt 100% Dimming
PWM Dimming Frequency 200 - 20k Hz
Voltage 3 5 5.5
Dimming Duty Cycle 5 - 100 %
LED Forward Current - 80 84 mA Ta = 25
50000 - - Hrs Ta = 25
Min Typ Max
Unit
Remark
o
C
o
C
Note 1: Ta means ambient temperature of TFT-LCD module.
2: If G150XTN01.0 module is driven at high ambient temperature & humidity condition. The operating life will be
Note
reduced.
Note 3: Operating life means brightness goes down to 50% initial brightness. Min. operating life time is estimated data.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
13/26
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
6. Signal Characteristic

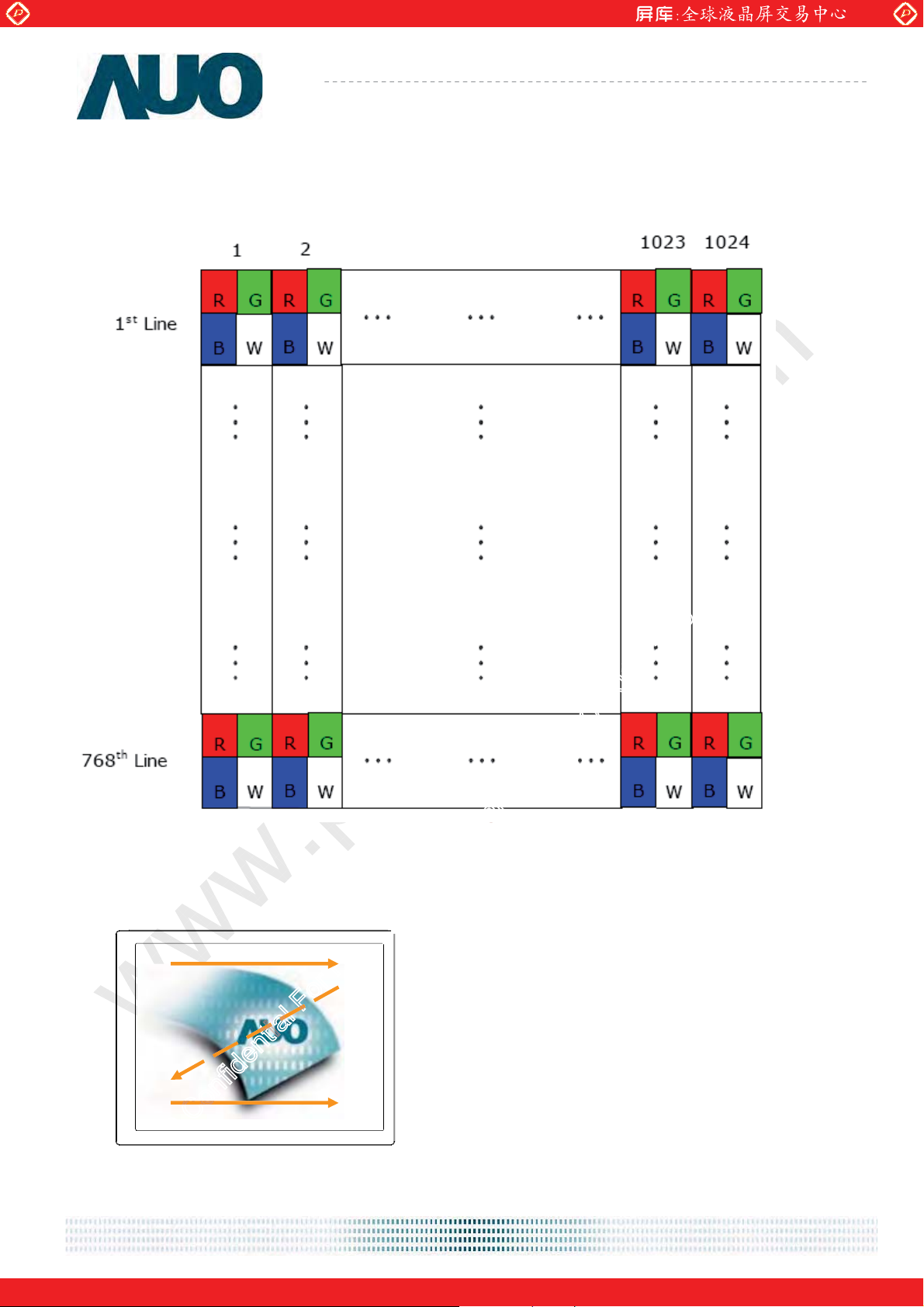

6.1 Pixel Format Image
Following figure shows the relationship between input signal and LCD pixel format.
G150XTN01.0
6.2 Scanning Direction
The following figures show the image seen from the front view. The arrow indicates the direction of scan.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
AUO
G150XTN01.0 rev 0.0
14/26
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
G150XTN01.0
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential
signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative
edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx)
transmits even pixels.
Input Signal Interface
Pin No.
Symbol Description
1 VDD Power Supply, 3.3V (typical)
VDD Power Supply, 3.3V (typical)
2
3 GND Ground
4 NC
5 Rin0- - LVDS differential data input
6 Rin0+ + LVDS differential data input
NC
7 GND Ground
Rin1- - LVDS differential data input
8
9 Rin1+
10 GND
11 Rin2-
12 Rin2+ + LVDS differential data input
13 GND Ground
14
15 ClkIN+
16 GND
17 Rin3- - LVDS differential data input *Note2
18 Rin3+
19 NC/GND Reserved for AUO internal test. Please set it as NC or Ground.
20 NC
Note 1: Input signals shall be in low status when VDD is off.
Note 2: High stands for “3.3V”, Low stands for “0V”, NC stands for “No Connection”.
ClkIN- - LVDS differential clock input
+ LVDS differential data input
Ground
- LVDS differential data input
+ LVDS differential clock input
Ground
- LVDS differential data input *Note2
NC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
15/26
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
6.4 The Input Data Format
6.4.1
Signal Name
R7
R6
R5
R4
R3
R2
R1
R0
G7
G6
G5
G4
G3
G2
G1
G0
B7
B6
B5
B4
B3
B2
B1
B0
RxCLKIN
DE Data Enable Signal When the signal is high, the pixel data
8 bits LVDS Input
Red Data 7
Red Data 6
Red Data 5
Red Data 4
Red Data 3
Red Data 2
Red Data 1
Red Data 0
Green Data 7
Green Data 6
Green Data 5
Green Data 4
Green Data 3
Green Data 2
Green Data 1
Green Data 0
Blue Data 7
Blue Data 6
Blue Data 5
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0
LVDS Data Clock The typical frequency is 65MHz. The
Description Remark
Red-pixel Data
For 8Bits LVDS input
MSB: R7 ; LSB: R0
Green-pixel Data
For 8Bits LVDS input
MSB: G7 ; LSB: G0
Blue-pixel Data
For 8Bits LVDS input
MSB: B7 ; LSB: B0
signal is used to strobe the pixel data and
DE signals. All pixel data shall be valid at
the falling edge when the DE signal is
high.
shall be valid to be displayed.
G150XTN01.0
Note: Output signals from any system shall be low or Hi-Z state when VDD is off.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
16/26
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
6.5 Interface Timing
6.5.1 Timing Characteristics
Signal
Clock Timing
Vsync Timing
Hsync Timing
Frame Rate F
Note: DE mode only.
Note : Typical value refer to VESA STANDARD
Parameter Symbol Min. Typ. Max. Unit
Clock frequency 1/ T
Vertical
Section
Horizontal
Section
Period T
Active T
Blanking T
Period T
Active T
Blanking T
Clock
V
VD
VB
H
HD
HB
G150XTN01.0
50 65
776 806
- 768
8 38
1074 1344
- 1024
80
1023
-
255
2047
-
MHz
T
Line
T
Clock
50 320 1023
50 60
75
Hz
6.5.2 Input Timing Diagram
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
17/26
www.panelook.com
Page 18
Global LCD Panel Exchange Center
M
www.panelook.com
G150XTN01.0
6.6 Power ON/OFF Sequence
VDD power and LED on/off sequence is as below. Interface signals are also shown in the chart. Signals from any
system shall be Hi-Z state or low level when VDD is off.
Power ON/OFF sequence timing
Parameter
Min. Typ.
T1 0.5
T2 30 40 50
T3 200 -
T4 0.5 -
T5 10 -
T6 10 -
T7 0 -
T8 10 - - [ms]
T9 - -
T10 110 -
T11 0 16
T12 - -
Value
Max.
- 10 [ms]
- [ms]
10 [ms]
- [ms]
- [ms]
- [ms]
10 [ms]
- [ms]
50 [ms]
10 [ms]
Units
[ms]
T13 1000 -
- [ms]
The above on/off sequence should be applied to avoid abnormal function in the display. Please make sure to turn off
the power when you plug the cable into the input connector or pull the cable out of the connector.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
18/26
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
G150XTN01.0
7. Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of accommodating
the following signals and will be following components.
7.1 TFT-LCD Signal: LVDS Interface Connector
Connector Name / Designation
Manufacturer STM or compatible
Connector Model Number MSB240420-E
Mating Housing Part Number P240420 or compatible
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
VDD
GND
Rin0-
GND
Rin1+
Rin2-
GND
ClkIN+
Rin3-
NC/GND
Signal Connector
2 VDD
4 NC
6
8 Rin1-
10 GND
12 Rin2+
14
16 GND
18 Rin3+
20 NC
Rin0+
ClkIN-
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
19/26
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

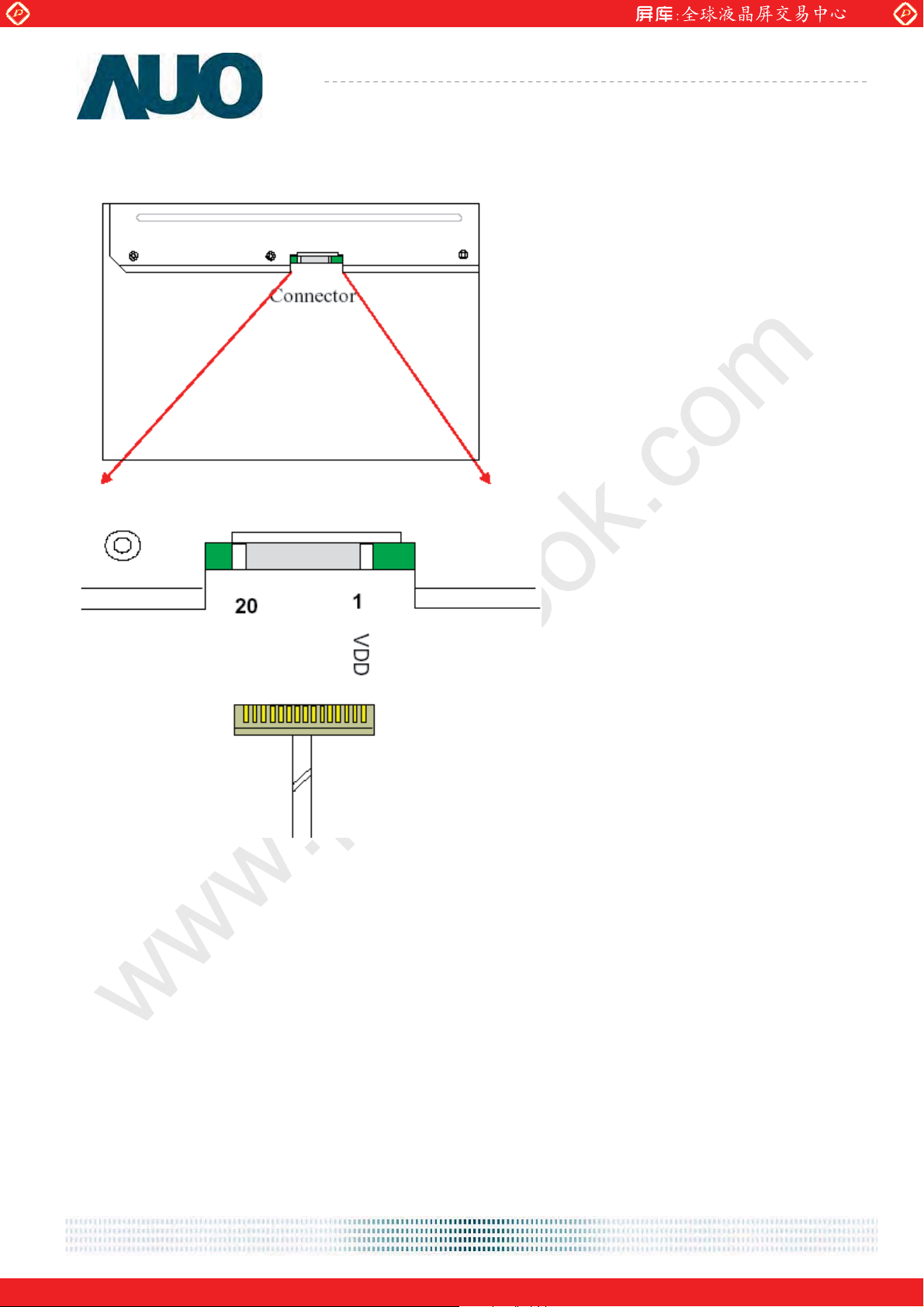

7.1.1 Connector Illustration
G150XTN01.0
SEL68
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
20/26
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
7.2 LED Backlight Unit: LED Driver Connector
Connector Name / Designation LED Connector
Manufacturer E&T or compatible
Connector Model Number 3808K-F05N-02R or compatible
Mating Connector Model Number H208K-P05N-02B or compatible
7.3 LED Driver Connector Pin Assignment
Pin# Symbol Signal
1 Vcc 12V
2 GND GND
3
Enable 5V-On / 0V-Off
G150XTN01.0
Name
4 Dimming PWM
5 NC NC
Dimming
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
21/26
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
8. Reliability Test Criteria
Items
Temperature
Humidity Bias
High Temperature
Operation
Low Temperature
Operation
Hot Storage
Cold Storage
Thermal Shock
Test
Shock Test
(Non-Operating)
Vibration Test
(Non-Operating)
Required Condition
80%,300 hours
50
,300 hours
85
,300 hours
-3
85
-3
-2
50G,20ms,Half-sine wave,( ±X, ±Y, ±Z)
1.5G, (10~200Hz, P-P)
30 mins/axis (X, Y, Z)
G150XTN01.0
Note
On/off test
ESD
Note 1: According to EN61000-4-2, ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures.
Note 2: ʳ
Water condensation is not allowed for each test items.
Each test is done by new TFT-LCD module. Don’t use the same TFT-LCD module repeatedly for reliability test.
The reliability test is performed only to examine the TFT-LCD module capability.
To inspect TFT-LCD module after reliability test, please store it at room temperature and room humidity for 24
hours at least in advance.
No function failure occurs.
On/10 sec, Off/10 sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
Note 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
22/26
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
23/26
G150XTN01.0 rev 0.0
G150XTN01.0

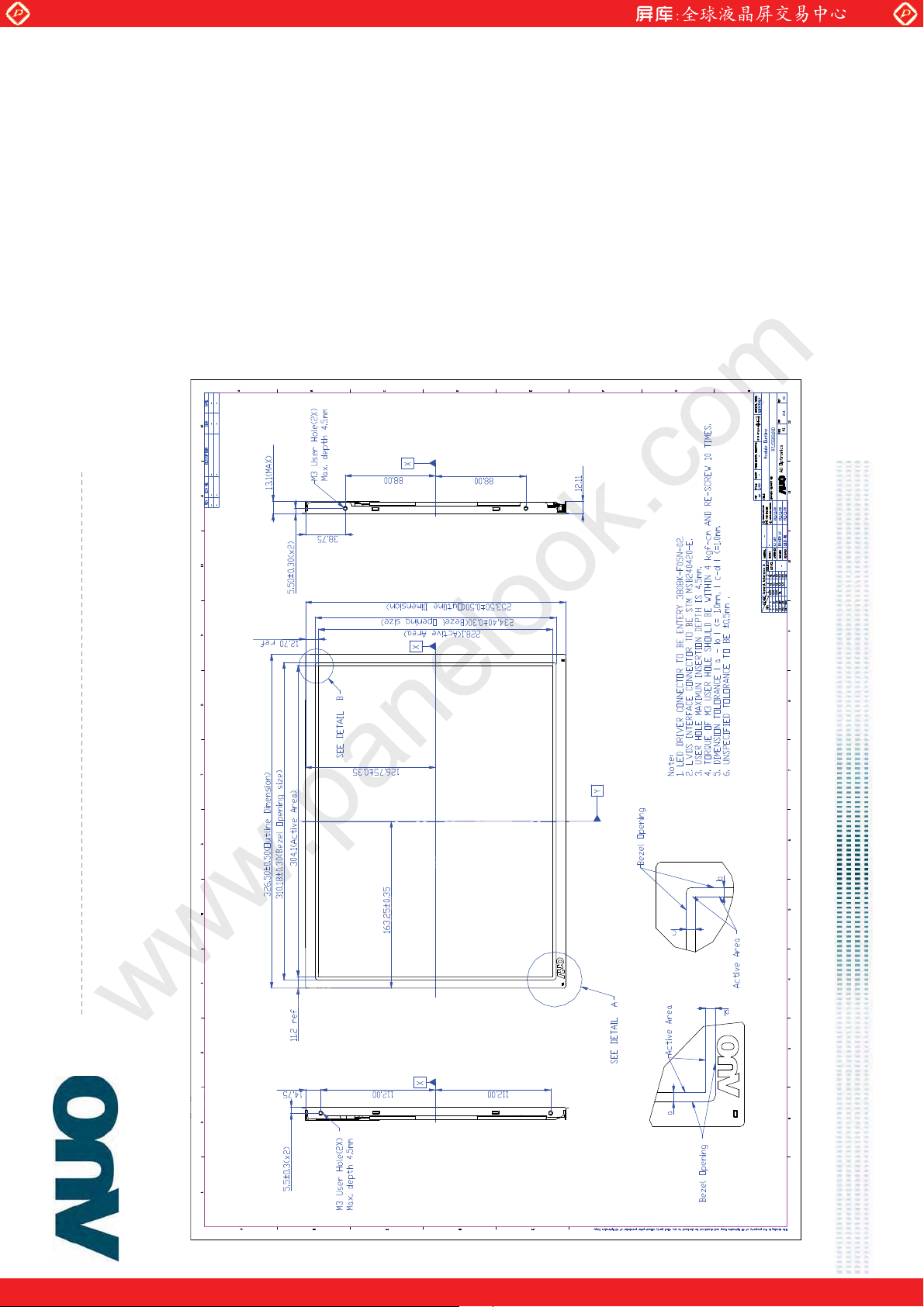

9.1 LCM Outline Dimension (Front View)
9. Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
24/26
G150XTN01.0 rev 0.0
G150XTN01.0
9.2 LCM Outline Dimension (Rear View)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
10. Label and Packaging
10.1 Shipping Label

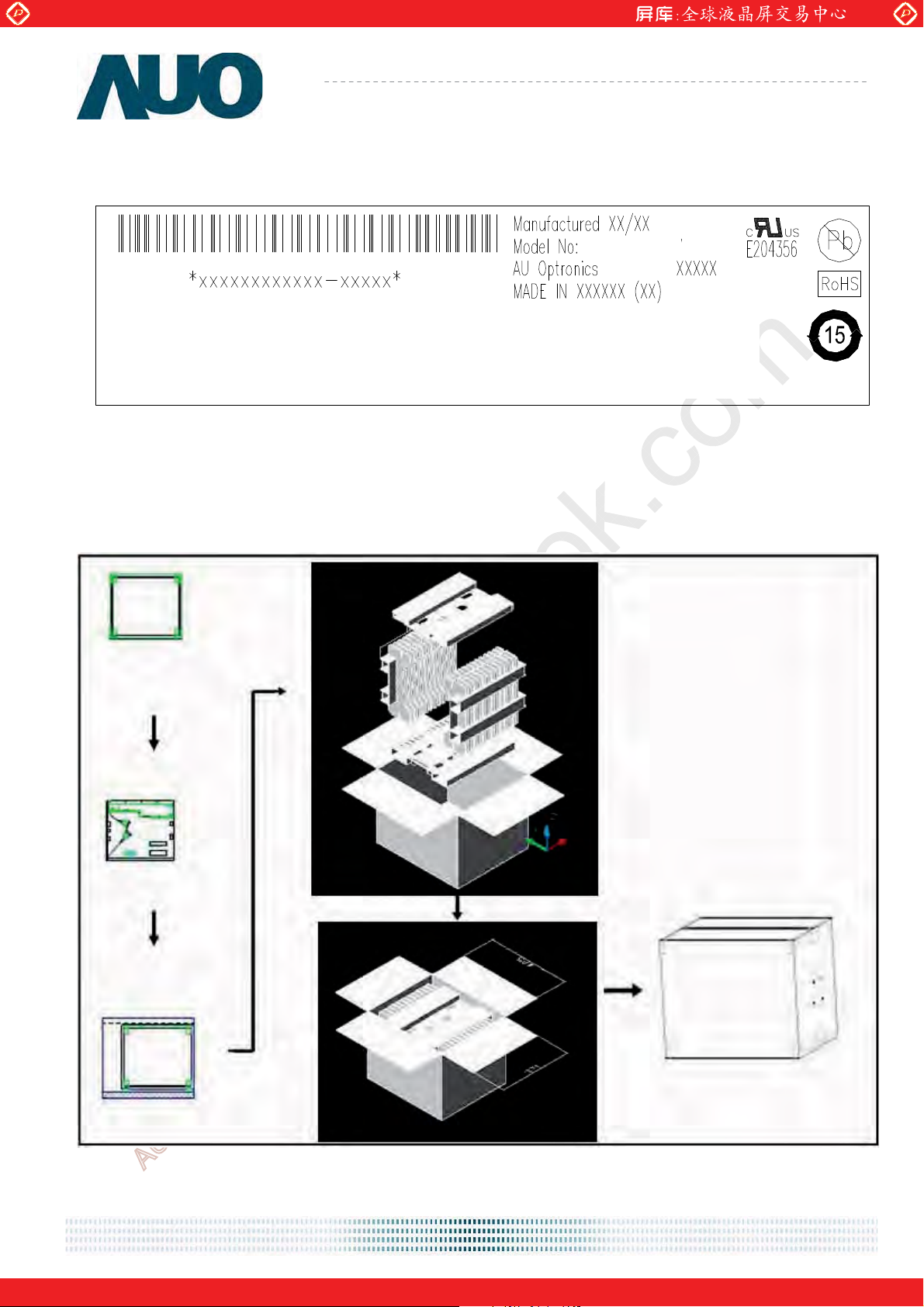

10.2 Carton Package
Max capacity: 12pcs TFT-LCD module per carton
Max weight: 20 kg per carton
Outside dimension of carton: 375(L)mm* 430(W)mm* 353(H)mm
(on the rear side of TFT-LCD display)
G150XTN01.0
G150XTN01.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
25/26
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
11 Safety
11.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
11.2 Materials
11.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,
they will be reviewed and approved by the responsible AUO toxicologist.
11.2.2 Flammability
All components including electrical components that do not meet the flammability grade UL94-V1 in the
module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability
rating will be printed on the printed circuit board.
G150XTN01.0
11.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep them from
being inserted backwards.
11.4 National Test Lab Requirement
The display module will satisfy all requirements for compliance to:
UL 1950, First Edition
U.S.A. Information Technology Equipment
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
G150XTN01.0 rev 0.0
26/26
www.panelook.com
Loading...
