Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Module
Model Name
Customer Date
Checked &
Approved by
14.1” WXGA+ Color TFT-LCD
B141PW01 V1
2005/11/07
Approved by Date
Joselyn Liu 2005/11/07
Prepared by
Kay Liu 2005/11/07
Note: This Specification is subject to change
without notice.
document version 0.3 1/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
MDBU Marketing Division /
AU Optronics corporation
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Contents
1. Handling Precautions .............................................................................................................. 4
2. General Description................................................................................................................. 5
2.1 General Specification...................................................................................................................... 5
2.2 Optical Characteristics.................................................................................................................... 6
3. Functional Block Diagram..................................................................................................... 11
4. Absolute Maximum Ratings .................................................................................................. 12
4.1 Absolute Ratings of TFT LCD Module......................................................................................... 12
4.2 Absolute Ratings of Backlight Unit...............................................................................................12
4.3 Absolute Ratings of Environment ................................................................................................. 12
5. Electrical characteristics....................................................................................................... 13
5.1 TFT LCD Module........................................................................................................................ 13
5.2 Backlight Unit.............................................................................................................................. 15
6. Signal Characteristic ............................................................................................................. 17
6.1 Pixel Format Image...................................................................................................................... 17
6.2 The input data format................................................................................................................... 18
6.3 Signal Description/Pin Assignment ............................................................................................... 19
6.4 Interface Timing ........................................................................................................................... 21
7. Connector Description ..........................................................................................................23
7.1 TFT LCD Module........................................................................................................................ 23
7.2 Backlight Unit.............................................................................................................................. 23
7.3 Signal for Lamp connector ........................................................................................................... 23
8. Vibration and Shock Test ......................................................................................................24
8.1 Vibration Test............................................................................................................................... 24
8.2 Shock Test Spec:.......................................................................................................................... 24
9. Reliability ................................................................................................................................ 25
10. Mechanical Characteristics................................................................................................. 26
11. Shipping and Package......................................................................................................... 29
11.1 Shipping Label Format ............................................................................................................... 29
11.2. Carton package ......................................................................................................................... 30
11.3 Shipping package of palletizing sequence.................................................................................... 30
12. Appendix: EDID description................................................................................................ 30
document version 0.3 2/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2005/09/03 All First Edition for Customer
0.2 2005/11/07 5
Power consumption From 5.1W ( typ) to 5.5W (typ)
document version 0.3 3/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was
taken out from the container, do not press the center of the CCFL Reflector edge. Instead,
press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be
damaged.
10)At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are
applied to the TFT Module from outside. Otherwise the TFT Module may be
damaged.
12)Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow
local ordinances or regulations for disposal.
13)Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source(,
IEC60950 or UL1950), or be applied exemption.
14)The LCD module is designed so that the CCFL in it is supplied by Limited Current
Circuit(IEC60950 or UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 0.3 4/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
(Note
)
ge (
g)
[
]
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
2. General Description
B141PW01 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a
driver circuit, and backlight system. The screen format is intended to support the WXGA+
(1440(H) x 900(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are LVDS
interface compatible. Inverter of backlight is not included.
B141PW01 V1 is designed for a display unit of notebook style personal computer and industrial
machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 condition:
Items Unit Specifications
Screen Diagonal [mm] 357.7 (14.1W ”)
Active Area [mm] 303.48 X 189.675
Pixels H x V 1440x3(RGB) x 900
Pixel Pitch [mm] 0.21075X0.21075
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance (ICCFL=6.0mA)
Note: ICCFL is lamp current
[cd/m2] 220 typ. (5 points average)
190 min. (5 points average)
1
Luminance Uniformity 1.2 max. (5 points)
Contrast Ratio 350 typ
Optical Rise Time/Fall Time [msec] 15/10 typ.
Nominal Input Voltage VDD [Volt] +3.3 typ.
Power Consumption [Watt] 5.5 typ.(without inverter)
Weight [Grams] 390 typ.
Physical Size [mm]
320.5(W) x 206 (H) x 5.5(D) Max.
Electrical Interface 2 channel LVDS
Surface Treatment Haze 25, hard coating 3H,AG
Support Color 262K colors ( RGB 6-bit )
Temperature Range
Operating
Stora
Non-Operatin
[oC]
o
C
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
document version 0.3 5/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
White Luminance
I
CCFL=6.0mA
Viewing Angle
[degree]
[degree]
[degree]
[degree]
Luminance Uniformity 5 Points
Luminance Uniformity 13 Points
CR: Contrast Ratio
Cross talk %
Response Time
Color / Chromaticity
Coordinates
(CIE 1931)
2
[cd/m
] 5 points average 190 220 - 1, 4, 5.
Horizontal (Right)
CR = 10 (Left)
Vertical (Upper)
CR = 10 (Lower)
[msec] Rising
[msec] Falling
[msec] Rising + Falling
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
-
-
-
-
45
45
20
35
350 400 - 6
-
15
-1015
25 35
0.550 0.580 0.610
0.310 0.340 0.370
0.280 0.310 0.340
0.520 0.550 0.580
0.125 0.155 0.185
0.115 0.145 0.175
0.283 0.313 0.343
0.299 0.329 0.359
-
-
-
-
1.2 1
1.8 2
1.4 7
20
2,8
8
8
document version 0.3 6/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Note 1: 5 points position (Display area : 303.48mm x 189.675mm)
W/4 W/4 W/4 W/4
H/4
12
H/4
W
H
Note 2: 13 points position
H
H/4
H/4
H/4
H/4
H/4
10
10
W/4
1
6
3
45
W
W/4
W/4
2
4
7
W/4
10
3
5
8
10
1312
H/4
10
9
11
Note 3: The luminance uniformity of 5 and 13 points is defined by dividing the maximum luminance values by the
minimum test point luminance
Maximum Brightness of five points
=
W5
Minimum Brightness of five points
Maximum Brightness of thirteen points
W13
=
Minimum Brightness of thirteen points
document version 0.3 7/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
g
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change
during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight
for 30 minutes in a stable, windless and dark room.
Photo detector
Field=2
Note 5 Definition of Average Luminance of White (Y
Measure the luminance of gray level 63 at 5 pointsY
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6 Definition of contrast ratio:
Contrast ratio is calculated with the following formula.
htness on the “White” state
Bri
):
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
Contrast ratio (CR)=
Bri
htness on the “Black” state
-
document version 0.3 8/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
f

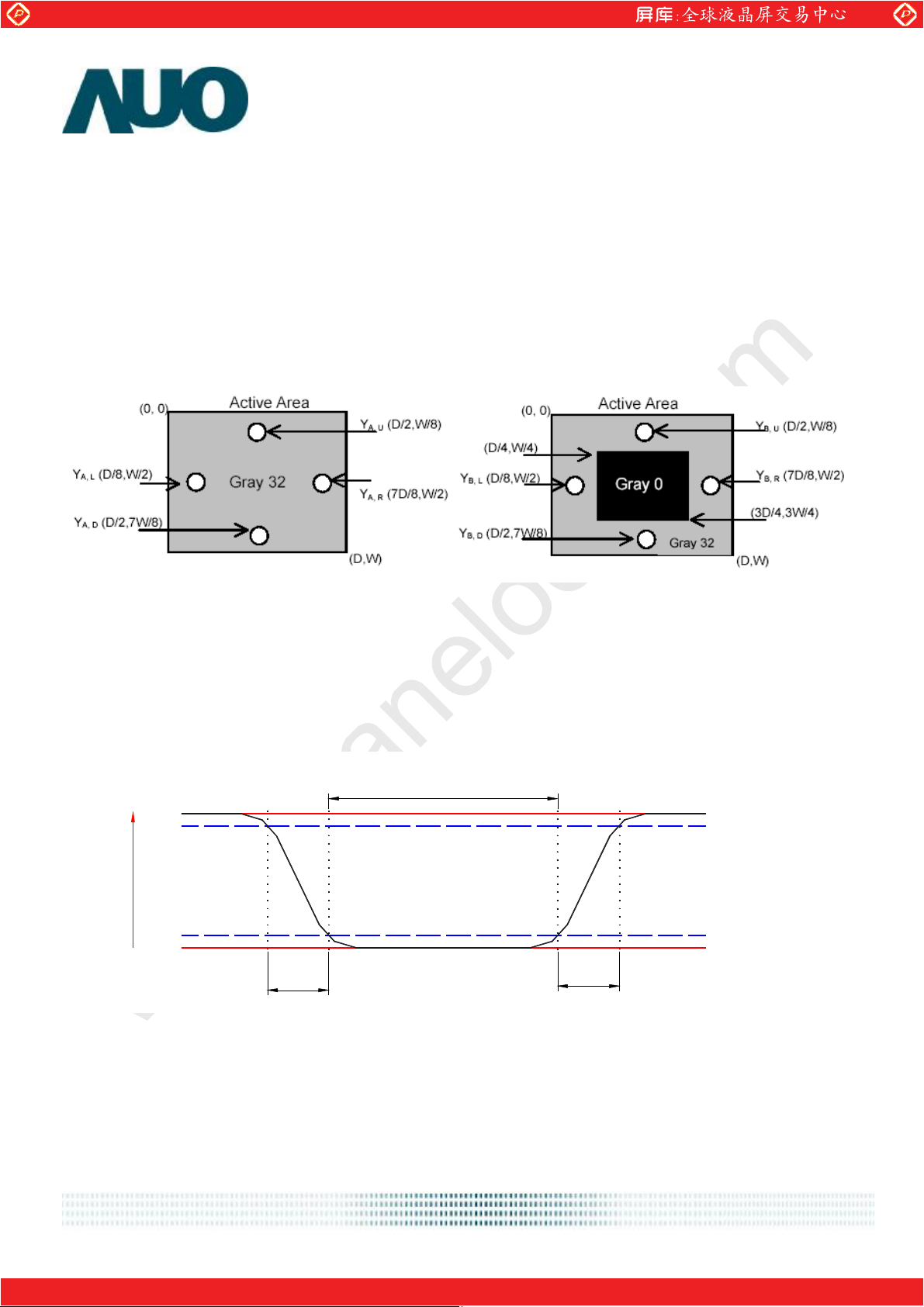

Note 7 Definition of Cross Talk (CT)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
CT = | Y
Where
Y
A = Luminance of measured location without gray level 0 pattern (cd/m2)
Y
B = Luminance of measured location with gray level 0 pattern (cd/m2)
Note 8: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to
B – YA | / YA 100 (%)
“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval between the
10% and 90% of amplitudes. Refer to figure as below.
ptical
Response
100%
90%
10%
0%
Tr
"Black"
T
"White""White"
document version 0.3 9/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Note 8. Definition of viewing angle
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal and 180°
vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows; 90° ()
horizontal left and right and 90° () vertical, high (up) and low (down). The measurement direction is typically
perpendicular to the display surface with the screen rotated about its center to develop the desired measurement
viewing angle.
document version 0.3 10/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
p
)
)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
3. Functional Block Diagram
The following diagram shows the functional block of the 14.1 inches wide Color TFT/LCD Module:
X-Driver
(4 pairs LVDS)
RxIN0
RxIN1
RxIN2
RxCLKIN
VDD
GND
LCD DRIVE
BOARD
LCD
Controller
LCD Connector(30pin
JAE FI-XB30SL-HF10
Mating Housing JAE FI-X30SL
Mating ContactFI-XC3-1-15000
DC-DC
Converter
Ref c ircuit
Y-Driver
TFT ARRAY/CELL
1440(R/G/B) x 3 x 900
Backlight Unit
Connector(2pin
Lam
JST BHSR-02VS-1
Mating Type SM02B-BHSS-1-TB
document version 0.3 11/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICCFL 2.5 7 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 3
Vin -0.3 +4.0 [Volt] Note 1,2
Operation Humidity HOP 5 95 [%RH] Note 3
Storage Temperature TST -20 +60 [oC] Note 3
Storage Humidity HST
Note 1: At Ta (25 )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS(Incoming Inspection Standard).
595
Twb=39° C
[%RH]
Note 3
Operating Range Storage Range
document version 0.3 12/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symble Parameter Min Typ Max Units Note
VDD Logic/LCD Drive
PDD VDD Power 1.6 [Watt] Note 1
IDD IDD Current
IRush Inrush Current TBD [mA]
VDDrp Allowable
Logic/LCD Drive
Ripple Voltage
3.0 3.3 3.6 [Volt]
TBD
TBD
[mA]
100 [mV]
p-p
Note 1
Note 2
Note 1 : Maximum Measurement ConditionBlack Patterm
Note 2Measure Condition
Q3
AO6402
D6 F1
D5
D2 S
D1
G
D2SD1D5
D6
Q3
G
C3
0.01uF/25V
AO6402
SW1
SW MAG-SPST
1 2
(High to Low)
Control
Signal
+12.0V
C2
1uF/25V
+3.3V
R1
47K
R2
1K
R2
1K
VR1
47K
90%
(LCD Module Input)
C1
1uF/16V
3.3V
VCC
10%
0V
0.5ms
Vin rising time
document version 0.3 13/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off.
It is recommended to refer the specifications of SN75LVDS86DGG (Texas Instruments)in
detail.
Signal electrical characteristics are as follows;
Parameter Condition Min Max Unit
Differential Input High
Vth
Threshold (Vcm=+1.2V) 100 [mV]
Differential Input Low
Vtl
Vcm
Note: LVDS Differential Voltage
Threshold (Vcm=+1.2V) -100 [mV]
Differential Input
Common Mode Voltage
1.125
1.375
[V]
document version 0.3 14/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Parameter Min Typ Max Units Condition
White Luminance
5 points average 190 220 - [cd/m2]
CCFL current(ICCFL) 2.5 6.0 7 [mA] rms
CCFL Frequency(FCCFL) 50 60 65 [KHz]
=
(Ta=25)
Note 2
(Ta=25)
Note 3,4
CCFL Ignition Voltage(Vs)
CCFL Voltage (Reference)
- 1000 1200
- 650 -
(VCCFL)
CCFL Power consumption
- 4.2 -
(PCCFL)
Note 1: Typ are AUO recommended Design Points.
*1 All of characteristics listed are measured under the condition using the AUO Test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker at low power
may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL, for
instance, becomes more than 1 [M ohm] when CFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is recommended to keep
on applying kick-off voltage for 1 [Sec] until discharge.
*5 CCFL discharge frequency must be carefully chosen so as not to produce interfering noise stripes on the
screen.
[Volt] rms
[Volt] rms
[Watt]
(Ta= 0)
Note 5
(Ta=25)
Note 6
(Ta=25)
Note 6
*6 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL discharge
frequency. So all the parameters of an inverter should be carefully designed so as not to produce too much
leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if ICCFL is less than 4mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and TFT
LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,430 voltage.
Lamp units need 1,400 voltage minimum for ignition.
document version 0.3 15/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Note 6: Calculator value for reference (ICCFL×VCCFL=PCCFL)
Note 7: Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp, are following.
It shall help increase the lamp lifetime and reduce leakage current.
a. The asymmetry rate of the inverter waveform should be less than 10%.
b. The distortion rate of the waveform should bewithin 2 10%.
* Inverter output waveform had better be more similar to ideal sine wave.
document version 0.3 16/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
0 1 1438 1439
1st Line
900th Line
R G B R G B
R G B R G B
R G B R G B
R G B R G B
document version 0.3 17/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
6.2 The input data format
Signal Name Description
R5
R4
R3
R2
R1
R0
Red Data 5 (MSB)
Red Data 4
Red Data 3
Red Data 2
Red Data 1
Red Data 0 (LSB)
Red-pixel Data
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Red-pixel Data
Each red pixel's brightness data consists of
these 6 bits pixel data.
G5
G4
G3
G2
G1
G0
Green Data 5 (MSB)
Green Data 4
Green Data 3
Green Data 2
Green Data 1
Green Data 0 (LSB)
Green-pixel Data
Each green pixel's brightness data consists
of these 6 bits pixel data.
Green-pixel Data
B5
B4
B3
B2
B1
B0
Blue Data 5 (MSB)
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0 (LSB)
Blue-pixel Data
Each blue pixel's brightness data consists of
these 6 bits pixel data.
Blue-pixel Data
RxCLKIN Data Clock The typical frequency is 68.9 MHZ.. The
signal is used to strobe the pixel data and
DE signals. All pixel data shall be valid at
the falling edge when the DE signal is high.
DE Display Timing This signal is strobed at the falling edge of
RxCLKIN. When the signal is high, the pixel
data shall be valid to be displayed.
VS Vertical Sync The signal is synchronized to RxCLKIN .
HS Horizontal Sync The signal is synchronized to RxCLKIN .
Note: Output signals from any system shall be low or High-impedance state when VDD is off.
document version 0.3 18/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
6.3 Signal Description/Pin Assignment
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
document version 0.3 19/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note1: Start from right side
Connector
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
30
NC
1
GND
Note2: Input signals shall be low or High-impedance state when VDD is off.
internal circuit of LVDS inputs are as following.
The module uses a 100ohm resistor between positive and negative data lines of each receiver input
Signal Input
Pin No.
8
9
11
12
RxIN0-
R
RxIN0+
RxIN1-
R
RxIN1+
LVDS Receiver
14
RxIN2-
R
15
RxIN2+
17
RxCLKIN-
R
18
RxCLKIN+
document version 0.3 20/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1440x900 /60Hz manufacturing guide line timing.
Parameter Symbol Min. Typ. Max. Unit
Frame Rate - 50 60 - Hz
Clock frequency 1/ T
Vertical
Section
Horizontal
Section
Note : DE mode only
6.4.2 Timing diagram
T
CLOCK
DOTCLK
Input
Data
Pixel
M-1
Invaild
Period T
Active T
Blanking T
Period T
Active T
Blanking T
Input Timing Definition
Data
Clock
V
VD
VB
H
HD
HB
Pixel1Pixel3Pixel
- 48.2 - MHz
904 912 2048
900 900 900
412-
760 880 1024
720- 720 720
40 160 -
5
T
Line
T
Clock
?
Pixel
M-1
Invaild
Data
Input
DE
DE
Input
Data
document version 0.3 21/34
Data
Pixel
M
Line
N
Invaild
Data
T
HB
T
Invaild
Data
VB
Pixel2Pixel4Pixel
T
H
T
V
Line
Line2Line
1
6
T
HD
T
VD
?
?
3
Pixel
M
Line
N
Invai ld
Data
Invaild
Data
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart.
Signals from any system shall be Hi-Z state or low level when VDD is off.
T1
90%
90%
Power Supply VDD
Backlight On
Power Sequence Timing
10%
Parameter
T2
VALID
T5
Min. Typ. Max.
DATA
Value
T6
T3
Units
T7
10%
T4
T1 0.5 - 10 (ms)
T2 0 - 50 (ms)
T3 0 - 50 (ms)
T4 200 - - (ms)
T5 200 - - (ms)
T6 0 - - (ms)
T7 0 - 10 (ms)
document version 0.3 22/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
7. Connector Description
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following
components.
7.1 TFT LCD Module
Connector Name / Designation For Signal Connector
Manufacturer JAE or compatible
Type / Part Number FI-XB30SL-HF10 or compatible
Mating Housing/Part Number FI-X30H or compatible
7.2 Backlight Unit
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following
components.
Connector Name / Designation For Lamp Connector
Manufacturer JST
Type / Part Number BHSR-02VS-1
Mating Type / Part Number SM02B-BHSS-1-TB
7.3 Signal for Lamp connector
Pin # Cable color Signal Name
1 Red Lamp High Voltage
2
document version 0.3 23/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
White Lamp Low Voltage
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
8. Vibration and Shock Test
8.1 Vibration Test
Test Spec:
Test method: Non-Operation
Acceleration: 2.16G
Frequency: 10 - 500Hz Random
Sweep: 30 Minutes each Axis (X, Y, Z)
www.panelook.com
8.2 Shock Test Spec:
Test Spec:
Test method: Non-Operation
Acceleration: 240 G , Half sine wave
Active time: 2 ms
Pulse: X,Y,Z .one time for each side
document version 0.3 24/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
9. Reliability
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Items
Temperature
Humidity Bias
High Temperature
Operation
Low Temperature
Operation
On/Off Test
Hot Storage
Cold Storage
Thermal Shock Test
Hot Start Test
Cold Start Test
Shock Test
(Non-Operating)
Vibration Test
(Non-Operating)
Required Condition Note
40/90%,300Hr
60/Dry,300Hr
0,300Hr
25, ON/30 sec. OFF/30sec., 10,000 cycles)
60/35% RH ,250 hours
-20/50% RH ,250 hours
-20/30 min ,60/30 min 100cycles
50/1 Hr min. power on/off per 5 minutes, 5 times
0/1 Hr min. power on/off per 5 minutes, 5 times
240G, 2ms, Half-sine wave
Random vibration, 2.16 G zero-to-peak, 10 to 500 Hz, 30
mins in each of three mutually perpendicular axes.
ESD
Contact :8KV/ operation
Note 1
Air : 15KV / operation
Room temperature
Test
Note1: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures.
Note2: CCFL Life time: 10,000 hours minimum under normal module usage.
Note3: MTBF (Excluding the CCFL): 30,000 hours with a confidence level 90%
25, 2000hours, Operating with loop pattern
document version 0.3 25/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
10. Mechanical Characteristics
10.1 LCM Outline Dimension
www.panelook.com
document version 0.3 26/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
document version 0.3 27/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
10.2 Screw Hole Depth and Center Position
Screw hole minimum depth, from side surface =2.5 mm (See drawing)
Screw hole center location, from front surface = 3.1 ± 0.2mm (See drawing)
Screw Torque: Maximum 2.5 kgf-cm
document version 0.3 28/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
11. Shipping and Package
11.1 Shipping Label Format
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
Note 1:
IC Combination Control Code H/W
First Source
Second Source
OAXXX OA
1AXXX 1A
document version 0.3 29/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
11.2. Carton package
The outside dimension of carton is 455 (L)mm x 388 (W)mm x 355 (H)mm
11.3 Shipping package of palletizing sequence
Top cardboard
Bottom cardboard
12. Appendix: EDID description
Wooden pallet
Note : Limit of box palletizing = Max 3 layers(ship and stock conditions)
Corner angle
PE band
Stretch film
document version 0.3 30/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
12 EDID Description
Address FUNCTION Value Value Value Note
HEX HEX BIN DEC
00 Header 00 00000000 0
01 FF 11111111 255
02 FF 11111111 255
03 FF 11111111 255
04 FF 11111111 255
05 FF 11111111 255
06 FF 11111111 255
07 00 00000000 0
08 EISA Manuf. Code LSB 06 00000110 6
09 Compressed ASCII AF 10101111 175
0A
0B
0C 32-bit ser # 00 00000000 0
0D 00 00000000 0
0E 00 00000000 0
0F 00 00000000 0
10 Week of manufacture 01 00000001 1
11 Year of manufacture 0F 00001111 15
12 EDID Structure Ver. 01 00000001 1
13 EDID revision # 03 00000011 3
14
15
16
Video input def. (digital I/P, non-TMDS, CRGB)
Max H image size (rounded to cm)
Max V image size (rounded to cm)
ΣΠΕΦΔΥʹΠΕΖ
ΙΖΩ ͽ΄ͳΗΚΣΤΥ
47 01000111 71
11 00010001 17
80 10000000 128
1E 00011110 30
13 00010011 19
17
Display Gamma (=(gamma*100)-100)
78 01111000 120
Feature support (no DPMS, Active OFF, RGB, tmg
18
19 Red/green low bits (Lower 2:2:2:2 bits) 87 10000111 135
1A Blue/white low bits (Lower 2:2:2:2 bits) C5 11000101 197
1B Red x (Upper 8 bits) 94 10010100 148
1C Red y/ highER 8 bits 57 01010111 87
1D Green x 4F 01001111 79
document version 0.3 31/34
Blk#1)
0A 00001010 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
1E Green y 8C 10001100 140
1F Blue x 27 00100111 39
20 Blue y 25 00100101 37
21 White x 50 01010000 80
22 White y 54 01010100 84
23 Established timing 1 00 00000000 0
24 Established timing 2 00 00000000 0
25 Established timing 3 00 00000000 0
26 Standard timing #1 01 00000001 1
27 01 00000001 1
28 Standard timing #2 01 00000001 1
29 01 00000001 1
2A Standard timing #3 01 00000001 1
2B 01 00000001 1
2C Standard timing #4 01 00000001 1
2D 01 00000001 1
2E Standard timing #5 01 00000001 1
2F 01 00000001 1
30 Standard timing #6 01 00000001 1
31 01 00000001 1
32 Standard timing #7 01 00000001 1
33 01 00000001 1
34 Standard timing #8 01 00000001 1
35 01 00000001 1
36 Pixel Clock/10000 LSB 38 00111000 56
37 Pixel Clock/10000 USB 22 00100010 34
38 Horz active Lower 8bits A0 10100000 160
39 Horz blanking Lower 8bits A0 10100000 160
3A HorzAct:HorzBlnk Upper 4:4 bits 50 01010000 80
3B Vertical Active Lower 8bits 84 10000100 132
3C Vertical Blanking Lower 8bits 0C 00001100 12
3D Vert Act : Vertical Blanking (upper 4:4 bit) 30 00110000 48
3E HorzSync. Offset 30 00110000 48
3F HorzSync.Width 20 00100000 32
40 VertSync.Offset : VertSync.Width 36 00110110 54
document version 0.3 32/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
41 Horz&Vert Sync Offset/Width Upper 2bits 00 00000000 0
42 Horizontal Image Size Lower 8bits 30 00110000 48
43 Vertical Image Size Lower 8bits BE 10111110 190
44 Horizontal & Vertical Image Size (upper 4:4 bits) 10 00010000 16
45 Horizontal Border (zero for internal LCD) 00 00000000 0
46 Vertical Border (zero for internal LCD) 00 00000000 0
47 Signal (non-intr, norm, no stero, sep sync, neg pol) 18 00011000 24
48 Detailed timing/monitor 00 00000000 0
49 descriptor #2 00 00000000 0
4A 00 00000000 0
4B 0F 00001111 15
4C 00 00000000 0
4D 00 00000000 0
4E 00 00000000 0
4F 00 00000000 0
50 00 00000000 0
51 00 00000000 0
52 00 00000000 0
53 00 00000000 0
54 00 00000000 0
55 00 00000000 0
56 00 00000000 0
57 00 00000000 0
58 00 00000000 0
59 20 00100000 32
5A Detailed timing/monitor 00 00000000 0
5B descriptor #3 00 00000000 0
5C 00 00000000 0
5D FE 11111110 254
5E 00 00000000 0
5F Manufacture 41 01000001 65 A
60 Manufacture 55 01010101 85 U
61 Manufacture 4F 01001111 79 O
62 0A 00001010 10
63 20 00100000 32
document version 0.3 33/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
B141PW01 V1
64 20 00100000 32
65 20 00100000 32
66 20 00100000 32
67 20 00100000 32
68 20 00100000 32
69 20 00100000 32
6A 20 00100000 32
6B 20 00100000 32
6C Detailed timing/monitor 00 00000000 0
6D descriptor #4 00 00000000 0
6E 00 00000000 0
6F FE 11111110 254
70 00 00000000 0
71 Manufacture P/N 42 01000010 66 B
72 Manufacture P/N 31 00110001 49 1
73 Manufacture P/N 34 00110100 52 4
74 Manufacture P/N 31 00110001 49 1
75 Manufacture P/N 50 01010000 80 P
76 Manufacture P/N 57 01010111 87 W
77 Manufacture P/N 30 00110000 48 0
78 Manufacture P/N 31 00110001 49 1
79 Manufacture P/N 20 00100000 32
7A Manufacture P/N 56 01010110 86 V
7B Manufacture P/N 31 00110001 49 1
7C 20 00100000 32
7D 0A 00001010 10
7E Extension Flag 00 00000000 0
7F Checksum 6F 01101111 111
document version 0.3 34/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
