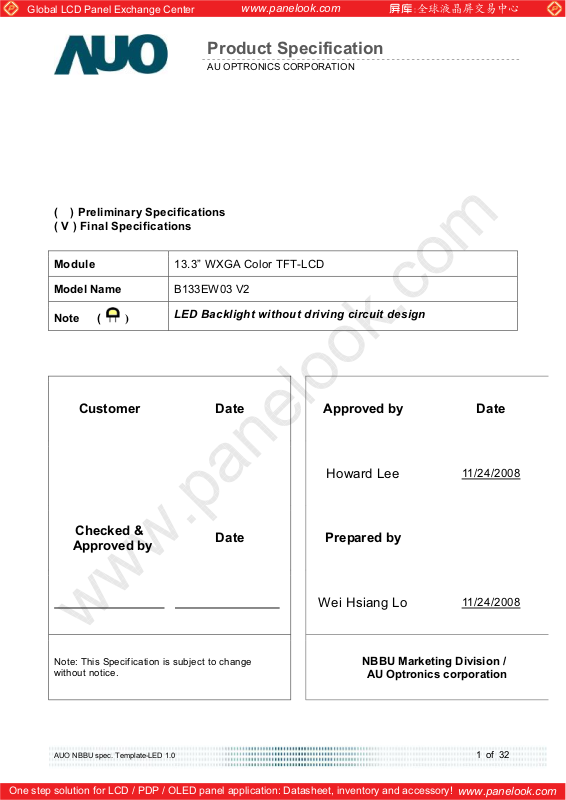

Global LCD Panel Exchange Center
( ) Preliminary Specifications
( V ) Final Specifications
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Module
Model Name
Note ( )
13.3” WXGA Color TFT-LCD
B133EW03 V2
LED Backlight without driving circuit design
Customer Date
Checked &
Approved by
Date
Approved by Date
Howard Lee
11/24/2008
Prepared by
Wei Hsiang Lo
Note: This Specification is subject to change
without notice.
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
NBBU Marketing Division /
AU Optronics corporation
11/24/2008
1of32
www.panelook.com
Global LCD Panel Exchange Center
1. Handling Precautions............................................................... 4
2. General Description .................................................................5
2.1 General Specification ......................................................................................................................5
2.2 Optical Characteristics ....................................................................................................................6
3. Functional Block Diagram ......................................................11
4. Absolute Maximum Ratings.................................................... 12
4.1 Absolute Ratings of TFT LCD Module..........................................................................................12
4.2 Absolute Ratings of Environment ..................................................................................................12
5. Electrical characteristics ........................................................ 13
5.1 TFT LCD Module.........................................................................................................................13
5.2 Backlight Unit...............................................................................................................................15
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Contents
6. Signal Characteristic .............................................................. 16
6.1 Pixel Format Image.......................................................................................................................16
6.2 The input data format....................................................................................................................17
6.3 Signal Description/Pin Assignment ................................................................................................18
6.4 Interface Timing............................................................................................................................21
7. Connector Description ...........................................................24
7.1 TFT LCD Module.........................................................................................................................24
8. LED Driving Specification.......................................................25
8.1 Connector Description..................................................................................................................25
8.2 Pin Assignment .............................................................................................................................25
9. Vibration and Shock Test ....................................................... 26
9.1 Vibration Test ...............................................................................................................................26
9.2 Shock Test Spec: ..........................................................................................................................26
10. Reliability ............................................................................ 27
11. Mechanical Characteristics................................................... 28
11.1 LCM Outline Dimension .............................................................................................................28
12. Shipping and Package..........................................................30
12.1 Shipping Label Format ................................................................................................................30
12.2 Carton package...........................................................................................................................31
11.3 Shipping package of palletizing sequence ....................................................................................32
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2of32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2008/11/24 All First Edition for Customer
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3of32
www.panelook.com
Global LCD Panel Exchange Center
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input
connector.
3) Wipe off water drop immediately. Long contact with water may cause
discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft
cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on
hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) At the insertion or removal of the Signal Interface Connector, be sure not to
rotate nor tilt the Interface Connector of the TFT Module.
11)After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing
the enclosure, it should be taken into consideration that no bending/twisting
forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12)Small amount of materials having no flammability grade is used in the LCD module.
The LCD module should be supplied by power complied with requirements of Limited
Power Source (IEC60950 or UL1950), or be applied exemption.
13)Disconnecting power supply before handling LCD modules, it can prevent electric
shock, DO NOT TOUCH the electrode parts, cables, connectors and LED circuit part
of TFT module that a LED light bar build in as a light source of back light unit. It can
prevent electrostic breakdown.
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4of32
www.panelook.com
Global LCD Panel Exchange Center
2. General Description
B133EW03 V2 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD
panel, a driver circuit, and LED backlight system. The screen format is intended to support
the WXGA (1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver) with LED
backlight driving circuit. All input signals are LVDS interface compatible.
B133EW03 V2 is designed for a display unit of notebook style personal computer and
industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 condition:
Items Unit Specifications
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Screen Diagonal [mm] 337.8 (13.3W”)
Active Area [mm] 286.08 X 178.8
Pixels H x V 1280x3(RGB) x 800
Pixel Pitch [mm] 0.2235X0.2235
Pixel Format R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance (ILED=16mA)
(Note: ILED is LED current)
[cd/m2] 280 typ. (5 points average)
250 min. (5 points average)
Luminance Uniformity 1.25 max. (5 points)
Contrast Ratio 500 typ ,
Response Time [ms] 20 typ / 25 Max
Nominal Input Voltage VDD [Volt] +3.3 typ.
Power Consumption [Watt] 4.2 typ. (Include Logic and Blu power)
Weight [Grams] 219 max.
Physical Size [mm]
LWT
Max 3.045
Typ 297.15 203.15 2.86
Min
Electrical Interface 1 channel LVDS
Surface Treatment Glare, Hardness 3H,
Reflection ~0.5%
Support Color 262K colors ( RGB 6-bit )
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5of32
www.panelook.com
Global LCD Panel Exchange Center
ge(
g)
Temperature Range
Operating
Stora
Non-Operatin
RoHS Compliance RoHS Compliance
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature) :
Item Unit Conditions Min. Typ. Max. Note
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
[oC]
[oC]
0 to +50
-25 to +65
White Luminance
[cd/m2] 5 points average 250 280 -
(ILED=16mA)
Viewing Angle
[degree]
[degree]
[degree]
[degree]
Luminance
Uniformity
Luminance
Uniformity
CR: Contrast Ratio
Cross talk %
Response Time
[msec] Rising
[msec] Falling
[msec] Rising + Falling
Chromaticity of color
Coordinates
(CIE 1931)
Horizontal
(Right)
CR = 10 (Left)
Vertical
(Upper)
CR = 10 (Lower)
5Points
13 Points
-
-
-
-
- - 1.25
- - 1.50
DCR:Off 300 500 -
4
-
- - -
- 20 25
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
0.575 0.600 0.625
0.325 0.345 0.365
0.300 0.320 0.340
0.530 0.555 0.580
0.130 0.150 0.170
0.100 0.120 0.130
0.263 0.313 0.363
0.279 0.329 0.379
75
75
60
60
-
-
-
-
-
-
1, 4, 5.
4, 9
1, 3, 4
2, 3, 4
4, 6
4, 7
4, 8
4, 9
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6of32
www.panelook.com
Global LCD Panel Exchange Center
Note 1: 5 points position (Ref: Active area)
H/4
H/4
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
W
W/4 W/4 W/4 W/4
12
H
H/4
H/4
Note 2: 13 points position (Ref: Active area)
W/4
10
10
H/4
H/4
H
H/4
1
6
3
45
W
W/4
W/4
2
4
7
W/4
10
3
5
8
10
1312
H/4
10
9
11
Note 3: The luminance uniformity of 5 or13 points is defined by dividing the maximum luminance values by
the minimum test point luminance
Maximum Brightness of five points
=
W5
Minimum Brightness of five points
Maximum Brightness of thirteen points
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
AUO NBBU spec. Template-LED 1.0
W13
=
Minimum Brightness of thirteen points
7of32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
g
g
lighting Backlight for 30 minutes in a stable, windless and dark room.
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Photo detector
Field=2
Note 5 Definition of Average Luminance of White (Y
Measure the luminance of gray level 63 at 5 pointsY
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6 Definition of contrast ratio:
Contrast ratio is calculated with the following formula.
htness on the “White” state
Bri
):
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
Contrast ratio(CR)=
Bri
htness on the “Black” state
Note 7 Definition of Cross Talk (CT)
-
CT = | Y
Where
Y
A = Luminance of measured location without gray level 0 pattern (cd/m2)
Y
B = Luminance of measured location with gray level 0 pattern (cd/m2)
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
B – YA | / YA × 100 (%)
8of32
www.panelook.com
Global LCD Panel Exchange Center
Note 8: Definition of response time:
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black”
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
to “White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval
between the 10% and 90% of amplitudes. Refer to figure as below.
Signal(Relative value)
100%
90%
10%
0%
Tr
"Black"
Tf
"White""White"
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9of32
www.panelook.com
Global LCD Panel Exchange Center
Note 9. Definition of viewing angle
Viewing angle is the measurement of contrast ratio 10, at the screen center, over a 180° horizontal
and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as
follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement
direction is typically perpendicular to the display surface with the screen rotated about its center to develop
the desired measurement viewing angle.
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 of 32
www.panelook.com
Global LCD Panel Exchange Center
3. Functional Block Diagram
The following diagram shows the functional block of the 13.3 inches wide Color TFT/LCD Module:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Y-Driver
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 of 32
www.panelook.com
Global LCD Panel Exchange Center
4. Absolute Maximum Ratings
An absolute maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 4
Operation Humidity HOP 10 90 [%RH] Note 4
Storage Temperature TST -25 +65 [oC] Note 4
Storage Humidity HST
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Vin -0.3 +4.0 [Volt] Note 1,2
10 90
[%RH]
Note 4
Note 1: At Ta (25 )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: LED specification refer to section 5.2
Note 4: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Twb=39°C
Operating Range Storage Range
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 of 32
www.panelook.com
Global LCD Panel Exchange Center
g
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symble Parameter Min Typ Max Units Note
VDD Logic/LCD Drive
Volta
PDD VDD Power
IDD IDD Current
IRush Inrush Current
VDDrp Allowable
Logic/LCD Drive
Ripple Voltage
e
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
3.0 3.3 3.6 [Volt]
-
- 220
- -
- -
- 0.90 [Watt] Note 1/2
250
[mA]
1500 [mA]
100 [mV]
p-p
Note 1/2
Note 3
Note 1 : Maximum Measurement ConditionBlack Pattern
Note 2Typical Measurement Condition: Mosaic Pattern
Note 3Measure Condition
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
+5.0V
C2
1uF/25V
R1
47K
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
VCC
C1
1uF/16V
(LCD Module Input)
90%
3.3V
10%
0V
0.5ms
Vin rising time
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 of 32
www.panelook.com
Global LCD Panel Exchange Center
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off.
It is recommended to refer the specifications of THC63LVDF84A (Thine Electronics
Inc.) in detail.
Signal electrical characteristics are as follows;
Parameter Condition Min Max Unit
Differential Input High
Vth
Threshold (Vcm=+1.2V)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
100 [mV]
-
Differential Input Low
Vtl
Vcm
Note: LVDS Signal Waveform
V
t
Threshold (Vcm=+1.2V) -100
Differential Input
Common Mode Voltage
VSS
Vcm
1.125
-
1.375
[mV]
[V]
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
..
14 of 32
www.panelook.com
Global LCD Panel Exchange Center
(
)
5.2 Backlight Unit
LED Parameter guideline for LED driving selection
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Parameter
Symbol
Min Typ Max Units Condition
LED Forward Voltage VF 3.0 3.2 3.3 [Volt]
LED Forward Current I
LED Power consumption
LED Life-Time
Note 1: Calculator value for reference P
Note 2: The LED life-time define as the estimated time to 50% degradation of initial luminous.
F
P
2.76
LED
N/A 10,000 - -
=IF ×VF × LED(Qty)
LED
16 30 [mA]
[Watt]
Hour
(Ta=25)
Ta=25
(Ta=25)
Note 1
(Ta=25)
IF=16 mA
Note 2
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
0 1 1278 1279
1st Line
800th Line
R G B R G B
R G B R G B
R G B R G B
R G B R G B
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 of 32
www.panelook.com
Global LCD Panel Exchange Center
6.2 The input data format
Signal Name Description
R5
R4
R3
R2
R1
R0
RedData5(MSB)
RedData4
RedData3
RedData2
RedData1
RedData0(LSB)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Red-pixel Data
Each red pixel's brightness data consists of
these 6 bits pixel data.
Red-pixel Data
G5
G4
G3
G2
G1
G0
Green Data 5 (MSB)
Green Data 4
Green Data 3
Green Data 2
Green Data 1
Green Data 0 (LSB)
Green-pixel Data
Each green pixel's brightness data consists of
these 6 bits pixel data.
Green-pixel Data
B5
B4
B3
B2
B1
B0
Blue Data 5 (MSB)
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0 (LSB)
Blue-pixel Data
Each blue pixel's brightness data consists of
these 6 bits pixel data.
Blue-pixel Data
RxCLKIN Data Clock The typical frequency is 68.9 MHZ.. The signal
is used to strobe the pixel data and DE signals.
All pixel data shall be valid at the falling edge
when the DE signal is high.
DE Display Timing This signal is strobed at the falling edge of
RxCLKIN. When the signal is high, the pixel
data shall be valid to be displayed.
VS Vertical Sync The signal is synchronized to RxCLKIN .
HS Horizontal Sync The signal is synchronized to RxCLKIN .
Note: Output signals from any system shall be low or High-impedance state when VDD is off.
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.3 Integration Interface and Pin Assignment
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 of 32
www.panelook.com
Global LCD Panel Exchange Center
Note1: Start from right side
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Connector
1
GND
30
NC
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note2: Input signals shall be low or High-impedance state when VDD is off.
internal circuit of LVDS inputs are as following.
The module uses a 100ohm resistor between positive and negative data lines of each receiver input
Signal Input
LVDS Receiver
Pin No.
8
RxIN0-
R
9
11
12
14
15
17
18
RxIN0+
RxIN1-
R
RxIN1+
RxIN2-
R
RxIN2+
RxCLKIN-
R
RxCLKIN+
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1280x800 /60Hz manufacturing guide line
timing.
Note : DE mode only
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 of 32
www.panelook.com
Global LCD Panel Exchange Center
6.4.2 Timing diagram
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
DOTCLK
Input
Data
DE
DE
T
CLOCK
Invaild
Data
T
HB
Input Timing Definition ( DE Mode)
Pixel
1
T
VB
Pixel
2
T
Pixel
3
T
HD
H
T
V
Pixel
N-1
T
VD
Pixel
N
Invaild
Data
Pixel
1
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.5 Power ON/OFF Sequence
LED on/off sequence is as follows. Interface signals are also shown in the chart.
T1
90%
90%
Power Supply VDD
LVDS Interface
Backlight On
Power Sequence Timing
10%
Parameter
T2
T5
VALID
T3
Min. Typ. Max.
DATA
T4
Value
T6
10%
T7
Units
T1 0.15 - 10
T2 0 20 50
T3 200 250 -
T4 200 250 -
T5 0 20 50
T6 - - 5
T7 500 - -
ms
ms
ms
ms
ms
ms
ms
Note: The duty of LED dimming signal should be more than 20% in T2 and T3.
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7. Connector Description
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following
components.
7.1 TFT LCD Module
Connector Name / Designation For Signal Connector
Manufacturer IPEX
Type / Part Number
Mating Housing/Part Number
IPEX 20347-330E-12
IPEX 20345-030T-31
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 of 32
www.panelook.com
Global LCD Panel Exchange Center
8. LED Specification
8.1 General Information
LED Manufacturer Nichia
LED Manufacture Assembly P/N NNSW108-S1
Number of LEDs 54
LED bin a6255, a6256, a6257, a6258, a6265, a6266, a6267,
LED ranks 1800 mcd ~ 2400 mcd
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
a6268, bj255, bj256, bj257, bj258, bj265, bj266,
bj267, bj268
LED brightness bin 50 mcd per bin
LED Vf 0.2V per bin
LED Forward Voltage Range for All 6 LED Series
Lines
Max: 30.6 V
8.2 LED Connection
String LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 LED 8 LED 9
1 1 7 13 19 25 31 37 43 49
2 2 8 14 20 26 32 38 44 50
3 3 9 15 21 27 33 39 45 51
4 4 10 16 22 28 34 40 46 52
5 5 11 17 23 29 35 41 47 53
6 6 12 18 24 30 36 42 48 54
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 of 32
www.panelook.com
Global LCD Panel Exchange Center
9. Vibration and Shock Test
9.1 Vibration Test
Test Spec:
Test method: Non-Operation
Acceleration: 3.0 G
Frequency: 5 - 150Hz Random
Sweep: 30 Minutes each Axis (X, Y, Z)
9.2 Shock Test Spec:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Test Spec:
Test method: Non-Operation
Acceleration: 200 G , Half sine wave
Active time: 2 ms
Pulse: X,Y,Z .one time for each side
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 of 32
www.panelook.com
Global LCD Panel Exchange Center
10. Reliability
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Items
Temperature
Humidity Bias
High Temperature
Operation
Low Temperature
Operation
High Temperature
Storage
Low Temperature
Storage
Thermal Shock
Test
ESD
Ta= 50
Ta= 50
Ta= 0
Ta= 65
Ta= -25, RH, 500h
Ta=-20to 60, Duration at 30 min, 100 cycles
Contact : ±8KV
Air : ±15 KV
Note1:
According to EN 61000-4-2 , ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures.
, 90%RH, 240h
, RH, 300h
, RH, 300h
, RH, 500h
Required Condition Note
Note 1
Remark:
MTBF (Excluding the LED): 30,000 hours with a confidence level 90%
AUO NBBU spec. Template-LED 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 of 32
www.panelook.com
28 of 32
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
-
11. Mechanical Characteristics
11.1 LCM Outline Dimension
29 of 32
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Global LCD Panel Exchange Center
12. Shipping and Package
12.1 Shipping Label Format
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
12.2 Carton package
The outside dimension of carton is 435 (L)mm x 377 (W)mm x 335 (H)mm
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31 of 32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
11.3 Shipping package of palletizing sequence
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 of 32
www.panelook.com
Loading...
