Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications (V ) Final Specifications
Module WXGA Color TFT-LCD with LED Backlight design
Model Name B121EW09 V3 (H/W:1A)
Note ( )
Customer Date
Checked &
LED Backlight with driving circuit design
Approved by Date
Howard Lee 2009/12/24
Date
Prepared by Date
Approved by
Note: This Specification is subject to change without notice.
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Donna Yang 2009/12/24
NBBU Marketing Division /
AU Optronics corporation
1 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Contents
1. Handling Precautions .............................................................. 5
2. General Description................................................................. 6
2.1 General Specification ..................................................................................................................... 6
2.2 Optical Characteristics.................................................................................................................... 7

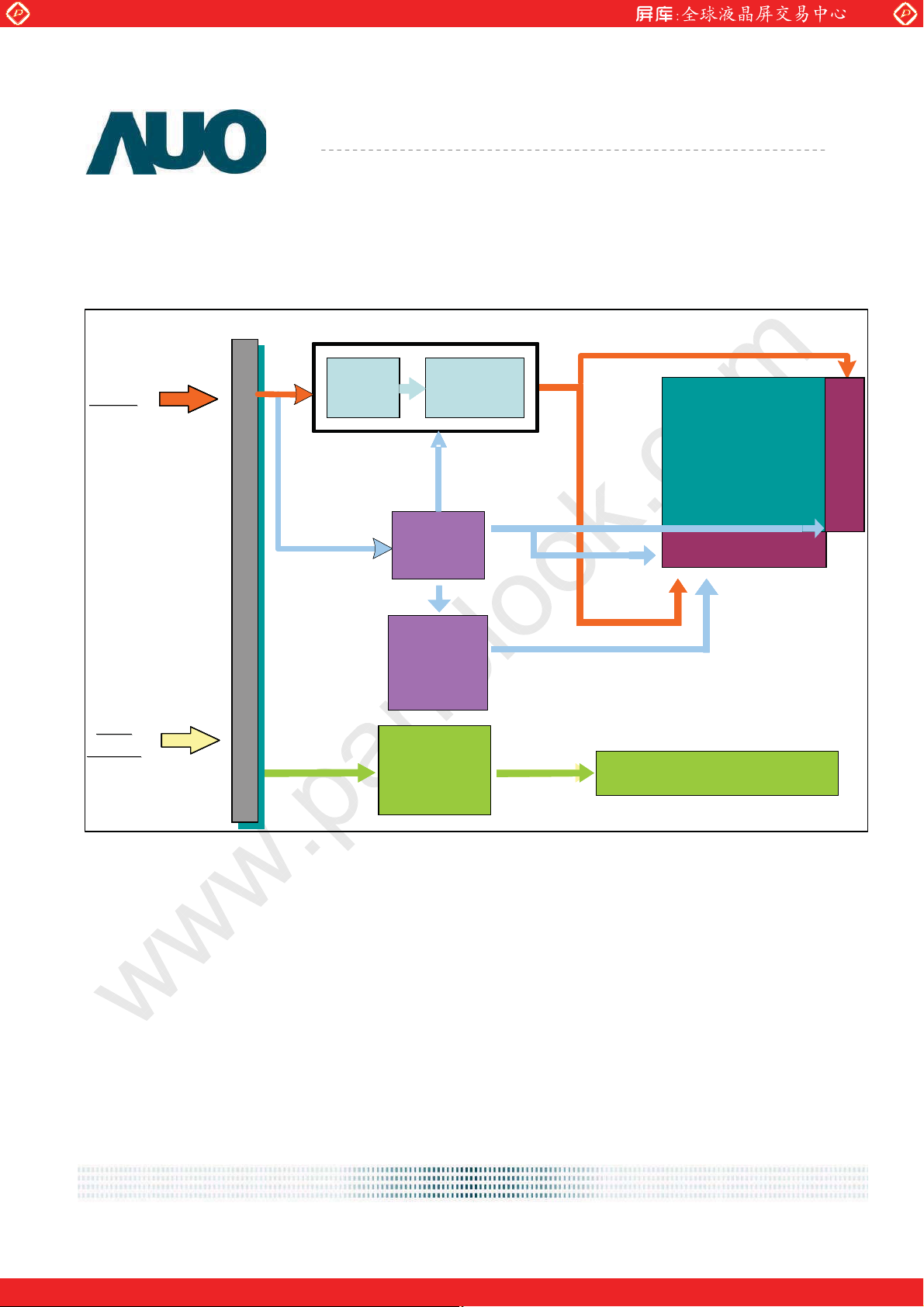

3. Functional Block Diagram...................................................... 12
4. Absolute Maximum Ratings ................................................... 13
4.1 Absolute Ratings of TFT LCD Module..........................................................................................13
4.2 Absolute Ratings of Backlight Unit................................................................................................13

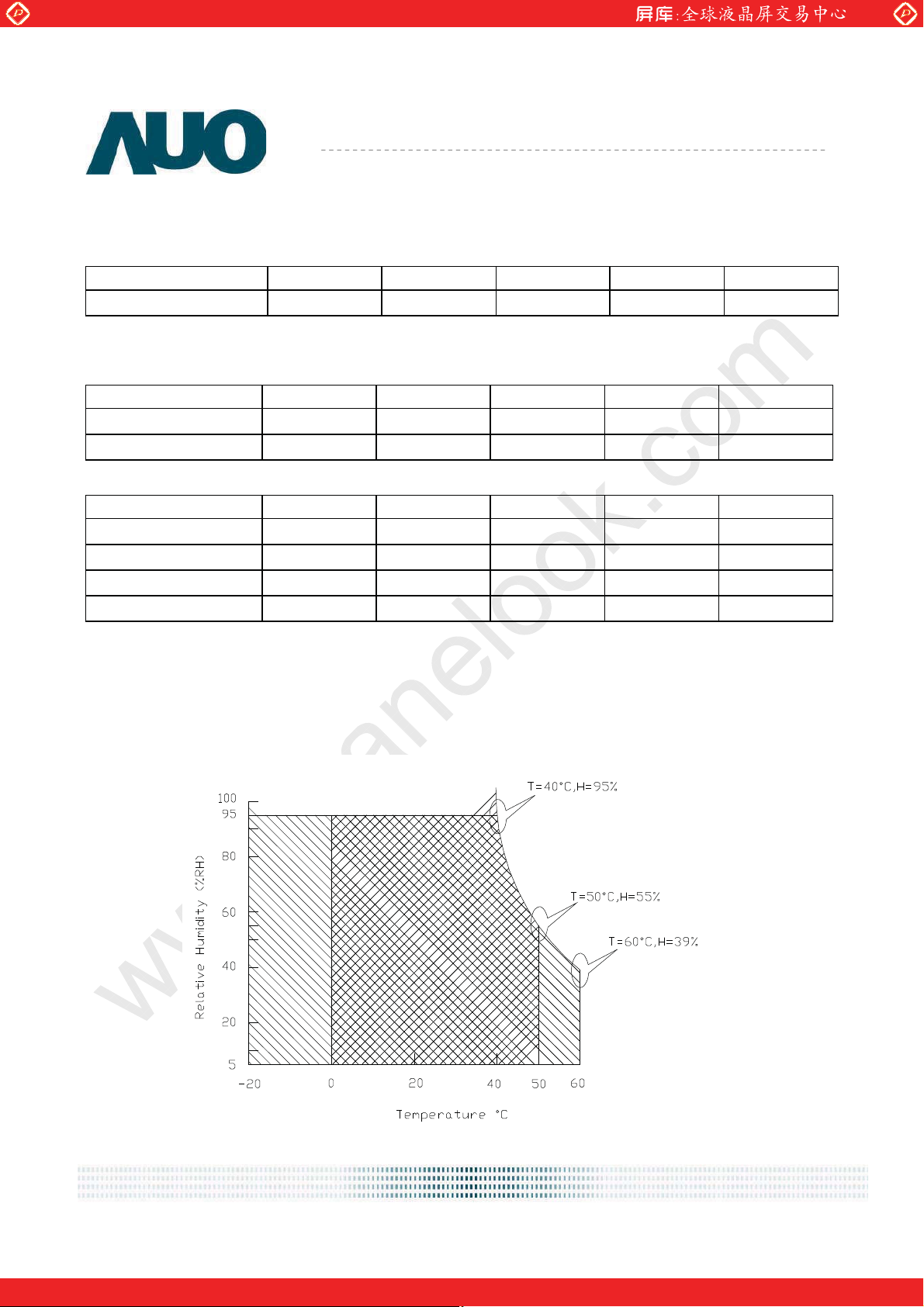

4.3 Absolute Ratings of Environment ..................................................................................................13
5. Electrical characteristics ....................................................... 14
5.1 TFT LCD Module.........................................................................................................................14
5.2 Backlight Unit...............................................................................................................................15
6. Signal Characteristic ............................................................. 17

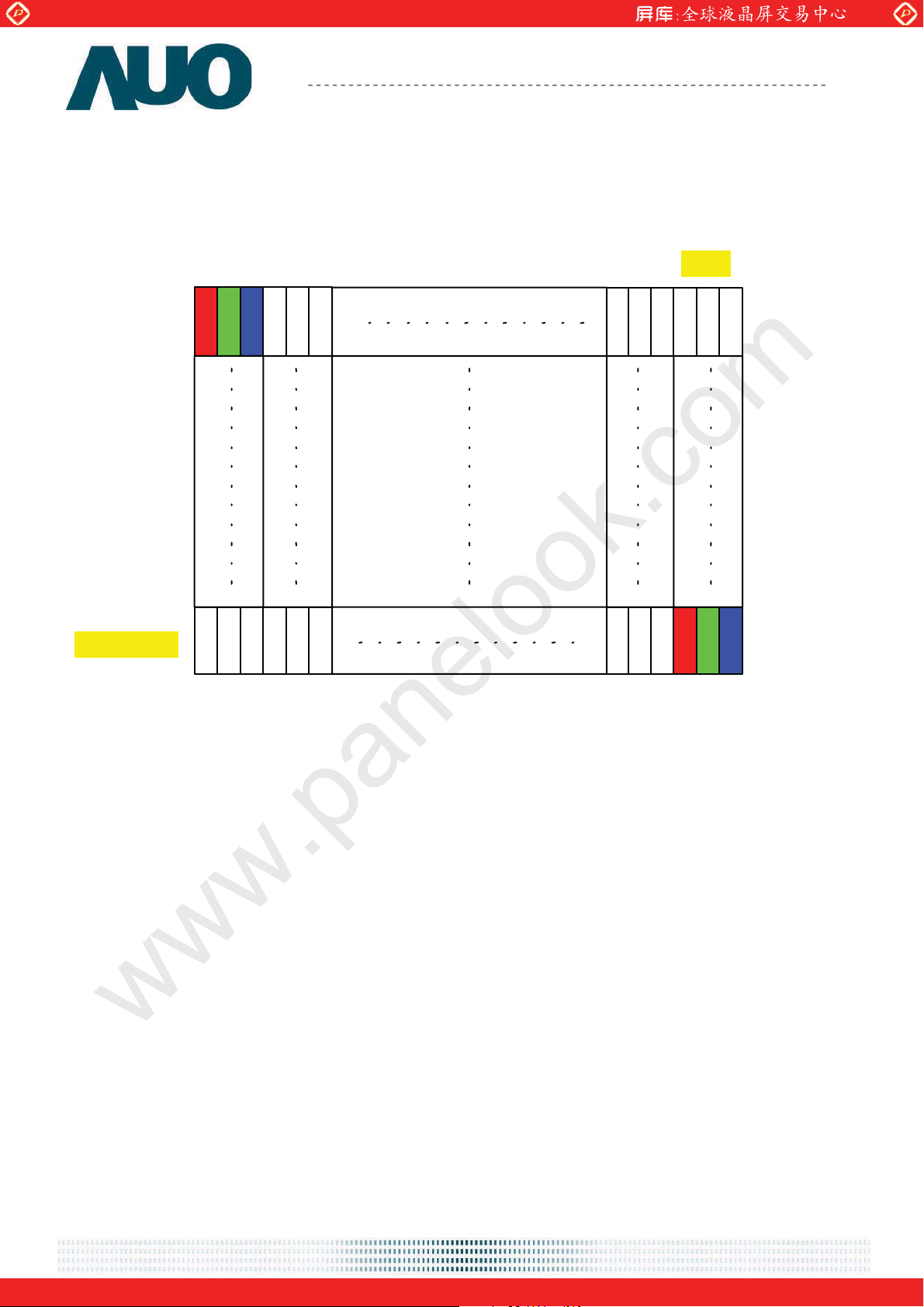

6.1 Pixel Format Image.......................................................................................................................17

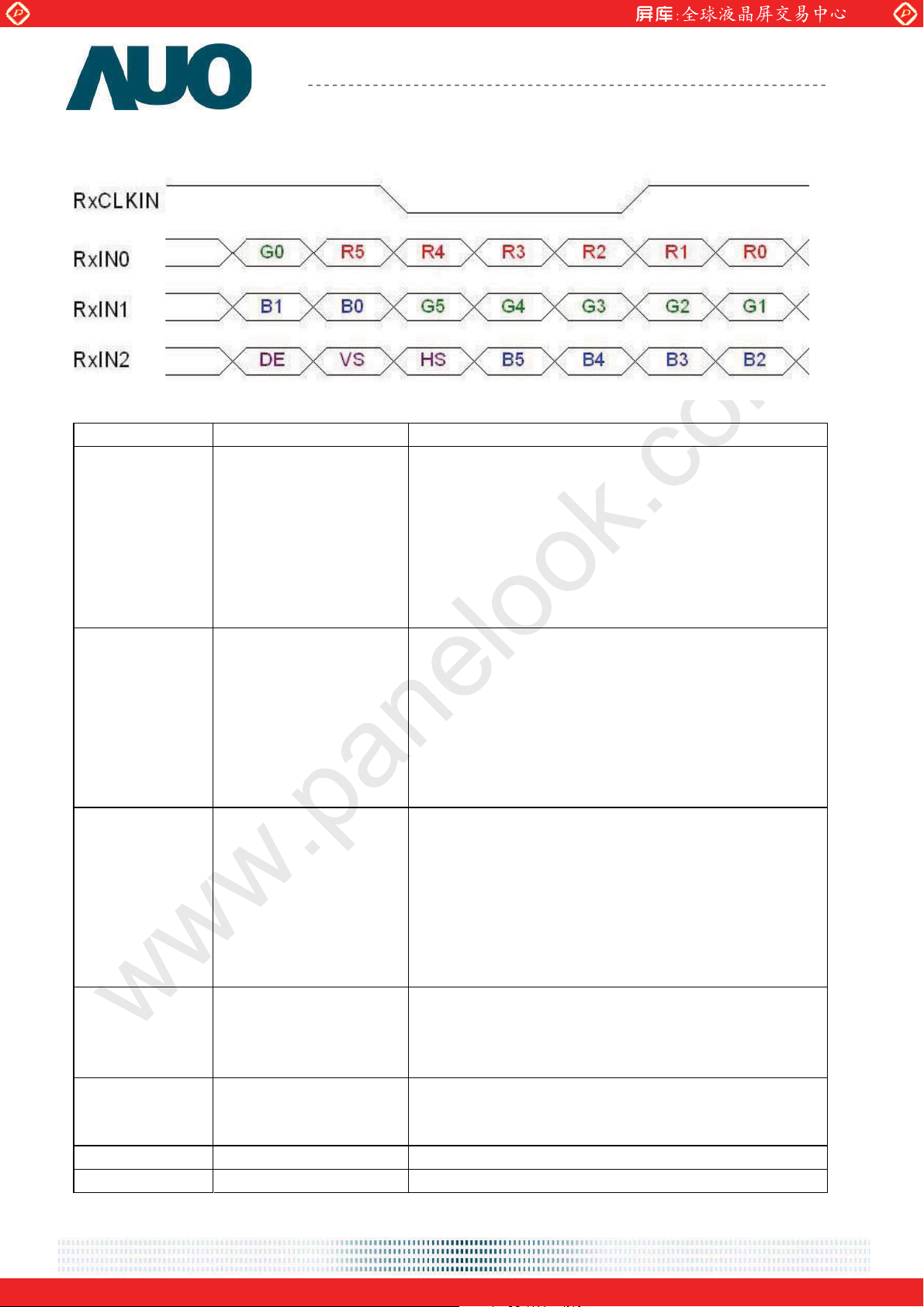

6.2 The input data format....................................................................................................................18
6.3 Signal Description/Pin Assignment ................................................................................................19
6.4 Interface Timing............................................................................................................................21

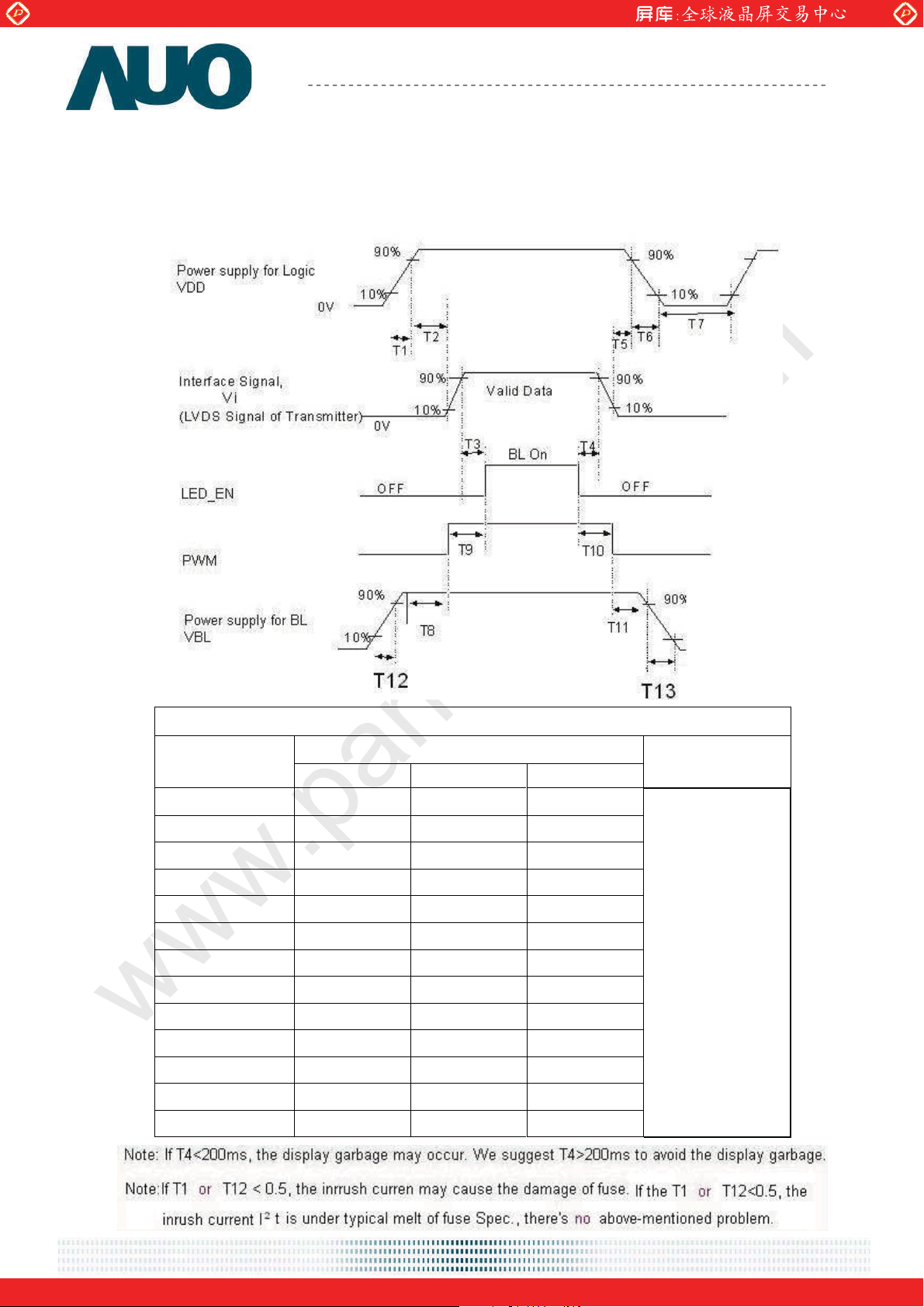

6.5 Power ON /OFF Sequence............................................................................................................23
7. Connector Description ........................................................... 24
7.1 TFT LCD Module.........................................................................................................................24
8. 8. LED Driving Specification .................................................. 25
8.1 Connector Description ..................................................................................................................25
8.2 Pin Assignment..............................................................................................................................25
9. Vibration and Shock Test ................................................................................................................26
9.1 Vibration Test................................................................................................................................26
9.2 Shock Test Spec:...........................................................................................................................26
10. Reliability ............................................................................ 27

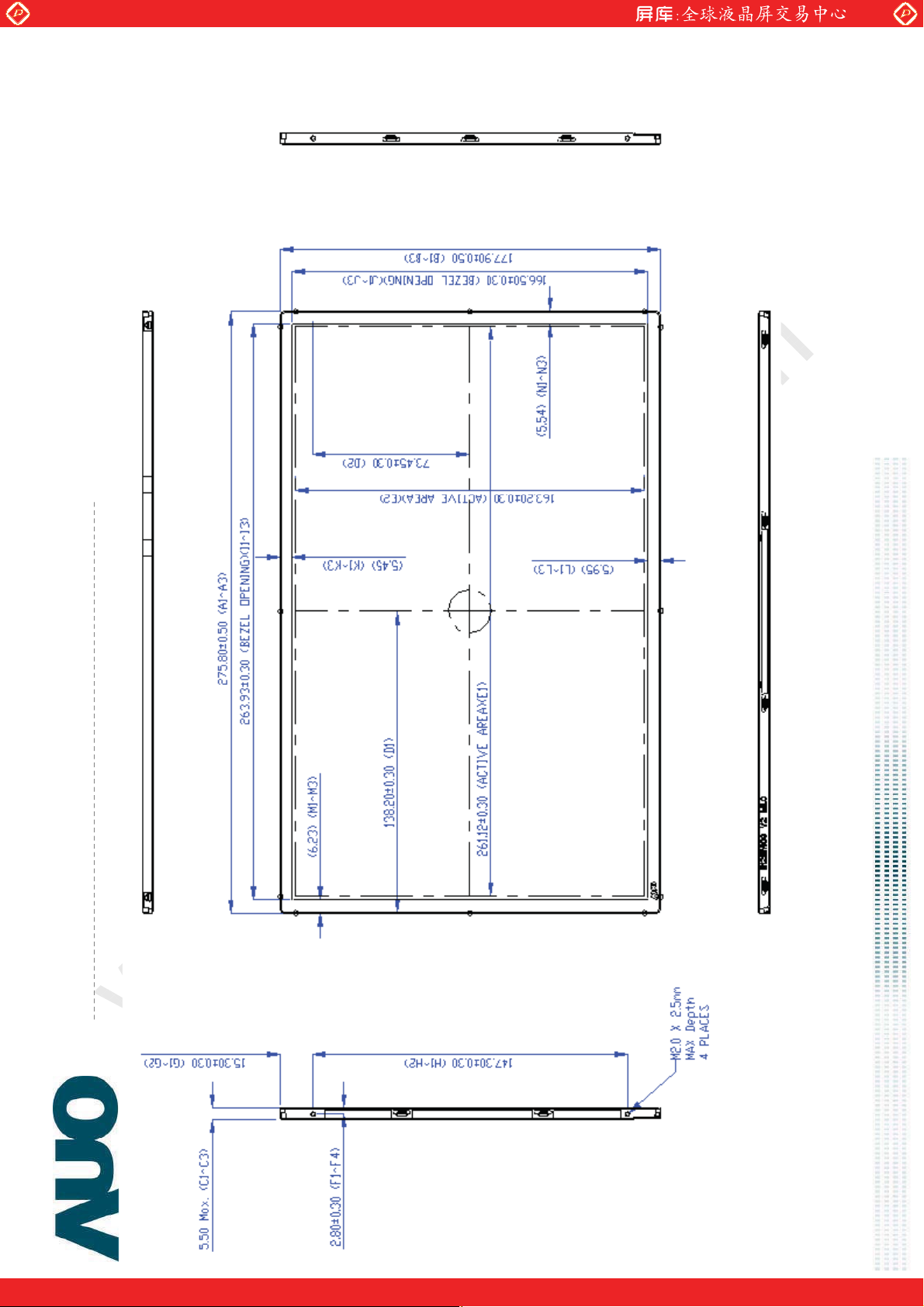

11. Mechanical Characteristics .................................................. 28

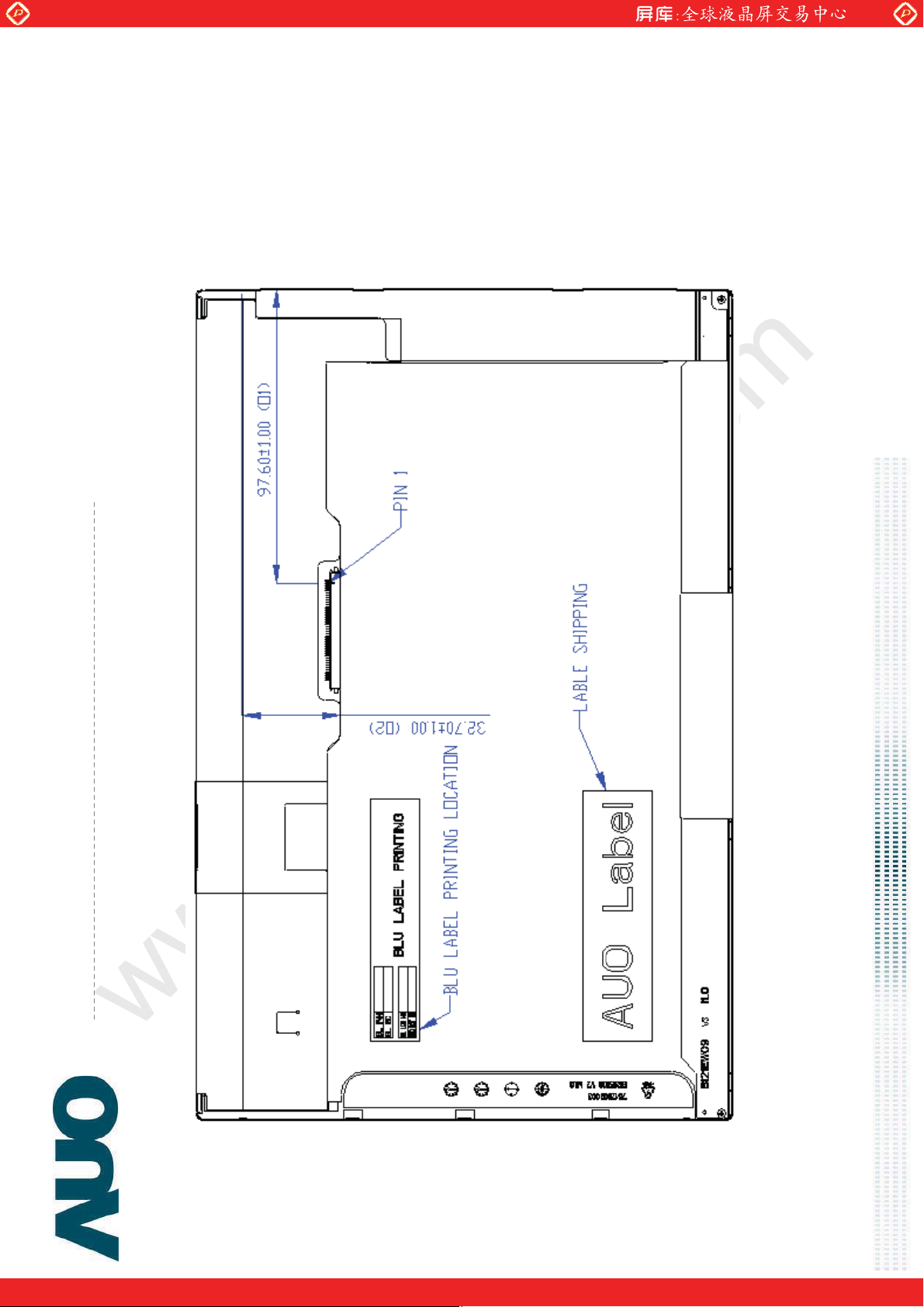

11.1 LCM Outline Dimension..............................................................................................................28

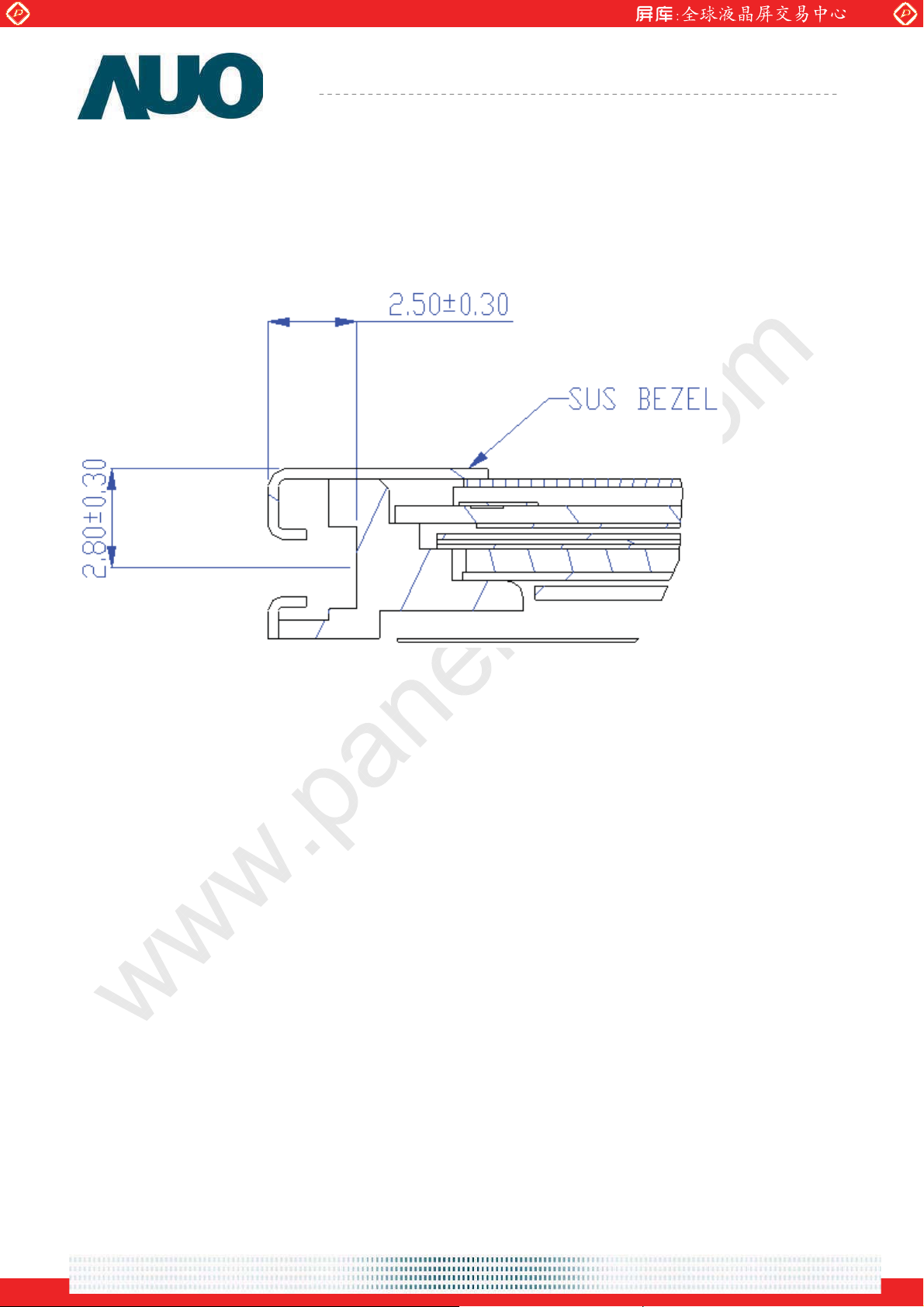

11.2 Screw Hole Depth and Center Position........................................................................................30
12. Shipping and Package ......................................................... 31

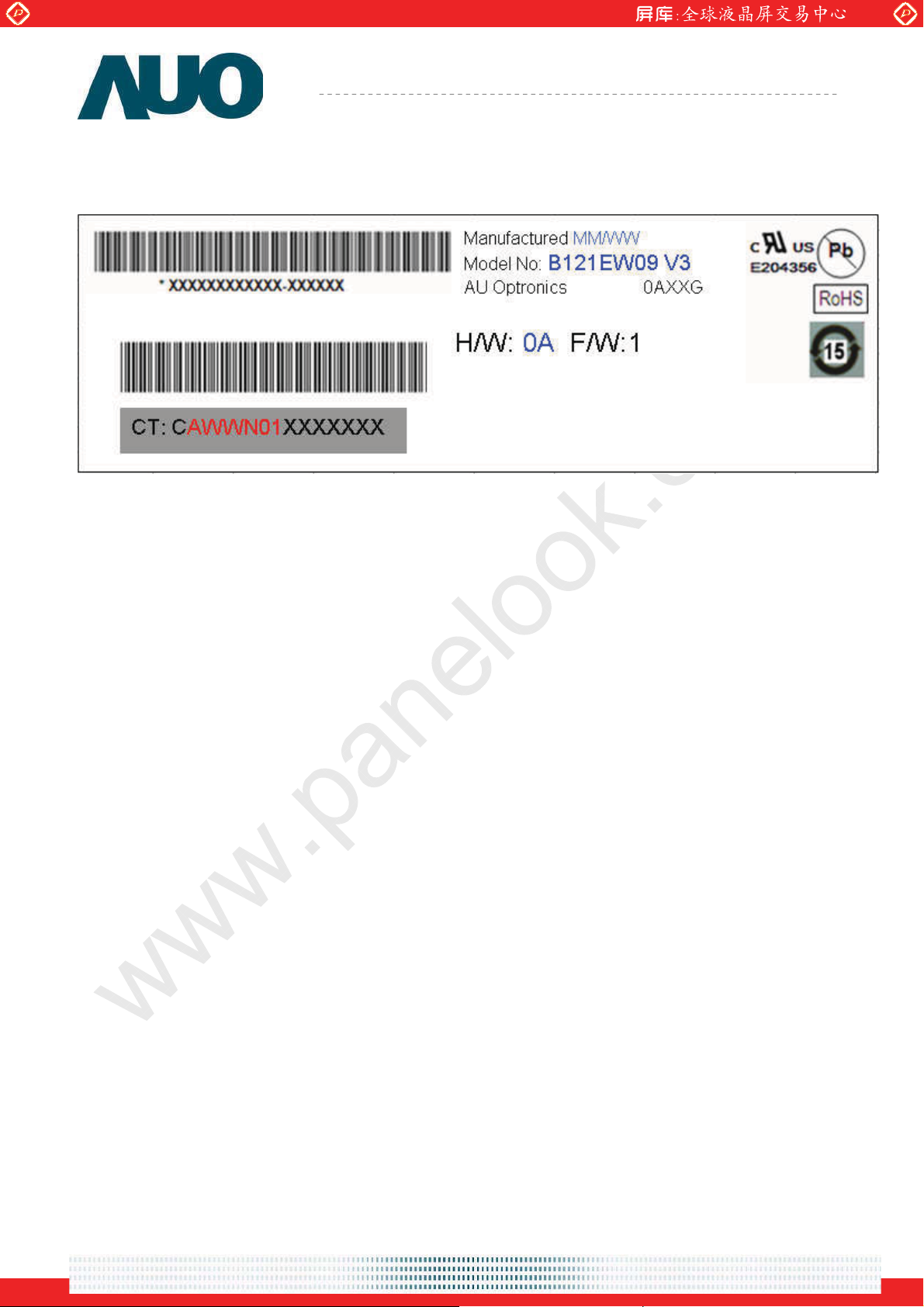

12.1 Shipping Label Format ................................................................................................................31
12.2 Carton package...........................................................................................................................32
12.3 Shipping package of palletizing sequence.....................................................................................32
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
13. Appendix: EDID description ................................................ 33
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2009/1/21
0.2 2009/5/12 32 Update shipping label
0.3 2009/6/09 6 Update min. brightness
0.3 2009/6/09 7 Update Color Chromaticity
0.3 2009/6/09 23
0.4 2009/7/22 16
0.4 2009/7/22 23
0.5 2009/9/29 37
1.0 2009/11/01 29
1.0 2009/11/01 31
1.1 2009/12/24 29
1.1 2009/12/24 31
Update Power ON /OFF Sequence
Update duty ratio min. spec
Update Power ON /OFF Sequence
Delete IIS data
Update 2D graph
Update shipping label (add H/W &
F/W)
Update 2D graph
Update shipping label
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are
applied to the TFT Module from outside. Otherwise the TFT Module may be
damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13)Disconnecting power supply before handling LCD modules, it can prevent electric shock, DO
NOT TOUCH the electrode parts, cables, connectors and LED circuit part of TFT module
that a LED light bar build in as a light source of back light unit. It can prevent electrostic
breakdown.
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2. General Description
B121EW09 V3 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a
driver circuit, and LED backlight system. The screen format is intended to support the WXGA
(1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving
circuit. All input signals are LVDS interface compatible.
B121EW09 V3 is designed for a display unit of notebook style personal computer and industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 ʚ condition:
Items Unit Specifications
Screen Diagonal [mm] 307.9 (12.1W”)
Active Area [mm] 261.12(H) X 163.20(V)
Pixels H x V 1280x3(RGB) x 800
Pixel Pitch [mm] 0.204X0.204
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance (I
LED
=20mA)
[cd/m
2
] 220 typ. (5 points average)
187 min. (5 points average) Luminance Uniformity 1.25 max. (5 points)
Contrast Ratio 300 typ
Response Time [ms] 16 typ / 25 Max
Nominal Input Voltage VDD [Volt] +3.3 typ.
Power Consumption [Watt] 3.87 max.(Include Logic and BLU power)
Weight [Grams] 295 max. Physical Size [mm]
L W T
Max 276.3 178.6 5.3
Typical 275.8 178.1 -
Min 275.3 - -
Electrical Interface 1 channel LVDS
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6 of 36
www.panelook.com
Global LCD Panel Exchange Center
(
)
ge (
g)
[
]
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Surface Treatment Anti-glare (Haze=42%(typ.))
-Anti-reflection
-Anti-electrostatic
-Hardness
Support Color 262K colors ( RGB 6-bit )
Temperature Range
Operating Stora
Non-Operatin
[oC]
o
C
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25ʚ (Room Temperature) :
Item Symbol Conditions Min. Typ. Max. Unit Note
2H
White Luminance
I
LED
=20mA

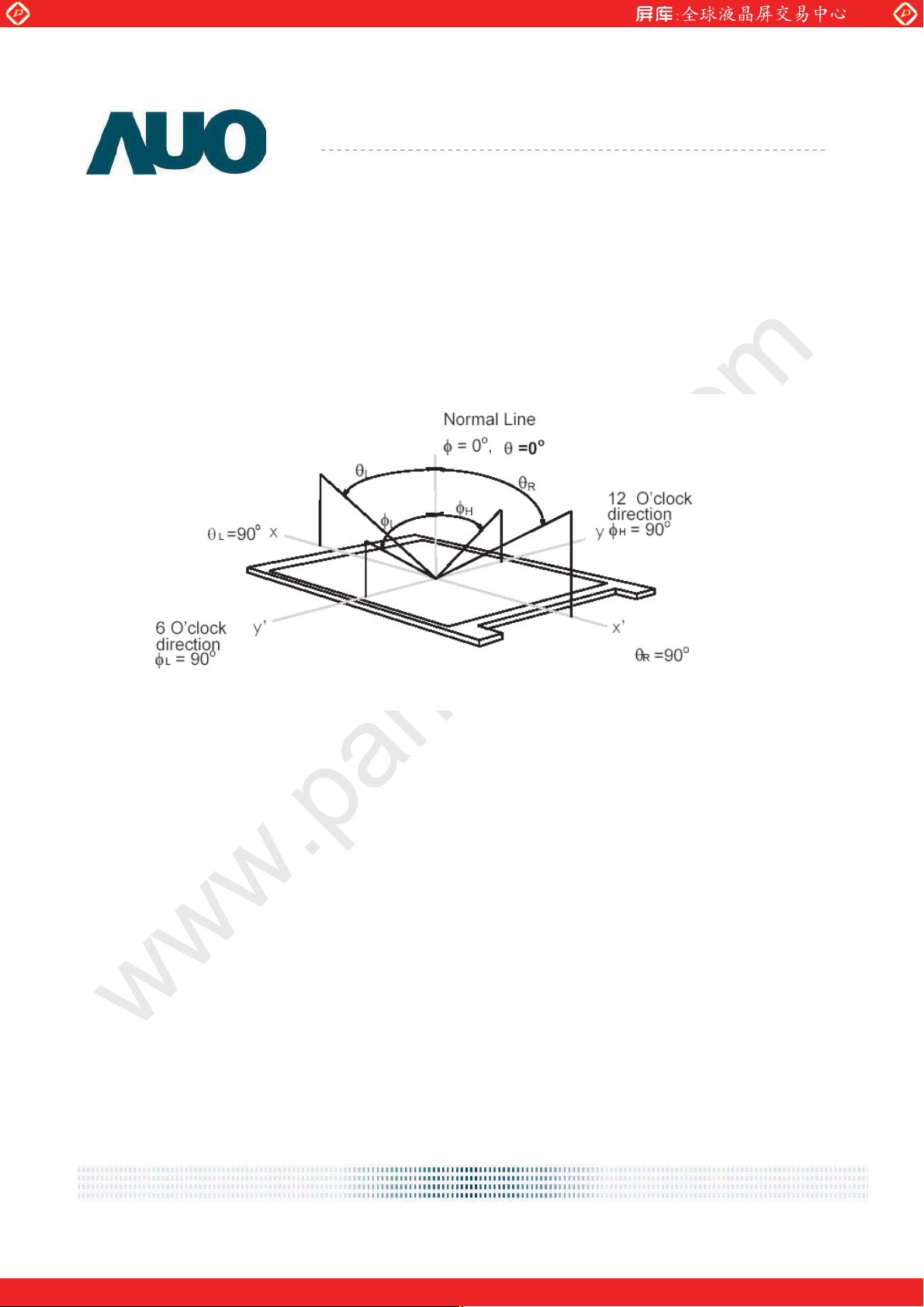

Viewing Angle
Luminance
Uniformity
Luminance
Uniformity
Contrast Ratio CR
Cross talk %
Response Time
Red
Color /
Green
Chromaticity
Coodinates
Blue
White
5 points average
 
 


R
L
H
L
5P
13P
Horizontal (Right)
CR = 10 (Left)
Vertical (Upper)
CR = 10 (Lower)
5 Points
13 Points
300 -
4
Tr Rising
Tf Falling
T
Rising + Falling
RT
Rx
Ry
Gx
Gy
Bx
CIE 1931
By
Wx
Wy
187 220 - cd/m
40
40
10
30
45
45
20
40
-
degre
-
-
-
- - 1.25
- - 1.54
_
-
- _ -
-
msec
- 16 25
0.530 0.560 0.590
0.320 0.350 0.380
0.315 0.345 0.375
0.530 0.560 0.590
0.120 0.150 0.180
0.075 0.105 0.135
0.283 0.313 0.343
0.299 0.329 0.359
2
1, 4, 5.
e
4, 9
1, 3, 4
2, 3, 4
4, 6
4, 7
4, 8
4
NTSC %
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
- 45 -
7 of 36
www.panelook.com
Global LCD Panel Exchange Center
Note 1: 5 points position (Ref: Active area)
H/4
H/4
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
W
W/4 W/4 W/4 W/4
12
H
H/4
H/4
Note 2: 13 points position (Ref: Activ e area)
W/4
10
10
H/4
H/4
H
H/4
1
6
3
45
W
W/4
W/4
2
W/4
10
3
45
7
9
10
8
H/4
10
11
12
13
Note 3: The luminance uniformity of 5 or13 points is defined by dividing the maximum luminance values by the minimum test point luminance. Length unit
Maximum Brightness of five points
Ӭ
=
W5
Minimum Brightness of five points
Maximum Brightness of thirteen points
W13
=
Minimum Brightness of thirteen points
Ӭ
Note 4: Measurement method
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8 of 36
www.panelook.com
Global LCD Panel Exchange Center
g
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change
during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight
for 30 minutes in a stable, windless and dark room. !
Photo detector
Field=2
Note 5Ǻ Definition of Average Luminance of White (Y
Measure the luminance of gray level 63 at 5 pointsǴY
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6Ǻ Definition of contrast ratio:
Contrast ratio is calculated with the following formula.
htness on the “White” state
Bri
):
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
Contrast ratio (CR)=
htness on the “Black” state
Bri
Note 7Ǻ Definition of Cross Talk (CT)
-
B
CT = | Y
Where
A
Y
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
– YA | / YA × 100 (%)
= Luminance of measured location without gray lev el 0 pattern (cd/m2)
9 of 36
www.panelook.com
Global LCD Panel Exchange Center
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
Note 8: Definition of response time:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to
“White” (falling time) and from “W hite” to “Black” (rising time), respectively. The response time interval between
the 10% and 90% of amplitudes. Refer to figure as below.
"Black"
100%
S ig
90%
n a l( R
e la
t
iv e v
a lu
10%
e )
0%
Tr
Tf
"White""White"
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 8. Def inition of viewing angle
Viewing angle is the measurement of contrast ratio ɪ10, at the screen center, ov er a 180° horizontal an d 180°
vertical range (off -normal viewing angles). The 180° viewing angle range is broken down as follows; 90 ° ( θ)
horizontal left and right and 90° ( Φ) vertical, high (up) and low (down). The measurement direction is typically
perpendicular to the display surface with the screen rotated about its center to develop the desired measurement
viewing angle.
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 of 36
www.panelook.com
Global LCD Panel Exchange Center
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
3. Functional Block Diagram
The following diagram shows the functional block of the 12.1 inches wide Color TFT/LCD 30 Pin (One ch/connector
Module)
Tcon
Tcon
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
Power
Power
Power
Power
Power
Power
Power
Power
Power
Power
r
r
r o
o
o
t
t
t c
c
c e
e
e
onn
onn
onn
Connector
Connector
Connector
C
C
C
ector
ector
ector
ector
ector
ector n
n
n
n
n
n n
n
n
n
n
n o
o
o
o
o
o C
C
C
C
C
C
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
receiver
receiver
receiver
receiver
receiver
receiver
receiver
DC
DC
Power
Power
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Controller
Controller
Controller
Controller
Controller
Controller
Controller
DC/DC
DC/DC
DC/DC
DC/DC
DC/DC
DC/DC
converter
converter
converter
converter
converter
converter
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Correction
Correction
Correction
Correction
Correction
Correction
Correction
Correction
Correction
Generation
Generation
Generation
Generation
Generation
Generation
Generation
Generation
Generation
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
LED Driver
LED Driver
LED Driver
LED Driver
LED Driver Boost and
Boost and
Boost and
Boost and
Boost and
Current Balance
Current Balance
Current Balance
Current Balance
Current Balance
circuit
circuit
circuit
circuit
circuit
Control
Control
signal
signal
Gamma1~14
Gamma1~14
4 strings,9 pcs / strin
6 strings, 7pcs/string
6 strings, 7pcs/string
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
LED light bar
LED light bar
LED light bar
LED light bar
LED light bar
Gate Driver ICGate Driver ICGate Driver ICGate Driver ICGate Driver ICGaGate Driver ICGate Driver ICGate Driver IC
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 of 36
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
An absolute maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min Max Unit Conditions
LED Driving Voltage
LED Driv ing Current I
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 4
Operation Humidity HOP 5 90 [%RH] Note 4
Storage Temperature TST -20 +60 [oC] Note 4
Storage Humidity HST
Vin -0.3 +4.0 [Volt] Note 1,2
-
V
LED
-
LED
www.panelook.com
36
30
5 90
[Volt] Note 1,2,3
[mA] rms Note 1,2,3
[%RH]
Note 4
Note 1: At Ta (25ʚ )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: LED specification refer to section 5.2
Note 4: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Twb=39°C
Operating Range
document version 1.1
Storage Range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 of 36
www.panelook.com
Global LCD Panel Exchange Center
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symble Parameter Min Typ Max Units Note
VDD Logic/LCD Drive
PDD VDD Power - 0.78 0.9 [Watt] Note 1/2 IDD IDD Current
I
Rush
Inrush Current - - 2000 [mA]
VDDrp Allowable
Logic/LCD Drive Ripple Voltage
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
3.0 3.3 3.6 [Volt]
- 235 -
- - 100 [mV]
[mA]
p-p
Note 1/2
Note 3
Note 1 : Maximum Measurement ConditionǺBlack Pattern
Note 2ǺTypical Measurement Condition: Mosaic Pattern
Note 3ǺMeasure Condition
90%
10%
0V
0.5ms
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Vin rising time
3.3V
14 of 36
www.panelook.com
Global LCD Panel Exchange Center
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off.
Signal electrical characteristics are as follows;
Parameter Condition Min Max Unit
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
V
TH
Differential Input High Threshold (Vcm=+1.2V)
V
TL
Differential Input Low Threshold (Vcm=+1.2V)
|VID|
Differential Input Voltage 100 600 [mV]
V
CM
Note: LVDS Signal Waveform
Differential Input Common Mode Voltage
-100
1.125
100
[mV]
-
[mV]
1.375
[V]
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.2 Backlight Unit
LED Parameter guideline for LED driving selection (Ref. Remark 1)
Parameter
LED Forward Voltage VF 3.0 3.2 3.4 [Volt]
LED Forward Current IF 20 [mA]
LED Power consumption
LED Life-Time
Symbol
P
2.71 2.97
LED
Min Typ Max Units Condition
N/A 12,000 - -
[Watt]
Hour
(Ta=25 )к
(Ta=25 )к
(Ta=25 )к Note 1
(Ta=25 )к
IF=20 mA
Note 2
Output PWM frequency
Duty ratio
Note 1: Calculator value for reference IF×VF× 36/ efficiency (85%) = P (typ.); P (max) estimated with I
tolerance.
Note 2: The LED life-time define as the estimated time to 50% degradation of initial luminous.
FPWM 100 200 20K
-- 1 -- 100
Hz
%
Note 3
F and VF
Note 3: Output PWM frequency< 5K Hz.
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1 1280
1st Line
800th Line
R G B R G B
R G B R G B
R G B R G B
R G B R G B
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.2 The input data format
Signal Name Description
R5 R4 R3 R2 R1 R0
Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB)
Red-pixel Data Each red pixel's brightness data consists of these 6 bits pixel data.
Red-pixel Data
G5 G4 G3 G2 G1 G0
Green Data 5 (MSB) Green Data 4 Green Data 3 Green Data 2 Green Data 1 Green Data 0 (LSB)
Green-pixel Data Each green pixel's brightness data consists of these 6 bits pixel data.
Green-pixel Data B5 B4 B3 B2 B1 B0
Blue Data 5 (MSB)
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0 (LSB)
Blue-pixel Data Each blue pixel's brightness data consists of these 6 bits pixel data.
Blue-pixel Data RxCLKIN Data Clock The typical frequency is 69.3 MHZ. The signal is
used to strobe the pixel data and DE signals. All pixel data shall be valid at the falling edge when the DE signal is high.
DE Display Timing This signal is strobed at the falling edge of
RxCLKIN. When the signal is high, the pixel
data shall be valid to be displayed. VS Vertical Sync The signal is synchronized to RxCLKIN . HS Horizontal Sync The signal is synchronized to RxCLKIN .
Note: Output signals from any system shall be low or High-impedance state when VDD is off.
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 of 36
www.panelook.com
Global LCD Panel Exchange Center
(
)
(
)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.3 Signal Description/Pin Assignment
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
Connector PN: FI-XB30SL-HF10
GND
GND
(7~21V) (7~21V)
(7~21V)
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 of 36
www.panelook.com
Global LCD Panel Exchange Center
Note1: Signal Start from right side
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1280x800 /60Hz manufacturing guide line timing.
Parameter Symbol Min. Typ. Max. Unit
Frame Rate - - 60 - Hz
Clock frequency 1/ T
Period TV 808 816 1023
Vertical
Active TVD 800 800 800
Section
Blanking T
Period TH 1310 1408 2047
Horizontal
Active THD 1280 1280 1280
Section
Blanking T
Note : DE mode only
50- 69.3 80- MHz
Clock
T
8 16 223
VB
T
Clock
30 128 767
HB
Line
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 of 36
www.panelook.com
Global LCD Panel Exchange Center
6.4.2 Timing diagram
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
DOTCLK
Input
Data
DE
DE
T
CLOCK
Invaild
Data
T
HB
Input Timing Definition ( DE Mode)
Pixel
1
T
VB
Pixel
2
T
Pixel
3
T
HD
H
T
V
Pixel
N-1
T
VD
Pixel
N
Invaild
Data
Pixel
1
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.5 Power ON /OFF Sequence
Power on/off sequence is as follows. Interface signals and LED on/off sequence are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off
Power Sequence Timing
Value
Parameter
T1 0.5 - 10
T2 0 - 50
T3 200 - -
T4 0 - -
T5 0 - -
T6 0 - 10
T7 150 - -
T8 0 - -
T9 0 - -
T10 0 - -
T11 0 - -
T12 0.5 - -
T13 0 - -
Min. Typ. Max.
Units
ms
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7. Connector Description
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation For Signal Connector
Manufacturer
Type / Part Number
Mating Housing/Part Number
Japan Aviation Electronics Industry, LTD
FI-XB30SL-HF10
FI-XB30SRL-HF11
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. 8. LED Driving Specification
8.1 Connector Description
It is a intergrative interface and comibe into LVDS connector. The type and mating refer to section 7.
8.2 Pin Assignment
Ref. to 6.3
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 of 36
www.panelook.com
Global LCD Panel Exchange Center
9. Vibration and Shock Test
9.1 Vibration Test
Test Spec:
Test method: Non-Operation
Acceleration: 1.5 G
Frequency: 10 - 500Hz Random
Sweep: 30 Minutes each Axis (X, Y, Z)
9.2 Shock Test Spec:
Test Spec:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Test method: Non-Operation
Acceleration: 220 G , Half sine wave
Active time: 2 ms
Pulse: X,Y,Z .one time for each side
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 of 36
www.panelook.com
Global LCD Panel Exchange Center
10. Reliability
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Items
Temperature
Humidity Bias
Ta= 40кккк, 90%RH, 300h
High Temperature
Operation
Ta= 50кккк, Dry, 300h
Low Temperature
Operation
Ta= 0кккк, 300h
High Temperature
Storage
Ta= 60кккк, 300h
Low Temperature
Storage
Ta= -20кккк, 300h
Thermal Shock
Test
ESD
Ta=-20ккккto 60кккк, Duration at 30 min, 100 cycles
Contact : ±8 KV
Air : ±15 KV
Note1:
According to EN 61000-4-2 , ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures.
Required Condition Note
Note 1
Remark:
MTBF (Excluding the LED): 30,000 hours with a confidence level 90%
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
29 of 36
Product Specification
AU OPTRONICS CORPORATION
11. Mechanical Characteristics
11.1 LCM Outline Dimension
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.1
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
30 of 36
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.1
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
11.2 Screw Hole Depth and Center Position
Screw hole minimum depth, from side surface = 1.8 mm (See drawing)
Screw hole center location, from front surface = 2.8mm (See drawing)
Screw Torque:
2.3 ~ 2.5 kgf-cm Max (Rework 6 times)
3.0 kgf-cm max Max (Rework 3 times)
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31 of 36
www.panelook.com
Global LCD Panel Exchange Center
12. Shipping and Package
12.1 Shipping Label Format
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 of 36
www.panelook.com
Global LCD Panel Exchange Center

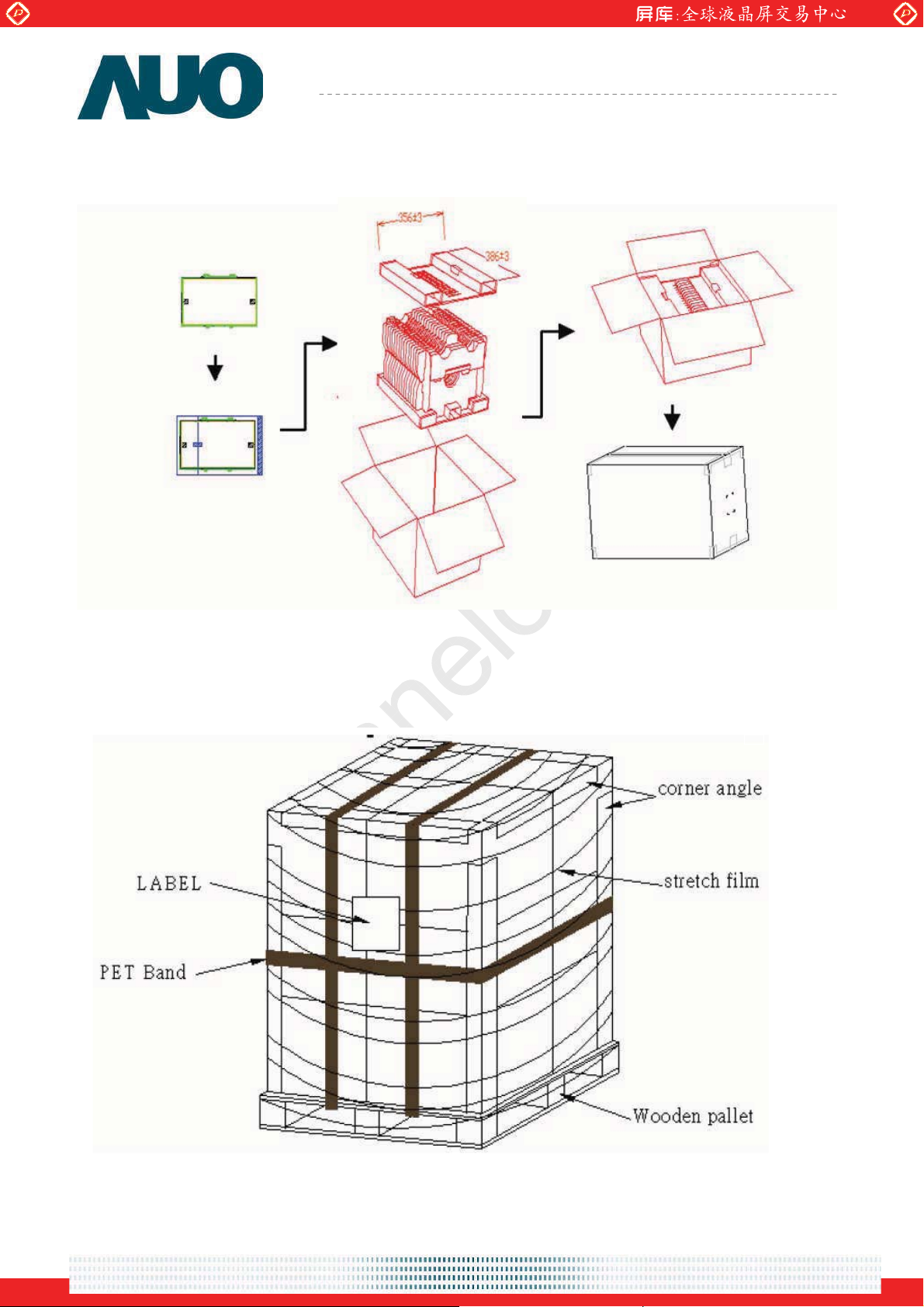

12.2 Carton package
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
12.3 Shipping package of palletizing sequence
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33 of 36
www.panelook.com
Global LCD Panel Exchange Center
13. Appendix: EDID description
Byte# Byte# Value Value Value Value
Field Name and Comments
(decimal) (HEX)
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Remarks
(HEX)
(Hex) (Decimal) (Binary)
0 00 Header
1 01 Header
2 02 Header
3 03 Header
4 04 Header
5 05 Header
6 06 Header
7 07 Header
8 08
9 09
10 0A
11 0B
12 0C
13 0D
14 0E
15 0F
16 10 Week of Manufacture ʳʳ01 1 00000001
ID Manufacturer Name
ID Product Code
ID Serial Number (32-bit serial number)
00 EDID VESA Spec Fixed
FF EDID VESA Spec Fixed
FF EDID VESA Spec Fixed
FF EDID VESA Spec Fixed
FF EDID VESA Spec Fixed
FF EDID VESA Spec Fixed
FF EDID VESA Spec Fixed
00 EDID VESA Spec Fixed
30
AE
11
12" 16:10 WXGA 1280x800
40
00 not used
00 not used
00 not used
00 not used
LEN
LED B/L
00 0 00000000
FF 255 11111111
FF 255 11111111
FF 255 11111111
FF 255 11111111
FF 255 11111111
FF 255 11111111
00 0 00000000
30 48 00110000
AE 174 10101110
11 17 00010001
40 64 01000000
00 0 00000000
00 0 00000000
00 0 00000000
00 0 00000000
17 11 Year of Manufacture ʳʳ13 19 00010011
18 12 EDID Structure version 01 01 1 00000001
19 13 EDID Revision 03
20 14 Video Input Definition
21 15
22 16
23 17
24 18 Feature support(DPMS)
25 19 Red/Green Low Bits ʳʳ65 101 01100101
26 1A Blue/White Low Bits ʳʳ85 133 10000101
27 1B Red x ʳʳ8F 143 10001111
28 1C Red y ʳʳ59 89 01011001
29 1D Green x ʳʳ58 88 01011000
30 1E Green y ʳʳ8F 143 10001111
31 1F Blue x ʳʳ26 38 00100110
32 20 Blue y ʳʳ1B 27 00011011
Max H Image Size(с)
Max V Image Size(с)
Display gamma (gamma x
100)-100
80 Digital
ʳʳ1A 26 00011010
ʳʳ10 16 00010000
78 2.2
EA Lenovo Spec fixed
Ver. 1.3
03 3 00000011
80 128 10000000
78 120 01111000
EA 234 11101010
33 21 White x ʳʳ50 80 01010000
34 22 White y ʳʳ54 84 01010100
35 23 Established Timing 1
36 24 Established Timing 2
document version 1.1
00 Lenovo Spec fixed
00 Lenovo Spec fixed
00 0 00000000
00 0 00000000
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
34 of 36
www.panelook.com
Global LCD Panel Exchange Center
37 25 Manufacturer's Timings 00 ʳ 00 0 00000000
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
38 26
39 27
40 28
41 29
42 2A ʳʳ01 1 00000001
43 2B
44 2C ʳʳ01 1 00000001
45 2D
46 2E ʳʳ01 1 00000001
47 2F
48 30 ʳʳ01 1 00000001
49 31
50 32 ʳʳ01 1 00000001
51 33
52 34 ʳʳ01 1 00000001
53 35
54 36 Pixel Clock/10,000 (LSB) ʳ 12 18 00010010
55 37 Pixel Clock/10,000 (MSB) / ʳ
Standard Timing Identification #1
Standard Timing Identification #2
Standard Timing Identification #3
Standard Timing Identification #4
Standard Timing Identification #5
Standard Timing Identification #6
Standard Timing Identification #7
Standard Timing Identification #8
01 Lenovo Spec fixed
01 Lenovo Spec fixed
01 Lenovo Spec fixed
01 Lenovo Spec fixed
ʳʳ01 1 00000001
ʳʳ01 1 00000001
ʳʳ01 1 00000001
ʳʳ01 1 00000001
ʳʳ
ʳʳ01 1 00000001
Refresh rate 60Hz
01 1 00000001
01 1 00000001
01 1 00000001
01 1 00000001
01 1 00000001
1B 27 00011011
56 38 Horizontal Active ʳʳ00 0 00000000
57 39 Horizontal Blanking ʳʳ7B 123 01111011
58 3A
59 3B Vertical Active ʳʳ20 32 00100000
60 3C Vertical Blanking ʳʳ15 21 00010101
61 3D
62 3E Horizontal Sync. Offset ʳʳ30 48 00110000
63 3F Horizontal Sync Pulse Width ʳʳ20 32 00100000
64 40
65 41
66 42 Horizontal Image Size ʳʳ05 5 00000101
67 43 Vertical Image Size ʳʳA3 163 10100011
68 44
69 45 Horizontal Border ʳʳ00 0 00000000
70 46 Vertical Border ʳʳ00 0 00000000
Horizontal Active : Horizontal Blanking
Vertical Active : Vertical Blanking
Vertical Sync Offset : Sync Width
Horizontal Vertical Sync Offset/Width upper 2bits
Horizontal & Vertical Image Size
ʳʳ
ʳʳ
ʳʳ
ʳʳ00 0 00000000
ʳʳ
50 80 01010000
30 48 00110000
36 54 00110110
10 16 00010000
71 47 Flags ʳʳ18 24 00011000
72 48
73 49
document version 1.1
Pixel Clock/10,000 (LSB) (Slow Refresh rate)
Pixel Clock/10,000 (MSB) / (Slow Refresh rate)
ʳ
Refresh rate 50Hz
ʳ
7F 127 01111111
16 22 00010110
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
35 of 36
www.panelook.com
Global LCD Panel Exchange Center
74 4A Horizontal Active ʳʳ00 0 00000000
75 4B Horizontal Blanking ʳʳ7B 123 01111011
76 4C
77 4D Vertical Active ʳʳ20 32 00100000
78 4E Vertical Blanking ʳʳ15 21 00010101
79 4F
80 50 Horizontal Sync. Offset ʳʳ30 48 00110000
81 51 Horizontal Sync Pulse Width ʳʳ20 32 00100000
82 52
83 53
84 54 Horizontal Image Size ʳʳ05 5 00000101
Horizontal Active : Horizontal Blanking
Vertical Active : Vertical Blanking
Vertical Sync Offset : Sync Width
Horizontal Vertical Sync Offset/Width upper 2bits = 0
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
ʳʳ
ʳʳ
ʳʳ
ʳʳ
50 80 01010000
30 48 00110000
36 54 00110110
00 0 00000000
85 55 Vertical Image Size ʳʳA3 163 10100011
86 56
87 57 Horizontal Border ʳʳ00 0 00000000
88 58 Vertical Border ʳʳ00 0 00000000
89 59 Flags ʳʳ18 24 00011000
90 5A Flag
91 5B Flag
92 5C Flag
93 5D Data Type Tag
94 5E Flag
95 5F (Horizontal active pixel /8)-31
96 60 Image Aspect Ratio
97 61 Middle Refresh Rate
98 62 (Horizontal active pixel /8)-31
99 63 Image Aspect Ratio
100 64 Low Refresh Rate
101 65 Brightness(1/10nit) 00 ʳ 16 22 00010110
Horizontal & Vertical Image Size
ʳʳ10 16 00010000
00 VESA Spec Fixed
00 VESA Spec Fixed
00 VESA Spec Fixed
0F Lenovo Spec fixed
00 VESA Spec Fixed
81 129
0A 16 : 10
3C 60
81 129
0A 16 : 10
32 50
00 0 00000000
00 0 00000000
00 0 00000000
0F 15 00001111
00 0 00000000
81 129 10000001
0A 10 00001010
3C 60 00111100
81 129 10000001
0A 10 00001010
32 50 00110010
102 66 Feature flag
103 67 Reserved
104 68 ʳʳ06 6 00000110
105 69
106 6A LCD Supplier Product code ʳʳ56 86 01010110
107 6B LCD Supplier Product code ʳʳ33 51 00110011
108 6C Flag
109 6D Flag
110 6E Flag
111 6F Data Type Tag
112 70 Flag
113 71 Model Name ʳʳ42 66 01000010
document version 1.1
LCD Supplier manufacture Code (3 character ID)
09 TN LED B/L
00 Lenovo Spec fixed
ʳʳAF 175 10101111
00 VESA Spec Fixed
00 VESA Spec Fixed
00 VESA Spec Fixed
FE Lenovo Spec fixed
00 VESA Spec Fixed
09 9 00001001
00 0 00000000
00 0 00000000
00 0 00000000
00 0 00000000
FE 254 11111110
00 0 00000000
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
36 of 36
www.panelook.com
Global LCD Panel Exchange Center
114 72 Model Name ʳʳ31 49 00110001
115 73 Model Name ʳʳ32 50 00110010
116 74 Model Name ʳʳ31 49 00110001
117 75 Model Name ʳʳ45 69 01000101
118 76 Model Name ʳʳ57 87 01010111
119 77 Model Name ʳʳ30 48 00110000
120 78 Model Name ʳʳ39 57 00111001
121 79 Model Name ʳʳ20 32 00100000
122 7A Model Name ʳʳ56 86 01010110
123 7B Model Name ʳʳ33 51 00110011
124 7C Model Name ʳʳ20 32 00100000
125 7D Model Name ʳʳ0A 10 00001010
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
126 7E Extension flag
127 7F Checksum ʳʳ9B 155 10011011
00 VESA Spec Fixed
00 0 00000000
document version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
37 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications (V ) Final Specifications
Module ” WXGA Color TFT-LCD with LED Backlight design
Model Name B121EW09 V3 (H/W:0A)
Note ( )
Customer Date
Checked &
LED Backlight with driving circuit design
Approved by Date
Beyond Yang
Date
Prepared by
Approved by
08/19/2009
Note: This Specification is subject to change without notice.
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
DonnaYang 08/19/2009
NBBU Marketing Division /
AU Optronics corporation
1 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Contents
1. Handling Precautions .............................................................. 5
2. General Description................................................................. 6
2.1 General Specification ..................................................................................................................... 6
2.2 Optical Characteristics.................................................................................................................... 7
3. Functional Block Diagram...................................................... 12
4. Absolute Maximum Ratings ................................................... 13
4.1 Absolute Ratings of TFT LCD Module..........................................................................................13
4.2 Absolute Ratings of Backlight Unit................................................................................................13
4.3 Absolute Ratings of Environment ..................................................................................................13
5. Electrical characteristics ....................................................... 15
5.1 TFT LCD Module.........................................................................................................................15
5.2 Backlight Unit...............................................................................................................................16
6. Signal Characteristic ............................................................. 18
6.1 Pixel Format Image.......................................................................................................................18
6.2 The input data format....................................................................................................................19
6.3 Signal Description/Pin Assignment ................................................................................................20
6.4 Interface Timing............................................................................................................................22
6.5 Power ON /OFF Sequence............................................................................................................24
7. Connector Description ........................................................... 25
7.1 TFT LCD Module.........................................................................................................................25
8. 8. LED Driving Specification .................................................. 26
8.1 Connector Description ..................................................................................................................26
8.2 Pin Assignment..............................................................................................................................26
9. Vibration and Shock Test....................................................... 27
9.1 Vibration Test................................................................................................................................27
9.2 Shock Test Spec:...........................................................................................................................27
10. Reliability ............................................................................ 28
11. Mechanical Characteristics .................................................. 29
11.1 LCM Outline Dimension..............................................................................................................29
11.2 Screw Hole Depth and Center Position........................................................................................31
12. Shipping and Package ......................................................... 32
12.1 Shipping Label Format ................................................................................................................32
12.2 Carton package...........................................................................................................................33
12.3 Shipping package of palletizing sequence.....................................................................................33
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
13. Appendix: EDID description ................................................ 34
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2008/12/30 6,7
0.2 2009/1/7 6,7
0.3 2009/1/20 36
0.4 2009/4/1 6,7
1.1 2009/4/30 20
1.2 2009/4/30 30
1.3 2009/5/18 16
1.3 2009/8/19 31 Update Screw Hole Depth
White Luminance 220 typ
White Luminance 200 typ
White Luminance 170 min
EDID:TBD
White Luminance 220 typ
White Luminance 187 min
PWM for luminance control (200~1KHz, 3.3V, 10~100%)
Shippint label (normal)
Output PWM frequency -
Duty Ratio 10% min
White Luminance 200 typ
White Luminance 220 typ
White Luminance 187 min
EDID, Check Sum 1E
White Luminance 260 typ
White Luminance 220 min
PWM for luminance control (200~20KHz, 3.3V, 10~100%)
Shippint label (add CT label information)
Output PWM frequency 100 min
Duty Ratio 10% min 5%
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure
human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor
tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure (Notebook PC Bezel, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are
applied to the TFT Module from outside. Otherwise the TFT Module may be
damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited Power
Source (IEC60950 or UL1950), or be applied exemption.
13)Disconnecting power supply before handling LCD modules, it can prevent electric shock, DO
NOT TOUCH the electrode parts, cables, connectors and LED circuit part of TFT module
that a LED light bar build in as a light source of back light unit. It can prevent electrostic
breakdown.
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2. General Description
B121EW09 V3 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a
driver circuit, and LED backlight system. The screen format is intended to support the WXGA
(1280(H) x 800(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving
circuit. All input signals are LVDS interface compatible.
B121EW09 V3 is designed for a display unit of notebook style personal computer and industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 ʚ condition:
Items Unit Specifications
Screen Diagonal [mm] 307.9 (W”)
Active Area [mm] 261.12(H) X 163.20(V)
Pixels H x V 1280x3(RGB) x 800
Pixel Pitch [mm] 0.204X0.204
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance (I
LED
=20mA)
[cd/m
2
] 260 typ. (5 points average)
220 min. (5 points average)
Luminance Uniformity 1.25 max. (5 points)
Contrast Ratio 500 typ
Response Time [ms] 16 typ / 25 Max
Nominal Input Voltage VDD [Volt] +3.3 typ.
Power Consumption [Watt] 4.3 max. (Include Logic and Black Light power)
Weight [Grams] 270 max. Physical Size [mm]
L W T
Max 276.3 178.6 5.5
Typical 275.8 178.1 -
Min 275.3 - -
Electrical Interface 1 channel LVDS
Surface Treatment AG
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6 of 36
www.panelook.com
Global LCD Panel Exchange Center
ge (
g)
[
]
Support Color 262K colors ( RGB 6-bit )
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Temperature Range
Operating Stora
Non-Operatin
o
[
C]
o
C
0 to +50
-20 to +65
RoHS Compliance RoHS Compliance
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25ʚ (Room Temperature) :
Item Symbol Conditions Min. Typ. Max. Unit Note
White Luminance
I
LED
=20mA
Viewing Angle
Luminance
Uniformity
Luminance
Uniformity
Contrast Ratio CR
Cross talk %
Response Time
Red
Color /
Green
Chromaticity
Coodinates
Blue
White

R

L

H

L

5P

13P
Tr Rising
Tf Falling
T
Rising + Falling
RT
Rx
Ry
Gx
Gy
Bx
By
Wx
Wy
5 points average
Horizontal (Right)
CR = 10 (Left)
Vertical (Upper)
CR = 10 (Lower)
5 Points
13 Points
500 -
4
CIE 1931
220 260 - cd/m
40
40
10
30
45
45
15
35
-
degre
-
-
-
- - 1.25
- - 1.50
_
-
- _ -
-
msec
- 16 25
0.530 0.560 0.590
0.320 0.350 0.380
0.315 0.345 0.375
0.530 0.560 0.590
0.120 0.150 0.180
0.075 0.105 0.135
0.283 0.313 0.343
0.299 0.329 0.359
2
1, 4, 5.
e
1, 3, 4
2, 3, 4
4, 9
4, 6
4, 7
4, 8
4
NTSC %
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
- 45 -
7 of 36
www.panelook.com
Global LCD Panel Exchange Center
Note 1: 5 points position (Ref: Active area)
H/4
H/4
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
W
W/4 W/4 W/4 W/4
12
H
H/4
H/4
Note 2: 13 points position (Ref: Activ e area)
W/4
10
10
H/4
H/4
H
H/4
1
6
3
45
W
W/4
W/4
2
W/4
10
3
45
7
9
10
8
H/4
10
11
12
13
Note 3: The luminance uniformity of 5 or13 points is defined by dividing the maximum luminance values by the minimum test point luminance
Maximum Brightness of five points
Ӭ
=
W5
Minimum Brightness of five points
Maximum Brightness of thirteen points
W13
=
Minimum Brightness of thirteen points
Ӭ
Note 4: Measurement method
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8 of 36
www.panelook.com
Global LCD Panel Exchange Center
g
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change
during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight
for 30 minutes in a stable, windless and dark room. !
Photo detector
Field=2
Note 5Ǻ Definition of Average Luminance of White (Y
Measure the luminance of gray level 63 at 5 pointsǴY
L (x) is corresponding to the luminance of the point X at Figure in Note (1).
Note 6Ǻ Definition of contrast ratio:
Contrast ratio is calculated with the following formula.
htness on the “White” state
Bri
):
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
L
Contrast ratio (CR)=
htness on the “Black” state
Bri
Note 7Ǻ Definition of Cross Talk (CT)
-
B
CT = | Y
Where
A
Y
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
– YA | / YA × 100 (%)
= Luminance of measured location without gray lev el 0 pattern (cd/m2)
9 of 36
www.panelook.com
Global LCD Panel Exchange Center
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
Note 8: Definition of response time:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
The output signals of BM-7 or equivalent are measured when the input signals are changed from “Black” to
“White” (falling time) and from “W hite” to “Black” (rising time), respectively. The response time interval between
the 10% and 90% of amplitudes. Refer to figure as below.
"Black"
100%
S ig
90%
n a l( R
e la
t
iv e v
a lu
10%
e )
0%
Tr
Tf
"White""White"
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 8. Def inition of viewing angle
Viewing angle is the measurement of contrast ratio ɪ10, at the screen center, ov er a 180° horizontal an d 180°
vertical range (off -normal viewing angles). The 180° viewing angle range is broken down as follows; 90 ° ( θ)
horizontal left and right and 90° ( Φ) vertical, high (up) and low (down). The measurement direction is typically
perpendicular to the display surface with the screen rotated about its center to develop the desired measurement
viewing angle.
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 of 36
www.panelook.com
Global LCD Panel Exchange Center
3. Functional Block Diagram
The following diagram shows the functional block of the 12.1 inches wide Color TFT/LCD 40 Pin (One
ch/connector Module:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Tcon
Tcon
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
Power
Power
Power
Power
Power
Power
Power
Power
Power
Power
Controller
Controller
Controller
Controller
Controller
Controller
Controller
DC/DC
DC/DC
DC/DC
DC/DC
DC/DC
DC/DC
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Gamma
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
Circuit
circuit
circuit
circuit
circuit
circuit
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Control
Control
signal
signal
Gamma1~14
Gamma1~14
6 strings, 7pcs/string
6 strings, 7pcs/string
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
TFT-LCD
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
1280*(3)*800
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Pixels
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
Source Driver IC
LED light bar
LED light bar
LED light bar
LED light bar
LED light bar
Gate Driver ICGate D river ICGate D river ICGate D river ICGate D river ICGaGate Driver ICGate Driver ICGate Driver IC
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
LVDS
receiver
receiver
receiver
receiver
receiver
receiver
receiver
DC
DC
Power
Power
converter
converter
converter
converter
converter
converter
Connector
Connector
Connector
Connecto r
Connecto r
Connecto r
Connector
Connector
Connector
Connector
Connector
Connector
Correction
Correction
Correction
Correction
Correction
Correction
Correction
Correction
Correction
Generation
Generation
Generation
Generation
Generation
Generation
Generation
Generation
Generation
LED Driver
LED Driver
LED Driver
LED Driver
LED Driver Boost and
Boost and
Boost and
Boost and
Boost and
Current Balance
Current Balance
Current Balance
Current Balance
Current Balance
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12 of 36
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
An absolute maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min Max Unit Conditions
LED Driving Voltage
LED Driv ing Current I
Vin -0.3 +4.0 [Volt] Note 1,2
-
V
LED
-
LED
www.panelook.com
36 (Row Output)
30 (Row Output)
[Volt] Note 1,2,3
[mA] rms Note 1,2,3
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 4
Operation Humidity HOP 10 90 [%RH] Note 4
Storage Temperature TST -20 +65 [oC] Note 4
Storage Humidity HST
Note 1: At Ta (25ʚ )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: LED specification refer to section 5.2
Note 4: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
10 90
Twb=39°C
[%RH]
Note 4
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Operating Range
Storage Range
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 of 36
www.panelook.com
Global LCD Panel Exchange Center
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symble Parameter Min Typ Max Units Note
VDD Logic/LCD Drive
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
3.0 3.3 3.6 [Volt]
PDD VDD Power IDD IDD Current
I
Rush
Inrush Current
VDDrp Allowable
-
- -
- -
- -
0.9 [Watt] Note 1/2
2000 [mA]
Logic/LCD Drive Ripple Voltage
Note 1 : Maximum Measurement ConditionǺBlack Pattern
Note 2ǺTypical Measurement Condition: Mosaic Pattern
Note 3ǺMeasure Condition
250
[mA]
100 [mV]
p-p
Note 1/2
Note 3
90%
10%
0V
0.5ms
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Vin rising time
3.3V
15 of 36
www.panelook.com
Global LCD Panel Exchange Center
5.1.2 Signal Electrical Characteristics
Input signals shall be low or High-impedance state when VDD is off.
Signal electrical characteristics are as follows;
Parameter Condition Min Max Unit
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
V
TH
Differential Input High Threshold (Vcm=+1.2V)
V
TL
Differential Input Low Threshold (Vcm=+1.2V)
|VID|
Differential Input Voltage 100 600 [mV]
V
CM
Note: LVDS Signal Waveform
Differential Input Common Mode Voltage
-100
1.125
100
[mV]
-
[mV]
1.375
[V]
5.2 Backlight Unit
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
LED Parameter guideline for LED driving selection (Ref. Remark 1)
Parameter
LED Forward Voltage VF 2.95 3.15 3.35 [Volt]
LED Forward Current IF 20 30 [mA]
LED Power consumption
LED Life-Time
Symbol
3.78
P
LED
Min Typ Max Units Condition
N/A 12,000 - -
[Watt]
Hour
(Ta=25 )к
(Ta=25 )к
(Ta=25 )к Note 1
(Ta=25 )к
IF=20 mA
Note 2
Output PWM frequency
Duty ratio
Note 1: Calculator value for reference IF×VF× 42/ efficiency(85%)=P(typ.)
Note 2: The LED life-time define as the estimated time to 50% degradation of initial luminous.
FPWM - 200 20K
-- 5 -- 100
Hz
%
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
0 1 1278 1279
1st Line
800th Line
R G B R G B
R G B R G B
R G B R G B
R G B R G B
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.2 The input data format
Signal Name Description
R5 R4 R3 R2 R1 R0
Red Data 5 (MSB) Red Data 4 Red Data 3 Red Data 2 Red Data 1 Red Data 0 (LSB)
Red-pixel Data
Each red pixel's brightness data consists of
these 6 bits pixel data.
Red-pixel Data
G5 G4 G3 G2 G1 G0
Green Data 5 (MSB) Green Data 4 Green Data 3 Green Data 2 Green Data 1 Green Data 0 (LSB)
Green-pixel Data
Each green pixel's brightness data consists of
these 6 bits pixel data.
Green-pixel Data B5 B4 B3 B2 B1 B0
Blue Data 5 (MSB)
Blue Data 4
Blue Data 3
Blue Data 2
Blue Data 1
Blue Data 0 (LSB)
Blue-pixel Data Each blue pixel's brightness data consists of these 6 bits pixel data.
Blue-pixel Data RxCLKIN Data Clock The typical frequency is 69.3 MHZ. The signal is
used to strobe the pixel data and DE signals. All pixel data shall be valid at the falling edge when the DE signal is high.
DE Display Timing This signal is strobed at the falling edge of
RxCLKIN. When the signal is high, the pixel
data shall be valid to be displayed. VS Vertical Sync The signal is synchronized to RxCLKIN . HS Horizontal Sync The signal is synchronized to RxCLKIN .
Note: Output signals from any system shall be low or High-impedance state when VDD is off.
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.3 Signal Description/Pin Assignment
LVDS is a differential signal technology for LCD interface and high speed data transfer device.
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 of 36
www.panelook.com
Global LCD Panel Exchange Center
Note1: Start from right side
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Pin40
Connector: FI-NXB40SL-HF10
Pin1
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings should match the 1280x800 /60Hz manufacturing guide line timing.
Parameter Symbol Min. Typ. Max. Unit
Frame Rate - - 60 - Hz
Clock frequency 1/ T
Period TV 803 816 1023
Vertical
Active TVD 800 800 800
Section
Blanking T
Period TH 1303 1416 2047
Horizontal
Active THD 1280 1280 1280
Section
Blanking T
Note : DE mode only
50- 69.3 80- MHz
Clock
T
3 16 223
VB
T
Clock
23 136 767
HB
Line
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 of 36
www.panelook.com
Global LCD Panel Exchange Center
6.4.2 Timing diagram
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
DOTCLK
Input
Data
DE
DE
T
CLOCK
Invaild
Data
T
HB
Input Timing Definition ( DE Mode)
Pixel
1
T
VB
Pixel
2
T
Pixel
3
T
HD
H
T
V
Pixel
N-1
T
VD
Pixel
N
Invaild
Data
Pixel
1
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6.5 Power ON /OFF Sequence
Power on/off sequence is as follows. Interface signals and LED on/off sequence are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off
Power Sequence Timing
Value
Parameter
T1 0.5 - 10
T2 0 - 50
T3 200 - -
T4 0.5 - 10
T5 10 - -
T6 10 - -
T7 0 - -
T8 10 - -
T9 0 - 10
T10 200 - -
T11 0.5 - 50
T12 0 - 10
T13 400 - -
Min. Typ. Max.
Units
ms
Note:If T3,T5,T6 couldn’t match above specifications, must request T3+T5+T6 > 200ms at least
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7. Connector Description
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation For Signal Connector
Manufacturer
Type / Part Number
Mating Housing/Part Number
Japan Aviation Electronics Industry, LTD
FI-NXB40SL-HF10 or compatible
FI-NX40CL or compatible
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. 8. LED Driving Specification
8.1 Connector Description
It is a intergrative interface and comibe into LVDS connector. The type and mating refer to section 7.
8.2 Pin Assignment
Ref. to 6.3
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 of 36
www.panelook.com
Global LCD Panel Exchange Center
9. Vibration and Shock Test
9.1 Vibration Test
Test Spec:
Test method: Non-Operation
Acceleration: 1.5 G
Frequency: 10 - 500Hz Random
Sweep: 30 Minutes each Axis (X, Y, Z)
9.2 Shock Test Spec:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Test Spec:
Test method: Non-Operation
Acceleration: 220 G , Half sine wave
Active time: 2 ms
Pulse: X,Y,Z .one time for each side
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 of 36
www.panelook.com
Global LCD Panel Exchange Center
10. Reliability
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Items
Temperature
Humidity Bias
Ta= 40кккк, 90%RH, 300h
High Temperature
Operation
Ta= 50кккк, Dry, 300h
Low Temperature
Operation
Ta= 0кккк, 300h
High Temperature
Storage
Ta= 60кккк, 300h
Low Temperature
Storage
Ta= -20кккк, 300h
Thermal Shock
Test
ESD
Ta=-20ккккto 60кккк, Duration at 30 min, 100 cycles
Contact : ±8 KV
Air : ±15 KV
Note1:
According to EN 61000-4-2 , ESD class B: Some performance degradation allowed. No data lost
. Self-recoverable. No hardware failures.
Required Condition Note
Note 1
Remark:
MTBF (Excluding the LED): 30,000 hours with a confidence level 90%
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
30 of 36
Product Specification
AU OPTRONICS CORPORATION
11. Mechanical Characteristics
11.1 LCM Outline Dimension
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.4 .
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
31 of 36
Product Specification
AU OPTRONICS CORPORATION
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.4 .
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
11.2 Screw Hole Depth and Center Position
Screw hole minimum depth, from side surface = 2.2 mm (See drawing)
Screw hole center location, from front surface = 2.8 ± 0.3mm (See drawing) Screw Torque: Maximum 2.5 kgf-cm
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 of 36
www.panelook.com
Global LCD Panel Exchange Center
12. Shipping and Package
12.1 Shipping Label Format
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33 of 36
www.panelook.com
Global LCD Panel Exchange Center
12.2 Carton package
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
12.3 Shipping package of palletizing sequence
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
34 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
13. Appendix: EDID description
Address FUNCTION Value Value Value
HEX ʳʳʳʳ HEX BIN DEC
00 Header 01 ʳ 02 ʳ 03 ʳ 04 ʳ 05 ʳ 06 ʳ 07 ʳ 08 EISA Manuf. Code LSB
09 Compressed ASCII 0A Product Code=44 0B hex, LSB first=44 0C 32-bit ser # 0D ʳ 0E ʳ
0F ʳ
10 Week of manufacture
11 Year of manufacture
12 EDID Structure Ver#=1
13 EDID revision #=3
14 Video input def. (digital I/P, non-TMDS, CRGB)
15 Max H image size (rounded to cm)
16 Max V image size (rounded to cm)
17 Display Gamma=2.2
Feature support (no DPMS, Active OFF, RGB,
18
tmg Blk#1)
19 Red/green low bits (Lower 2:2:2:2 bits) 1A Blue/white low bits (Lower 2:2:2:2 bits) 1B Red x=0.56 1C Red y=0.35 1D Green x=0.345 1E Green y=0.56
1F Blue x=0.15
20 Blue y=0.105
21 White x=0.313
22 White y=0.329
23 ʳ
24 ʳ
25 ʳ
26 ʳ
27 ʳ
28 ʳ
29 ʳ
00 00000000 0
FF 11111111 255
FF 11111111 255
FF 11111111 255
FF 11111111 255
FF 11111111 255
FF 11111111 255
00 00000000 0
06 00000110 6
AF 10101111 175
14 00010100 20
93 10010011 147
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
01 00000001 1
12 00010010 18
01 00000001 1
03 00000011 3
80 10000000 128
1A 00011010 26
10 00010000 16
78 01111000 120
0A 00001010 10
65 01100101 101
85 10000101 133
8F 10001111 143
59 01011001 89
58 01011000 88
8F 10001111 143
26 00100110 38
1B 00011011 27
50 01010000 80
54 01010100 84
00 00000000 0
00 00000000 0
00 00000000 0
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
35 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2A ʳ 2B ʳ 2C ʳ 2D ʳ 2E ʳ
2F ʳ
30 ʳ
31 ʳ
32 ʳ
33 ʳ
34 ʳ
35 ʳ
36 Pixel Clock/10000 LSB
37 Pixel Clock/10000 USB
38 Horz active Lower 8bits
39 Horz blanking Lower 8bits 3A HorzAct:HorzBlnk Upper 4:4 bits 3B Vertical Active Lower 8bits 3C Vertical Blanking Lower 8bits 3D Vert Act : Vertical Blanking (upper 4:4 bit) 3E HorzSync. Offset
3F HorzSync.Width
40 VertSync.Offset
41 VertSync.Offset
42 Horizontal Image Size
43 Vertical Image Size
44 ʳ
45 ʳ
46 ʳ
47 ʳ
48 ʳ
49 ʳ 4A ʳ 4B ʳ 4C Version 4D ʳ 4E ʳ
4F Link Type(LVDS Link, MSB justified)
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
01 00000001 1
12 00010010 18
1B 00011011 27
00 00000000 0
7B 01111011 123
50 01010000 80
20 00100000 32
15 00010101 21
30 00110000 48
30 00110000 48
20 00100000 32
36 00110110 54
00 00000000 0
05 00000101 5
A3 10100011 163
10 00010000 16
00 00000000 0
00 00000000 0
18 00011000 24
00 00000000 0
00 00000000 0
00 00000000 0
0F 00001111 15
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
Pixel and link component format(6-bit panel
50
51 Panel features (No inverter)
52 ʳ
53 ʳ
54 ʳ
55 ʳ
56 ʳ
57 ʳ
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
interface)
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
00 00000000 0
36 of 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
58 ʳ
59 ʳ 5A ʳ 5B ʳ 5C ʳ 5D ʳ 5E ʳ
5F A
60 U
61 O
62 ʳ
63 ʳ
64 ʳ
65 ʳ
66 ʳ
67 ʳ
68 ʳ
69 ʳ 6A ʳ 6B ʳ 6C Detailed timing/monitor 6D descriptor #4 6E ʳ
6F ʳ
70 ʳ
71 B
72 1
73 2
74 1
75 E
76 W
77 0
78 9
79 ʳ 7A V 7B 3 7C ʳ 7D ʳ 7E Extension Flag
7F Checksum
00 00000000 0
20 00100000 32
00 00000000 0
00 00000000 0
00 00000000 0
FE 11111110 254
00 00000000 0
41 01000001 65
55 01010101 85
4F 01001111 79
0A 00001010 10
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
20 00100000 32
00 00000000 0
00 00000000 0
00 00000000 0
FE 11111110 254
00 00000000 0
42 01000010 66
31 00110001 49
32 00110010 50
31 00110001 49
45 01000101 69
57 01010111 87
30 00110000 48
39 00111001 57
20 00100000 32
56 01010110 86
33 00110011 51
20 00100000 32
0A 00001010 10
00 00000000 0
1E 00011110 30
document version 1.4 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
37 of 36
www.panelook.com
Loading...
