Specifications Approval Sheet

Retention Period

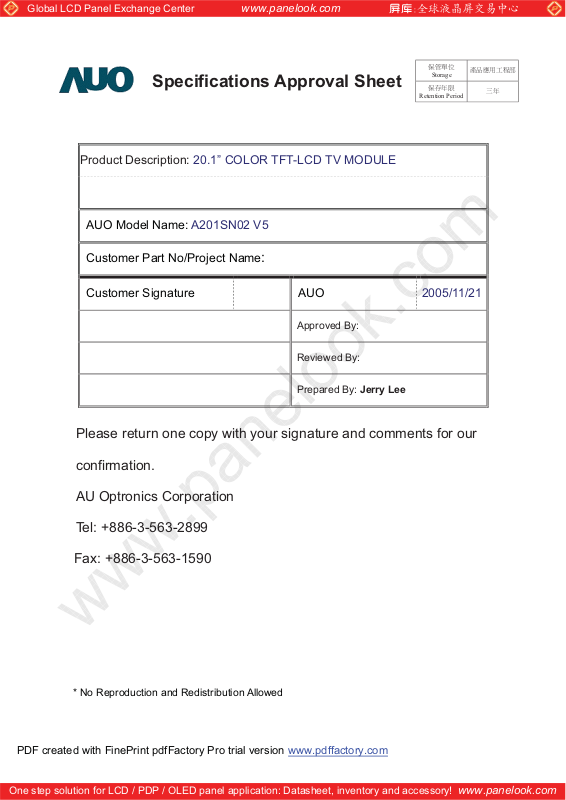

Product Description: 20.1” COLOR TFT-LCD TV MODULE
AUO Model Name: A201SN02 V5
Customer Part No/Project Name
:
Customer Signature AUO 2005/11/21
Approved By:

Reviewed By:
Prepared By: Jerry Lee
Please return one copy with your signature and comments for our
confirmation.
AU Optronics Corporation
Tel: +886-3-563-2899
Fax: +886-3-563-1590
* No Reproduction and Redistribution Allowed
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
©
A201SN02 V 5.01
* No Reproduction and Redistribution Allowed
www.panelook.com
Spec. No. TVPM
A201SN02 V5 Version : 5.01 Date : 11/09/2005
Product Specification
20.1COLOR TFT-LCD MODULE
MODEL NAME: A201SN02 V.5
< > Preliminary Specification
<>
Final Specification
Note: The content of this specification is subject to change.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2005 AU Optronics All Rights Reserved, Do Not Copy.
www.panelook.com
Page 3
Global LCD Panel Exchange Center
A201SN02 V 5.01
www.panelook.com
Record of Revision
Version Revise Date Old Description(A201SN02 V4) New Description(A201SN02 V5) Remark
5.01 09/Nov/2005 A. Physical specifications
7. Display Color: 16.7M / 8bit
9. Color Gamut t: 75% NTSC
B. Electrical specifications
2. Absolute maximum ratings
Input signal voltage: Max. Vcc+0.3
3. Electrical characteristics
a. Typical operating conditions
Inrush current: Max. 1.5 A
c. Input signal timing
(1). Timing characteristics of input
signals
C. Optical specifications
Contrast ratio: 500:1
A. Physical specifications
7. Display Color: 16.2M / 6bit + FRC
9. Color Gamut t: 72% NTSC
B. Electrical specifications
2. Absolute maximum ratings
Input signal voltage: Max. 3.6 V
3. Electrical characteristics
a. Typical operating conditions
Inrush current: Max. 3.0 A
c. Input signal timing
(1). Timing characteristics of input
signals
Updated: See Page 9
C. Optical specifications
.
Viewing angle (L/R/T/B): 80/80/60/60
Color Saturation (NTSC): 75%
Fig. 1 2D Drawing
BLU Cable Length: 140mm
Contrast ratio: 600:1
Viewing angle (L/R/T/B): 80/80/80/60
Color Saturation (NTSC): 72%
Color chromaticity (CIE): TBD
Fig. 1 2D drawing
BLU Cable Length: 160mm
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Contents:
A. Physical specifications
B. Electrical specifications
1. Pin assignment.
2.Absolute maximum ratings
3. Electrical characteristics
a. Typical operating conditions
b. Display color v. s. input data signals
c. Input signal timing
d. Display position
Spec. No. TVPM-A201SN02 V5
.
e. Backlight unit
C. Optical specifications
D. Reliability test items
E. Display quality
F. Handling precaution
G. Packing
Appendix:
Fig.1 LCM outline dimensions
Fig.2 Timing chart
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/16
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
A. Physical specifications
NO. Item Specification Remark
1 Display resolution(pixel)
2 Display Mode TN Type, Normally White + SWV Film
3 Active area (mm)
4 Screen size (inch) 20.1(Diagonal)
5 Pixel pitch (mm)
6 Color configuration R. G. B. Vertical stripe
7 Display Color 16.2M (6 bit + FRC)
8 Typical white Luminance 450 nit (typ.)
9 Color Gamut 72% typ. of NTSC coverage
10 Response Time 16ms typ. (Tr+Tf)
11 Electrical Interface TTL 1 port
12 Overall dimension (mm)
13 Weight (g) 3500
14 Surface Treatment Anti-Glare type
15 RoHS RoHS compliance
800x3(H)600(V)
408(H)306(V)
0.51(H)0.51(V)
448(W) 347(H)23(D)(max.)
Note 1
Note 1: Refer to Fig. 1.
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/16
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
B. Electrical specifications
1.Pin assignment
P/N Symbol Function P/N Symbol Function
1 NC 26 R0 Red Data 2 NC 27 GND Ground 3NC 28G7 4 GND Ground 29 G6 5 GND Ground 30 G5 6 V 7 V 8 V 9 V
CC
CC
CC
CC
Power Input (+5.0V)
31 G4 32 GND Ground 33 G3
34 G2 10 GND 35 G1 11 HSYNC Horizontal Sync. 36 G0 12 VSYNC Vertical Sync.
Active
Low
37 GND Ground 13 GND 38 B7 14 DE Data Enable 39 B6 15 GND 40 B5 16 DCLK Dot Clock 41 B4 17 GND Ground 42 GND Ground 18 R7 43 B3 19 R6 44 B2 20 R5 45 B1 21 R4
Red Data (R7 :MSB)
46 B0 22 GND Ground 47 GND Ground 23 R3 48 GND Ground 24 R2 49 NC 25 R1
Red Data
50 NC
CN1 (50P) connector: Compatible with P-Two AF7501-N2G1Z
Green Data
Green Data
Blue Data
Blue Data
2. Absolute maximum ratings (GND = 0 V)
Parameter Symbol
Power voltage V
Input signal voltage V
Operating temperature Top 0 +50
Storage temperature T
CC
LH
ST
Values
Min. Max.
-0.3 5.5 V
-0.3 3.6 V
-20 +70
Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40 or
less. At temperatures greater than 40, the wet bulb temperature must not exceed 39. When operate at low temperatures, the brightness of CCFL will drop and the lifetime of CCFL will be reduced.
Note 2: The unit should not be exposed to corrosive chemicals.
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
Unit
DC
DC
Remark
At 25
At 25
Note 1
Note 1
6/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
%
www.panelook.com
A201SN02 V.5.01

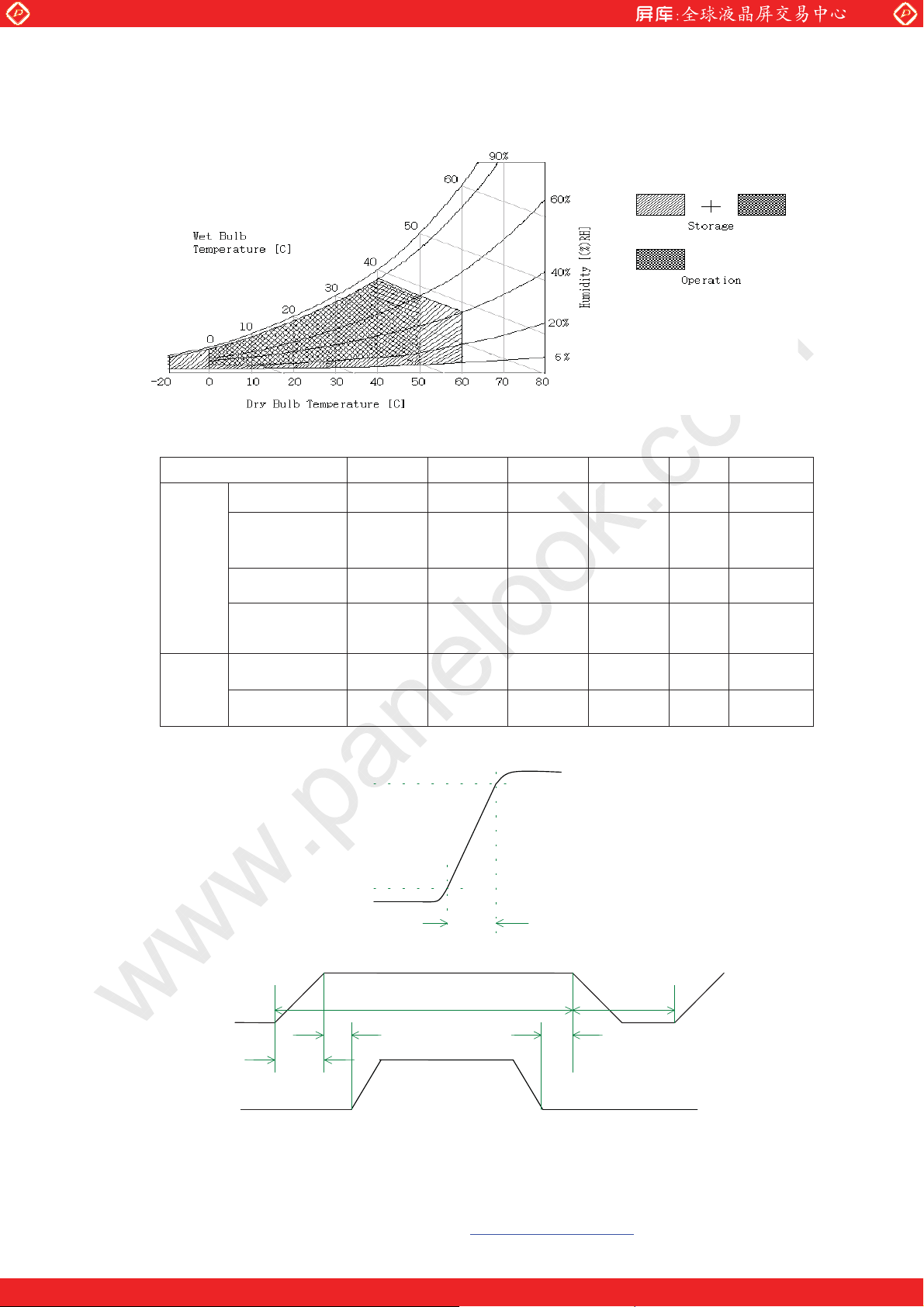

3. Electrical characteristics a. Typical operating conditions
Item Symbol Min.
Power
supply
voltage
Input voltage V
Current
consumption
Spec. No. TVPM-A201SN02 V5
Typ.
CC
I
A
4.75 5.0 5.25 V
- 0.8 1.0 Arms
Max. Unit Remark
Note 1
Internal
logic
Inrush current I
Power ripple
voltage
Low voltage
High voltage
RUSH
V
RP
V
V
Note 1:Effective value (mArms) at
IL
IH
V
CC
--3.0 Apeak Note 2
- - 100 mVp-p
0-1.0V
2.3 - 3.3 V
=5V/25
.
Note 2: Refer to the following power-on condition.
10
Ton=470s10%
Sequence of Power-on/off and signal-on/off
Power
Input signal
T3
T2T1
T5
0msT170msec
0msT270msec
300msecT3
300msecT4
T510msec
Apply the lamp voltage within the LCD operating range. When the backlight turns on before
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
7/16
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
the LCD operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.
Caution
The above on/off sequence should be applied to avoid abnormal function in the display. In case of handling: Make sure to turn off the power when you plug the cable into the input connector or pull the cable out of the connector.
b. Display color v.s. input data signals
Display colors
Basic
colors
Red
grayscale
Green
grayscale
Blue
grayscale
Black
Blue
Red
Magenta
Green
Cyan
Yellow
White
Black
Dark
 
bright
Red
Black
Dark
 
bright
Green
Black
Dark
 
bright
Blue
R7 R6 R5
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
R4 R3 R2 R1 R0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Data signal (0 : Low level, 1: High level)
G7 G6 G5
0
0
0
0
0
0
0
0
0
1
1
1
0
1
1
1
1
0
0
0
1
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
1
0
0
0
0
1
0
0
1
0
1
0
0
1
1
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
1
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
G4 G3 G2 G1 G0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0 0 0 0 1 1 1 1 0 0 0
0 0 0
0 0 1
0 1 1
0 0 0
0 0 0
B7 B6 B5
0
0
1
0
0
0
1
0
0
1
1
1
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
1
0
0
0
1
0
0
0
0
0
0
1
0
1
0
1
0
B4 B3 B2 B1 B0
0
0
0
1
1
1
0
0
0
1
1
1
0
0
0
1
1
1
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
Note: Each basic color can be displayed in256 gray scales using the 8 bit data signals. By combining the 24-bit data signals(R, G, B), the 16777216 colors can be achieved on the display.
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
0 1 0 1 0 1 0 1 0 0 0
0 0 0
0 0 0
0 0 0
0 0 1
0 1 1
8/16
0 1 0 1 0 1 0 1 0 0 0
0 0 0
0 0 0
0 0 0
0 1 0
1 0 1
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
c. Input signal timing
Timing diagrams of input signal are shown in Fig 2. (1). Timing characteristics of input signals
DE mode
Clock frequency Fck 38 40 50 MHz
Horizontal blanking Thb1 230 256 260 Clk
Horizontal display period Thd 800 800 800 Clk
Horizontal sync. period Th 1030 1056 1060 Clk
Vertical frequency - 46 60 76 Hz
Vertical blanking Tvb1 28 28 28 Th
Vertical display width Tvd 600 600 600 Th
Vertical sync. period Tv 628 628 628 Th
H/V mode
Clock frequency Fck 38 40 50 MHz
Horizontal display period Thd 1030 1056 1060 Clk
Hsync front porch Thf 184 210 214 Clk
Hsync width+back porch Thw+Thb 46 46 46 Clk
Hsync blanking Thb1 230 256 260 Clk
Vsync front porch Tvf 111Th
Vsync blanking Tvb1 28 28 28 Th
Spec. No. TVPM-A201SN02 V5
Item Symbol Min. Typ. Max. Unit Remark
Item Symbol Min. Typ. Max. Unit Remark
Vsync period Tv 628 628 628 Th
Item Symbol Value Unit Description
Horizontal display start The 46 Clk
Vertical display start Tve 27 Th
After falling edge of Hsync, counting 46 clk,
then getting valid data from 47th clk’s data.
After falling edge of Vsync, counting 27Th,
then getting 28th Th’s data.
Note 1:Clock falling edge latch the data.
Note 2:H/V is negative polarity.
d. Display position
D( 1,1 ) D( 2,1 ) …… D( X,1 ) …… D( 799,1 ) D( 800,1 )
D( 1,2 ) D( 2,2 ) …… D( X,2 ) …… D( 799,2 ) D( 800,2 )
. . .
D( 1,Y ) D( 2,Y ) …… D( X,Y ) …… D( 799,Y ) D( 800,Y )
. . .
D( 1,599 ) D( 2,599 ) …… D( X,599 ) …… D( 799,599) D( 800,599 )
D( 1,600 ) D( 2,600 ) …… D( X,600 ) …… D( 799,600) D( 800,600)
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
……
……
. . .
. . .
……
……
. . .
. . .
. . .
. . .
9/16
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
e. Backlight unit
The backlight system is an edge-lighting type with a CCFT(Cold Cathode Fluorescent Tube).
The characteristics of a single lamp are shown in the following tables.
Parameter Symbol Min. Typ. Max. Unit Remark
Lamp voltage V
Lamp current I
Power consumption P
Lamp starting voltage V
Frequency F
Lamp life time L
L
L
L
S
L
L
720 800 880 Vrms Note 1
4 6.5 7 mArms Note 1
- 5.2x6 - W Note 2
- - 1500(T=0)
- - 1150(T=25)
40 52 60 KH
50000 - - Hr Note 1, 5
Vrms Note 3
Z
Note 1: T= 25 Note 2: Inverter should be designed with the characteristic of lamp. When you are designing
the inverter, the output voltage of the inverter should comply with the following conditions.
(1). The area under the positive and negative cycles of the waveform of the lamp
current and lamp voltage should be area symmetric (the symmetric ratio should
be larger than 90%). (2). There should not be any spikes in the waveform. (3). The waveform should be sine wave as possible. (4). Lamp current should not exceed the maximum value within the operating
temperature (It is prohibited to over the maximum lamp current even if operated
in the non-guaranteed temperature). When lamp current over the maximum
value for a long time, it may cause fire. Therefore, it is recommend that the
inverter should have the current limited circuit.
Note 3: The inverter open voltage should be designed larger than the lamp starting voltage at
o
T=0
C, otherwise backlight may be blinking for a moment after turning on or not be able to turn on. The open voltage should be measured after ballast capacitor. If an inverter has shutdown function it should keep its open voltage for longer than 1 second even if lamp connector is open.
Note 4: Lamp frequency may produce interference with horizontal synchronous frequency
and this may cause line flow on the display. Therefore lamp frequency shall be detached from the horizontal synchronous frequency and its harmonics as far as possible in order to avoid interference.
Note 4
Note 5: Brightness (I
= 6.5mA) to be decrease to the 50% of the initial value.
L
Note 6: CN2 connector (backlight): BHSR-02VS-1 (JST)
Mating connector: SM02B-BHS-1-TB (JST)
Pin no. Symbol Function Remark
1 H CCFL power supply (H.V.) Cable color: Pink (central); Dark Gray others)
2 L CCFL power supply (GND) Cable color: White
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10/16
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
C. Optical specifications ( Note 1, Note 2 )
Item Symbol Condition
Response time Rising time Falling time
Contrast ratio(center of screen) CR
Viewing angle
To p
Bottom Left Right
Brightness (center of screen)
Color chromaticity (CIE)
Tr Tf
Y
Wx
Wy
=0
=0
CR10
L
=0
=0
Rx
Ry
Gx
Gy
Bx
By
Color Saturation (NTSC) 72 %
White uniformity
W
Note 1: Ambient temperature = 25. Note 2: To be measured in dark room after backlight warm up 30 minutes. Note 3: To be measured with a viewing cone of 1by Topcon luminance meter ELDIM EZContrast
160D.
Note 4: To be measured with the detector PR880 Note 5: Definition of response time:
The output signals of BM-7 are measured when the input signals are changed from “Black” to “White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval between the 10% and 90% of amplitudes. Refer to figure as below.
Specification
Min. Typ. Max.
-
-
500 600 - Note 3,4,6
65
55 65 65
350 450 - nit Note 4,7
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
70 - - % Note 3,9
11
5
80
60 80 80
15 10
Unit Remark
ms Note 5
-
-
Deg. Note 3,6,8
-
-
Note 3
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11/16
www.panelook.com
Page 12
Global LCD Panel Exchange Center
(CR)
www.panelook.com
A201SN02 V.5.01
100%
S ig
90%
n a l( R
e la
t
iv e
v a lu
10%
e )
0%

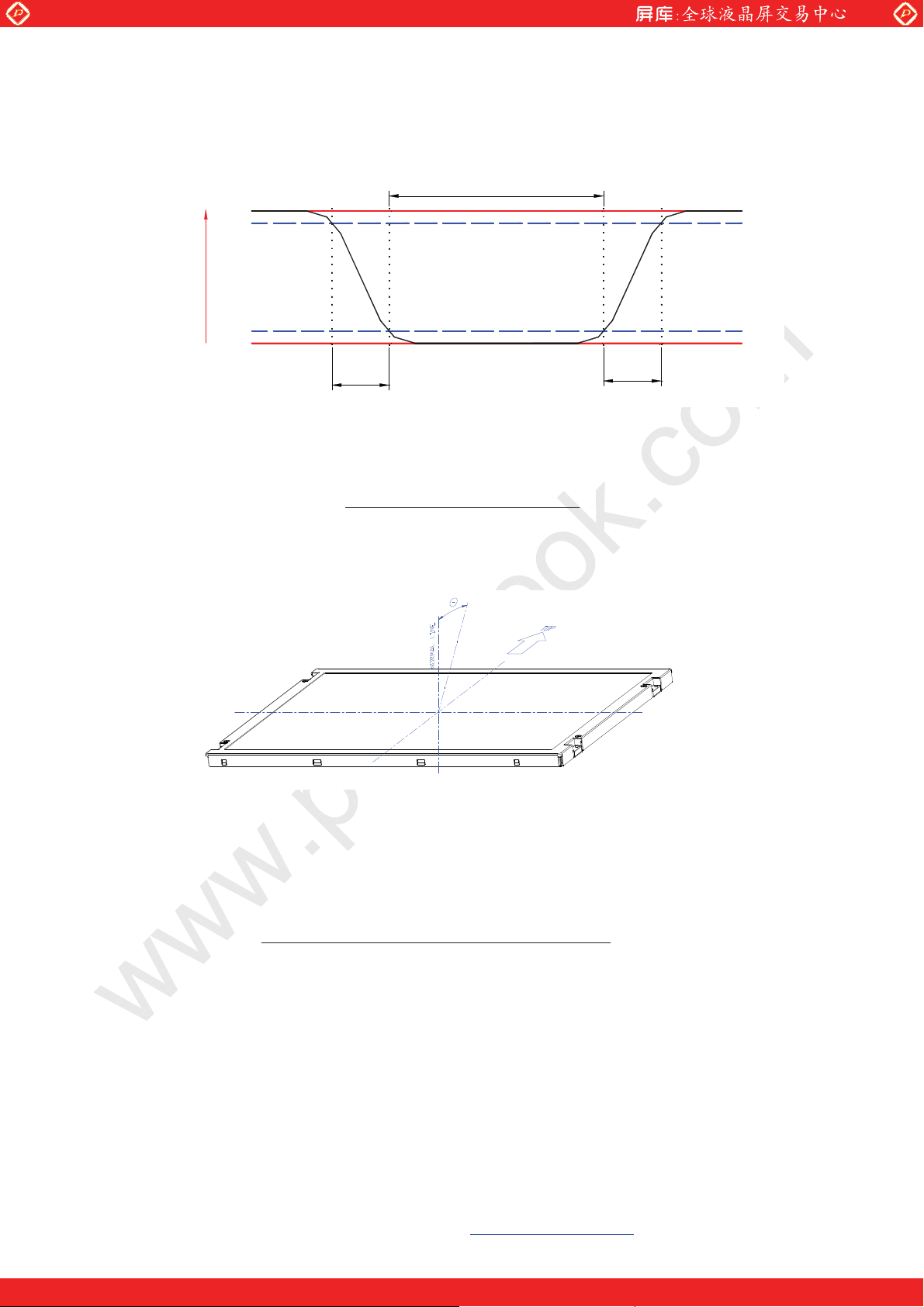

Note 6. Definition of contrast ratio:
Contrast ratio is calculated with the following formula.
Contrast ratio
=
Note 7: Driving conditions for CCFL: I
Note 8: Definition of viewing angle:
Spec. No. TVPM-A201SN02 V5
"Black"
Tr
Brightness on the "white" state Brightness on the "black" state
= 6.5 mA, 52KHz Frequency.
L
"White""White"
Tf
Note 9: Definition of white uniformity:

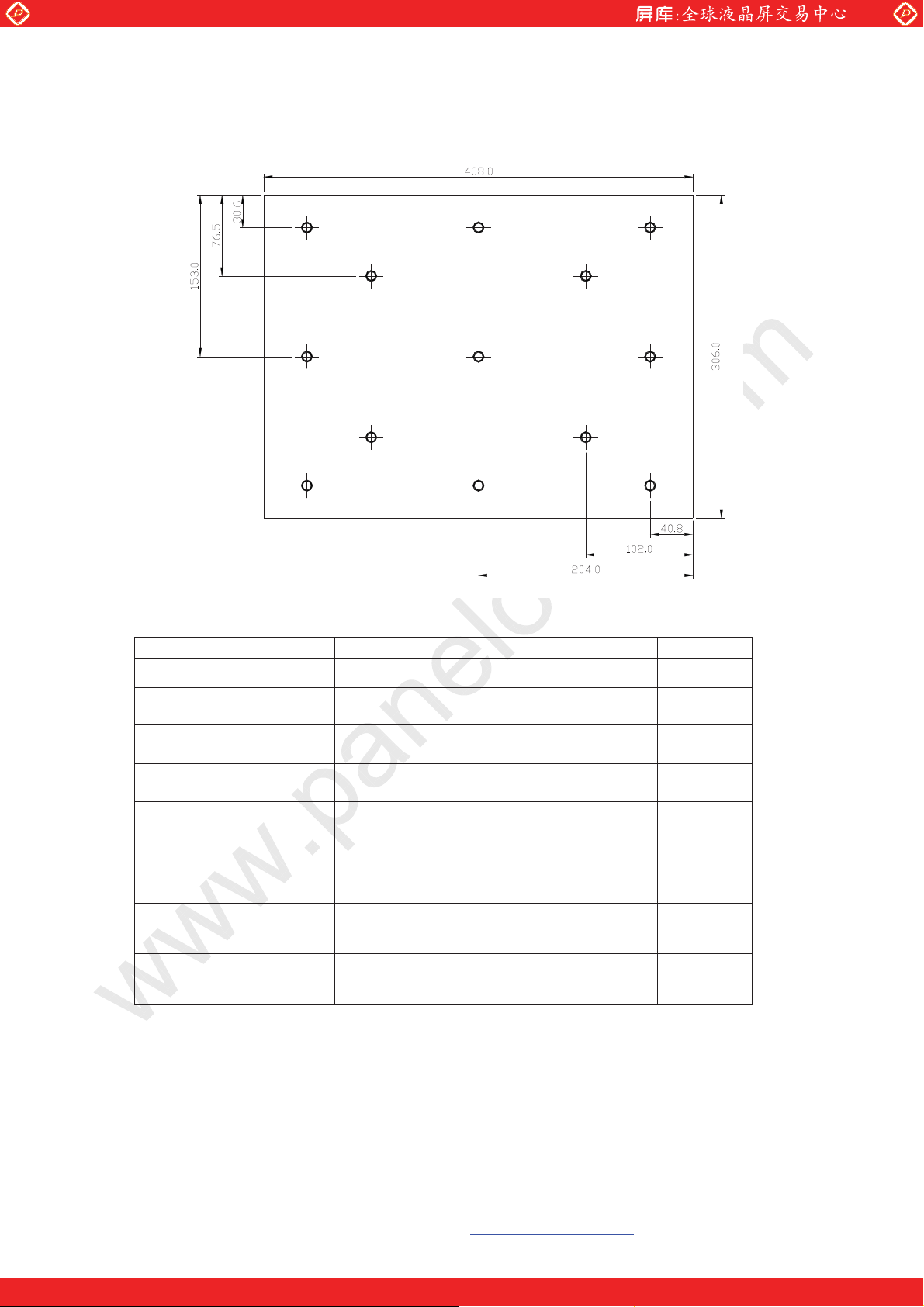

White uniformity is calculated with the following formula. Luminance is measured at the following thirteen points (1~13).
=
Minimum Brightness of13 points
Maximum Brightness of 13 points
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12/16
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
D. Reliability test items (Note 1)
Test tem Test Condition Remark
High temperature storage
Low temperature storage
High temperature operation
Low temperature operation
Temperature cycling
(non-operation)
Electrostatic discharge
(non-operation)
Vibration
(non-operation)
Mechanical shock
(non-operation)
Note 1: Evaluation should be tested after storage at room temperature for one hour.
Note 2: There should be no change which might affect the practical display function when the
display quality test is conducted under normal operating condition.
Note 3: Judgment: 1.Function OK.
2.No serious image quality degradation.
60, 240Hrs
-20, 240Hrs
50, 240Hrs
0, 240Hrs
-20~60
1H, 10mins, 1H, 5cycles
150 pF,150,10kV,1 second, 9 position on the panel, 10 times each place
Sweep:1G, 10HZ~ 500HZ~ 10HZ/2.5min 2 hours for each direction X, Y, Z (6 Hrs in total)
50G/11ms, 200G/2ms,X,Y,Z
once for each direction
Note1,2, 3
Note1,2, 3
Note1,2, 3
Note1,2, 3
Note1,2, 3
Note 3
Note1,2, 3
Note1,2, 3
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13/16
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5pcs Modules
Cushion set
1pcs Module/ESD
Cushion top
1pcs Module
5pcs / 1 carton
HTape
Cushion down
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
E. Display quality
The display quality of the color TFT-LCD module should be in compliance with the AUO’s OQC inspection standard.
F. Handling precaution
The Handling of the TFT-LCD should be in compliance with the AUO’s handling principle standard.

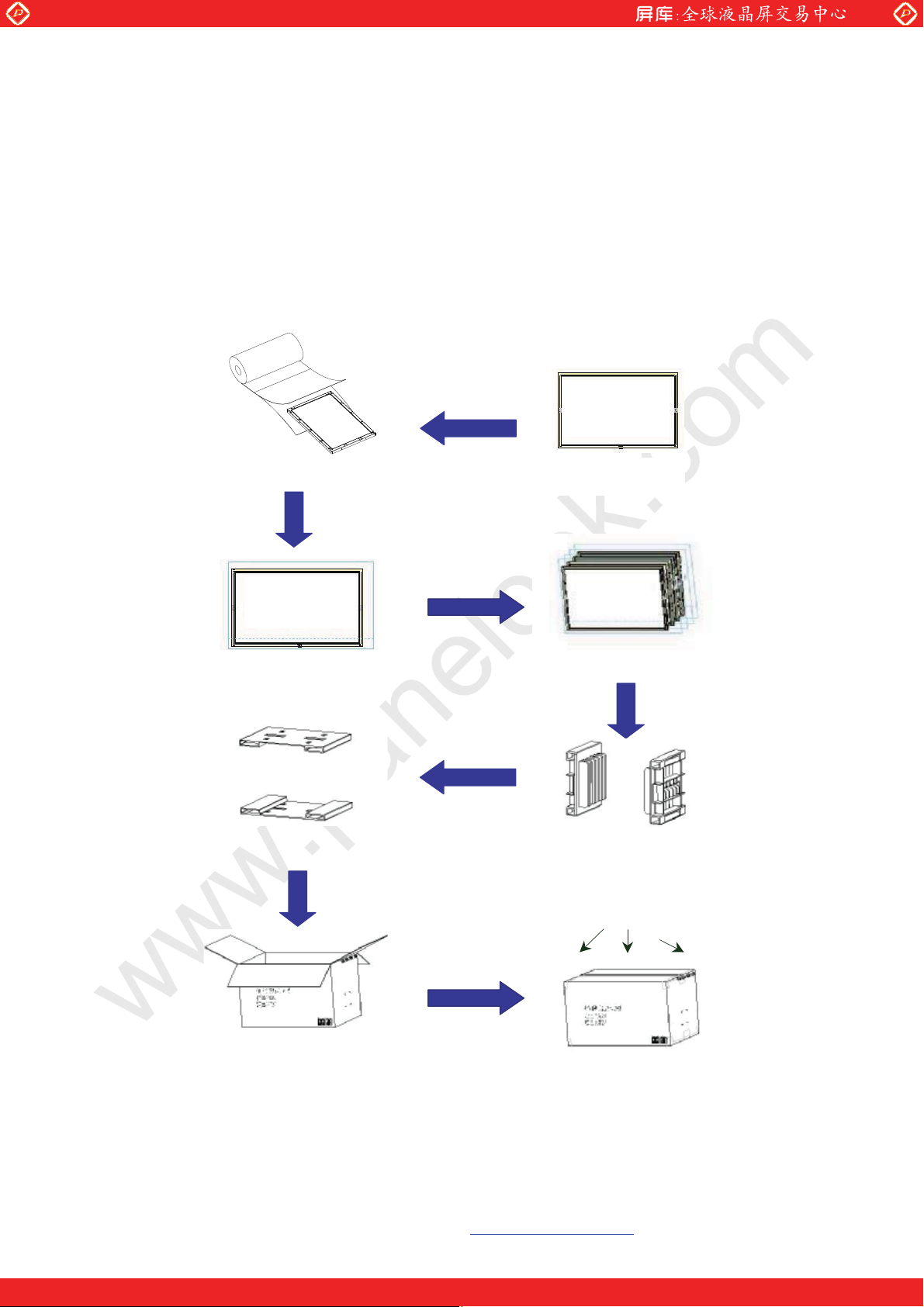

G. Packing:
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14/16
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
BLU Cable Length: 160mm

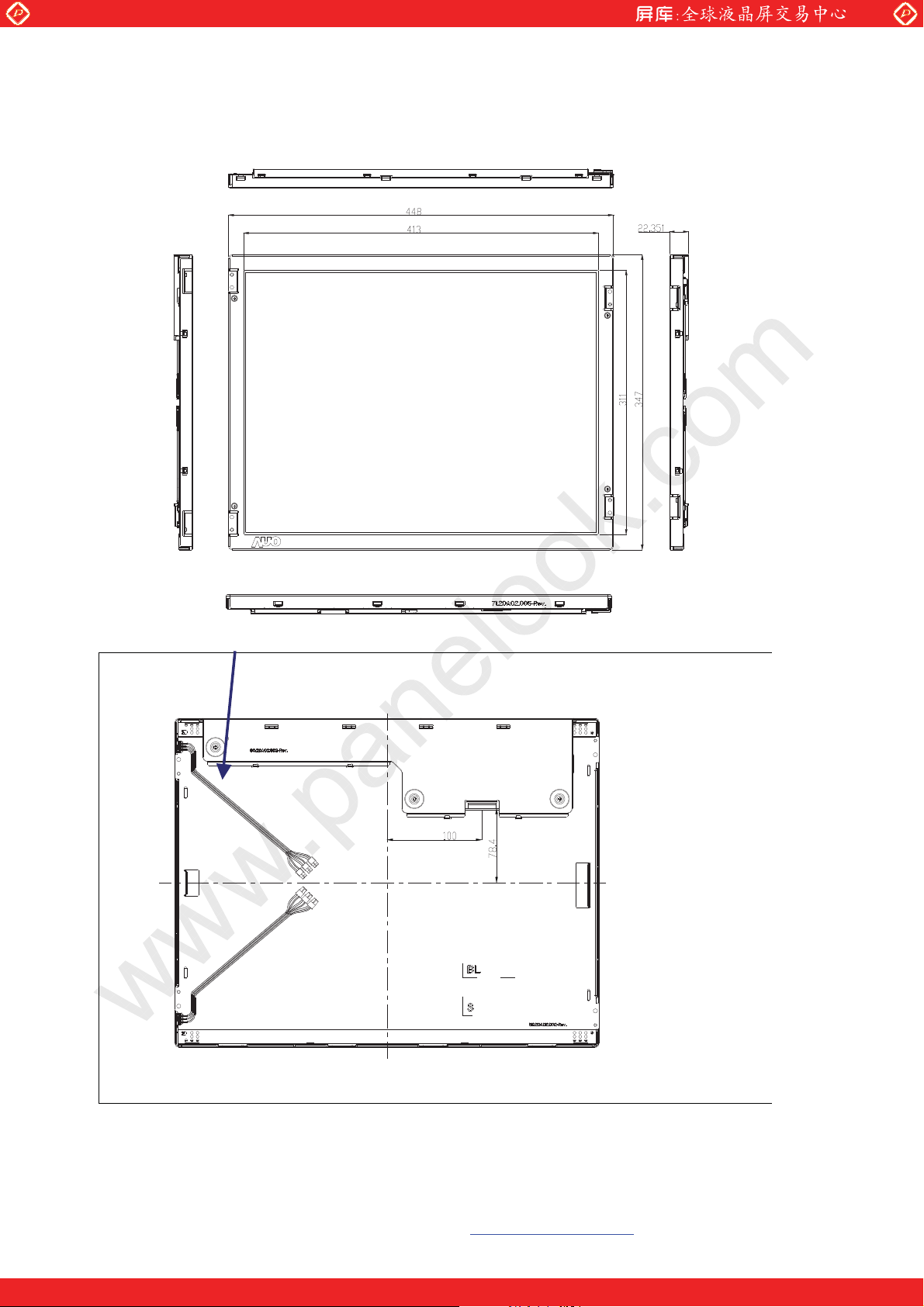

Fig.1 LCM outline dimension
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15/16
www.panelook.com
Page 16
Global LCD Panel Exchange Center
Th
www.panelook.com
A201SN02 V.5.01
Spec. No. TVPM-A201SN02 V5
) k c
lo c / l e
ix p
1
lid a v
lid a v n
I
0 0 6
, X
9 9 5
, X
d v T
3
, X
2
, X
1
, X
v T
in
Y
, 0 0 8
Y
, 9 9 7
Y
, 3
Y
, 2
Y
, 1
(
d h T
v T

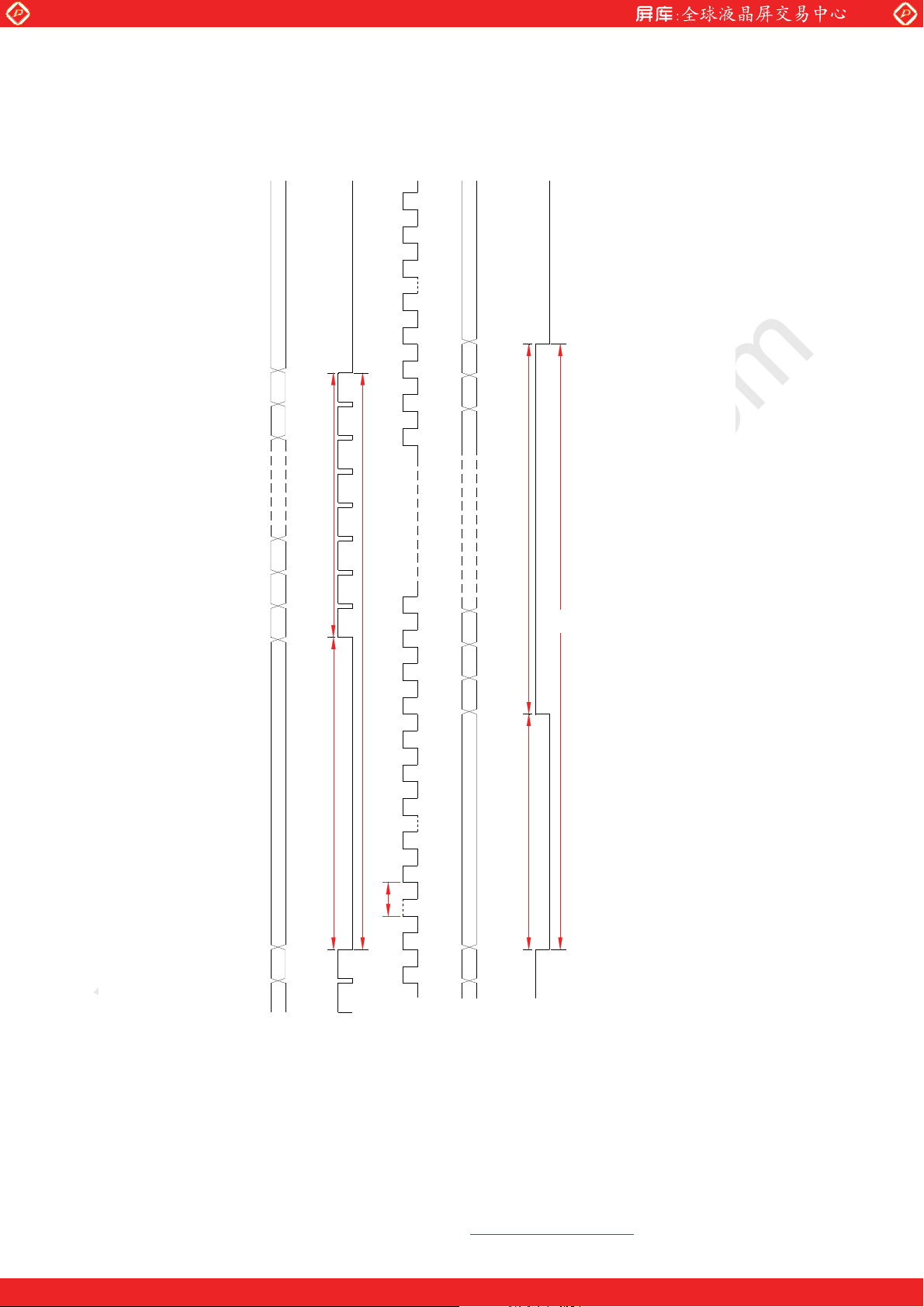

Fig.2 Timing chart
l
B G R
b v T
lid a v
in
k c F
Y
, 0 0 8
E D
K L
C
B G R
l b h T
E D
id
l a v n
I
0 0 6
, X
9 9 5
, X
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM UNIPAC OPTOELECTRONICS CORP.
PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com
16/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
