SRC1206SF

NPN Silicon Transistor

Descriptions

• Switching application

• Interface circuit and driver circuit application

Features

• With built-in bias resistors

• Simplify circuit design

• Reduce a quantity of parts and manufacturing process

• High packing density

Ordering Information

Type NO. Marking Package Code

SRC1206SF RC6 SOT-23F

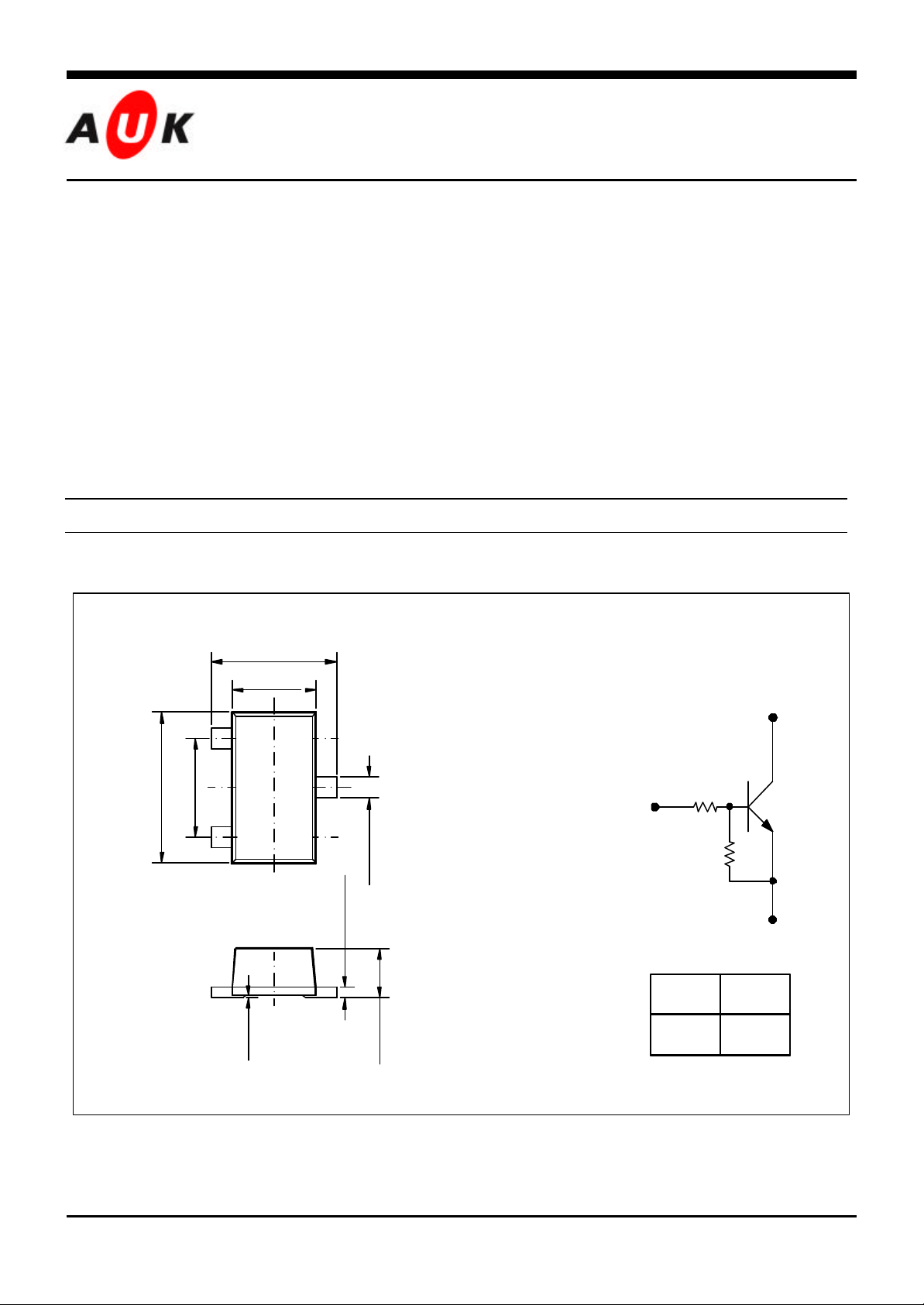

Outline Dimensions unit : mm

1.90 BSC

2.9±0.1

2.4±0.1

1.6±0.1

1

3

•

Equivalent Circuit

C(OUT)

B(IN)

R1

2

0~0.1

0.4±0.05

0.15±0.05

PIN Connections

1. Base

0.9±0.1

2. Emitter

3. Collector

R1 R2

4.7K

R2

E(COMMON)

Ω

47K

Ω

KSR-2041-000

1

SRC1206SF

Absolute maximum ratings (Ta=25

Characteristic Symbol Ratings Unit

Out Voltage VO 50 V
Input Voltage VI 20 V
Out Current IO 100 mA
Power Dissipation PD 200 mW
Junction Temperature TJ 150 °C
Storage Temperature T

-55 ~ 150 °C

STG

Electrical Characteristics (Ta=25

Characteristic Symbol Test Condition Min. Typ. Max. Unit

Output Cut-off Current I
DC Current Gain GI VO=5V, IO=10mA 80 200 - ­Output Voltage V
Input Voltage (ON) V
Input Voltage (OFF) V
Transition Frequency f
Input Current II VI=5V - - 1.8 mA

VO=50V, VI=0 - - 500 nA

O(OFF)

IO=10mA, II=0.5mA - 0.1 0.3 V

O(ON)

VO=0.2V, IO=5mA - 0.9 1.3 V

I(ON)

VO=5V, IO=0.1mA 0.5 0.65 - V

I(OFF)

*

VO=10V, IO=5mA - 200 - MHz

T

°

°

C)

C)

* : Characteristic of Transistor Only

KSR-2041-000

2

SRC1206SF

I(ON)

Electrical Characteristic Curves

Fig. 1 IO - V

Fig. 3 GI - IO

Fig. 2 IO - V

I(OFF)
