Page 1
PLAN VIEW

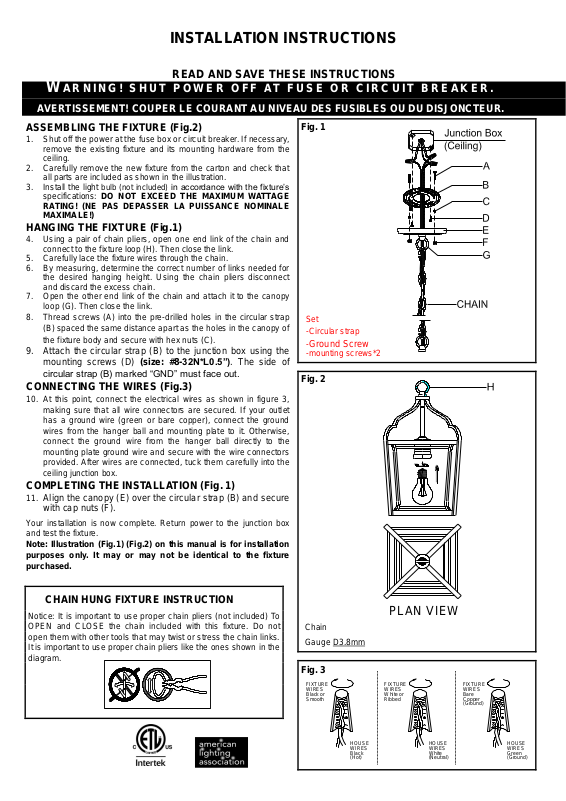

INSTALLATION INSTRUCTIONS

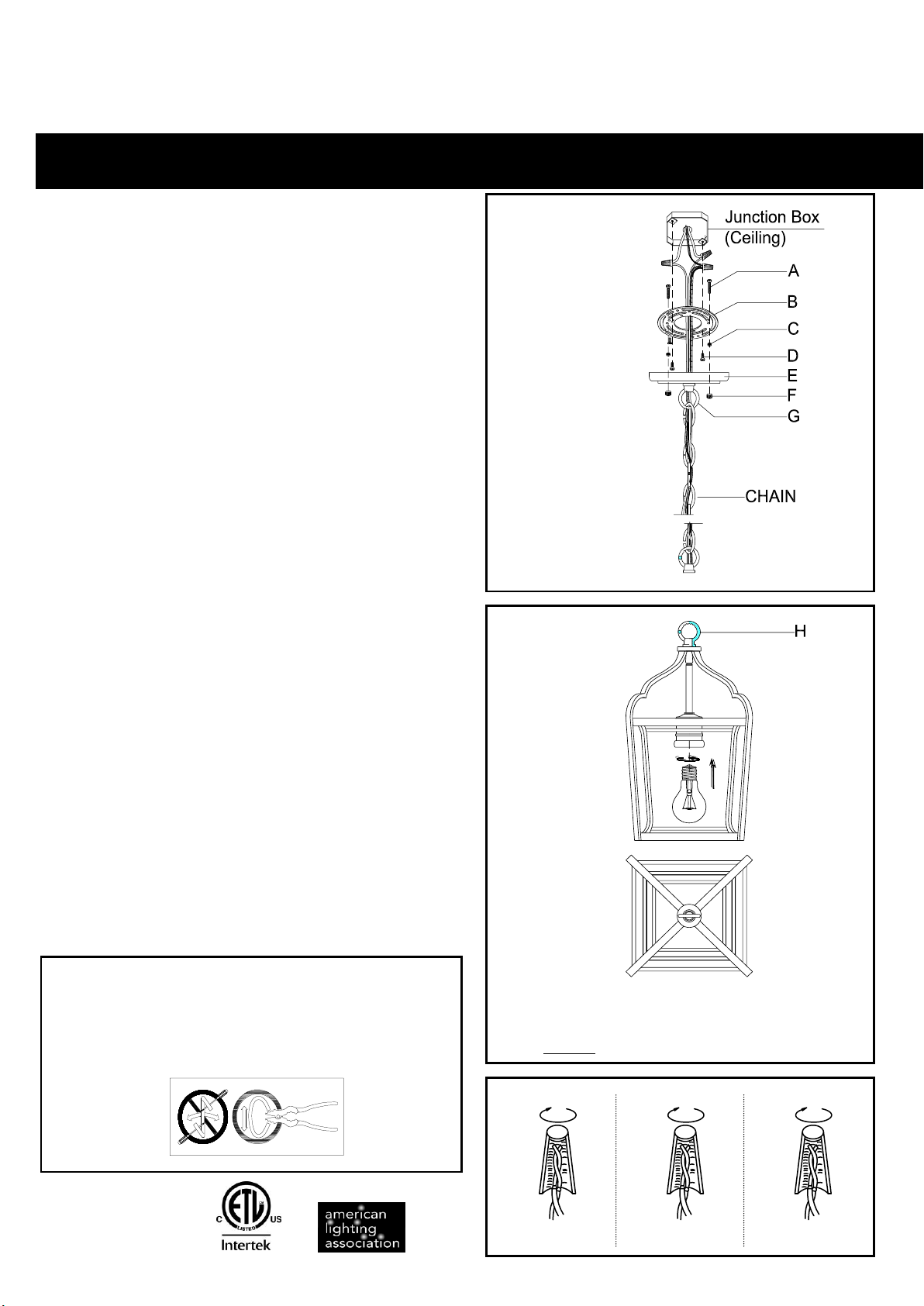

Fig. 1
Fig. 2
CHAIN HUNG FIXTURE INSTRUCTION
Notice: It is important to use proper chain pliers (not included) To
OPEN and CLOSE the chain included with this fixture. Do not
open them with other tools that may twist or stress the chain links.
It is important to use proper chain pliers like the ones shown in the
diagram.
Fig. 3
ASSEMBLING THE FIXTURE (Fig.2)
1. Shut off the power at the fuse box or circuit breaker. If necessary,
remove the existing fixture and its mounting hardware from the
ceiling.
2. Carefully remove the new fixture from the carton and check that
all parts are included as shown in the illustration.
3. Install the light bulb (not included) in accordance with the fixture’s
specifications: DO NOT EXCEED THE MAXIMUM WATTAGE
RATING! (NE PAS DEPASSER LA PUISSANCE NOMINALE
MAXIMALE!)
HANGING THE FIXTURE (Fig.1)
4. Using a pair of chain pliers, open one end link of the chain and
connect to the fixture loop (H). Then close the link.
5. Carefully lace the fixture wires through the chain.
6. By measuring, determine the correct number of links needed for
the desired hanging height. Using the chain pliers disconnect
and discard the excess chain.
7. Open the other end link of the chain and attach it to the canopy
loop (G). Then close the link.
8. Thread screws (A) into the pre-drilled holes in the circular strap
(B) spaced the same distance apart as the holes in the canopy of
the fixture body and secure with hex nuts (C).
9. Attach the circular strap (B) to the junction box using the
mounting screws (D) (size: #8-32N*L0.5”). The side of
circular strap (B) marked “GND” must face out.
CONNECTING THE WIRES (Fig.3)
COMPLETING THE INSTALLATION (Fig. 1)
11. Align the canopy (E) over the circular strap (B) and secure
with cap nuts (F).
Your installation is now complete. Return power to the junction box
and test the fixture.
Note: Illustration (Fig.1) (Fig.2) on this manual is for installation
purposes only. It may or may not be identical to the fixture
purchased.
-mounting screws*2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green
(Ground)
READ AND SAVE THESE INSTRUCTIONS
WARN ING! SH UT POWE R OF F AT FUSE OR CIRCUIT BR EAKE R.
AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.
10. At this point, connect the electrical wires as shown in figure 3,
making sure that all wire connectors are secured. If your outlet
has a ground wire (green or bare copper), connect the ground
wires from the hanger ball and mounting plate to it. Otherwise,
connect the ground wire from the hanger ball directly to the
mounting plate ground wire and secure with the wire connectors
provided. After wires are connected, tuck them carefully into the
ceiling junction box.
Set
-Circular strap
-Ground Screw
Chain
Gauge D3.8mm
