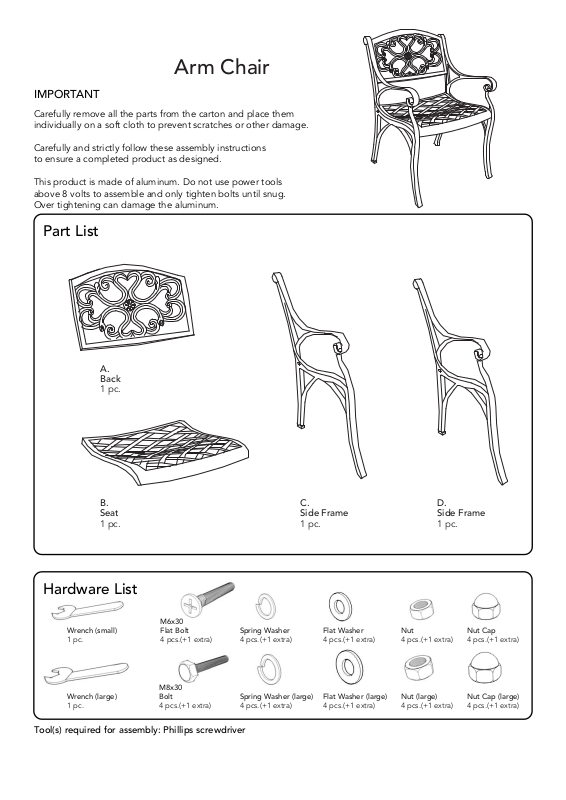

Page 1
Arm Chair
IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
A.
Back
1 pc.
B.
Seat
1 pc.
Hardware List
Wrench (small)
1 pc.
M6x30
Flat Bolt
4 pcs.(+1 extra)
Spring Washer
4 pcs.(+1 extra)
C.
Side Frame
1 pc.
Flat Washer
4 pcs.(+1 extra)
D.
Side Frame
1 pc.
Nut
4 pcs.(+1 extra)
Nut Cap
4 pcs.(+1 extra)
Wrench (large)
1 pc.
M8x30
Bolt
4 pcs.(+1 extra)
Tool(s) required for assembly: Phillips screwdriver
Spring Washer (large)
4 pcs.(+1 extra)
Flat Washer (large)
4 pcs.(+1 extra)
Nut (large)
4 pcs.(+1 extra)
Nut Cap (large)
4 pcs.(+1 extra)
Page 2
Assembly Instructions 2/2
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
The unit must be level to work properly. Use the included adjustable levelers to level.
Keep Wrench as the bolts and nuts may need to be tightened in the future.
STEP 1
C
Attach Side Frames (C) and (D)
to Seat (B) with Bolts,
Flat Washers (large),
Spring Washers (large) and Nuts (large),
tightening bolts only halfway.
D
Bolt
B
Nut Cap
Nut
Spring Washer
Flat Washer
Flat Washer (large)
Spring Washer (large)
Nut (large)
Nut Cap (large)
Flat Bolt
A
STEP 2
Attach Back (A) to unit with Flat Bolts,
Flat Washers, Spring Washers and Nuts,
tightening bolts only halfway.
Tighten all Bolts used in Steps 1 and 2.
Cover all Nuts used in Steps 1 and 2 with Nut Caps.
Level unit by adjusting the adjustable levelers on bottom of unit.
(See Figure 1)
Figure 1
Page 3
CARE INSTRUCTIONS
NEVER
allow liquids to remain on furniture.
Absorption causes parts to warp
and split and finishes to delaminate.
Do not use power tools
above 8 volts to assemble.
PREVENT
CRACKING
Do not place
in direct sunlight.
PREVENT
FADING
NEVER
use glass cleaners on
finished furniture. Ammonia
chemically attacks the finish.
Do not write
directly on surface.
PREVENT
MARKING
Do not place hot
objects on surface.
PREVENT
FINISH DAMAGE
Do not use rubber
based placemats.
PREVENT
DISCOLORING
CLEAN
with a soft cloth moistened
in lukewarm soap and water.
Buff with a dry clean cloth.
Do not use commercial
waxes and polishes.
PREVENT
YELLOWING
