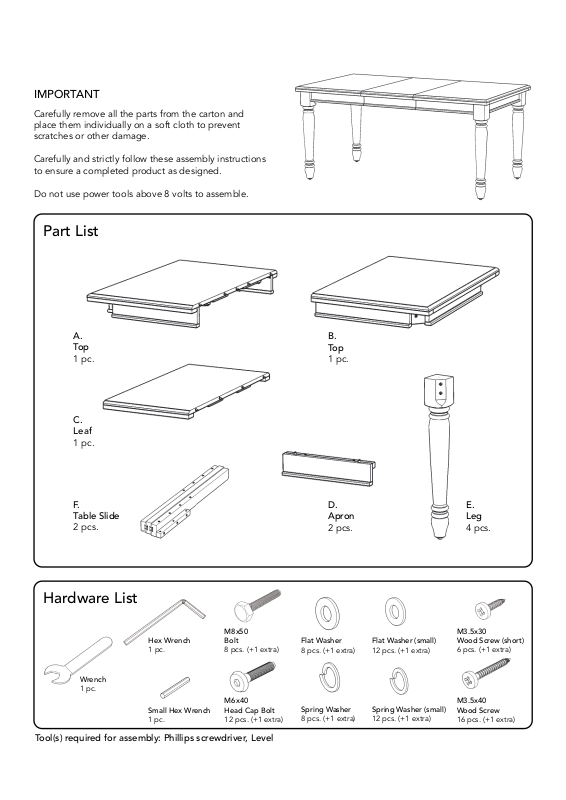

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

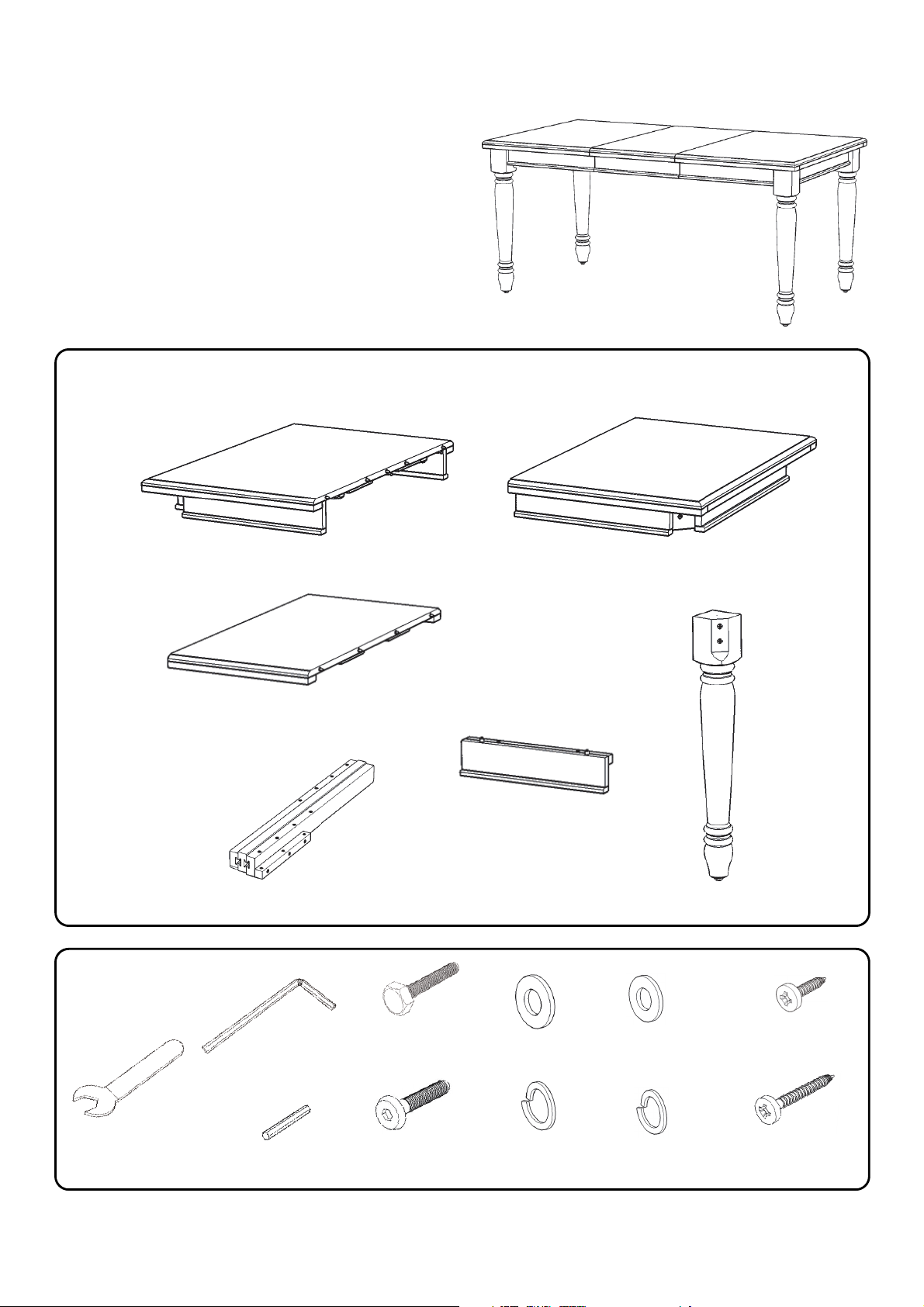

Part List
A.
To p
1 pc.
C.
Leaf
1 pc.
F.
Table Slide
2 pcs.
Hardware List
B.
To p
1 pc.
D.
Apron
2 pcs.
E.
Leg
4 pcs.
Hex Wrench
1 pc.
Wrench
1 pc.
Small Hex Wrench
1 pc.
M8x50
Bolt
8 pcs. (+1 extra)
M6x40
Head Cap Bolt
12 pcs. (+1 extra)
Tool(s) required for assembly: Phillips screwdriver, Level
Flat Washer
8 pcs. (+1 extra)
Spring Washer
8 pcs. (+1 extra)
Flat Washer (small)
12 pcs. (+1 extra)
Spring Washer (small)
12 pcs. (+1 extra)
M3.5x30
Wood Screw (short)
6 pcs. (+1 extra)
M3.5x40
Wood Screw
16 pcs. (+1 extra)
Page 2
Assembly Instructions 2/4
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
The unit must be level to work properly. Use the included adjustable levelers to level.
Keep Hex Wrench and Wrench as the bolts may need to be tightened in the future.
F
A
B
STEP 1
Head Cap Bolt
Spring Washer (small)
Flat Washer (small)
F
Place Tops (A) and (B) upside down on a soft cloth.
Remove Table Slides (F) from their packing position by removing
Head Cap Bolts, Spring Washers (small) and Flat Washers (small).
(See Figure 1)
Head Cap Bolt
Spring Washer (small)
Flat Washer (small)
F
F
A
B
Figure 1
Wood Screw
Figure 2

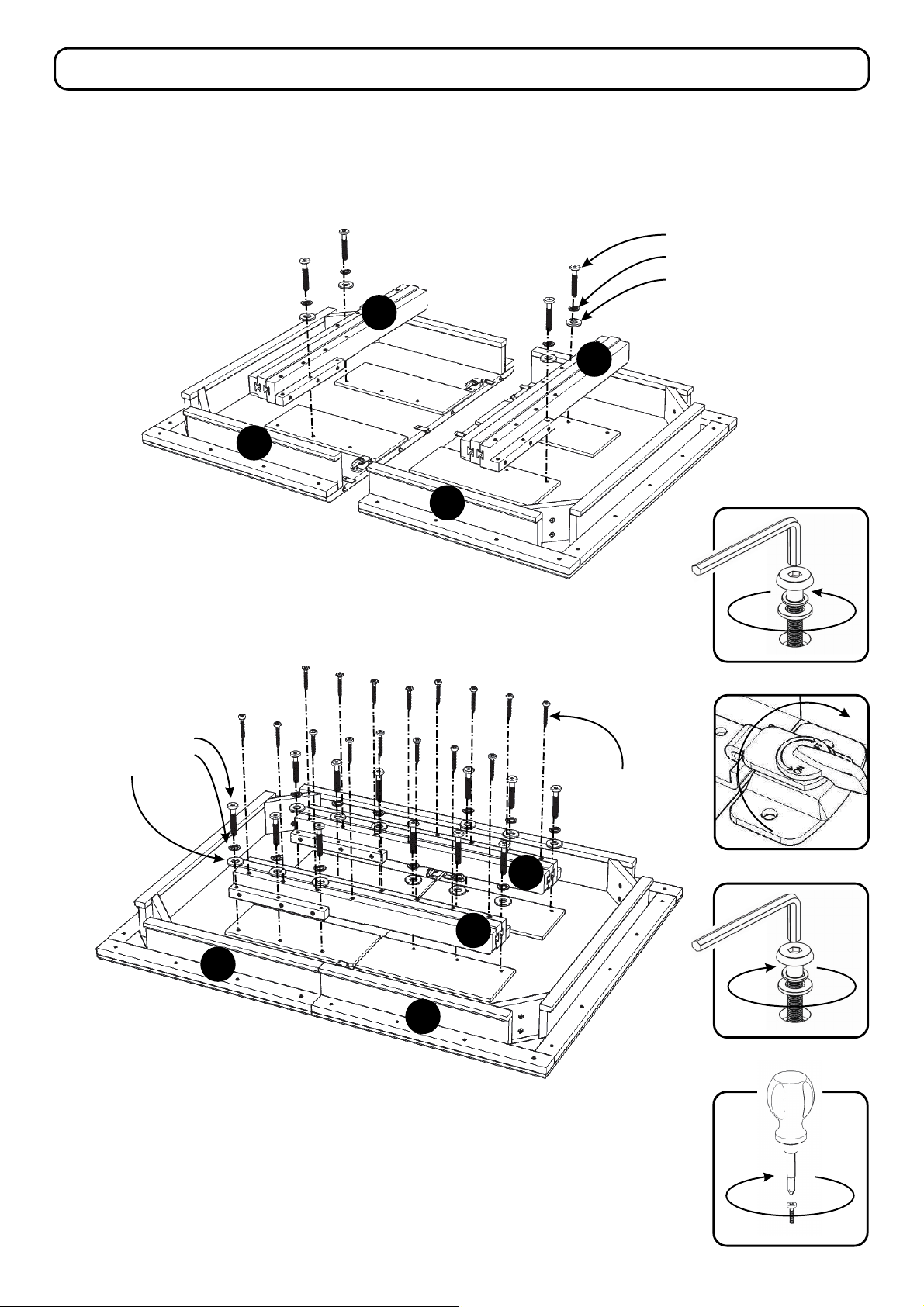

STEP 2
Attach Tops (A) and (B) by aligning metal pins
with holes and firmly pushing together.
Engage locks by turning lock handles clockwise 1/4 turn. (See Figure 2)
Attach Table Slides (F) to unit with Flat Washers (small),
Spring Washers (small), Head Cap Bolts and Wood Screws.
(See Figures 3 and 4)
Figure 3
Figure 4
Page 3
Assembly Instructions 3/4

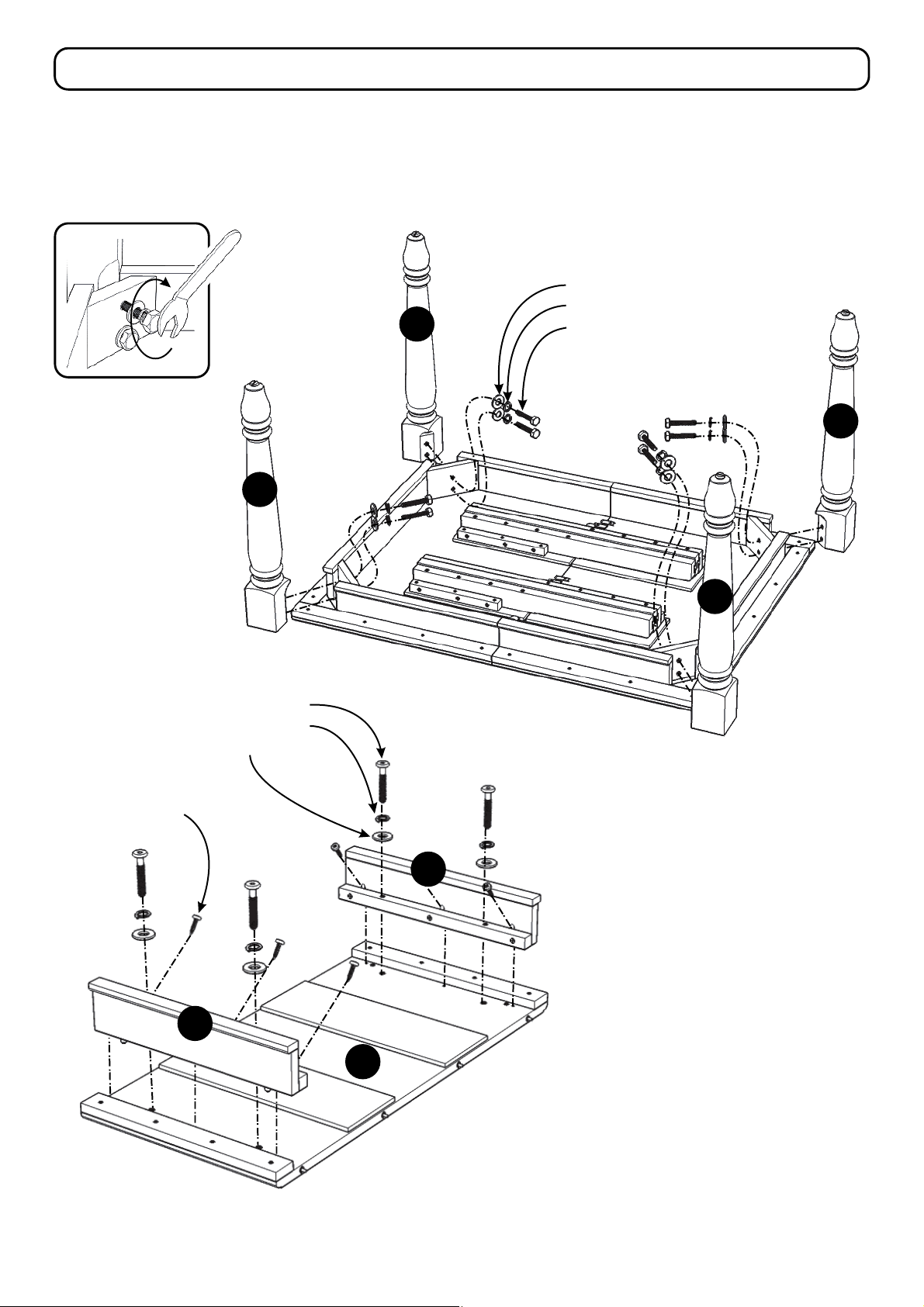

STEP 3
Attach Legs (E) to unit with Flat Washers,
Spring Washers and Bolts. (See Figure 5)
Figure 5
E
E
Flat Washer
Spring Washer
Bolt
E
Wood Screw (short)
E
Head Cap Bolt
Spring Washer (small)
Flat Washer (small)
D
D
C
STEP 4
Place Leaf (C) upside down on a soft cloth.
Attach Aprons (D) to Leaf (C) with
Flat Washers (small), Spring Washers (small),
Head Cap Bolts and Wood Screws (short).
Page 4
Assembly Instructions 4/4
Leaf

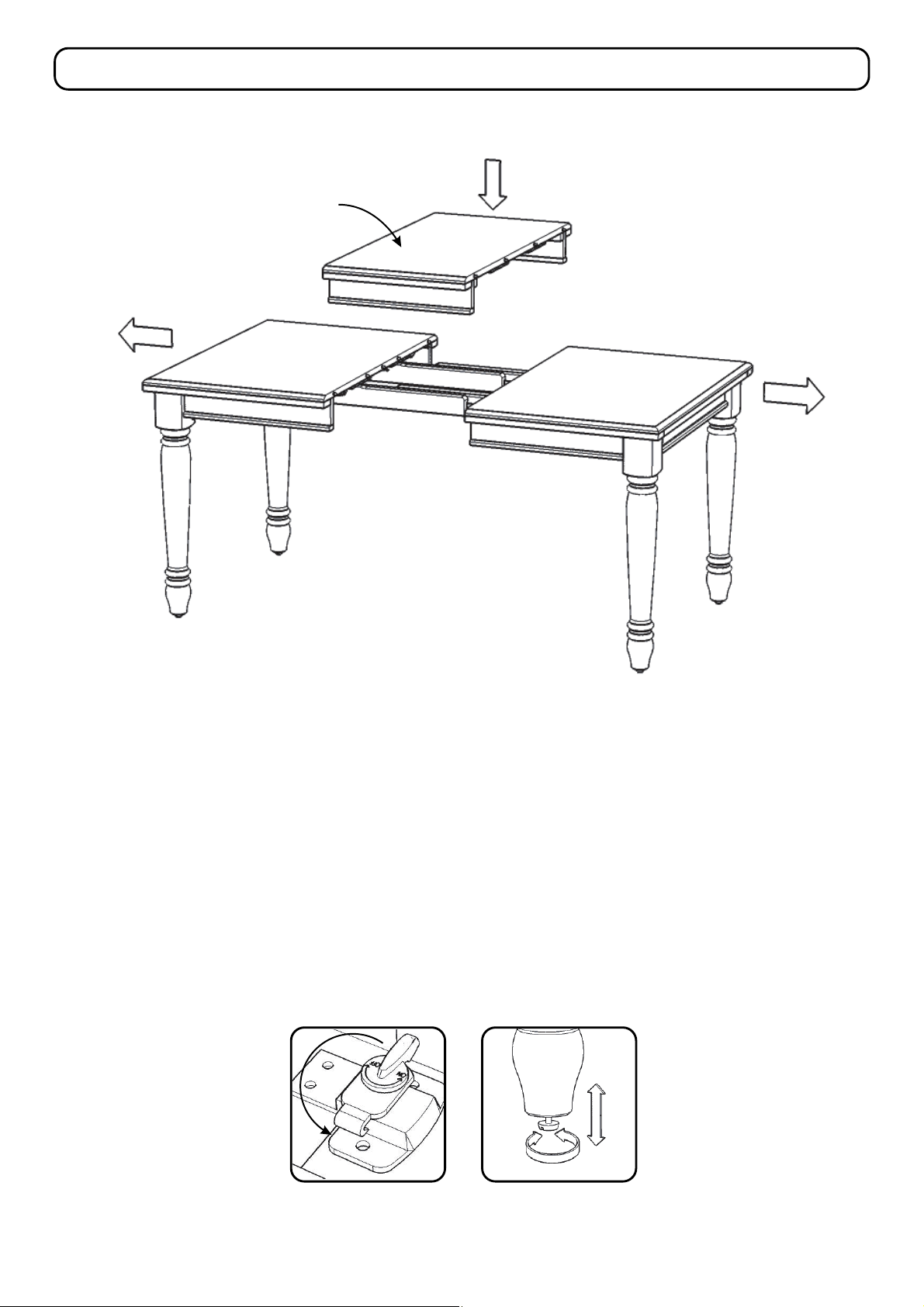

STEP 5
Turn table over to its’ upright position.
Disengage locks by turning lock handles counter-clockwise 1/4 turn. (See Figure 6)
Pull out both ends of table, then place leaf in unit as shown, aligning metal pins with holes.
Push table together firmly, then engage locks by turning lock handles clockwise 1/4 turn.
Level unit by adjusting the adjustable levelers on bottom of legs. (See Figure 7)
Figure 6
Figure 7
