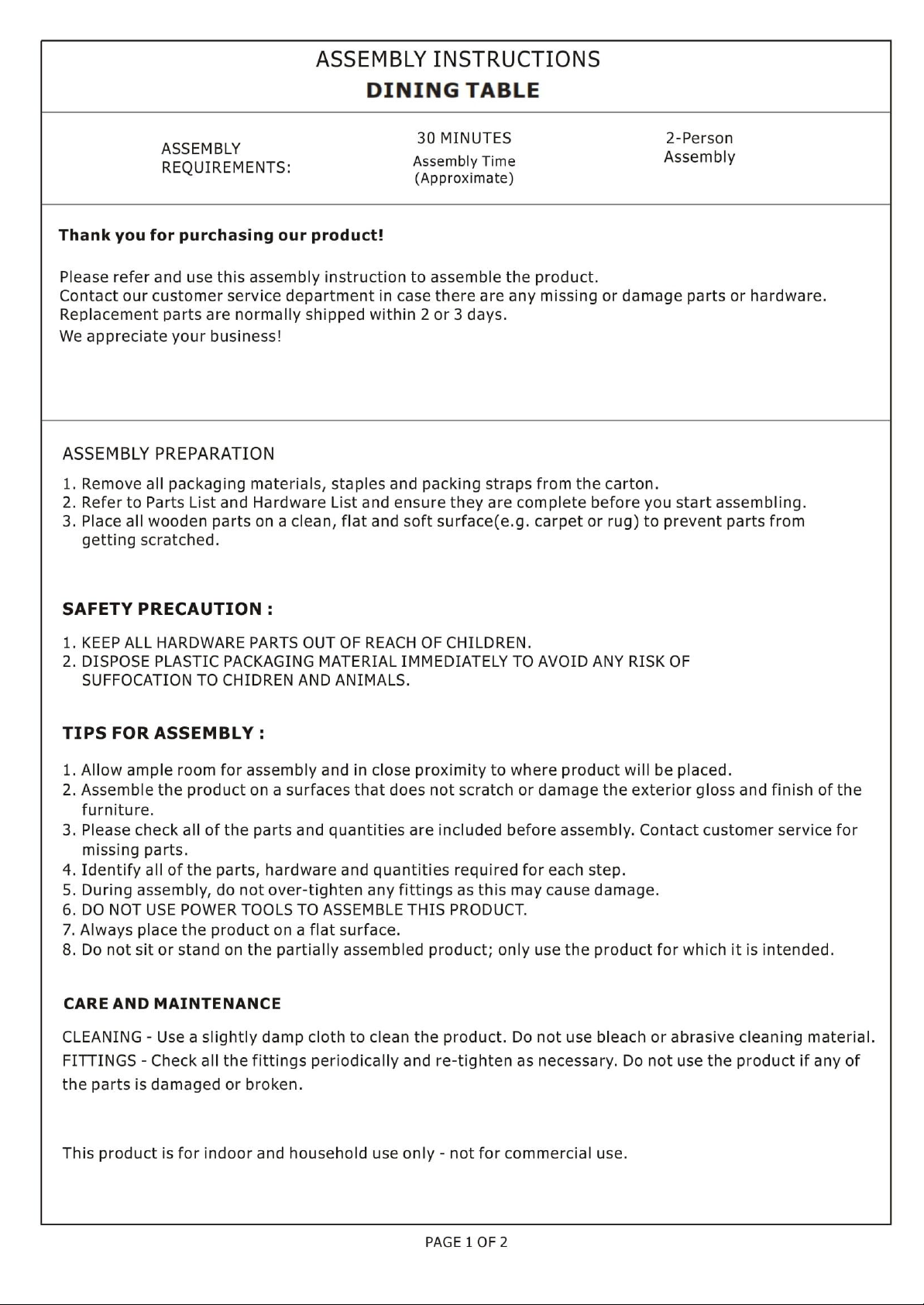

Page 1
Page 2
PARTS LIST
ASSEMBLY INSTRUCTIONS
DINING TABLE
1
TABLE TOP
2
TABLE LEGS
HARDWARE LIST
A
JCBB BOLT
FLAT WASHER
B
SPRING WASHER
C
ALLEN KEY
D
Place the Table Top(1) bottom-side up on a clean and soft surface.
Attach individual Table Leg(2) using JCBB Bolts(A), inserted with Spring Washer(C) and
Flat Washer(B). Tighten with Allen Key(D). Do not over-tighten JCBB Bolts(A).
Turn table right-side up with the help of another person.
1PC
4PCS
8PCS
8PCS
8PCS
1PC
1
2
2
2
2
2
2
1
2
2
D
B
C
A
MADE IN MALAYSIA
PAGE 2 OF 2
Page 3
ASSEMBLY INSTRUCTIONS
DINING CHAIR
Page 4
ASSEMBLY INSTRUCTIONS
DINING CHAIR
HARDWARE(FOR TWO CHAIRS)
DESCRIPTION DESCRIPTIONQTY QTY
NO. NO.
A
JCBC BOLT
SPRING WASHER
B
FLAT WASHER
C
SCREW
D
E
ALLEN KEY
TOOLS REQUIRED(NOT PROVIDED)
Note: Fasten screws and bolts manually with the Allen Key provided. Do not use power tools/drills to fasten screws
and bolts. Excessive pressure and/or torque will cause irreparable damage to the parts.
12PCS
12PCS
12PCS
16PCS
1PC
Step 1
Attach Side Rail(2) to the Leg Frame(3) via
2x Wood Dowel and 1x JCBC Bolt(A) inserted
with Spring and Flat Washers(B & C respectively)
Use Allen Key (E) to tighten (A).
Do not tighten completely at this time.
PARTS LIST(FOR TWO CHAIRS)
1
CHAIR BACK
SIDE RAIL
2
LEG FRAME
3
STRETCHER
4
5
CHAIR SEAT
L
R
2PCS
R
4PCS
2PCS
4PCS
2PCS
Step 2
Insert Stretcher(4) with the pre-drilled screw holes faced
down to the Leg Frame (3). Next, insert the other ends of
the Side Rail(2) and Stretcher(4) to the Chair Back(1).
Fasten Side Rail(2) to Chair Back(1) with JCBC Bolt(A)
inserted with Spring and Flat Washers(B & C respectively).
2
1
5
3
4
4
Do not tighten completely at this time.
C
BA
1
B ACE
2
E
L
R
2
R
3
R
L
L
2
R
R
2
3
Step 3
3-1: Position the assembly chair frame with the
legs facing up as shown. Use Screw(D) to
fasten the Stretcher(4) to the legs with a
Phillips Screwdriver (Not provided)
3-2: Next , fully tighten all the bolts and screw
at this time.
Do not over tighten.
PHILLIPS
SCREWDRIVER
D
D
4
4
3
L
1
4
4
Step 4
Place Chair Seat(5) bottom-side up on an elevated surface
(e.g. Table top). Position the chair frame assembly with the
legs facing up as shown. Center the seat frame to the Chair
Seat with rear of the Chair Seat against the Chair Back. Use
a Phillips Screwdriver to drive Screw(D) to fasten Chair Seat
to Seat Frame.
PHILLIPS
SCREWDRIVER
4
D
D
L
3
5
1
PAGE 2 OF 2
MADE IN MALAYSIA
