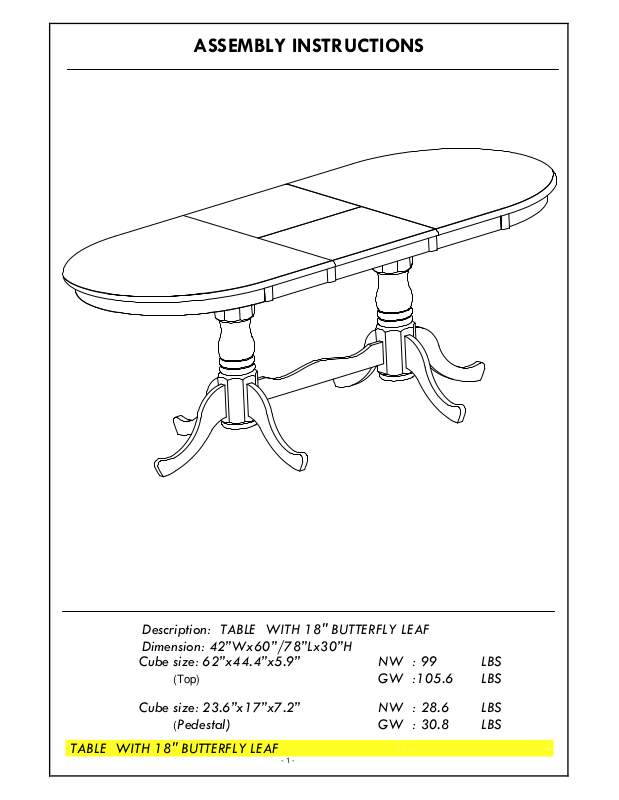

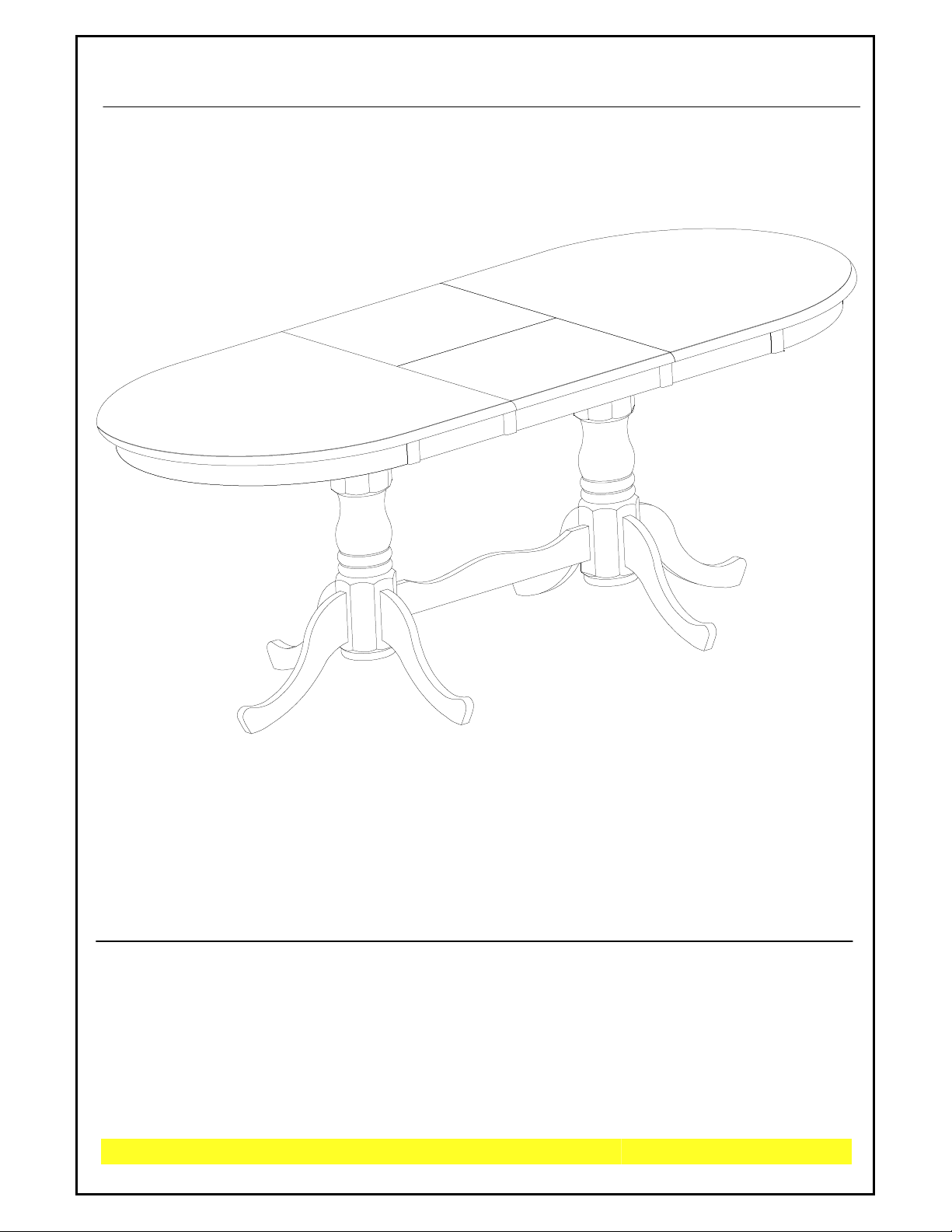

ASSEMBLY INSTRUCTIONS
Description: TABLE WITH 18'' BUTTERFLY LEAF
Dimension: 42”Wx60”/78”Lx30”H
Cube size: 62”x44.4”x5.9” NW : 99 LBS
(Top)
Cube size: 23.6”x17”x7.2” NW : 28.6 LBS
TABLE WITH 18'' BUTTERFLY LEAF
(
Pedestal)
- 1 -
GW :105.6 LBS
GW : 30.8 LBS
Page 2
BEFORE ASSEMBLY
NO Description
Qty Sketch
NO
Description
Qty Sketch
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take
the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please
separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present. If hardware is missing or
you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.

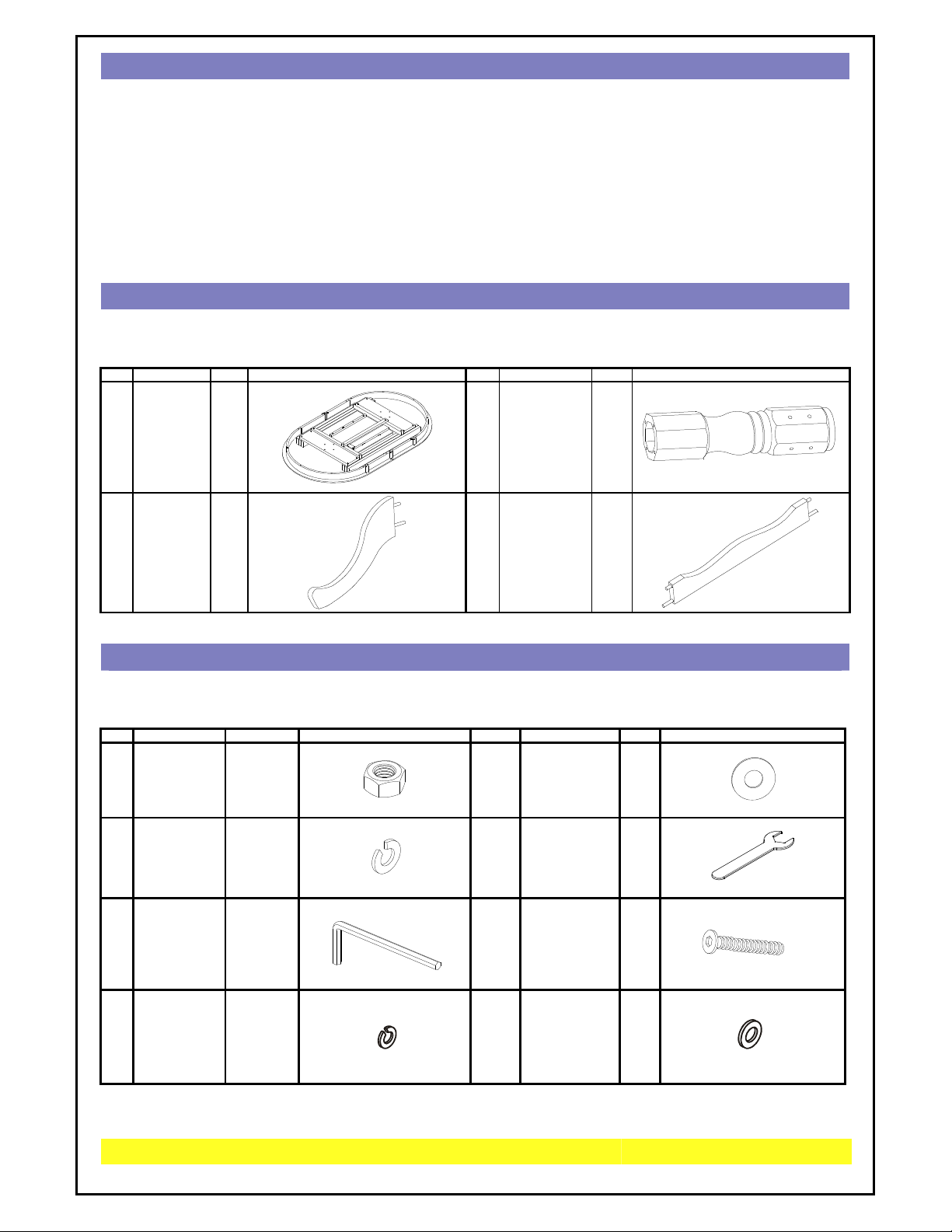

PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following
parts:
A Top 1
B Pedestal 2
C Leg 4
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the
following hardware:
Hexagon nut
1
(M8x13mm)
8
Lock washer
3
( Φ8.5x13
mm)
8
D Crossbar 1
2
4
Flat washer
( Φ8.5x19 mm)
Wrench
(13mm)
8
1
Allen key
5
7
(4mm)
Lock Washer
(Ф6.5x9)
TABLE WITH 18'' BUTTERFLY LEAF
1
6
Bolt
(6x45mm)
8
8
- 2 -
8
Flat Washer
(Ф6.5x19)
8
Page 3
STEP 1
TEP 2

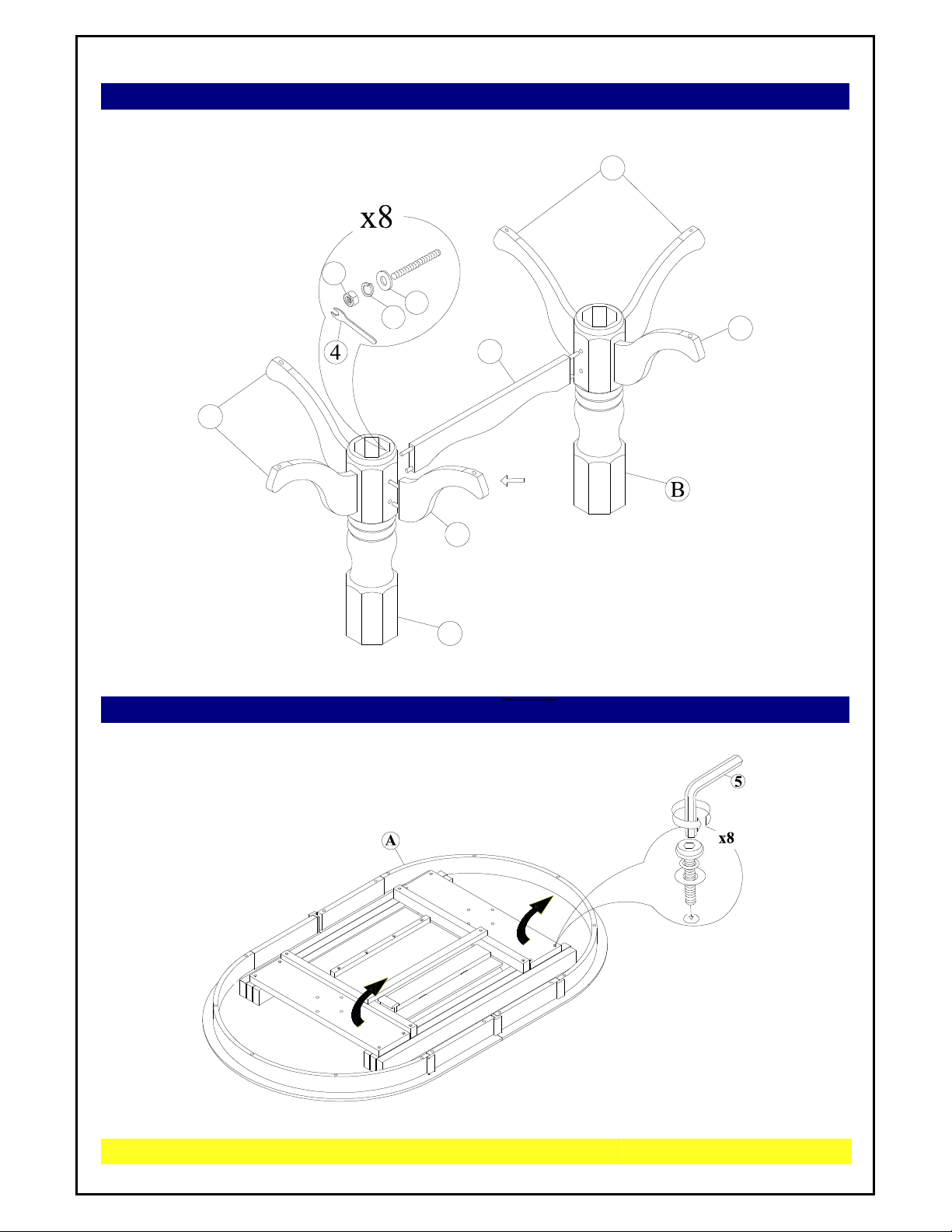

Attach crossbar (D) and legs (C) to pedestals (B) with nuts (1), washers (2) and (3) as shown below.
Tighten with wrench (4).
C
1
2
3
C
D
C
C
B
Use the Allen key (5) to loosen the bolts and washer and take of the mounting plate underneath of the table top (A).
TABLE WITH 18'' BUTTERFLY LEAF
- 3 -
Page 4
STEP 3
STEP 4

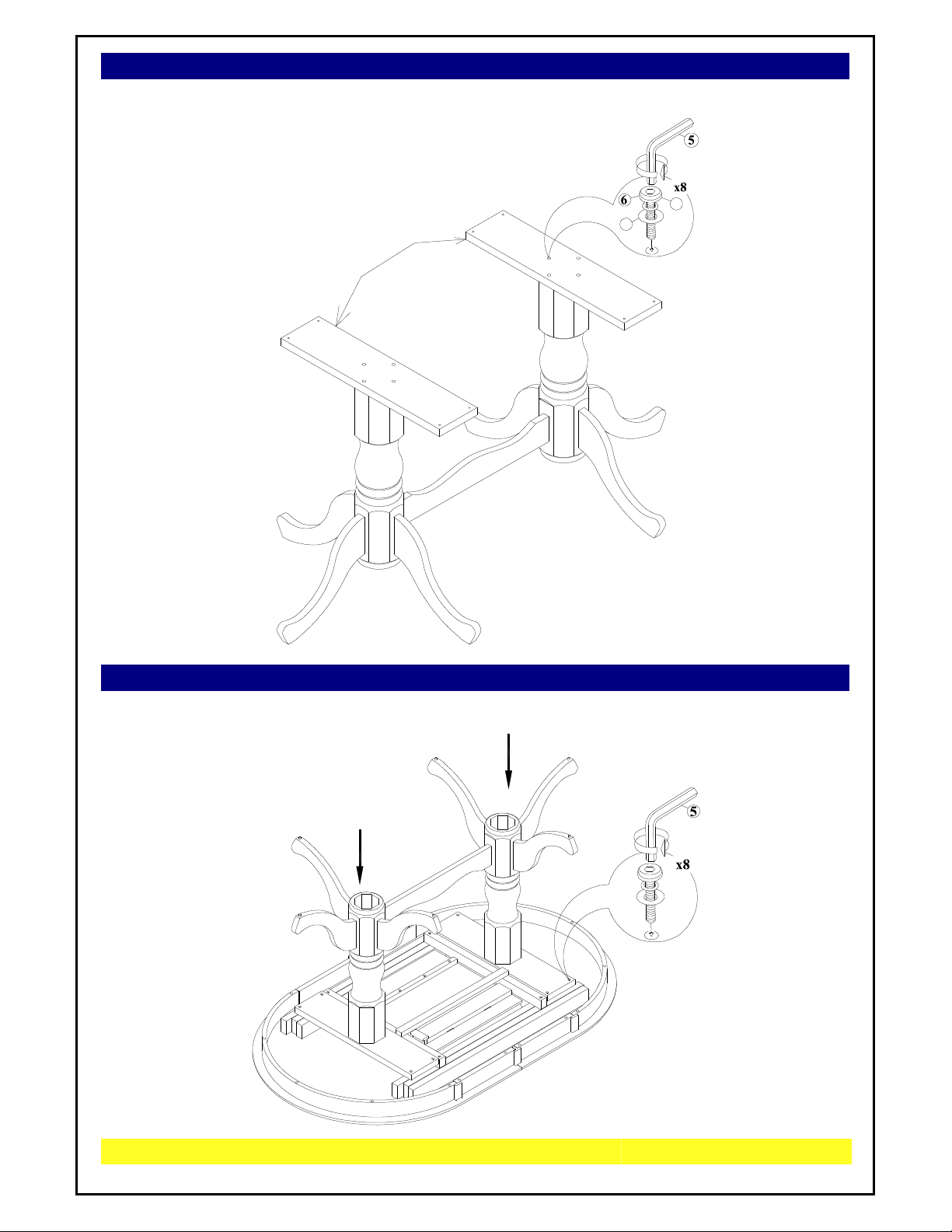

Put the plates on top of the pedestals (B) with Bolts (6), washers (7) and (8) as shown below. Tighten
with Allen key (5).
7
S
E
T
A
L
P
G
N
I
T
N
U
O
M
8
Carefully put the base (from Step 3) on the bottom side of top (A). Attach mounting plates to
top (A) with bolts and washers from Step 2. Tighten with Allen key (5).
TABLE WITH 18'' BUTTERFLY LEAF
- 4 -
Page 5
STEP 5

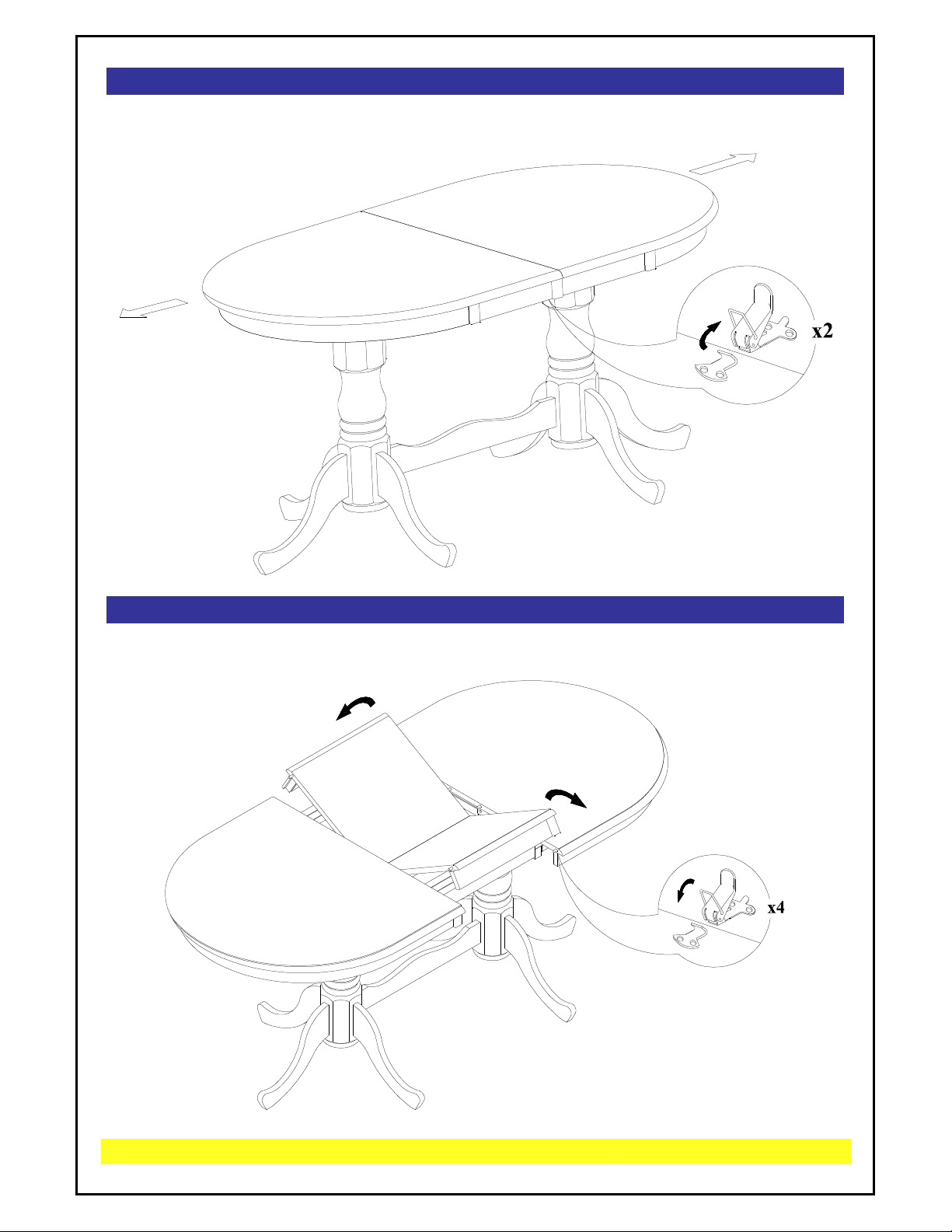

Unlock the table top from both sides underneath of the top. Pull the 2 parts of the table top apart.
STEP 6
Place the butterfly leaves in the center of the open table top. Push the table top closed lock the table
top mechanism underneath as shown below.
TABLE WITH 18'' BUTTERFLY LEAF
- 5 -
