Page 1

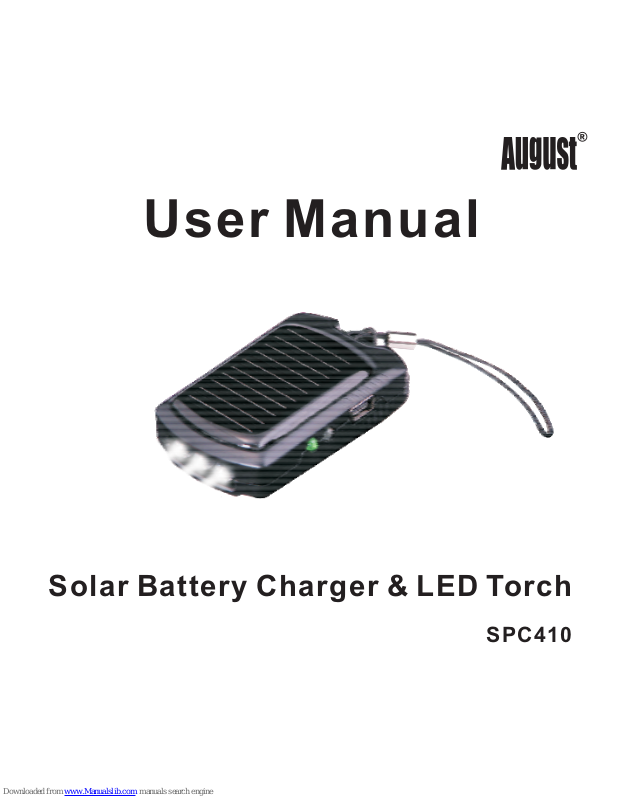

User Manual
SPC410
Solar Battery Charger & LED Torch
Page 2
-1-
1. Introduction
The SPC410 is a solar powered emergency charger. It
stores energy from the sun in its internal 400mAh
battery enabling you charge your portable gadgets
whilst you're out and about. It can be used anywhere to
recharge mobile phones, MP3 players and other
personal digital devices. Stylish, lightweight and
compact, it can easily be carried whilst traveling and is
ideal for outdoor use by people always on the go.
Emergency solar battery charger
For mobile phones & personal digital devices
Stylish and compact design
Charged by solar energy or USB port
Monocrystal silicon photovoltaic panel
Built-in LED torch for emergency light
Over-charge protection to extend the battery life
Battery capacity 400mAh / 3.7V
2. Main Features
3. Parts & Functions
User Manual
Page 3
-2-
USB DC in/out
LED torch
Torch on/off
switch
Silicon photovoltaic panel
Solar charging Indicator
Power charging Indicator
1) How to charge the battery
There are three ways to charge the battery.
a) Place the SPC410 in direct sunlight, and the sunlight
will be transformed and automatically recharge the
built-in lithium battery. Whilst charging, the green
solar indicator on the side of the device will light, this
LED increases and decreases in brightness according
to the amount of power being captured.
Page 4
-3-
Notice:
Whilst using solar energy to charge the device’s internal
battery, the solar panel should be placed upright in
direct sunshine to ensure the best results.
b) Connect the SPC410 to a computer's USB port, the
green charging light will turn on to indicate that the
device is charging, once the battery is fully charged,
this light will turn off.
c) The SPC410 can also be charged by mains power, or
through a car’s 12V lighter socket, using the
compatible August USB power adaptors (not
included). Whilst the device is being charged via an
adaptor the green charging light will shine until the
battery is fully charged.
Page 5
-4-
Notice:
Before using the device we suggest completing two
complete cycles of charge and discharge in order to
improve the efficiency of the battery.
2) How to charge your digital devices
Connect the charger to your device using the USB
cable and supplied adaptors. During charging, the
usual charging indicator will appear on your digital
device. You can use your digital device whilst it is still
charging.
Battery capacity 400mAh / 3.7V
Monocrystal silicon photovoltaic panel
Solar energy conversion efficiency above 15%
Solar panels: 5.5V 20mA
Output voltage: 5.5V +/- 0.2V
Output current: 400-800mA
Charging time by solar energy: 10-15 hours
(depends on light intensity)
Charging time by USB: aprox. 1 hours
4. Specifications
Page 6
-5-
5. Safety Instructions
1) Never apply direct pressure or scratch the solar
panel with sharp objects.
2) Disconnect the charger from the mains or PC power
supply once the battery has fully charged.
3) Use only the compatible August USB power adaptors
with this device. Failure to do so can cause personal
injury, damage the device, and will invalidate the
warranty.
4) Keep this product away from water and do not store
in a damp environment.
Page 7
August International Ltd
United Kingdom
Telephone: 44 (0) 845 250 0586
Email: service@augustint.com
Web: www.augustint.com
+
