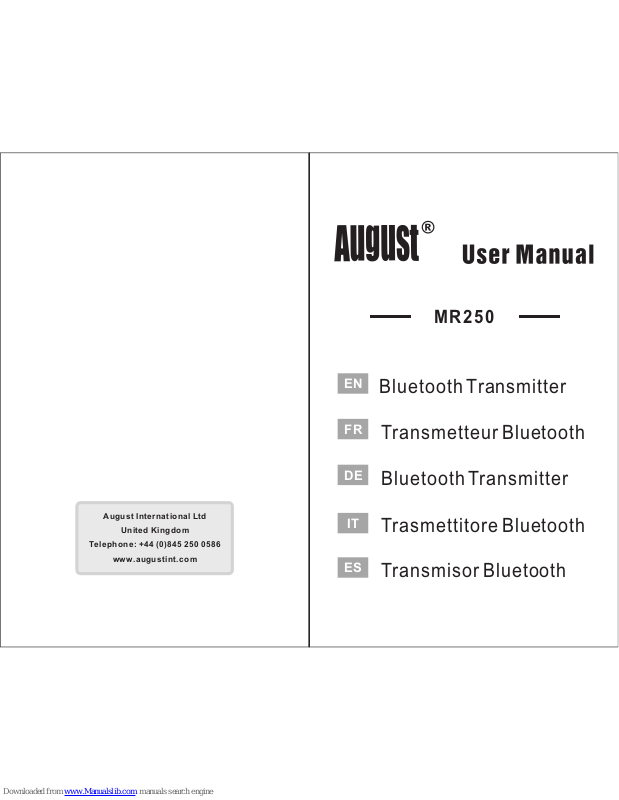

August MR250 User Manual

Download

Page 1

August International Ltd

United Kingdom

Telephone: +44 (0)845 250 0586

www.a ug us ti nt .c om

ett

eur B

luetoo

Trasm

eto

lue

oot

Trans

iso

uet

oth

th T

itter

25 0

Page 2

1. Important Safety Instructions

1) Do not use this device near water.

2) Clean only with a dry cloth. Switch this product off before cleaning.

3) Do not install near any heat sources such as stoves or other apparatus that produce heat.

4) Only use the accessories supplied by the manufacturer.

5) Do not open the device, as this will invalidate the warranty.

2. Main features

Standard 3.5mm audio–in socket Built-in rechargeable battery Distance: up to 10m (class II) Bluetooth version: 2.1+EDR Bluetooth profiles: A2DP, HSPP, HFP, OPP,

OBEX, DUN

Working time: up to 9 hours Charging time: about 2 hours

3. Accessories

1) USB charging cable

2) 3.5mm audio cable

3) User manual

-1 -

English

User Manual

Thank you for purchasing the August MR250 Bluetooth Transmitter. This user manual is designed to familiarize you with all the features of this device. Please take the time to read this user manual carefully, even if you are already familiar with a similar product.

Safety

To ensure the safety of you and others, please read the Safety Instructions before using this device. Please do not disassemble the MR250, it can be unsafe and will invalidate the manufacturer's warranty.

Disposal

Please ensure the product and accessories are disposed of in compliance with the WEEE (Waste Electrical and Electronic Equipment) Directive and any other regulations applicable to your country. Always check with the environment agency and any other relevant authorities for current disposal regulations.

Customer Service

You can contact us by phone on: +44 (0)845 250 0586 or by email at: [email protected] should you require further technical support or customer service.

Page 3

-2 -

-3 -

English

MR250

AUDIO I N DC 5V

NO OFF

MR2 50

4. Device Layout

1) Operation button

2) Blue status LED

3) Red status LED

4) Power LED

5) Power switch

6) Power socket

7) Audio in socket

5. Connection

6. Operation

Turn on/off the power switch on/off the device. Once switching on the device, the power LED lights blue.

6.1 Switch on/off

The device will be in standby mode after switching on the device. Press and hold the operation button until the blue status LED flashes to enter working mode.

6.2 Working / Standby mode

In working mode, the MR250 will automatically reconnect to the last paired device if it is available. Press and hold the operation button until the red status LED lights red for 1 second to enter standby mode.

1) In Standby mode, press and hold operation button until blue and red status flash in turn to enter pairing mode.

2) Turn on the Bluetooth on your Bluetooth audio device, and enter pairing mode.

3) MR250 will pair to your device automatically.

4) Once successfully paired, only blue status LED flashes.

Note:

1. MR250 will pair to any Bluetooth audio device in pairing mode within the range, please make sure only the desired device is in pairing mode.

2. To pair to a new device, please disconnect the current Bluetooth connection on your device first, then repeat step 1 to 2 in section 6.3.

6.3. Bluetooth connection

7. Charging

Connect the MR250 to a power USB port by using the provided USB charging cable. While charging, the power LED will lights red and go off once the battery is fully charged.

Page 4

8. Specifications

Bluetooth version 2.1+EDR

Bluetooth profile

Operating range

Power input

Internal battery

Working current

Standby current

Working time

Charging time

A2DP, HSPP, HFP, OPP, OBEX, DUN

Up to 10m

DC 5V

3.7V/ 250mA Li-polymer battery

0.2mA

Up to 9 hours

About 2 hours

-4 -

-5 -

English

Please make sure your Bluetooth audio device is within 10 meters from the MR250. Please make sure there is only your Bluetooth audio device in pairing mode within 10 meters from the MR250.

Please check if the Bluetooth audio device is connecting to MR250 via Bluetooth. Please check the cable connection between your source device and MR250. Please check the volume on both source device and your Bluetooth audio device.

There is no sound from my Bluetooth audio device

3.7V/30mA

Dimension

Weight

70x45x10mm

33g

9. Troubleshooting

Please turn on the power switch. Please charge the battery.

The device cannot be turned on

Press and hold the operation button in standby mode to enter pairing mode. The blue and red status LEDs should flash alternatively. See 6.3. Please make sure your Bluetooth audio device is also in pairing mode.

The MR250 cannot pair with my Bluetooth audio device

Page 5

10. Warranty

This product is guaranteed for twelve months from the date of the original purchase. In the unlikely event of any defect arising due to faulty materials or workmanship, the unit will be either replaced or repaired free of charge (where possible) during this period. An alternative product will be offered in case the product is no longer available or repairable.

This warranty is subject to the following conditions:

The warranty is only valid within the country

where the product is purchased.

The product must be correctly installed and operated in accordance to the instructions given in this user manual.

The product must be used solely for domestic purposes.

The warranty only covers the main unit, and does not cover the accessories.

The warranty does not cover the damage caused by misuse, negligence, accident and natural disaster.

The warranty will be rendered invalid if the product is resold or has been damaged by inexpert repairs. The manufactures disclaim any liability for incidental or consequential damages.

Please consult our customer adviser before returning any product; we are not responsible for any unexpected product returns.

Any fa ulty product must be kept and returned in the original packaging with all the accessories and the original copy of the purchase receipt.

The warranty is in addition to, and does not diminish, your statutory or legal rights.

Customer Service:

Telephone: +44 (0) 845 250 0586 Email: [email protected]

-6 -

-7 -

English

Page 6

Please keep this card together with the serial number below in a safe place. You will need to refer to this card to validate the warranty.

Veillez à garder cette carte ainsi que le numéro de série ci-dessous dans un endroit sûr. Il vous faudra cette carte afin de faire valoir la garantie du produit.

Bitte bewahren Sie diese Karte zusammen mit der Seriennummer an einem sicheren Ort auf. Sie benötigen diese zum Nachweis der Garantie.

Si prega di tenere questo certificato in un luogo sicuro. Sarà necessario farne riferimento per convalidare la garanzia.

Por favor, conserve esta tarjeta junto al número de serie de debajo en un lugar seguro. Esta tarjeta es necesaria para validar la garantía del producto.

Warranty Card / Carte de Garantie / Garantiekarte / Certificato di Garanzia / Garantía
