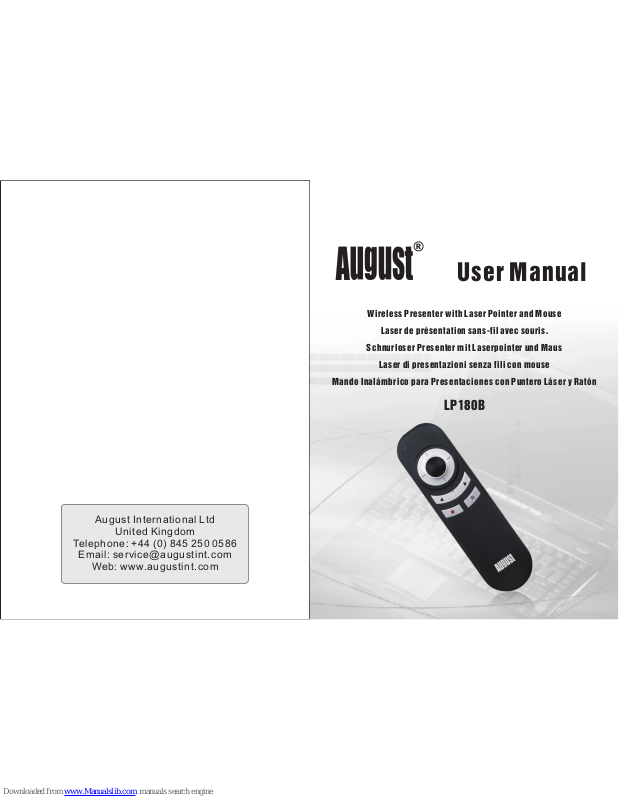

August LP180B User Manual

User Manual

Wireless Presen ter with Las er Pointer and Mouse

Laser de présenta tion sans- fil avec s ouris.

Schnurloser Pre senter mit L aserpointer und Maus

Laser di presenta zioni senz a fili con mouse

Mando Inalámbri co para Pres entaciones con Puntero Láser y Ratón

August International Ltd

United Kingdom

Telephone: [phone]

Email: [e-mail]

Web: www.augustint.com

LP180B

English

1. Introduction

This wireless presenter is designed to control your computer during
presentations. It gives you the freedom to speak without having to
stand by your computer or relying on an assistant. Simple to use, just
plug and play, no driver required.

The device enables you to control your computer wirelessly from up
to 15 meters (48 feet) away, using a Radio Frequency (RF) transmitter
that doesn’t require line of sight to your PC. With its in-built laser pointer,
the L 180B is the ideal tool for presentations, teaching, meetings,
speeches, training etc.

P

Wirel ess trackball mou se
Red las er pointer
RF sign al receiver
Page up /down buttons
Plug an d Play
Remot e control range: up t o 15m

2. Main Features

- 1 -

3. Parts & Functions

3.1 Front

3.2 Back

4. Battery Installation

The uni t is powered by 2 x AAA batte ries

- 2 -

Battery Co mpartment

USB Receiv er

Remov e the battery compa rtment cover
Insert 2 x AAA batteries into th e battery holder
Repla ce the battery comp artment cover

LED

Trackball

Left Mouse B utton

Page Up Page Down

Laser Right Mou se Button

User Manual

English

Note:

If the presenter does not function correctly or if the operating range

becomes reduced, please try replacing the batteries.

1) Always follow polarity instructions when inserting batteries.

2) Remove spent batteries from presenter immediately.

3) This device will automatically power off after 15 minutes inactivity.
Press any button to reactivate it.

4) Remove batteries when not in use for an extended period of time to
avoid possible damage from battery corrosion.

5)

5. Specifications

- 3 -

- 4 -

Wei ght

Windows 98 / ME / 2000 / 2003 /
XP / Vista / 7 / 8, Linux and Mac OS

4.5 - 5.5V

36.4x1 4.6 x7. 6mmDimens ion

Wor k vol tag e

Operat ing s yst ems

USB vers ion

USB 1.1 compat ible wit h USB 2.0

120x33 0x2 57m m

Laser ra nge

Up to 15mOperat ing r ang e

Freque ncy

Power su ppl y

Up to 200m

2 x AAA ba tte rie s

3V

650nm

Presenter

Operat ing v olt age

Laser wa vel eng th

Laser po wer

Warning:

Laser r adiation
Class laser p roduct
Do not vi ew directly with op tical instruments
Do not po int at people and ani mals
Pleas e keep out of reach of ch ildren

2

Note:

Pl ease note, thes e i ns tructions ar e o nl y i ntended for
reference. August International Ltd reserves rights to revise
the pro duct specificat ions, features an d design without notice.

Dimens ion s

Wei ght

<1mW

40g

2g

2.4GHz

Tech nol ogy
