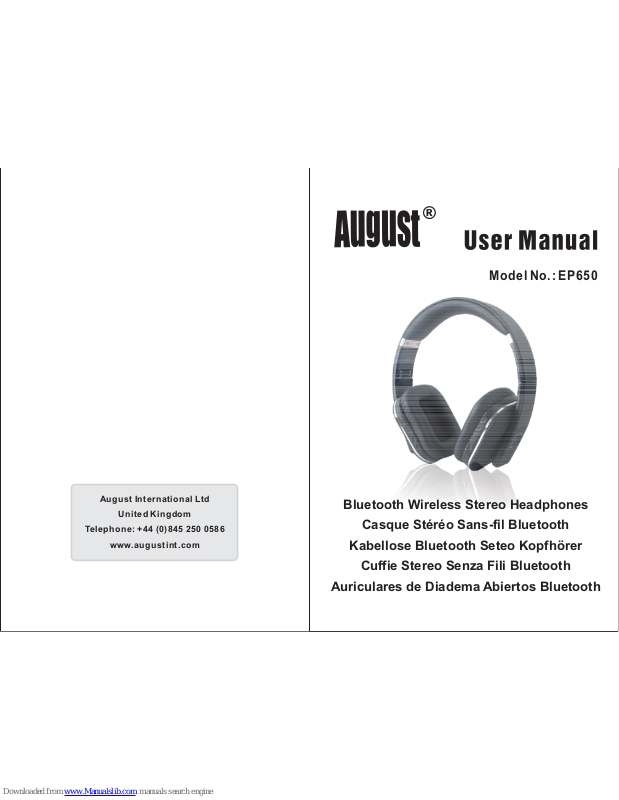

August EP650 User Manual

August International Ltd

United Kingdom

Telephone: [phone]

www.augustint.com

Model No.: EP650

Bluetooth Wireless Stereo Headphones

Casque Stéréo Sans-fil Bluetooth

Kabellose Bluetooth Seteo Kopfhörer

Cuffie Stereo Senza Fili Bluetooth

Auriculares de Diadema Abiertos Bluetooth

User Manual

Storage and Use

Do not expose
this device to
dust, oil or
smoke.

When transporting
this device store
securely to avoid
impact damage.

Do not scratch
this device with
sharp objects.

Do not store or
use this device
in extreme
temperatures.

Do not store or
use this device
in wet or damp
environments.

Do not drop
or strike this
device.

Maintenance

Please unplug all leads before cleaning this device.

Wipe th e
device and
buttons with
a soft cloth.

Never wipe this
device with an
abrasive cloth
or apply
detergent,
alcohol or
chemical based
cleaning
products.

Alcohol

1. Safety Instructions

-2-

-1-

English Français Deutsch

Español

Thank you for purchasing the August EP650 Bluetooth
Wireless Stereo Headphones. This user manual is designed to
familiarize you with all the features of this device. Please
take t he time to read this user manual carefull y, ev en if you
are already familiar with a similar product.

Safety

Disposal

Customer Service

To ensure the safety of you and others, please read the Safety
Instructions before using this device. Please do not
disassemble the EP650, it can be unsafe and will invalidate
the manufacturer's warranty.

Please ensure the product and accessories are disposed of in
compliance with the WEEE (Waste Electrical and Electronic
Equipment) Directive and any other regulations applicable to
your country. Always check with the environment agency and
any other relevant authorities for current disposal
regulations.

You can contact us by phone on: [phone] or by
email at: [e-mail] should you require further
technical support or customer service.

5. Operations

5.1 Switch On / Off

To switch on the device, press and hold the button for 2
seconds until there is a warning beep. The status LED flashes red
after switching on.

To switch off the device, press and hold the button for 3
seconds to switch off the device until there is a warning beep. The
status LED will fade up then fade down.

4. Part Names and Functions

-4-

-3-

3. Accessories

1 2 3

USB charging cable 3.5mm audio cable User manual

2. Main Features

Wireless Headphones for Bluetooth Devices
Micro USB and Standard 3.5mm Audio-In Sockets
Hands-Free Calls with Integrated Microphone
Built-in Rechargeable Battery
Adjustable Headband
Distance: up to 10m (Class II)
Bluetooth Version: Bluetooth V4.0

1. Volume Down

2. Power / Play / Pause / Answer

3. Previous Track

4. Volume Up

5. Status LED

6. Next Track

7. Power Socket

8. Microphone

9. Audio-In Socket

Turn the device on then press and hold the “-“ and “+” buttons for
3 seconds to enter pairing mode. In pairing mode, the LED flashes
red and blue.

1. Scan for available Bluetooth devices on your mobile phone (see
your mobile phone user manual for instructions if needed)

2. Select “EP650” from the available devices and confirm connection.

- For mobile phones

5.2 Bluetooth Connections

1

3

2

4
5
6

7

8

9

English

3. The status LED flashes blue to indicate a successful connection.

Accessing Bluetooth settings on mobile phones varies for
each phone, to find the information for your phone, please refer to
its user manual.

Note:

5.4 Hands-free Calling

Whilst connected to your mobile phone, the EP650 will act as a
hands-free system for calls.

Press to pick up or hang up a call. Press and hold for 2
seconds to reject the incoming call..

During a call, double press to transfer the call between the
headphones and your mobile phone.

- For computers

Note:

1. Enable the Bluetooth function on your computer.

2. Select “Devices and Printers” from the Control Panel and click

“Add a Device”.

3. Select “EP650” from the available devices, the system will install

the driver automatically.

For Windows XP and Vista, a third-party Bluetooth driver is
needed (not included).

4.The status LED flashes blue to indicate a successful connection.

5.If the EP650 is not automatically set as your output device, select
“Sound” from the control panel then highlight the EP650 and select
“Set Default”.

When switched on, the EP650 will automatically reconnect to
the last paired Bluetooth device if it is in range.

Note:

5.3 Remote Control

The EP650 is able to control the music playing on either a
mobile phone or a computer with a Bluetooth connection.

Press “ ” to pause or resume playing music.
Press “ ” or “ ” to increase or decrease the volume.
Press “ ” or “ ” to select the previous or next track.

Note: Music playing control is only compatible with devices
that support A2DP, please refer to your devices user manual
for its A2DP compatibility.

5.5 Audio-In

5.6 Wired Use USB Cable

To use the EP650 as a pair of wired headphones, use a 3.5mm audio
cable to connect the EP650 to your source device. Once the audio
cable is connected to the EP650, the device automatically switches
to wired mode.

When the EP650 connects to a computer via USB cable, it will be
recognized as a USB audio device. The system will install the driver
automatically. You can select “Sound” from the control panel then
highlight “Headphone” and select “Set Default” to make EP650 as
the default audio output and input device. In USB headphone mode,
EP650 is being charged all the time.

6. Charging

When the power is low, the status LED flashes red.
To charge the EP650, connect the micro USB lead to the device’s
power socket, and the other end of the USB cable to a powered
USB port.

-6-

-5-

English

English

8. Troubleshooting

Update the driver of the Bluetooth
module on your computer.

Problem

Won't turn on.

Can’t find the
EP650.

Can’t install the
driver for EP650
on a computer.

Solution

Please charge the EP650.

Confirm the EP650 is in pairing
status and within 10 meters from
the device.

235g

7. Specification

176.6 x 188.6 x 71mm

Bluetooth V4.0

Up to 10m

60Hz – 20KHz

30mW

≥85dB

≤1.0%

3.7V/220mAh Built-in
Li-Polyme Battery

10 hours

2 Hours

30 Days

Bluetooth Specification

Operating Range

Frequency Response

Speaker Output

SNR

Distortion

Battery

Working Time

Charging Time

Standby Time

Weight

Dimensions

The sound quality
is intermittent in
Bluetooth mode.

Disable the Wi-Fi on your
source device.

No sound.

Check the volume on both
the source device and the EP650.

The status LED constantly lights red whilst charging and lights blue
once the battery is fully charged.

1) You must select a qualified charger from a regular manufacturer.

2) Make sure that the headphone is fully charged for at least 6 hours
for the first time.

3) The headphone must be charged before use if it hasn’t been used
for more than 1 year.

Note:

9.Warranty

This product is guaranteed for twelve months from the date of the
original purchase. In the unlikely event of any defect arising due to
faulty materials or workmanship, the unit will be either replaced or
repaired free of charge (where possible) during this period. An
alternative product will be offered in case the product is no longer
available or repairable.

This warranty is subject to the following conditions:

-8-

-7-

The product must be correctly installed and operated in accordance
to the instructions given in this user manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover the
accessories.
The warranty does not cover the damage caused by misuse,
negligence, accident and natural disaster.
The warranty will be rendered invalid if the product is resold or
has been damaged by inexpert repairs. The manufactures disclaim
any liability for incidental or consequential damages.
Please consult our customer adviser before returning any product;
we are not responsible for any unexpected product returns.

Any faulty product must be kept and returned in the original

packaging with all the accessories and the original copy of the
purchase receipt.

The warranty is only valid within the country where the product

is purchased.

The warranty is in addition to, and does not diminish, your statutory
or legal rights.

Telephone: [phone]
Email: [e-mail]

Customer Service:

-9-
