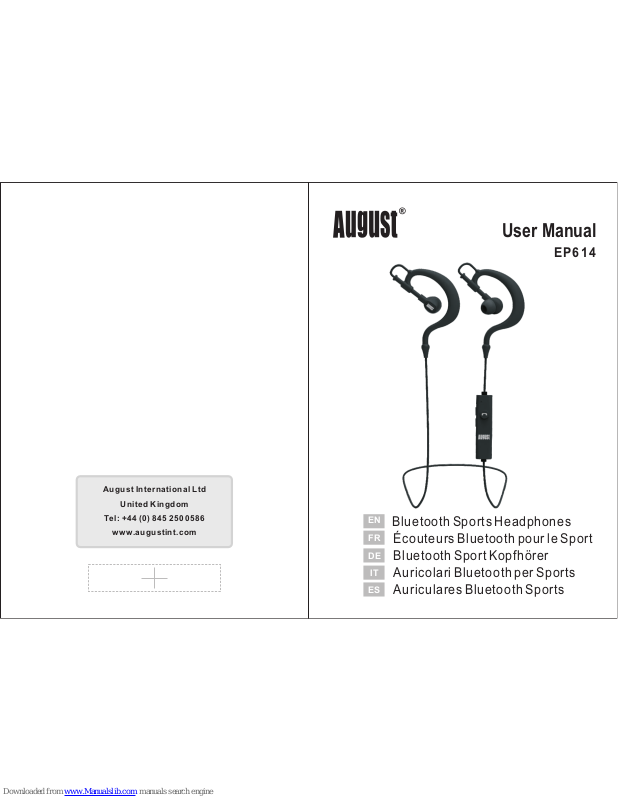

August EP614 User Manual

August International Ltd

United Kingdom

Tel: [phone]

www.a ug us ti nt .c om

EP

6

1

4

Blu

eto

o

th S

po

rts H

ea

d

ph

o

ne

s

EN

Éc

o

u

t

e

ur

s Bl

u

eto

o

t

h

p

ou

r

le S

port

FR

B

l

ue

t

oot

h

Sp

or

t

Kop

fhö

rer

DE

A

u

r

i

col

a

ri

B

lue

t

oo

t

h

pe

r

S

p

ort

s

IT

A

u

r

i

cul

a

res Bl

u

eto

oth

Spo

rts

ES

User Manual

User Manual

Thank you for purchasing the August EP614 Bluetooth Sports
Headphones. This user manual is designed to familiarize you
with all the features of this device. Please take the time to read
this user manual carefully, even if you are already familiar with a
similar product.

Safety

To ensure the safety of you and others, please read the Safety
Instructions before using this device. Please do not
disassemble this product, it can be unsafe and will invalidate the
manufacturer's warranty.

Dispos al

Please ensure the product and accessories are disposed of in
compliance with the WEEE (Waste Electrical and Electronic
Equipment) Directive and any other regulations applicable to
your country. Always check with the environment agency and
any other relevant authorities for current disposal regulations.

Custom er S er vice

You can contact us by phone on: [phone] or by
email at: [e-mail] should you require further
technical support or customer service.

Quick Start Guide

Please fully charge the EP614 before first use. To charge, use
the Power Cable to connect the EP614 to a powered USB port.
Whilst charging, the LED lights red and turns blue once fully
charged.

Blueto ot h Se tup

1. Ensure EP614 is powered off.

2. Press and hold the Control Button until the
LED flashes alternately red and blue.

3. Pair your source device to EP614
Note: If you are unfamiliar with the Bluetooth feature of your

source device, please refer to its user manual for detailed
instructions. If your source device does not have Bluetooth and
you would like to connect to it wirelessly, we recommend the
August MR250 Bluetooth transmitter.

For PC connections, Windows XP and Windows Vista require
third party software to connect to Bluetooth speakers. If you are
using a later version of Windows and the EP614 is not outputting
audio, please check that the drivers for your PCs Bluetooth
module are up to date and that the Audio Output source is set to
EP614.

Ear Piec e Se tu p

The ear buds slide on to the driver. Choose the most
comfortable combination for your ears. Please be aware that
sound quality can be greatly affected by ill fitting earbuds, and
an airtight fit is essential for bass reproduction.

English

Stor age and Use

1. Safety Instructions

Main tenance

Please unplug all leads before cleaning this device.

-1-

Do not expose
this device to
dust, oil or
smoke.

When
transporting
this device
store securely
to avoid
impact damage.

Do not store or
use this device
in extreme
temperatures.

Do not scratch
this device with
sharp objects.

Do not store or
use this device
in wet or damp
environments.

Do not drop
or strike this
device.

Wipe the
device and
buttons with
a soft cloth.

Never wipe this
device with an
abrasive cloth
or apply
detergent,
alcohol or
chemical based
cleaning
products.

Alcoh ol

2. Main Features

Wireless Headset for Bluetooth Devices
Integrated Microphone for Hands-free Calls
Built-in Rechargeable Battery
Micro USB Charging Port
Range: up to 10m(Class II)

-2-

3. Accessories

E

P61

4

Bl

uetoo

th heads

et

EN

Ecoute

urs

B

luetoot

h

FR

B
l

u
et

o
o

th Kopfh

örer

DE

A

u
ri

col

ari

B

l
uet

o
o
th

IT

A

uri

c
u

la

r
es

B
l

ue

t
o

ot
h

ES

User Manual

4. Device Layout

1

2
3

5

6

1. Status LED

2. Control Button

3. Charging Socket

4. Microphone

5.

6.

4

Ear Bud s

Power C able

User Ma nual

English

5. Operation

5.1 Powe r

Please fully charge the EP614 before first use or if left unused
for a long period of time. To charge, use the power cable to
connect the headphones to a powered USB port. Whilst
charging, the LED lights red and turns blue once fully charged.

Note: Only use USB charging plugs certified to the relevant
local safety standards to charge these headphones.

5.2 Swit ch O n / Of f

To switch the EP614 headphones on, press and hold the
Control Button until the status LED flashes blue and the power
on tone sounds.

To switch the EP614 headphones off, press and hold the
Control Button until the status LED lights red and the power off
tone sounds.

5.3 Blue to ot h Setup

The EP614 connects to Bluetooth enabled source devices to
playback audio. It will automatically connect to the last
connected device when switched on, to pair to a new device:

1. Ensure EP614 is powered off.

2. Press and hold the Control Button until the LED flashes
alternately red and blue.

3. Pair your source device to EP614.

To pair to a second source device.

4. Press and hold the Control Button until the LED flashes
alternately red and blue.

5. Pair your second source device to EP614.

6. Switch the EP614 off and on.
Note: If you are unfamiliar with the Bluetooth feature of your

source device, please refer to its user manual for detailed
instructions. If your source device does not have Bluetooth and
you would like to connect to it wirelessly, we recommend the
August MR250 Bluetooth transmitter.

-3-

-4-

For PC connections, Windows XP and Windows Vista require
third party software to connect to Bluetooth speakers. If you
are using a later version of Windows and the EP614 is not
outputting audio, please check that the drivers for your PCs
Bluetooth module are up to date and that the Audio Output
source is set to EP614.

Ear Piec e Se tu p

The ear buds slide on to the driver. Choose the most
comfortable combination for your ears. Please be aware that
sound quality can be greatly affected by ill fitting earbuds, and
an airtight fit is essential for bass reproduction.

5.4 Remo te C on trol

Short press the Control Button to play and pause music.
Short press the + or - button to select the next or previous

track.
Long press the + or - button to adjust the volume.
Note: The remote control is only compatible with devices that

support A2DP, please refer to your devices user manual for its
A2DP compatibility.

5.5 Hand s- fr ee Calling

Whilst connected to your mobile phone, the EP614 will act as a
hands-free system for calls.

Press the Control Button to pick up or hang up a phone call.
Press and hold the Control Button to reject an incoming call.
Double tap the Control Button to redial the last called number.

English

No sound

Check the volume on both the source
device and the EP614.
If the headset is connected to a computer,
please check that the headset is set as the
current audio out device

The mobile phone
asks for a PIN code

The PIN code for the EP614 is 0000

The sound quality
is intermittent in
Bluetooth mode.

Please ensure the headset is within 10 meters
of your source device.
Disable the Wi-Fi on your source device.

7. Troubleshooting

Problem Solution

Unable to
switch on

Unable to pair
source device

Can't install the
driver for EP614
on a computer

Fully charge the EP614.
Press and hold the Control Button for two
seconds.

For Windows 7 and 8, update the Bluetooth
driver from the Bluetooth module
manufacturers website. For further information
on you PCs Bluetooth module, please consult
your PC supplier.
Bluetooth headsets are not supported by
Windows XP and Vista, a third party Bluetooth
driver can be used to solve this issue.

Confirm that the EP614 is in pairing mode.
Confirm that the EP614 is within 10m of the
source device.
Delete existing connection to EP614 from
source device and repair.

-5-

-6-

6. Specifications

Bluetooth Specification

v4.0 + EDR

Operating Range

Frequency Response

Speaker Output

Working Time

SNR

Distortion

20Hz-20KHz

≤3% at 1KHz

Battery

Charging Time

Weight 17g

3.7V/60mAh Built-in Li-Polymer Battery

1.5 hours

94dB

3.5 hours

2 x 9.5mW

Up to 10m

Dimensions 75x65x13mm

English

-7-

-8-

This product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. The declaration of
conformity may be consulted at August International Ltd, Unit 5 Swains
Mill, Crane Mead, Ware SG12 9PY, England.

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept
interference, including interference that may cause undesired operation
of the device.

Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or

television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.

No Unauthorized Modifications: Do not make any changes or
modifications to this product without the prior express written approval of
August International Ltd. Any changes or modifications made without
express written approval could void the user’s authority to operate this
product.

For details of further relevant technical standards, please contact us at
the address above.

8. Warranty

This product is guaranteed for twelve months from the date of
the original purchase. In the unlikely event of any defect arising
due to faulty materials or workmanship, the unit will be either
replaced or repaired free of charge (where possible) during this
period. An alternative product will be offered in case the
product is no longer available or repairable.

This warranty is subject to the following conditions:

The warranty is only valid within the country where the
product is purchased.
The product must be correctly installed and operated in
accordance to the instructions given in this user manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover
the accessories.
The warranty does not cover the damage caused by misuse,
negligence, accident and natural disaster.
The warranty will be rendered invalid if the product is resold
or has been damaged by inexpert repairs. The manufactures
disclaim any liability for incidental or consequential
damages.
Please consult our customer adviser before returning any
product; we are not responsible for any unexpected product
returns.

Any faulty product must be kept and returned in the original
packaging with all the accessories and the original copy of
the purchase receipt.

The warranty is in addition to, and does not diminish, your
statutory or legal rights.

Custom er S er vice:

Telephone: [phone]
Email: [e-mail]

English
